A GORYU
9961532 | 3E2296 | HDW by ************************************** Last update: Fri Nov 01 2024
General Info
Ship Name:A GORYU
IMO Code:9961532
Call Sign:3E2296
Line Operator:HDW
Class Name for Sister Ships:์N/A
Year Built:2023
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):133.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:033
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:2,204
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

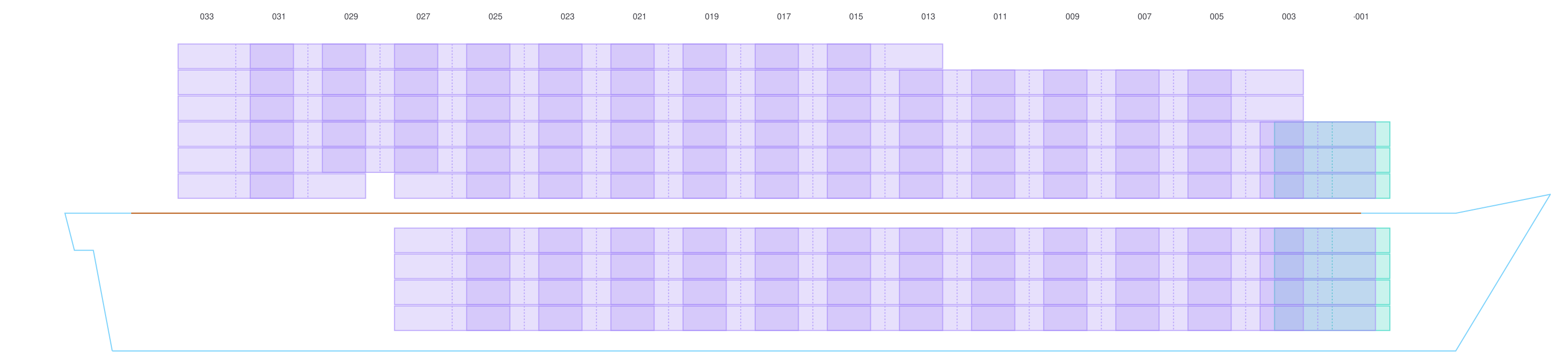

Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

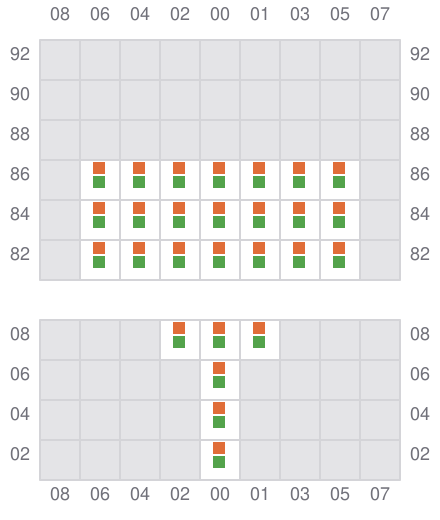

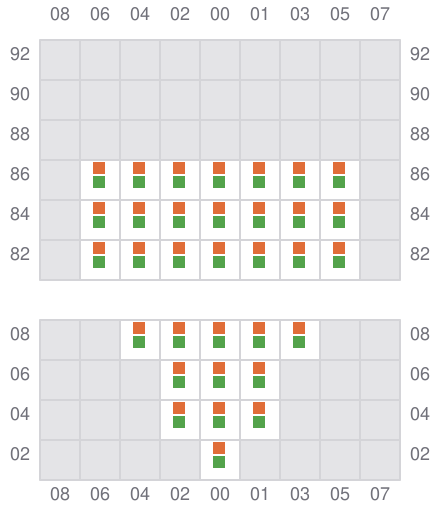

001 (002)
- →
- ✓
003

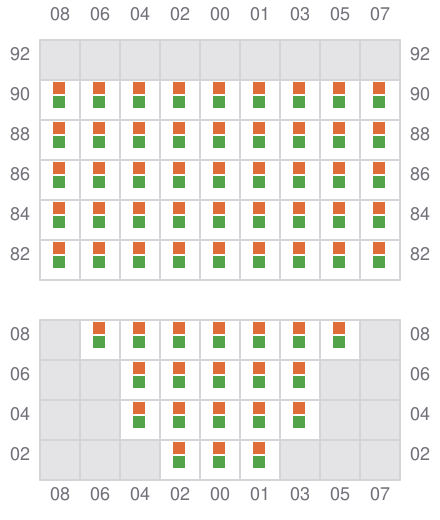

005
007
009

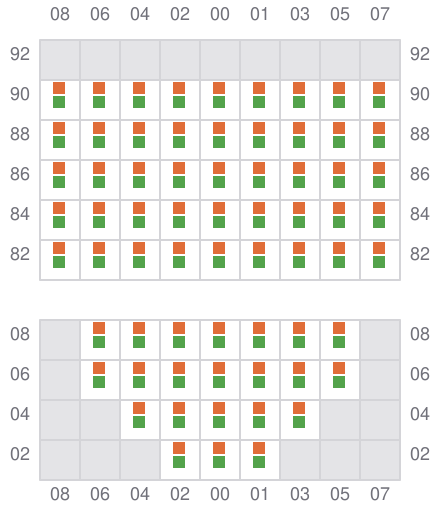

011

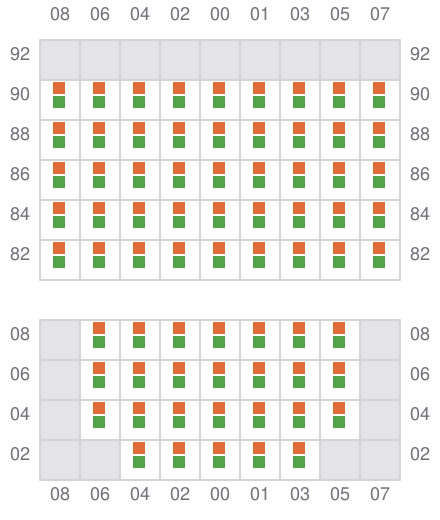

013
015
017
019
021

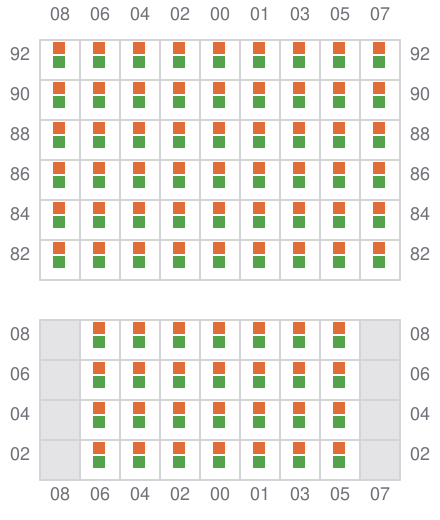

023
025
027
029

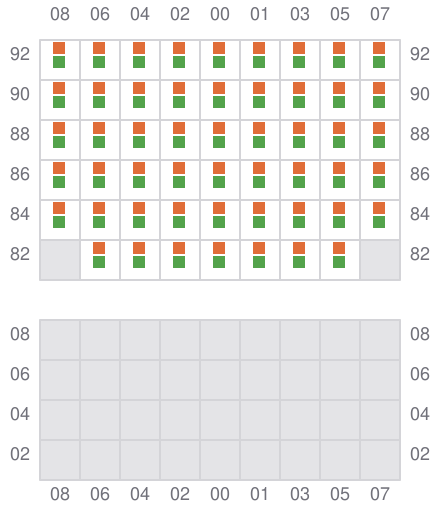

031
033
