A HOUOU
9229609 | 3FOV9 | 9229609 by ********* Last update: Fri Mar 15 2024
General Info
Ship Name:A HOUOU
IMO Code:9229609
Call Sign:3FOV9
Line Operator:9229609
Class Name for Sister Ships:8W0
Year Built:2001
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:031
Max ISO Row:10
Center Line Row:No
Max Above ISO Tier:90
Min Above ISO Tier:82
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:1,058
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

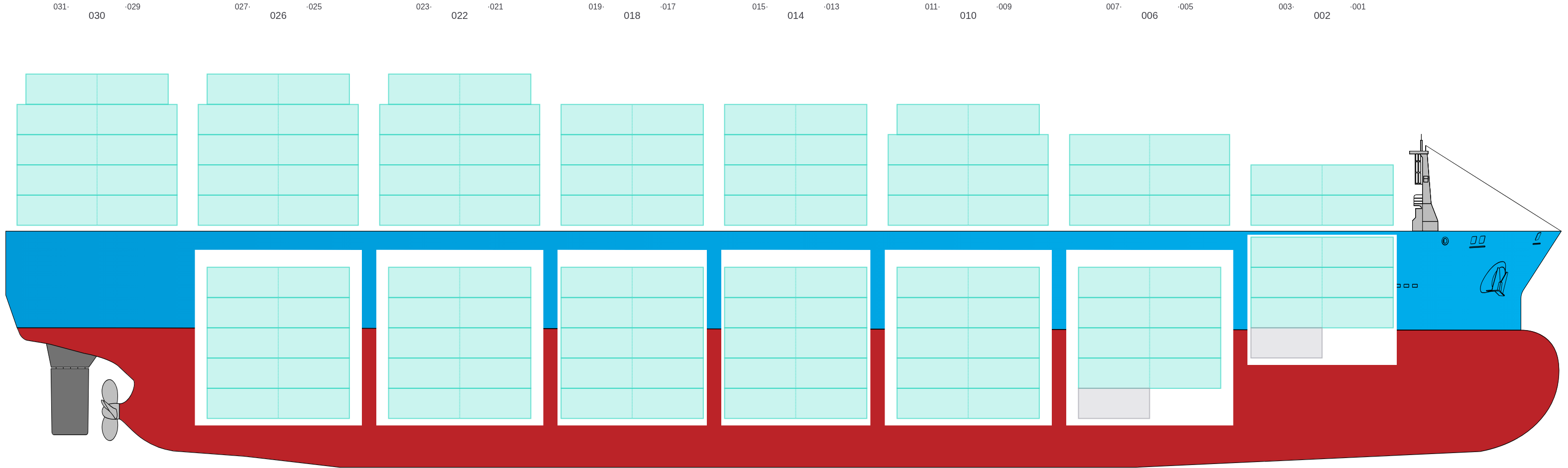

Side View
![Side view of A HOUOU](/vessel-images/5033ca2c-e49a-4867-bb42-40c2bc523fb6-sideView.png?v=1710525443693)
Hatch-Covers View
![Deck view of A HOUOU](/vessel-images/5033ca2c-e49a-4867-bb42-40c2bc523fb6-deckView.png?v=1710525443693)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

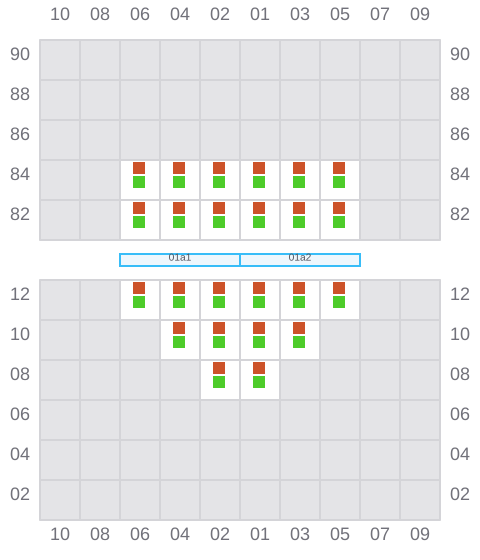

001 (002)
- →
![Bay 001 view and slots of A HOUOU](/vessel-images/5033ca2c-e49a-4867-bb42-40c2bc523fb6-b001.png?v=1710525443693)

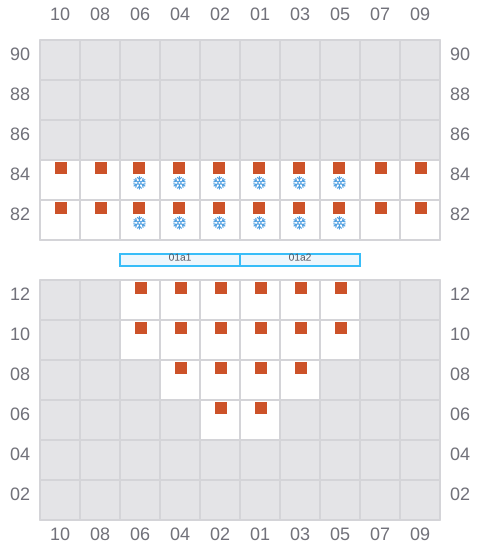

003
- ←
- → / ?
![Bay 003 view and slots of A HOUOU](/vessel-images/5033ca2c-e49a-4867-bb42-40c2bc523fb6-b003.png?v=1710525443693)

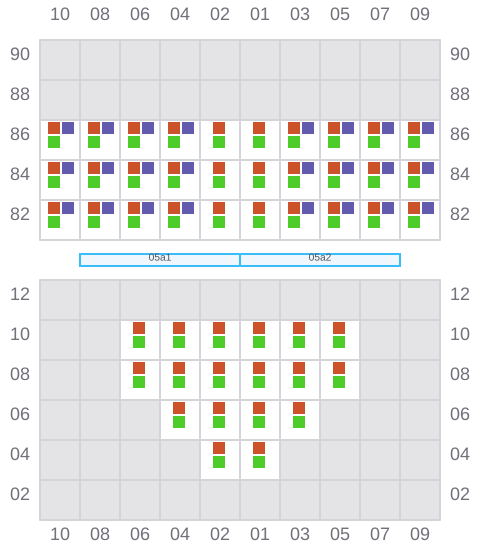

005 (006)
- →
![Bay 005 view and slots of A HOUOU](/vessel-images/5033ca2c-e49a-4867-bb42-40c2bc523fb6-b005.png?v=1710525443693)

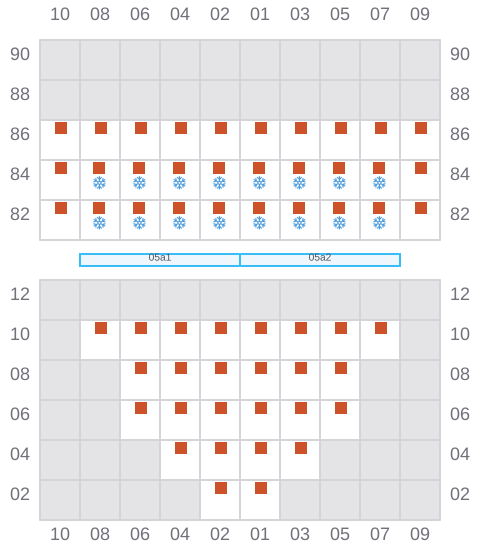

007
- ←
- → / ?
![Bay 007 view and slots of A HOUOU](/vessel-images/5033ca2c-e49a-4867-bb42-40c2bc523fb6-b007.png?v=1710525443693)

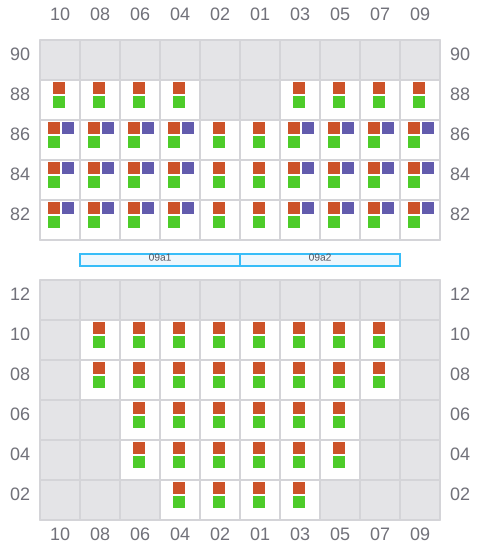

009 (010)
- →
![Bay 009 view and slots of A HOUOU](/vessel-images/5033ca2c-e49a-4867-bb42-40c2bc523fb6-b009.png?v=1710525443693)

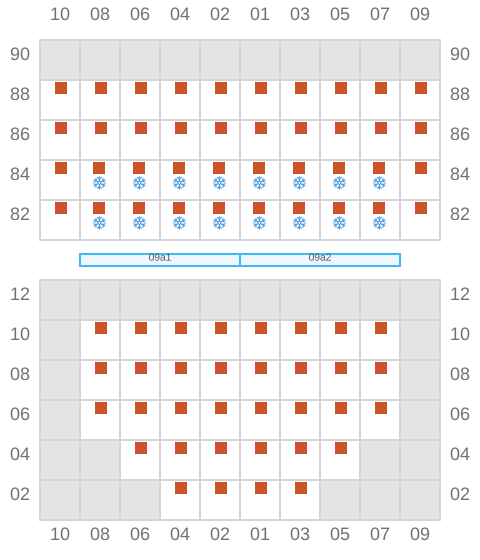

011
- ←
- → / ?
![Bay 011 view and slots of A HOUOU](/vessel-images/5033ca2c-e49a-4867-bb42-40c2bc523fb6-b011.png?v=1710525443693)
013 (014)
- →
![Bay 013 view and slots of A HOUOU](/vessel-images/5033ca2c-e49a-4867-bb42-40c2bc523fb6-b013.png?v=1710525443693)

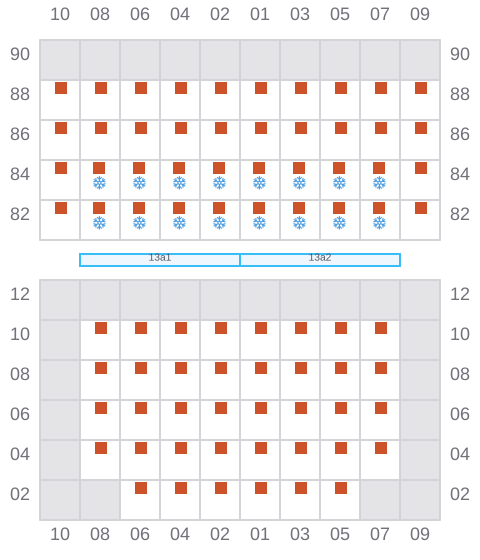

015
- ←
- → / ?
![Bay 015 view and slots of A HOUOU](/vessel-images/5033ca2c-e49a-4867-bb42-40c2bc523fb6-b015.png?v=1710525443693)

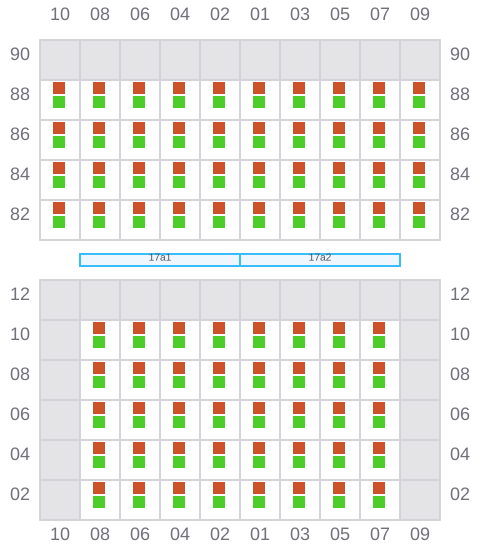

017 (018)
- →
![Bay 017 view and slots of A HOUOU](/vessel-images/5033ca2c-e49a-4867-bb42-40c2bc523fb6-b017.png?v=1710525443693)

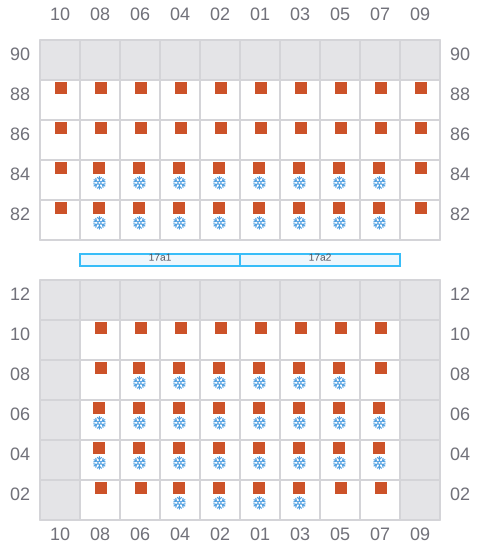

019
- ←
- →
![Bay 019 view and slots of A HOUOU](/vessel-images/5033ca2c-e49a-4867-bb42-40c2bc523fb6-b019.png?v=1710525443693)

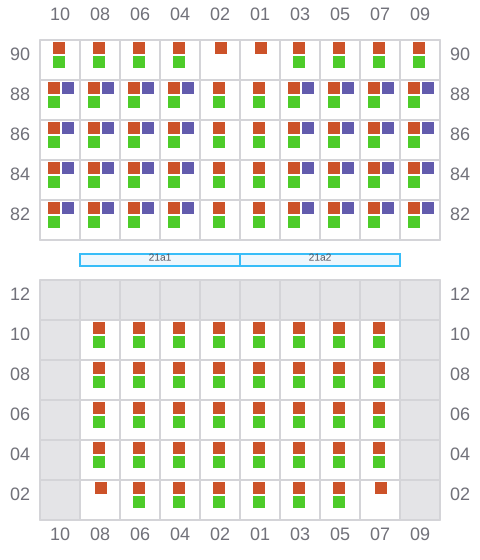

021 (022)
- →
![Bay 021 view and slots of A HOUOU](/vessel-images/5033ca2c-e49a-4867-bb42-40c2bc523fb6-b021.png?v=1710525443693)

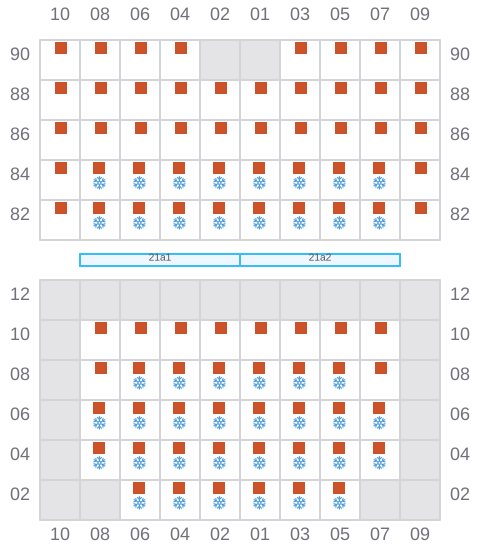

023
- ←
- →
![Bay 023 view and slots of A HOUOU](/vessel-images/5033ca2c-e49a-4867-bb42-40c2bc523fb6-b023.png?v=1710525443693)

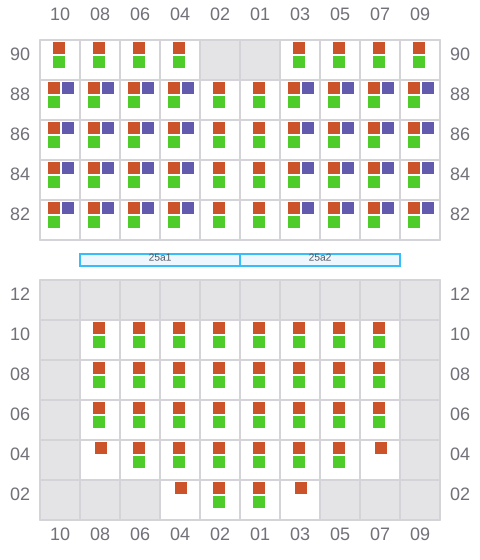

025 (026)
- →
![Bay 025 view and slots of A HOUOU](/vessel-images/5033ca2c-e49a-4867-bb42-40c2bc523fb6-b025.png?v=1710525443693)

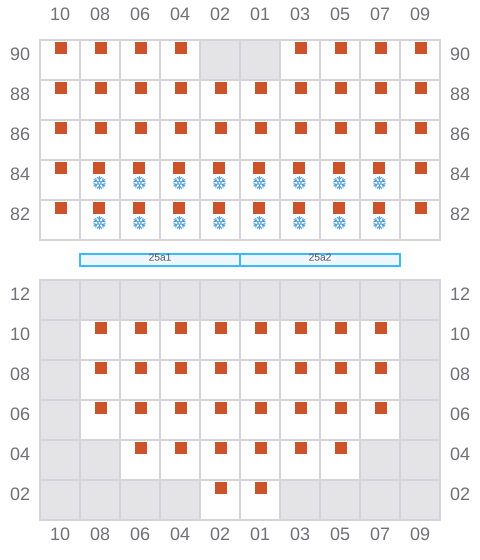

027
- ←
- → / ?
![Bay 027 view and slots of A HOUOU](/vessel-images/5033ca2c-e49a-4867-bb42-40c2bc523fb6-b027.png?v=1710525443693)

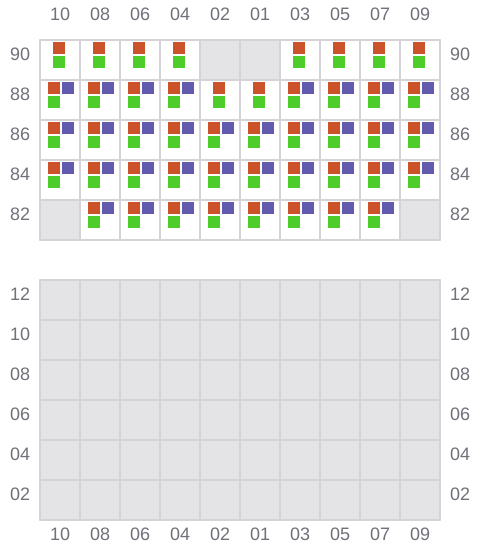

029 (030)
- → / ?
![Bay 029 view and slots of A HOUOU](/vessel-images/5033ca2c-e49a-4867-bb42-40c2bc523fb6-b029.png?v=1710525443693)
031
- ← / ?
- → / ?
![Bay 031 view and slots of A HOUOU](/vessel-images/5033ca2c-e49a-4867-bb42-40c2bc523fb6-b031.png?v=1710525443693)
