A.IDEFIX
9354662 | 9HA3908 | 9354662 by ********* Last update: Wed Jul 31 2024

General Info

Ship Name:A.IDEFIX
IMO Code:9354662
Call Sign:9HA3908
Line Operator:9354662
Class Name for Sister Ships:MCC
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:039
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:1,686

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

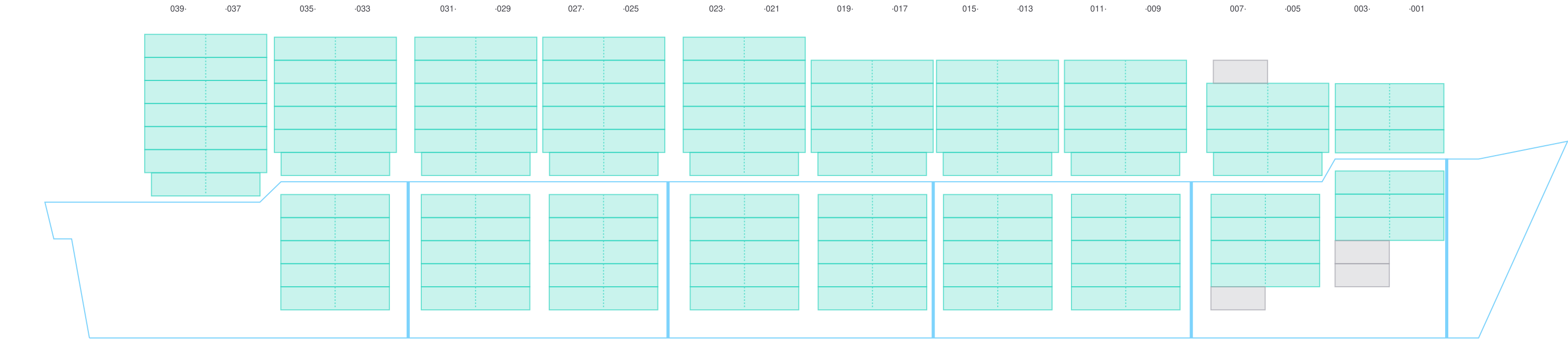

Side View

Side view of A.IDEFIX

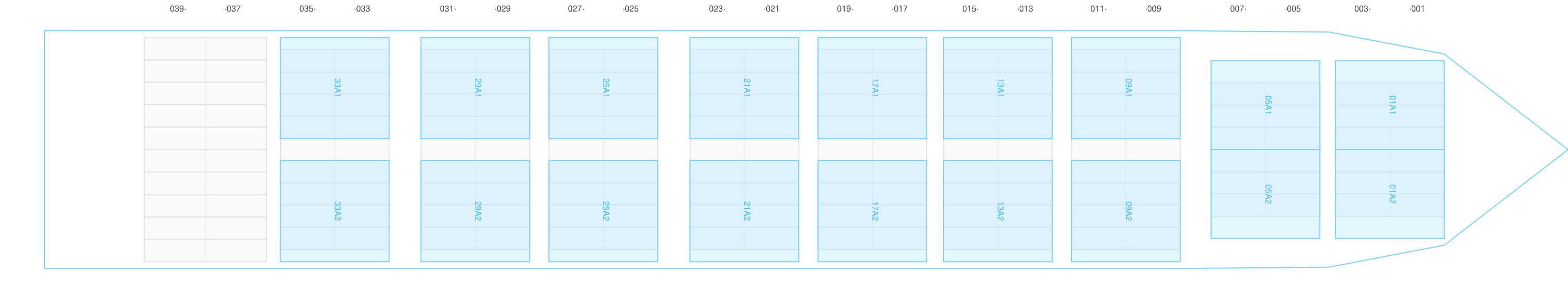

Hatch-Covers View

Deck view of A.IDEFIX

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

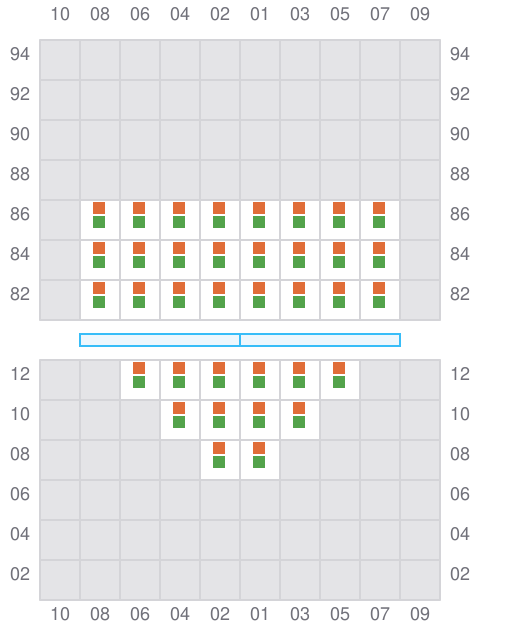

001 (002)

Bay 001 view and slots of A.IDEFIX

003

Bay 003 view and slots of A.IDEFIX

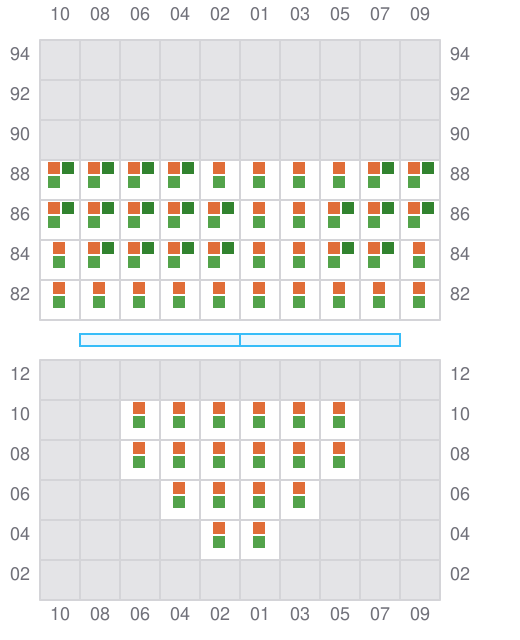

005 (006)

Bay 005 view and slots of A.IDEFIX

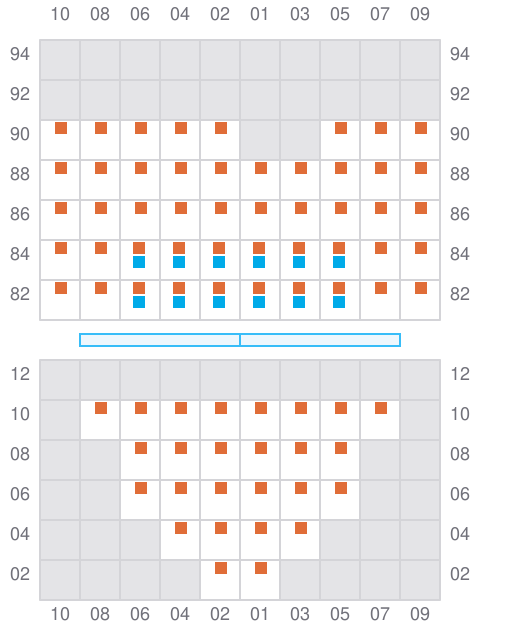

007

  • / ?
Bay 007 view and slots of A.IDEFIX

009 (010)

Bay 009 view and slots of A.IDEFIX

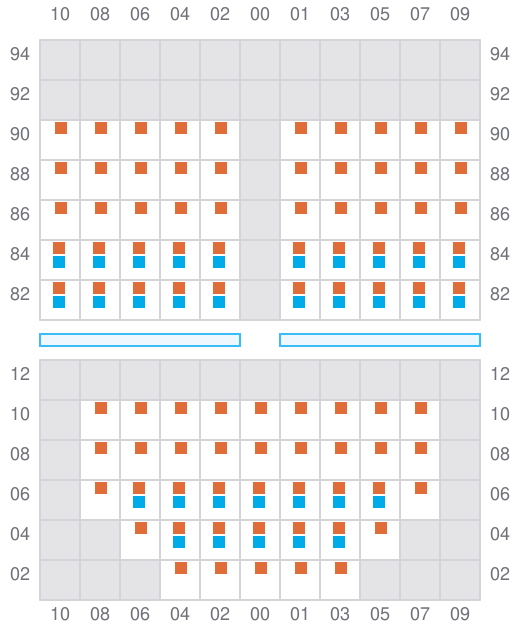

011

Bay 011 view and slots of A.IDEFIX

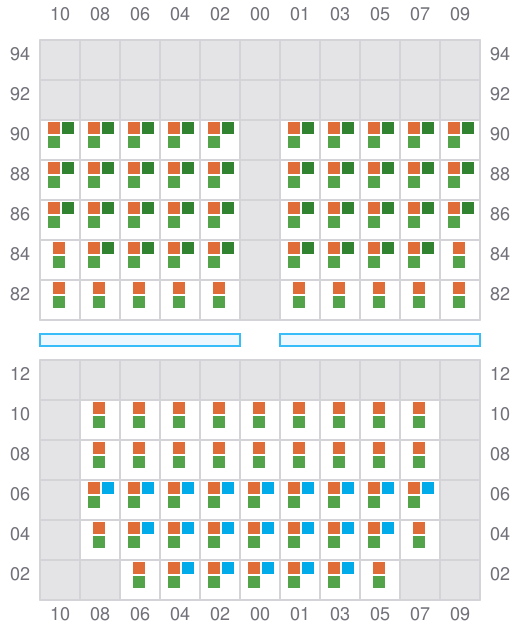

013 (014)

  • ? /
Bay 013 view and slots of A.IDEFIX

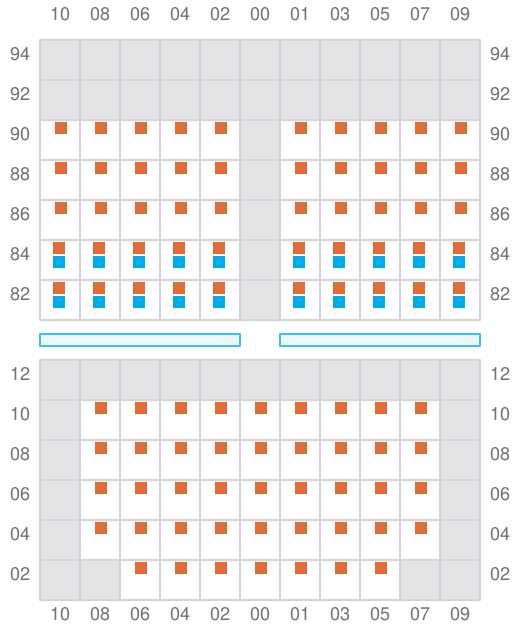

015

  • / ?
Bay 015 view and slots of A.IDEFIX

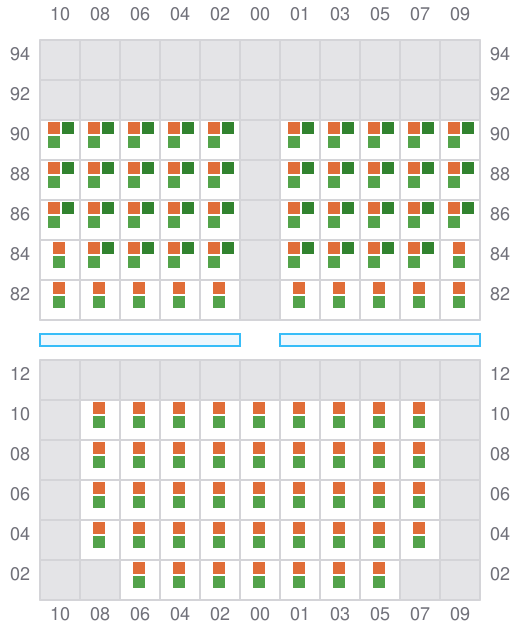

017 (018)

Bay 017 view and slots of A.IDEFIX

019

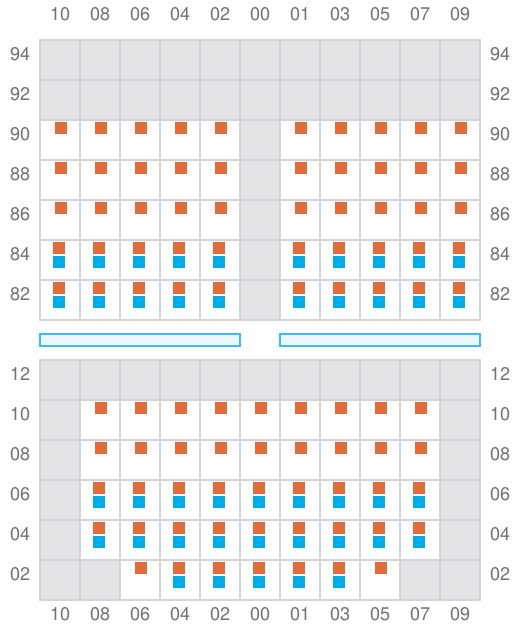

Bay 019 view and slots of A.IDEFIX

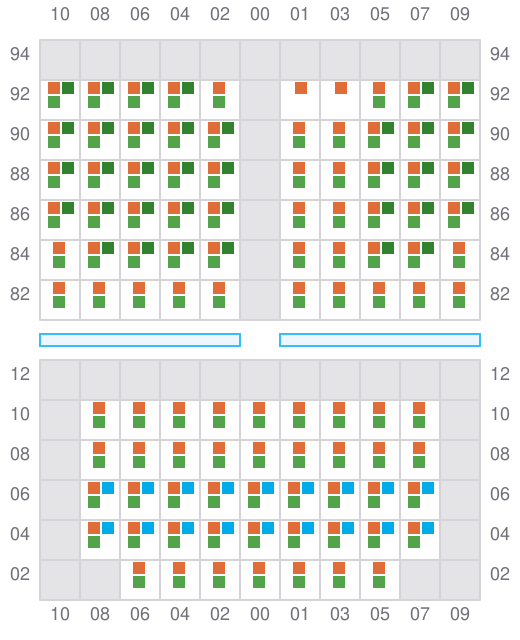

021 (022)

  • ? /
Bay 021 view and slots of A.IDEFIX

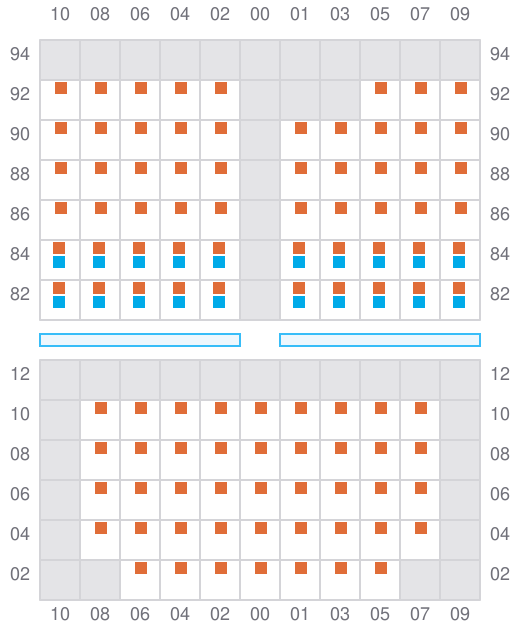

023

  • / ?
Bay 023 view and slots of A.IDEFIX

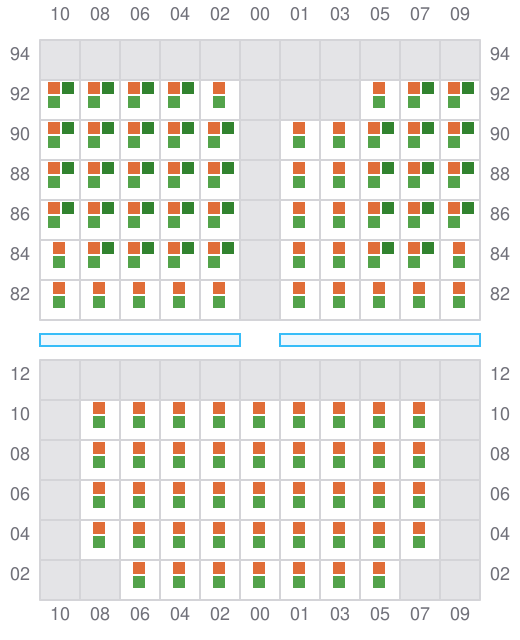

025 (026)

Bay 025 view and slots of A.IDEFIX

027

Bay 027 view and slots of A.IDEFIX

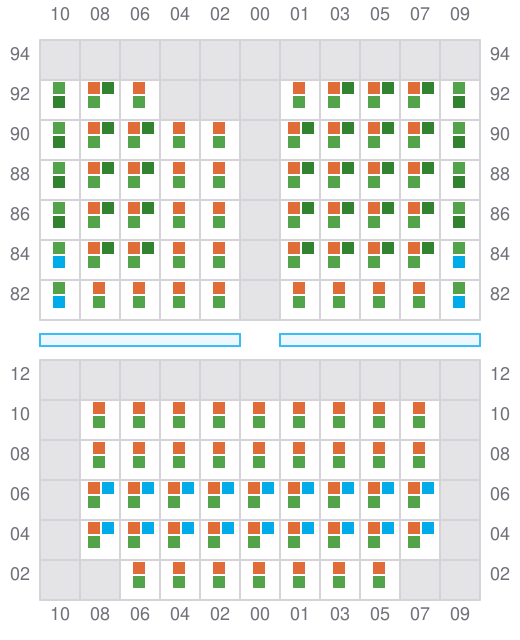

029 (030)

  • /
Bay 029 view and slots of A.IDEFIX

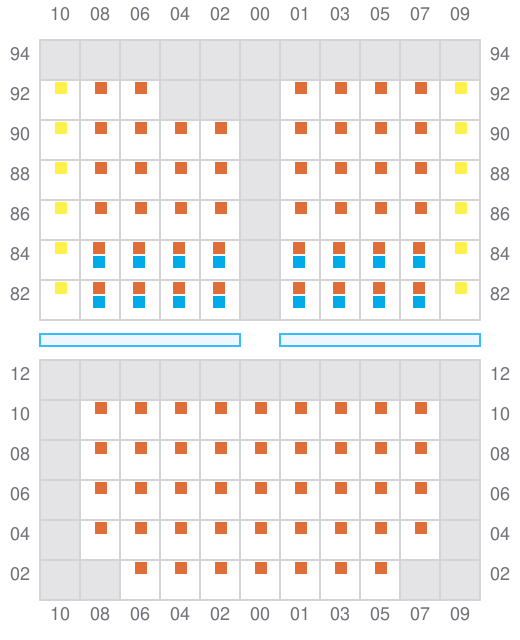

031

  • / ?
Bay 031 view and slots of A.IDEFIX

033 (034)

Bay 033 view and slots of A.IDEFIX

035

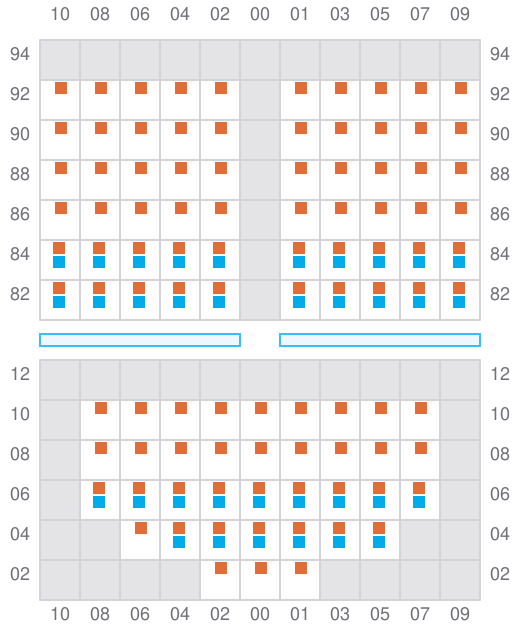

Bay 035 view and slots of A.IDEFIX

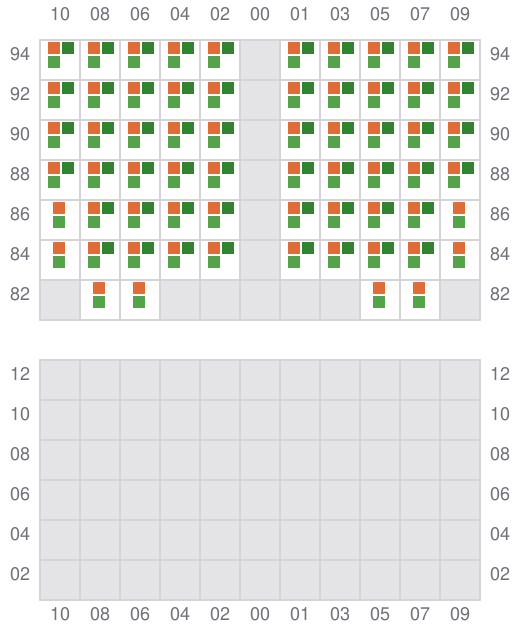

037 (038)

Bay 037 view and slots of A.IDEFIX

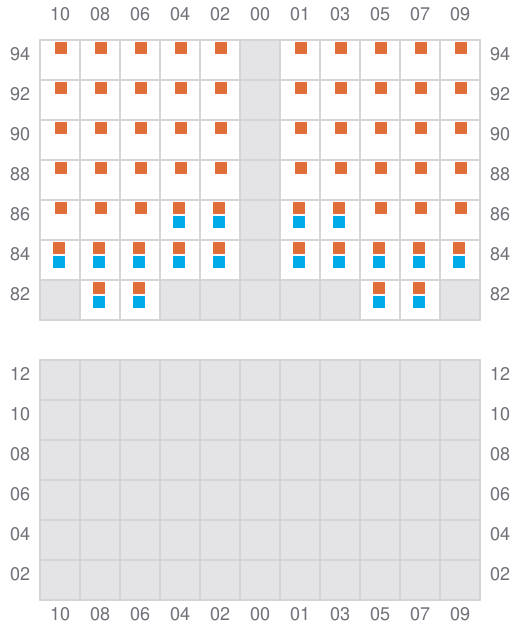

039

  • / ?
Bay 039 view and slots of A.IDEFIX
