ABRAO COCHIN
9233648 | 3E4734 | 9233648 by ********* Last update: Fri May 03 2024
General Info
Ship Name:ABRAO COCHIN
IMO Code:9233648
Call Sign:3E4734
Line Operator:9233648
Class Name for Sister Ships:WAN HAI 267
Year Built:2002
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:043
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,662
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
![Side view of ABRAO COCHIN](/vessel-images/6f10b286-d904-4978-a66d-bebb80a1567d-sideView.png?v=1714762158689)
Hatch-Covers View
![Deck view of ABRAO COCHIN](/vessel-images/6f10b286-d904-4978-a66d-bebb80a1567d-deckView.png?v=1714762158689)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

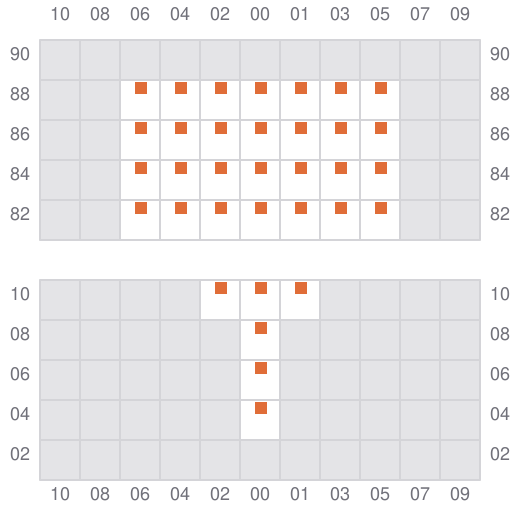

001
- →
![Bay 001 view and slots of ABRAO COCHIN](/vessel-images/6f10b286-d904-4978-a66d-bebb80a1567d-b001.png?v=1714762158689)

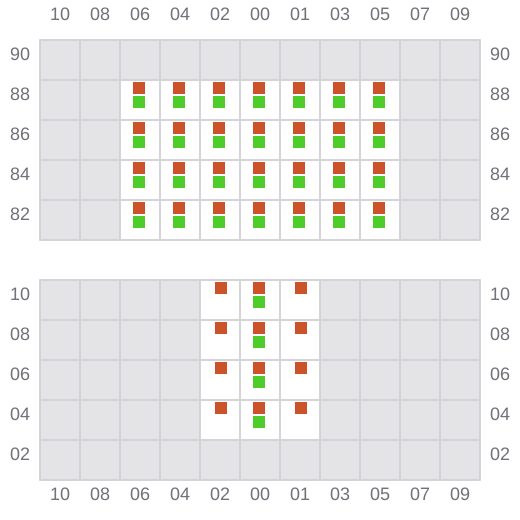

003 (002)
- ←
![Bay 003 view and slots of ABRAO COCHIN](/vessel-images/6f10b286-d904-4978-a66d-bebb80a1567d-b003.png?v=1714762158689)

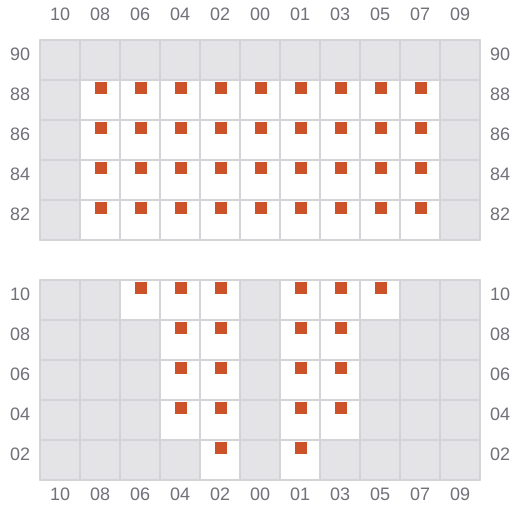

005
- →
![Bay 005 view and slots of ABRAO COCHIN](/vessel-images/6f10b286-d904-4978-a66d-bebb80a1567d-b005.png?v=1714762158689)

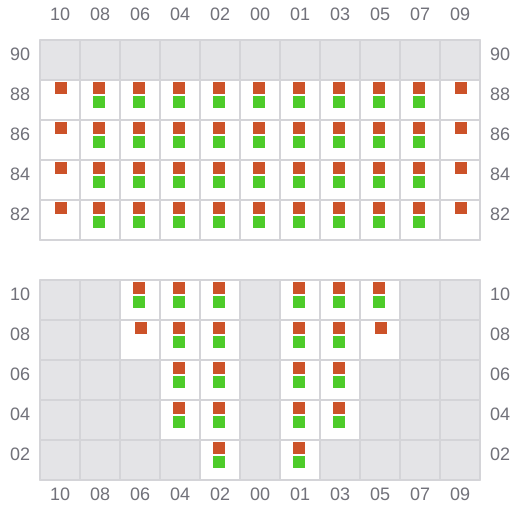

007 (006)
- ←
![Bay 007 view and slots of ABRAO COCHIN](/vessel-images/6f10b286-d904-4978-a66d-bebb80a1567d-b007.png?v=1714762158689)

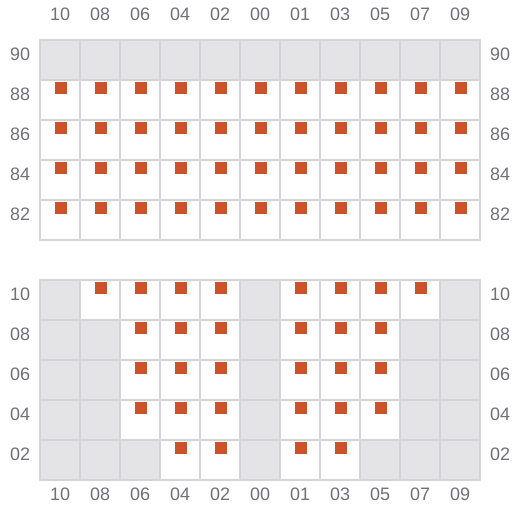

009
- →
![Bay 009 view and slots of ABRAO COCHIN](/vessel-images/6f10b286-d904-4978-a66d-bebb80a1567d-b009.png?v=1714762158689)

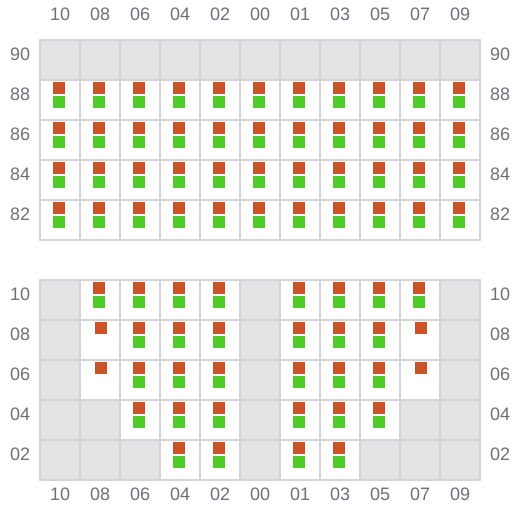

011 (010)
- ←
![Bay 011 view and slots of ABRAO COCHIN](/vessel-images/6f10b286-d904-4978-a66d-bebb80a1567d-b011.png?v=1714762158689)

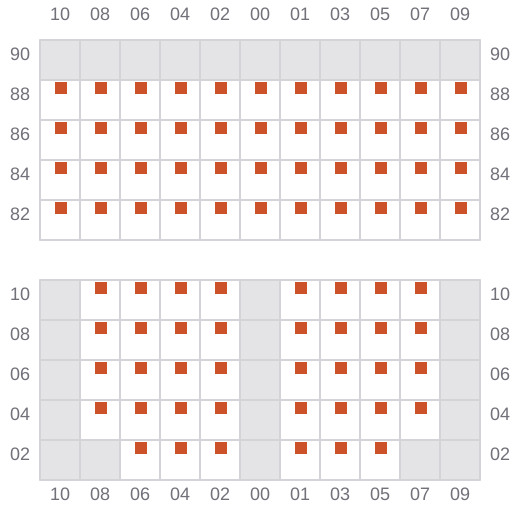

013
- →
![Bay 013 view and slots of ABRAO COCHIN](/vessel-images/6f10b286-d904-4978-a66d-bebb80a1567d-b013.png?v=1714762158689)

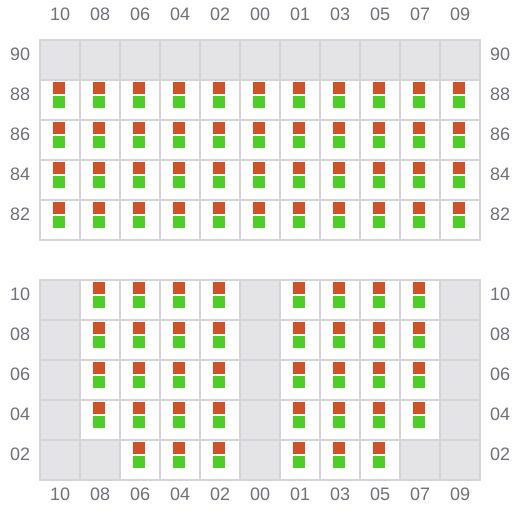

015 (014)
- ←
![Bay 015 view and slots of ABRAO COCHIN](/vessel-images/6f10b286-d904-4978-a66d-bebb80a1567d-b015.png?v=1714762158689)
017
- →
![Bay 017 view and slots of ABRAO COCHIN](/vessel-images/6f10b286-d904-4978-a66d-bebb80a1567d-b017.png?v=1714762158689)
019 (018)
- ←
![Bay 019 view and slots of ABRAO COCHIN](/vessel-images/6f10b286-d904-4978-a66d-bebb80a1567d-b019.png?v=1714762158689)
021
- →
![Bay 021 view and slots of ABRAO COCHIN](/vessel-images/6f10b286-d904-4978-a66d-bebb80a1567d-b021.png?v=1714762158689)
023 (022)
- ←
![Bay 023 view and slots of ABRAO COCHIN](/vessel-images/6f10b286-d904-4978-a66d-bebb80a1567d-b023.png?v=1714762158689)

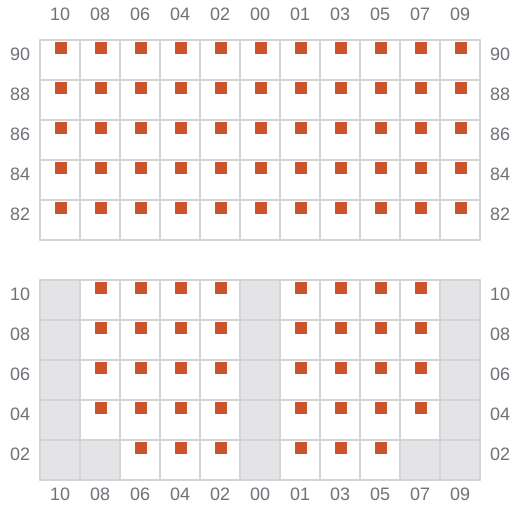

025
- →
![Bay 025 view and slots of ABRAO COCHIN](/vessel-images/6f10b286-d904-4978-a66d-bebb80a1567d-b025.png?v=1714762158689)

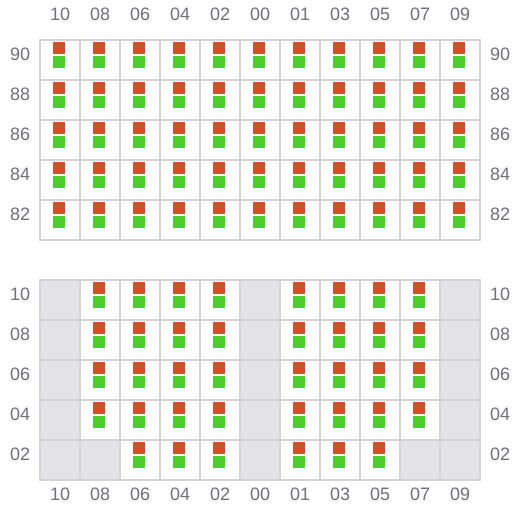

027 (026)
- ←
![Bay 027 view and slots of ABRAO COCHIN](/vessel-images/6f10b286-d904-4978-a66d-bebb80a1567d-b027.png?v=1714762158689)
029
- →
![Bay 029 view and slots of ABRAO COCHIN](/vessel-images/6f10b286-d904-4978-a66d-bebb80a1567d-b029.png?v=1714762158689)
031 (030)
- ←
![Bay 031 view and slots of ABRAO COCHIN](/vessel-images/6f10b286-d904-4978-a66d-bebb80a1567d-b031.png?v=1714762158689)

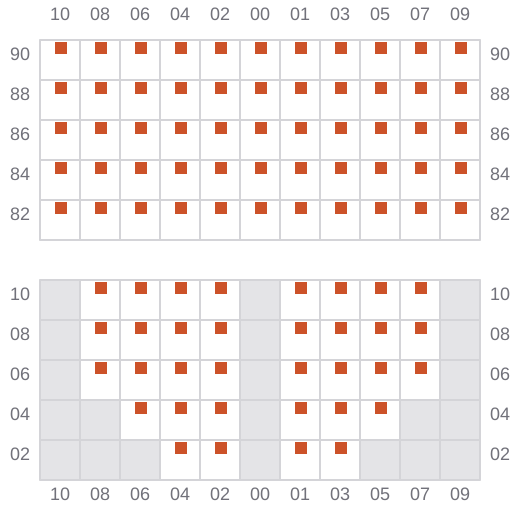

033
- →
![Bay 033 view and slots of ABRAO COCHIN](/vessel-images/6f10b286-d904-4978-a66d-bebb80a1567d-b033.png?v=1714762158689)
035 (034)
- ←
![Bay 035 view and slots of ABRAO COCHIN](/vessel-images/6f10b286-d904-4978-a66d-bebb80a1567d-b035.png?v=1714762158689)

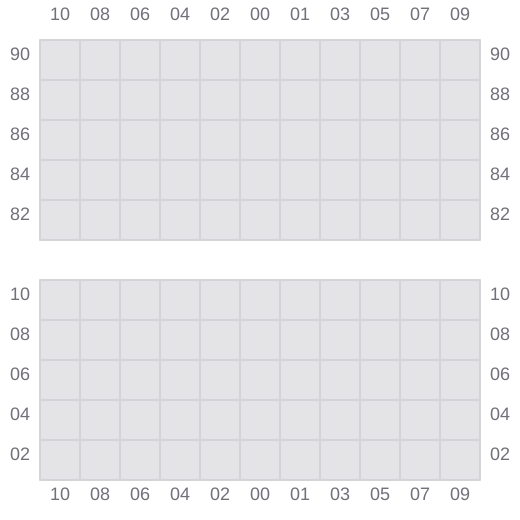

037
![Bay 037 view and slots of ABRAO COCHIN](/vessel-images/6f10b286-d904-4978-a66d-bebb80a1567d-b037.png?v=1714762158689)
039
- →
![Bay 039 view and slots of ABRAO COCHIN](/vessel-images/6f10b286-d904-4978-a66d-bebb80a1567d-b039.png?v=1714762158689)

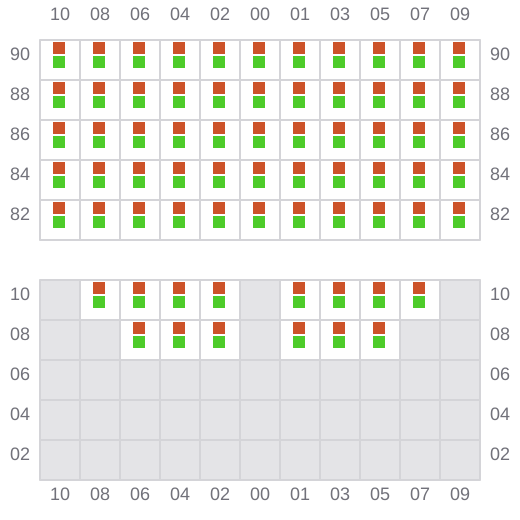

041 (040)
- ←
![Bay 041 view and slots of ABRAO COCHIN](/vessel-images/6f10b286-d904-4978-a66d-bebb80a1567d-b041.png?v=1714762158689)

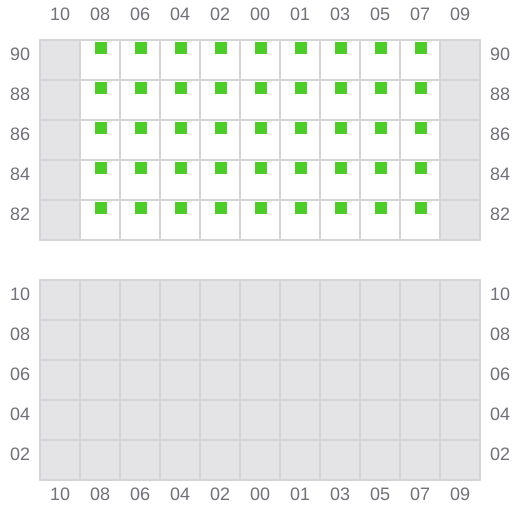

043 (044)
- → / ?
![Bay 043 view and slots of ABRAO COCHIN](/vessel-images/6f10b286-d904-4978-a66d-bebb80a1567d-b043.png?v=1714762158689)
