ACE
9228538 | J8B6221 | 9228538 by ********* Last update: Thu May 09 2024
General Info
Ship Name:ACE
IMO Code:9228538
Call Sign:J8B6221
Line Operator:9228538
Class Name for Sister Ships:CSCL KELANG
Year Built:2001
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:045
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,829
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

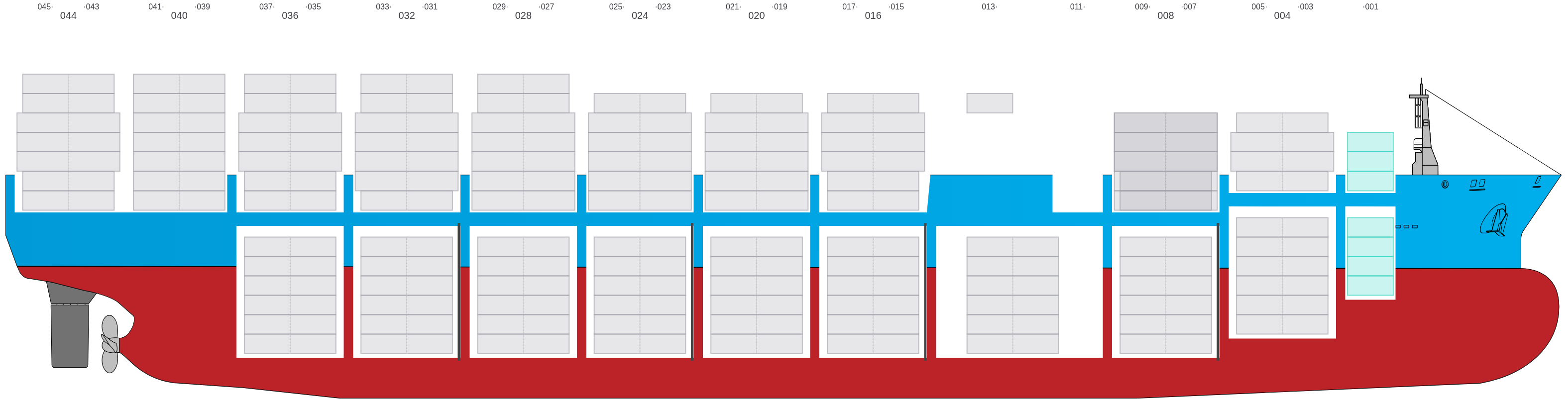

Side View
![Side view of ACE](/vessel-images/730eb68a-67d3-4a9e-b3c5-b3c646d9af2c-sideView.png?v=1715279658999)

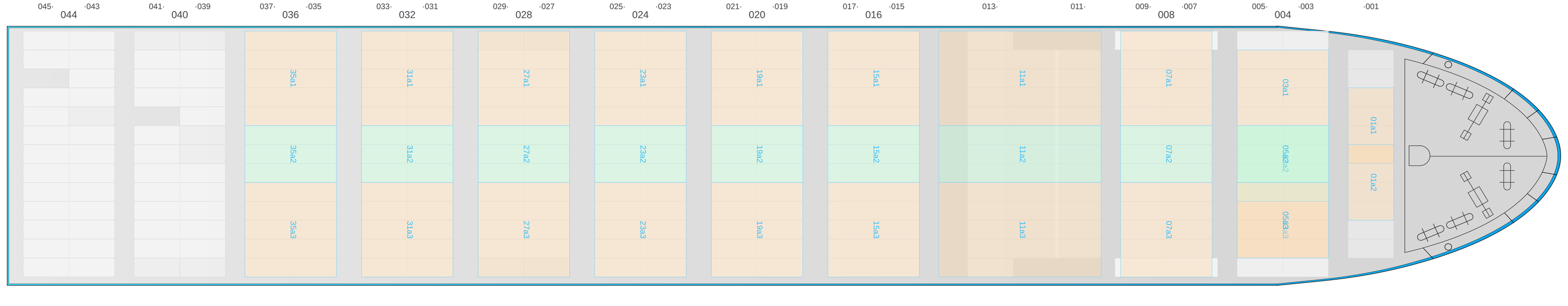

Hatch-Covers View
![Deck view of ACE](/vessel-images/730eb68a-67d3-4a9e-b3c5-b3c646d9af2c-deckView.png?v=1715279658999)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

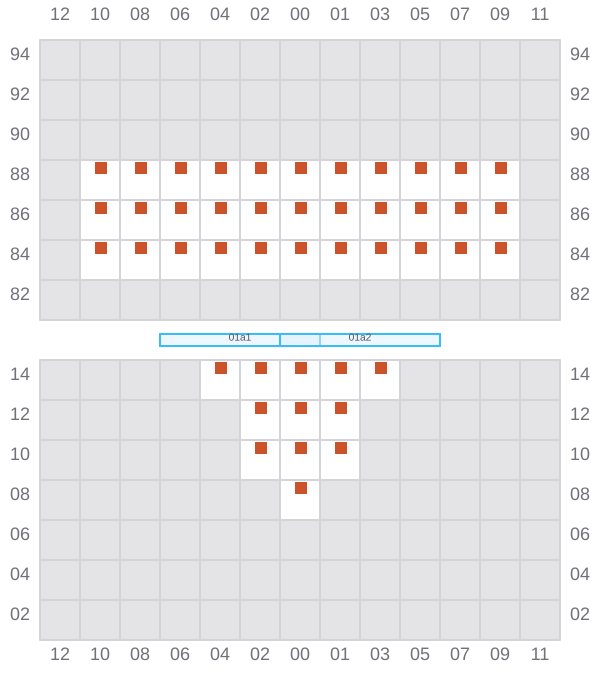

001
- →
![Bay 001 view and slots of ACE](/vessel-images/730eb68a-67d3-4a9e-b3c5-b3c646d9af2c-b001.png?v=1715279658999)

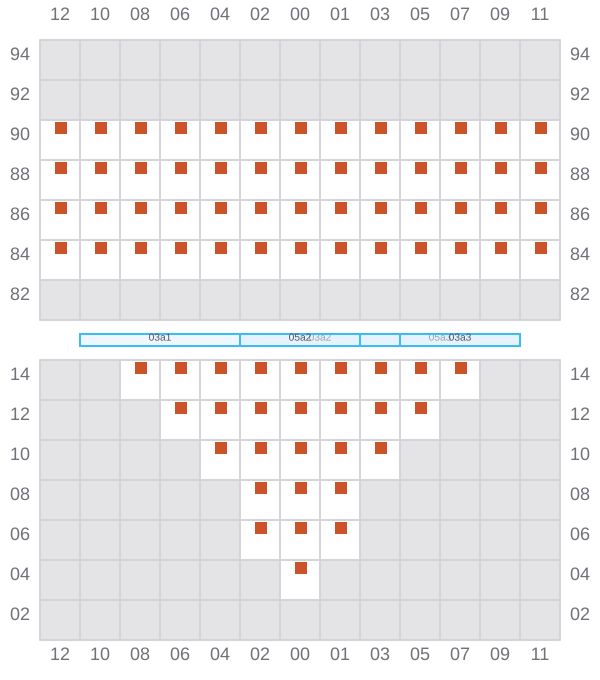

003
- →
![Bay 003 view and slots of ACE](/vessel-images/730eb68a-67d3-4a9e-b3c5-b3c646d9af2c-b003.png?v=1715279658999)

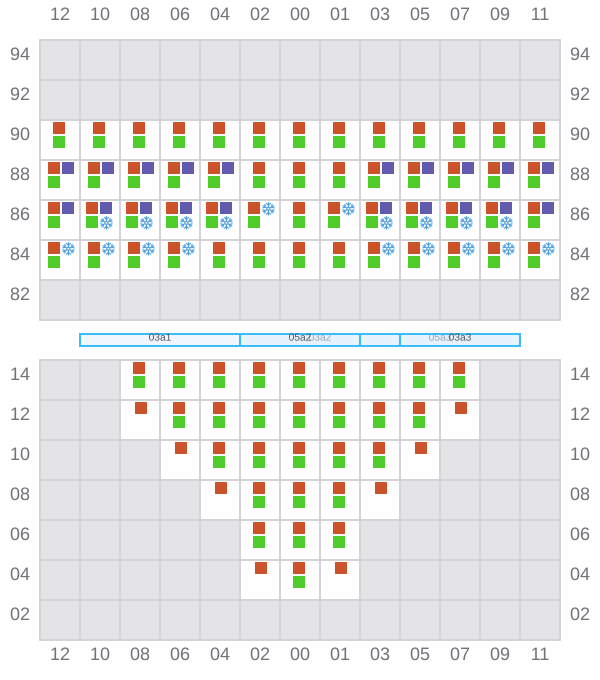

005 (004)
- ←
![Bay 005 view and slots of ACE](/vessel-images/730eb68a-67d3-4a9e-b3c5-b3c646d9af2c-b005.png?v=1715279658999)

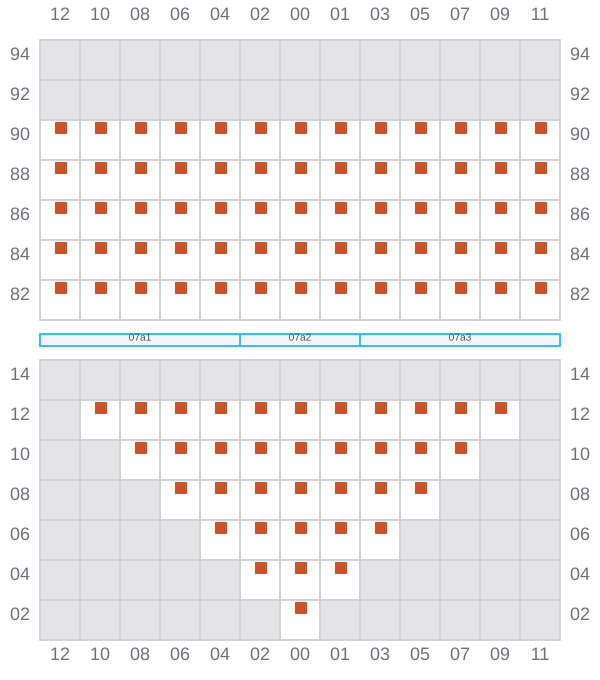

007
- →
![Bay 007 view and slots of ACE](/vessel-images/730eb68a-67d3-4a9e-b3c5-b3c646d9af2c-b007.png?v=1715279658999)

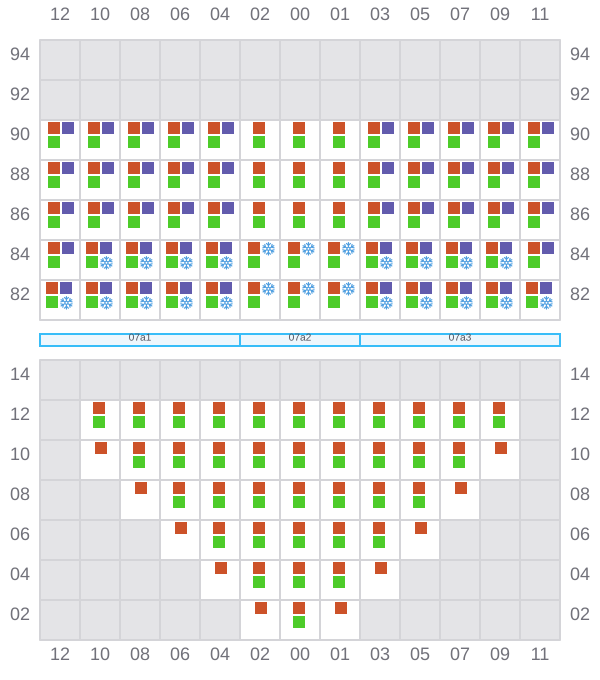

009 (008)
- ←
![Bay 009 view and slots of ACE](/vessel-images/730eb68a-67d3-4a9e-b3c5-b3c646d9af2c-b009.png?v=1715279658999)

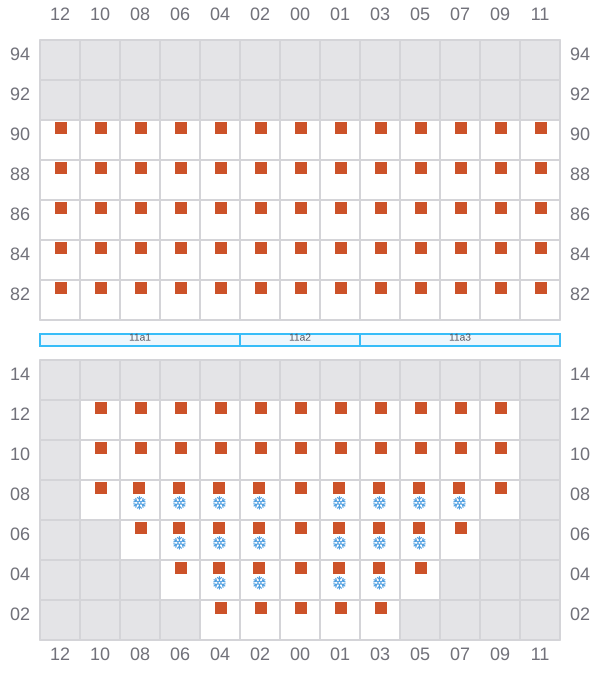

011
- ← / →
![Bay 011 view and slots of ACE](/vessel-images/730eb68a-67d3-4a9e-b3c5-b3c646d9af2c-b011.png?v=1715279658999)

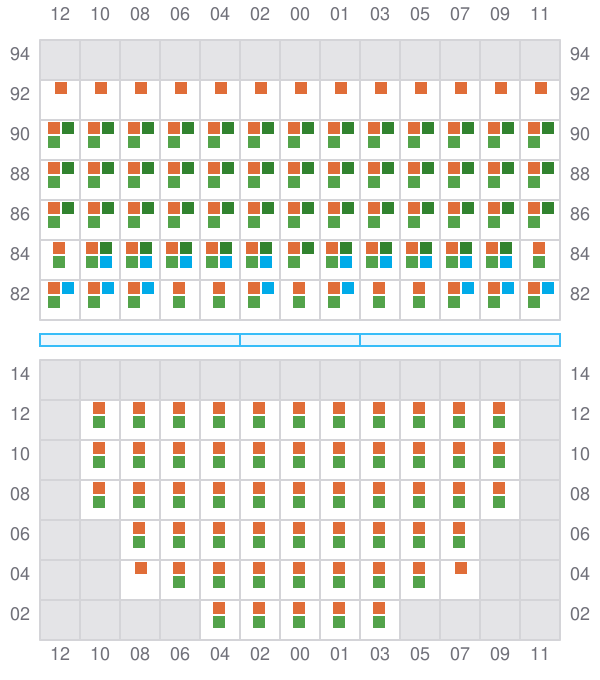

013 (012)
- ←
![Bay 013 view and slots of ACE](/vessel-images/730eb68a-67d3-4a9e-b3c5-b3c646d9af2c-b013.png?v=1715279658999)

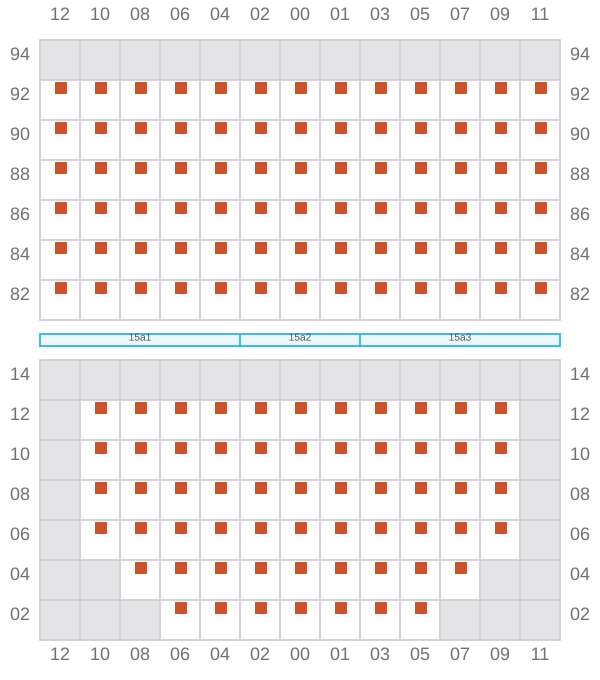

015
- →
![Bay 015 view and slots of ACE](/vessel-images/730eb68a-67d3-4a9e-b3c5-b3c646d9af2c-b015.png?v=1715279658999)

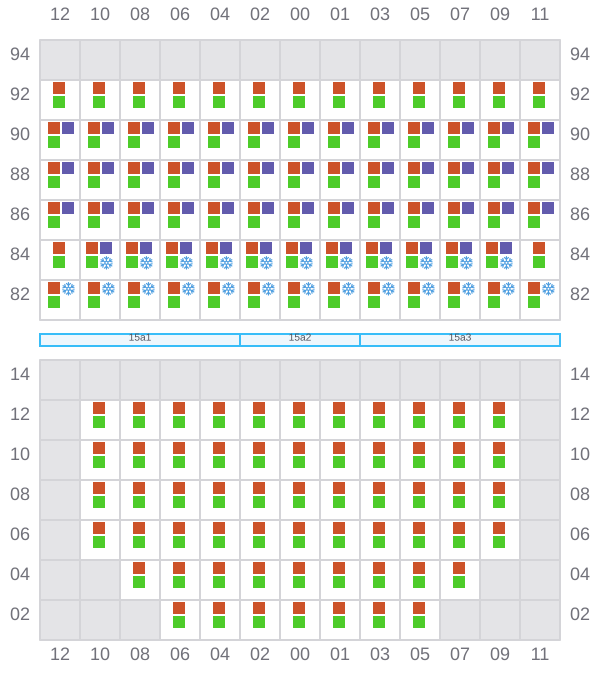

017 (016)
- ←
![Bay 017 view and slots of ACE](/vessel-images/730eb68a-67d3-4a9e-b3c5-b3c646d9af2c-b017.png?v=1715279658999)

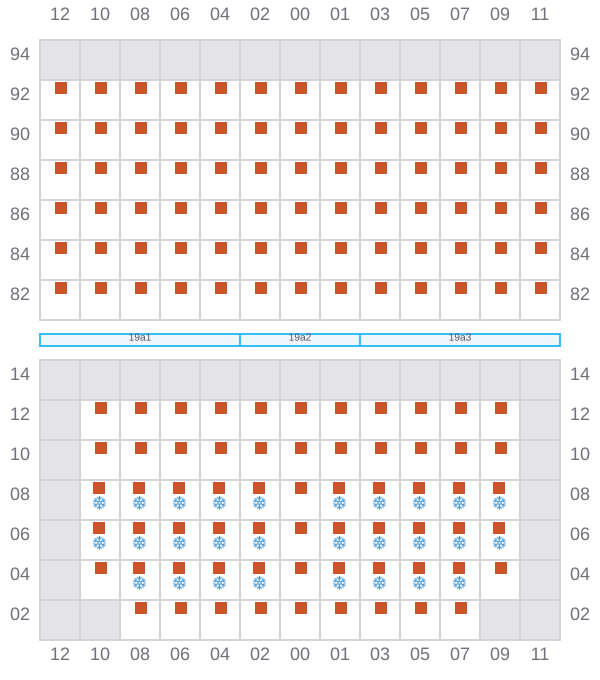

019
- →
![Bay 019 view and slots of ACE](/vessel-images/730eb68a-67d3-4a9e-b3c5-b3c646d9af2c-b019.png?v=1715279658999)

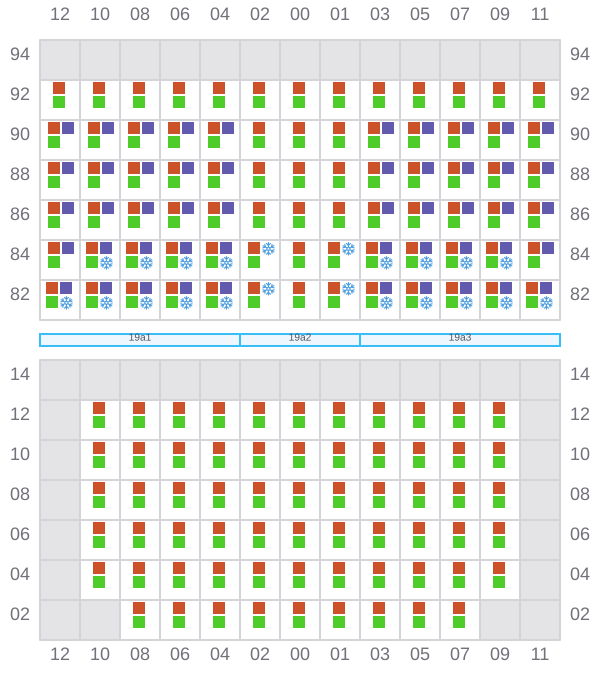

021 (020)
- ←
![Bay 021 view and slots of ACE](/vessel-images/730eb68a-67d3-4a9e-b3c5-b3c646d9af2c-b021.png?v=1715279658999)

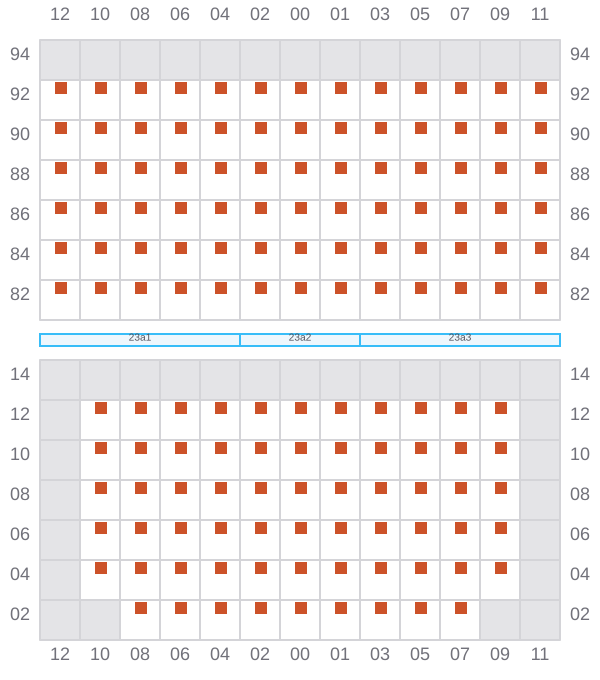

023
- →
![Bay 023 view and slots of ACE](/vessel-images/730eb68a-67d3-4a9e-b3c5-b3c646d9af2c-b023.png?v=1715279658999)

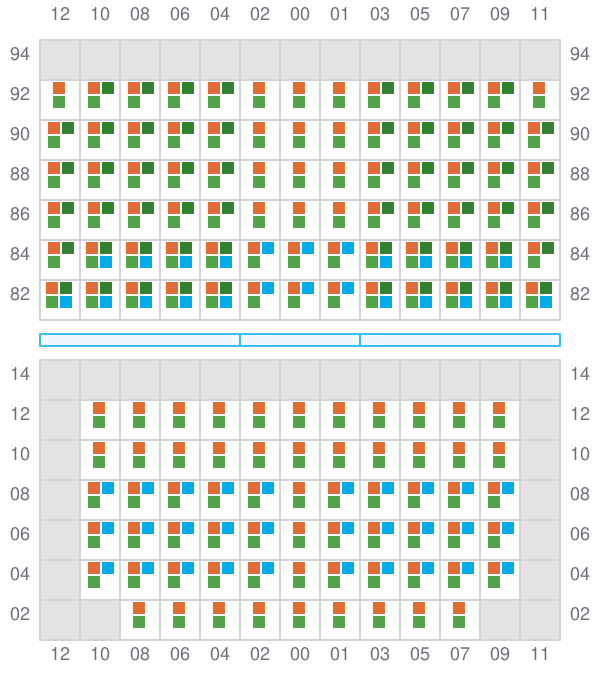

025 (024)
- ←
![Bay 025 view and slots of ACE](/vessel-images/730eb68a-67d3-4a9e-b3c5-b3c646d9af2c-b025.png?v=1715279658999)

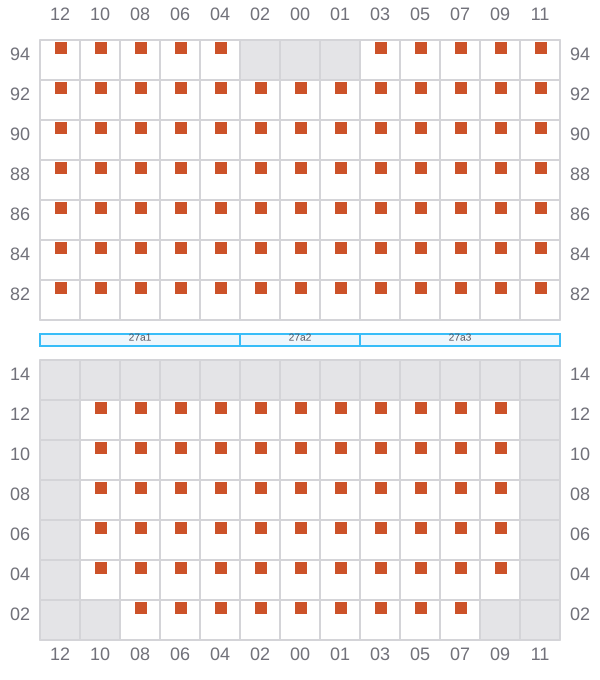

027
- →
![Bay 027 view and slots of ACE](/vessel-images/730eb68a-67d3-4a9e-b3c5-b3c646d9af2c-b027.png?v=1715279658999)

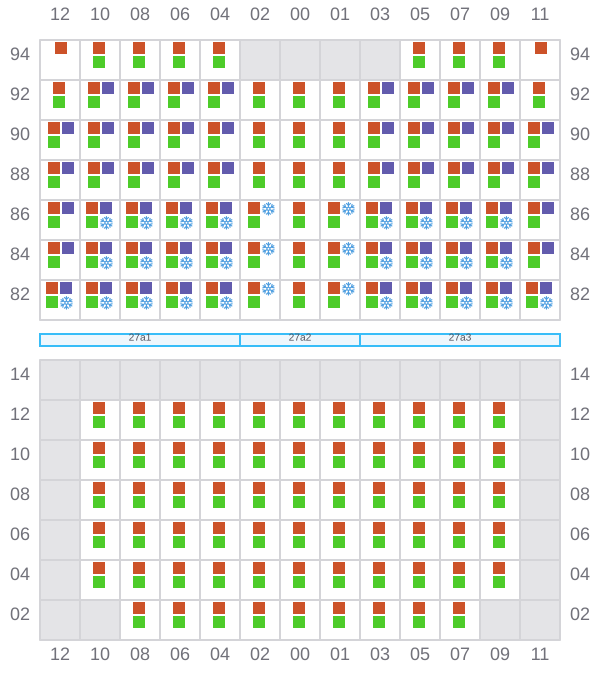

029 (028)
- ←
![Bay 029 view and slots of ACE](/vessel-images/730eb68a-67d3-4a9e-b3c5-b3c646d9af2c-b029.png?v=1715279658999)

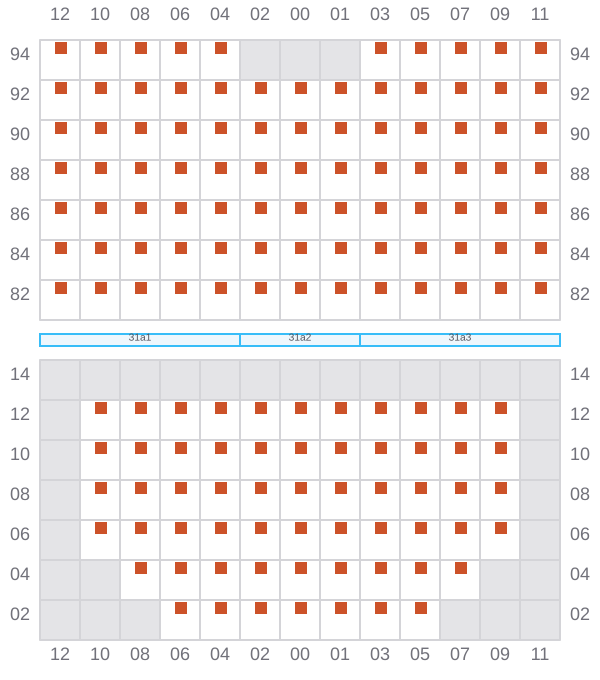

031
- →
![Bay 031 view and slots of ACE](/vessel-images/730eb68a-67d3-4a9e-b3c5-b3c646d9af2c-b031.png?v=1715279658999)

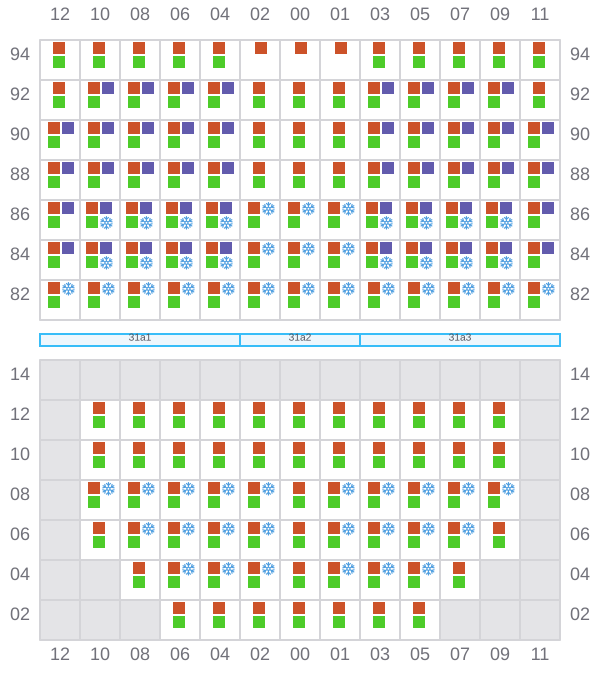

033 (032)
- ←
![Bay 033 view and slots of ACE](/vessel-images/730eb68a-67d3-4a9e-b3c5-b3c646d9af2c-b033.png?v=1715279658999)

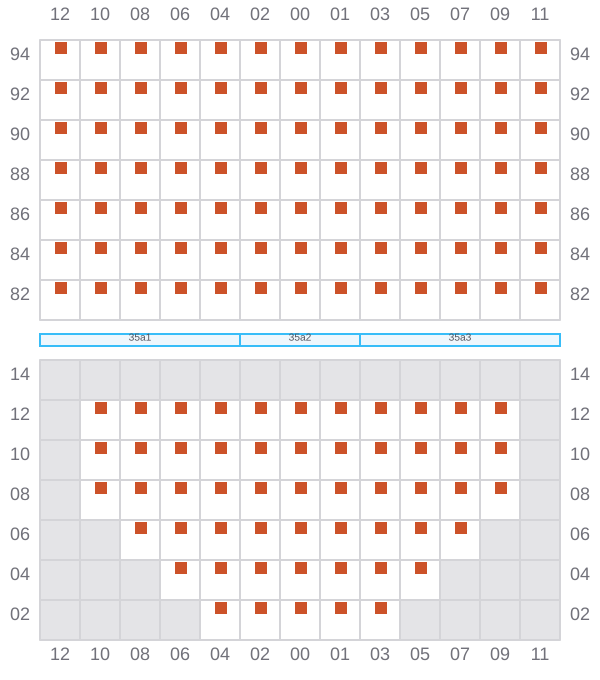

035
- →
![Bay 035 view and slots of ACE](/vessel-images/730eb68a-67d3-4a9e-b3c5-b3c646d9af2c-b035.png?v=1715279658999)

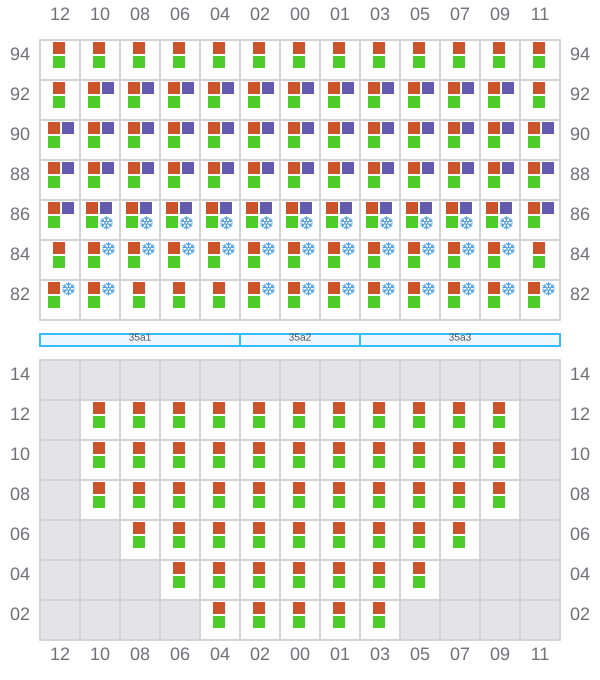

037 (036)
- ←
![Bay 037 view and slots of ACE](/vessel-images/730eb68a-67d3-4a9e-b3c5-b3c646d9af2c-b037.png?v=1715279658999)

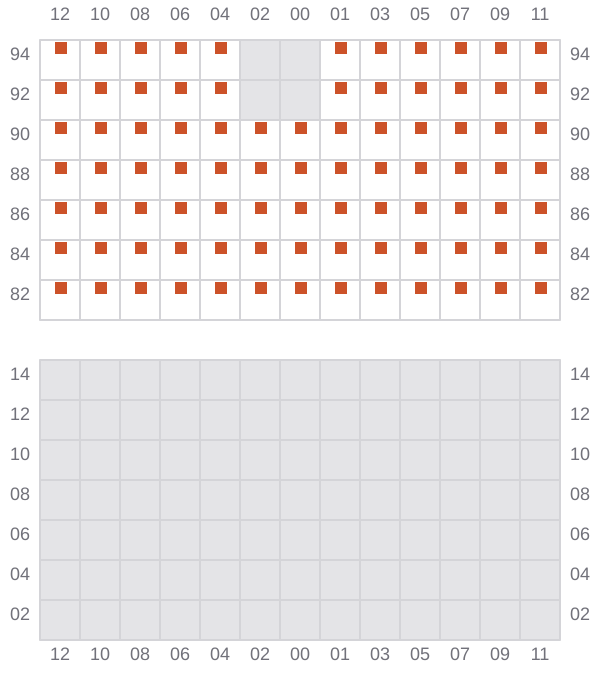

039
- → / ?
![Bay 039 view and slots of ACE](/vessel-images/730eb68a-67d3-4a9e-b3c5-b3c646d9af2c-b039.png?v=1715279658999)

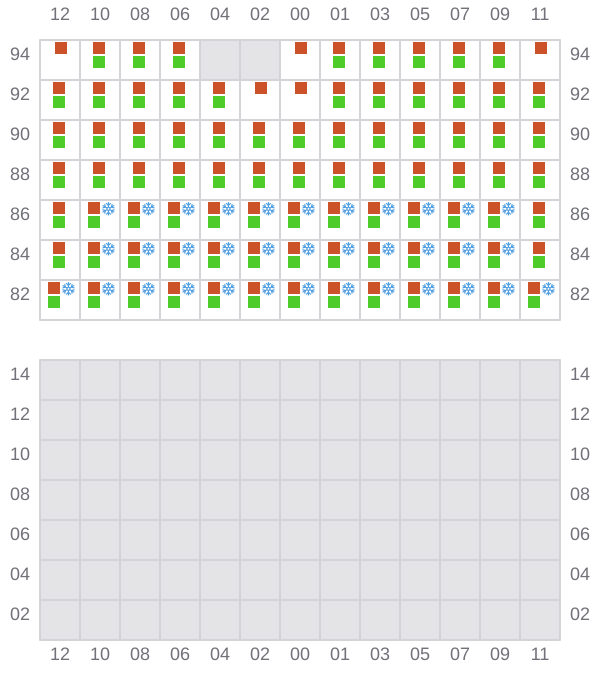

041 (040)
- ← / ?
![Bay 041 view and slots of ACE](/vessel-images/730eb68a-67d3-4a9e-b3c5-b3c646d9af2c-b041.png?v=1715279658999)

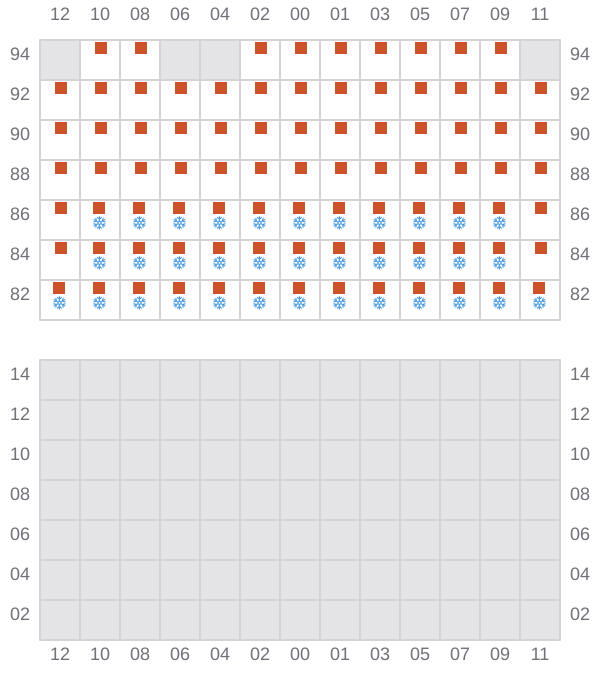

043
- → / ?
![Bay 043 view and slots of ACE](/vessel-images/730eb68a-67d3-4a9e-b3c5-b3c646d9af2c-b043.png?v=1715279658999)

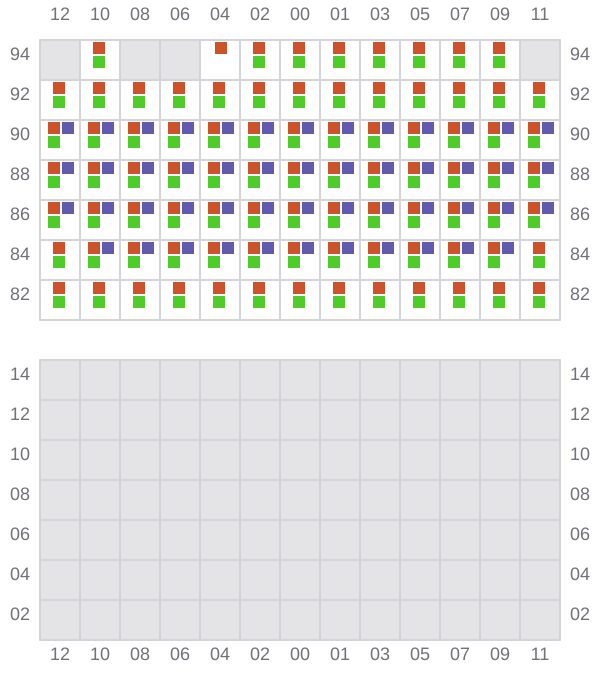

045 (044)
- ← / ?
![Bay 045 view and slots of ACE](/vessel-images/730eb68a-67d3-4a9e-b3c5-b3c646d9af2c-b045.png?v=1715279658999)
