ADAMS
9260914 | D5DR5 | 9260914 by ********* Last update: Mon Apr 01 2024
General Info
Ship Name:ADAMS
IMO Code:9260914
Call Sign:D5DR5
Line Operator:9260914
Class Name for Sister Ships:APL
Year Built:2003
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:061
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:4,027
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

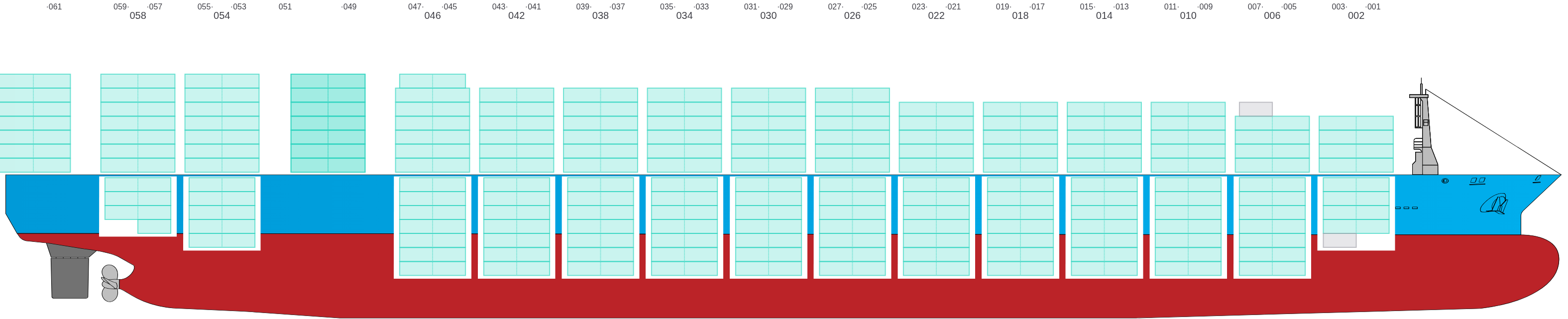

Side View
![Side view of ADAMS](/vessel-images/b1daa3fa-c6fd-4959-aae5-1d3e6ea34b86-sideView.png?v=1711997500551)

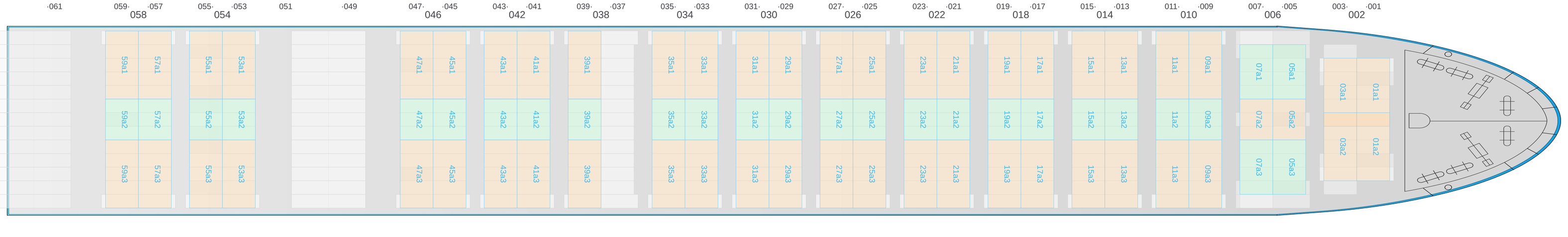

Hatch-Covers View
![Deck view of ADAMS](/vessel-images/b1daa3fa-c6fd-4959-aae5-1d3e6ea34b86-deckView.png?v=1711997500551)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
![Bay 001 view and slots of ADAMS](/vessel-images/b1daa3fa-c6fd-4959-aae5-1d3e6ea34b86-b001.png?v=1711997500551)

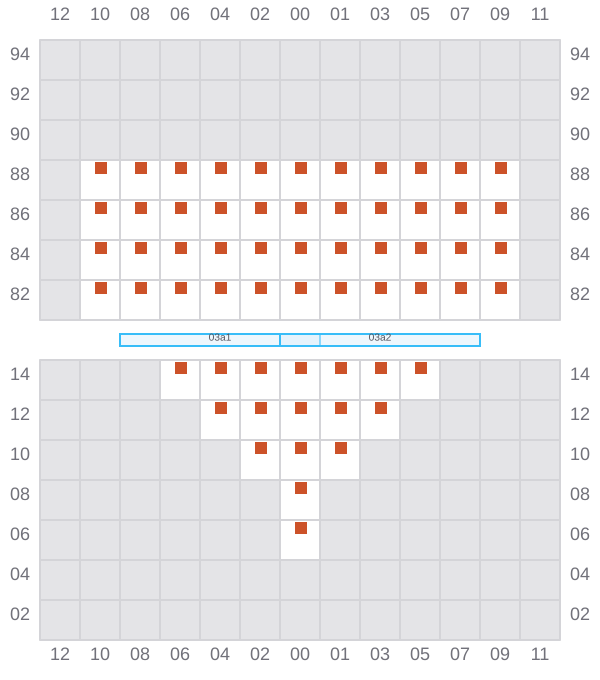

003
- ←
![Bay 003 view and slots of ADAMS](/vessel-images/b1daa3fa-c6fd-4959-aae5-1d3e6ea34b86-b003.png?v=1711997500551)

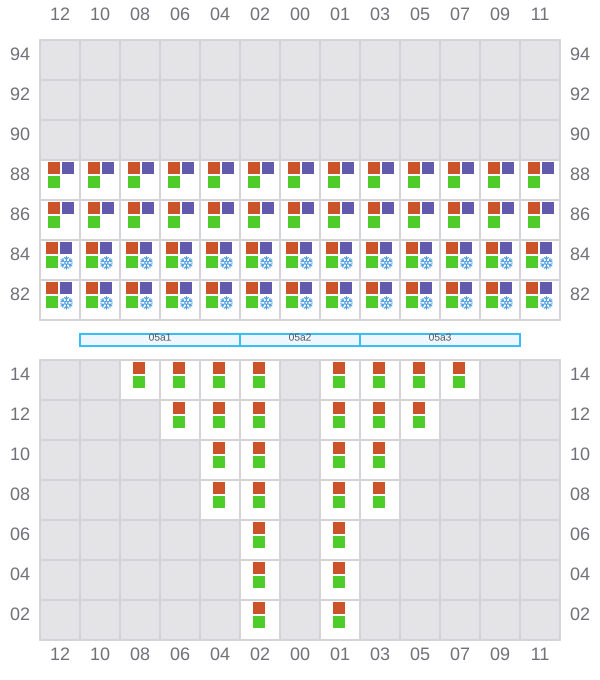

005 (006)
- →
![Bay 005 view and slots of ADAMS](/vessel-images/b1daa3fa-c6fd-4959-aae5-1d3e6ea34b86-b005.png?v=1711997500551)

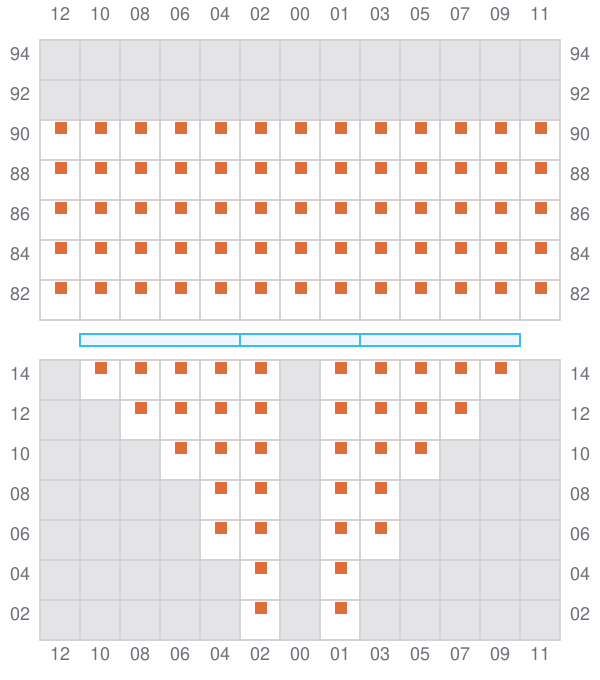

007
- ←
![Bay 007 view and slots of ADAMS](/vessel-images/b1daa3fa-c6fd-4959-aae5-1d3e6ea34b86-b007.png?v=1711997500551)

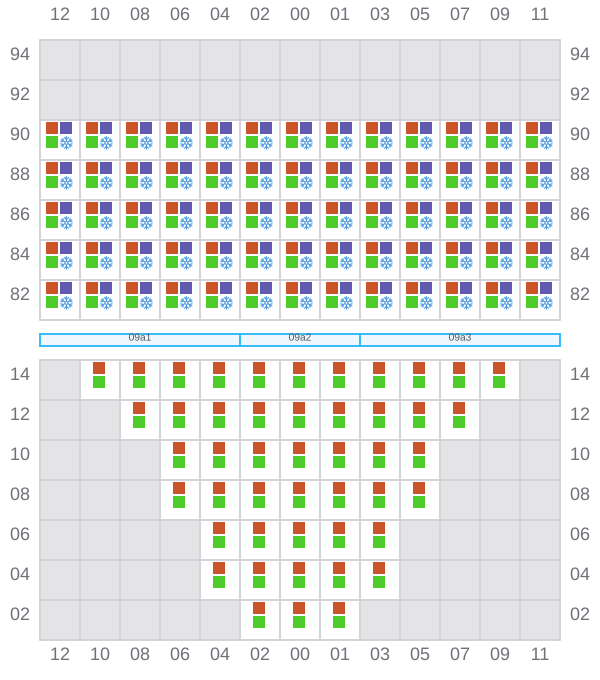

009 (010)
- →
![Bay 009 view and slots of ADAMS](/vessel-images/b1daa3fa-c6fd-4959-aae5-1d3e6ea34b86-b009.png?v=1711997500551)

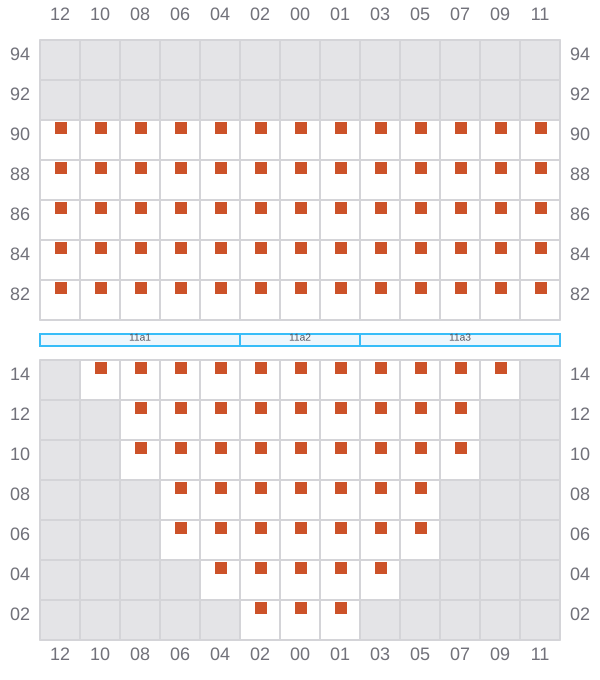

011
- ←
![Bay 011 view and slots of ADAMS](/vessel-images/b1daa3fa-c6fd-4959-aae5-1d3e6ea34b86-b011.png?v=1711997500551)
013 (014)
- →
![Bay 013 view and slots of ADAMS](/vessel-images/b1daa3fa-c6fd-4959-aae5-1d3e6ea34b86-b013.png?v=1711997500551)

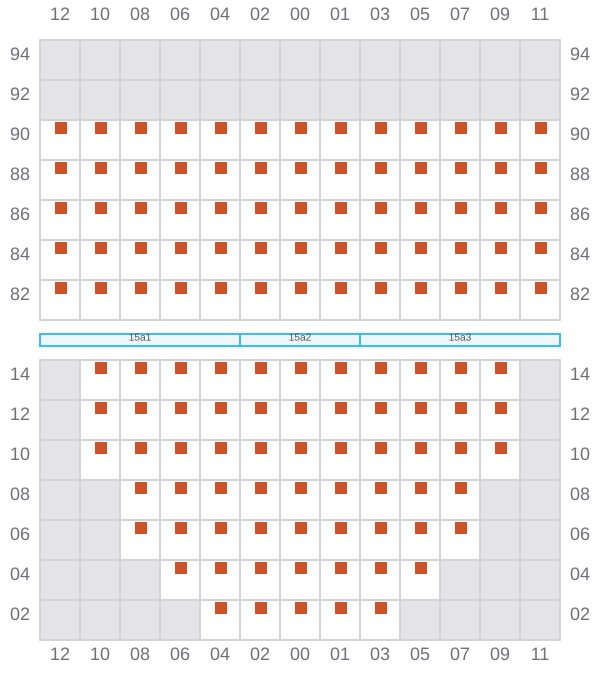

015
- ←
![Bay 015 view and slots of ADAMS](/vessel-images/b1daa3fa-c6fd-4959-aae5-1d3e6ea34b86-b015.png?v=1711997500551)

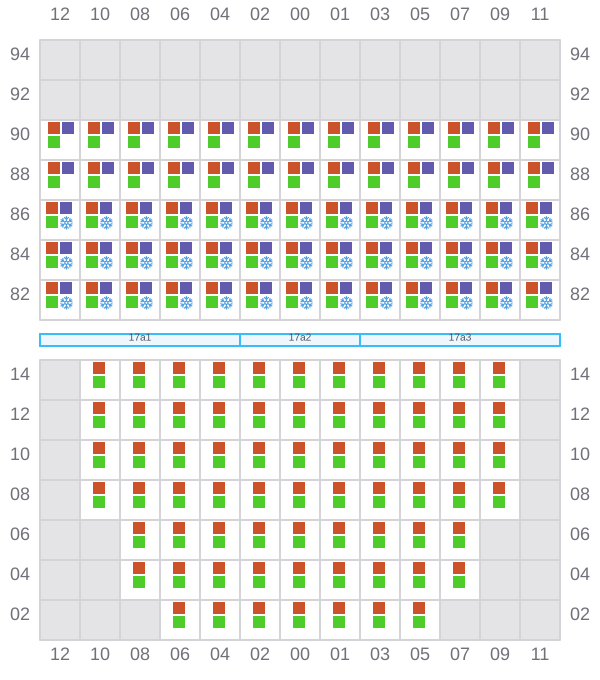

017 (018)
- →
![Bay 017 view and slots of ADAMS](/vessel-images/b1daa3fa-c6fd-4959-aae5-1d3e6ea34b86-b017.png?v=1711997500551)

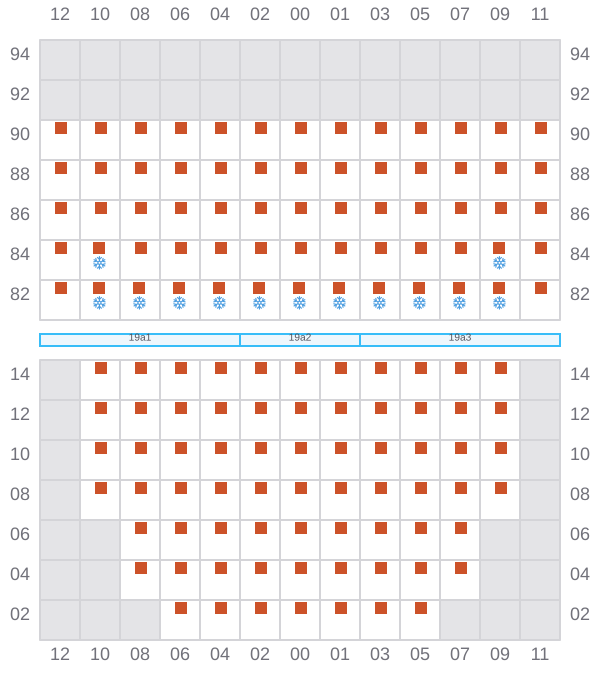

019
- ←
![Bay 019 view and slots of ADAMS](/vessel-images/b1daa3fa-c6fd-4959-aae5-1d3e6ea34b86-b019.png?v=1711997500551)

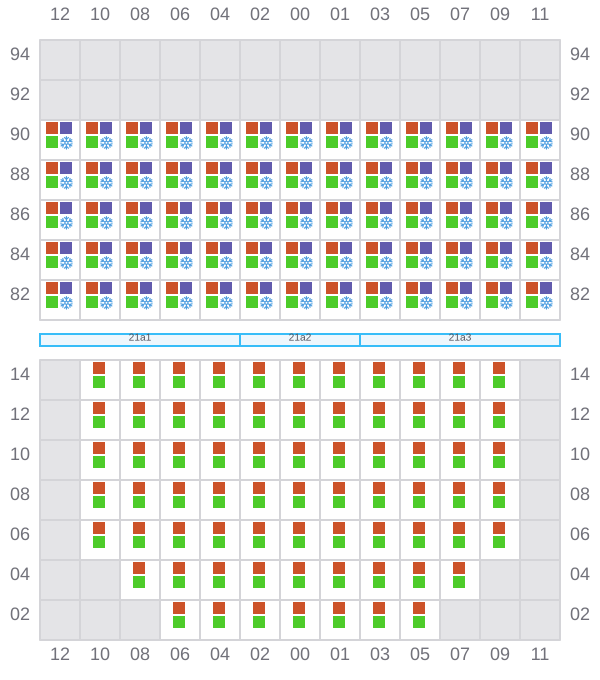

021 (022)
- →
![Bay 021 view and slots of ADAMS](/vessel-images/b1daa3fa-c6fd-4959-aae5-1d3e6ea34b86-b021.png?v=1711997500551)

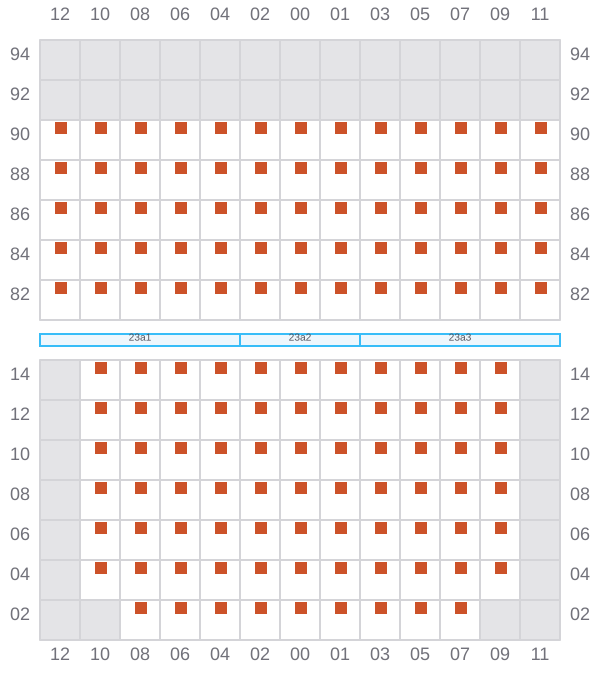

023
- ←
![Bay 023 view and slots of ADAMS](/vessel-images/b1daa3fa-c6fd-4959-aae5-1d3e6ea34b86-b023.png?v=1711997500551)
025 (026)
- →
![Bay 025 view and slots of ADAMS](/vessel-images/b1daa3fa-c6fd-4959-aae5-1d3e6ea34b86-b025.png?v=1711997500551)
027
- ←
![Bay 027 view and slots of ADAMS](/vessel-images/b1daa3fa-c6fd-4959-aae5-1d3e6ea34b86-b027.png?v=1711997500551)

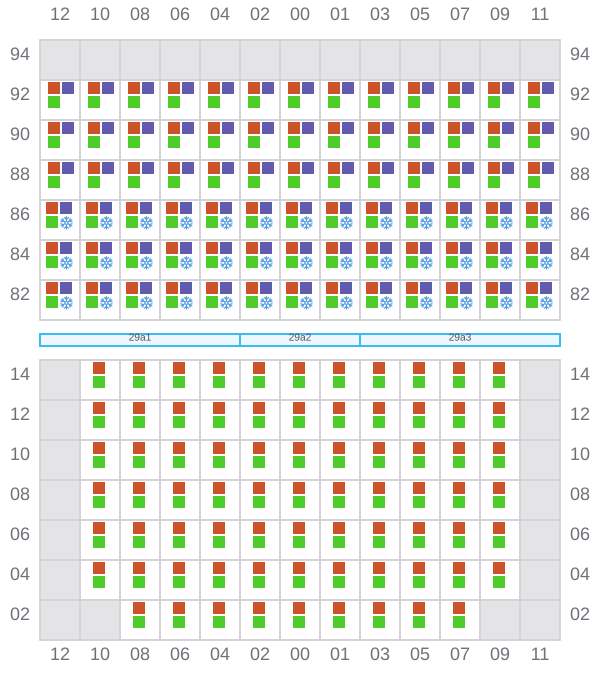

029 (030)
- →
![Bay 029 view and slots of ADAMS](/vessel-images/b1daa3fa-c6fd-4959-aae5-1d3e6ea34b86-b029.png?v=1711997500551)
031
- ←
![Bay 031 view and slots of ADAMS](/vessel-images/b1daa3fa-c6fd-4959-aae5-1d3e6ea34b86-b031.png?v=1711997500551)
033 (034)
- →
![Bay 033 view and slots of ADAMS](/vessel-images/b1daa3fa-c6fd-4959-aae5-1d3e6ea34b86-b033.png?v=1711997500551)

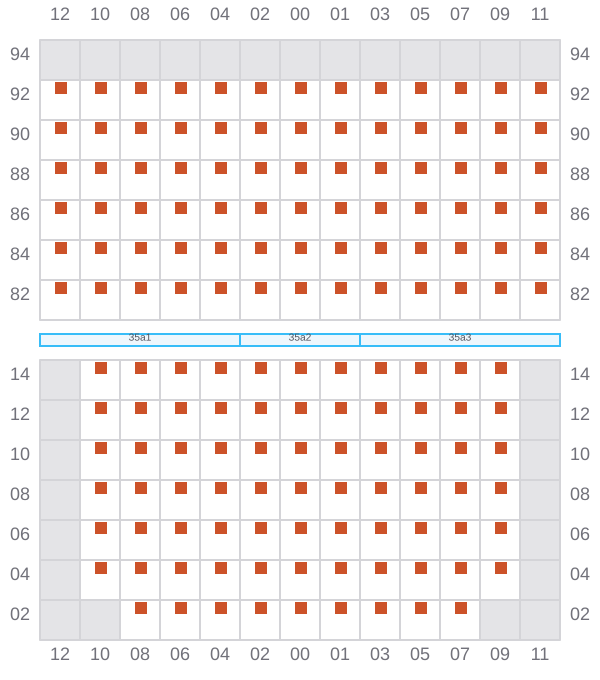

035
- ←
![Bay 035 view and slots of ADAMS](/vessel-images/b1daa3fa-c6fd-4959-aae5-1d3e6ea34b86-b035.png?v=1711997500551)
037 (038)
- →
![Bay 037 view and slots of ADAMS](/vessel-images/b1daa3fa-c6fd-4959-aae5-1d3e6ea34b86-b037.png?v=1711997500551)
039
- ←
![Bay 039 view and slots of ADAMS](/vessel-images/b1daa3fa-c6fd-4959-aae5-1d3e6ea34b86-b039.png?v=1711997500551)

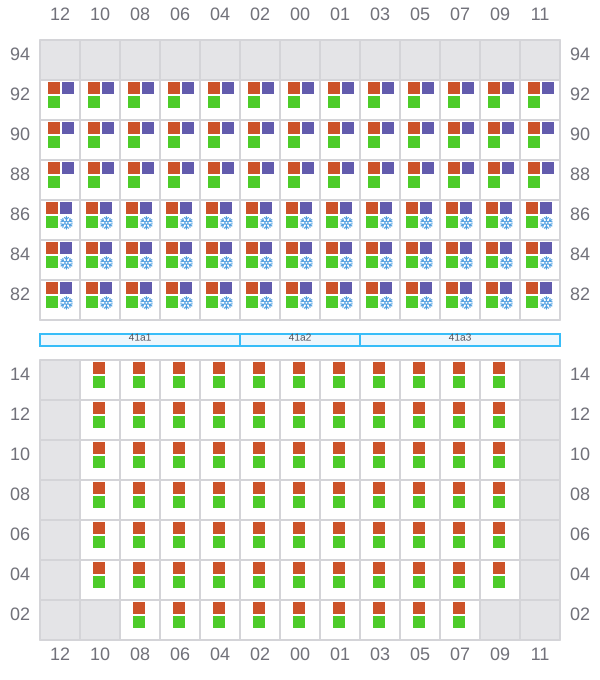

041 (042)
- →
![Bay 041 view and slots of ADAMS](/vessel-images/b1daa3fa-c6fd-4959-aae5-1d3e6ea34b86-b041.png?v=1711997500551)
043
- ←
![Bay 043 view and slots of ADAMS](/vessel-images/b1daa3fa-c6fd-4959-aae5-1d3e6ea34b86-b043.png?v=1711997500551)

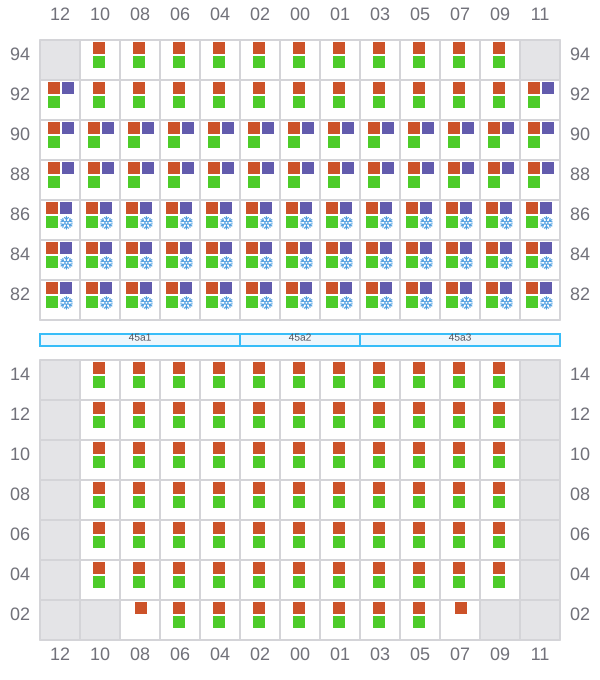

045 (046)
- →
![Bay 045 view and slots of ADAMS](/vessel-images/b1daa3fa-c6fd-4959-aae5-1d3e6ea34b86-b045.png?v=1711997500551)

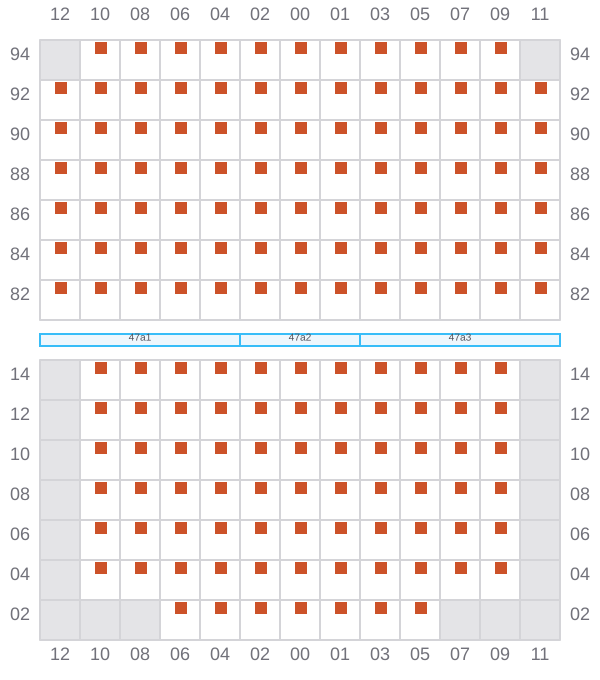

047
- ←
![Bay 047 view and slots of ADAMS](/vessel-images/b1daa3fa-c6fd-4959-aae5-1d3e6ea34b86-b047.png?v=1711997500551)

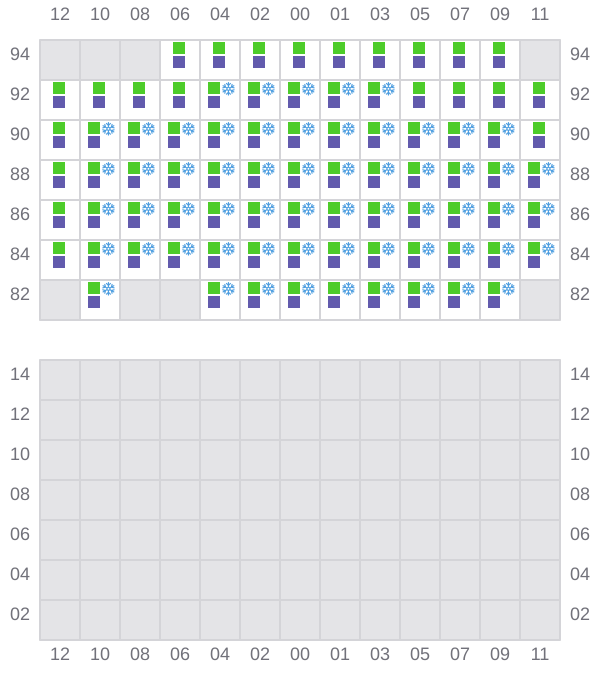

049 (050)
- → / ?
![Bay 049 view and slots of ADAMS](/vessel-images/b1daa3fa-c6fd-4959-aae5-1d3e6ea34b86-b049.png?v=1711997500551)

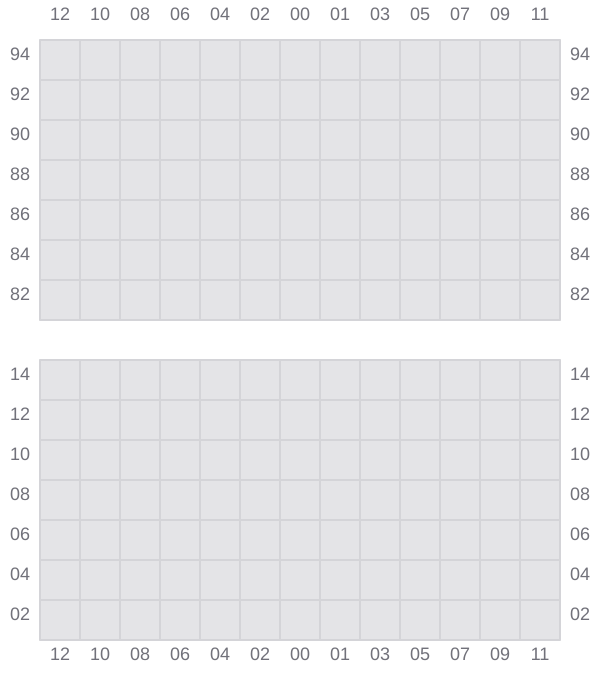

051
![Bay 051 view and slots of ADAMS](/vessel-images/b1daa3fa-c6fd-4959-aae5-1d3e6ea34b86-b051.png?v=1711997500551)

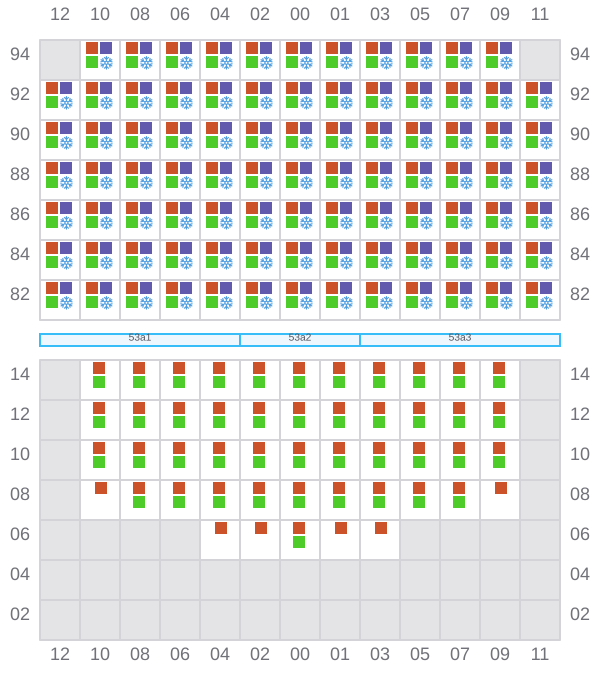

053 (054)
- →
![Bay 053 view and slots of ADAMS](/vessel-images/b1daa3fa-c6fd-4959-aae5-1d3e6ea34b86-b053.png?v=1711997500551)
055
- ←
![Bay 055 view and slots of ADAMS](/vessel-images/b1daa3fa-c6fd-4959-aae5-1d3e6ea34b86-b055.png?v=1711997500551)

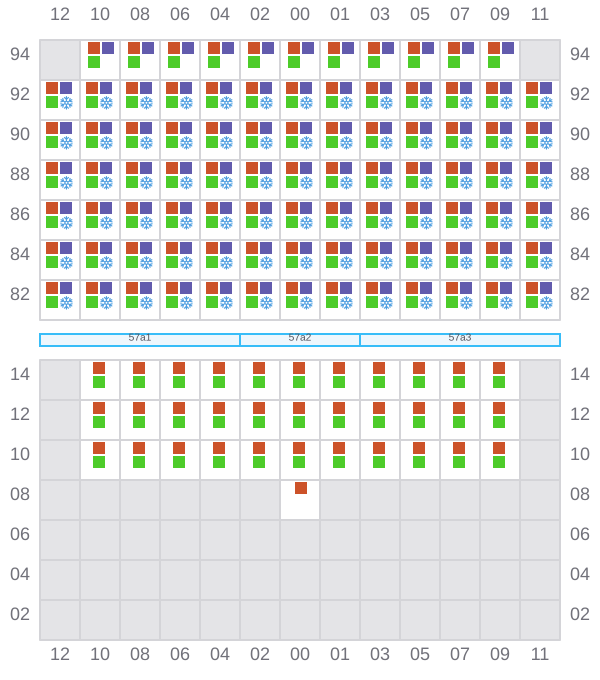

057 (058)
- →
![Bay 057 view and slots of ADAMS](/vessel-images/b1daa3fa-c6fd-4959-aae5-1d3e6ea34b86-b057.png?v=1711997500551)
059
- ←
![Bay 059 view and slots of ADAMS](/vessel-images/b1daa3fa-c6fd-4959-aae5-1d3e6ea34b86-b059.png?v=1711997500551)

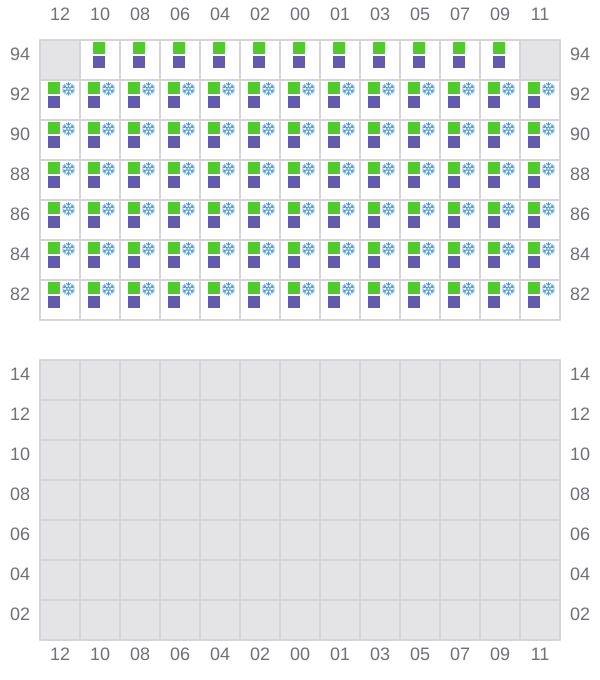

061 (062)
- → / ?
![Bay 061 view and slots of ADAMS](/vessel-images/b1daa3fa-c6fd-4959-aae5-1d3e6ea34b86-b061.png?v=1711997500551)
