AEOLUS
9088524 | 5LBD8 | 9088524 by *********** Last update: Mon Mar 04 2024
General Info
Ship Name:AEOLUS
IMO Code:9088524
Call Sign:5LBD8
Line Operator:9088524
Class Name for Sister Ships:29W
Year Built:1996
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:045
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:1,850
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

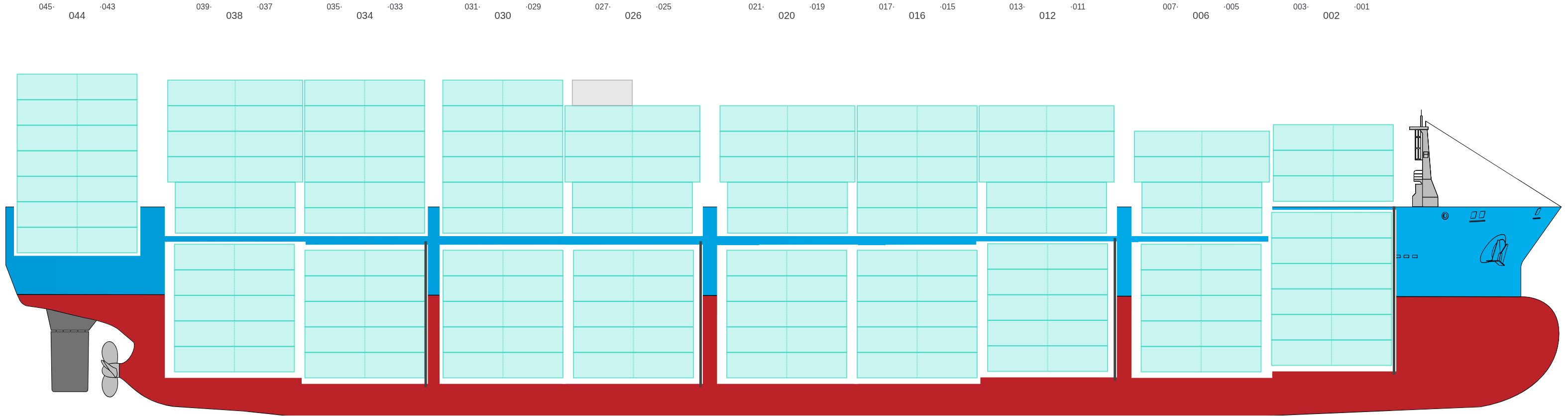

Side View
![Side view of AEOLUS](/vessel-images/e487406a-1741-482d-8d68-9ad5e8f6286c-sideView.png?v=1709578547898)
Hatch-Covers View
![Deck view of AEOLUS](/vessel-images/e487406a-1741-482d-8d68-9ad5e8f6286c-deckView.png?v=1709578547898)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

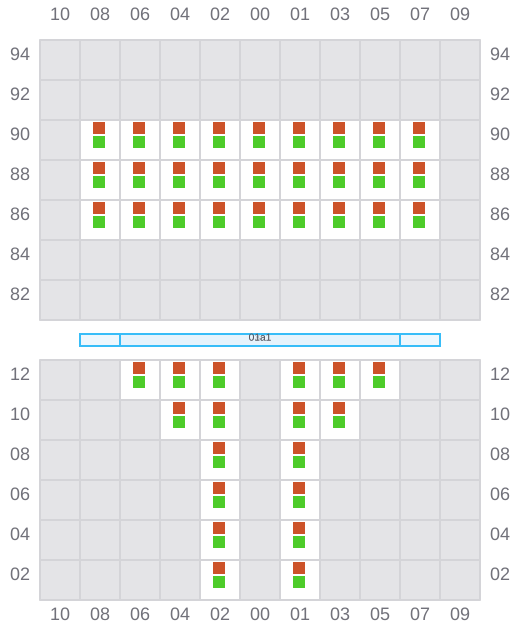

001 (002)
- →
![Bay 001 view and slots of AEOLUS](/vessel-images/e487406a-1741-482d-8d68-9ad5e8f6286c-b001.png?v=1709578547898)

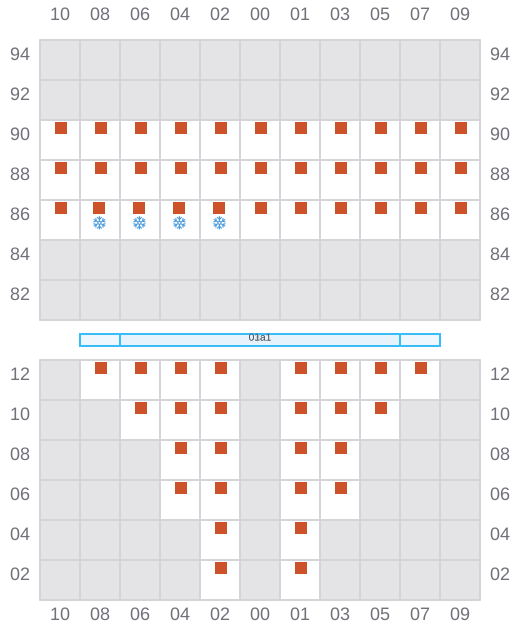

003
- ←
- → / ?
![Bay 003 view and slots of AEOLUS](/vessel-images/e487406a-1741-482d-8d68-9ad5e8f6286c-b003.png?v=1709578547898)

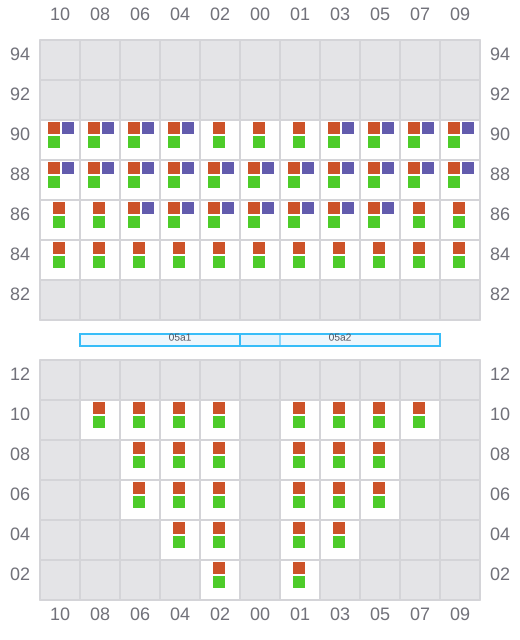

005 (006)
- →
![Bay 005 view and slots of AEOLUS](/vessel-images/e487406a-1741-482d-8d68-9ad5e8f6286c-b005.png?v=1709578547898)

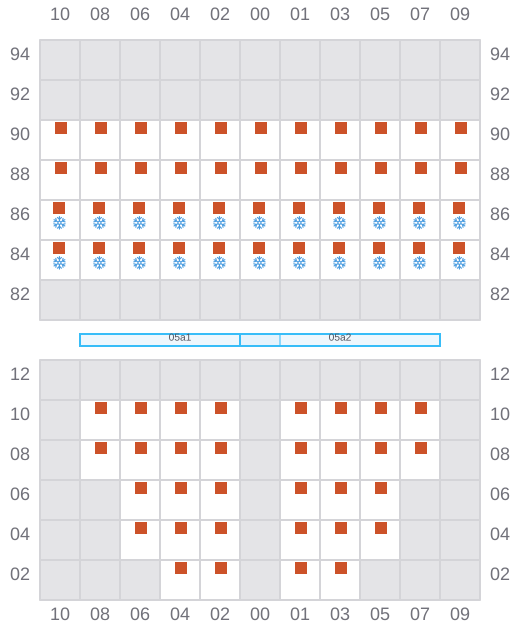

007
- ←
- → / ?
![Bay 007 view and slots of AEOLUS](/vessel-images/e487406a-1741-482d-8d68-9ad5e8f6286c-b007.png?v=1709578547898)
009
![Bay 009 view and slots of AEOLUS](/vessel-images/e487406a-1741-482d-8d68-9ad5e8f6286c-b009.png?v=1709578547898)

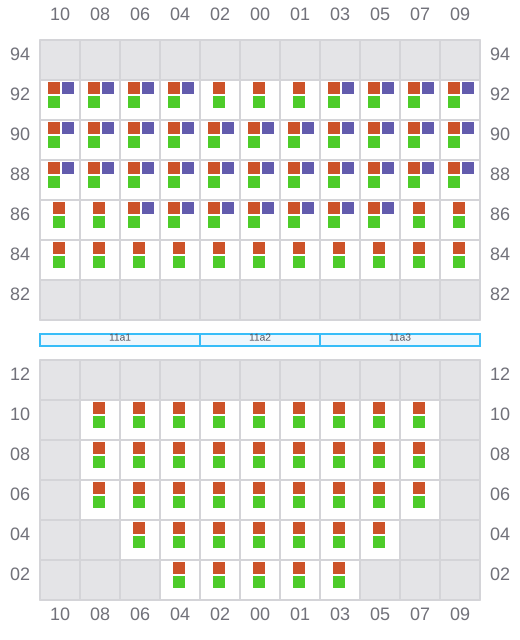

011 (012)
- →
![Bay 011 view and slots of AEOLUS](/vessel-images/e487406a-1741-482d-8d68-9ad5e8f6286c-b011.png?v=1709578547898)

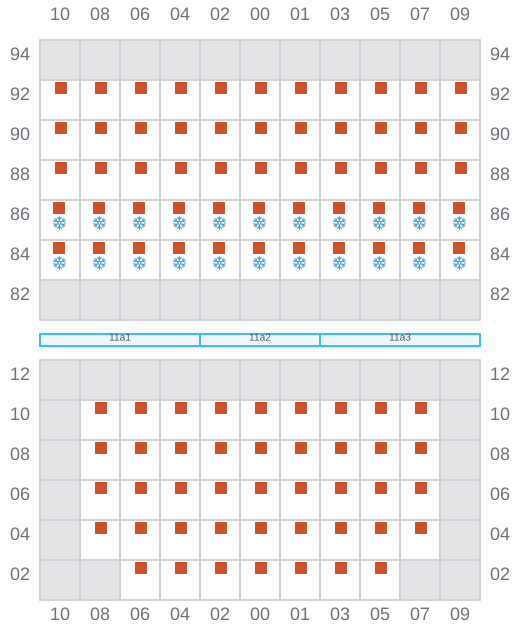

013
- ←
- → / ?
![Bay 013 view and slots of AEOLUS](/vessel-images/e487406a-1741-482d-8d68-9ad5e8f6286c-b013.png?v=1709578547898)
015 (016)
- →
![Bay 015 view and slots of AEOLUS](/vessel-images/e487406a-1741-482d-8d68-9ad5e8f6286c-b015.png?v=1709578547898)

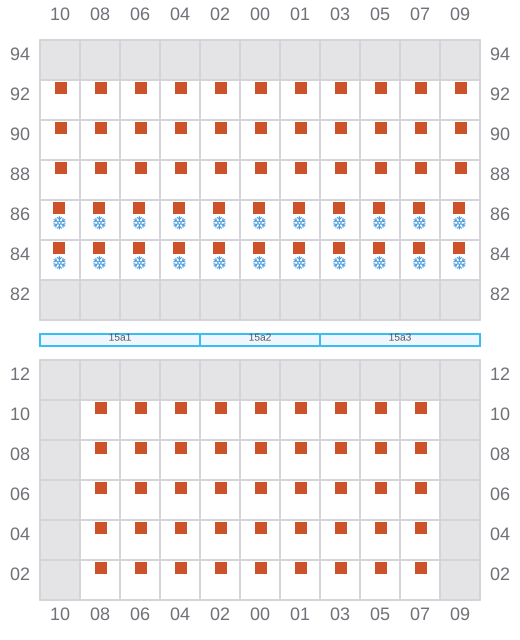

017
- ←
- → / ?
![Bay 017 view and slots of AEOLUS](/vessel-images/e487406a-1741-482d-8d68-9ad5e8f6286c-b017.png?v=1709578547898)
019 (020)
- →
![Bay 019 view and slots of AEOLUS](/vessel-images/e487406a-1741-482d-8d68-9ad5e8f6286c-b019.png?v=1709578547898)

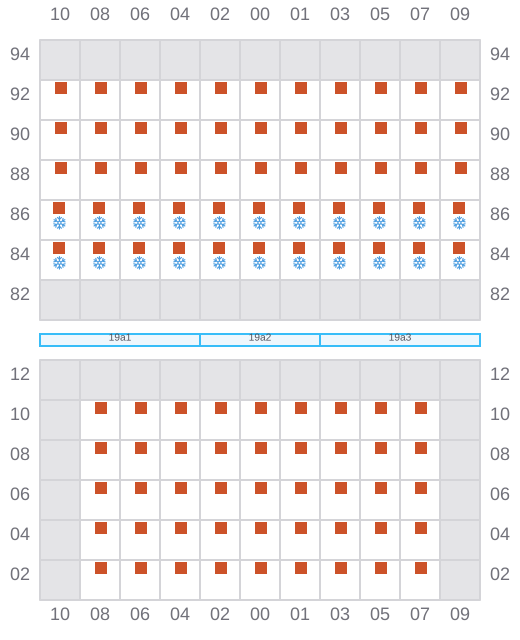

021
- ←
- → / ?
![Bay 021 view and slots of AEOLUS](/vessel-images/e487406a-1741-482d-8d68-9ad5e8f6286c-b021.png?v=1709578547898)

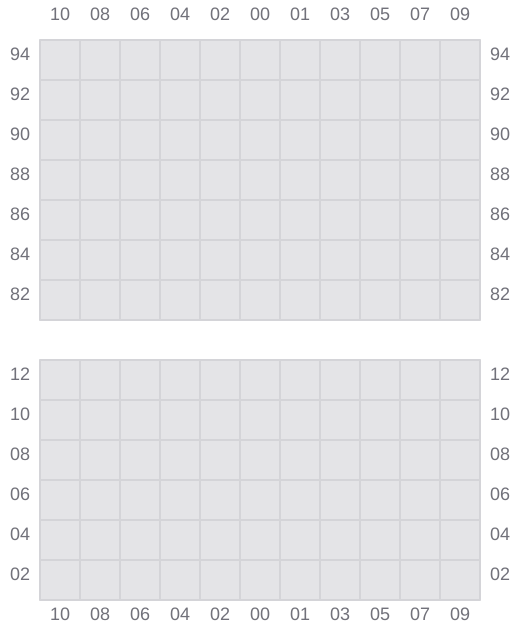

023
![Bay 023 view and slots of AEOLUS](/vessel-images/e487406a-1741-482d-8d68-9ad5e8f6286c-b023.png?v=1709578547898)

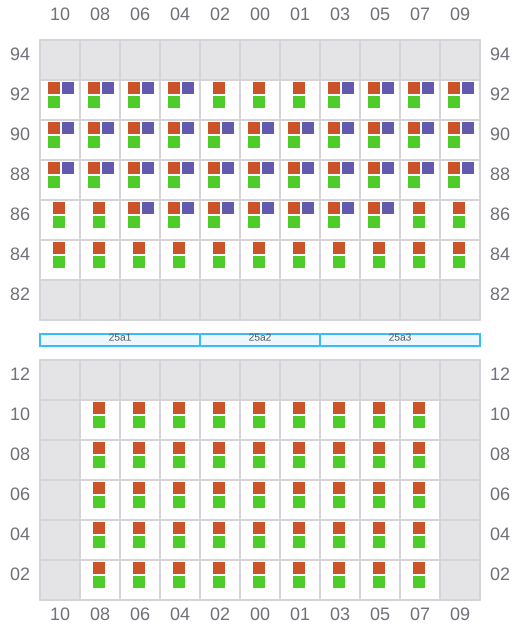

025 (026)
- →
![Bay 025 view and slots of AEOLUS](/vessel-images/e487406a-1741-482d-8d68-9ad5e8f6286c-b025.png?v=1709578547898)

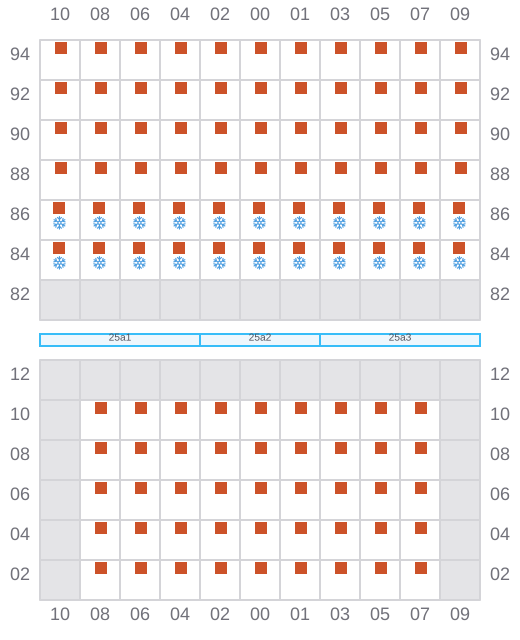

027
- ←
- → / ?
![Bay 027 view and slots of AEOLUS](/vessel-images/e487406a-1741-482d-8d68-9ad5e8f6286c-b027.png?v=1709578547898)
029 (030)
- →
![Bay 029 view and slots of AEOLUS](/vessel-images/e487406a-1741-482d-8d68-9ad5e8f6286c-b029.png?v=1709578547898)

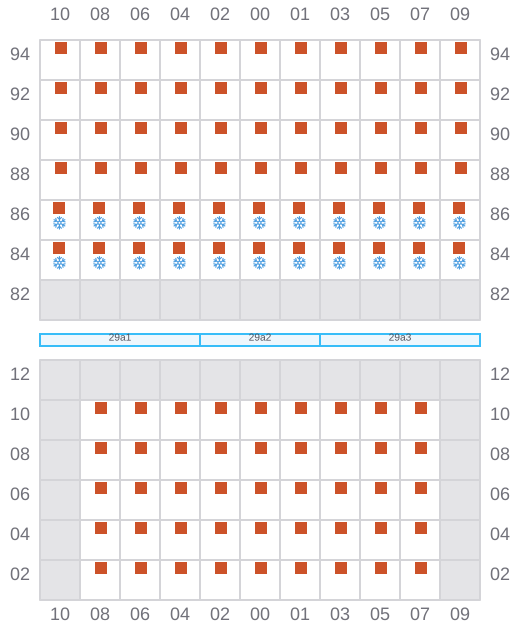

031
- ←
- → / ?
![Bay 031 view and slots of AEOLUS](/vessel-images/e487406a-1741-482d-8d68-9ad5e8f6286c-b031.png?v=1709578547898)

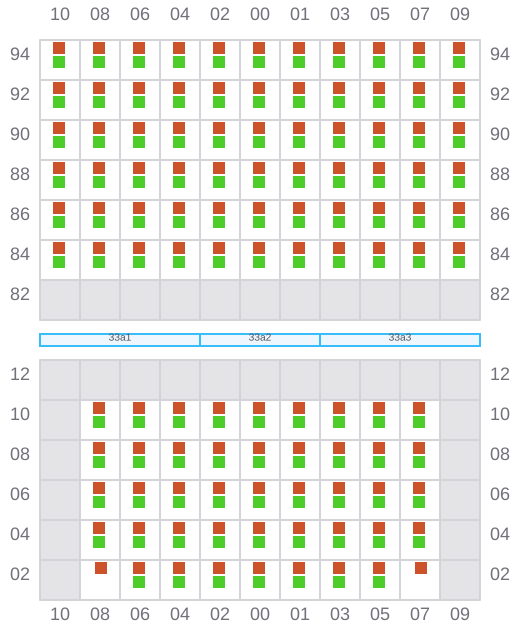

033 (034)
- →
![Bay 033 view and slots of AEOLUS](/vessel-images/e487406a-1741-482d-8d68-9ad5e8f6286c-b033.png?v=1709578547898)

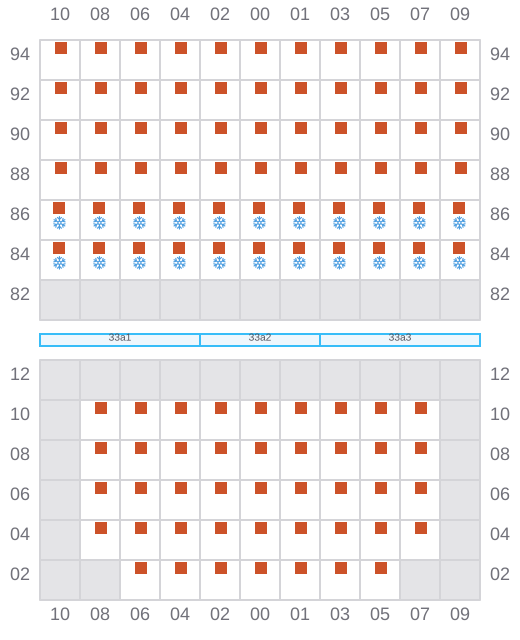

035
- ←
- → / ?
![Bay 035 view and slots of AEOLUS](/vessel-images/e487406a-1741-482d-8d68-9ad5e8f6286c-b035.png?v=1709578547898)

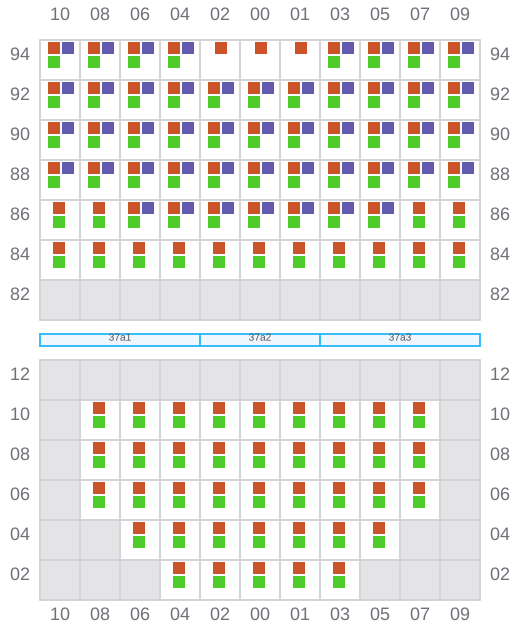

037 (038)
- →
![Bay 037 view and slots of AEOLUS](/vessel-images/e487406a-1741-482d-8d68-9ad5e8f6286c-b037.png?v=1709578547898)

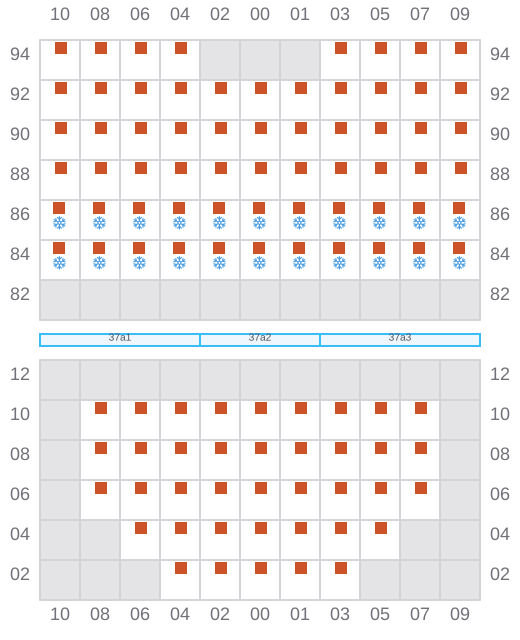

039
- ←
- → / ?
![Bay 039 view and slots of AEOLUS](/vessel-images/e487406a-1741-482d-8d68-9ad5e8f6286c-b039.png?v=1709578547898)
041
![Bay 041 view and slots of AEOLUS](/vessel-images/e487406a-1741-482d-8d68-9ad5e8f6286c-b041.png?v=1709578547898)

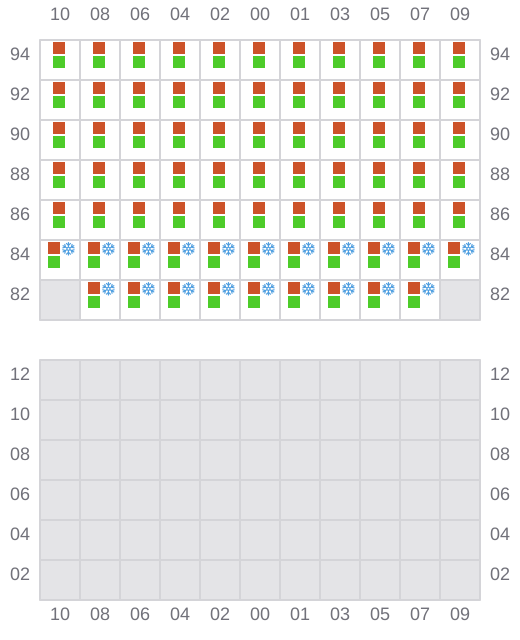

043 (044)
- → / ?
- ← / ?
![Bay 043 view and slots of AEOLUS](/vessel-images/e487406a-1741-482d-8d68-9ad5e8f6286c-b043.png?v=1709578547898)

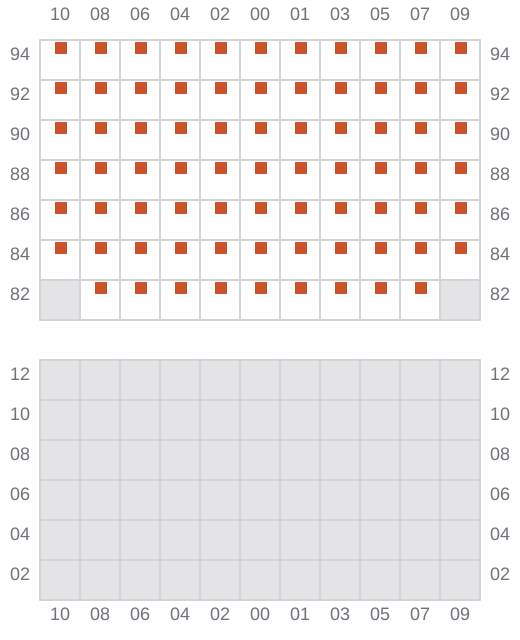

045
- ← / ?
![Bay 045 view and slots of AEOLUS](/vessel-images/e487406a-1741-482d-8d68-9ad5e8f6286c-b045.png?v=1709578547898)
