AGIOS DIMITRIOS
9349605 | D5DU8 | MSC by ************************** Last update: Thu Jun 15 2023
General Info
Ship Name:AGIOS DIMITRIOS
IMO Code:9349605
Call Sign:D5DU8
Line Operator:MSC
Class Name for Sister Ships:AGI
Year Built:2011
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:071
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:6,560
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

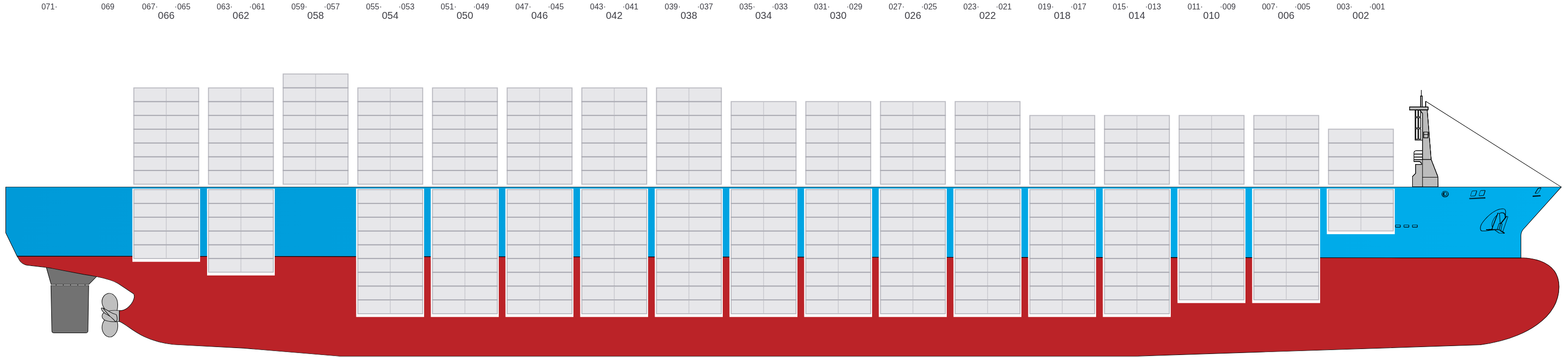

Side View
![Side view of AGIOS DIMITRIOS](/vessel-images/e1b31c77-6709-43c6-bc69-62ab4c01f289-sideView.png?v=1686852931767)
Hatch-Covers View
![Deck view of AGIOS DIMITRIOS](/vessel-images/e1b31c77-6709-43c6-bc69-62ab4c01f289-deckView.png?v=1686852931767)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

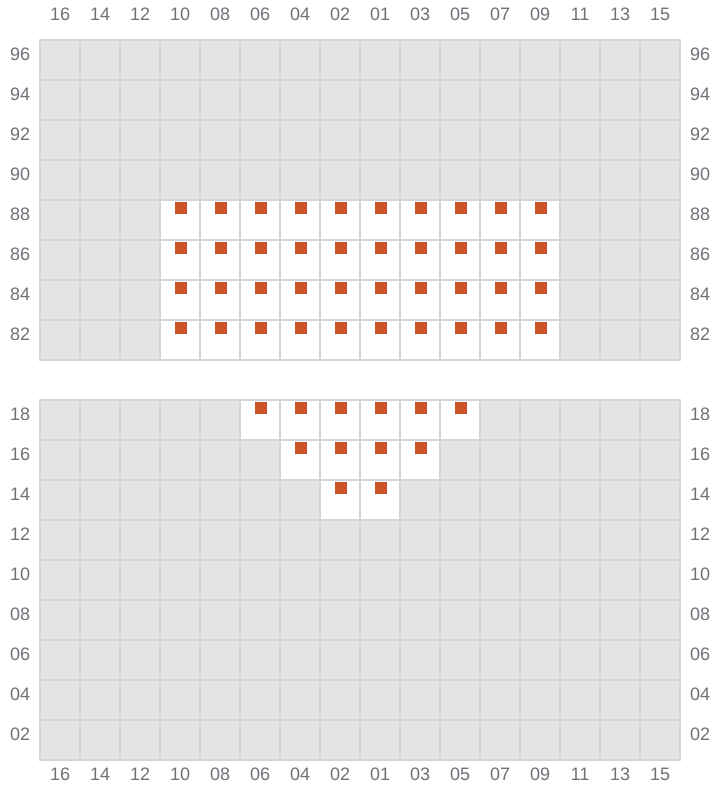

001
- →
![Bay 001 view and slots of AGIOS DIMITRIOS](/vessel-images/e1b31c77-6709-43c6-bc69-62ab4c01f289-b001.png?v=1686852931767)

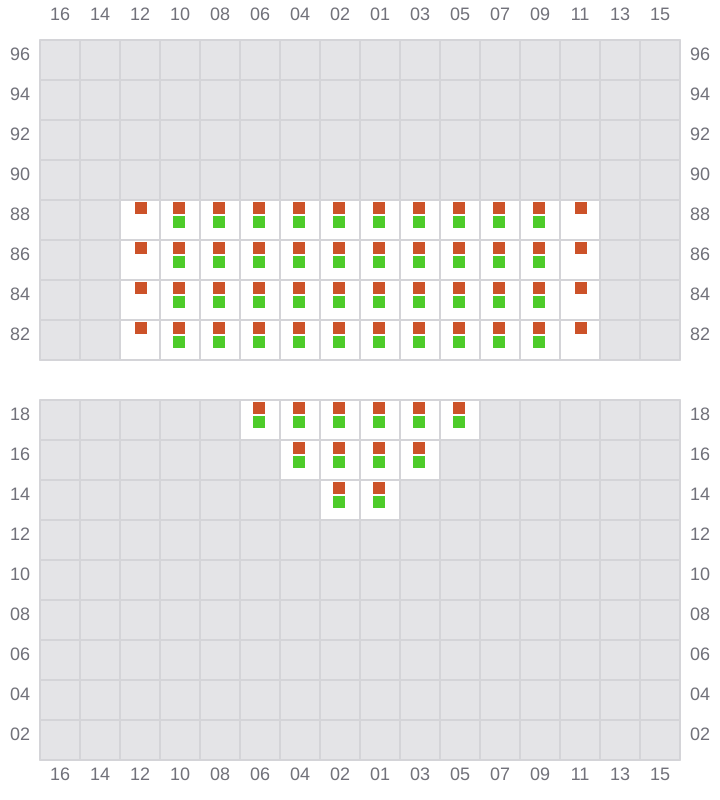

003 (002)
- ←
![Bay 003 view and slots of AGIOS DIMITRIOS](/vessel-images/e1b31c77-6709-43c6-bc69-62ab4c01f289-b003.png?v=1686852931767)

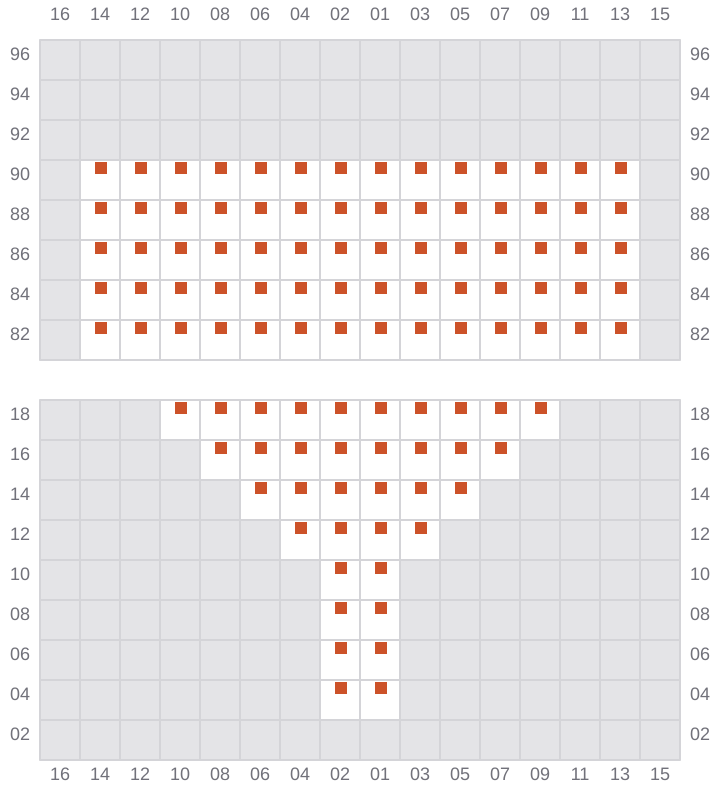

005
- →
![Bay 005 view and slots of AGIOS DIMITRIOS](/vessel-images/e1b31c77-6709-43c6-bc69-62ab4c01f289-b005.png?v=1686852931767)

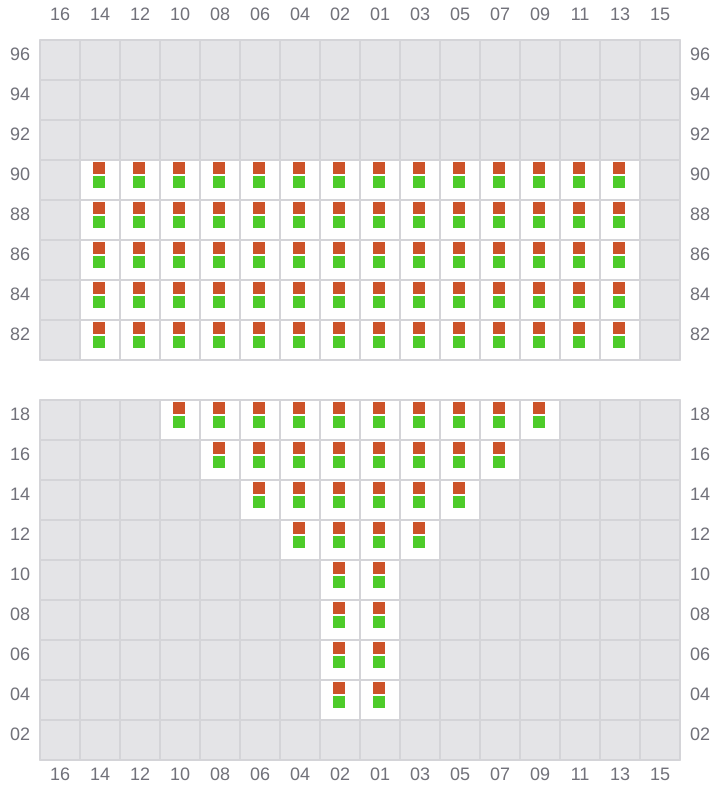

007 (006)
- ←
![Bay 007 view and slots of AGIOS DIMITRIOS](/vessel-images/e1b31c77-6709-43c6-bc69-62ab4c01f289-b007.png?v=1686852931767)

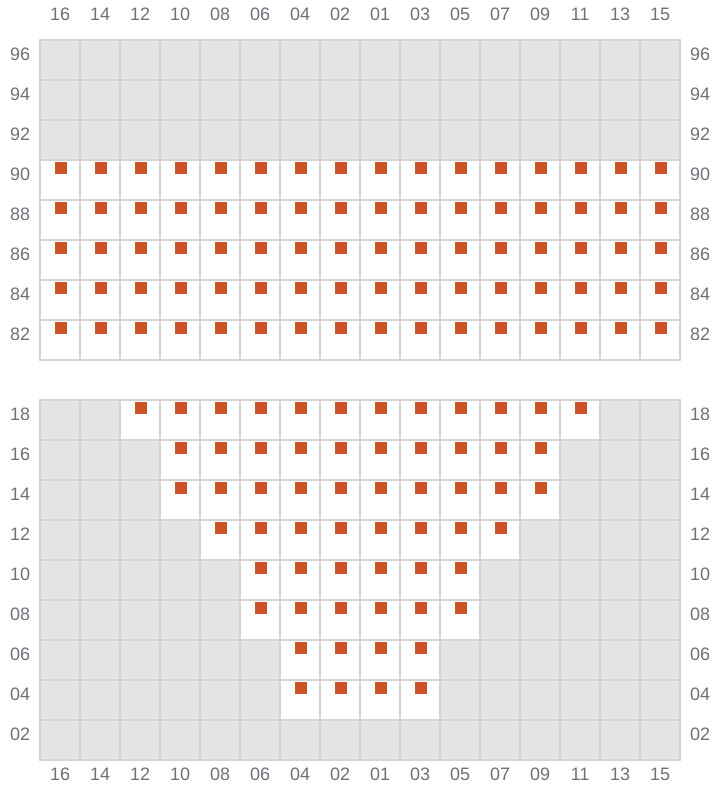

009
- →
![Bay 009 view and slots of AGIOS DIMITRIOS](/vessel-images/e1b31c77-6709-43c6-bc69-62ab4c01f289-b009.png?v=1686852931767)

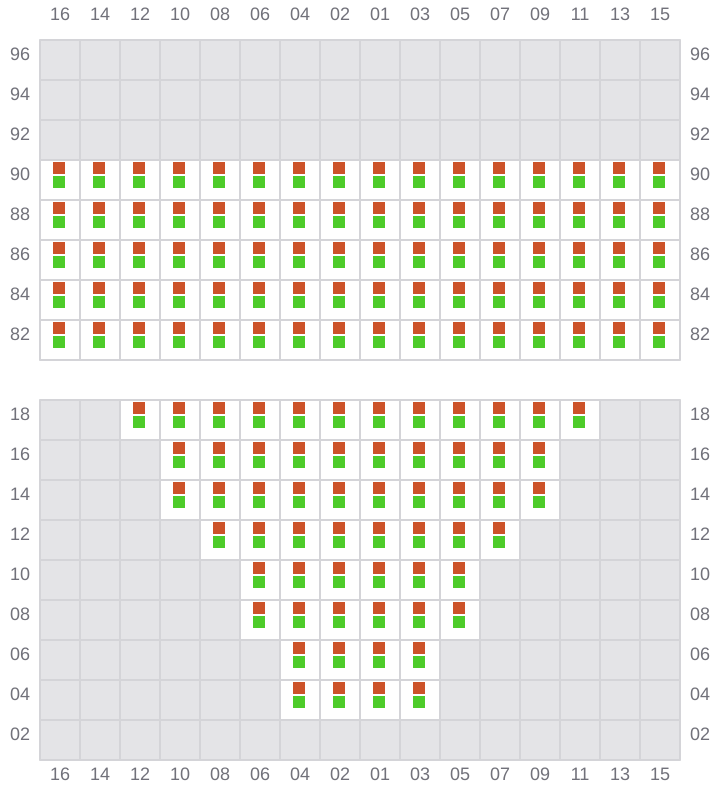

011 (010)
- ←
![Bay 011 view and slots of AGIOS DIMITRIOS](/vessel-images/e1b31c77-6709-43c6-bc69-62ab4c01f289-b011.png?v=1686852931767)

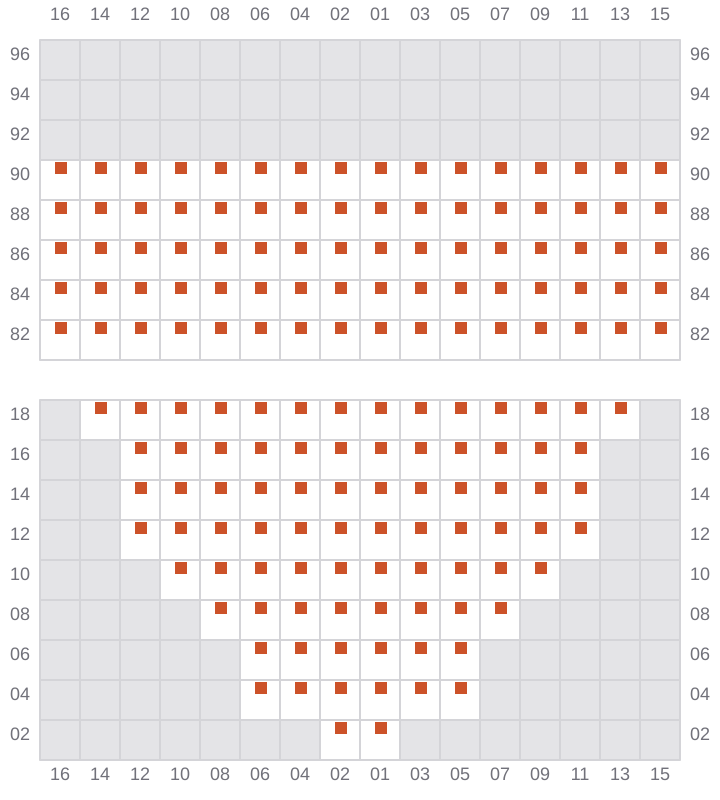

013
- →
![Bay 013 view and slots of AGIOS DIMITRIOS](/vessel-images/e1b31c77-6709-43c6-bc69-62ab4c01f289-b013.png?v=1686852931767)

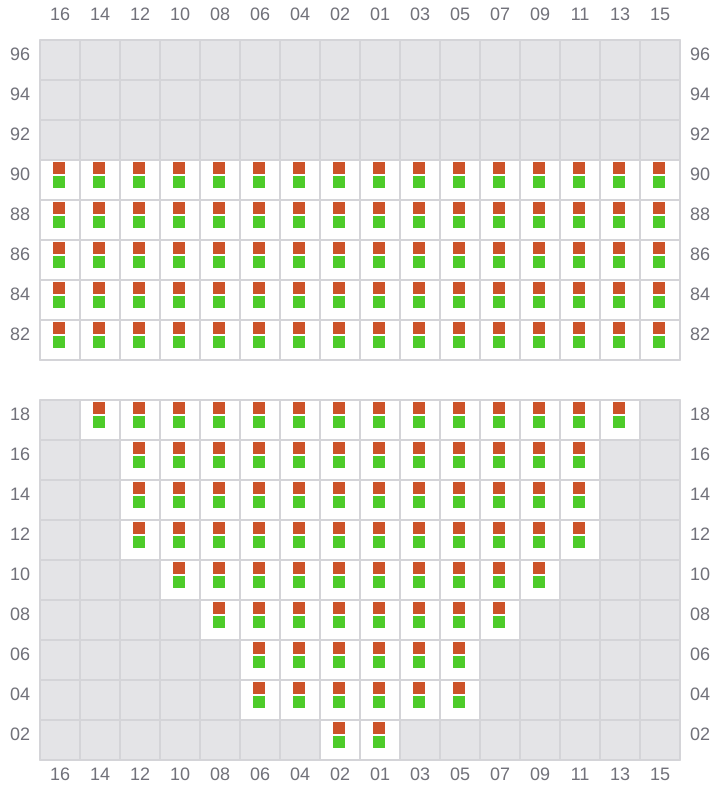

015 (014)
- ←
![Bay 015 view and slots of AGIOS DIMITRIOS](/vessel-images/e1b31c77-6709-43c6-bc69-62ab4c01f289-b015.png?v=1686852931767)

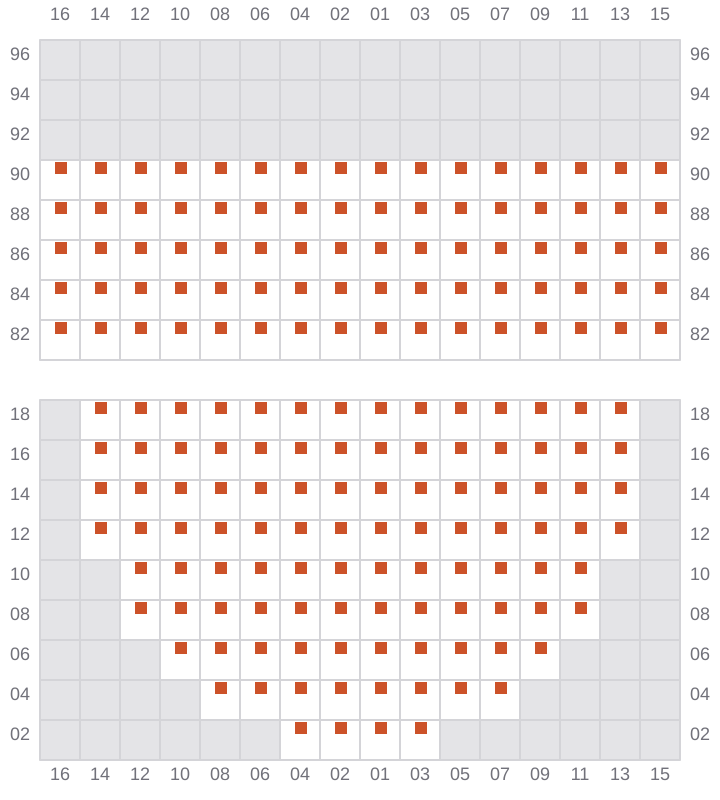

017
- →
![Bay 017 view and slots of AGIOS DIMITRIOS](/vessel-images/e1b31c77-6709-43c6-bc69-62ab4c01f289-b017.png?v=1686852931767)

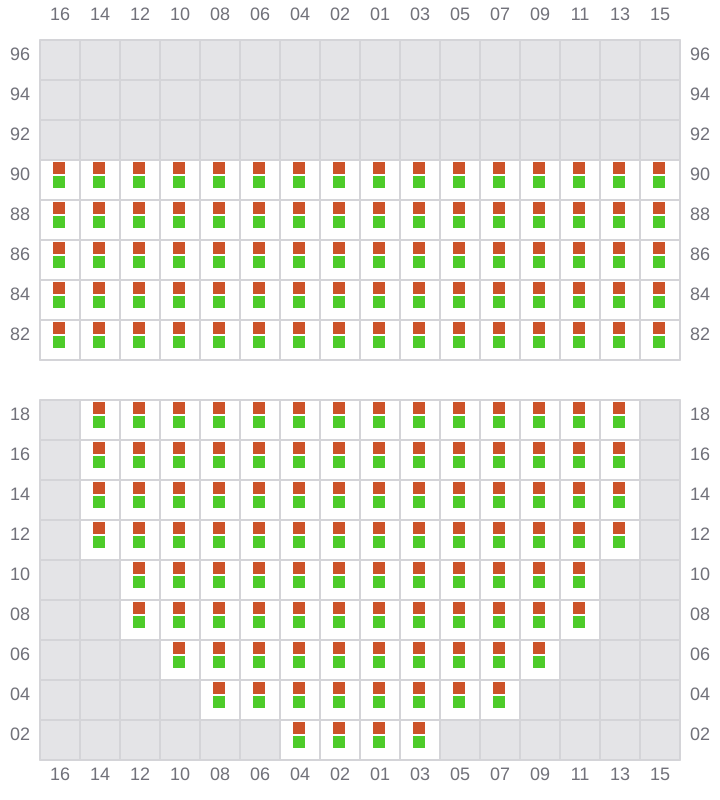

019 (018)
- ←
![Bay 019 view and slots of AGIOS DIMITRIOS](/vessel-images/e1b31c77-6709-43c6-bc69-62ab4c01f289-b019.png?v=1686852931767)

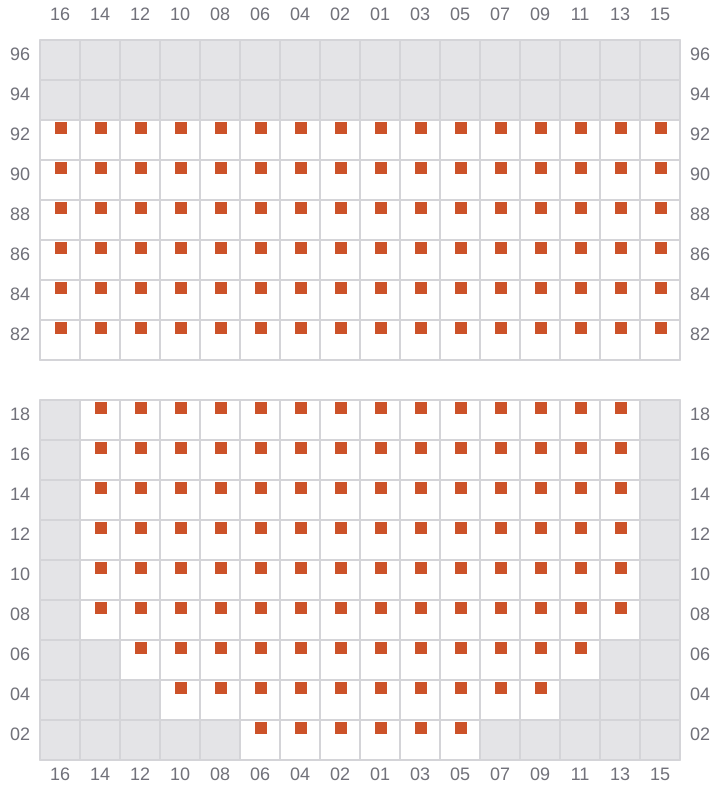

021
- →
![Bay 021 view and slots of AGIOS DIMITRIOS](/vessel-images/e1b31c77-6709-43c6-bc69-62ab4c01f289-b021.png?v=1686852931767)
023 (022)
- ←
![Bay 023 view and slots of AGIOS DIMITRIOS](/vessel-images/e1b31c77-6709-43c6-bc69-62ab4c01f289-b023.png?v=1686852931767)

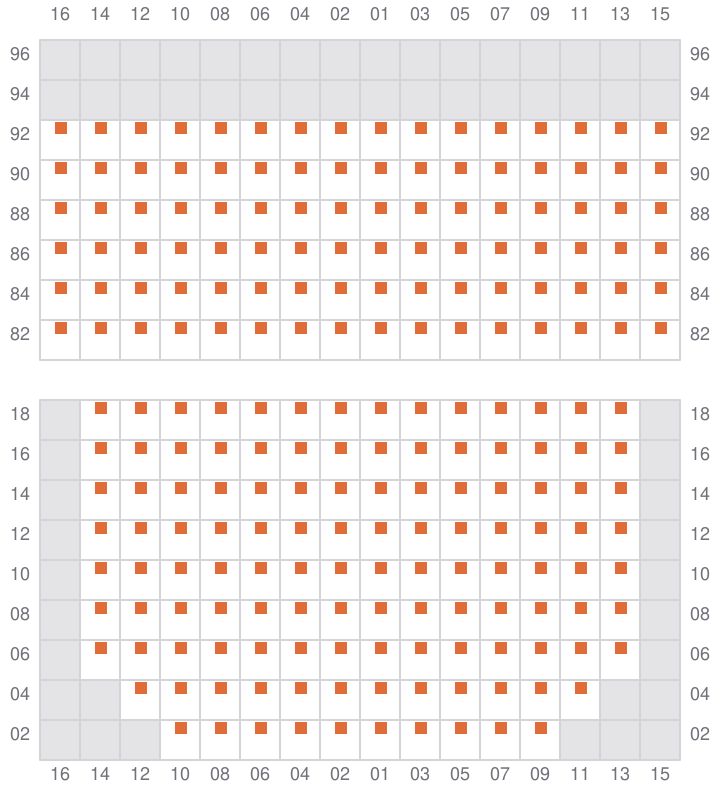

025
- →
![Bay 025 view and slots of AGIOS DIMITRIOS](/vessel-images/e1b31c77-6709-43c6-bc69-62ab4c01f289-b025.png?v=1686852931767)

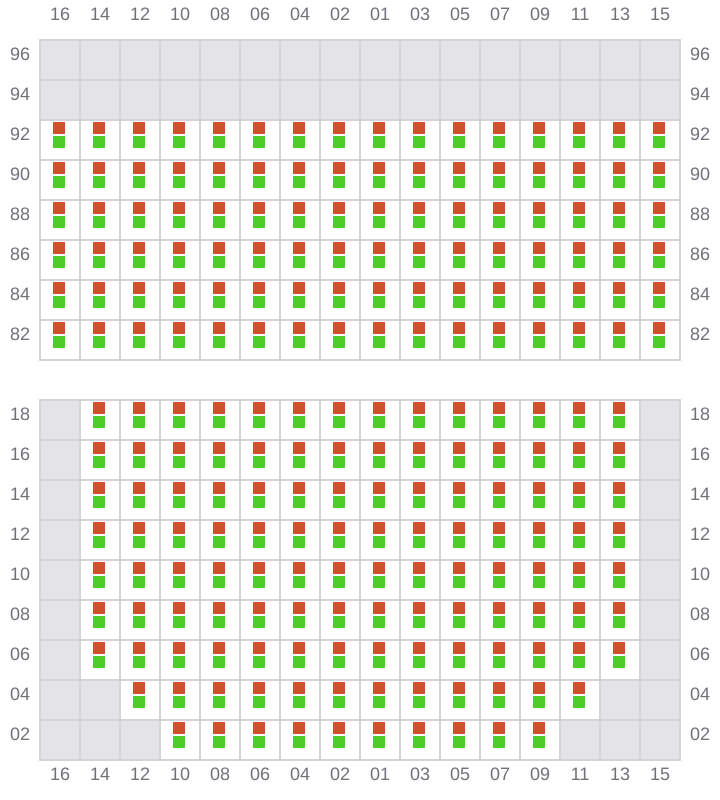

027 (026)
- ←
![Bay 027 view and slots of AGIOS DIMITRIOS](/vessel-images/e1b31c77-6709-43c6-bc69-62ab4c01f289-b027.png?v=1686852931767)
029
- →
![Bay 029 view and slots of AGIOS DIMITRIOS](/vessel-images/e1b31c77-6709-43c6-bc69-62ab4c01f289-b029.png?v=1686852931767)
031 (030)
- ←
![Bay 031 view and slots of AGIOS DIMITRIOS](/vessel-images/e1b31c77-6709-43c6-bc69-62ab4c01f289-b031.png?v=1686852931767)

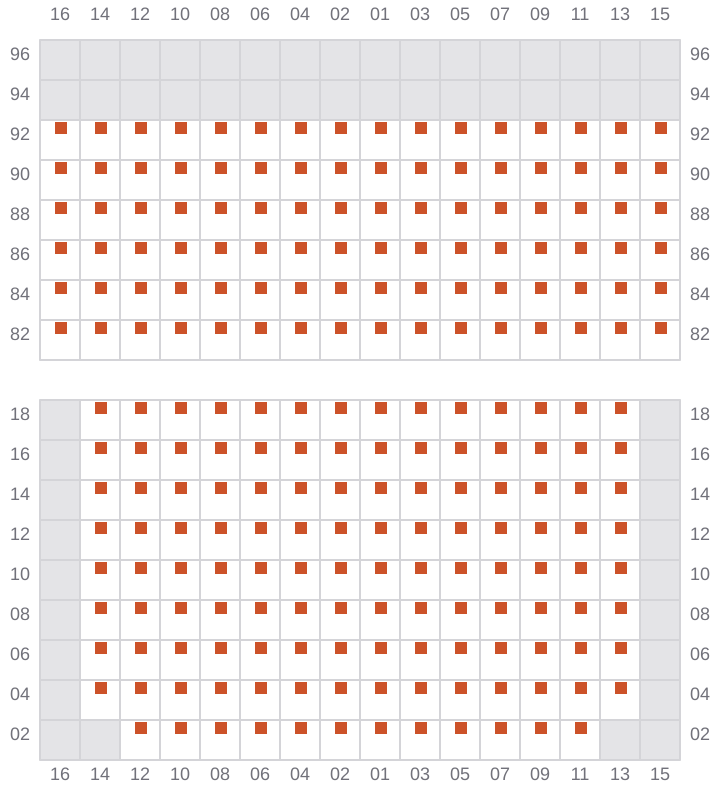

033
- →
![Bay 033 view and slots of AGIOS DIMITRIOS](/vessel-images/e1b31c77-6709-43c6-bc69-62ab4c01f289-b033.png?v=1686852931767)

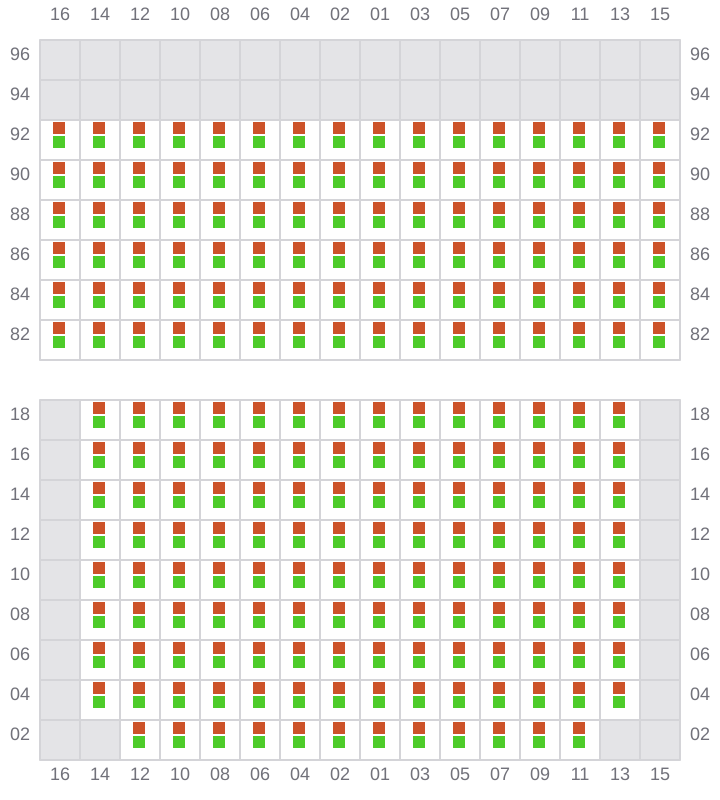

035 (034)
- ←
![Bay 035 view and slots of AGIOS DIMITRIOS](/vessel-images/e1b31c77-6709-43c6-bc69-62ab4c01f289-b035.png?v=1686852931767)
037
- →
![Bay 037 view and slots of AGIOS DIMITRIOS](/vessel-images/e1b31c77-6709-43c6-bc69-62ab4c01f289-b037.png?v=1686852931767)

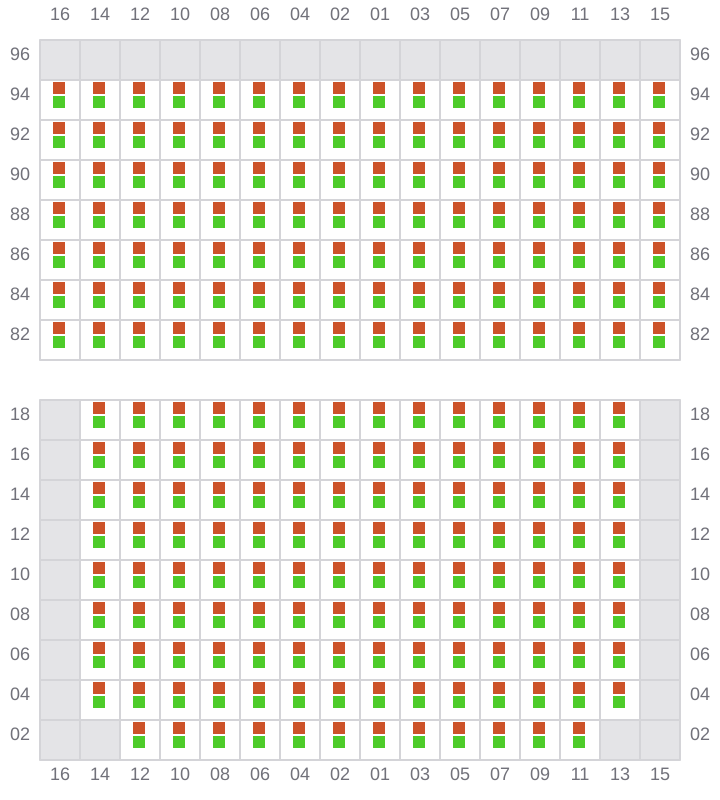

039 (038)
- ←
![Bay 039 view and slots of AGIOS DIMITRIOS](/vessel-images/e1b31c77-6709-43c6-bc69-62ab4c01f289-b039.png?v=1686852931767)

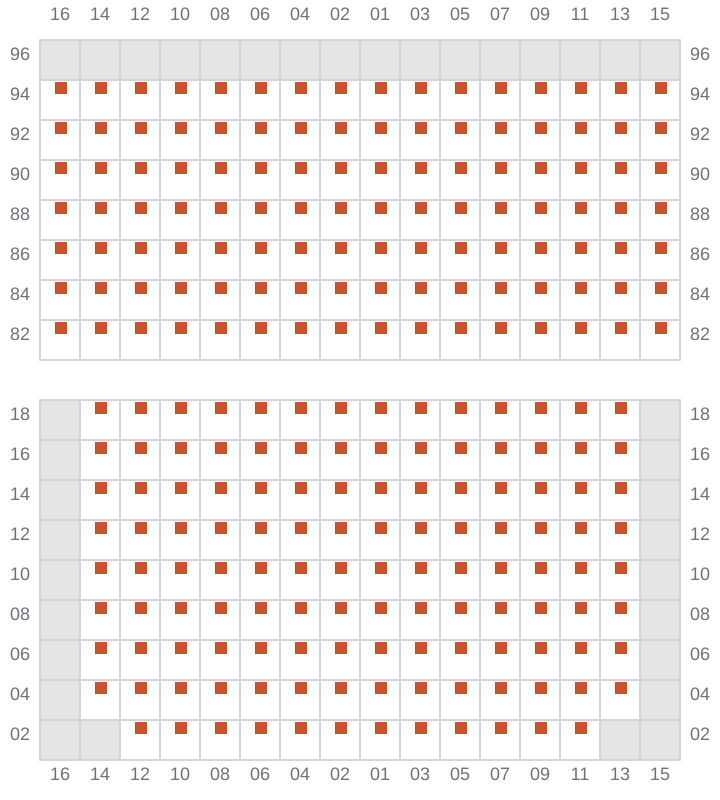

041
- →
![Bay 041 view and slots of AGIOS DIMITRIOS](/vessel-images/e1b31c77-6709-43c6-bc69-62ab4c01f289-b041.png?v=1686852931767)
043 (042)
- ←
![Bay 043 view and slots of AGIOS DIMITRIOS](/vessel-images/e1b31c77-6709-43c6-bc69-62ab4c01f289-b043.png?v=1686852931767)
045
- →
![Bay 045 view and slots of AGIOS DIMITRIOS](/vessel-images/e1b31c77-6709-43c6-bc69-62ab4c01f289-b045.png?v=1686852931767)

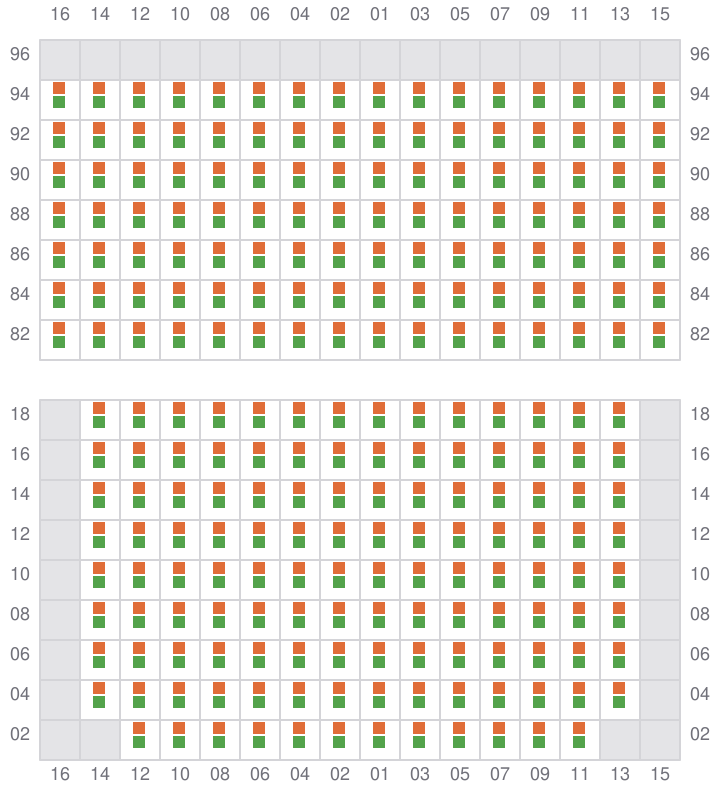

047 (046)
- ←
![Bay 047 view and slots of AGIOS DIMITRIOS](/vessel-images/e1b31c77-6709-43c6-bc69-62ab4c01f289-b047.png?v=1686852931767)

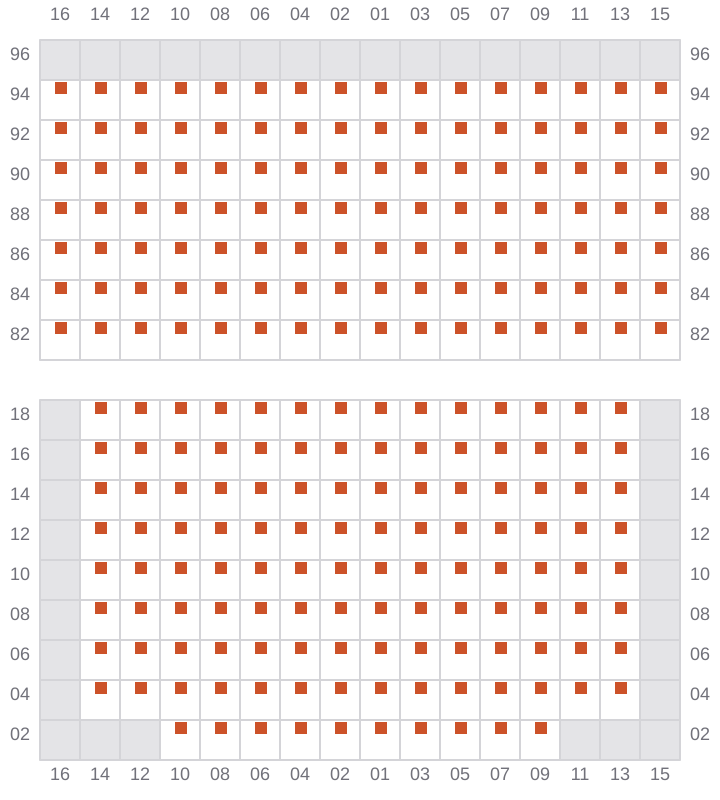

049
- →
![Bay 049 view and slots of AGIOS DIMITRIOS](/vessel-images/e1b31c77-6709-43c6-bc69-62ab4c01f289-b049.png?v=1686852931767)

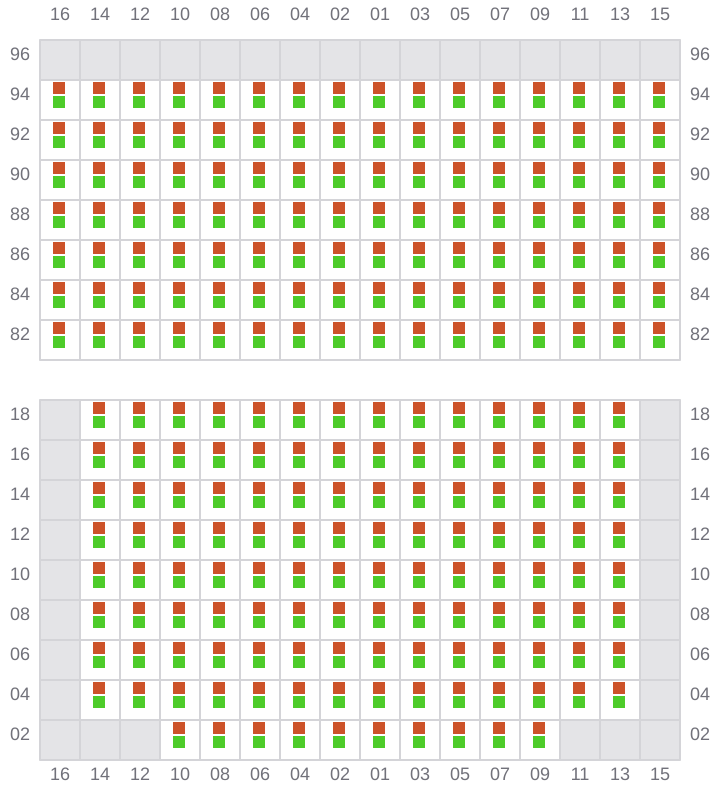

051 (050)
- ←
![Bay 051 view and slots of AGIOS DIMITRIOS](/vessel-images/e1b31c77-6709-43c6-bc69-62ab4c01f289-b051.png?v=1686852931767)

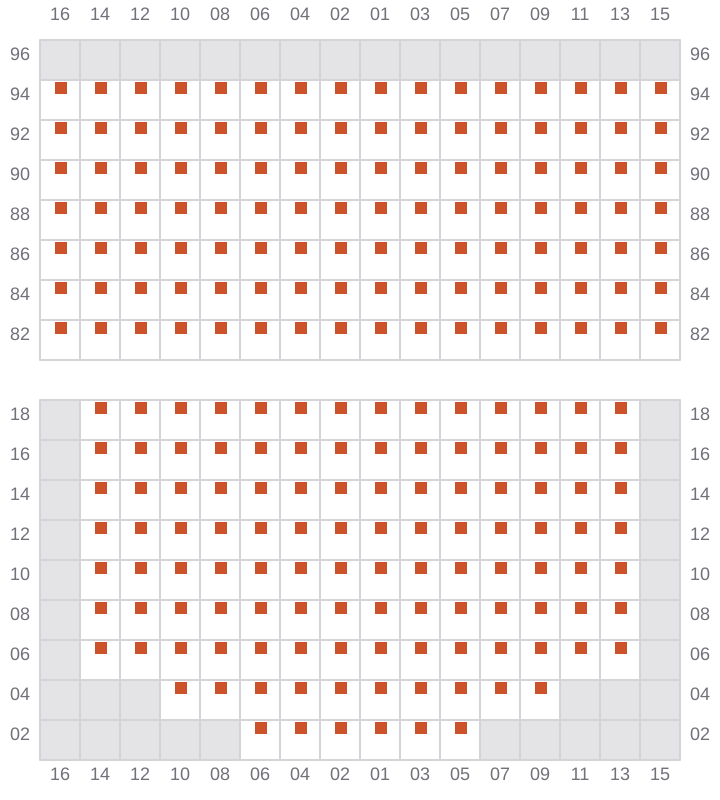

053
- →
![Bay 053 view and slots of AGIOS DIMITRIOS](/vessel-images/e1b31c77-6709-43c6-bc69-62ab4c01f289-b053.png?v=1686852931767)

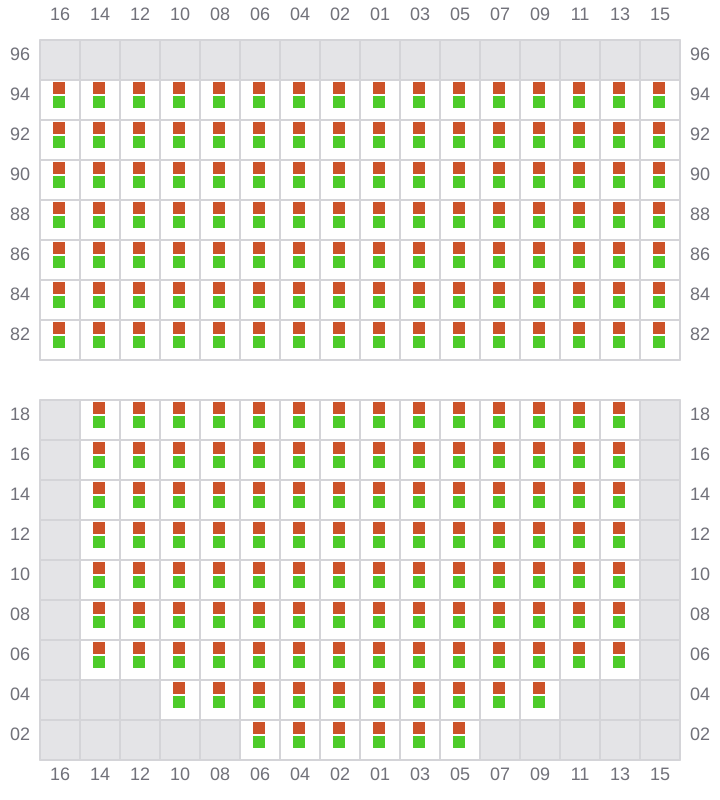

055 (054)
- ←
![Bay 055 view and slots of AGIOS DIMITRIOS](/vessel-images/e1b31c77-6709-43c6-bc69-62ab4c01f289-b055.png?v=1686852931767)

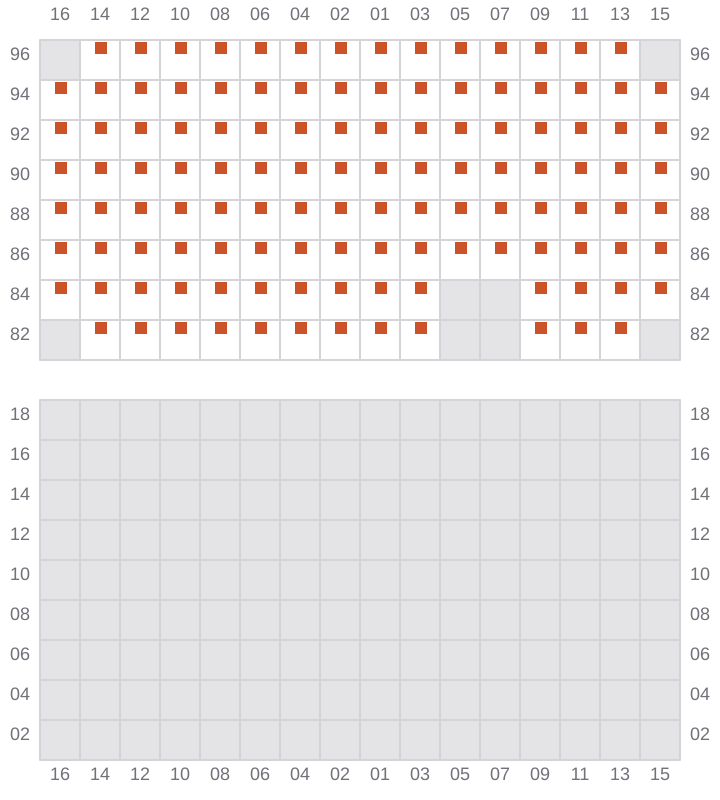

057
- → / ?
![Bay 057 view and slots of AGIOS DIMITRIOS](/vessel-images/e1b31c77-6709-43c6-bc69-62ab4c01f289-b057.png?v=1686852931767)

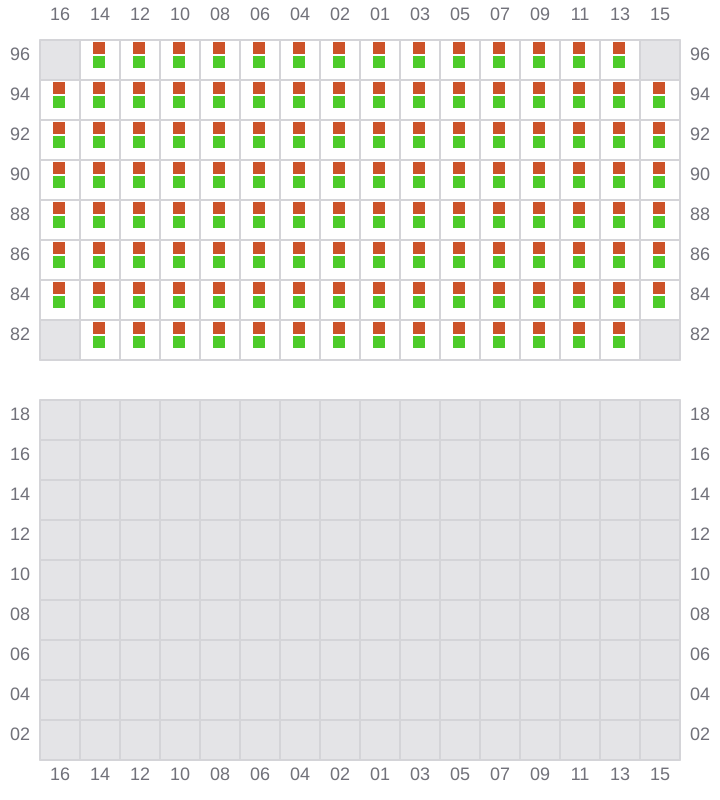

059 (058)
- ← / ?
![Bay 059 view and slots of AGIOS DIMITRIOS](/vessel-images/e1b31c77-6709-43c6-bc69-62ab4c01f289-b059.png?v=1686852931767)

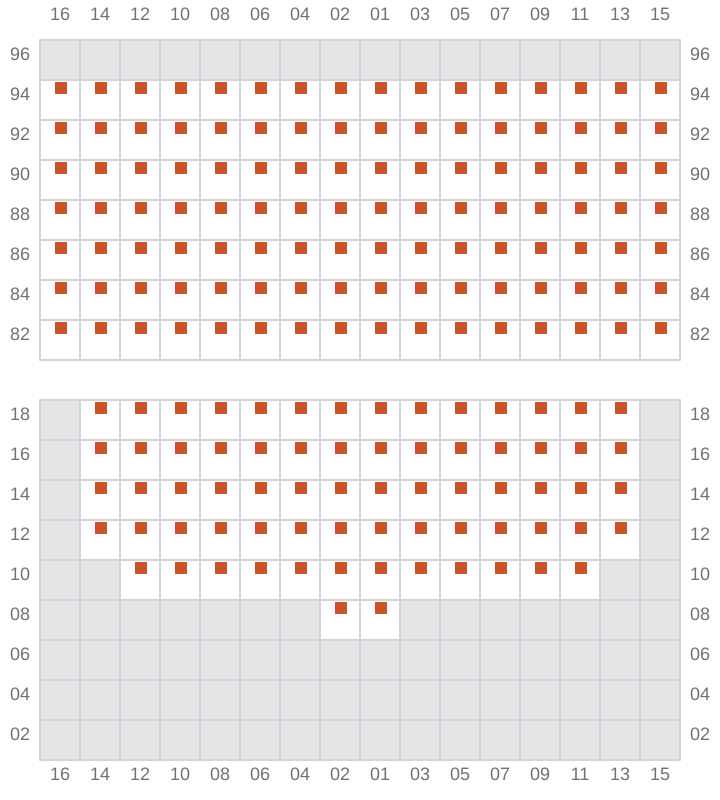

061
- →
![Bay 061 view and slots of AGIOS DIMITRIOS](/vessel-images/e1b31c77-6709-43c6-bc69-62ab4c01f289-b061.png?v=1686852931767)

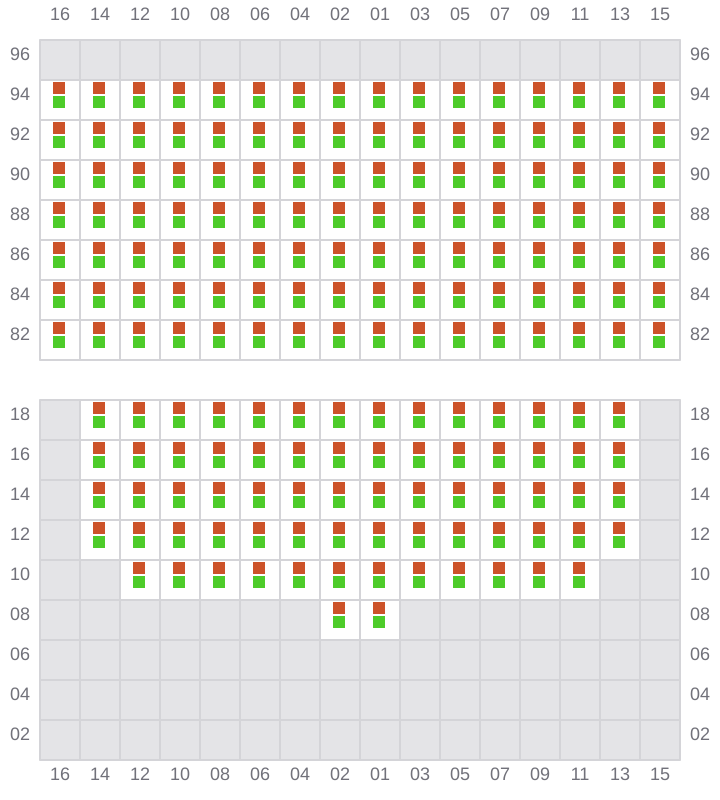

063 (062)
- ←
![Bay 063 view and slots of AGIOS DIMITRIOS](/vessel-images/e1b31c77-6709-43c6-bc69-62ab4c01f289-b063.png?v=1686852931767)

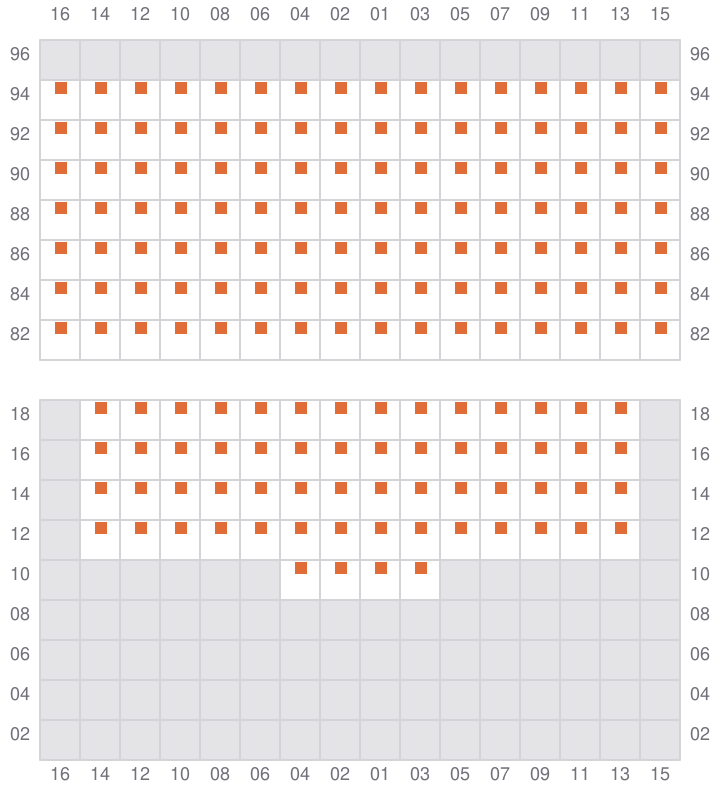

065
- →
![Bay 065 view and slots of AGIOS DIMITRIOS](/vessel-images/e1b31c77-6709-43c6-bc69-62ab4c01f289-b065.png?v=1686852931767)

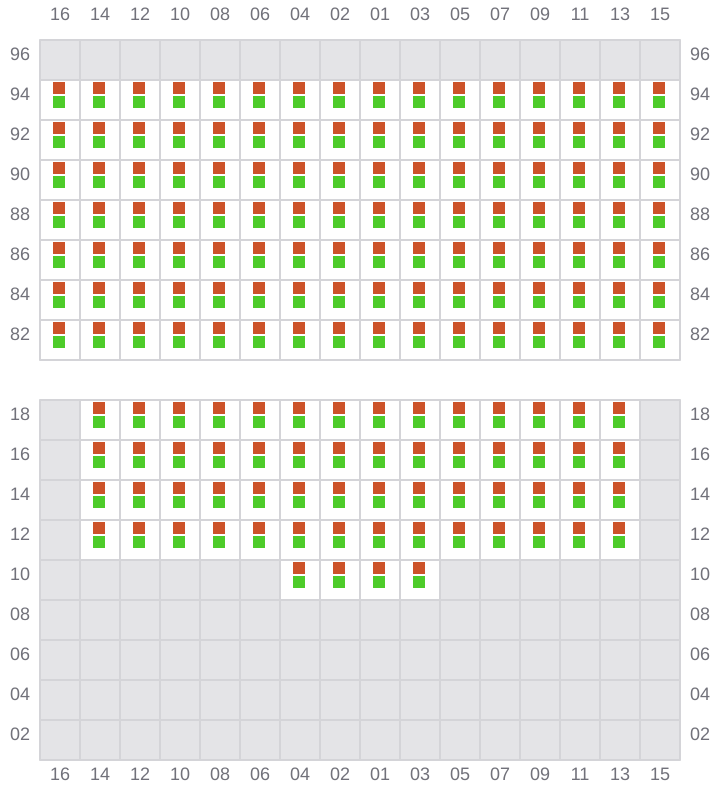

067 (066)
- ←
![Bay 067 view and slots of AGIOS DIMITRIOS](/vessel-images/e1b31c77-6709-43c6-bc69-62ab4c01f289-b067.png?v=1686852931767)

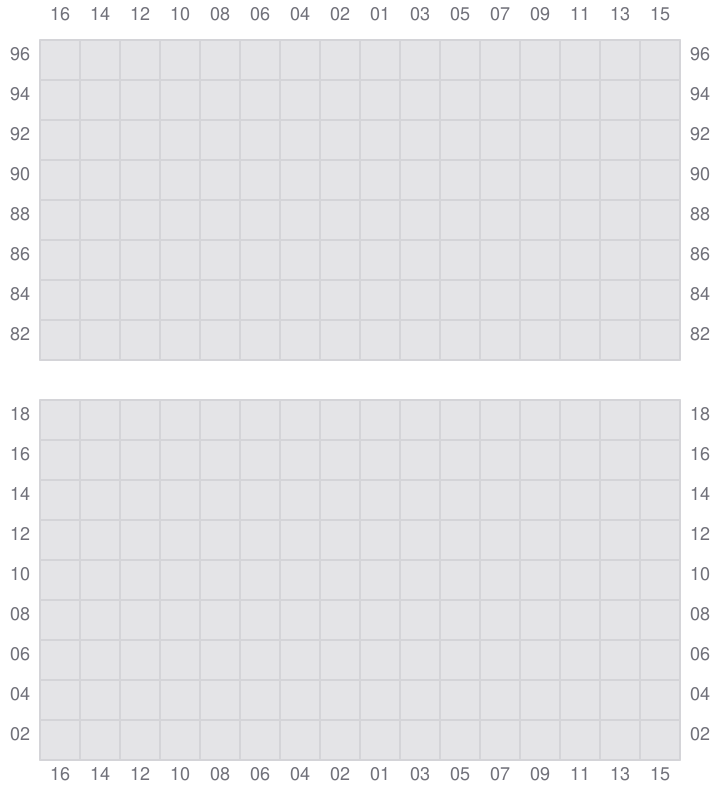

069
![Bay 069 view and slots of AGIOS DIMITRIOS](/vessel-images/e1b31c77-6709-43c6-bc69-62ab4c01f289-b069.png?v=1686852931767)

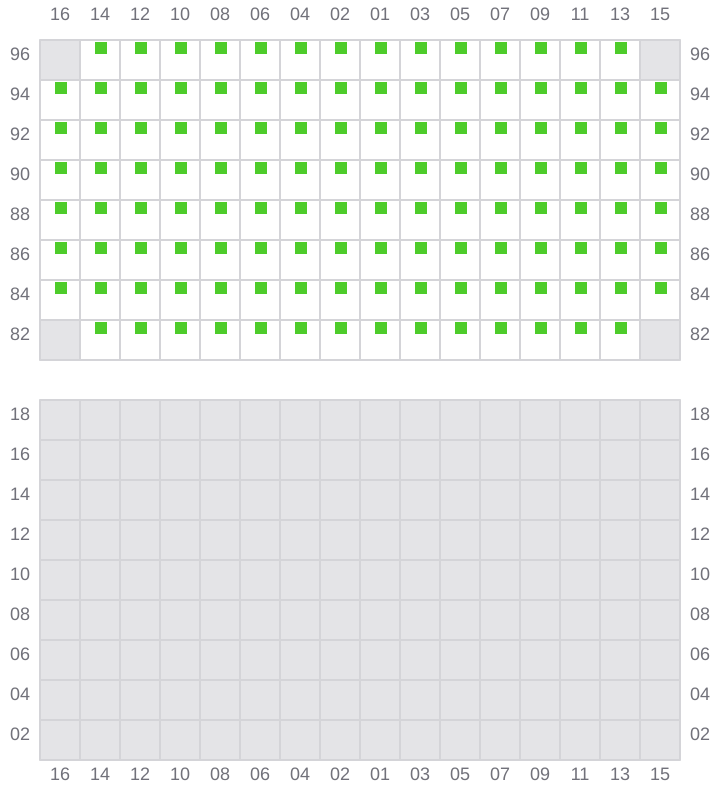

071 (070)
- ← / ?
![Bay 071 view and slots of AGIOS DIMITRIOS](/vessel-images/e1b31c77-6709-43c6-bc69-62ab4c01f289-b071.png?v=1686852931767)
