AITOLIKOS
9386483 | A8RV3 | 9386483 by ********* Last update: Wed May 08 2024

General Info

Ship Name:AITOLIKOS
IMO Code:9386483
Call Sign:A8RV3
Line Operator:9386483
Class Name for Sister Ships:CMA CGM OPAL
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:061
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,334

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

Side view of AITOLIKOS

Hatch-Covers View

Deck view of AITOLIKOS

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

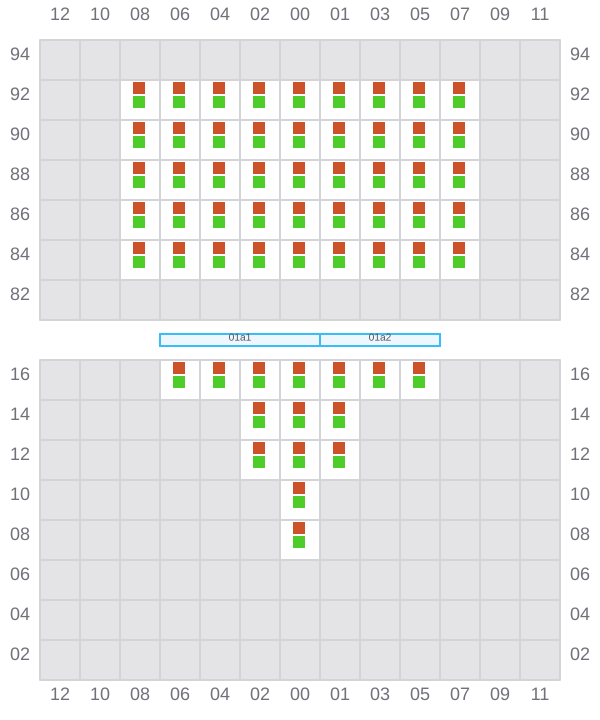

001 (002)

Bay 001 view and slots of AITOLIKOS

003

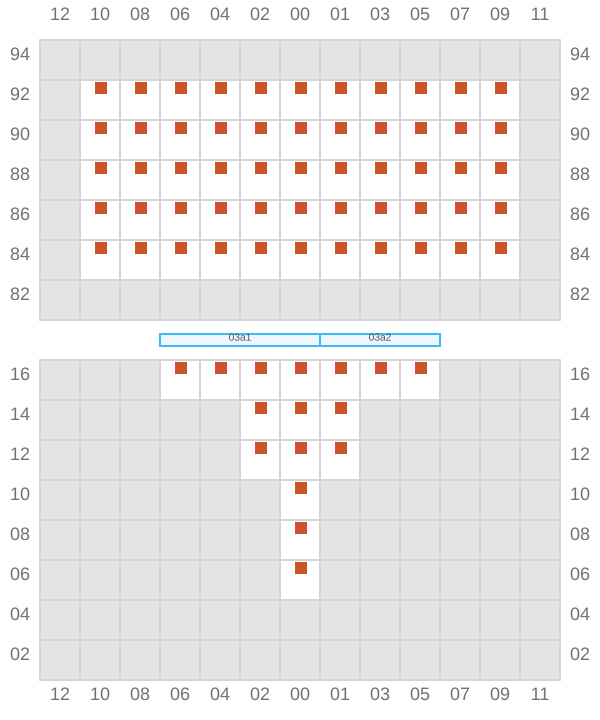

Bay 003 view and slots of AITOLIKOS

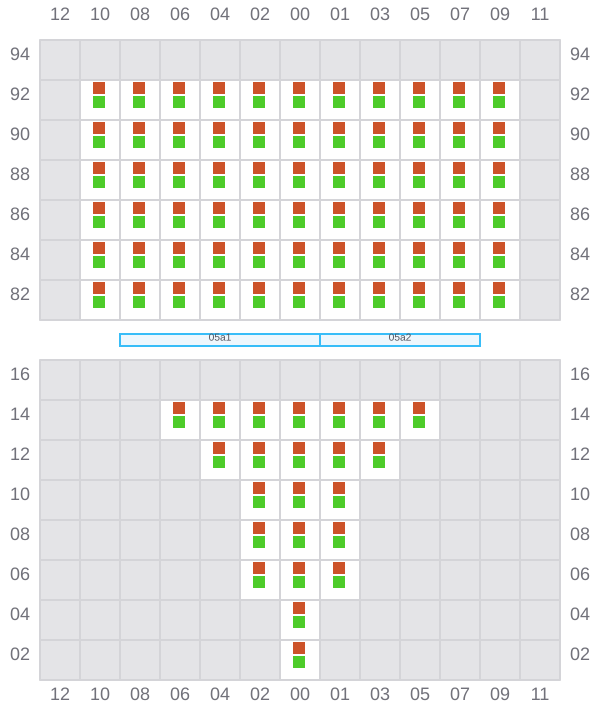

005 (006)

Bay 005 view and slots of AITOLIKOS

007

Bay 007 view and slots of AITOLIKOS

009 (010)

Bay 009 view and slots of AITOLIKOS

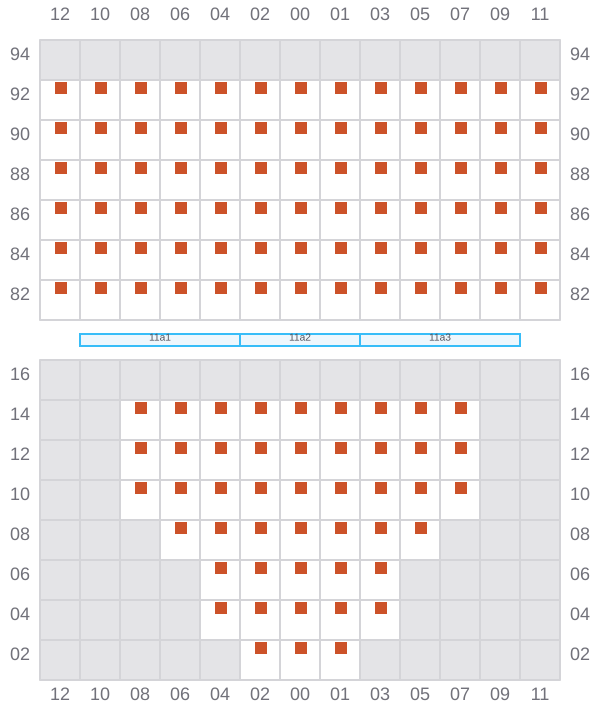

011

Bay 011 view and slots of AITOLIKOS

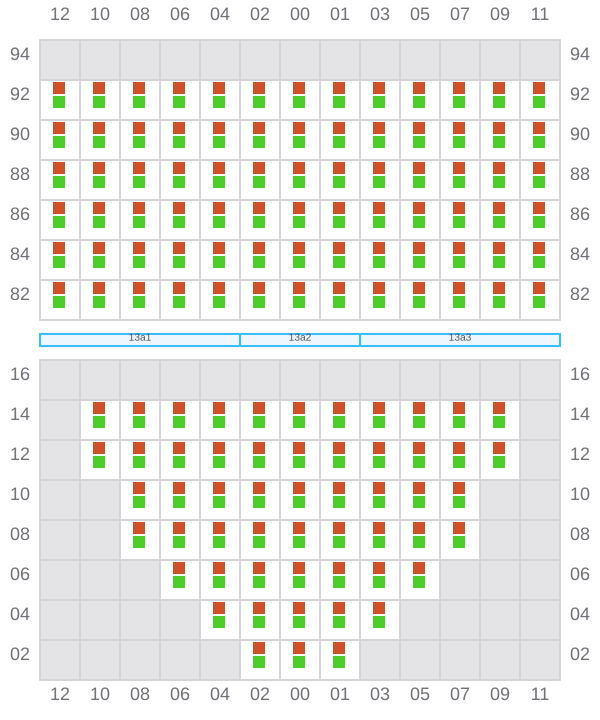

013 (014)

Bay 013 view and slots of AITOLIKOS

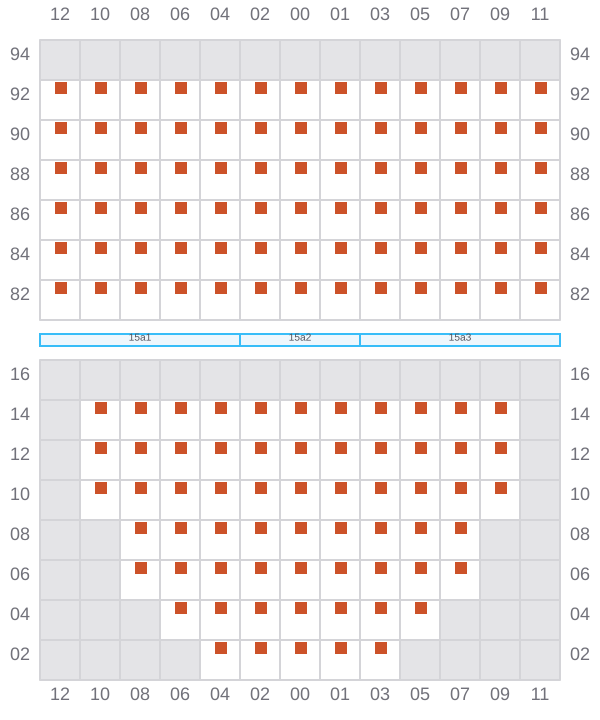

015

Bay 015 view and slots of AITOLIKOS

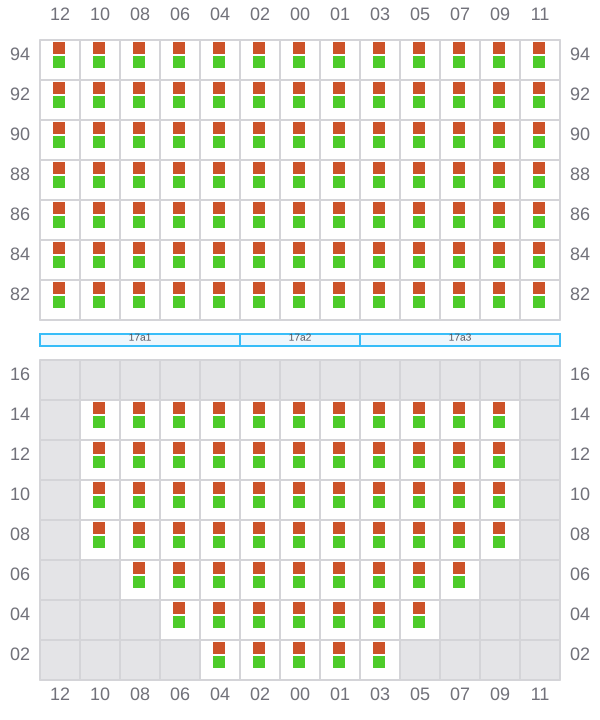

017 (018)

Bay 017 view and slots of AITOLIKOS

019

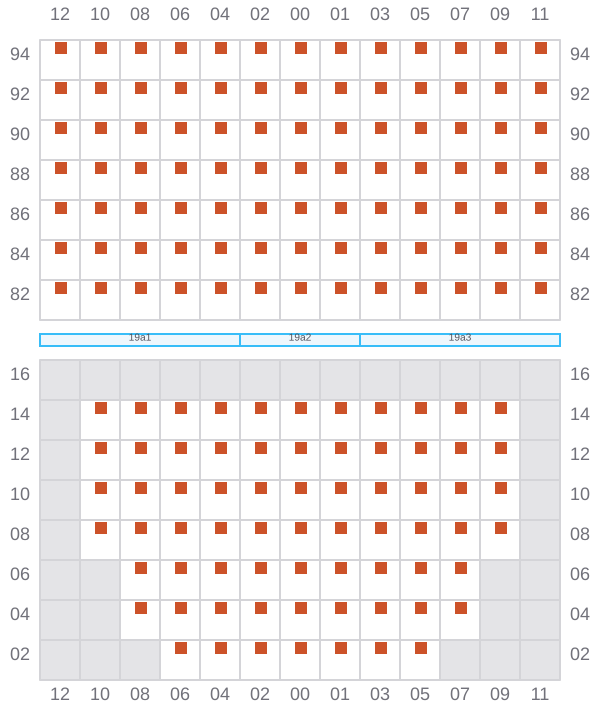

Bay 019 view and slots of AITOLIKOS

021 (022)

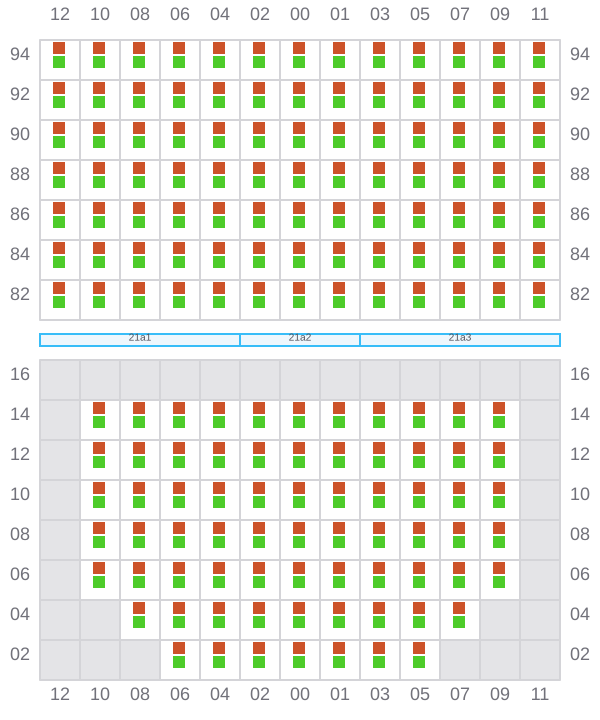

Bay 021 view and slots of AITOLIKOS

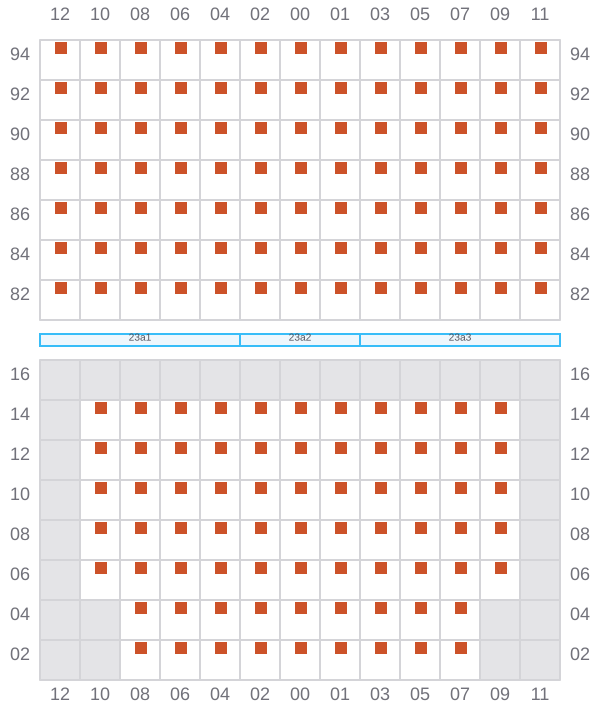

023

Bay 023 view and slots of AITOLIKOS

025 (026)

Bay 025 view and slots of AITOLIKOS

027

Bay 027 view and slots of AITOLIKOS

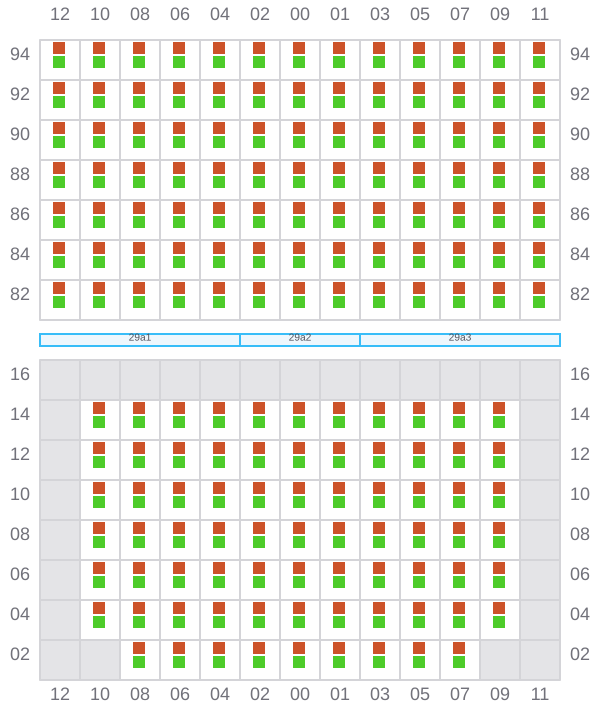

029 (030)

Bay 029 view and slots of AITOLIKOS

031

Bay 031 view and slots of AITOLIKOS

033 (034)

Bay 033 view and slots of AITOLIKOS

035

Bay 035 view and slots of AITOLIKOS

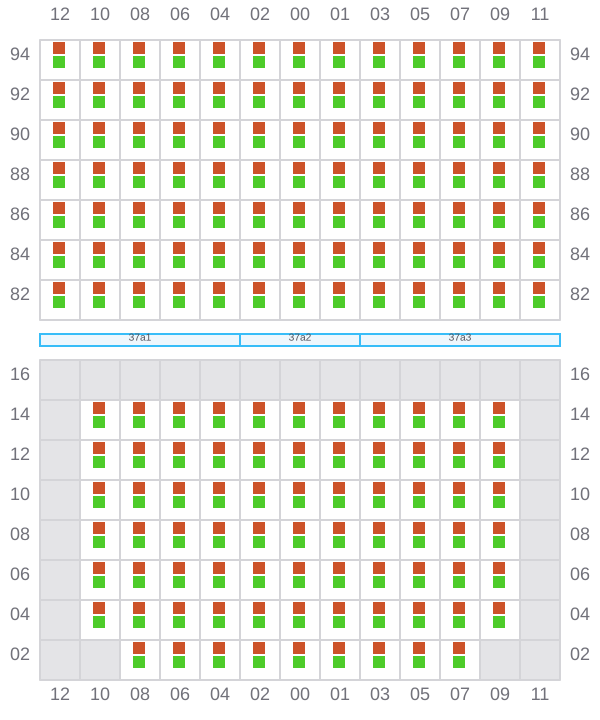

037 (038)

Bay 037 view and slots of AITOLIKOS

039

Bay 039 view and slots of AITOLIKOS

041 (042)

Bay 041 view and slots of AITOLIKOS

043

Bay 043 view and slots of AITOLIKOS

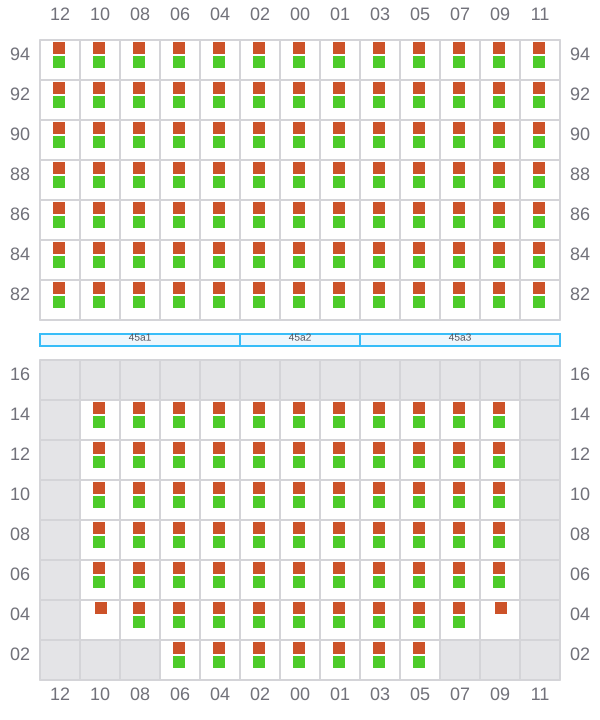

045 (046)

Bay 045 view and slots of AITOLIKOS

047

Bay 047 view and slots of AITOLIKOS

049 (050)

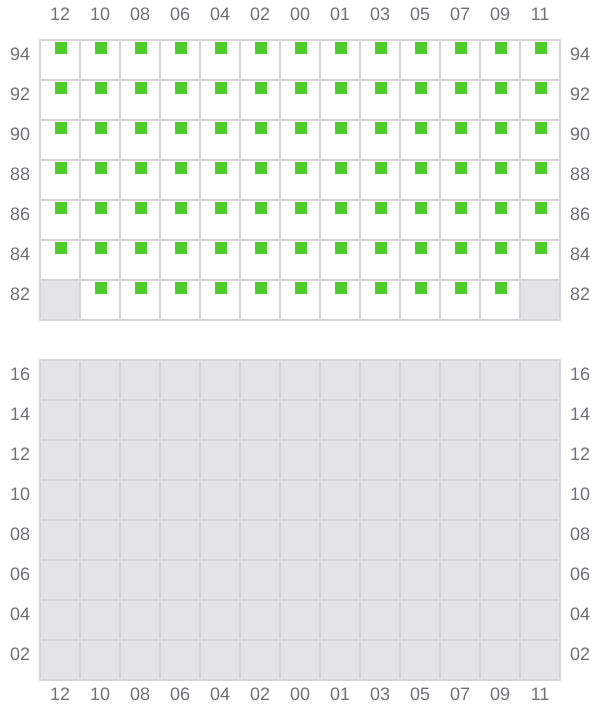

Bay 049 view and slots of AITOLIKOS

051

Bay 051 view and slots of AITOLIKOS

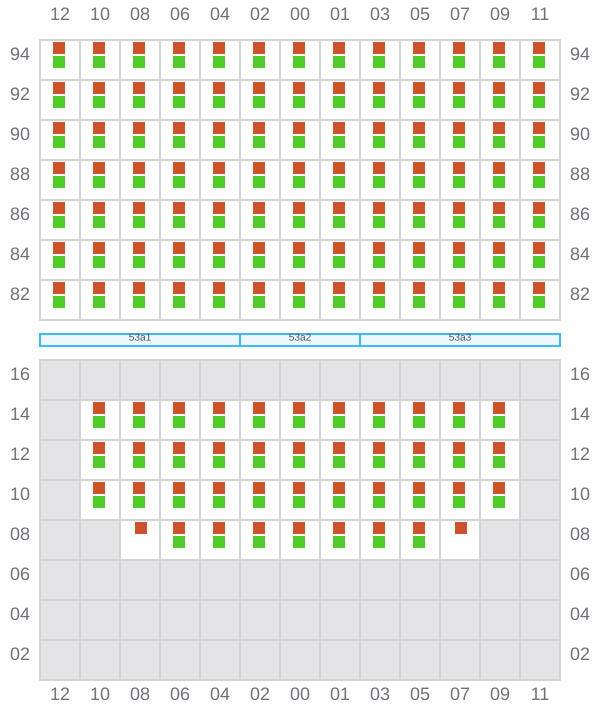

053 (054)

Bay 053 view and slots of AITOLIKOS

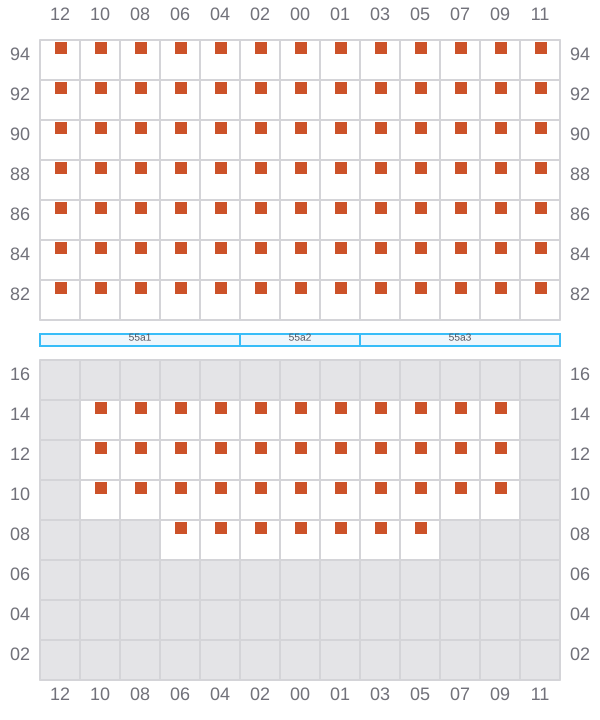

055

Bay 055 view and slots of AITOLIKOS

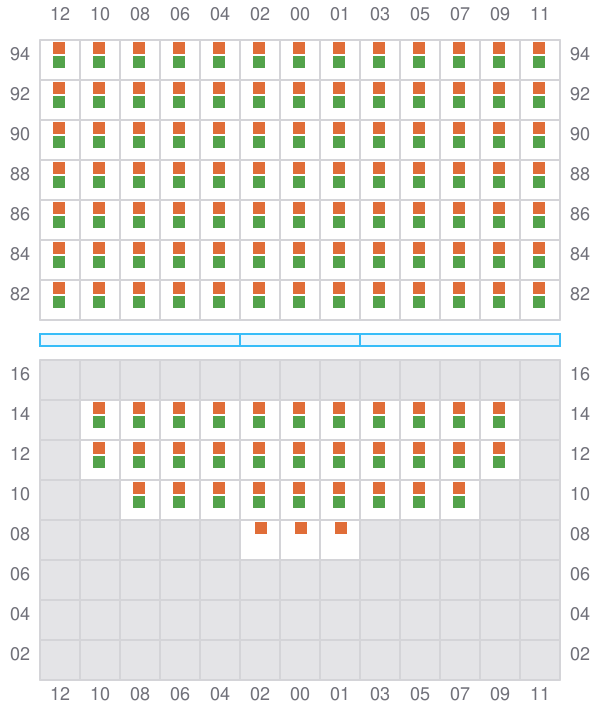

057 (058)

Bay 057 view and slots of AITOLIKOS

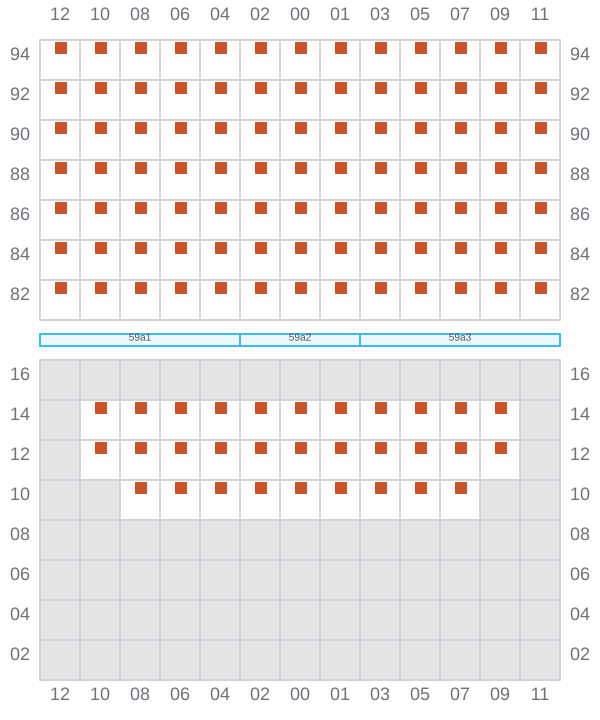

059

Bay 059 view and slots of AITOLIKOS

061 (062)

Bay 061 view and slots of AITOLIKOS
