AKVAMARIN
9210311 | UEXD | 9210311 by ********* Last update: Wed Jul 17 2024
General Info
Ship Name:AKVAMARIN
IMO Code:9210311
Call Sign:UEXD
Line Operator:9210311
Class Name for Sister Ships:ZIM
Year Built:2000
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:053
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:3,041
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

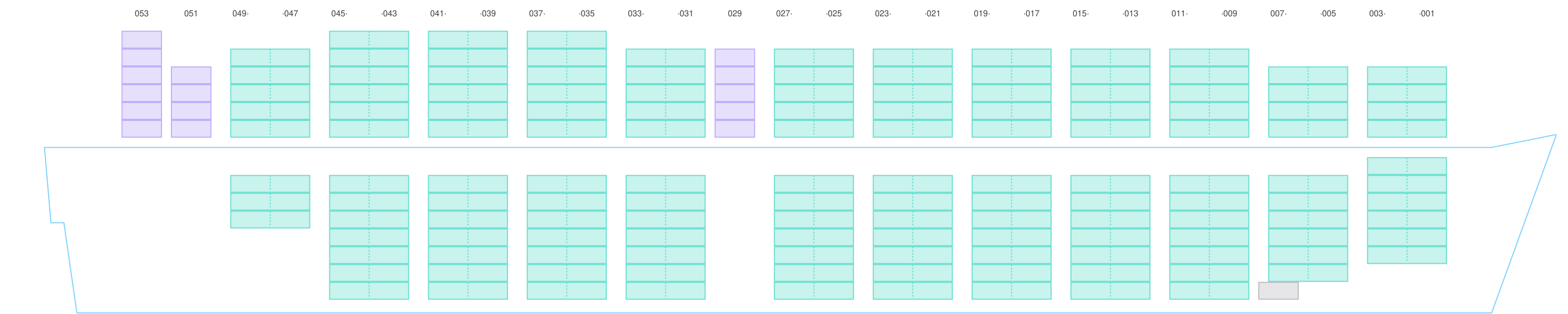

Side View

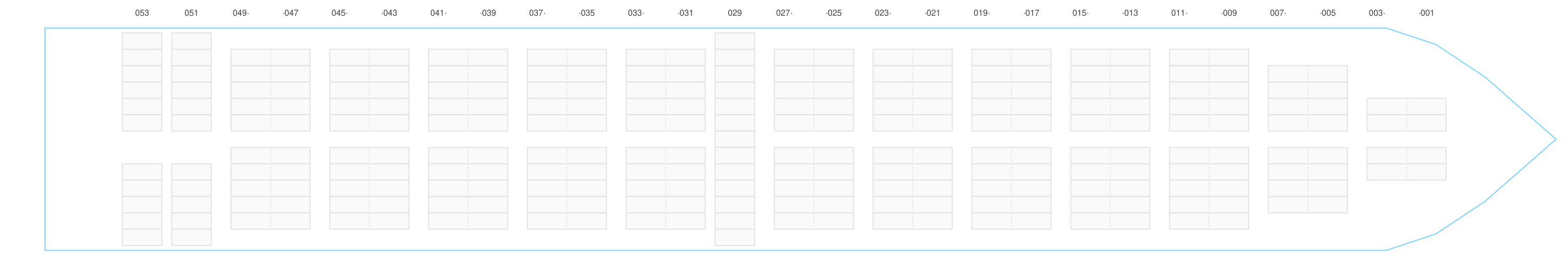

Hatch-Covers View

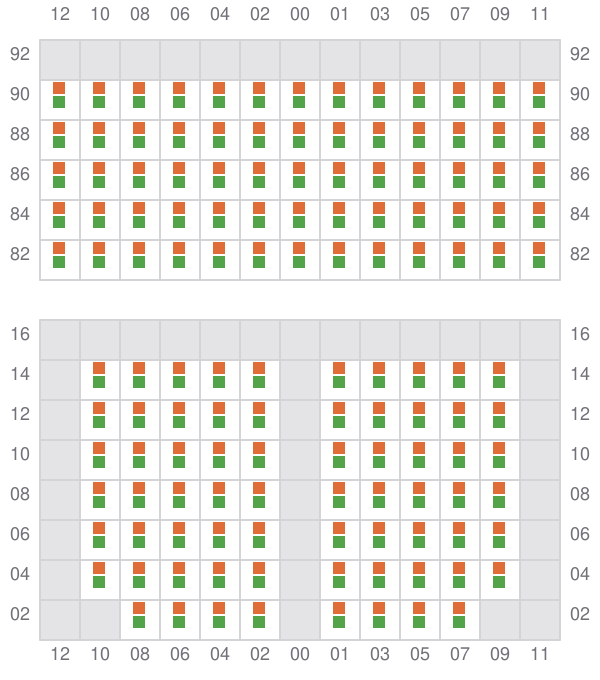

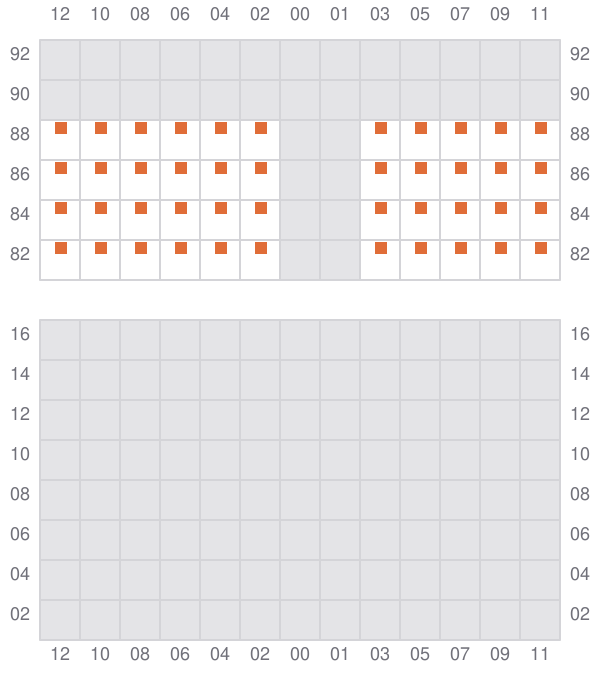

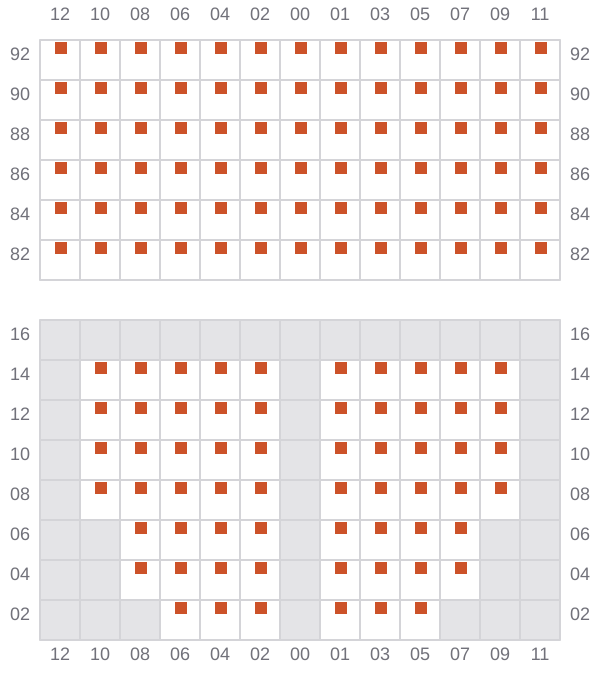

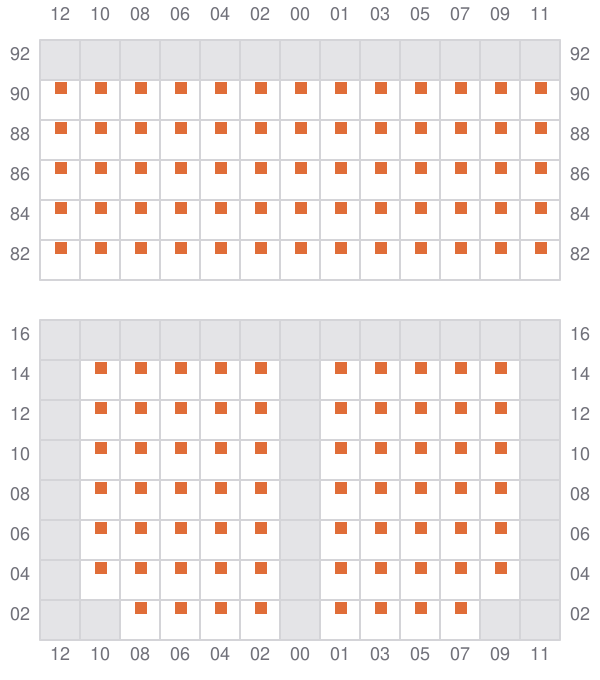

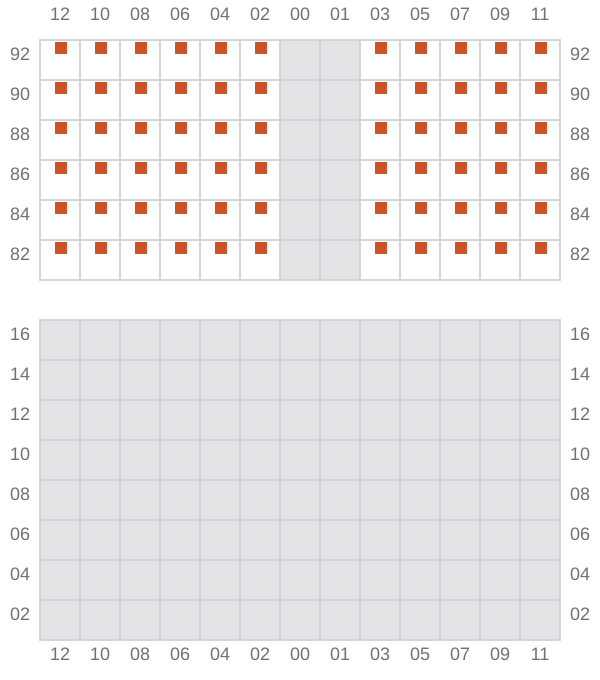

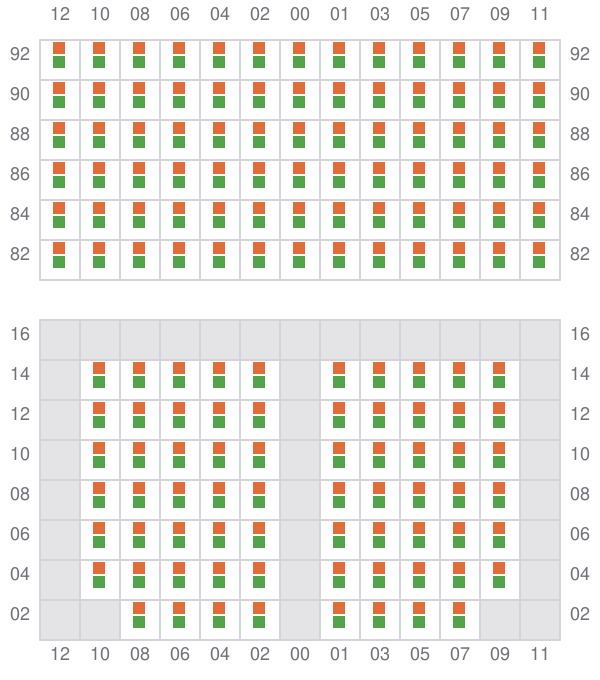

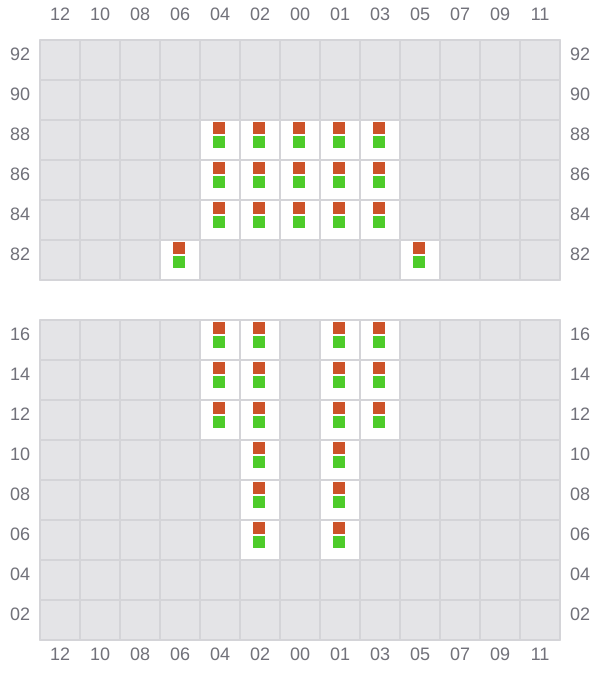

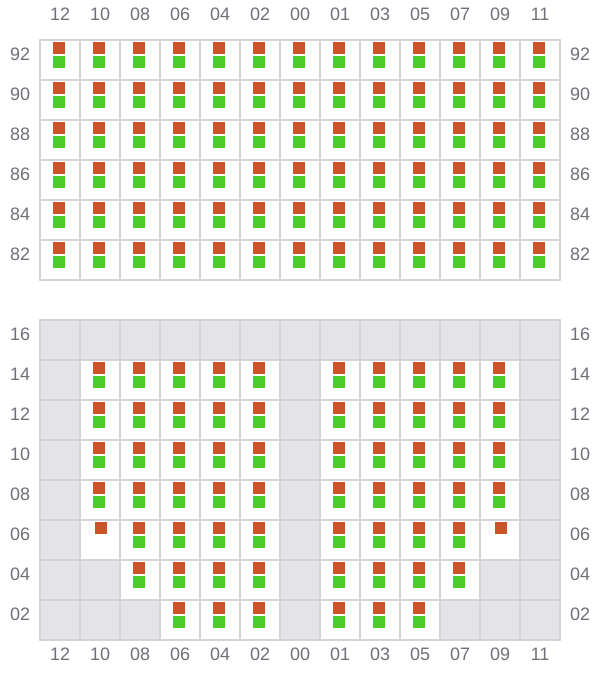

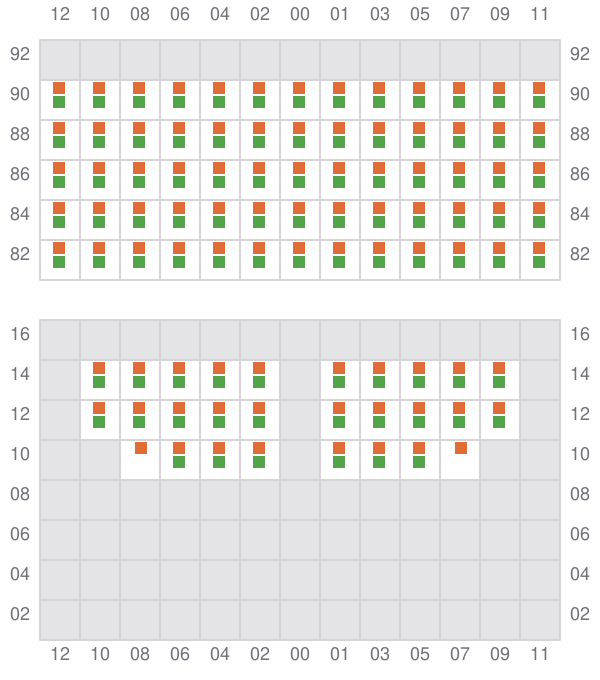

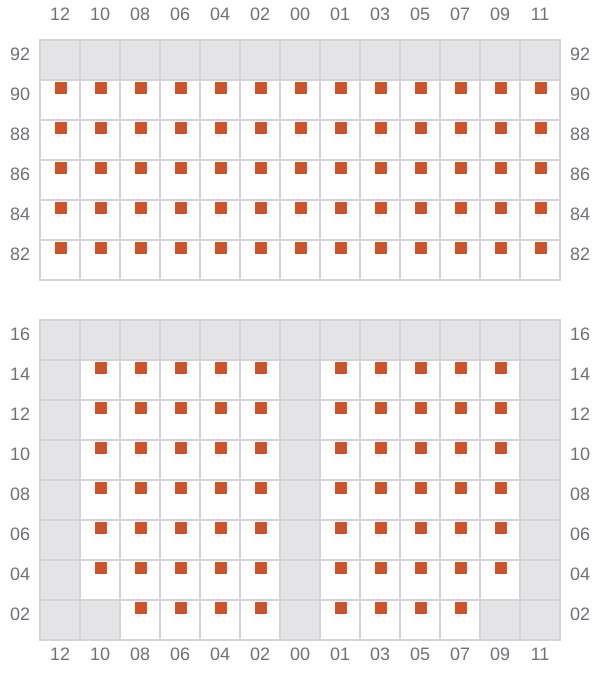

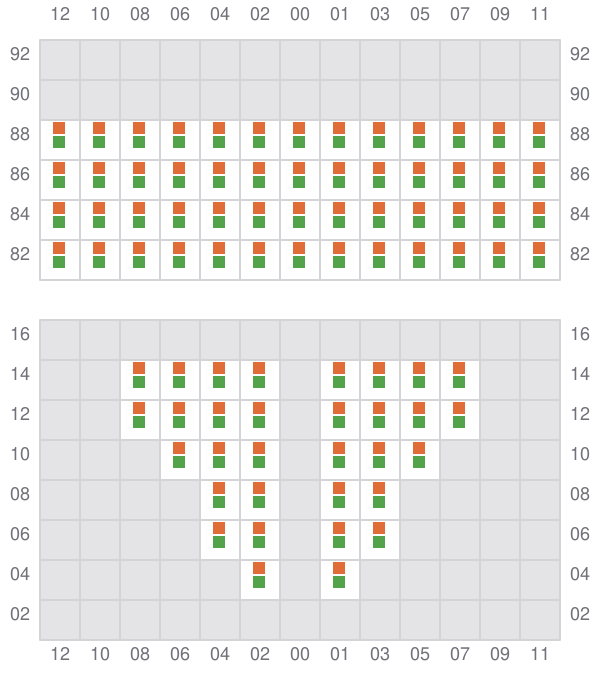

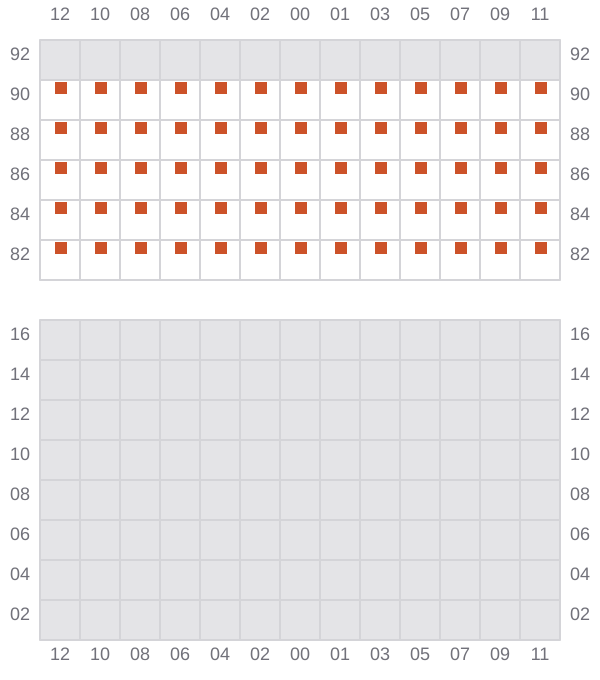

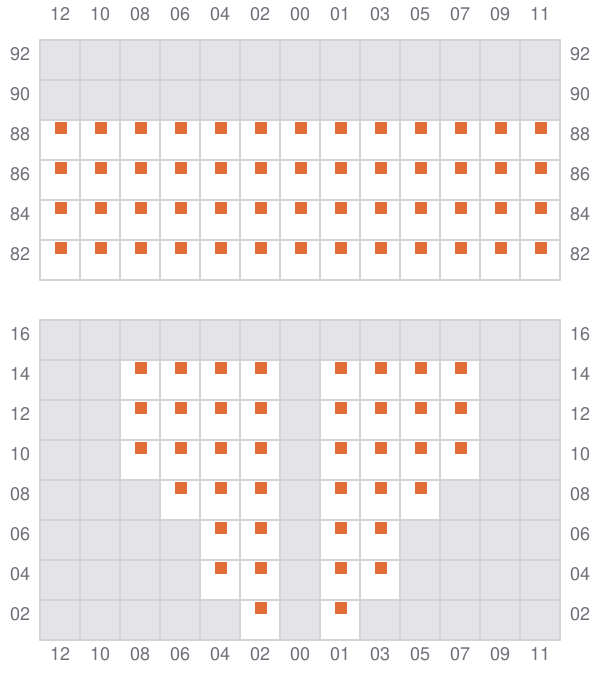

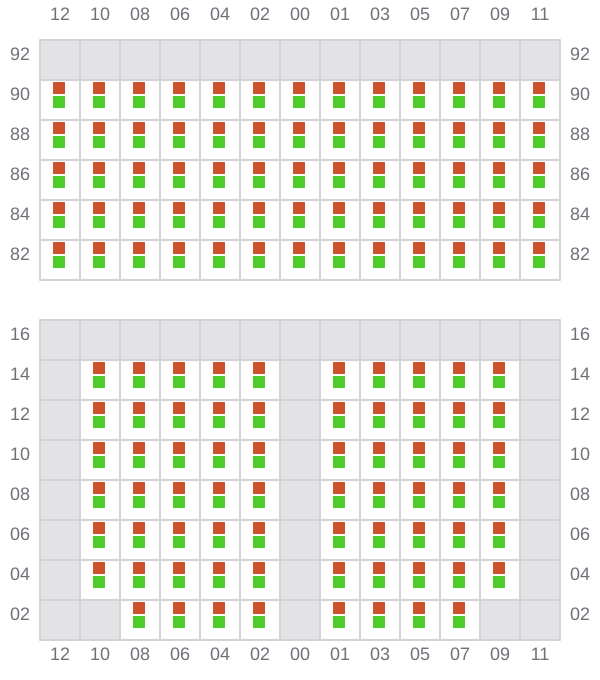

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →

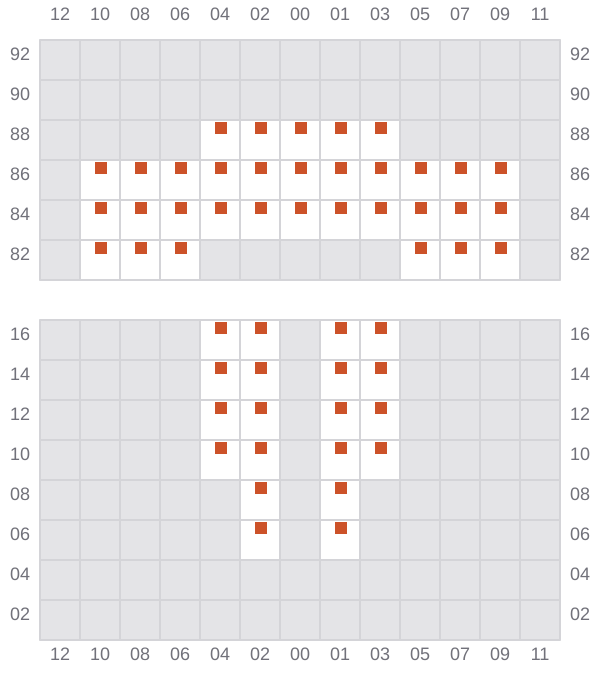

003
- ←
005 (006)
- →
007
- ←

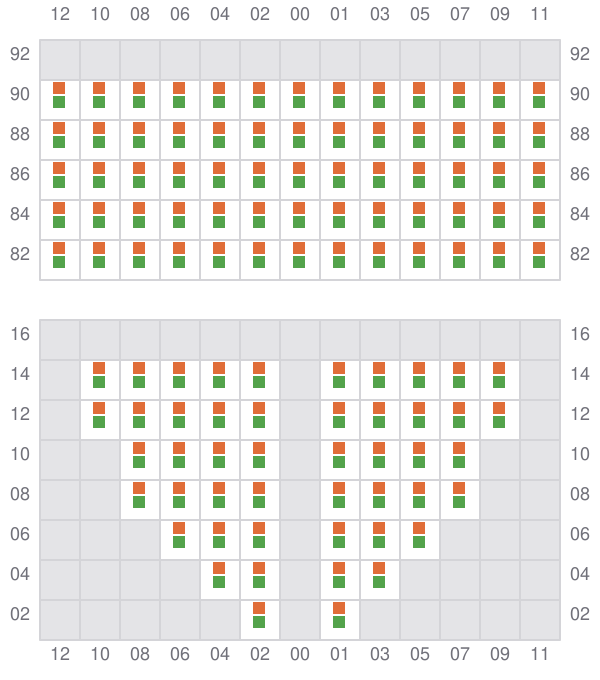

009 (010)
- →

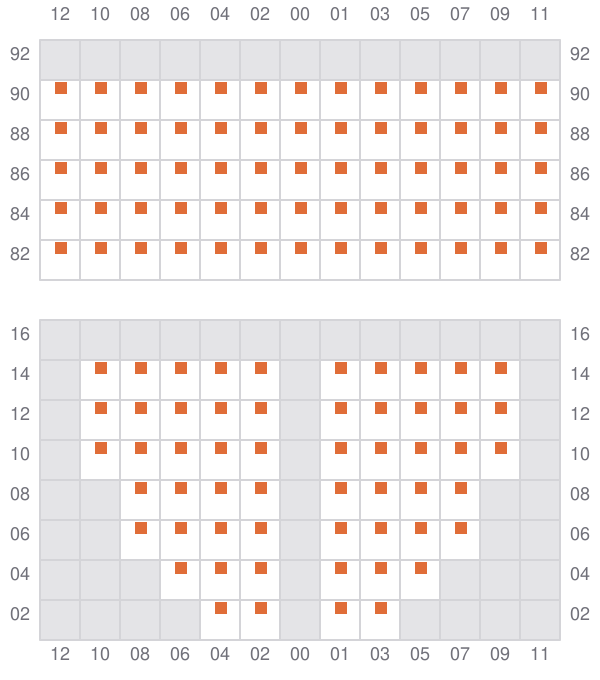

011
- ←

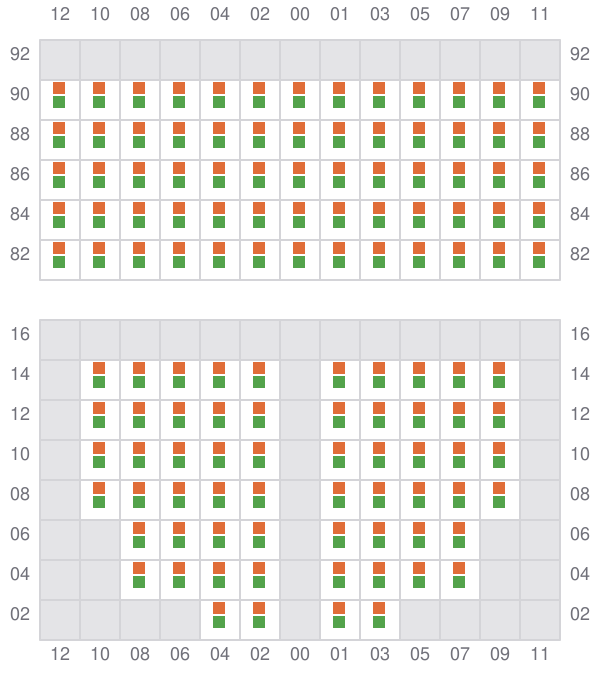

013 (014)
- →

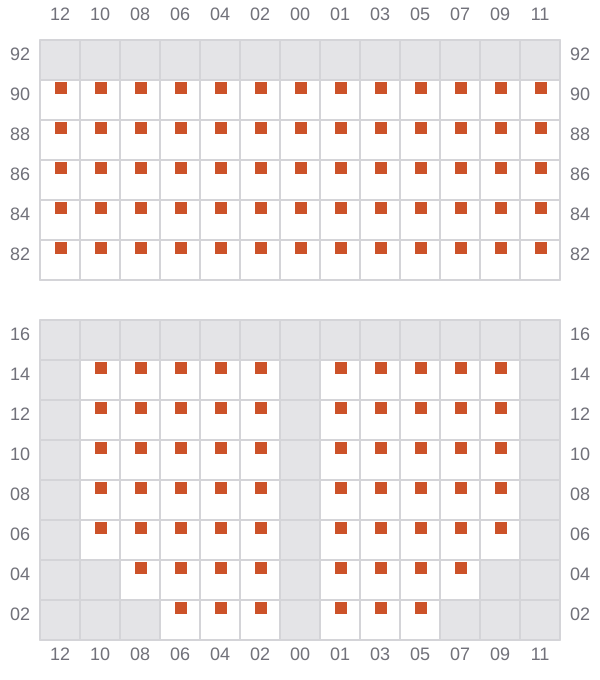

015
- ←
017 (018)
- →
019
- ←
021 (022)
- →
023
- ←
025 (026)
- →
027
- ←
029
031 (032)
- →
033
- ←
035 (036)
- →
037
- ←
039 (040)
- →

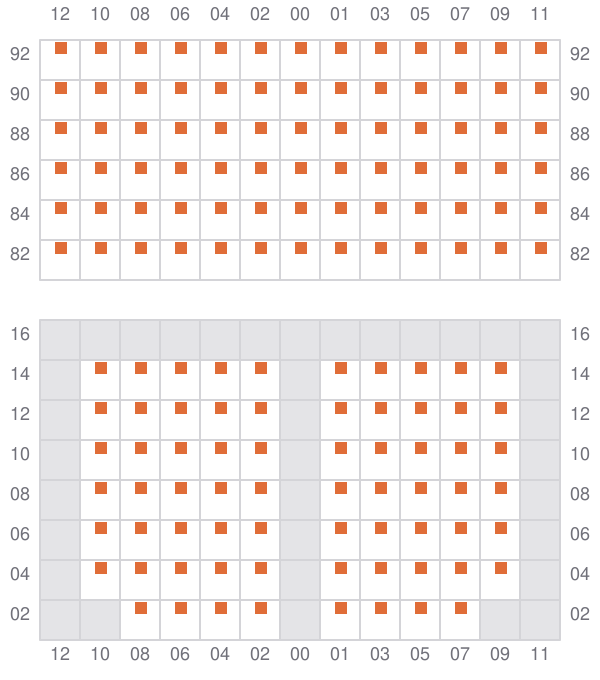

041
- ←
043 (044)
- →
045
- ←
047 (048)
- →

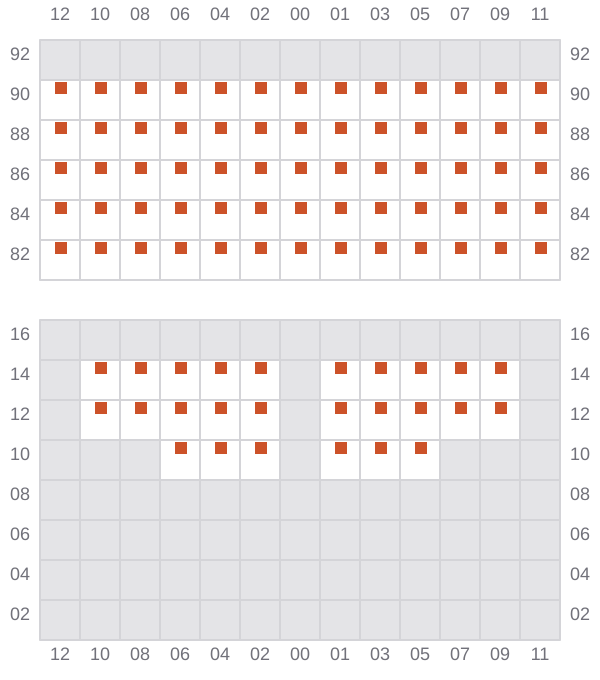

049
- ←
051
053
