AL DAHNA EXPRESS
9708825 | DPAI | HLC by *********************** Last update: Fri Feb 07 2025

General Info

Ship Name:AL DAHNA EXPRESS
IMO Code:9708825
Call Sign:DPAI
Line Operator:HLC
Class Name for Sister Ships:HADA
Year Built:2016
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):383.00
LOA (Length Overall):400.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:093
Max ISO Row:22
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:72
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:19,870

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

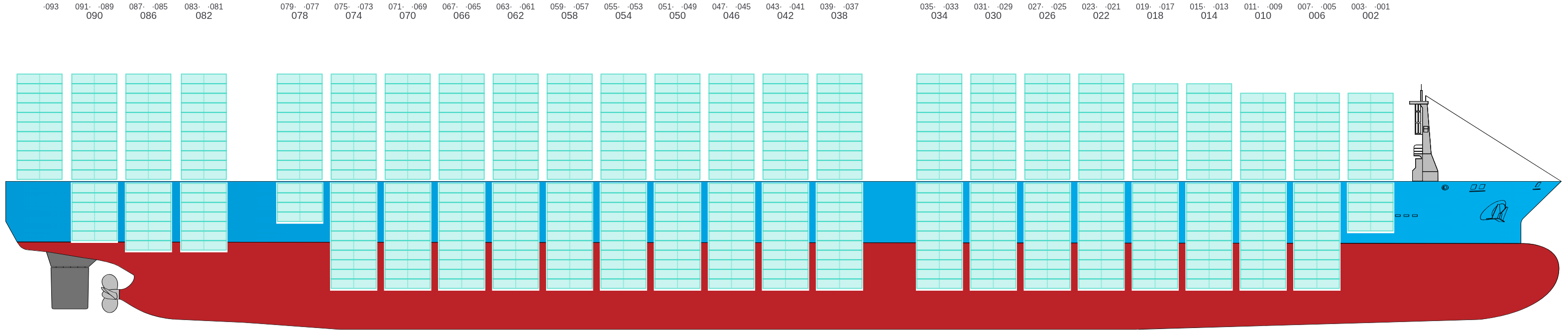

Side view of AL DAHNA EXPRESS

Hatch-Covers View

Deck view of AL DAHNA EXPRESS

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →
  • → / ?
  • →

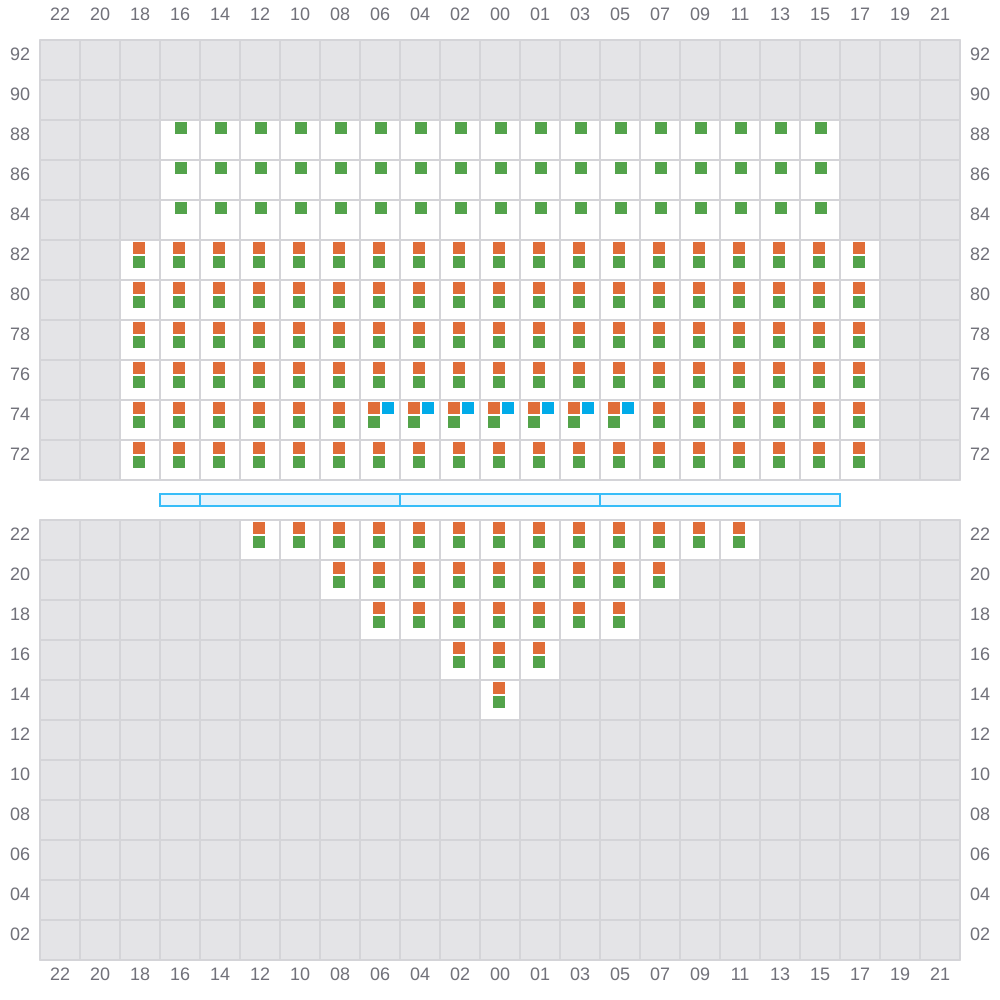

Bay 001 view and slots of AL DAHNA EXPRESS

003

  • ←
  • → / ?
  • →

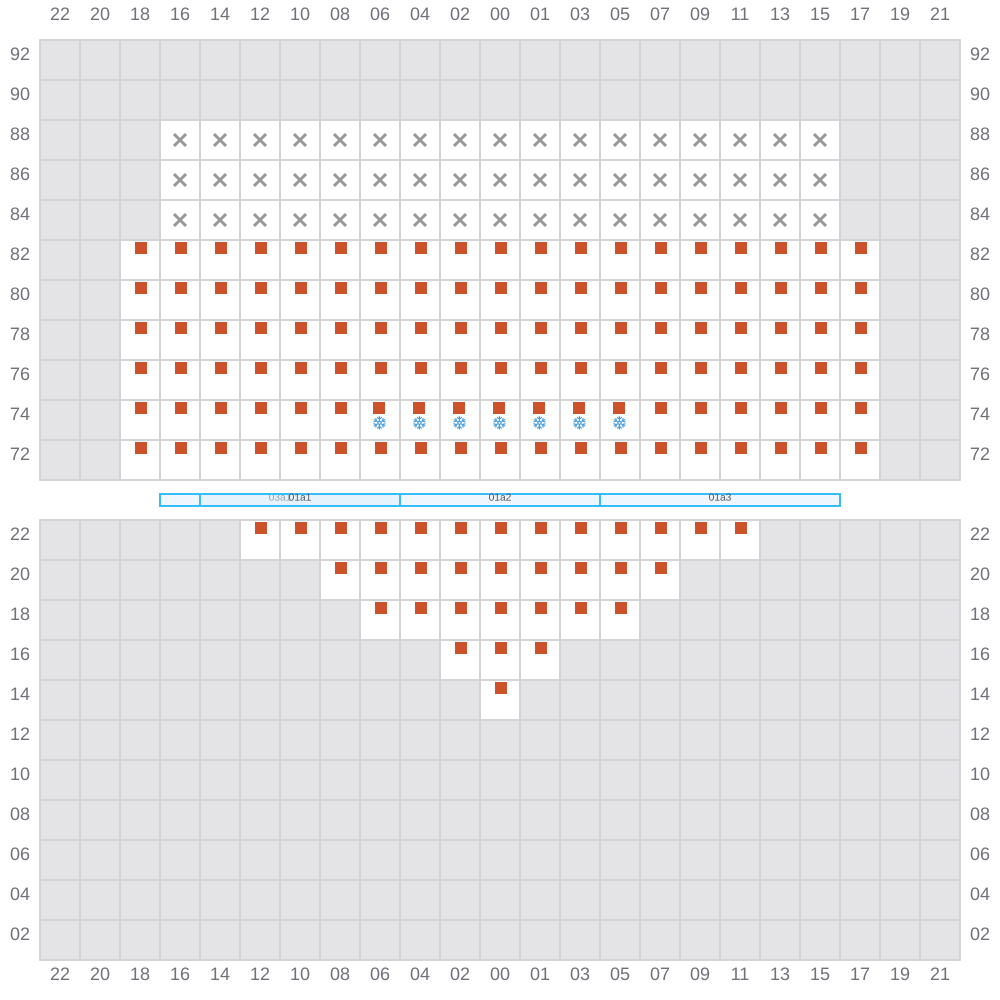

Bay 003 view and slots of AL DAHNA EXPRESS

005 (006)

  • →
  • → / ?
  • →
Bay 005 view and slots of AL DAHNA EXPRESS

007

  • ←
  • → / ?
  • →

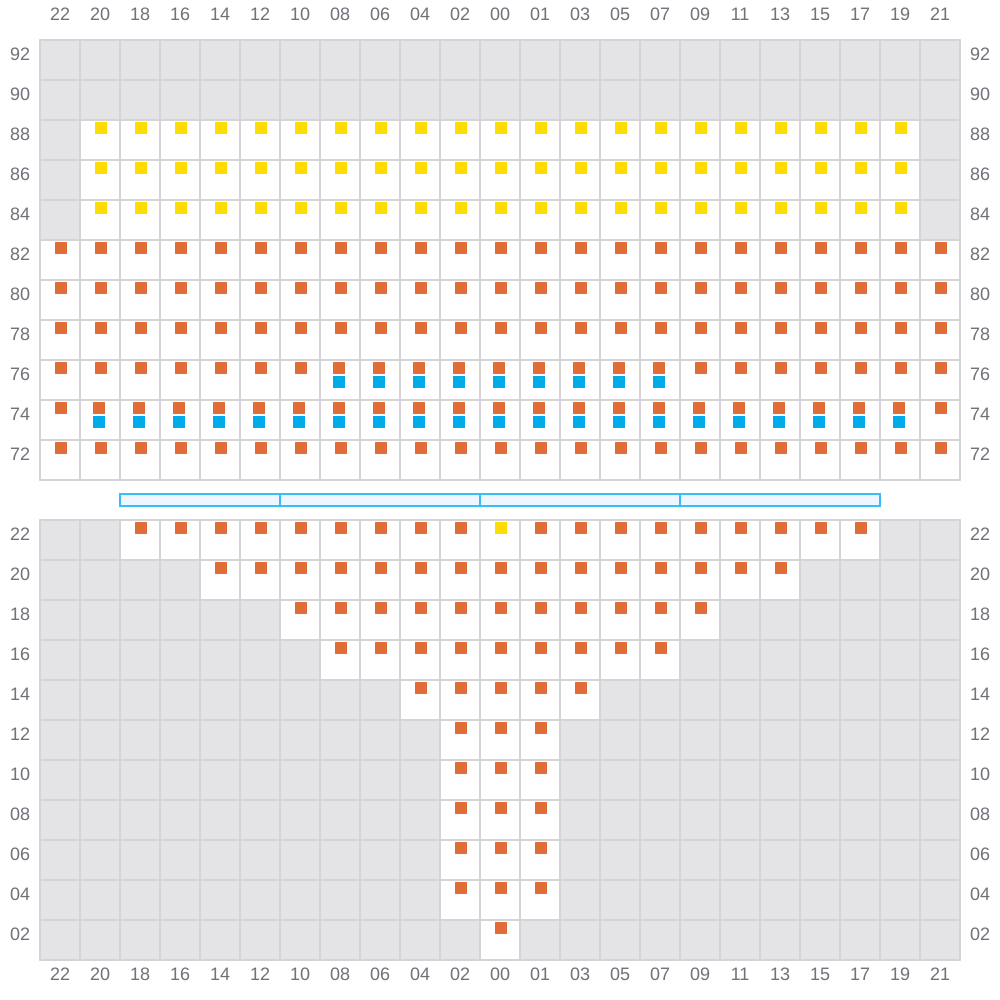

Bay 007 view and slots of AL DAHNA EXPRESS

009 (010)

  • →
  • → / ?
  • →

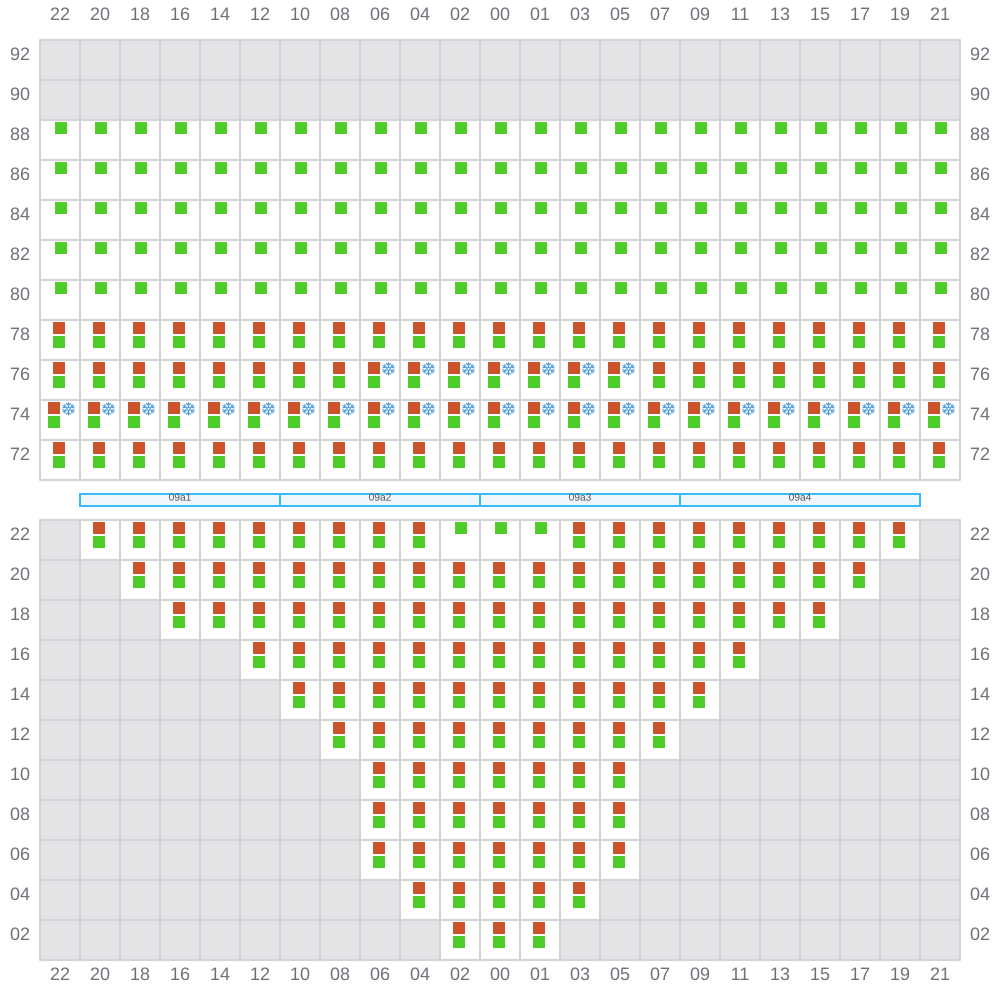

Bay 009 view and slots of AL DAHNA EXPRESS

011

  • ←
  • → / ?
  • →

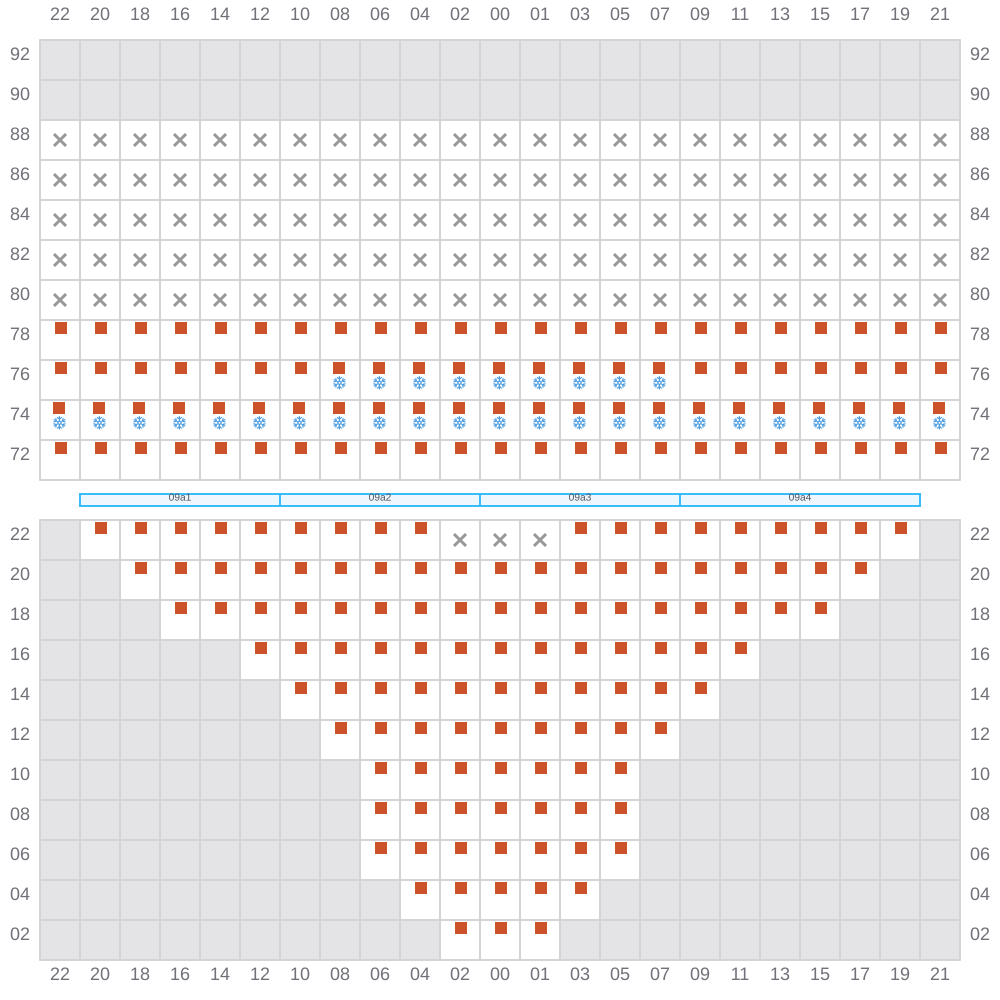

Bay 011 view and slots of AL DAHNA EXPRESS

013 (014)

  • →
  • → / ?
  • →

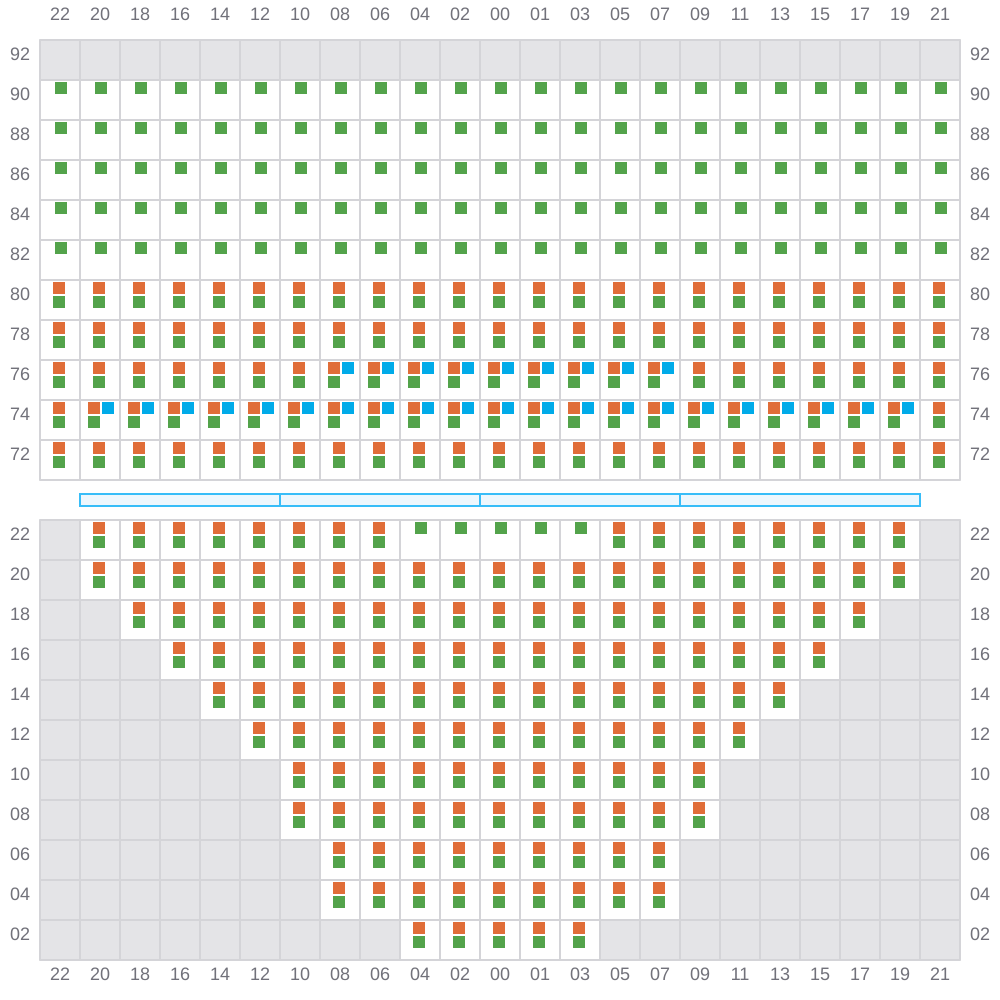

Bay 013 view and slots of AL DAHNA EXPRESS

015

  • ←
  • → / ?
  • →

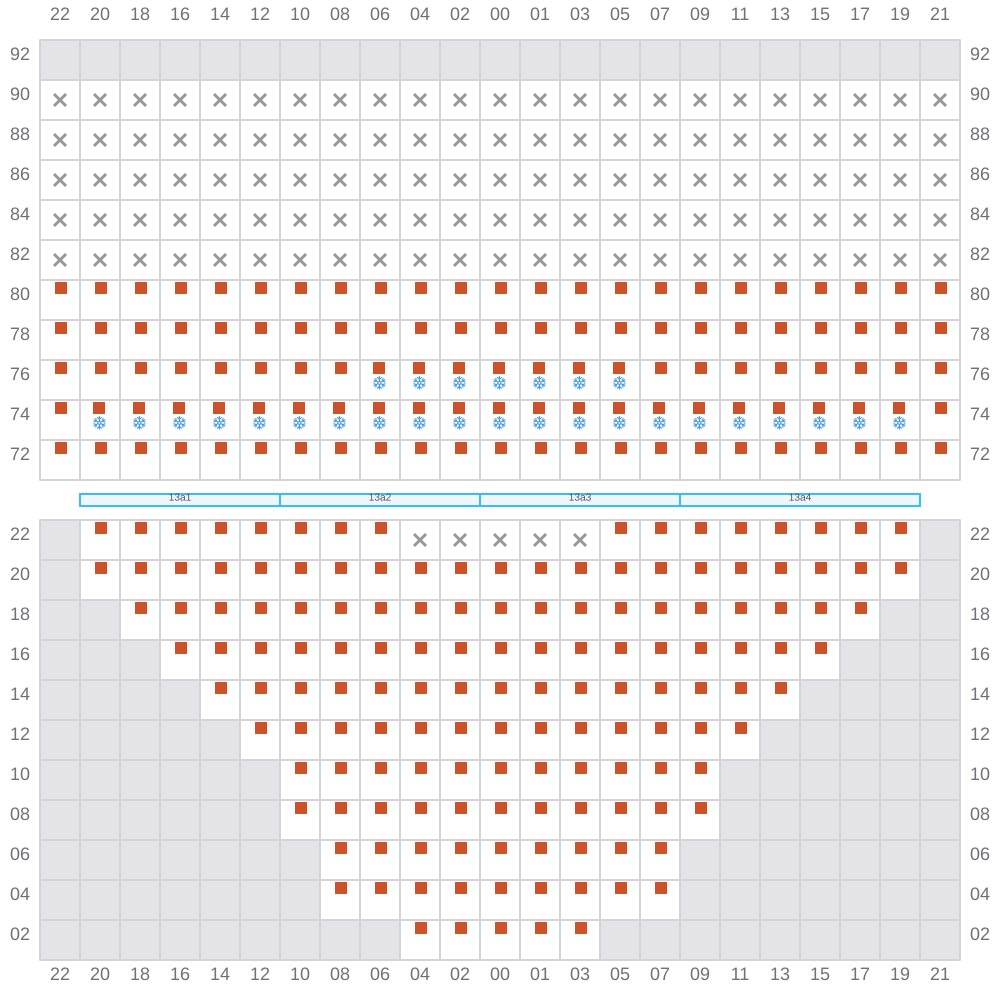

Bay 015 view and slots of AL DAHNA EXPRESS

017 (018)

  • →
  • → / ?
  • →

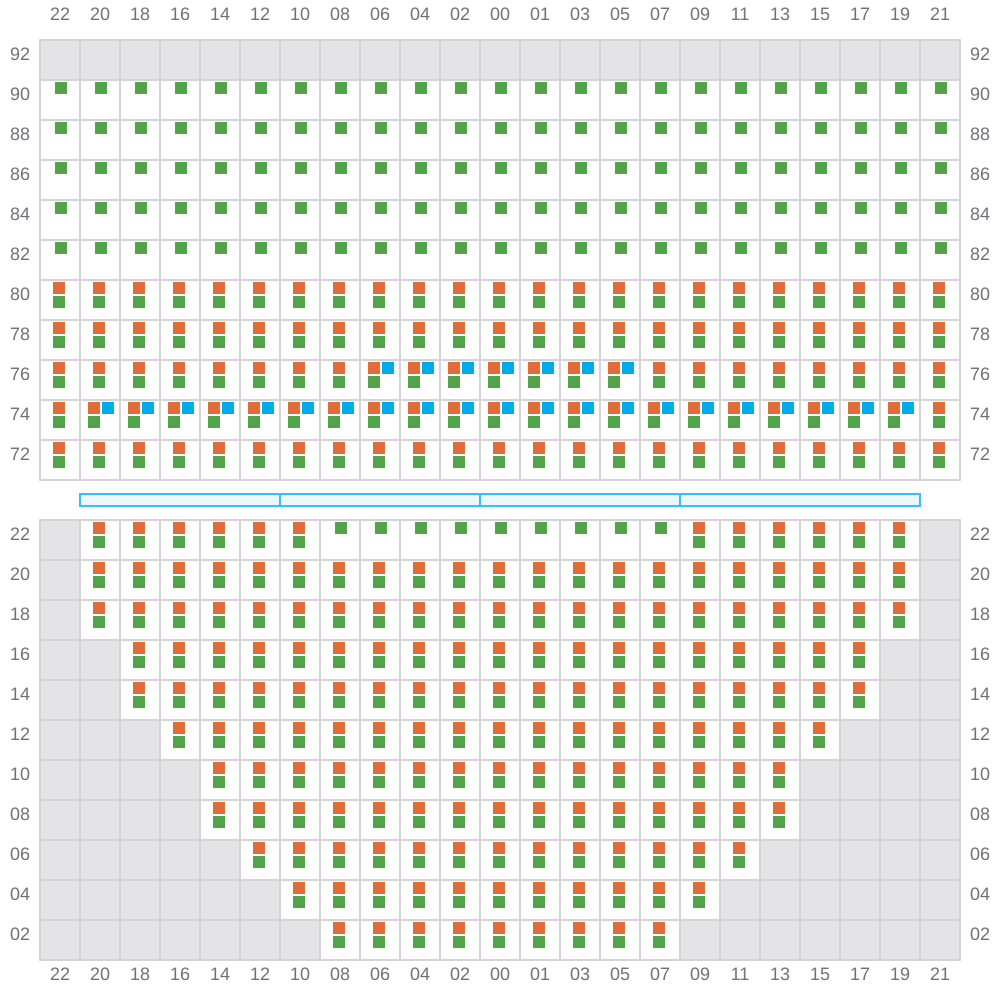

Bay 017 view and slots of AL DAHNA EXPRESS

019

  • ←
  • → / ?
  • →

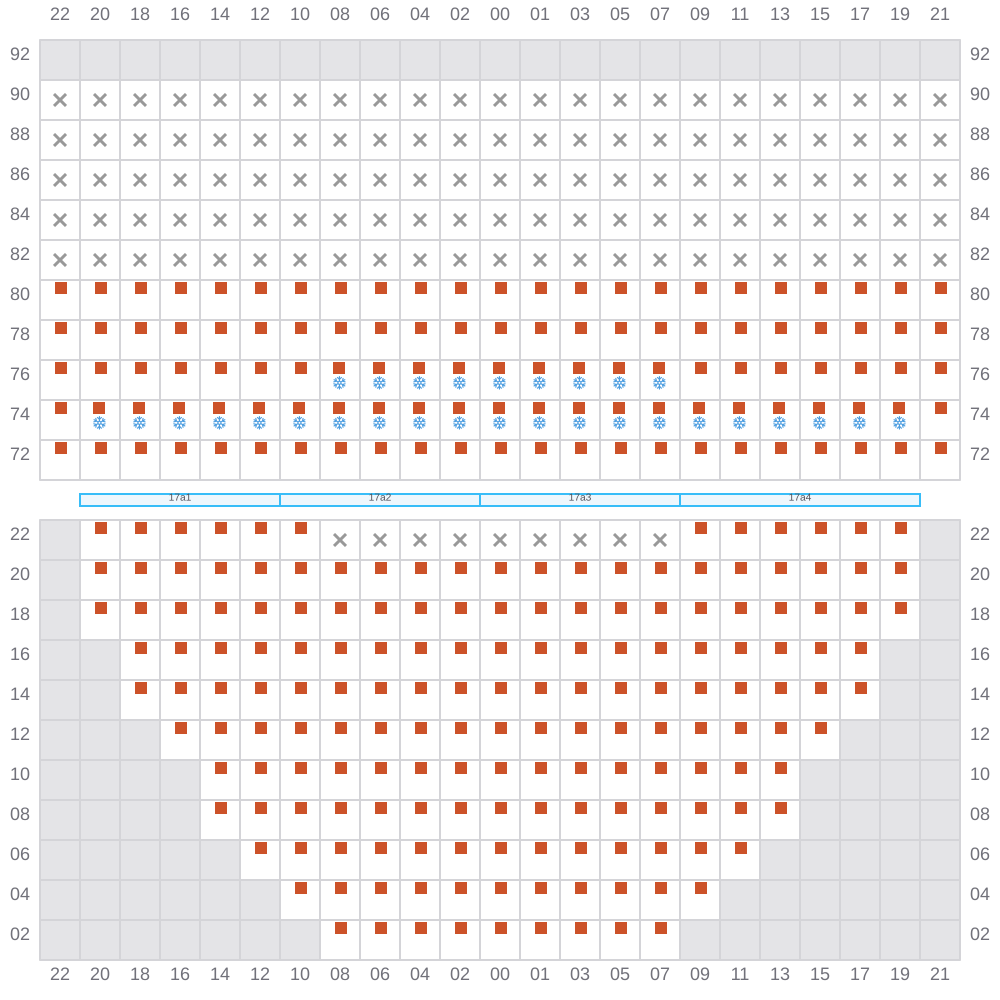

Bay 019 view and slots of AL DAHNA EXPRESS

021 (022)

  • →
  • → / ?
  • →

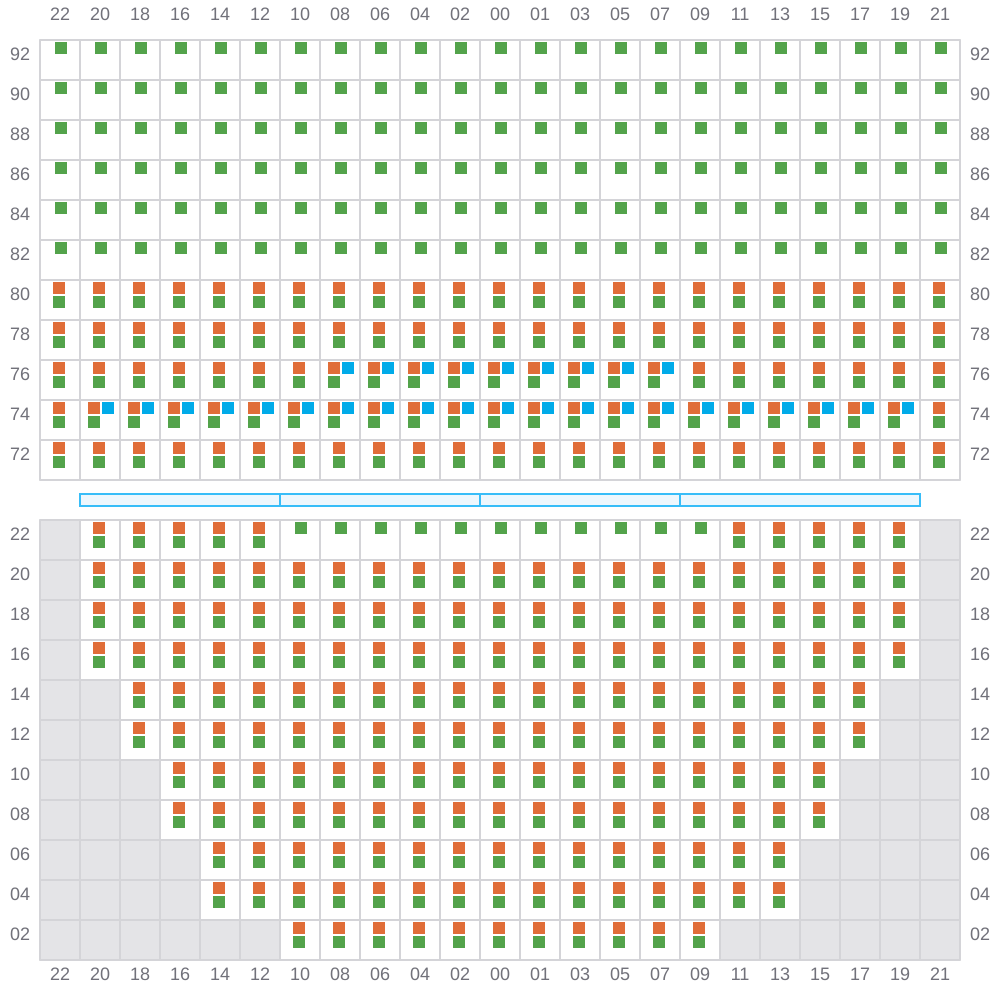

Bay 021 view and slots of AL DAHNA EXPRESS

023

  • ←
  • → / ?
  • →
Bay 023 view and slots of AL DAHNA EXPRESS

025 (026)

  • →
  • → / ?
  • →

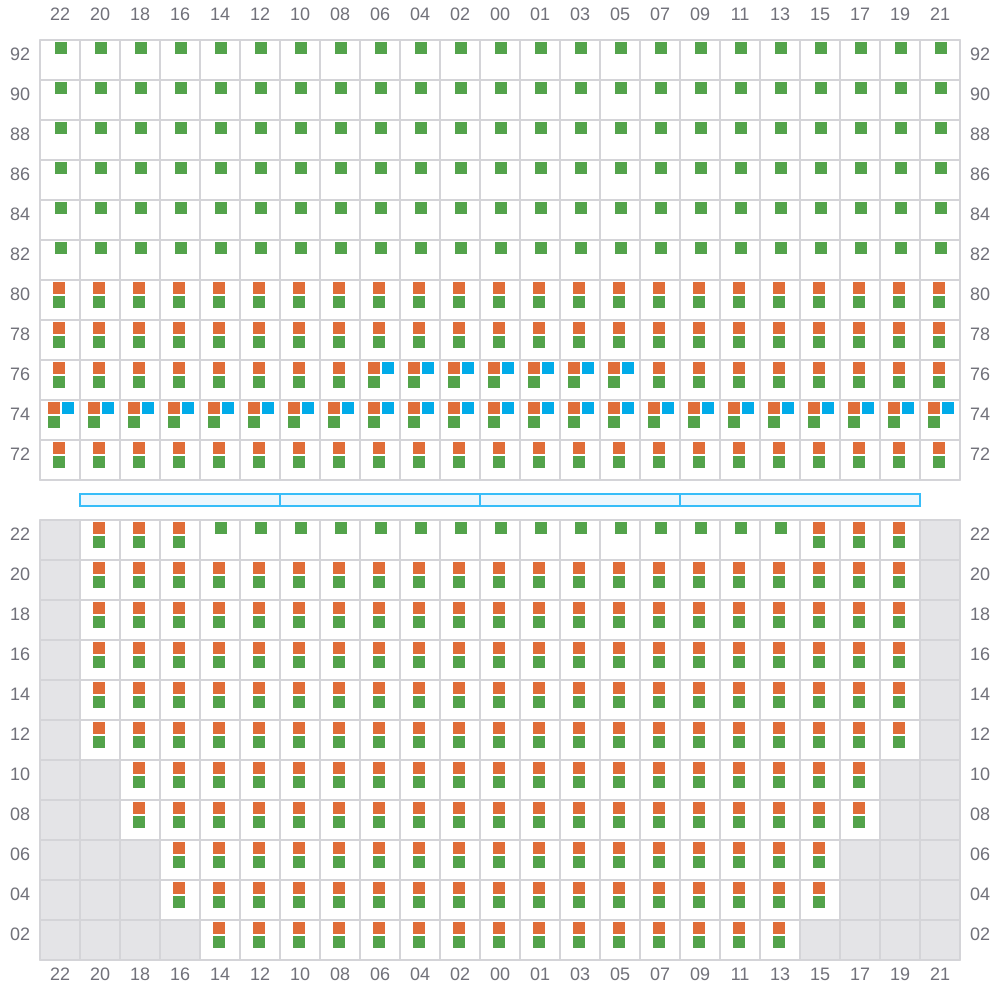

Bay 025 view and slots of AL DAHNA EXPRESS

027

  • ←
  • → / ?
  • →

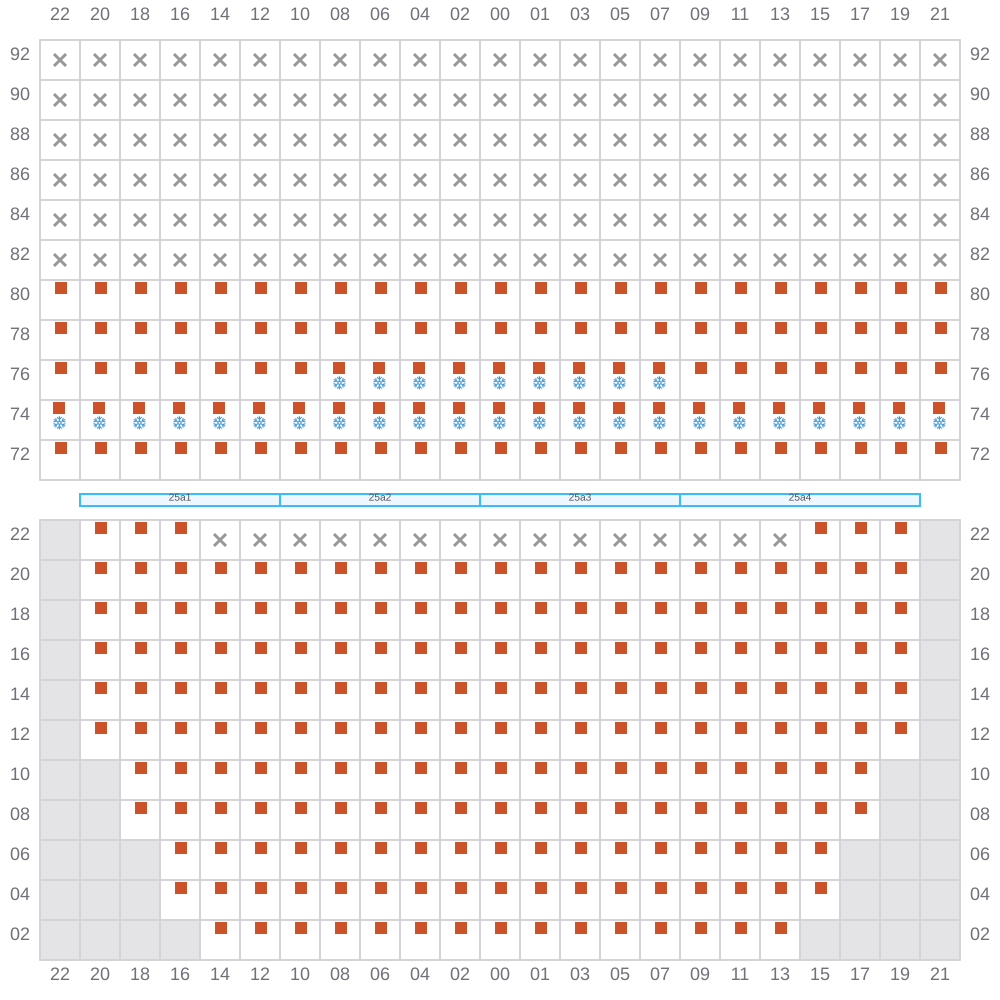

Bay 027 view and slots of AL DAHNA EXPRESS

029 (030)

  • →
  • → / ?
  • →

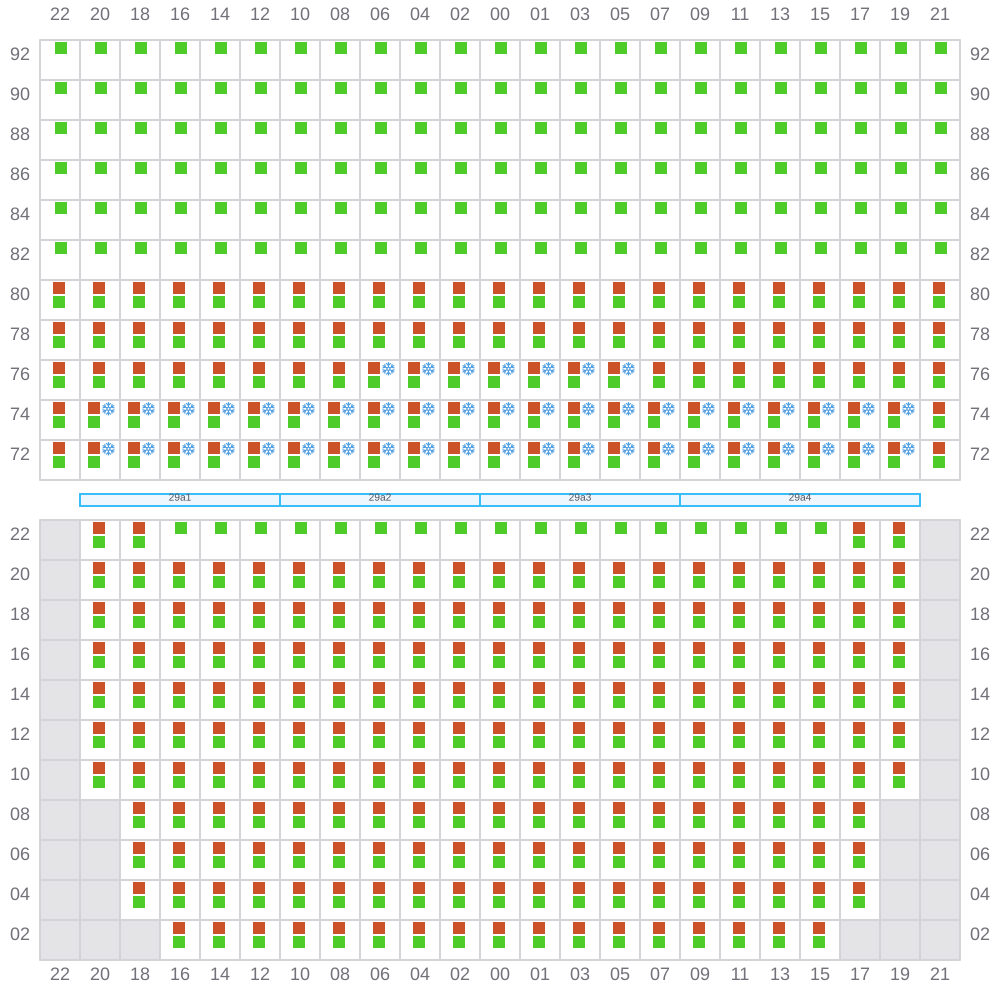

Bay 029 view and slots of AL DAHNA EXPRESS

031

  • ←
  • → / ?
  • →

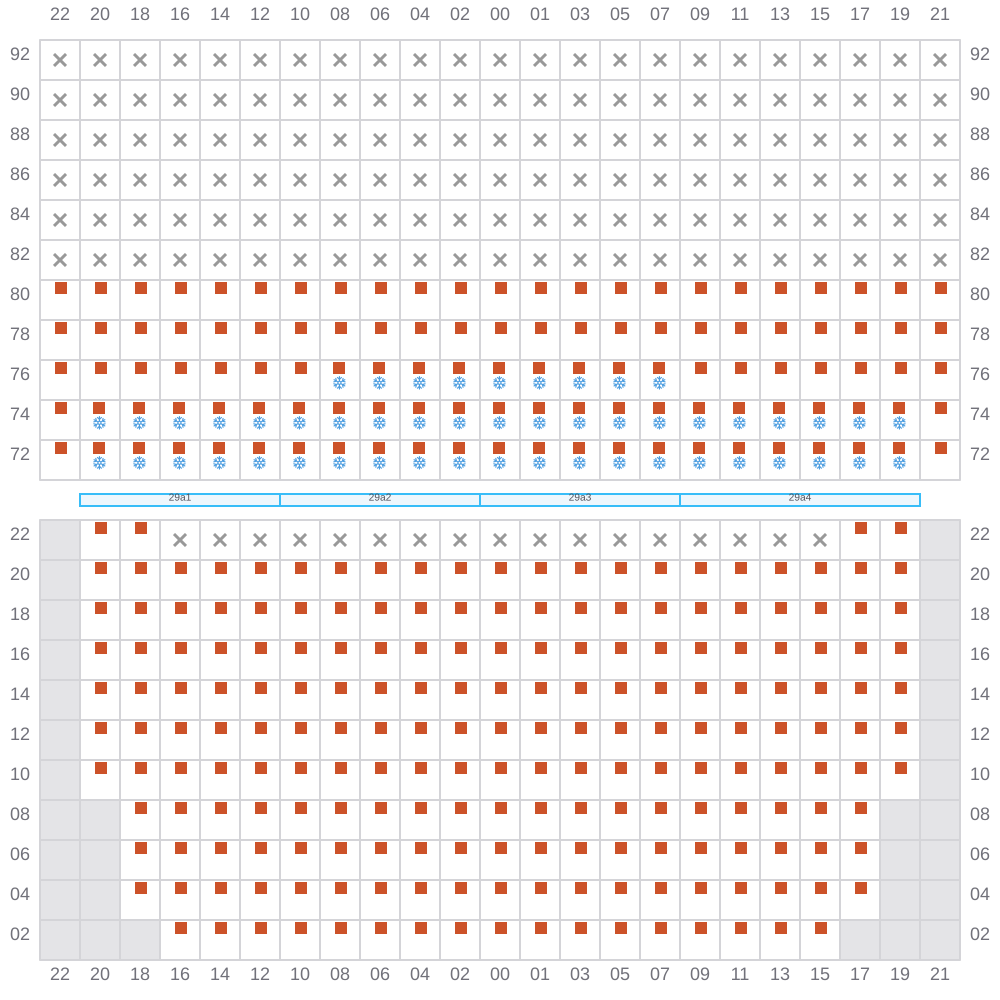

Bay 031 view and slots of AL DAHNA EXPRESS

033 (034)

  • →
  • → / ?
  • →

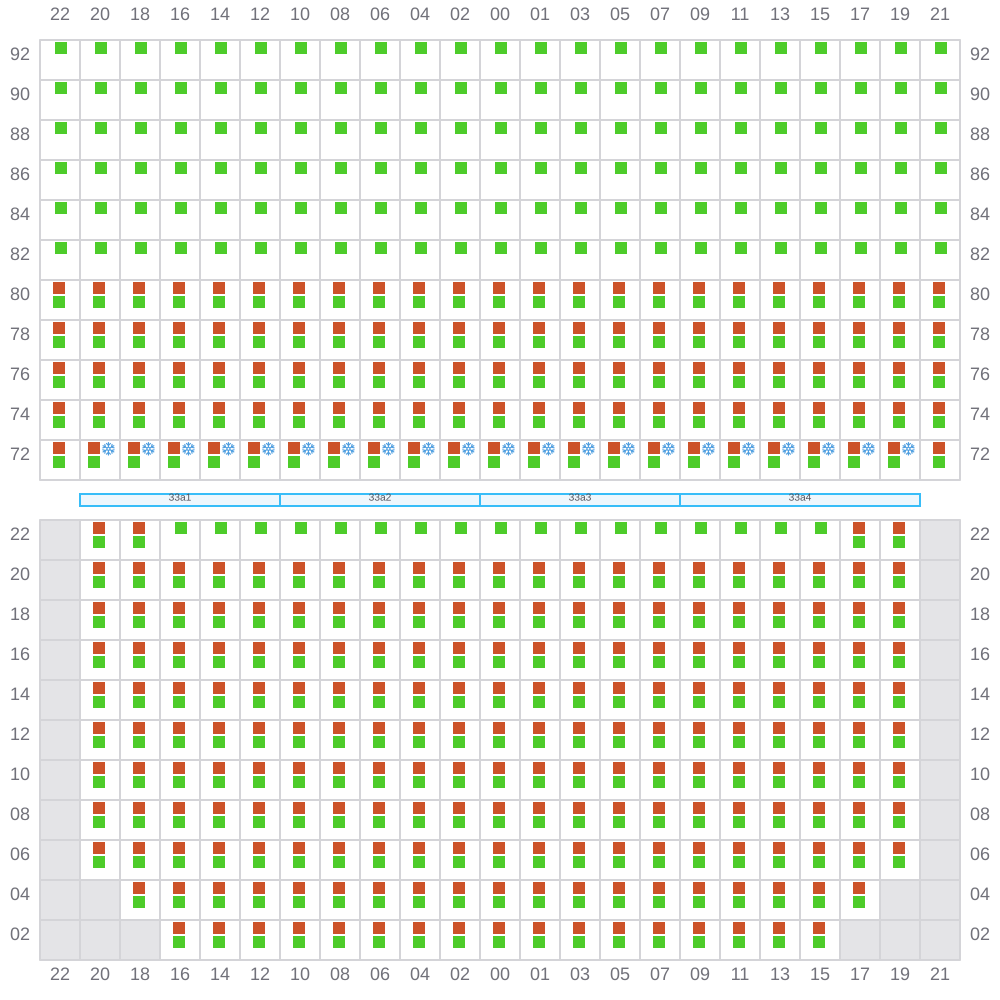

Bay 033 view and slots of AL DAHNA EXPRESS

035

  • ←
  • → / ?
  • →

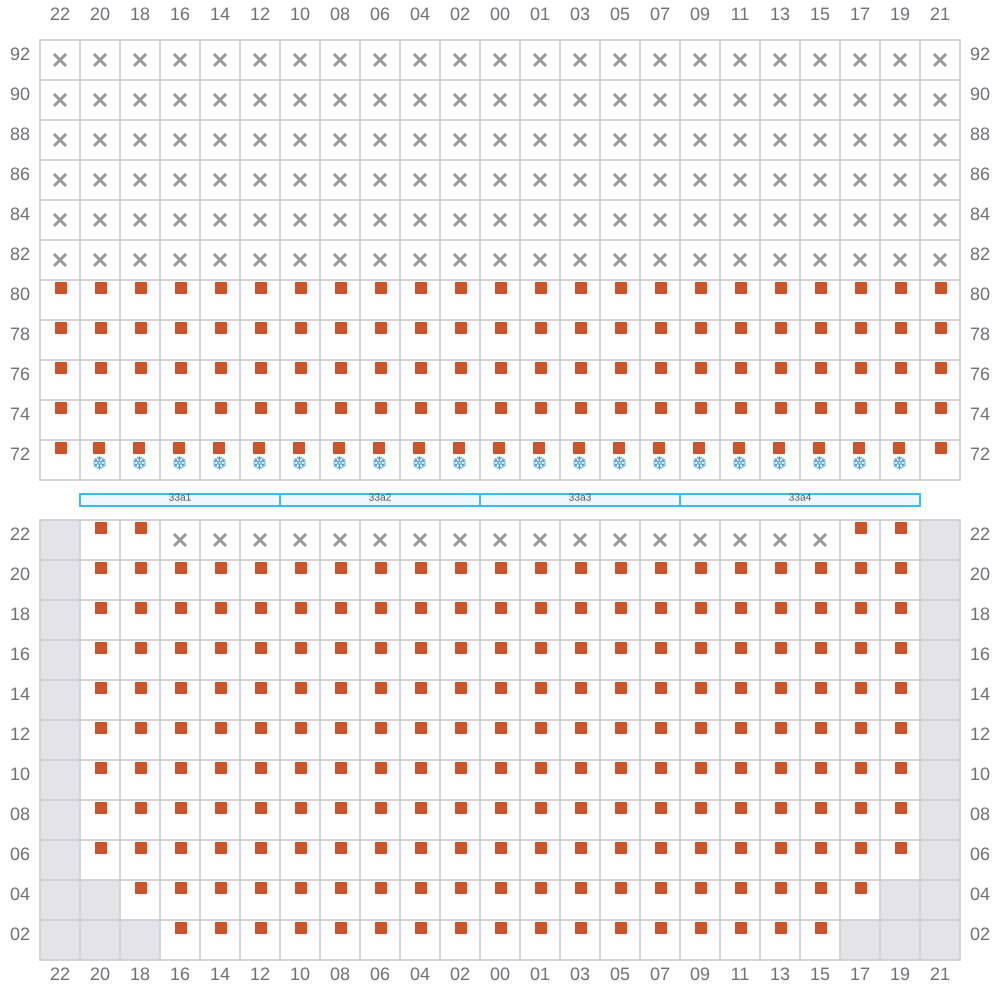

Bay 035 view and slots of AL DAHNA EXPRESS

037 (038)

  • →
  • → / ?
  • →
Bay 037 view and slots of AL DAHNA EXPRESS

039

  • ←
  • → / ?
  • →
Bay 039 view and slots of AL DAHNA EXPRESS

041 (042)

  • →
  • → / ?
  • →

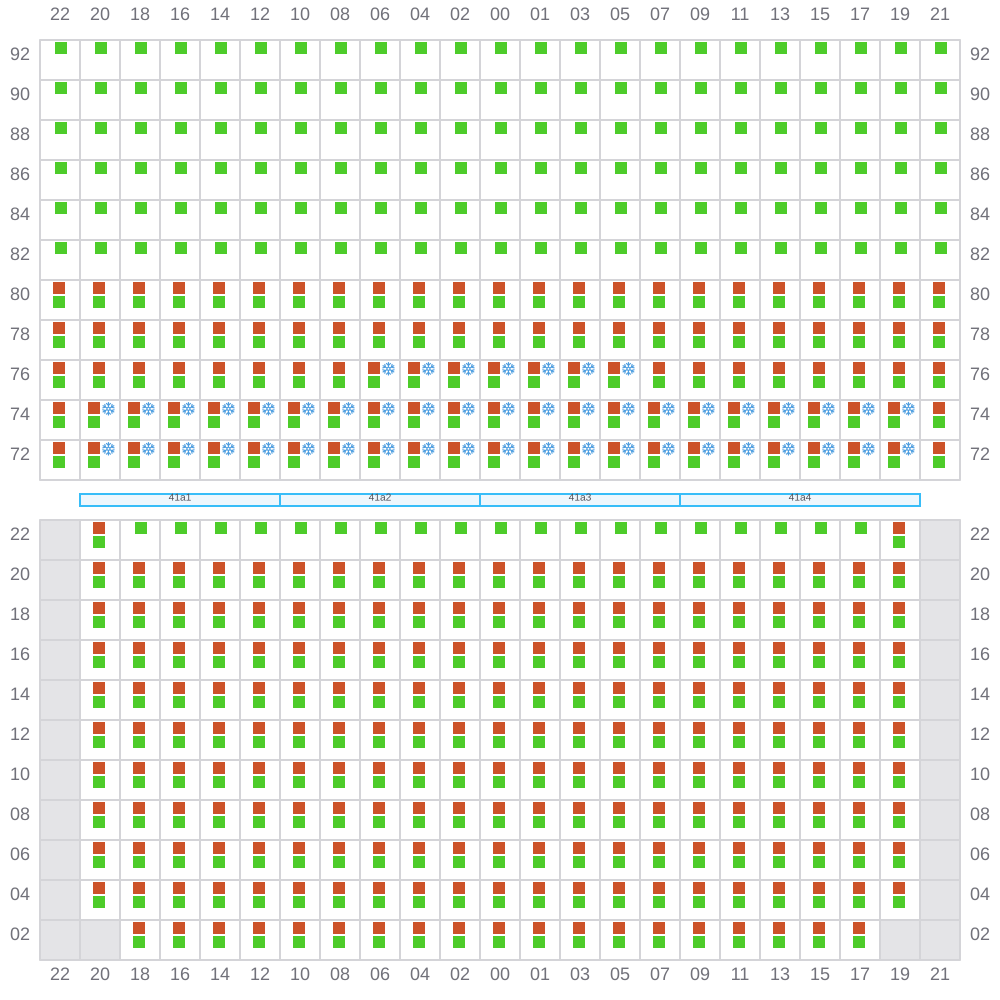

Bay 041 view and slots of AL DAHNA EXPRESS

043

  • ←
  • → / ?
  • →
Bay 043 view and slots of AL DAHNA EXPRESS

045 (046)

  • →
  • → / ?
  • →
Bay 045 view and slots of AL DAHNA EXPRESS

047

  • ←
  • → / ?
  • →
Bay 047 view and slots of AL DAHNA EXPRESS

049 (050)

  • →
  • → / ?
  • →

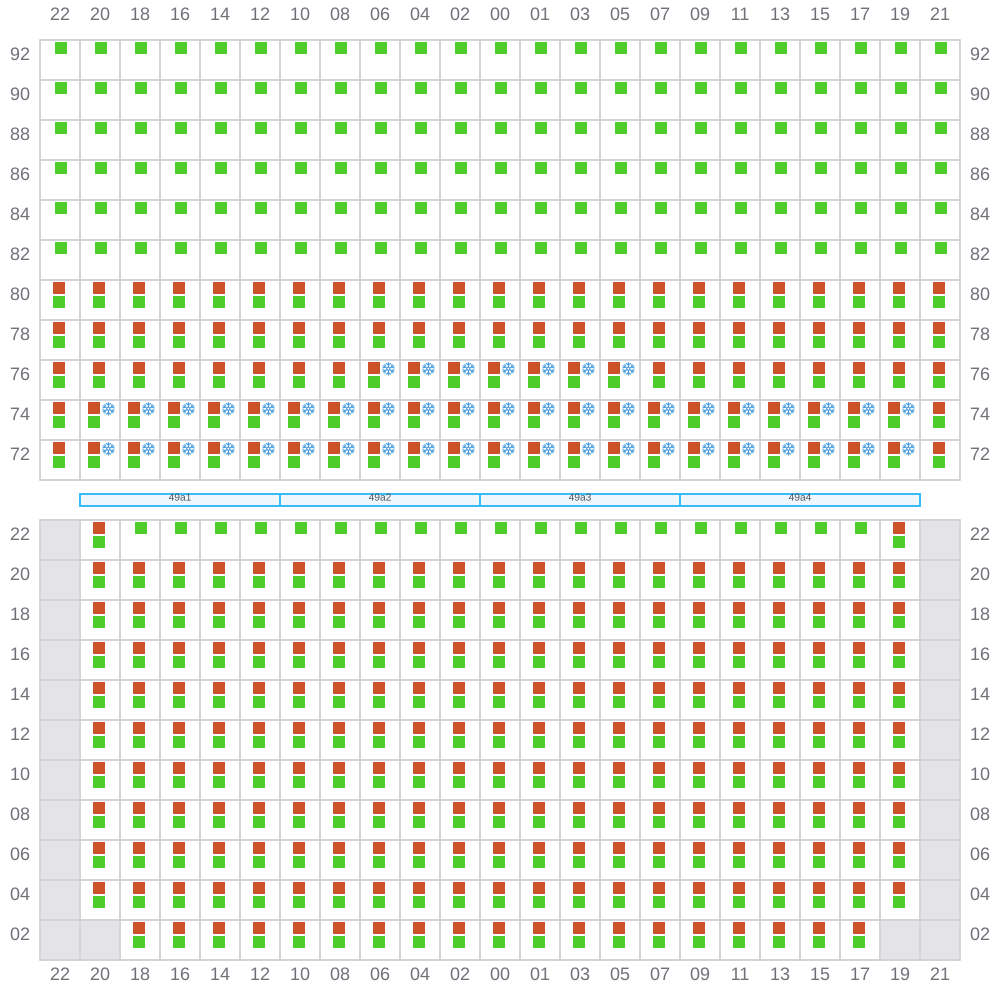

Bay 049 view and slots of AL DAHNA EXPRESS

051

  • ←
  • → / ?
  • →

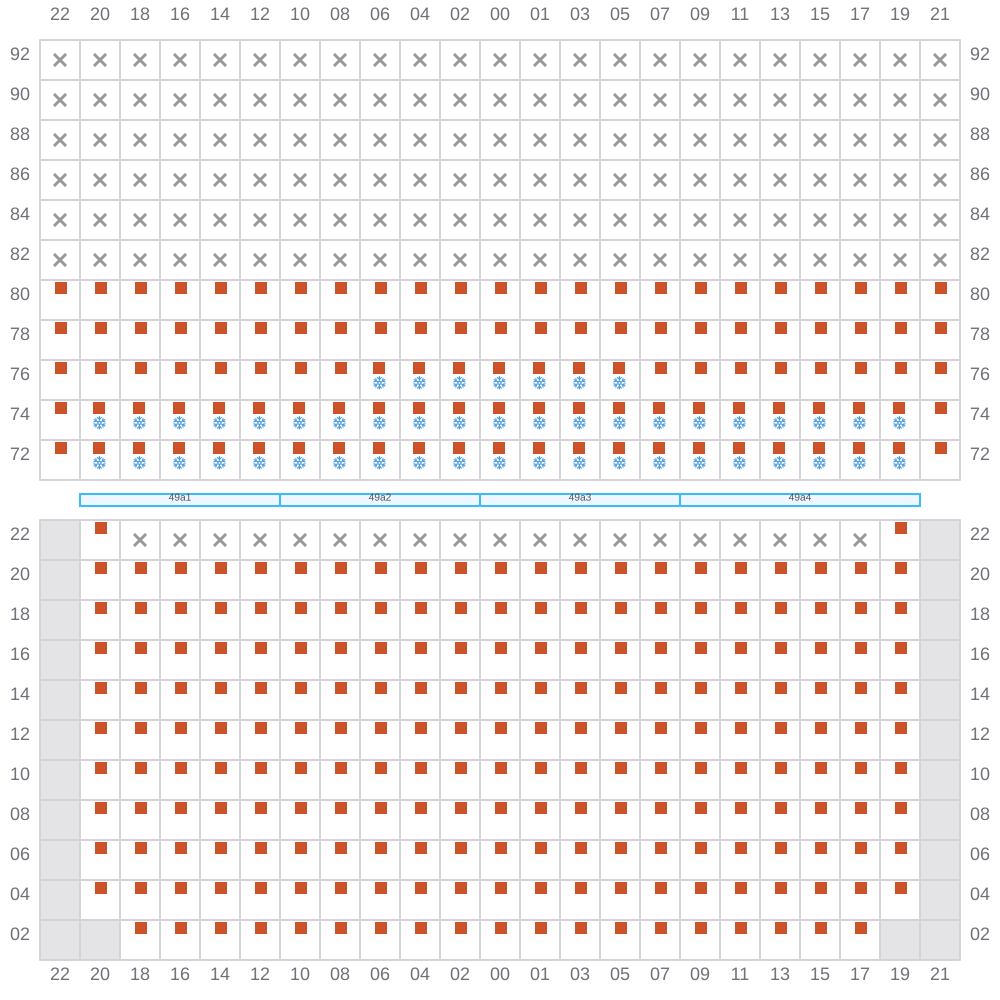

Bay 051 view and slots of AL DAHNA EXPRESS

053 (054)

  • →
  • → / ?
  • →
Bay 053 view and slots of AL DAHNA EXPRESS

055

  • ←
  • → / ?
  • →

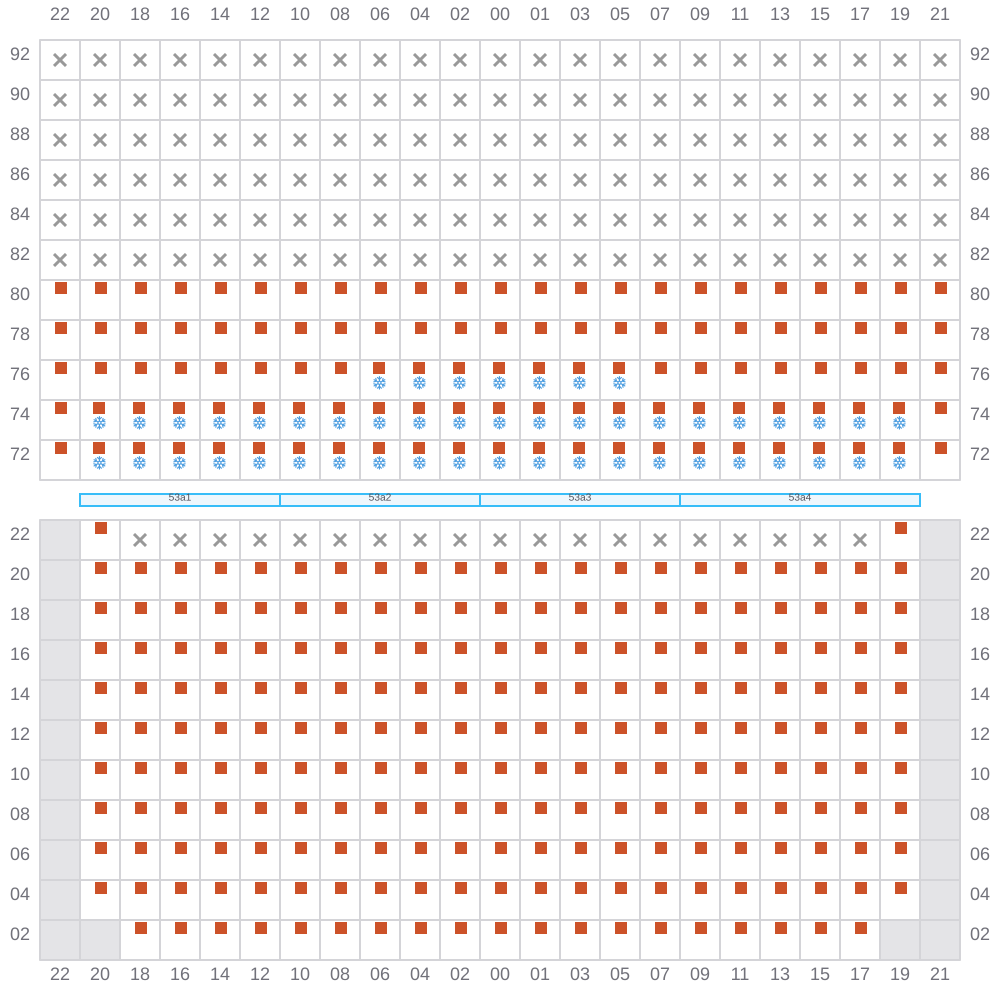

Bay 055 view and slots of AL DAHNA EXPRESS

057 (058)

  • →
  • → / ?
  • →
Bay 057 view and slots of AL DAHNA EXPRESS

059

  • ←
  • → / ?
  • →

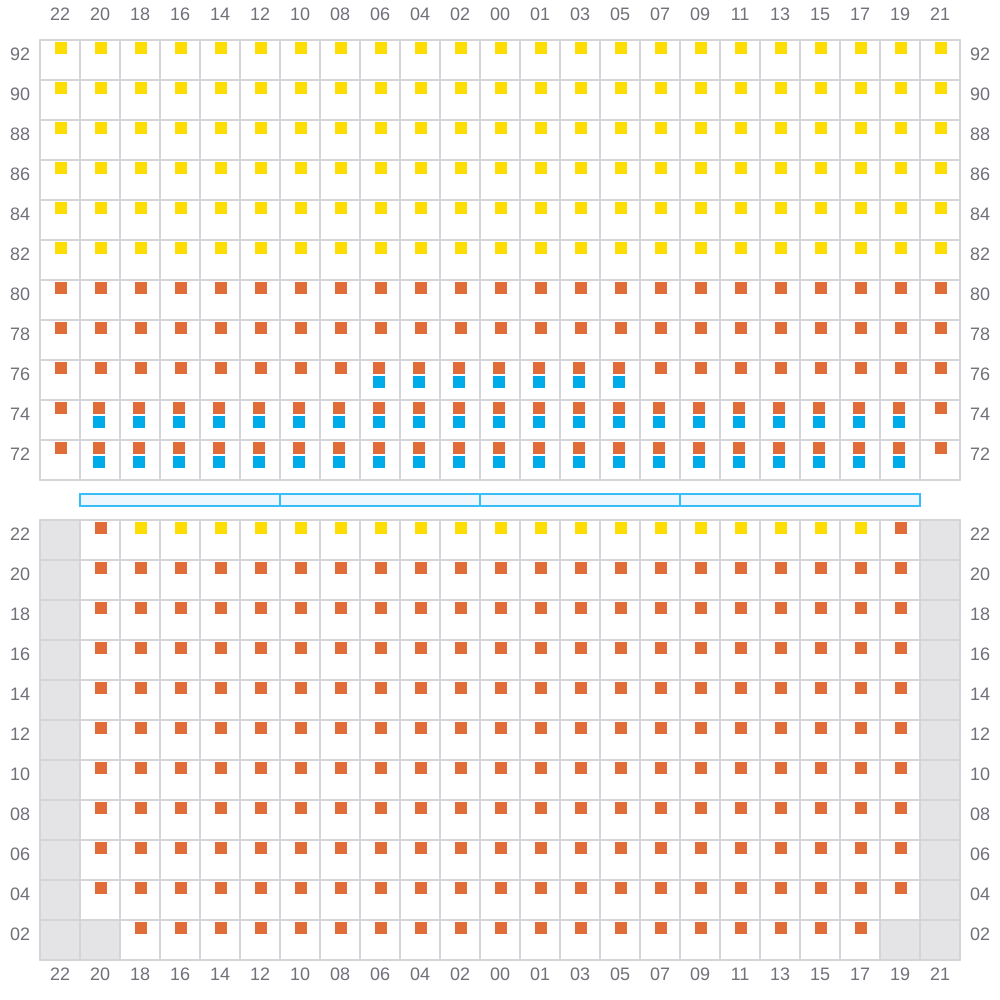

Bay 059 view and slots of AL DAHNA EXPRESS

061 (062)

  • →
  • → / ?
  • →

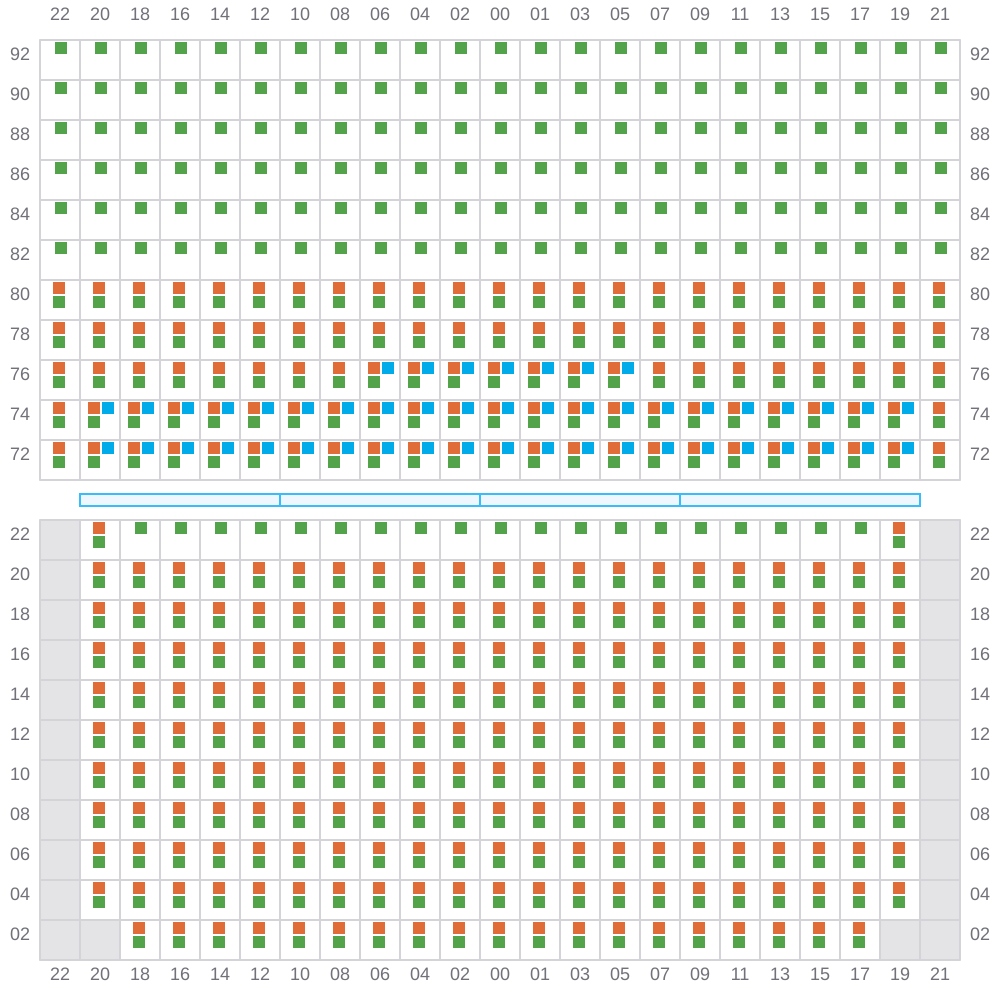

Bay 061 view and slots of AL DAHNA EXPRESS

063

  • ←
  • → / ?
  • →
Bay 063 view and slots of AL DAHNA EXPRESS

065 (066)

  • →
  • → / ?
  • →

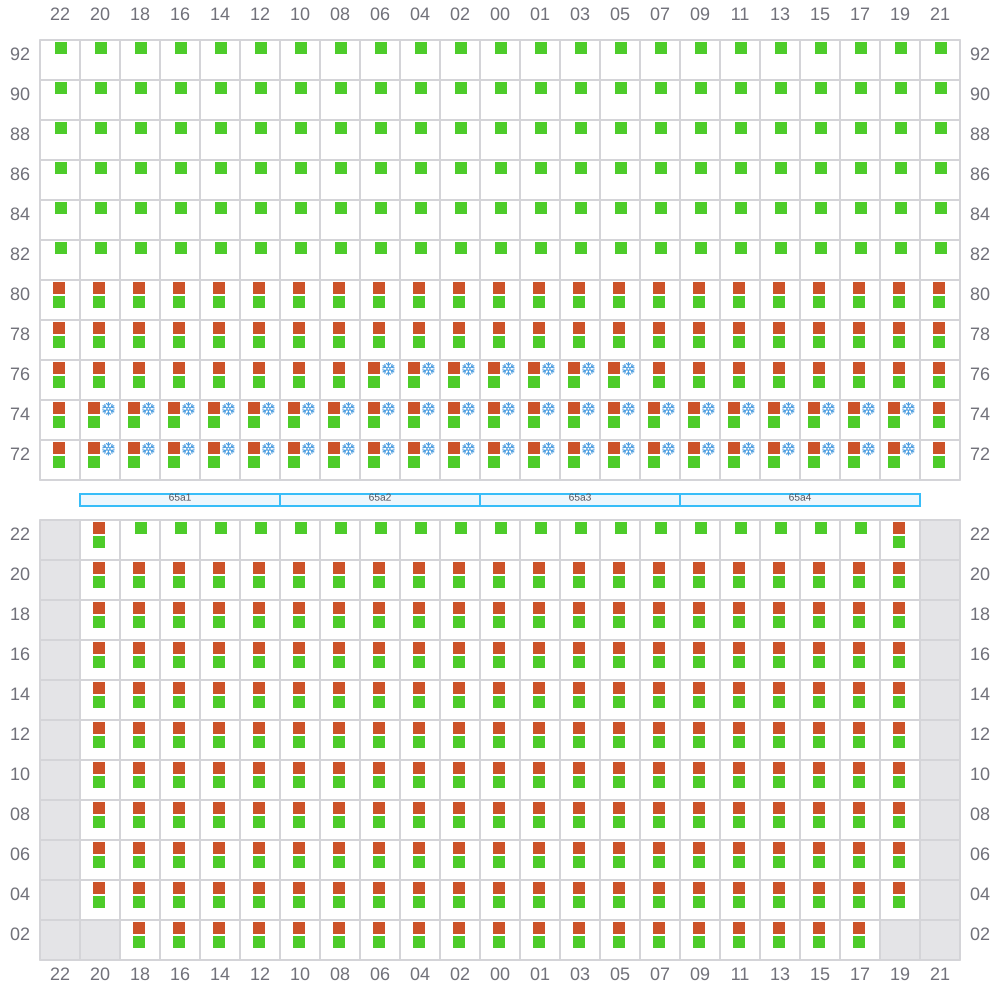

Bay 065 view and slots of AL DAHNA EXPRESS

067

  • ←
  • → / ?
  • →

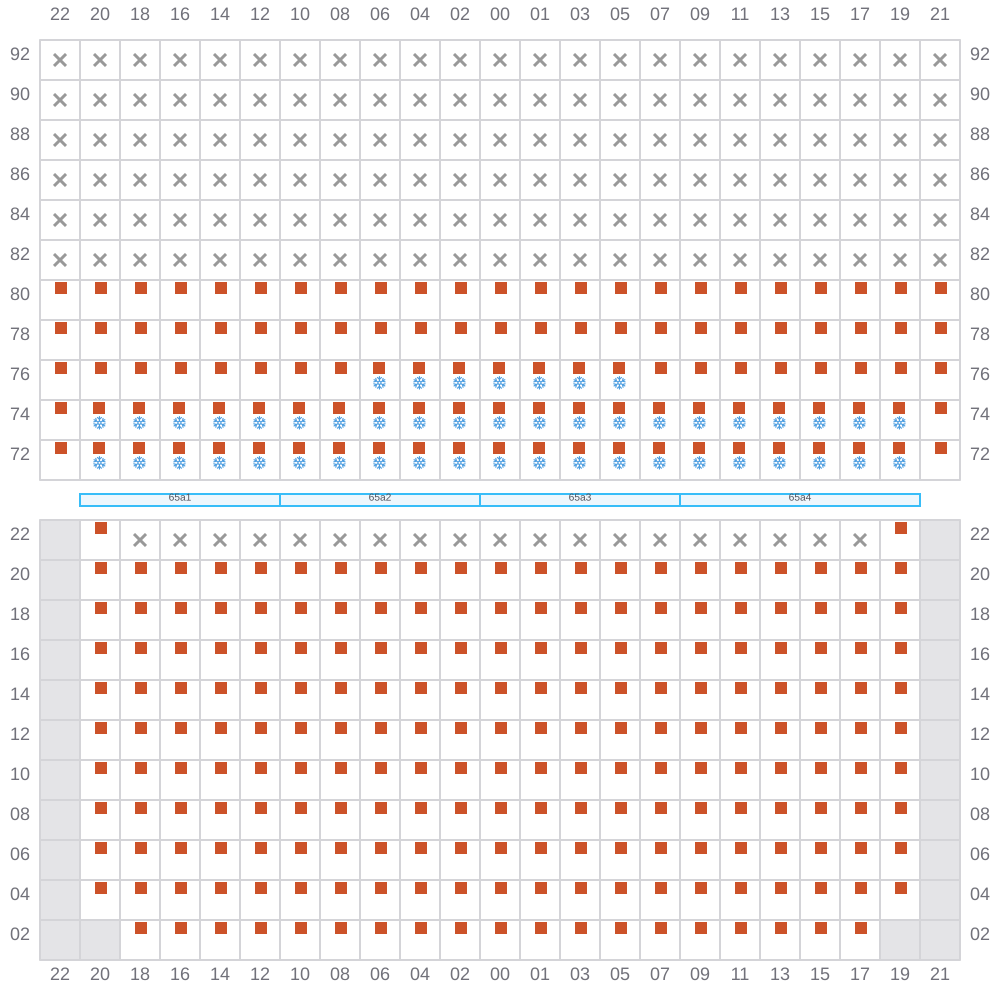

Bay 067 view and slots of AL DAHNA EXPRESS

069 (070)

  • →
  • → / ?
  • →

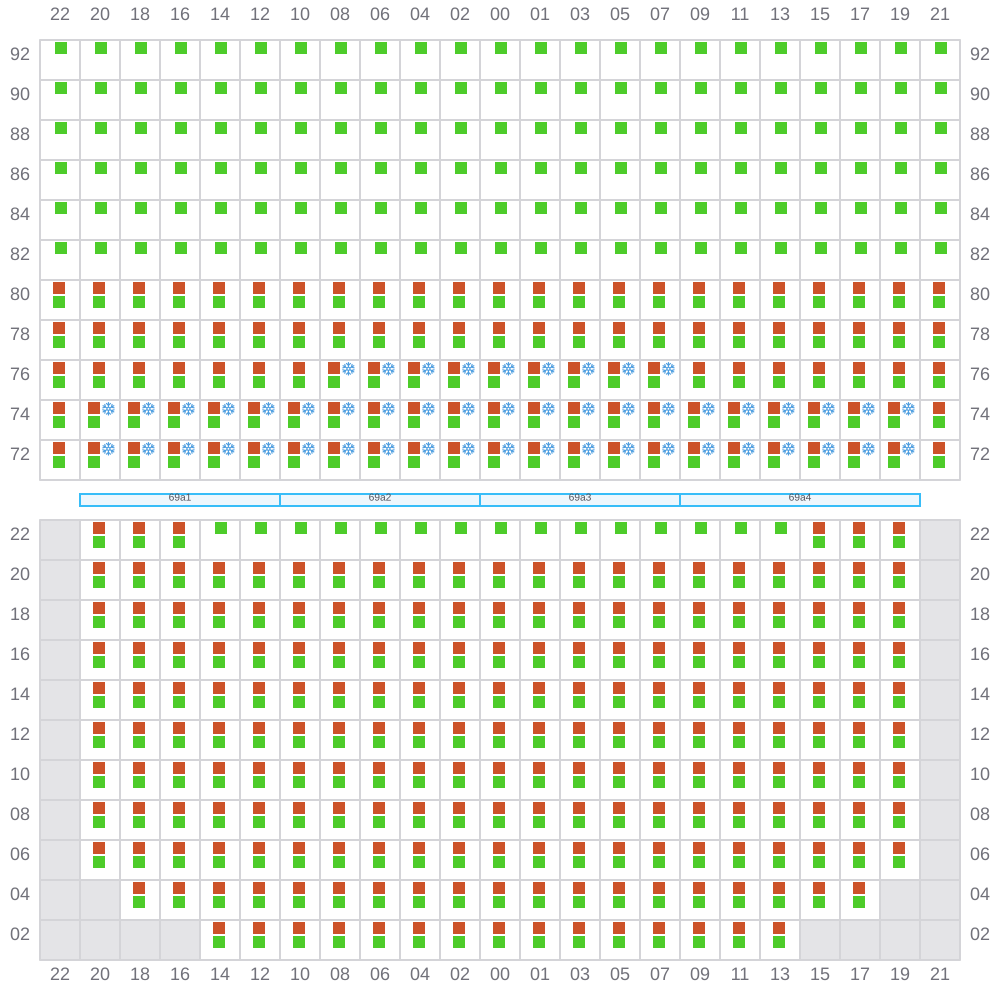

Bay 069 view and slots of AL DAHNA EXPRESS

071

  • ←
  • → / ?
  • →

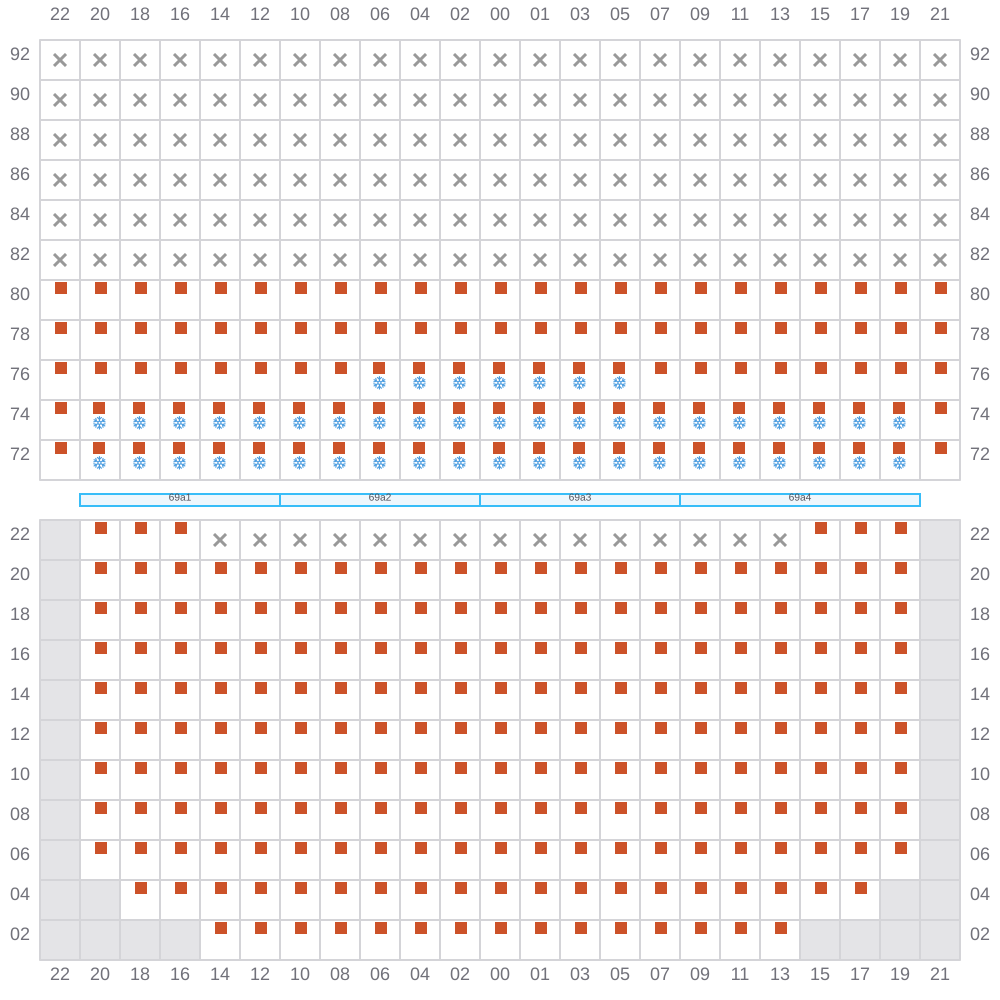

Bay 071 view and slots of AL DAHNA EXPRESS

073 (074)

  • →
  • → / ?
  • →
Bay 073 view and slots of AL DAHNA EXPRESS

075

  • ←
  • → / ?
  • →

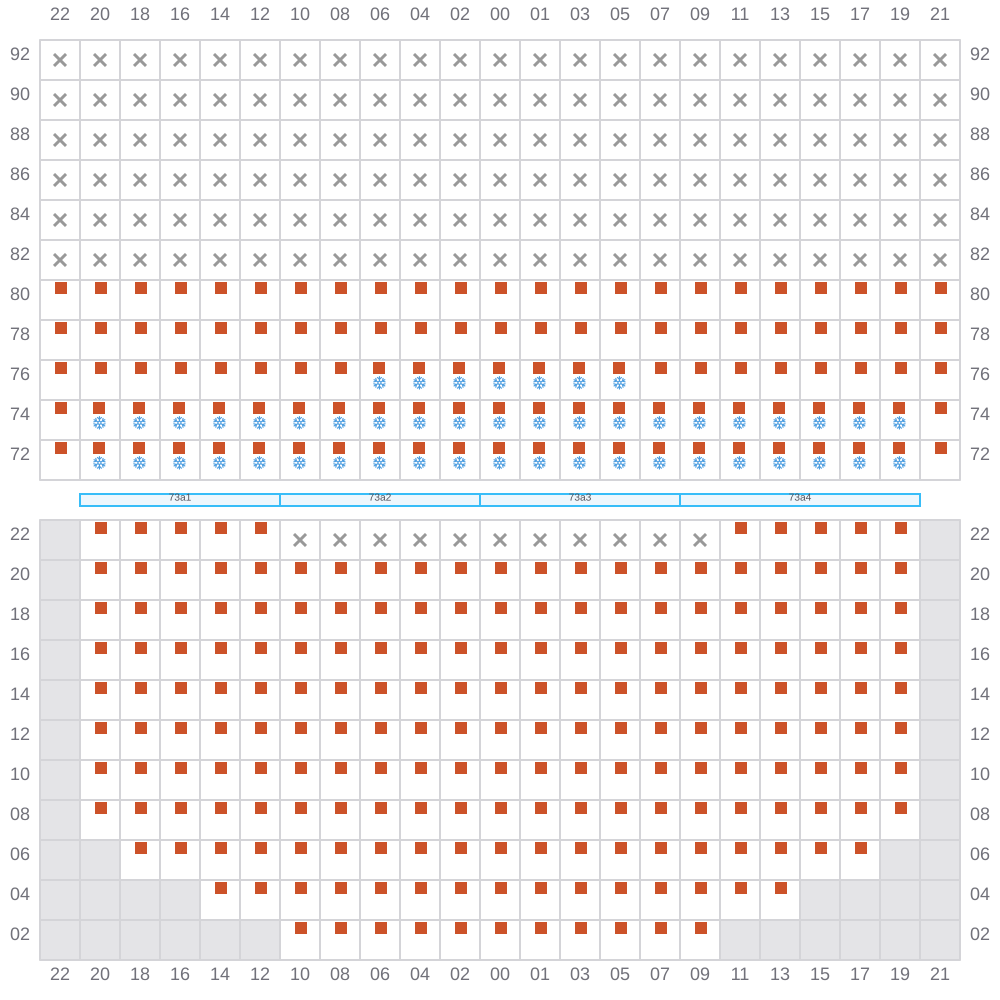

Bay 075 view and slots of AL DAHNA EXPRESS

077 (078)

  • →
  • → / ?
  • →

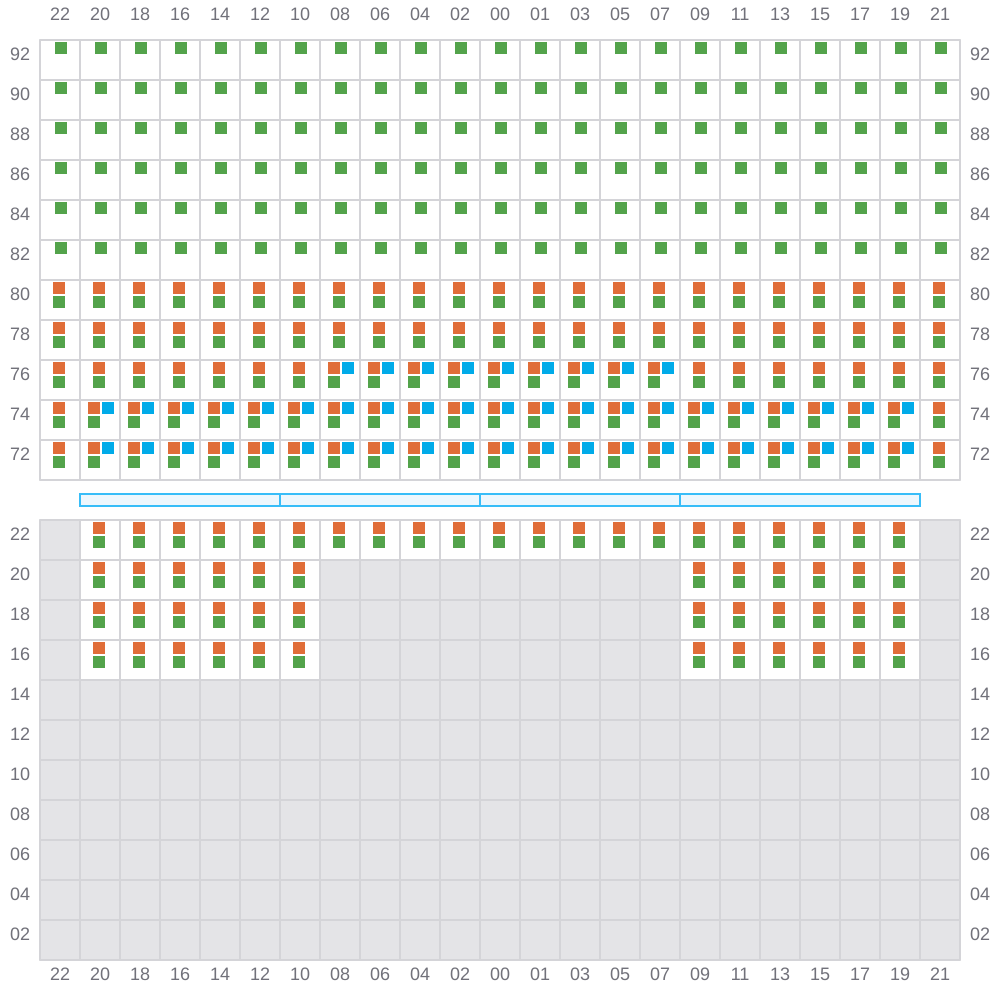

Bay 077 view and slots of AL DAHNA EXPRESS

079

  • ←
  • → / ?
  • →

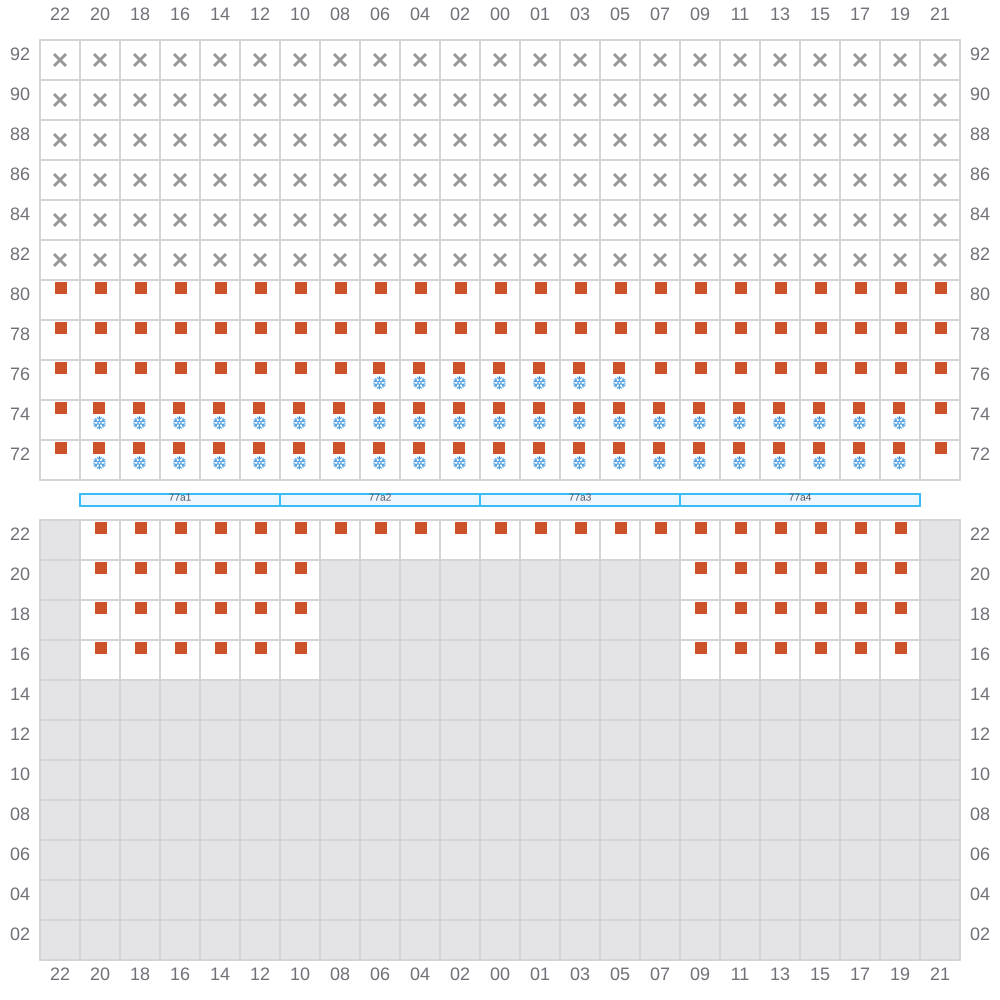

Bay 079 view and slots of AL DAHNA EXPRESS

081 (082)

  • →
  • → / ?
  • →

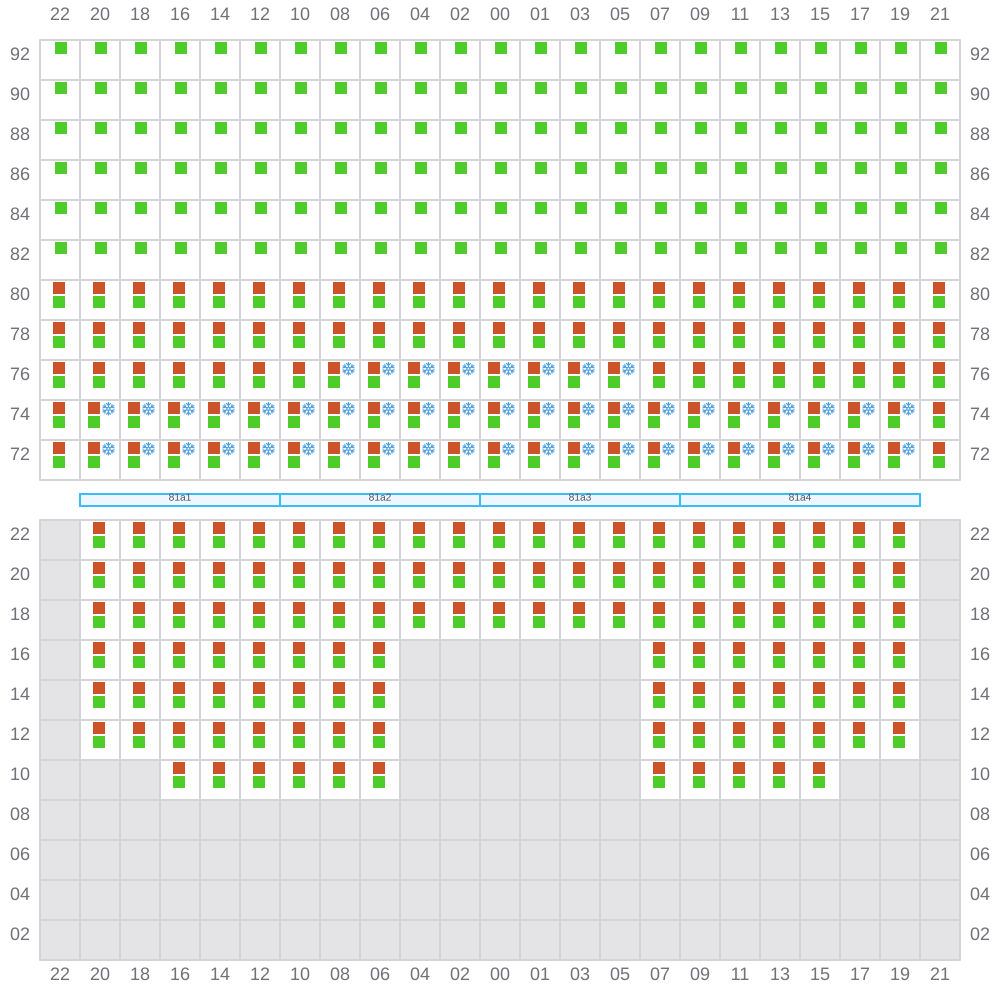

Bay 081 view and slots of AL DAHNA EXPRESS

083

  • ←
  • → / ?
  • →

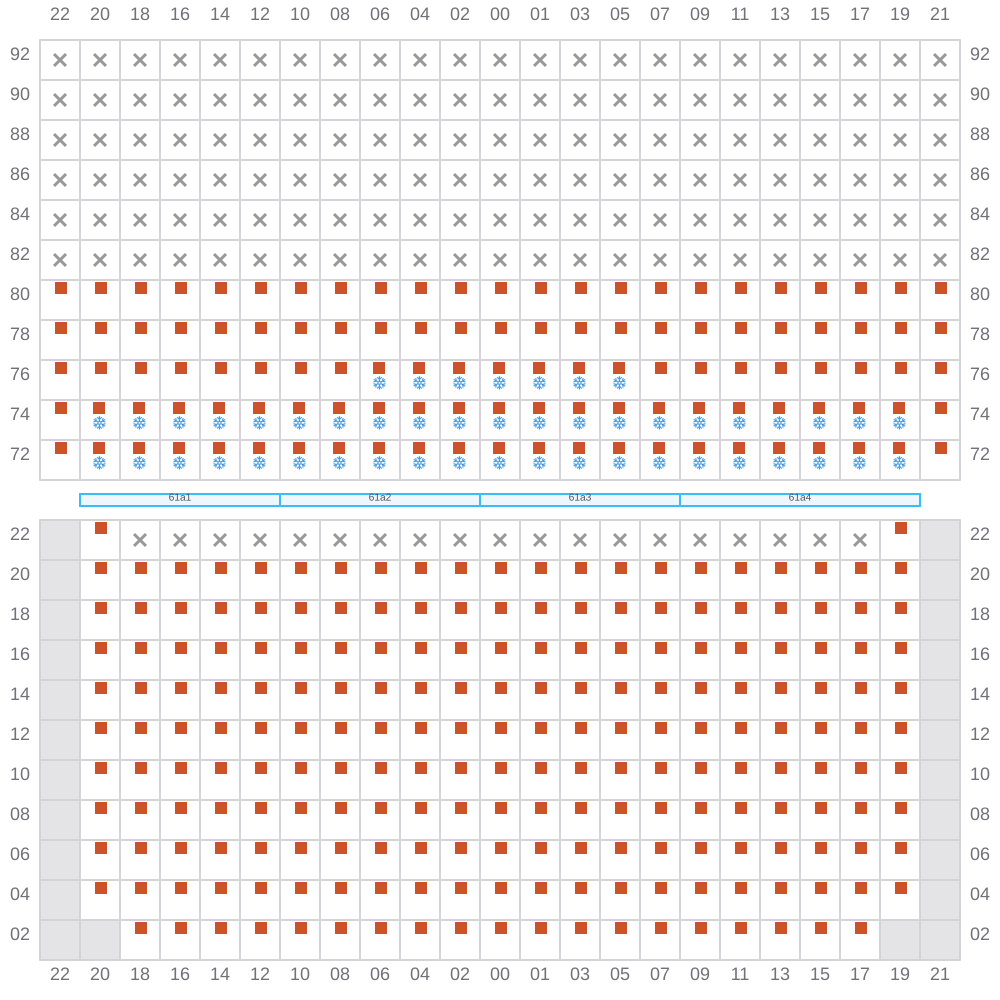

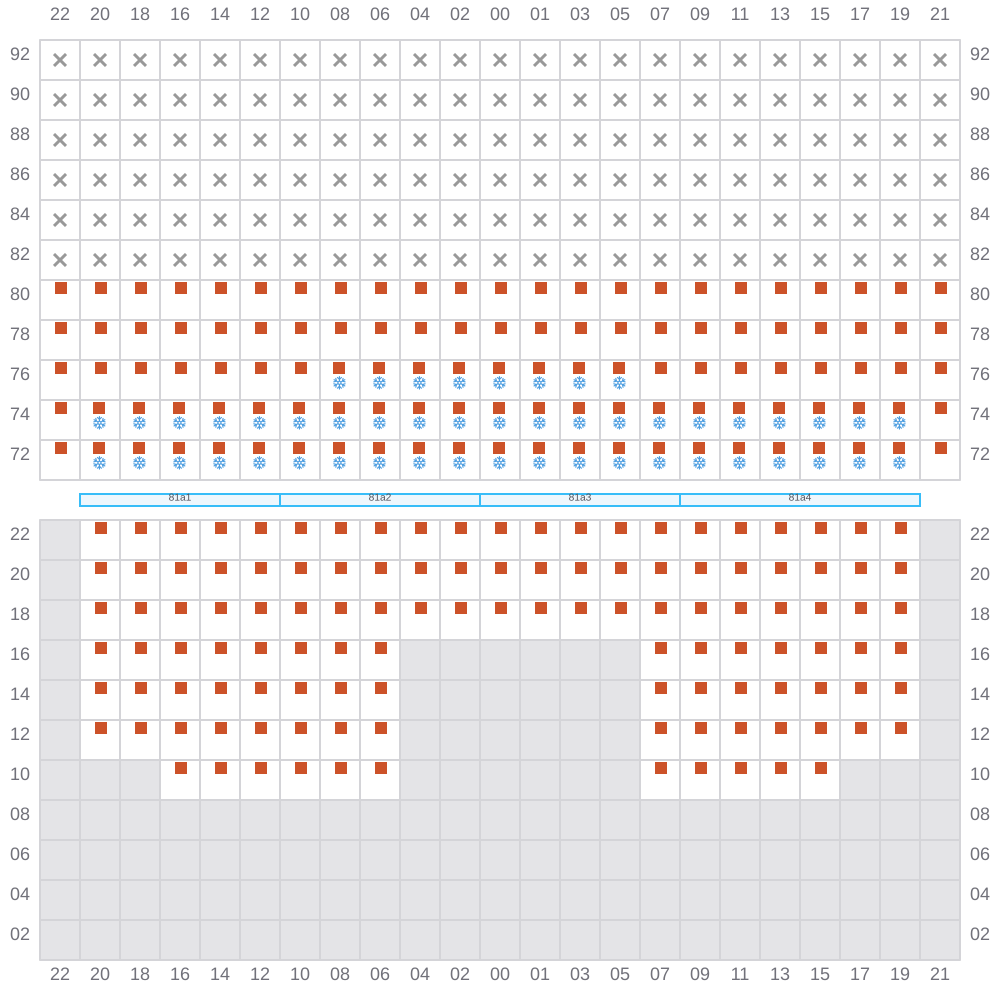

Bay 083 view and slots of AL DAHNA EXPRESS

085 (086)

  • →
  • → / ?
  • →

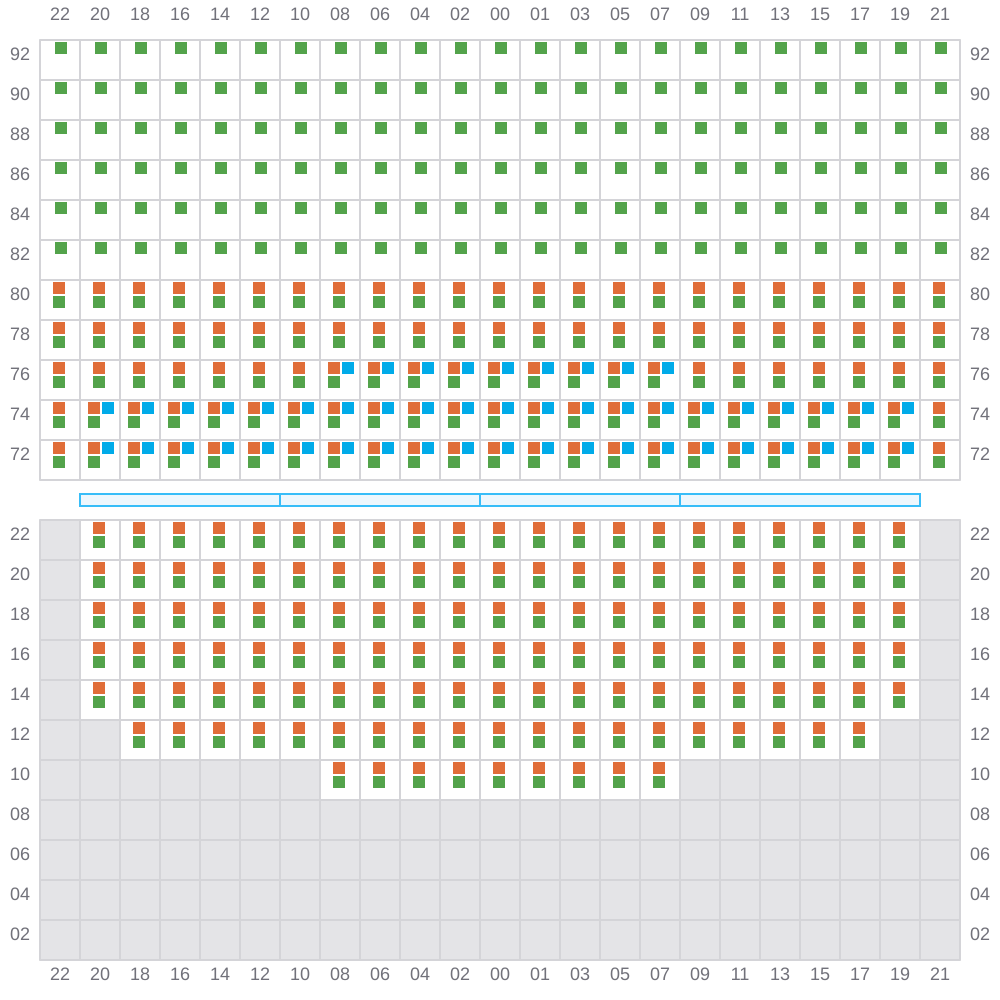

Bay 085 view and slots of AL DAHNA EXPRESS

087

  • ←
  • → / ?
  • →

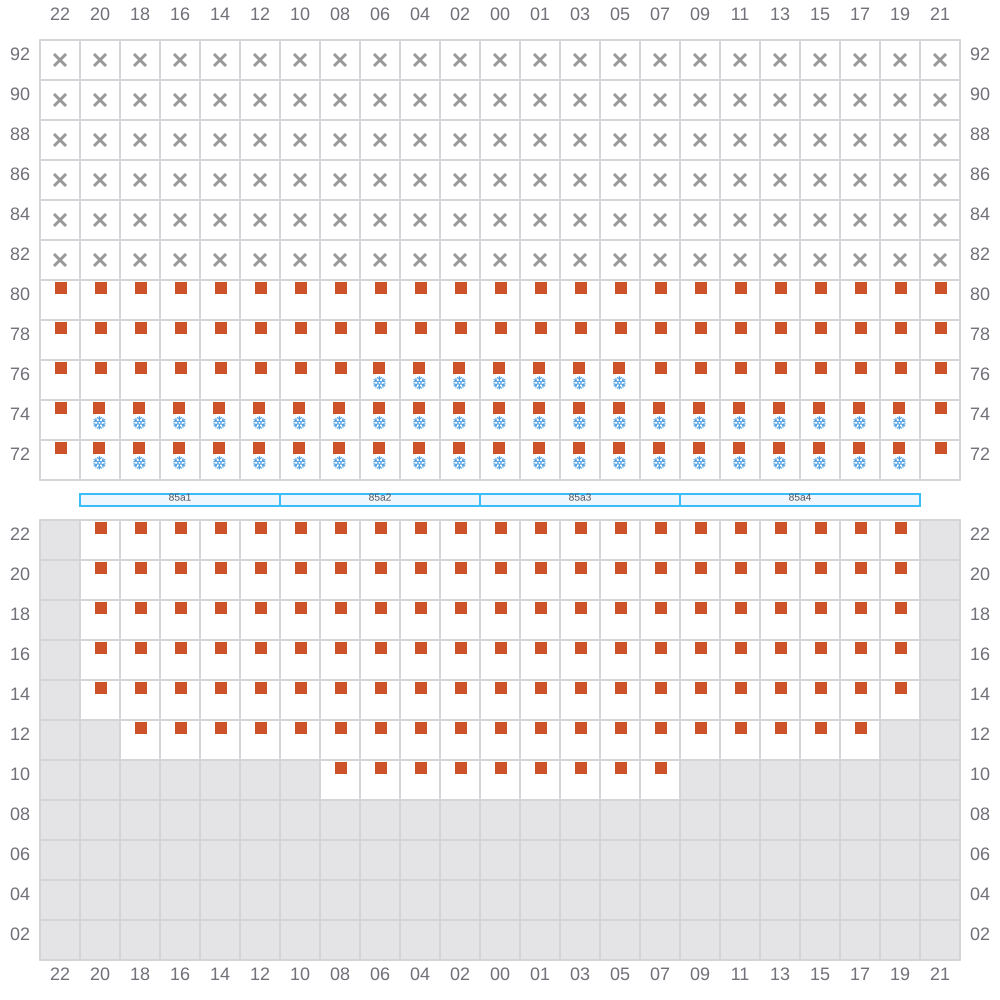

Bay 087 view and slots of AL DAHNA EXPRESS

089 (090)

  • →
  • → / ?
  • →

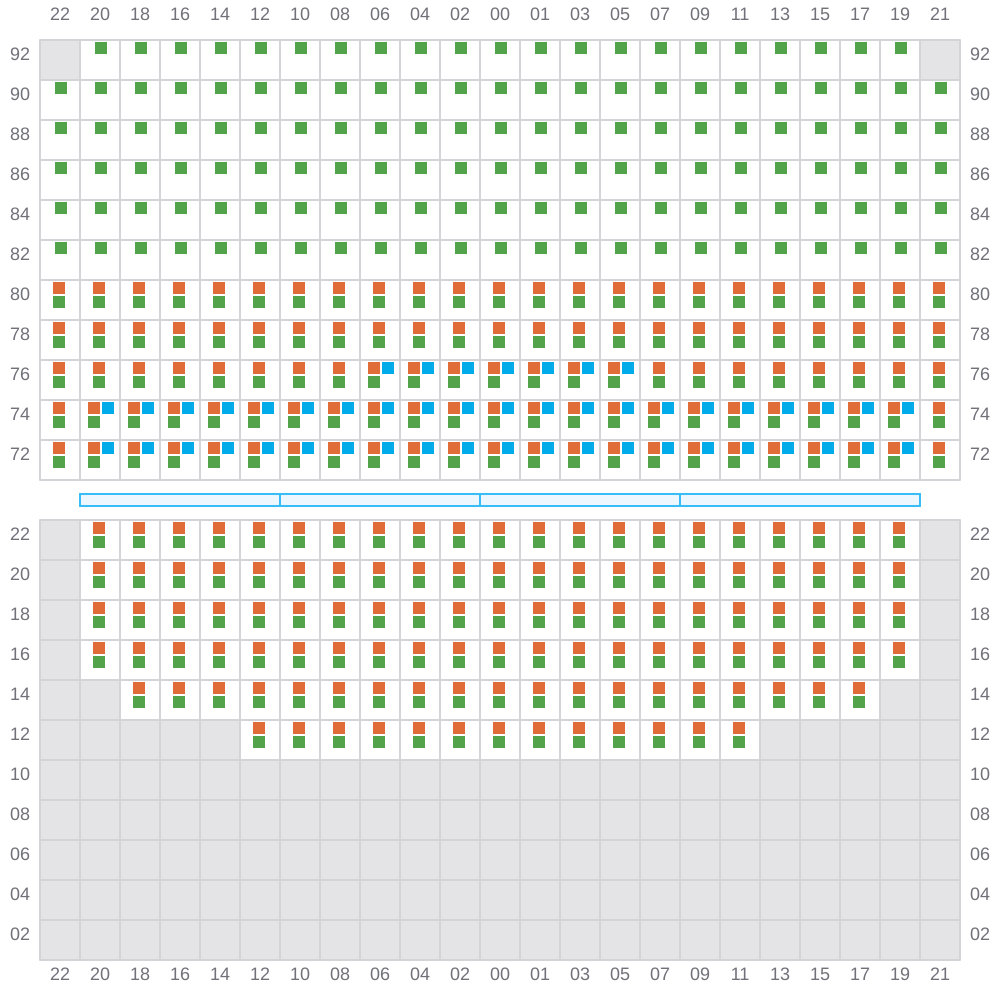

Bay 089 view and slots of AL DAHNA EXPRESS

091

  • ←
  • → / ?
  • →

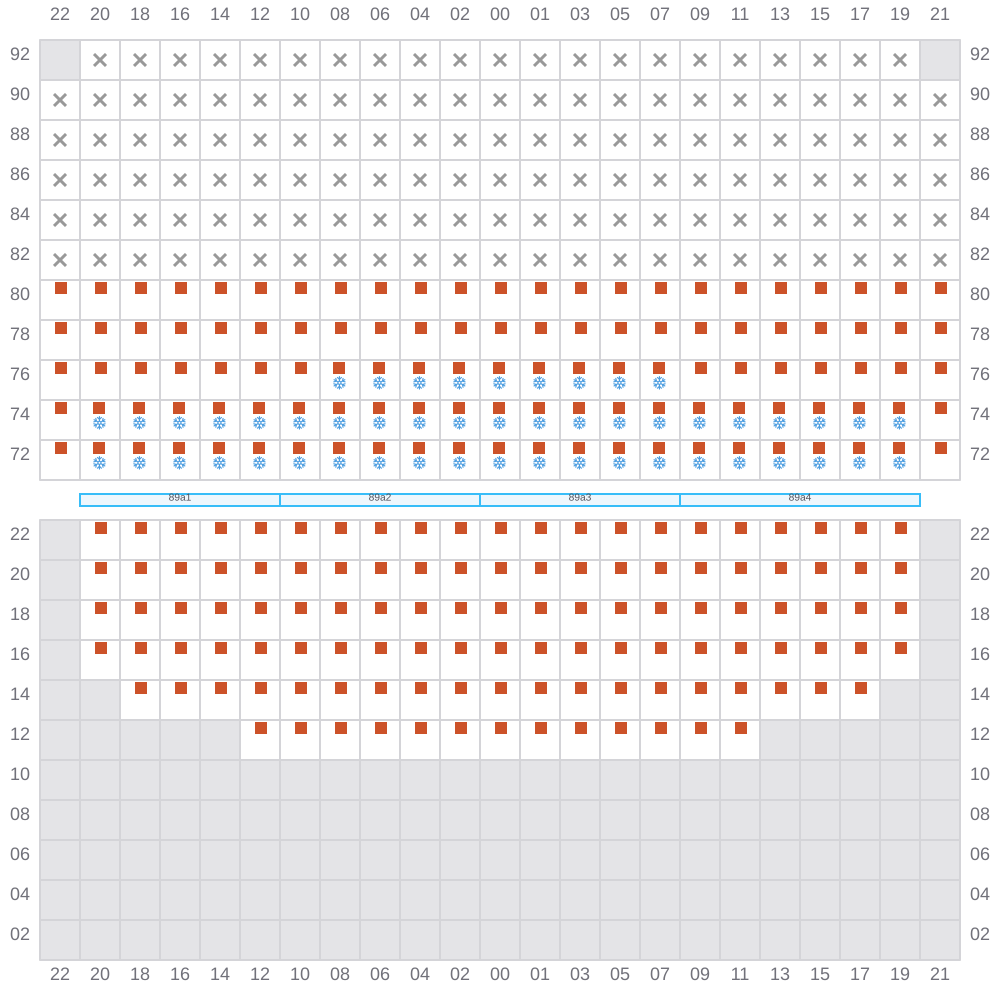

Bay 091 view and slots of AL DAHNA EXPRESS

093 (094)

  • → / ?
  • → / ?
  • → / ?

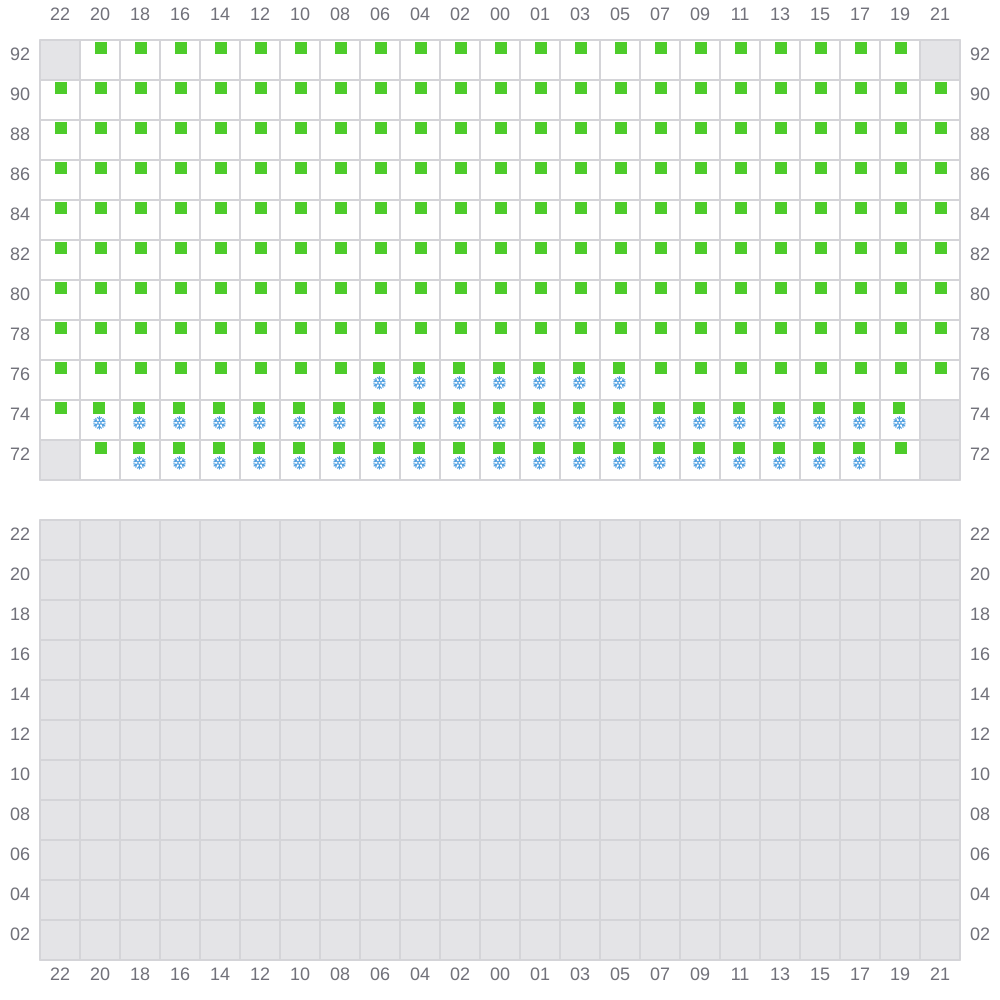

Bay 093 view and slots of AL DAHNA EXPRESS
