AL JASRAH
9732321 | 5LIJ8 | HLC by *********************** Last update: Fri Feb 07 2025

General Info

Ship Name:AL JASRAH
IMO Code:9732321
Call Sign:5LIJ8
Line Operator:HLC
Class Name for Sister Ships:HAJA
Year Built:2016
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):352.00
LOA (Length Overall):368.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:085
Max ISO Row:20
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:70
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:14,996

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Known
TCG Data:100%

Side View

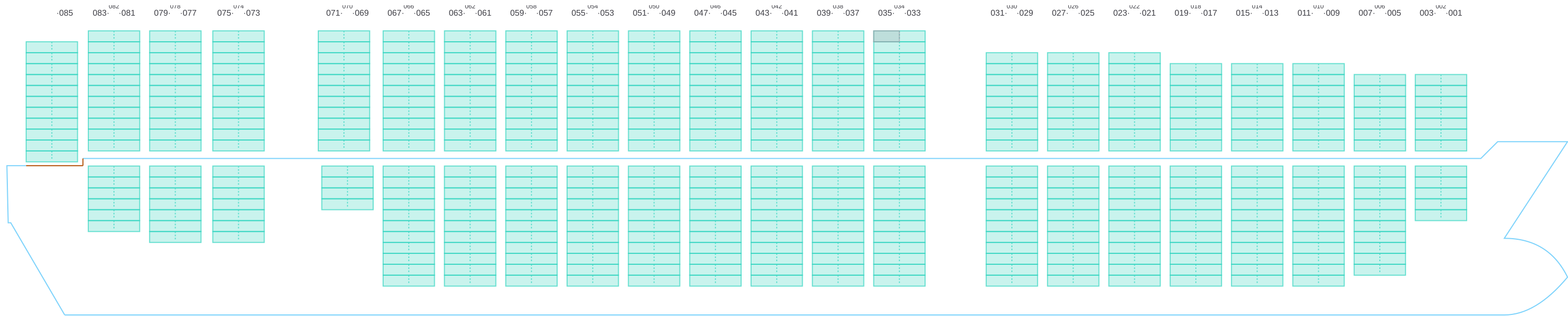

Side view of AL JASRAH

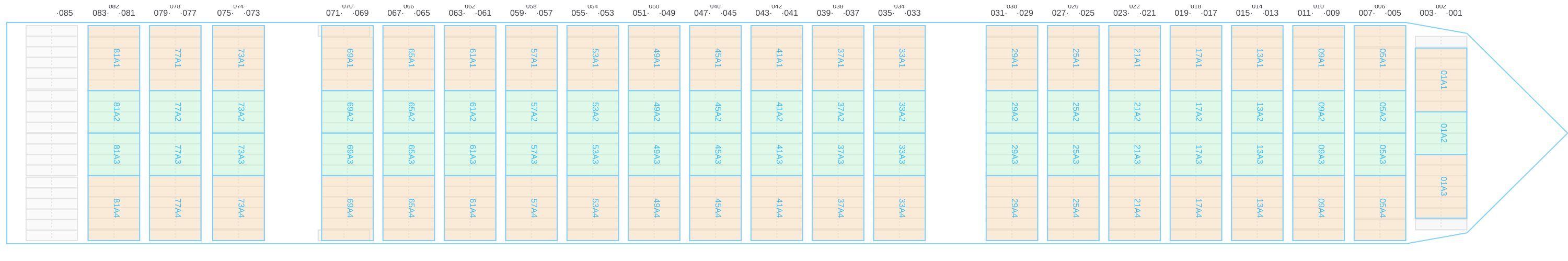

Hatch-Covers View

Deck view of AL JASRAH

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

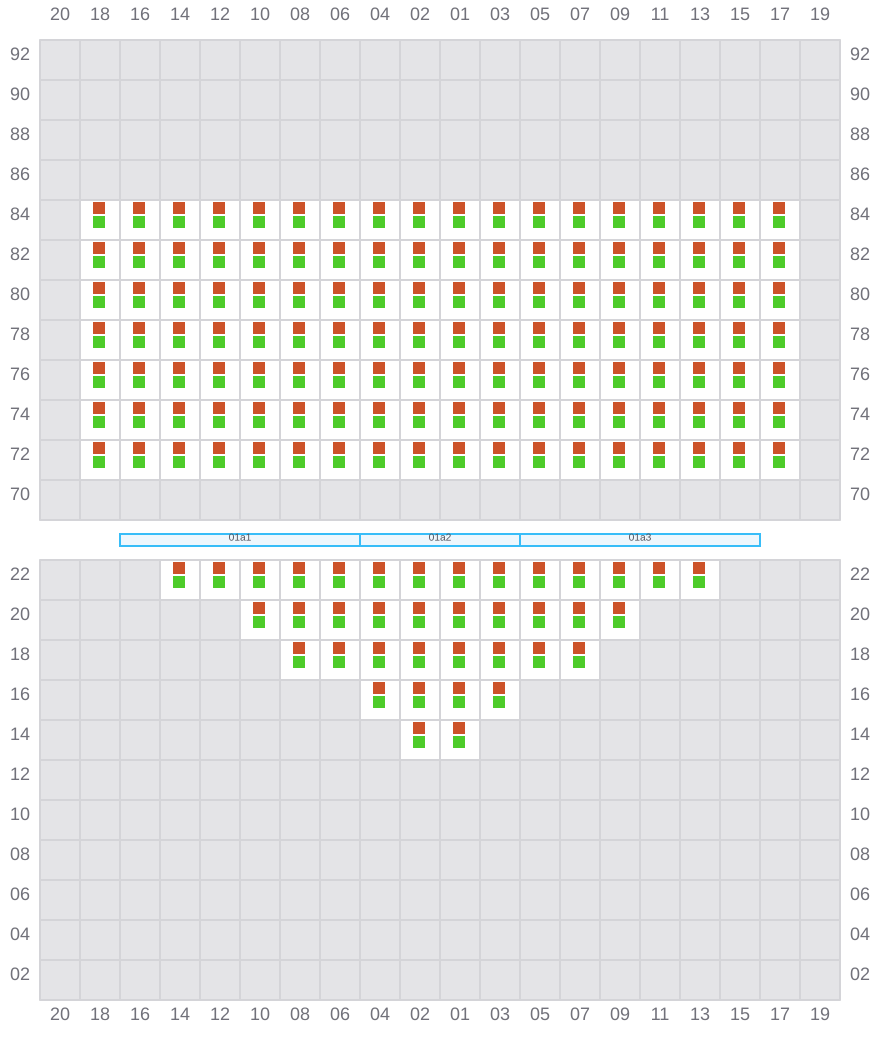

001 (002)

  • →
  • →
Bay 001 view and slots of AL JASRAH

003

  • ←
  • →

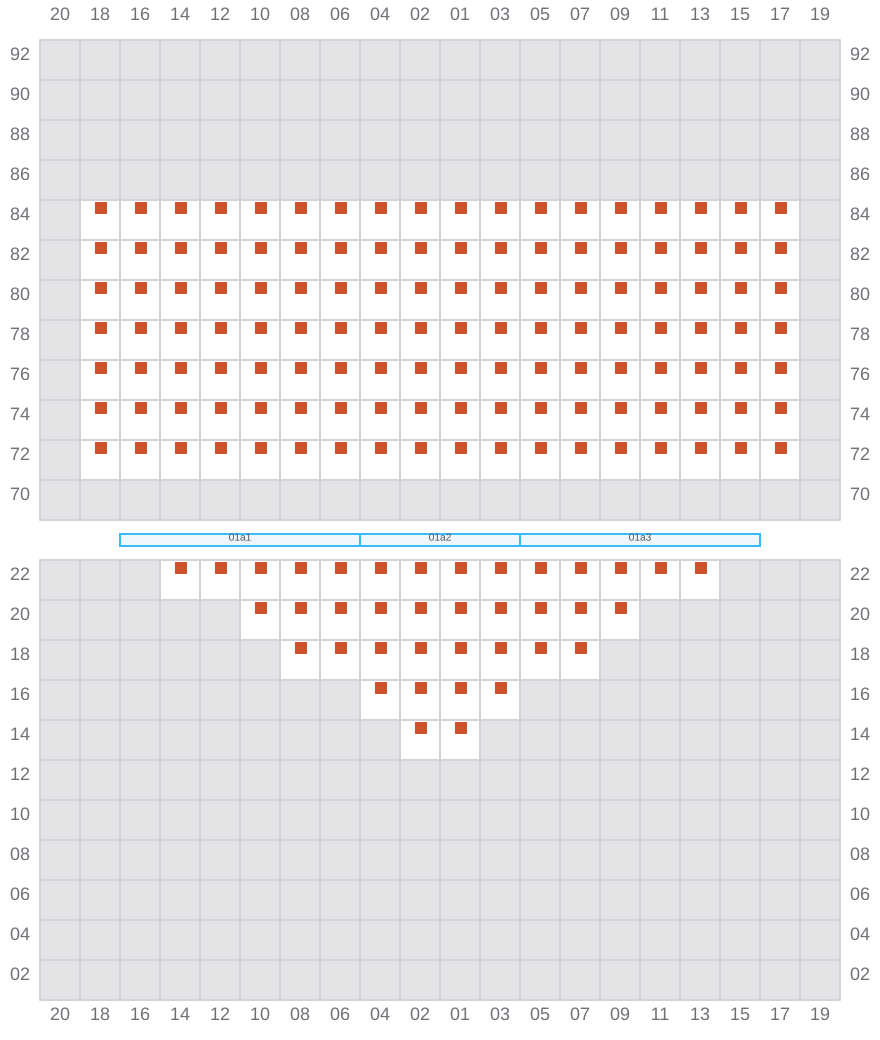

Bay 003 view and slots of AL JASRAH

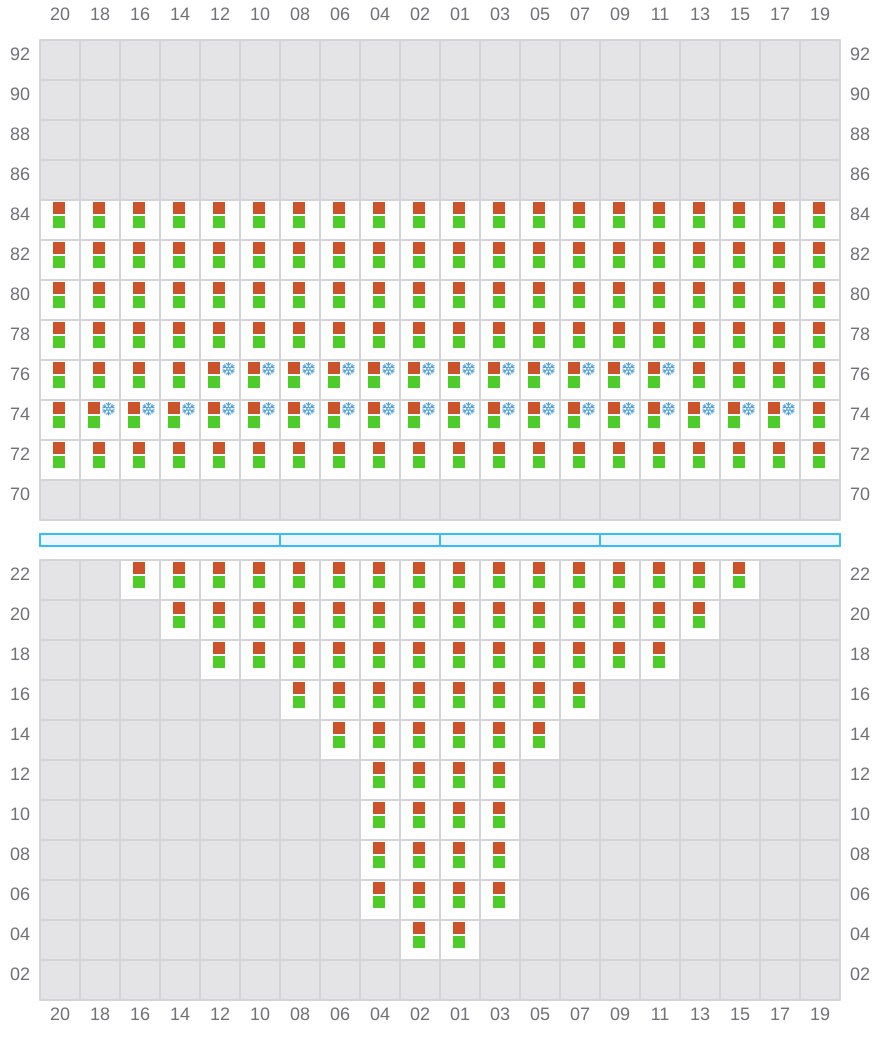

005 (006)

  • →
  • → / ?
  • →
Bay 005 view and slots of AL JASRAH

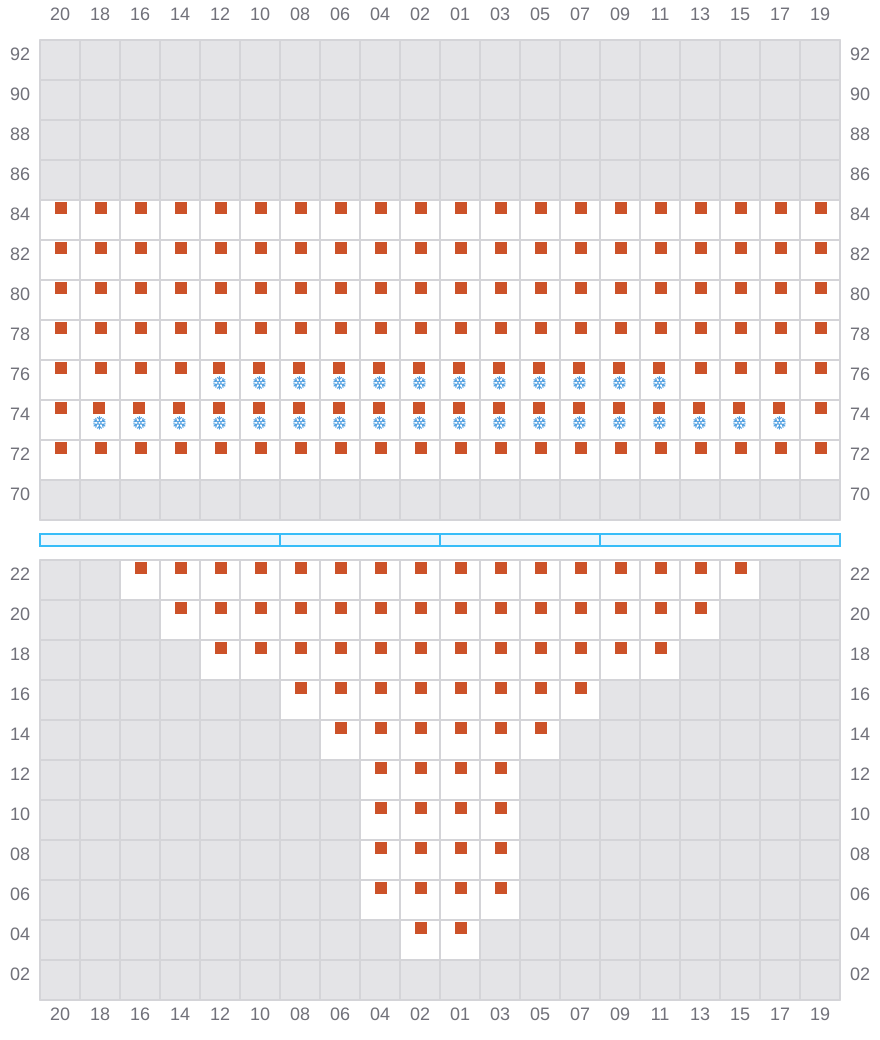

007

  • ←
  • → / ?
  • →
Bay 007 view and slots of AL JASRAH

009 (010)

  • →
  • → / ?
  • →

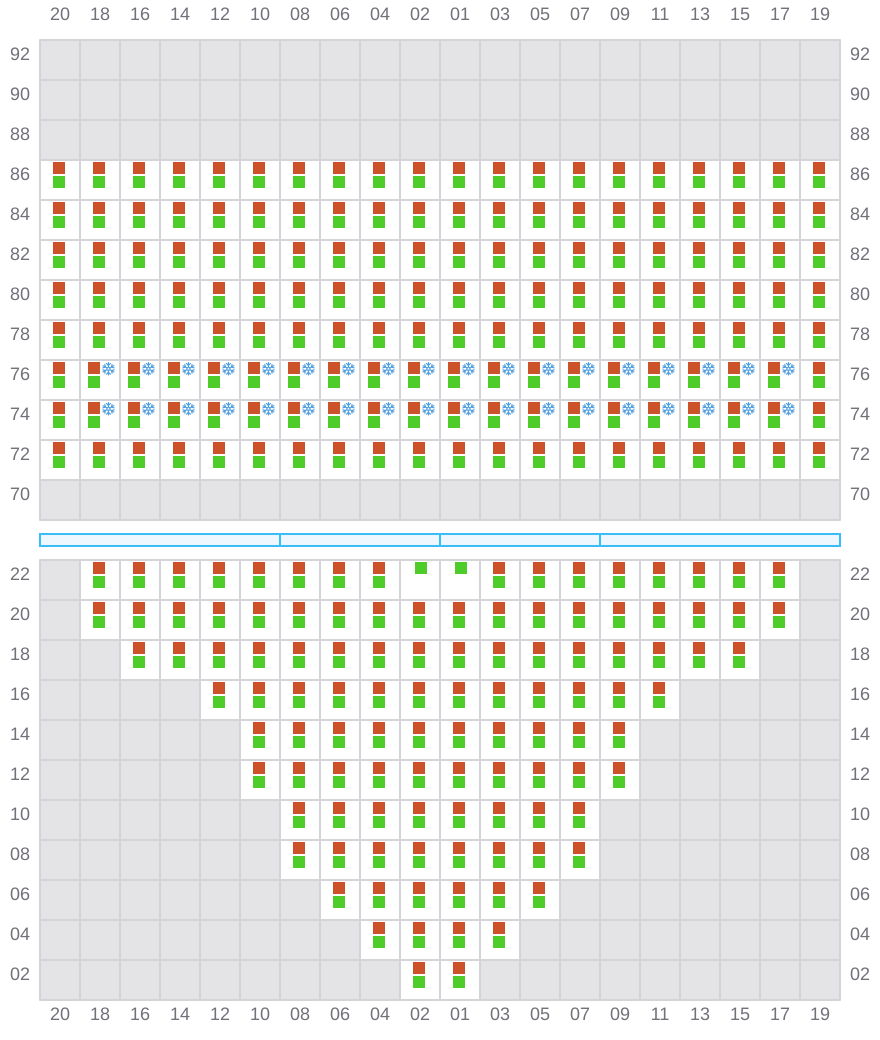

Bay 009 view and slots of AL JASRAH

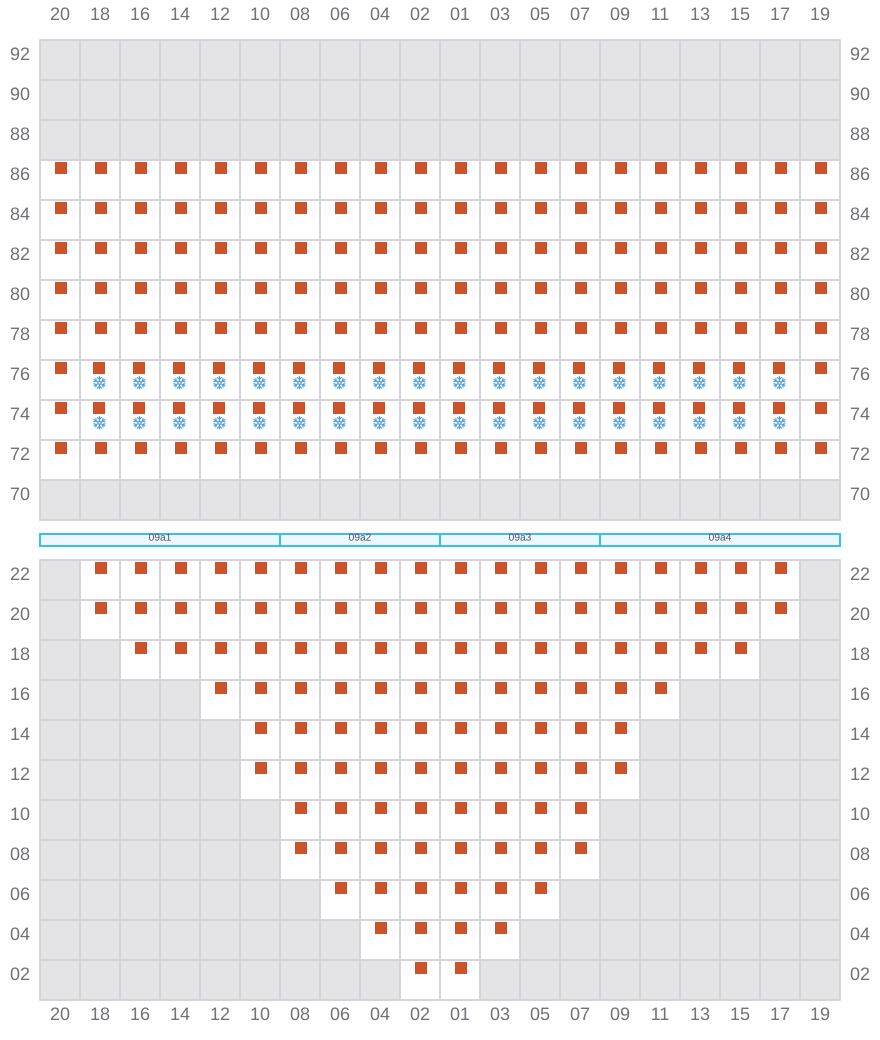

011

  • ←
  • → / ?
  • →

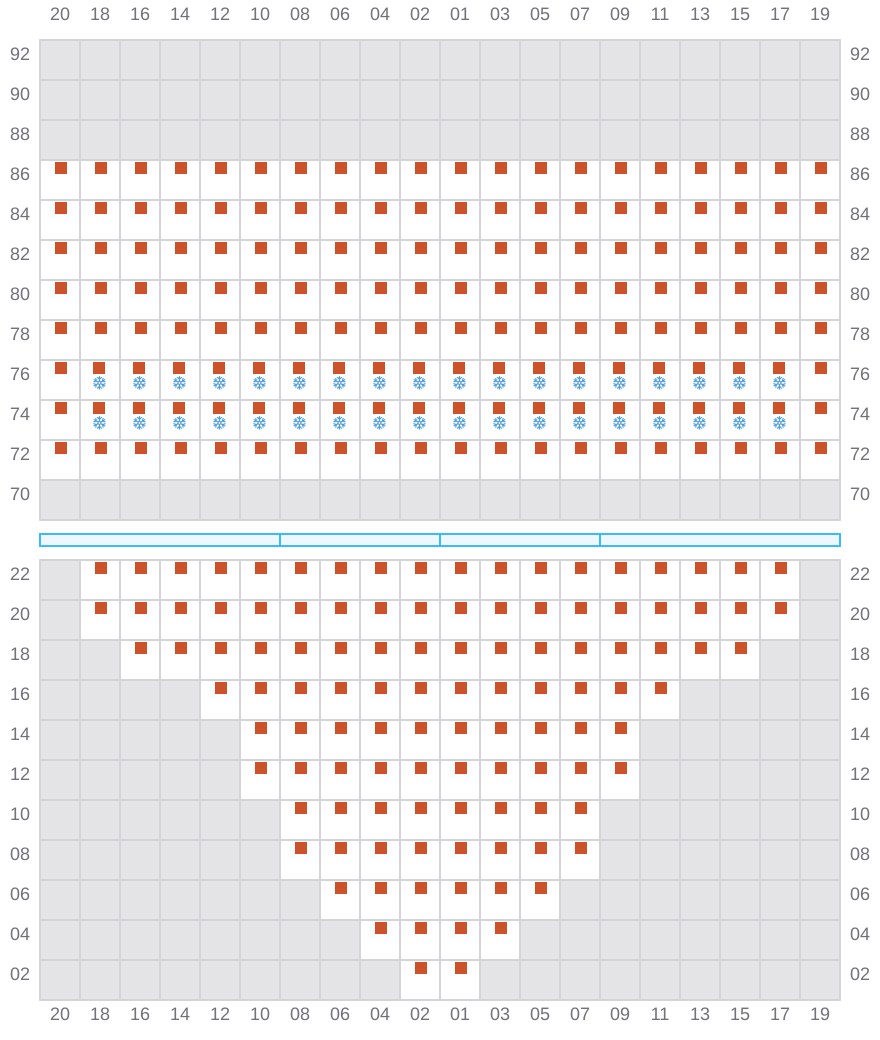

Bay 011 view and slots of AL JASRAH

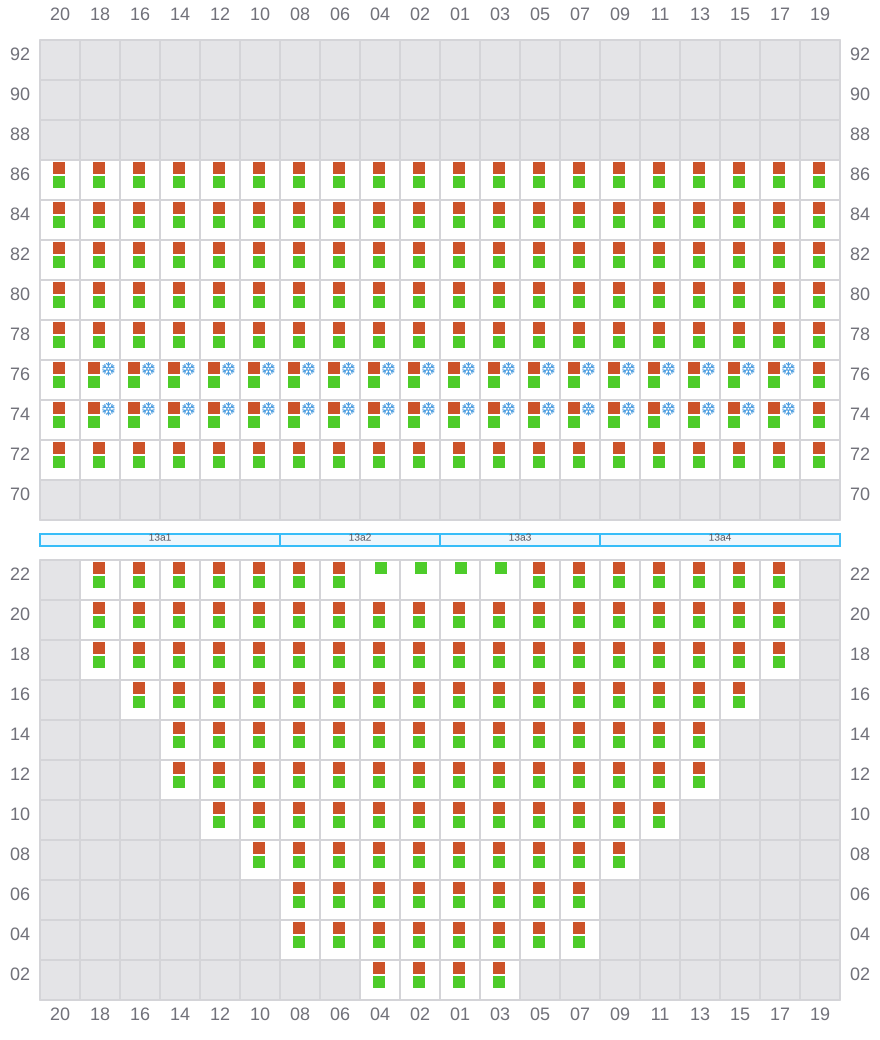

013 (014)

  • →
  • → / ?
  • →

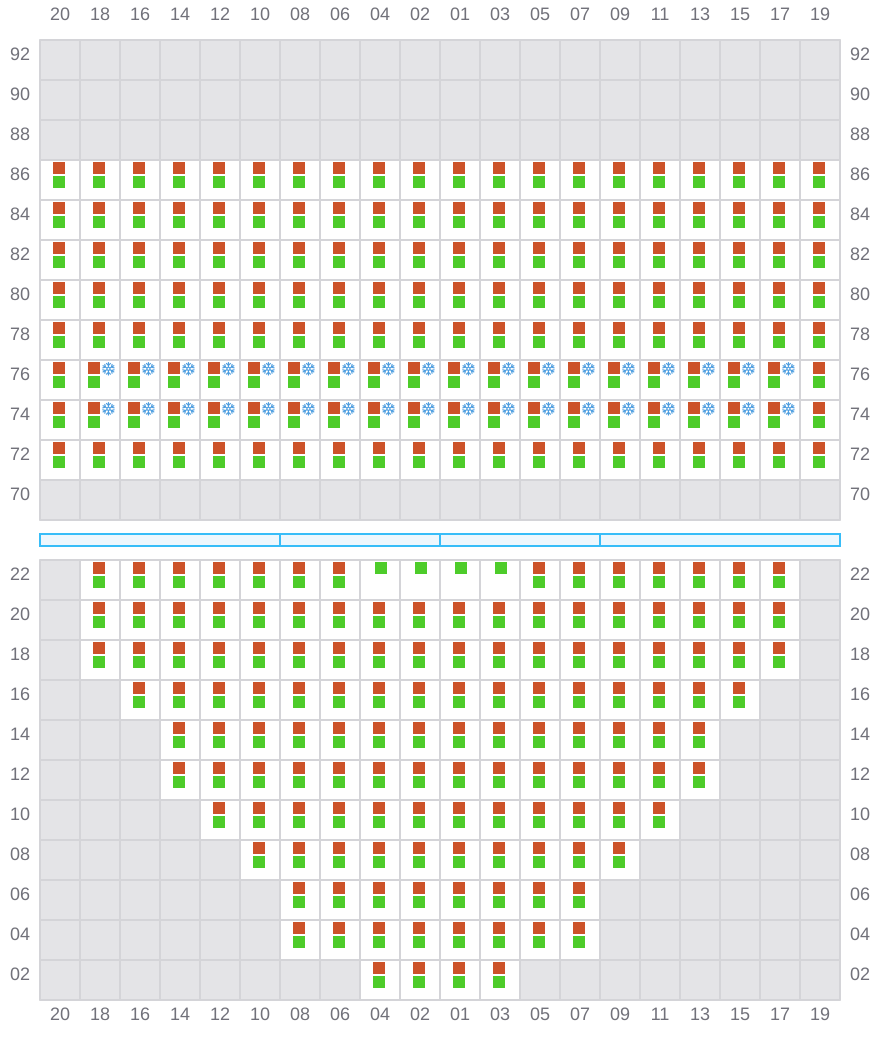

Bay 013 view and slots of AL JASRAH

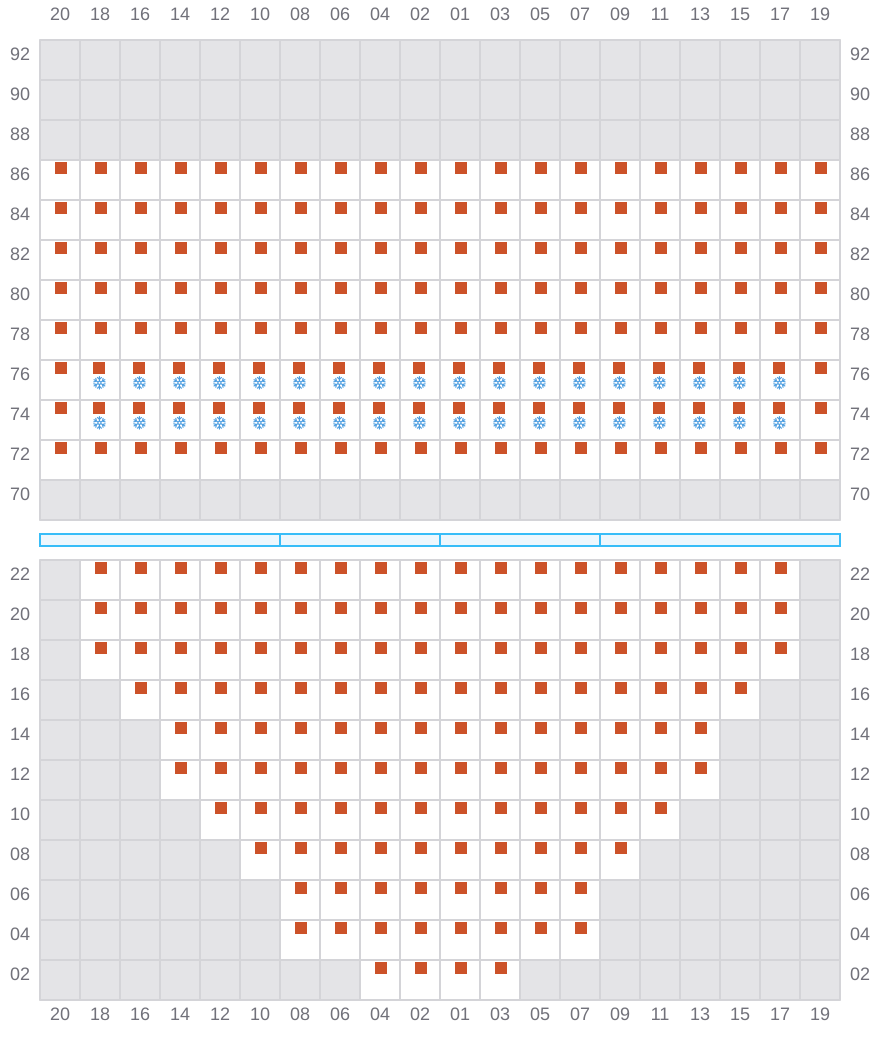

015

  • ←
  • → / ?
  • →
Bay 015 view and slots of AL JASRAH

017 (018)

  • →
  • → / ?
  • →

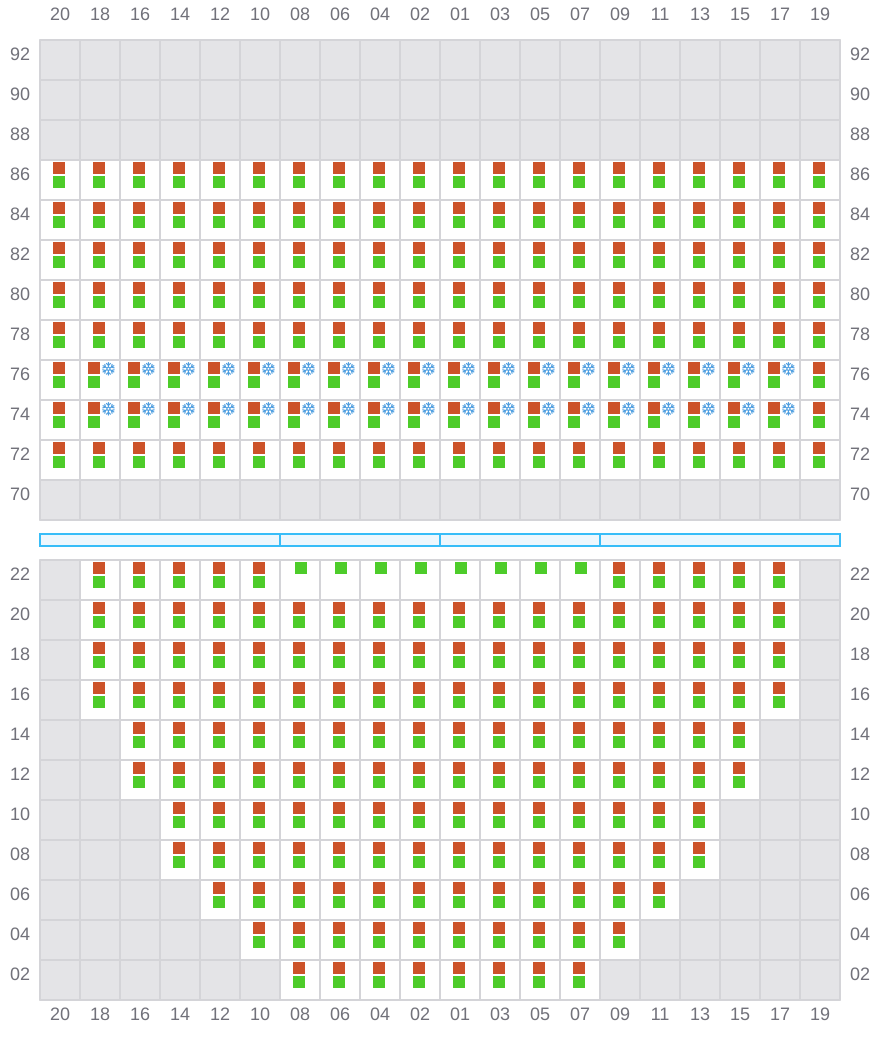

Bay 017 view and slots of AL JASRAH

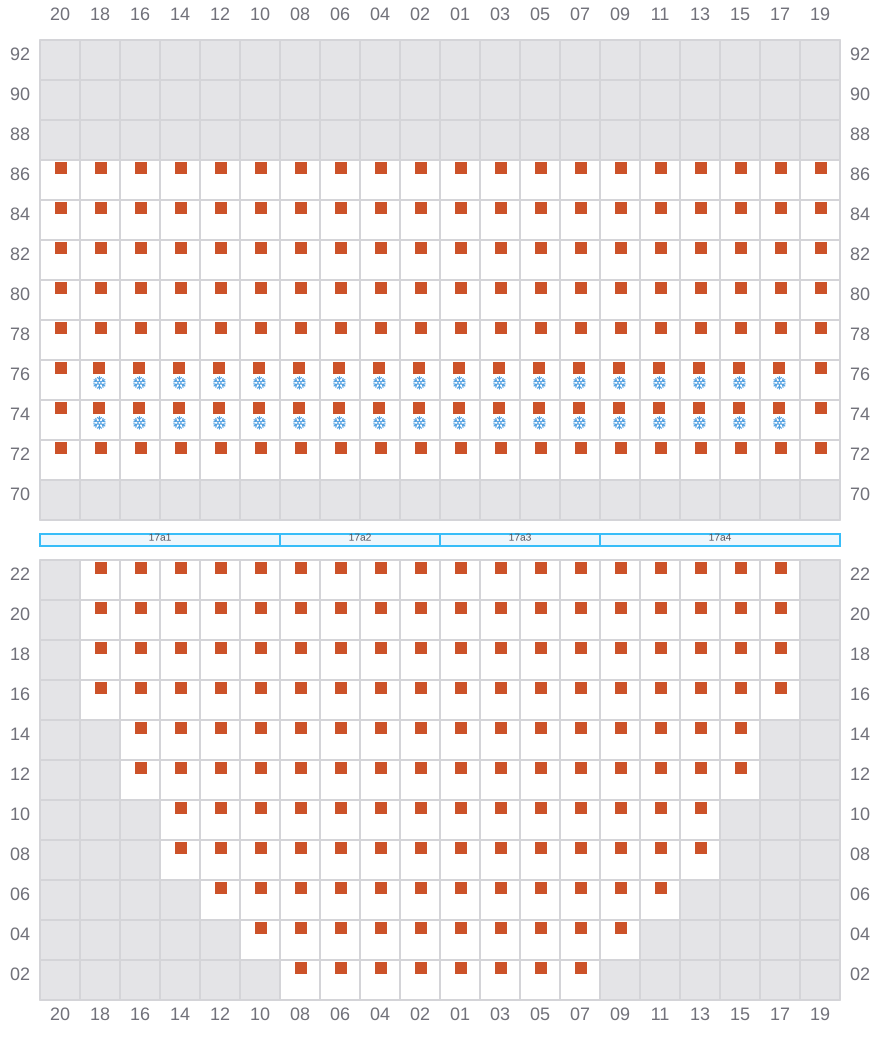

019

  • ←
  • → / ?
  • →

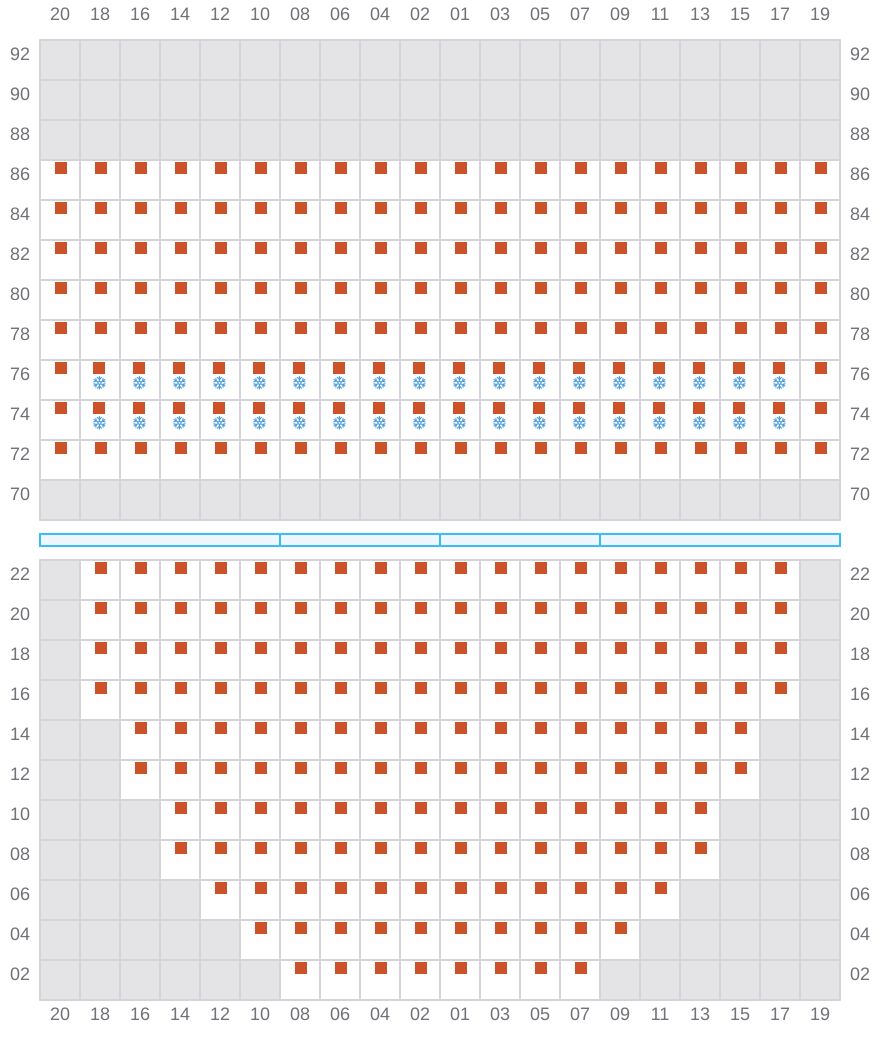

Bay 019 view and slots of AL JASRAH

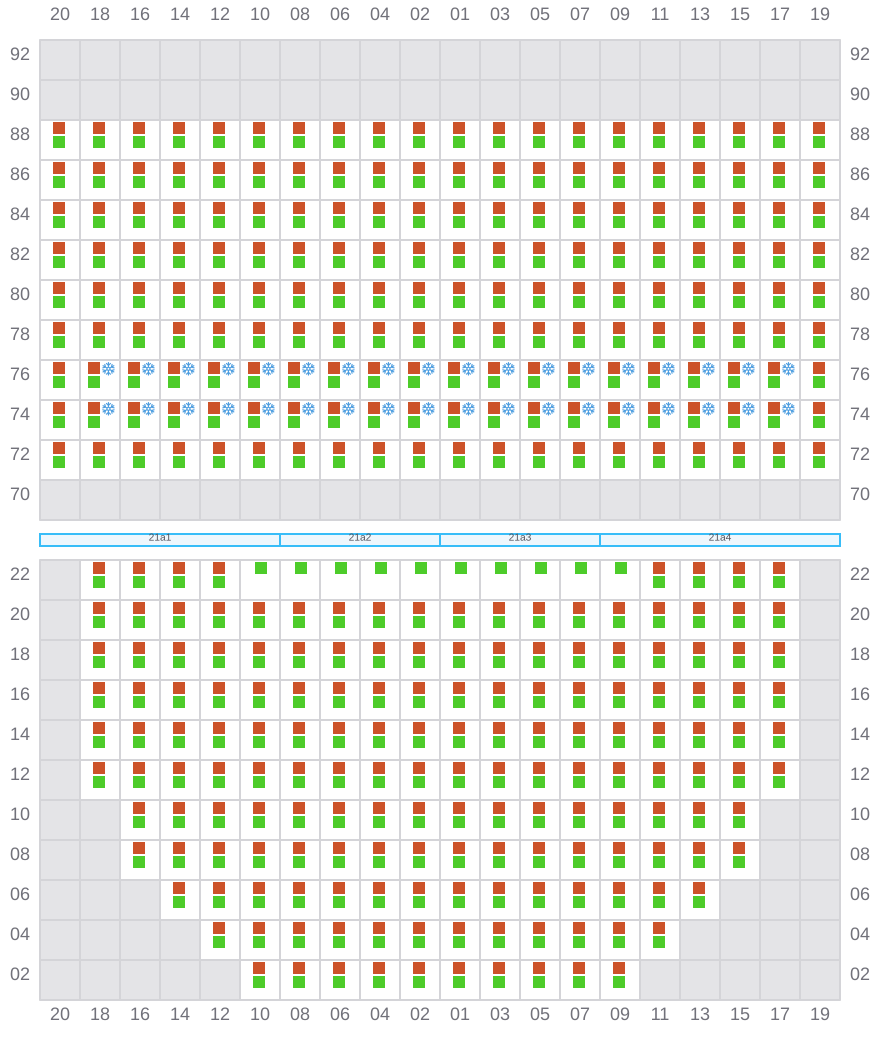

021 (022)

  • →
  • → / ?
  • →

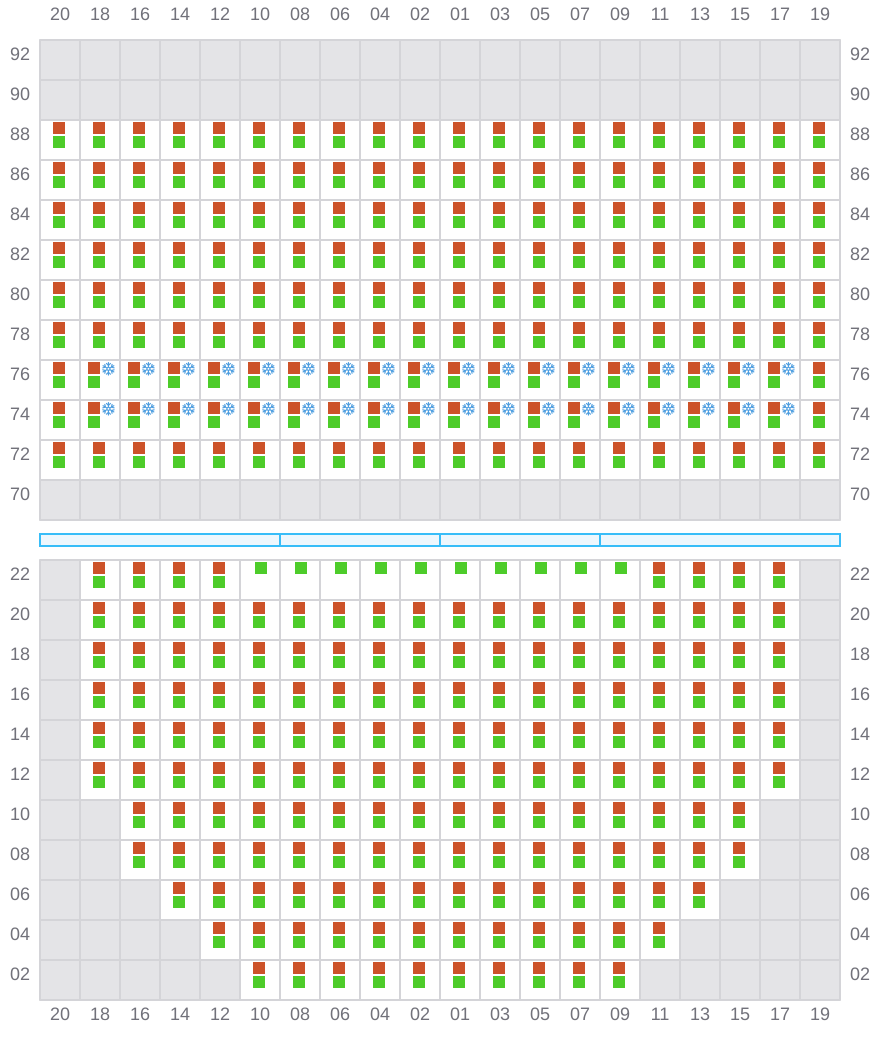

Bay 021 view and slots of AL JASRAH

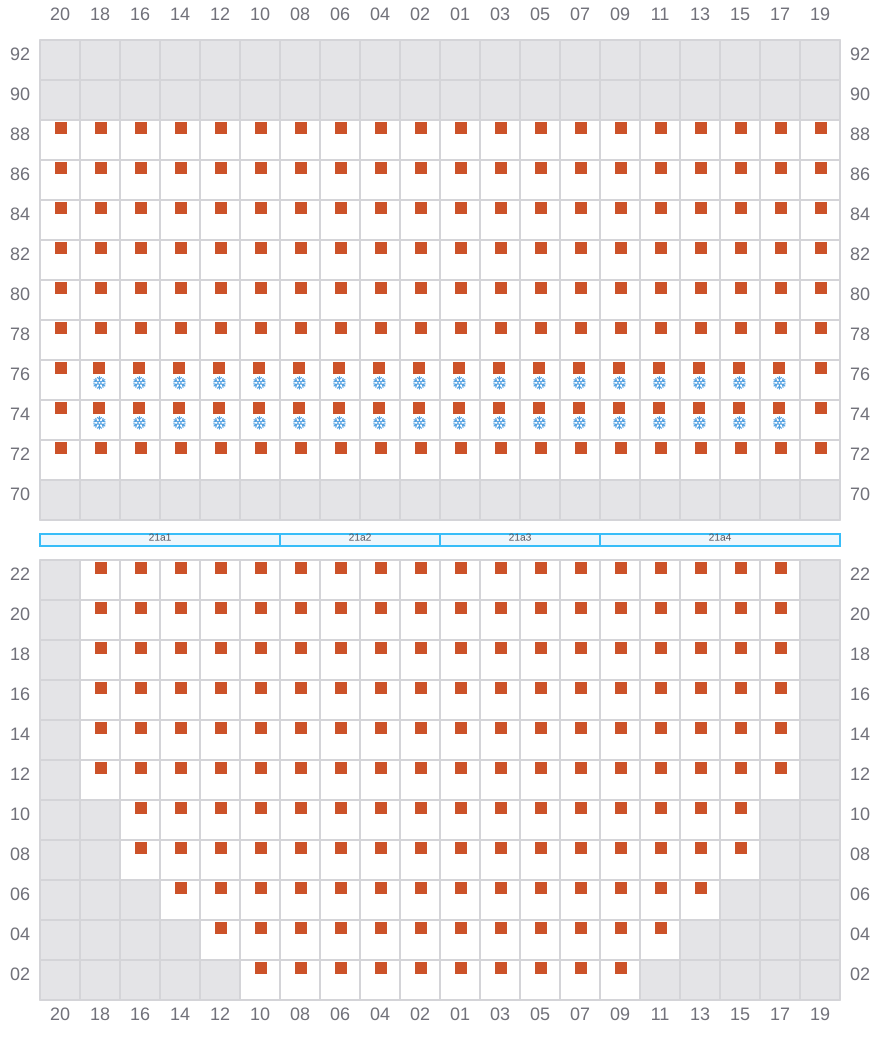

023

  • ←
  • → / ?
  • →

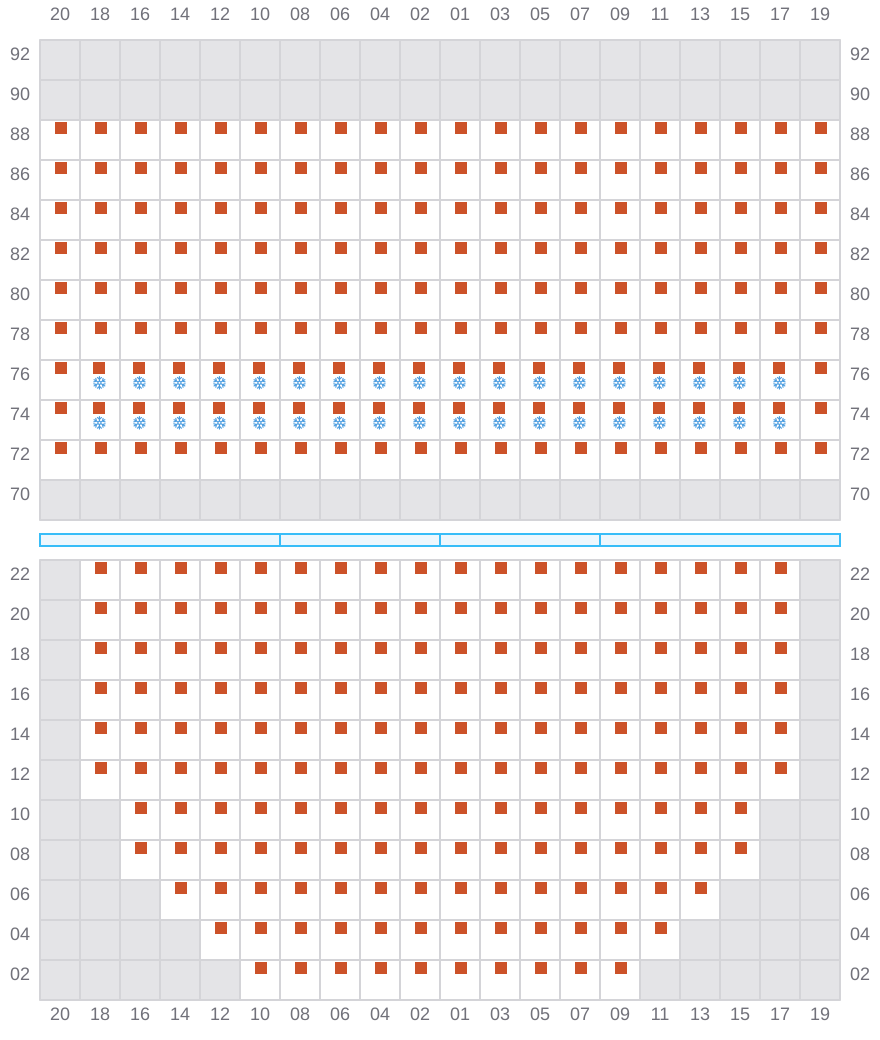

Bay 023 view and slots of AL JASRAH

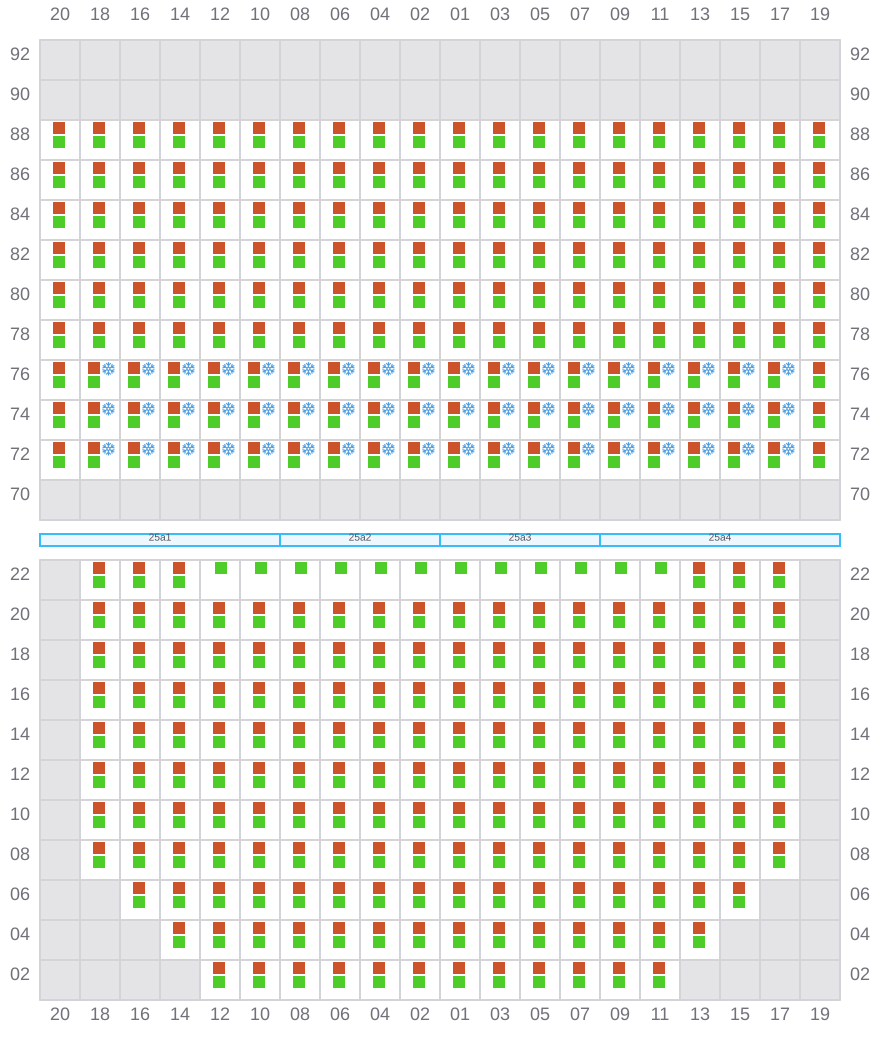

025 (026)

  • →
  • → / ?
  • →

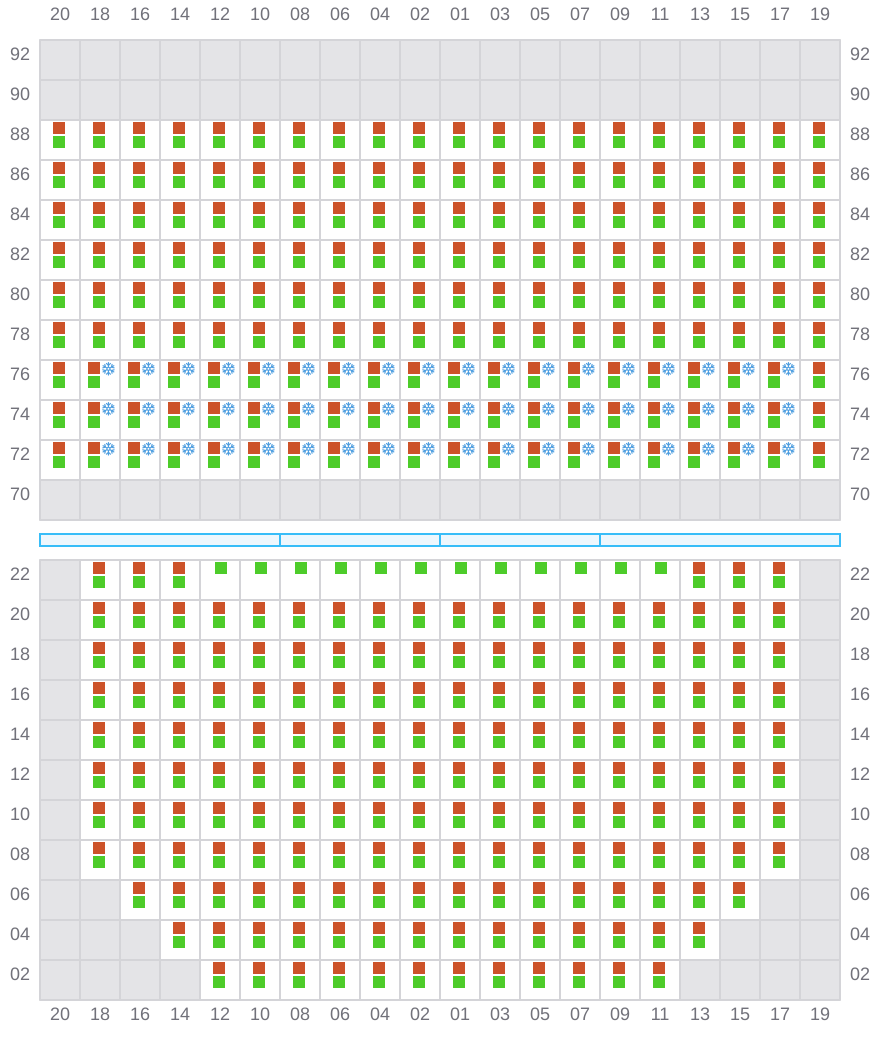

Bay 025 view and slots of AL JASRAH

027

  • ←
  • → / ?
  • →

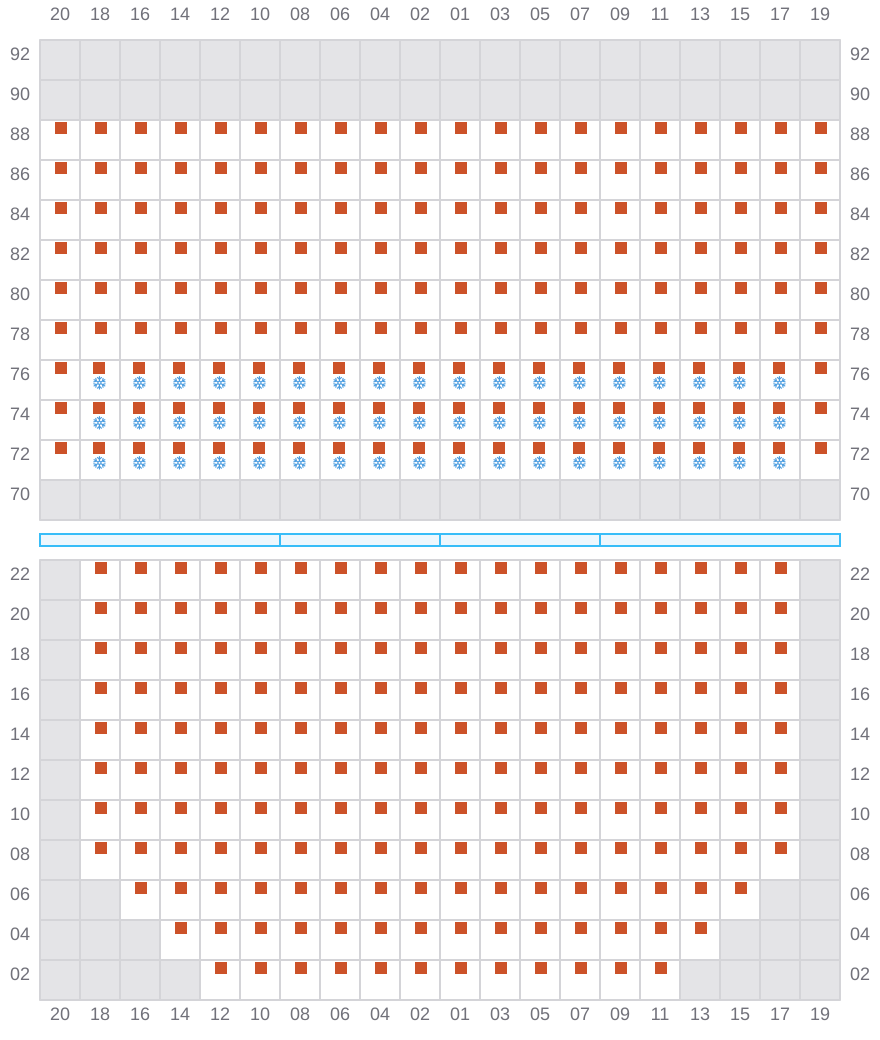

Bay 027 view and slots of AL JASRAH

029 (030)

  • →
  • → / ?
  • →

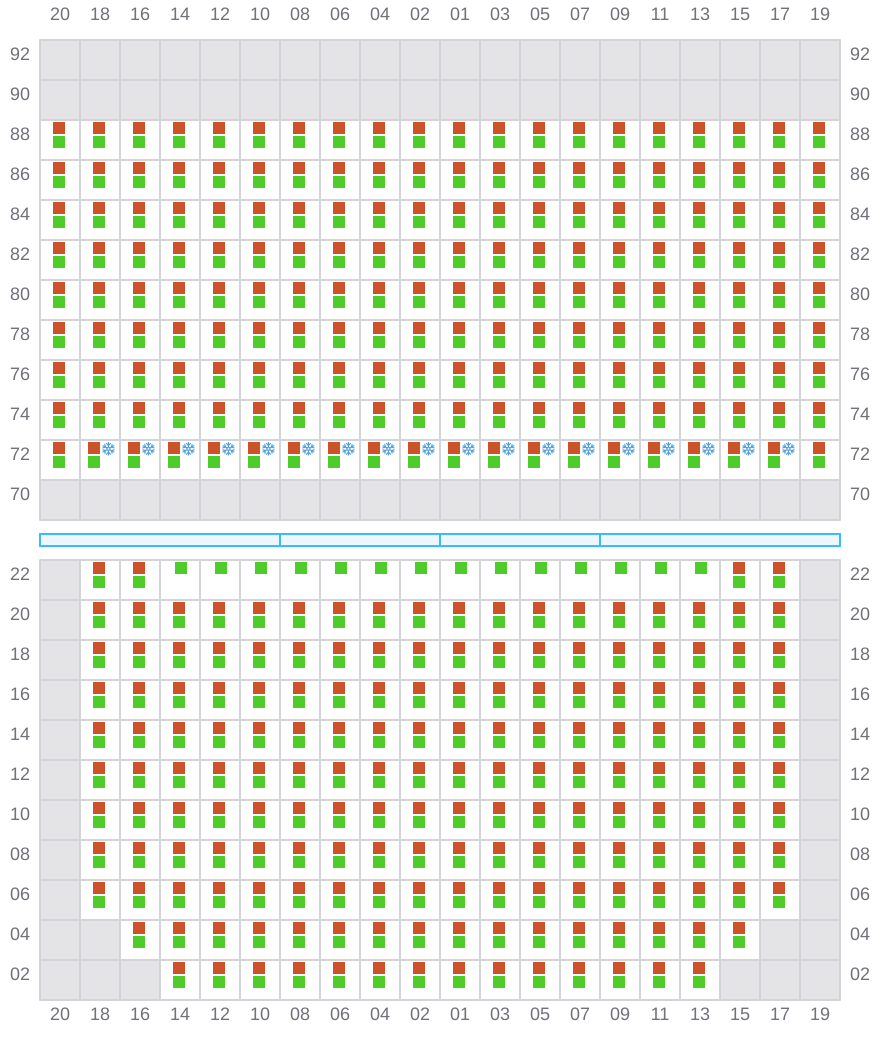

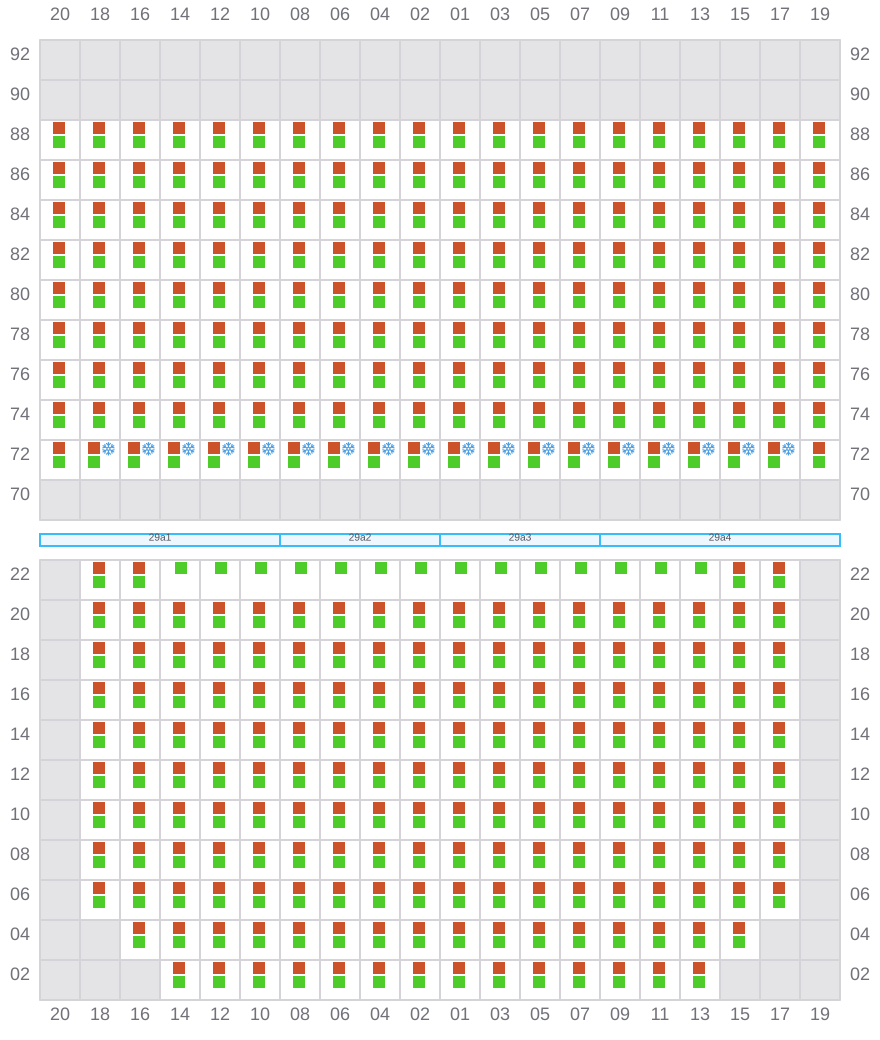

Bay 029 view and slots of AL JASRAH

031

  • ←
  • → / ?
  • →

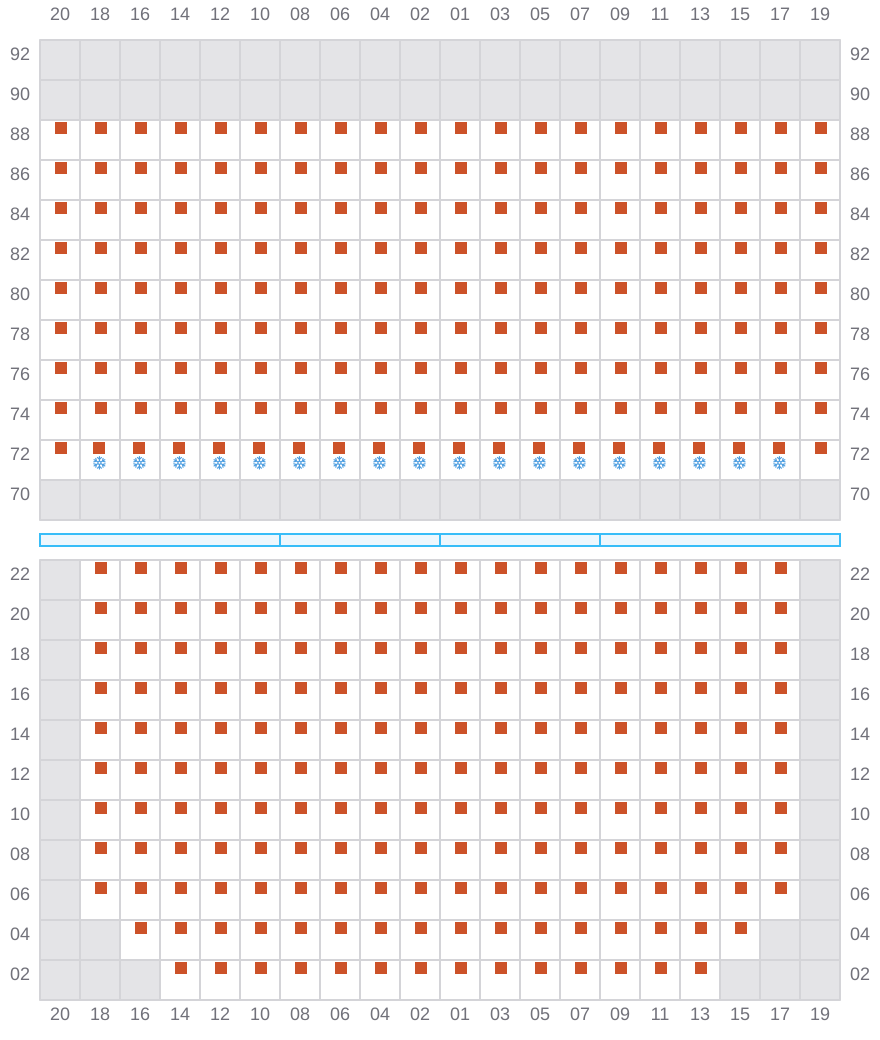

Bay 031 view and slots of AL JASRAH

033 (034)

  • →
  • → / ?
  • →

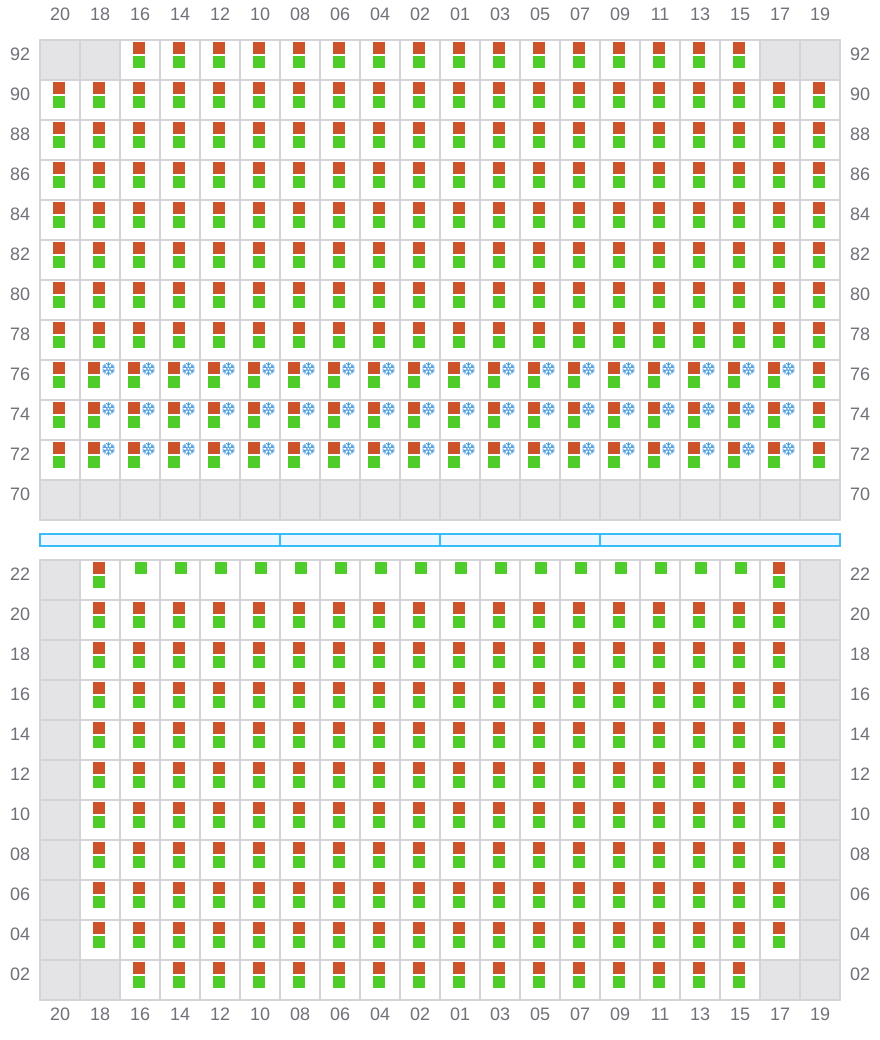

Bay 033 view and slots of AL JASRAH

035

  • ←
  • → / ?
  • →
Bay 035 view and slots of AL JASRAH

037 (038)

  • →
  • → / ?
  • →
Bay 037 view and slots of AL JASRAH

039

  • ←
  • → / ?
  • →
Bay 039 view and slots of AL JASRAH

041 (042)

  • →
  • → / ?
  • →
Bay 041 view and slots of AL JASRAH

043

  • ←
  • → / ?
  • →
Bay 043 view and slots of AL JASRAH

045 (046)

  • →
  • → / ?
  • →
Bay 045 view and slots of AL JASRAH

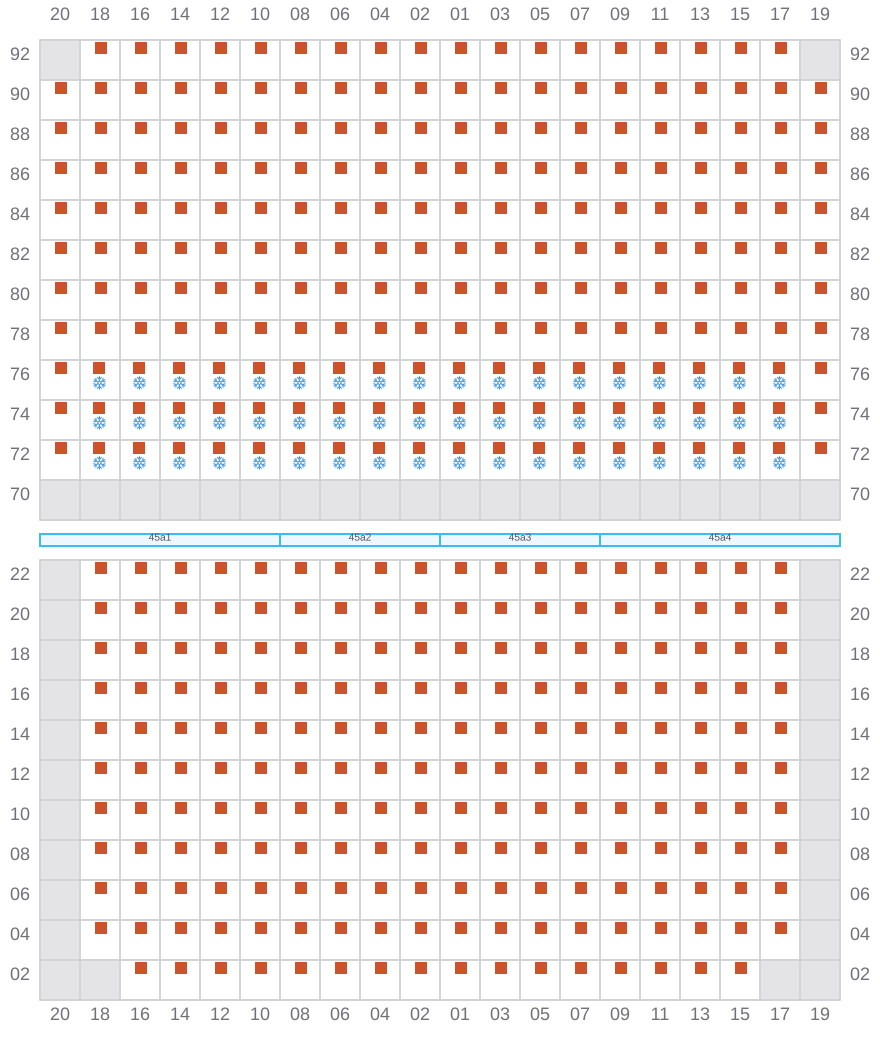

047

  • ←
  • → / ?
  • →

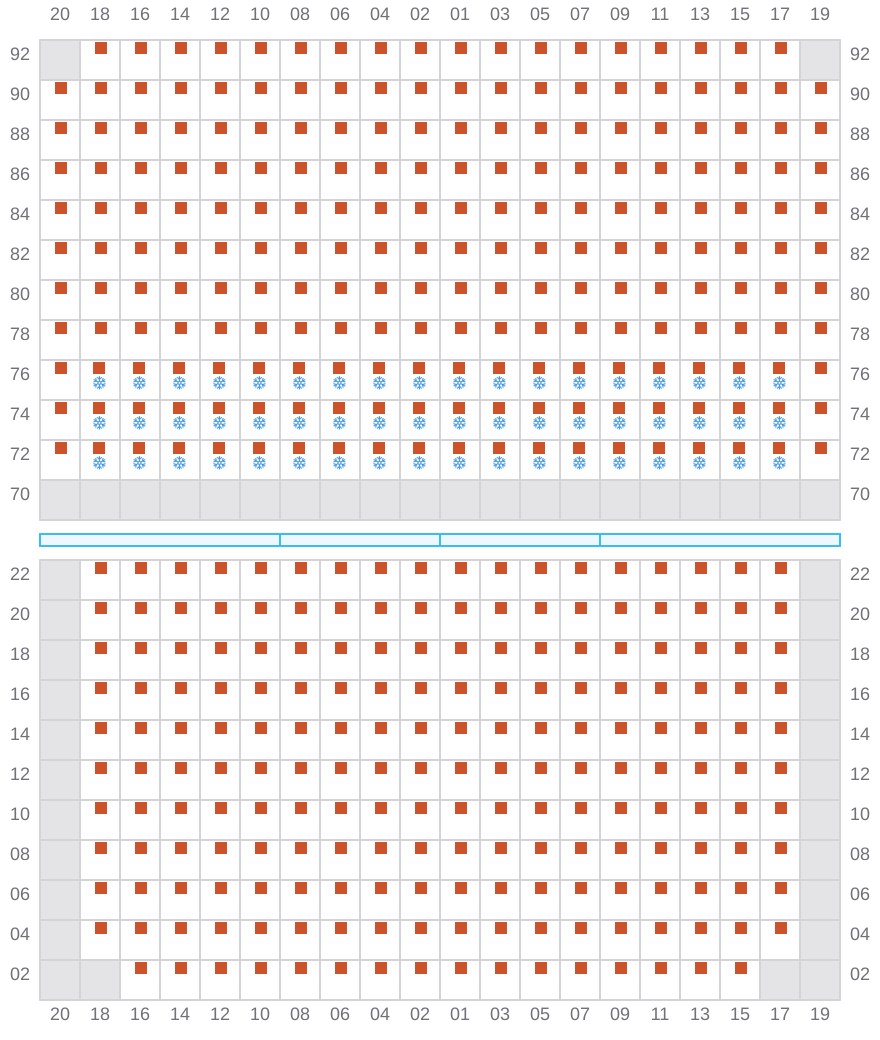

Bay 047 view and slots of AL JASRAH

049 (050)

  • →
  • →

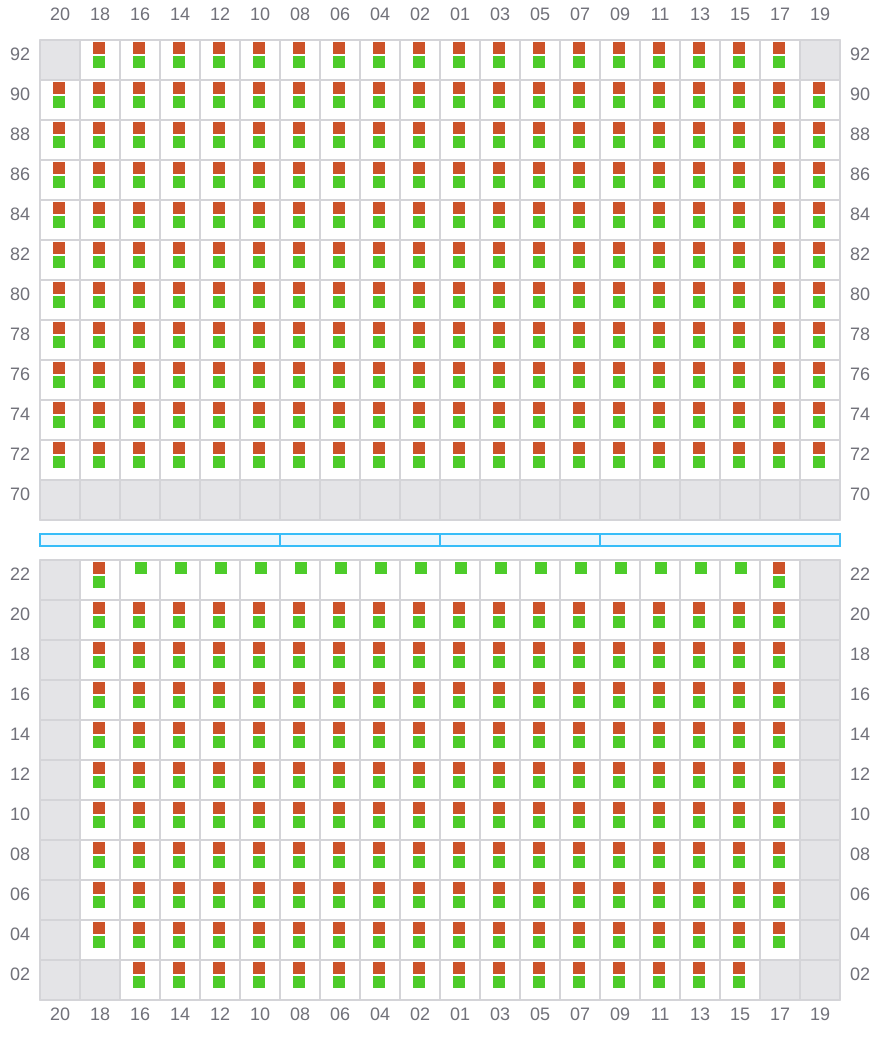

Bay 049 view and slots of AL JASRAH

051

  • ←
  • → / ?
  • →
Bay 051 view and slots of AL JASRAH

053 (054)

  • →
  • → / ?
  • →
Bay 053 view and slots of AL JASRAH

055

  • ←
  • → / ?
  • →
Bay 055 view and slots of AL JASRAH

057 (058)

  • →
  • → / ?
  • →

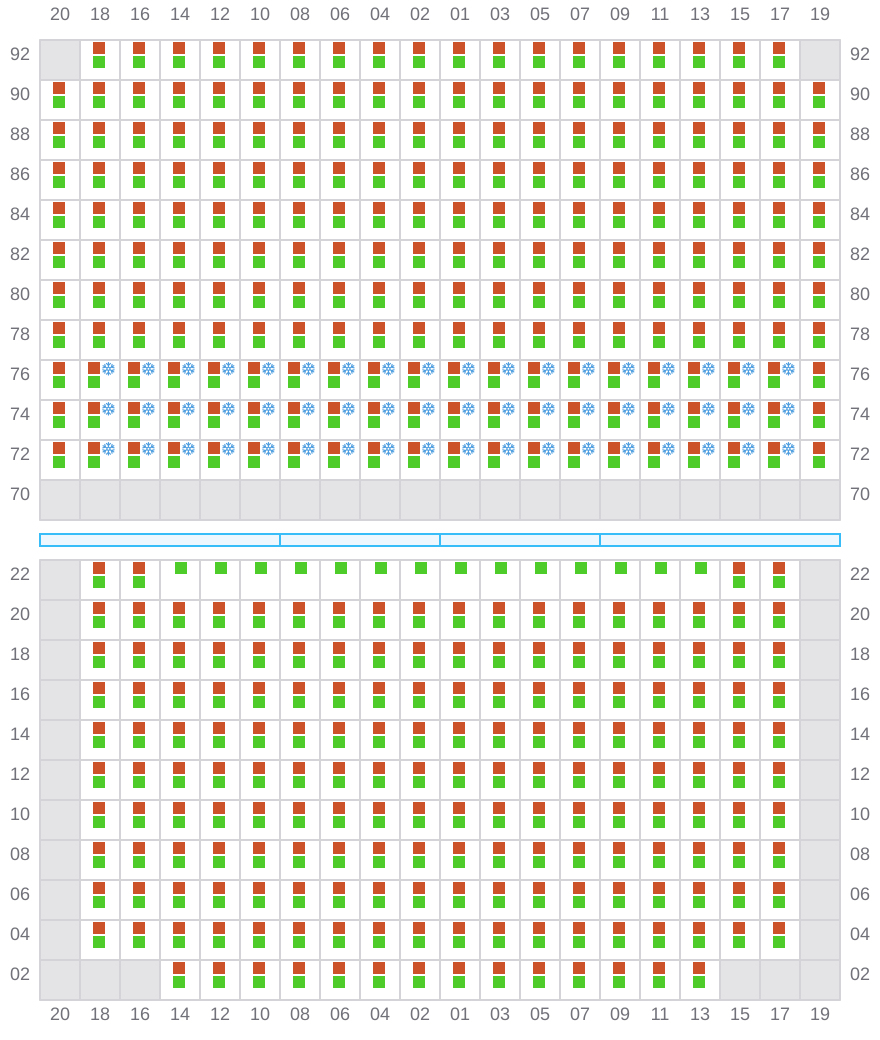

Bay 057 view and slots of AL JASRAH

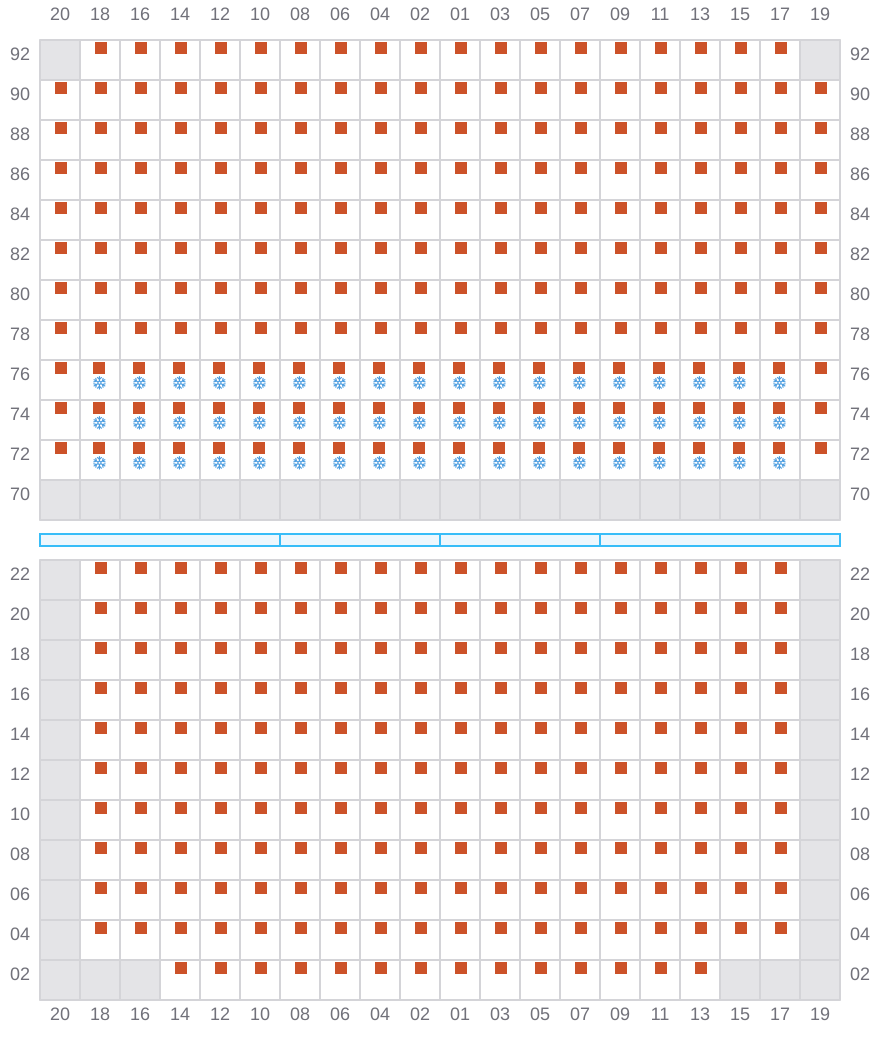

059

  • ←
  • → / ?
  • →
Bay 059 view and slots of AL JASRAH

061 (062)

  • →
  • → / ?
  • →

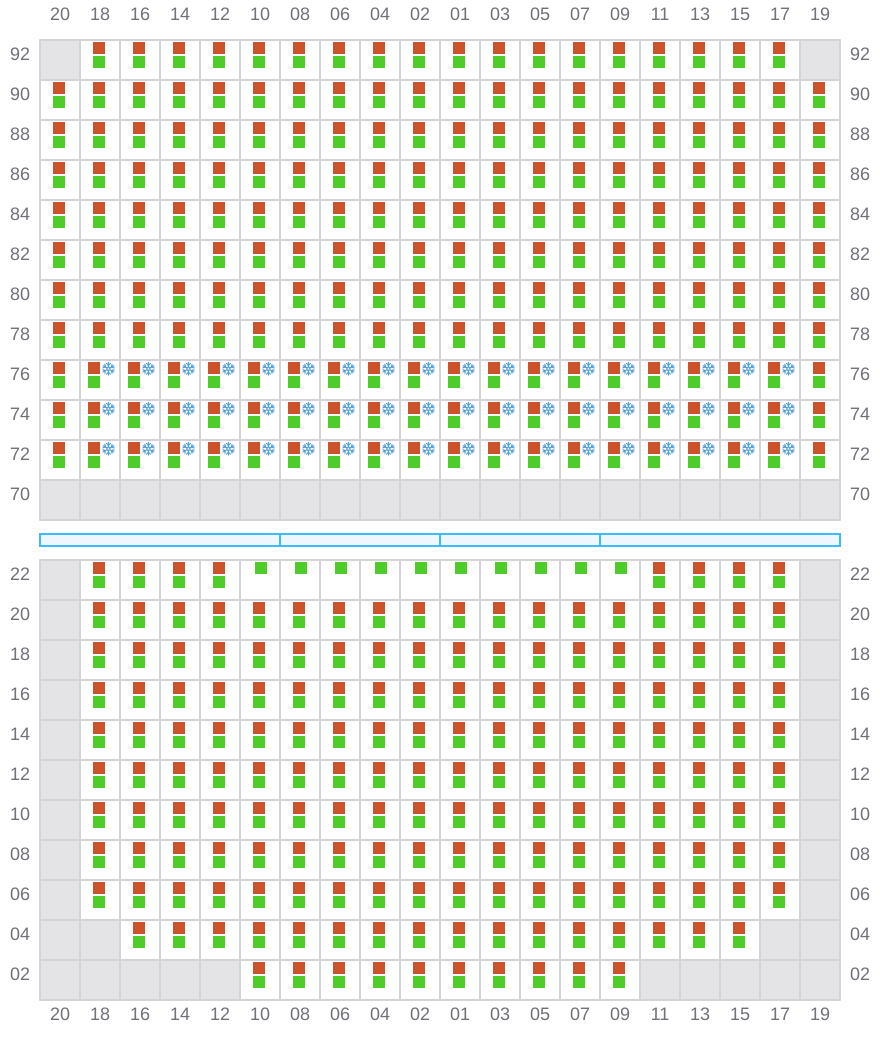

Bay 061 view and slots of AL JASRAH

063

  • ←
  • → / ?
  • →

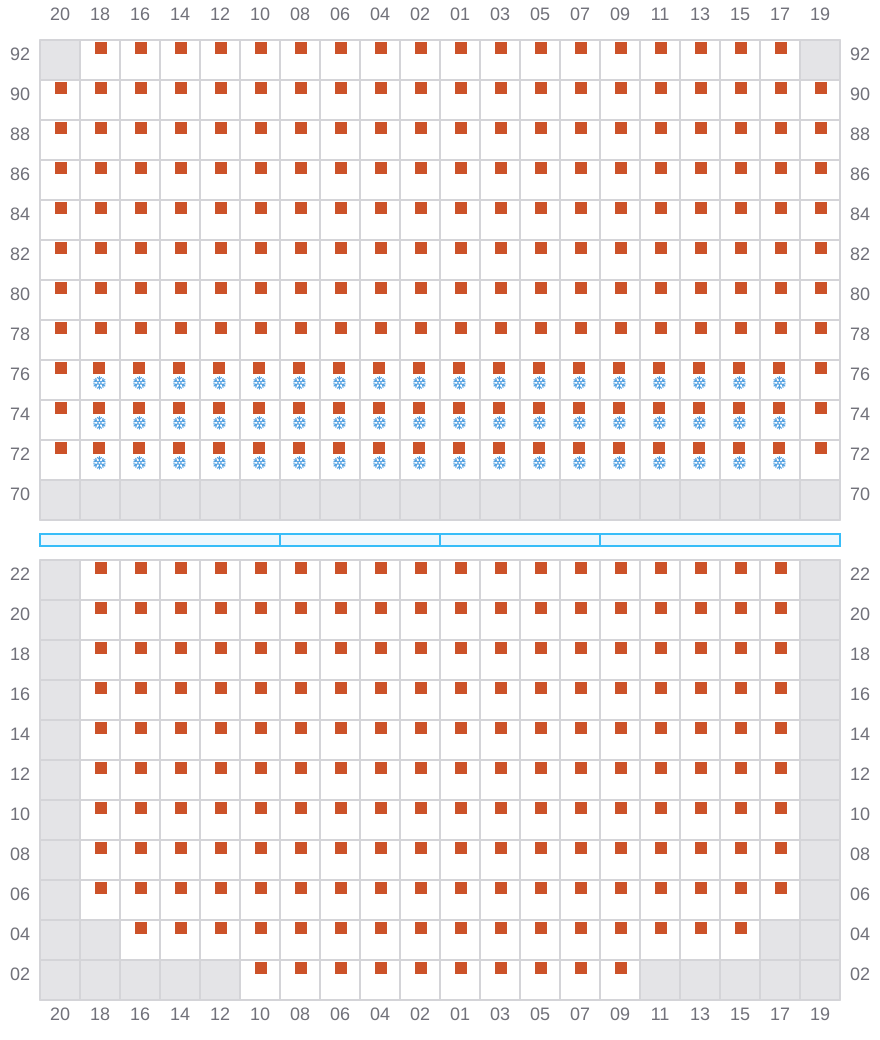

Bay 063 view and slots of AL JASRAH

065 (066)

  • →
  • → / ?
  • →

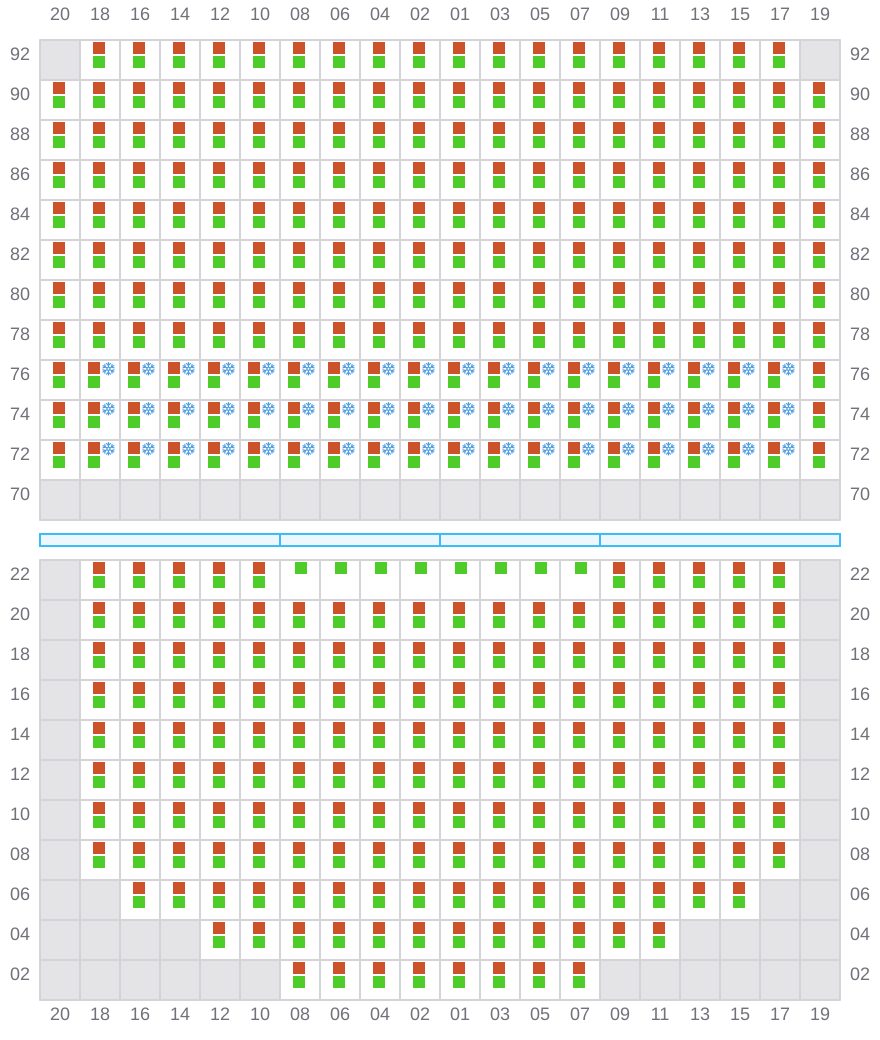

Bay 065 view and slots of AL JASRAH

067

  • ←
  • → / ?
  • →

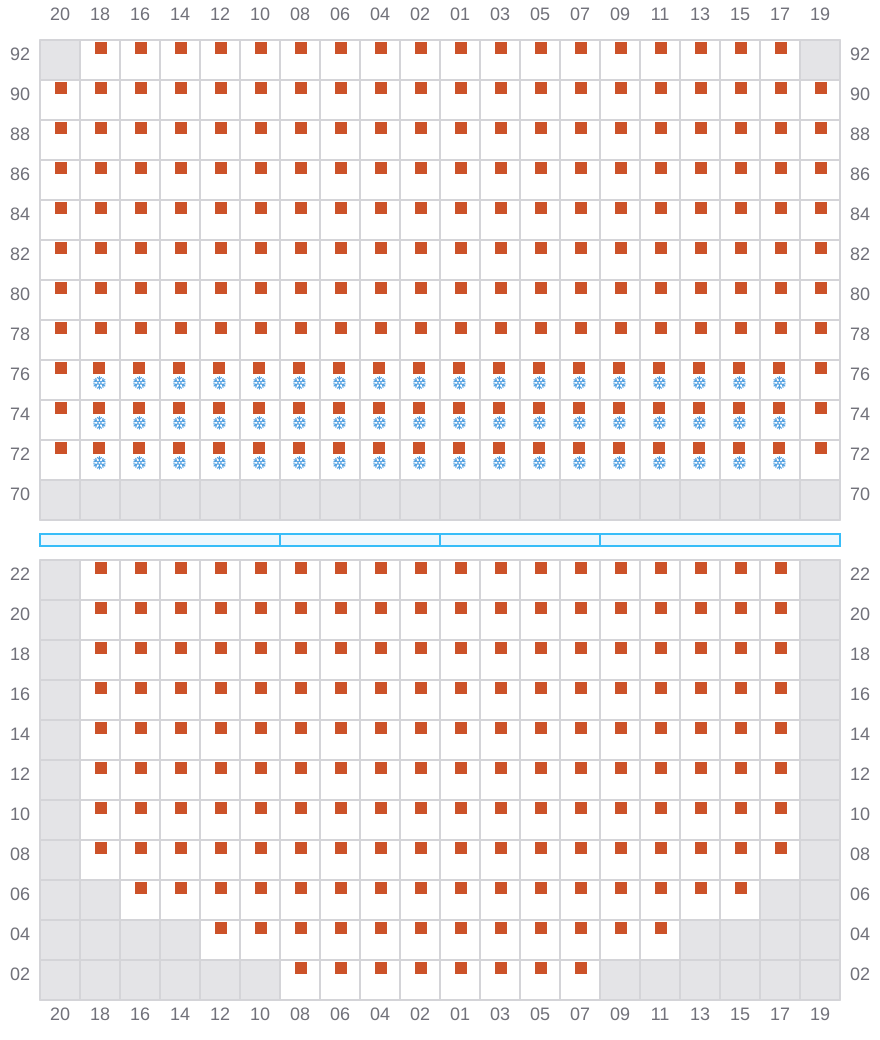

Bay 067 view and slots of AL JASRAH

069 (070)

  • →
  • → / ?
  • →

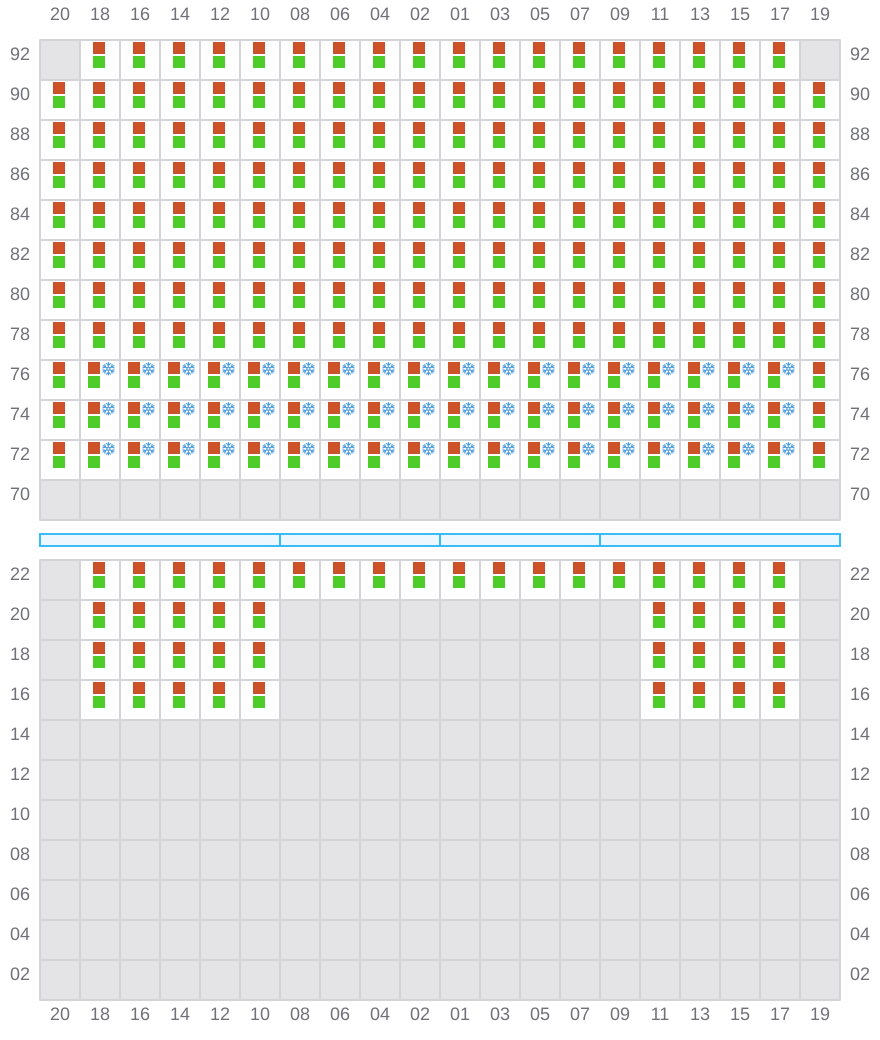

Bay 069 view and slots of AL JASRAH

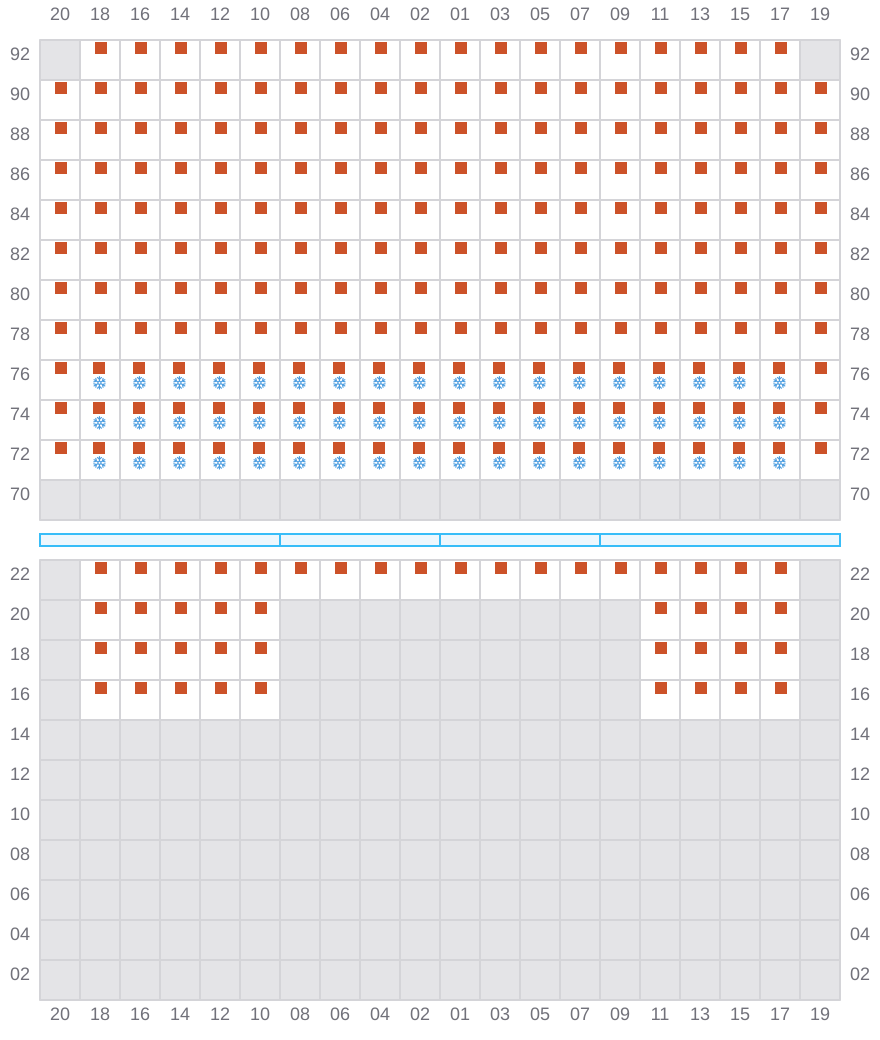

071

  • ←
  • → / ?
  • →
Bay 071 view and slots of AL JASRAH

073 (074)

  • →
  • → / ?
  • →

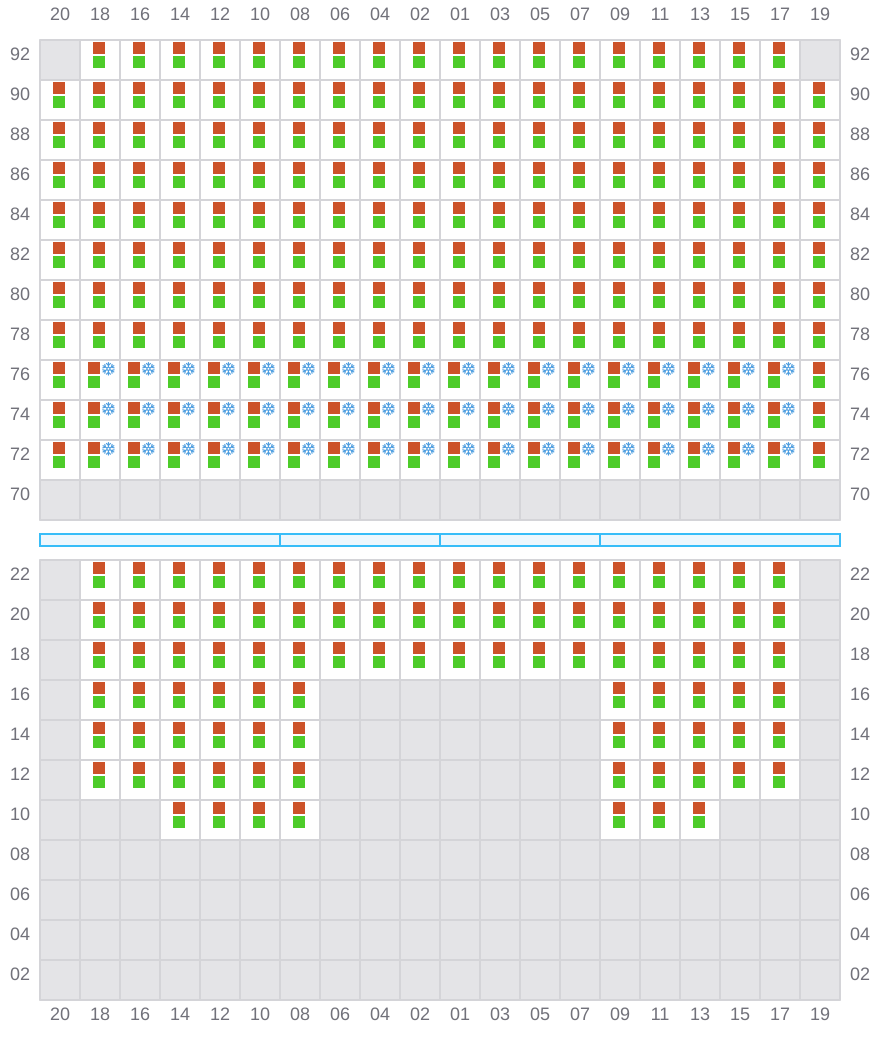

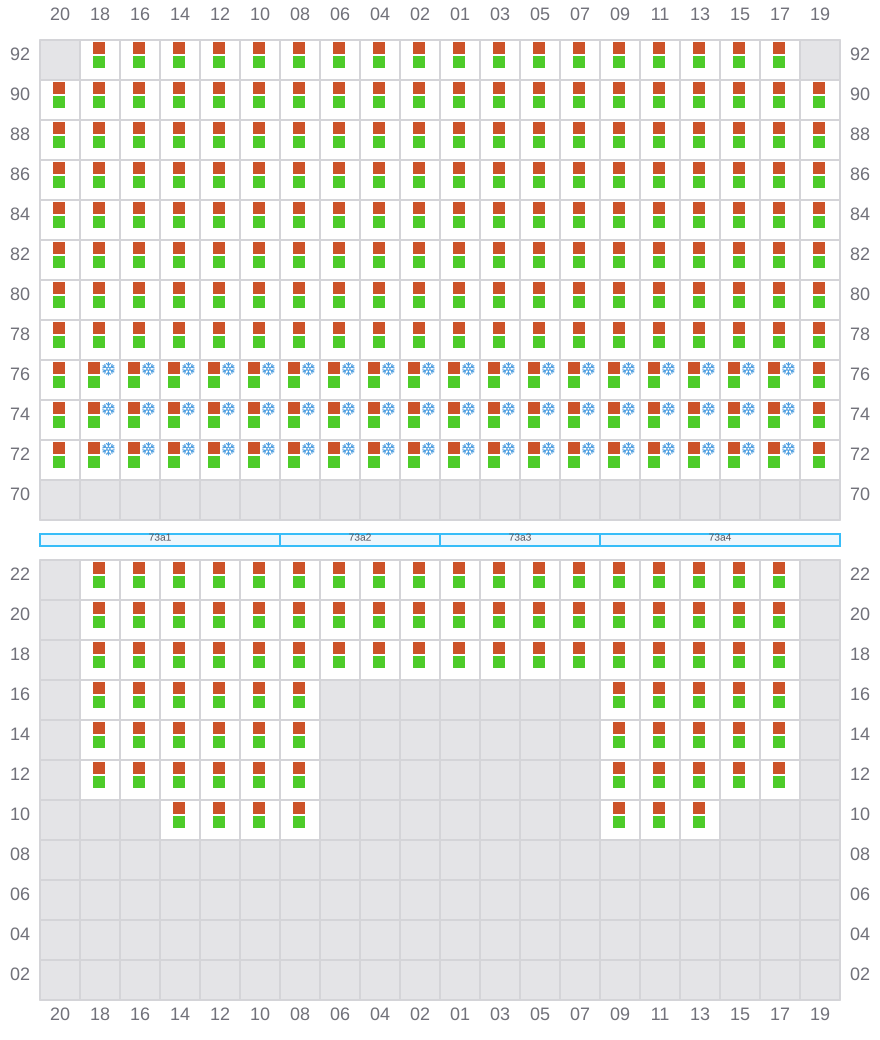

Bay 073 view and slots of AL JASRAH

075

  • ←
  • → / ?
  • →

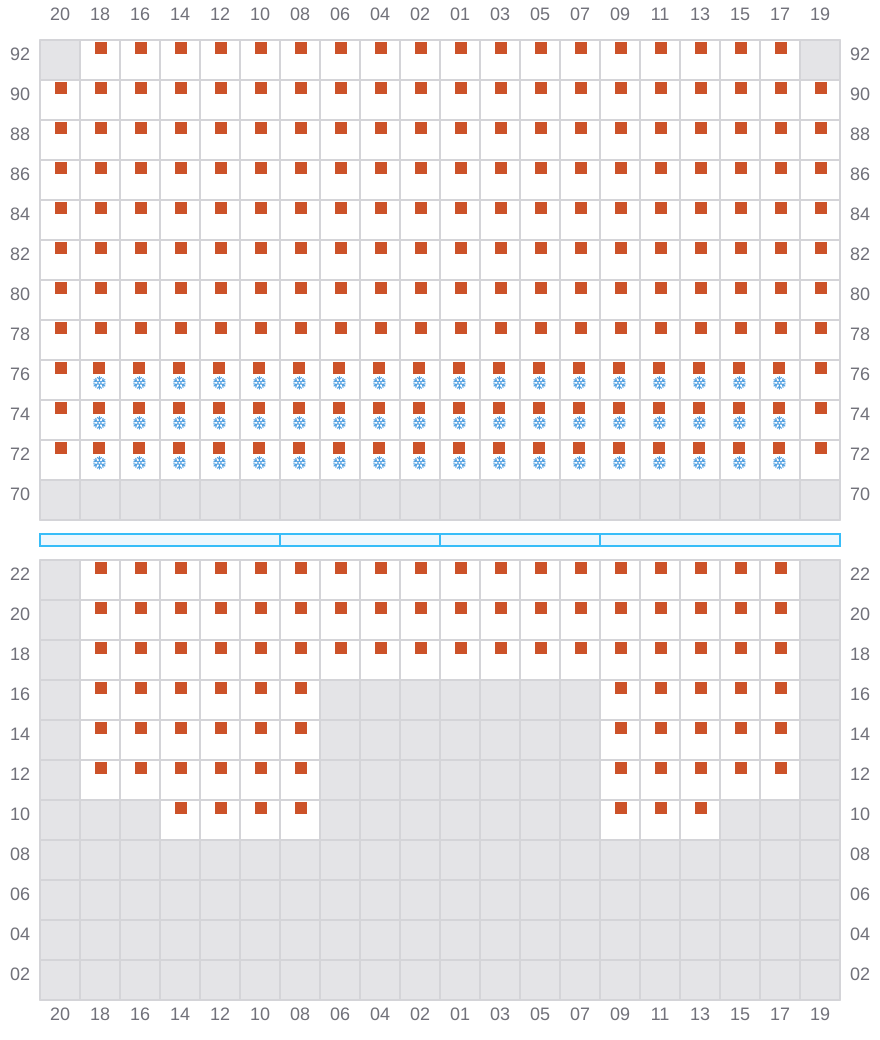

Bay 075 view and slots of AL JASRAH

077 (078)

  • →
  • → / ?
  • →

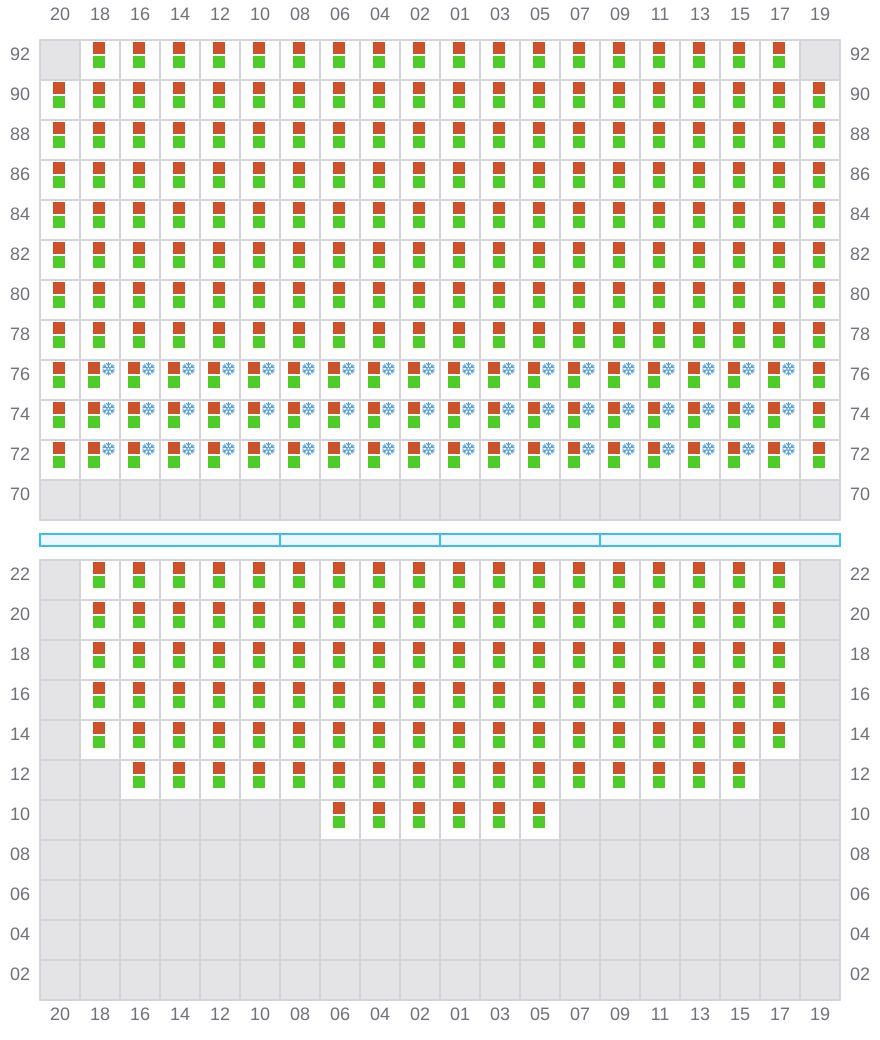

Bay 077 view and slots of AL JASRAH

079

  • ←
  • → / ?
  • →

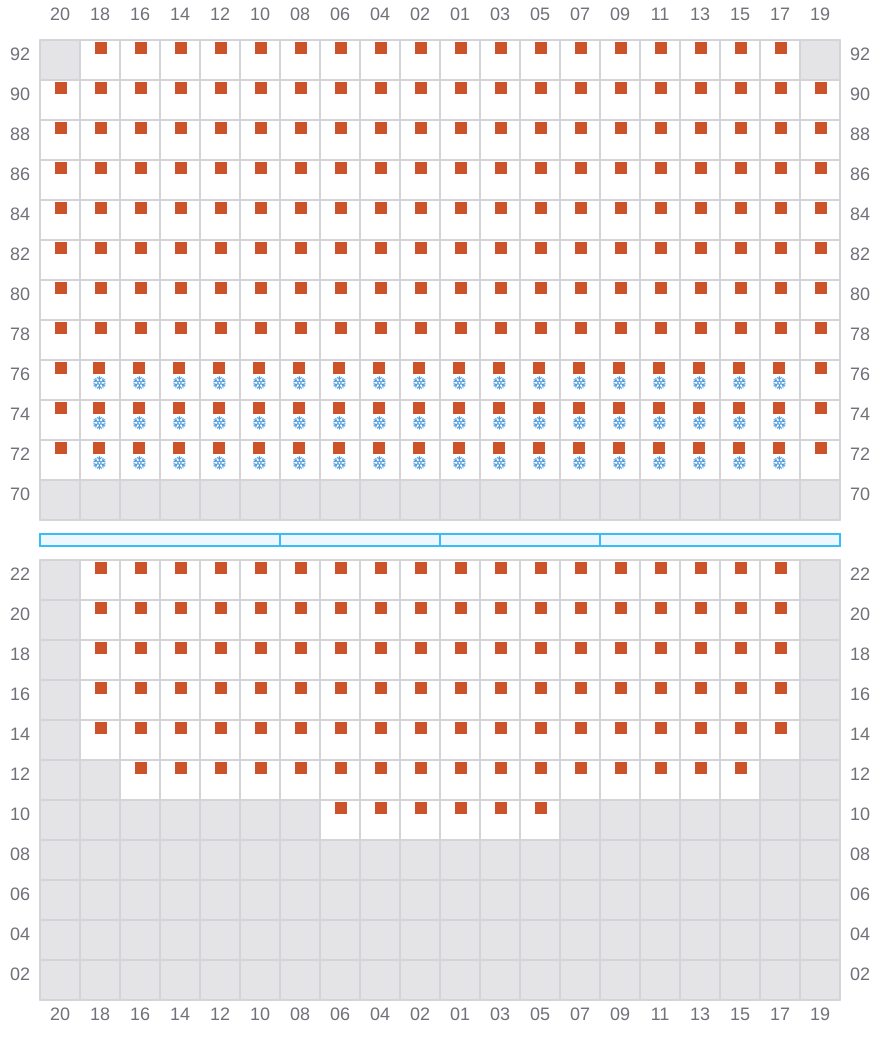

Bay 079 view and slots of AL JASRAH

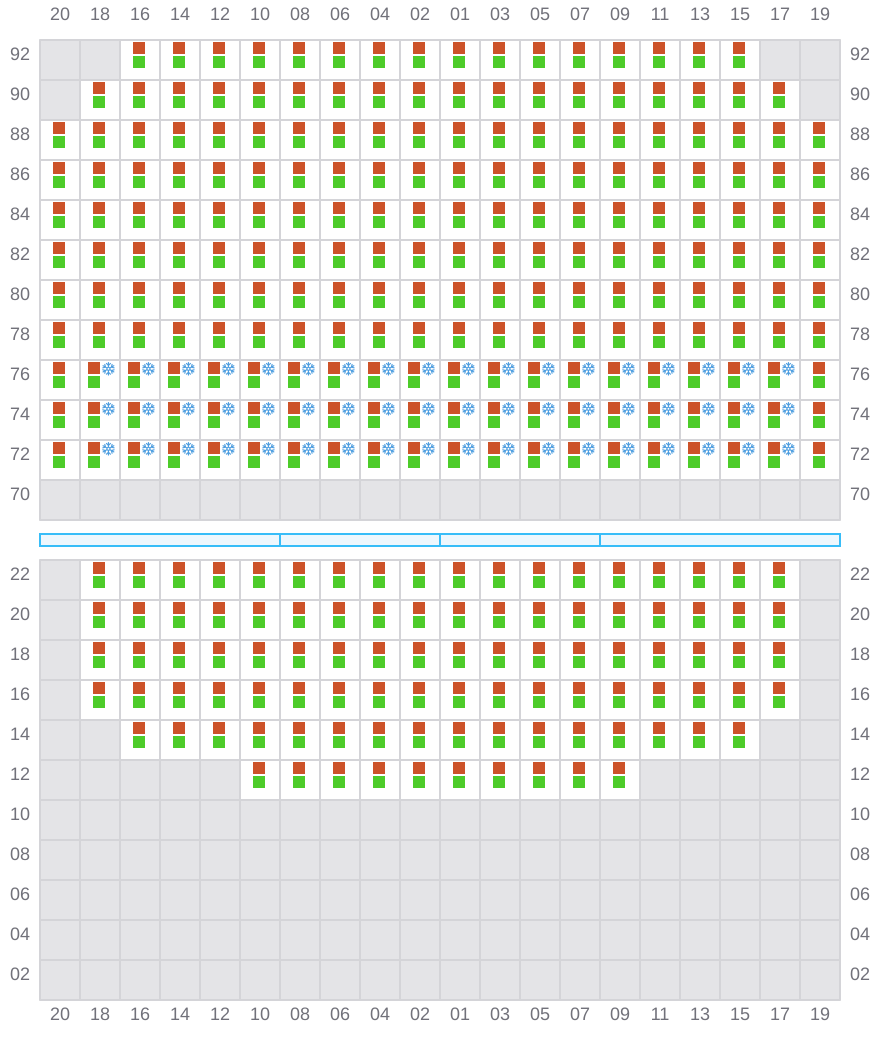

081 (082)

  • →
  • → / ?
  • →
Bay 081 view and slots of AL JASRAH

083

  • ←
  • → / ?
  • →

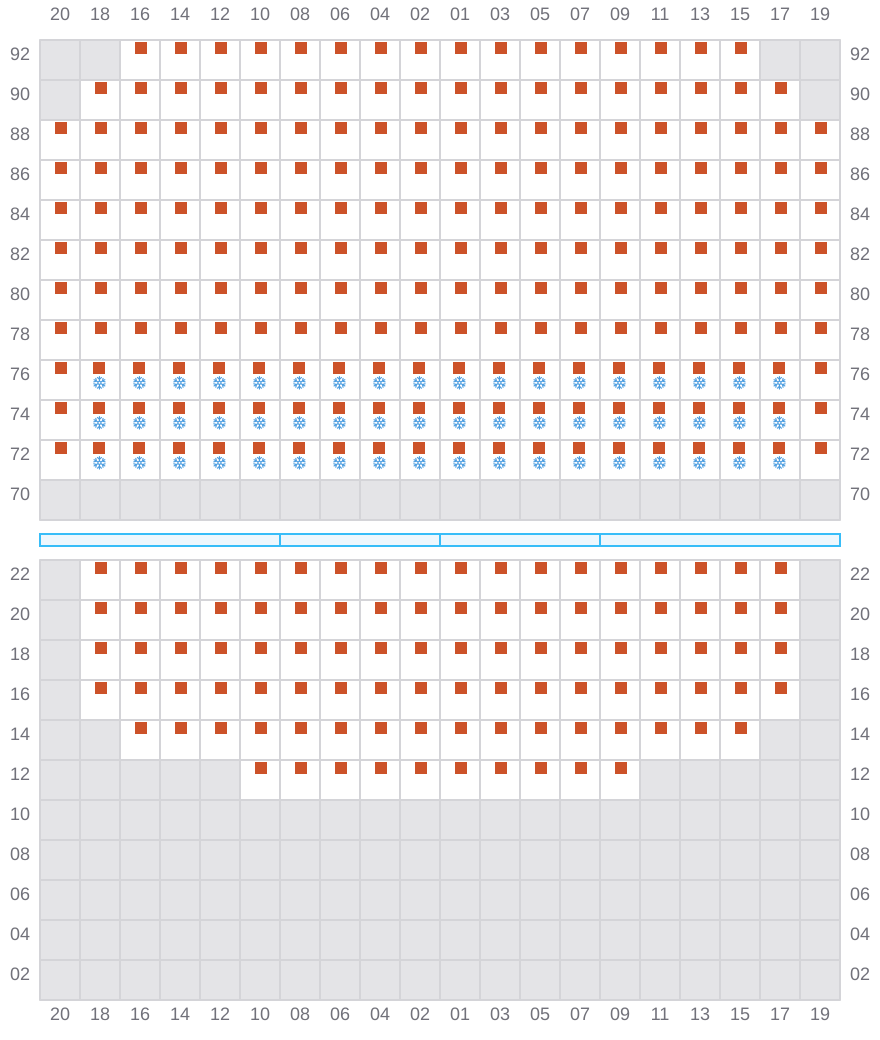

Bay 083 view and slots of AL JASRAH

085 (086)

  • → / ?
  • → / ?
  • → / ?

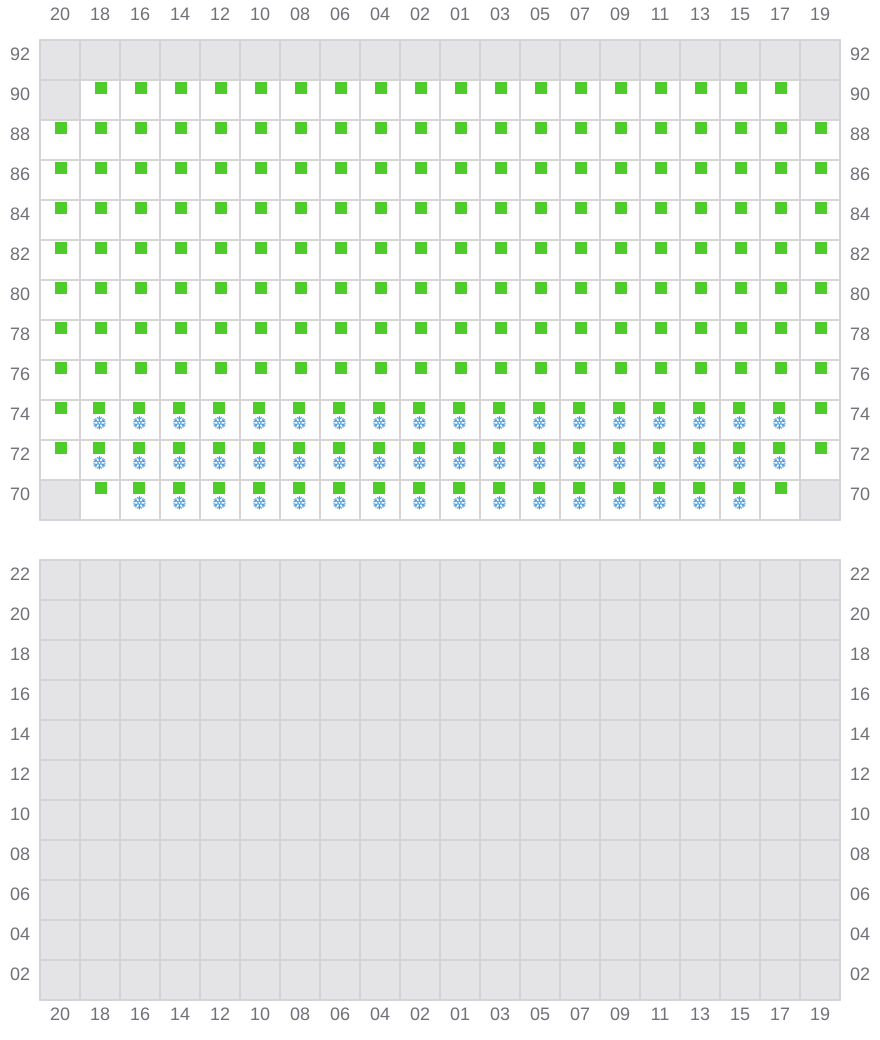

Bay 085 view and slots of AL JASRAH
