AL JMELIYAH
9732357 | DIFL2 | HLC by *********************** Last update: Fri Feb 07 2025

General Info

Ship Name:AL JMELIYAH
IMO Code:9732357
Call Sign:DIFL2
Line Operator:HLC
Class Name for Sister Ships:HAJM
Year Built:2017
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):352.00
LOA (Length Overall):368.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:085
Max ISO Row:20
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:70
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:14,996

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Known
TCG Data:100%

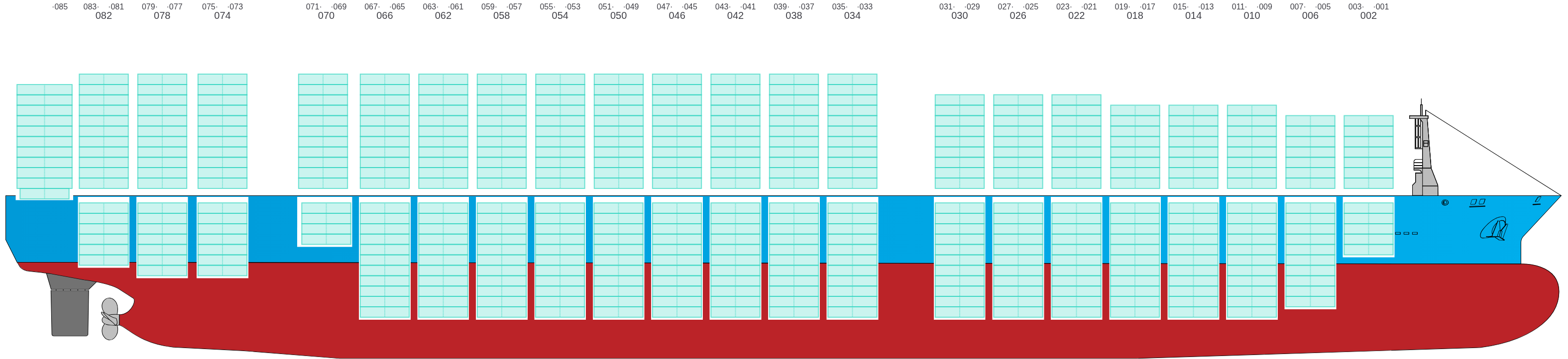

Side View

Side view of AL JMELIYAH

Hatch-Covers View

Deck view of AL JMELIYAH

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

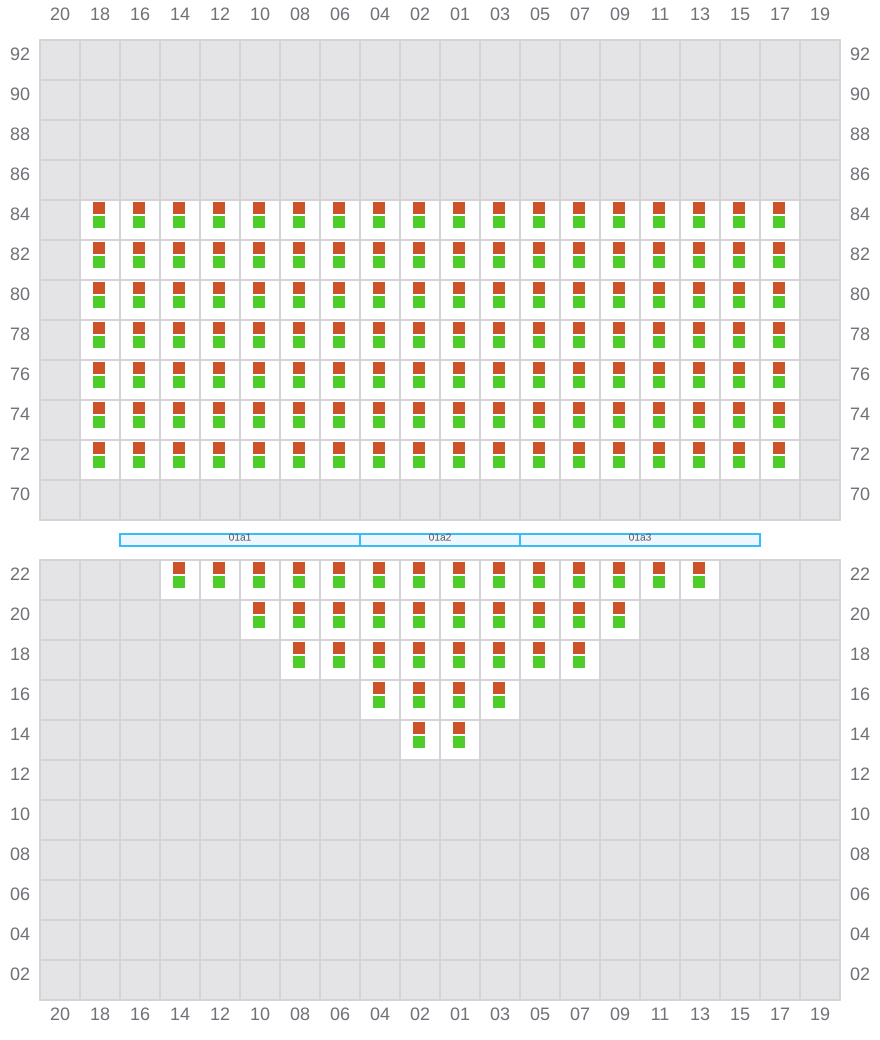

Bay 001 view and slots of AL JMELIYAH

003

  • / ?

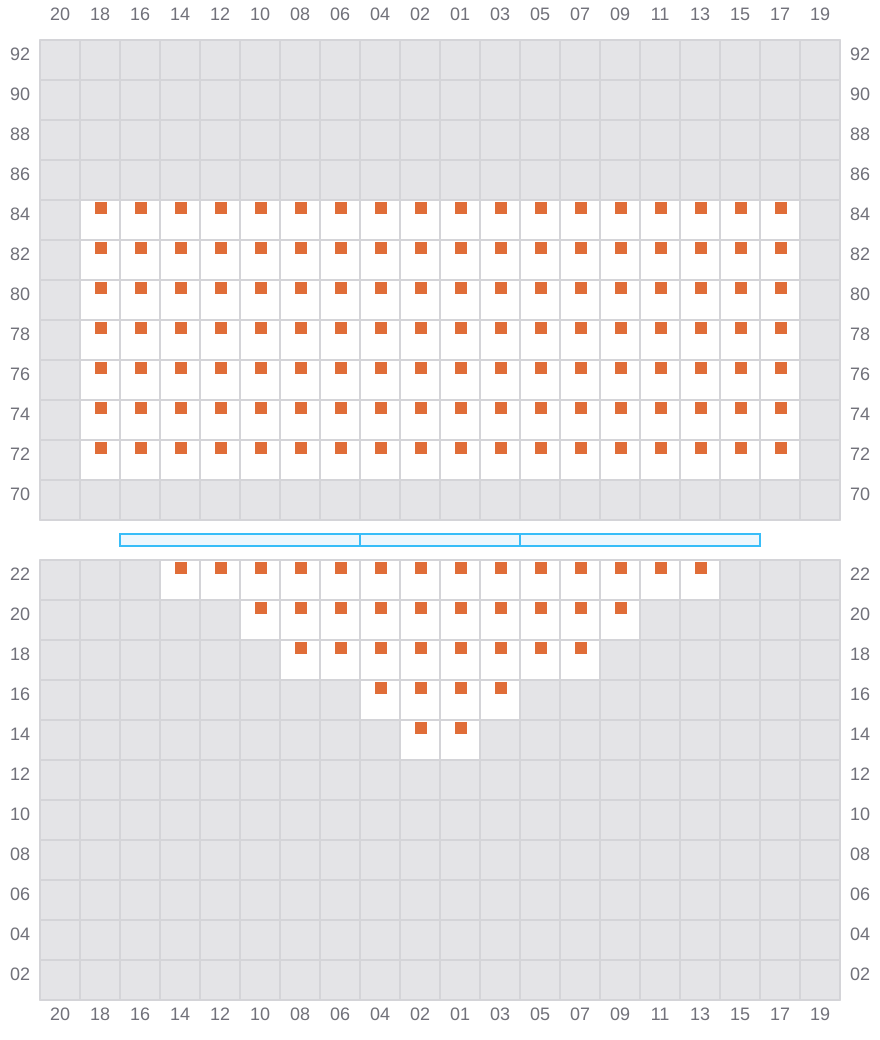

Bay 003 view and slots of AL JMELIYAH

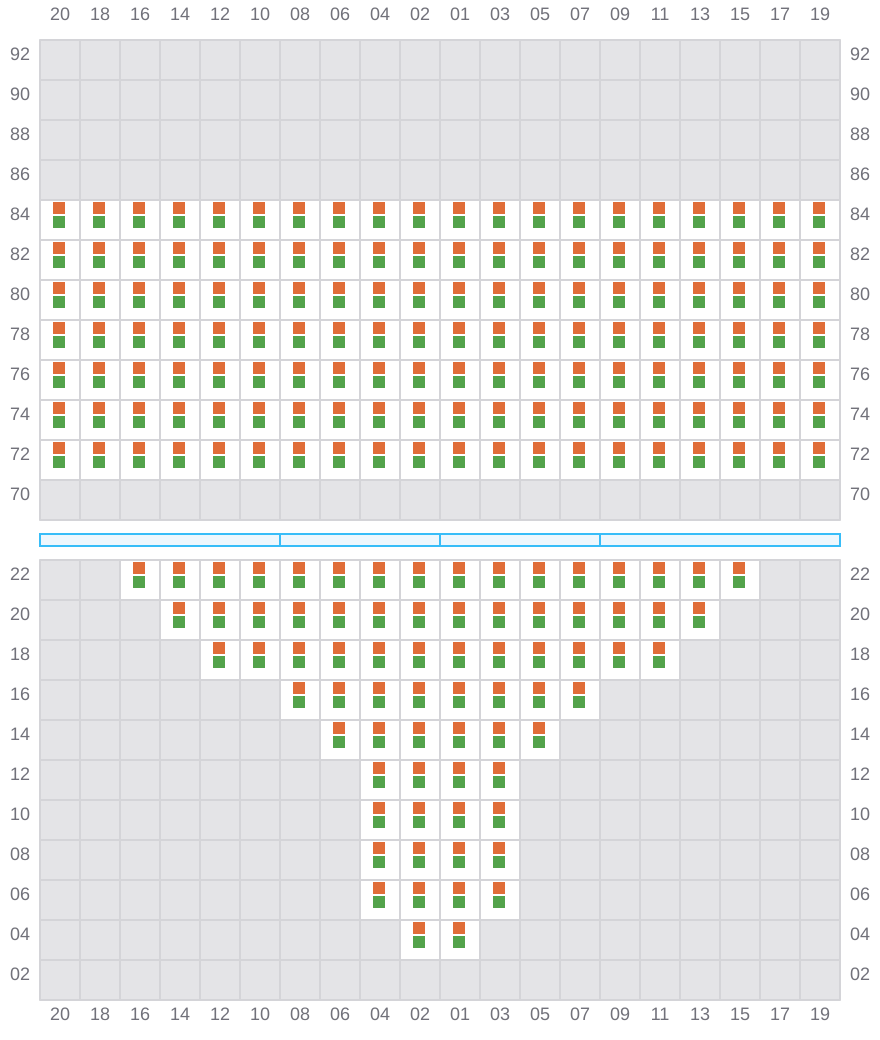

005 (006)

  • / ?
Bay 005 view and slots of AL JMELIYAH

007

  • / ?

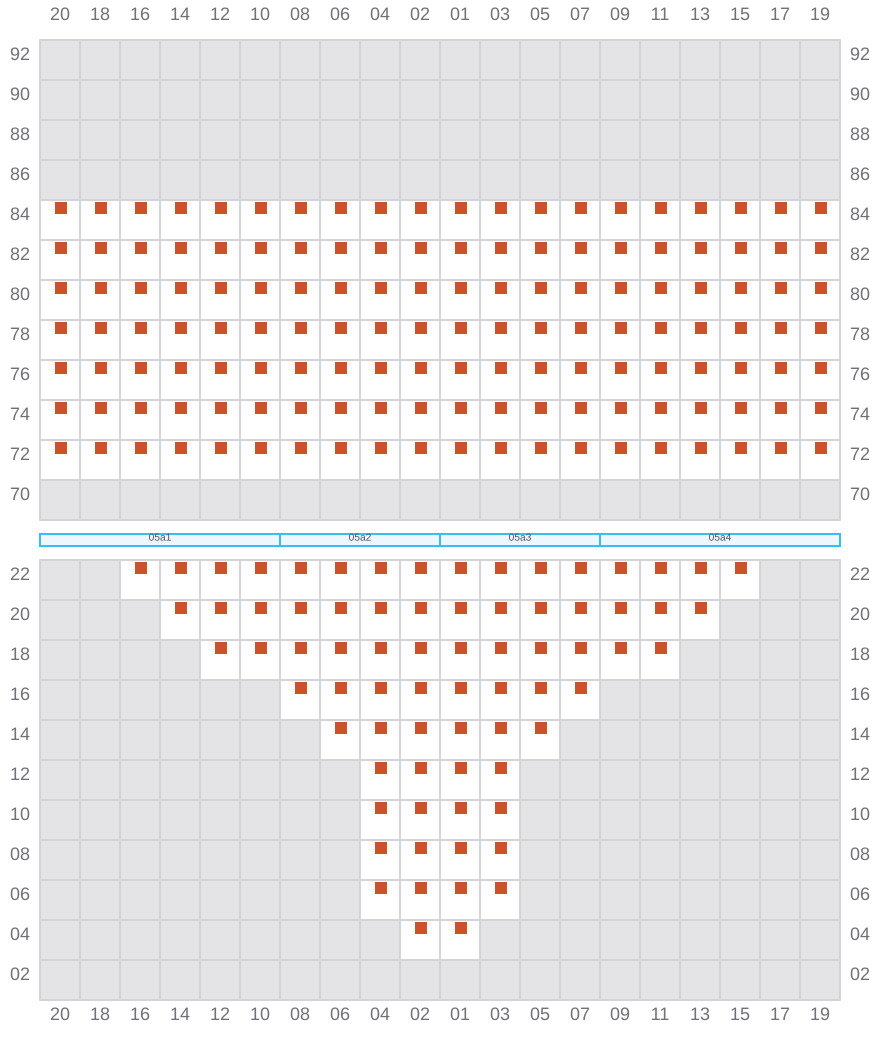

Bay 007 view and slots of AL JMELIYAH

009 (010)

  • / ?

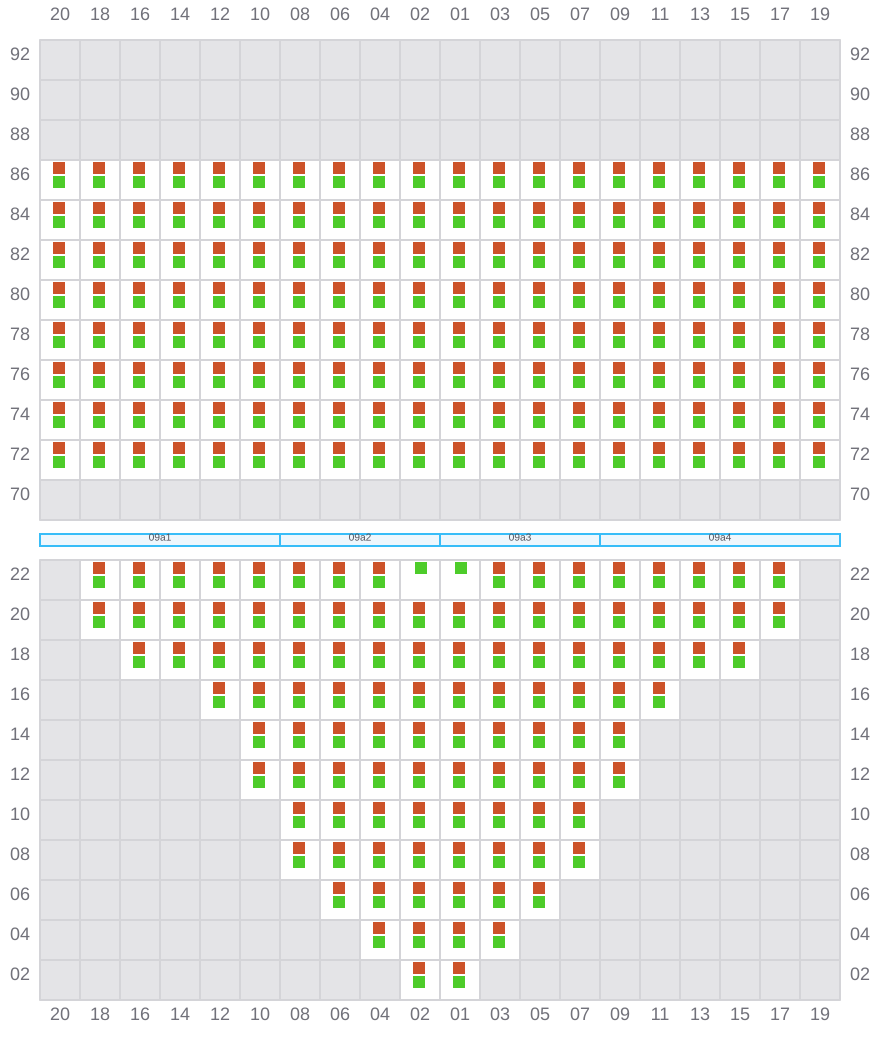

Bay 009 view and slots of AL JMELIYAH

011

  • / ?

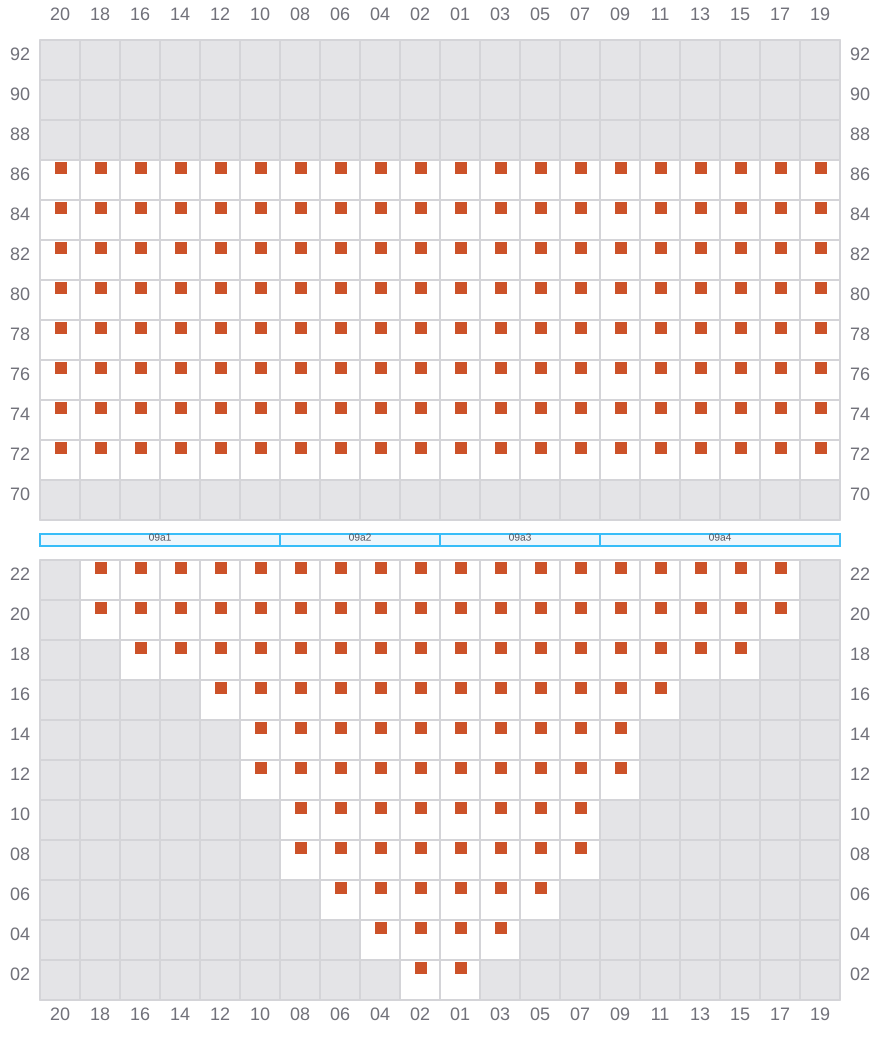

Bay 011 view and slots of AL JMELIYAH

013 (014)

  • / ?

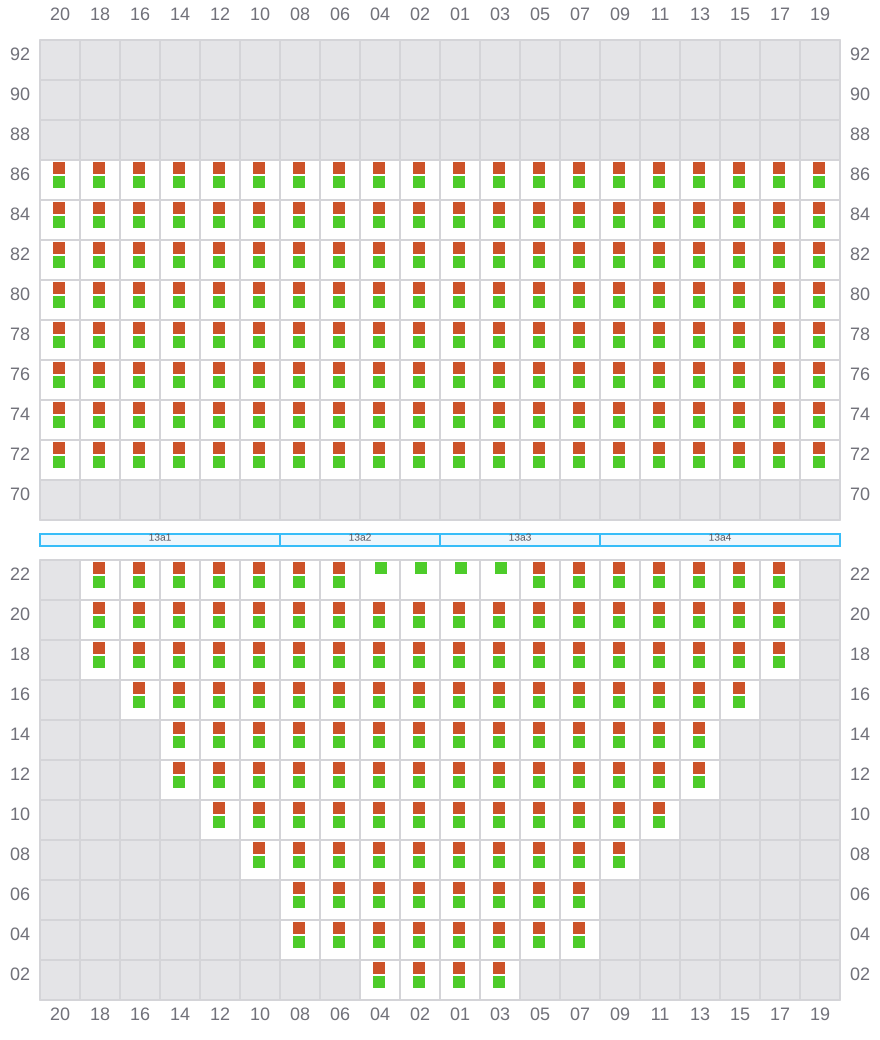

Bay 013 view and slots of AL JMELIYAH

015

  • / ?

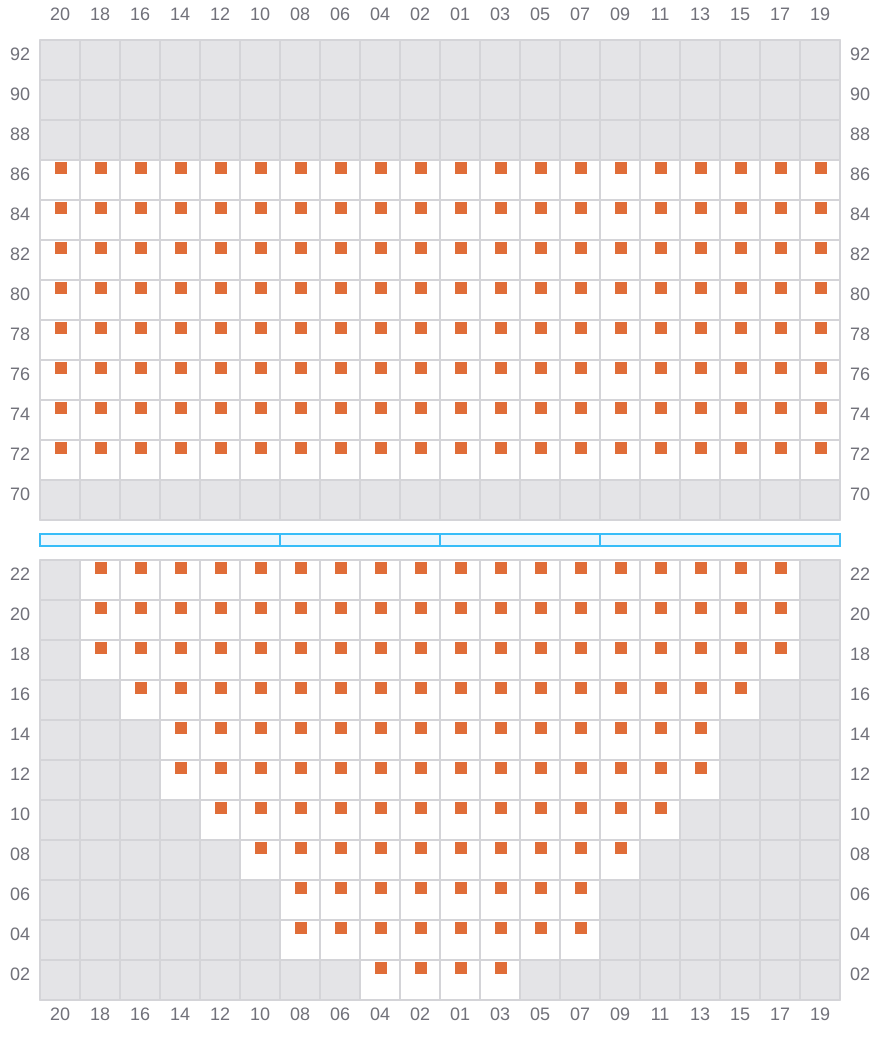

Bay 015 view and slots of AL JMELIYAH

017 (018)

  • / ?

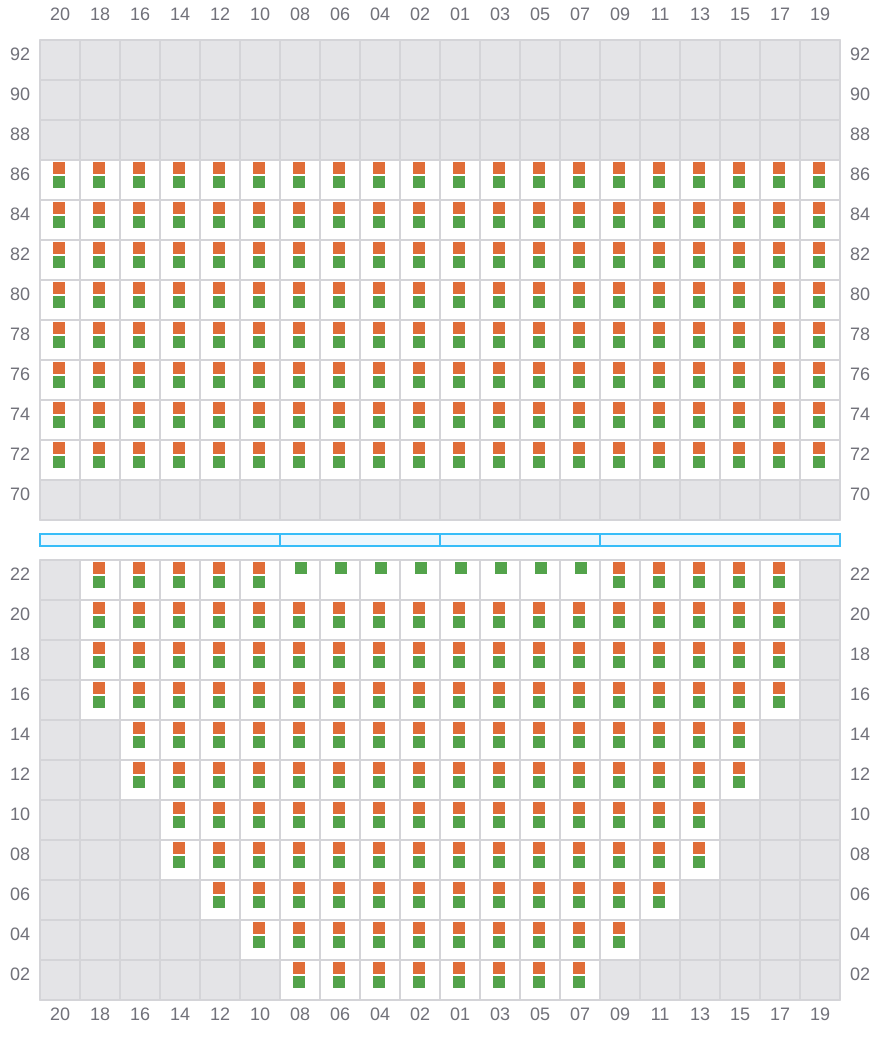

Bay 017 view and slots of AL JMELIYAH

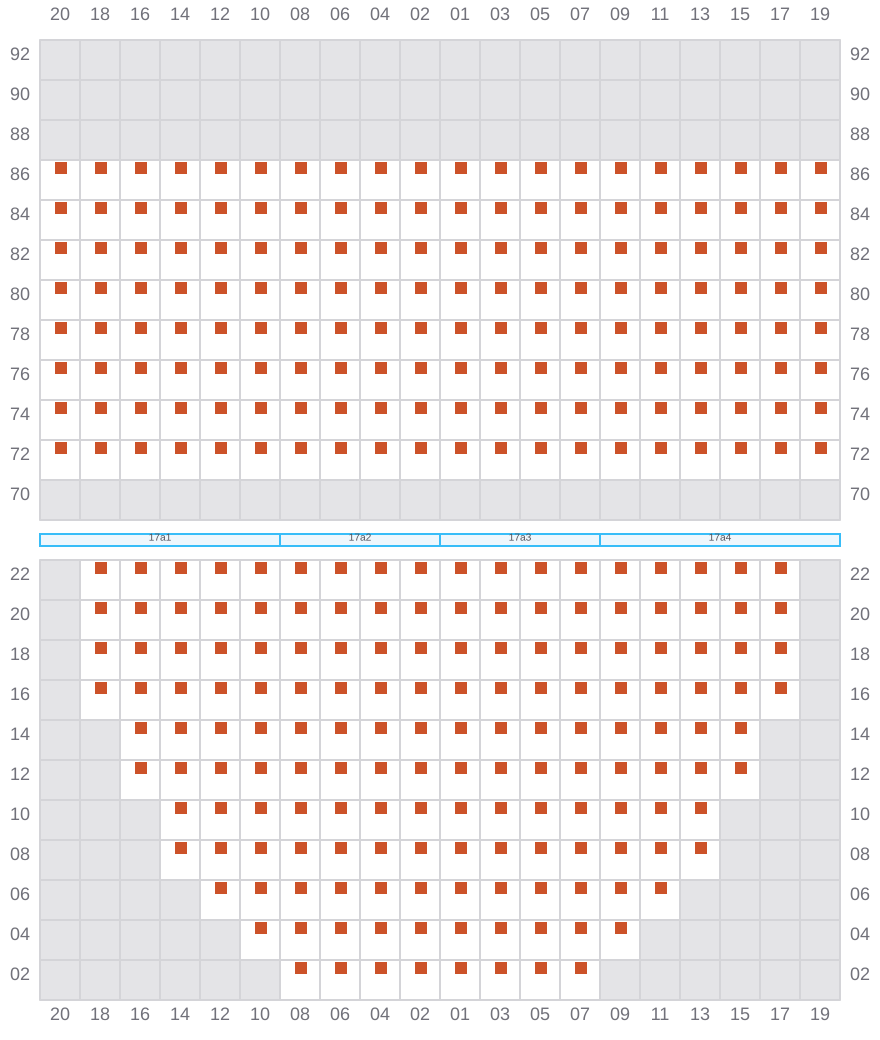

019

  • / ?
Bay 019 view and slots of AL JMELIYAH

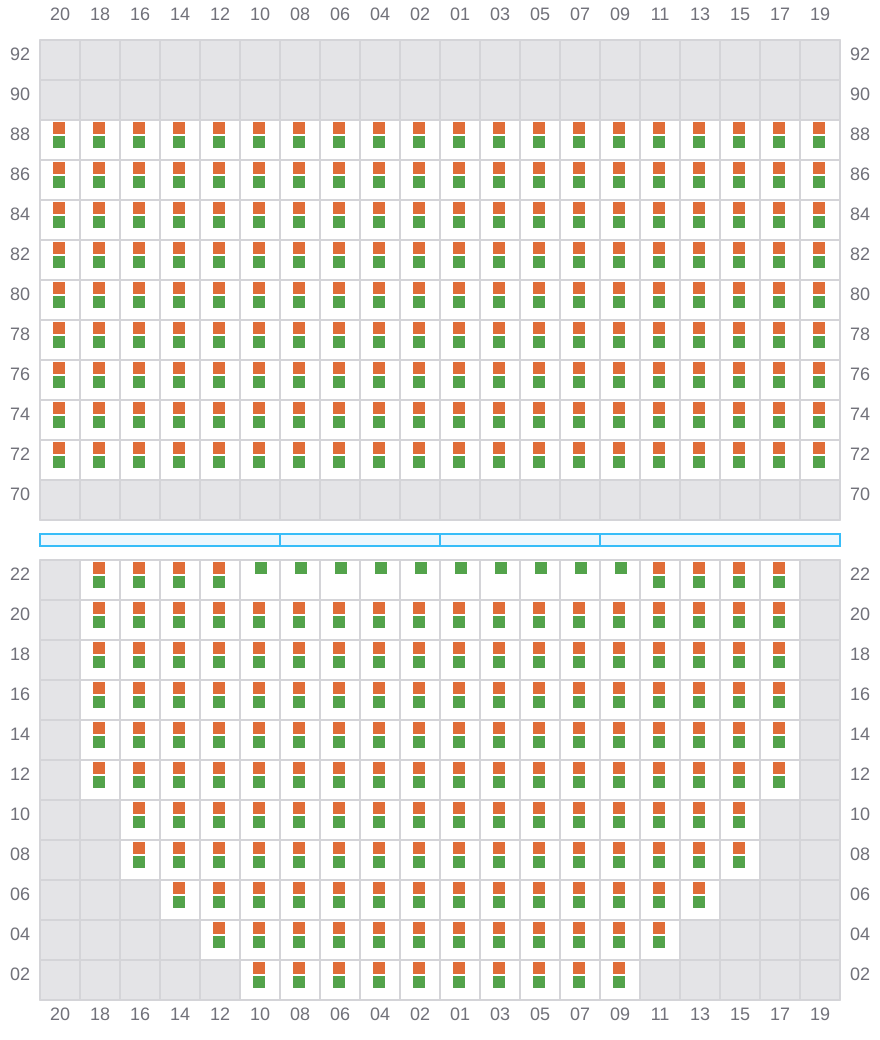

021 (022)

  • / ?

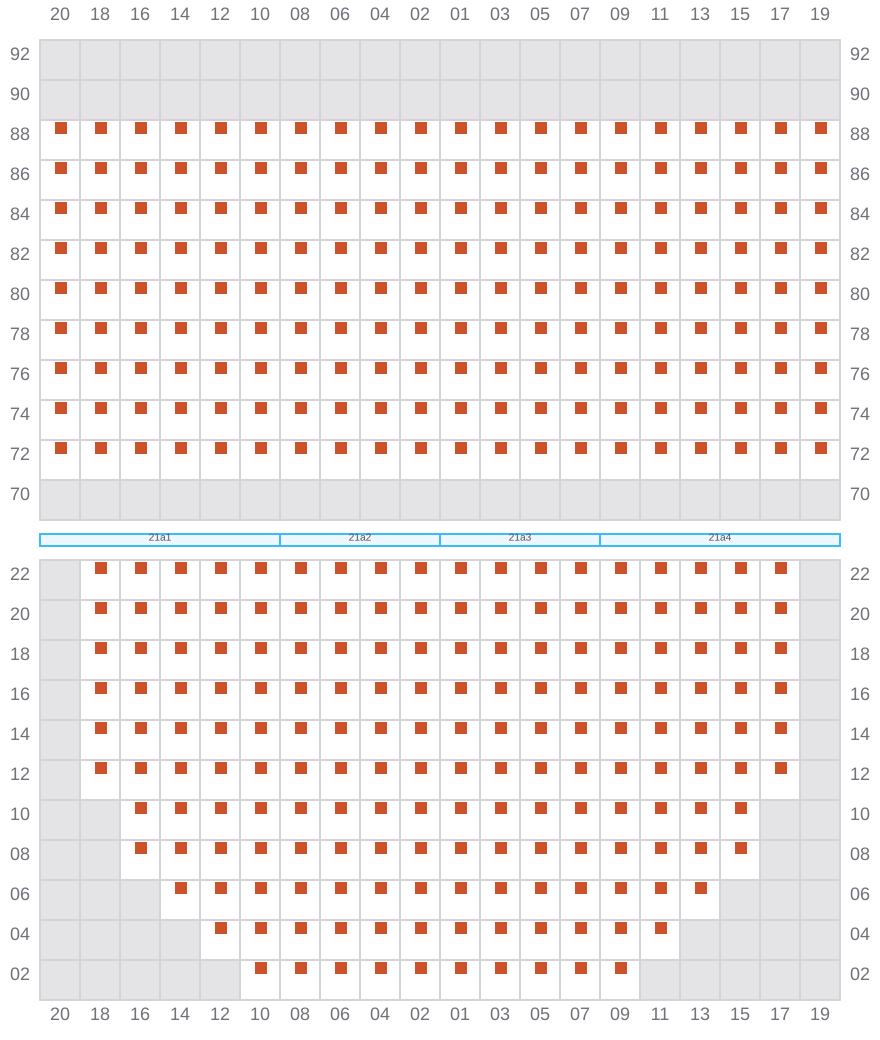

Bay 021 view and slots of AL JMELIYAH

023

  • / ?
Bay 023 view and slots of AL JMELIYAH

025 (026)

  • / ?

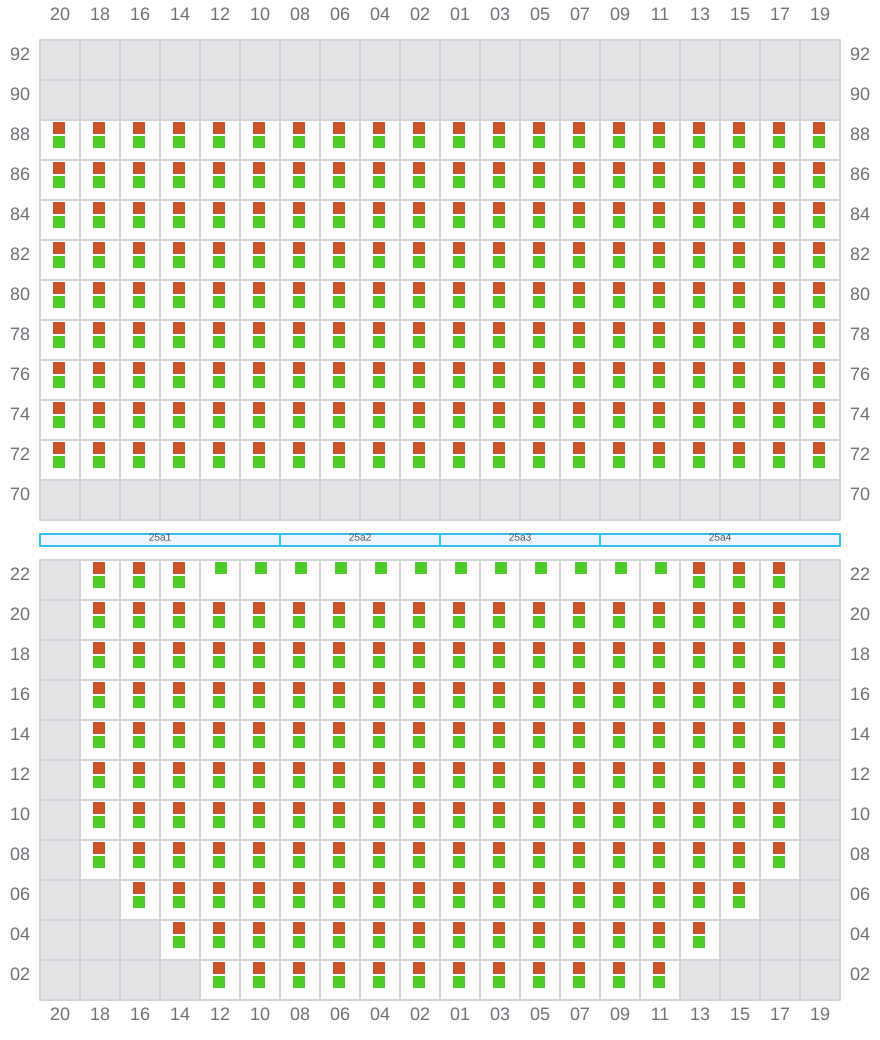

Bay 025 view and slots of AL JMELIYAH

027

  • / ?

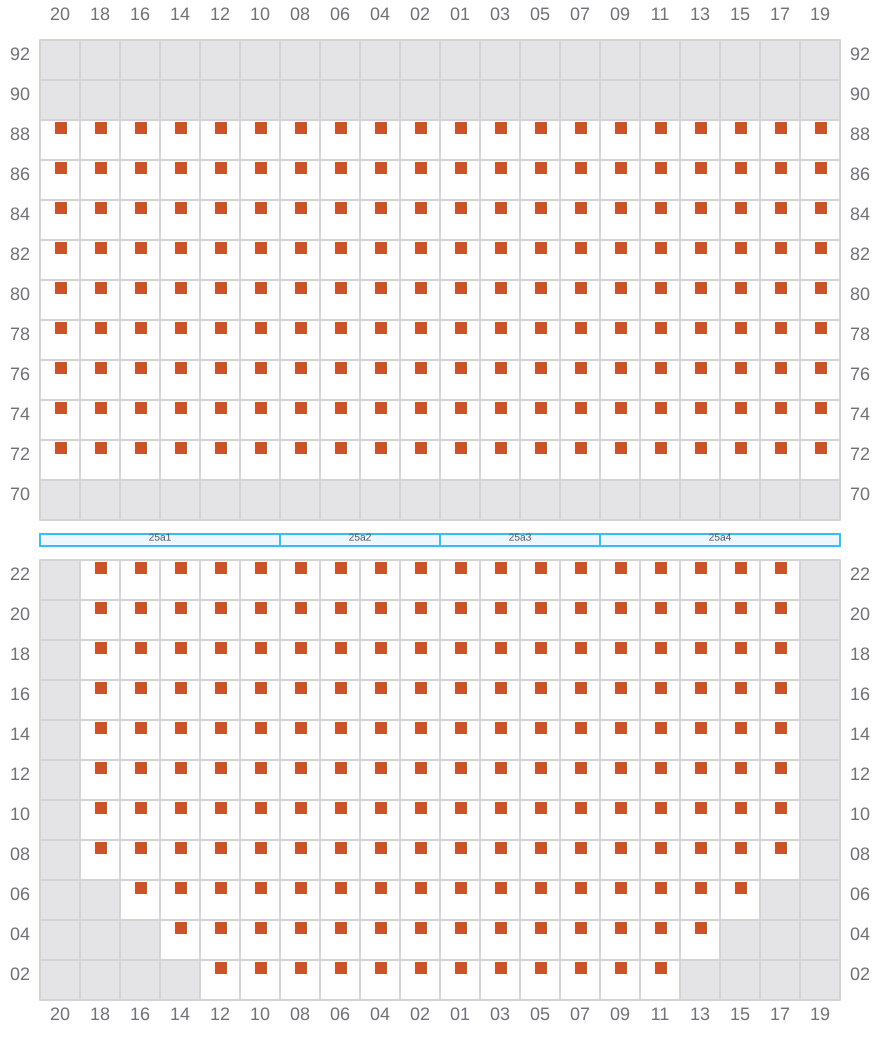

Bay 027 view and slots of AL JMELIYAH

029 (030)

  • / ?

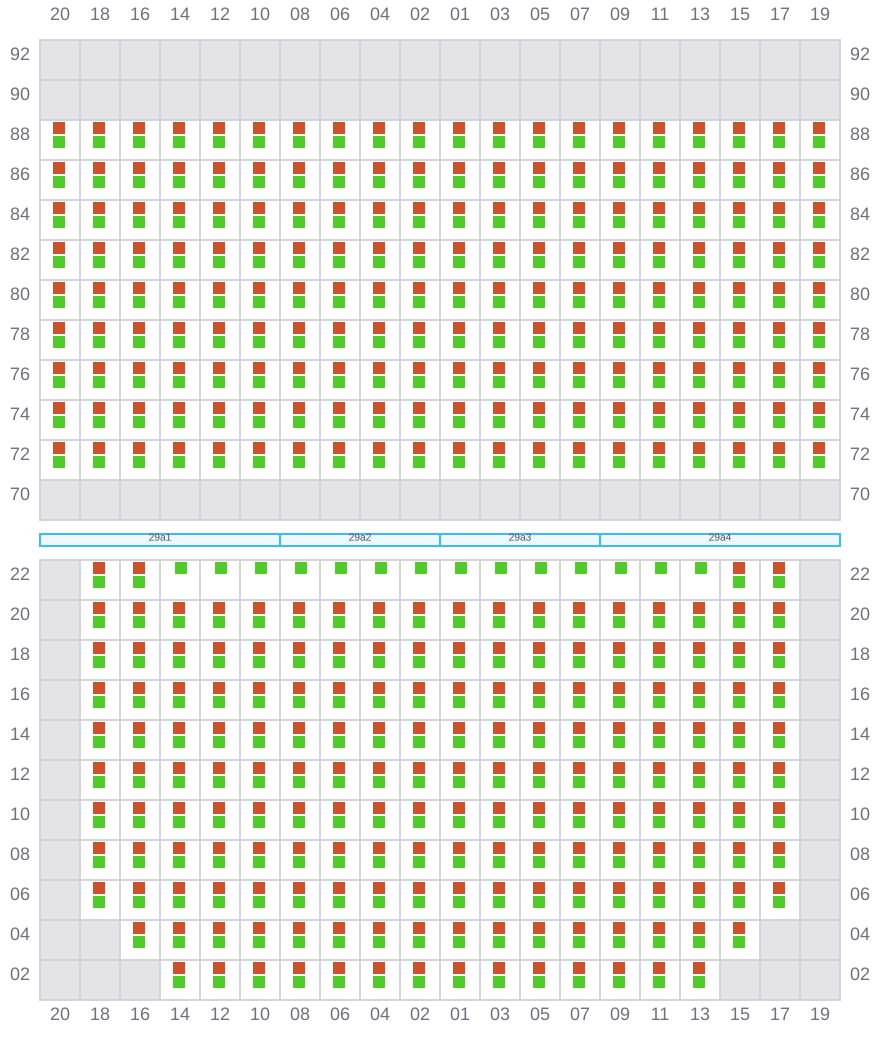

Bay 029 view and slots of AL JMELIYAH

031

  • / ?

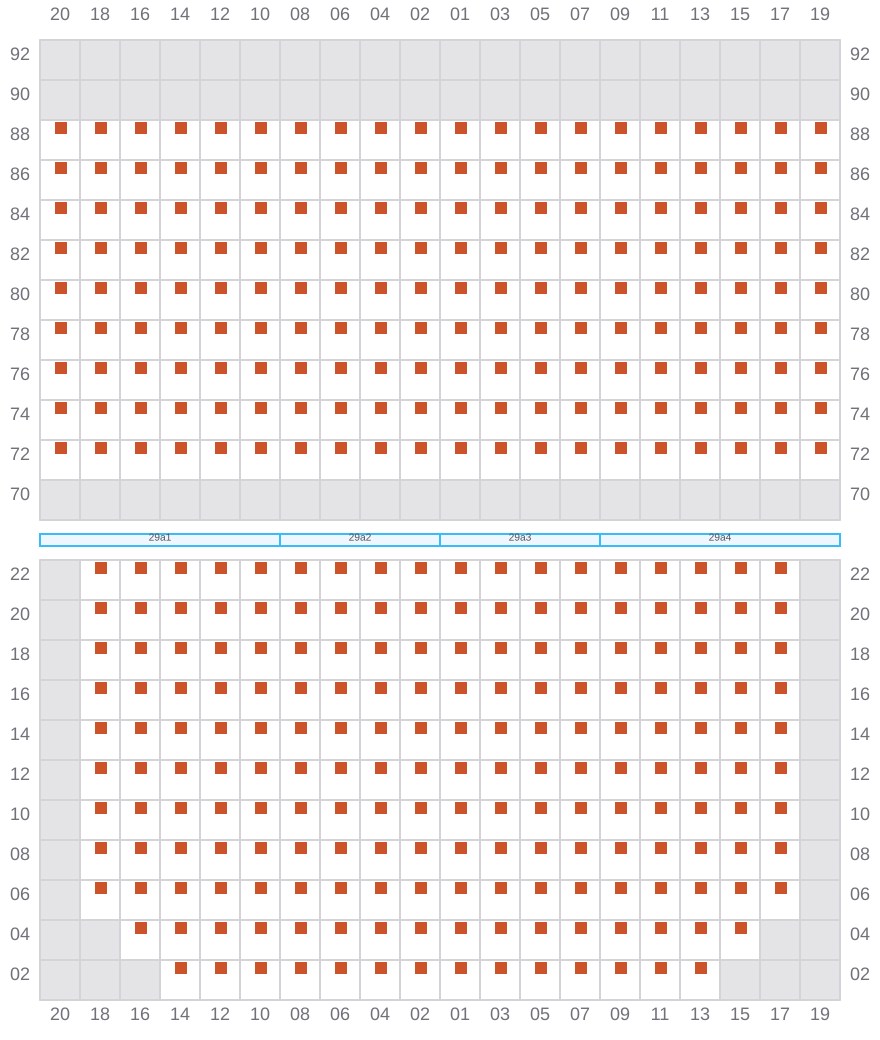

Bay 031 view and slots of AL JMELIYAH

033 (034)

  • / ?

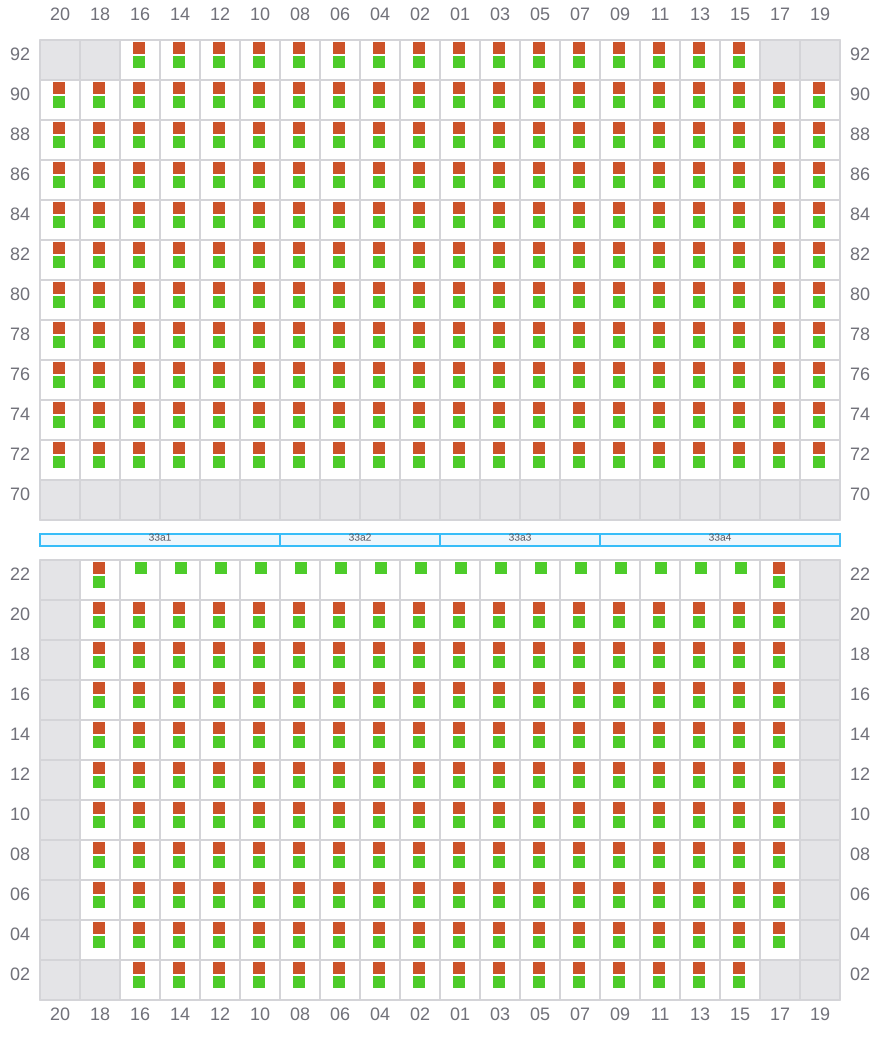

Bay 033 view and slots of AL JMELIYAH

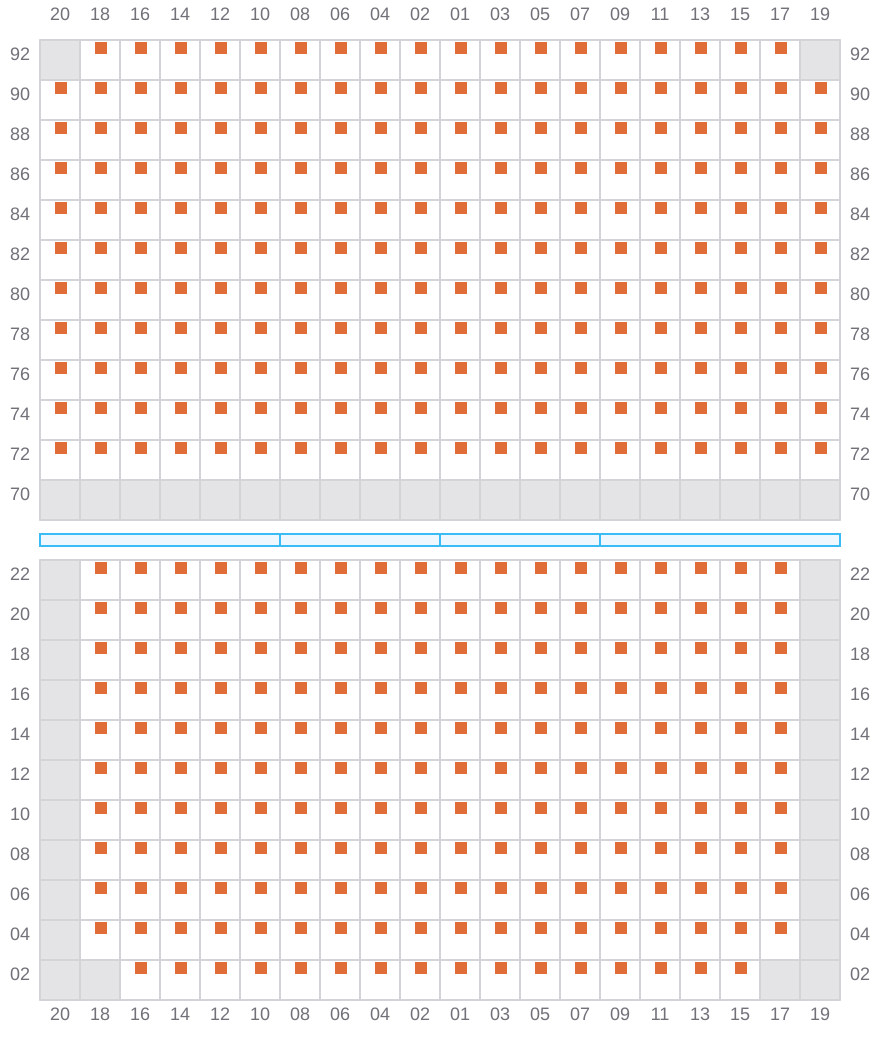

035

  • / ?
Bay 035 view and slots of AL JMELIYAH

037 (038)

  • / ?
Bay 037 view and slots of AL JMELIYAH

039

  • / ?
Bay 039 view and slots of AL JMELIYAH

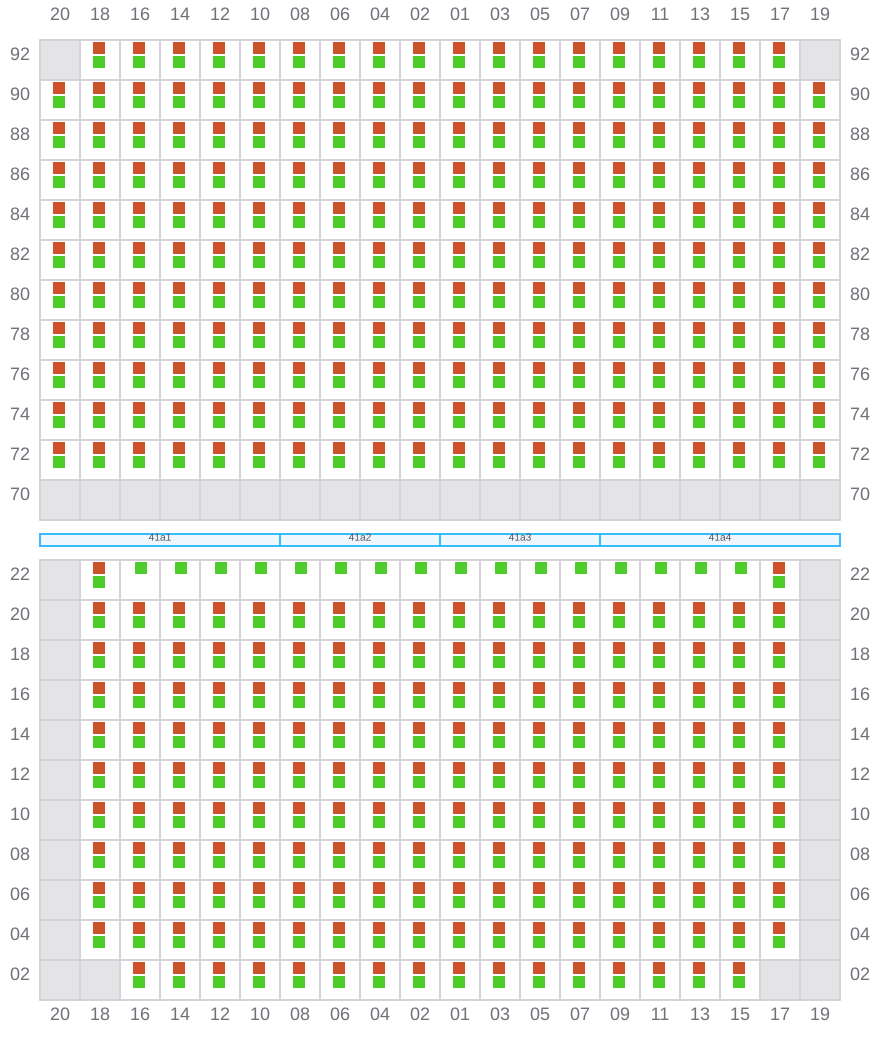

041 (042)

  • / ?

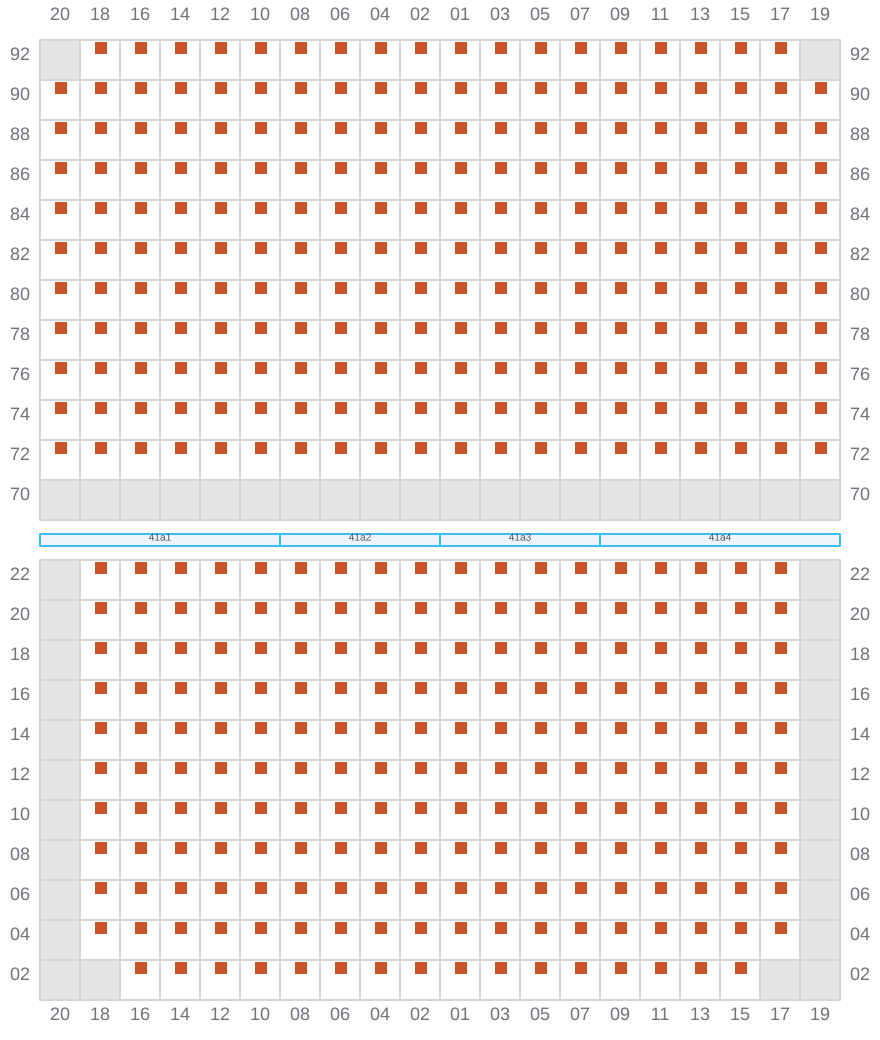

Bay 041 view and slots of AL JMELIYAH

043

  • / ?
Bay 043 view and slots of AL JMELIYAH

045 (046)

  • / ?
Bay 045 view and slots of AL JMELIYAH

047

  • / ?
Bay 047 view and slots of AL JMELIYAH

049 (050)

Bay 049 view and slots of AL JMELIYAH

051

  • / ?
Bay 051 view and slots of AL JMELIYAH

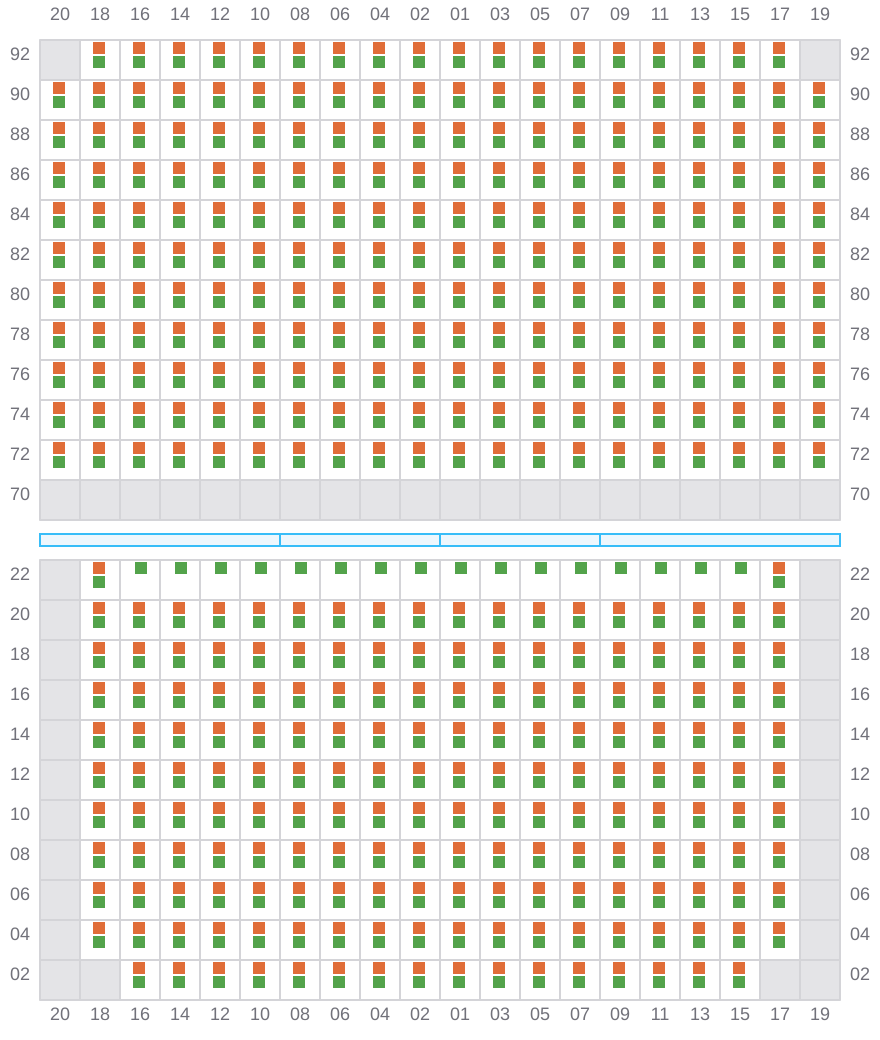

053 (054)

  • / ?
Bay 053 view and slots of AL JMELIYAH

055

  • / ?

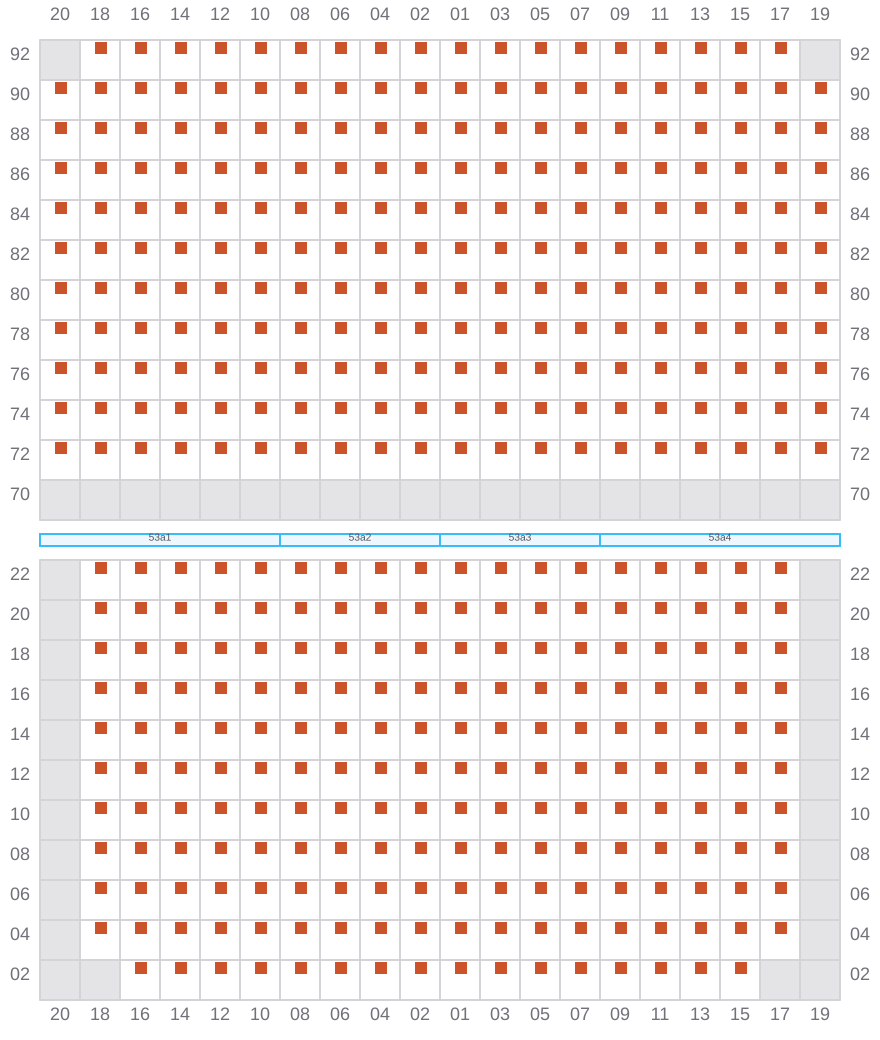

Bay 055 view and slots of AL JMELIYAH

057 (058)

  • / ?

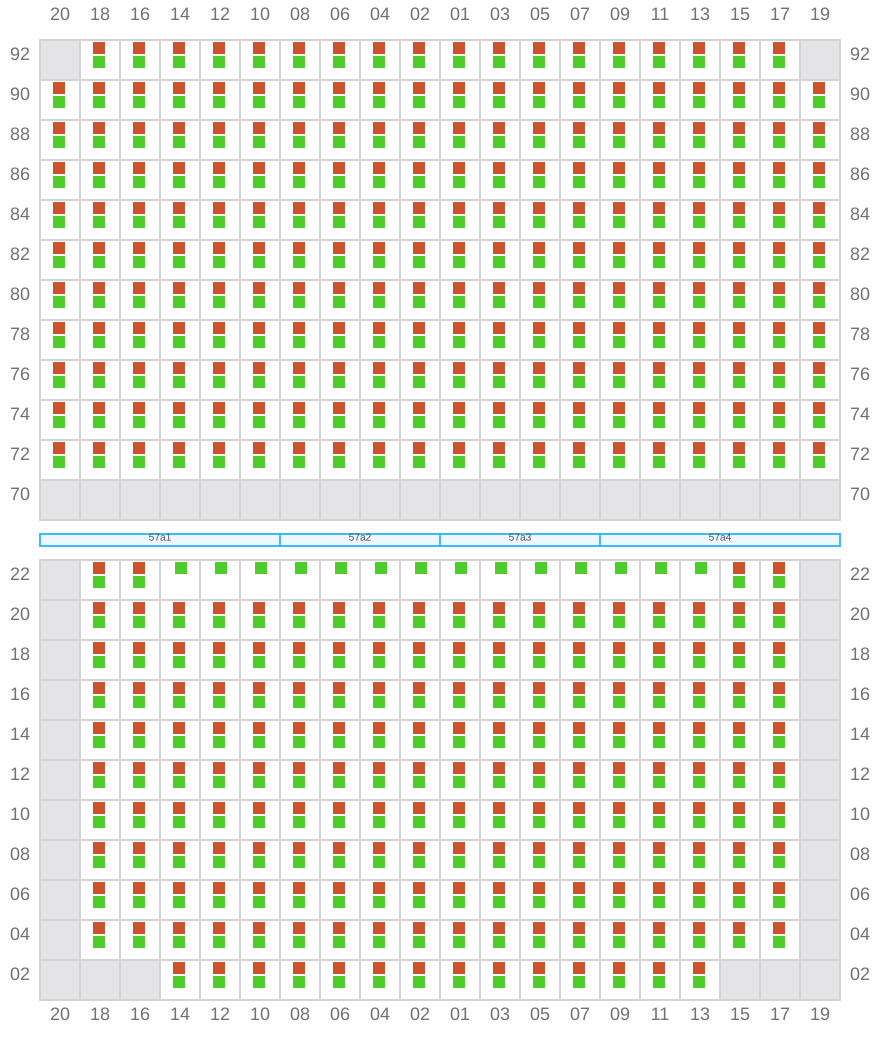

Bay 057 view and slots of AL JMELIYAH

059

  • / ?
Bay 059 view and slots of AL JMELIYAH

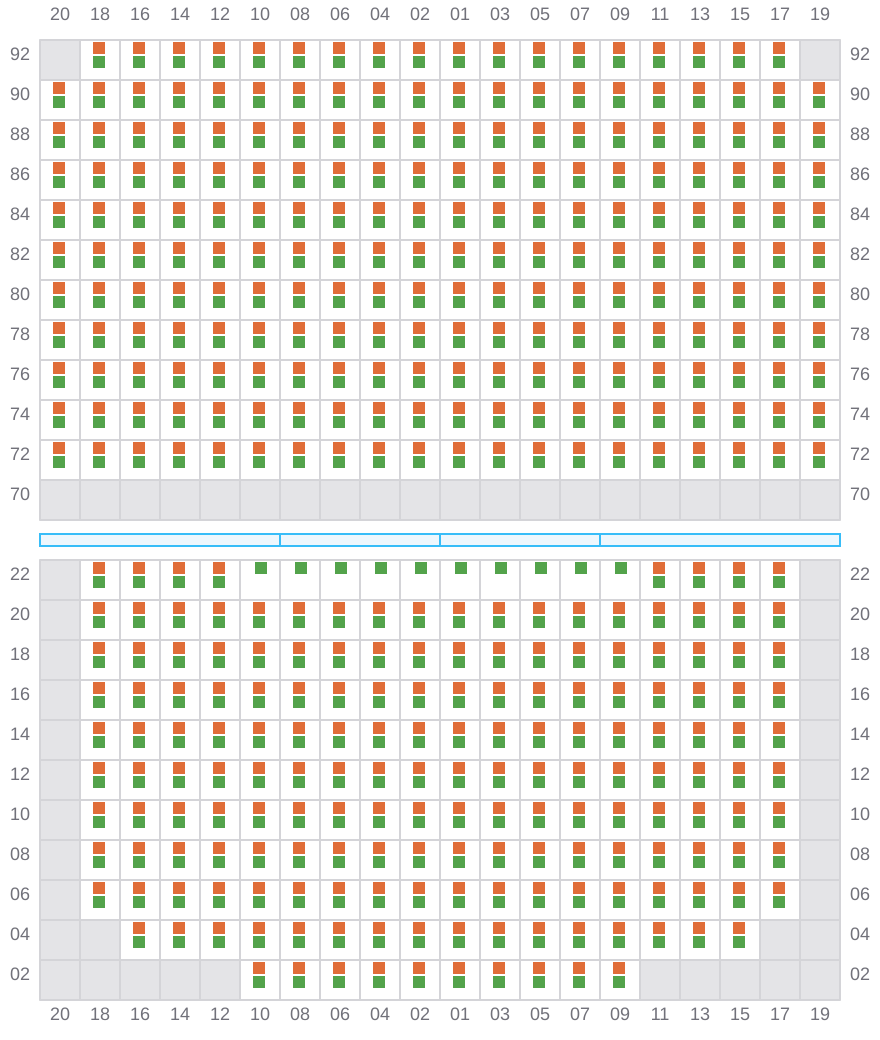

061 (062)

  • / ?
Bay 061 view and slots of AL JMELIYAH

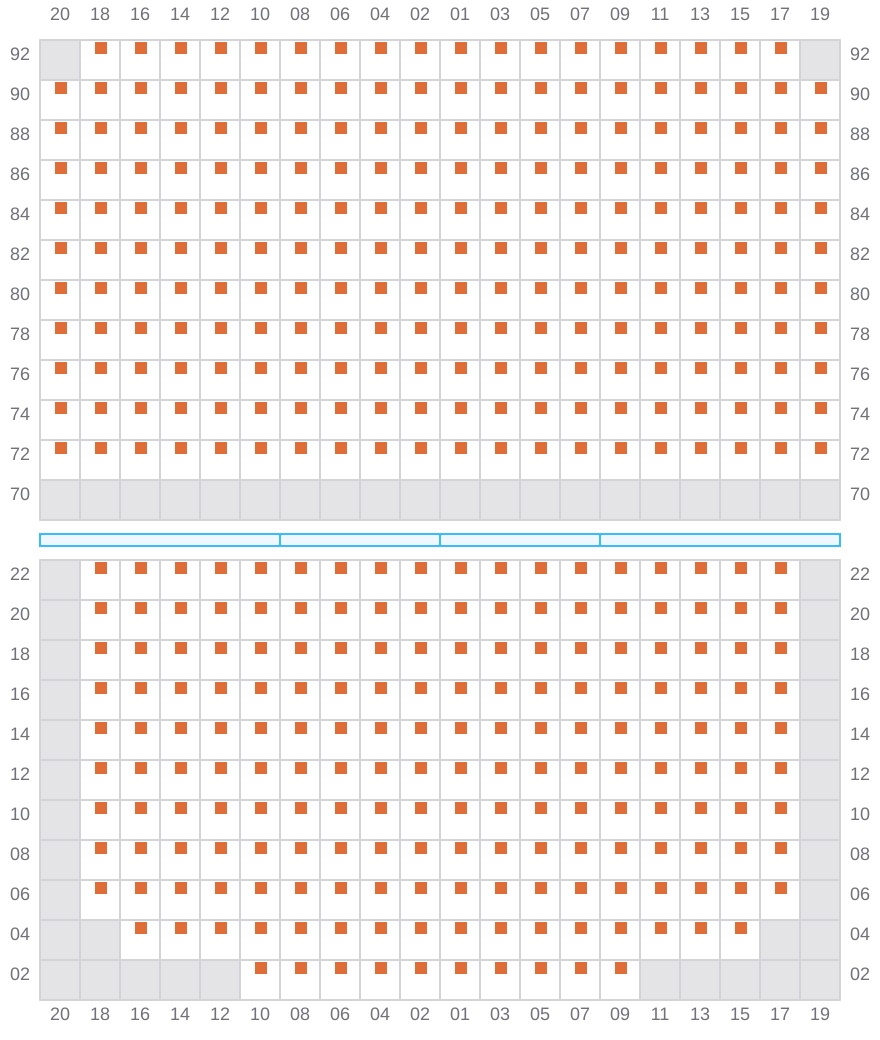

063

  • / ?
Bay 063 view and slots of AL JMELIYAH

065 (066)

  • / ?

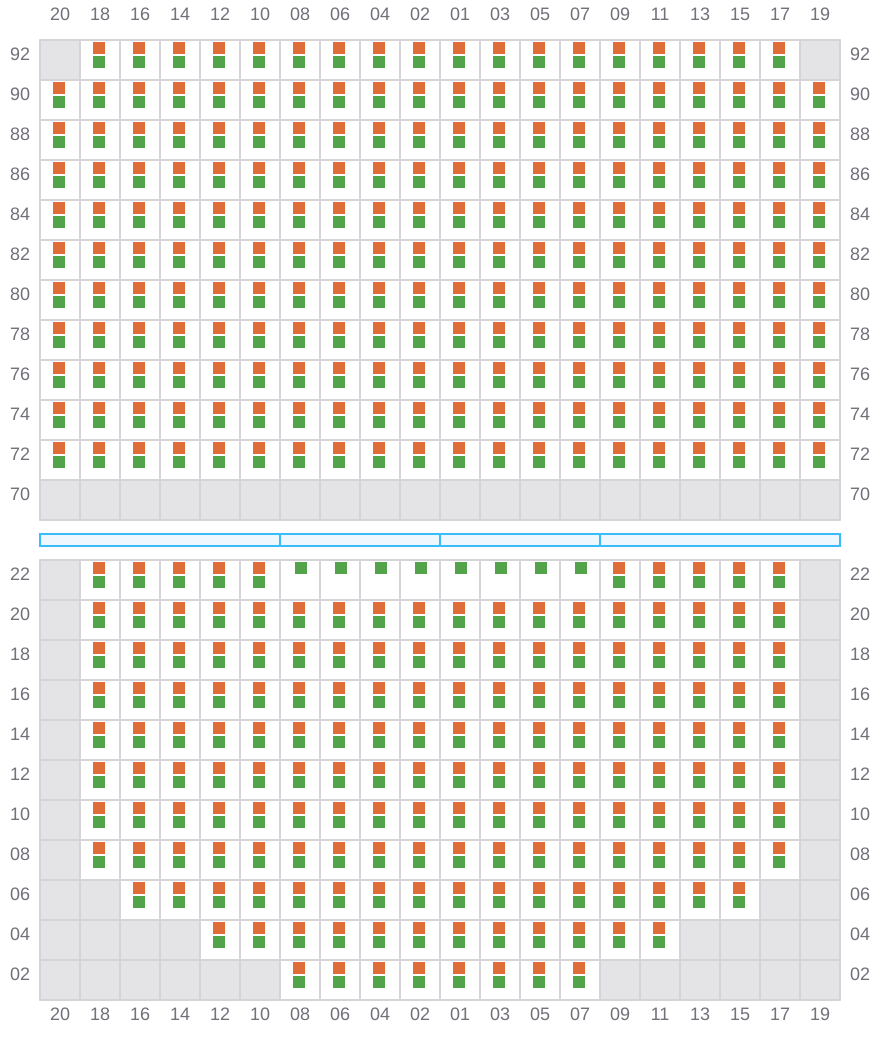

Bay 065 view and slots of AL JMELIYAH

067

  • / ?

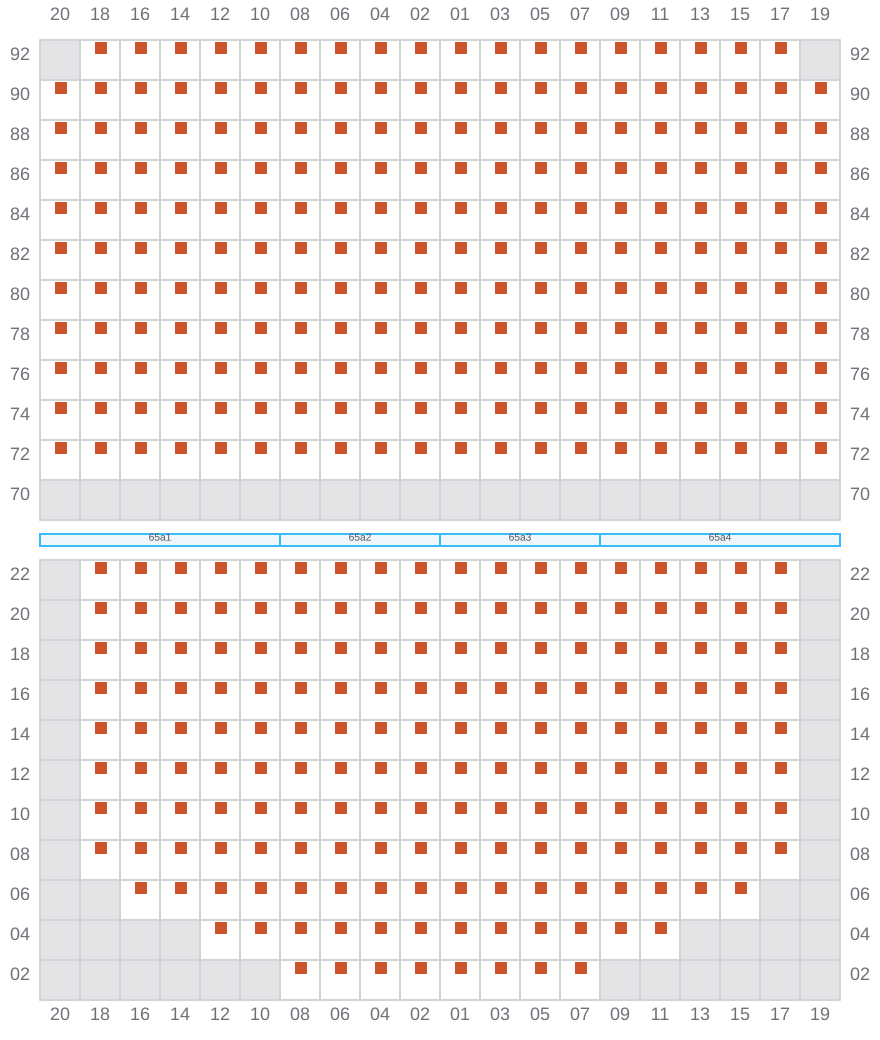

Bay 067 view and slots of AL JMELIYAH

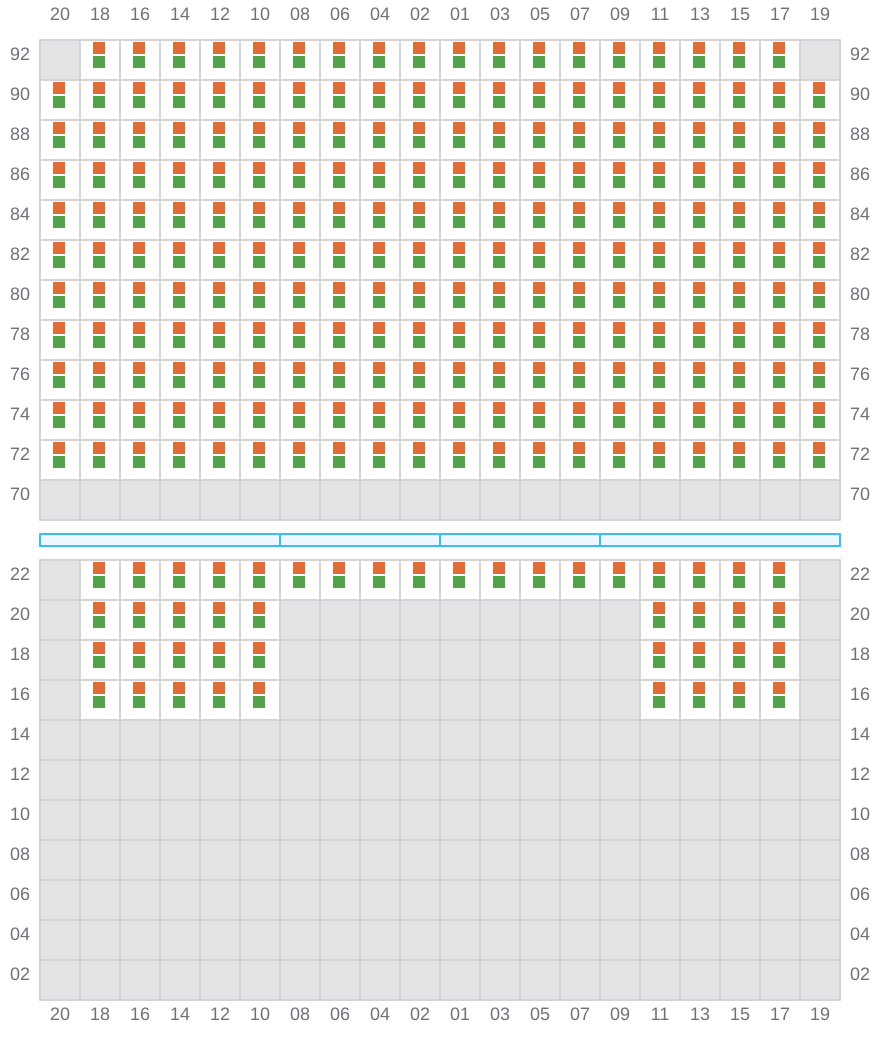

069 (070)

  • / ?
Bay 069 view and slots of AL JMELIYAH

071

  • / ?

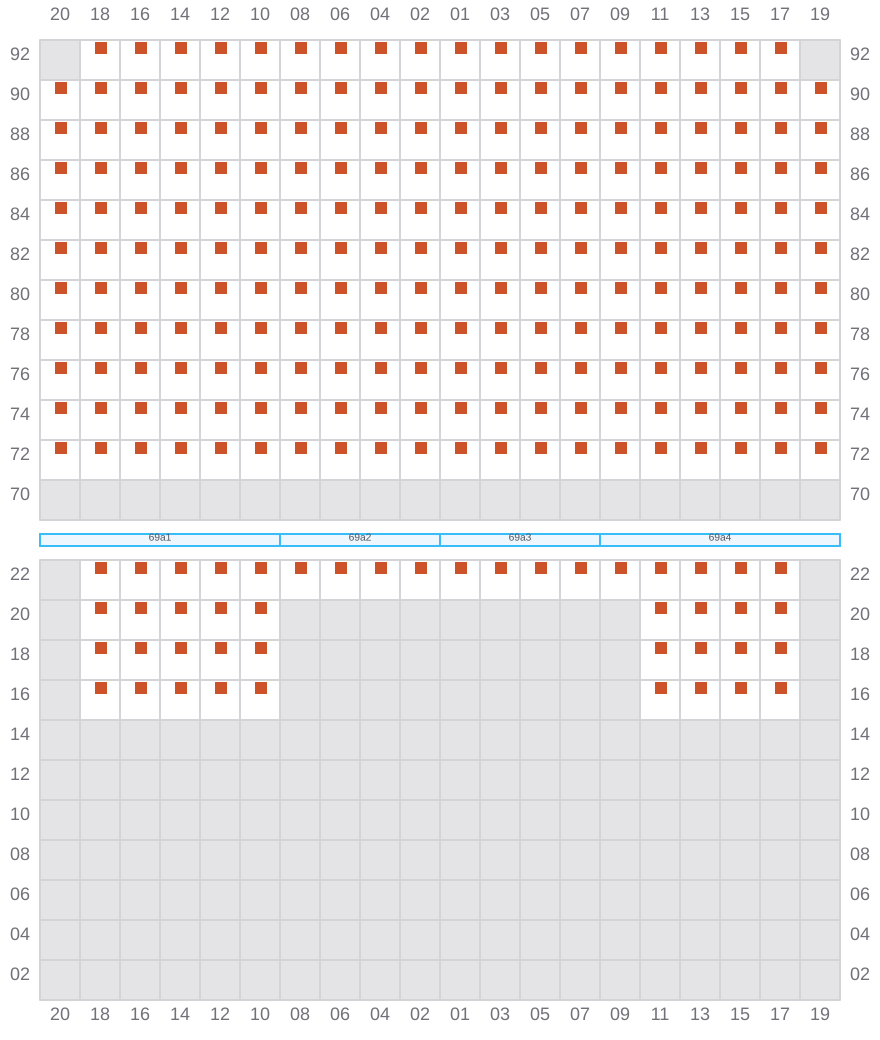

Bay 071 view and slots of AL JMELIYAH

073 (074)

  • / ?

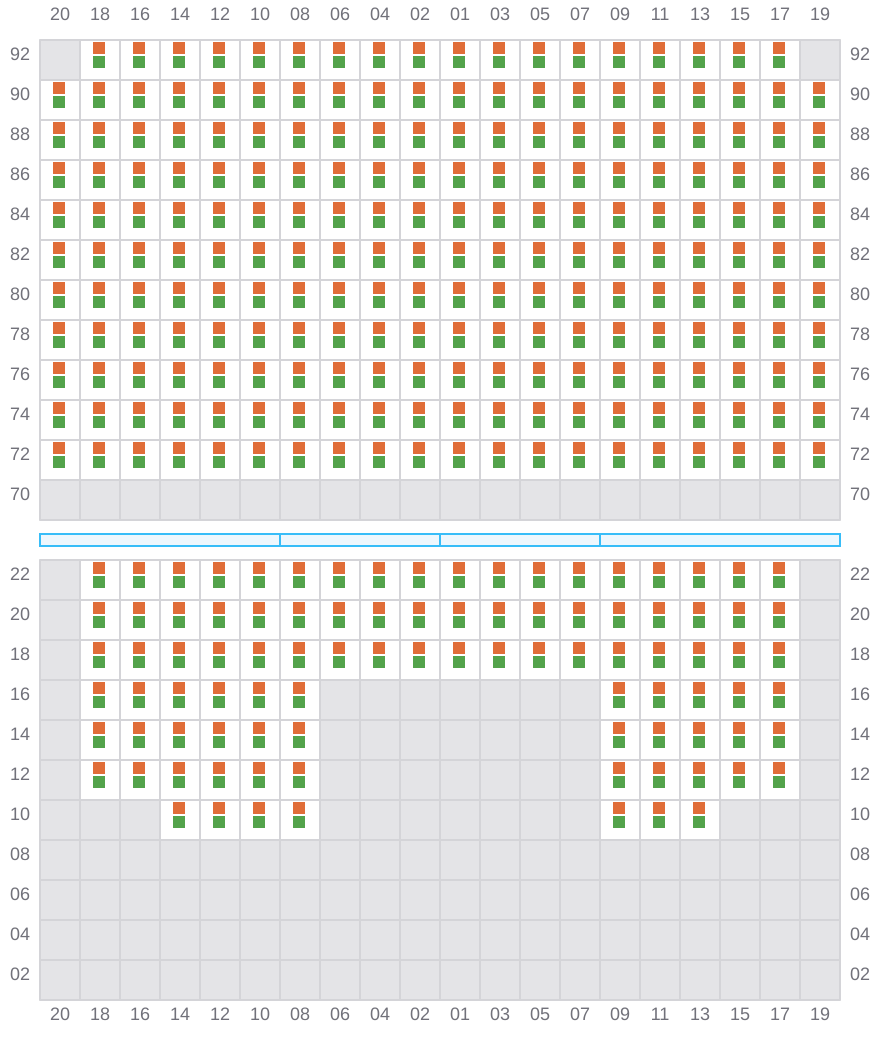

Bay 073 view and slots of AL JMELIYAH

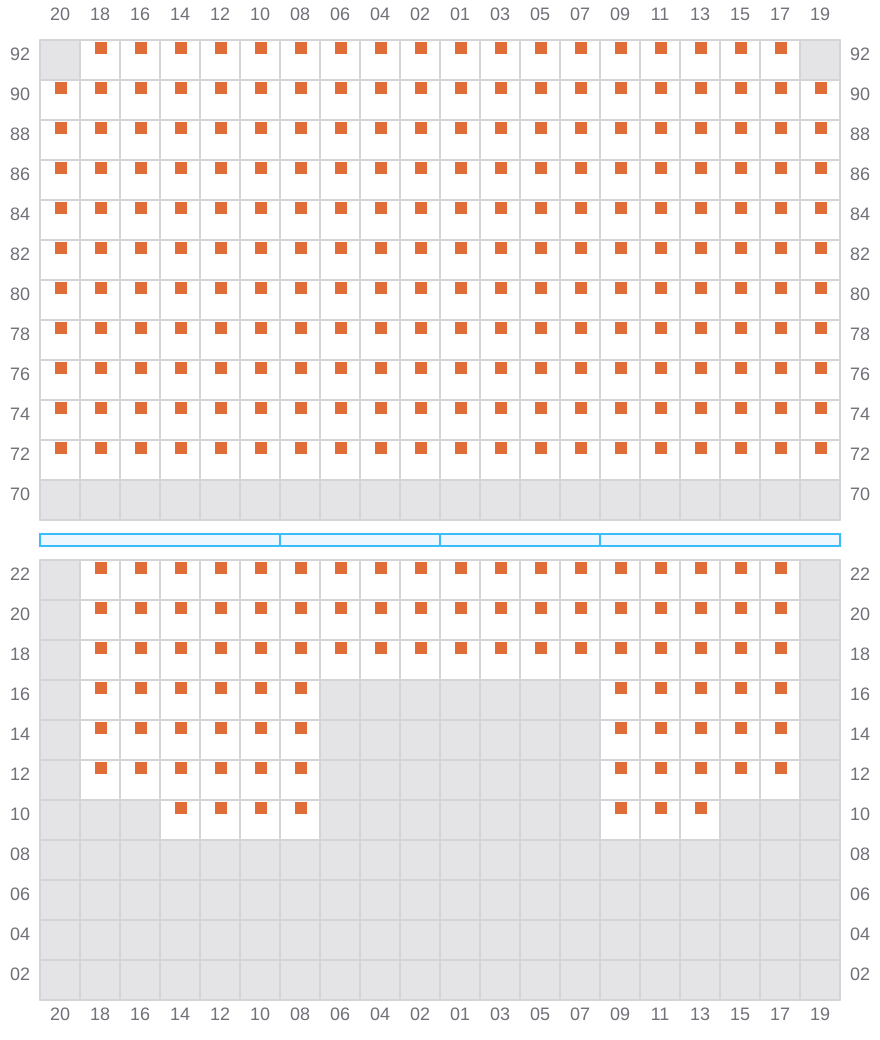

075

  • / ?
Bay 075 view and slots of AL JMELIYAH

077 (078)

  • / ?

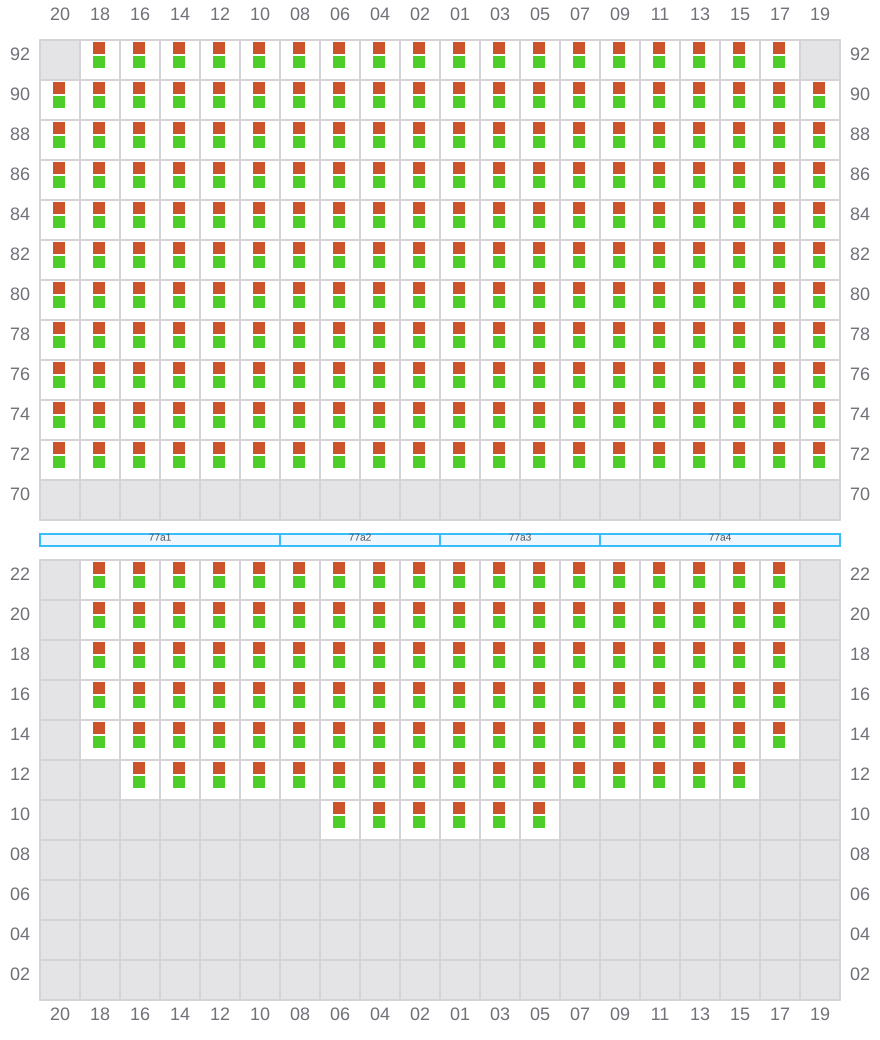

Bay 077 view and slots of AL JMELIYAH

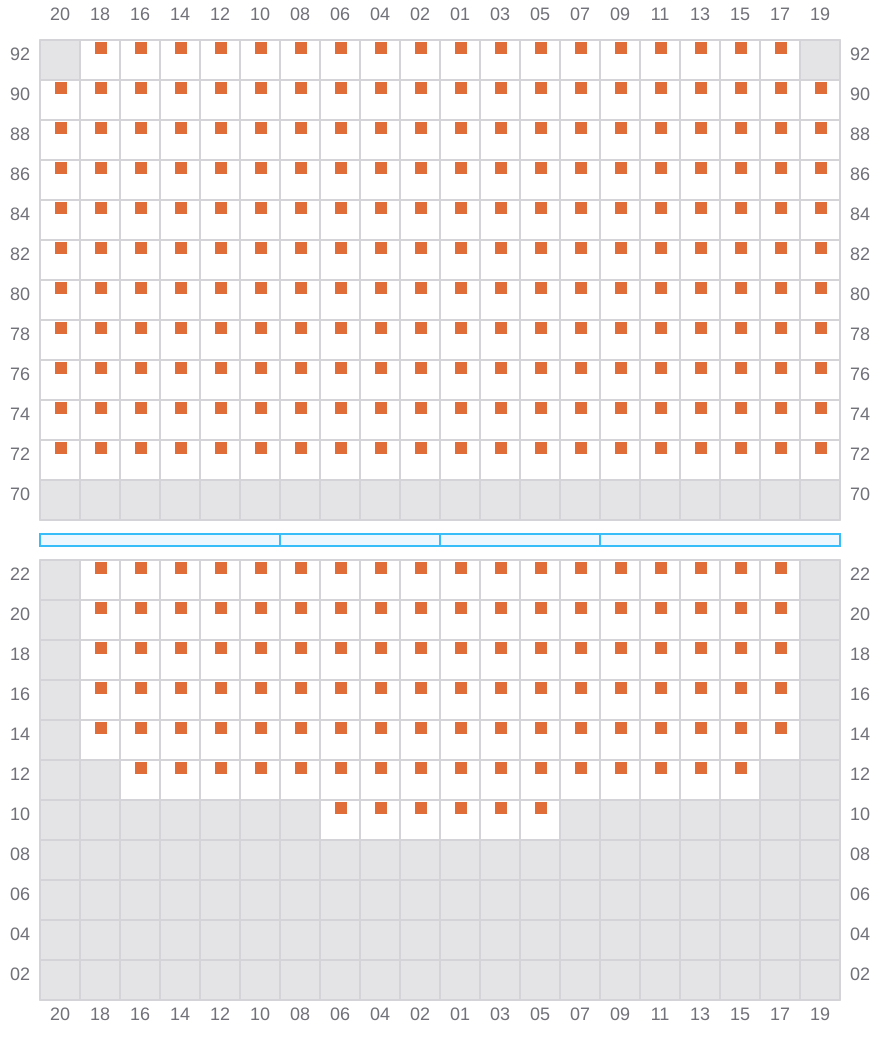

079

  • / ?
Bay 079 view and slots of AL JMELIYAH

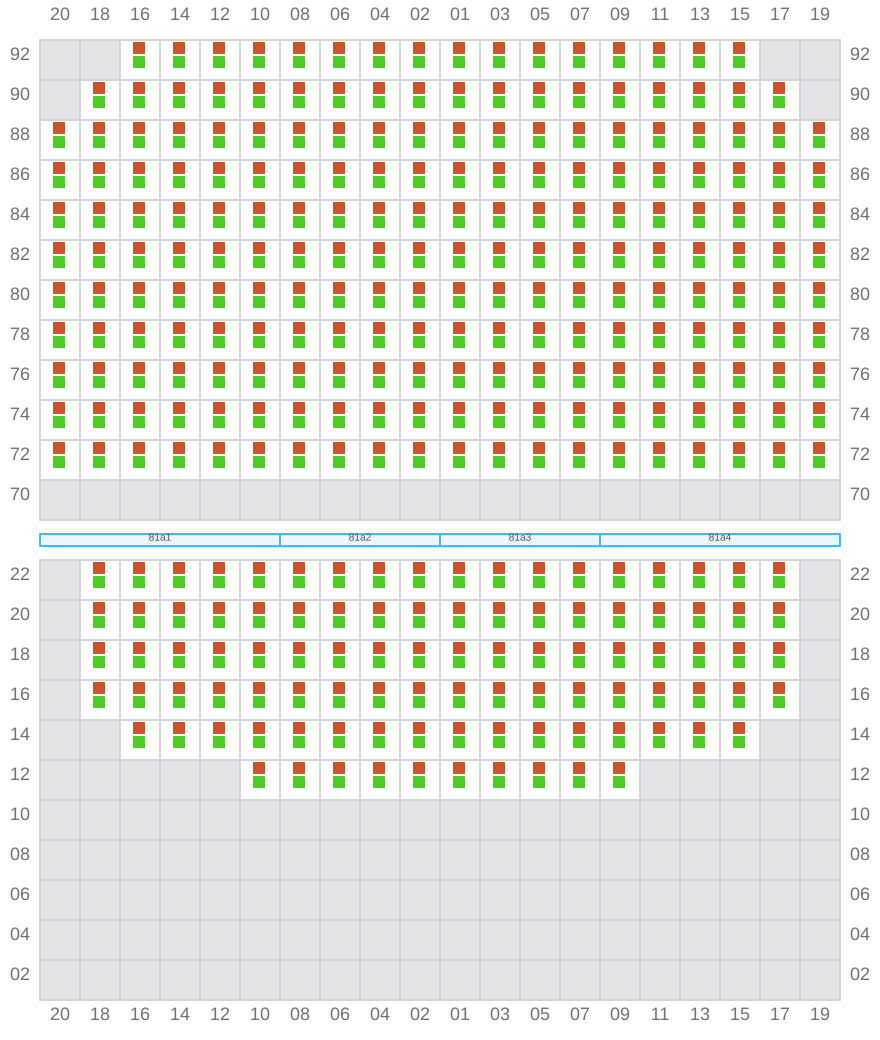

081 (082)

  • / ?
Bay 081 view and slots of AL JMELIYAH

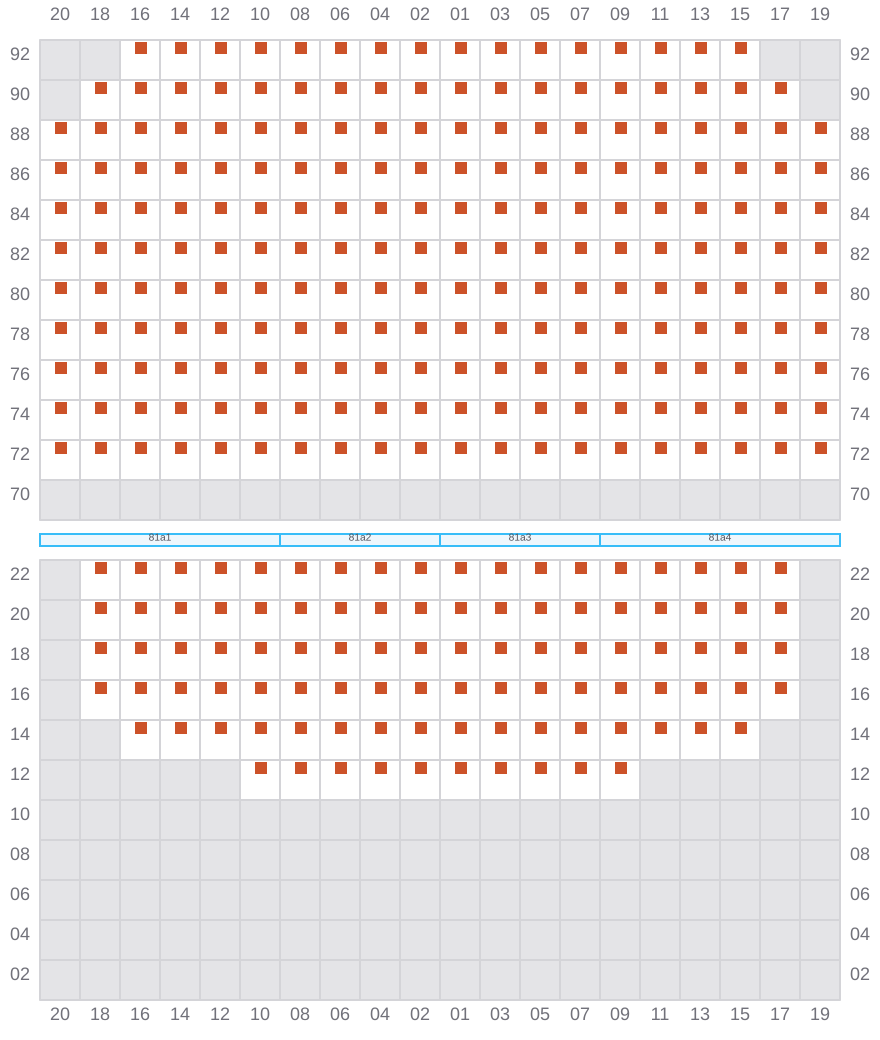

083

  • / ?
Bay 083 view and slots of AL JMELIYAH

085 (086)

  • / ?
  • / ?

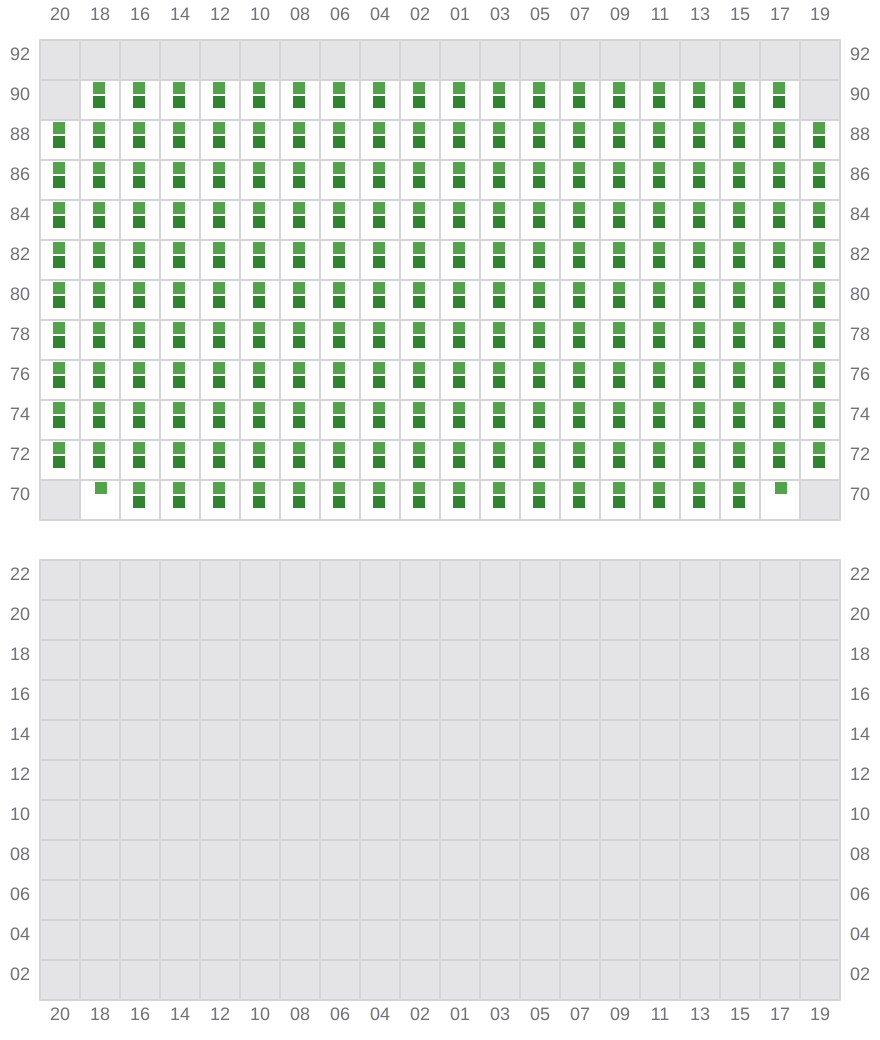

Bay 085 view and slots of AL JMELIYAH
