AL JUBAIL
9547219 | V7A7482 | 9547219 by ********* Last update: Tue May 21 2024
General Info
Ship Name:AL JUBAIL
IMO Code:9547219
Call Sign:V7A7482
Line Operator:9547219
Class Name for Sister Ships:JOLLY TITANIO
Year Built:2014
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:051
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:3,756
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

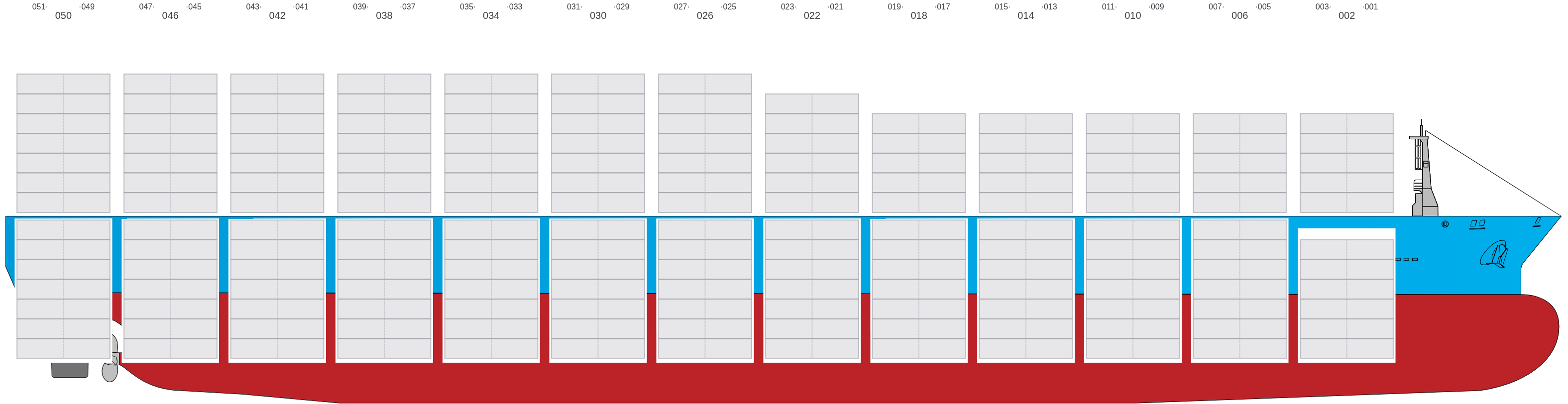

Side View
![Side view of AL JUBAIL](/vessel-images/2631b455-1d8d-46c3-a0d2-8c60a44e8e23-sideView.png?v=1716311983283)

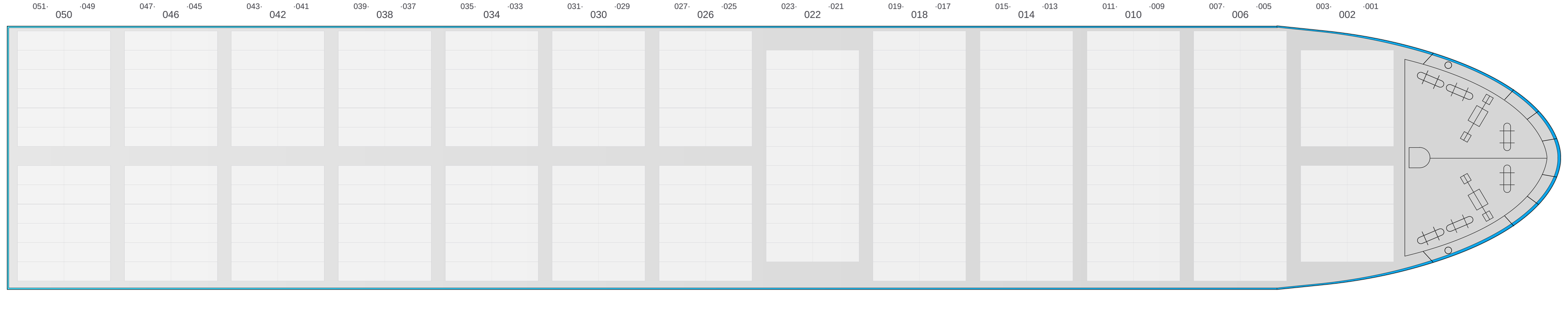

Hatch-Covers View
![Deck view of AL JUBAIL](/vessel-images/2631b455-1d8d-46c3-a0d2-8c60a44e8e23-deckView.png?v=1716311983283)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

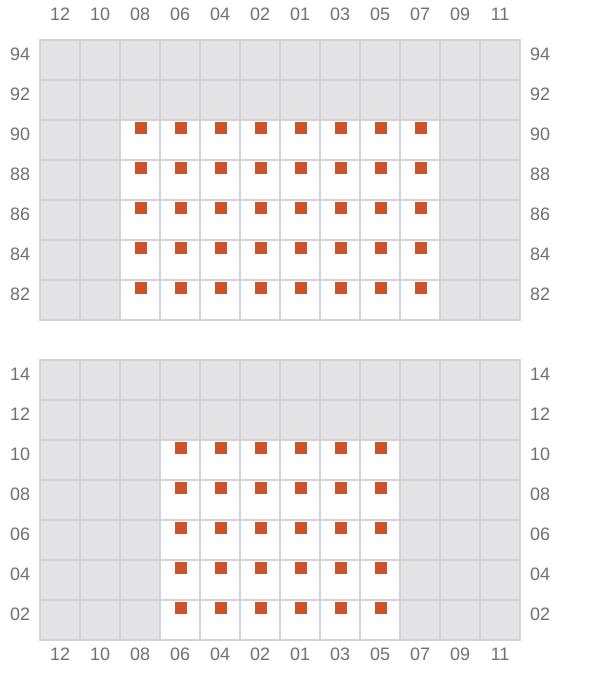

001
- →
![Bay 001 view and slots of AL JUBAIL](/vessel-images/2631b455-1d8d-46c3-a0d2-8c60a44e8e23-b001.png?v=1716311983283)

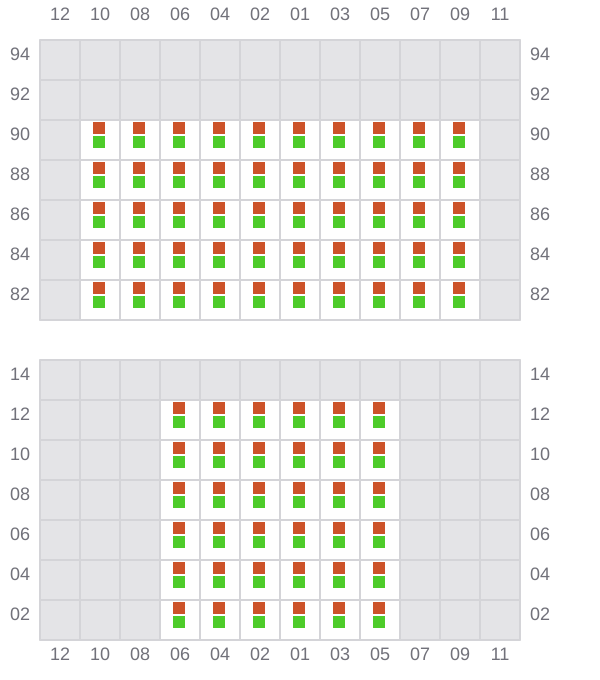

003 (002)
- ←
![Bay 003 view and slots of AL JUBAIL](/vessel-images/2631b455-1d8d-46c3-a0d2-8c60a44e8e23-b003.png?v=1716311983283)
005
- →
![Bay 005 view and slots of AL JUBAIL](/vessel-images/2631b455-1d8d-46c3-a0d2-8c60a44e8e23-b005.png?v=1716311983283)

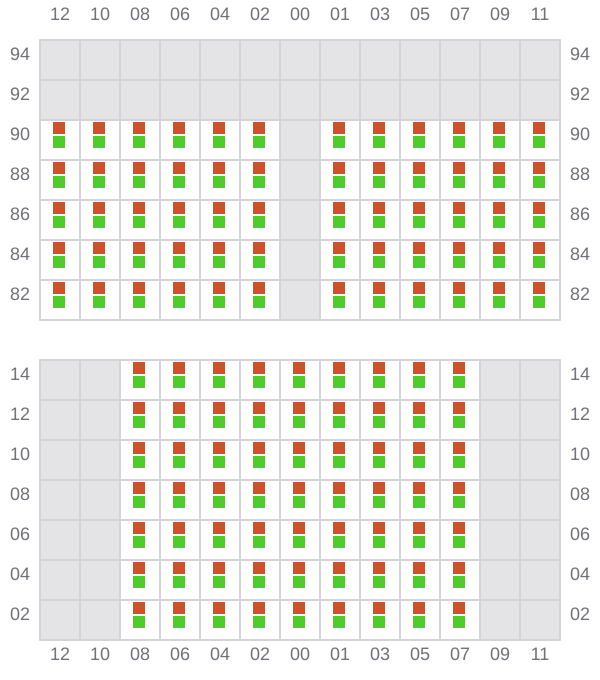

007 (006)
- ←
![Bay 007 view and slots of AL JUBAIL](/vessel-images/2631b455-1d8d-46c3-a0d2-8c60a44e8e23-b007.png?v=1716311983283)

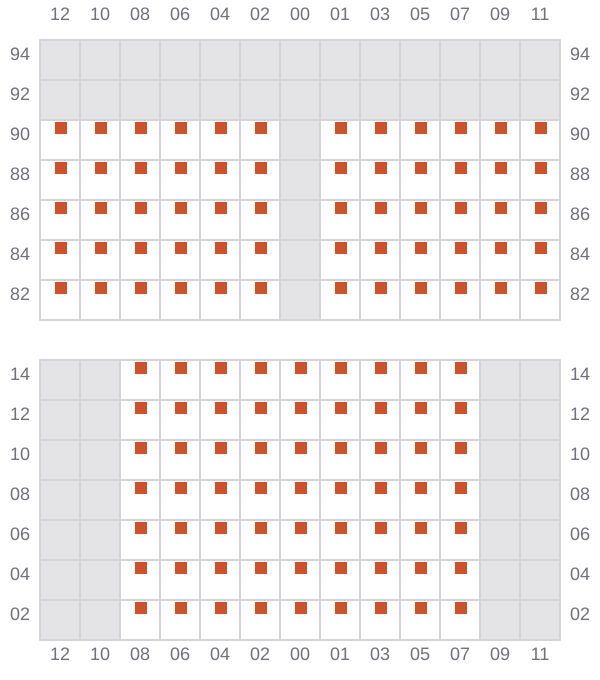

009
- →
![Bay 009 view and slots of AL JUBAIL](/vessel-images/2631b455-1d8d-46c3-a0d2-8c60a44e8e23-b009.png?v=1716311983283)
011 (010)
- ←
![Bay 011 view and slots of AL JUBAIL](/vessel-images/2631b455-1d8d-46c3-a0d2-8c60a44e8e23-b011.png?v=1716311983283)
013
- →
![Bay 013 view and slots of AL JUBAIL](/vessel-images/2631b455-1d8d-46c3-a0d2-8c60a44e8e23-b013.png?v=1716311983283)
015 (014)
- ←
![Bay 015 view and slots of AL JUBAIL](/vessel-images/2631b455-1d8d-46c3-a0d2-8c60a44e8e23-b015.png?v=1716311983283)
017
- →
![Bay 017 view and slots of AL JUBAIL](/vessel-images/2631b455-1d8d-46c3-a0d2-8c60a44e8e23-b017.png?v=1716311983283)
019 (018)
- ←
![Bay 019 view and slots of AL JUBAIL](/vessel-images/2631b455-1d8d-46c3-a0d2-8c60a44e8e23-b019.png?v=1716311983283)

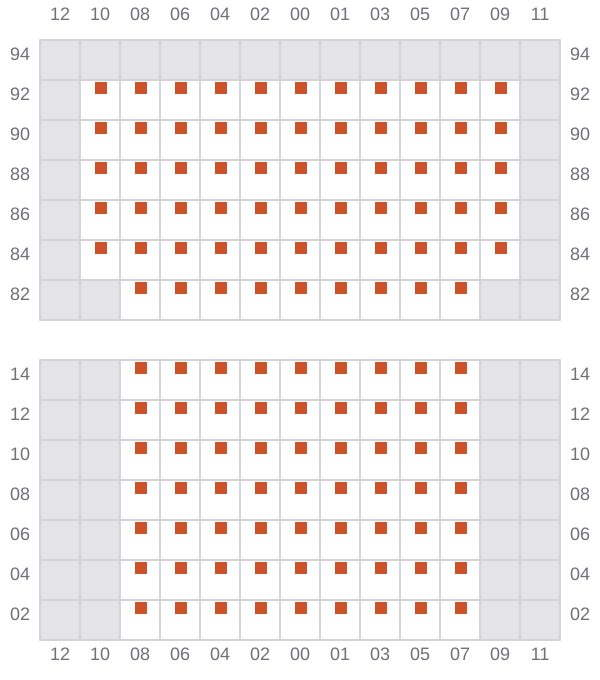

021
- →
![Bay 021 view and slots of AL JUBAIL](/vessel-images/2631b455-1d8d-46c3-a0d2-8c60a44e8e23-b021.png?v=1716311983283)

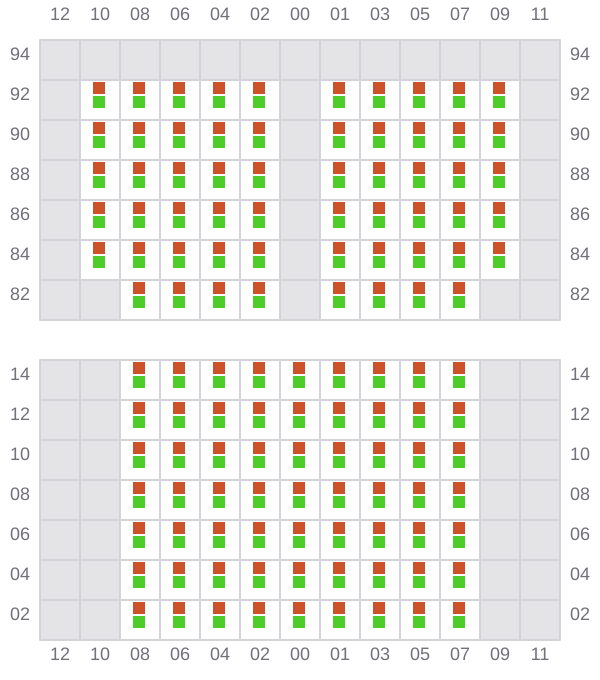

023 (022)
- ←
![Bay 023 view and slots of AL JUBAIL](/vessel-images/2631b455-1d8d-46c3-a0d2-8c60a44e8e23-b023.png?v=1716311983283)
025
- →
![Bay 025 view and slots of AL JUBAIL](/vessel-images/2631b455-1d8d-46c3-a0d2-8c60a44e8e23-b025.png?v=1716311983283)
027 (026)
- ←
![Bay 027 view and slots of AL JUBAIL](/vessel-images/2631b455-1d8d-46c3-a0d2-8c60a44e8e23-b027.png?v=1716311983283)

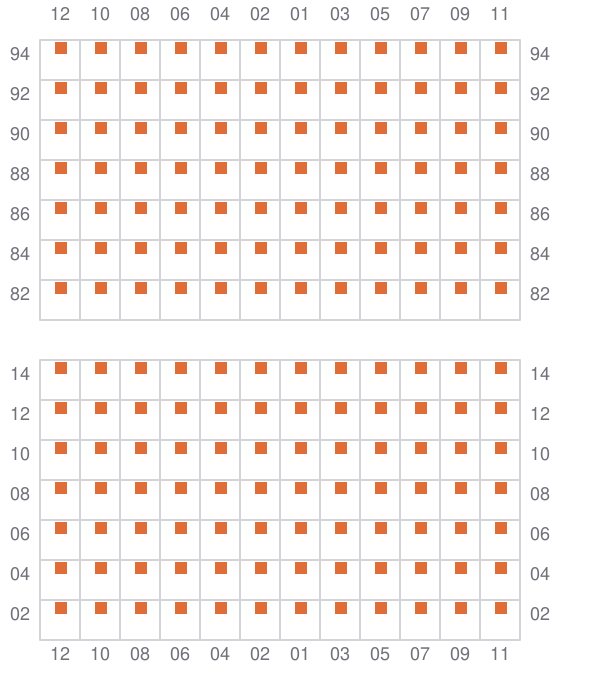

029
- →
![Bay 029 view and slots of AL JUBAIL](/vessel-images/2631b455-1d8d-46c3-a0d2-8c60a44e8e23-b029.png?v=1716311983283)

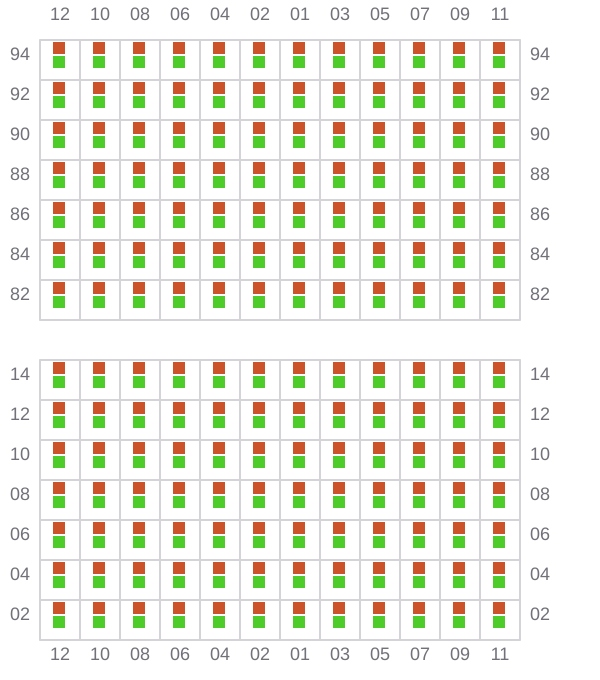

031 (030)
- ←
![Bay 031 view and slots of AL JUBAIL](/vessel-images/2631b455-1d8d-46c3-a0d2-8c60a44e8e23-b031.png?v=1716311983283)
033
- →
![Bay 033 view and slots of AL JUBAIL](/vessel-images/2631b455-1d8d-46c3-a0d2-8c60a44e8e23-b033.png?v=1716311983283)
035 (034)
- ←
![Bay 035 view and slots of AL JUBAIL](/vessel-images/2631b455-1d8d-46c3-a0d2-8c60a44e8e23-b035.png?v=1716311983283)
037
- →
![Bay 037 view and slots of AL JUBAIL](/vessel-images/2631b455-1d8d-46c3-a0d2-8c60a44e8e23-b037.png?v=1716311983283)
039 (038)
- ←
![Bay 039 view and slots of AL JUBAIL](/vessel-images/2631b455-1d8d-46c3-a0d2-8c60a44e8e23-b039.png?v=1716311983283)
041
- →
![Bay 041 view and slots of AL JUBAIL](/vessel-images/2631b455-1d8d-46c3-a0d2-8c60a44e8e23-b041.png?v=1716311983283)
043 (042)
- ←
![Bay 043 view and slots of AL JUBAIL](/vessel-images/2631b455-1d8d-46c3-a0d2-8c60a44e8e23-b043.png?v=1716311983283)
045
- →
![Bay 045 view and slots of AL JUBAIL](/vessel-images/2631b455-1d8d-46c3-a0d2-8c60a44e8e23-b045.png?v=1716311983283)
047 (046)
- ←
![Bay 047 view and slots of AL JUBAIL](/vessel-images/2631b455-1d8d-46c3-a0d2-8c60a44e8e23-b047.png?v=1716311983283)
049
- →
![Bay 049 view and slots of AL JUBAIL](/vessel-images/2631b455-1d8d-46c3-a0d2-8c60a44e8e23-b049.png?v=1716311983283)
051 (050)
- ←
![Bay 051 view and slots of AL JUBAIL](/vessel-images/2631b455-1d8d-46c3-a0d2-8c60a44e8e23-b051.png?v=1716311983283)
