AL MURABBA
9708837 | 5LLA7 | HLC by *********************** Last update: Fri Feb 07 2025

General Info

Ship Name:AL MURABBA
IMO Code:9708837
Call Sign:5LLA7
Line Operator:HLC
Class Name for Sister Ships:HALM
Year Built:2015
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):352.95
LOA (Length Overall):368.52
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:085
Max ISO Row:20
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:70
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:14,994

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Known
TCG Data:100%

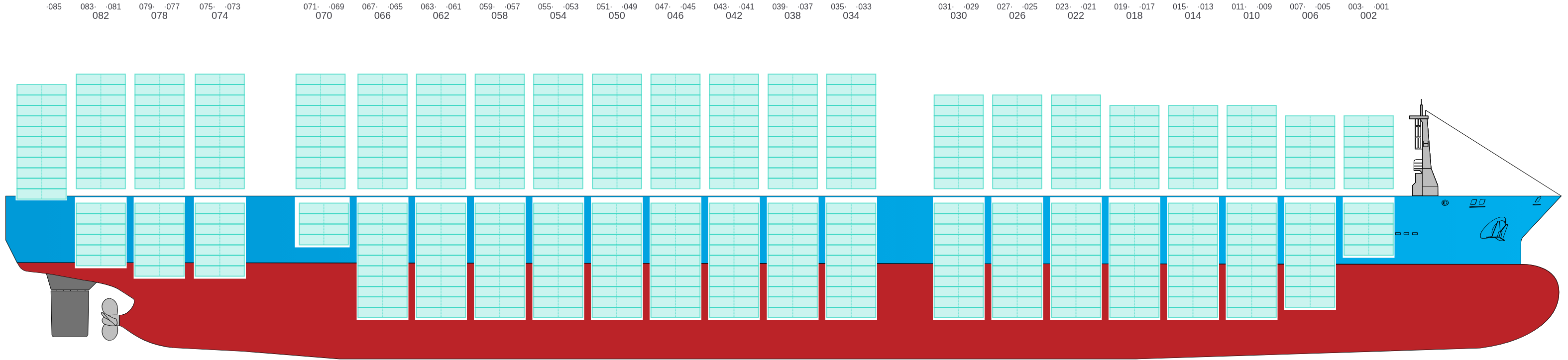

Side View

Side view of AL MURABBA

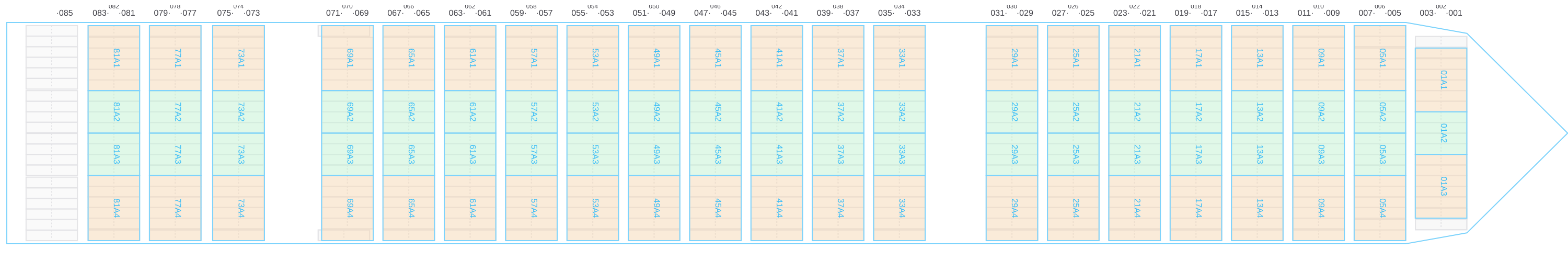

Hatch-Covers View

Deck view of AL MURABBA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →
  • →

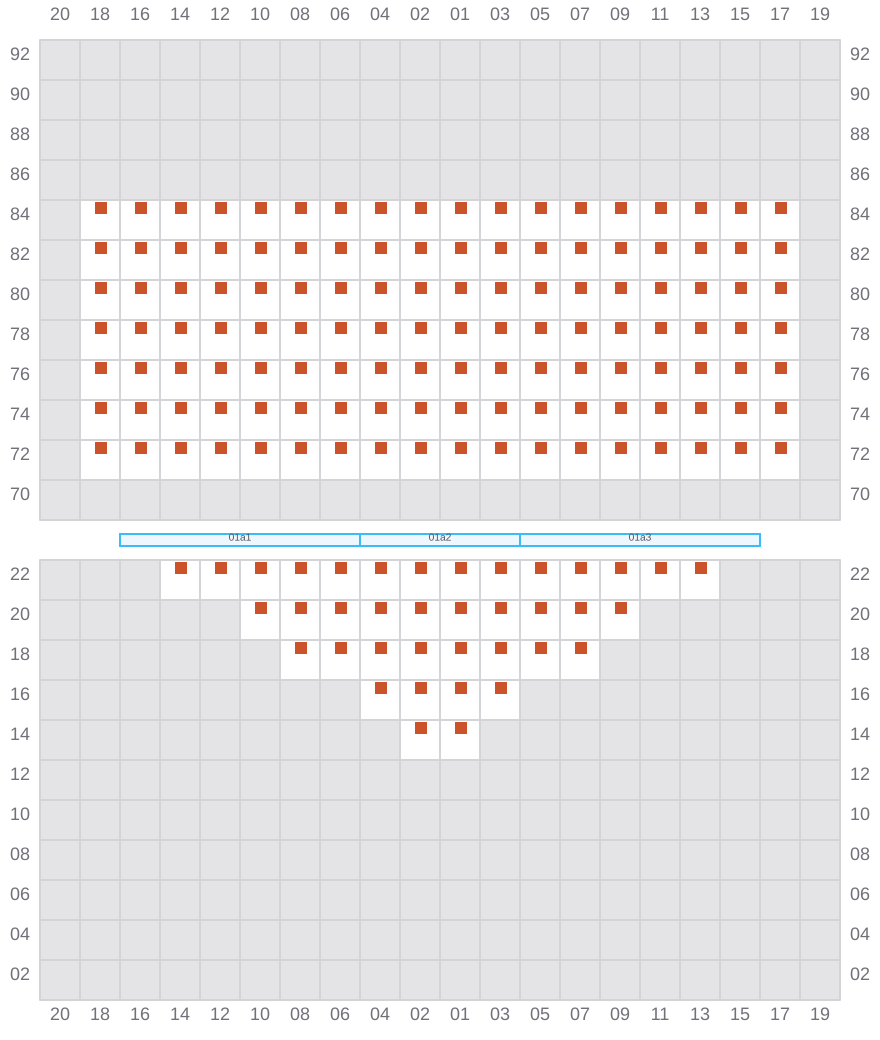

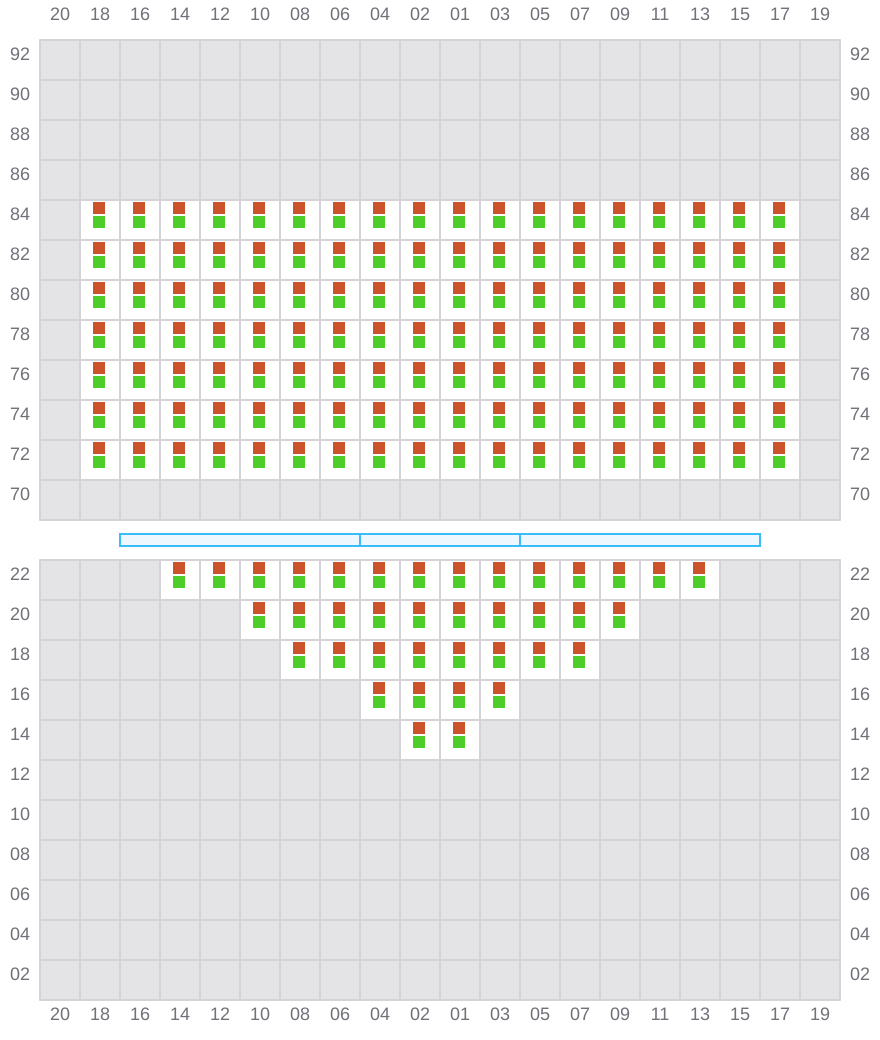

Bay 001 view and slots of AL MURABBA

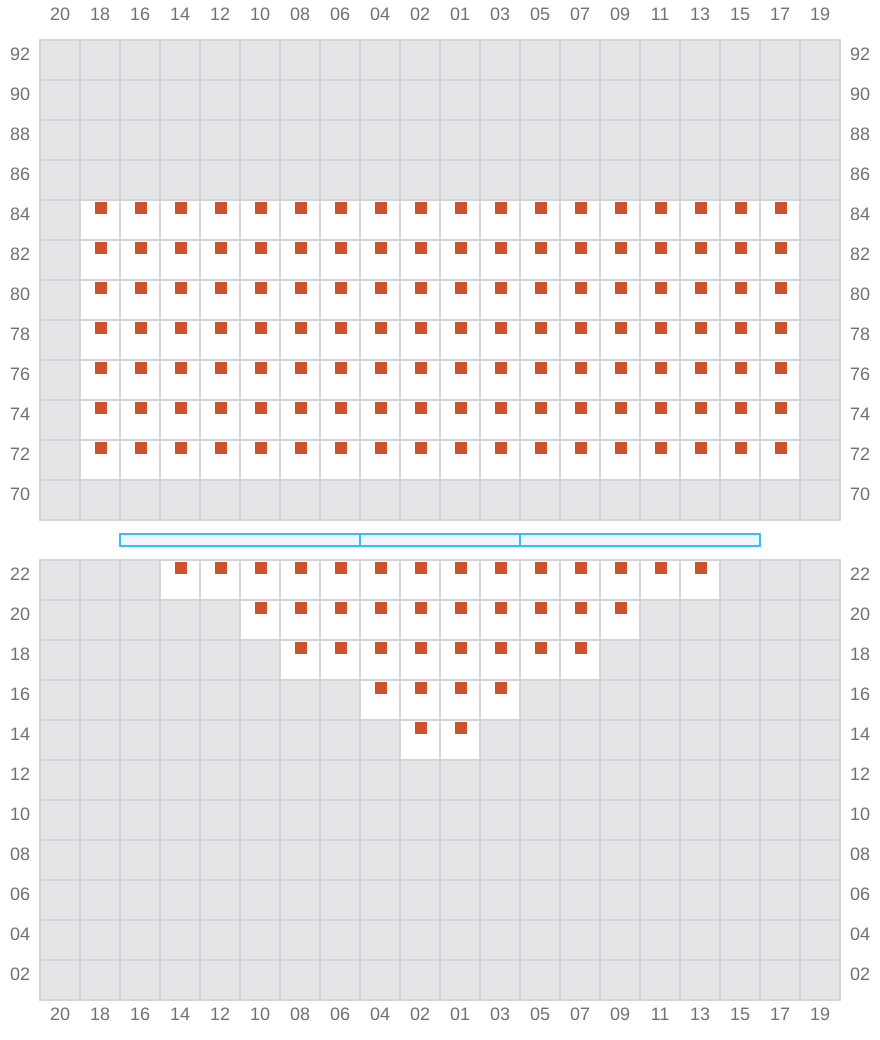

003

  • ←
  • →
Bay 003 view and slots of AL MURABBA

005 (006)

  • →
  • → / ?
  • →

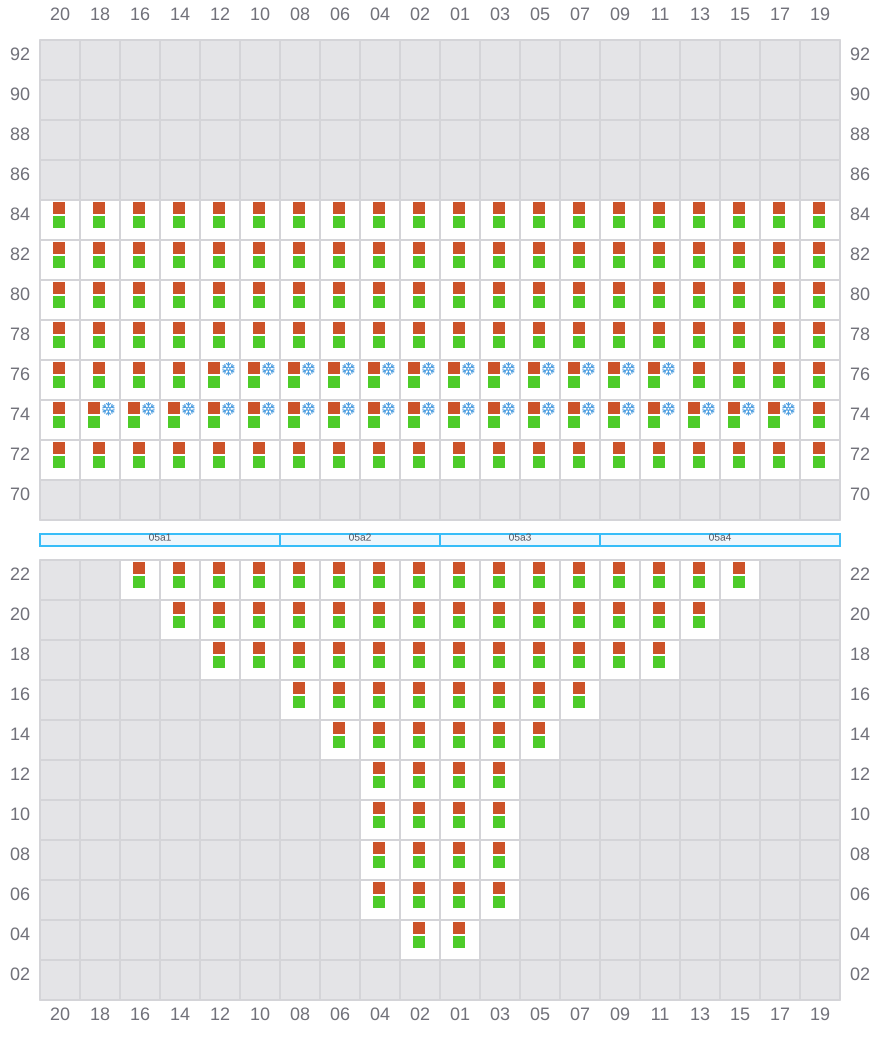

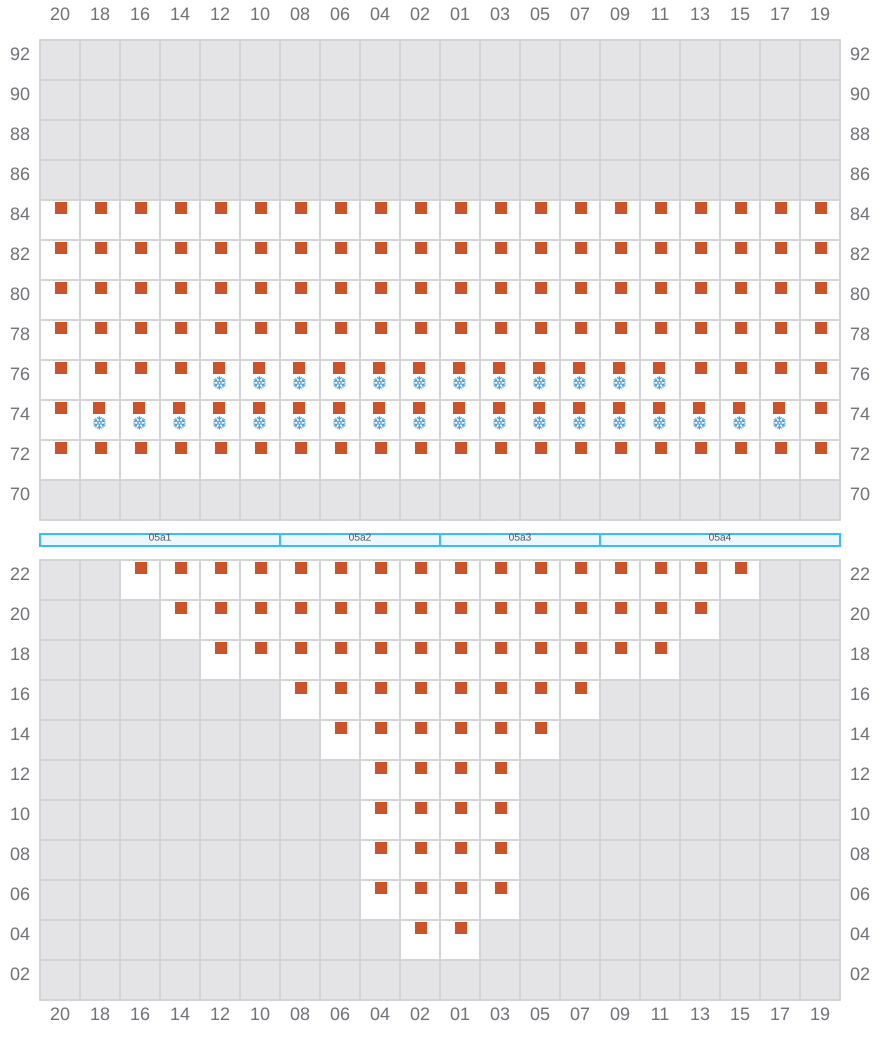

Bay 005 view and slots of AL MURABBA

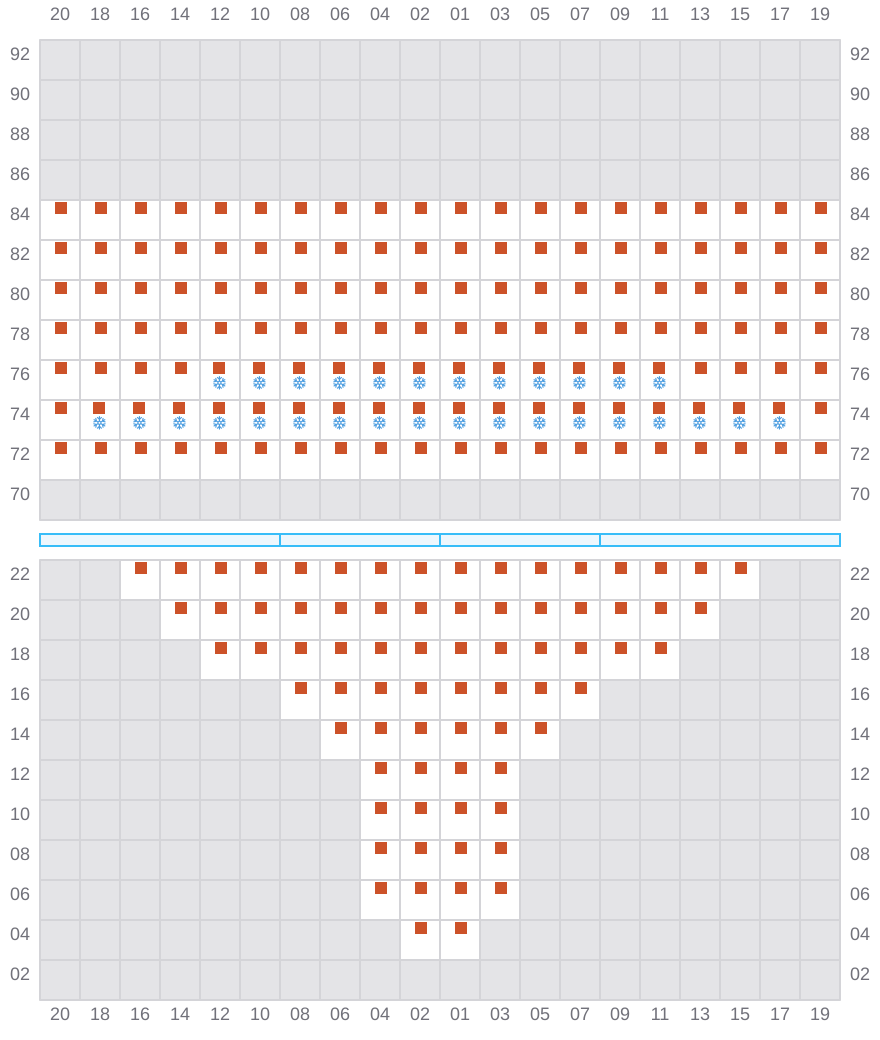

007

  • ←
  • → / ?
  • →
Bay 007 view and slots of AL MURABBA

009 (010)

  • →
  • → / ?
  • →

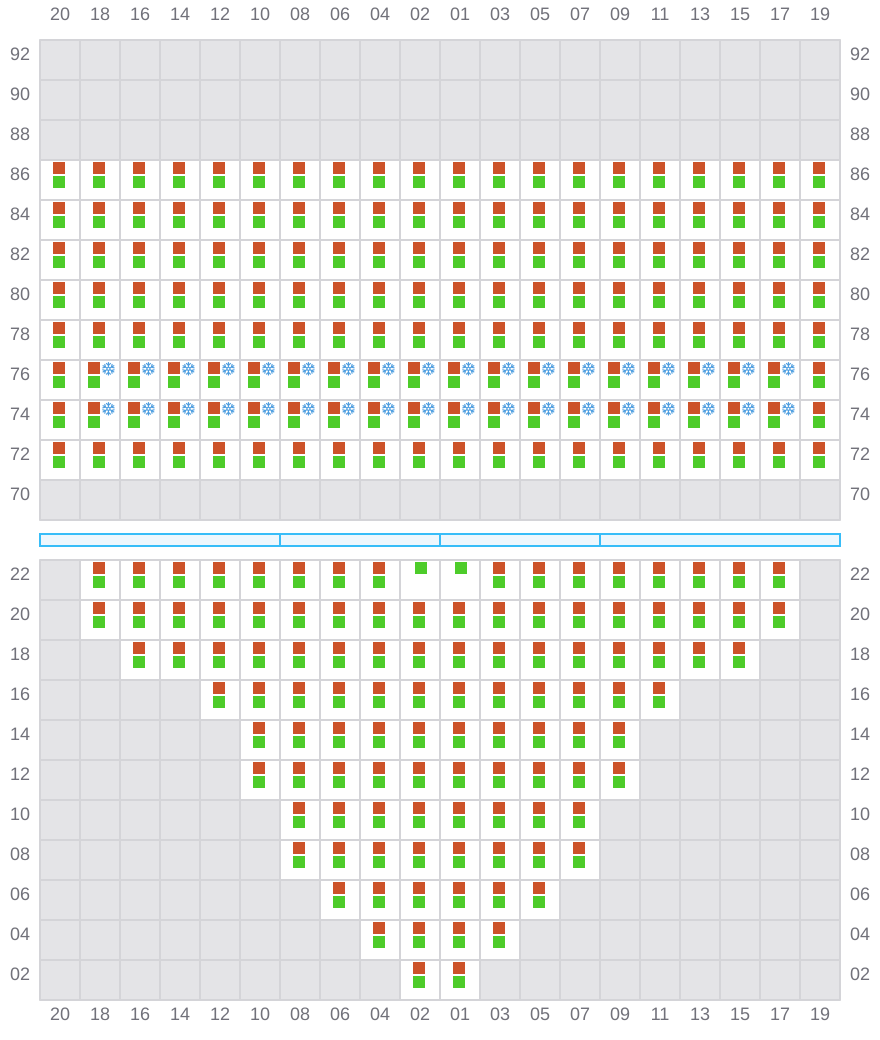

Bay 009 view and slots of AL MURABBA

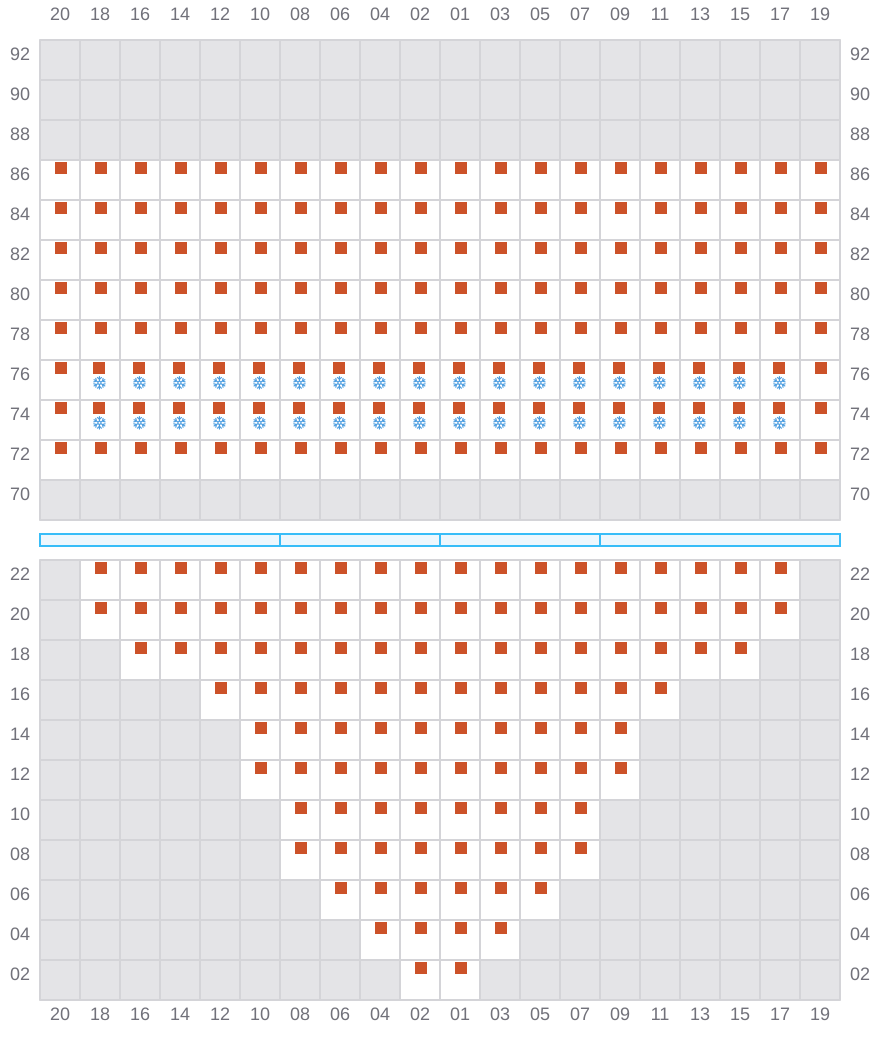

011

  • ←
  • → / ?
  • →

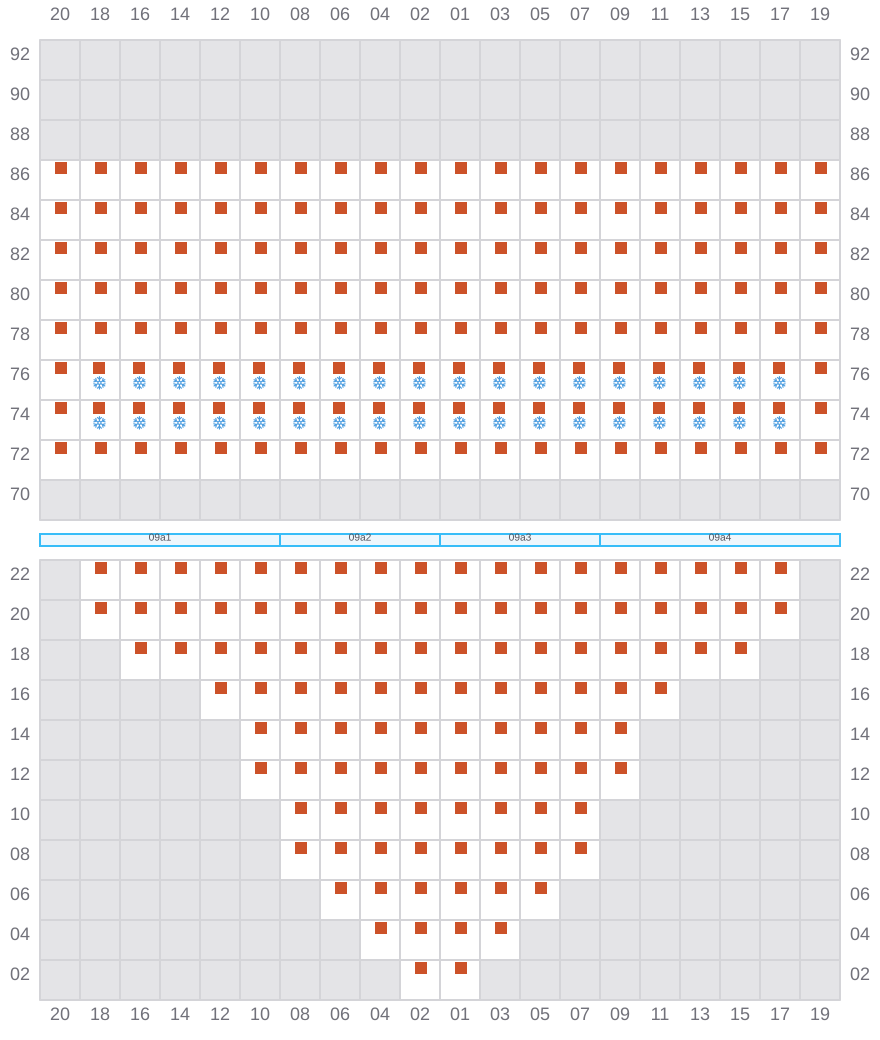

Bay 011 view and slots of AL MURABBA

013 (014)

  • →
  • → / ?
  • →
Bay 013 view and slots of AL MURABBA

015

  • ←
  • → / ?
  • →
Bay 015 view and slots of AL MURABBA

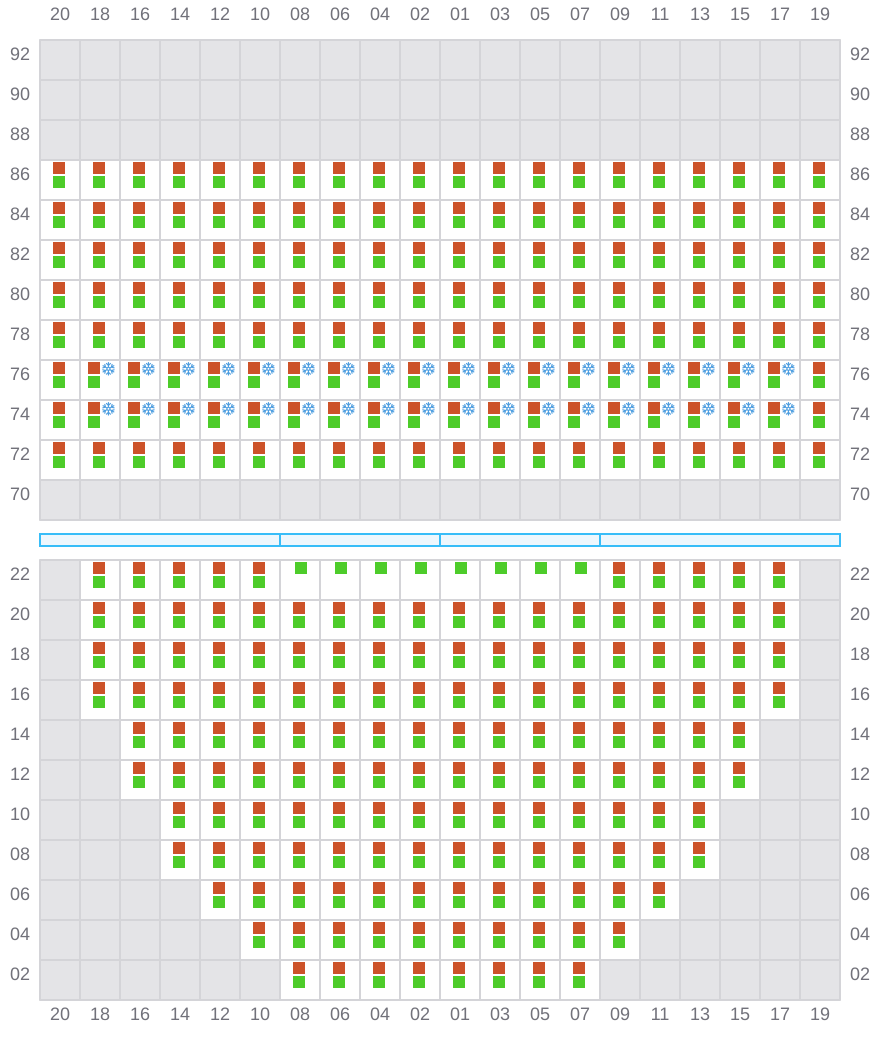

017 (018)

  • →
  • → / ?
  • →

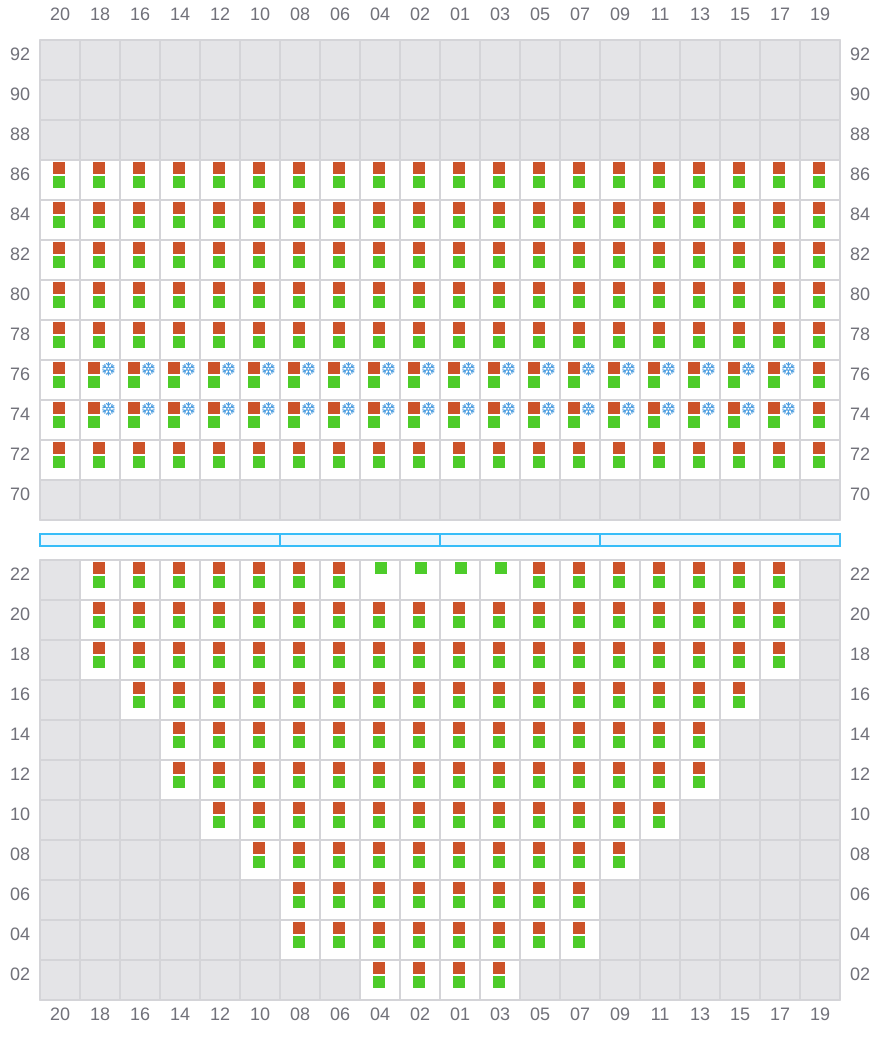

Bay 017 view and slots of AL MURABBA

019

  • ←
  • → / ?
  • →

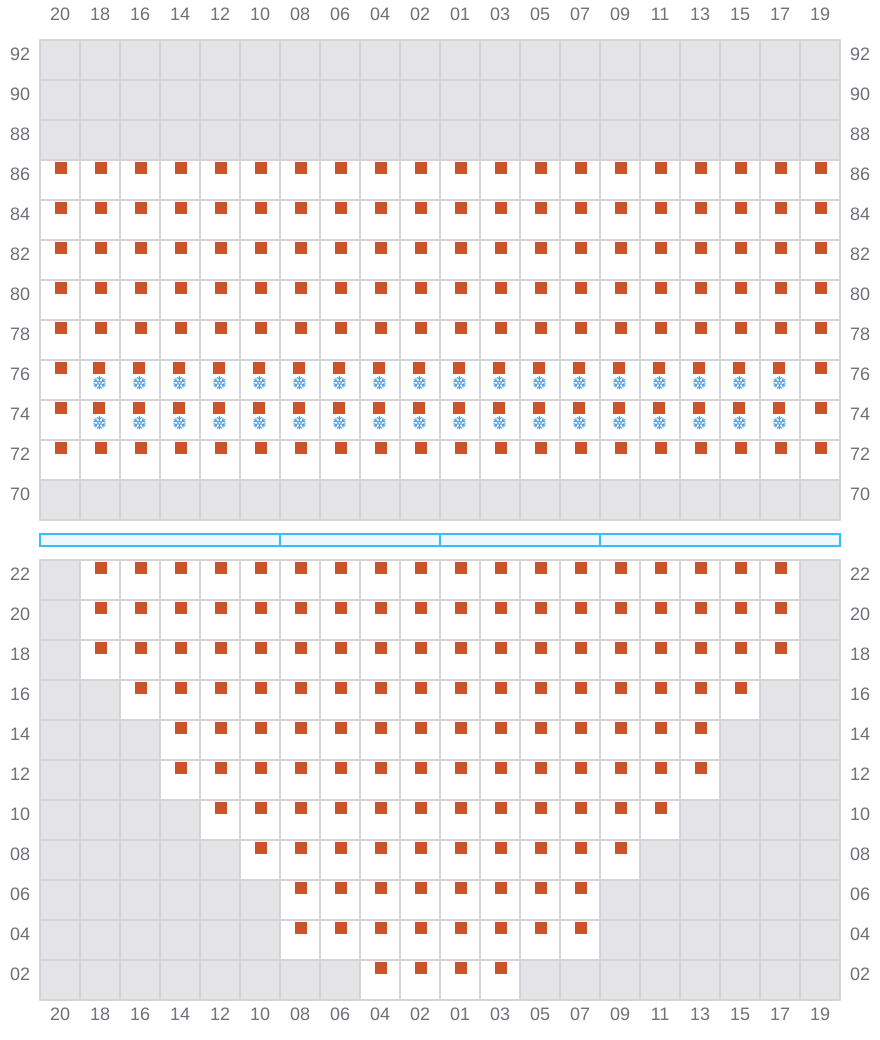

Bay 019 view and slots of AL MURABBA

021 (022)

  • →
  • → / ?
  • →

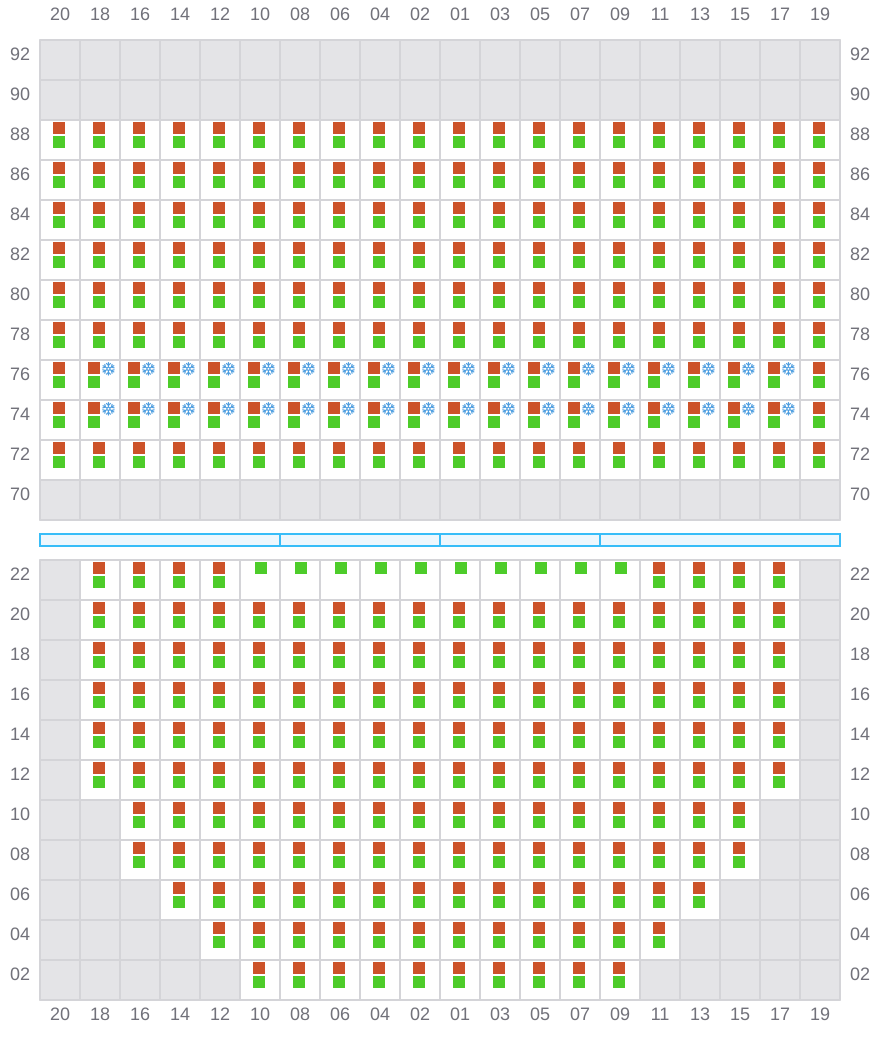

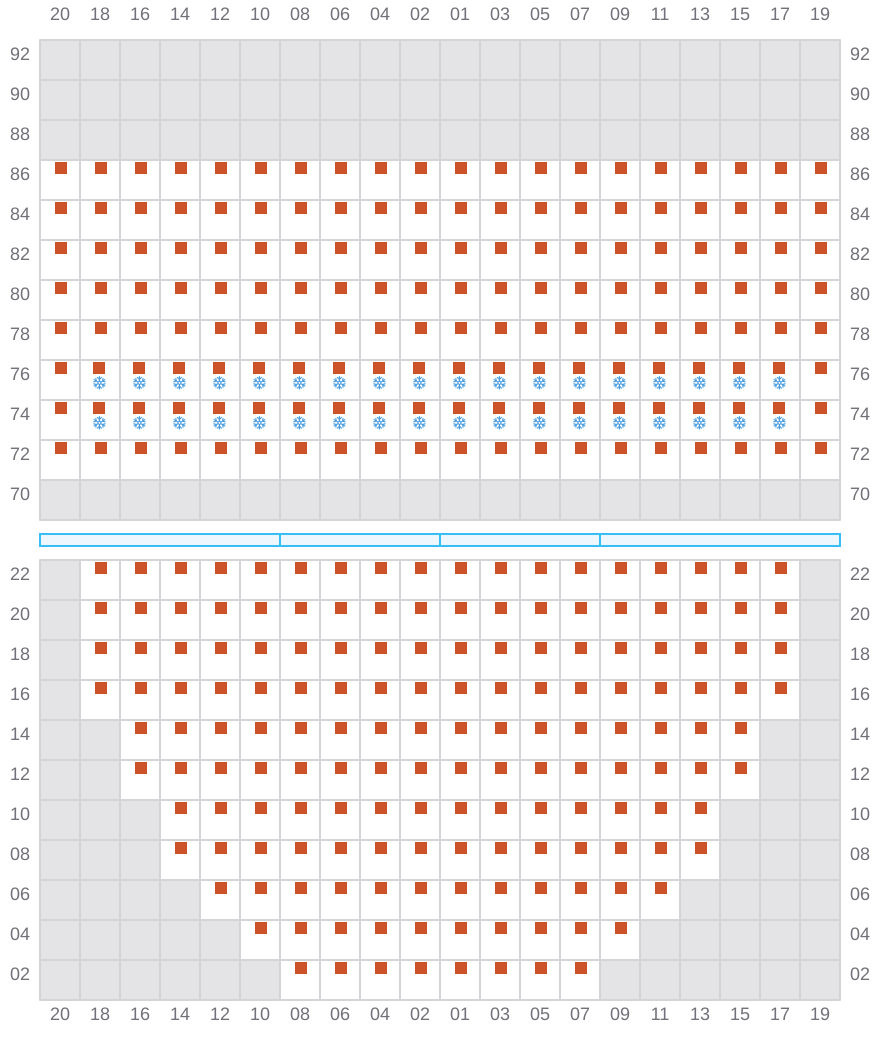

Bay 021 view and slots of AL MURABBA

023

  • ←
  • → / ?
  • →

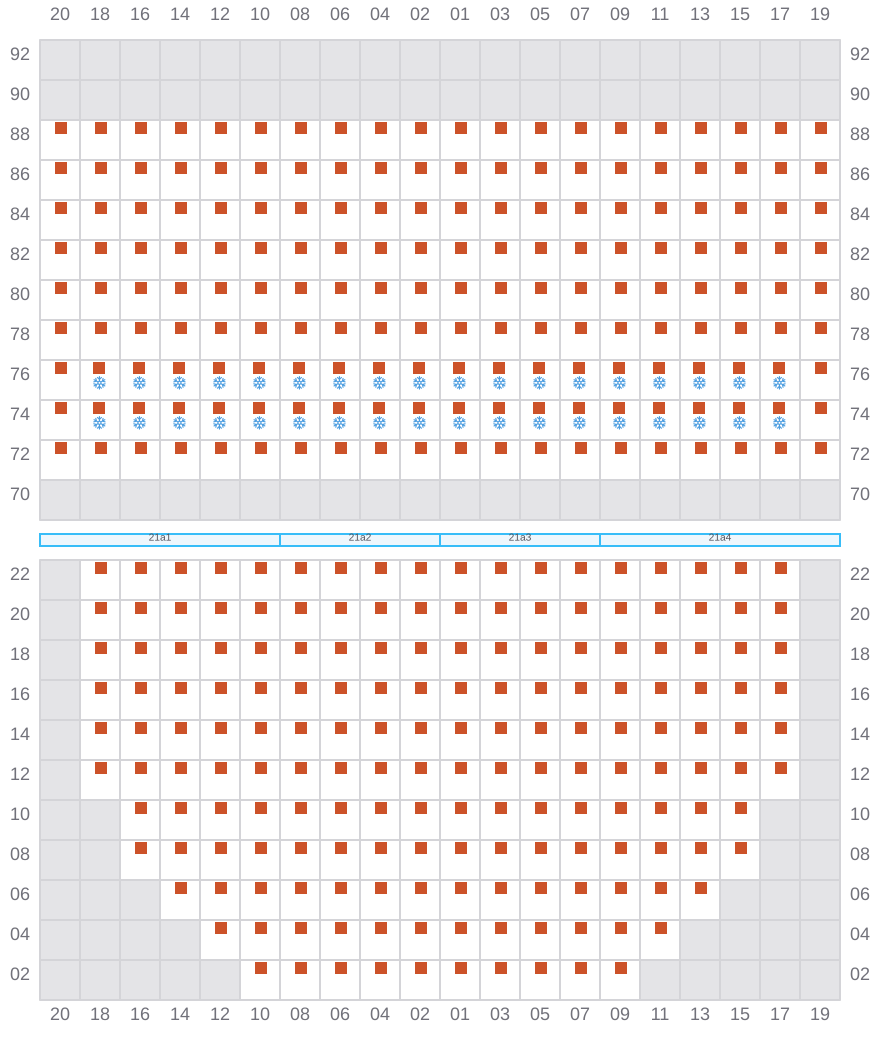

Bay 023 view and slots of AL MURABBA

025 (026)

  • →
  • → / ?
  • →

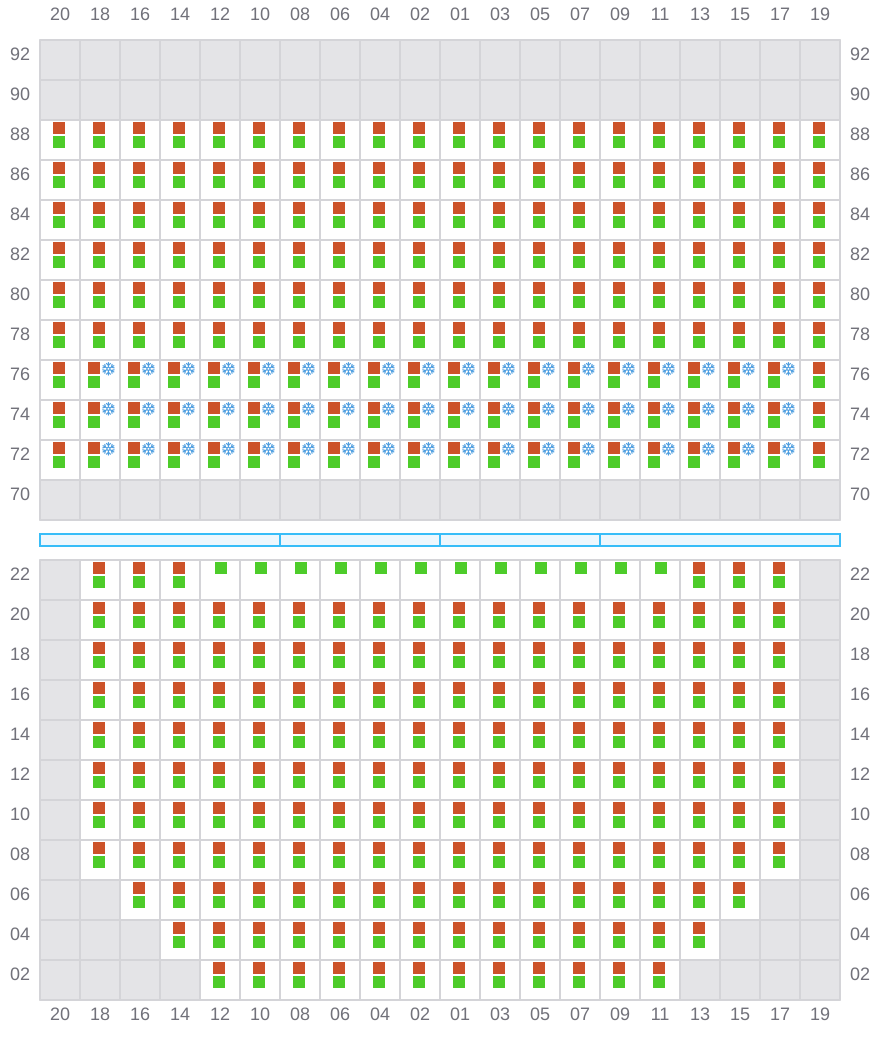

Bay 025 view and slots of AL MURABBA

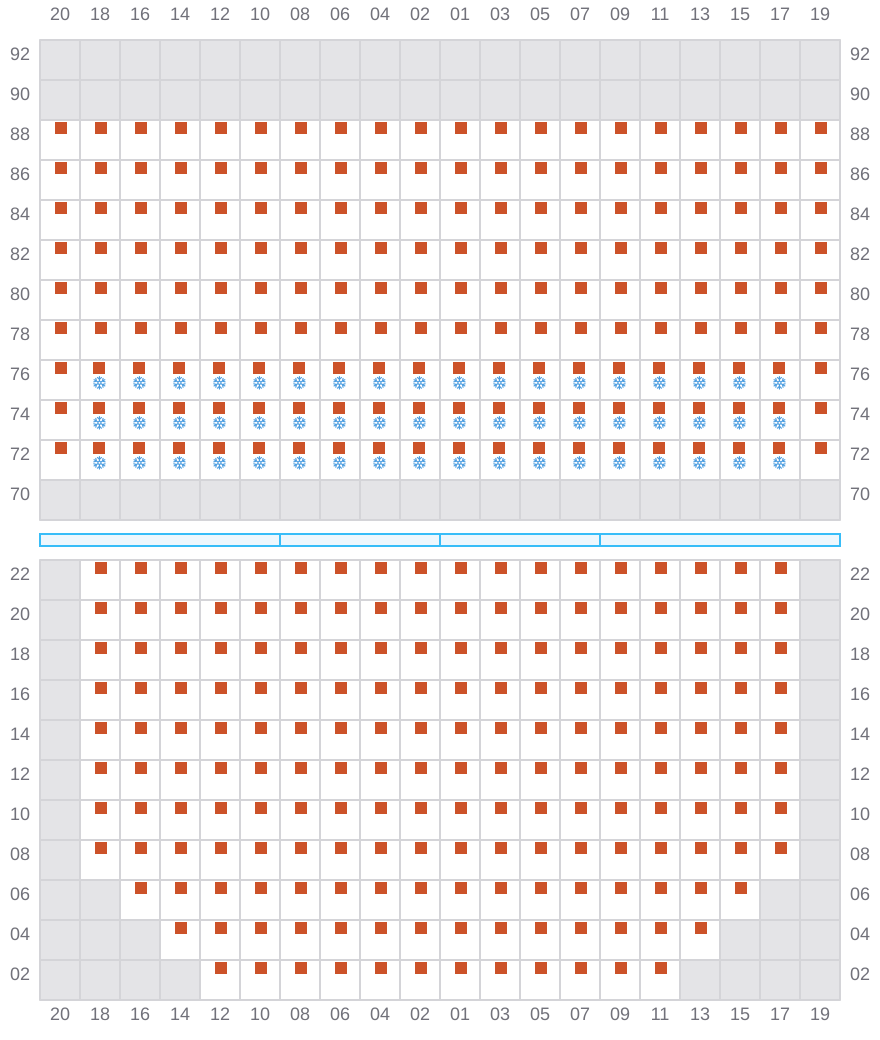

027

  • ←
  • → / ?
  • →
Bay 027 view and slots of AL MURABBA

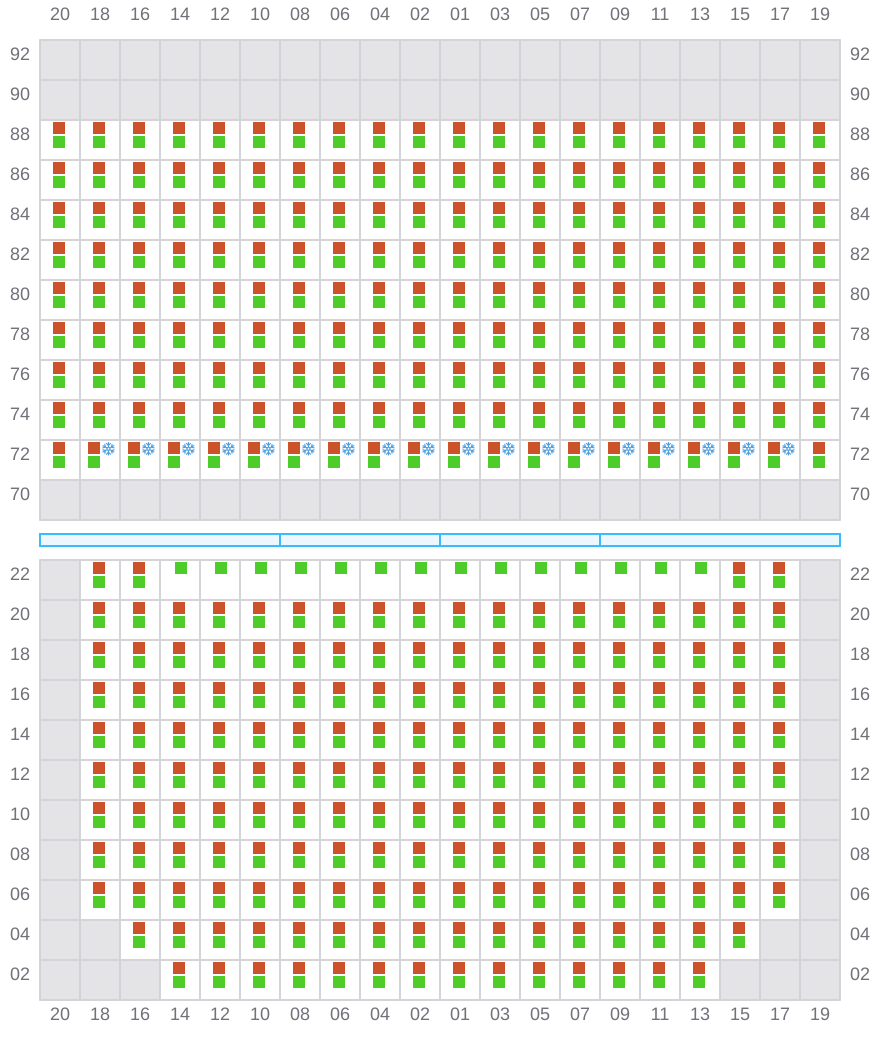

029 (030)

  • →
  • → / ?
  • →

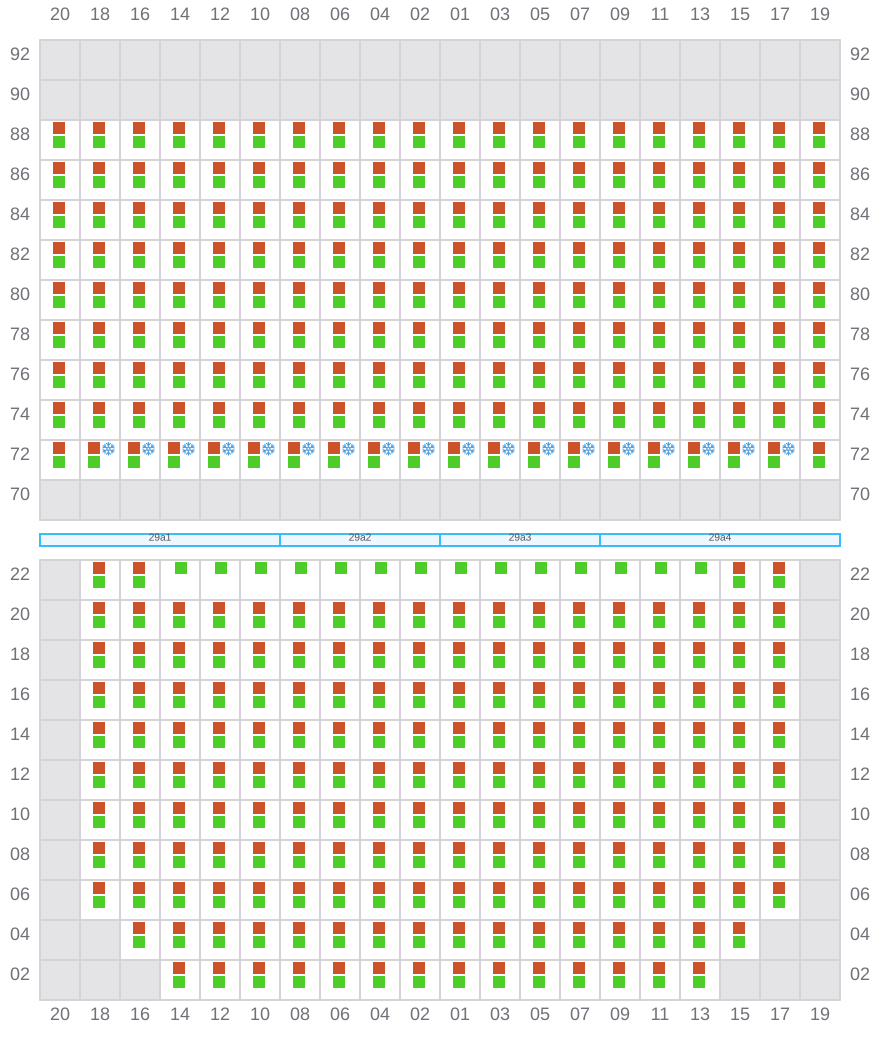

Bay 029 view and slots of AL MURABBA

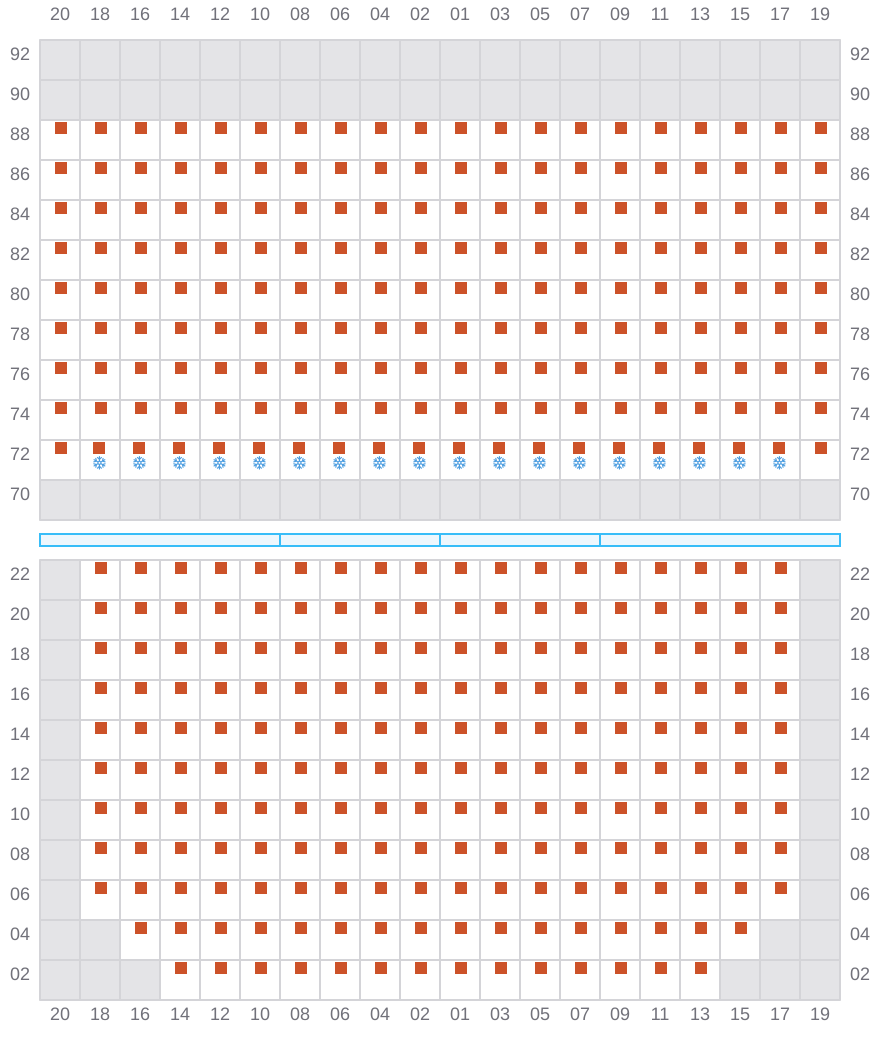

031

  • ←
  • → / ?
  • →
Bay 031 view and slots of AL MURABBA

033 (034)

  • →
  • → / ?
  • →

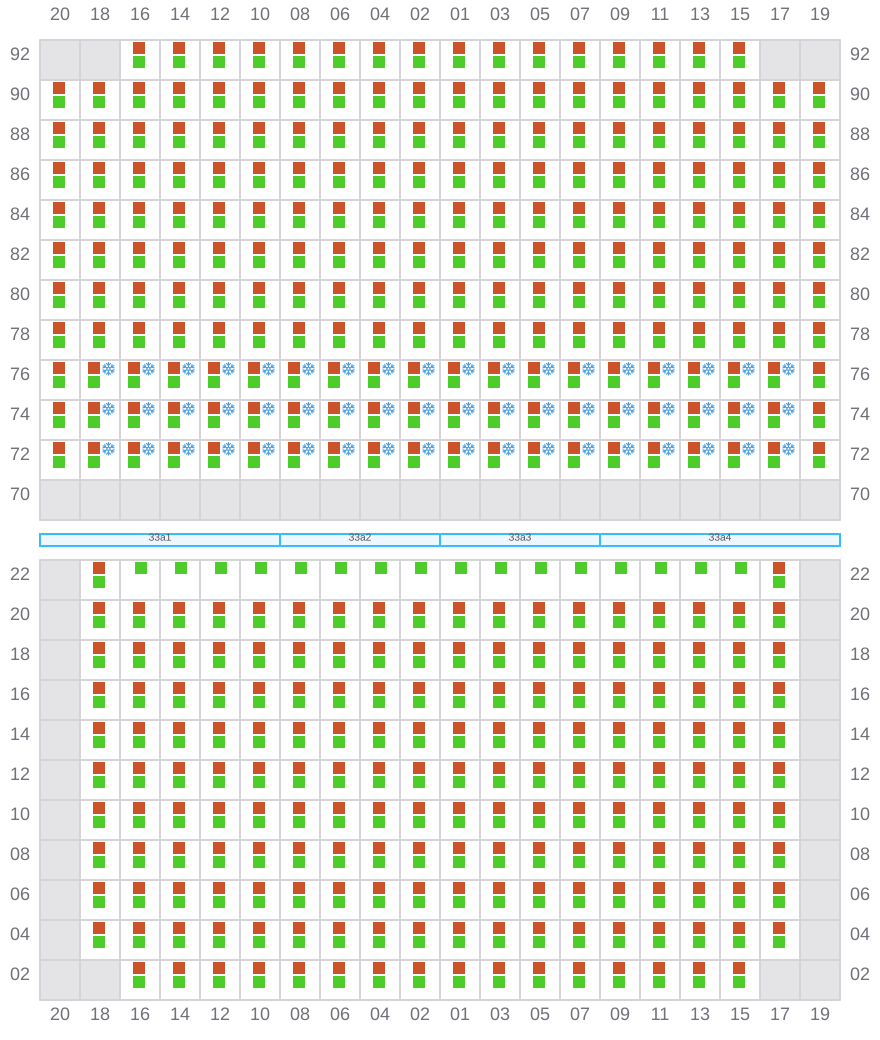

Bay 033 view and slots of AL MURABBA

035

  • ←
  • → / ?
  • →
Bay 035 view and slots of AL MURABBA

037 (038)

  • →
  • → / ?
  • →
Bay 037 view and slots of AL MURABBA

039

  • ←
  • → / ?
  • →
Bay 039 view and slots of AL MURABBA

041 (042)

  • →
  • → / ?
  • →
Bay 041 view and slots of AL MURABBA

043

  • ←
  • → / ?
  • →
Bay 043 view and slots of AL MURABBA

045 (046)

  • →
  • → / ?
  • →
Bay 045 view and slots of AL MURABBA

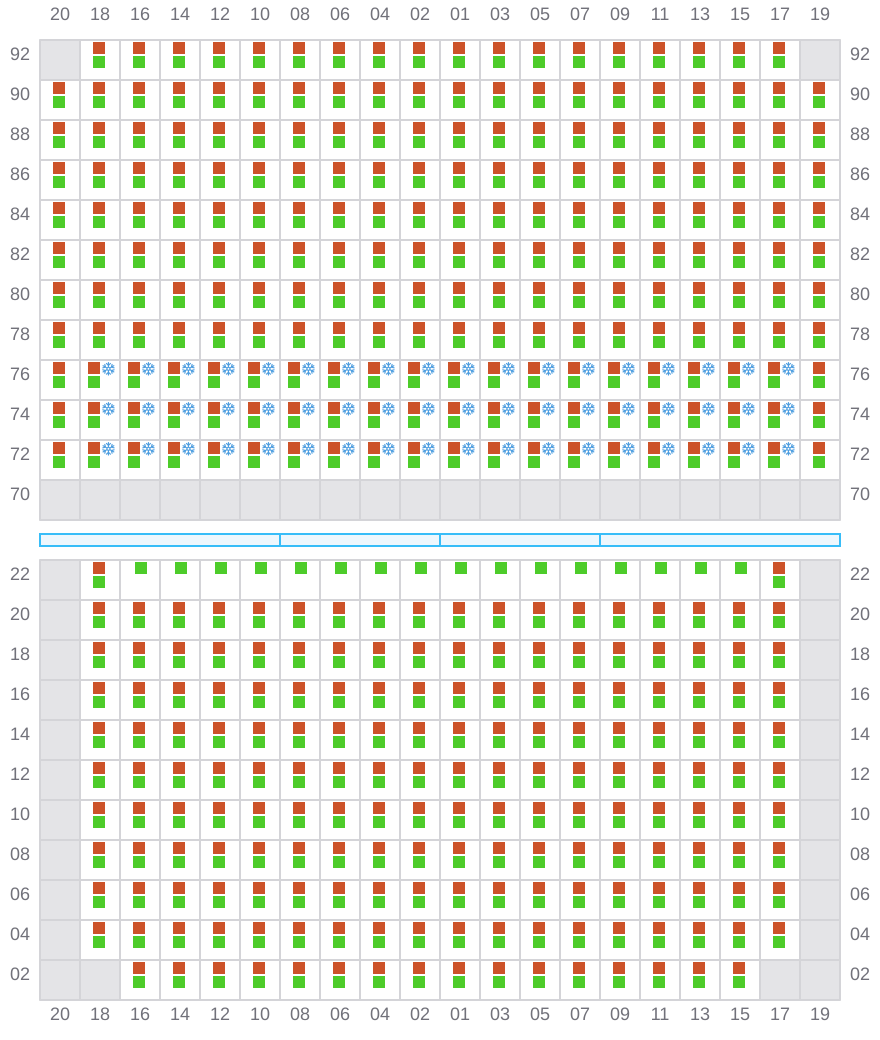

047

  • ←
  • → / ?
  • →
Bay 047 view and slots of AL MURABBA

049 (050)

  • →
  • →

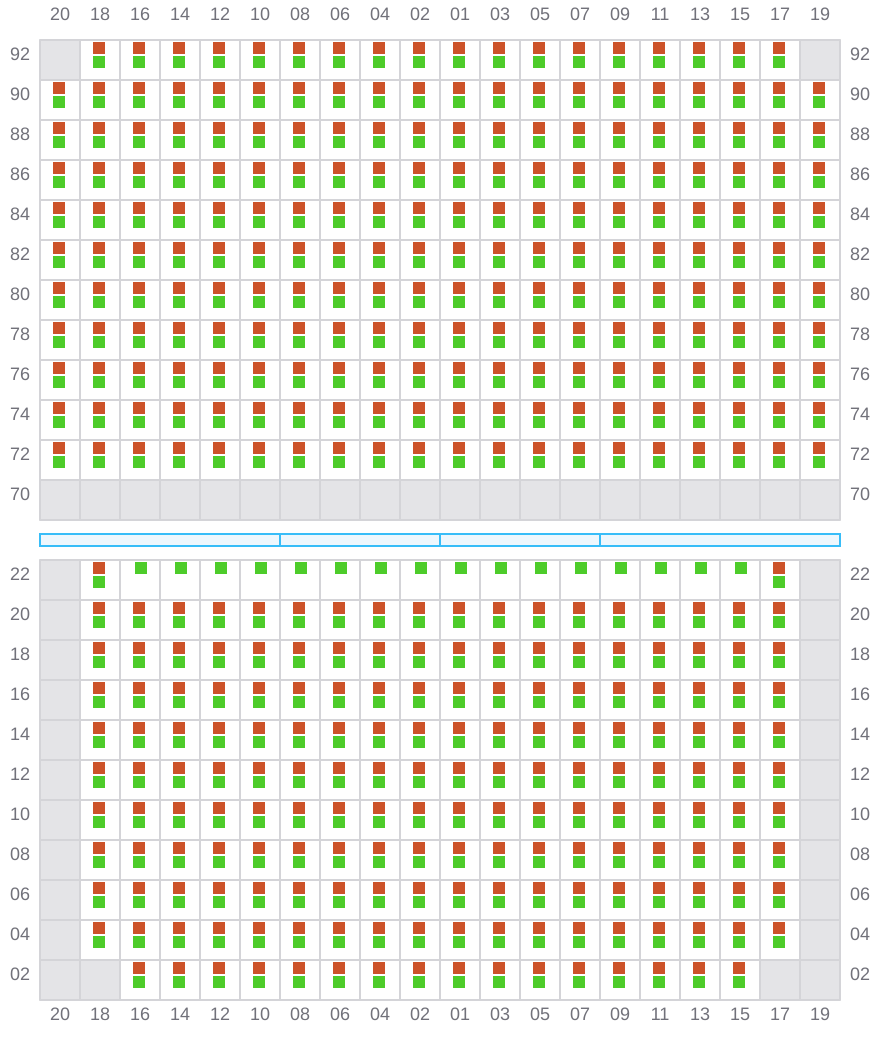

Bay 049 view and slots of AL MURABBA

051

  • ←
  • → / ?
  • →
Bay 051 view and slots of AL MURABBA

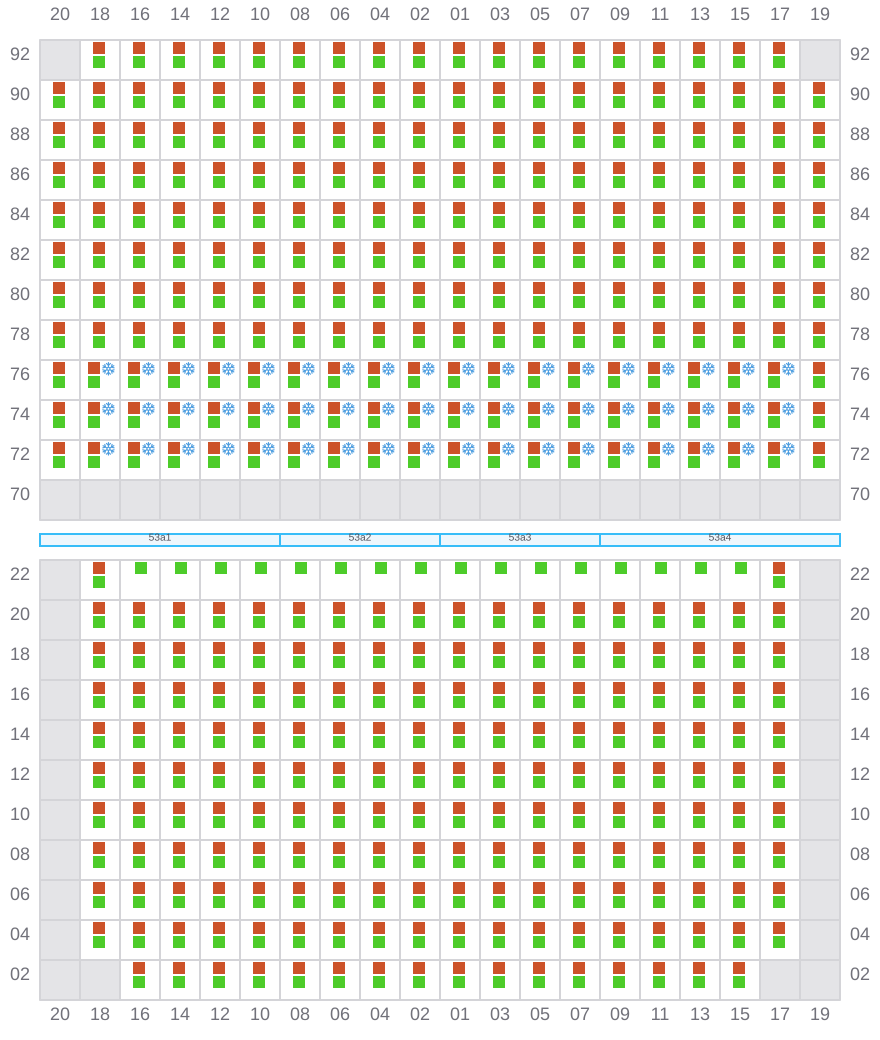

053 (054)

  • →
  • → / ?
  • →
Bay 053 view and slots of AL MURABBA

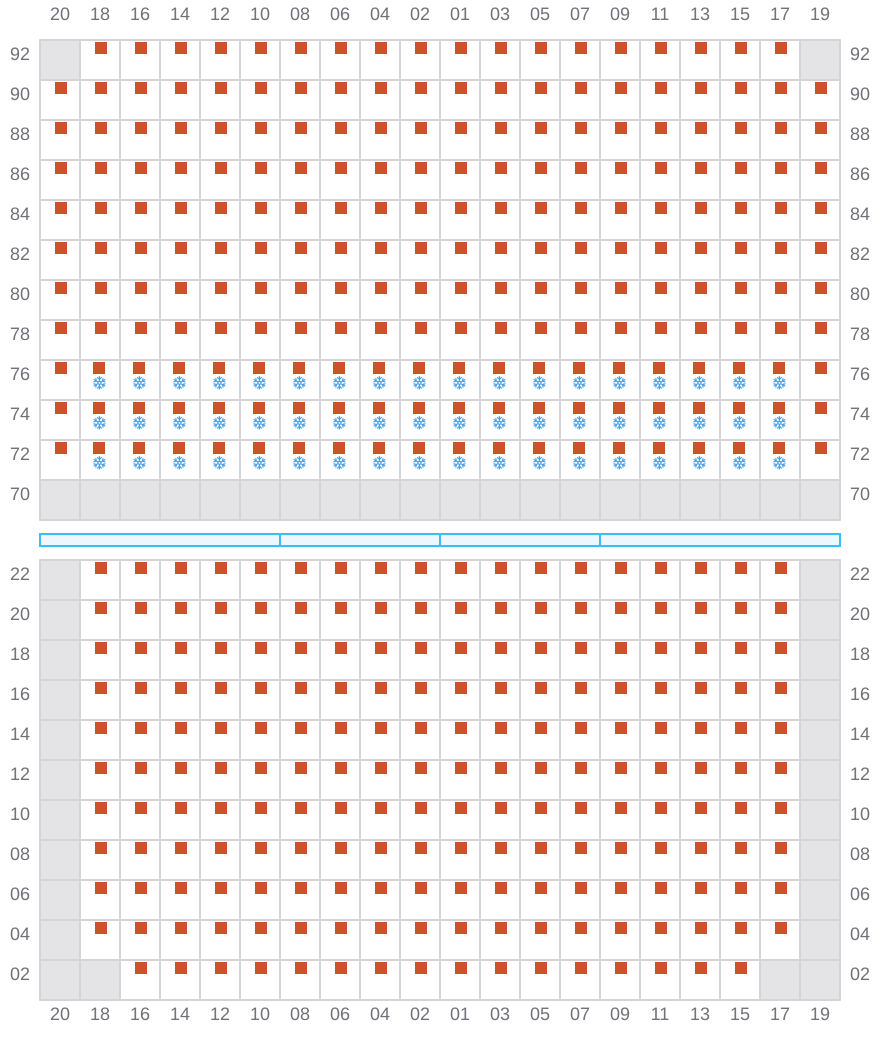

055

  • ←
  • → / ?
  • →
Bay 055 view and slots of AL MURABBA

057 (058)

  • →
  • → / ?
  • →

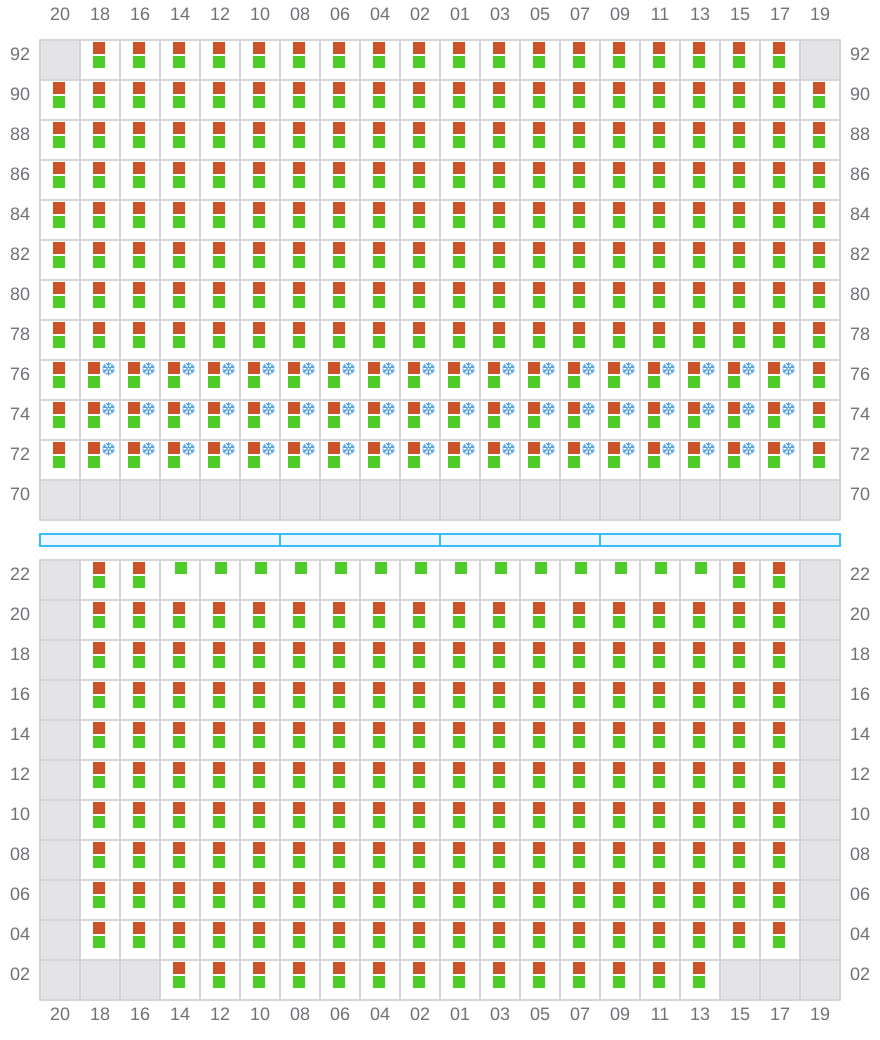

Bay 057 view and slots of AL MURABBA

059

  • ←
  • → / ?
  • →

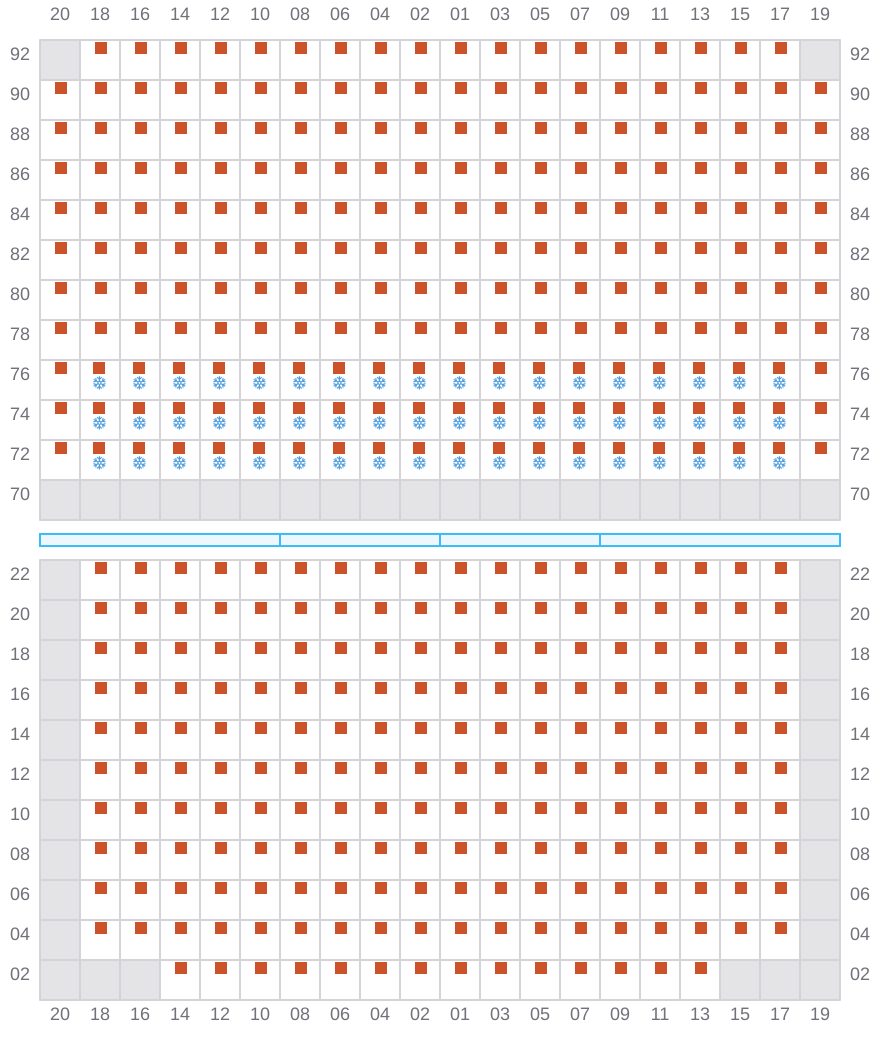

Bay 059 view and slots of AL MURABBA

061 (062)

  • →
  • → / ?
  • →
Bay 061 view and slots of AL MURABBA

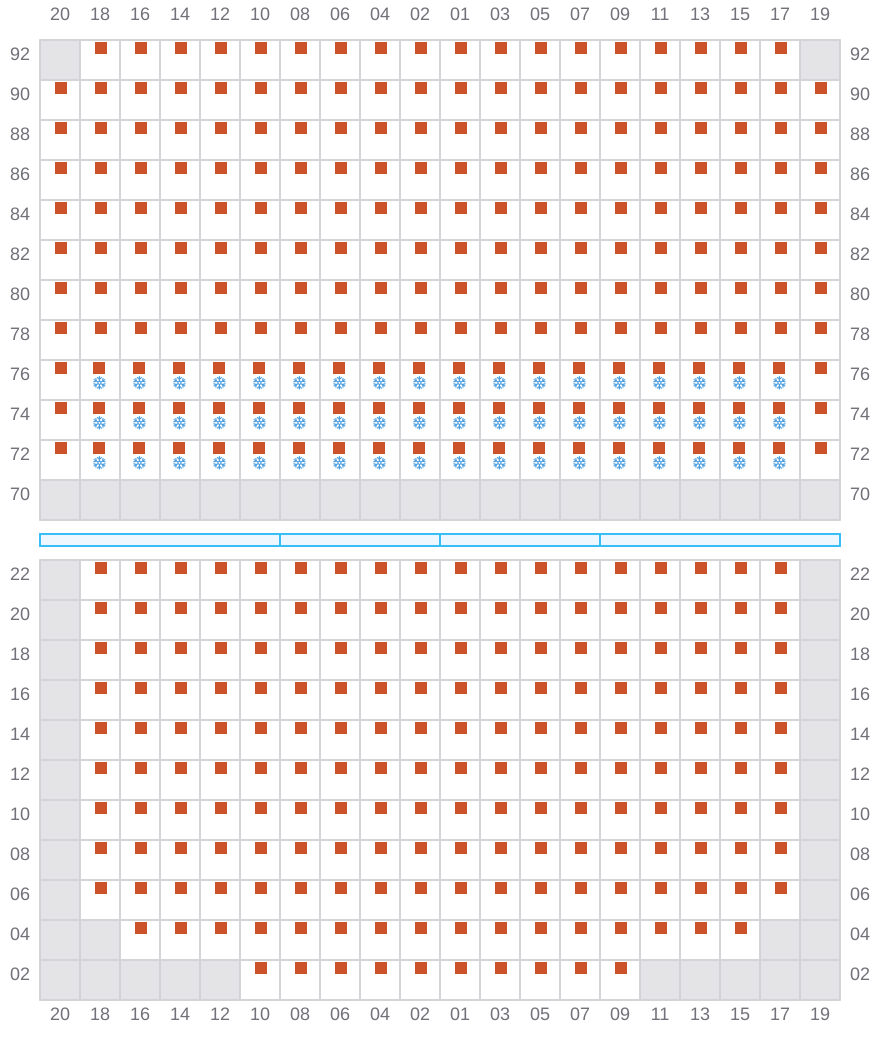

063

  • ←
  • → / ?
  • →
Bay 063 view and slots of AL MURABBA

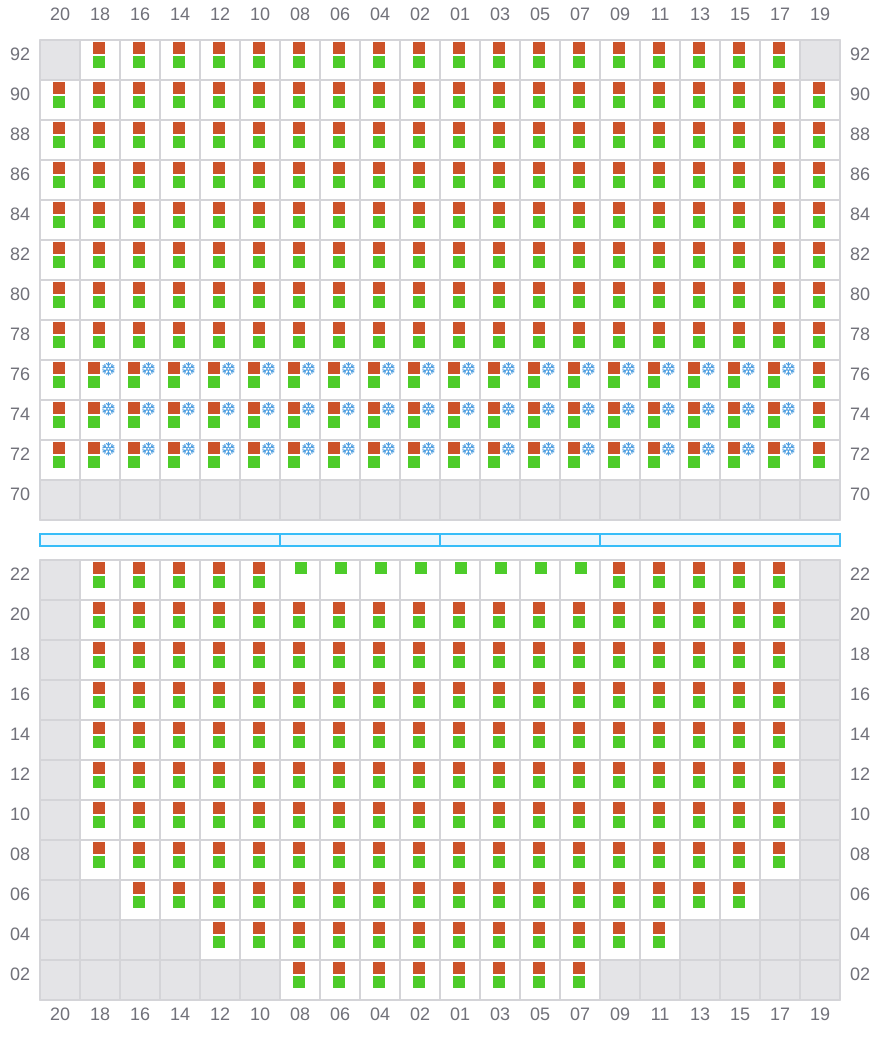

065 (066)

  • →
  • → / ?
  • →
Bay 065 view and slots of AL MURABBA

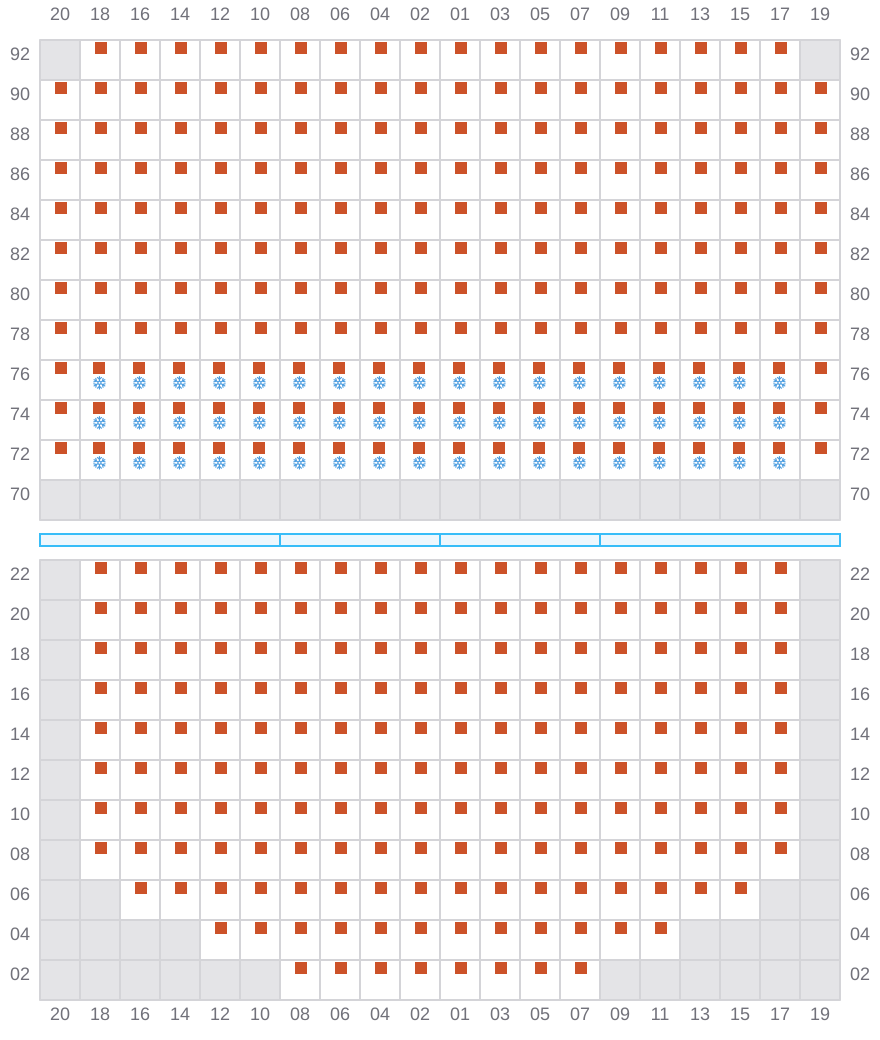

067

  • ←
  • → / ?
  • →
Bay 067 view and slots of AL MURABBA

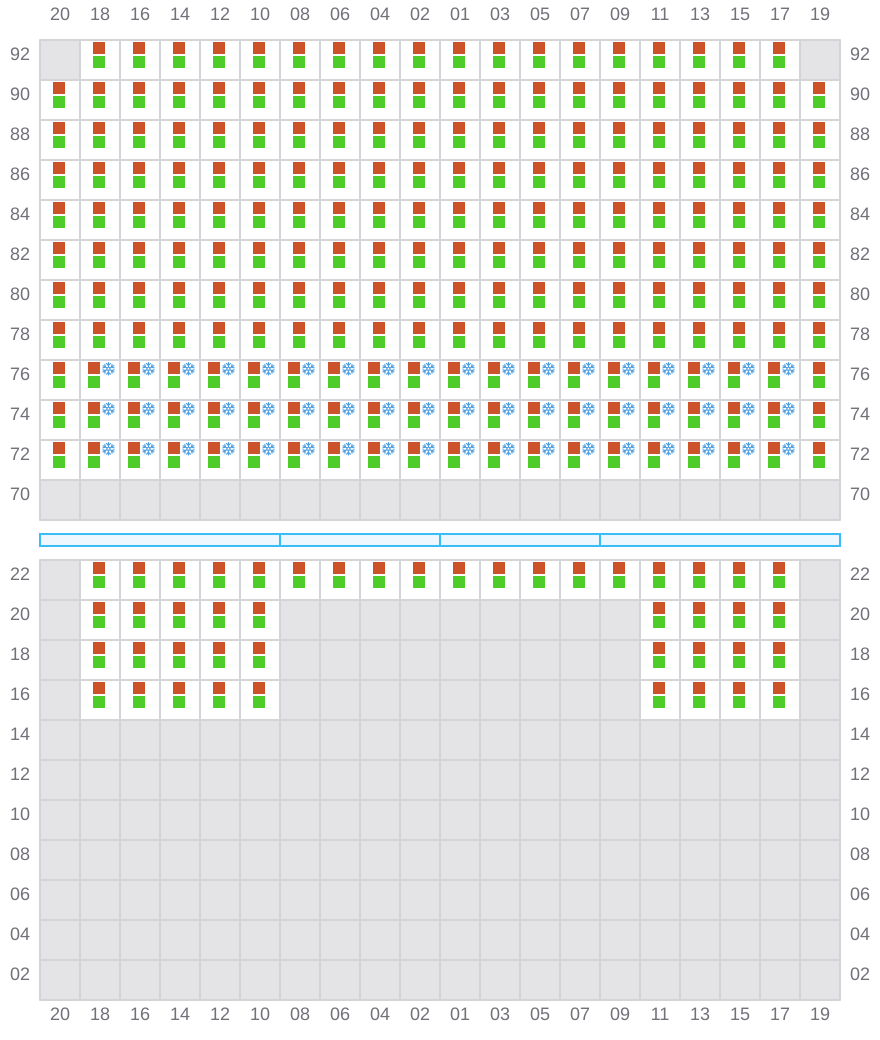

069 (070)

  • →
  • → / ?
  • →
Bay 069 view and slots of AL MURABBA

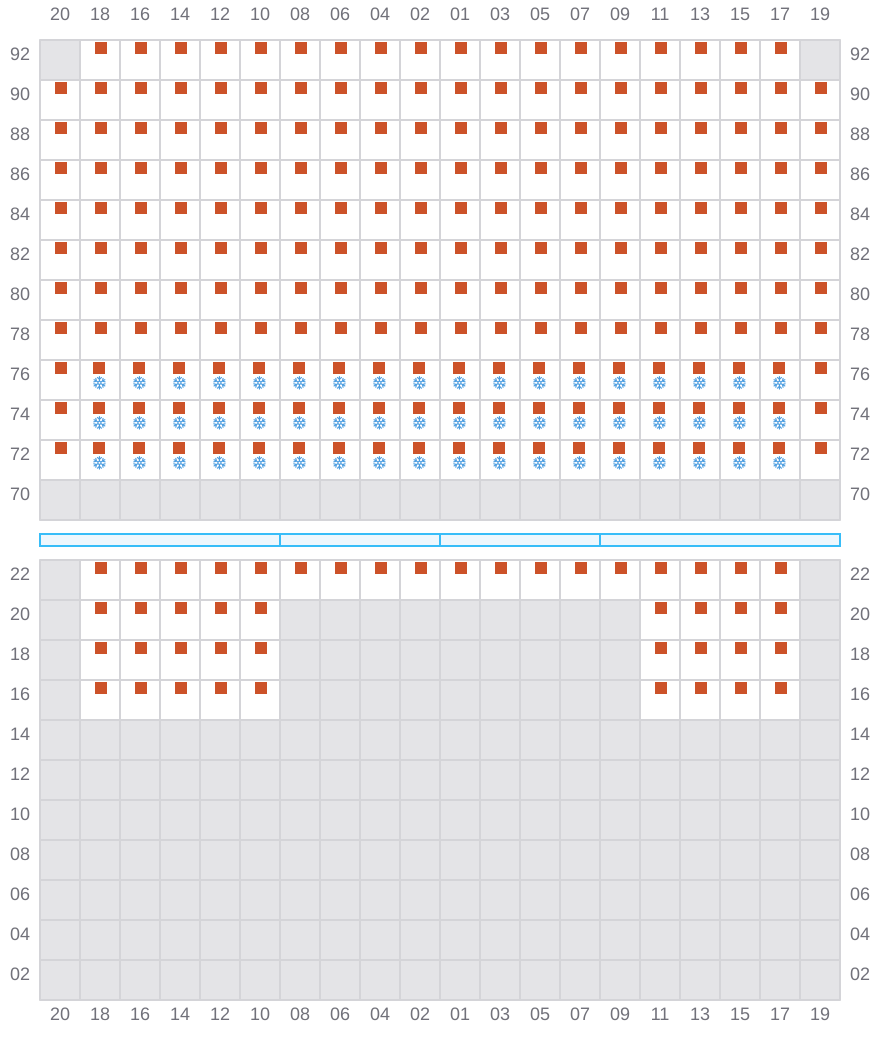

071

  • ←
  • → / ?
  • →
Bay 071 view and slots of AL MURABBA

073 (074)

  • →
  • → / ?
  • →

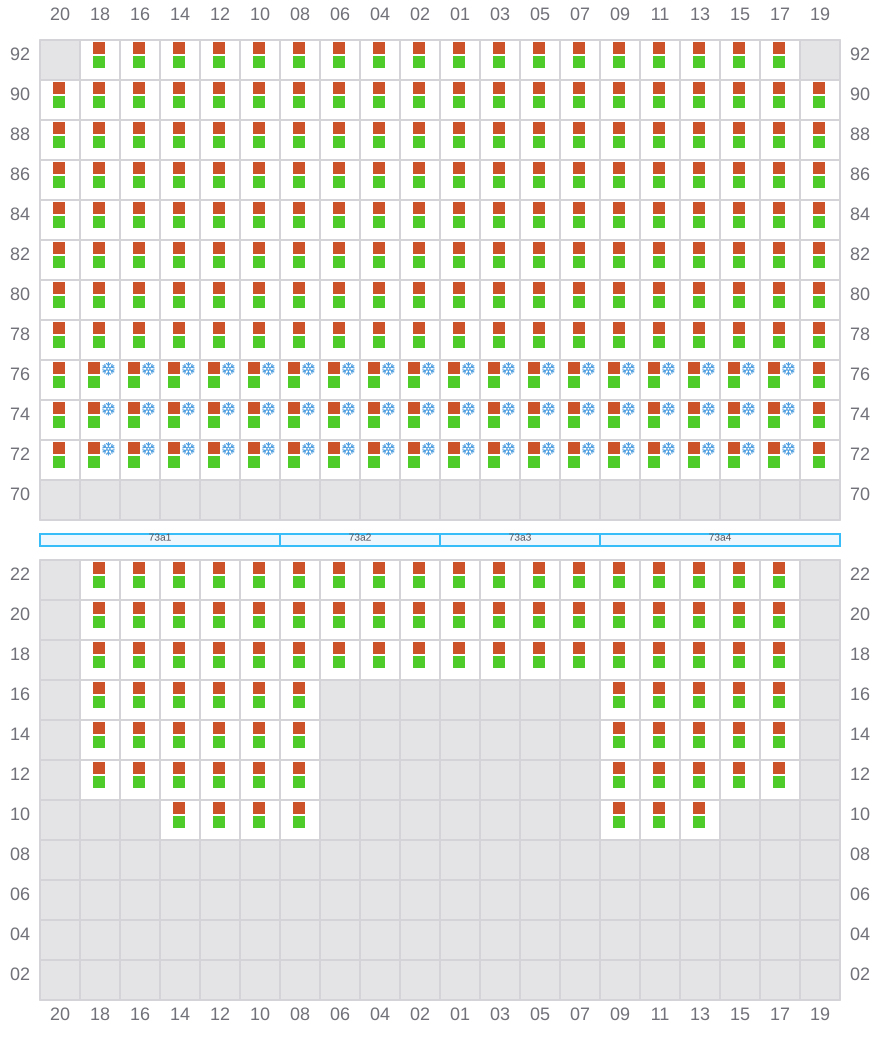

Bay 073 view and slots of AL MURABBA

075

  • ←
  • → / ?
  • →

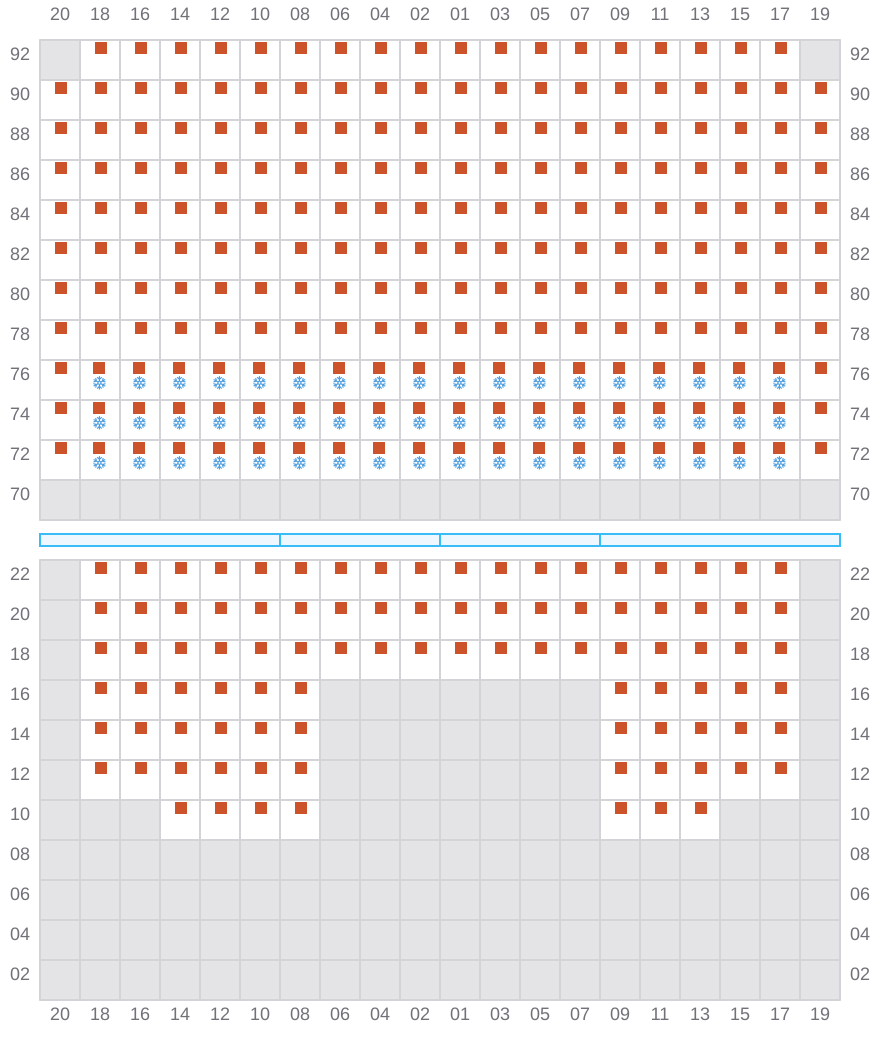

Bay 075 view and slots of AL MURABBA

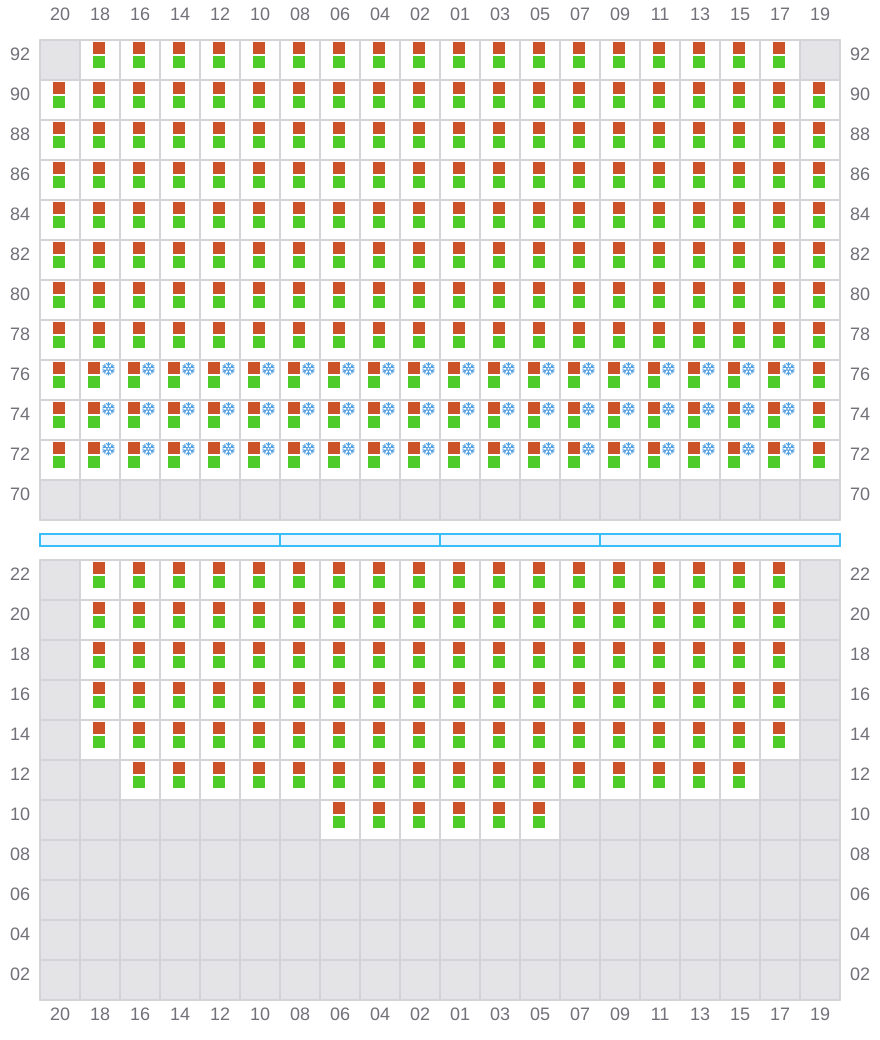

077 (078)

  • →
  • → / ?
  • →
Bay 077 view and slots of AL MURABBA

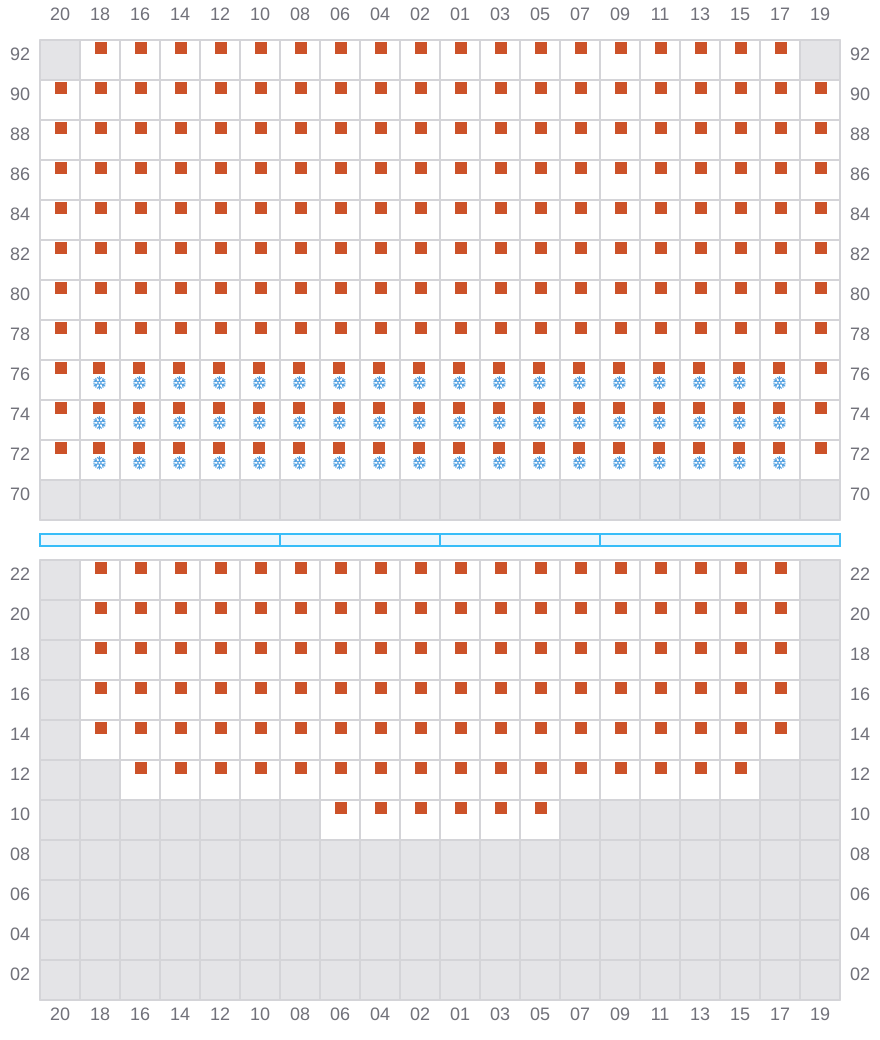

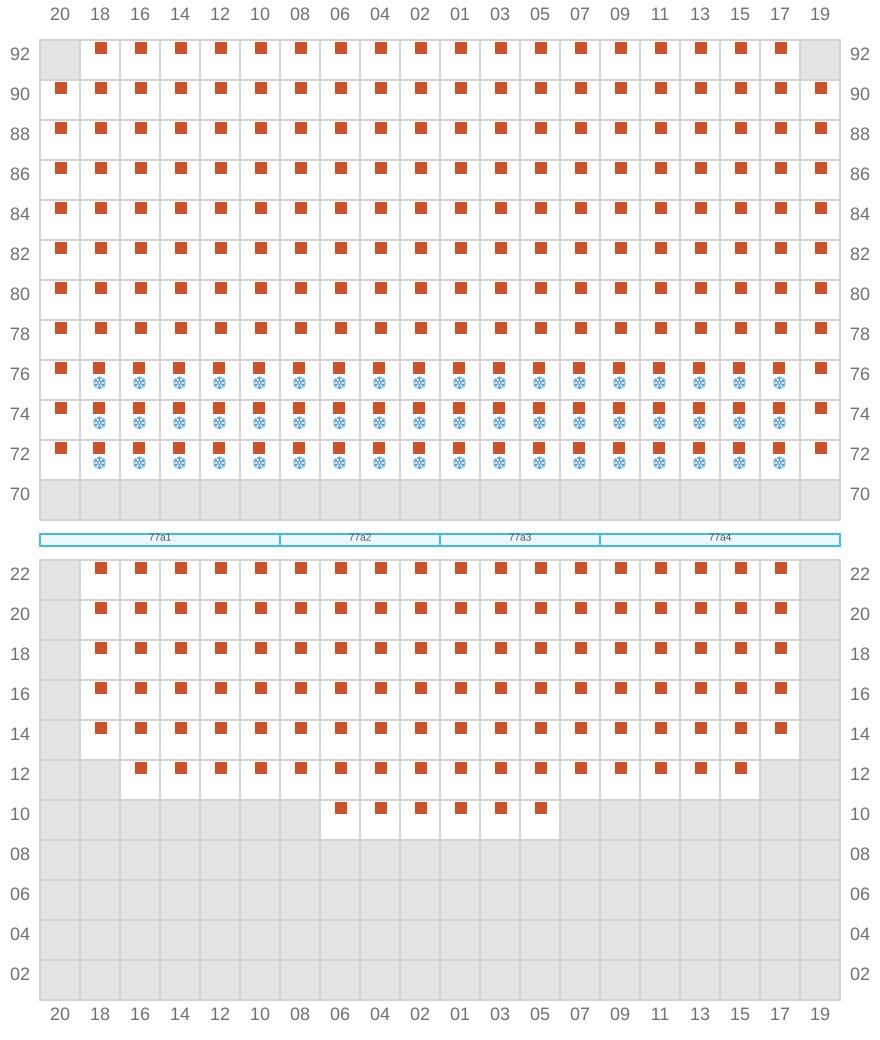

079

  • ←
  • → / ?
  • →
Bay 079 view and slots of AL MURABBA

081 (082)

  • →
  • → / ?
  • →

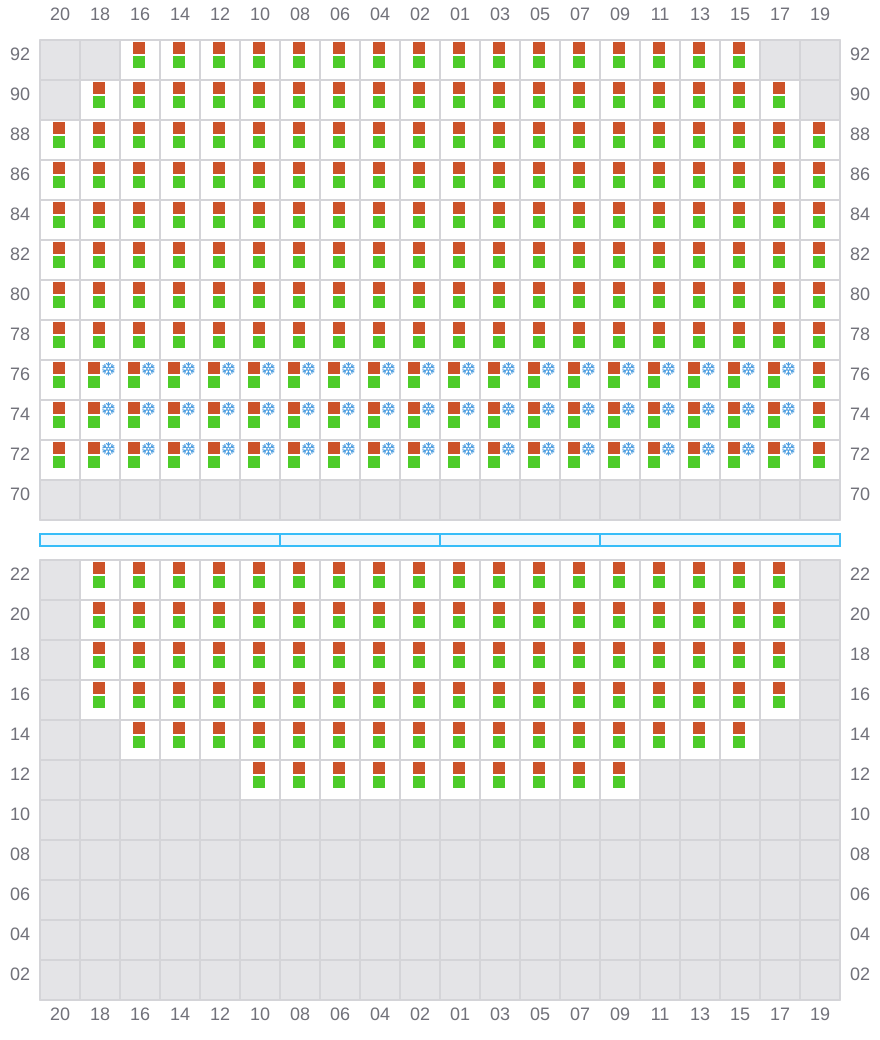

Bay 081 view and slots of AL MURABBA

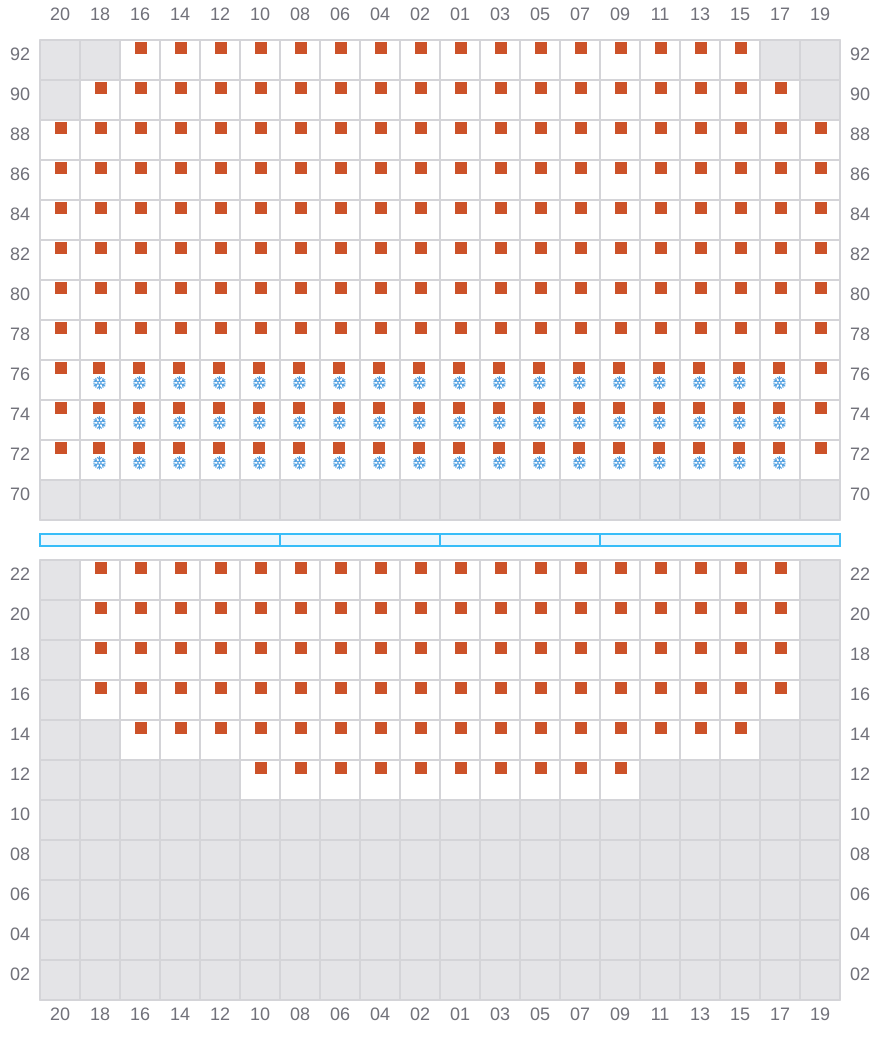

083

  • ←
  • → / ?
  • →
Bay 083 view and slots of AL MURABBA

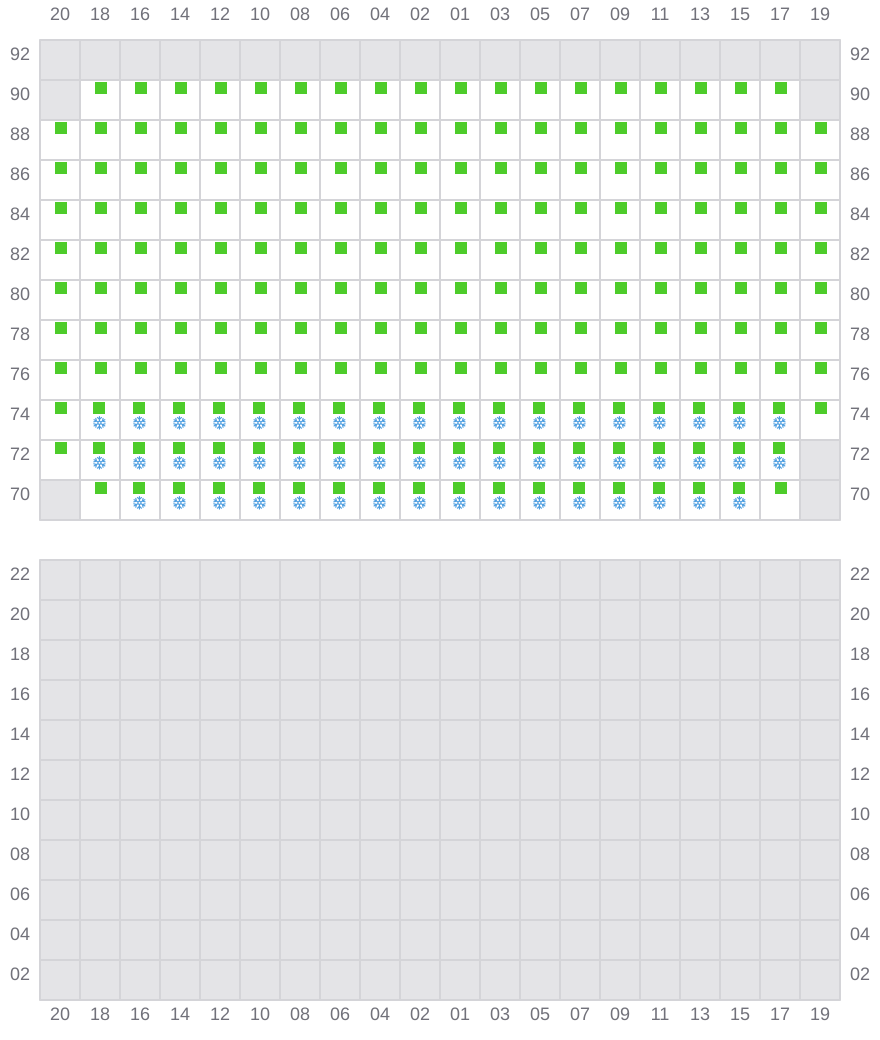

085 (086)

  • → / ?
  • → / ?
  • → / ?
Bay 085 view and slots of AL MURABBA
