AL NASRIYAH
9708849 | DFGA2 | HLC by *********************** Last update: Fri Feb 07 2025

General Info

Ship Name:AL NASRIYAH
IMO Code:9708849
Call Sign:DFGA2
Line Operator:HLC
Class Name for Sister Ships:HANA
Year Built:2015
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):352.95
LOA (Length Overall):368.52
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:085
Max ISO Row:20
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:70
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:14,996

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Known
TCG Data:100%

Side View

Side view of AL NASRIYAH

Hatch-Covers View

Deck view of AL NASRIYAH

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

001 (002)

  • →
  • →

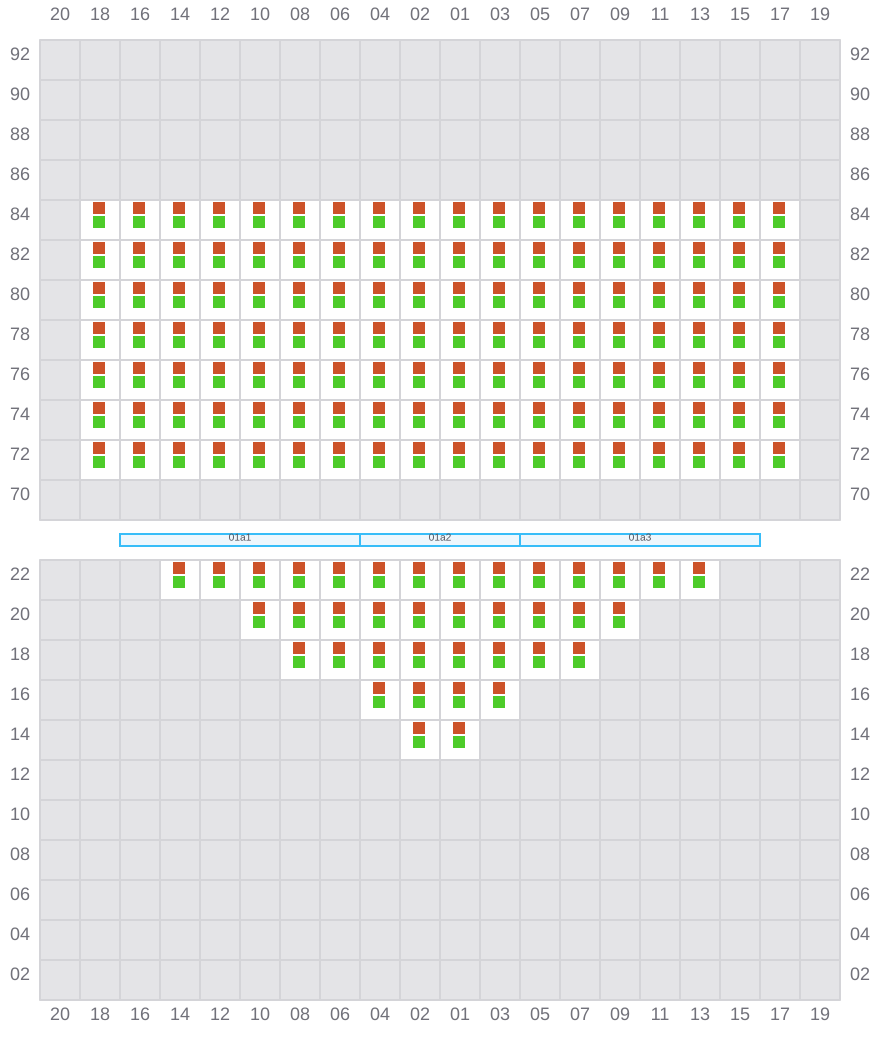

Bay 001 view and slots of AL NASRIYAH

003

  • ←
  • → / ?
Bay 003 view and slots of AL NASRIYAH

005 (006)

  • →
  • → / ?
  • →
Bay 005 view and slots of AL NASRIYAH

007

  • ←
  • → / ?
  • →
Bay 007 view and slots of AL NASRIYAH

009 (010)

  • →
  • → / ?
  • →

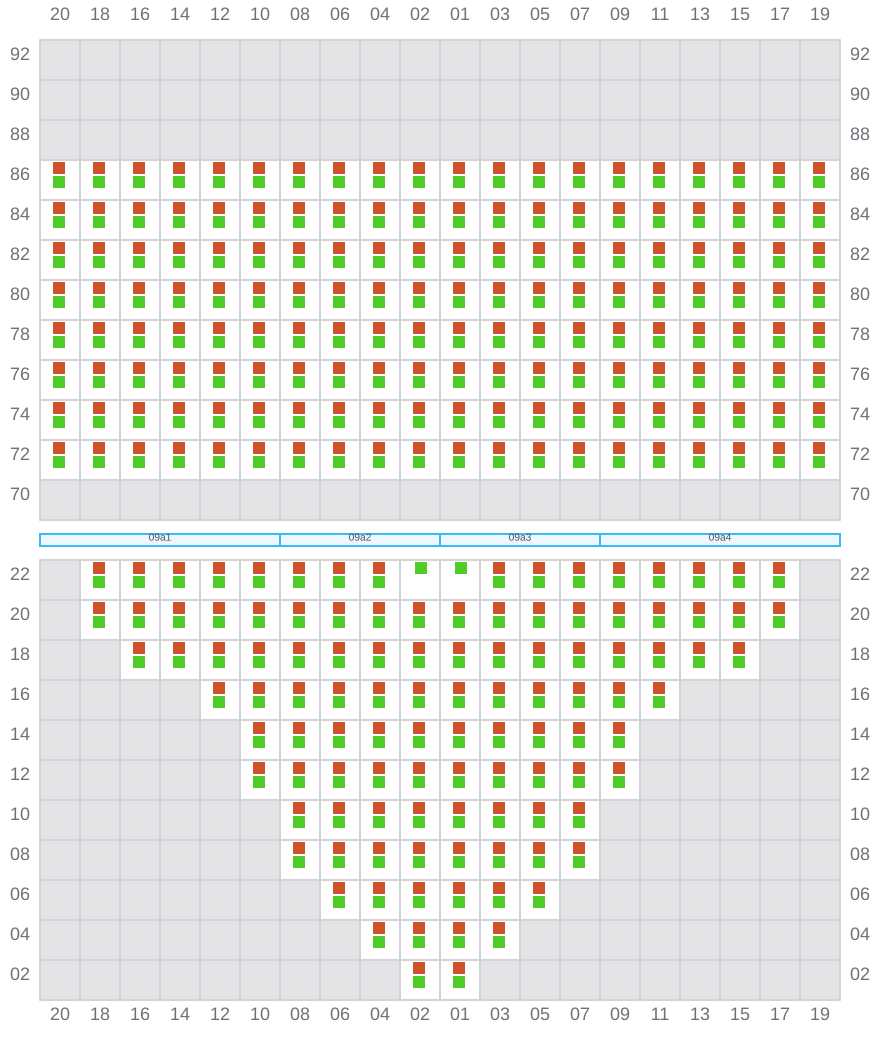

Bay 009 view and slots of AL NASRIYAH

011

  • ←
  • → / ?
  • →
Bay 011 view and slots of AL NASRIYAH

013 (014)

  • →
  • → / ?
  • →
Bay 013 view and slots of AL NASRIYAH

015

  • ←
  • → / ?
  • →

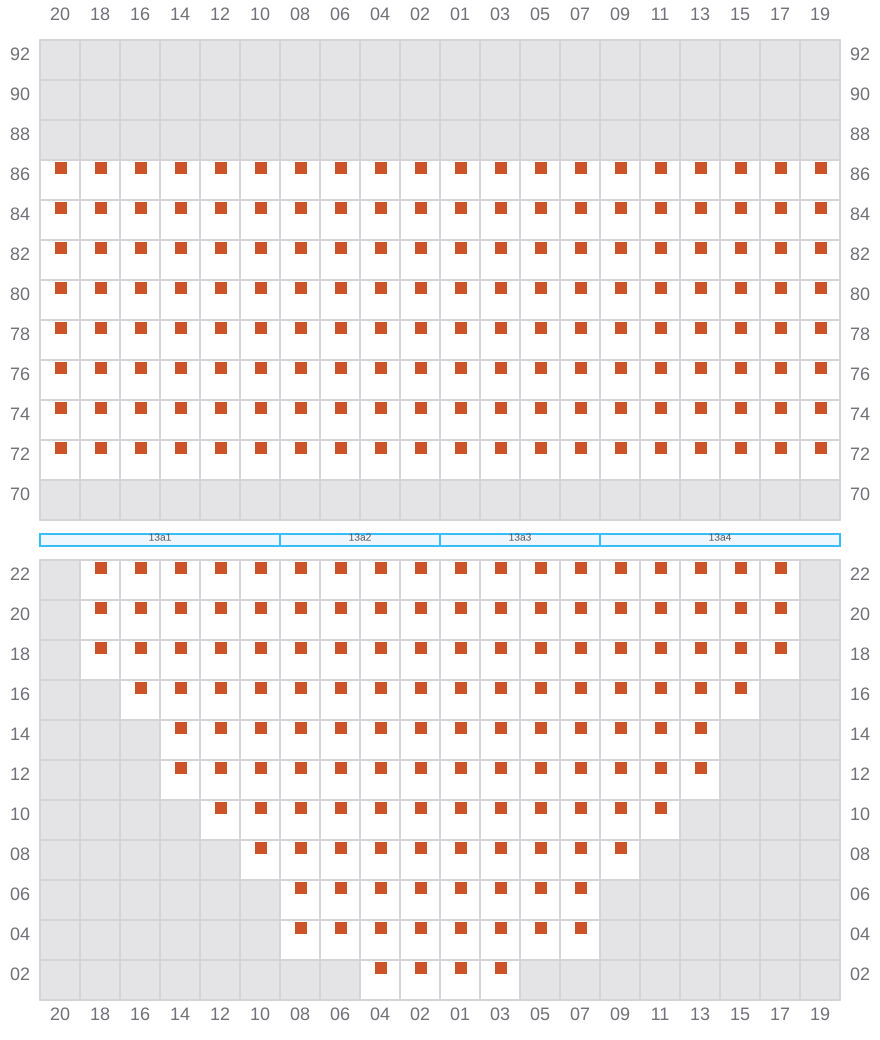

Bay 015 view and slots of AL NASRIYAH

017 (018)

  • →
  • → / ?
  • →
Bay 017 view and slots of AL NASRIYAH

019

  • ←
  • → / ?
  • →
Bay 019 view and slots of AL NASRIYAH

021 (022)

  • →
  • → / ?
  • →
Bay 021 view and slots of AL NASRIYAH

023

  • ←
  • → / ?
  • →

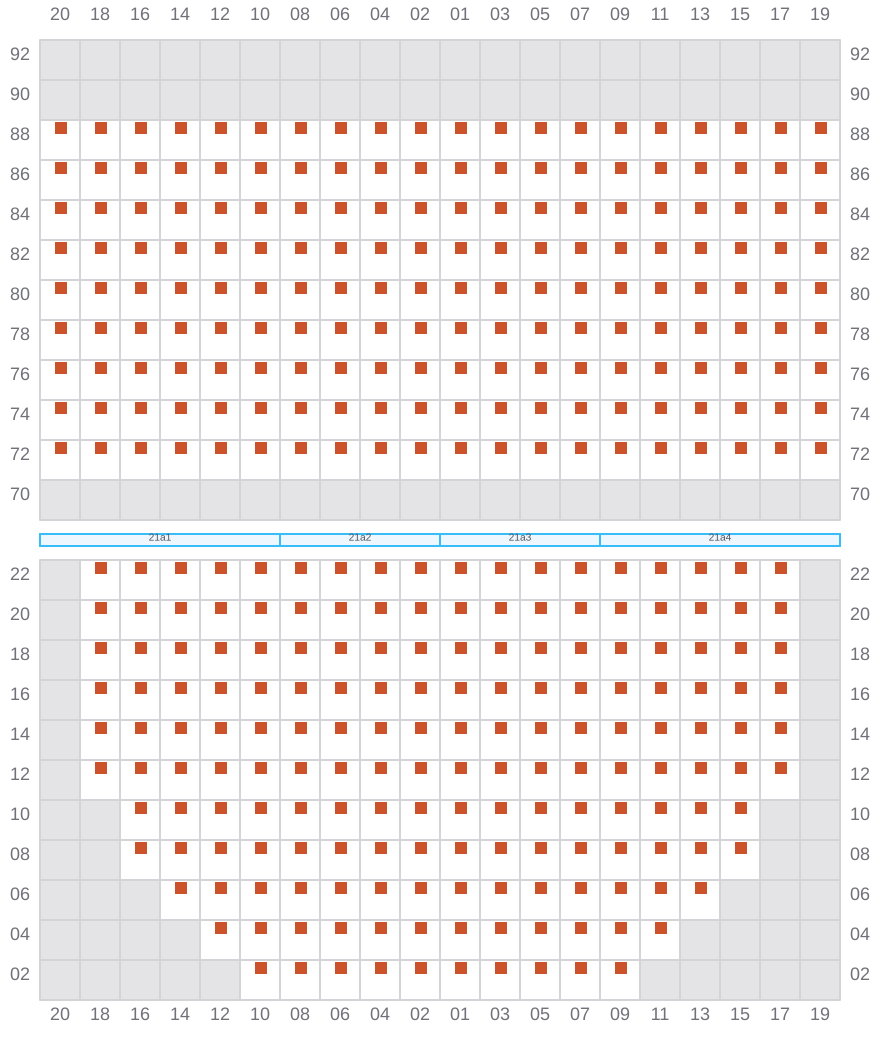

Bay 023 view and slots of AL NASRIYAH

025 (026)

  • →
  • → / ?
  • →

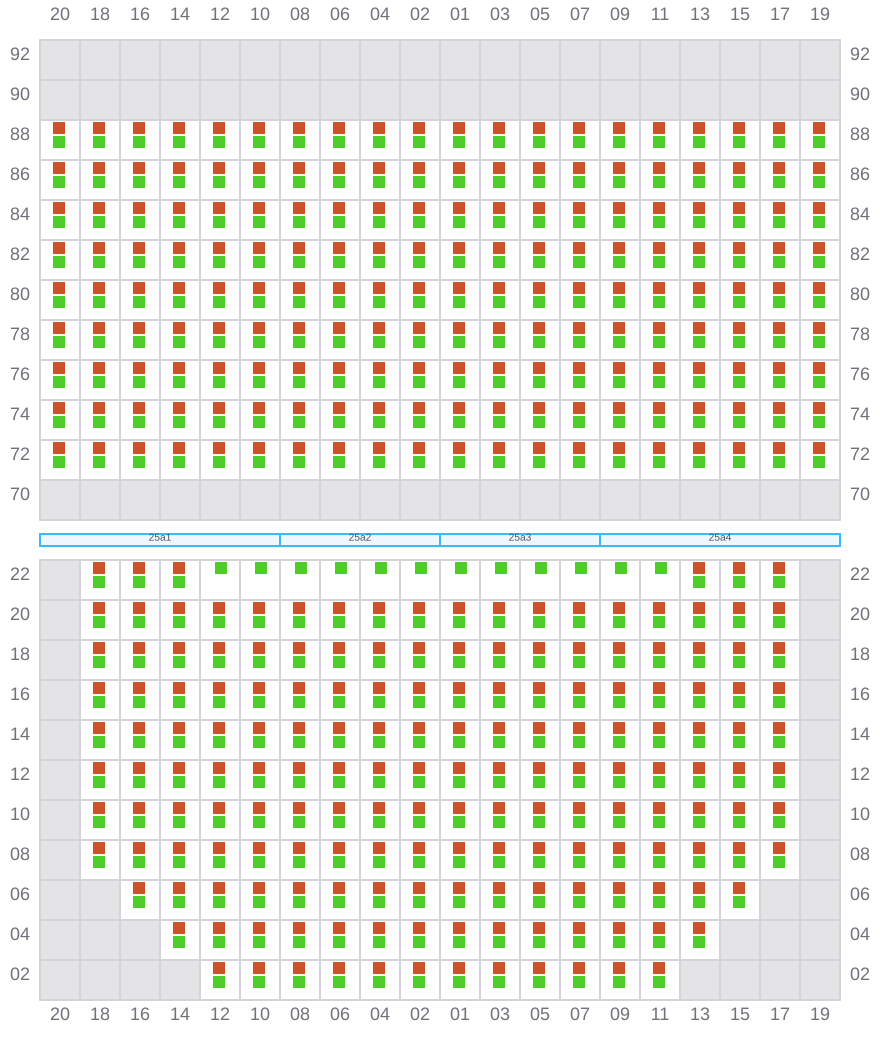

Bay 025 view and slots of AL NASRIYAH

027

  • ←
  • → / ?
  • →

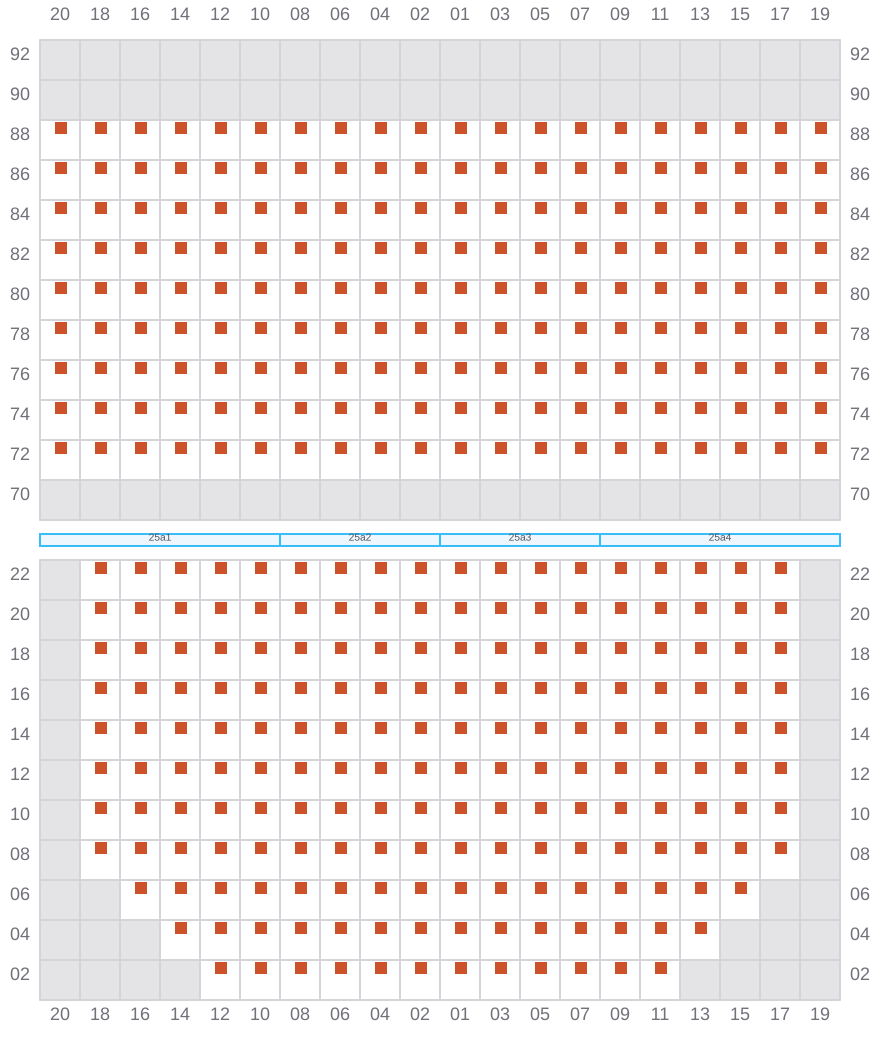

Bay 027 view and slots of AL NASRIYAH

029 (030)

  • →
  • → / ?
  • →
Bay 029 view and slots of AL NASRIYAH

031

  • ←
  • → / ?
  • →
Bay 031 view and slots of AL NASRIYAH

033 (034)

  • →
  • → / ?
  • →
Bay 033 view and slots of AL NASRIYAH

035

  • ←
  • → / ?
  • →
Bay 035 view and slots of AL NASRIYAH

037 (038)

  • →
  • → / ?
  • →
Bay 037 view and slots of AL NASRIYAH

039

  • ←
  • → / ?
  • →
Bay 039 view and slots of AL NASRIYAH

041 (042)

  • →
  • → / ?
  • →
Bay 041 view and slots of AL NASRIYAH

043

  • ←
  • → / ?
  • →

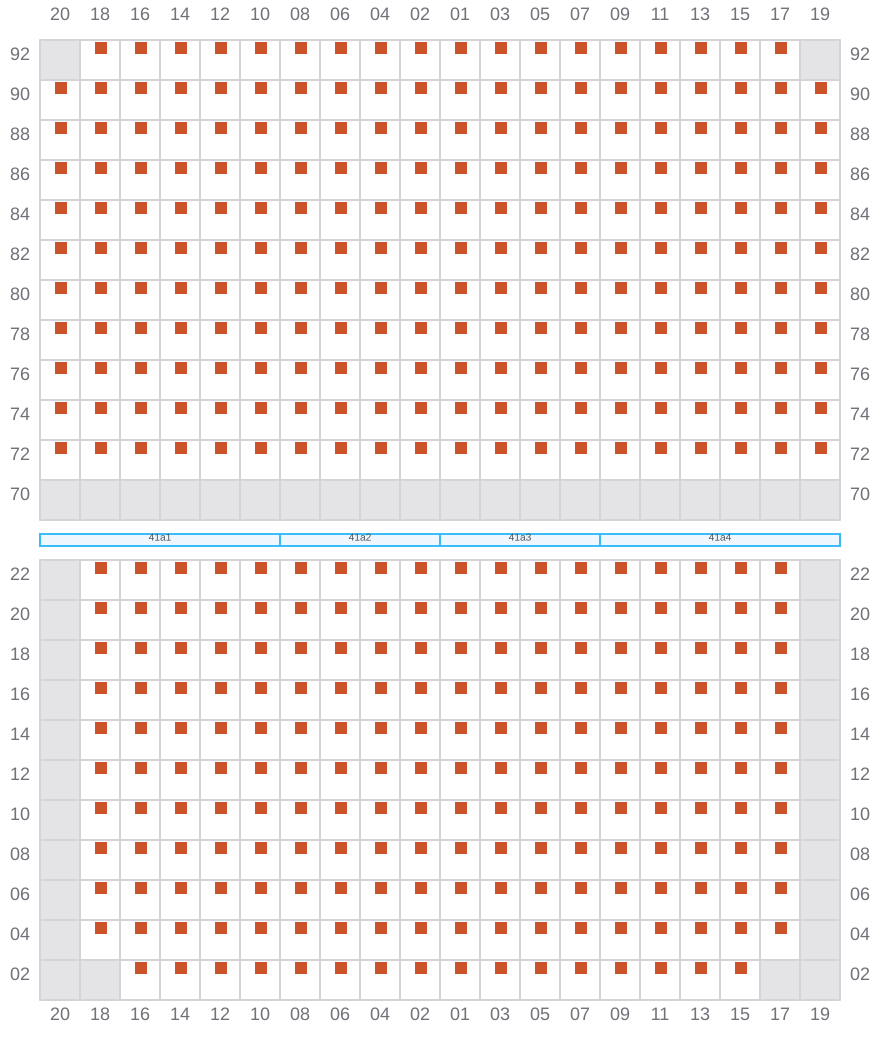

Bay 043 view and slots of AL NASRIYAH

045 (046)

  • →
  • → / ?
  • →

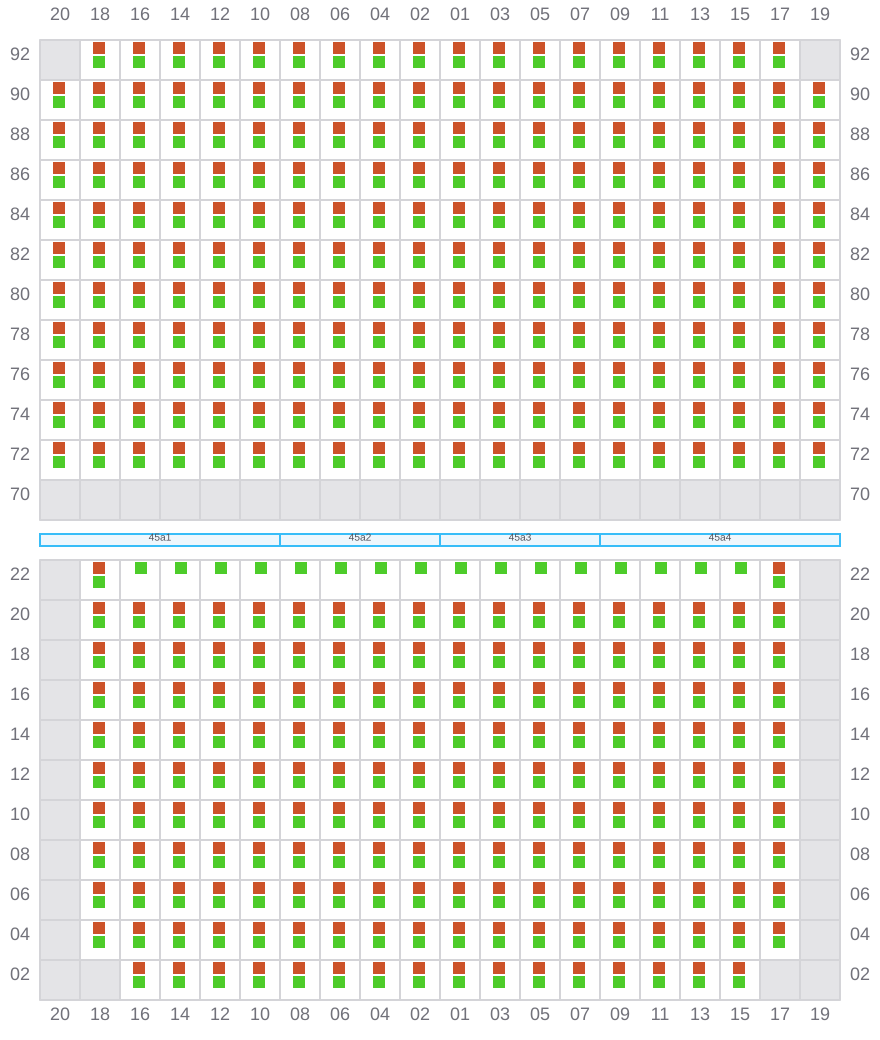

Bay 045 view and slots of AL NASRIYAH

047

  • ←
  • → / ?
  • →
Bay 047 view and slots of AL NASRIYAH

049 (050)

  • →
  • →
Bay 049 view and slots of AL NASRIYAH

051

  • ←
  • → / ?
  • →
Bay 051 view and slots of AL NASRIYAH

053 (054)

  • →
  • → / ?
  • →

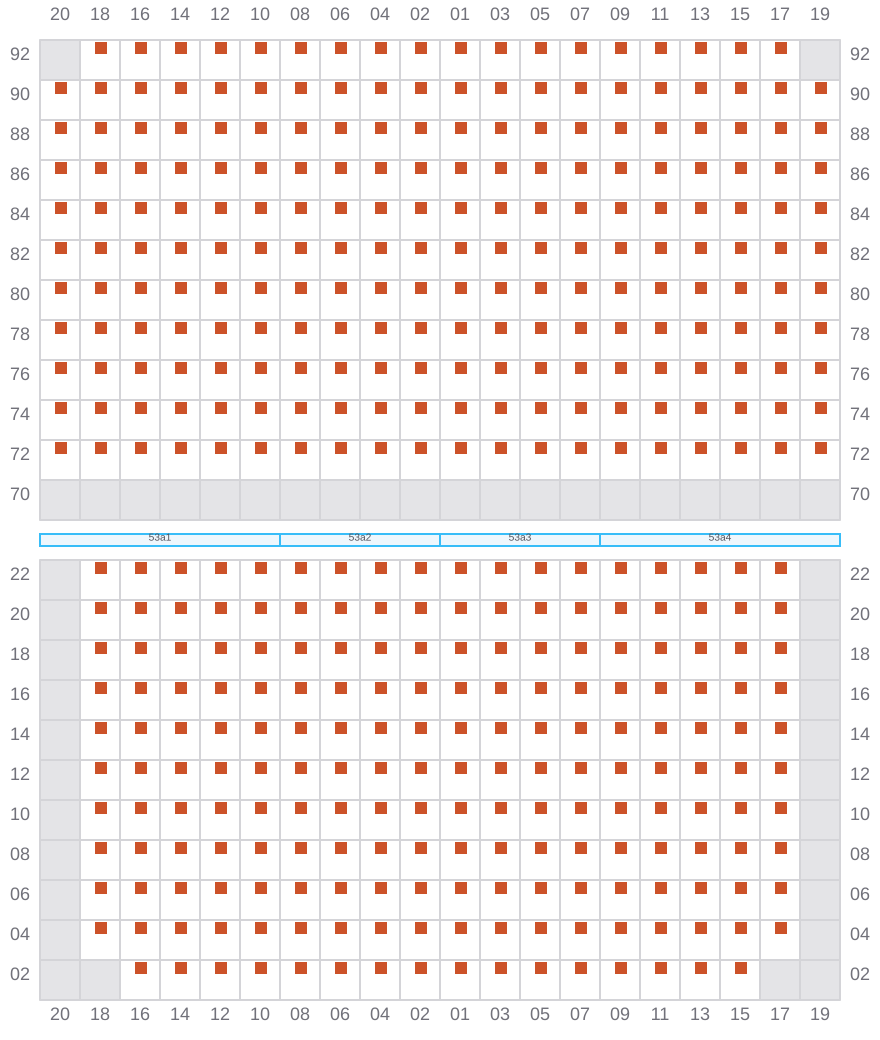

Bay 053 view and slots of AL NASRIYAH

055

  • ←
  • → / ?
  • →
Bay 055 view and slots of AL NASRIYAH

057 (058)

  • →
  • → / ?
  • →

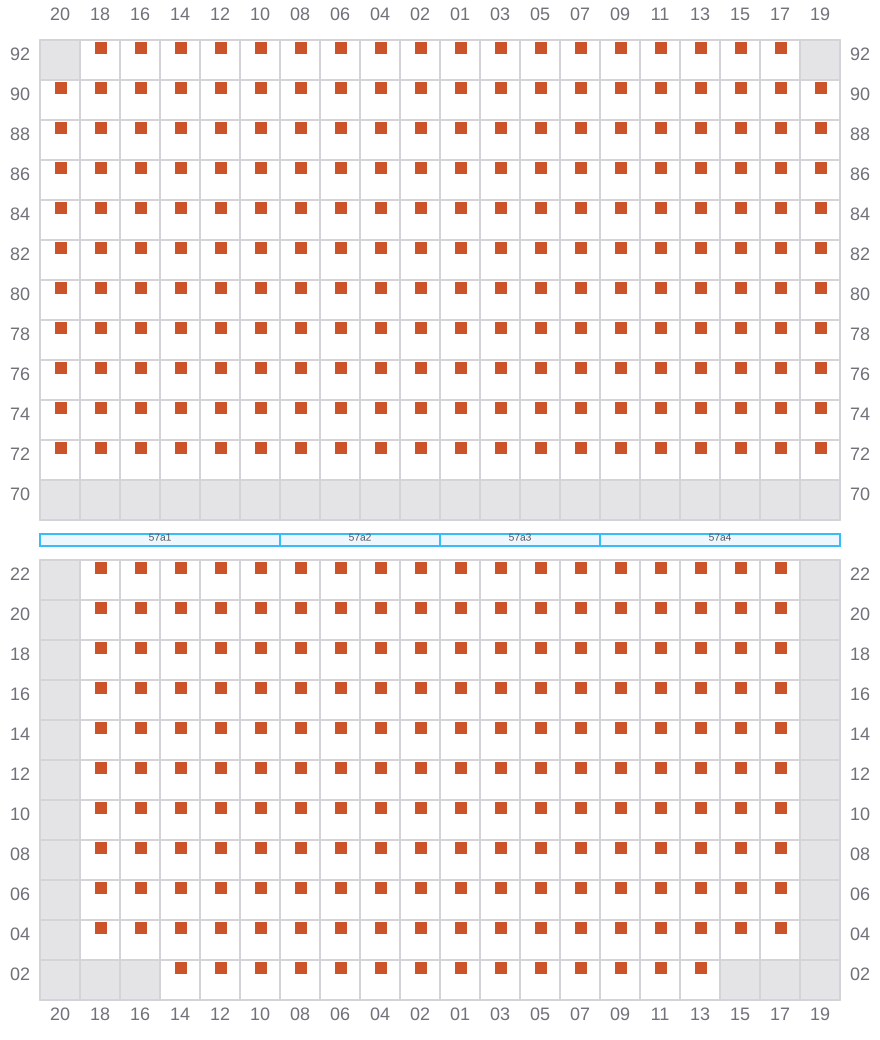

Bay 057 view and slots of AL NASRIYAH

059

  • ←
  • → / ?
  • →
Bay 059 view and slots of AL NASRIYAH

061 (062)

  • →
  • → / ?
  • →
Bay 061 view and slots of AL NASRIYAH

063

  • ←
  • → / ?
  • →
Bay 063 view and slots of AL NASRIYAH

065 (066)

  • →
  • → / ?
  • →

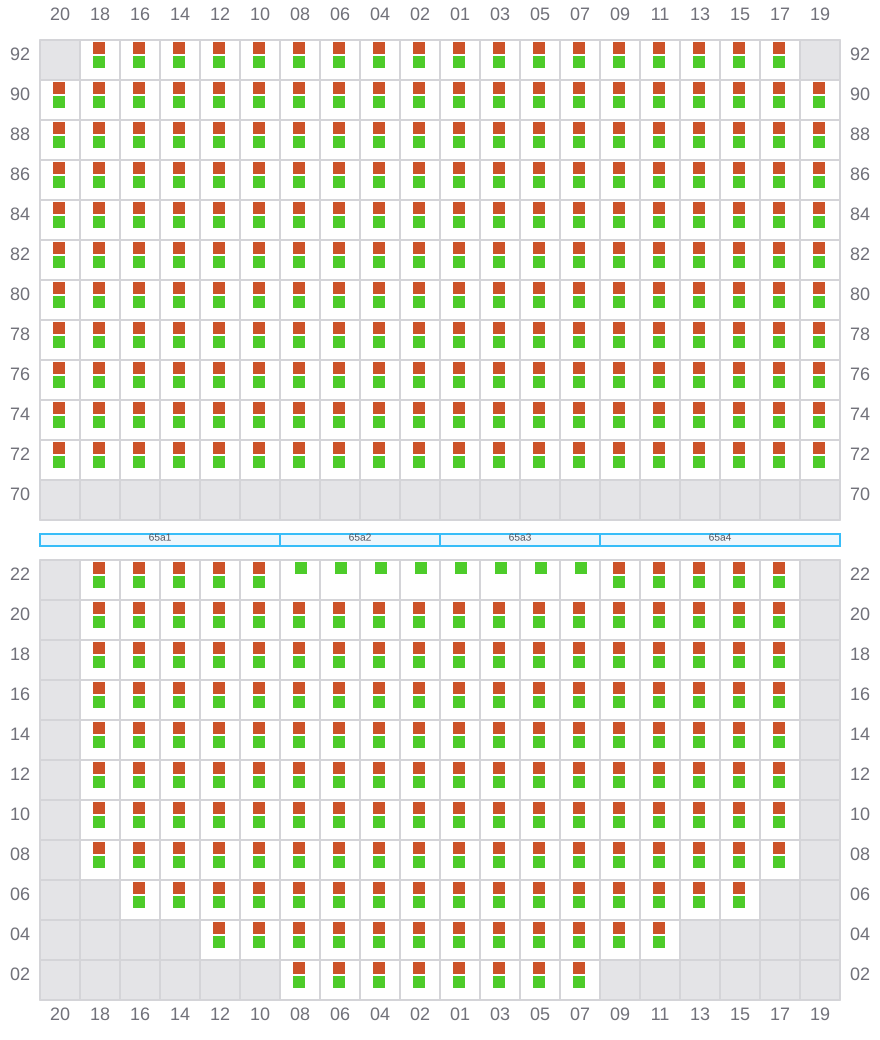

Bay 065 view and slots of AL NASRIYAH

067

  • ←
  • → / ?
  • →
Bay 067 view and slots of AL NASRIYAH

069 (070)

  • →
  • → / ?
  • →

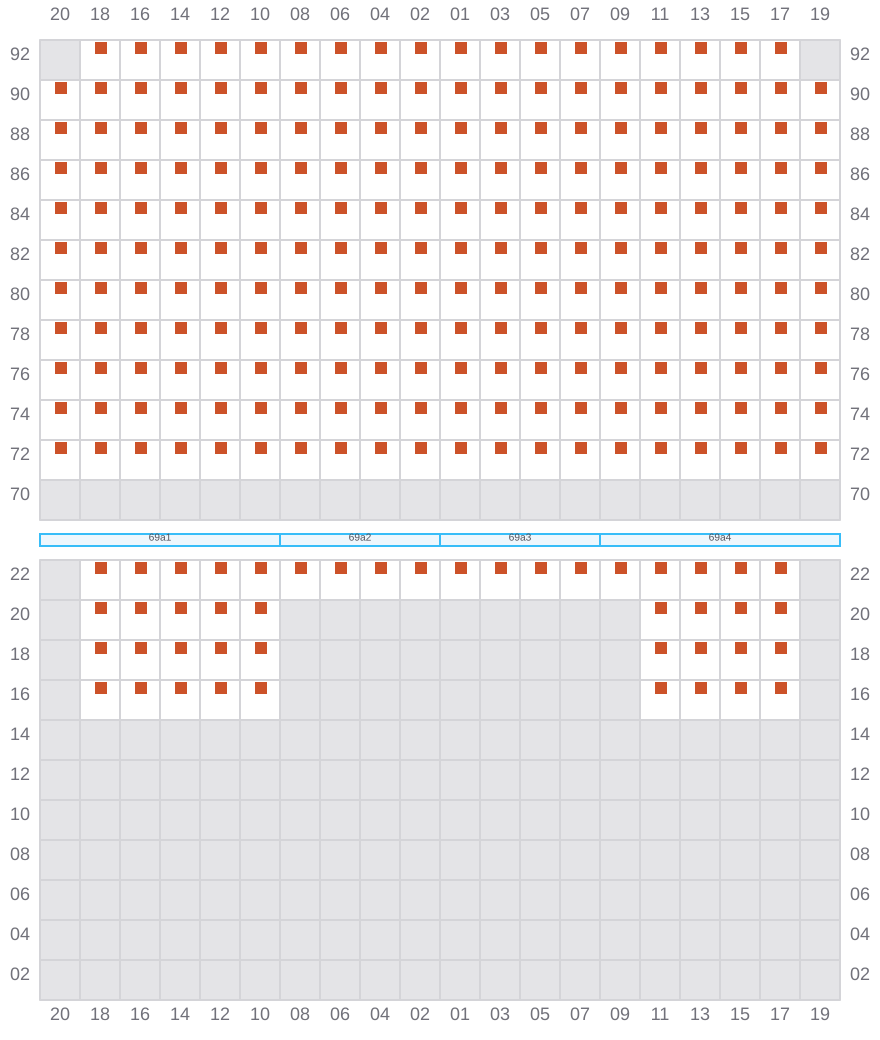

Bay 069 view and slots of AL NASRIYAH

071

  • ←
  • → / ?
  • →
Bay 071 view and slots of AL NASRIYAH

073 (074)

  • →
  • → / ?
  • →

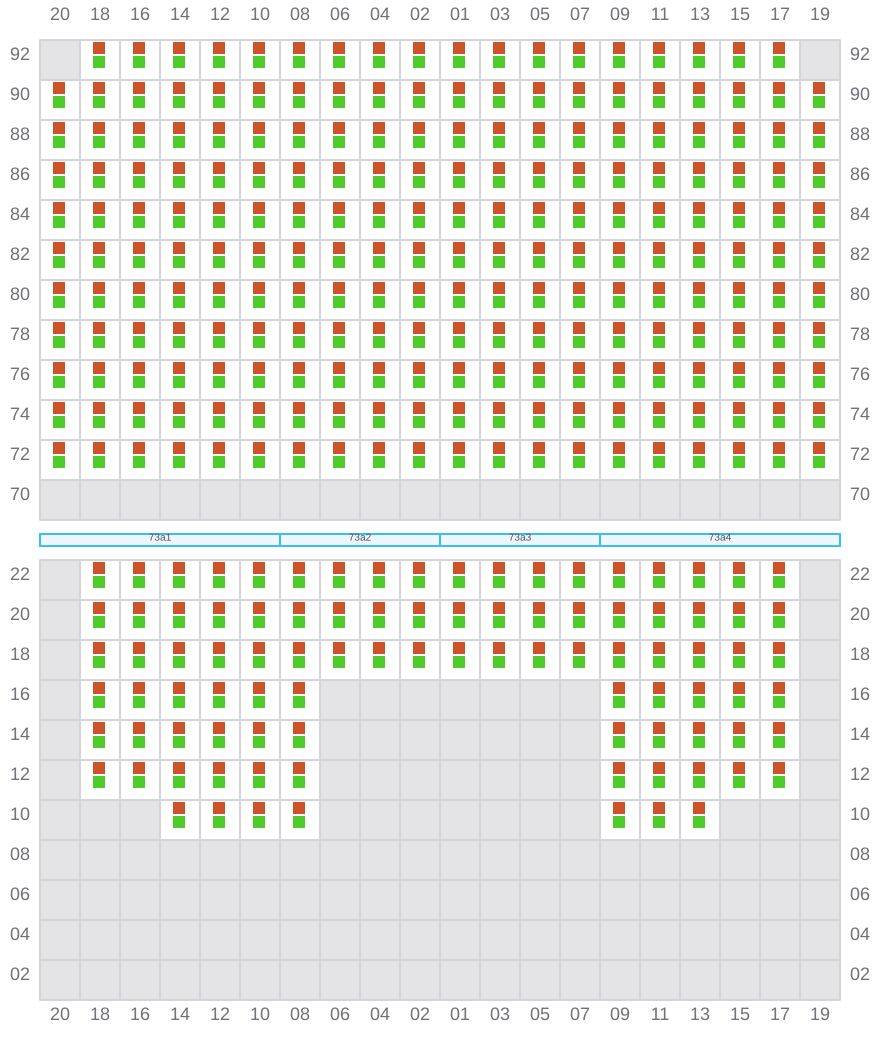

Bay 073 view and slots of AL NASRIYAH

075

  • ←
  • → / ?
  • →
Bay 075 view and slots of AL NASRIYAH

077 (078)

  • →
  • → / ?
  • →

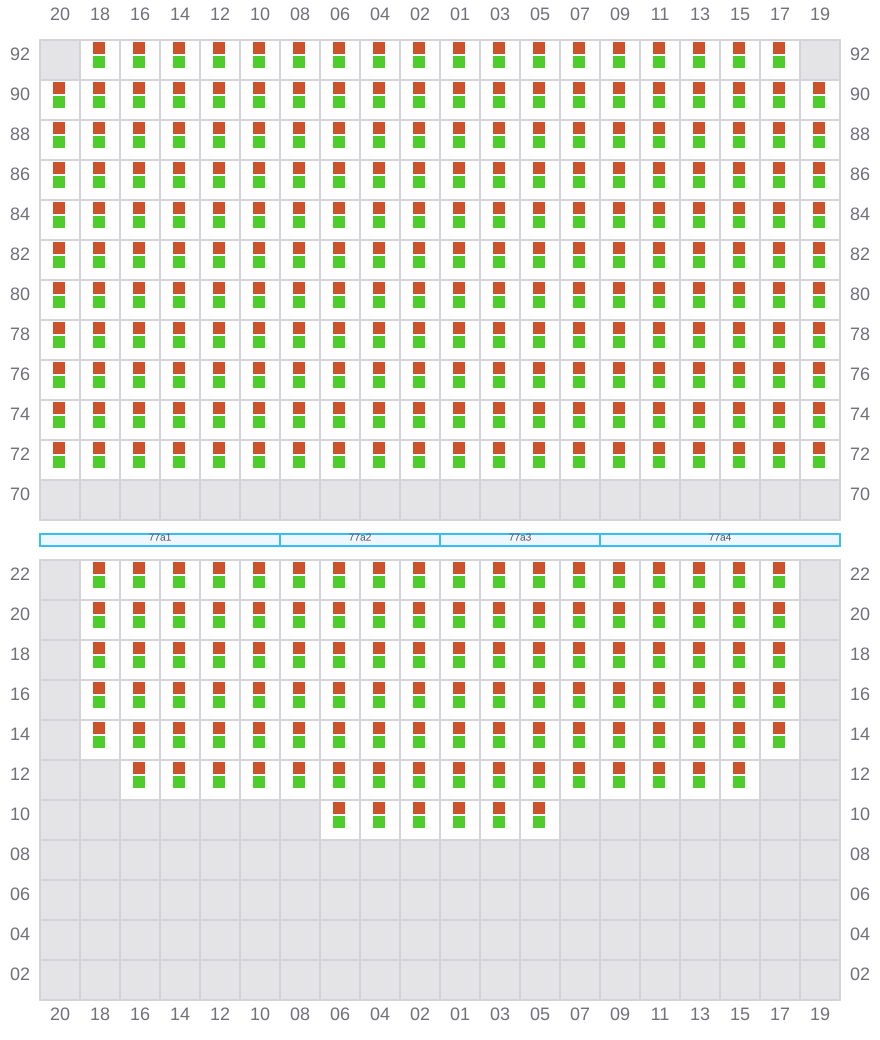

Bay 077 view and slots of AL NASRIYAH

079

  • ←
  • → / ?
  • →
Bay 079 view and slots of AL NASRIYAH

081 (082)

  • →
  • → / ?
  • →
Bay 081 view and slots of AL NASRIYAH

083

  • ←
  • → / ?
  • →
Bay 083 view and slots of AL NASRIYAH

085 (086)

  • → / ?
  • → / ?
  • → / ?

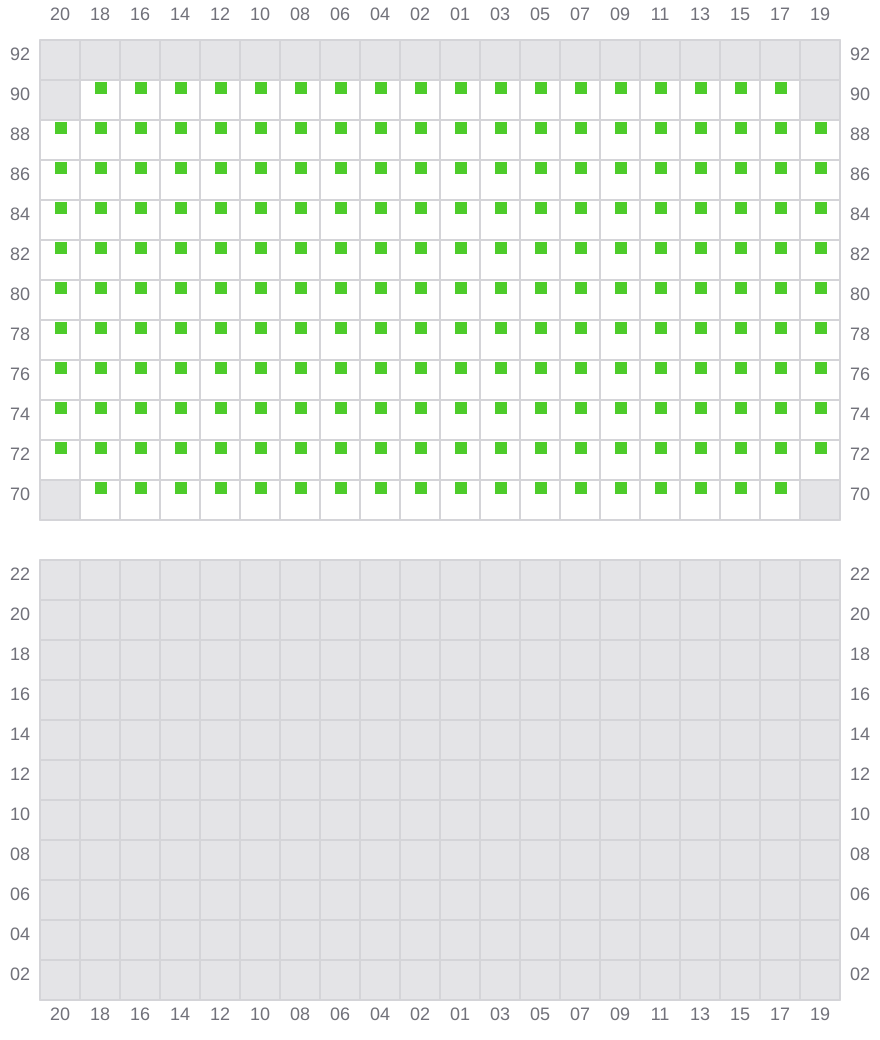

Bay 085 view and slots of AL NASRIYAH
