AL RAWDAH
9504607 | V7CR2 | 9504607 by ********* Last update: Thu Aug 01 2024

General Info

Ship Name:AL RAWDAH
IMO Code:9504607
Call Sign:V7CR2
Line Operator:9504607
Class Name for Sister Ships:MCC
Year Built:2014
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:045
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,546

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of AL RAWDAH

Hatch-Covers View

Deck view of AL RAWDAH

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • / ?

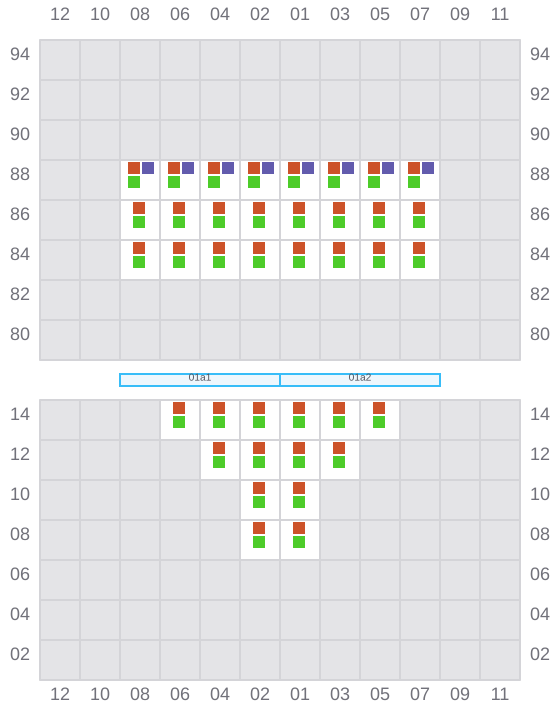

Bay 001 view and slots of AL RAWDAH

003

  • / ?

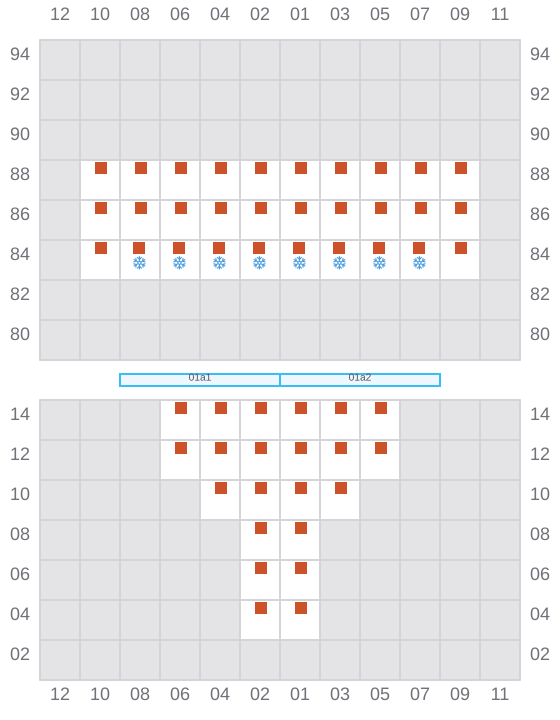

Bay 003 view and slots of AL RAWDAH

005 (006)

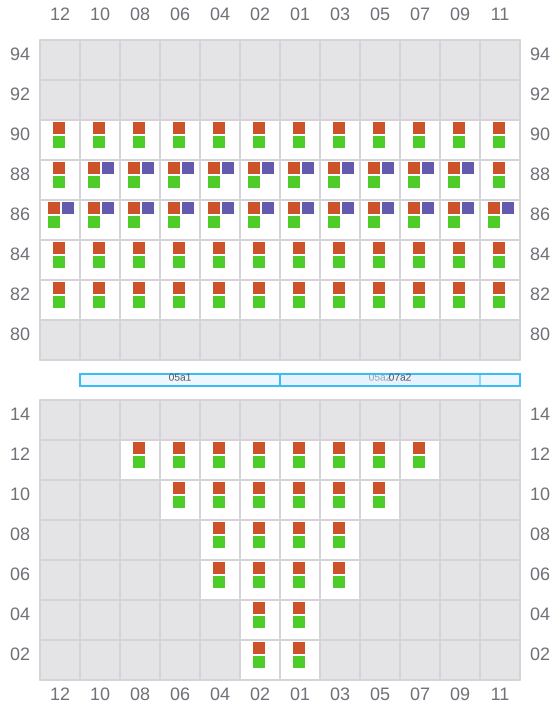

Bay 005 view and slots of AL RAWDAH

007

  • / ?
Bay 007 view and slots of AL RAWDAH

009 (010)

  • / ?

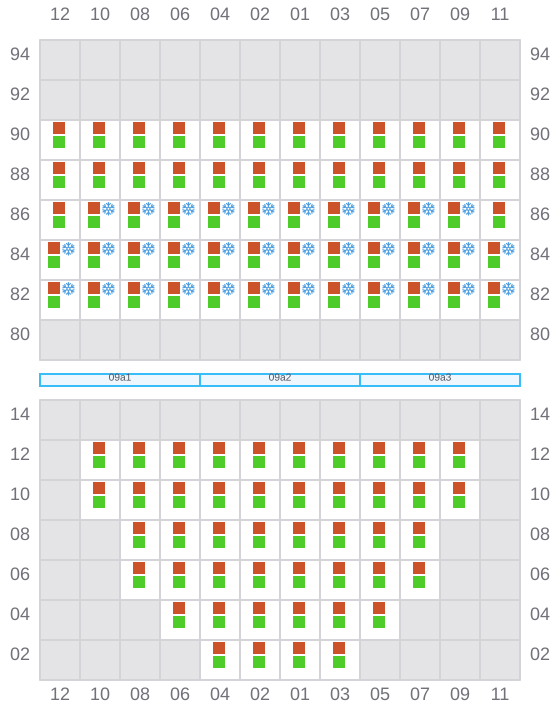

Bay 009 view and slots of AL RAWDAH

011

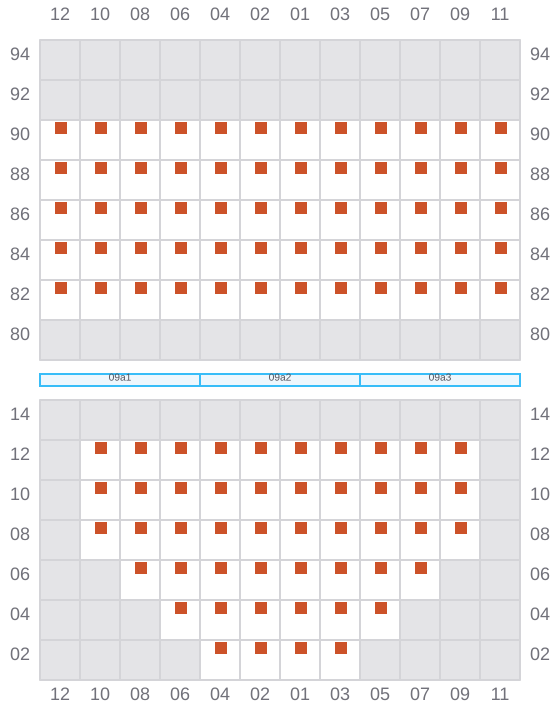

Bay 011 view and slots of AL RAWDAH

013 (014)

  • / ?

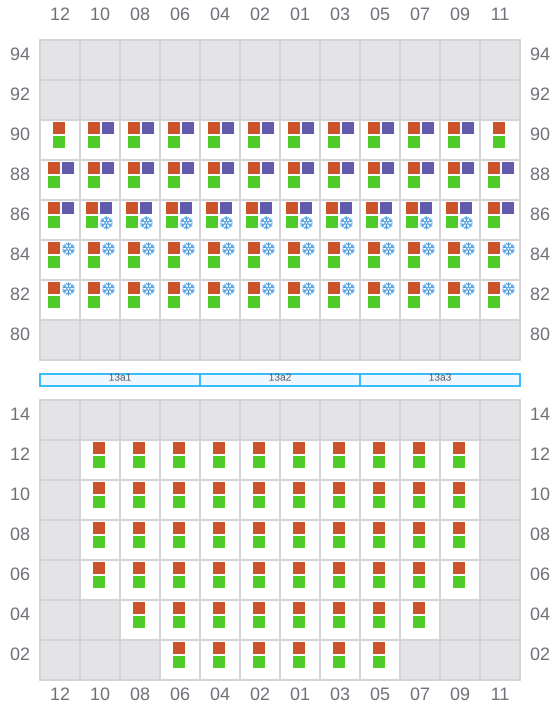

Bay 013 view and slots of AL RAWDAH

015

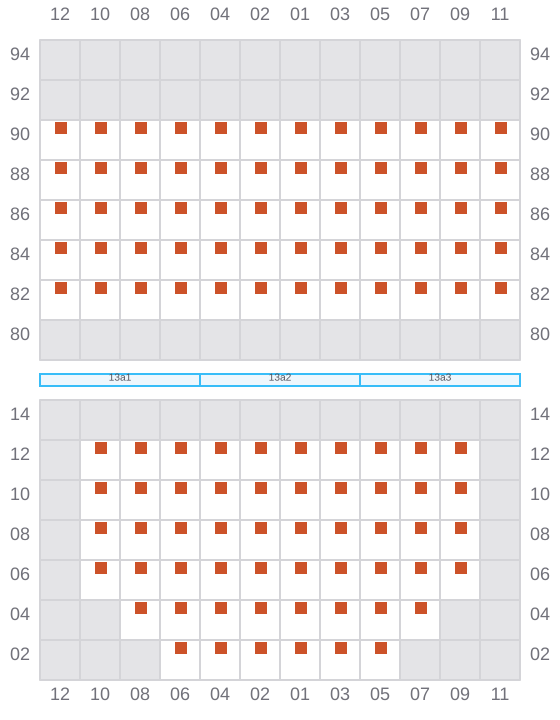

Bay 015 view and slots of AL RAWDAH

017 (018)

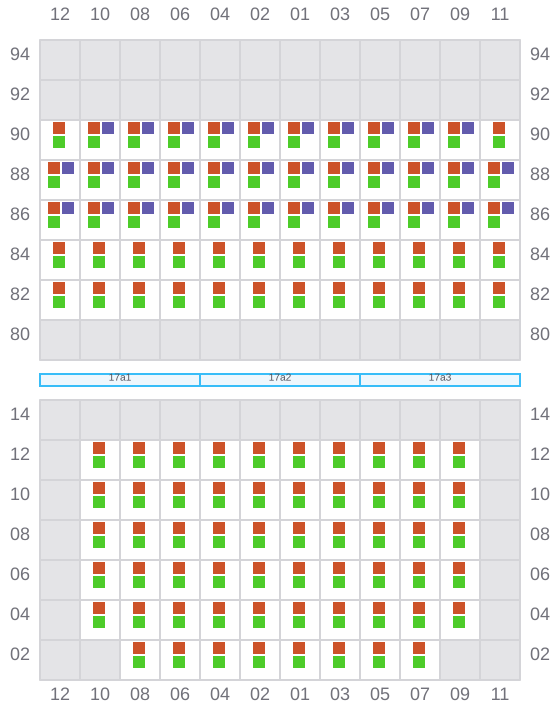

Bay 017 view and slots of AL RAWDAH

019

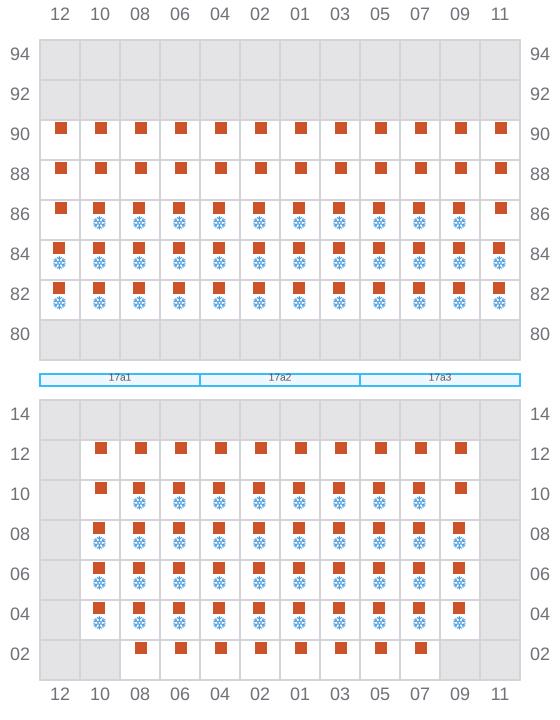

Bay 019 view and slots of AL RAWDAH

021 (022)

  • ? /

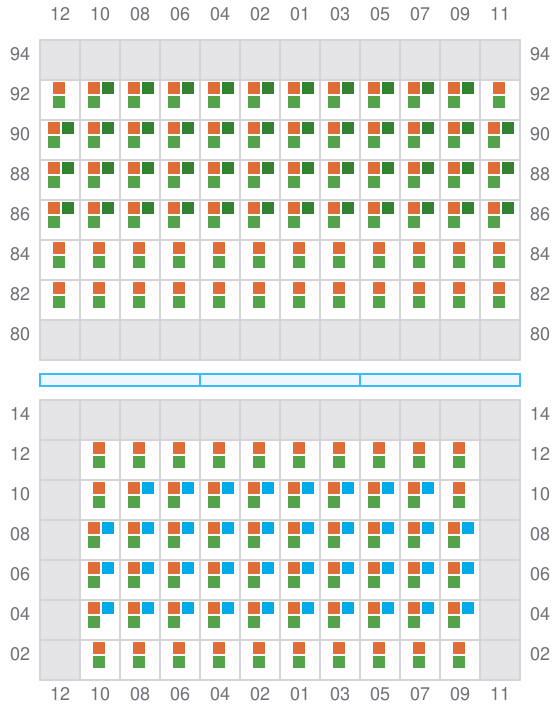

Bay 021 view and slots of AL RAWDAH

023

  • / ?

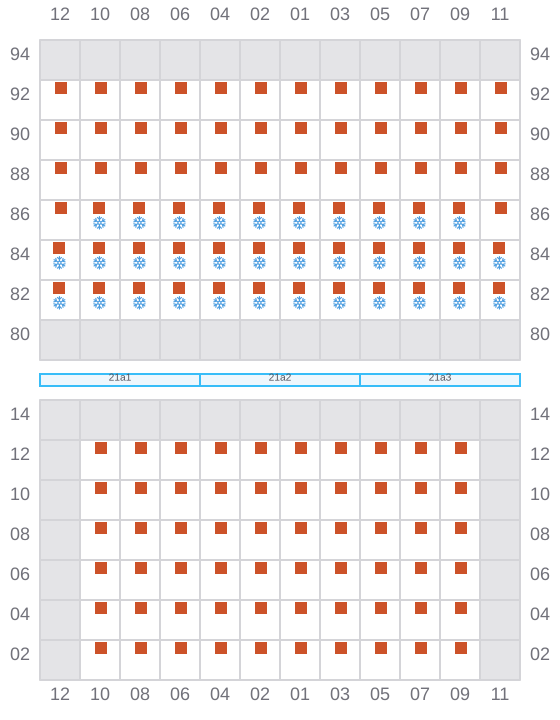

Bay 023 view and slots of AL RAWDAH

025 (026)

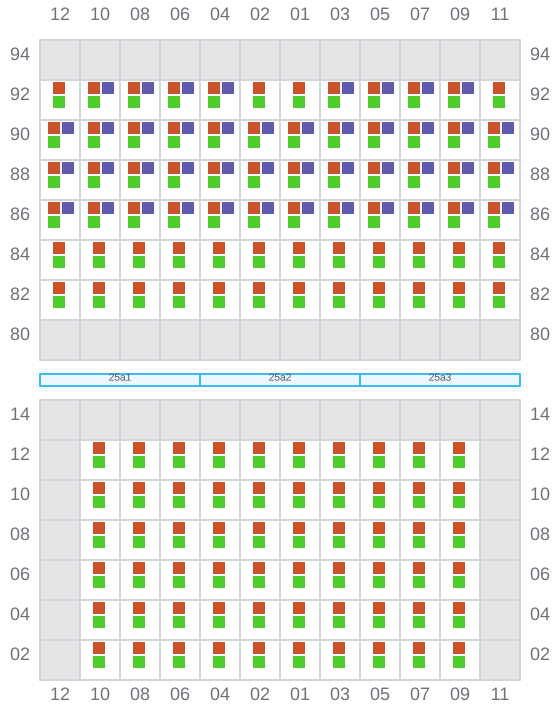

Bay 025 view and slots of AL RAWDAH

027

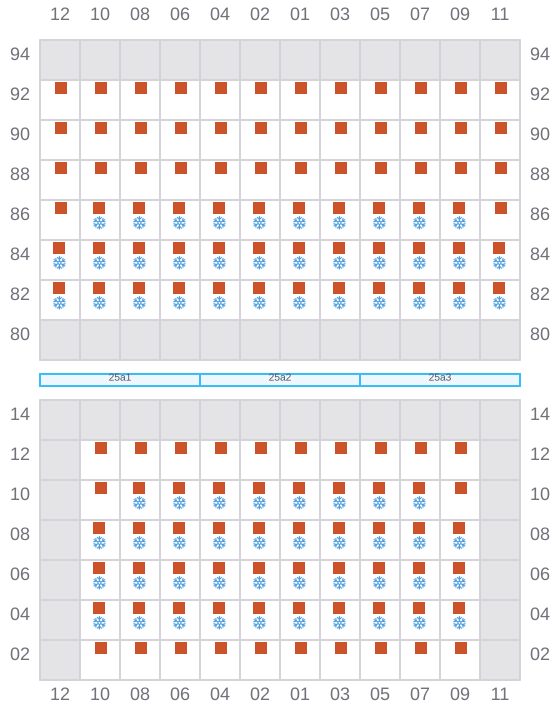

Bay 027 view and slots of AL RAWDAH

029 (030)

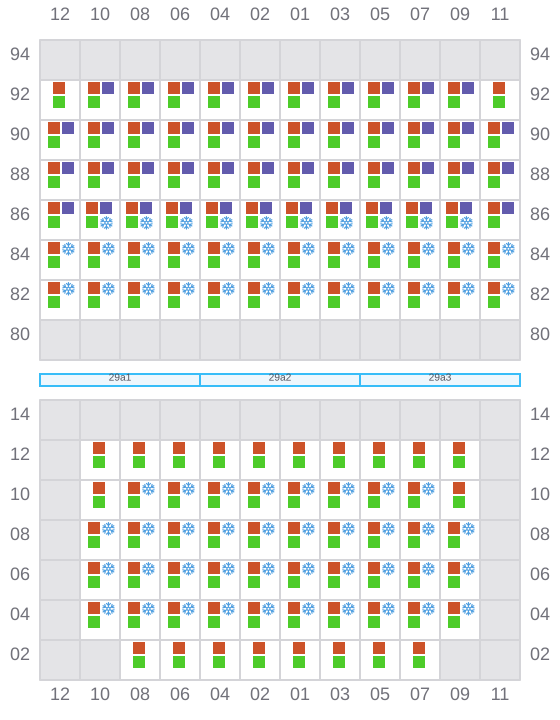

Bay 029 view and slots of AL RAWDAH

031

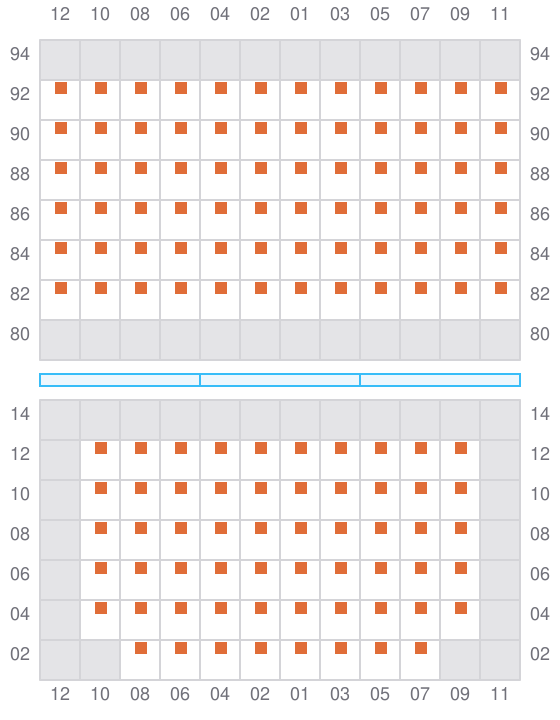

Bay 031 view and slots of AL RAWDAH

033 (034)

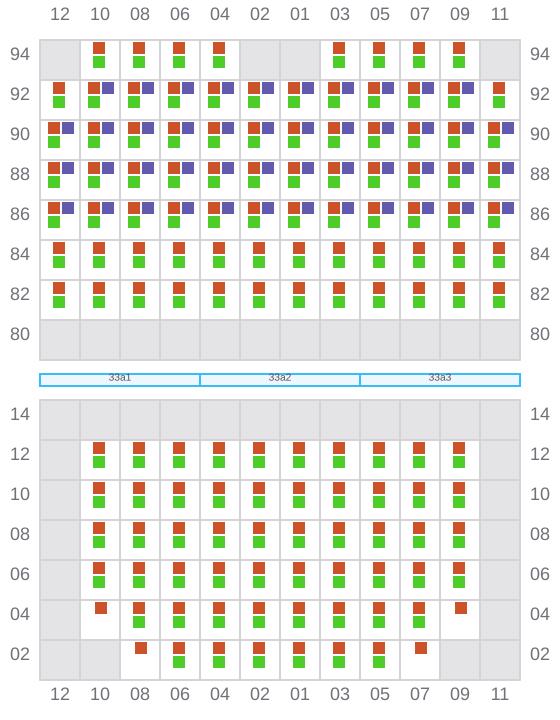

Bay 033 view and slots of AL RAWDAH

035

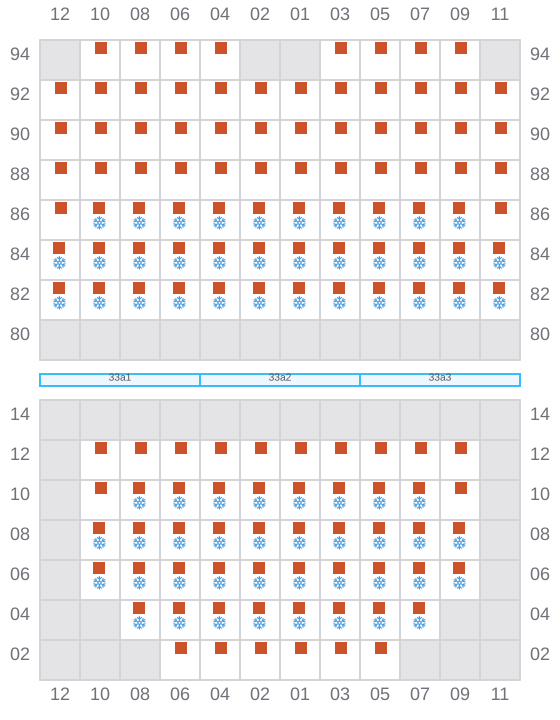

Bay 035 view and slots of AL RAWDAH

037 (038)

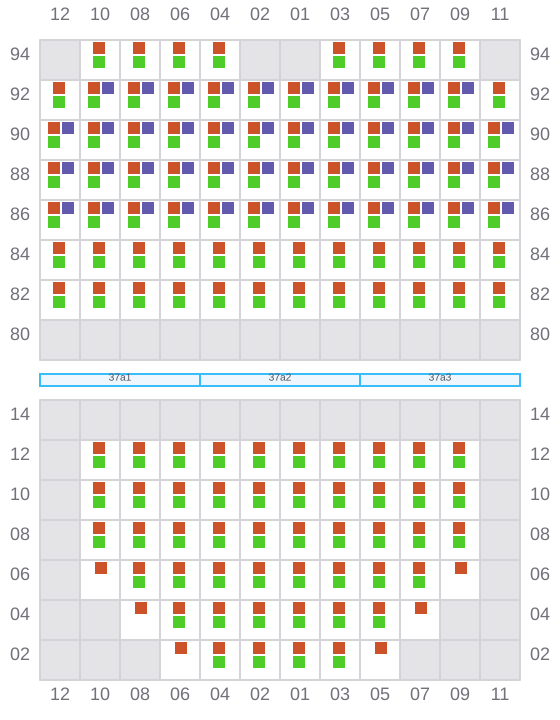

Bay 037 view and slots of AL RAWDAH

039

  • / ?

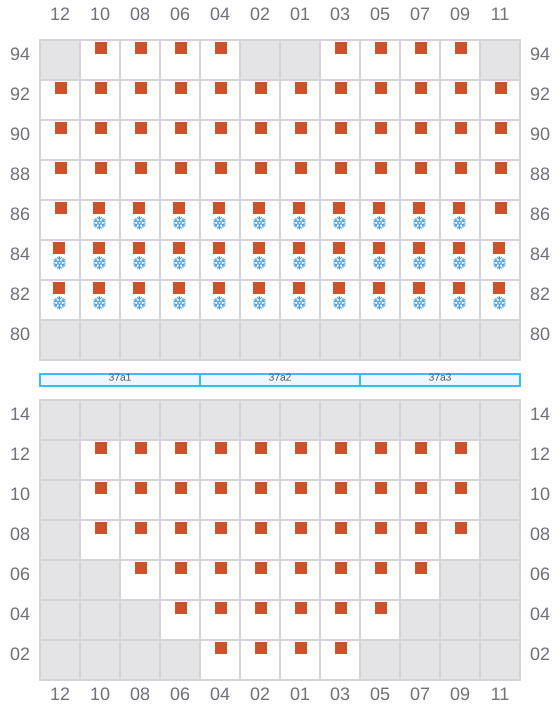

Bay 039 view and slots of AL RAWDAH

041

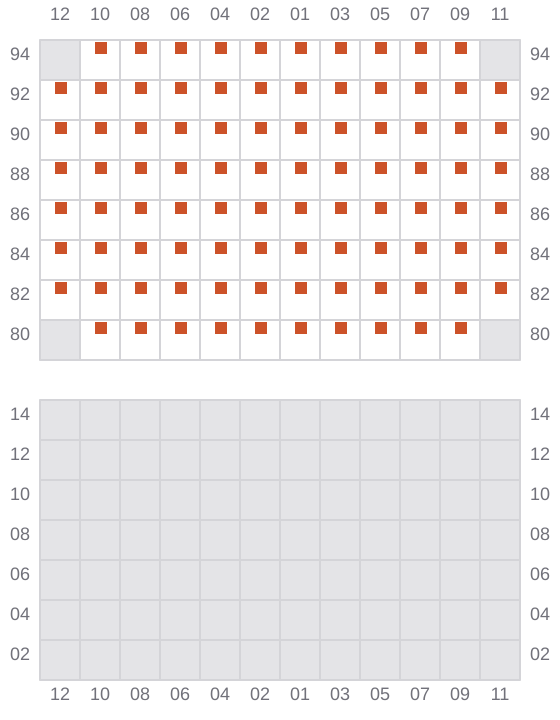

Bay 041 view and slots of AL RAWDAH

043 (044)

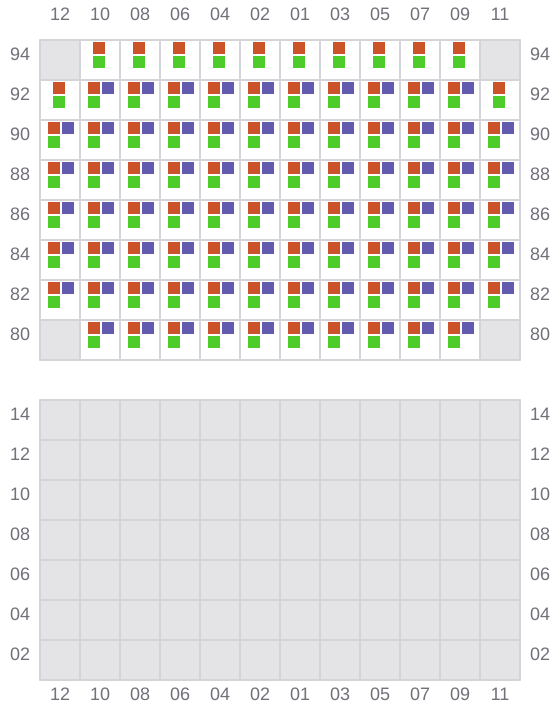

Bay 043 view and slots of AL RAWDAH

045

  • / ?

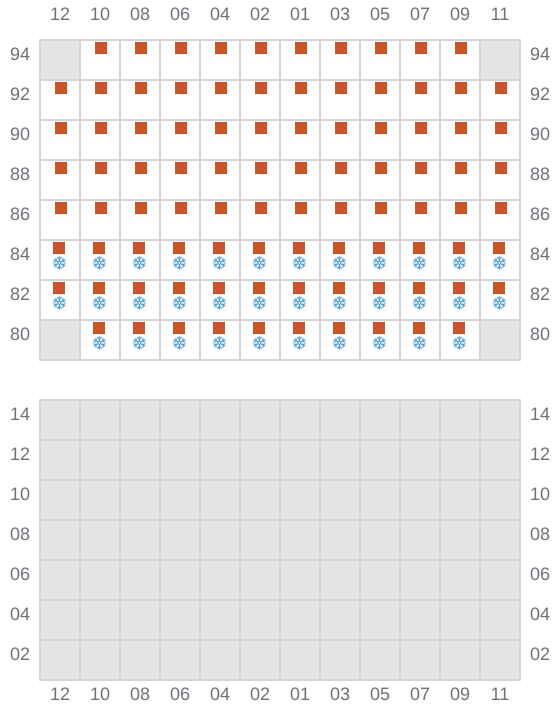

Bay 045 view and slots of AL RAWDAH
