AL REEM I
9300984 | A6E2944 | 9300984 by ********* Last update: Thu Jun 20 2024

General Info

Ship Name:AL REEM I
IMO Code:9300984
Call Sign:A6E2944
Line Operator:9300984
Class Name for Sister Ships:MCC
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:045
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,948

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

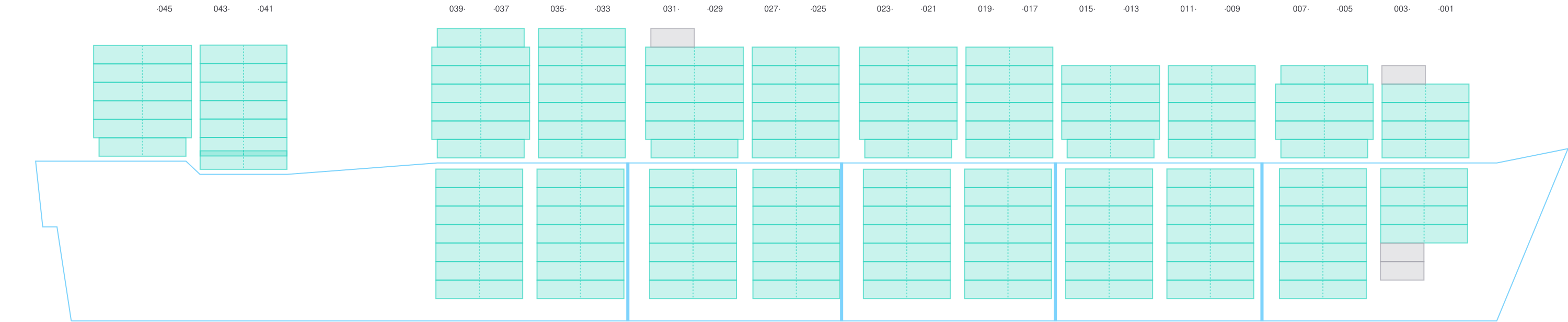

Side view of AL REEM I

Hatch-Covers View

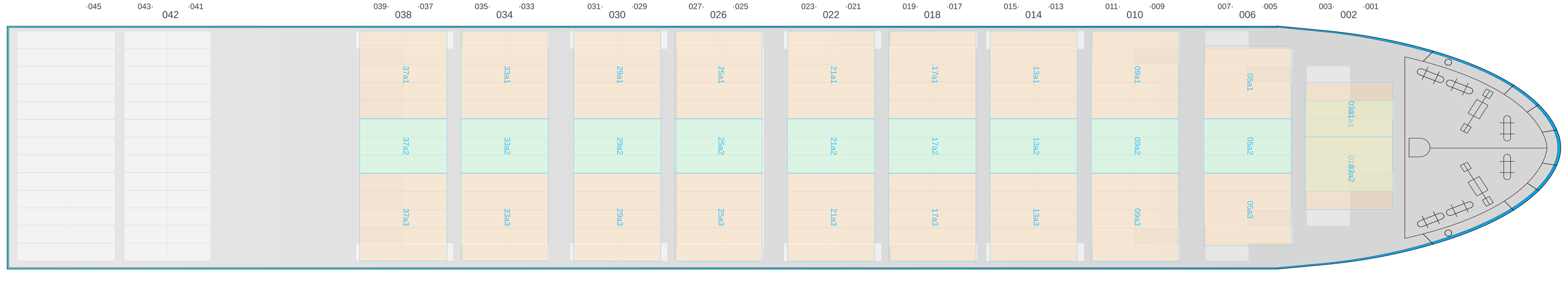

Deck view of AL REEM I

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

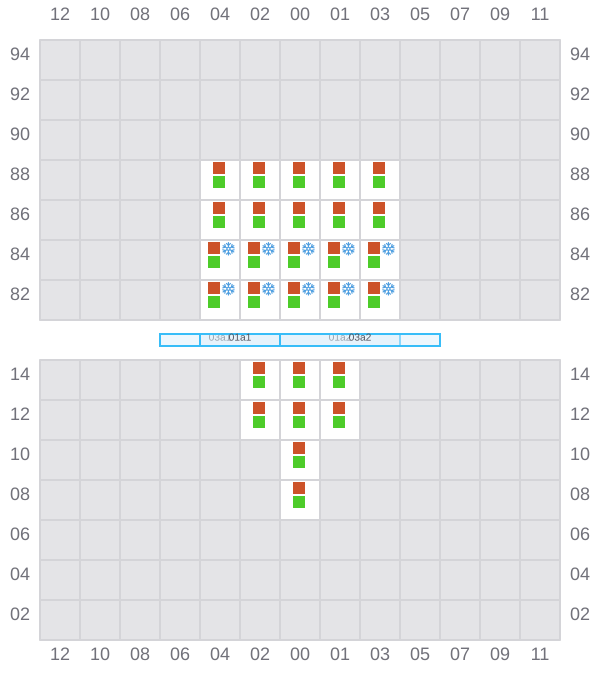

Bay 001 view and slots of AL REEM I

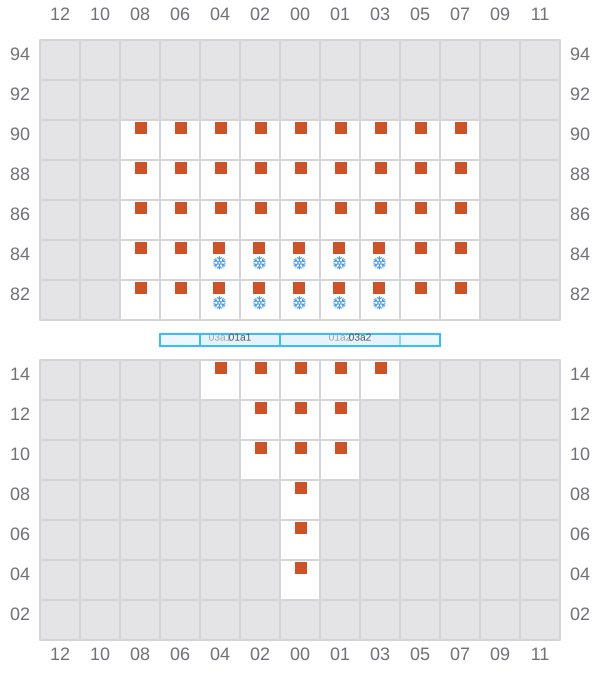

003

  • ←
Bay 003 view and slots of AL REEM I

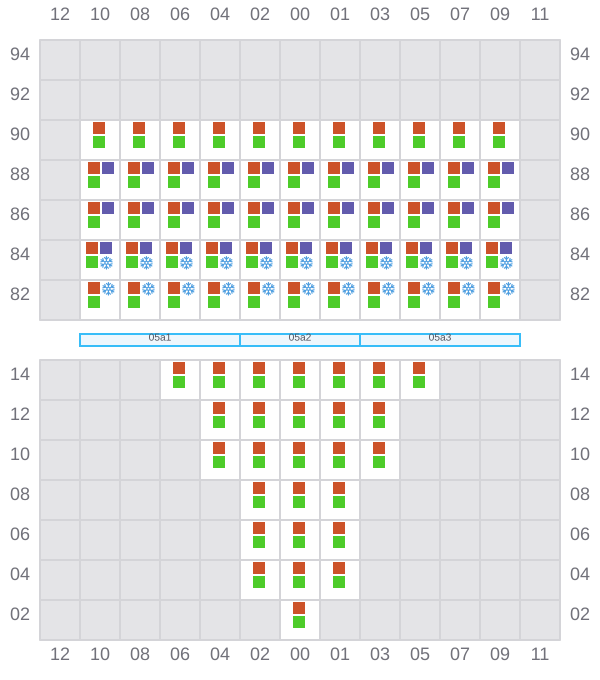

005 (006)

  • →
  • ← / ?
Bay 005 view and slots of AL REEM I

007

  • ←
  • ? / →
Bay 007 view and slots of AL REEM I

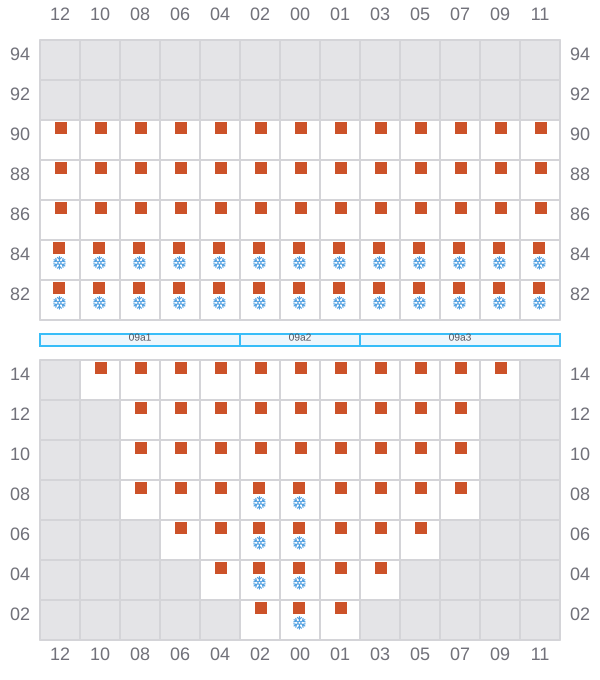

009 (010)

  • →
Bay 009 view and slots of AL REEM I

011

  • ←
  • →
Bay 011 view and slots of AL REEM I

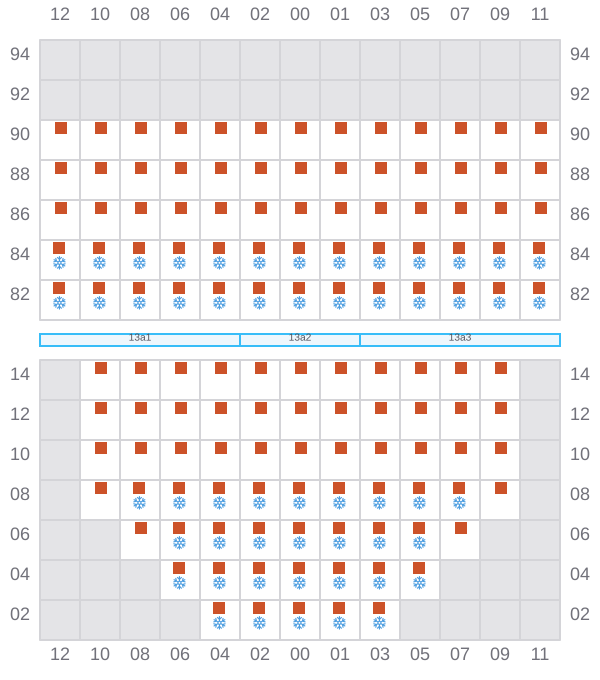

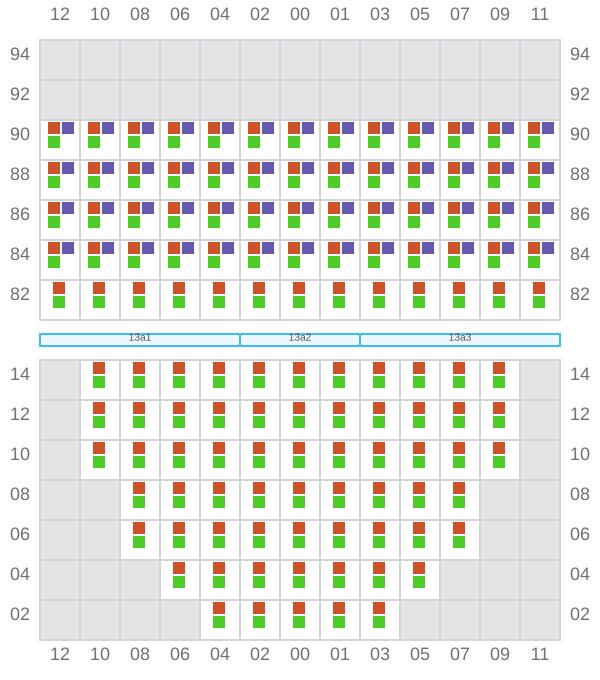

013 (014)

  • →
Bay 013 view and slots of AL REEM I

015

  • ←
  • →
Bay 015 view and slots of AL REEM I

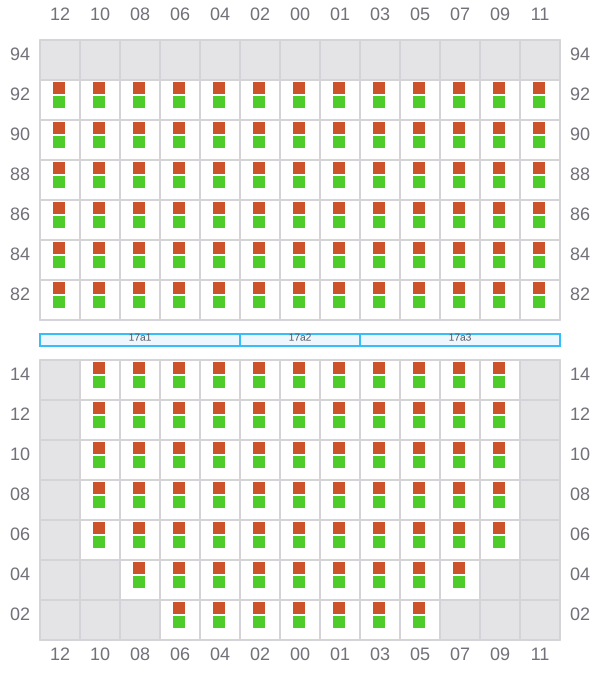

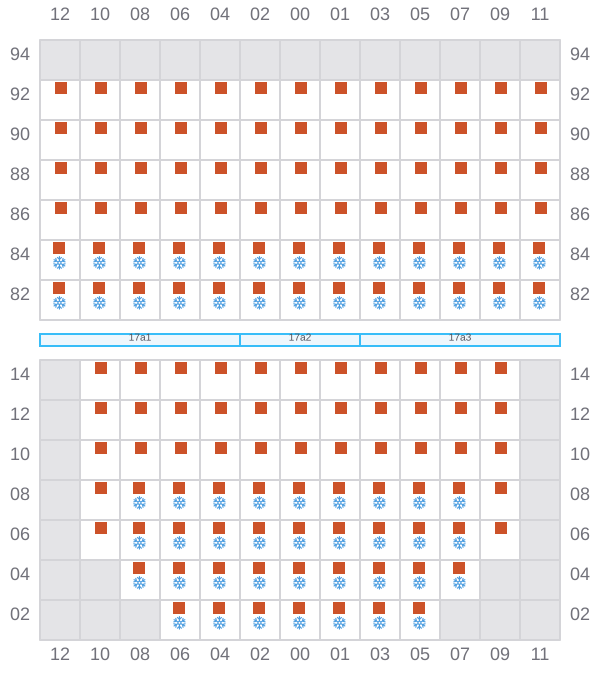

017 (018)

  • →
Bay 017 view and slots of AL REEM I

019

  • ←
  • →
Bay 019 view and slots of AL REEM I

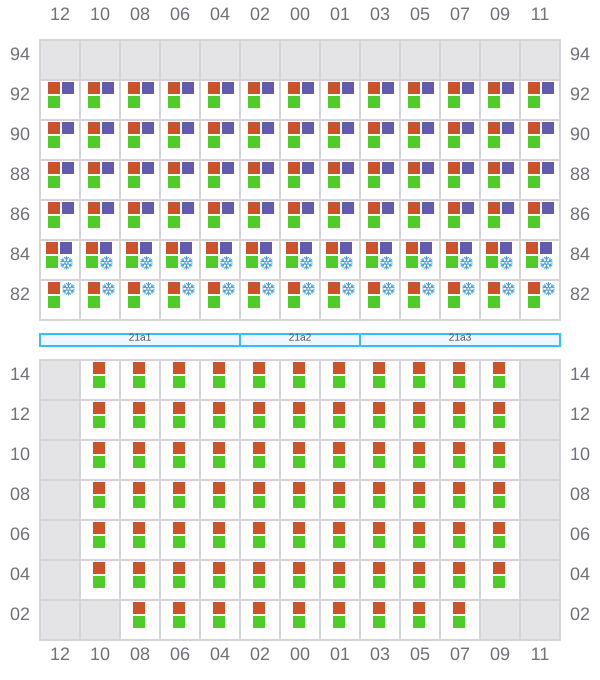

021 (022)

  • →
  • ← / ?
Bay 021 view and slots of AL REEM I

023

  • ←
  • ? / →

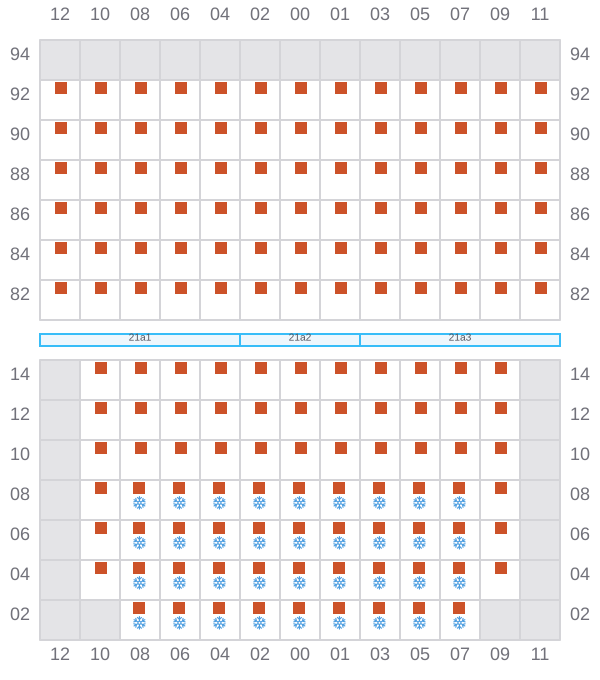

Bay 023 view and slots of AL REEM I

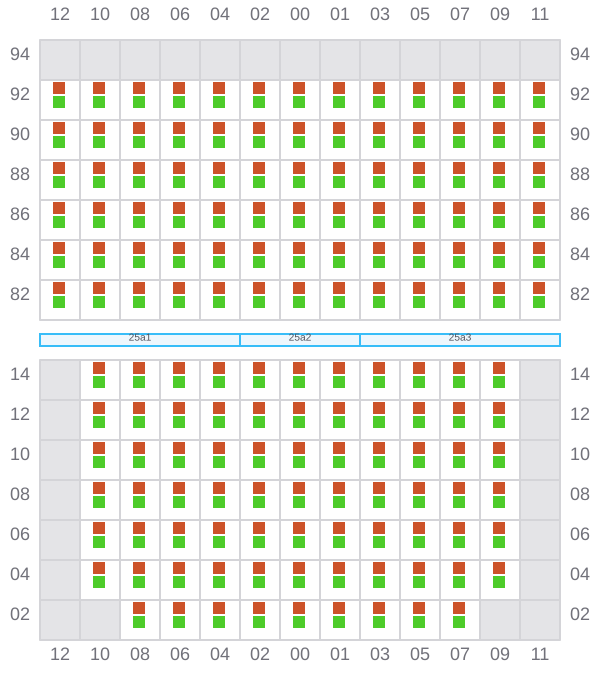

025 (026)

  • →
Bay 025 view and slots of AL REEM I

027

  • ←
  • →
Bay 027 view and slots of AL REEM I

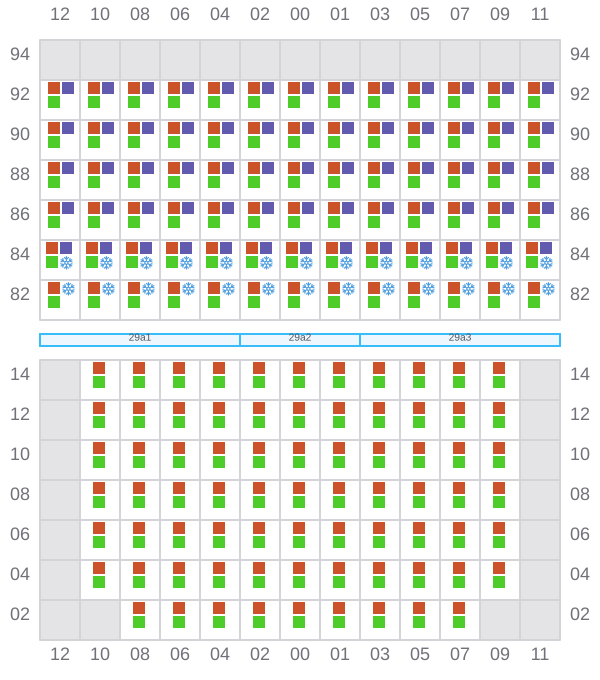

029 (030)

  • →
  • ← / ?
Bay 029 view and slots of AL REEM I

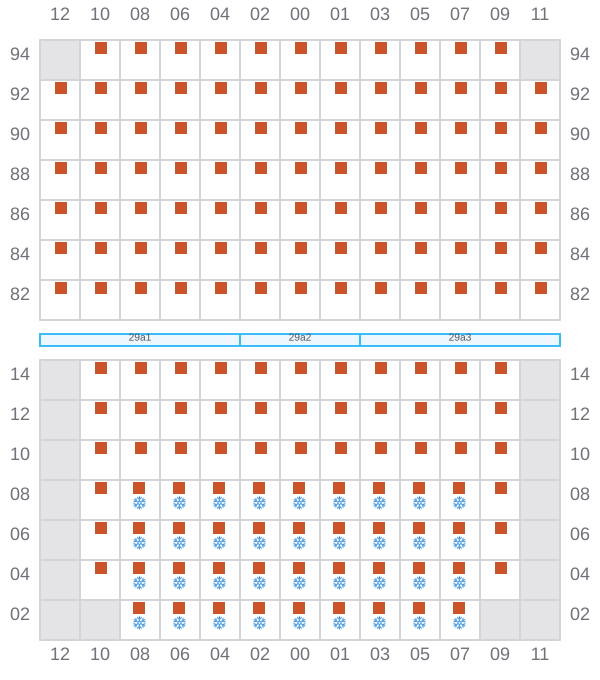

031

  • ←
  • ? / →
Bay 031 view and slots of AL REEM I

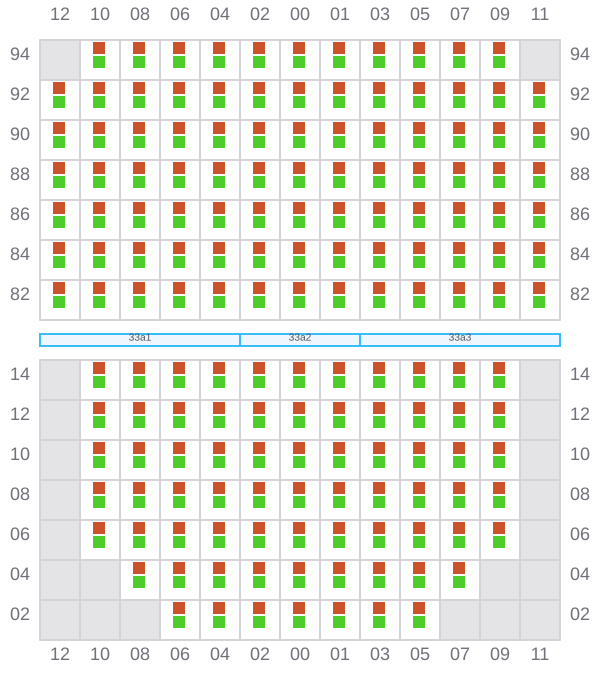

033 (034)

  • →
Bay 033 view and slots of AL REEM I

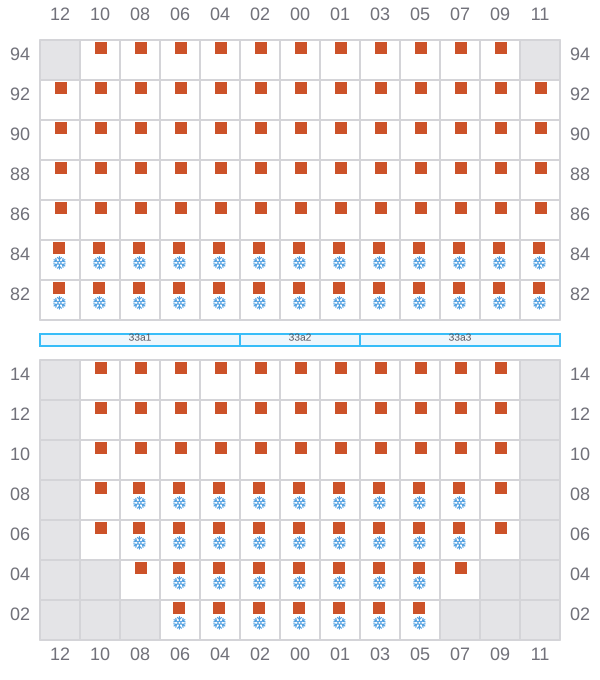

035

  • ←
  • →
Bay 035 view and slots of AL REEM I

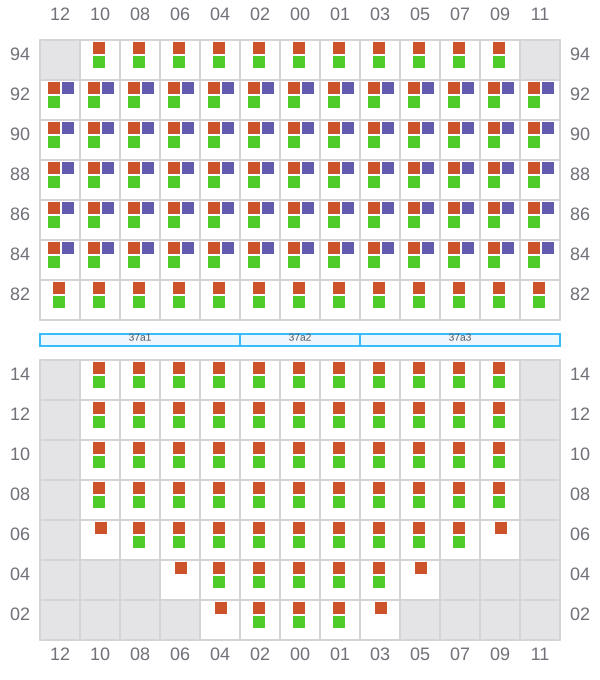

037 (038)

  • →
Bay 037 view and slots of AL REEM I

039

  • ←
  • →

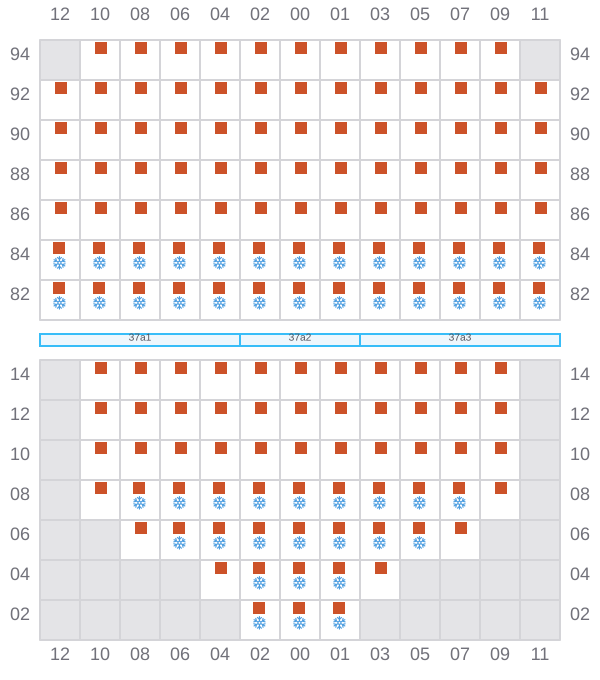

Bay 039 view and slots of AL REEM I

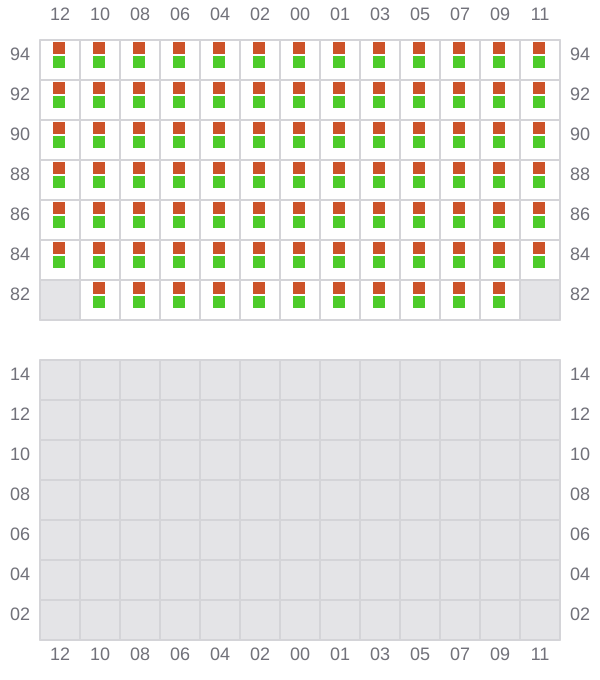

041 (042)

  • → / ?
  • ← / ?
Bay 041 view and slots of AL REEM I

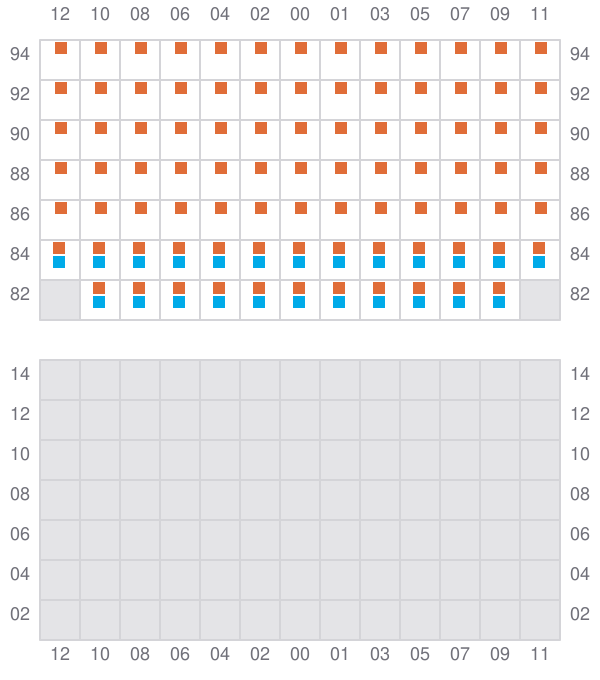

043

  • ← / ?
Bay 043 view and slots of AL REEM I

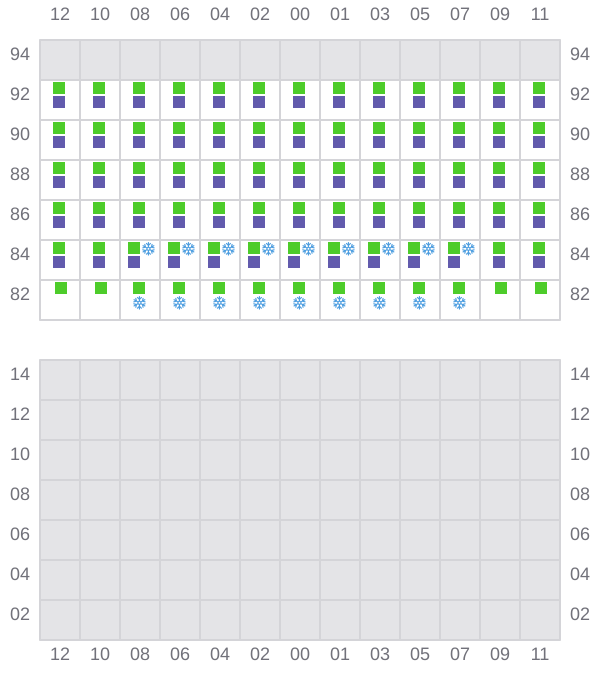

045 (046)

  • → / ?
  • ← / ?

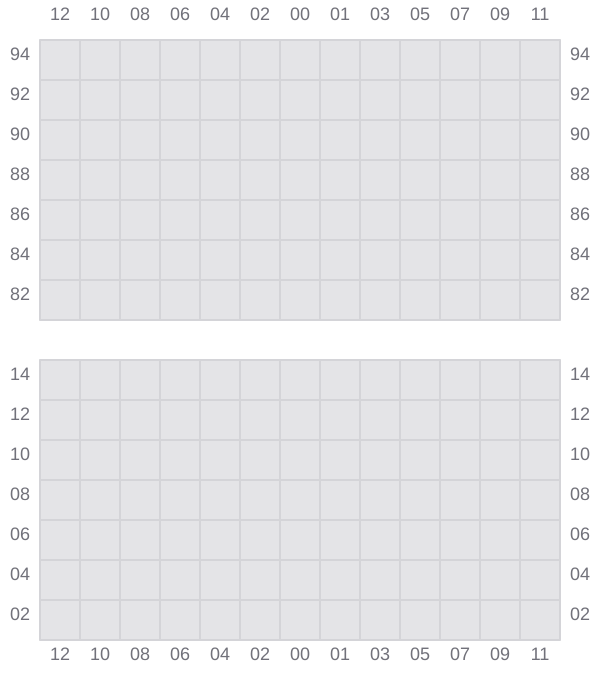

Bay 045 view and slots of AL REEM I
