AL SAFAT
9349497 | D5MD9 | 9349497 by ********* Last update: Thu Jul 18 2024

General Info

Ship Name:AL SAFAT
IMO Code:9349497
Call Sign:D5MD9
Line Operator:9349497
Class Name for Sister Ships:UAL
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45, 48
LPP (LBP):292.00
LOA (Length Overall):306.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:069
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:6,921

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

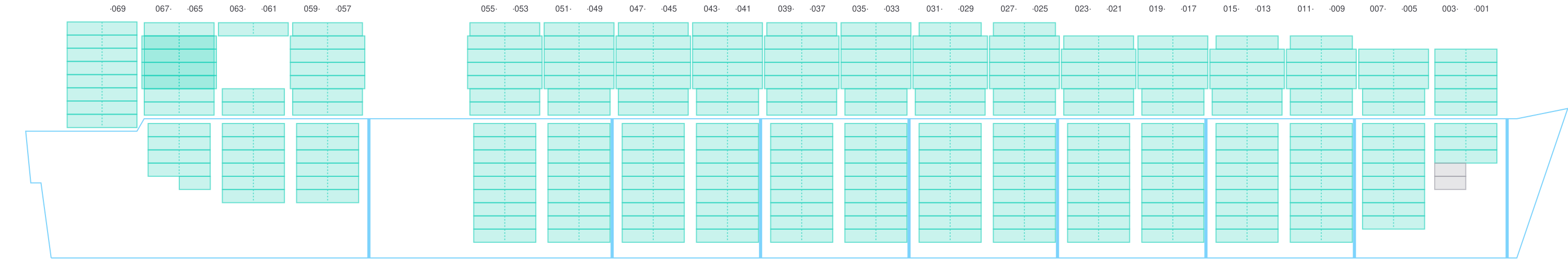

Side View

Side view of AL SAFAT

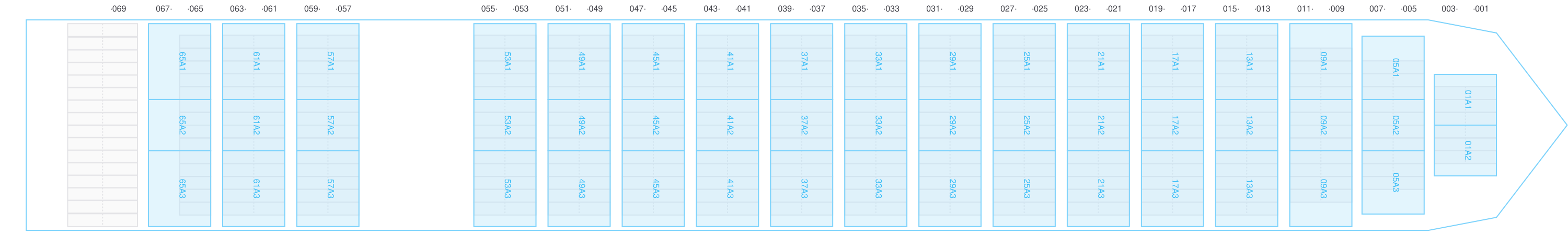

Hatch-Covers View

Deck view of AL SAFAT

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • 48'
  • Reefer
  • Restricted slot

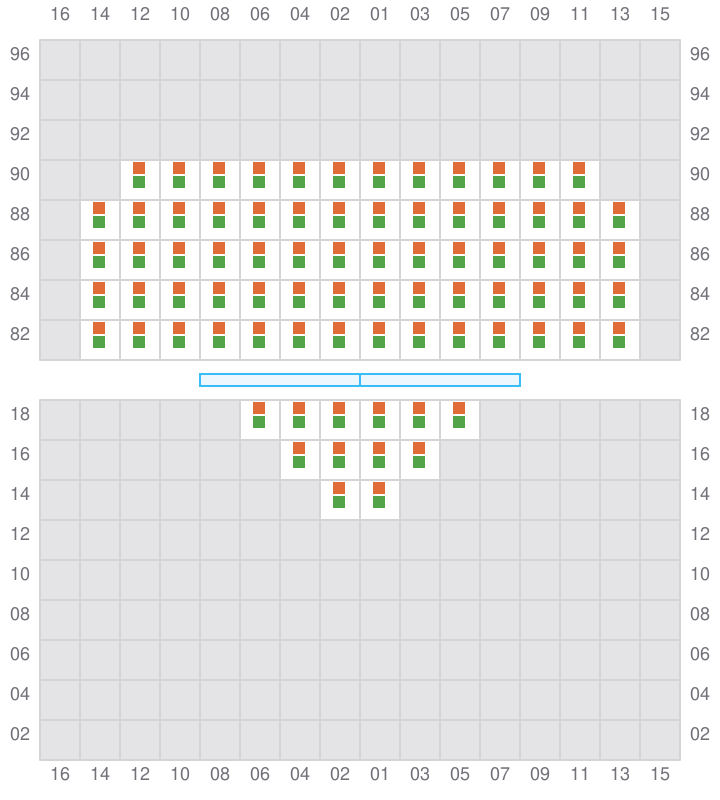

001 (002)

  • →
Bay 001 view and slots of AL SAFAT

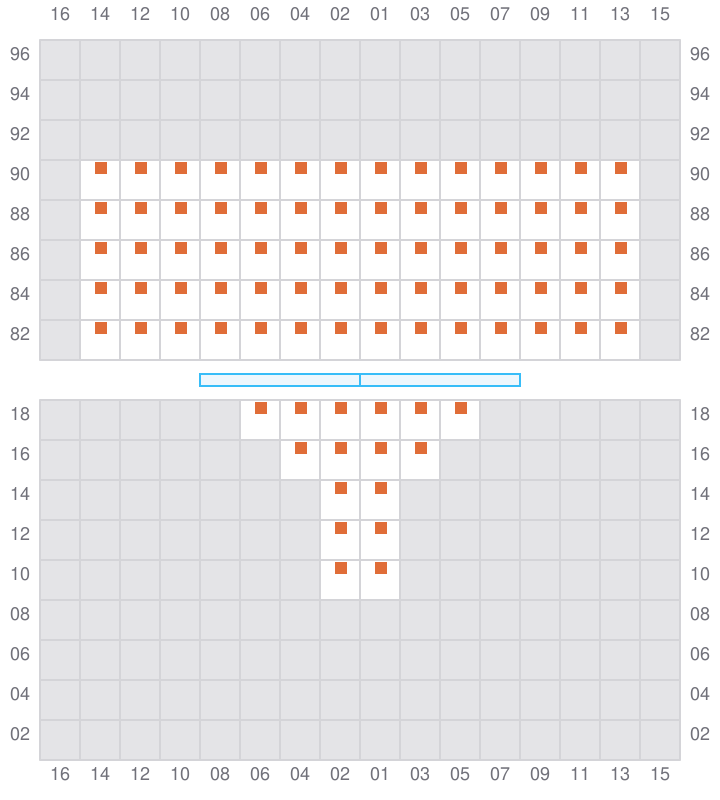

003

  • ←
Bay 003 view and slots of AL SAFAT

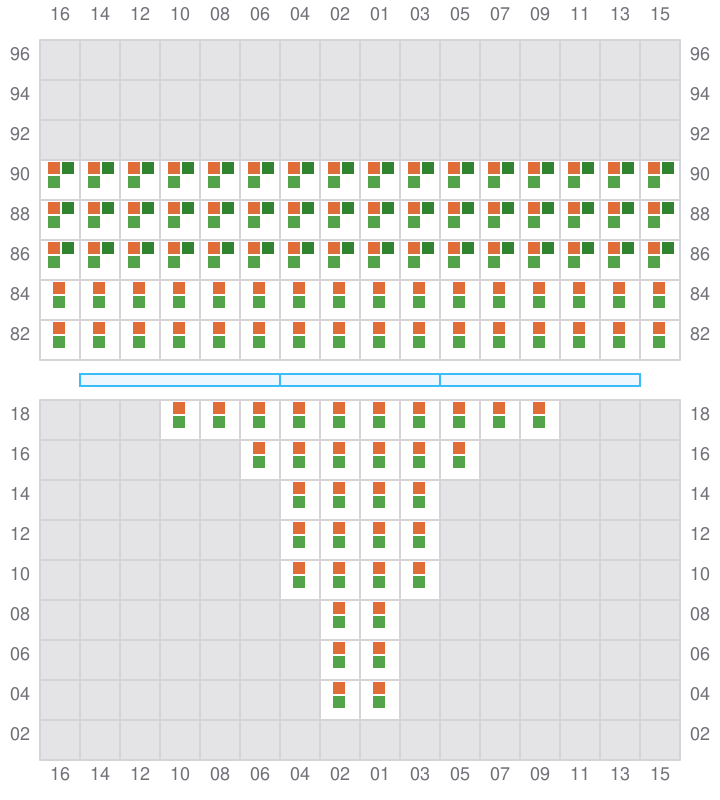

005 (006)

  • →
  • → / ?
Bay 005 view and slots of AL SAFAT

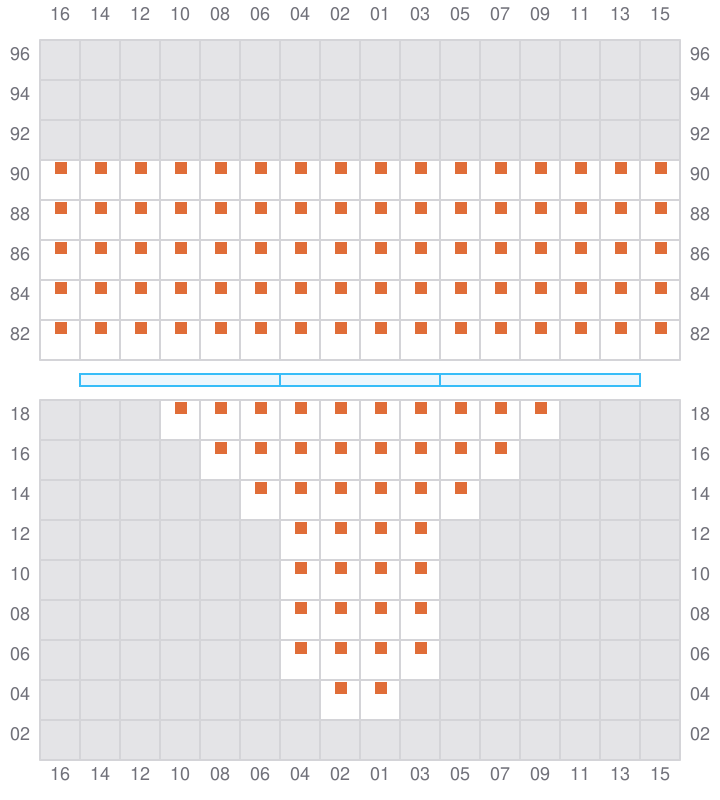

007

  • ←
  • → / ?
Bay 007 view and slots of AL SAFAT

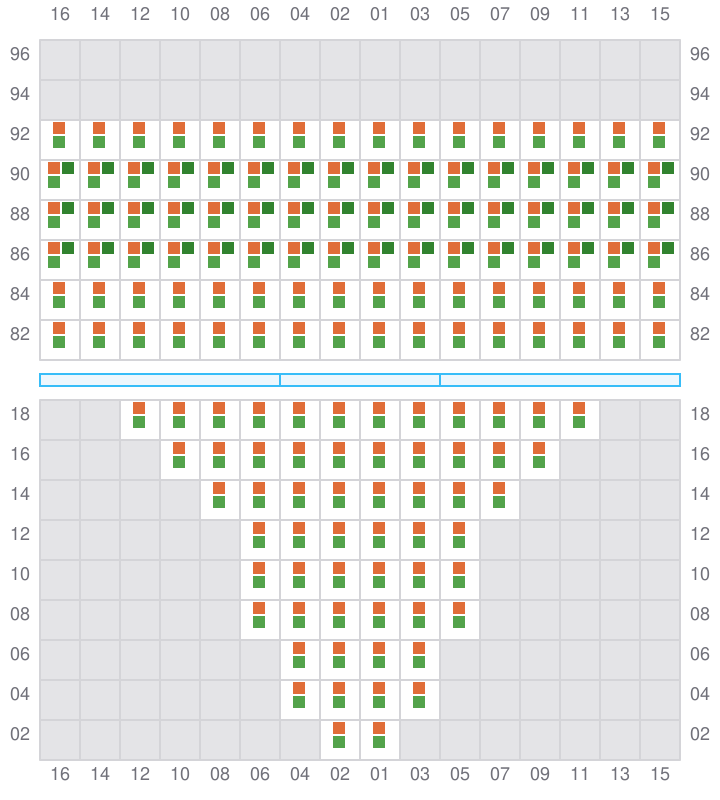

009 (010)

  • →
Bay 009 view and slots of AL SAFAT

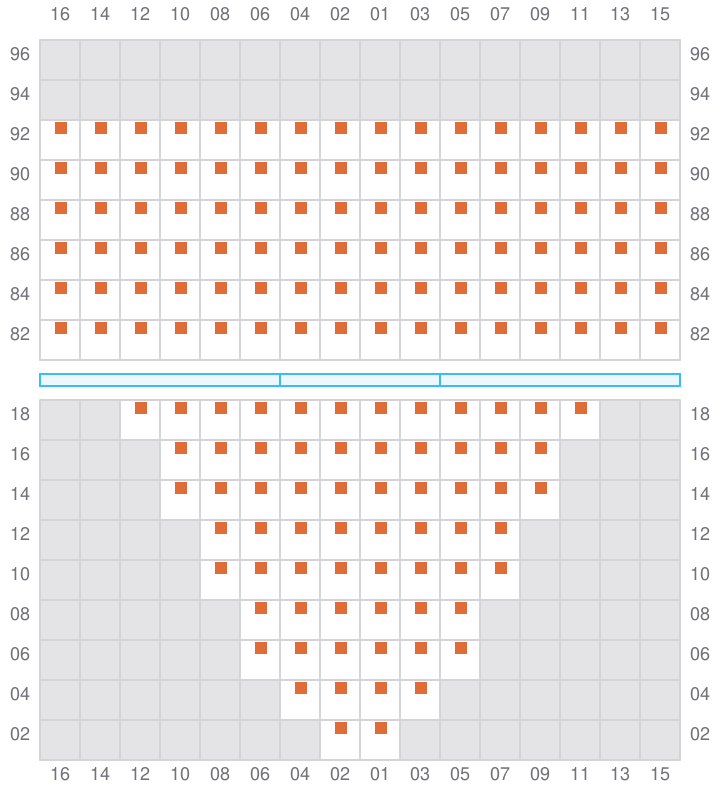

011

  • ←
  • → / ?
Bay 011 view and slots of AL SAFAT

013 (014)

  • →

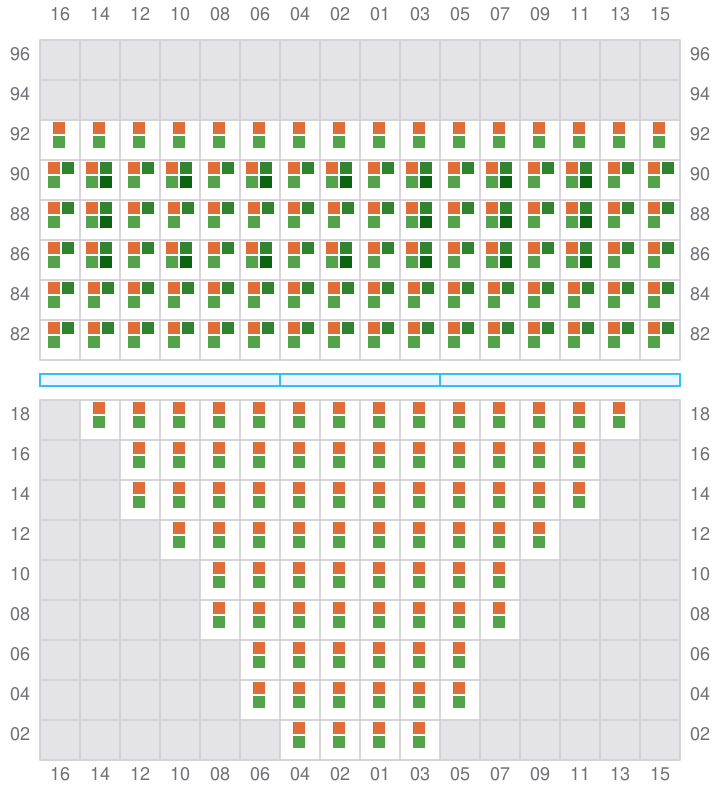

Bay 013 view and slots of AL SAFAT

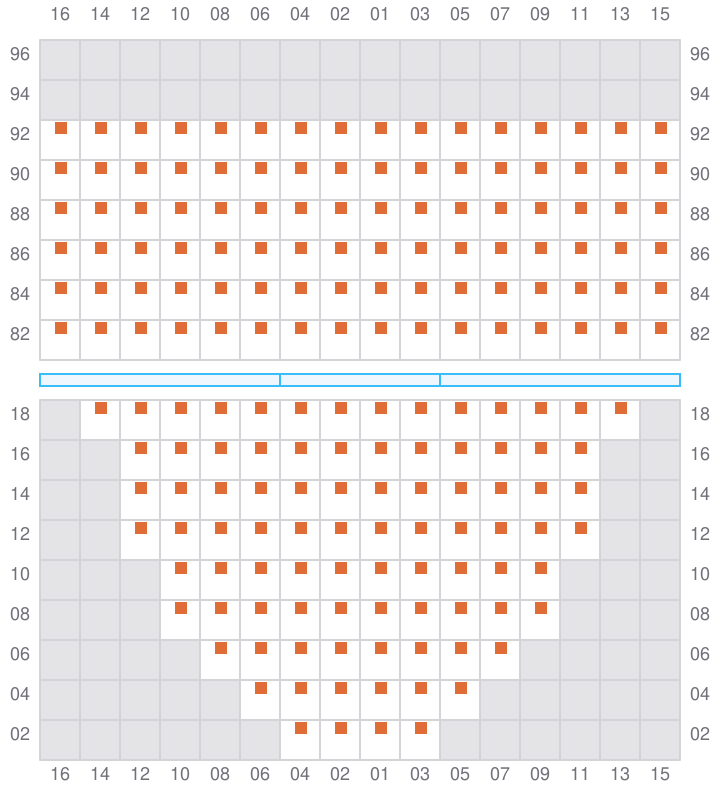

015

  • ←
  • → / ?
Bay 015 view and slots of AL SAFAT

017 (018)

  • →

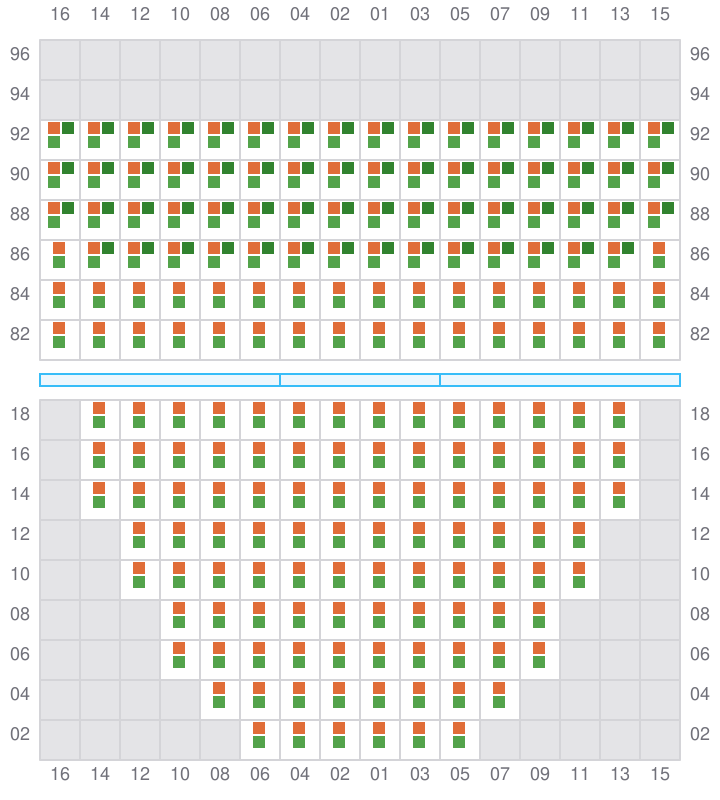

Bay 017 view and slots of AL SAFAT

019

  • ←
  • → / ?

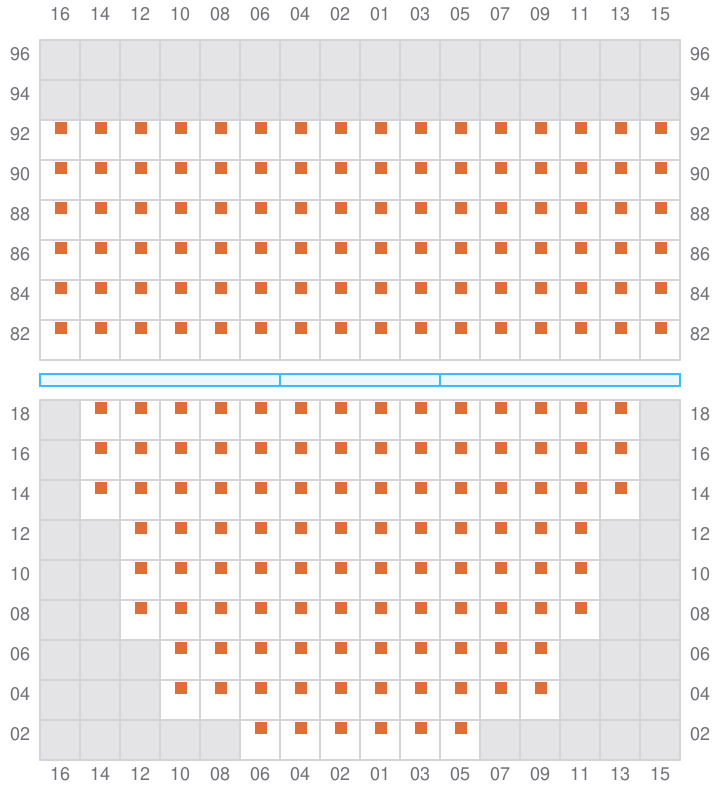

Bay 019 view and slots of AL SAFAT

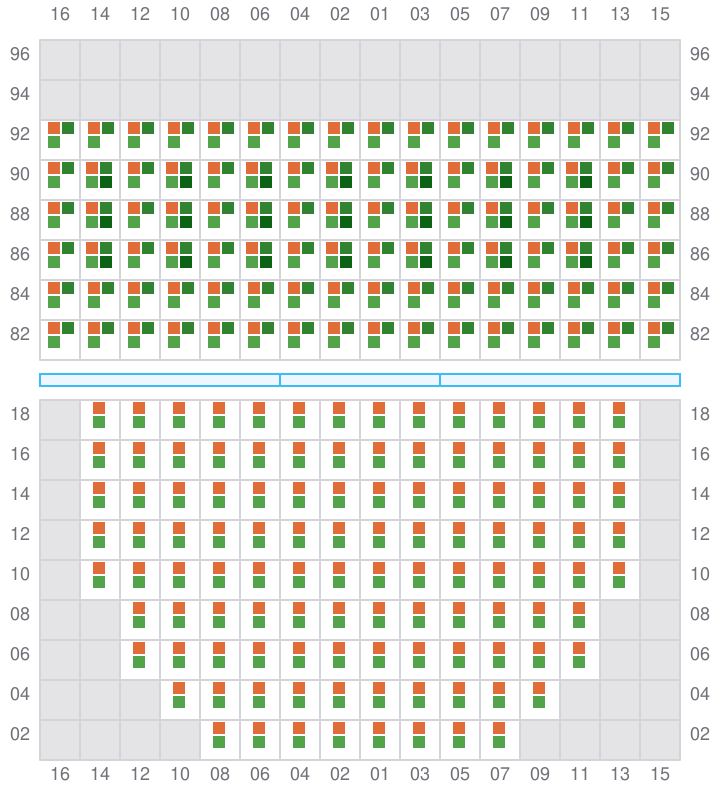

021 (022)

  • →
Bay 021 view and slots of AL SAFAT

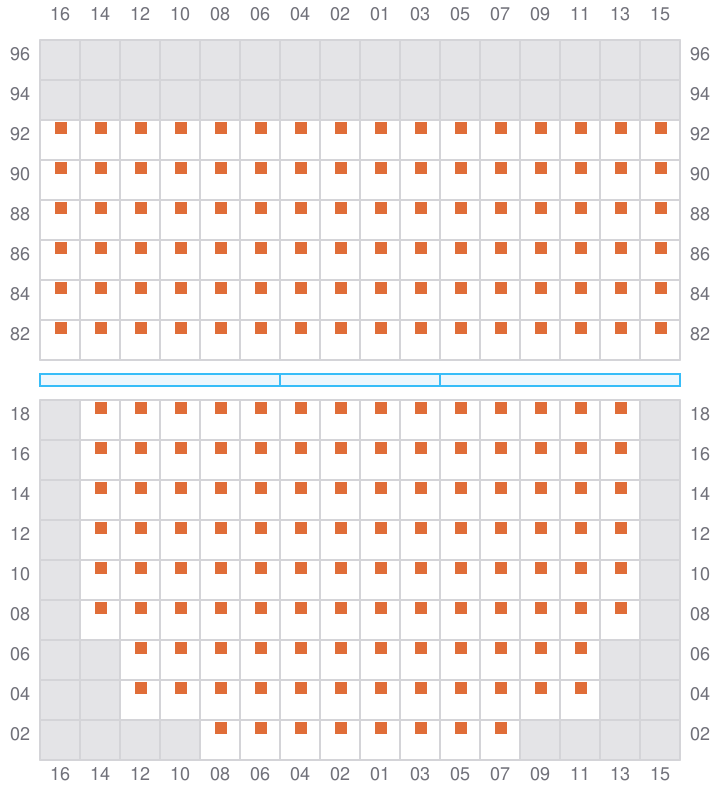

023

  • ←
  • → / ?
Bay 023 view and slots of AL SAFAT

025 (026)

  • →

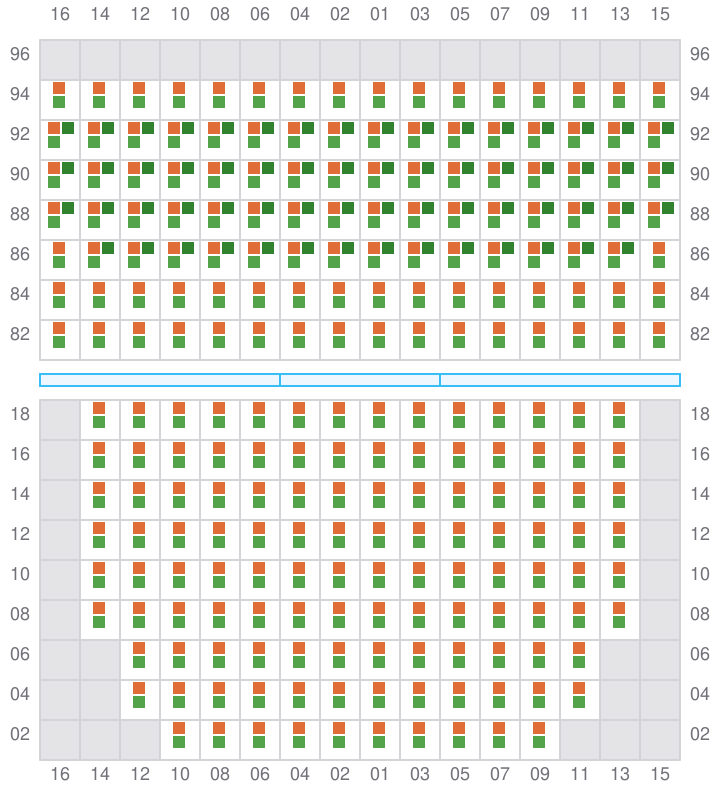

Bay 025 view and slots of AL SAFAT

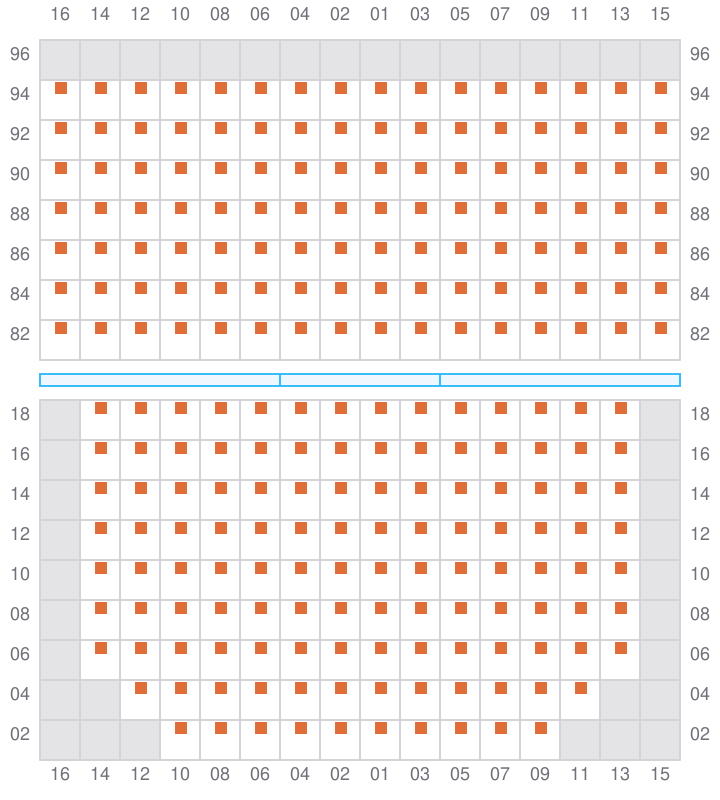

027

  • ←
  • → / ?
Bay 027 view and slots of AL SAFAT

029 (030)

  • →

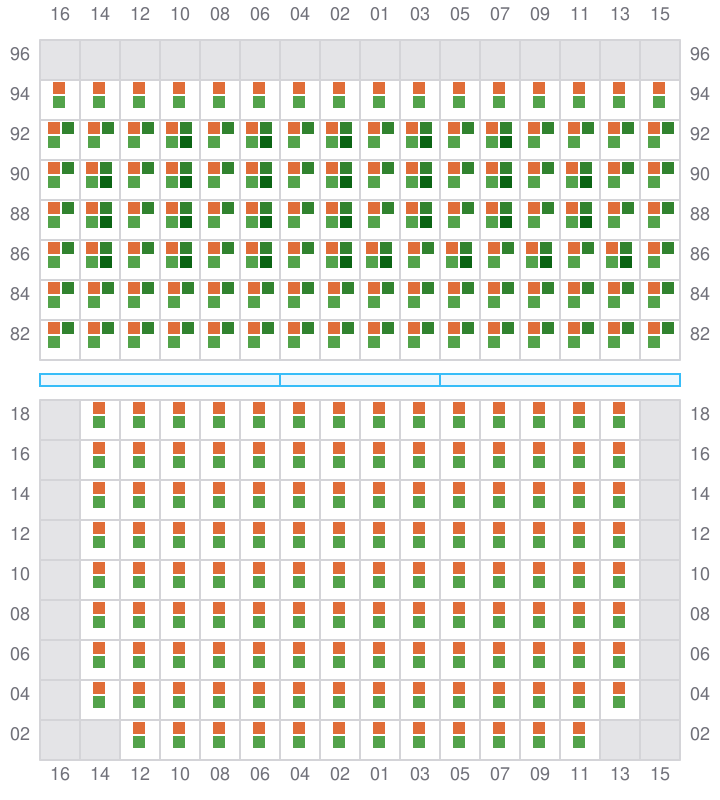

Bay 029 view and slots of AL SAFAT

031

  • ←
  • → / ?
Bay 031 view and slots of AL SAFAT

033 (034)

  • →
Bay 033 view and slots of AL SAFAT

035

  • ←
  • → / ?
Bay 035 view and slots of AL SAFAT

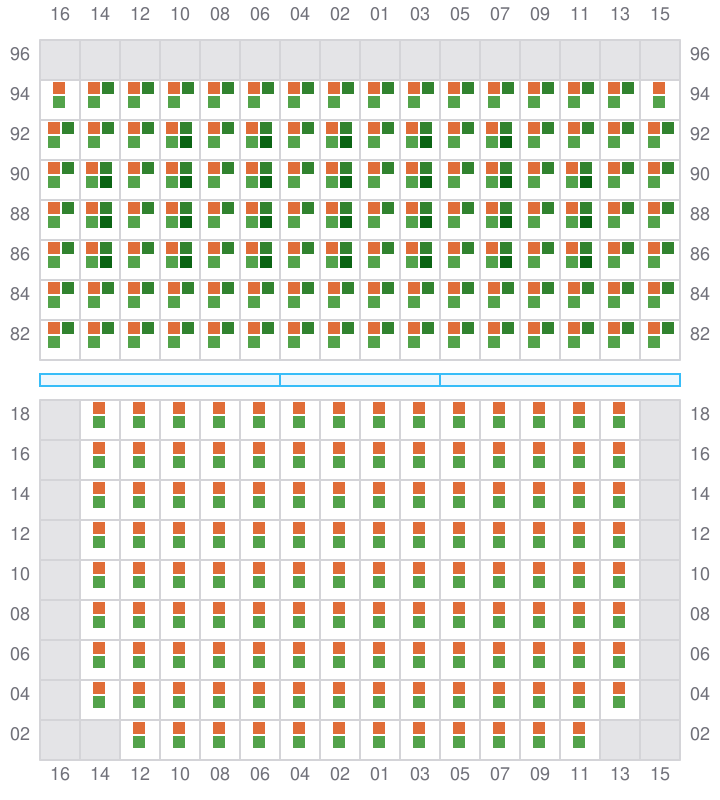

037 (038)

  • →
Bay 037 view and slots of AL SAFAT

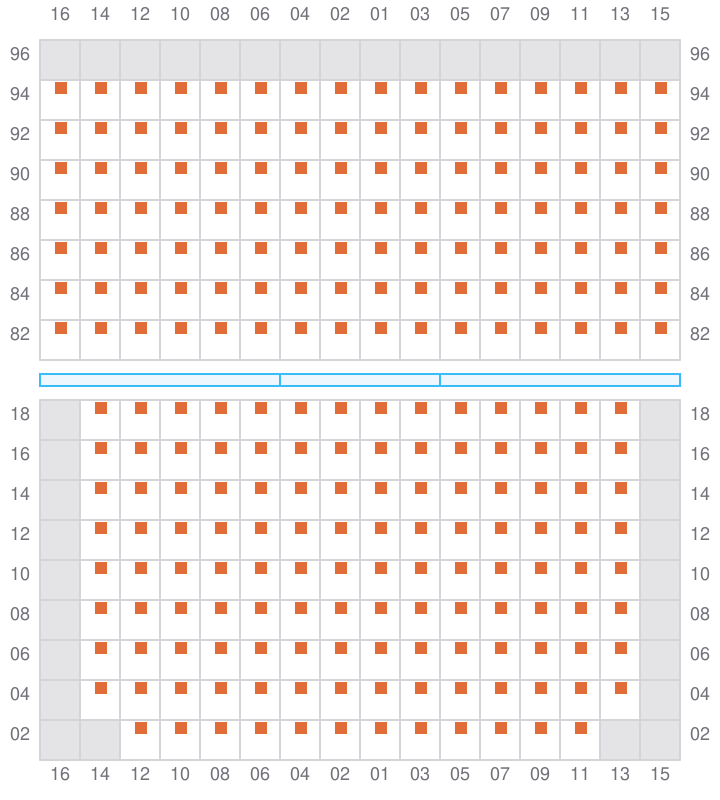

039

  • ←
  • → / ?
Bay 039 view and slots of AL SAFAT

041 (042)

  • →

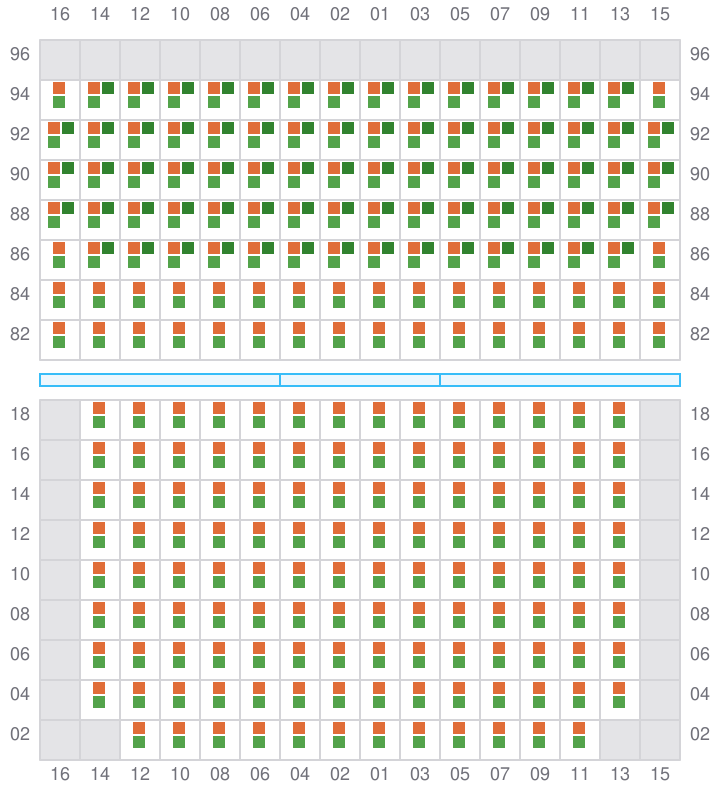

Bay 041 view and slots of AL SAFAT

043

  • ←
  • → / ?
Bay 043 view and slots of AL SAFAT

045 (046)

  • →
Bay 045 view and slots of AL SAFAT

047

  • ←
  • → / ?
Bay 047 view and slots of AL SAFAT

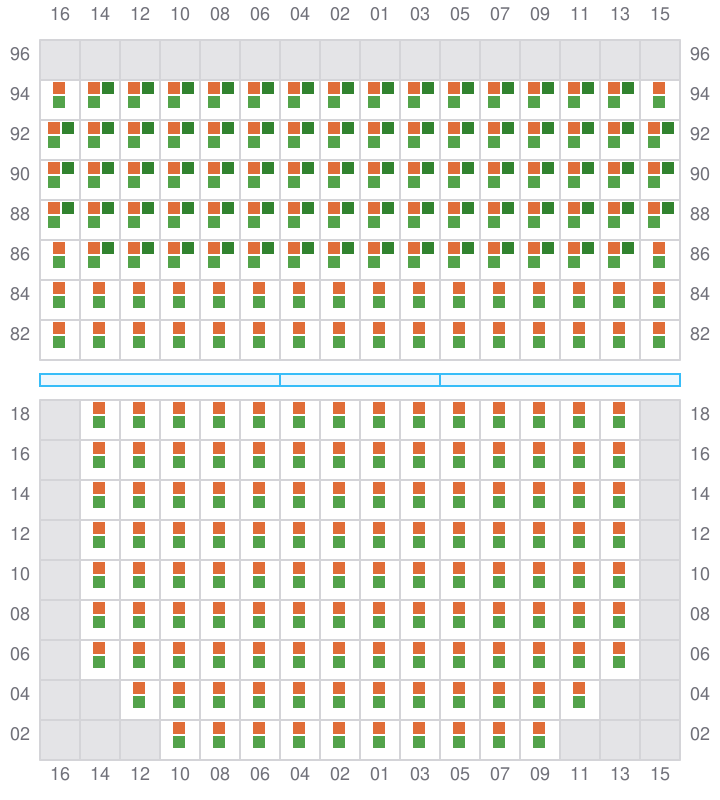

049 (050)

  • →
Bay 049 view and slots of AL SAFAT

051

  • ←
  • → / ?
Bay 051 view and slots of AL SAFAT

053 (054)

  • →
Bay 053 view and slots of AL SAFAT

055

  • ←
  • → / ?

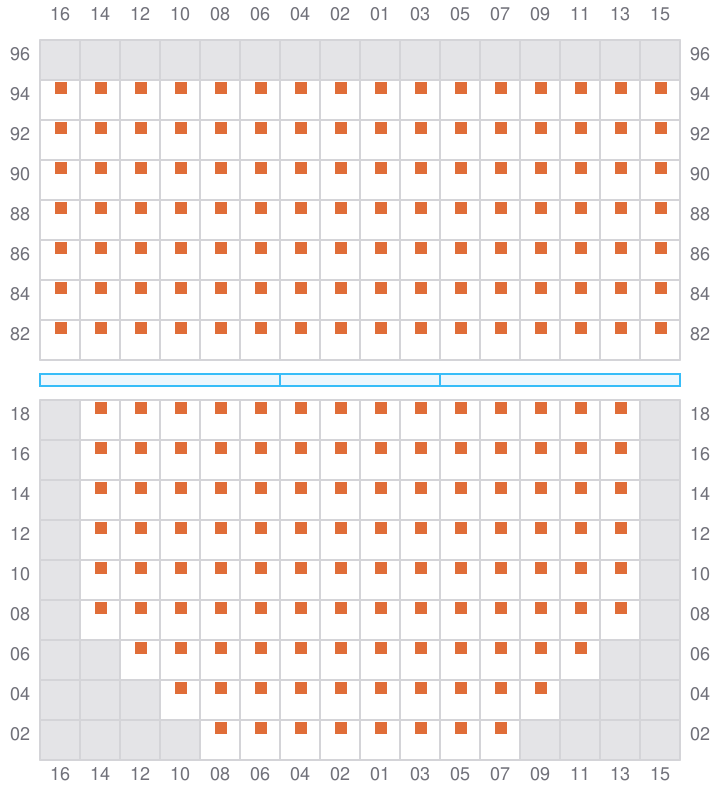

Bay 055 view and slots of AL SAFAT

057 (058)

  • →

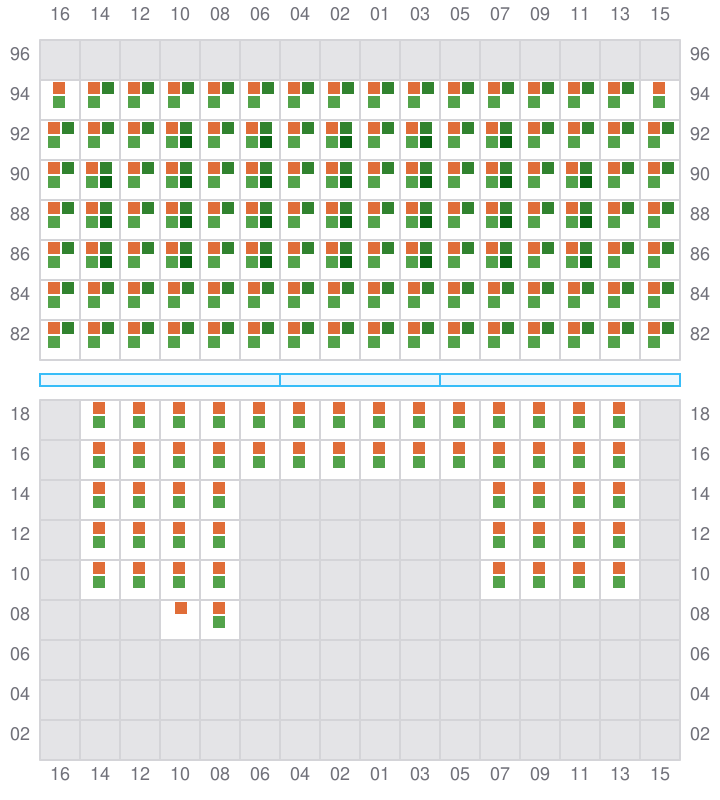

Bay 057 view and slots of AL SAFAT

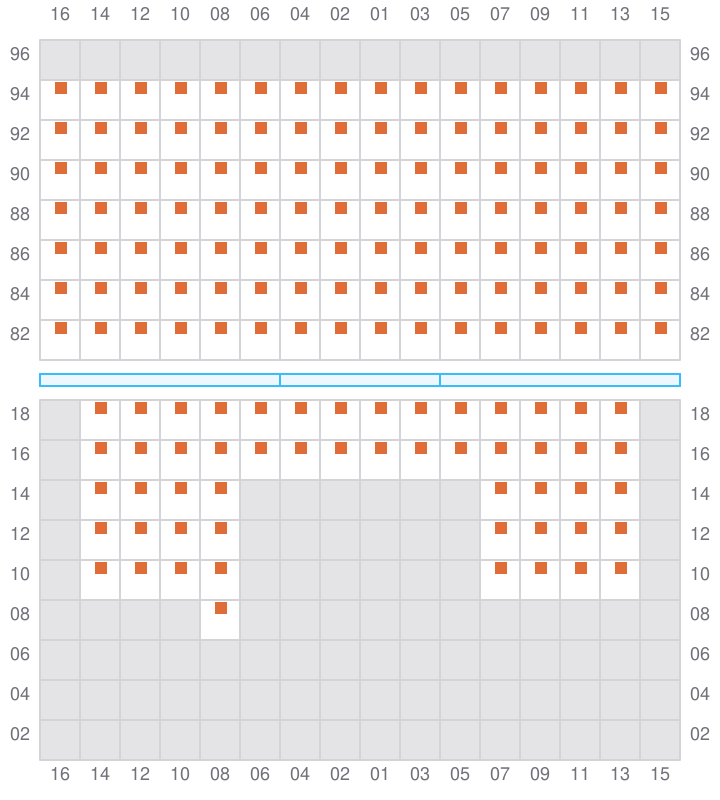

059

  • ←
  • → / ?
Bay 059 view and slots of AL SAFAT

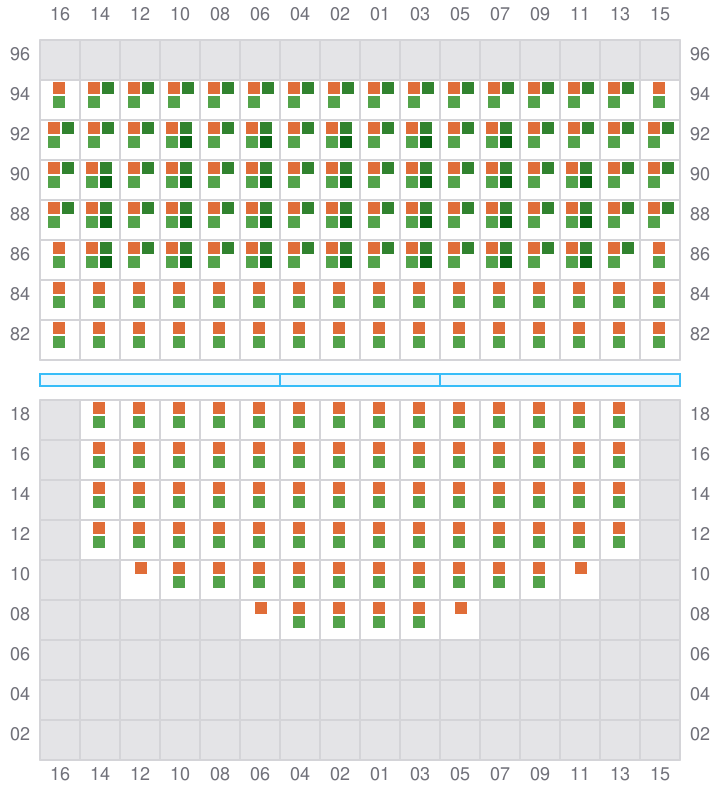

061 (062)

  • →
Bay 061 view and slots of AL SAFAT

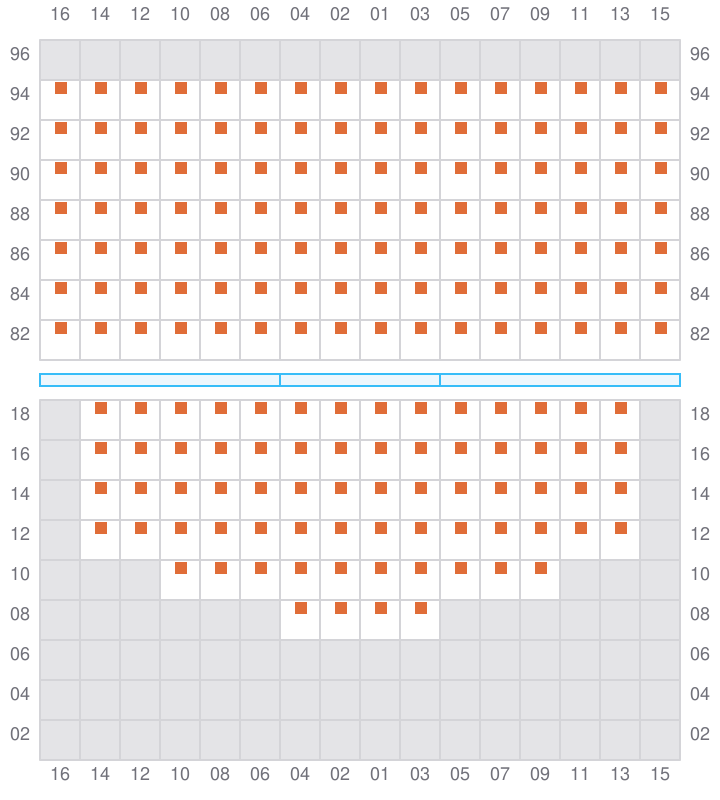

063

  • ←
  • → / ?
Bay 063 view and slots of AL SAFAT

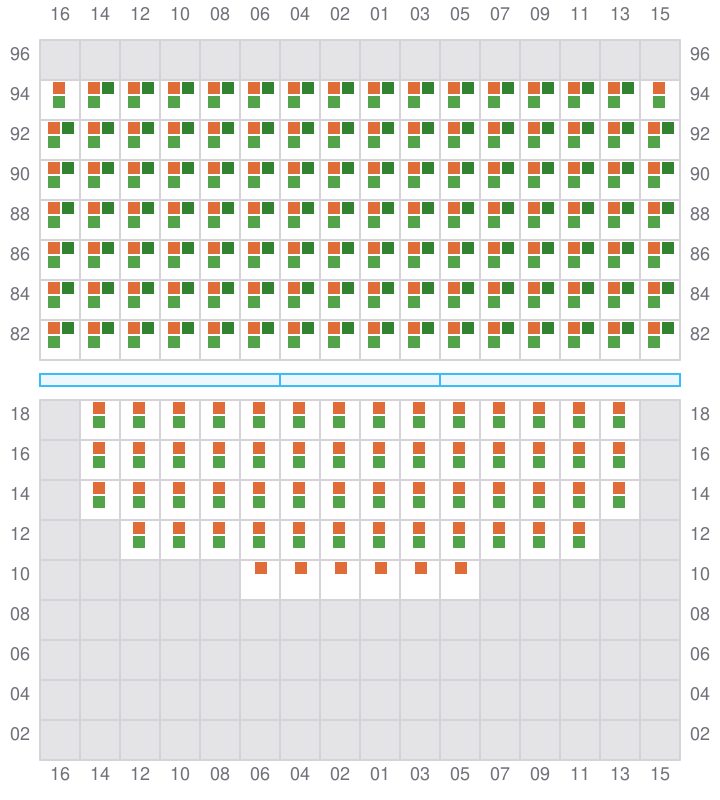

065 (066)

  • →
Bay 065 view and slots of AL SAFAT

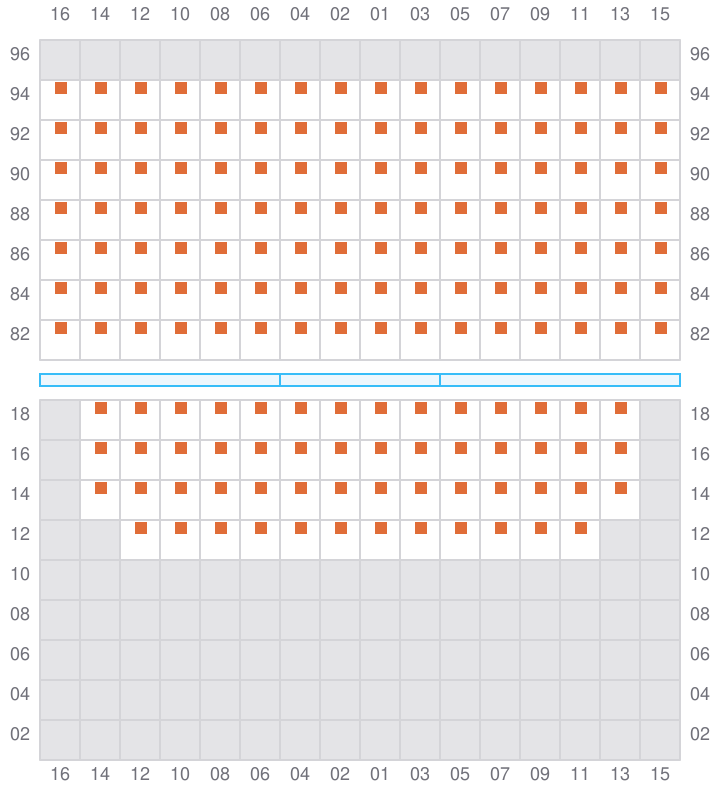

067

  • ←
  • → / ?
Bay 067 view and slots of AL SAFAT

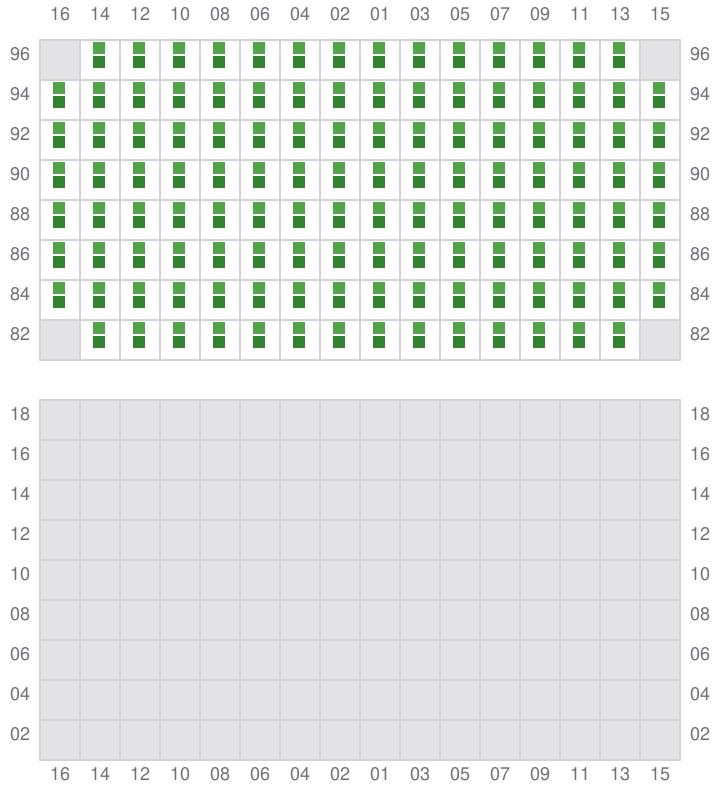

069 (070)

  • → / ?
Bay 069 view and slots of AL SAFAT
