AL ZUBARA
9708875 | DDXA2 | HLC by *********************** Last update: Fri Feb 07 2025
General Info
Ship Name:AL ZUBARA
IMO Code:9708875
Call Sign:DDXA2
Line Operator:HLC
Class Name for Sister Ships:HAZU
Year Built:2015
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):383.00
LOA (Length Overall):400.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:093
Max ISO Row:22
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:72
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:19,870
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

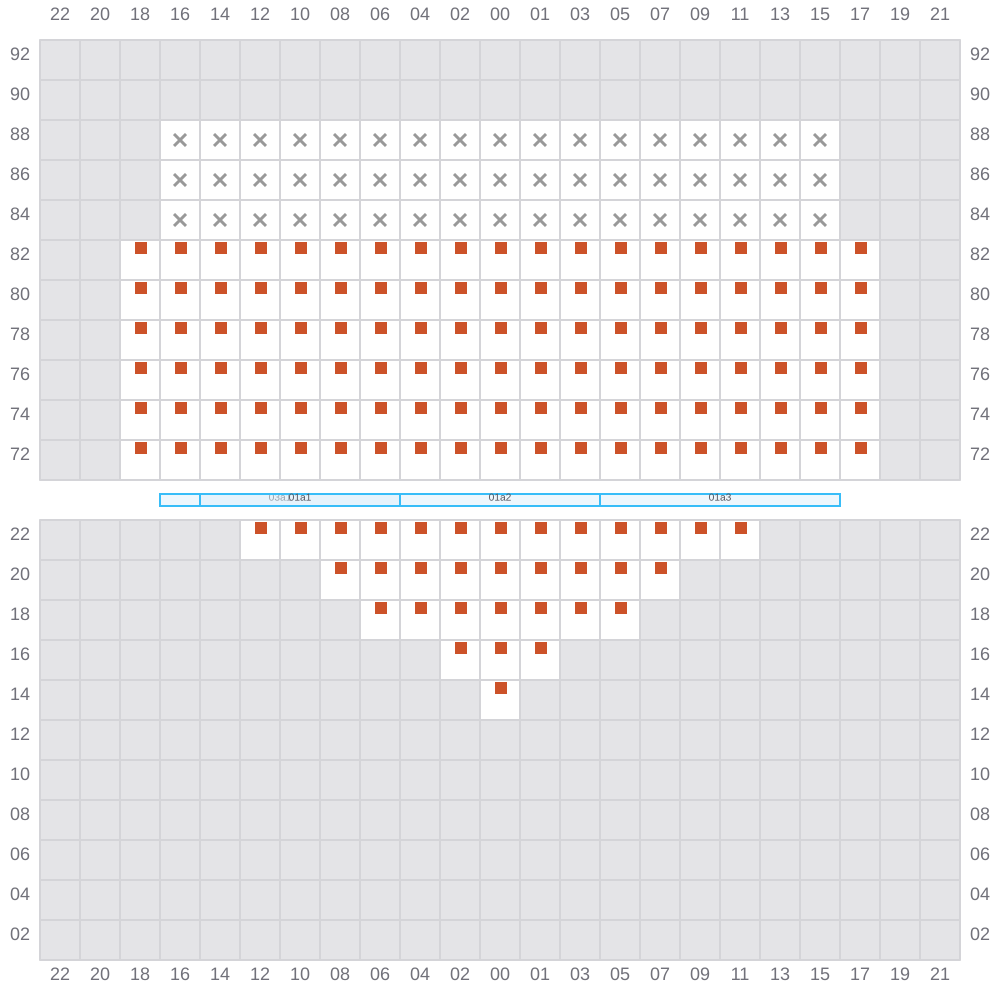

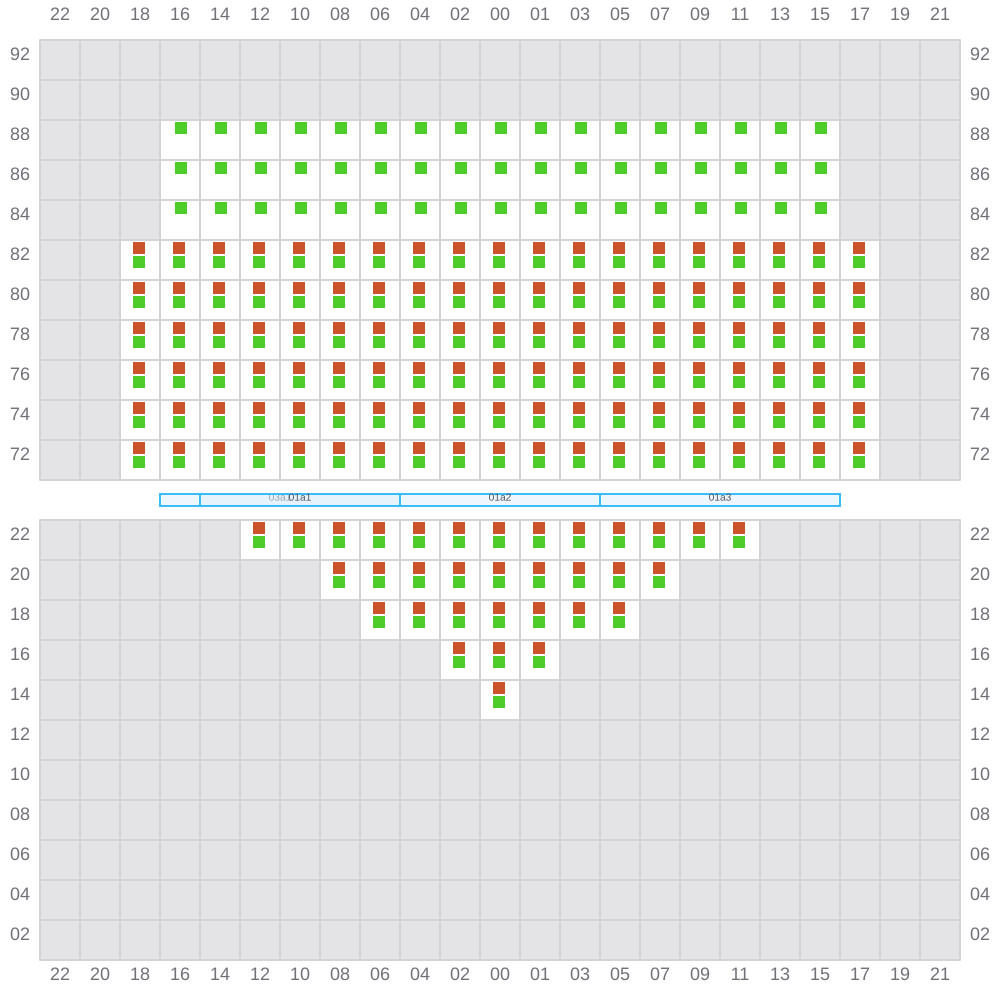

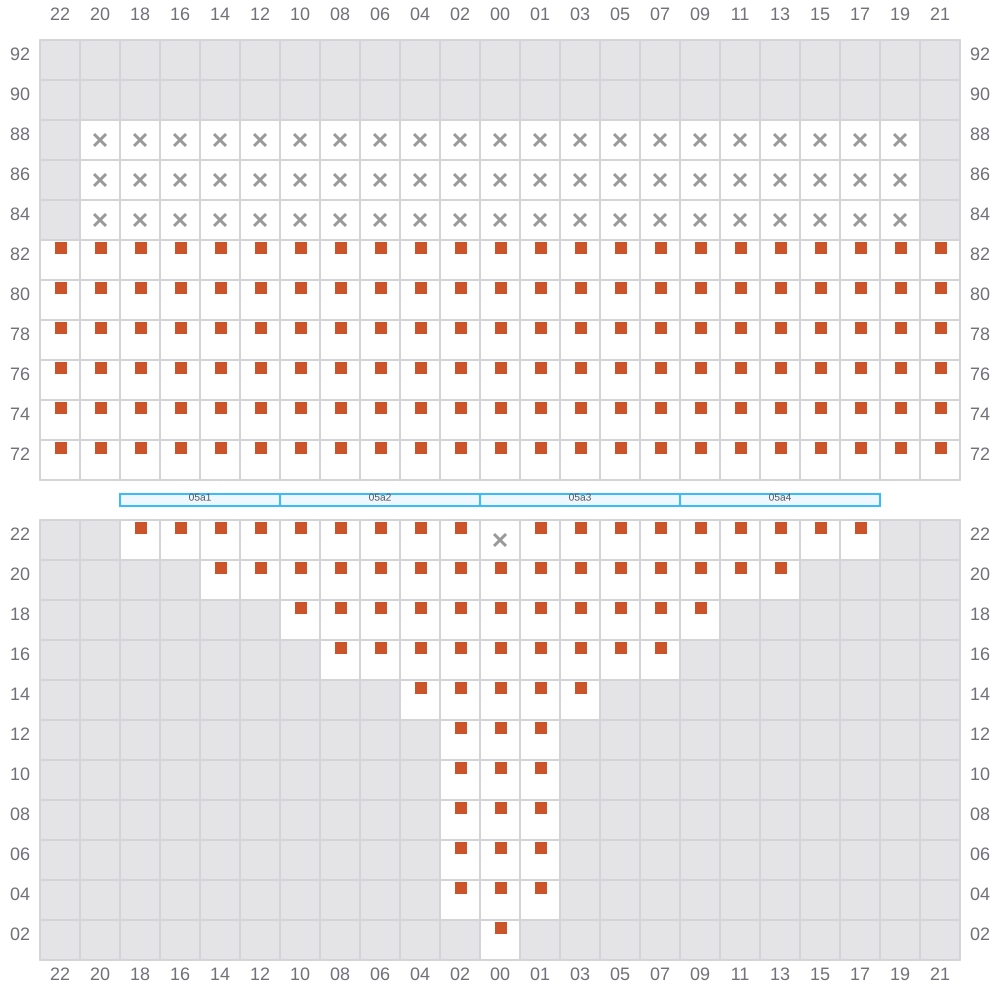

001 (002)
- →
- → / ?
- →
003
- ←
- → / ?
- →

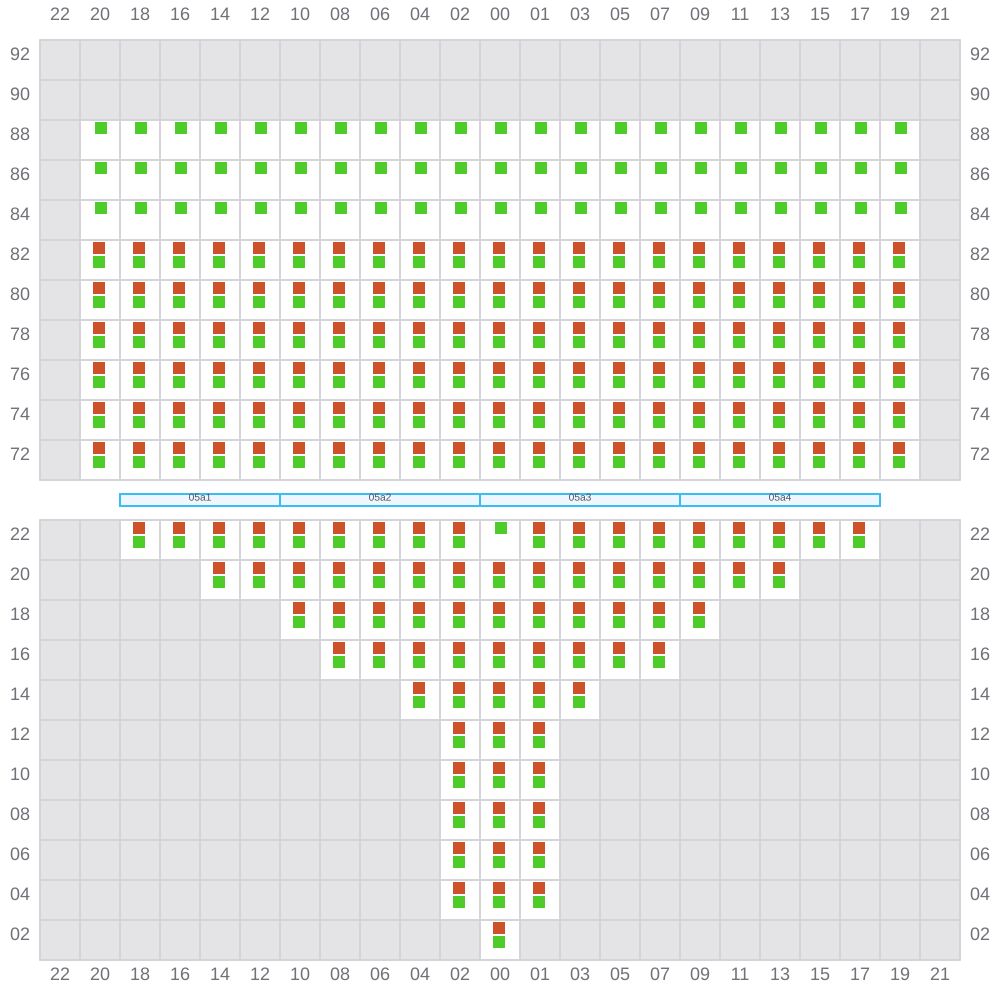

005 (006)
- →
- → / ?
- →
007
- ←
- → / ?
- →

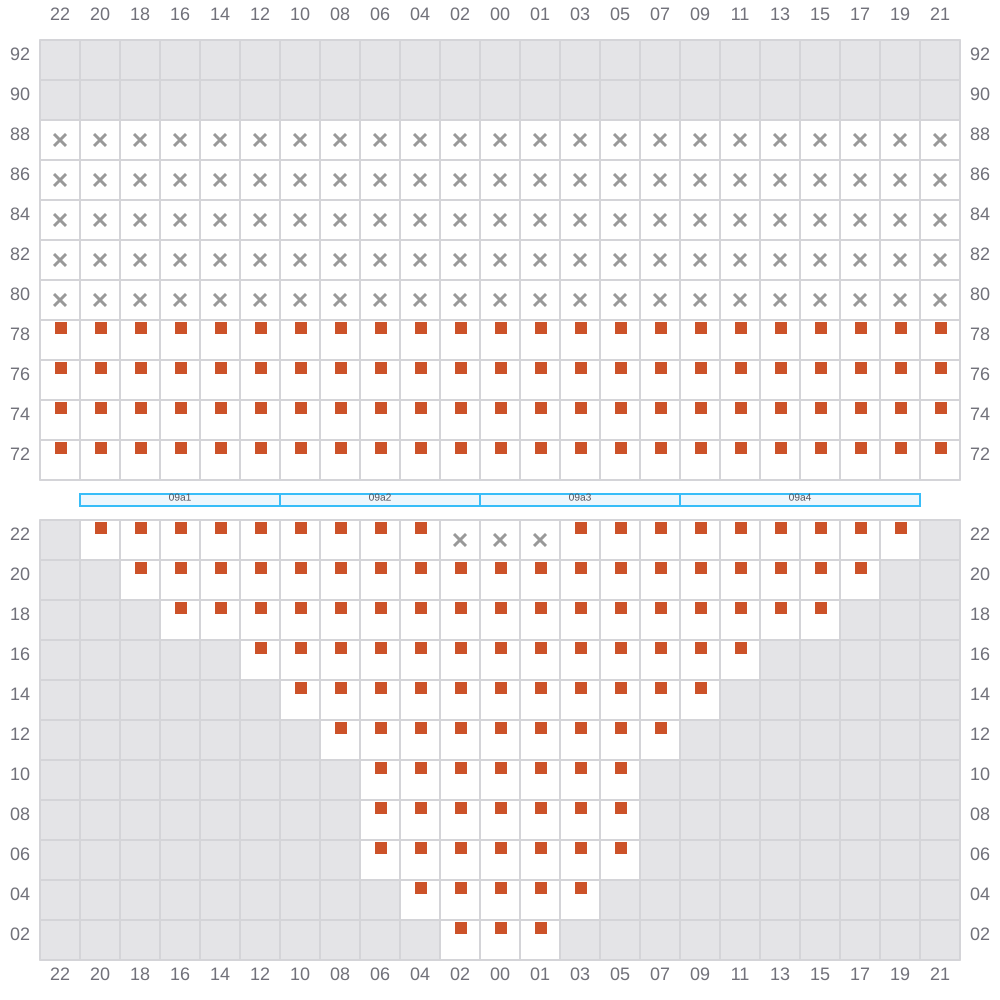

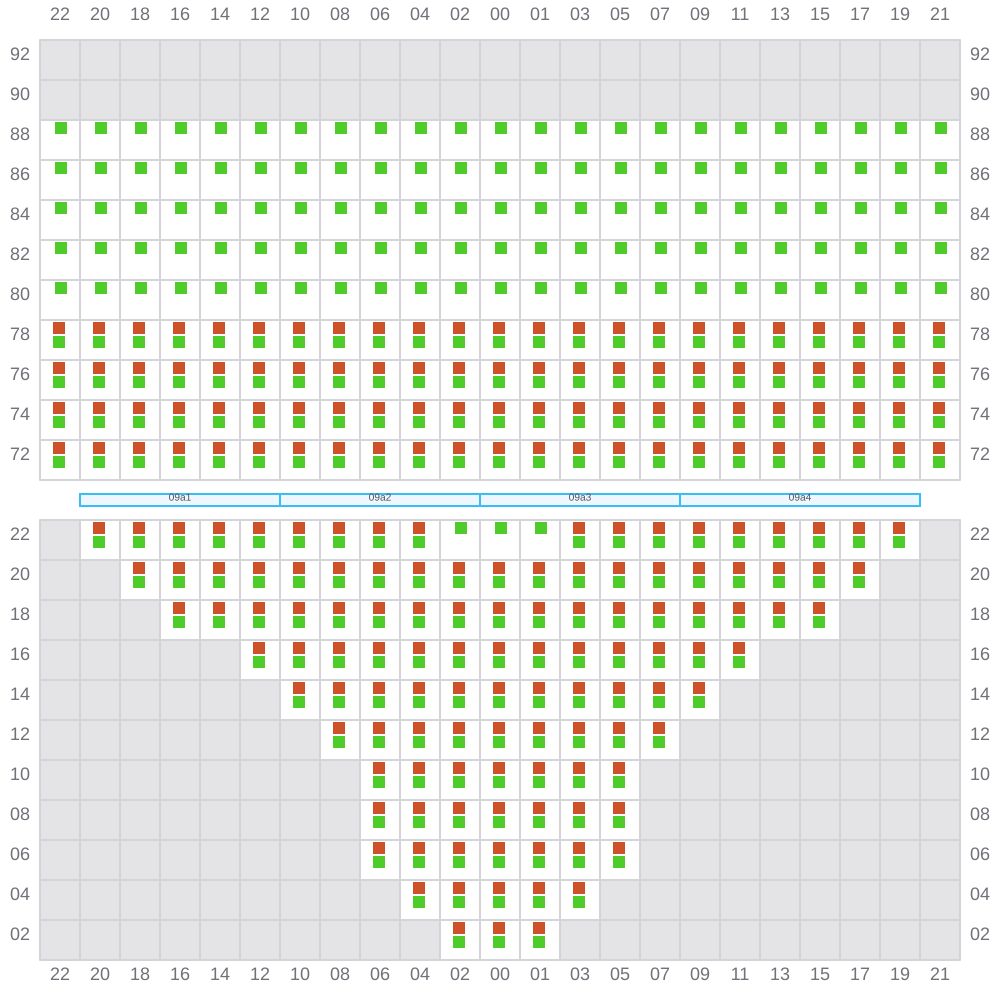

009 (010)
- →
- → / ?
- →
011
- ←
- → / ?
- →

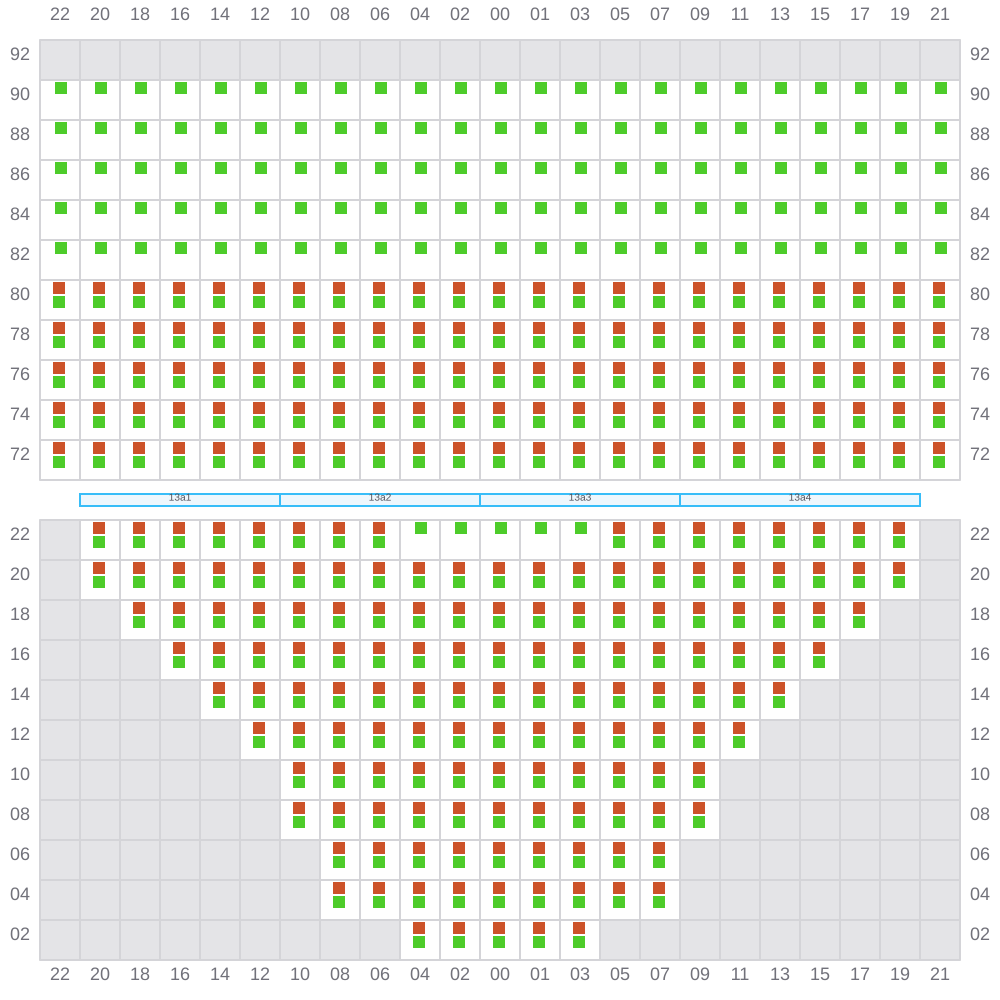

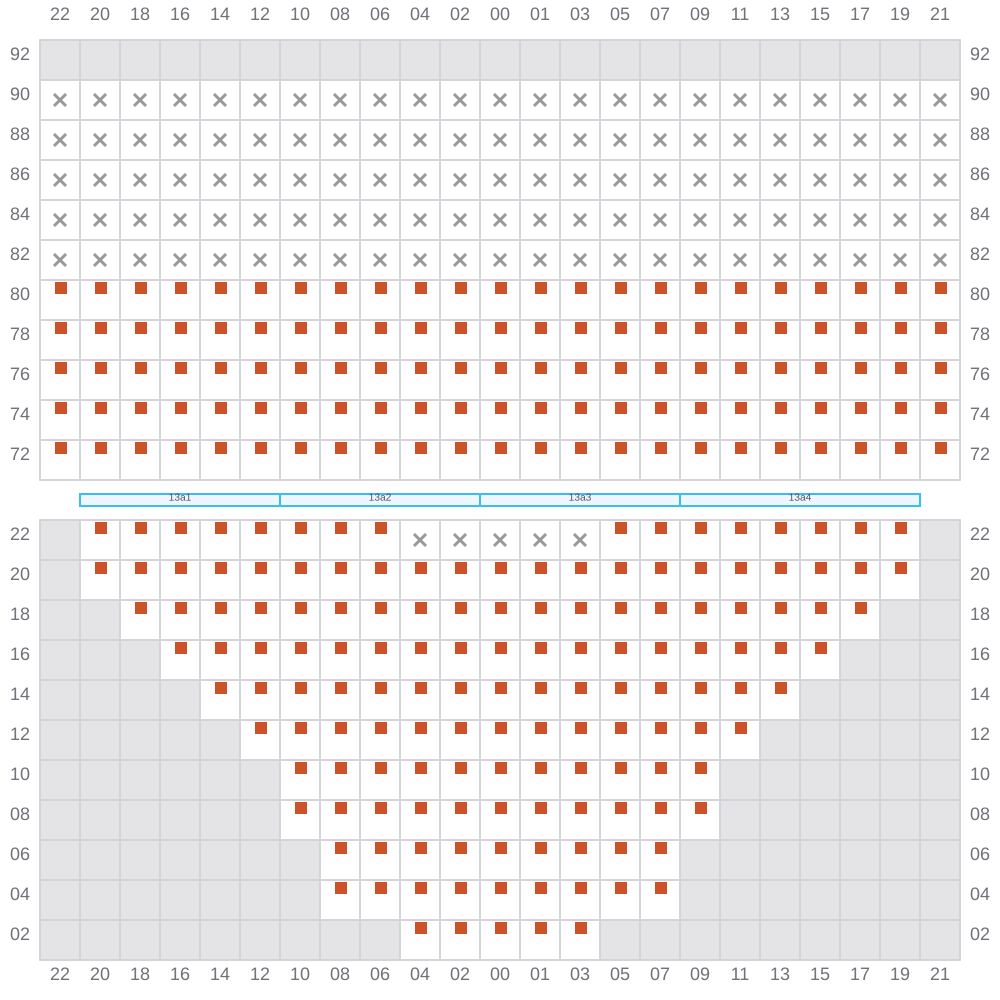

013 (014)
- →
- → / ?
- →
015
- ←
- → / ?
- →

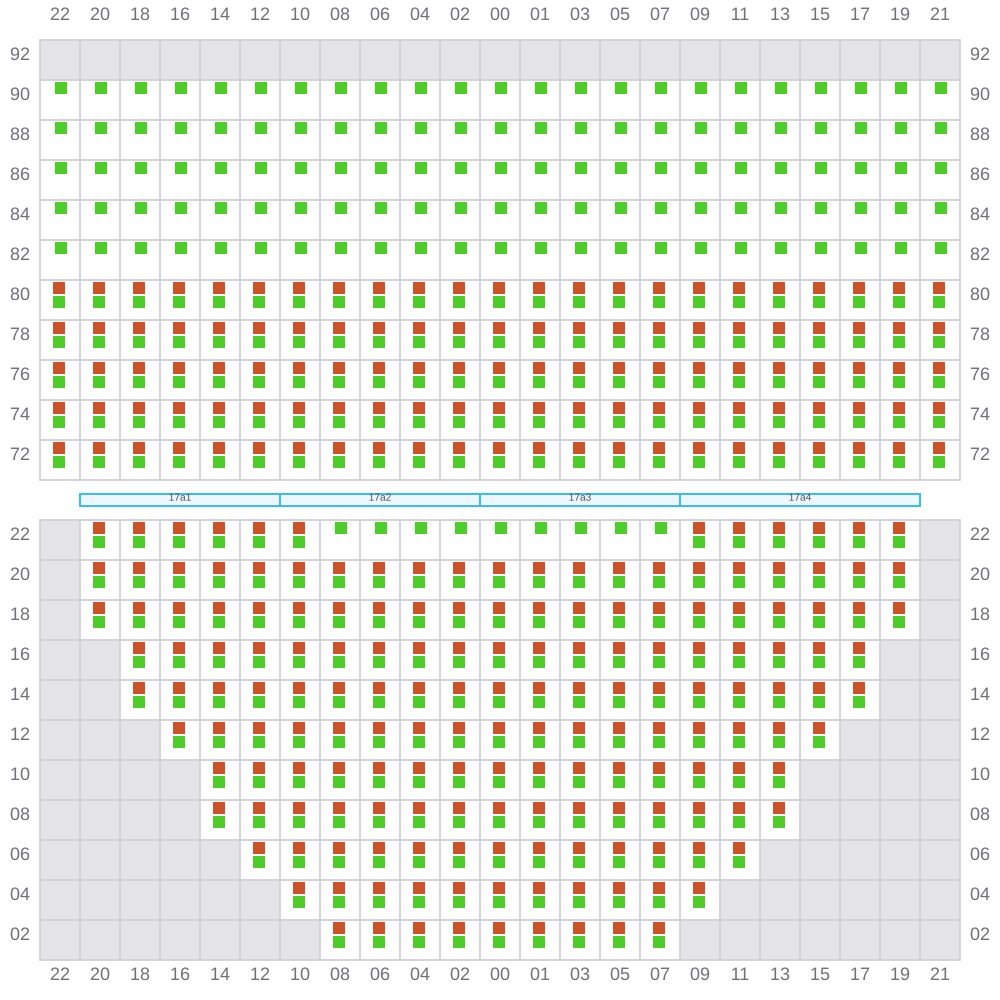

017 (018)
- →
- → / ?
- →
019
- ←
- → / ?
- →

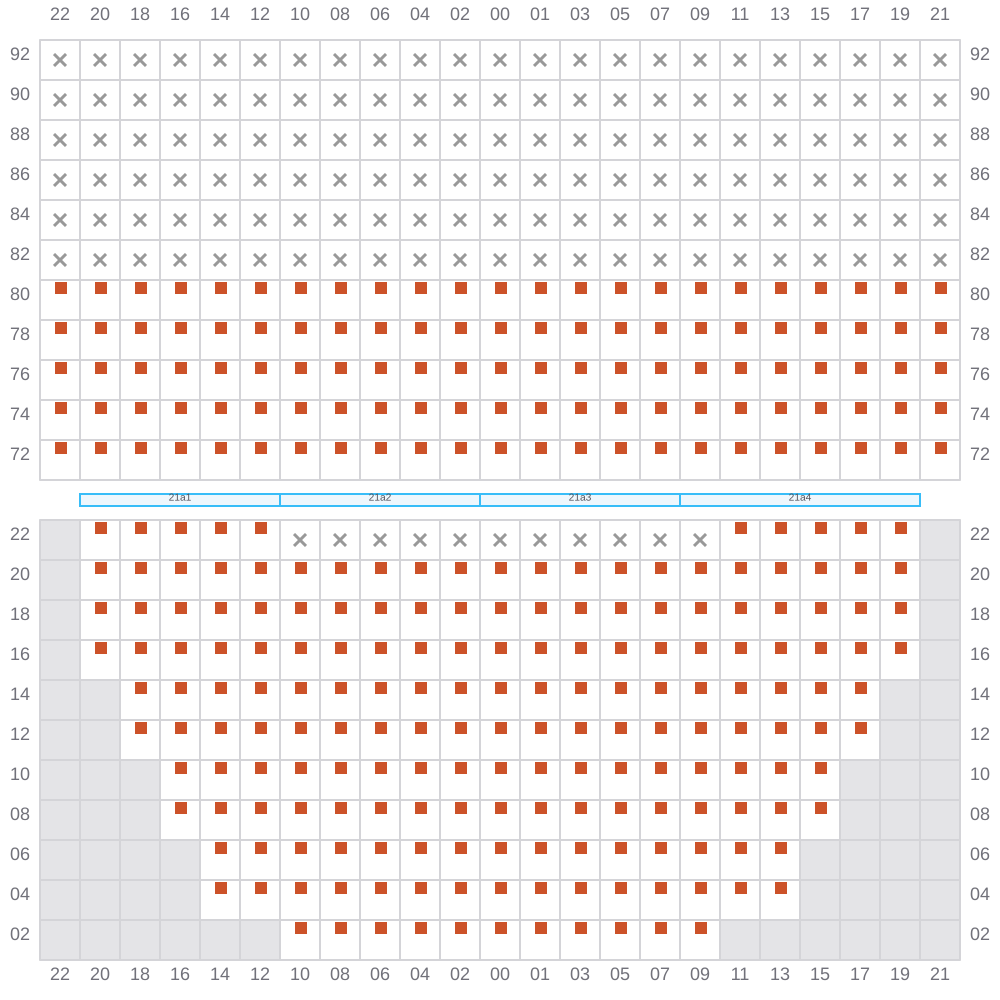

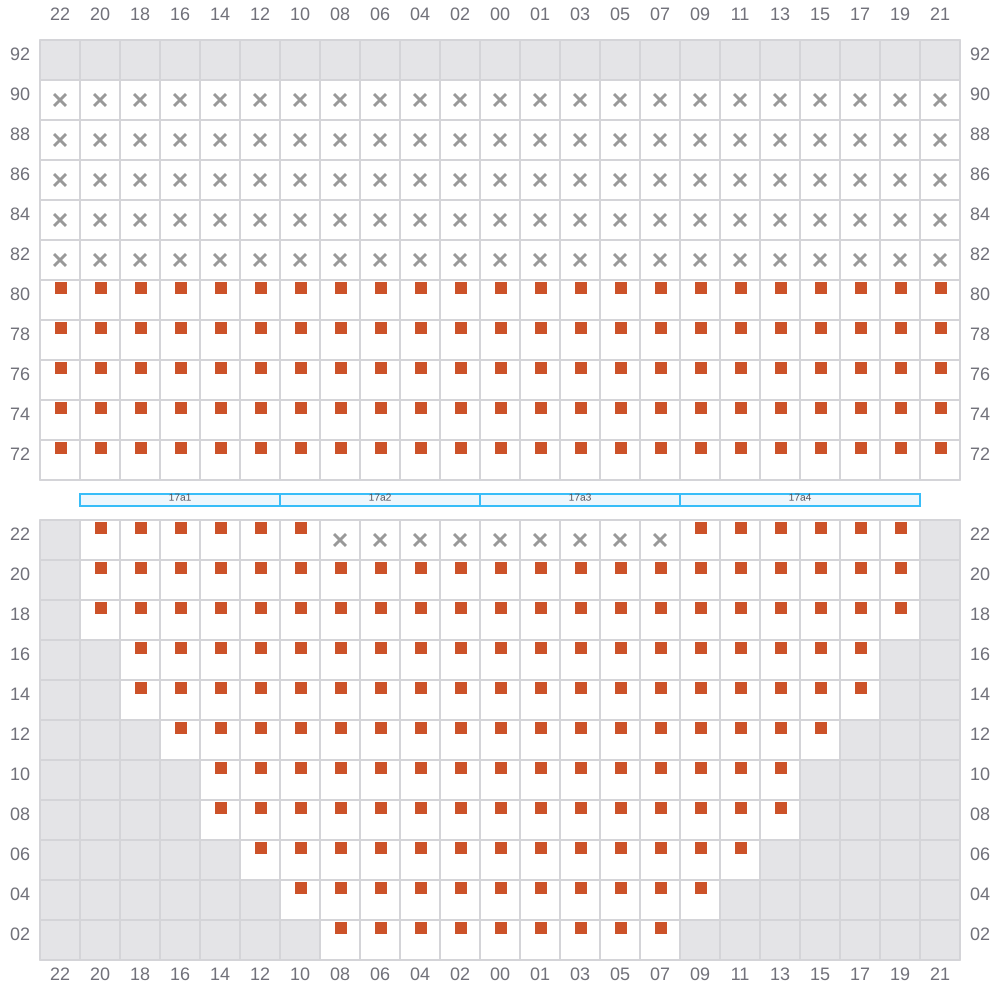

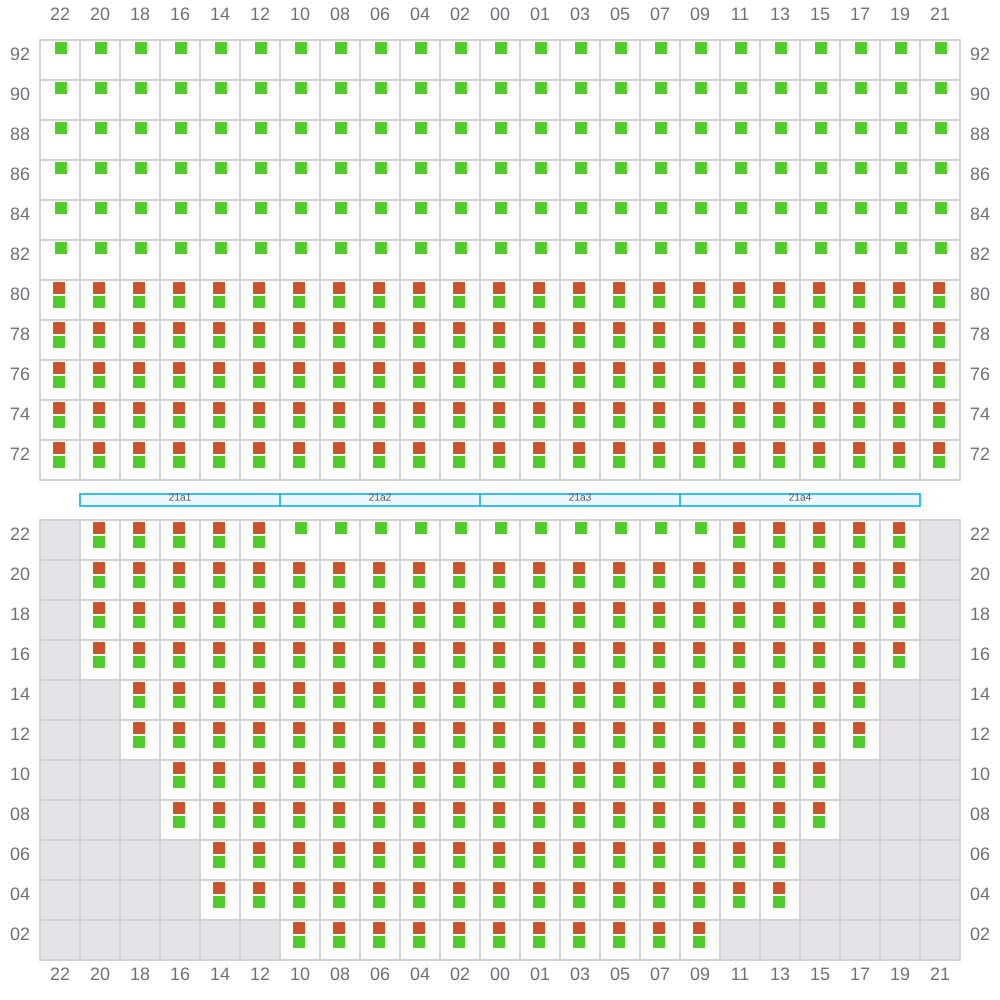

021 (022)
- →
- → / ?
- →
023
- ←
- → / ?
- →

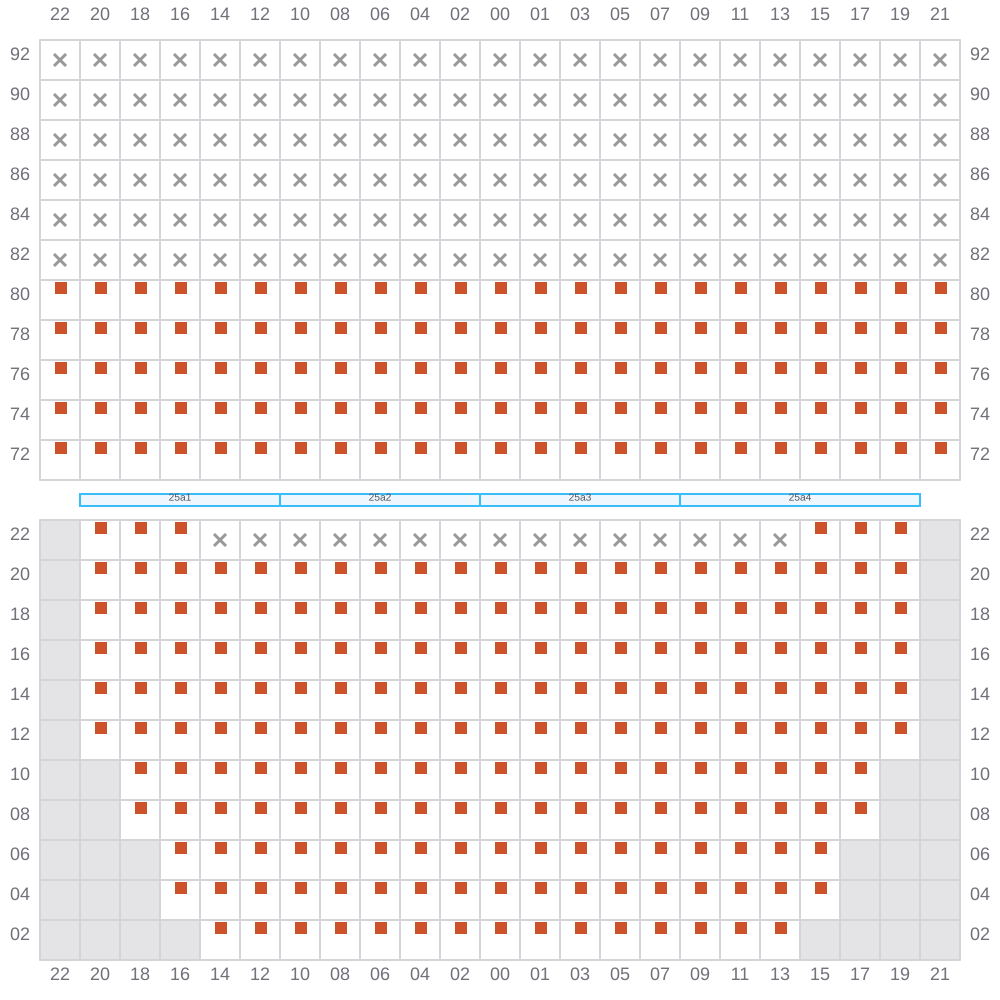

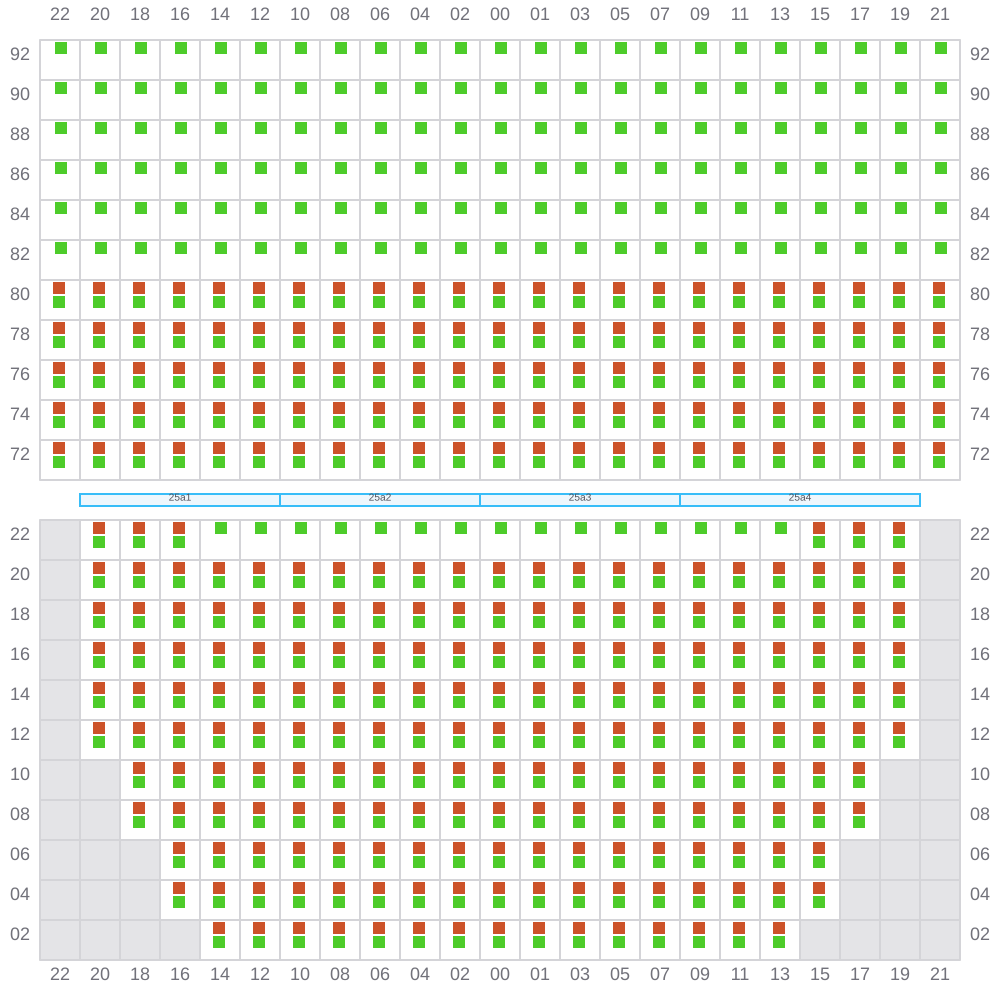

025 (026)
- →
- → / ?
- →
027
- ←
- → / ?
- →

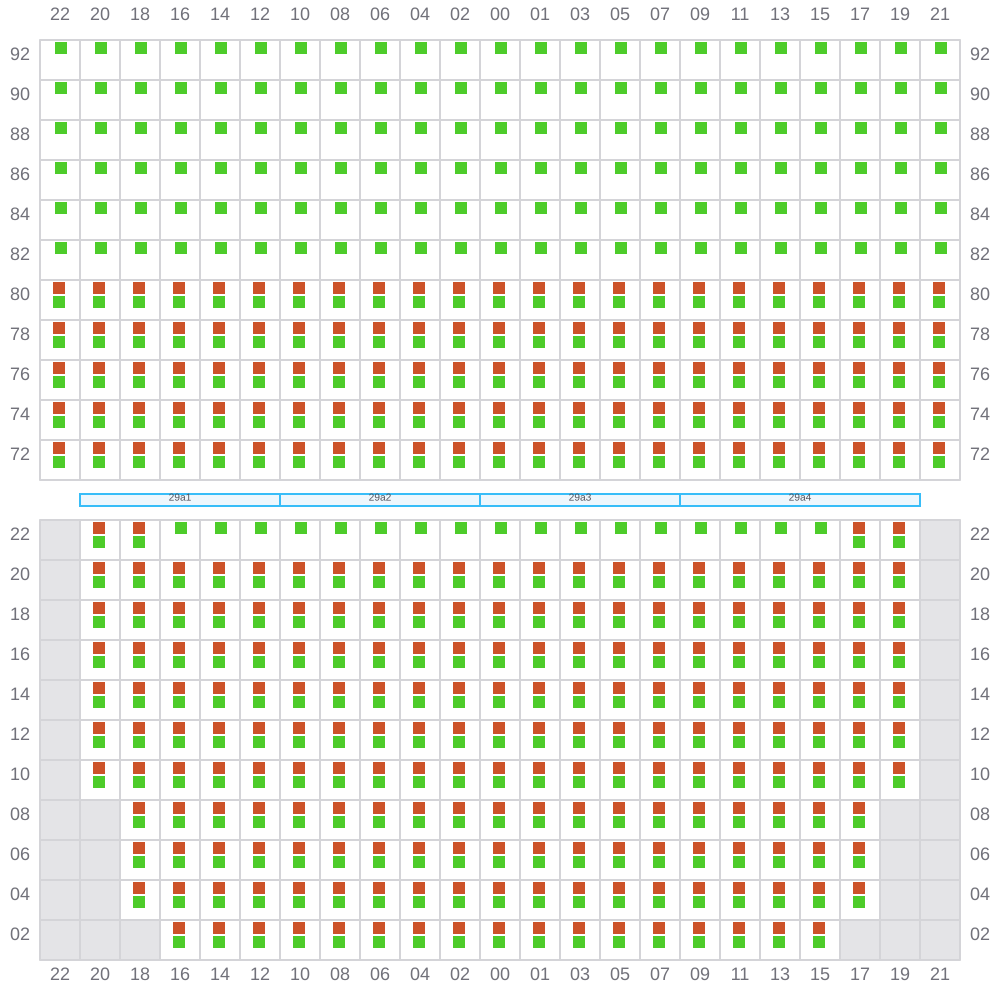

029 (030)
- →
- → / ?
- →

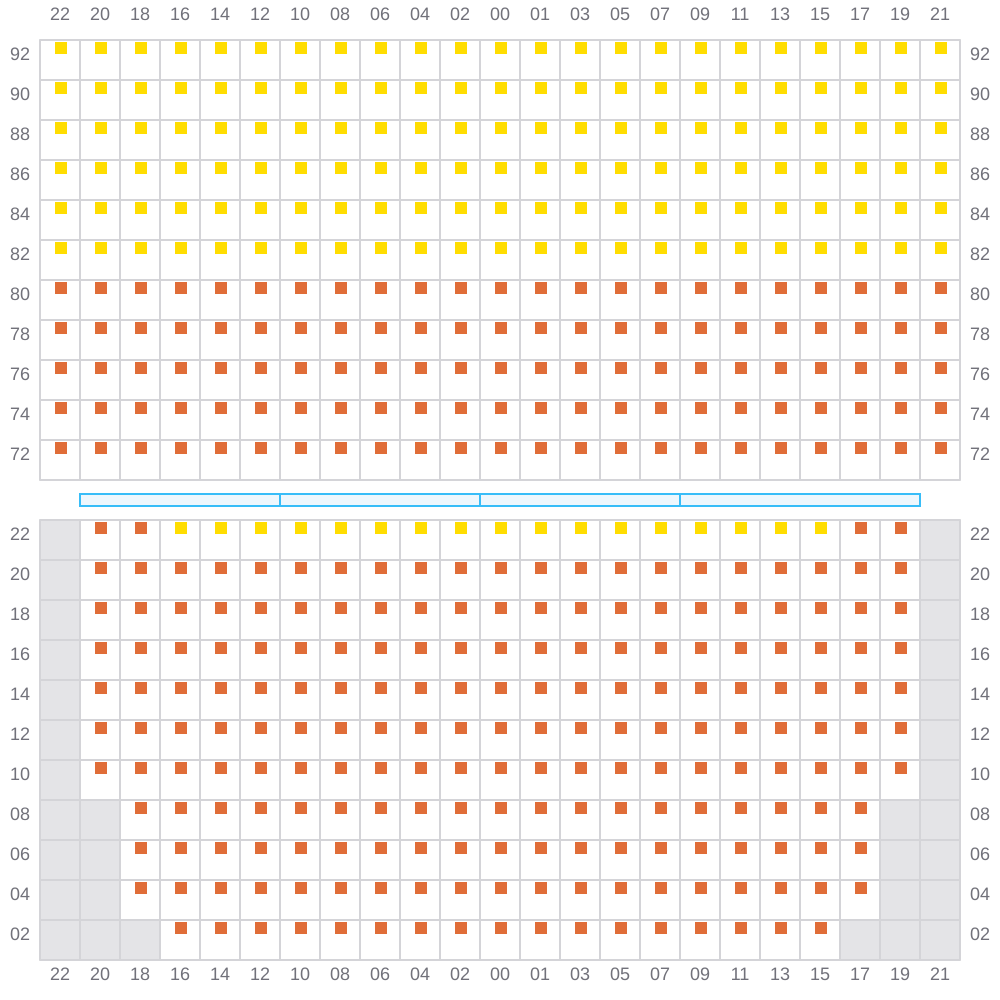

031
- ←
- → / ?
- →

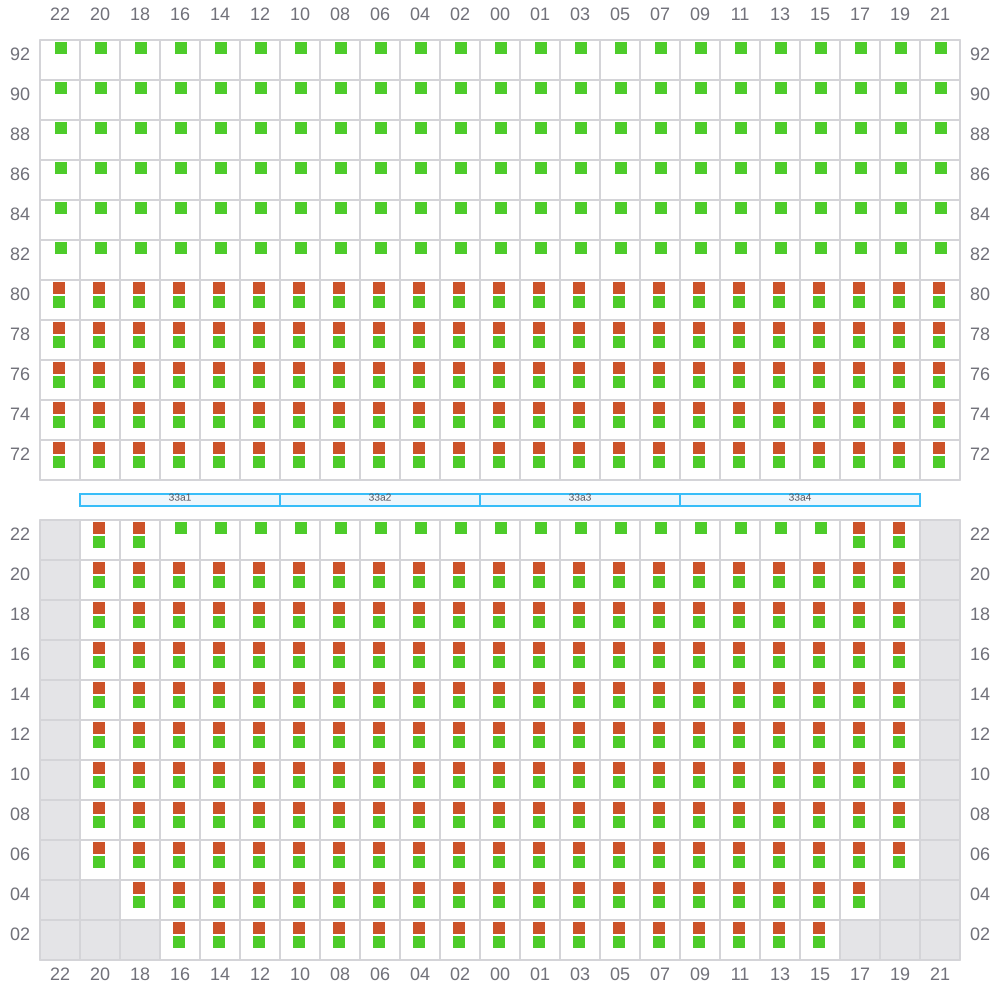

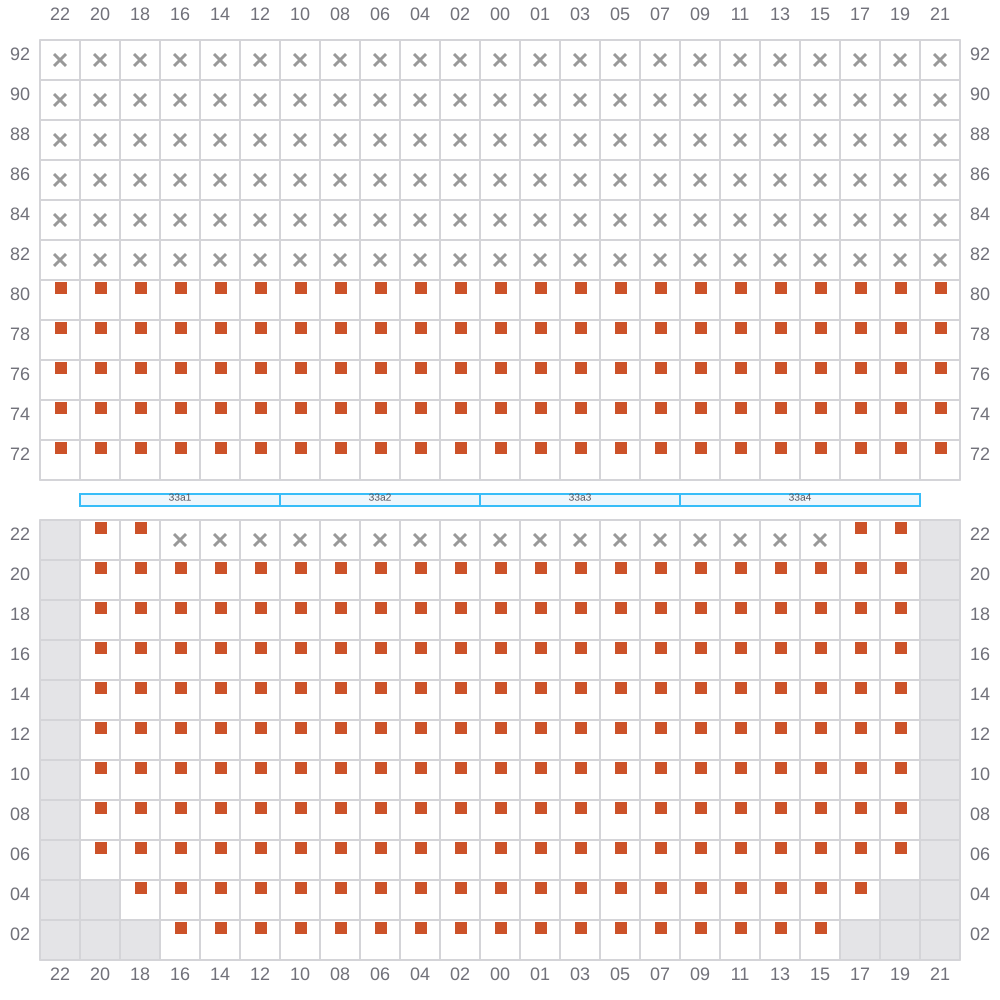

033 (034)
- →
- → / ?
- →
035
- ←
- → / ?
- →
037 (038)
- →
- → / ?
- →
039
- ←
- → / ?
- →
041 (042)
- →
- → / ?
- →
043
- ←
- → / ?
- →
045 (046)
- →
- → / ?
- →
047
- ←
- → / ?
- →

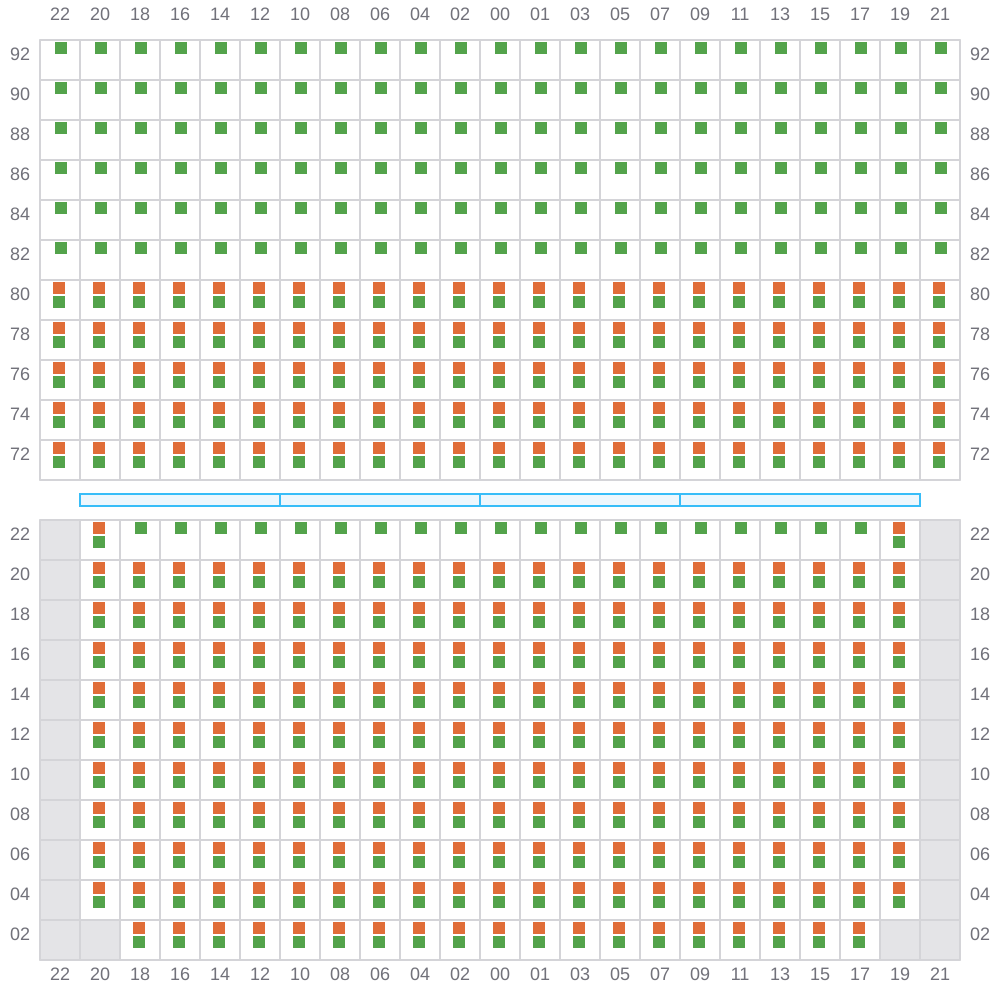

049 (050)
- →
- → / ?
- →
051
- ←
- → / ?
- →
053 (054)
- →
- → / ?
- →
055
- ←
- → / ?
- →

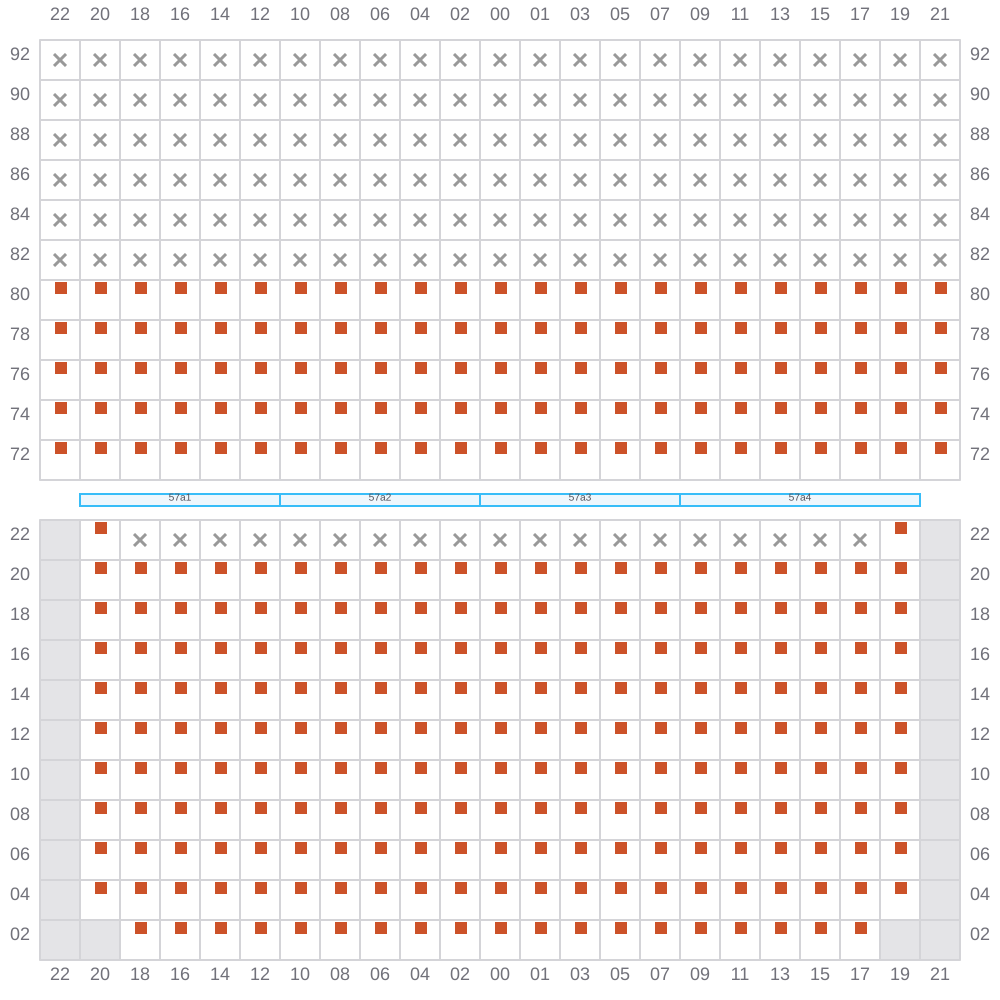

057 (058)
- →
- → / ?
- →
059
- ←
- → / ?
- →

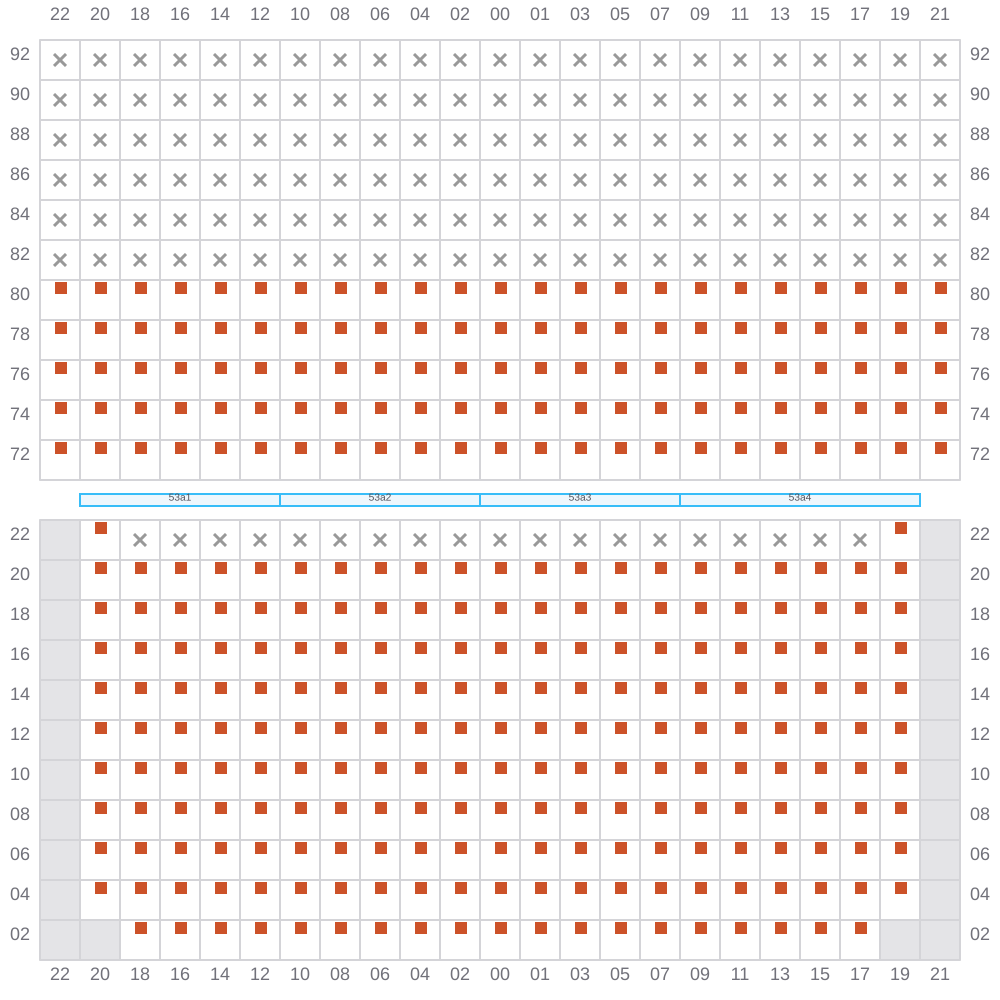

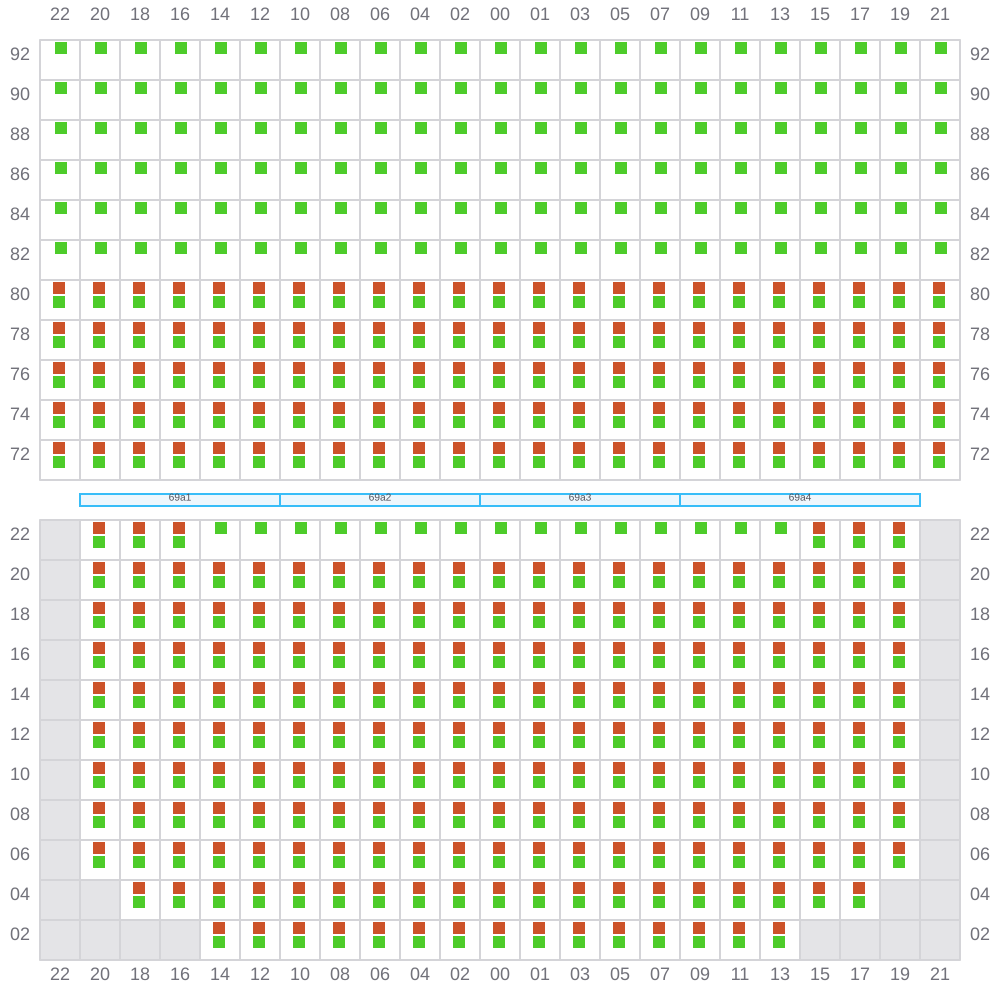

061 (062)
- →
- → / ?
- →
063
- ←
- → / ?
- →
065 (066)
- →
- → / ?
- →

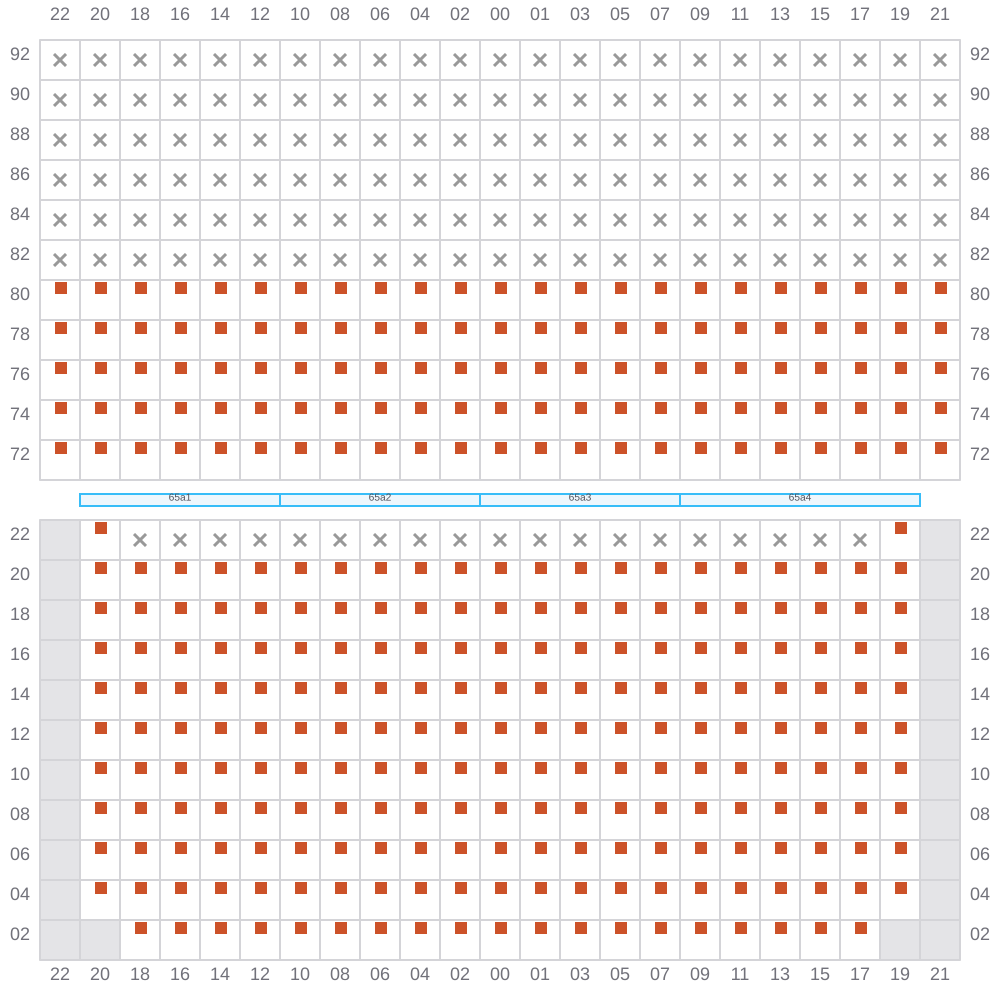

067
- ←
- → / ?
- →

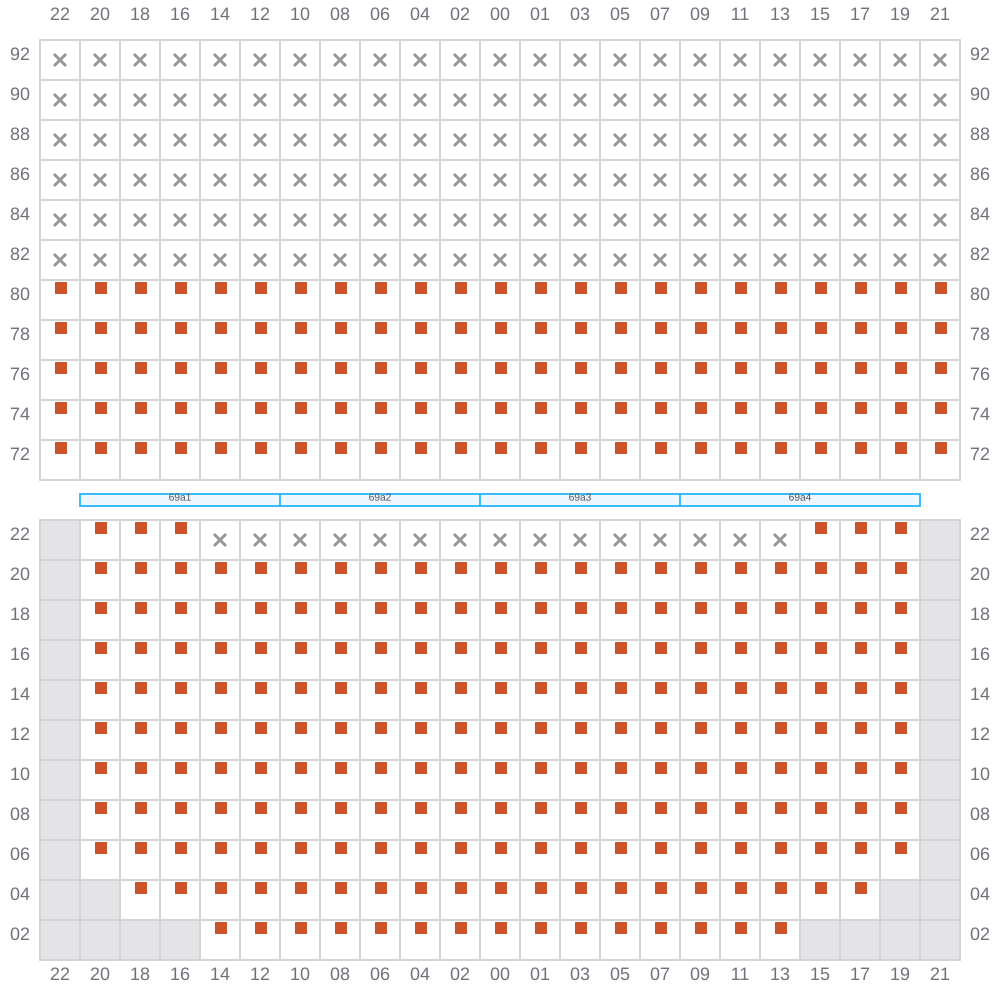

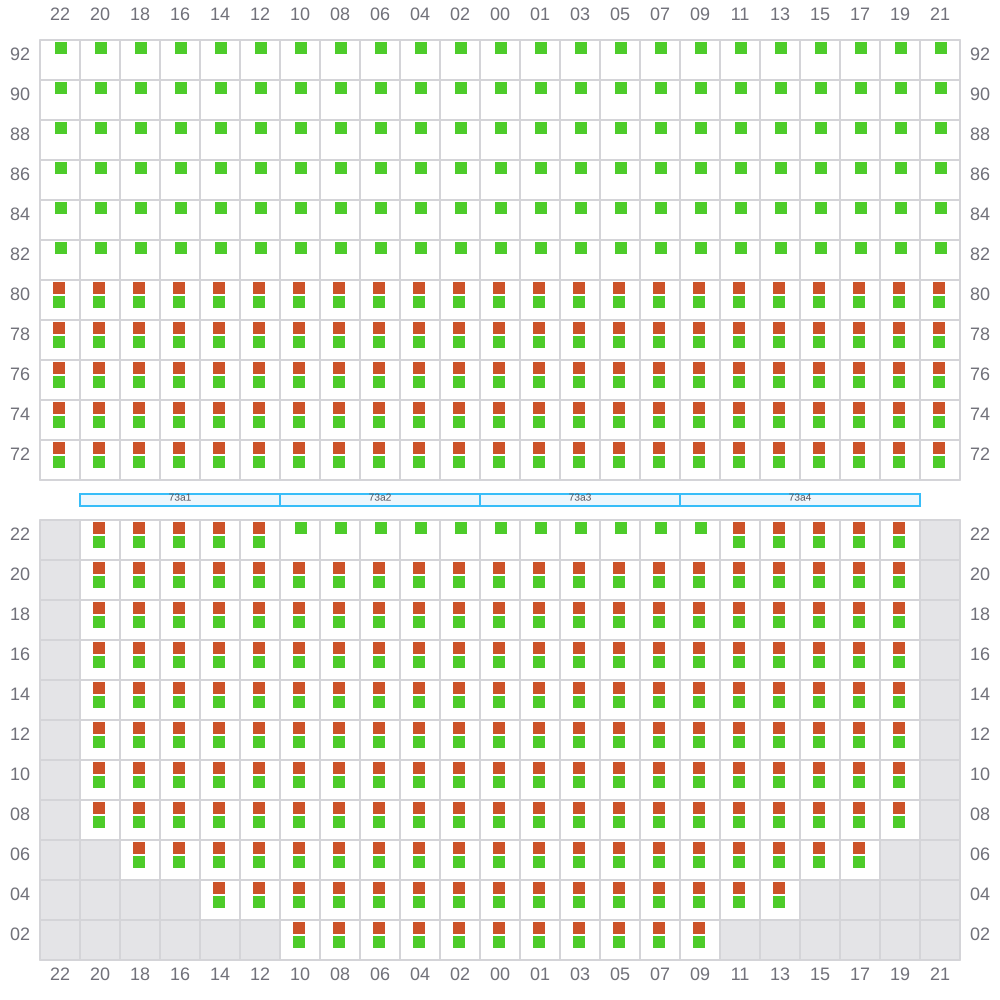

069 (070)
- →
- → / ?
- →
071
- ←
- → / ?
- →

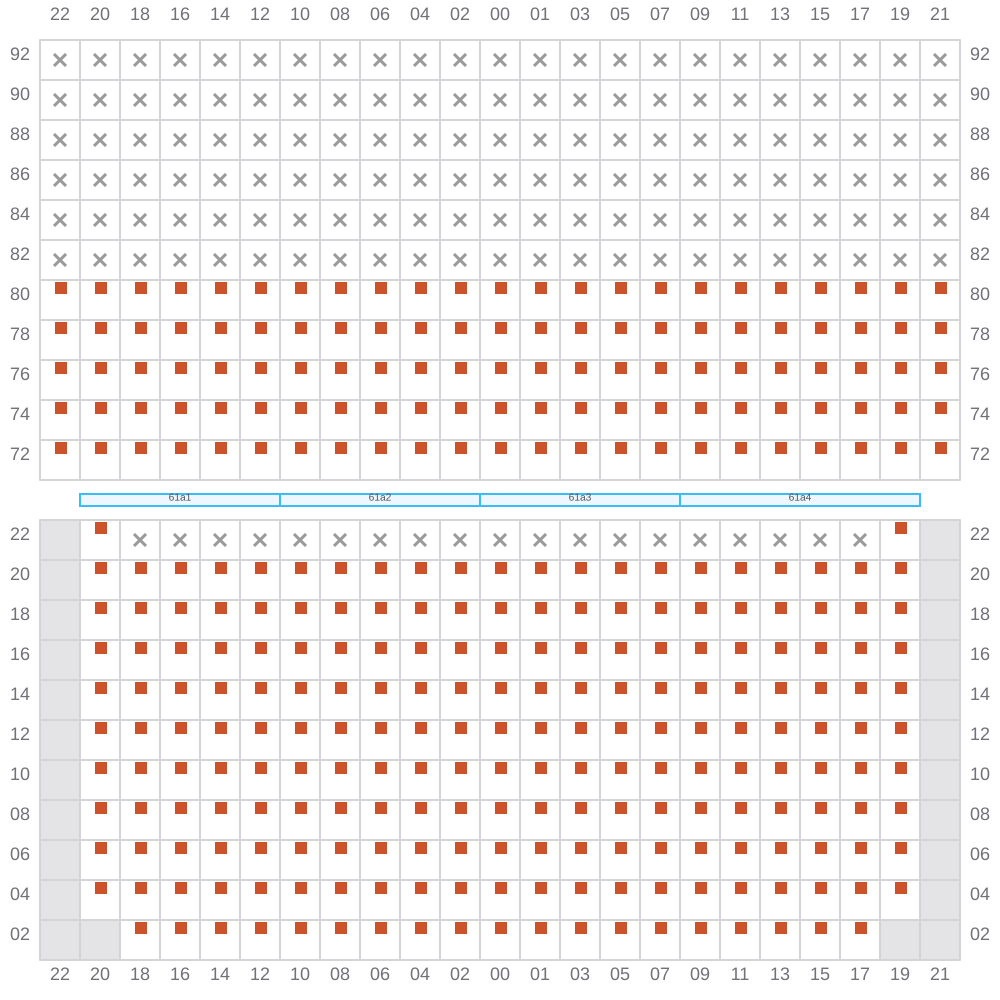

073 (074)
- →
- → / ?
- →
075
- ←
- → / ?
- →

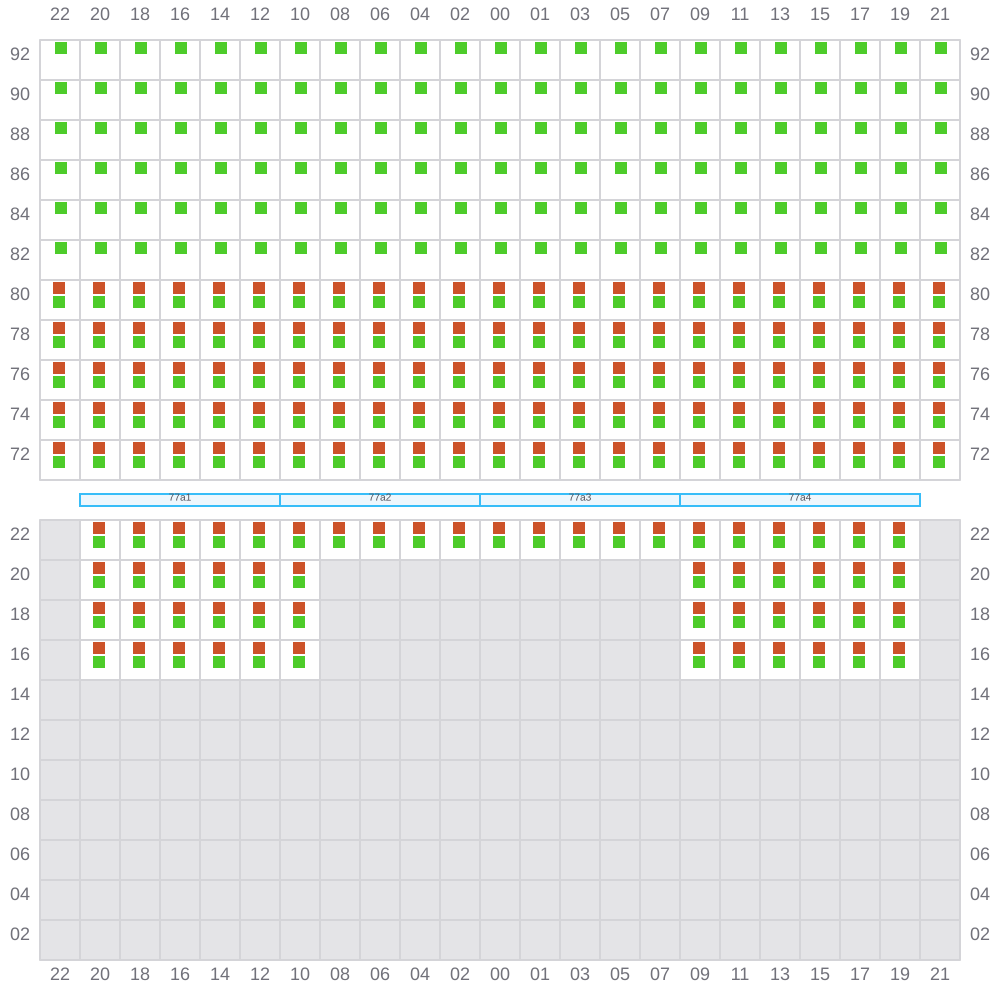

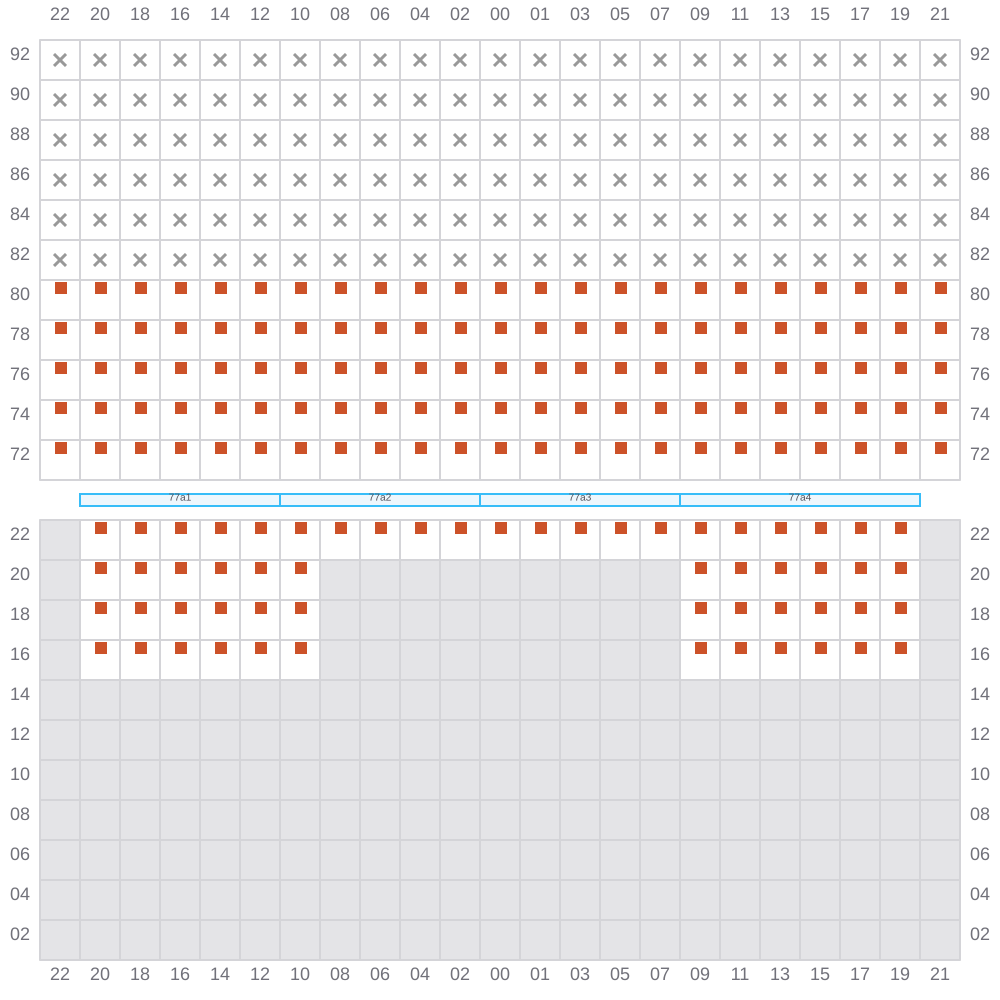

077 (078)
- →
- → / ?
- →
079
- ←
- → / ?
- →

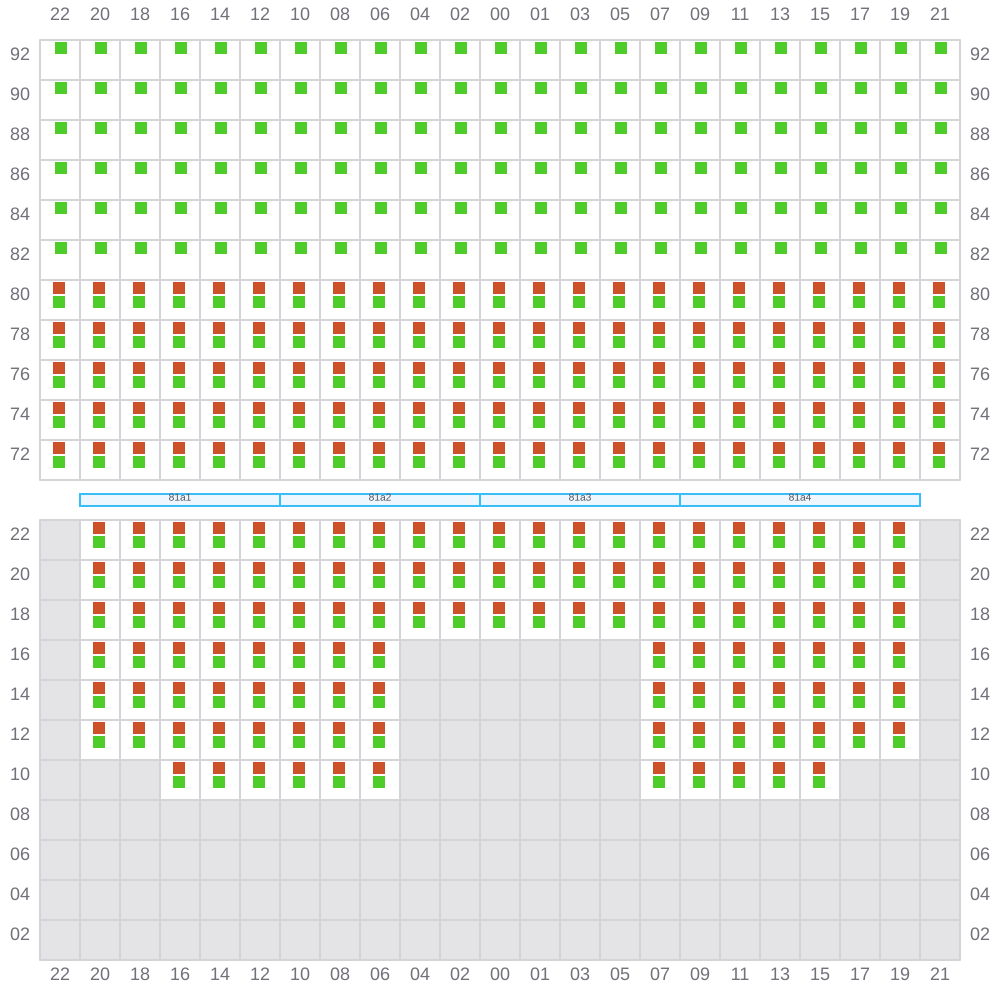

081 (082)
- →
- → / ?
- →
083
- ←
- → / ?
- →

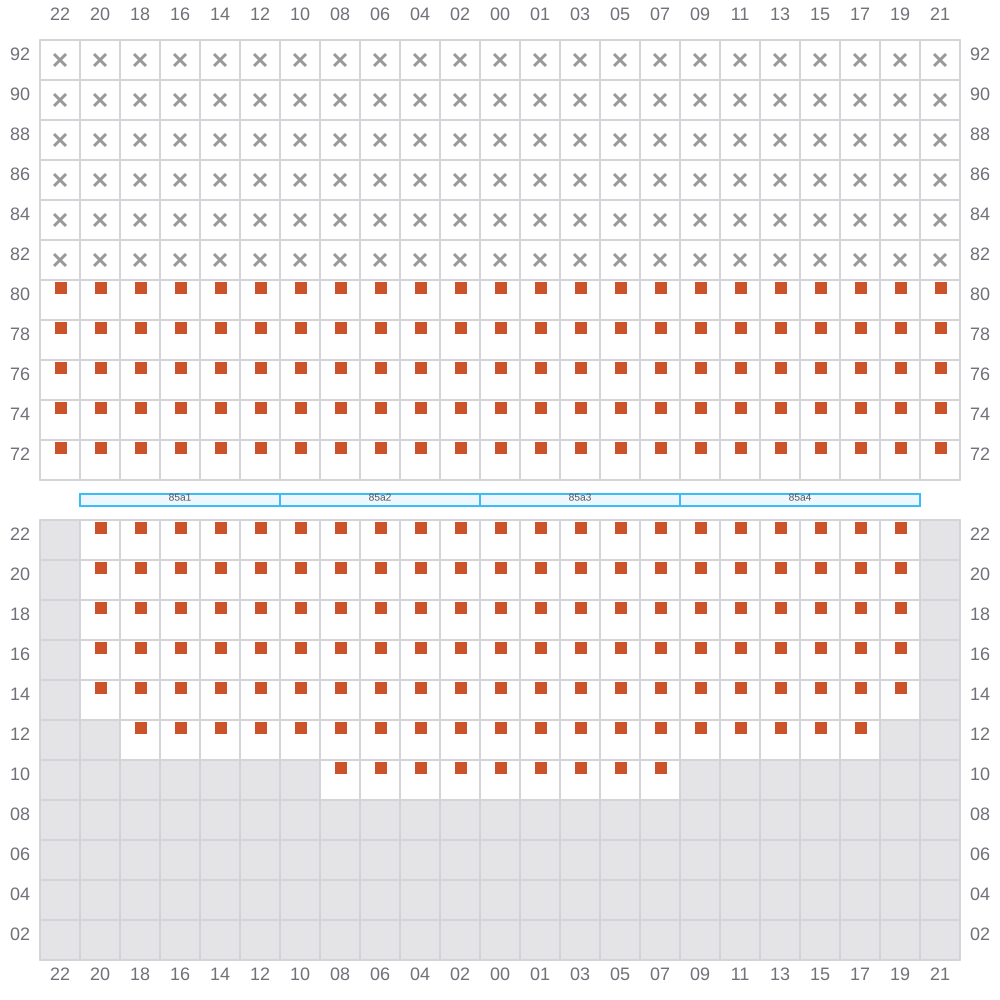

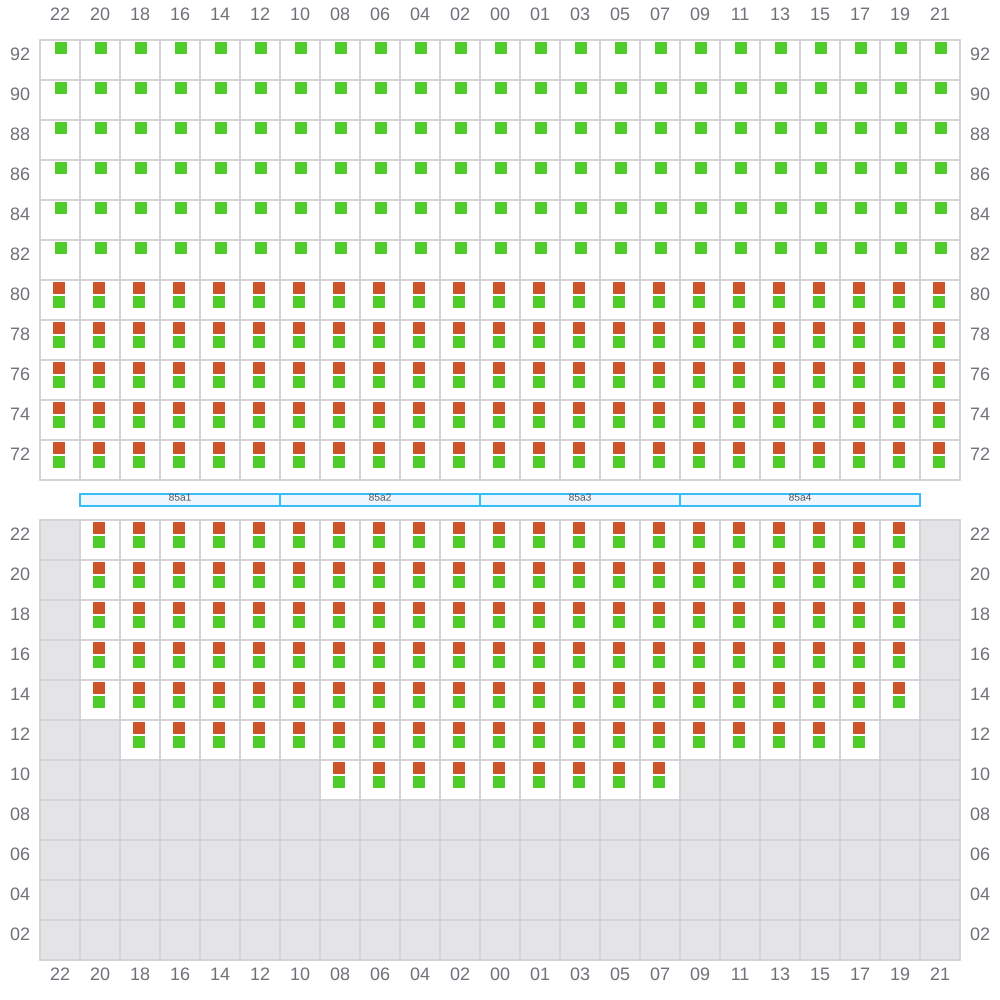

085 (086)
- →
- → / ?
- →
087
- ←
- → / ?
- →

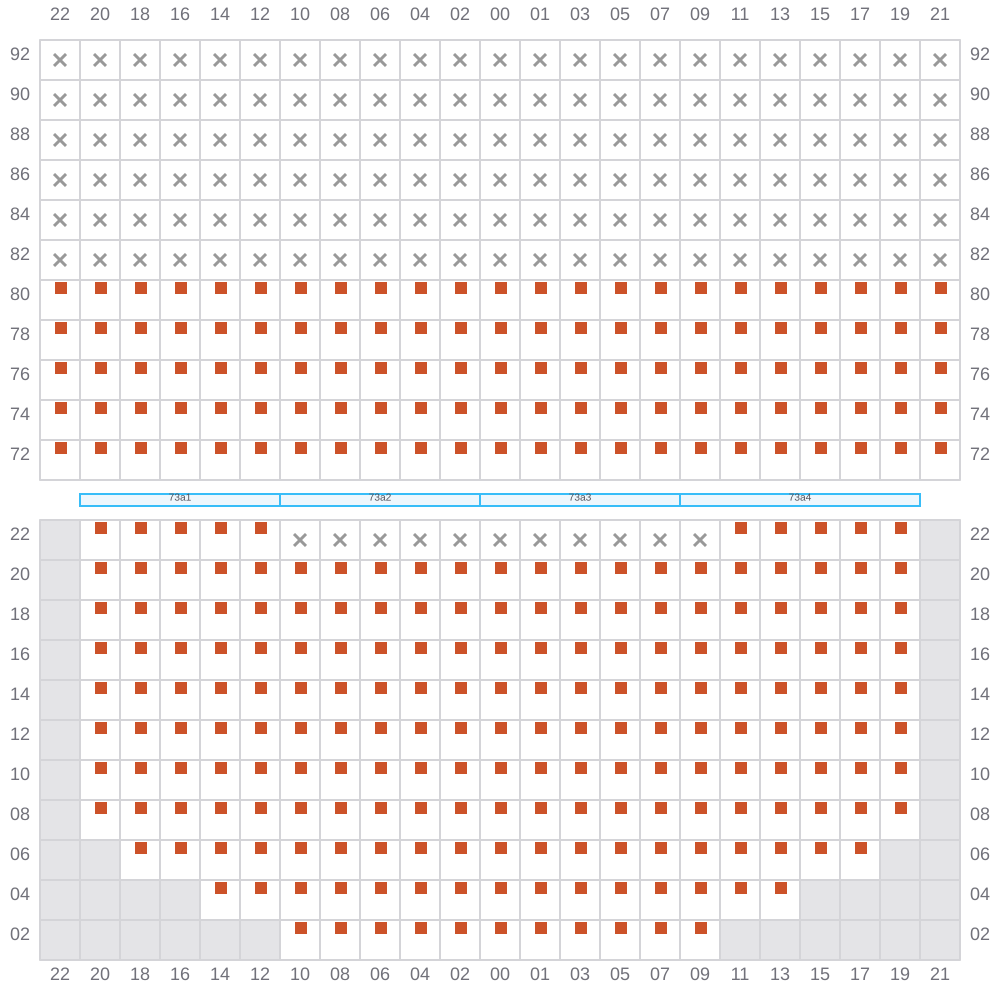

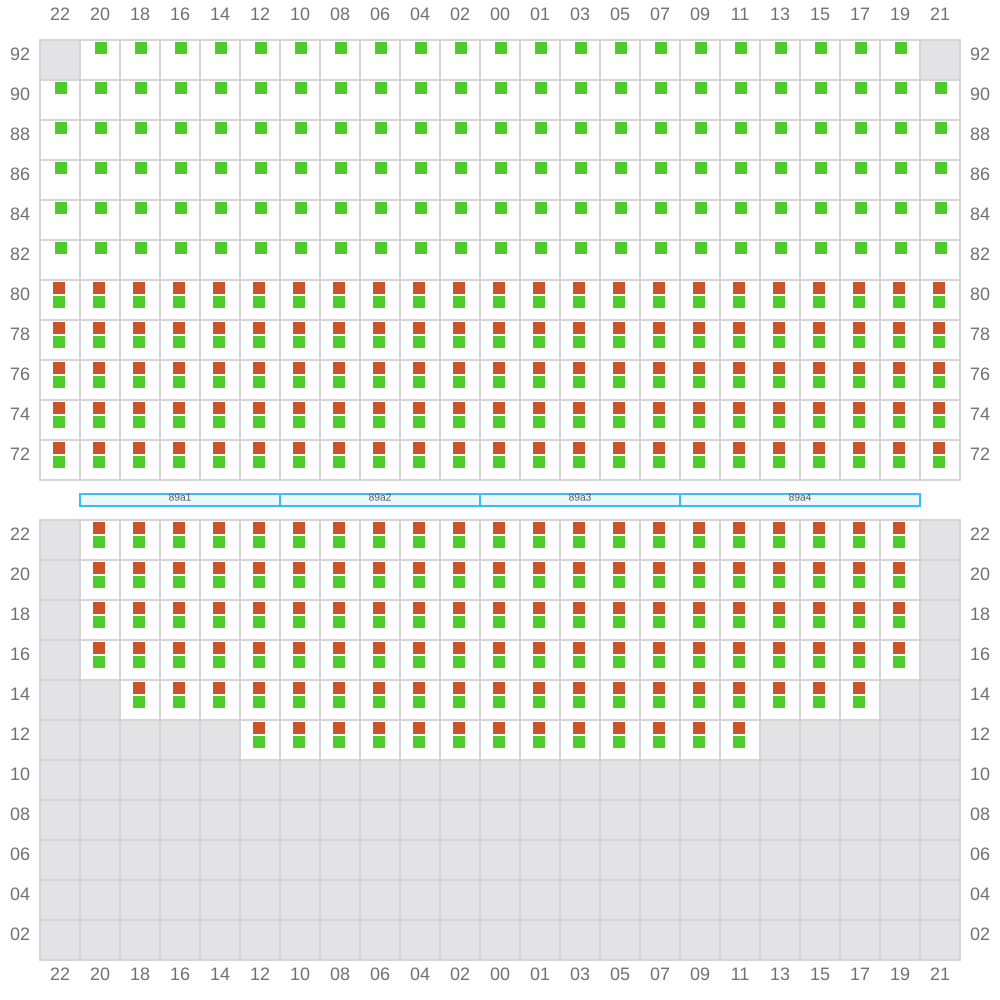

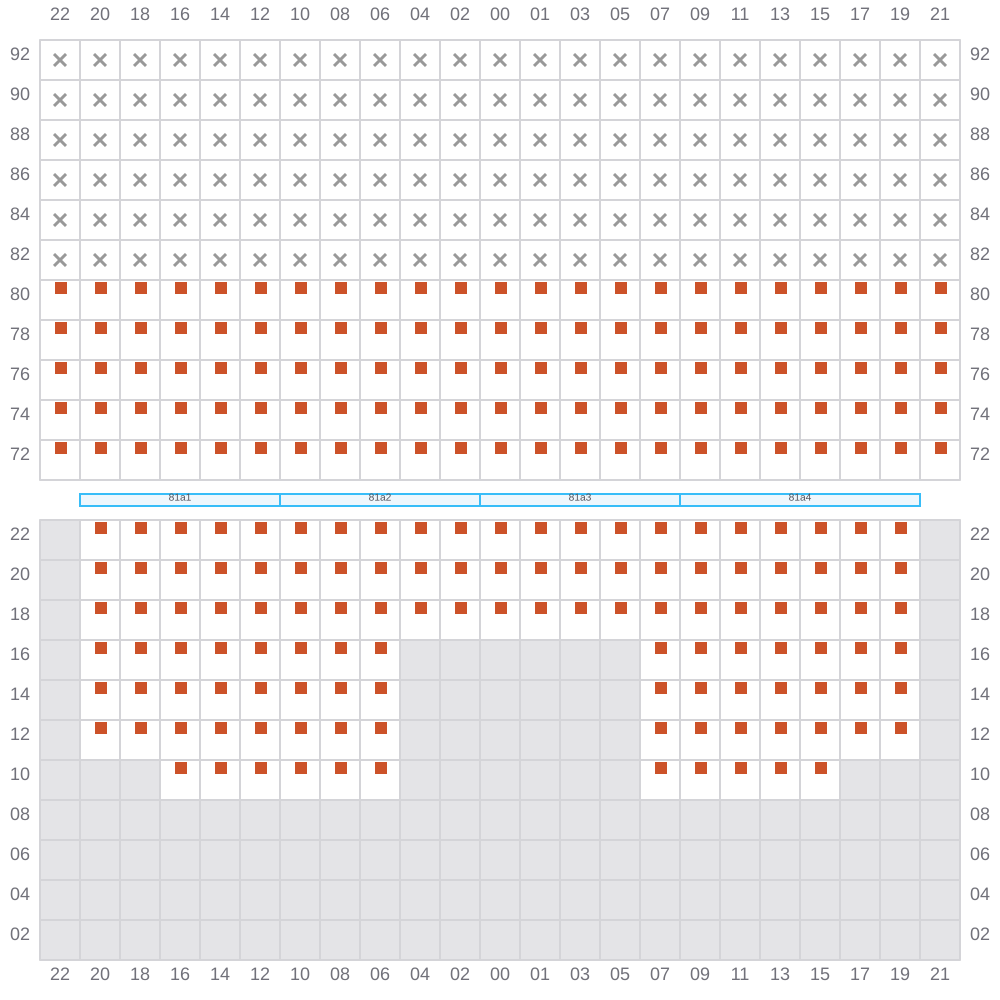

089 (090)
- →
- → / ?
- →

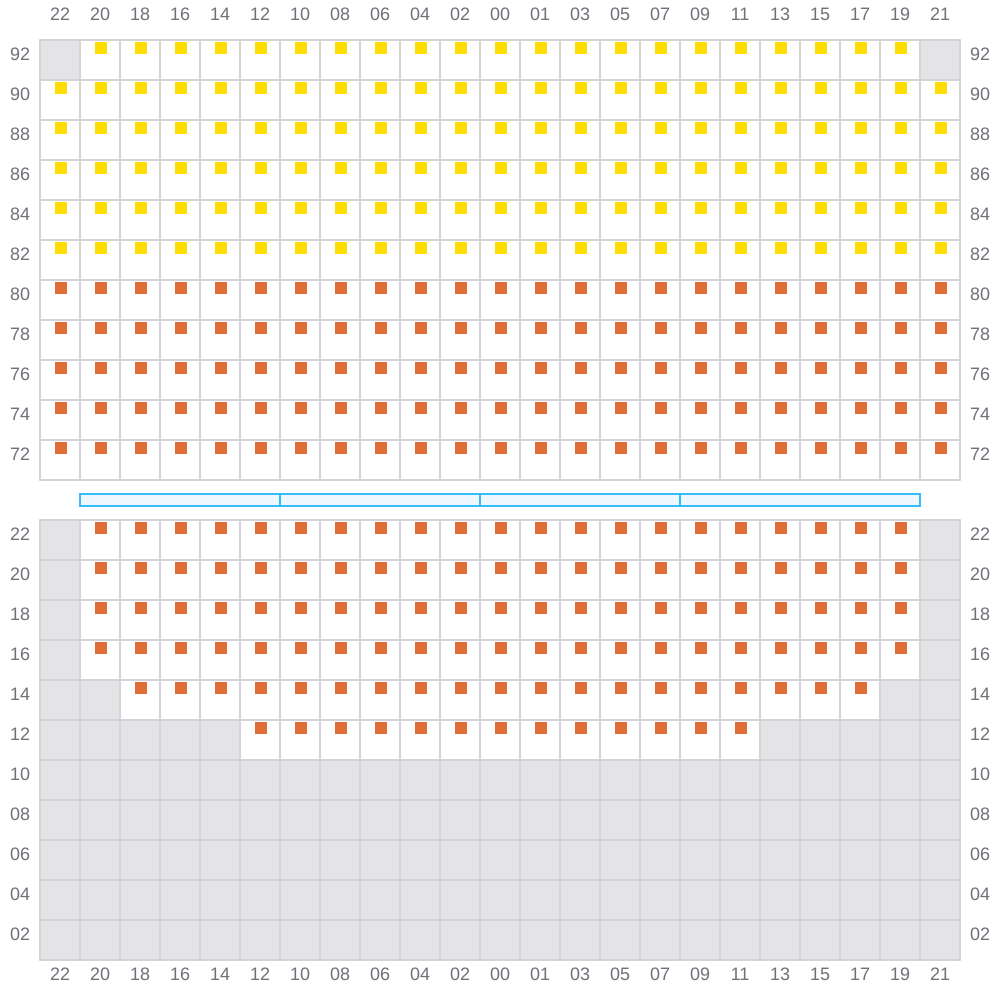

091
- ←
- → / ?
- →

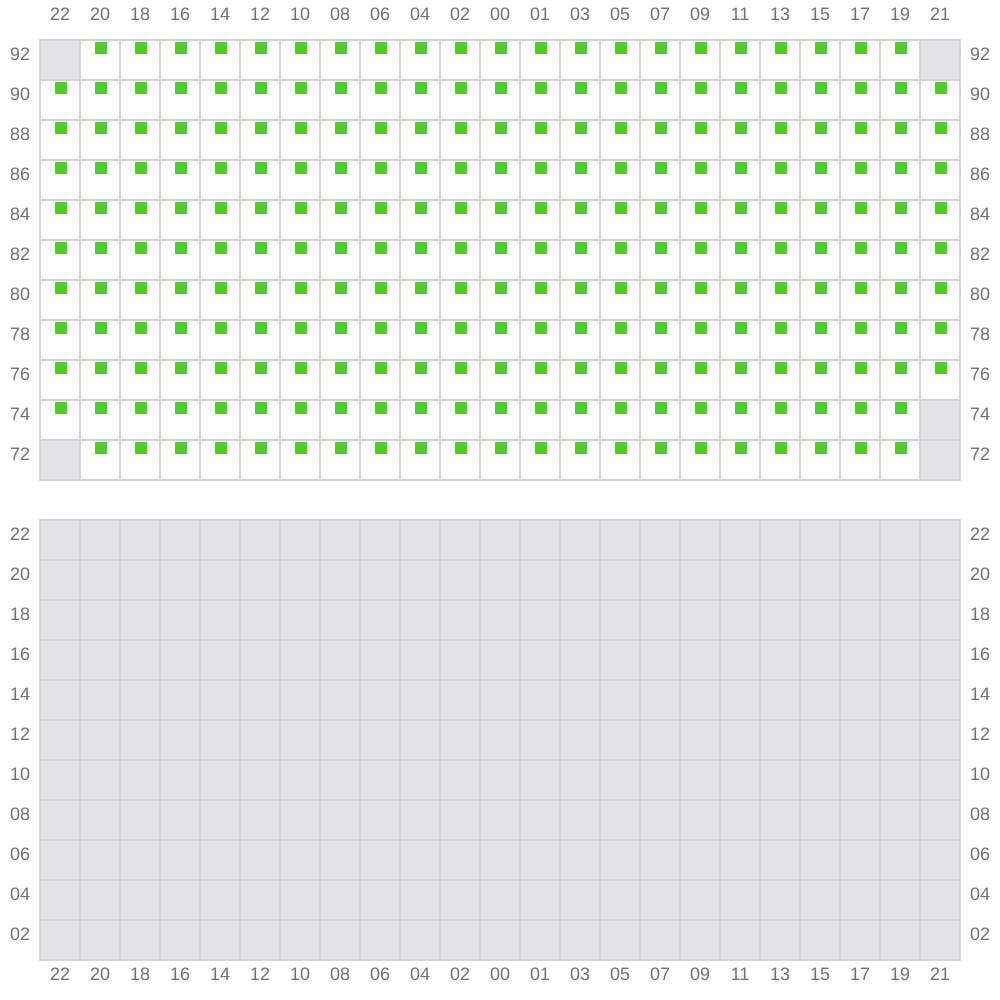

093 (094)
- → / ?
- → / ?
- → / ?
