ALE
9303754 | D5IH3 | 9303754 by ********* Last update: Wed May 08 2024

General Info

Ship Name:ALE
IMO Code:9303754
Call Sign:D5IH3
Line Operator:9303754
Class Name for Sister Ships:CMA CGM RESPECT
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:051
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:3,400

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

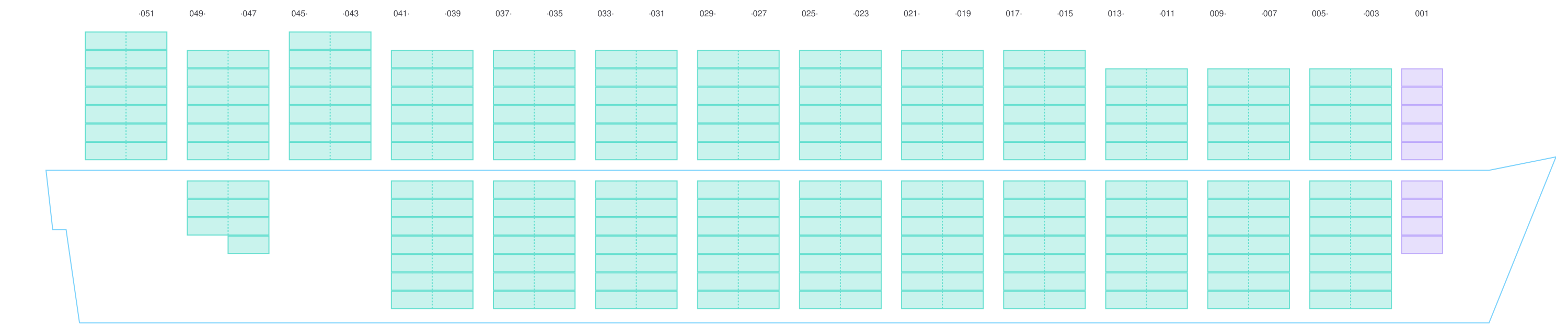

Side view of ALE

Hatch-Covers View

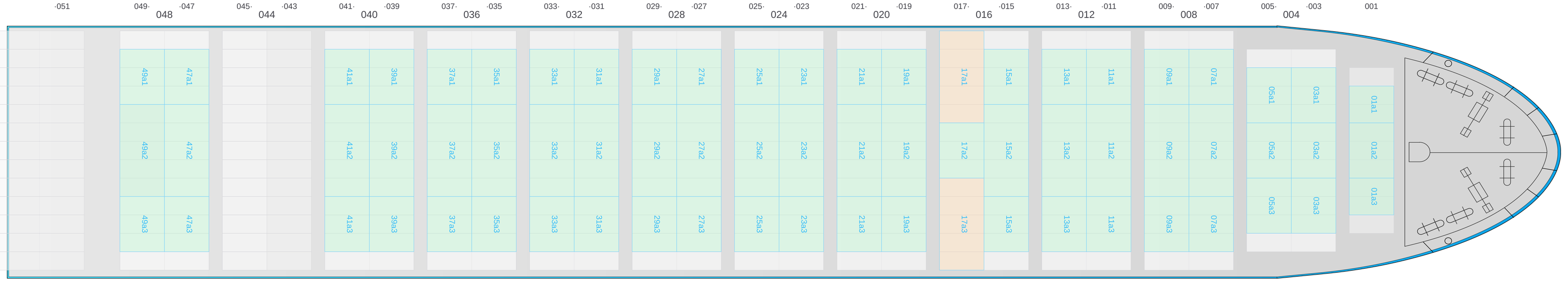

Deck view of ALE

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

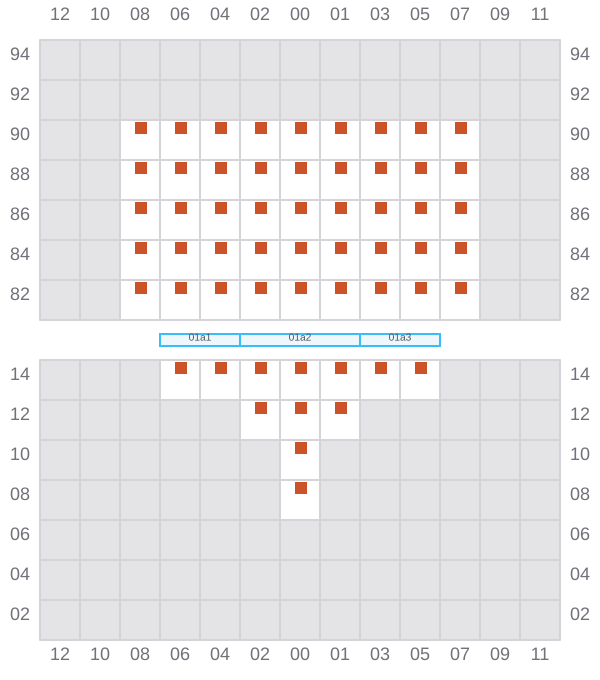

001

Bay 001 view and slots of ALE

003 (004)

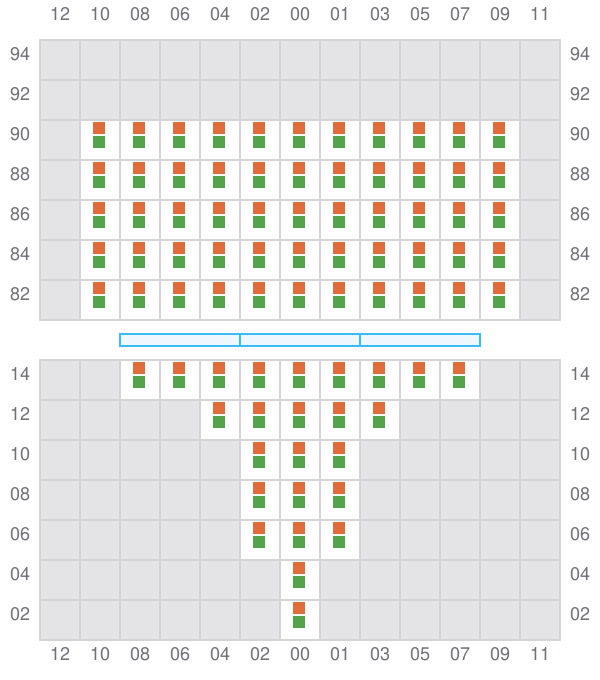

Bay 003 view and slots of ALE

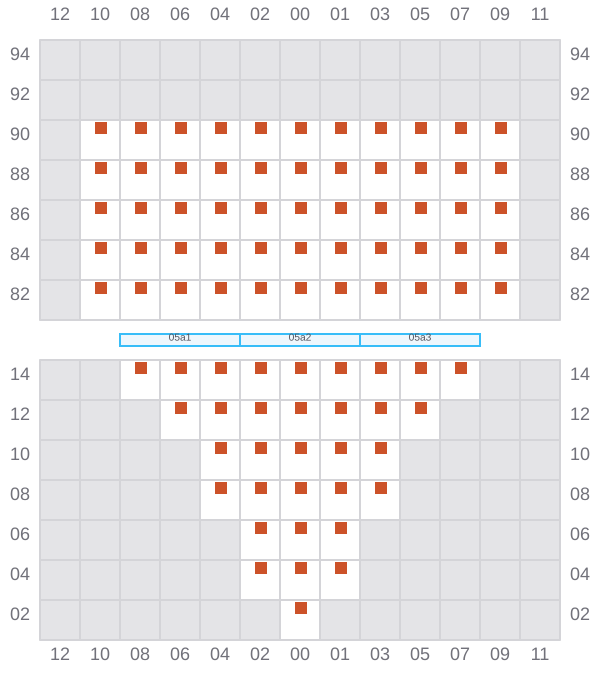

005

Bay 005 view and slots of ALE

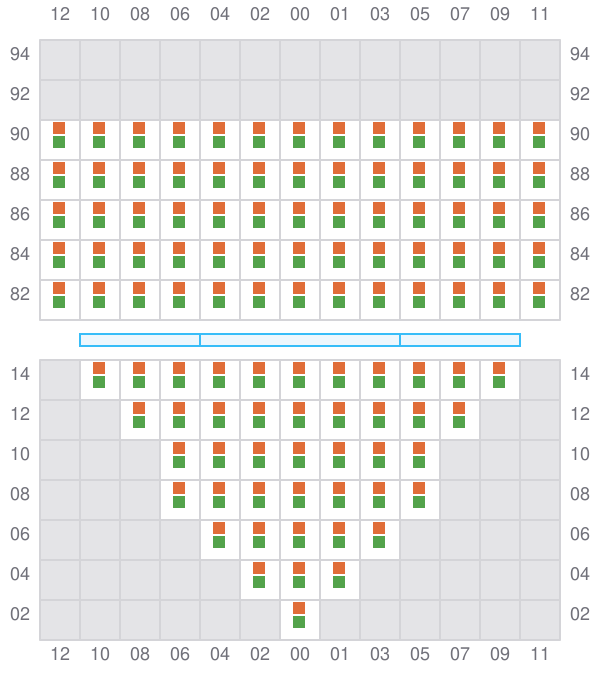

007 (008)

Bay 007 view and slots of ALE

009

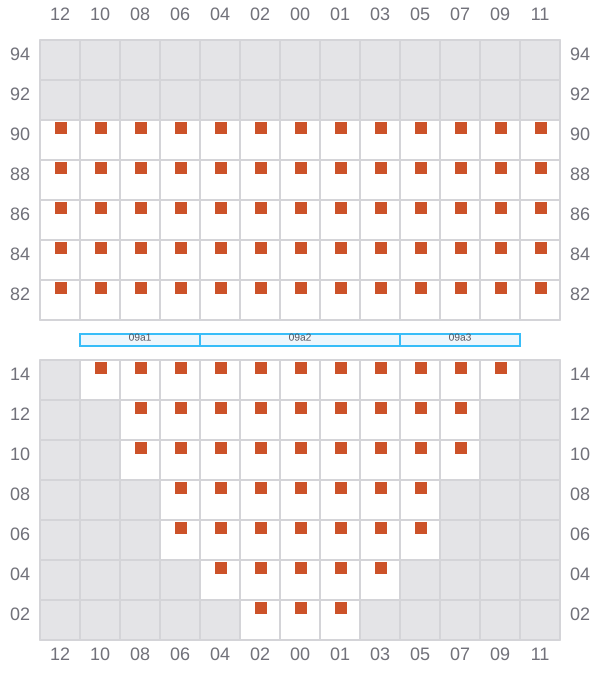

Bay 009 view and slots of ALE

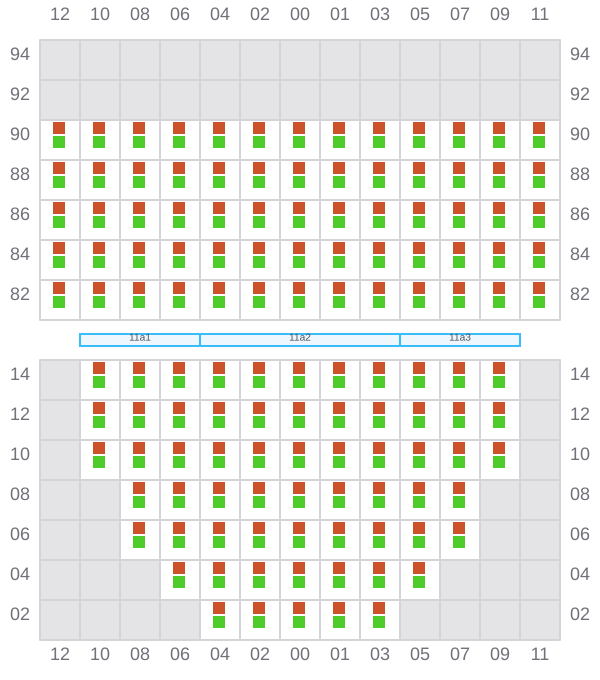

011 (012)

Bay 011 view and slots of ALE

013

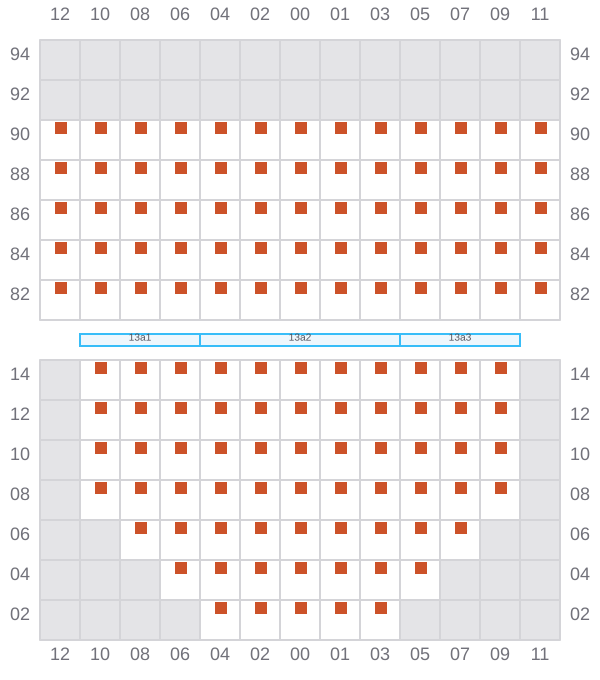

Bay 013 view and slots of ALE

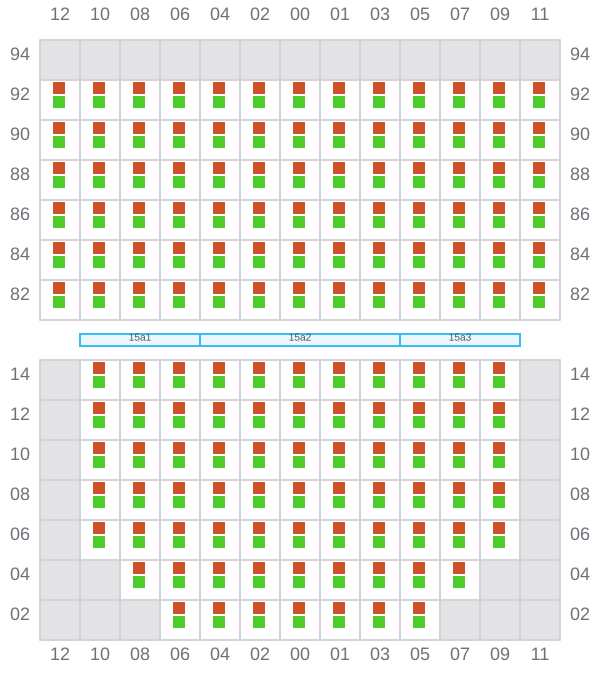

015 (016)

Bay 015 view and slots of ALE

017

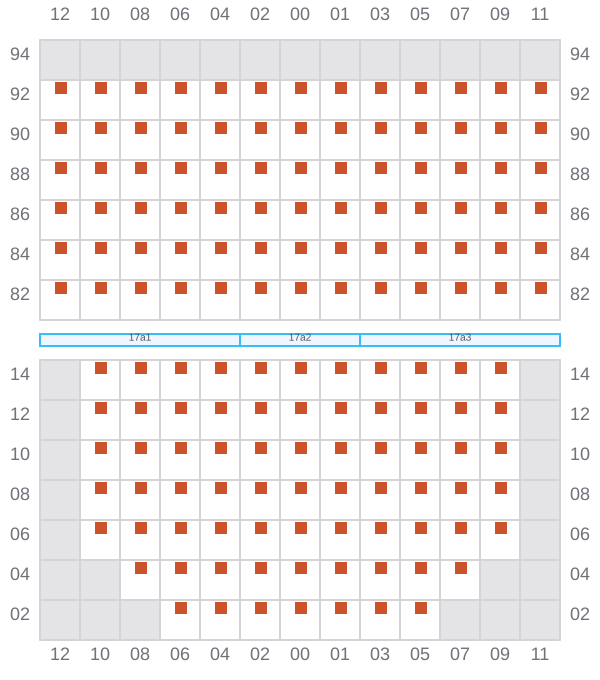

Bay 017 view and slots of ALE

019 (020)

Bay 019 view and slots of ALE

021

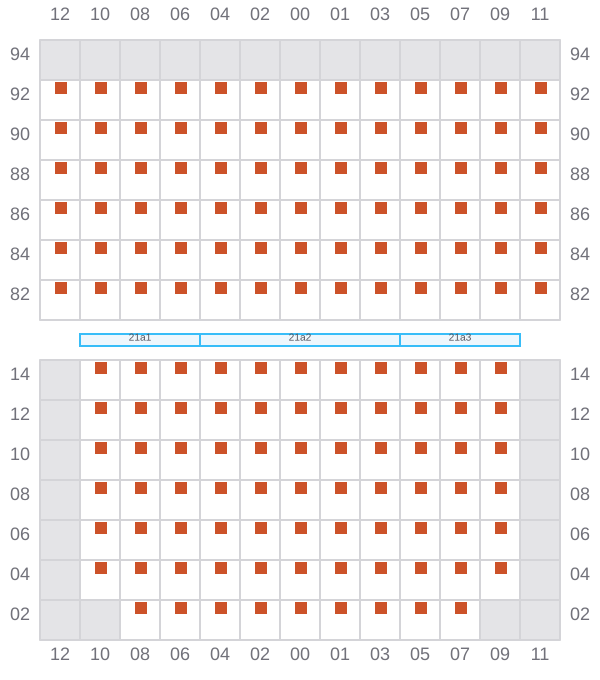

Bay 021 view and slots of ALE

023 (024)

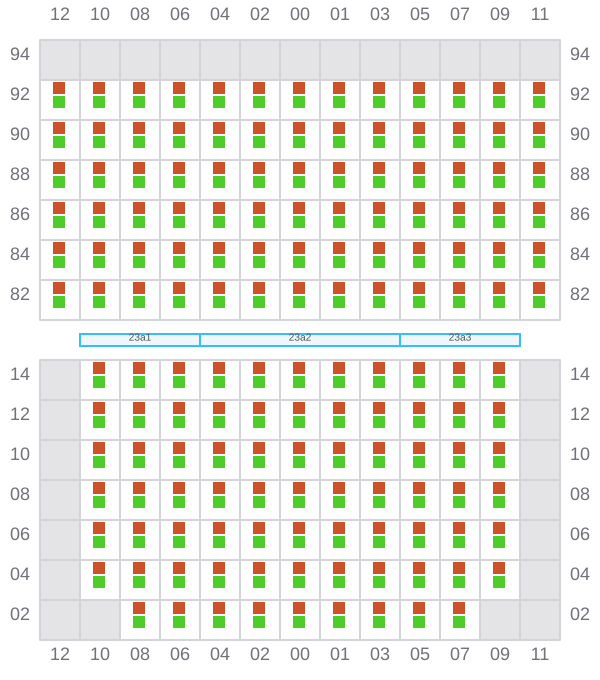

Bay 023 view and slots of ALE

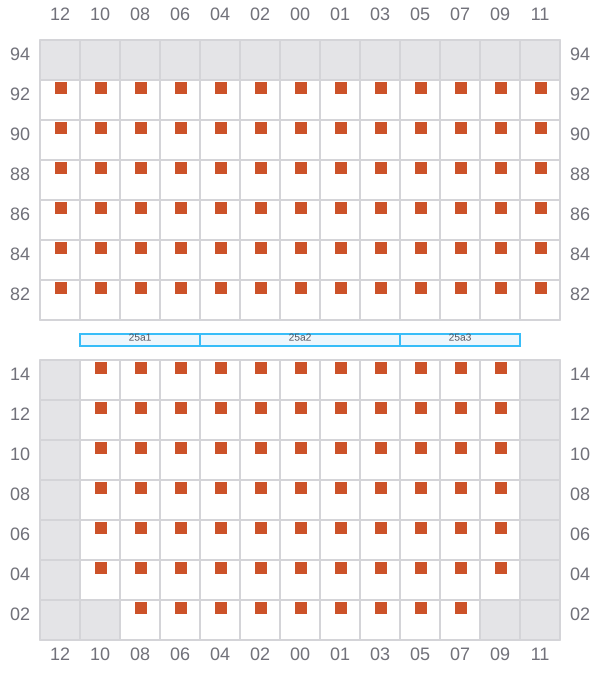

025

Bay 025 view and slots of ALE

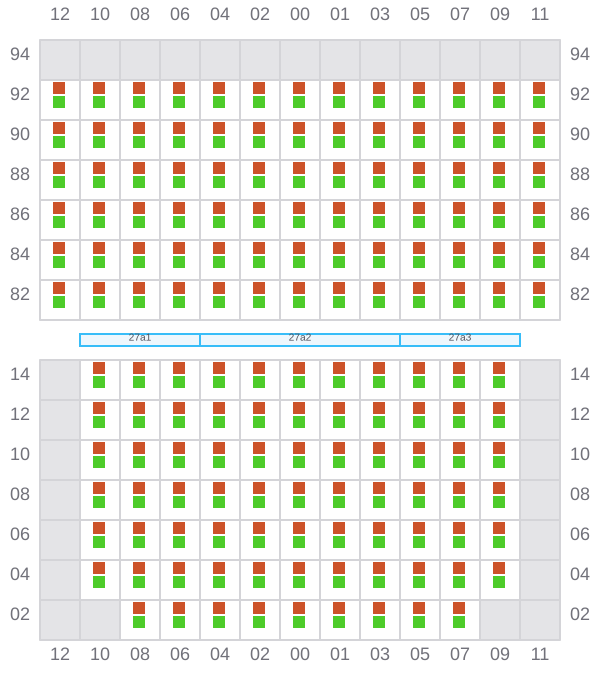

027 (028)

Bay 027 view and slots of ALE

029

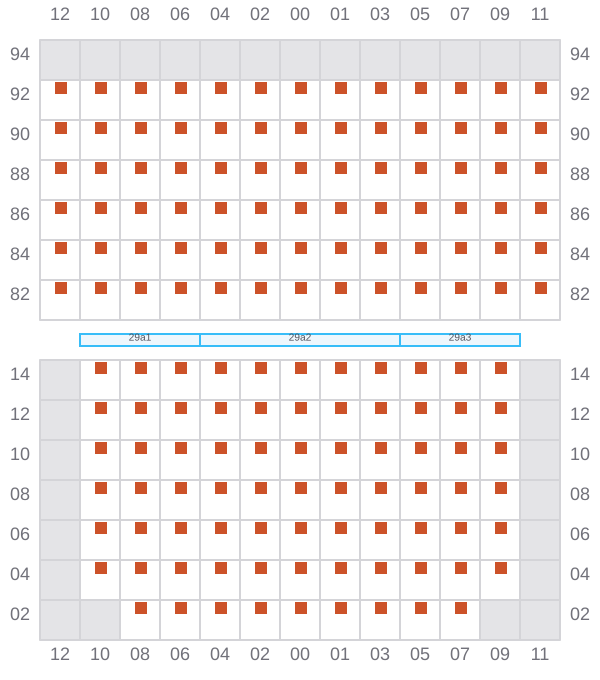

Bay 029 view and slots of ALE

031 (032)

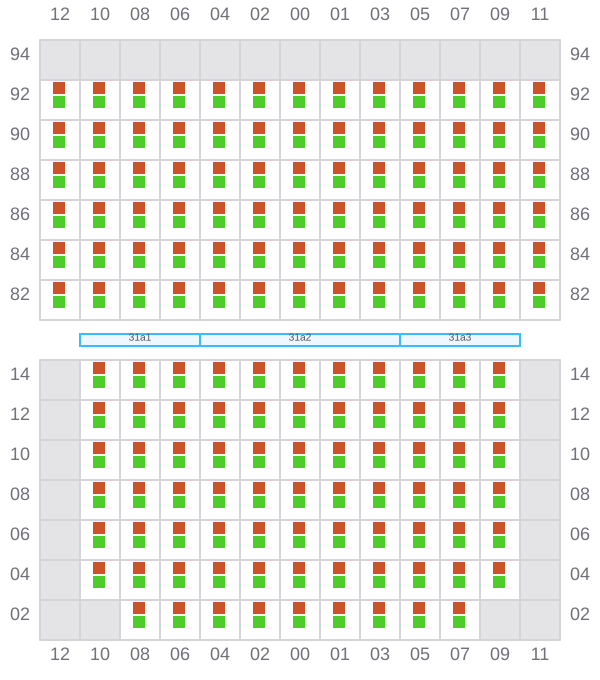

Bay 031 view and slots of ALE

033

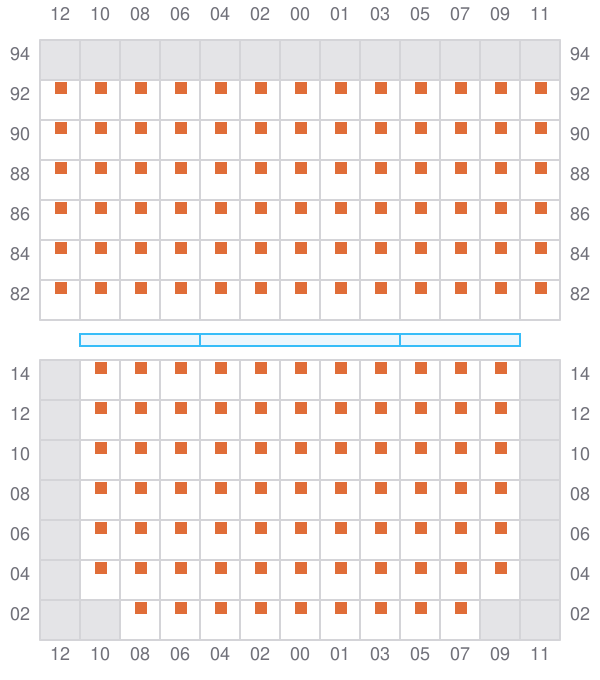

Bay 033 view and slots of ALE

035 (036)

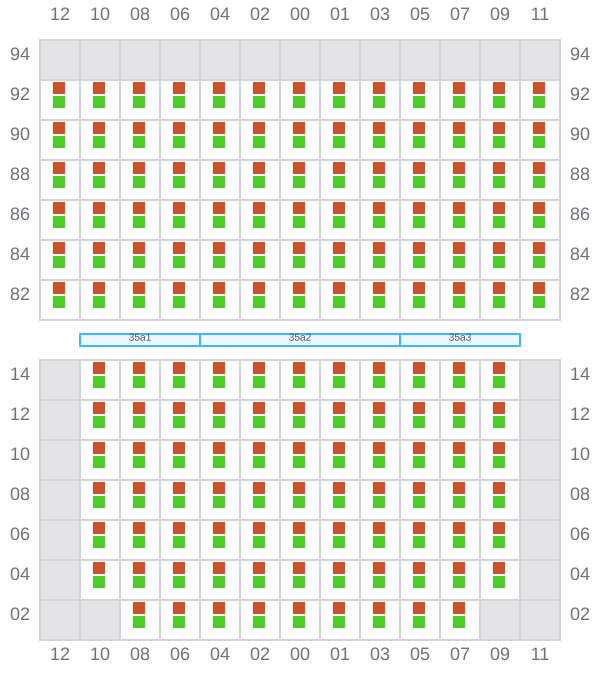

Bay 035 view and slots of ALE

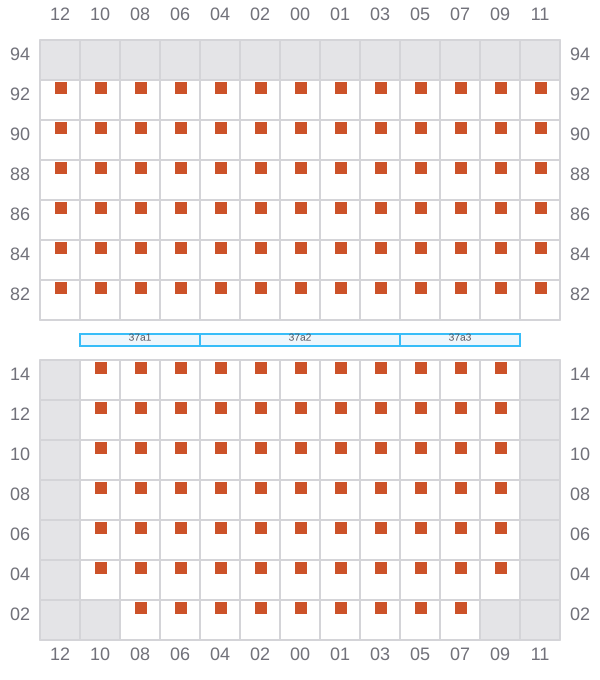

037

Bay 037 view and slots of ALE

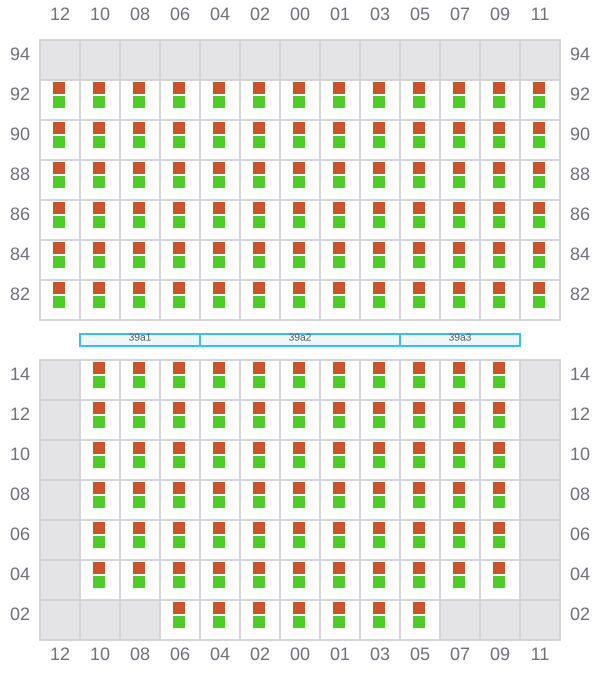

039 (040)

Bay 039 view and slots of ALE

041

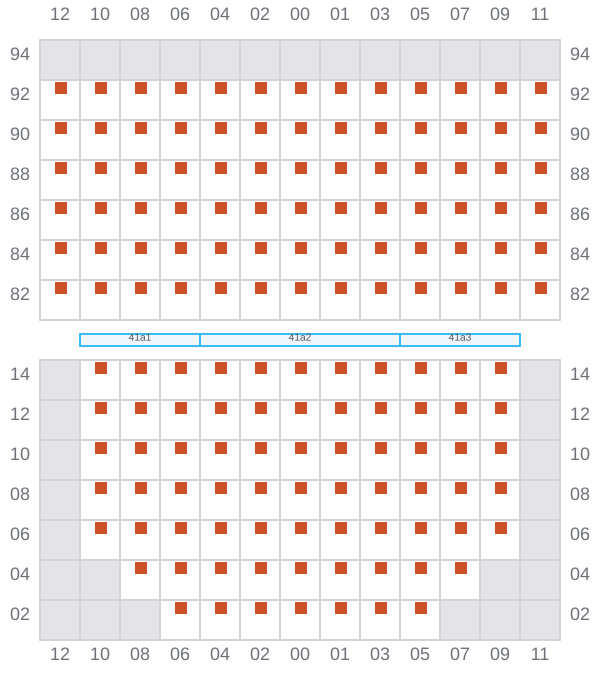

Bay 041 view and slots of ALE

043 (044)

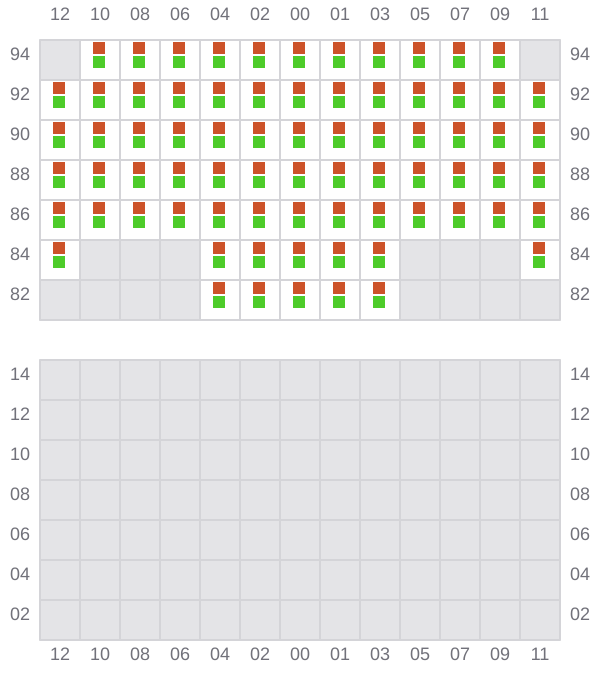

Bay 043 view and slots of ALE

045

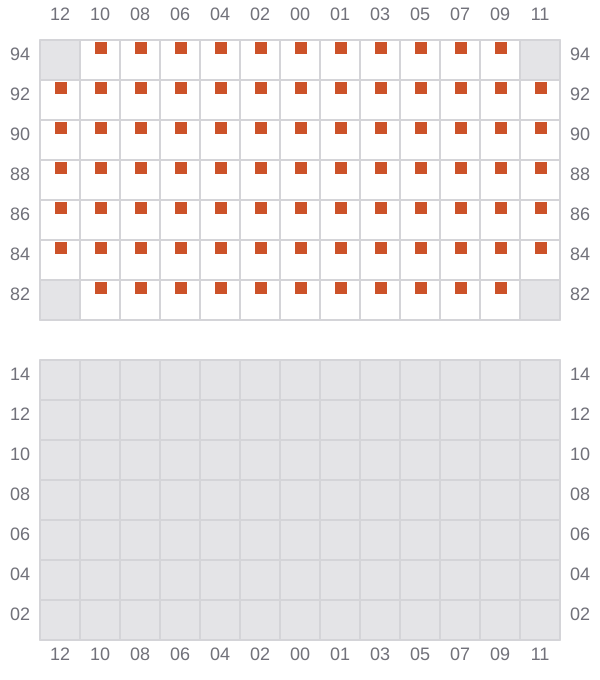

Bay 045 view and slots of ALE

047 (048)

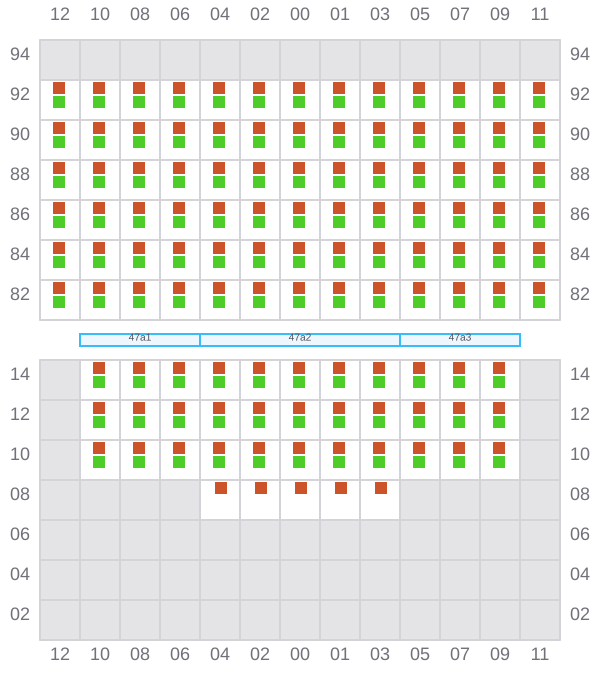

Bay 047 view and slots of ALE

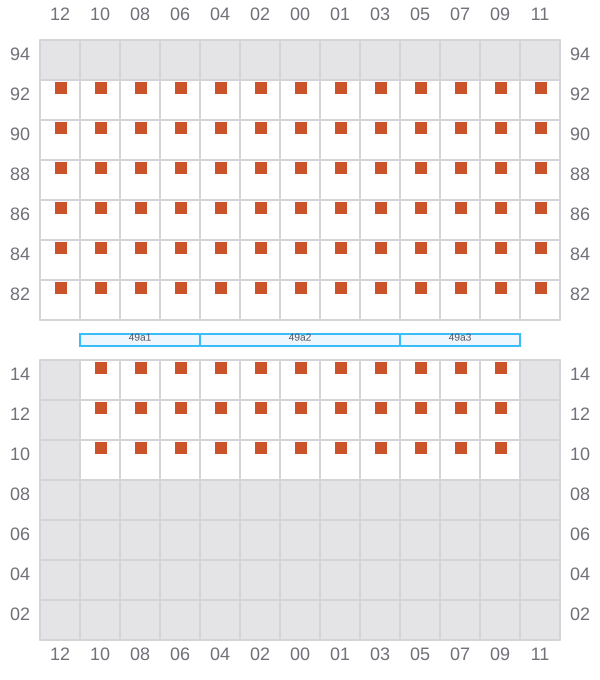

049

Bay 049 view and slots of ALE

051 (052)

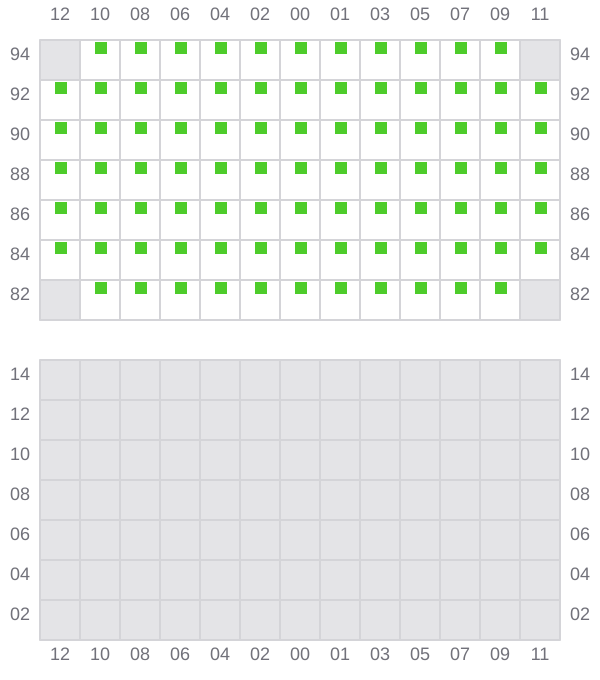

Bay 051 view and slots of ALE
