ALETTE MAERSK
9948774 | OZLR2 | MAERSK by ************************** Last update: Wed Aug 21 2024

General Info

Ship Name:ALETTE MAERSK
IMO Code:9948774
Call Sign:OZLR2
Line Operator:MAERSK
Class Name for Sister Ships:ALETTE MAERSK
Year Built:2024
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):321.00
LOA (Length Overall):351.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:087
Max ISO Row:20
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:72
Max Below ISO Tier:24
Min Below ISO Tier:02
Total TEU:16,580

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

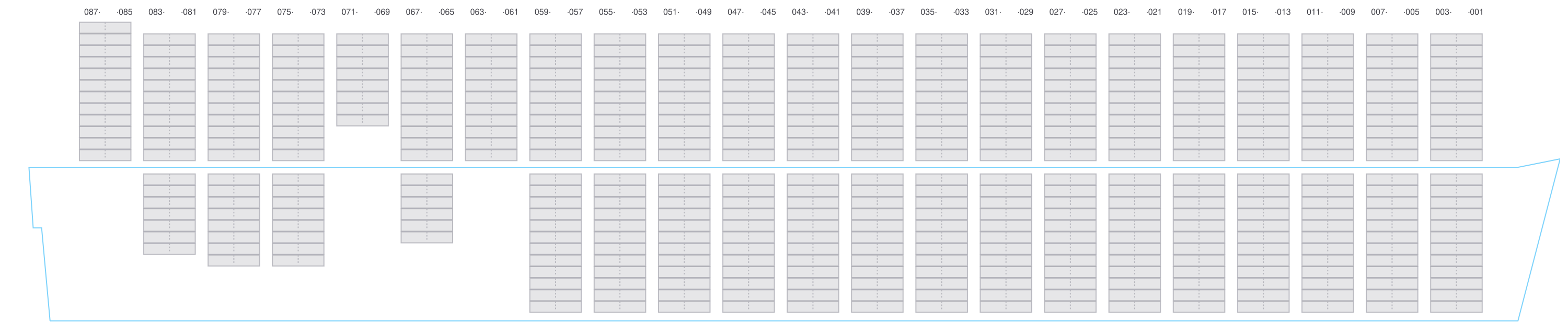

Side View

Side view of ALETTE MAERSK

Hatch-Covers View

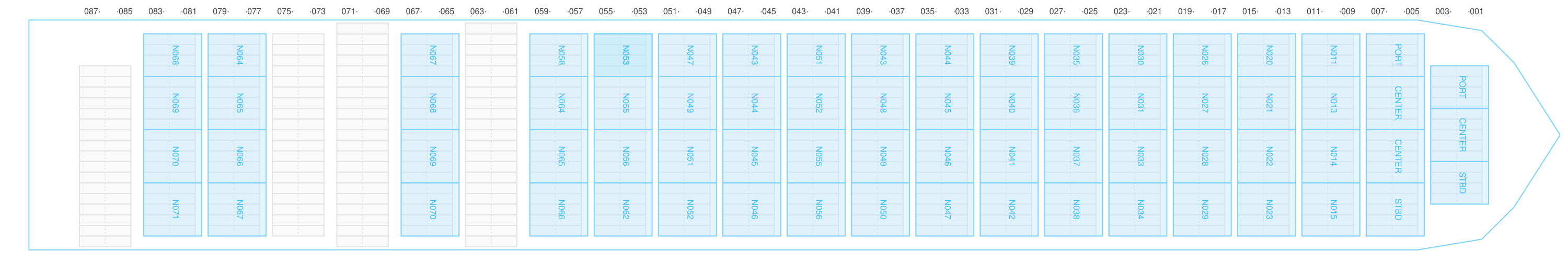

Deck view of ALETTE MAERSK

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

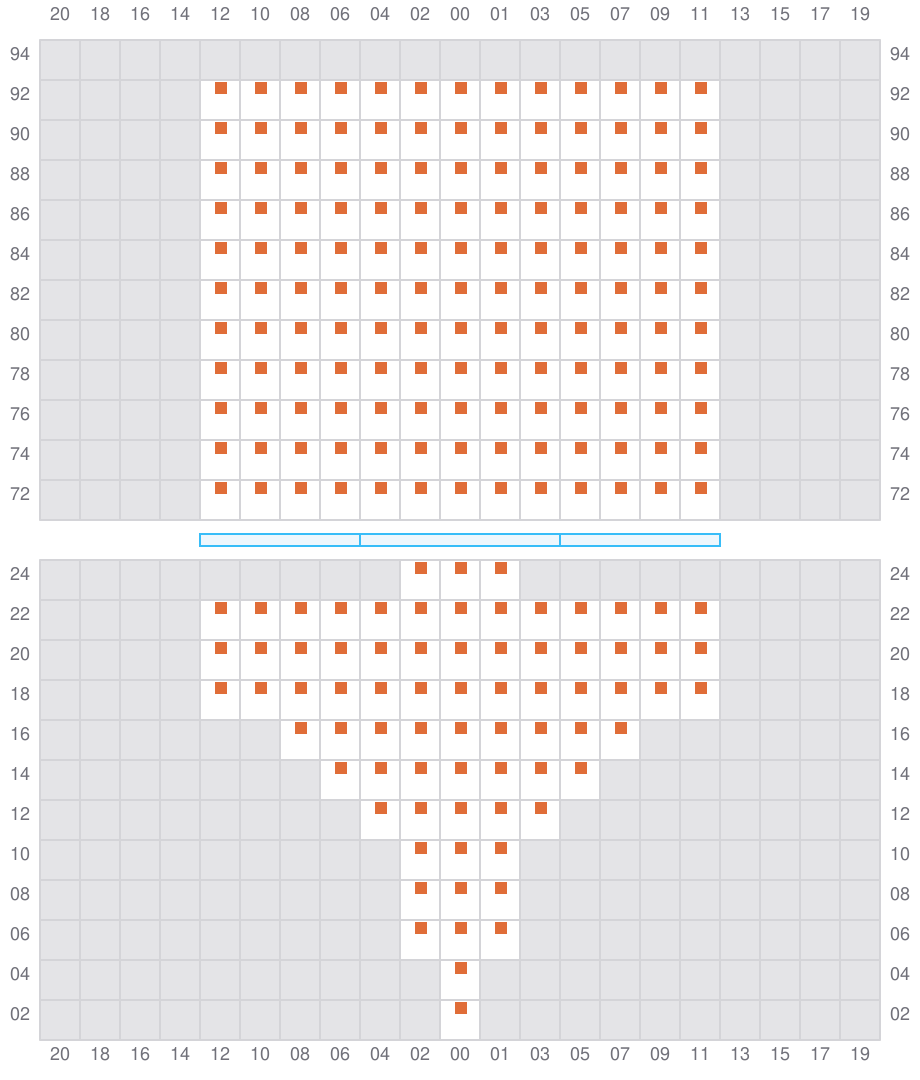

001

  • →
  • ✓
Bay 001 view and slots of ALETTE MAERSK

003 (002)

  • ←

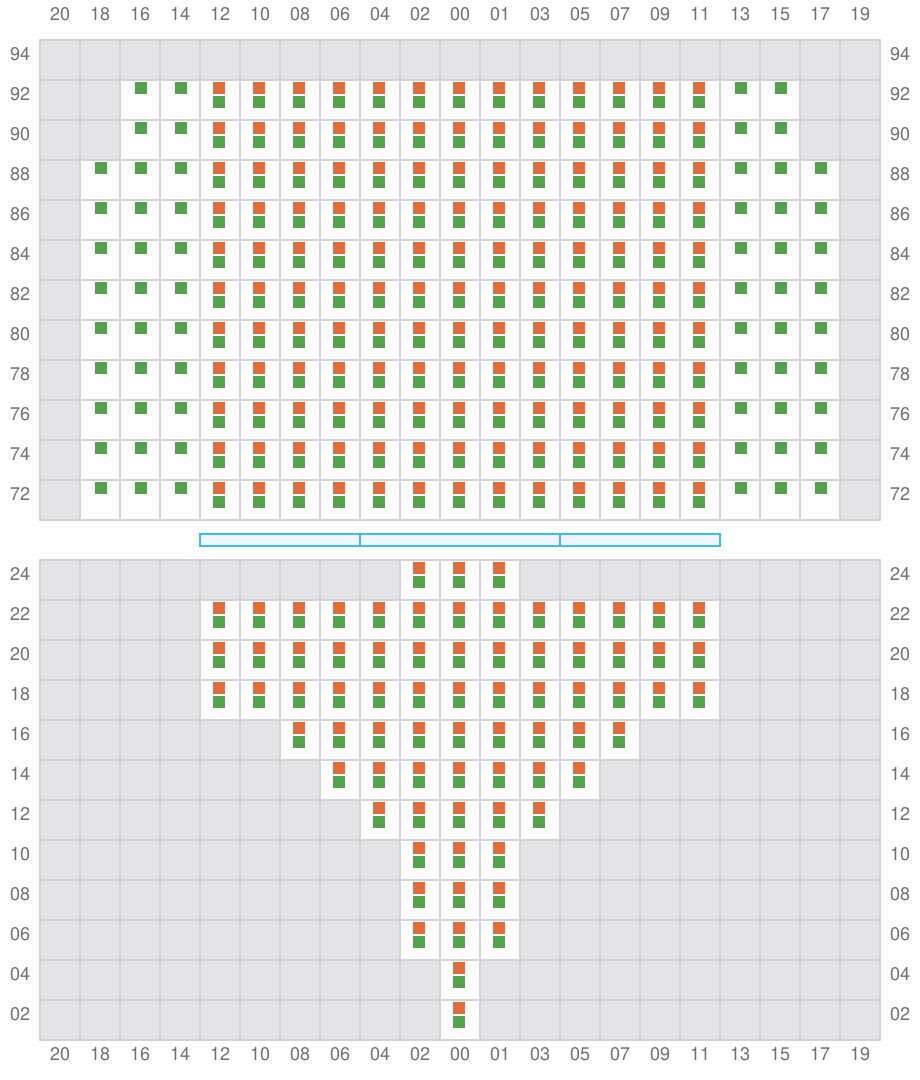

Bay 003 view and slots of ALETTE MAERSK

005

  • →

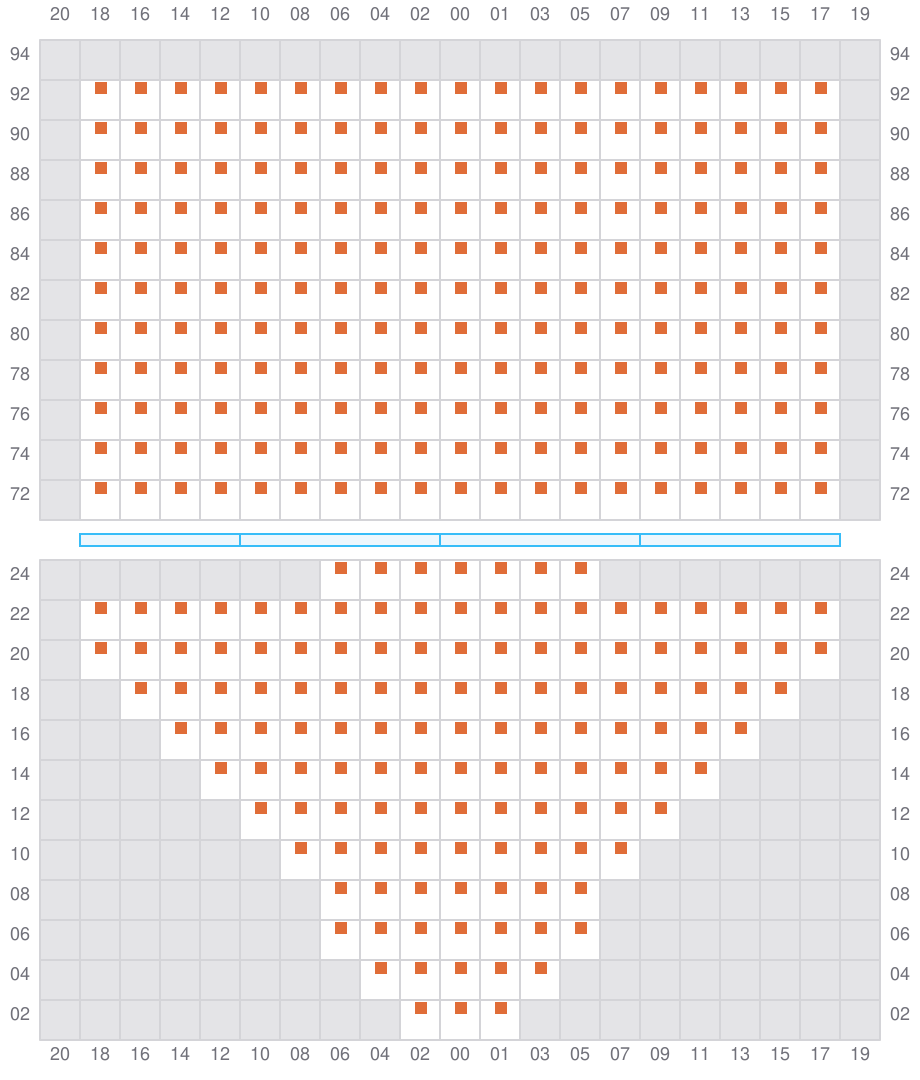

Bay 005 view and slots of ALETTE MAERSK

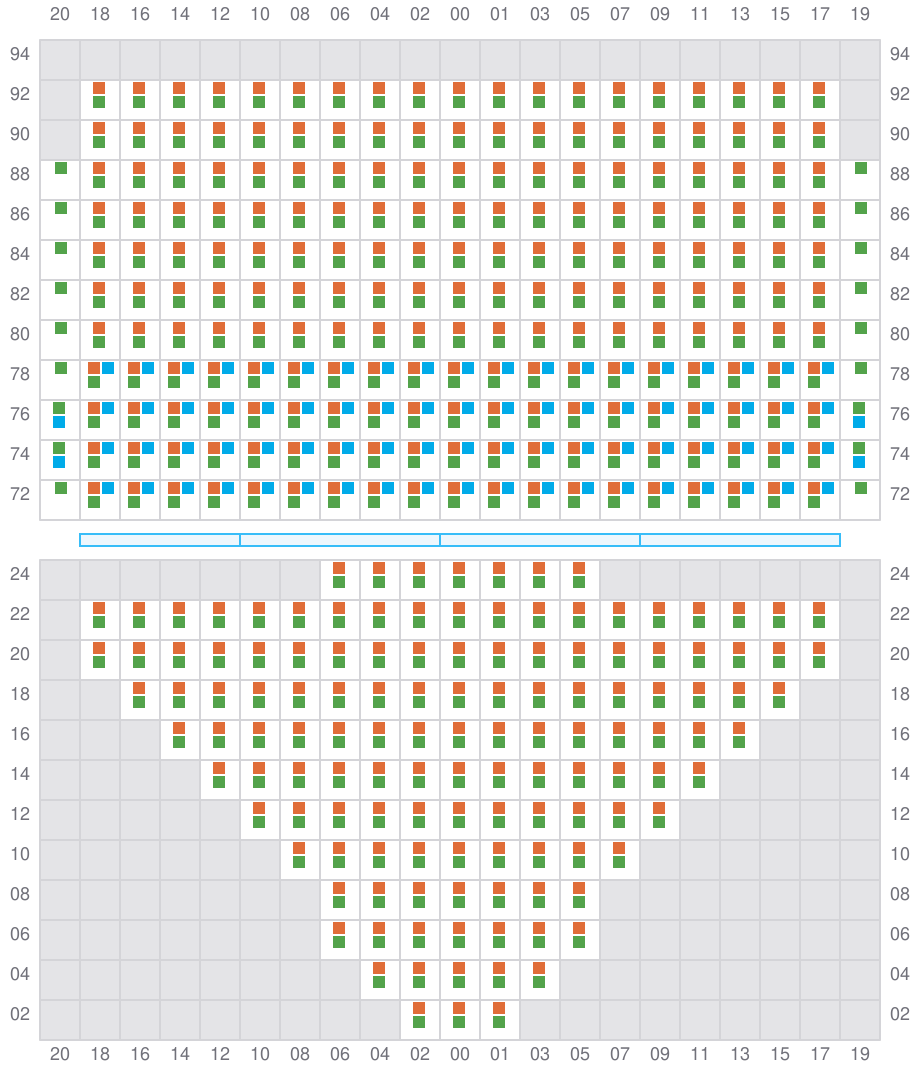

007 (006)

  • ←
  • → / ?
Bay 007 view and slots of ALETTE MAERSK

009

  • →

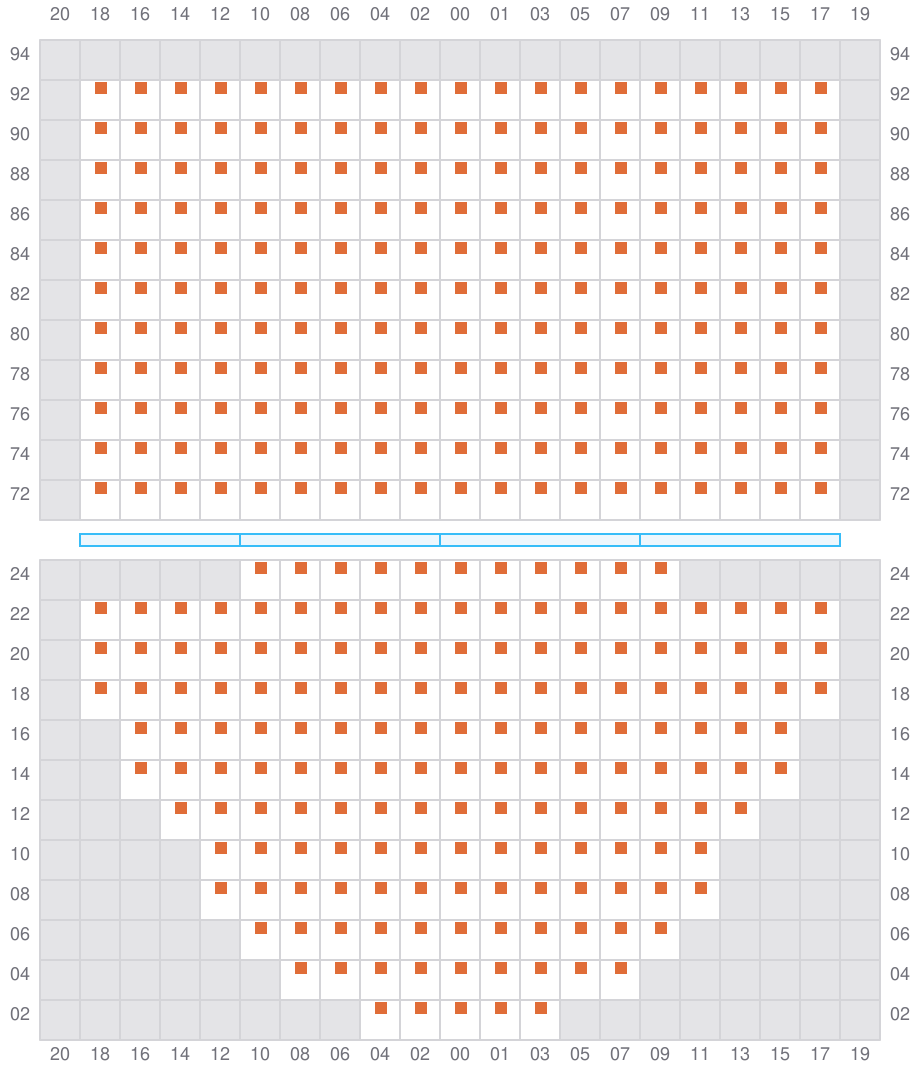

Bay 009 view and slots of ALETTE MAERSK

011 (010)

  • ←
  • → / ?

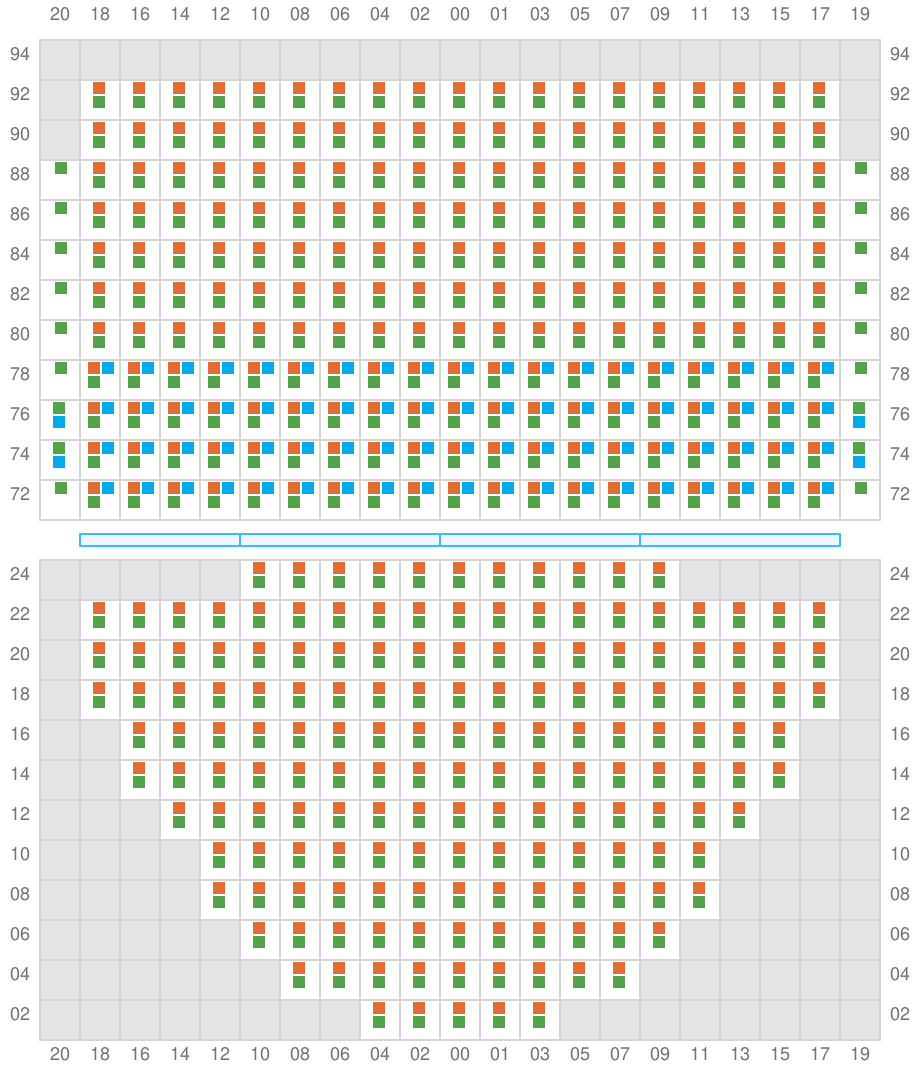

Bay 011 view and slots of ALETTE MAERSK

013

  • →

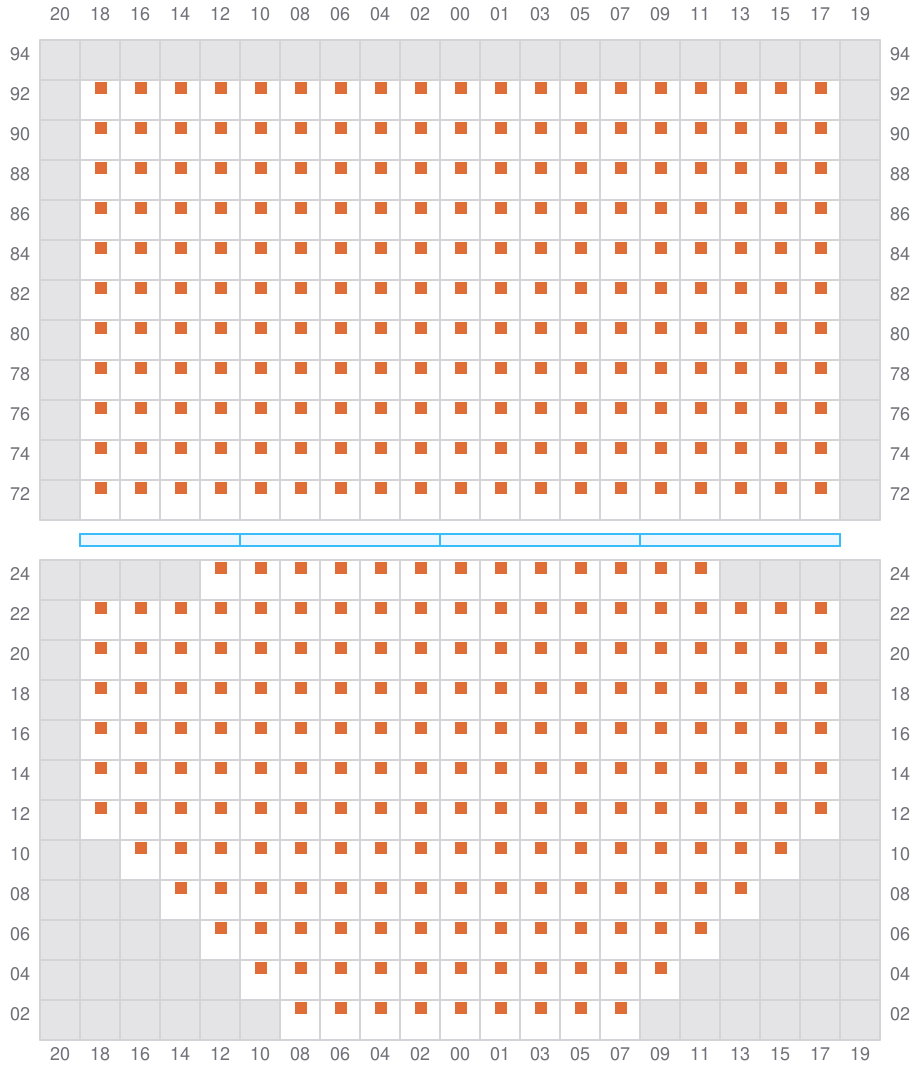

Bay 013 view and slots of ALETTE MAERSK

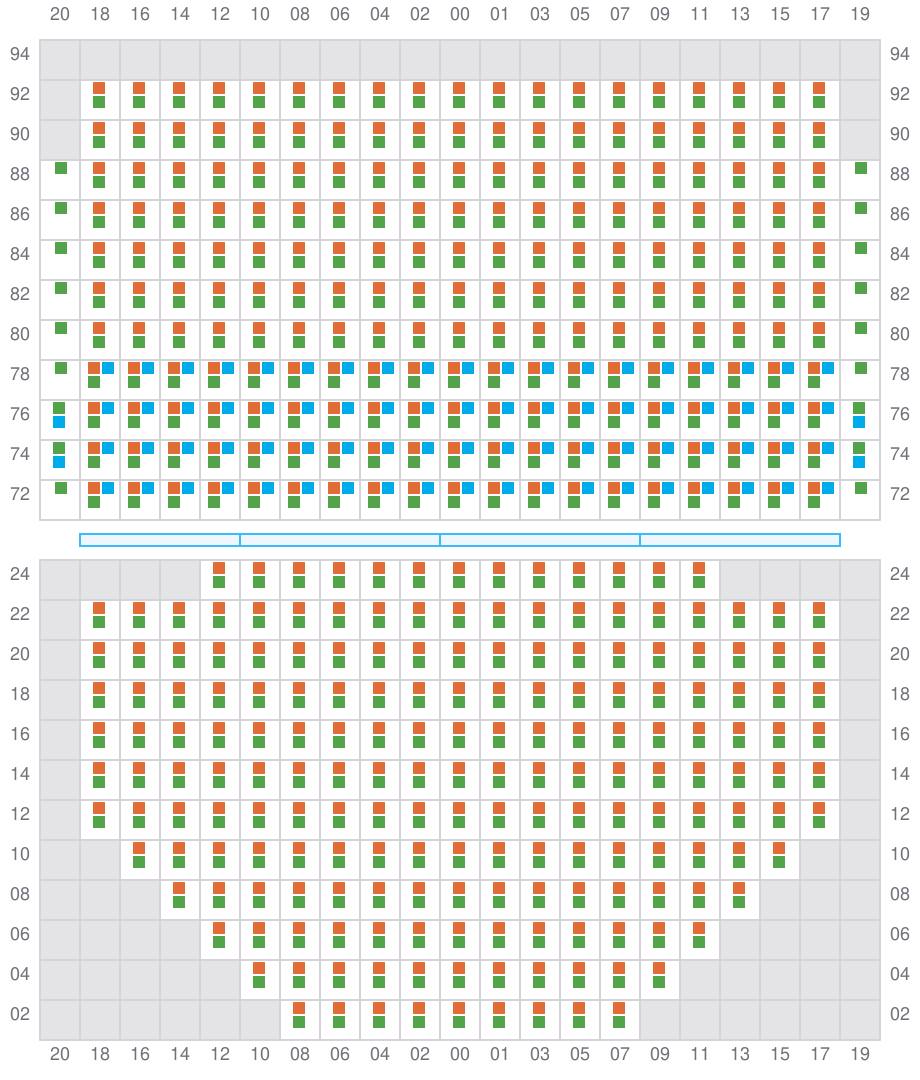

015 (014)

  • ←
Bay 015 view and slots of ALETTE MAERSK

017

  • →

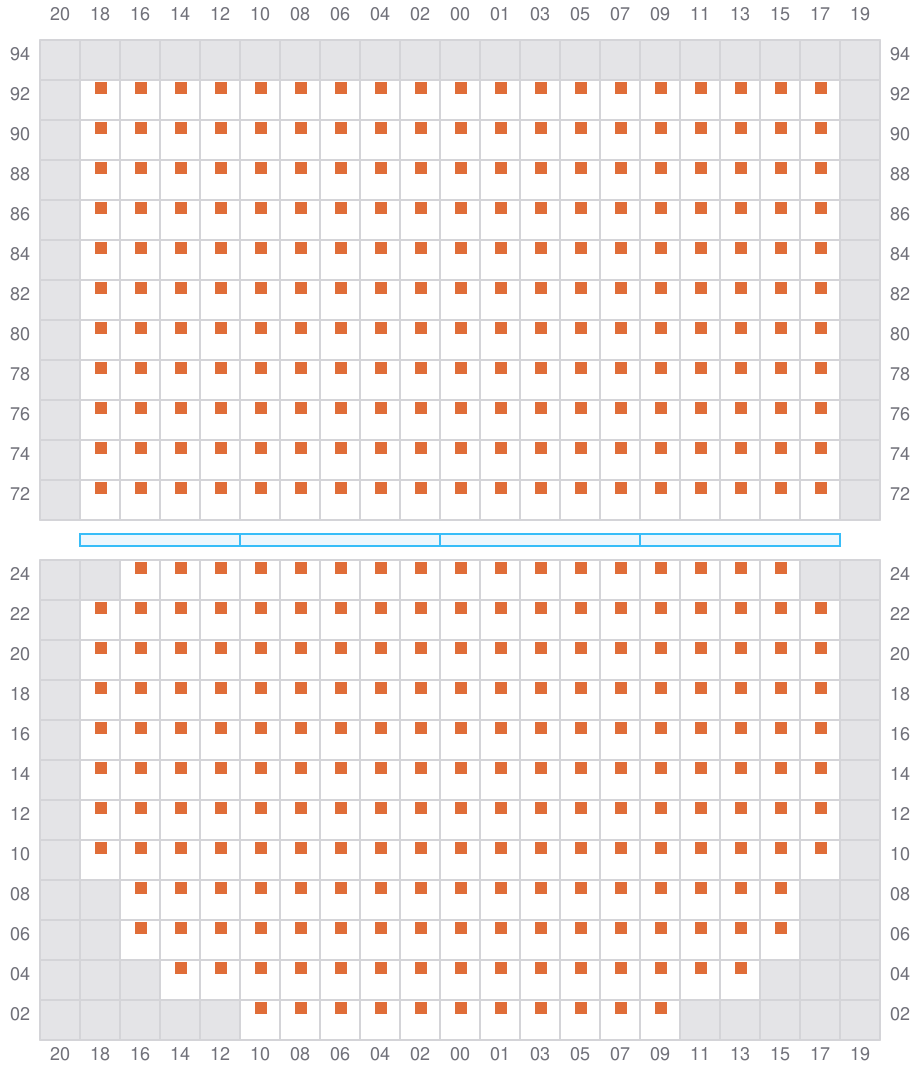

Bay 017 view and slots of ALETTE MAERSK

019 (018)

  • ←
  • →

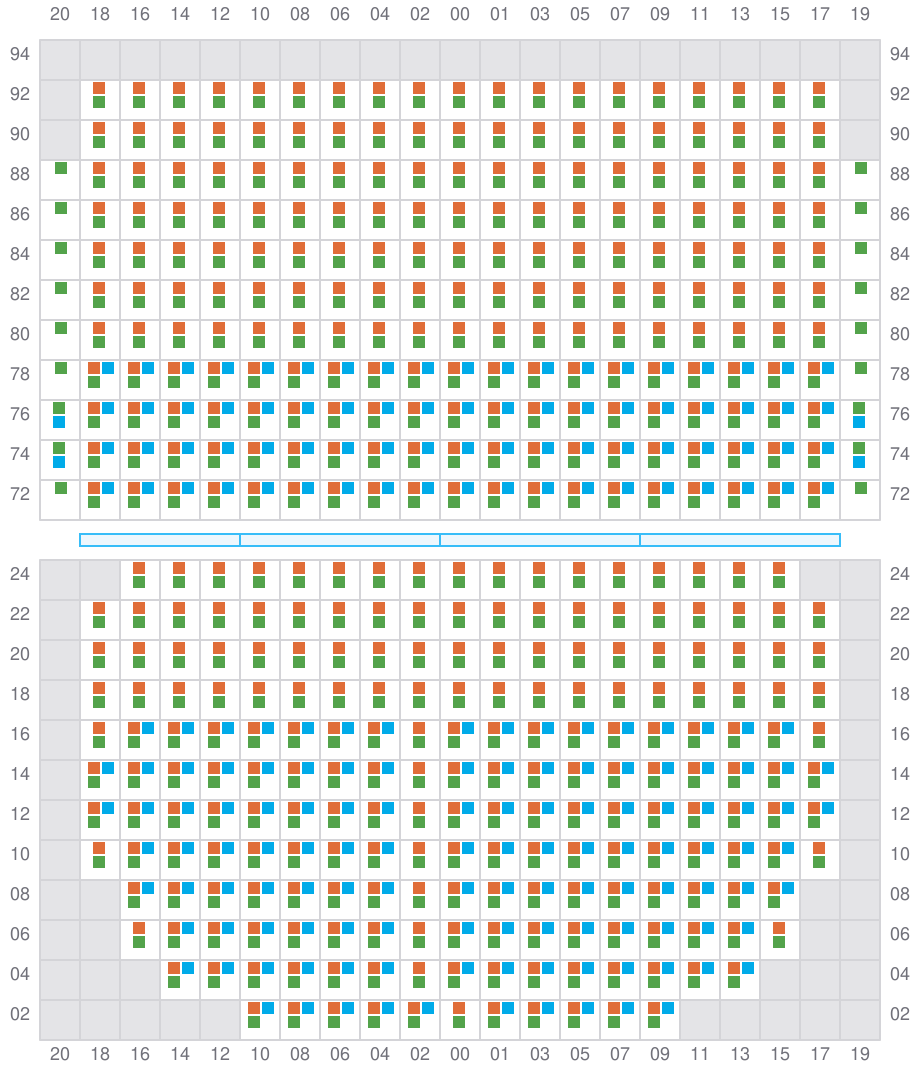

Bay 019 view and slots of ALETTE MAERSK

021

  • →

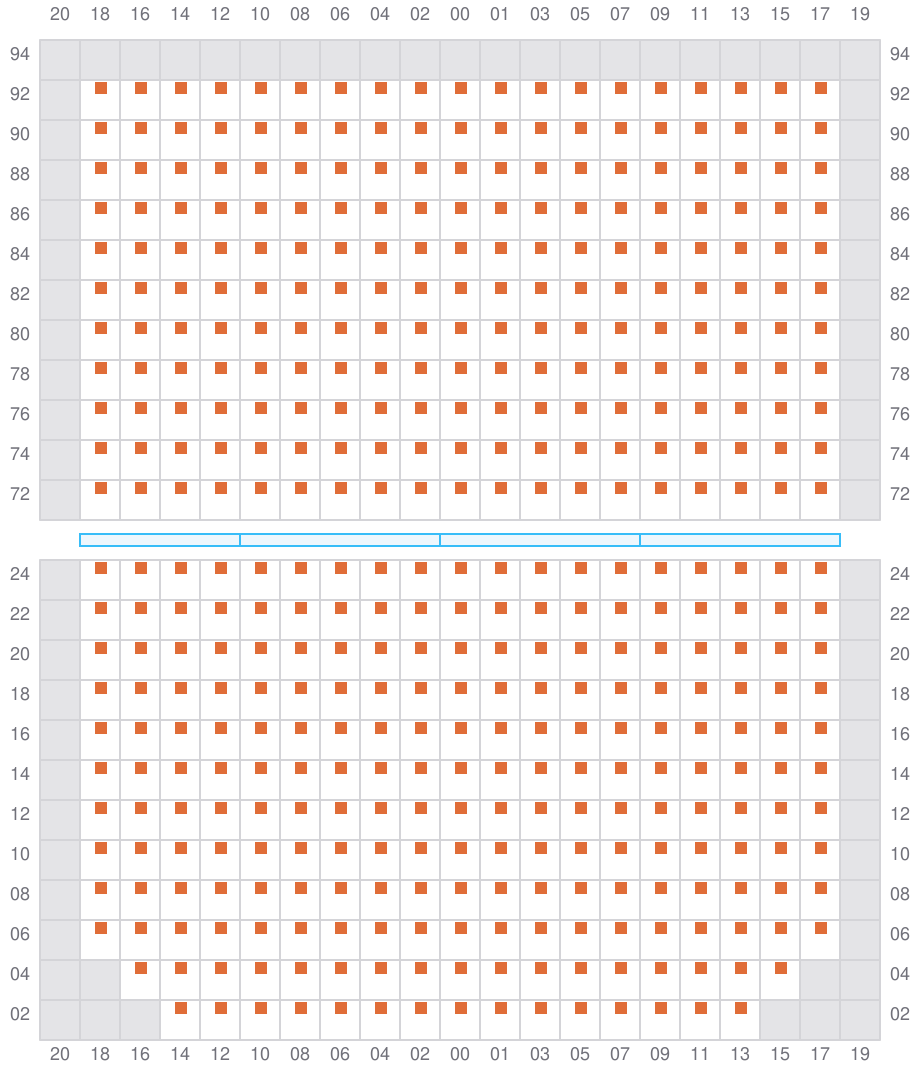

Bay 021 view and slots of ALETTE MAERSK

023 (022)

  • ←
  • → / ?

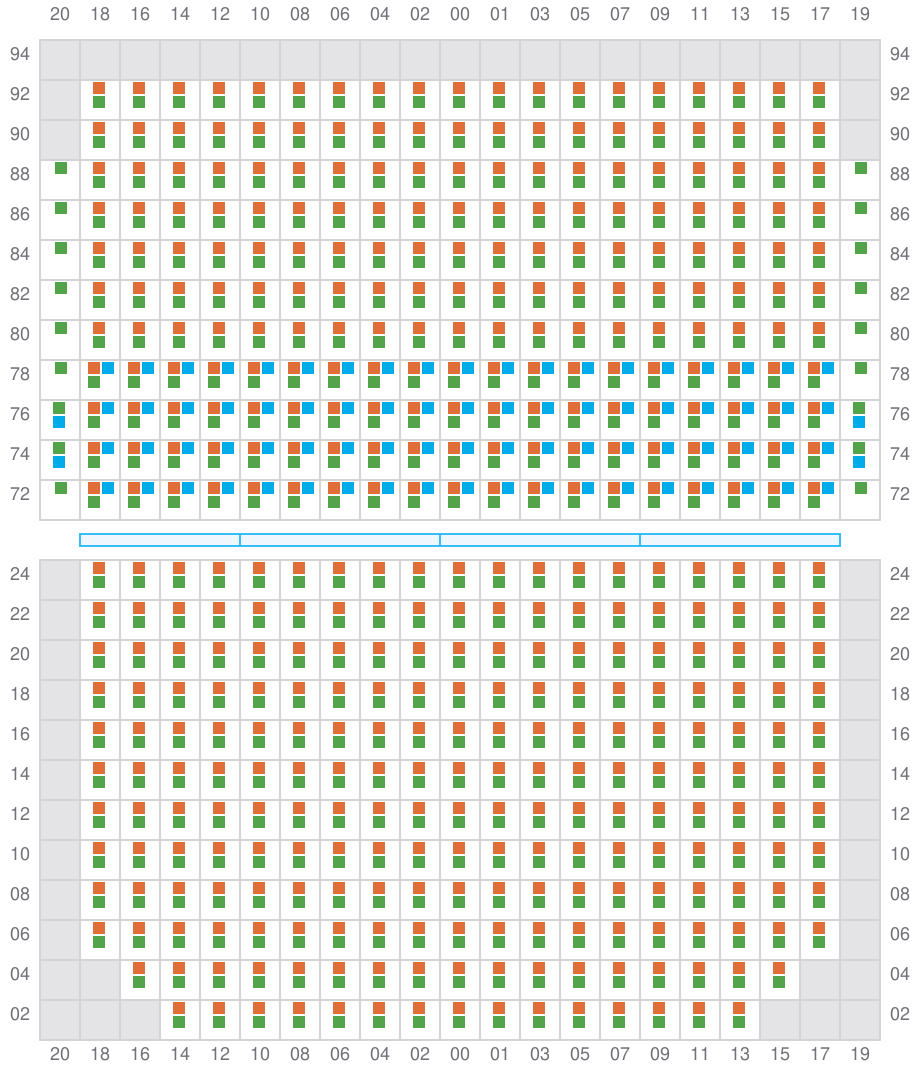

Bay 023 view and slots of ALETTE MAERSK

025

  • →
Bay 025 view and slots of ALETTE MAERSK

027 (026)

  • ←
  • →
Bay 027 view and slots of ALETTE MAERSK

029

  • →
Bay 029 view and slots of ALETTE MAERSK

031 (030)

  • ←
  • → / ?
Bay 031 view and slots of ALETTE MAERSK

033

  • →
Bay 033 view and slots of ALETTE MAERSK

035 (034)

  • ←
  • →
Bay 035 view and slots of ALETTE MAERSK

037

  • →

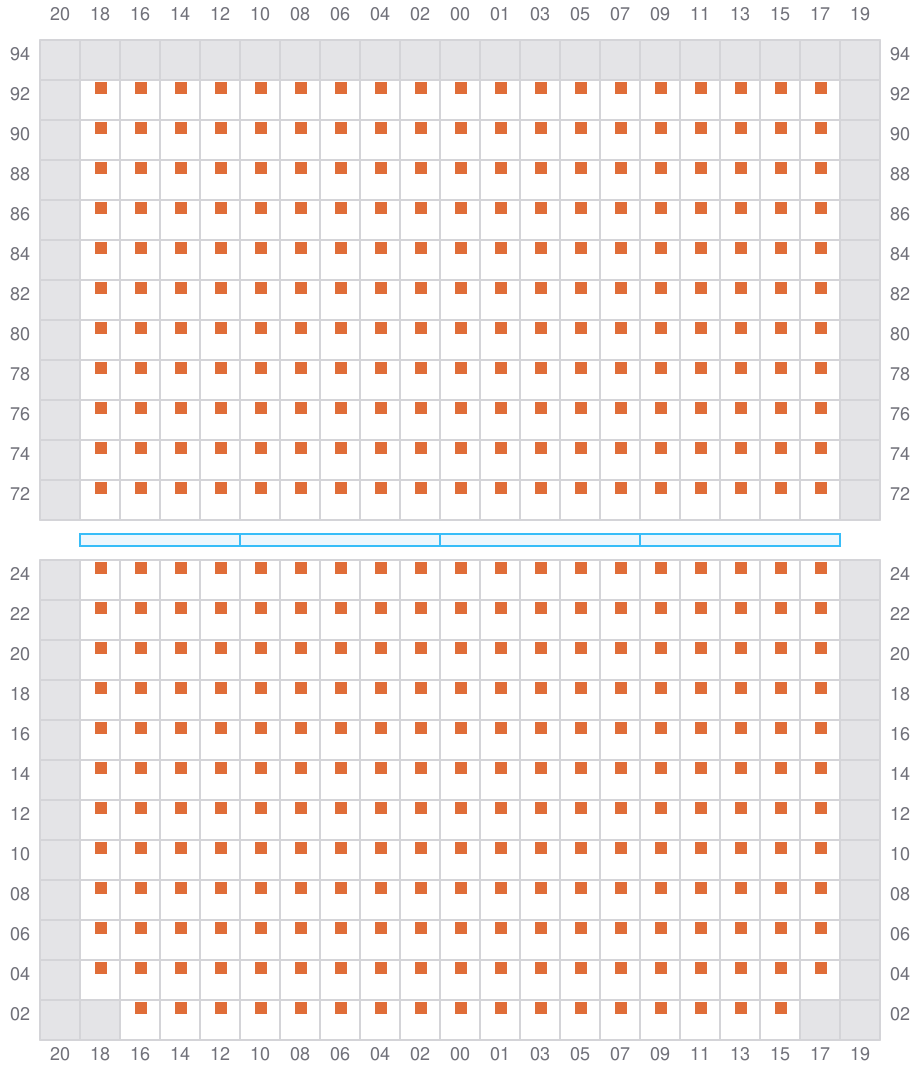

Bay 037 view and slots of ALETTE MAERSK

039 (038)

  • ←
  • → / ?

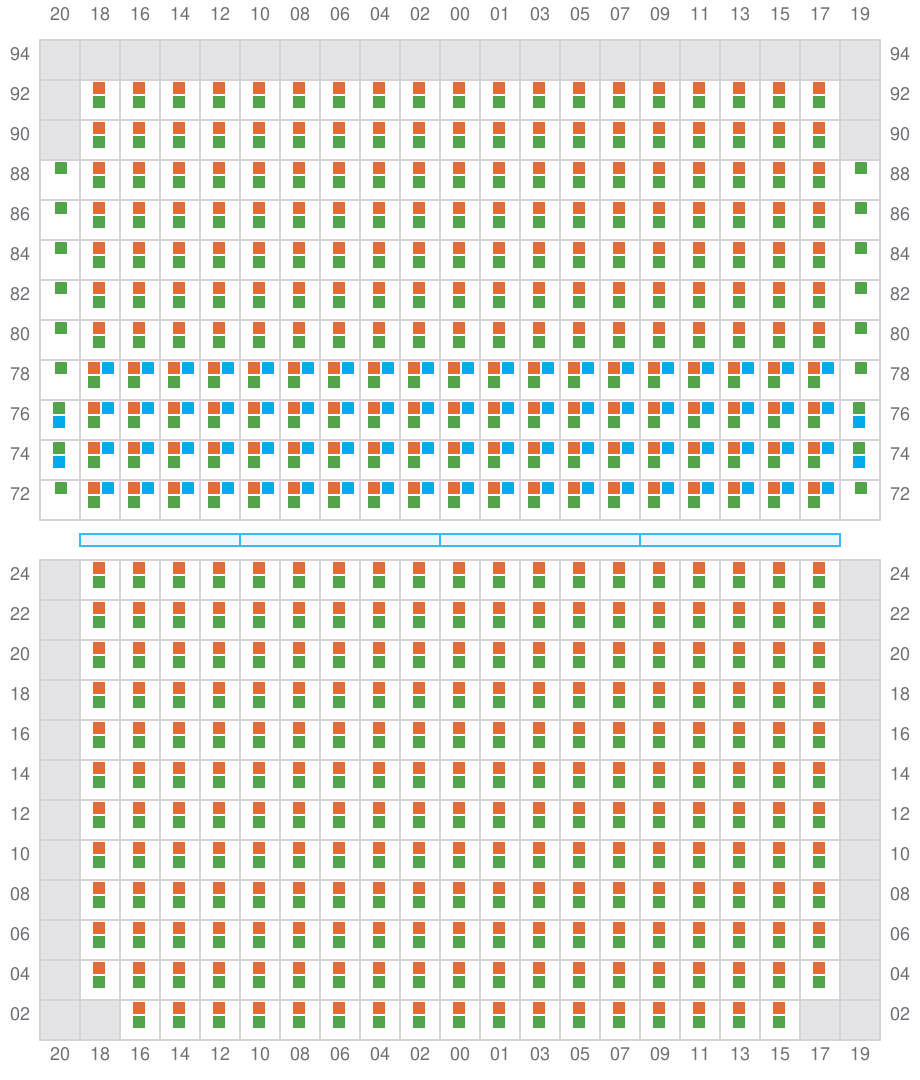

Bay 039 view and slots of ALETTE MAERSK

041

  • →
Bay 041 view and slots of ALETTE MAERSK

043 (042)

  • ←
  • →
Bay 043 view and slots of ALETTE MAERSK

045

  • →
Bay 045 view and slots of ALETTE MAERSK

047 (046)

  • ←

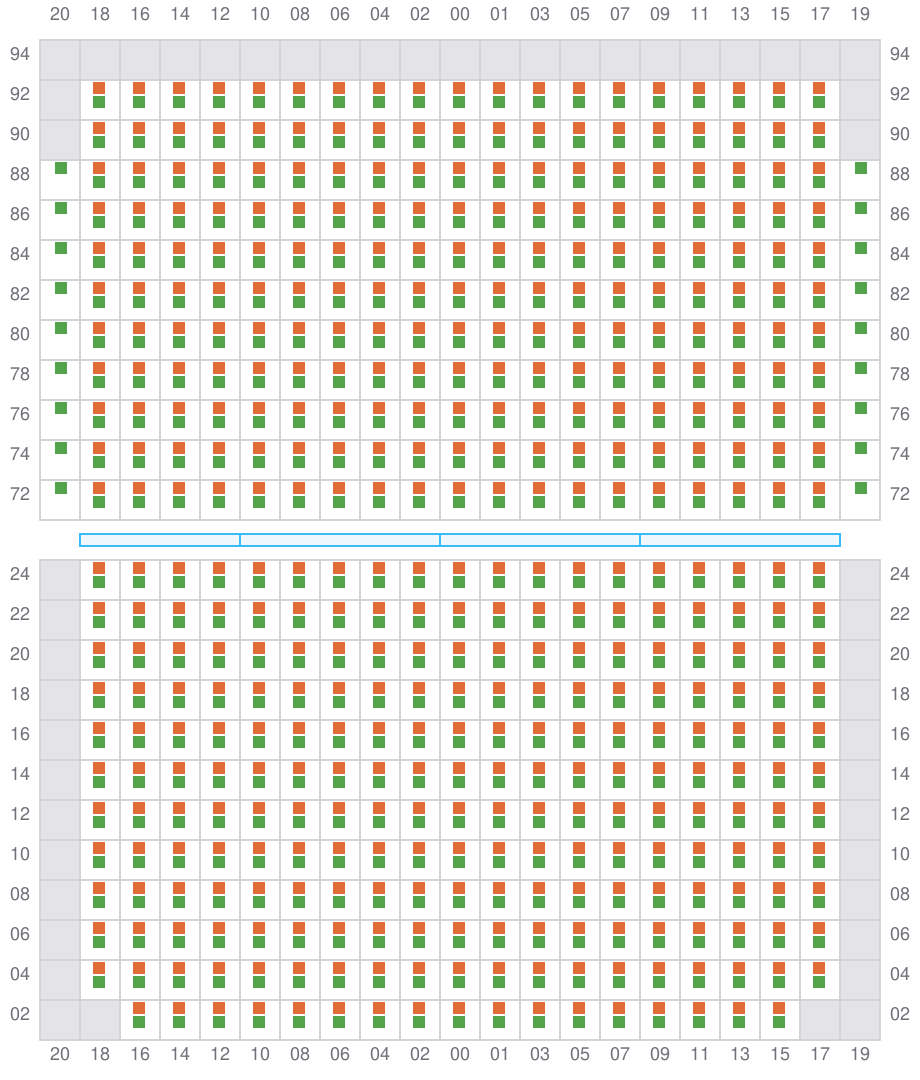

Bay 047 view and slots of ALETTE MAERSK

049

  • →
Bay 049 view and slots of ALETTE MAERSK

051 (050)

  • ←
  • →

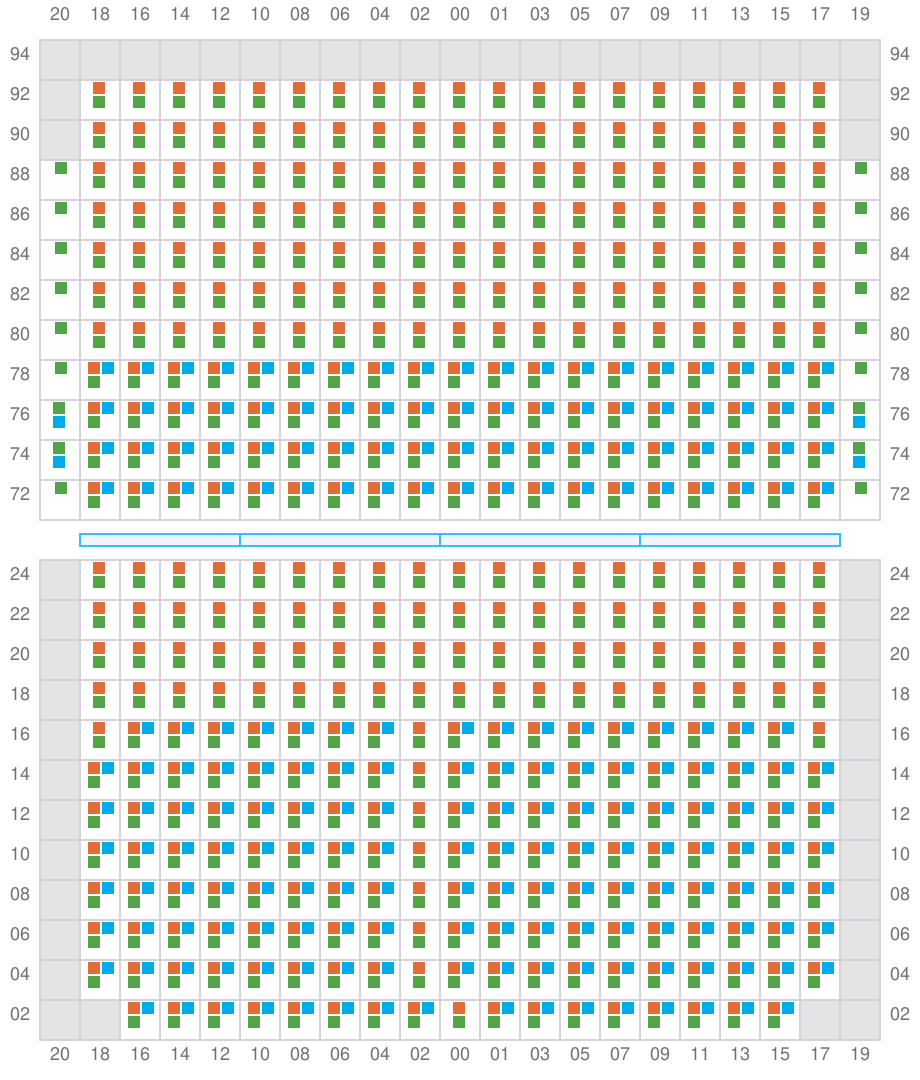

Bay 051 view and slots of ALETTE MAERSK

053

  • →
Bay 053 view and slots of ALETTE MAERSK

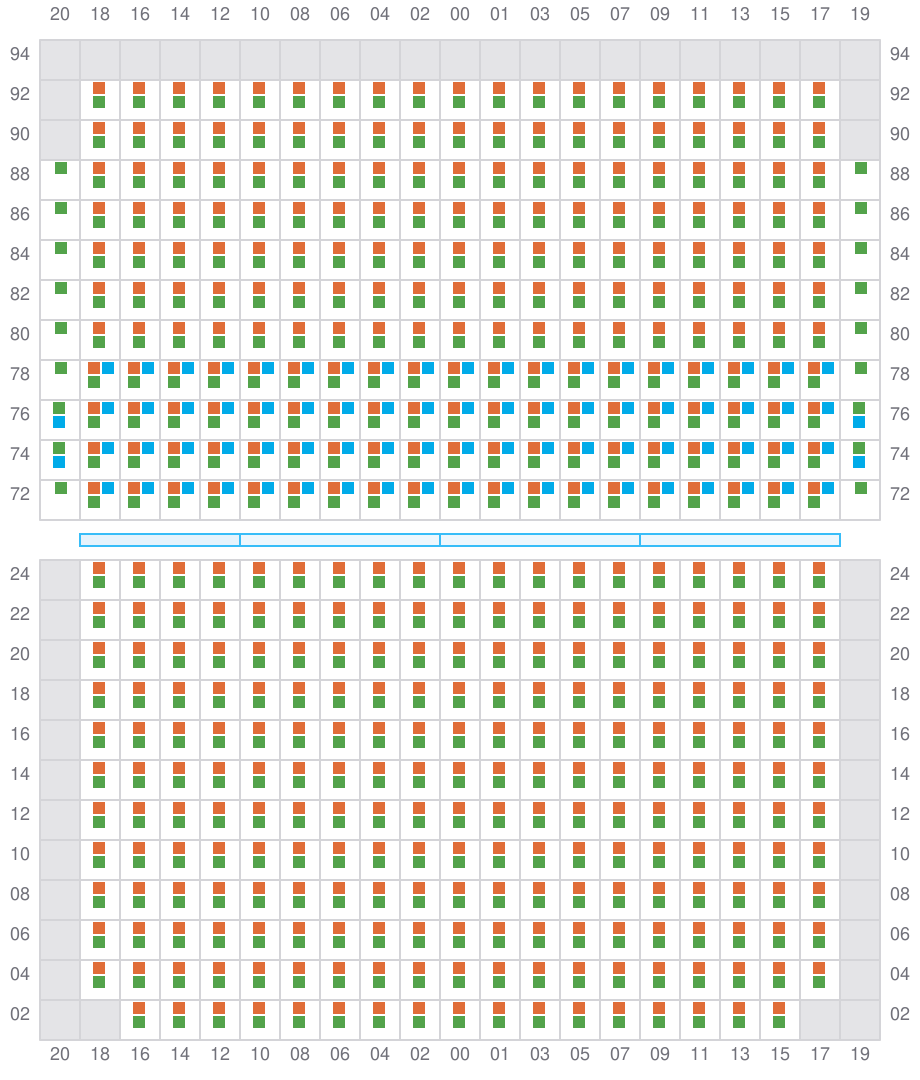

055 (054)

  • ←
  • → / ?
Bay 055 view and slots of ALETTE MAERSK

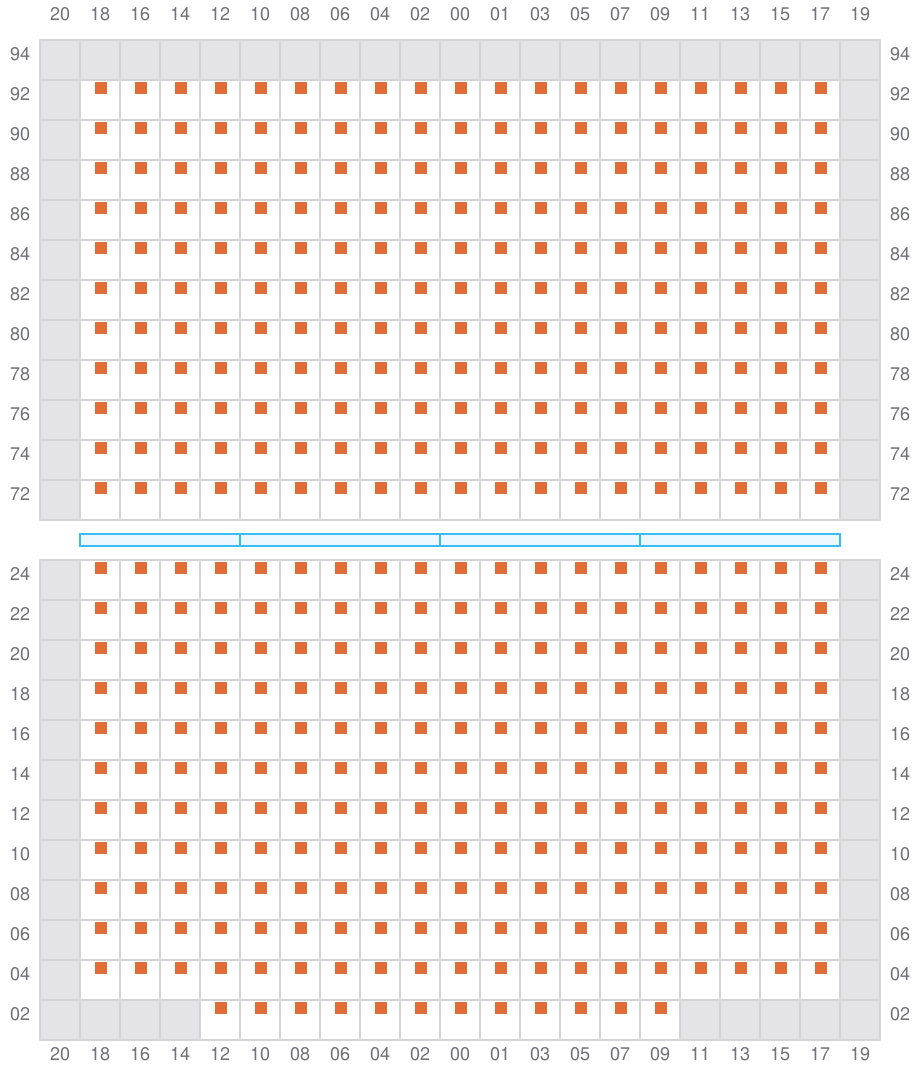

057

  • →
  • ? / ←
Bay 057 view and slots of ALETTE MAERSK

059 (058)

  • ←
  • ? / ←

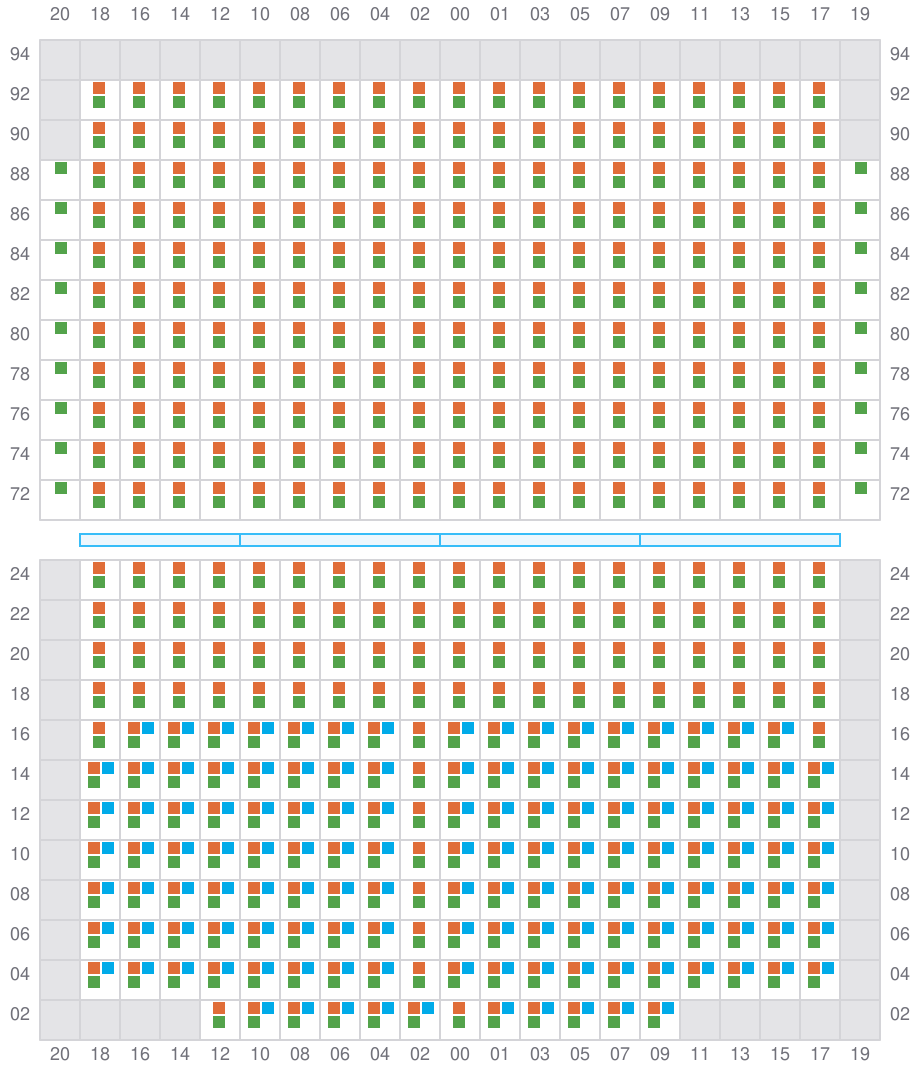

Bay 059 view and slots of ALETTE MAERSK

061

  • → / ?

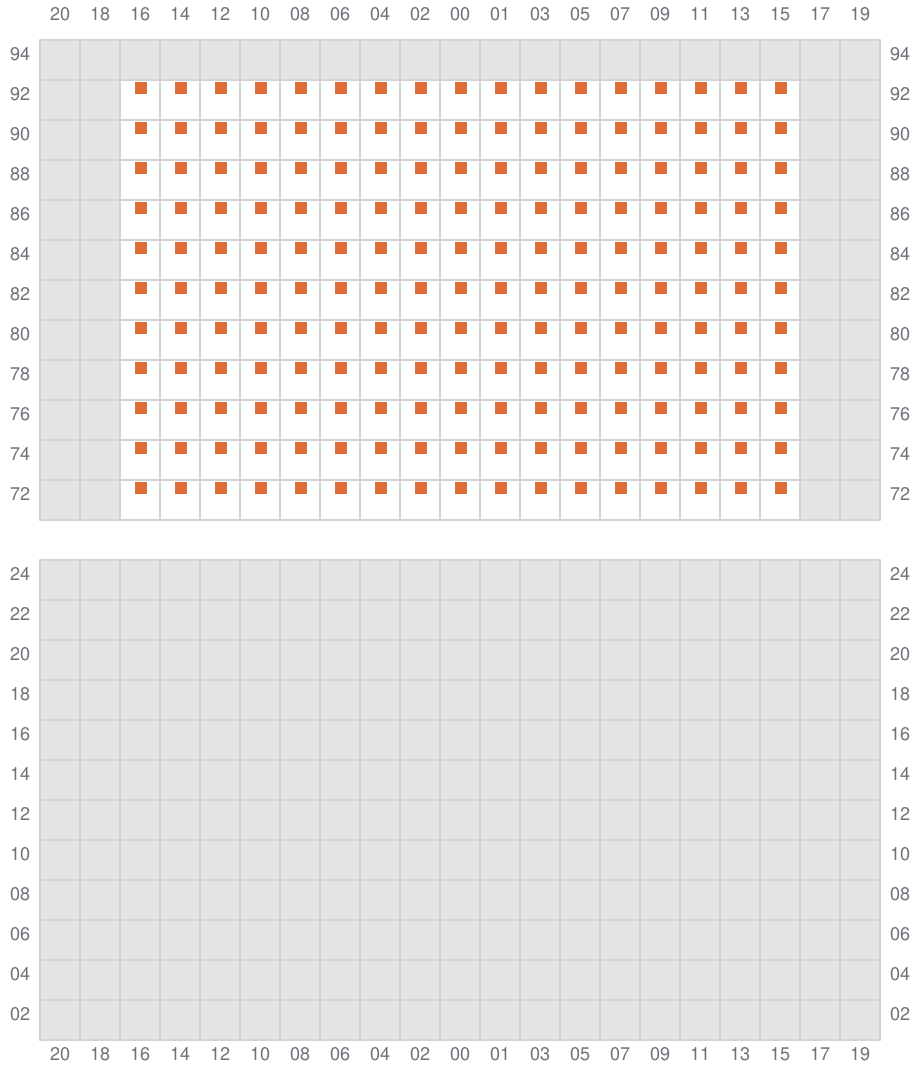

Bay 061 view and slots of ALETTE MAERSK

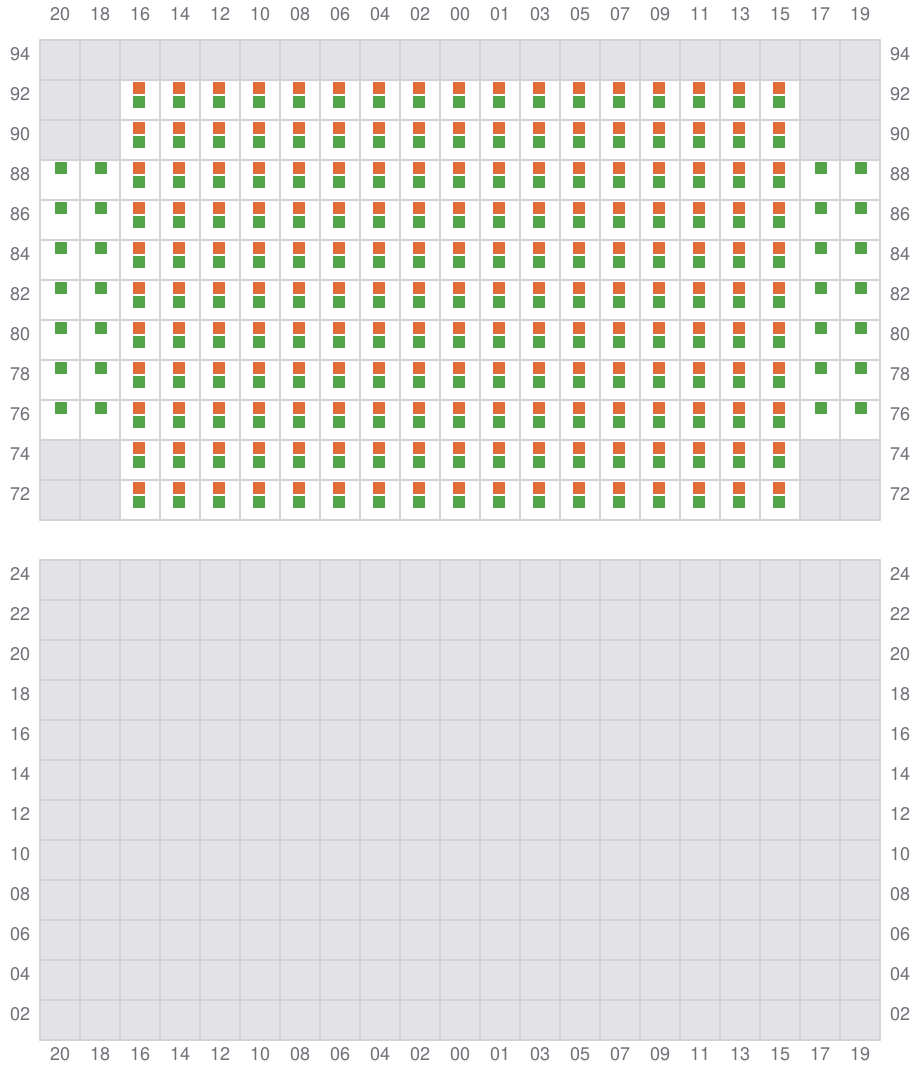

063 (062)

  • ← / ?
Bay 063 view and slots of ALETTE MAERSK

065

  • →

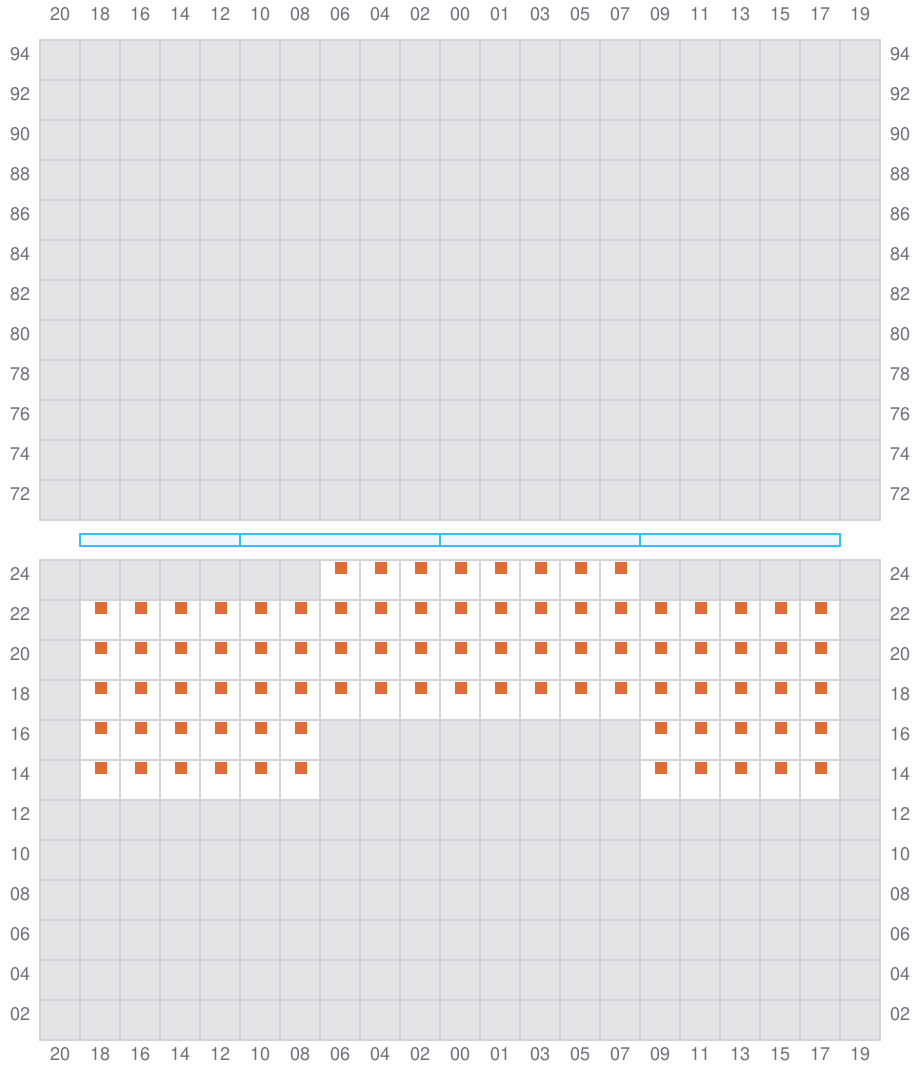

Bay 065 view and slots of ALETTE MAERSK

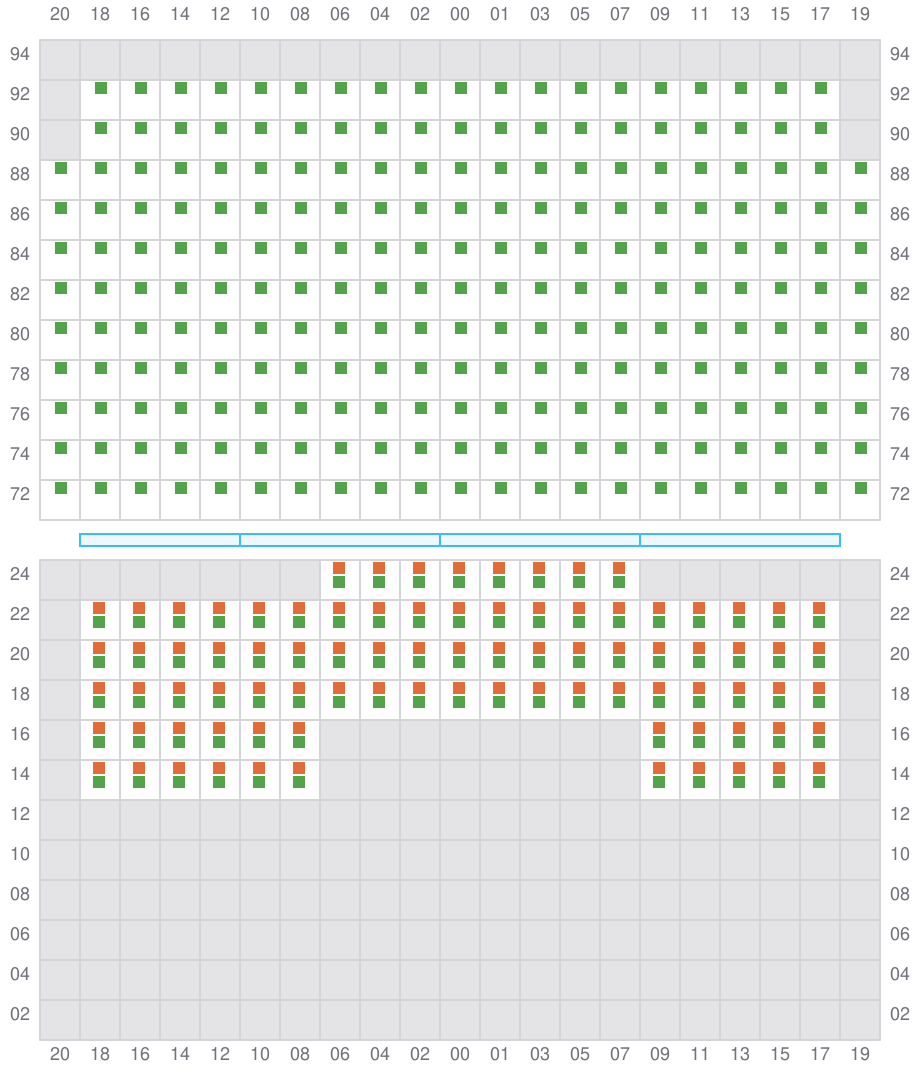

067 (066)

  • ←
Bay 067 view and slots of ALETTE MAERSK

069

  • → / ?
Bay 069 view and slots of ALETTE MAERSK

071 (070)

  • ← / ?

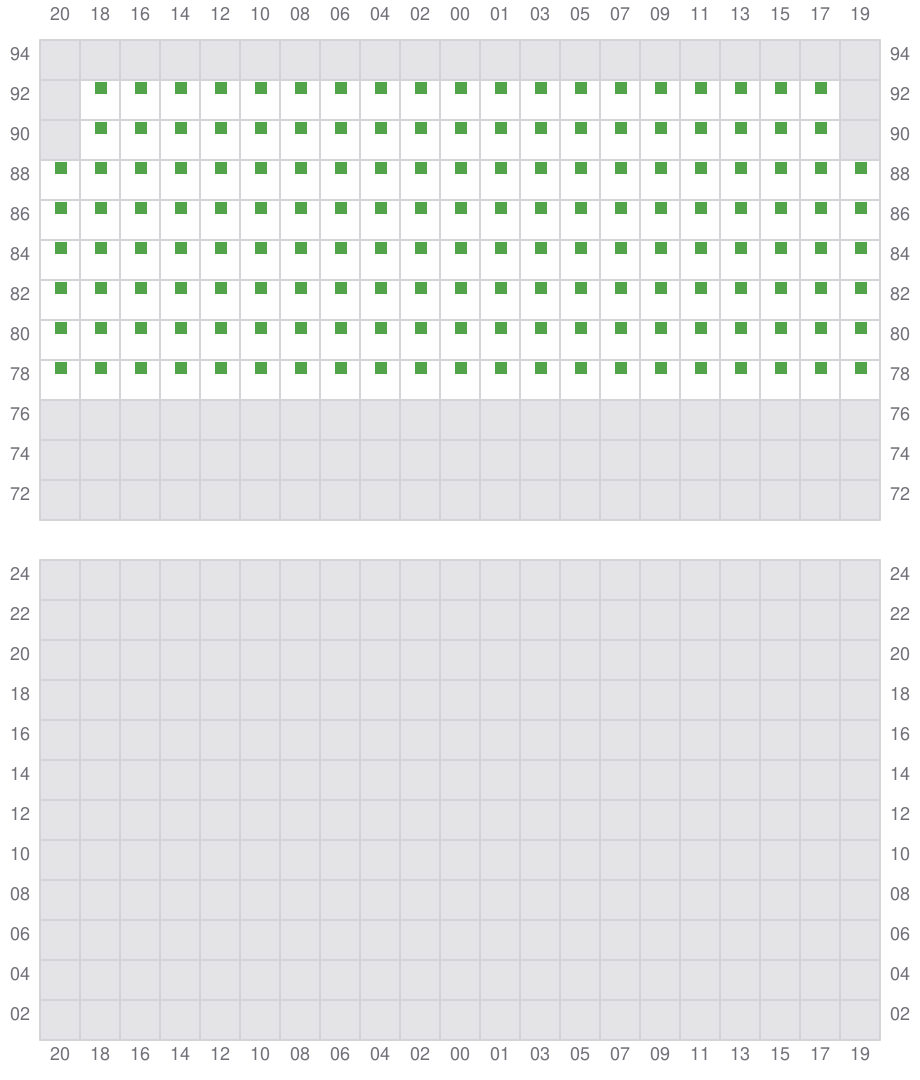

Bay 071 view and slots of ALETTE MAERSK

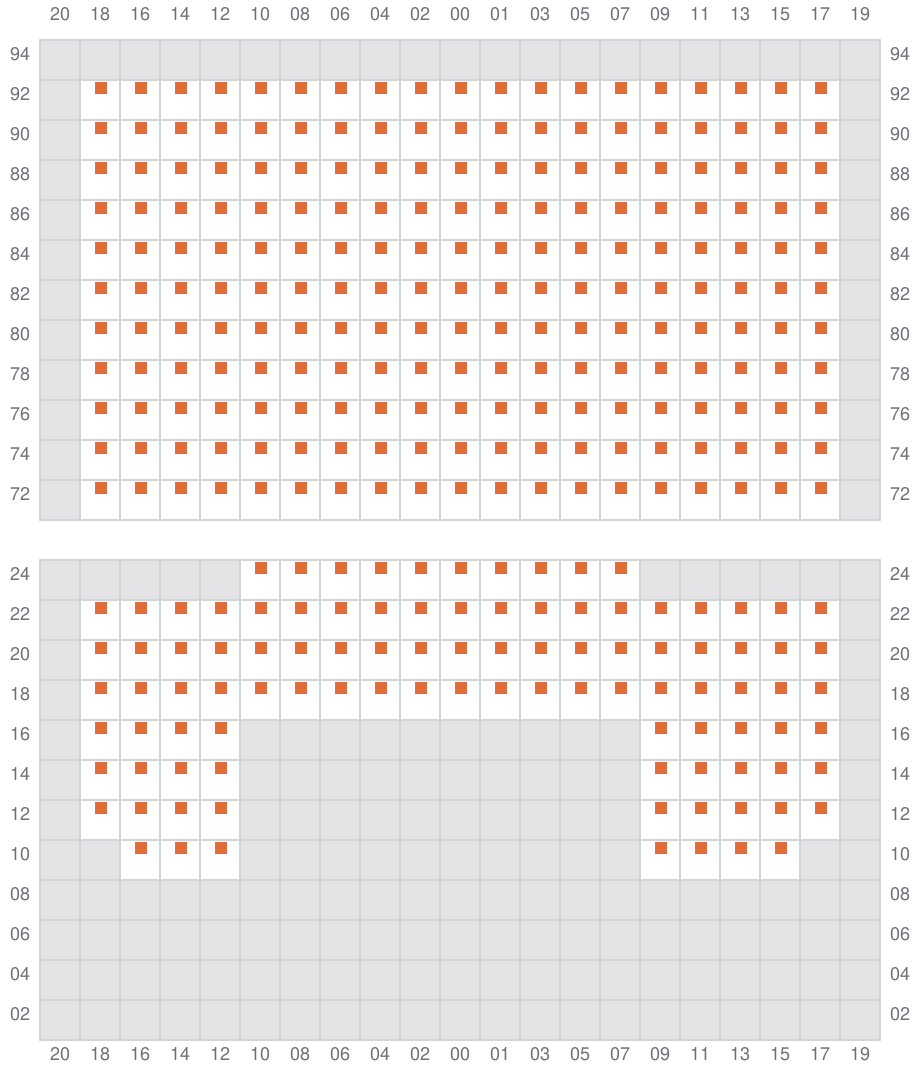

073

  • →
  • ← / ?
Bay 073 view and slots of ALETTE MAERSK

075 (074)

  • ←
  • ← / ?

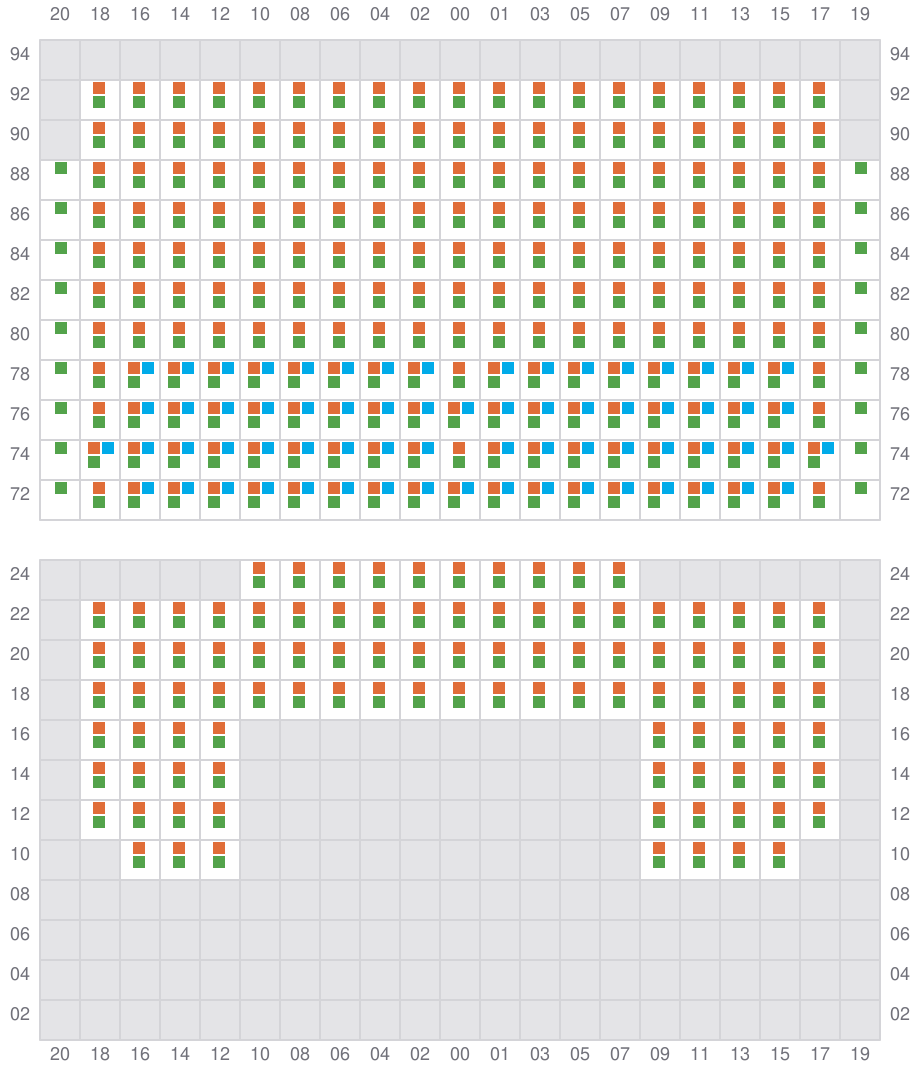

Bay 075 view and slots of ALETTE MAERSK

077

  • →
  • ← / ?

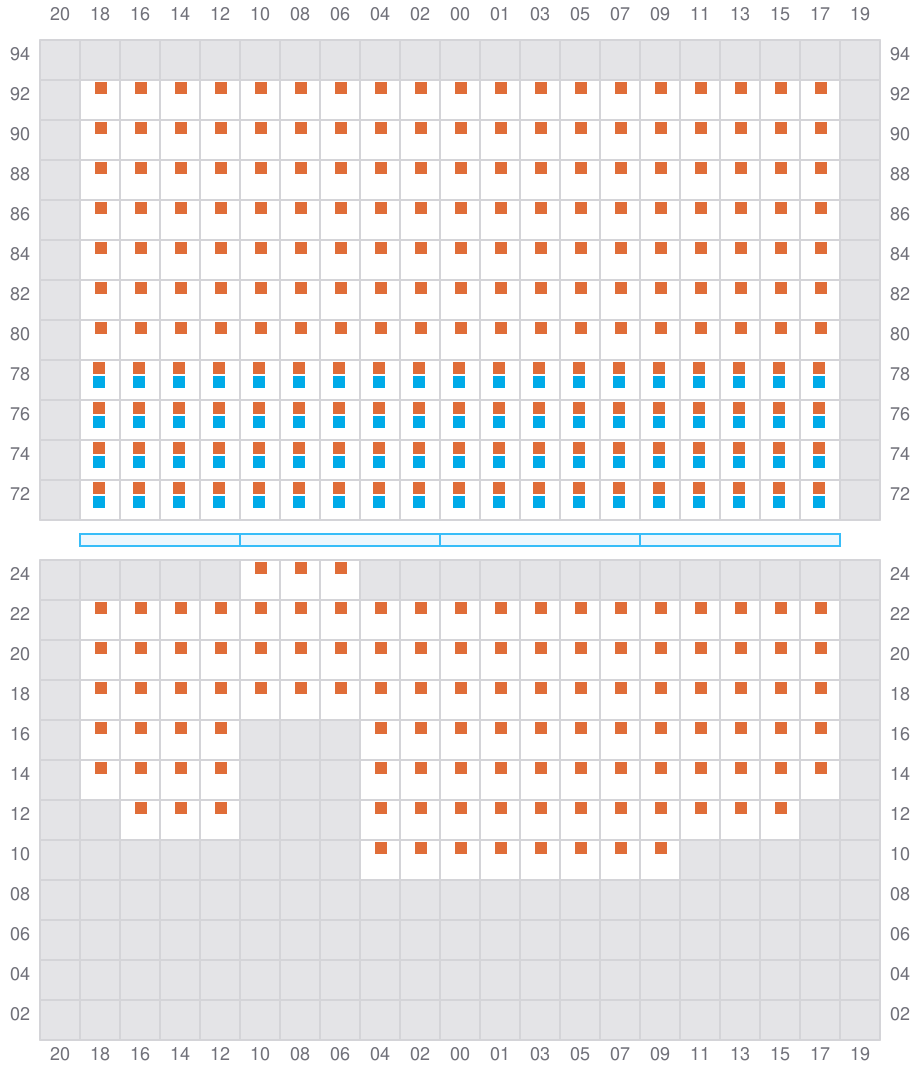

Bay 077 view and slots of ALETTE MAERSK

079 (078)

  • ←
  • ← / ?

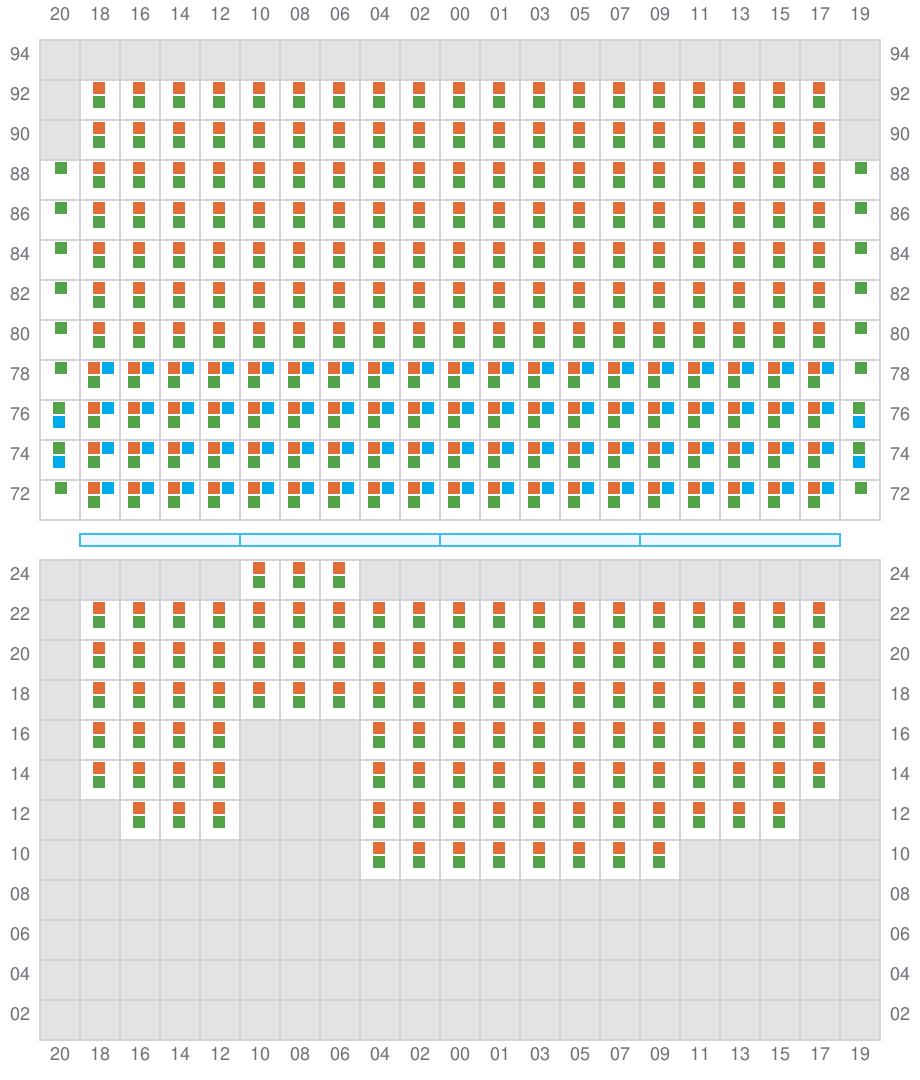

Bay 079 view and slots of ALETTE MAERSK

081

  • →
  • ← / ?
Bay 081 view and slots of ALETTE MAERSK

083 (082)

  • ←
  • ← / ?

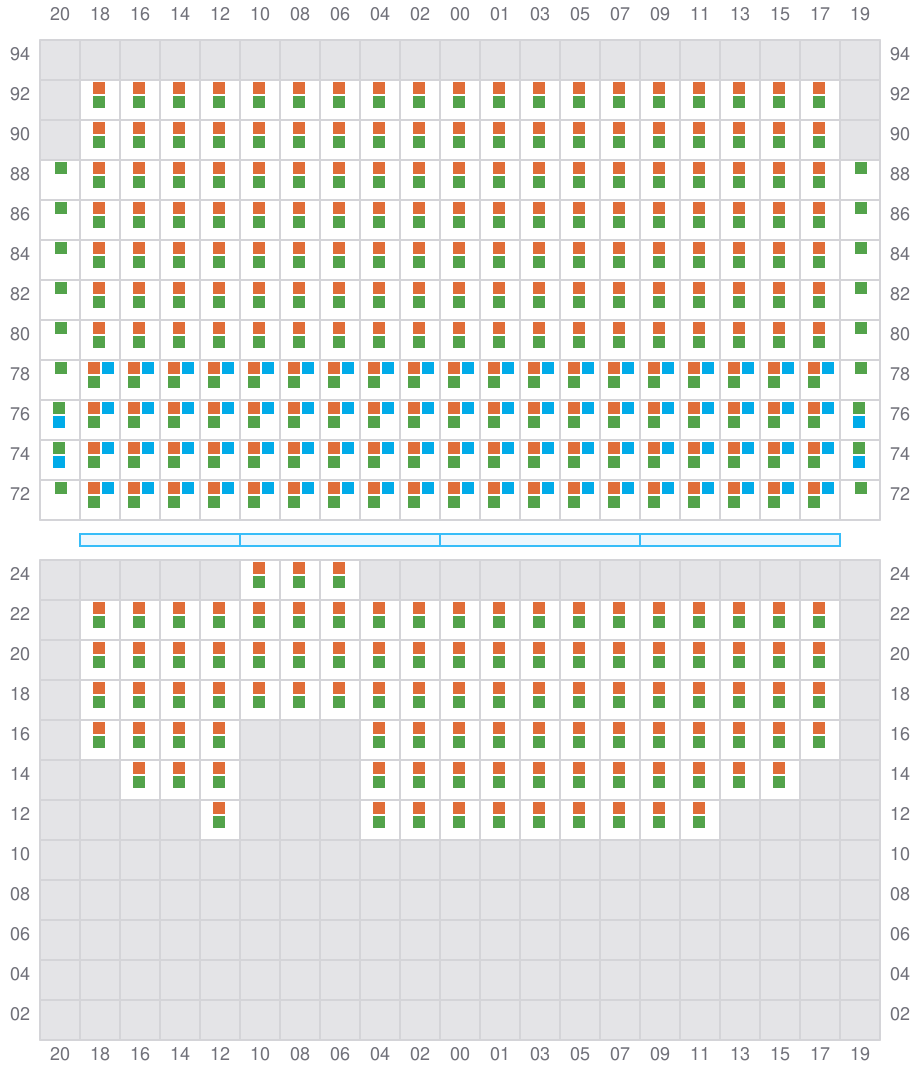

Bay 083 view and slots of ALETTE MAERSK

085

  • → / ?

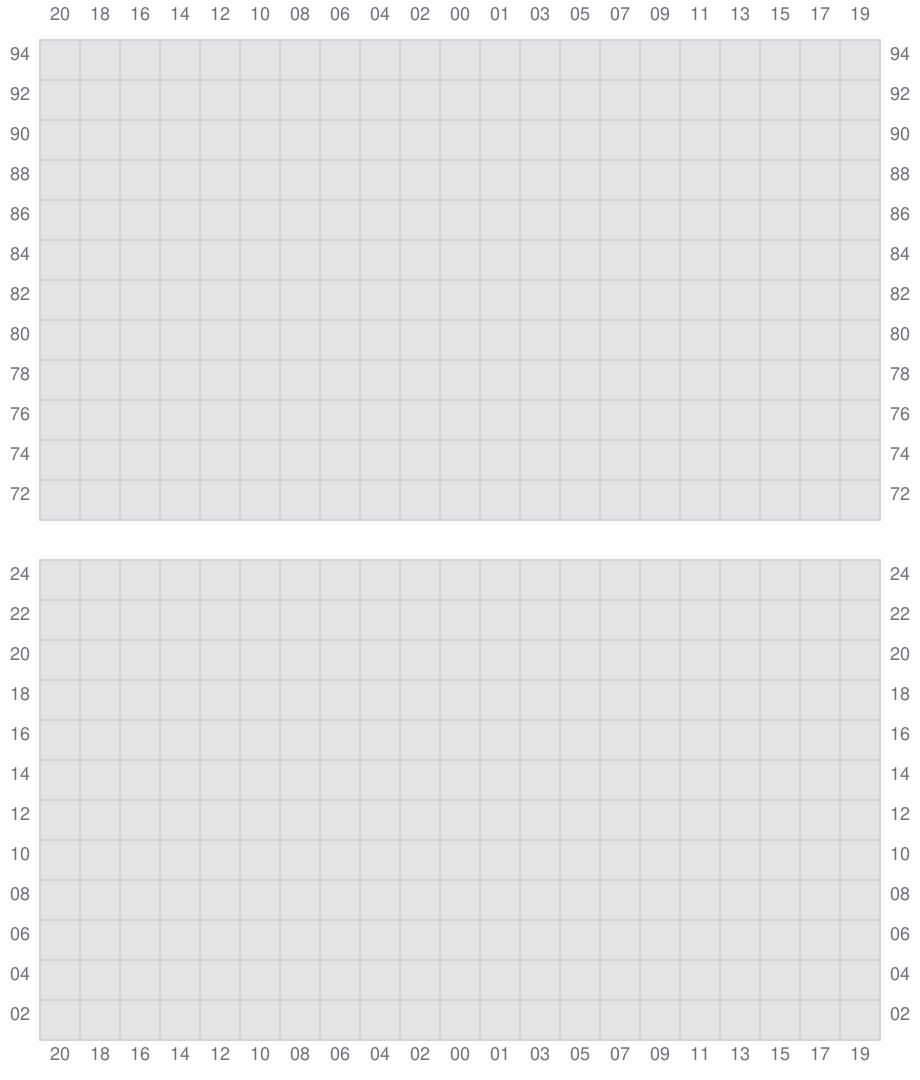

Bay 085 view and slots of ALETTE MAERSK

087 (086)

  • ← / ?

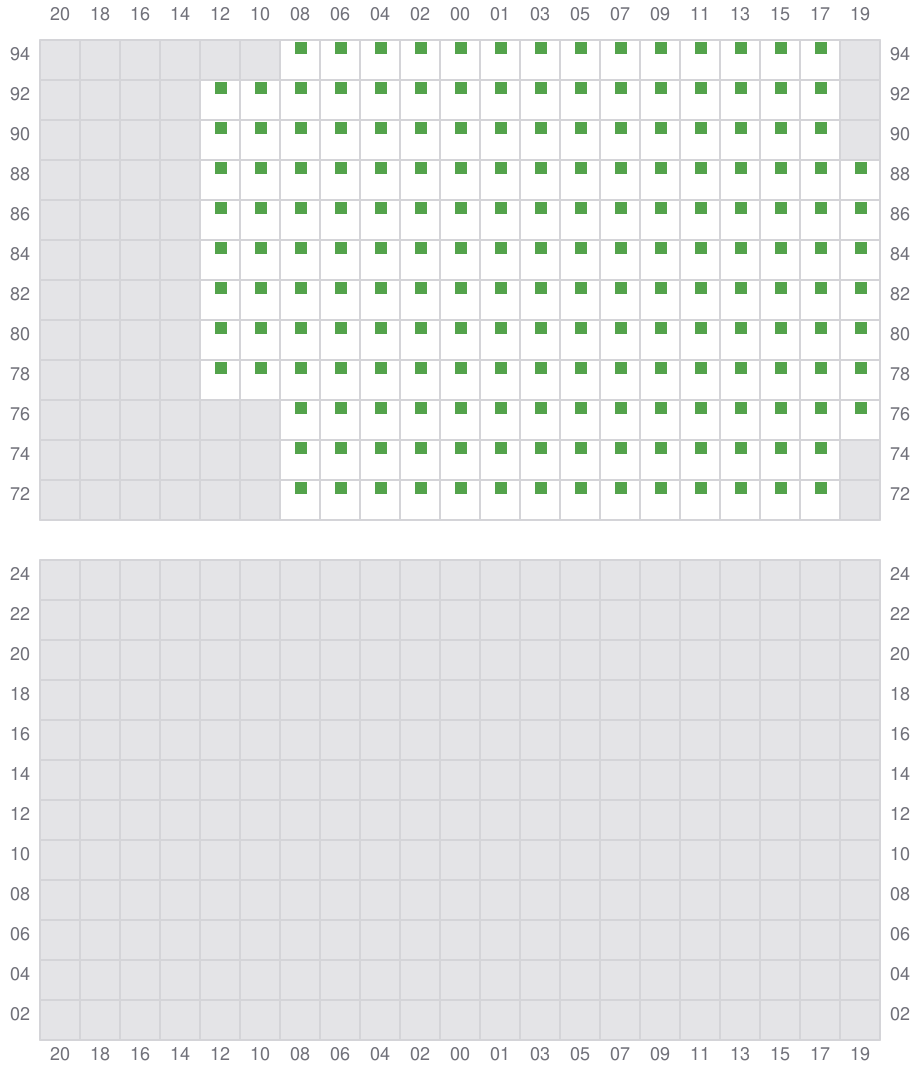

Bay 087 view and slots of ALETTE MAERSK
