ALEXANDRA
9635676 | V7ZT8 | MSK by ************************** Last update: Thu Jun 22 2023
General Info
Ship Name:ALEXANDRA
IMO Code:9635676
Call Sign:V7ZT8
Line Operator:MSK
Class Name for Sister Ships:ALD
Year Built:2013
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):258.01
LOA (Length Overall):270.07
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:061
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:6,904
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

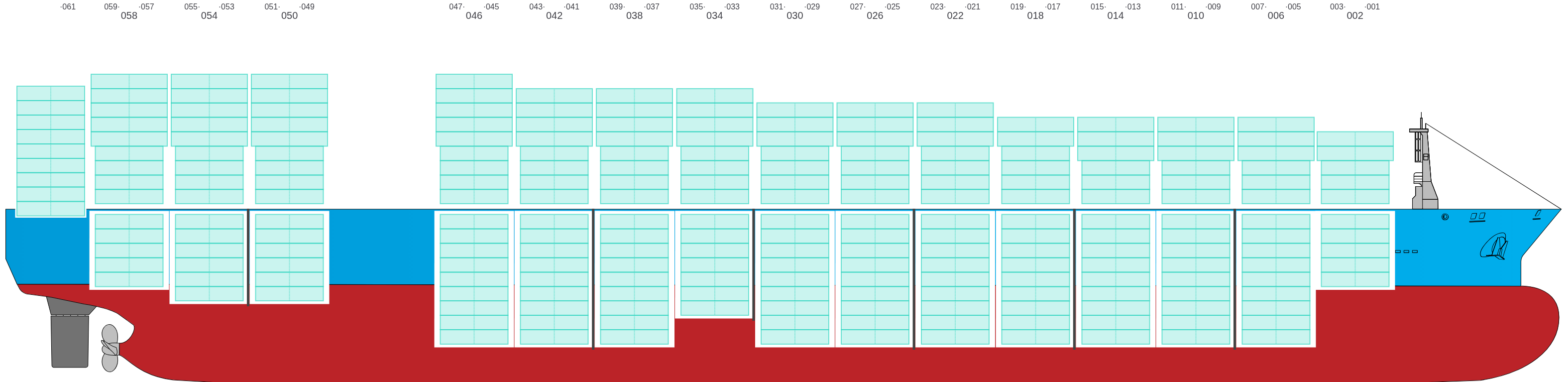

Side View
![Side view of ALEXANDRA](/vessel-images/27e56103-f16d-4914-87f3-68e7be483f7e-sideView.png?v=1687460891742)
Hatch-Covers View
![Deck view of ALEXANDRA](/vessel-images/27e56103-f16d-4914-87f3-68e7be483f7e-deckView.png?v=1687460891742)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

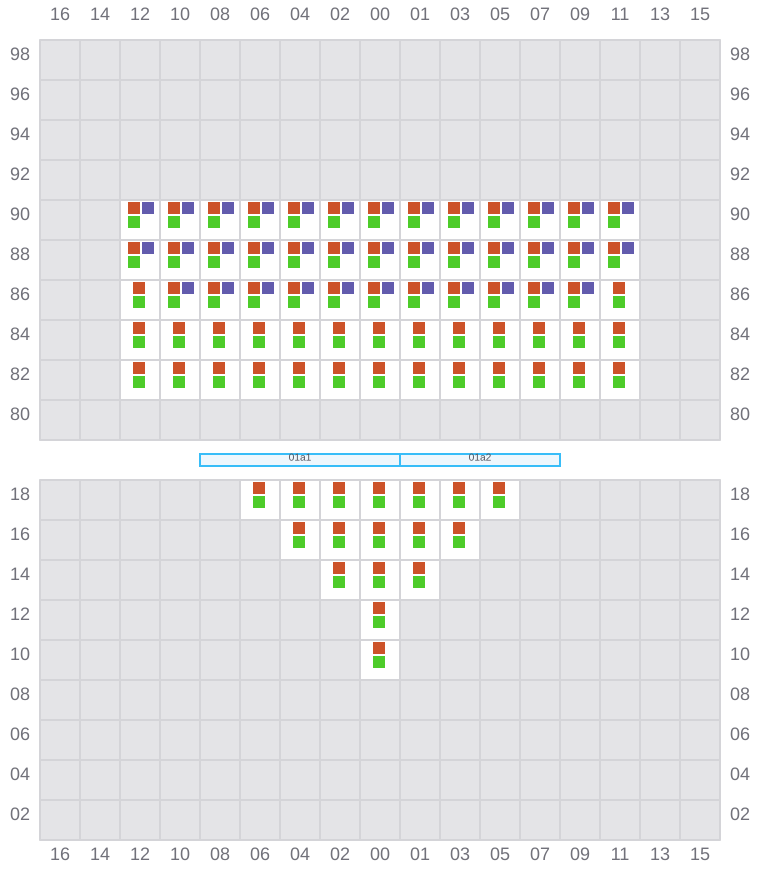

001 (002)
- →
![Bay 001 view and slots of ALEXANDRA](/vessel-images/27e56103-f16d-4914-87f3-68e7be483f7e-b001.png?v=1687460891742)

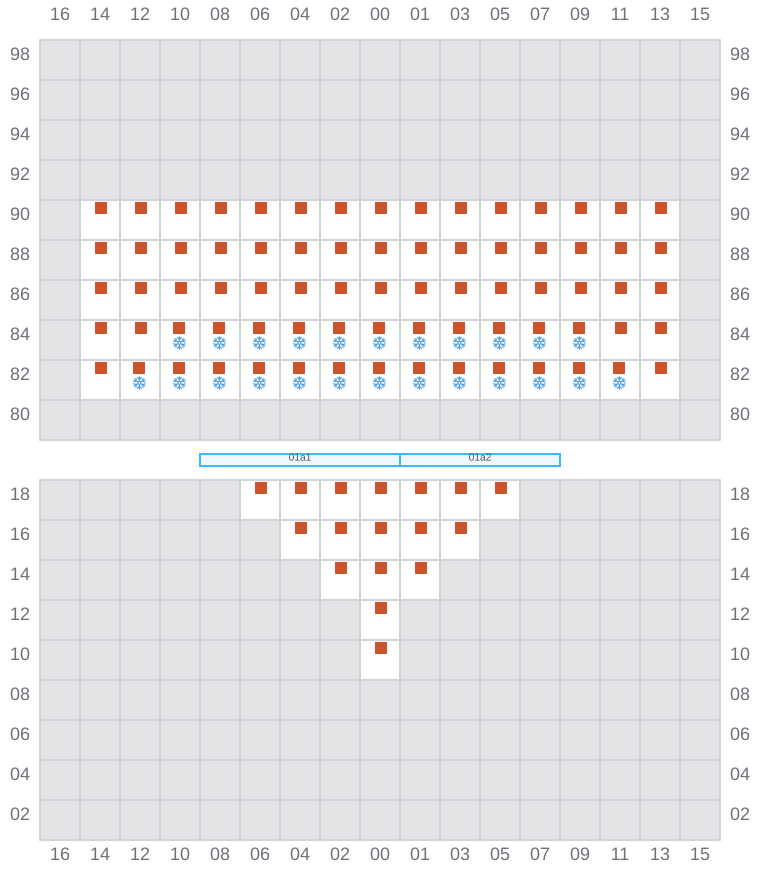

003
- ←
![Bay 003 view and slots of ALEXANDRA](/vessel-images/27e56103-f16d-4914-87f3-68e7be483f7e-b003.png?v=1687460891742)

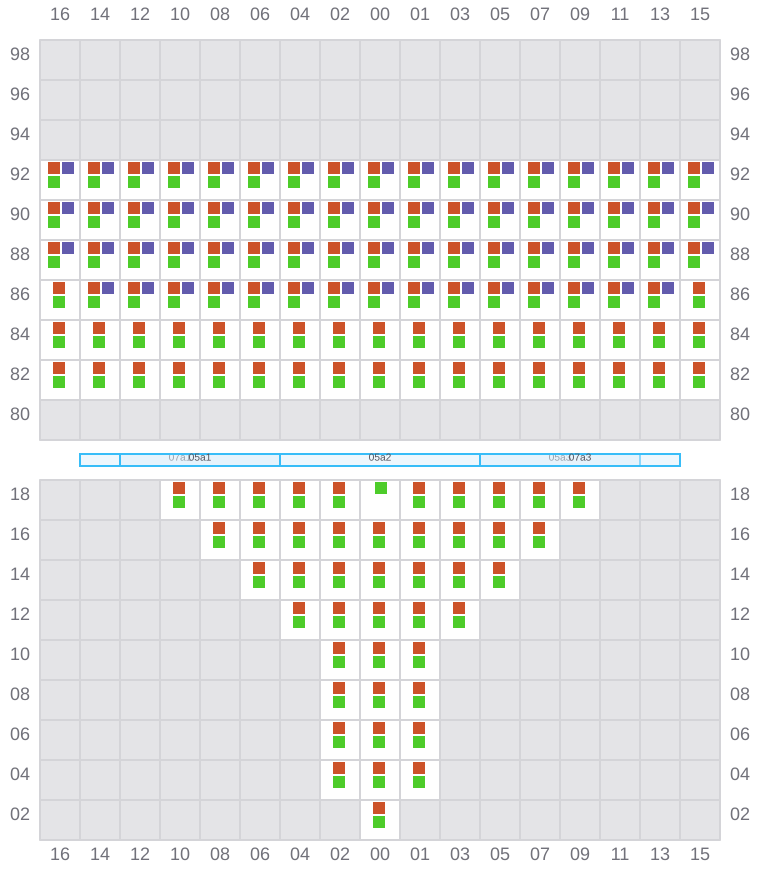

005 (006)
- →
![Bay 005 view and slots of ALEXANDRA](/vessel-images/27e56103-f16d-4914-87f3-68e7be483f7e-b005.png?v=1687460891742)

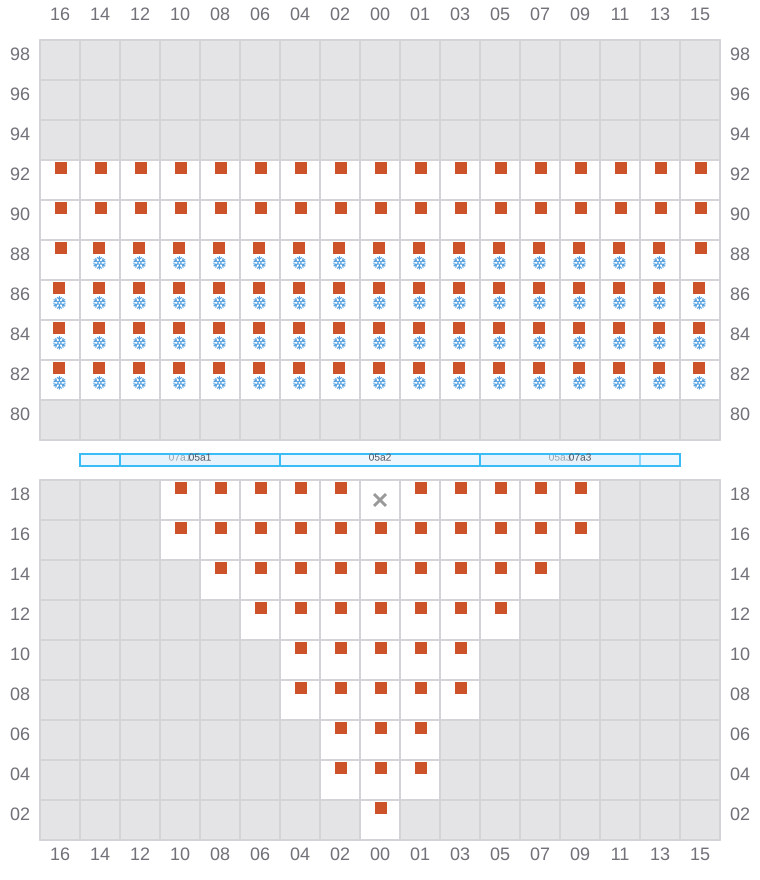

007
- ←
![Bay 007 view and slots of ALEXANDRA](/vessel-images/27e56103-f16d-4914-87f3-68e7be483f7e-b007.png?v=1687460891742)

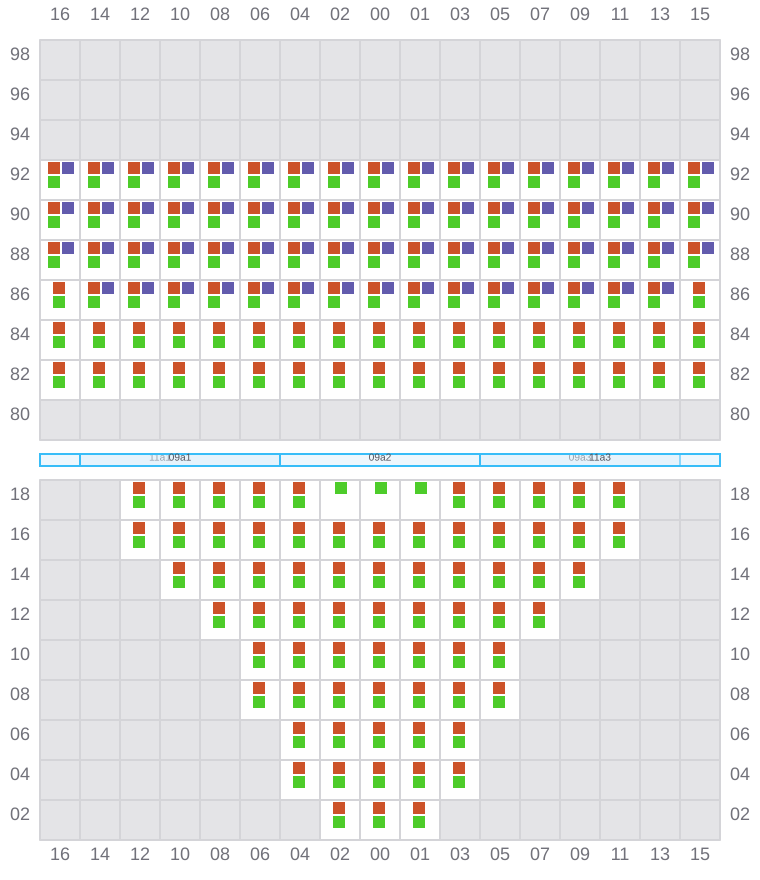

009 (010)
- →
![Bay 009 view and slots of ALEXANDRA](/vessel-images/27e56103-f16d-4914-87f3-68e7be483f7e-b009.png?v=1687460891742)

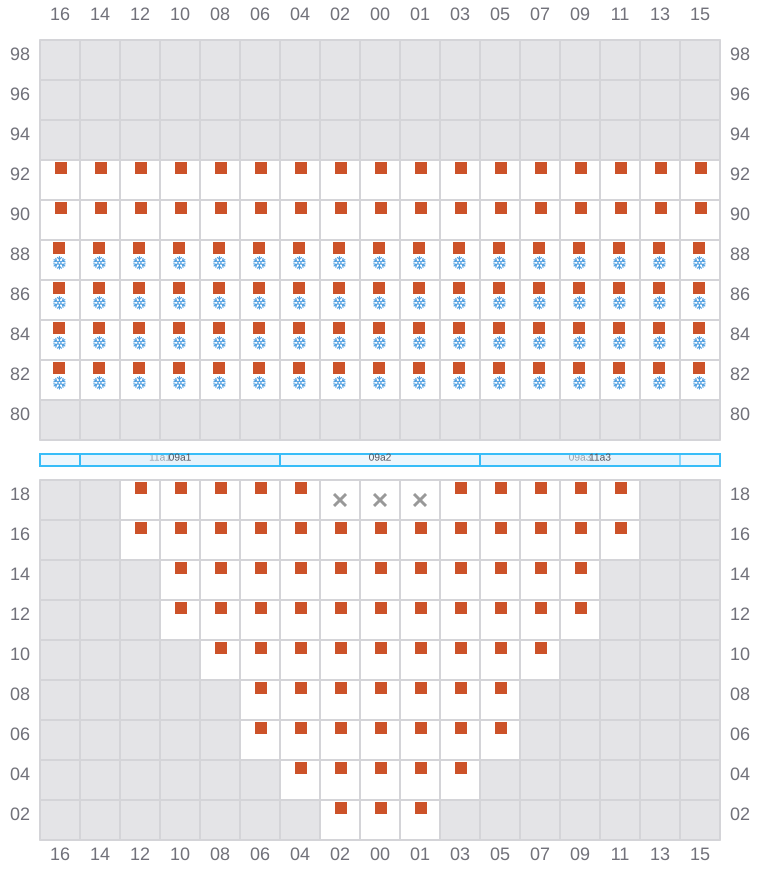

011
- ←
![Bay 011 view and slots of ALEXANDRA](/vessel-images/27e56103-f16d-4914-87f3-68e7be483f7e-b011.png?v=1687460891742)

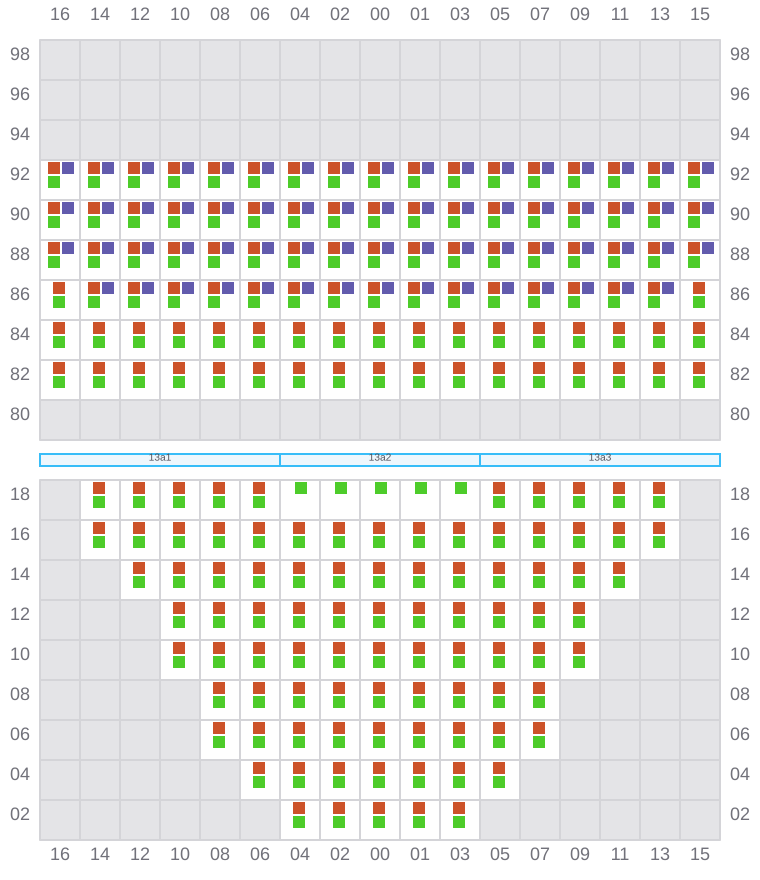

013 (014)
- →
![Bay 013 view and slots of ALEXANDRA](/vessel-images/27e56103-f16d-4914-87f3-68e7be483f7e-b013.png?v=1687460891742)

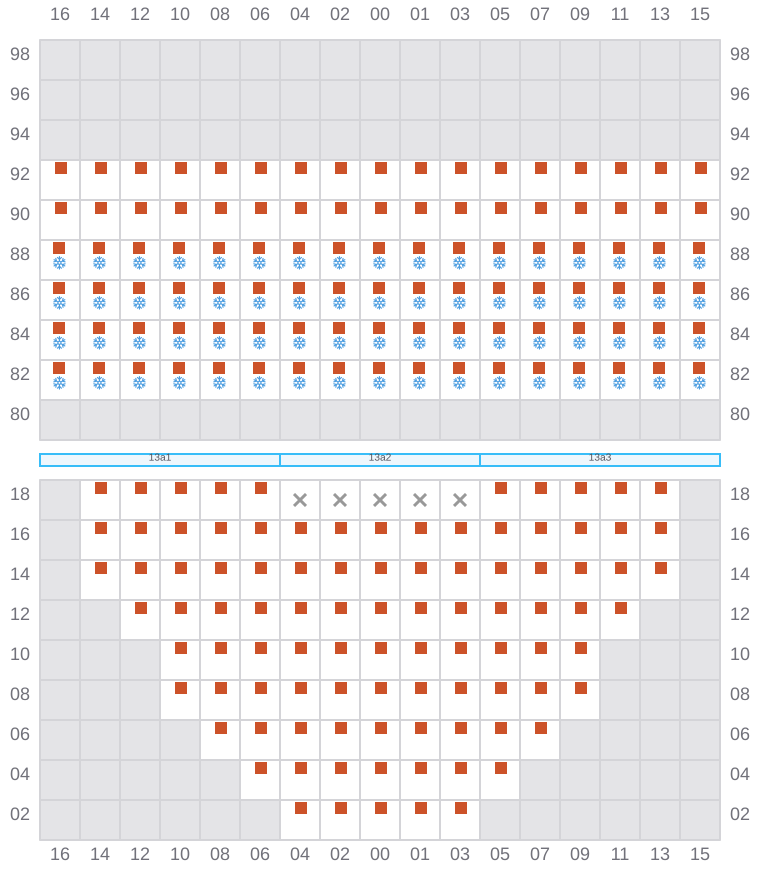

015
- ←
![Bay 015 view and slots of ALEXANDRA](/vessel-images/27e56103-f16d-4914-87f3-68e7be483f7e-b015.png?v=1687460891742)

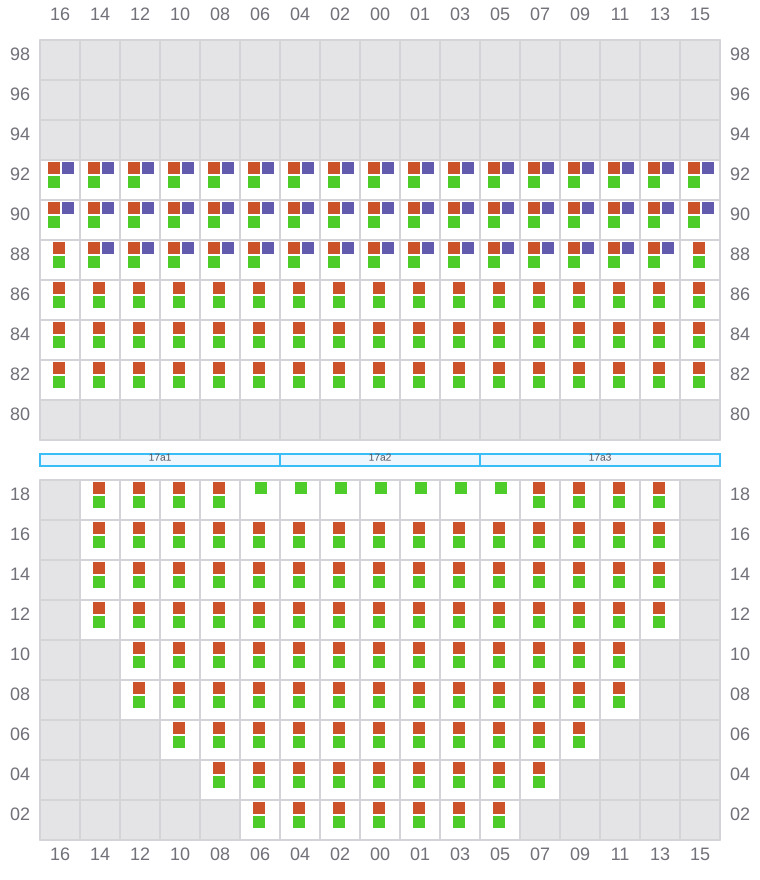

017 (018)
- →
![Bay 017 view and slots of ALEXANDRA](/vessel-images/27e56103-f16d-4914-87f3-68e7be483f7e-b017.png?v=1687460891742)

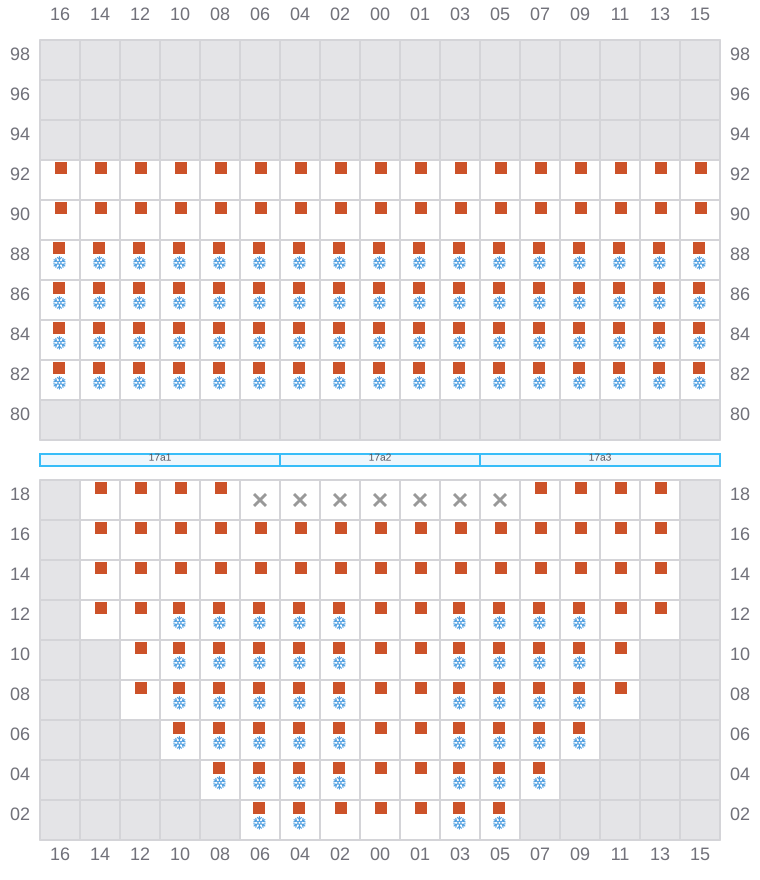

019
- ←
- ? / →
![Bay 019 view and slots of ALEXANDRA](/vessel-images/27e56103-f16d-4914-87f3-68e7be483f7e-b019.png?v=1687460891742)

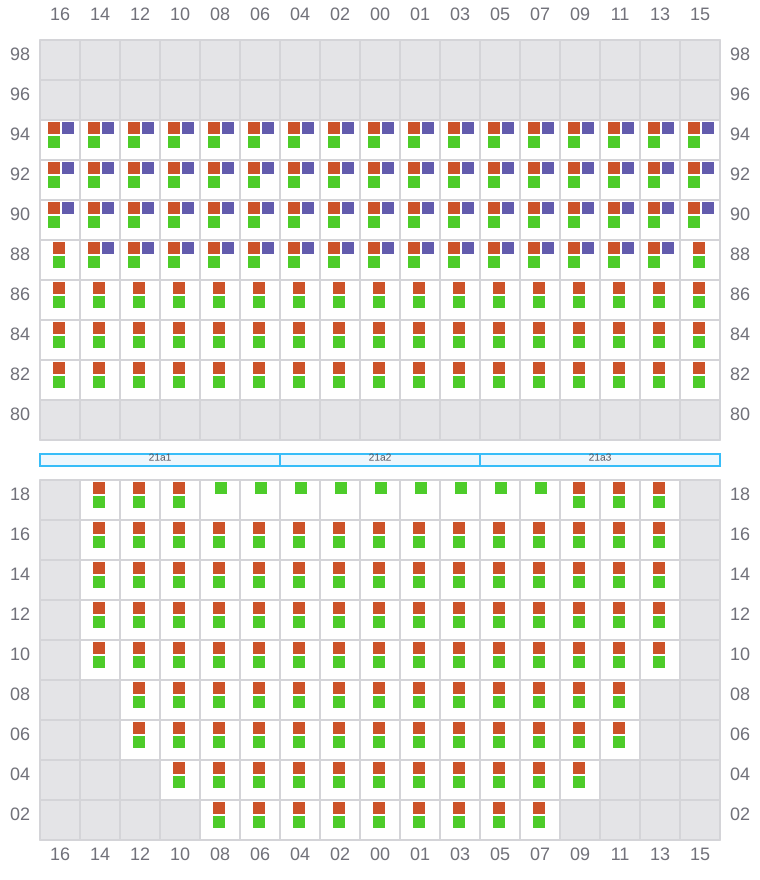

021 (022)
- →
![Bay 021 view and slots of ALEXANDRA](/vessel-images/27e56103-f16d-4914-87f3-68e7be483f7e-b021.png?v=1687460891742)

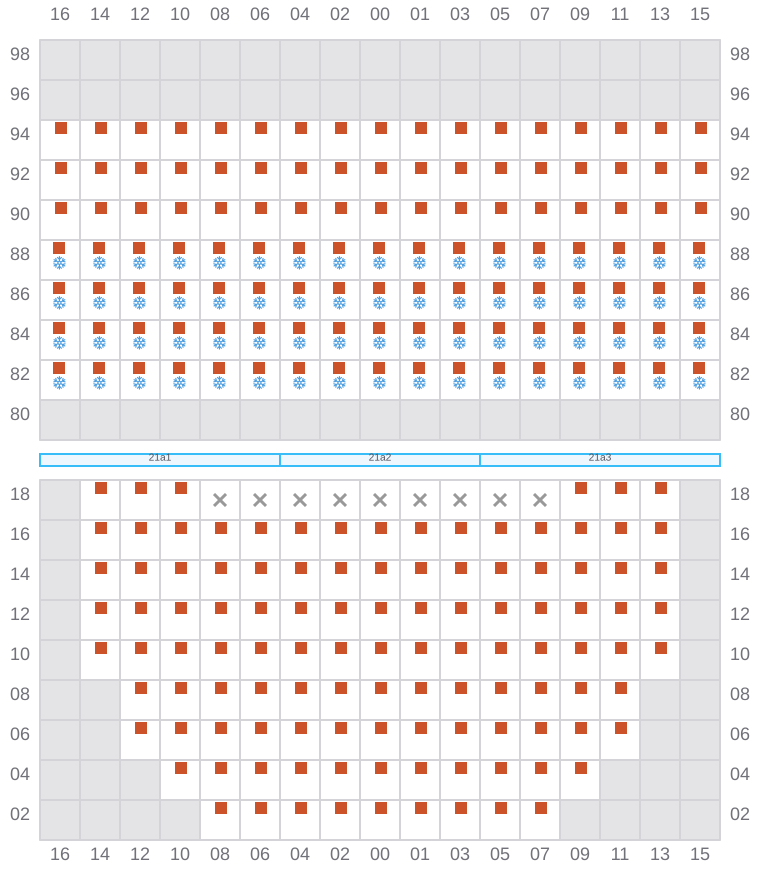

023
- ←
![Bay 023 view and slots of ALEXANDRA](/vessel-images/27e56103-f16d-4914-87f3-68e7be483f7e-b023.png?v=1687460891742)

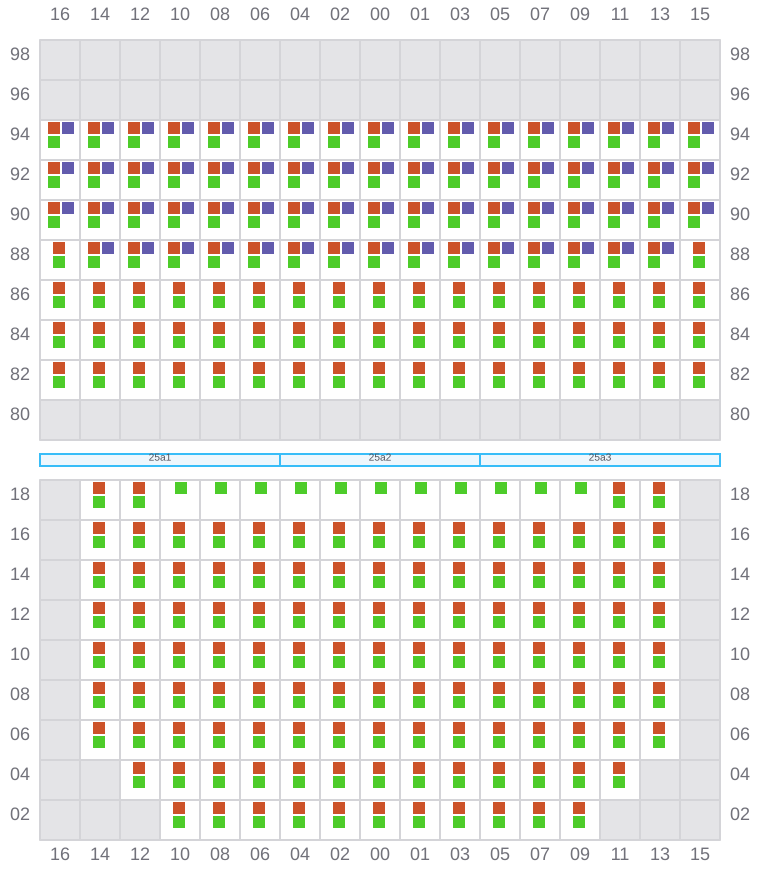

025 (026)
- →
![Bay 025 view and slots of ALEXANDRA](/vessel-images/27e56103-f16d-4914-87f3-68e7be483f7e-b025.png?v=1687460891742)

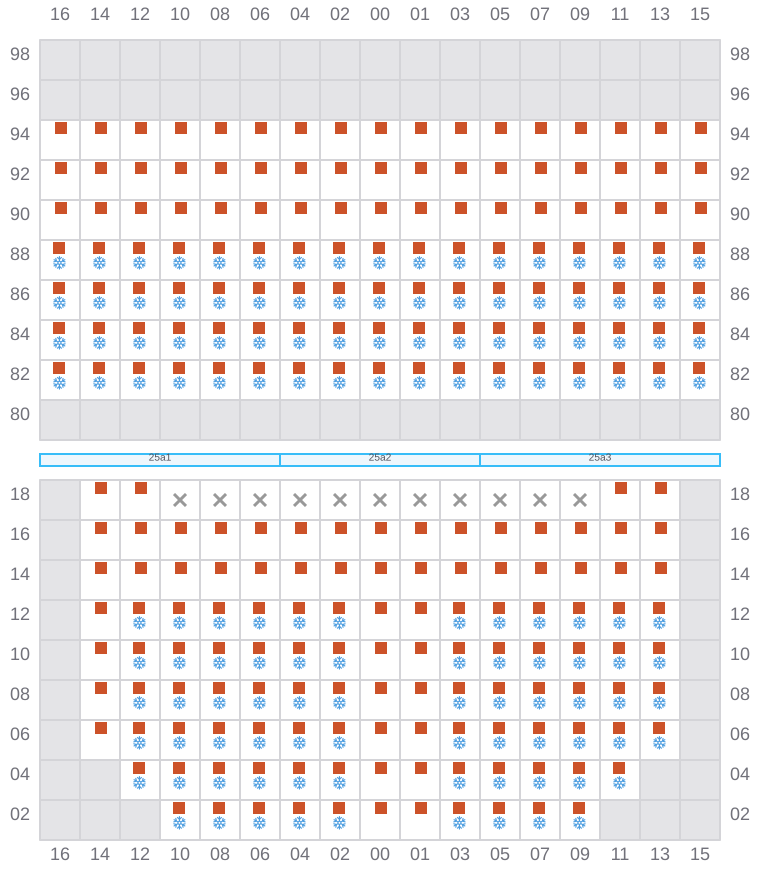

027
- ←
- ? / →
![Bay 027 view and slots of ALEXANDRA](/vessel-images/27e56103-f16d-4914-87f3-68e7be483f7e-b027.png?v=1687460891742)

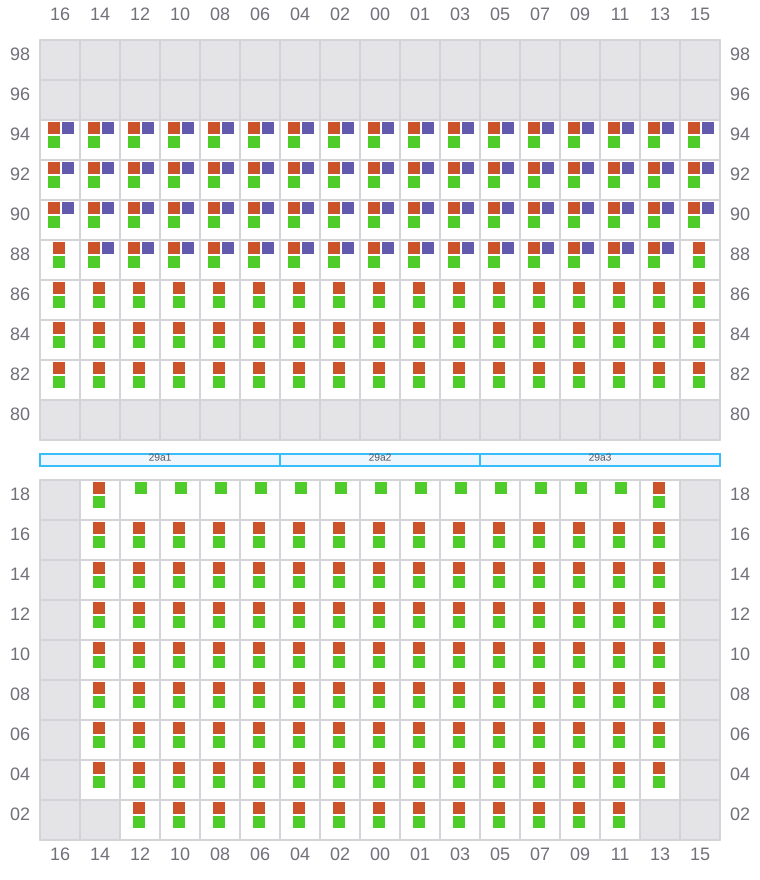

029 (030)
- →
![Bay 029 view and slots of ALEXANDRA](/vessel-images/27e56103-f16d-4914-87f3-68e7be483f7e-b029.png?v=1687460891742)

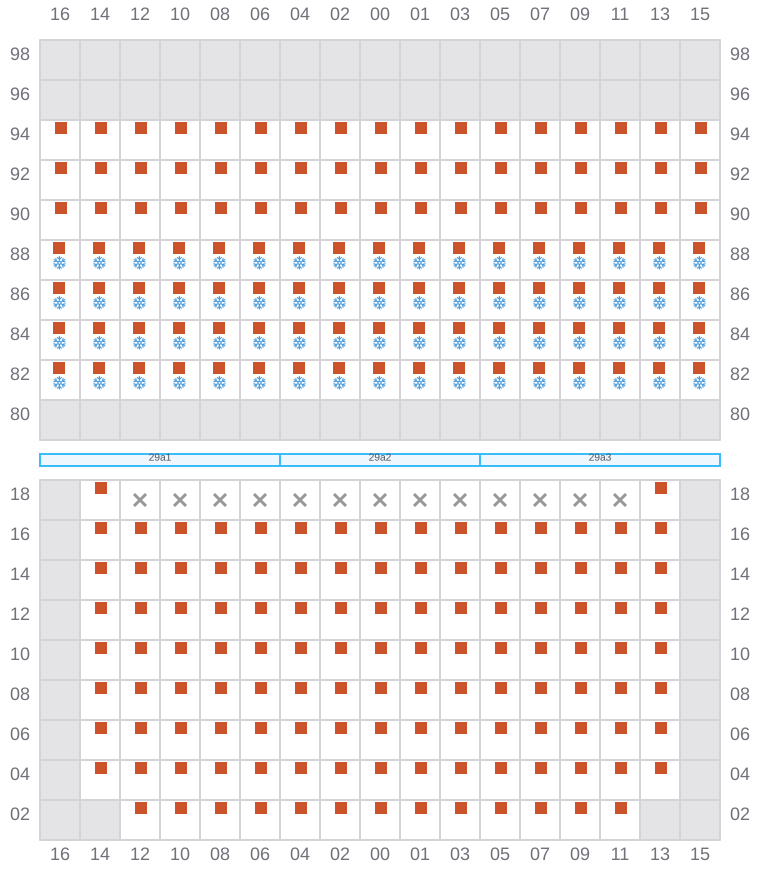

031
- ←
![Bay 031 view and slots of ALEXANDRA](/vessel-images/27e56103-f16d-4914-87f3-68e7be483f7e-b031.png?v=1687460891742)

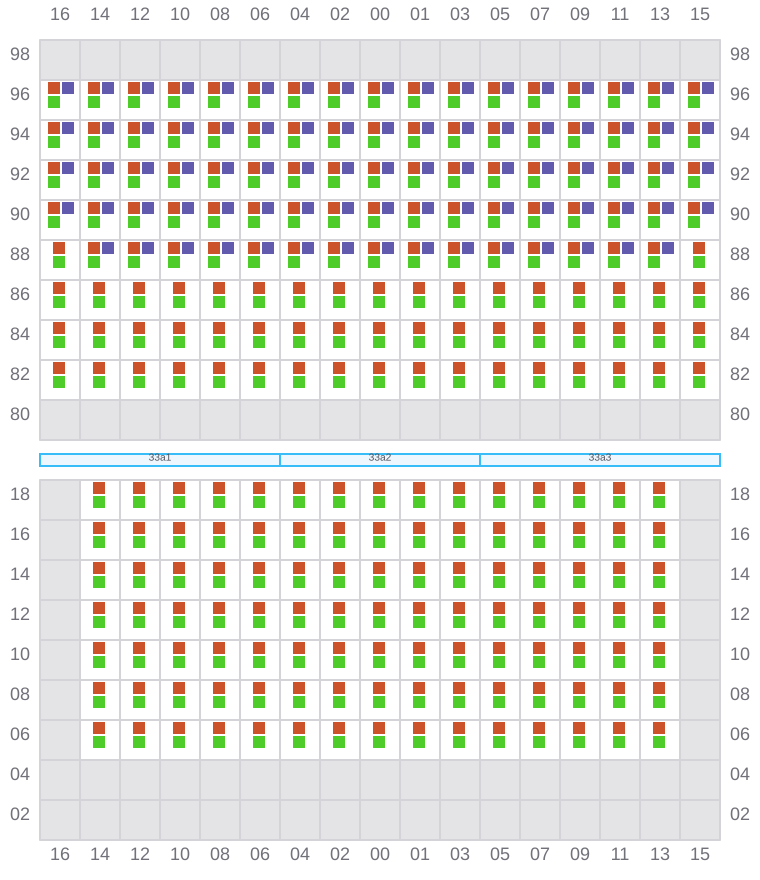

033 (034)
- →
![Bay 033 view and slots of ALEXANDRA](/vessel-images/27e56103-f16d-4914-87f3-68e7be483f7e-b033.png?v=1687460891742)

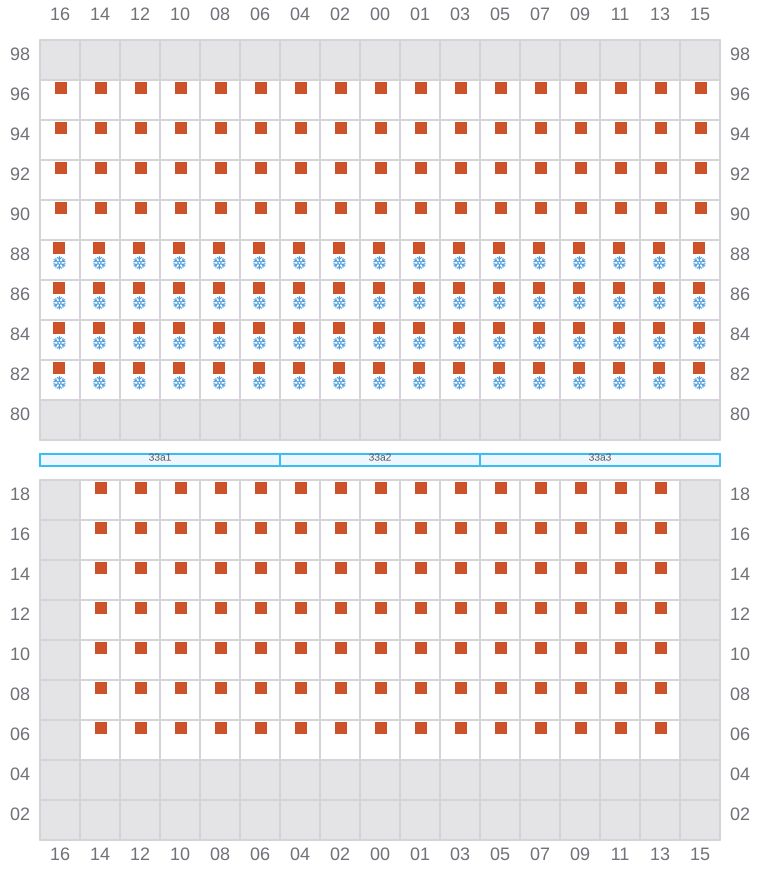

035
- ←
![Bay 035 view and slots of ALEXANDRA](/vessel-images/27e56103-f16d-4914-87f3-68e7be483f7e-b035.png?v=1687460891742)

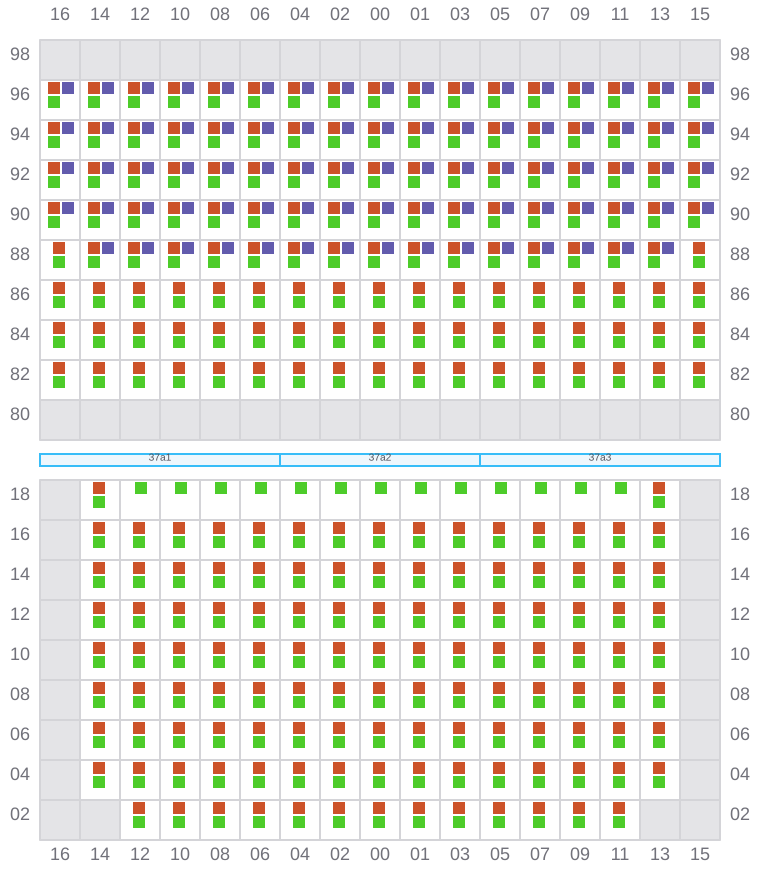

037 (038)
- →
![Bay 037 view and slots of ALEXANDRA](/vessel-images/27e56103-f16d-4914-87f3-68e7be483f7e-b037.png?v=1687460891742)

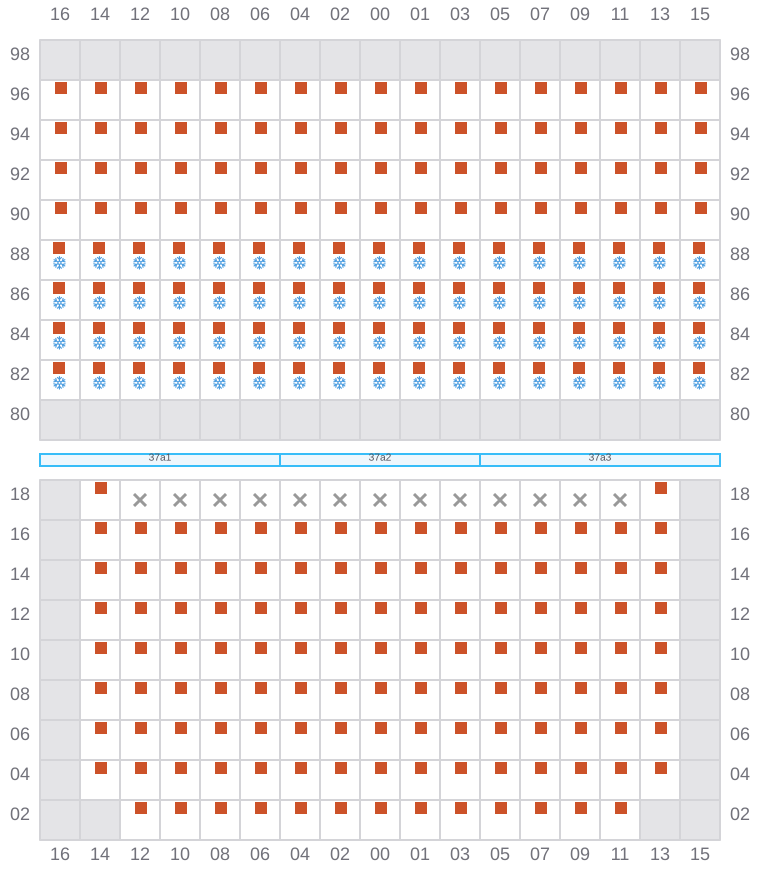

039
- ←
![Bay 039 view and slots of ALEXANDRA](/vessel-images/27e56103-f16d-4914-87f3-68e7be483f7e-b039.png?v=1687460891742)

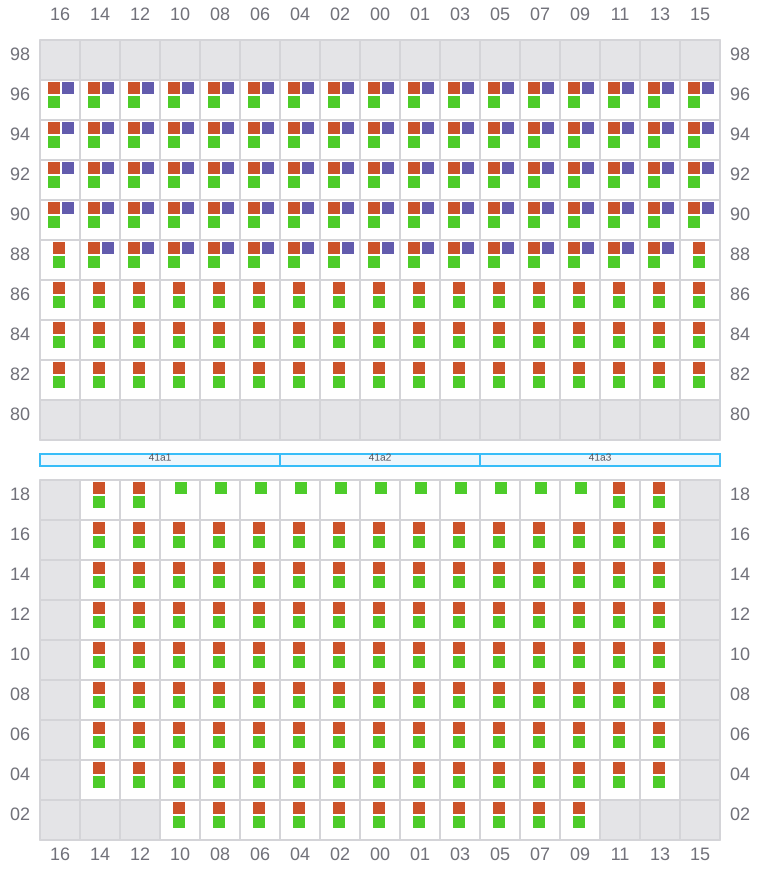

041 (042)
- →
![Bay 041 view and slots of ALEXANDRA](/vessel-images/27e56103-f16d-4914-87f3-68e7be483f7e-b041.png?v=1687460891742)

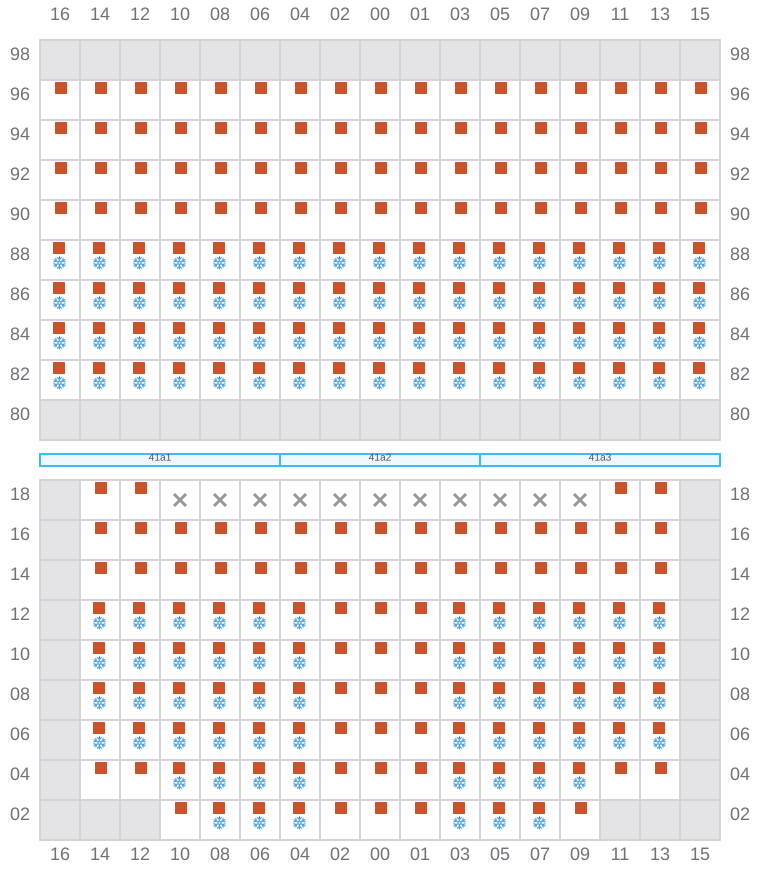

043
- ←
- ? / →
![Bay 043 view and slots of ALEXANDRA](/vessel-images/27e56103-f16d-4914-87f3-68e7be483f7e-b043.png?v=1687460891742)

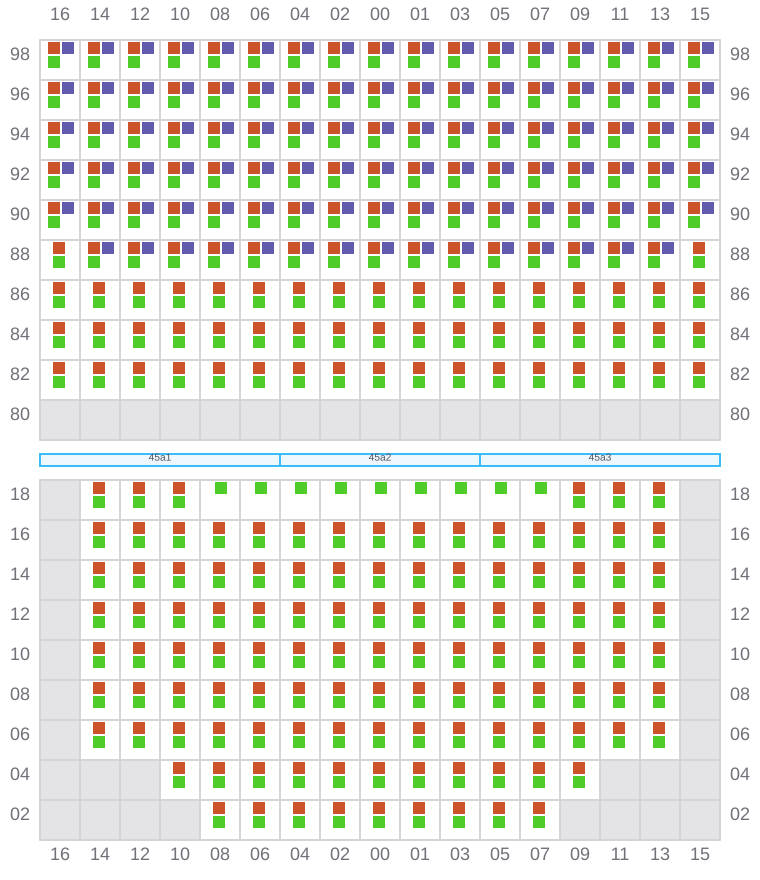

045 (046)
- →
![Bay 045 view and slots of ALEXANDRA](/vessel-images/27e56103-f16d-4914-87f3-68e7be483f7e-b045.png?v=1687460891742)

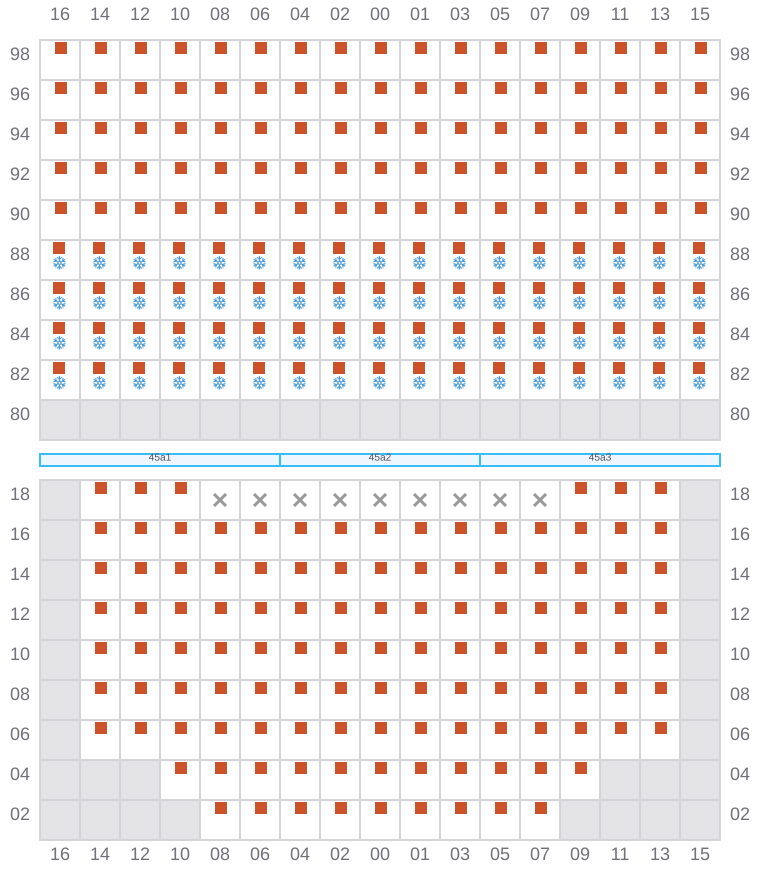

047
- ←
![Bay 047 view and slots of ALEXANDRA](/vessel-images/27e56103-f16d-4914-87f3-68e7be483f7e-b047.png?v=1687460891742)

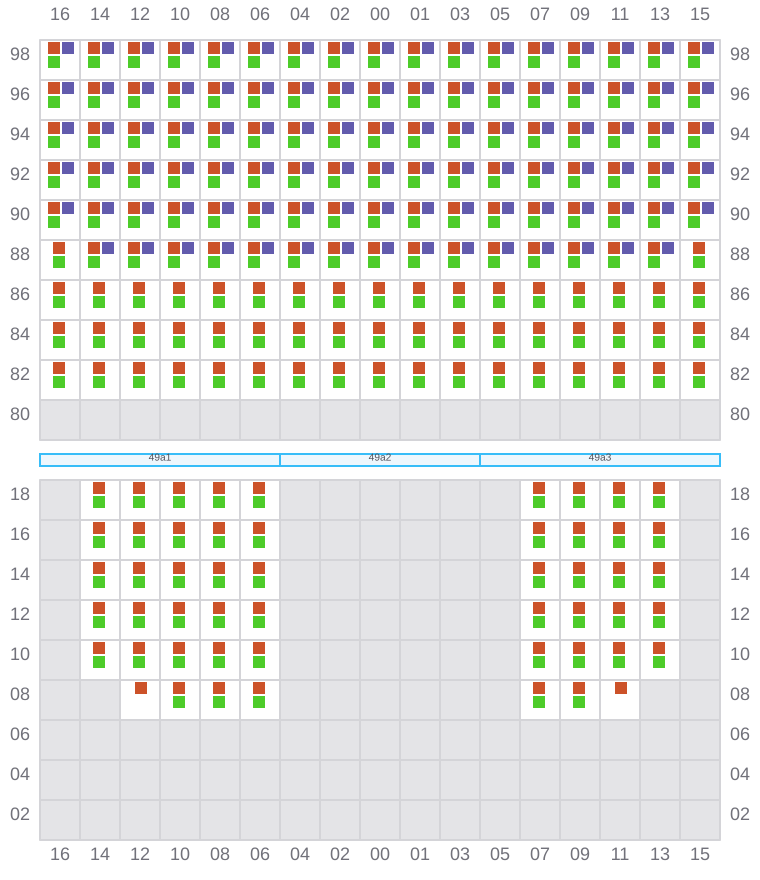

049 (050)
- →
![Bay 049 view and slots of ALEXANDRA](/vessel-images/27e56103-f16d-4914-87f3-68e7be483f7e-b049.png?v=1687460891742)

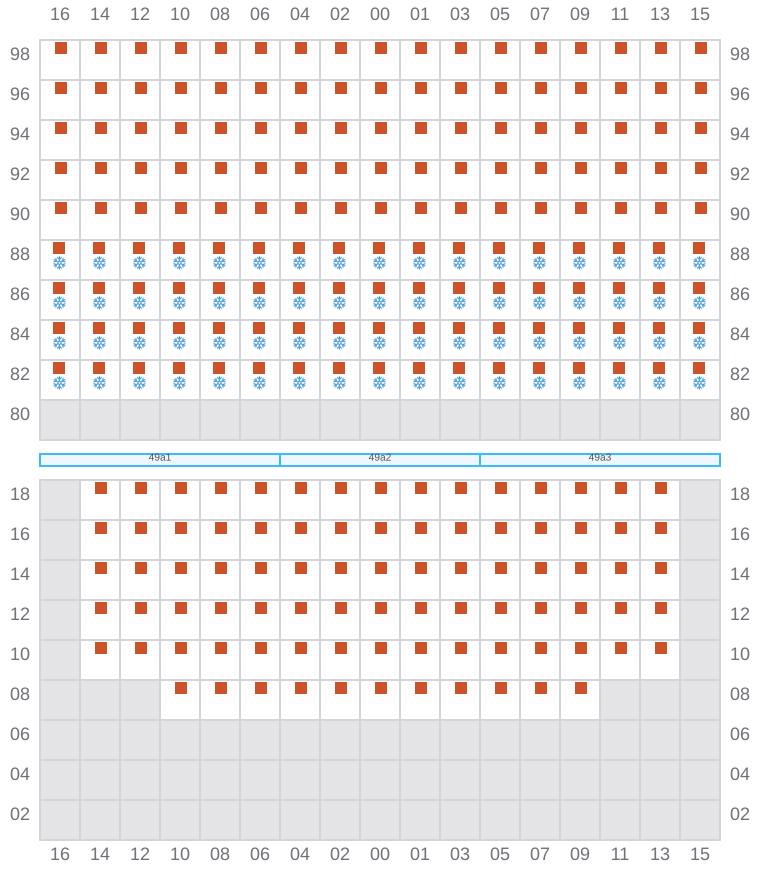

051
- ←
![Bay 051 view and slots of ALEXANDRA](/vessel-images/27e56103-f16d-4914-87f3-68e7be483f7e-b051.png?v=1687460891742)

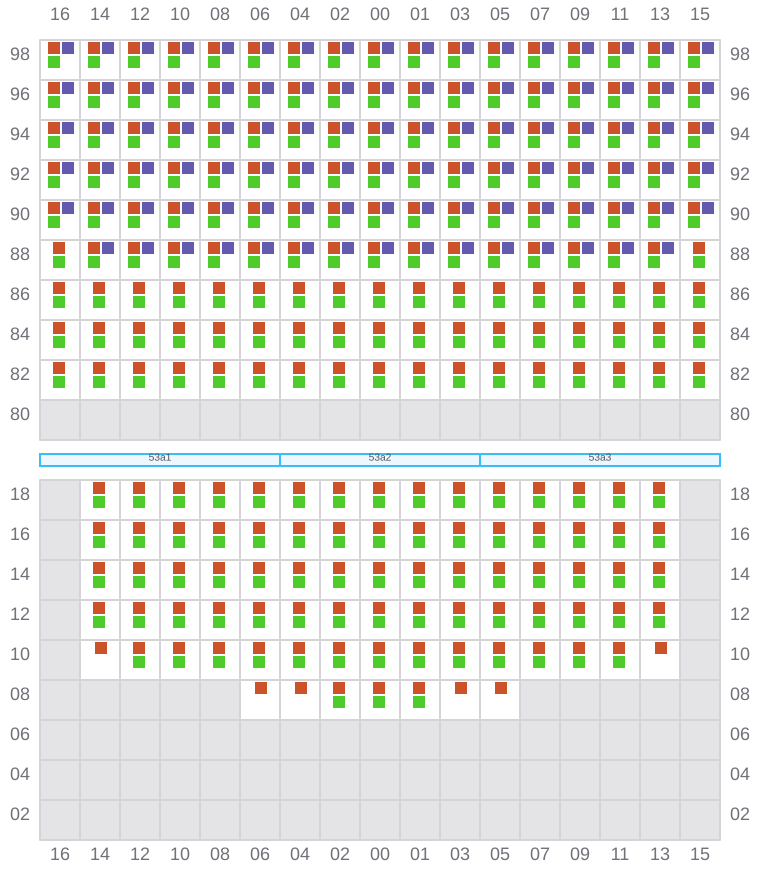

053 (054)
- →
![Bay 053 view and slots of ALEXANDRA](/vessel-images/27e56103-f16d-4914-87f3-68e7be483f7e-b053.png?v=1687460891742)

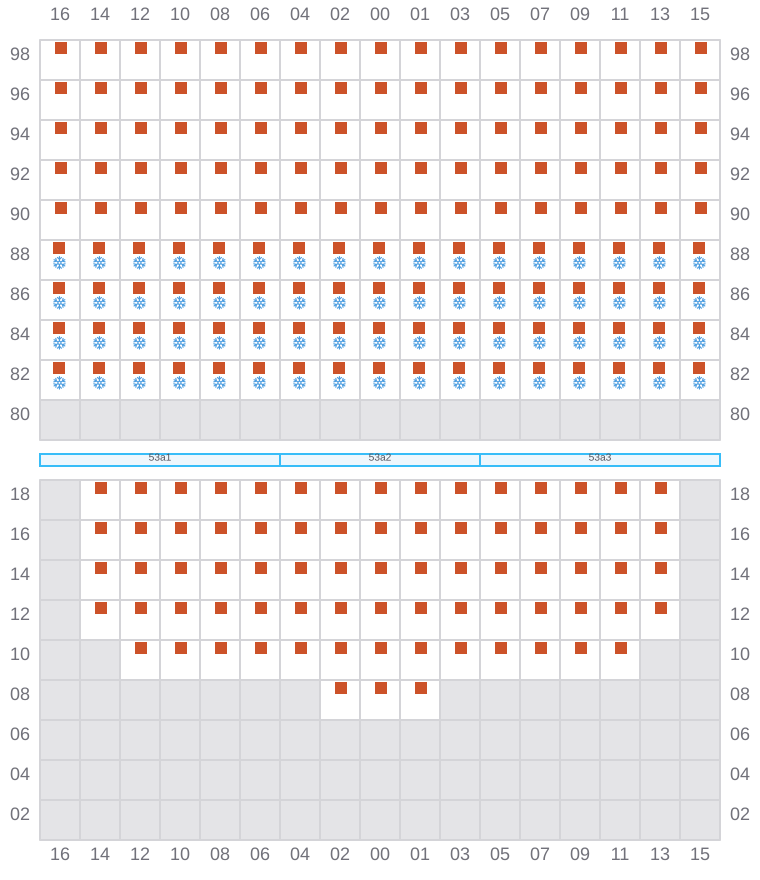

055
- ←
![Bay 055 view and slots of ALEXANDRA](/vessel-images/27e56103-f16d-4914-87f3-68e7be483f7e-b055.png?v=1687460891742)

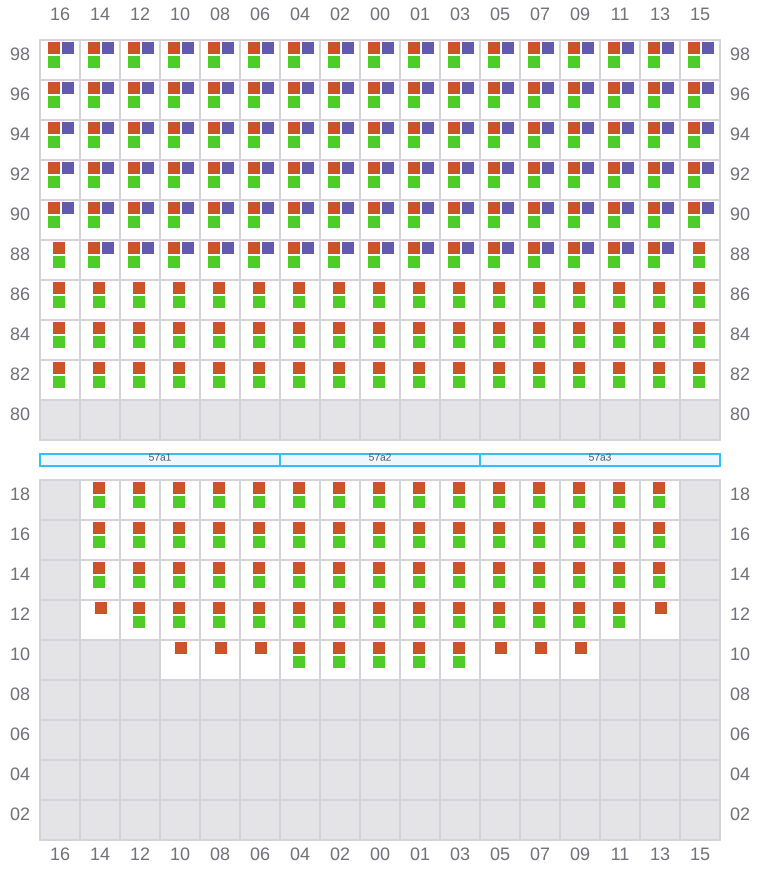

057 (058)
- →
![Bay 057 view and slots of ALEXANDRA](/vessel-images/27e56103-f16d-4914-87f3-68e7be483f7e-b057.png?v=1687460891742)

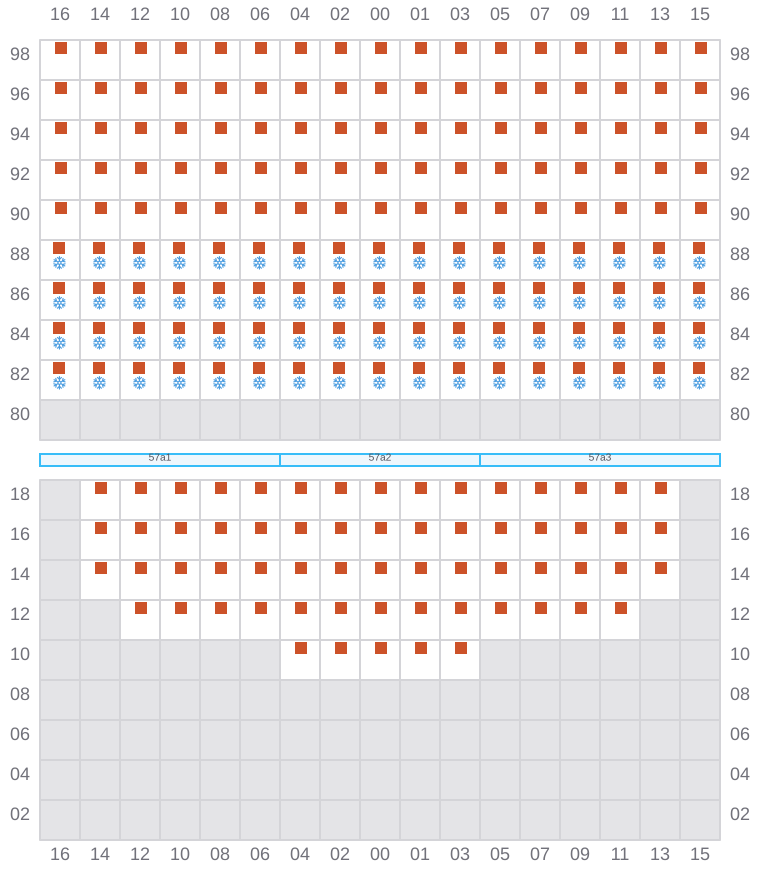

059
- ←
![Bay 059 view and slots of ALEXANDRA](/vessel-images/27e56103-f16d-4914-87f3-68e7be483f7e-b059.png?v=1687460891742)

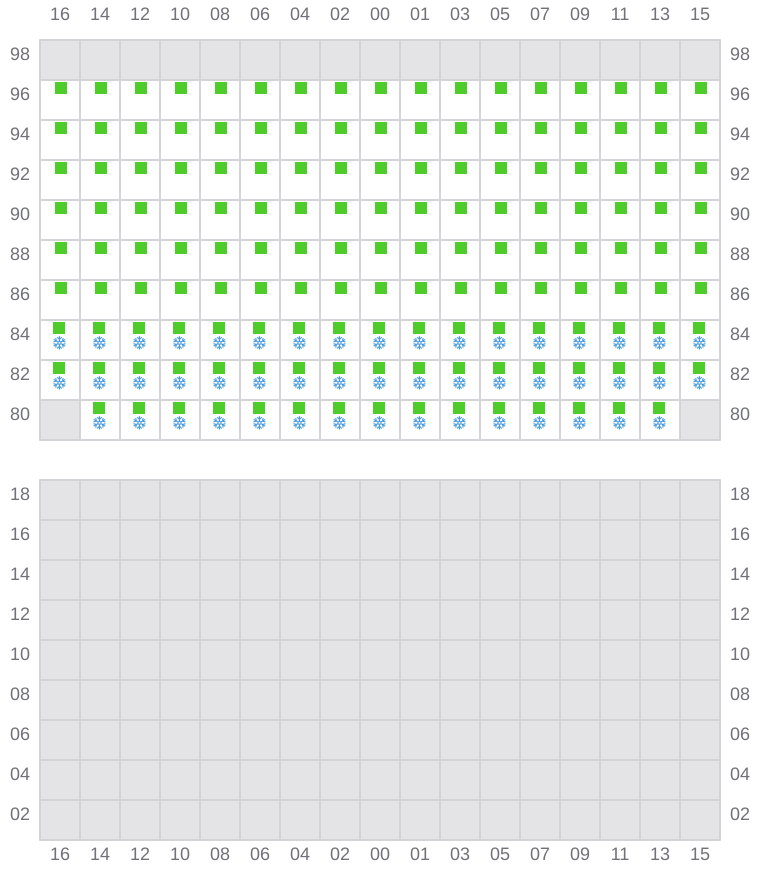

061 (062)
- → / ?
![Bay 061 view and slots of ALEXANDRA](/vessel-images/27e56103-f16d-4914-87f3-68e7be483f7e-b061.png?v=1687460891742)
