ALGECIRAS EXPRESS
9227015 | 5LFP9 | 9227015 by ********* Last update: Fri May 10 2024

General Info

Ship Name:ALGECIRAS EXPRESS
IMO Code:9227015
Call Sign:5LFP9
Line Operator:9227015
Class Name for Sister Ships:SEASPAN NINGBO
Year Built:2002
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:063
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,605

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

Side view of ALGECIRAS EXPRESS

Hatch-Covers View

Deck view of ALGECIRAS EXPRESS

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

  • →

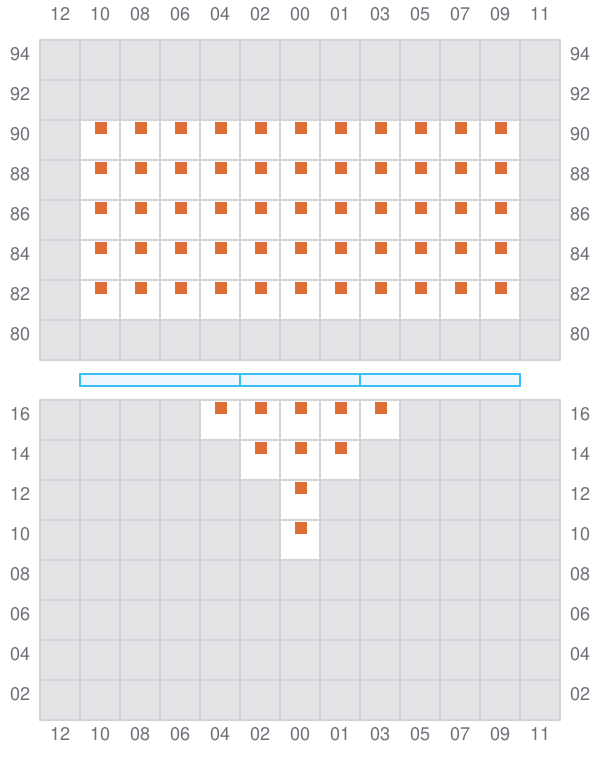

Bay 001 view and slots of ALGECIRAS EXPRESS

003 (002)

  • ←

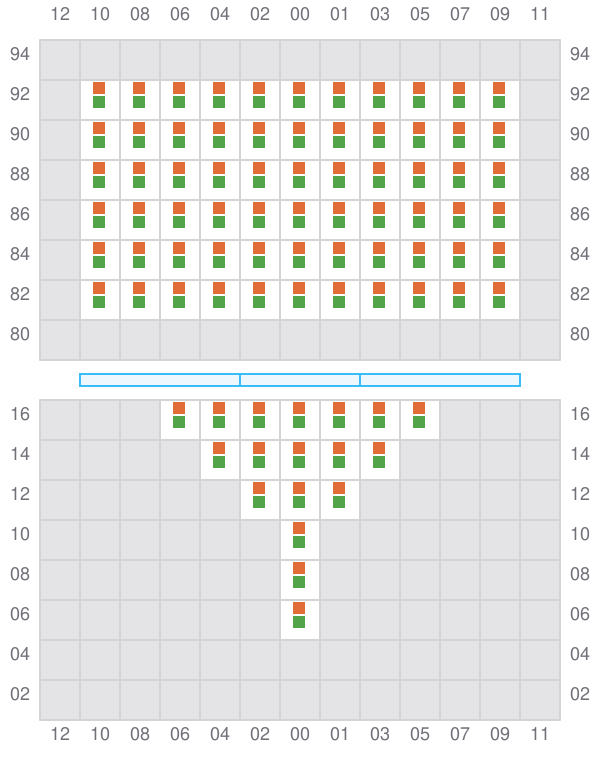

Bay 003 view and slots of ALGECIRAS EXPRESS

005

  • →

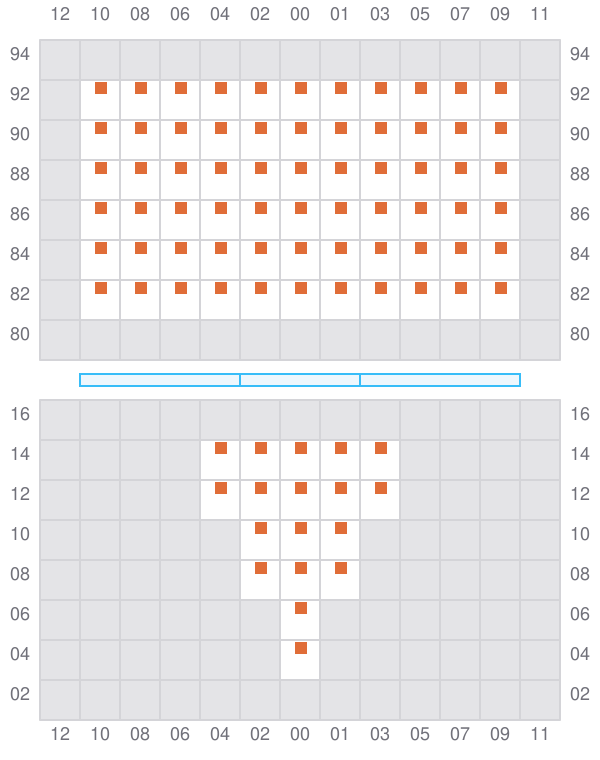

Bay 005 view and slots of ALGECIRAS EXPRESS

007 (006)

  • ←

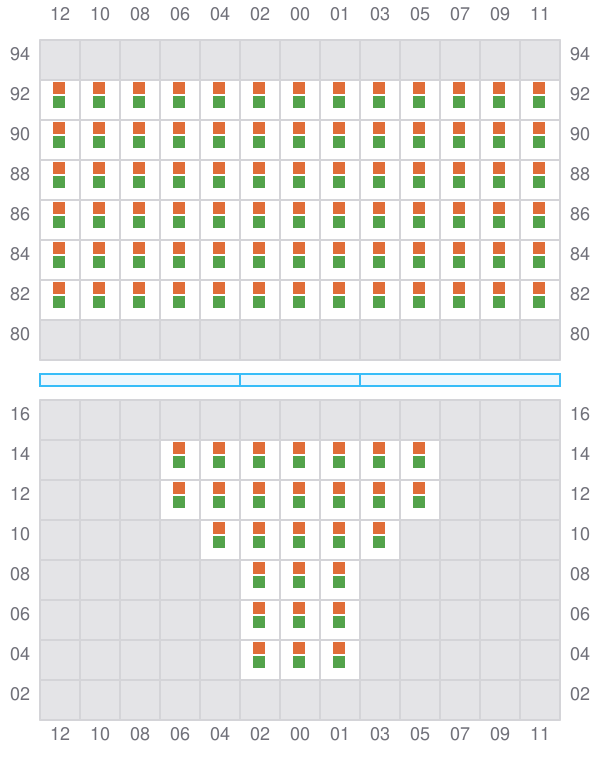

Bay 007 view and slots of ALGECIRAS EXPRESS

009

  • →

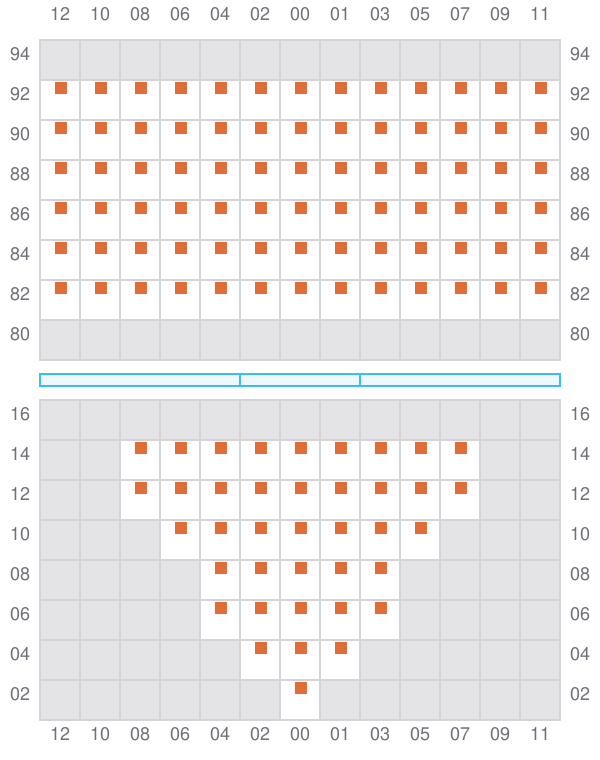

Bay 009 view and slots of ALGECIRAS EXPRESS

011 (010)

  • ←

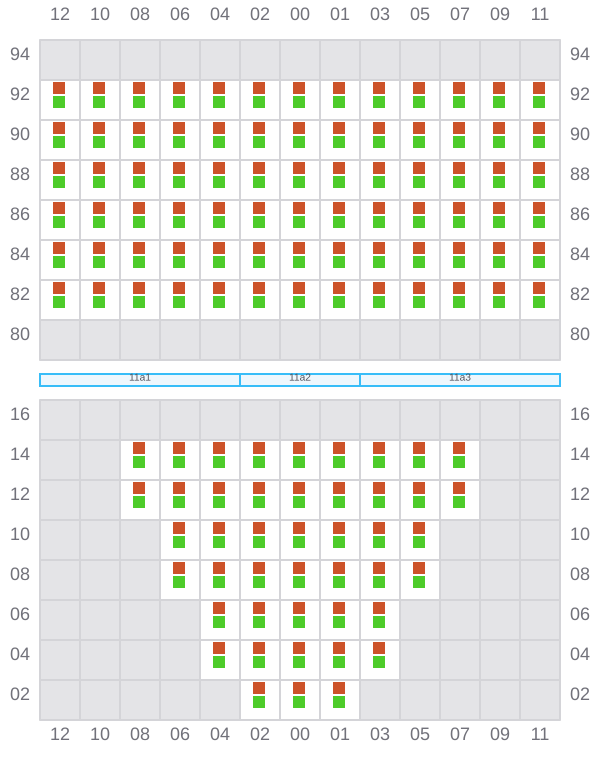

Bay 011 view and slots of ALGECIRAS EXPRESS

013

  • →

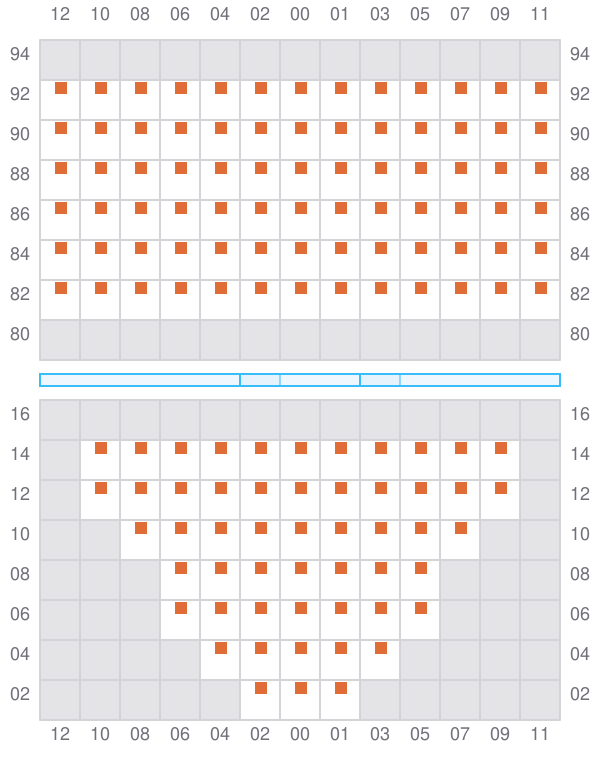

Bay 013 view and slots of ALGECIRAS EXPRESS

015 (014)

  • ←

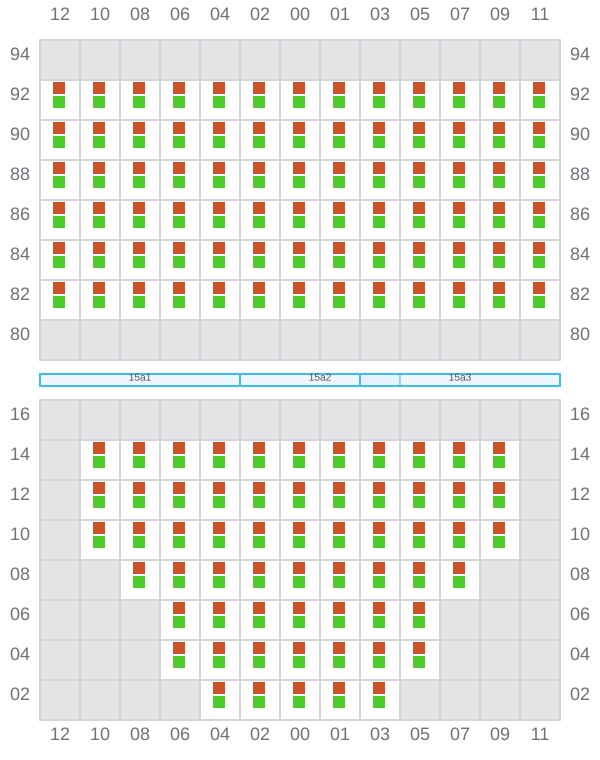

Bay 015 view and slots of ALGECIRAS EXPRESS

017

  • →

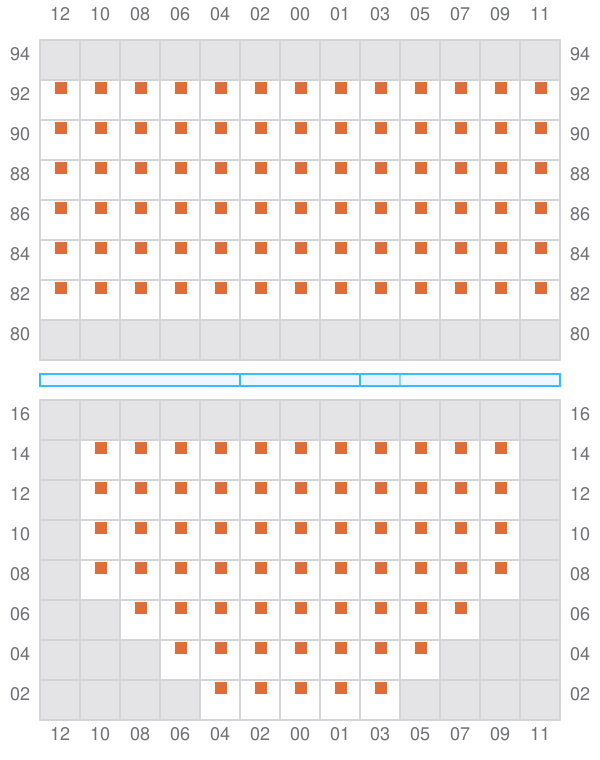

Bay 017 view and slots of ALGECIRAS EXPRESS

019 (018)

  • ←

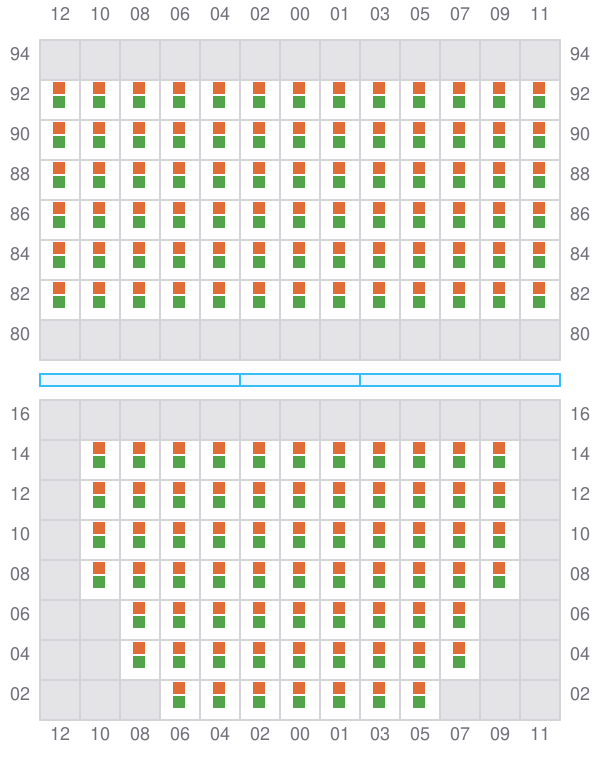

Bay 019 view and slots of ALGECIRAS EXPRESS

021

  • →

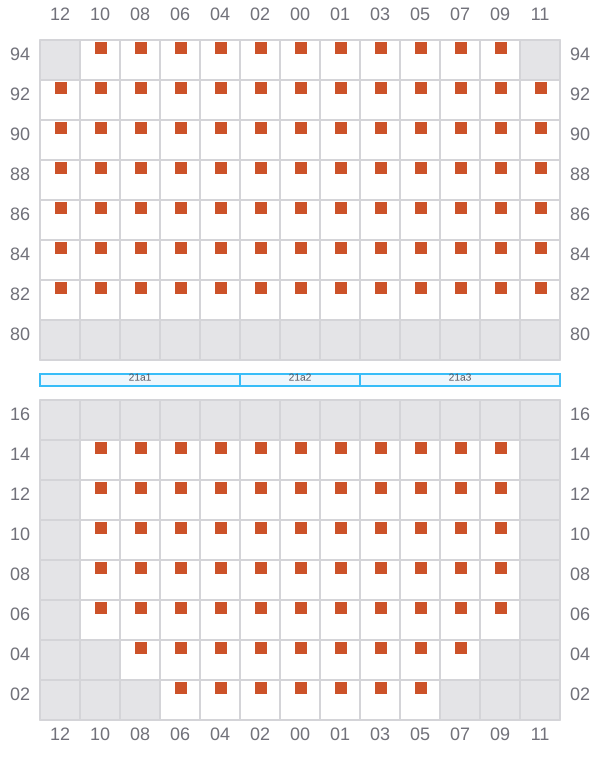

Bay 021 view and slots of ALGECIRAS EXPRESS

023 (022)

  • ←

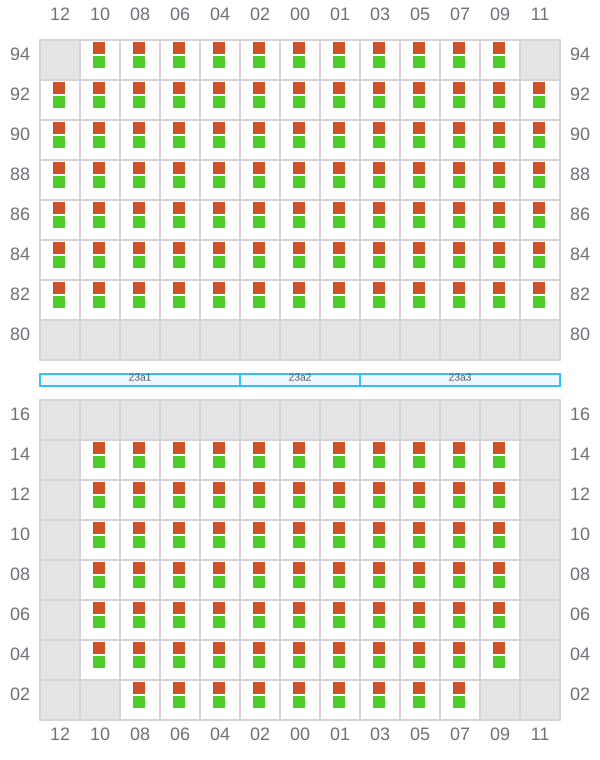

Bay 023 view and slots of ALGECIRAS EXPRESS

025

  • →
Bay 025 view and slots of ALGECIRAS EXPRESS

027 (026)

  • ←
Bay 027 view and slots of ALGECIRAS EXPRESS

029

  • →
Bay 029 view and slots of ALGECIRAS EXPRESS

031 (030)

  • ←
Bay 031 view and slots of ALGECIRAS EXPRESS

033

  • →

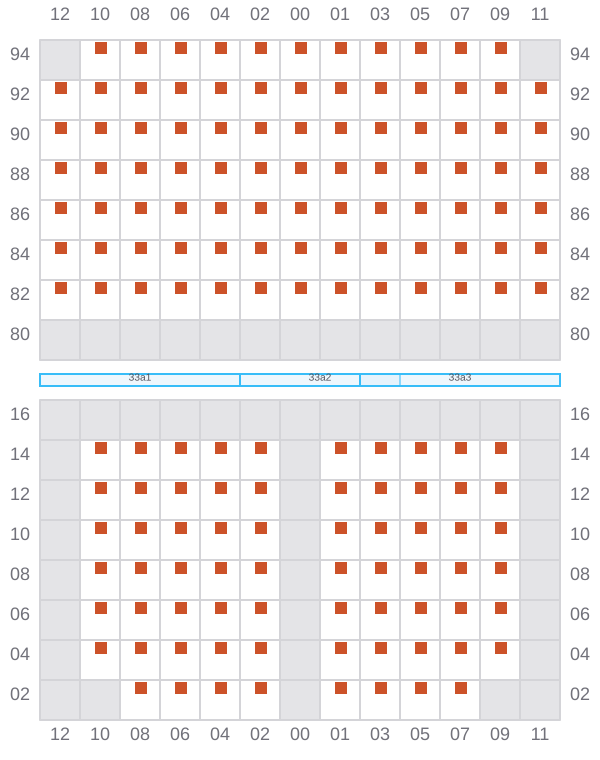

Bay 033 view and slots of ALGECIRAS EXPRESS

035 (034)

  • ←

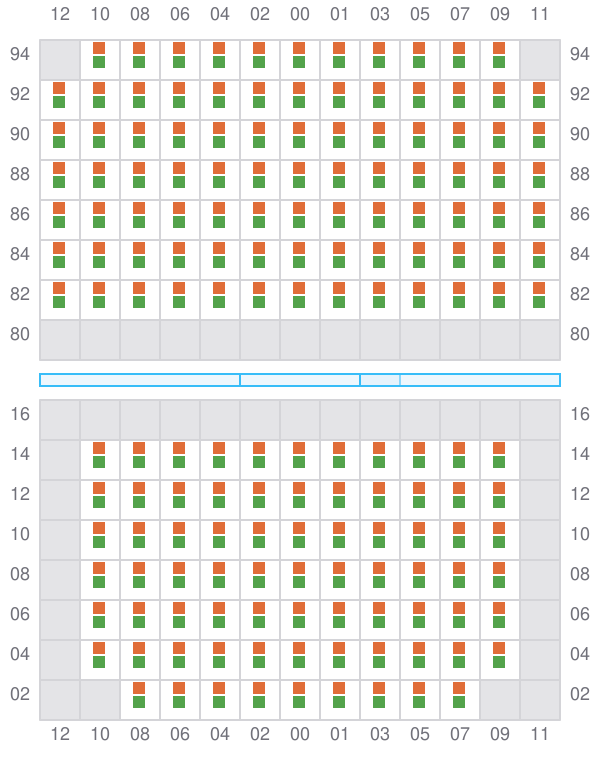

Bay 035 view and slots of ALGECIRAS EXPRESS

037

  • →

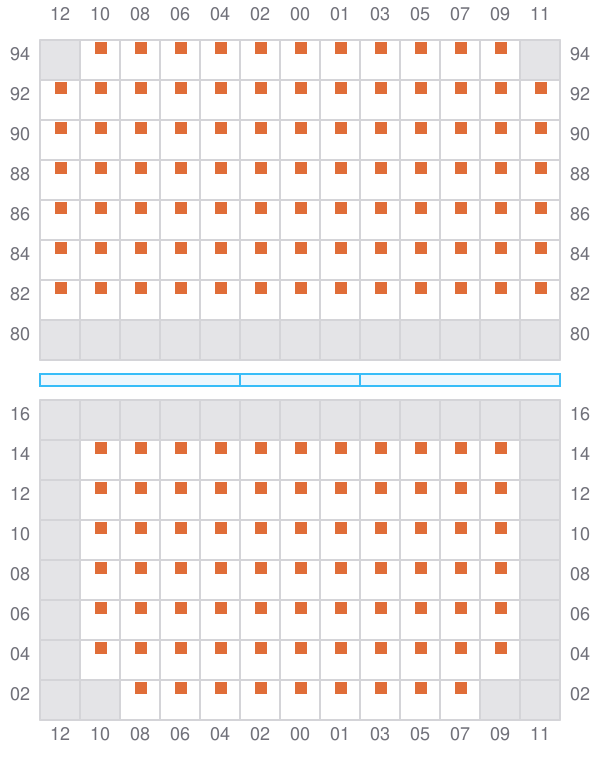

Bay 037 view and slots of ALGECIRAS EXPRESS

039 (038)

  • ←
Bay 039 view and slots of ALGECIRAS EXPRESS

041

  • →
Bay 041 view and slots of ALGECIRAS EXPRESS

043 (042)

  • ←

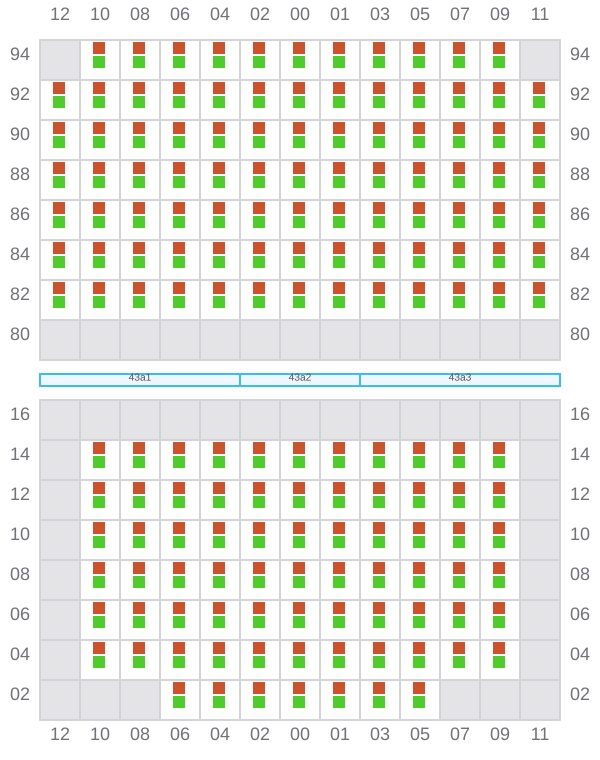

Bay 043 view and slots of ALGECIRAS EXPRESS

045

  • →

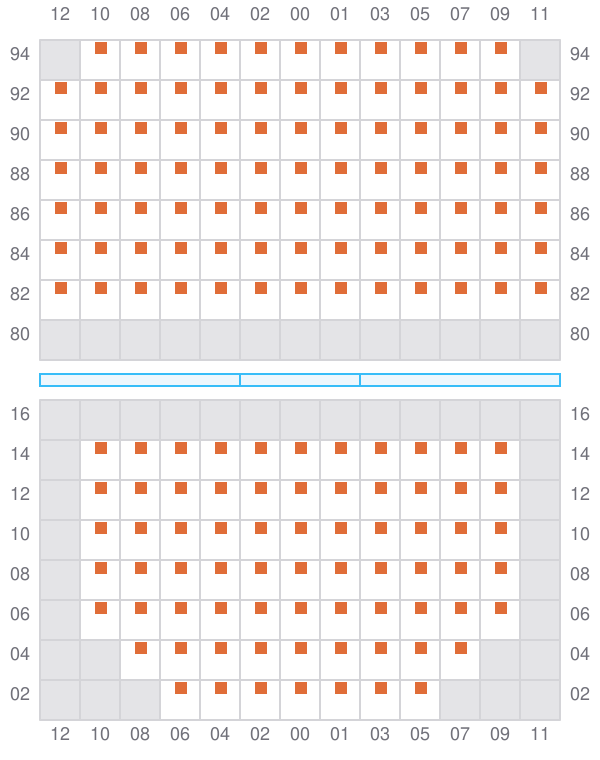

Bay 045 view and slots of ALGECIRAS EXPRESS

047 (046)

  • ←

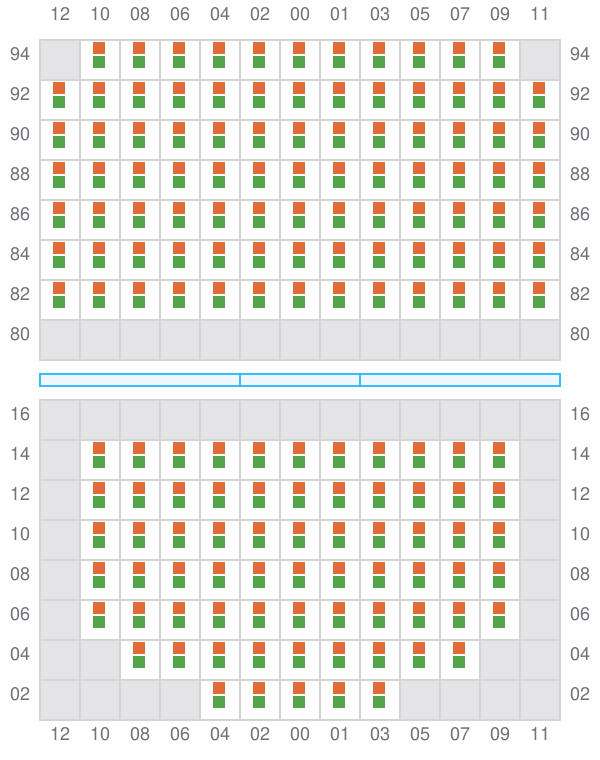

Bay 047 view and slots of ALGECIRAS EXPRESS

049

  • ← / ?

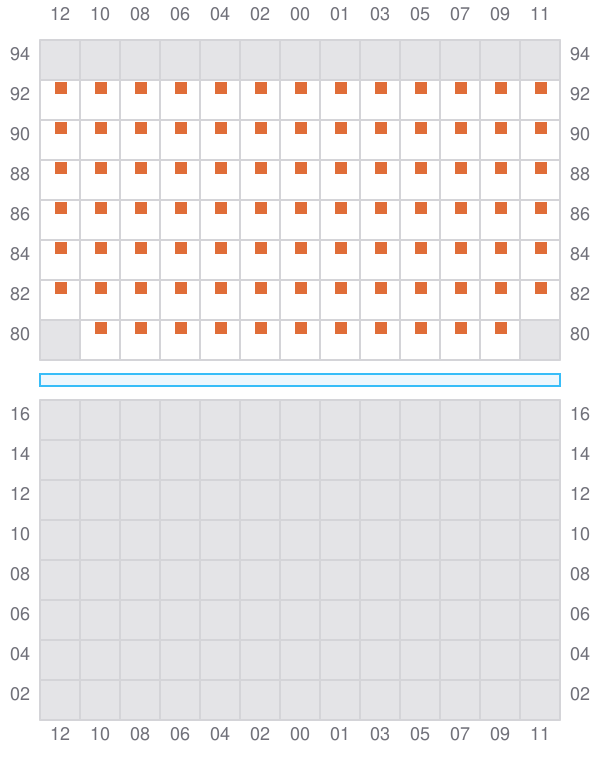

Bay 049 view and slots of ALGECIRAS EXPRESS

051 (050)

  • ← / ?

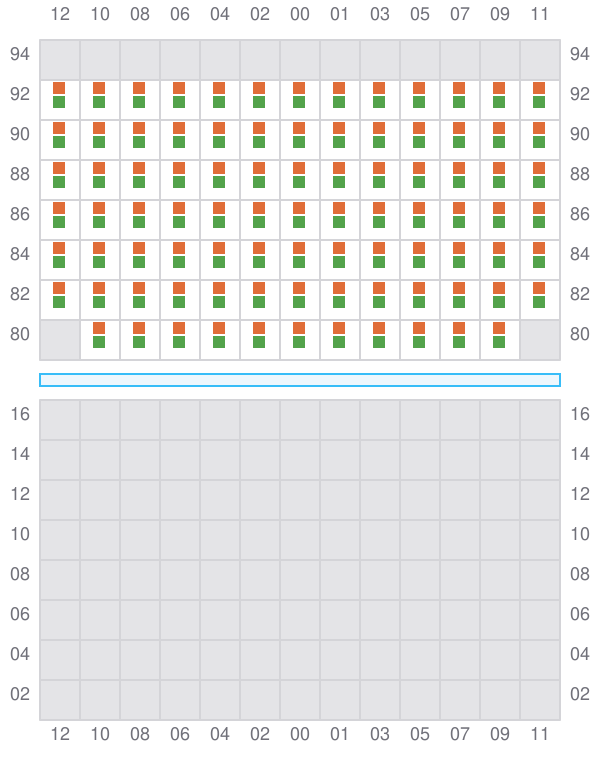

Bay 051 view and slots of ALGECIRAS EXPRESS

053

  • ← / →

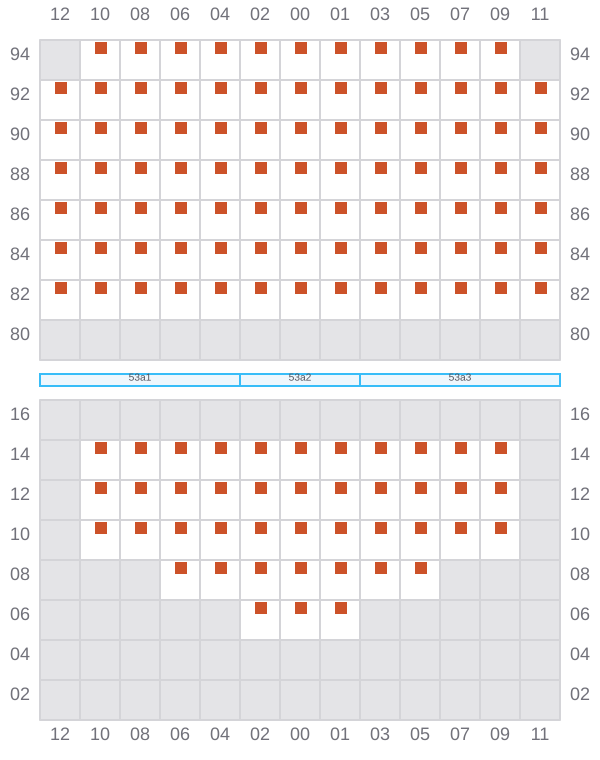

Bay 053 view and slots of ALGECIRAS EXPRESS

055 (054)

  • ←

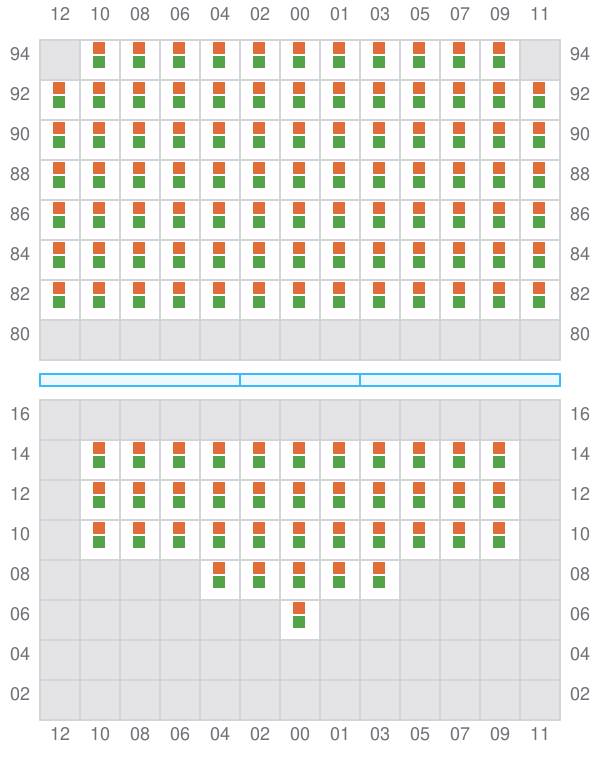

Bay 055 view and slots of ALGECIRAS EXPRESS

057

  • →

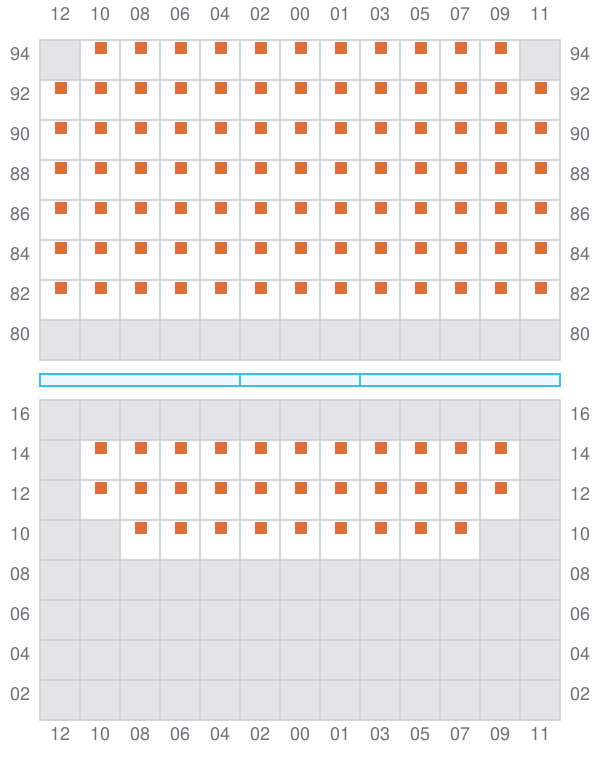

Bay 057 view and slots of ALGECIRAS EXPRESS

059 (058)

  • ←

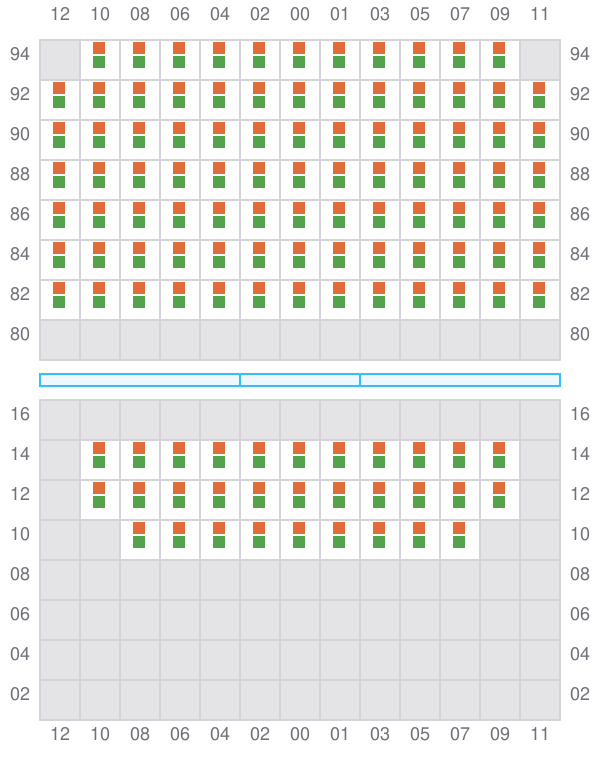

Bay 059 view and slots of ALGECIRAS EXPRESS

061

  • ← / ?

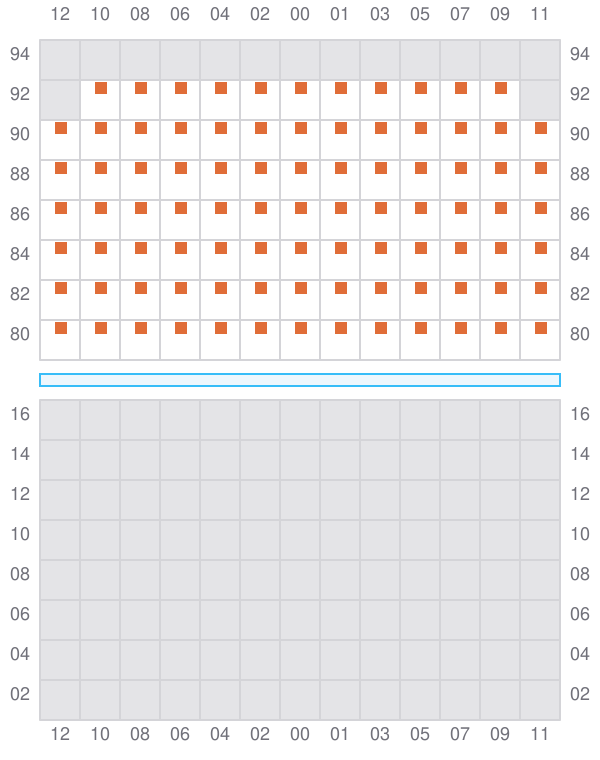

Bay 061 view and slots of ALGECIRAS EXPRESS

063 (062)

  • ← / ?

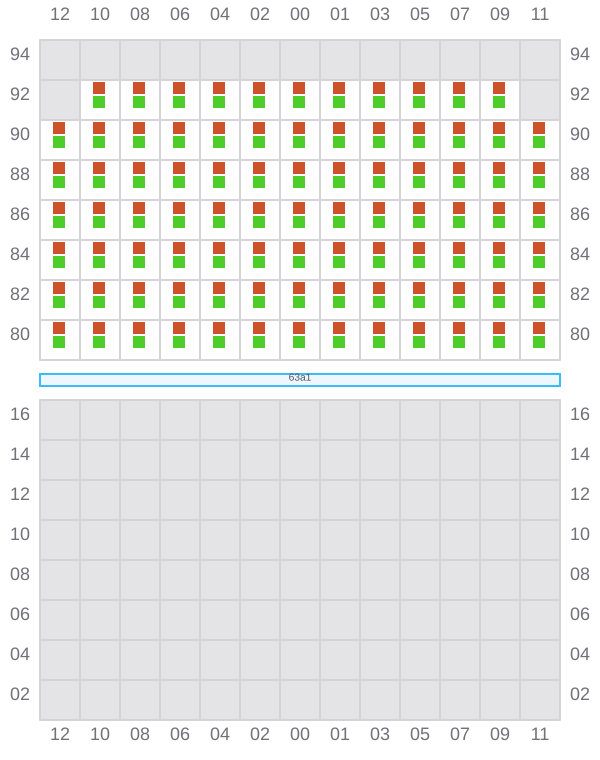

Bay 063 view and slots of ALGECIRAS EXPRESS
