ALOPO
9329564 | D5UO4 | 9329564 by ********* Last update: Fri Mar 22 2024
General Info
Ship Name:ALOPO
IMO Code:9329564
Call Sign:D5UO4
Line Operator:9329564
Class Name for Sister Ships:86B
Year Built:2004
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:029
Max ISO Row:08
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:686
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
![Side view of ALOPO](/vessel-images/c07f4044-3037-48e7-8e4d-9ff31da0448c-sideView.png?v=1711128545771)
Hatch-Covers View
![Deck view of ALOPO](/vessel-images/c07f4044-3037-48e7-8e4d-9ff31da0448c-deckView.png?v=1711128545771)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

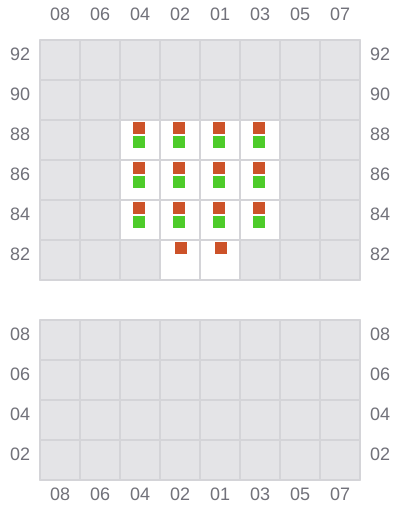

001 (002)
- → / ?
![Bay 001 view and slots of ALOPO](/vessel-images/c07f4044-3037-48e7-8e4d-9ff31da0448c-b001.png?v=1711128545771)

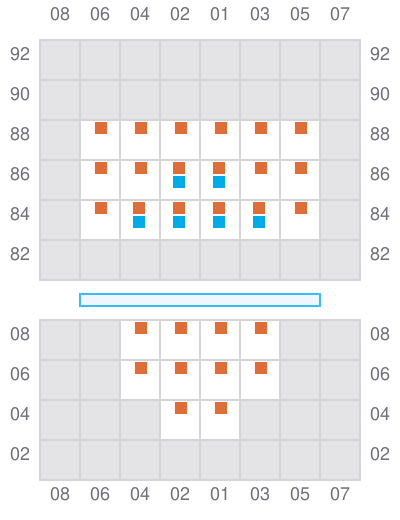

003
- ←
- → / ?
![Bay 003 view and slots of ALOPO](/vessel-images/c07f4044-3037-48e7-8e4d-9ff31da0448c-b003.png?v=1711128545771)

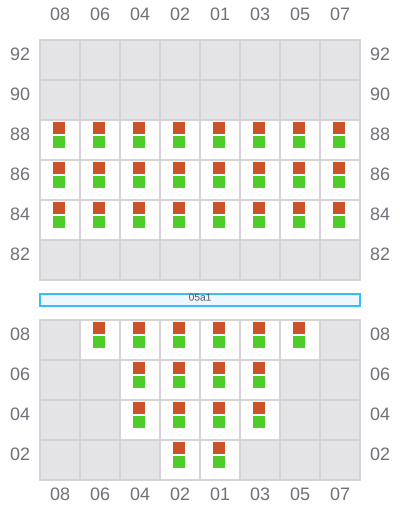

005 (006)
- →
![Bay 005 view and slots of ALOPO](/vessel-images/c07f4044-3037-48e7-8e4d-9ff31da0448c-b005.png?v=1711128545771)

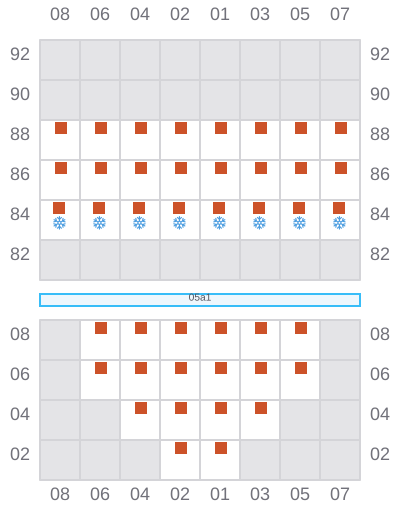

007
- ←
- → / ?
![Bay 007 view and slots of ALOPO](/vessel-images/c07f4044-3037-48e7-8e4d-9ff31da0448c-b007.png?v=1711128545771)

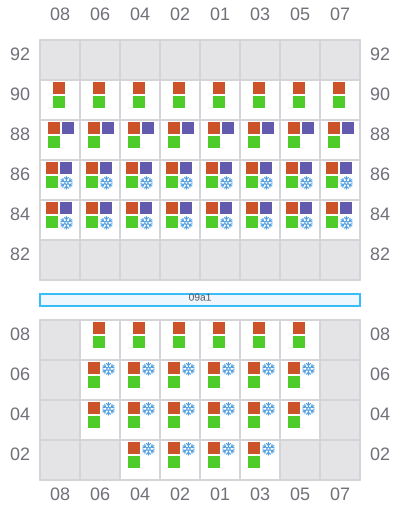

009 (010)
- →
- ← / ?
![Bay 009 view and slots of ALOPO](/vessel-images/c07f4044-3037-48e7-8e4d-9ff31da0448c-b009.png?v=1711128545771)

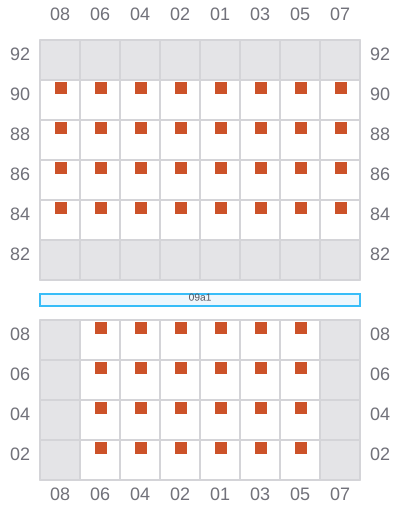

011
- ←
![Bay 011 view and slots of ALOPO](/vessel-images/c07f4044-3037-48e7-8e4d-9ff31da0448c-b011.png?v=1711128545771)

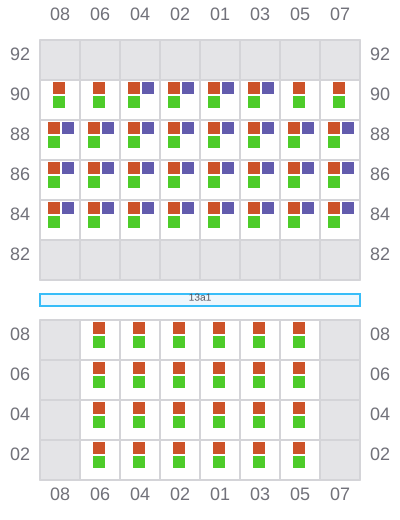

013 (014)
- →
![Bay 013 view and slots of ALOPO](/vessel-images/c07f4044-3037-48e7-8e4d-9ff31da0448c-b013.png?v=1711128545771)

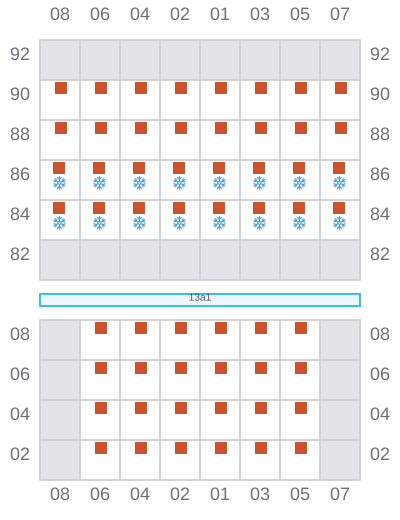

015
- ←
- → / ?
![Bay 015 view and slots of ALOPO](/vessel-images/c07f4044-3037-48e7-8e4d-9ff31da0448c-b015.png?v=1711128545771)

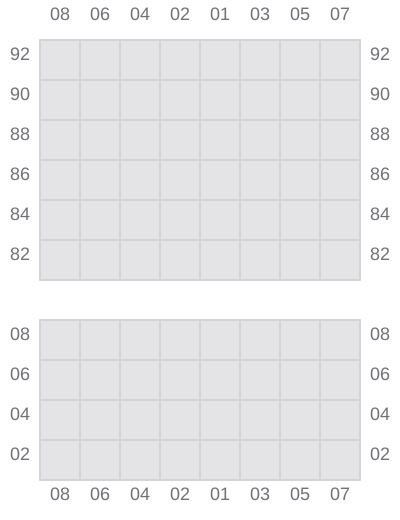

017
![Bay 017 view and slots of ALOPO](/vessel-images/c07f4044-3037-48e7-8e4d-9ff31da0448c-b017.png?v=1711128545771)

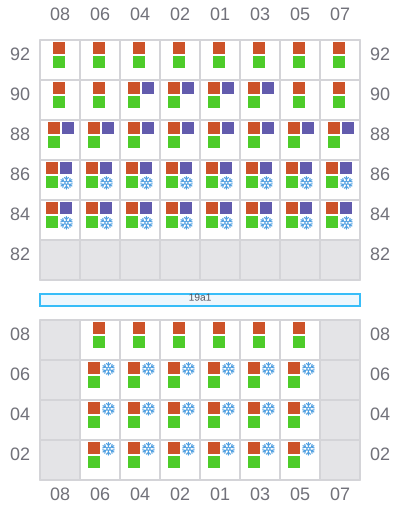

019 (020)
- →
- ← / ?
![Bay 019 view and slots of ALOPO](/vessel-images/c07f4044-3037-48e7-8e4d-9ff31da0448c-b019.png?v=1711128545771)

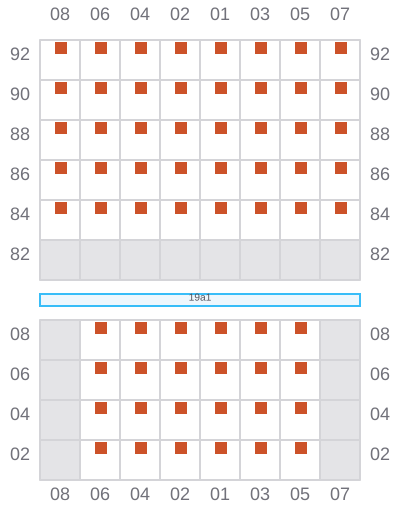

021
- ←
![Bay 021 view and slots of ALOPO](/vessel-images/c07f4044-3037-48e7-8e4d-9ff31da0448c-b021.png?v=1711128545771)

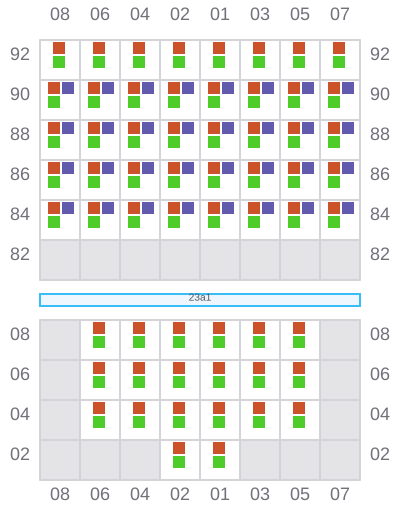

023 (024)
- →
![Bay 023 view and slots of ALOPO](/vessel-images/c07f4044-3037-48e7-8e4d-9ff31da0448c-b023.png?v=1711128545771)

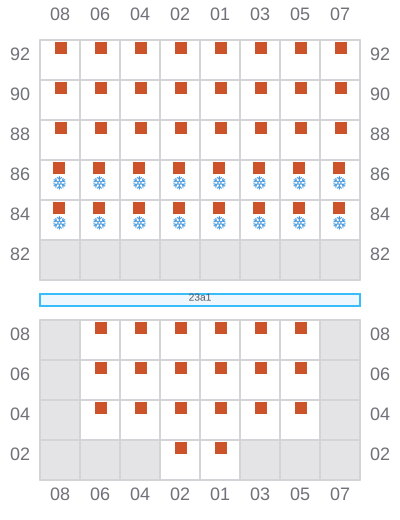

025
- ←
- → / ?
![Bay 025 view and slots of ALOPO](/vessel-images/c07f4044-3037-48e7-8e4d-9ff31da0448c-b025.png?v=1711128545771)

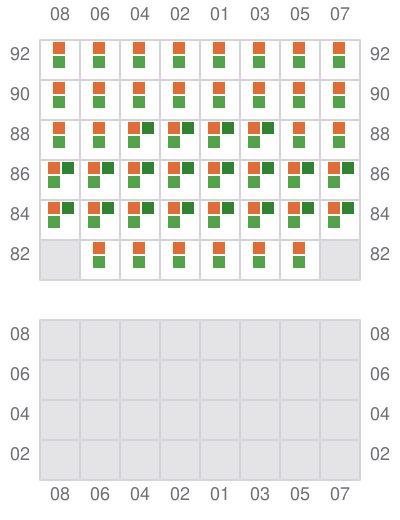

027 (028)
- → / ?
![Bay 027 view and slots of ALOPO](/vessel-images/c07f4044-3037-48e7-8e4d-9ff31da0448c-b027.png?v=1711128545771)

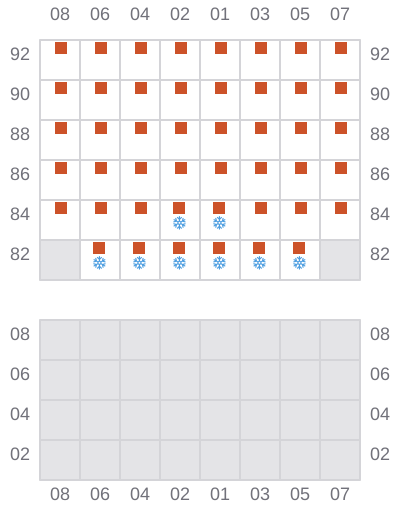

029
- ← / ?
- → / ?
![Bay 029 view and slots of ALOPO](/vessel-images/c07f4044-3037-48e7-8e4d-9ff31da0448c-b029.png?v=1711128545771)
