ALS FLORA
9389394 | 9V5675 | 9389394 by ********* Last update: Thu May 02 2024
General Info
Ship Name:ALS FLORA
IMO Code:9389394
Call Sign:9V5675
Line Operator:9389394
Class Name for Sister Ships:HANJIN ATLANTA
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:061
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,298
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

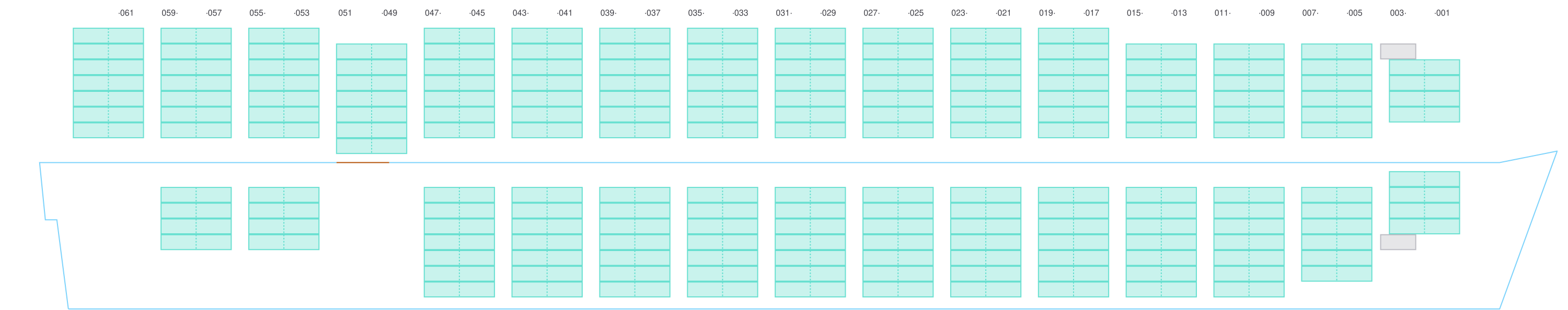

Side View
![Side view of ALS FLORA](/vessel-images/b7bcd830-74e4-4065-b999-2087136d4c96-sideView.png?v=1714669618693)

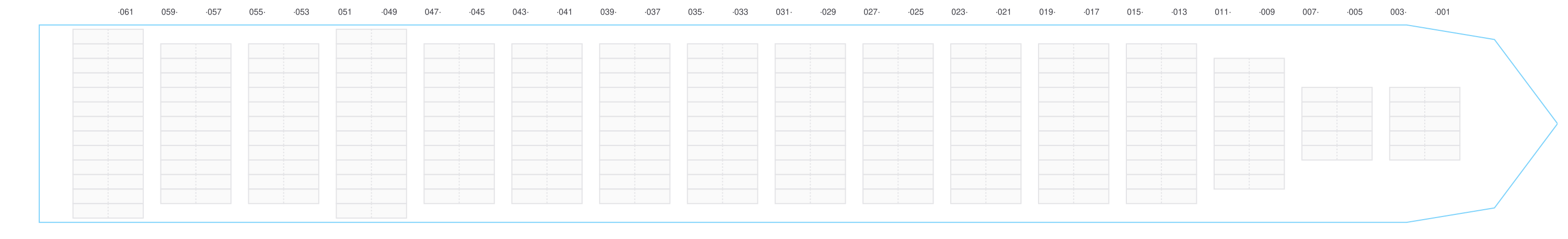

Hatch-Covers View
![Deck view of ALS FLORA](/vessel-images/b7bcd830-74e4-4065-b999-2087136d4c96-deckView.png?v=1714669618693)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

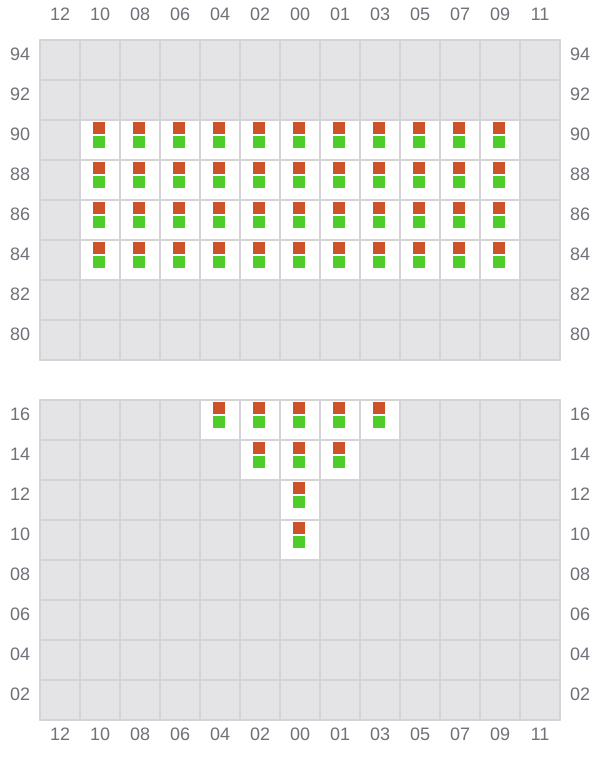

001 (002)
- →
![Bay 001 view and slots of ALS FLORA](/vessel-images/b7bcd830-74e4-4065-b999-2087136d4c96-b001.png?v=1714669618693)

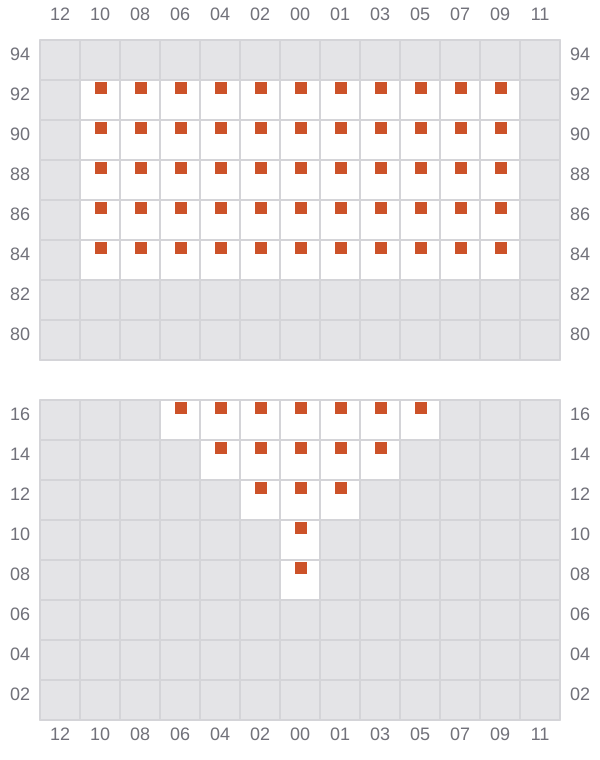

003
- ←
![Bay 003 view and slots of ALS FLORA](/vessel-images/b7bcd830-74e4-4065-b999-2087136d4c96-b003.png?v=1714669618693)

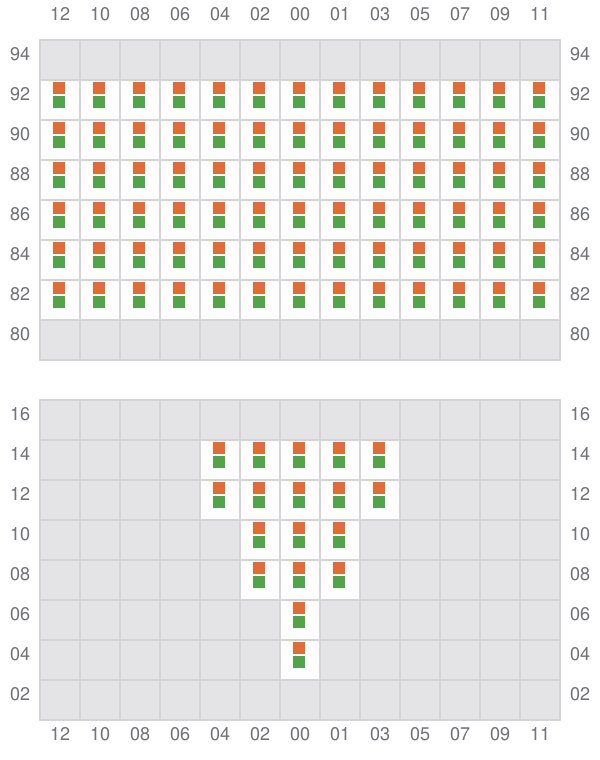

005 (006)
- →
![Bay 005 view and slots of ALS FLORA](/vessel-images/b7bcd830-74e4-4065-b999-2087136d4c96-b005.png?v=1714669618693)

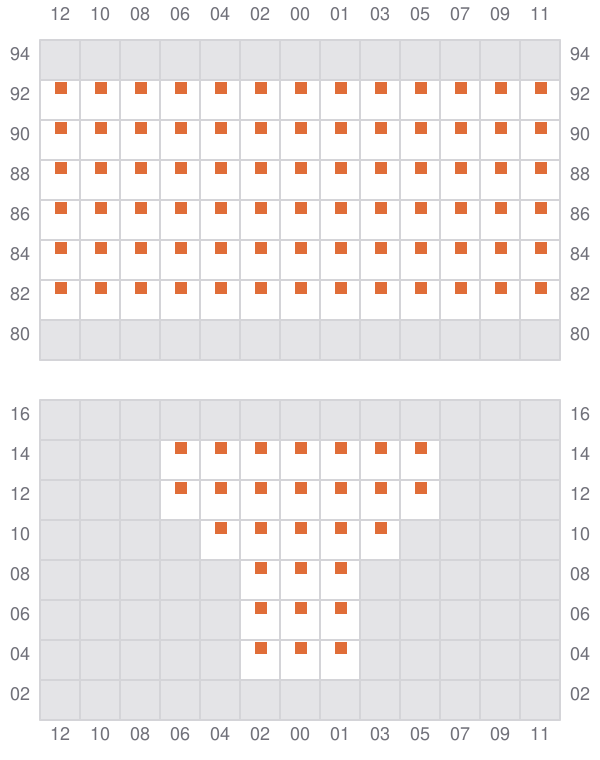

007
- ←
![Bay 007 view and slots of ALS FLORA](/vessel-images/b7bcd830-74e4-4065-b999-2087136d4c96-b007.png?v=1714669618693)

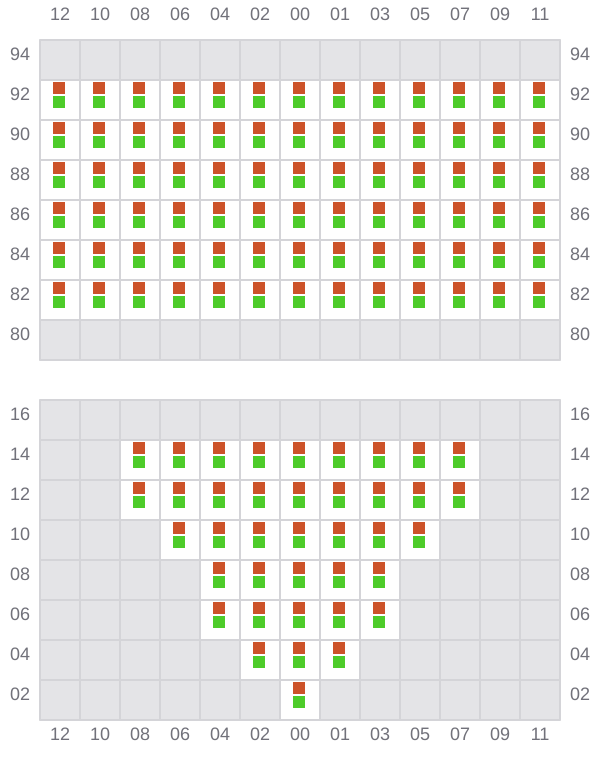

009 (010)
- →
![Bay 009 view and slots of ALS FLORA](/vessel-images/b7bcd830-74e4-4065-b999-2087136d4c96-b009.png?v=1714669618693)

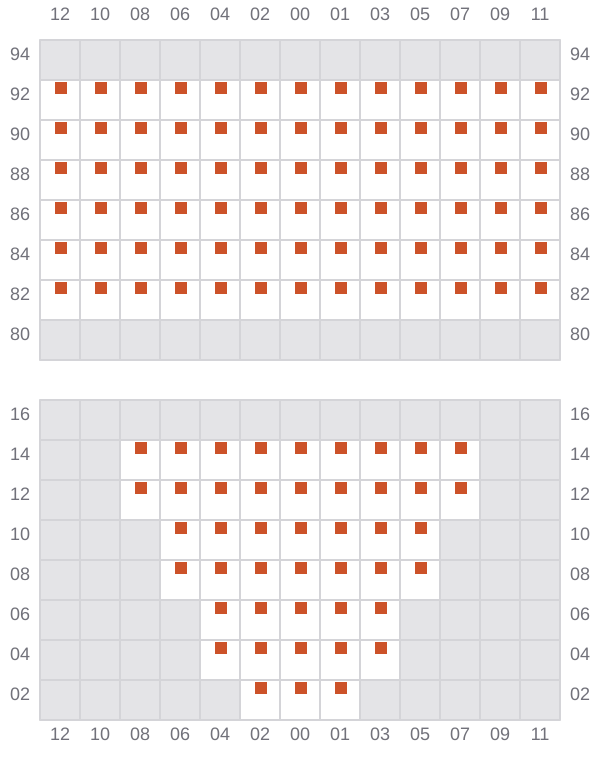

011
- ←
![Bay 011 view and slots of ALS FLORA](/vessel-images/b7bcd830-74e4-4065-b999-2087136d4c96-b011.png?v=1714669618693)

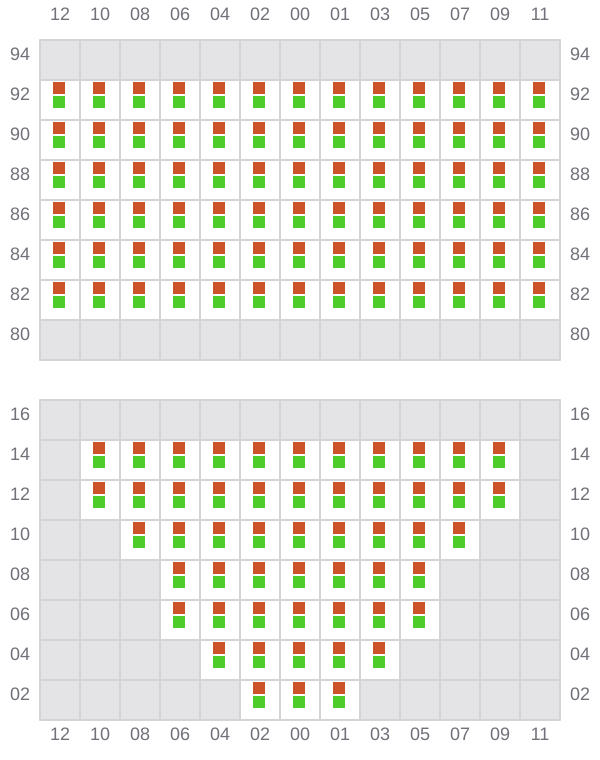

013 (014)
- →
![Bay 013 view and slots of ALS FLORA](/vessel-images/b7bcd830-74e4-4065-b999-2087136d4c96-b013.png?v=1714669618693)

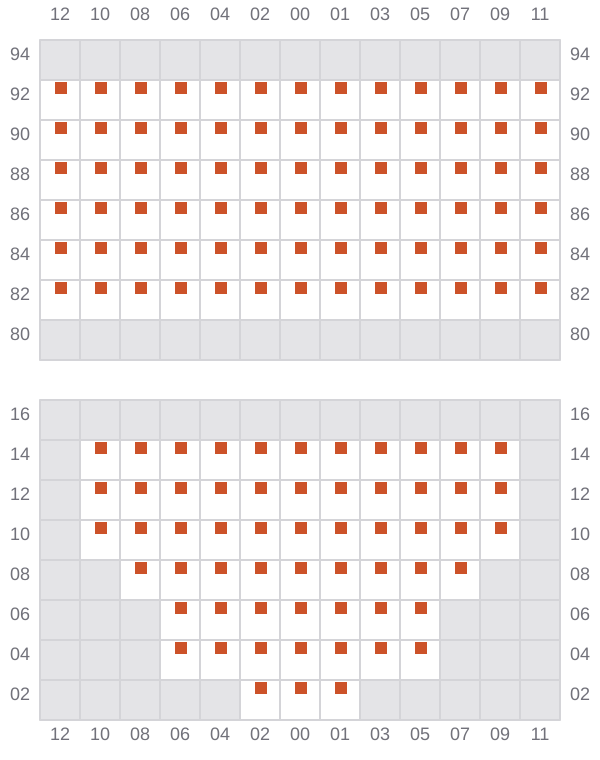

015
- ←
![Bay 015 view and slots of ALS FLORA](/vessel-images/b7bcd830-74e4-4065-b999-2087136d4c96-b015.png?v=1714669618693)

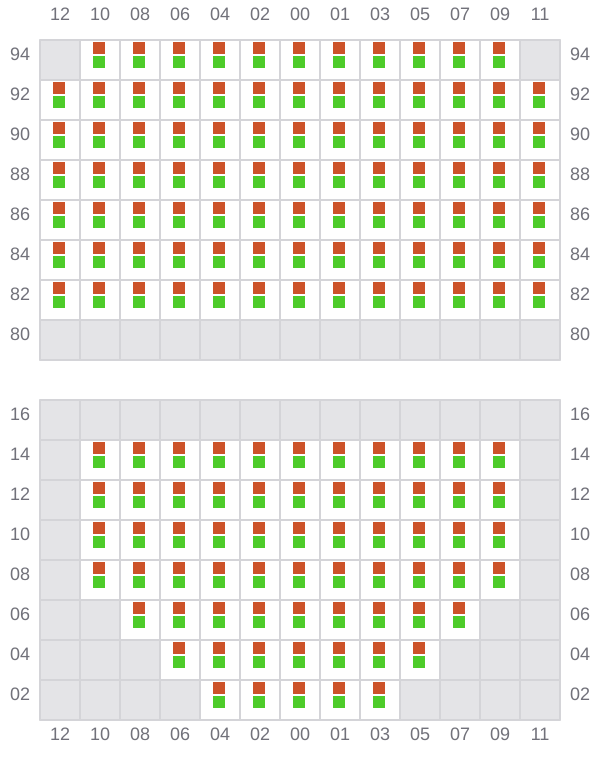

017 (018)
- →
![Bay 017 view and slots of ALS FLORA](/vessel-images/b7bcd830-74e4-4065-b999-2087136d4c96-b017.png?v=1714669618693)

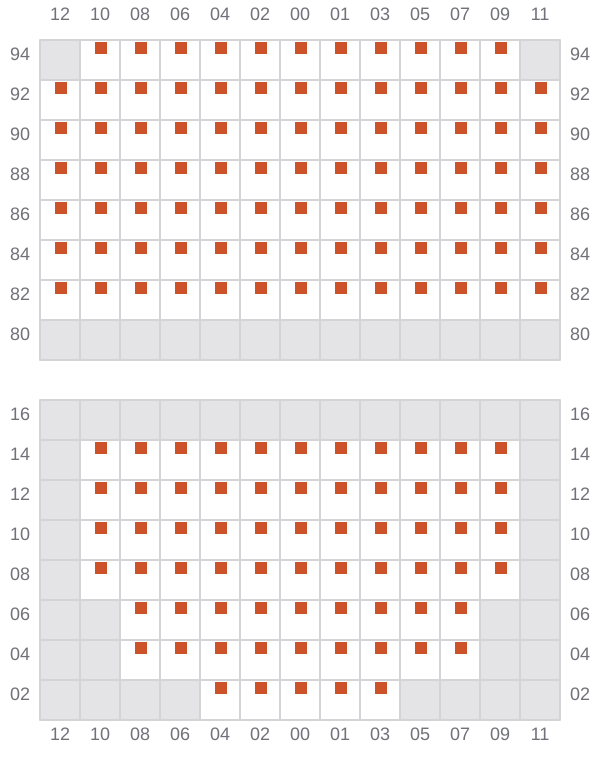

019
- ←
![Bay 019 view and slots of ALS FLORA](/vessel-images/b7bcd830-74e4-4065-b999-2087136d4c96-b019.png?v=1714669618693)

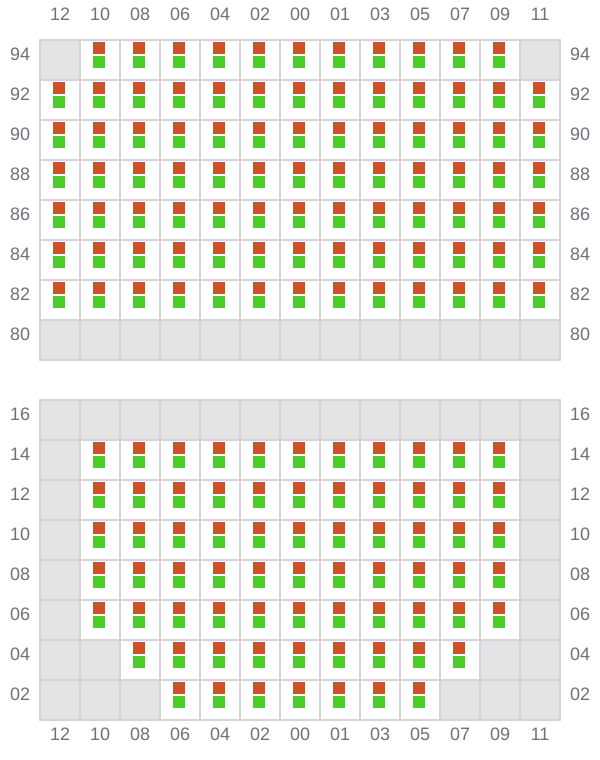

021 (022)
- →
![Bay 021 view and slots of ALS FLORA](/vessel-images/b7bcd830-74e4-4065-b999-2087136d4c96-b021.png?v=1714669618693)

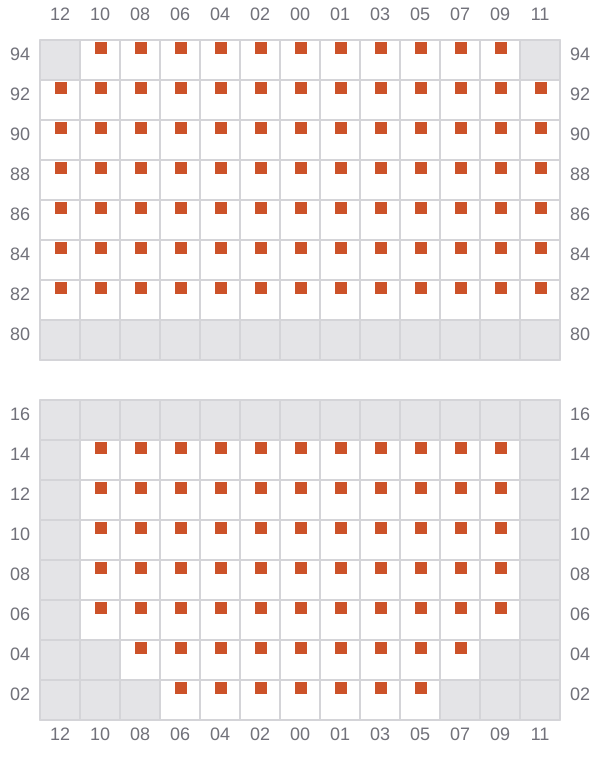

023
- ←
![Bay 023 view and slots of ALS FLORA](/vessel-images/b7bcd830-74e4-4065-b999-2087136d4c96-b023.png?v=1714669618693)
025 (026)
- →
![Bay 025 view and slots of ALS FLORA](/vessel-images/b7bcd830-74e4-4065-b999-2087136d4c96-b025.png?v=1714669618693)

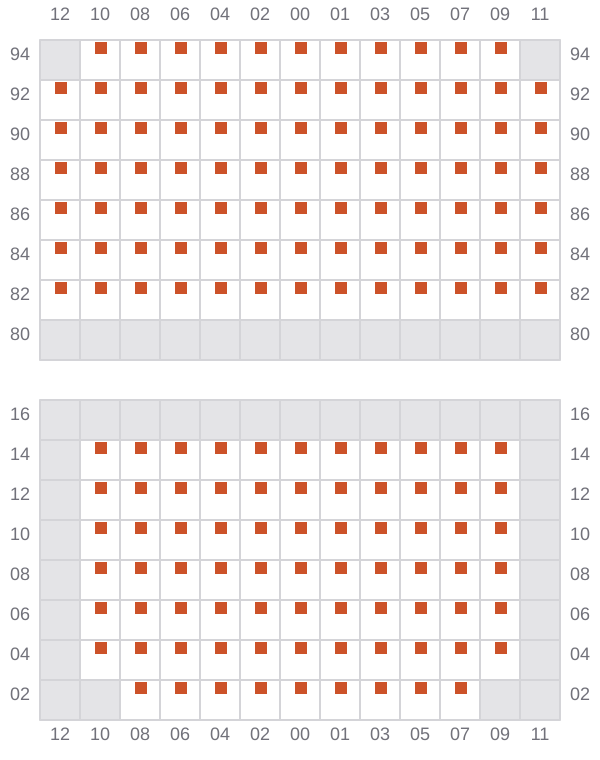

027
- ←
![Bay 027 view and slots of ALS FLORA](/vessel-images/b7bcd830-74e4-4065-b999-2087136d4c96-b027.png?v=1714669618693)
029 (030)
- →
![Bay 029 view and slots of ALS FLORA](/vessel-images/b7bcd830-74e4-4065-b999-2087136d4c96-b029.png?v=1714669618693)
031
- ←
![Bay 031 view and slots of ALS FLORA](/vessel-images/b7bcd830-74e4-4065-b999-2087136d4c96-b031.png?v=1714669618693)
033 (034)
- →
![Bay 033 view and slots of ALS FLORA](/vessel-images/b7bcd830-74e4-4065-b999-2087136d4c96-b033.png?v=1714669618693)

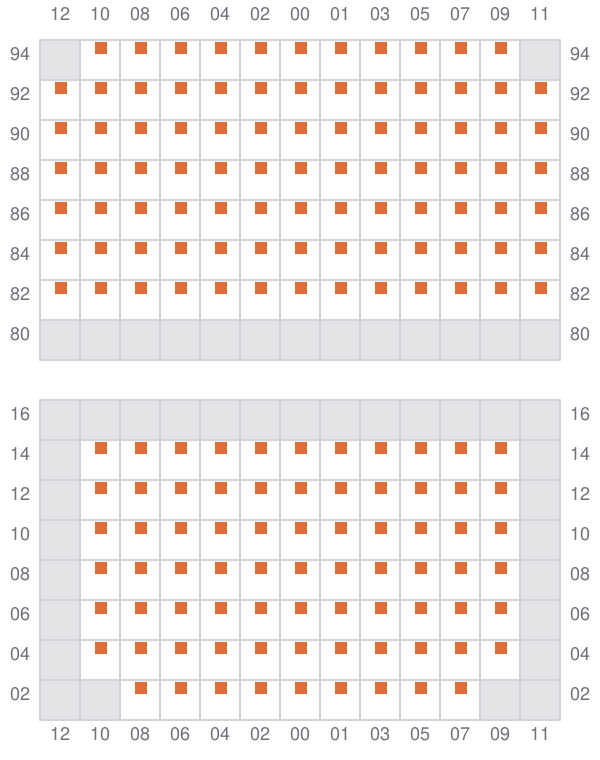

035
- ←
![Bay 035 view and slots of ALS FLORA](/vessel-images/b7bcd830-74e4-4065-b999-2087136d4c96-b035.png?v=1714669618693)

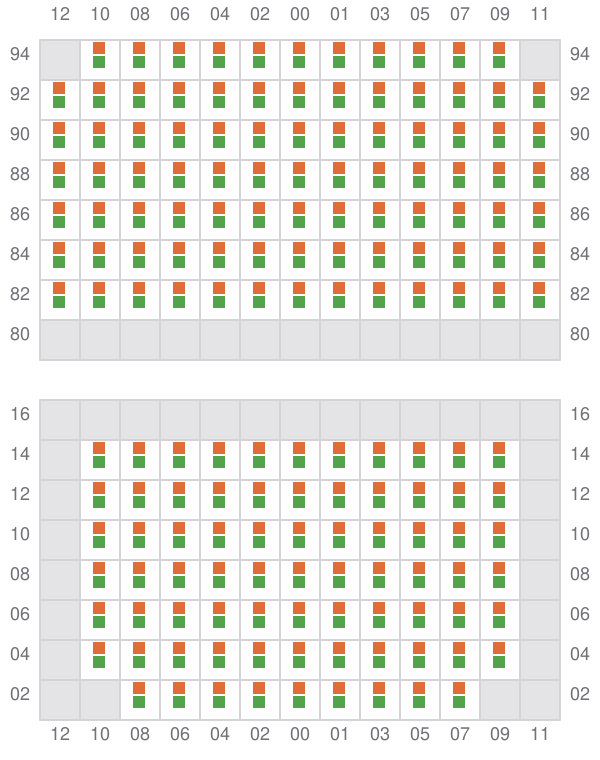

037 (038)
- →
![Bay 037 view and slots of ALS FLORA](/vessel-images/b7bcd830-74e4-4065-b999-2087136d4c96-b037.png?v=1714669618693)
039
- ←
![Bay 039 view and slots of ALS FLORA](/vessel-images/b7bcd830-74e4-4065-b999-2087136d4c96-b039.png?v=1714669618693)

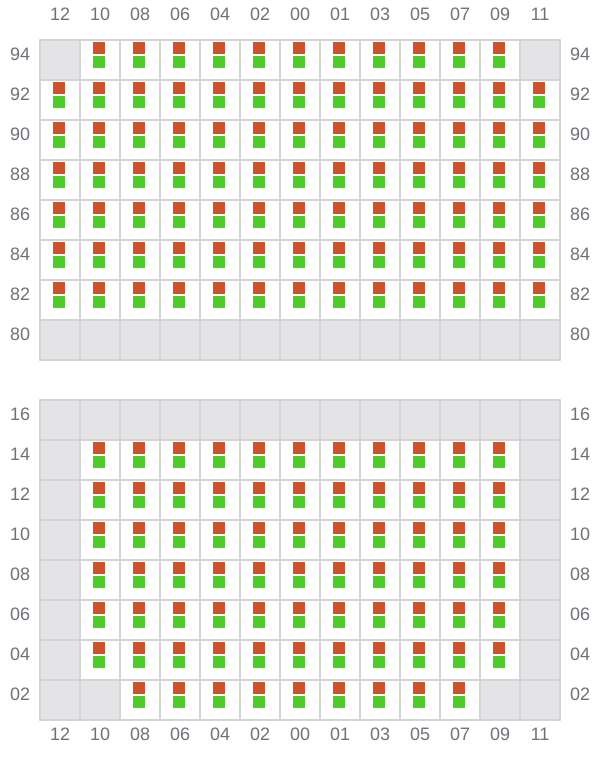

041 (042)
- →
![Bay 041 view and slots of ALS FLORA](/vessel-images/b7bcd830-74e4-4065-b999-2087136d4c96-b041.png?v=1714669618693)
043
- ←
![Bay 043 view and slots of ALS FLORA](/vessel-images/b7bcd830-74e4-4065-b999-2087136d4c96-b043.png?v=1714669618693)

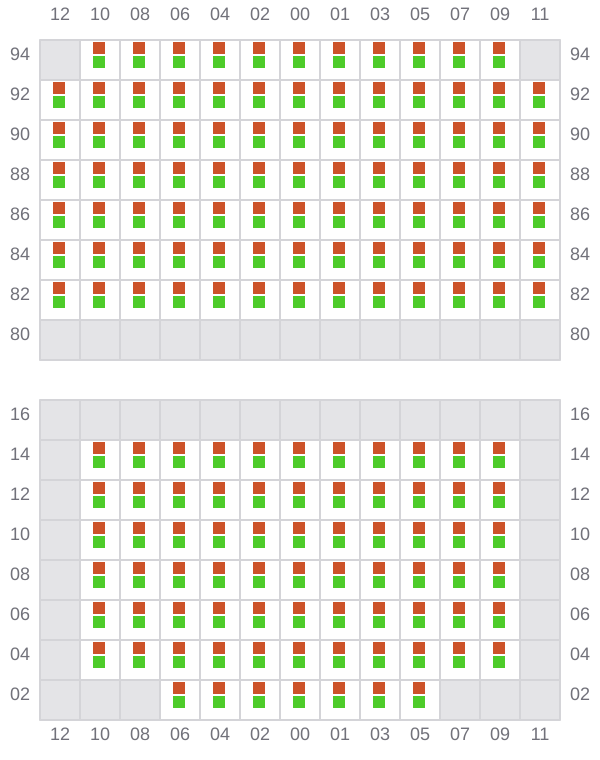

045 (046)
- →
![Bay 045 view and slots of ALS FLORA](/vessel-images/b7bcd830-74e4-4065-b999-2087136d4c96-b045.png?v=1714669618693)

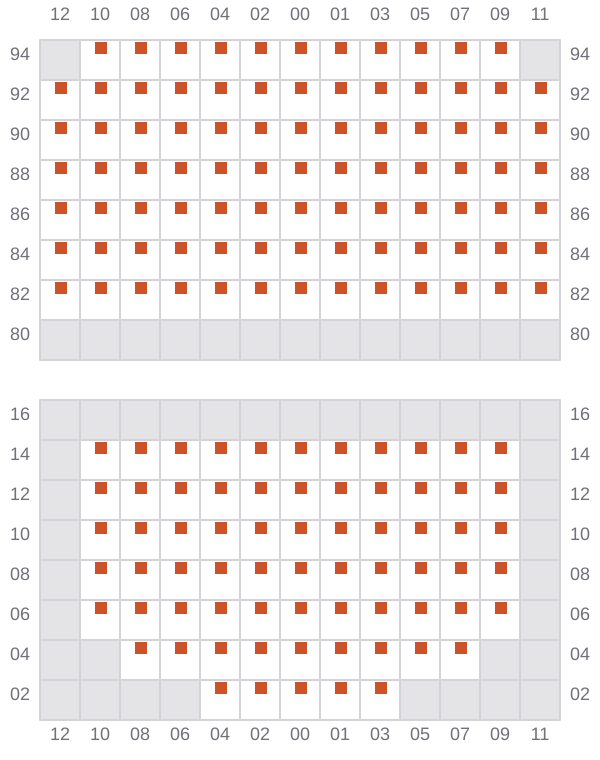

047
- ←
![Bay 047 view and slots of ALS FLORA](/vessel-images/b7bcd830-74e4-4065-b999-2087136d4c96-b047.png?v=1714669618693)

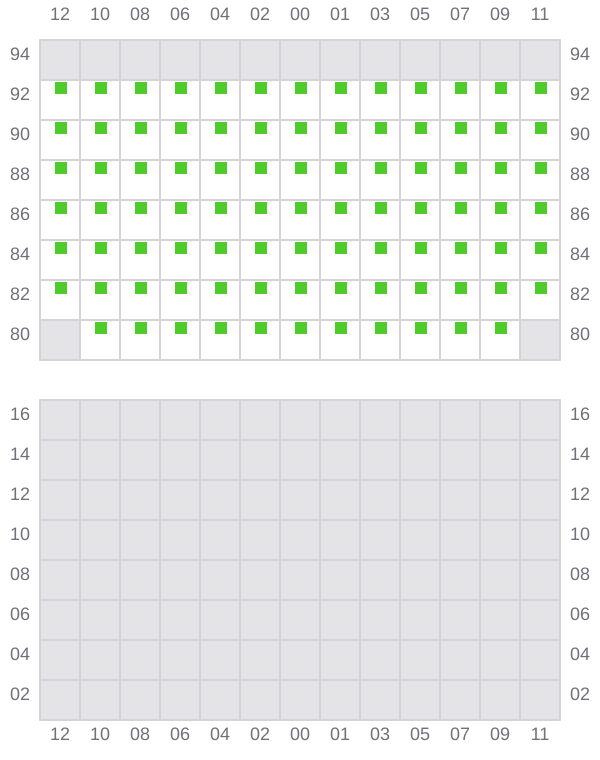

049 (050)
- → / ?
![Bay 049 view and slots of ALS FLORA](/vessel-images/b7bcd830-74e4-4065-b999-2087136d4c96-b049.png?v=1714669618693)
051
![Bay 051 view and slots of ALS FLORA](/vessel-images/b7bcd830-74e4-4065-b999-2087136d4c96-b051.png?v=1714669618693)

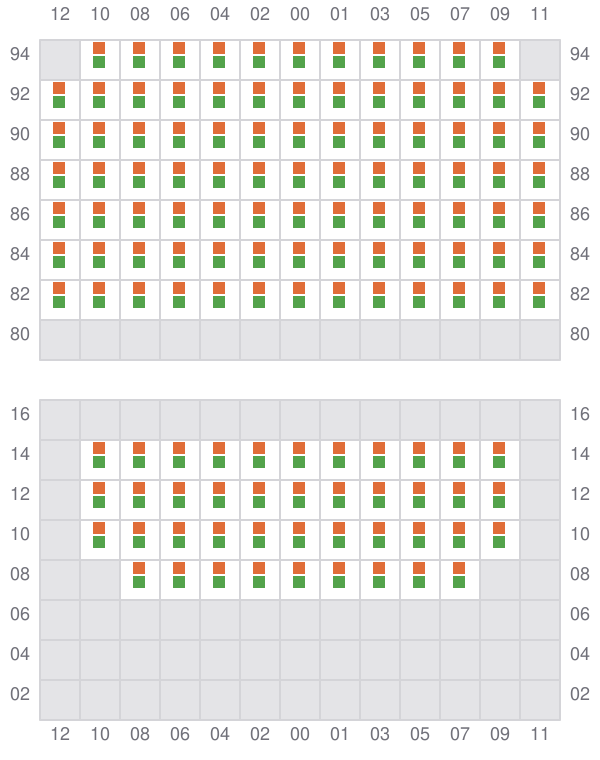

053 (054)
- →
![Bay 053 view and slots of ALS FLORA](/vessel-images/b7bcd830-74e4-4065-b999-2087136d4c96-b053.png?v=1714669618693)
055
- ←
![Bay 055 view and slots of ALS FLORA](/vessel-images/b7bcd830-74e4-4065-b999-2087136d4c96-b055.png?v=1714669618693)

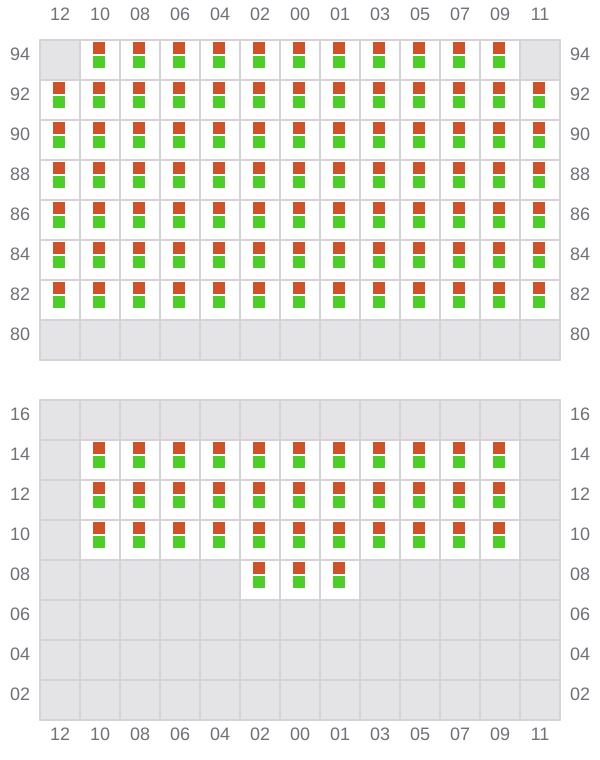

057 (058)
- →
![Bay 057 view and slots of ALS FLORA](/vessel-images/b7bcd830-74e4-4065-b999-2087136d4c96-b057.png?v=1714669618693)

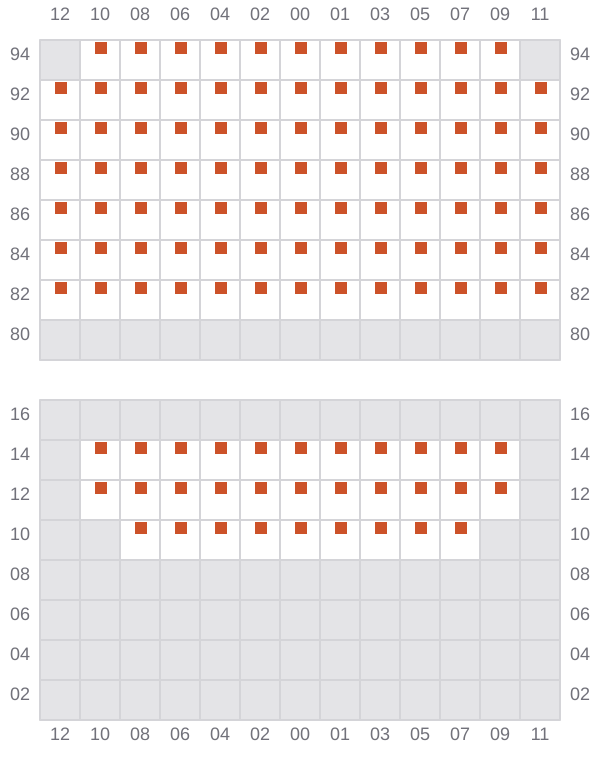

059
- ←
![Bay 059 view and slots of ALS FLORA](/vessel-images/b7bcd830-74e4-4065-b999-2087136d4c96-b059.png?v=1714669618693)

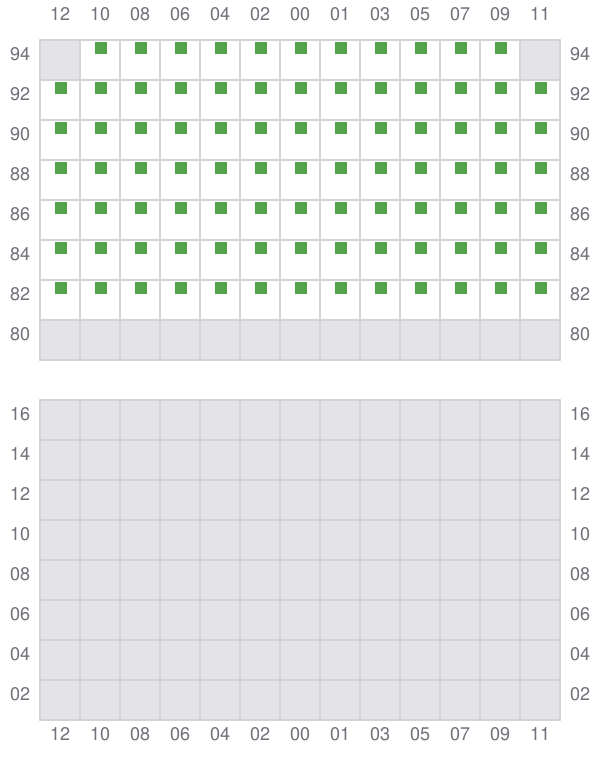

061 (062)
- → / ?
![Bay 061 view and slots of ALS FLORA](/vessel-images/b7bcd830-74e4-4065-b999-2087136d4c96-b061.png?v=1714669618693)
