ALTAMIRA EXPRESS
9407146 | VRFN8 | HAP by ************************** Last update: Mon Jul 03 2023

General Info

Ship Name:ALTAMIRA EXPRESS
IMO Code:9407146
Call Sign:VRFN8
Line Operator:HAP
Class Name for Sister Ships:ALT
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):283.20
LOA (Length Overall):294.13
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-

Size Summary

ISO Bays:061
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:3,266

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

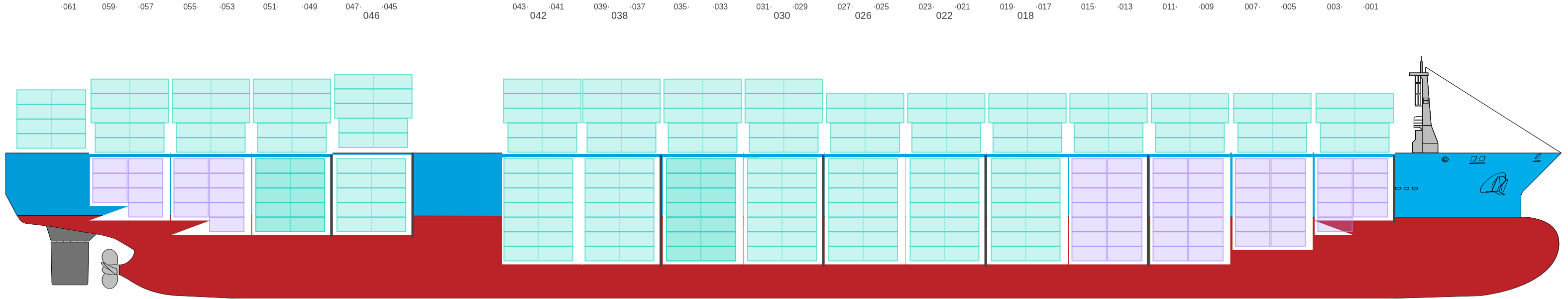

Side view of ALTAMIRA EXPRESS

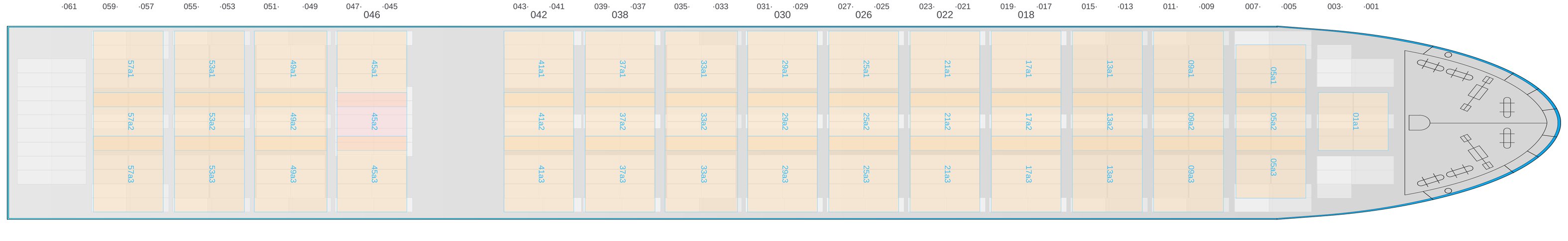

Hatch-Covers View

Deck view of ALTAMIRA EXPRESS

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

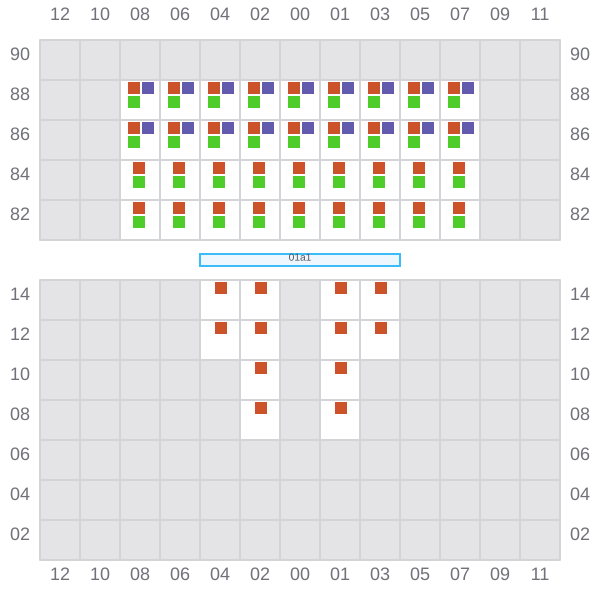

001 (002)

  • → / ?
  • → / ?
Bay 001 view and slots of ALTAMIRA EXPRESS

003

  • ← / ?
  • → / ?

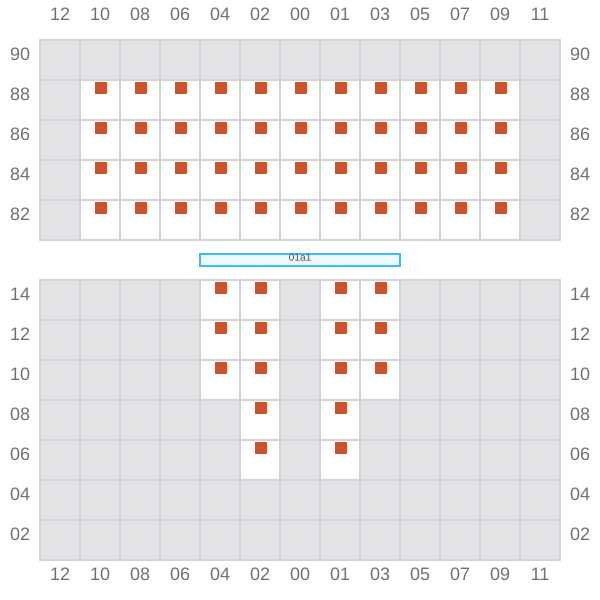

Bay 003 view and slots of ALTAMIRA EXPRESS

005 (006)

  • → / ?
  • →

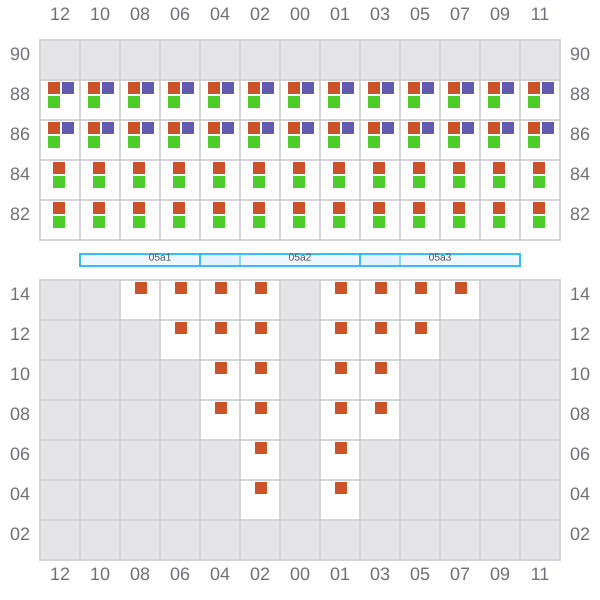

Bay 005 view and slots of ALTAMIRA EXPRESS

007

  • ← / ?
  • →

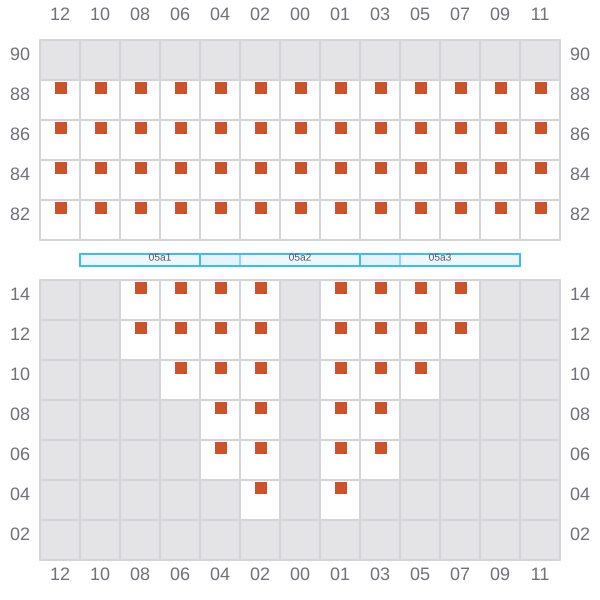

Bay 007 view and slots of ALTAMIRA EXPRESS

009 (010)

  • → / ?
  • →

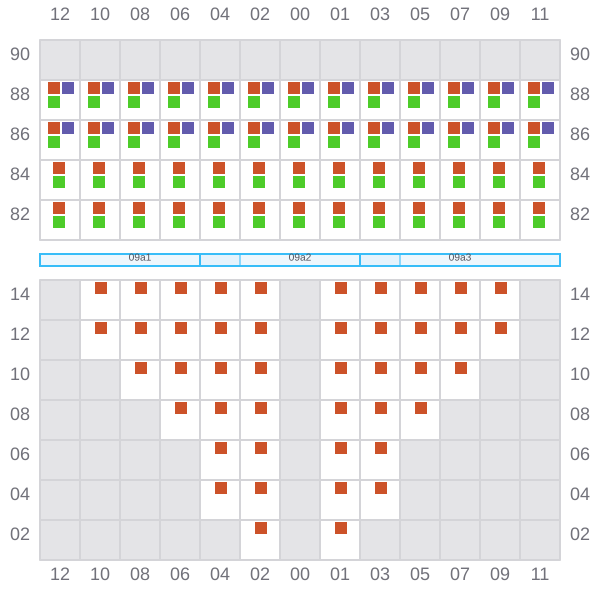

Bay 009 view and slots of ALTAMIRA EXPRESS

011

  • ← / ?
  • →
Bay 011 view and slots of ALTAMIRA EXPRESS

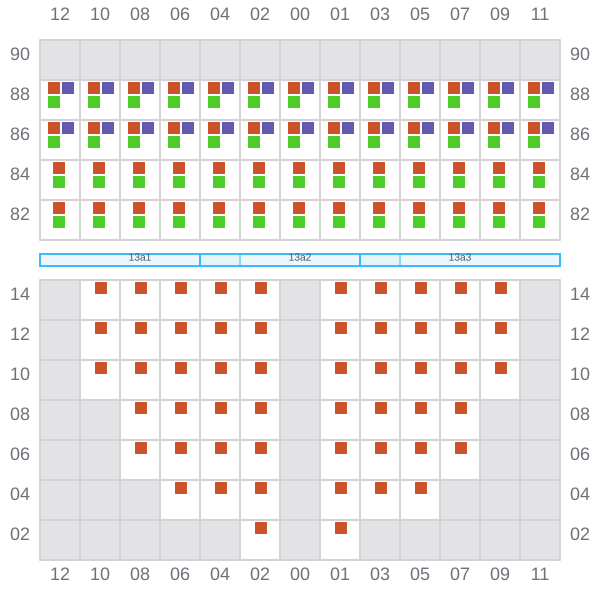

013 (014)

  • → / ?
  • →
Bay 013 view and slots of ALTAMIRA EXPRESS

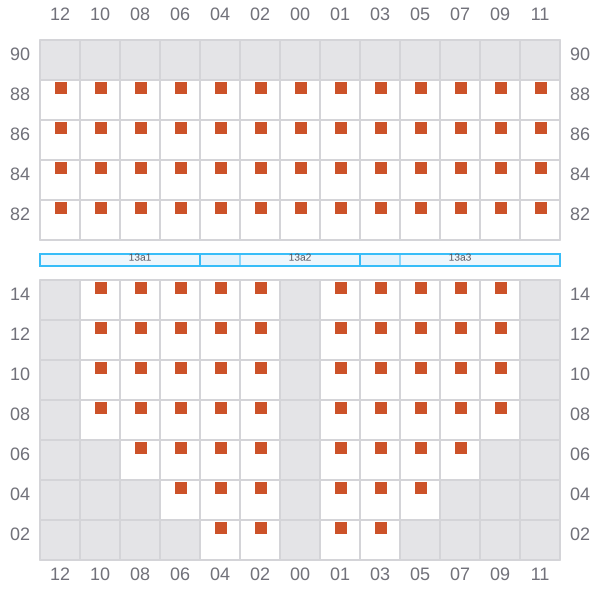

015

  • ← / ?
  • →
Bay 015 view and slots of ALTAMIRA EXPRESS

017 (018)

  • →
  • →

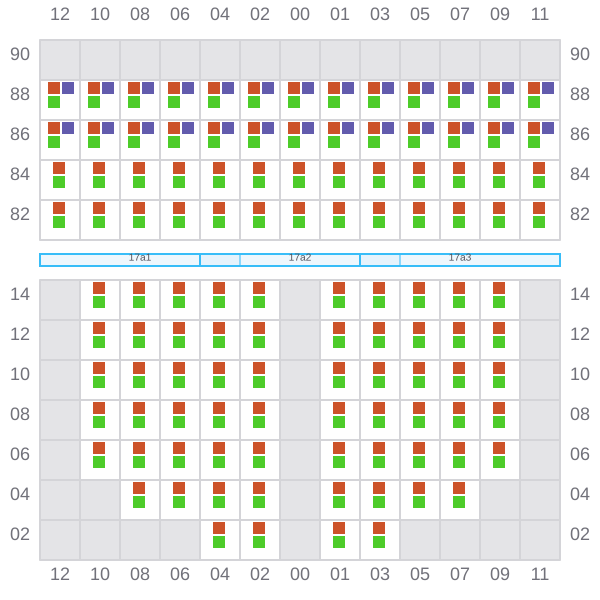

Bay 017 view and slots of ALTAMIRA EXPRESS

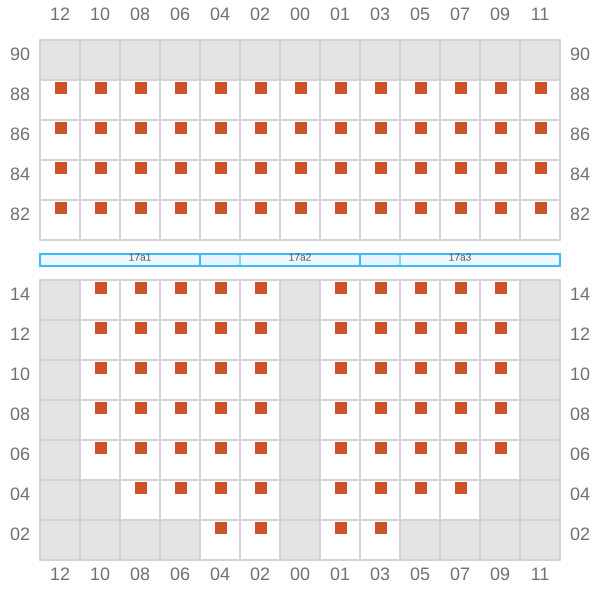

019

  • ←
  • → / ?
Bay 019 view and slots of ALTAMIRA EXPRESS

021 (022)

  • →
  • →

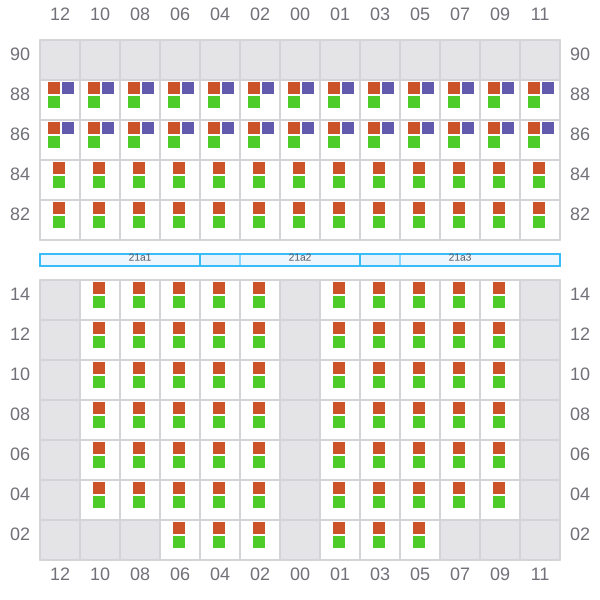

Bay 021 view and slots of ALTAMIRA EXPRESS

023

  • ←
  • →
Bay 023 view and slots of ALTAMIRA EXPRESS

025 (026)

  • →
  • →

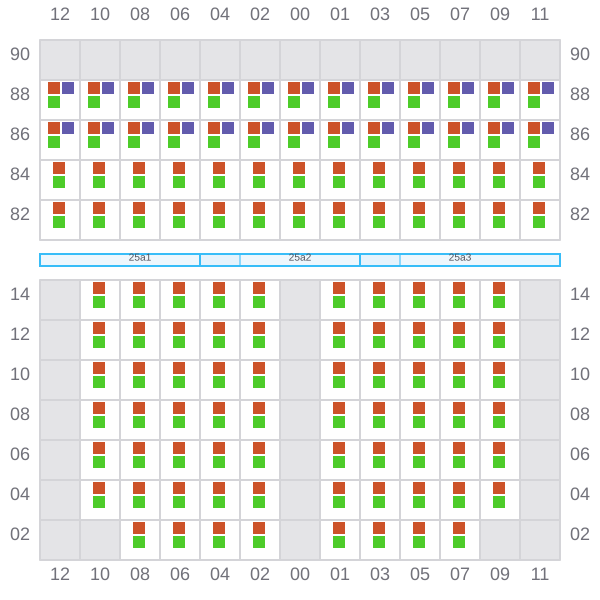

Bay 025 view and slots of ALTAMIRA EXPRESS

027

  • ←
  • →
Bay 027 view and slots of ALTAMIRA EXPRESS

029 (030)

  • →
  • → / ?
  • →

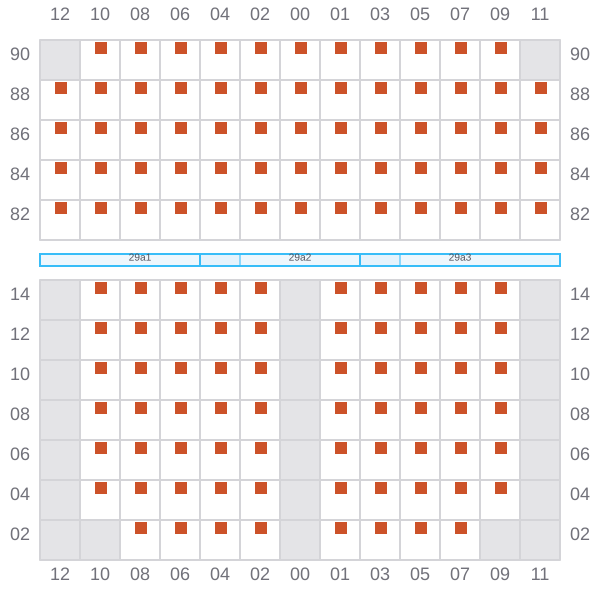

Bay 029 view and slots of ALTAMIRA EXPRESS

031

  • ←
  • →
Bay 031 view and slots of ALTAMIRA EXPRESS

033 (034)

  • →
  • → / ?
  • →

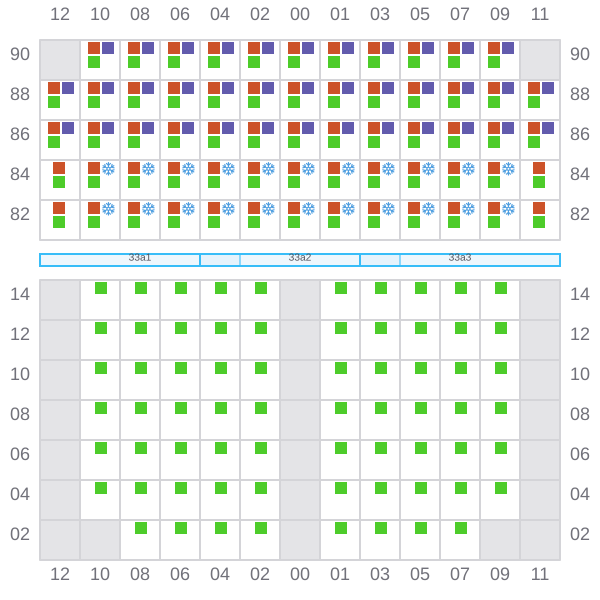

Bay 033 view and slots of ALTAMIRA EXPRESS

035

  • ← / ?
  • → / ?
Bay 035 view and slots of ALTAMIRA EXPRESS

037 (038)

  • →
  • → / ?
  • →
Bay 037 view and slots of ALTAMIRA EXPRESS

039

  • ←
  • →
Bay 039 view and slots of ALTAMIRA EXPRESS

041 (042)

  • →
  • → / ?
  • → / ?

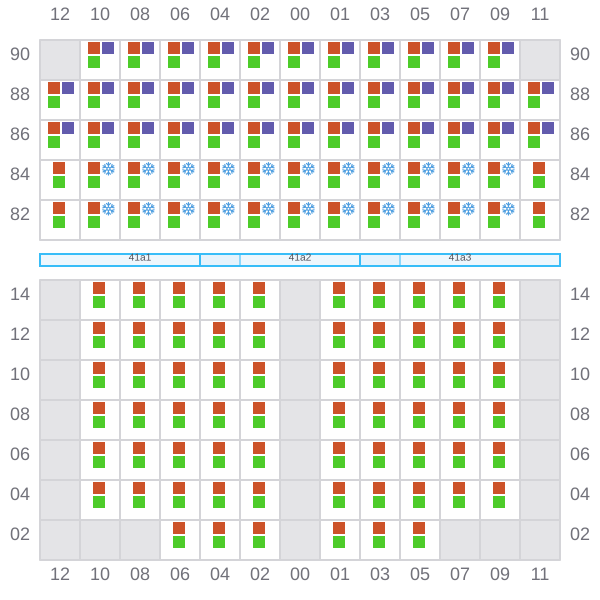

Bay 041 view and slots of ALTAMIRA EXPRESS

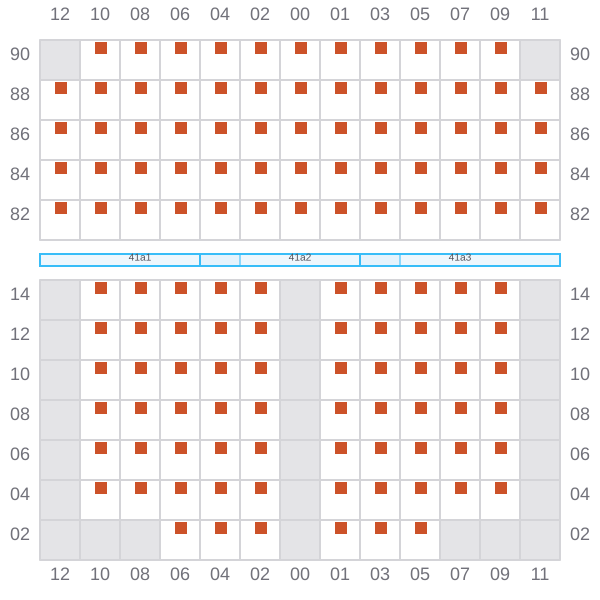

043

  • ←
  • →
Bay 043 view and slots of ALTAMIRA EXPRESS

045 (046)

  • →
  • → / ?
  • → / ?

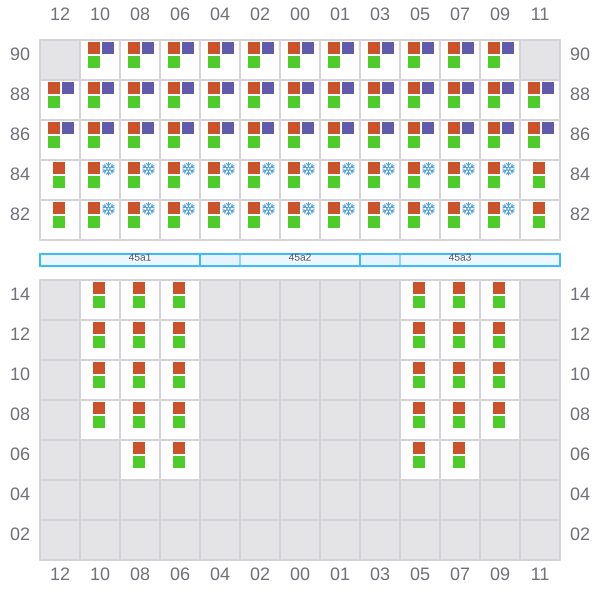

Bay 045 view and slots of ALTAMIRA EXPRESS

047

  • ←
  • →
Bay 047 view and slots of ALTAMIRA EXPRESS

049 (050)

  • →
  • → / ?
  • →
Bay 049 view and slots of ALTAMIRA EXPRESS

051

  • ← / ?
  • → / ?
Bay 051 view and slots of ALTAMIRA EXPRESS

053 (054)

  • → / ?
  • → / ?
  • → / ?

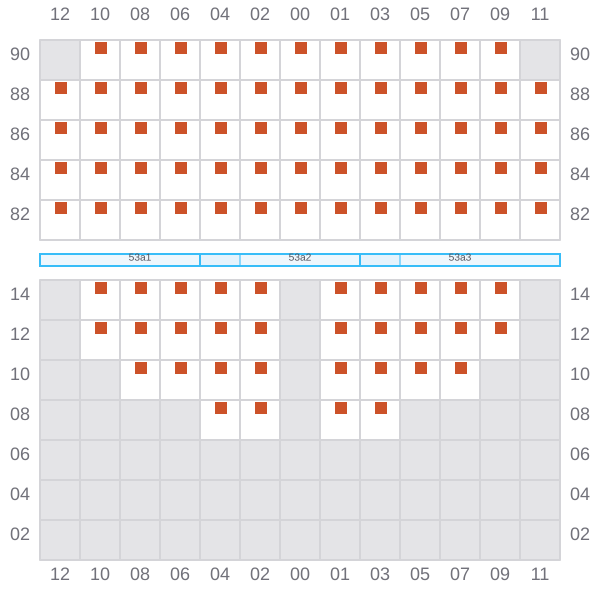

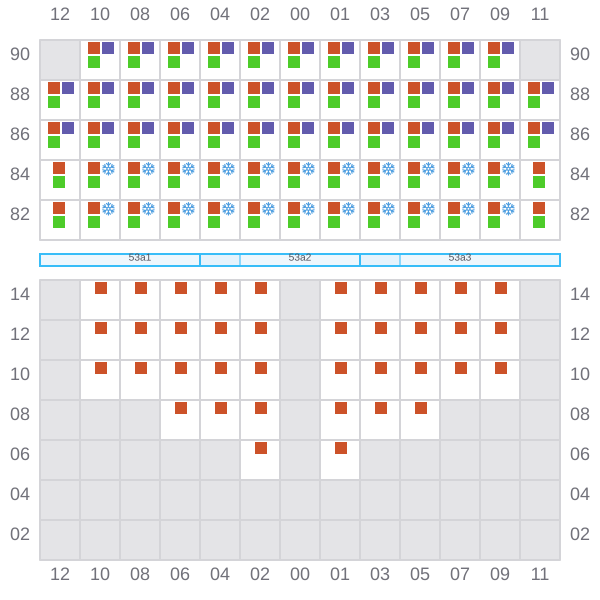

Bay 053 view and slots of ALTAMIRA EXPRESS

055

  • ← / ?
  • →
Bay 055 view and slots of ALTAMIRA EXPRESS

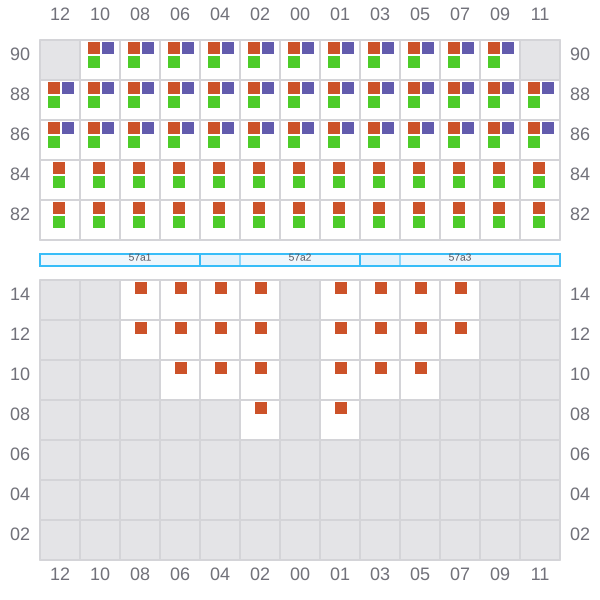

057 (058)

  • → / ?
  • →
Bay 057 view and slots of ALTAMIRA EXPRESS

059

  • ← / ?
  • →

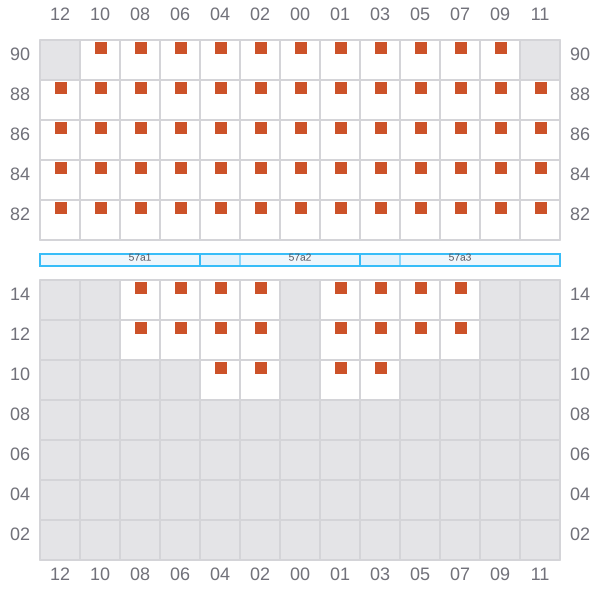

Bay 059 view and slots of ALTAMIRA EXPRESS

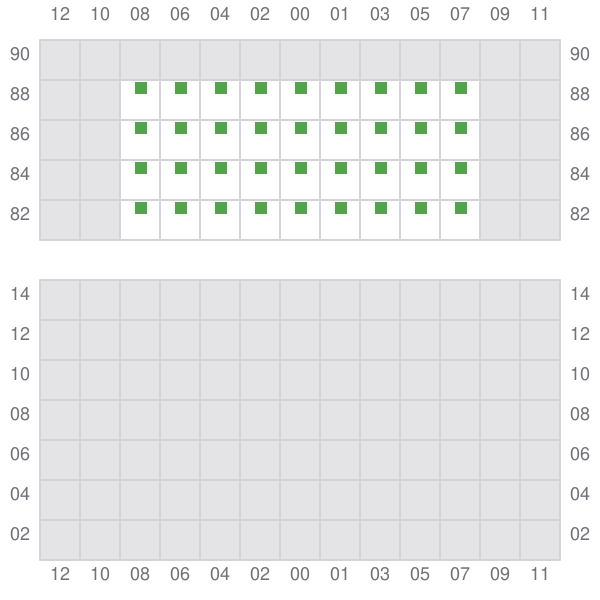

061 (062)

  • → / ?
  • → / ?
Bay 061 view and slots of ALTAMIRA EXPRESS
