ALTAMIRA EXPRESS
9407146 | VRFN8 | MOL by *********************** Last update: Tue Jan 28 2025

General Info

Ship Name:ALTAMIRA EXPRESS
IMO Code:9407146
Call Sign:VRFN8
Line Operator:MOL
Class Name for Sister Ships:MEMI
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):283.20
LOA (Length Overall):294.13
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:069
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:5,087

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Known
TCG Data:100%

Side View

Side view of ALTAMIRA EXPRESS

Hatch-Covers View

Deck view of ALTAMIRA EXPRESS

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

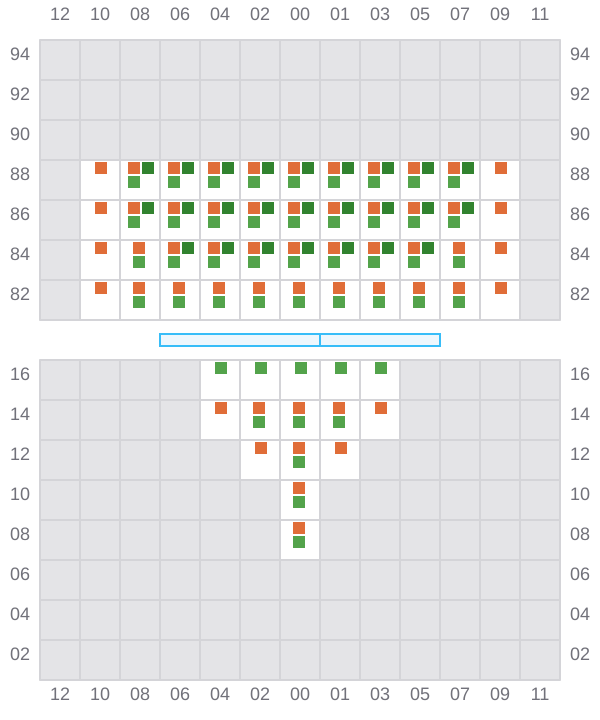

001

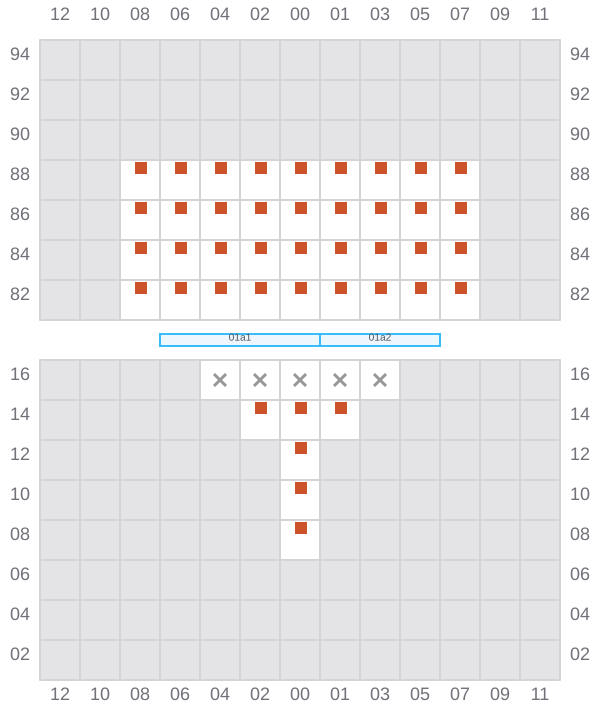

Bay 001 view and slots of ALTAMIRA EXPRESS

003 (002)

Bay 003 view and slots of ALTAMIRA EXPRESS

005

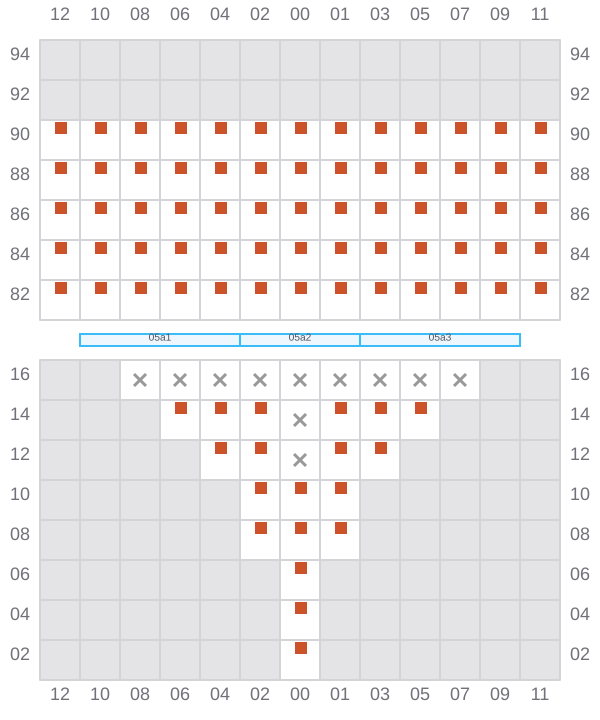

Bay 005 view and slots of ALTAMIRA EXPRESS

007 (006)

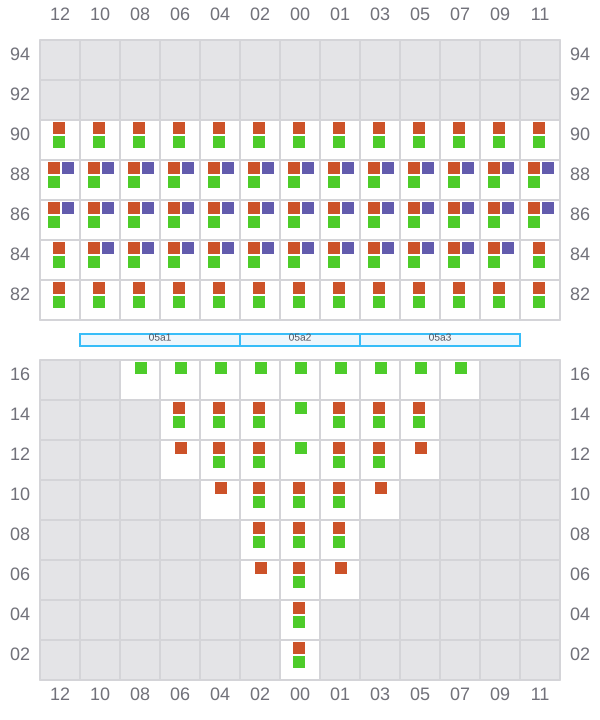

Bay 007 view and slots of ALTAMIRA EXPRESS

009

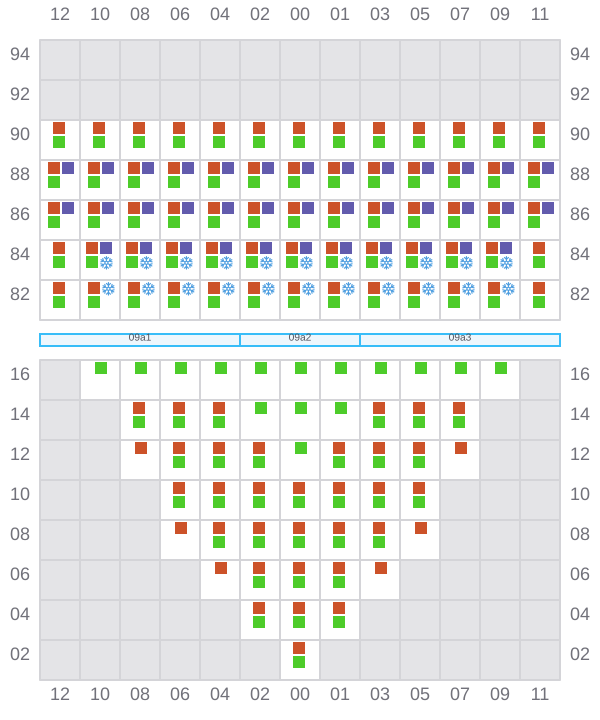

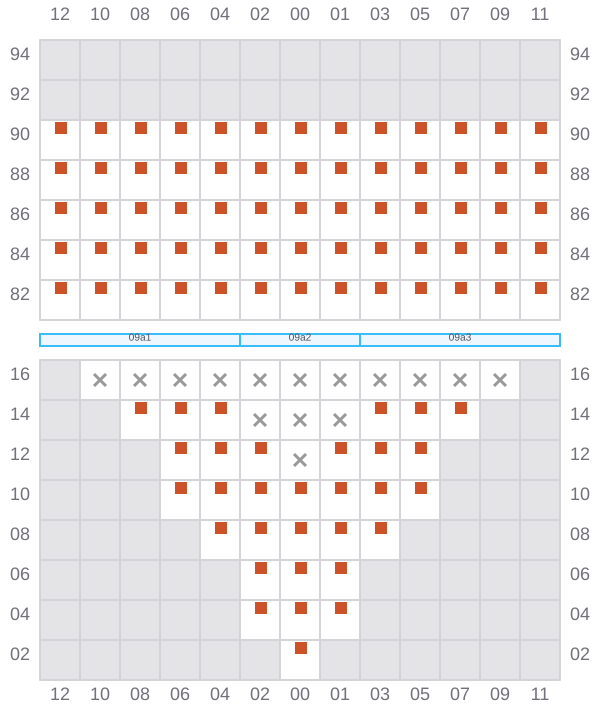

Bay 009 view and slots of ALTAMIRA EXPRESS

011 (010)

  • / ?
Bay 011 view and slots of ALTAMIRA EXPRESS

013

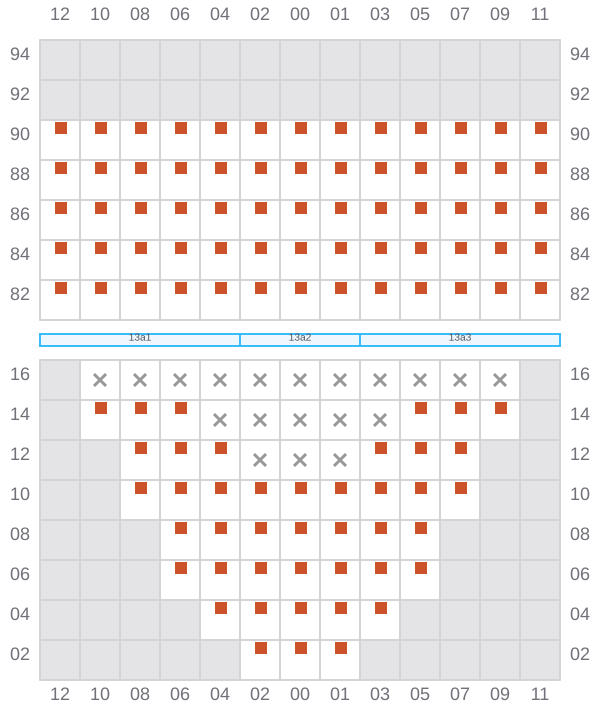

Bay 013 view and slots of ALTAMIRA EXPRESS

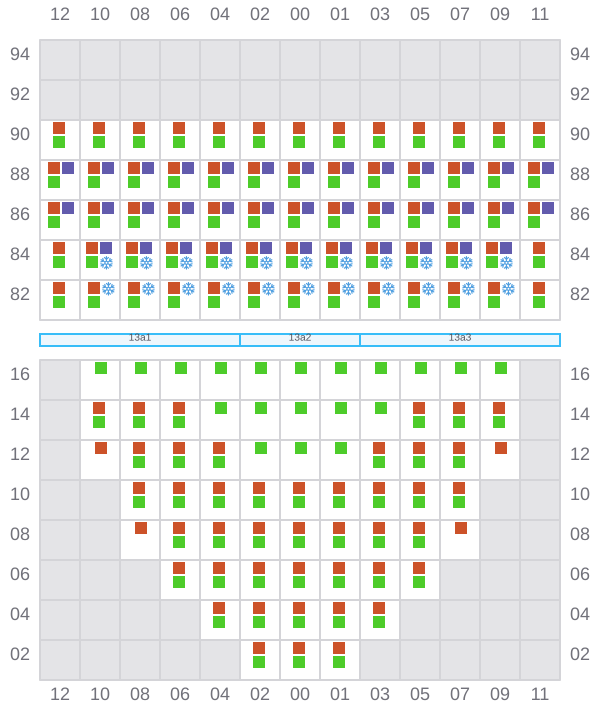

015 (014)

  • / ?
Bay 015 view and slots of ALTAMIRA EXPRESS

017

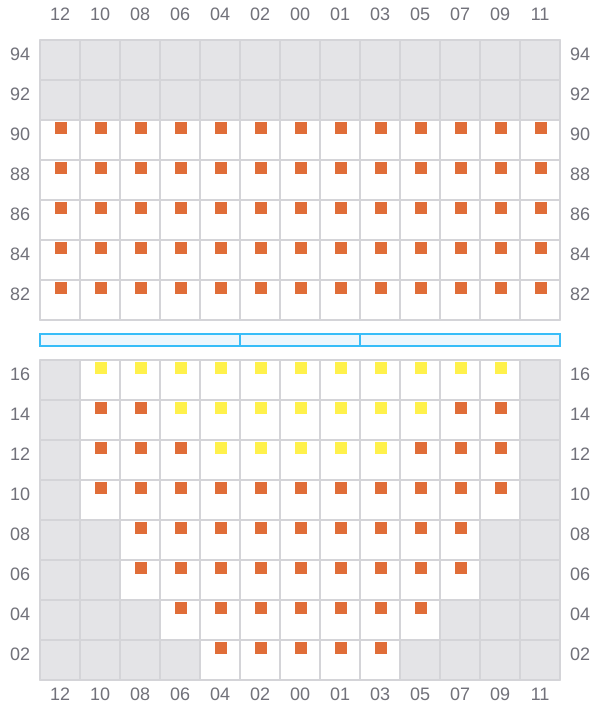

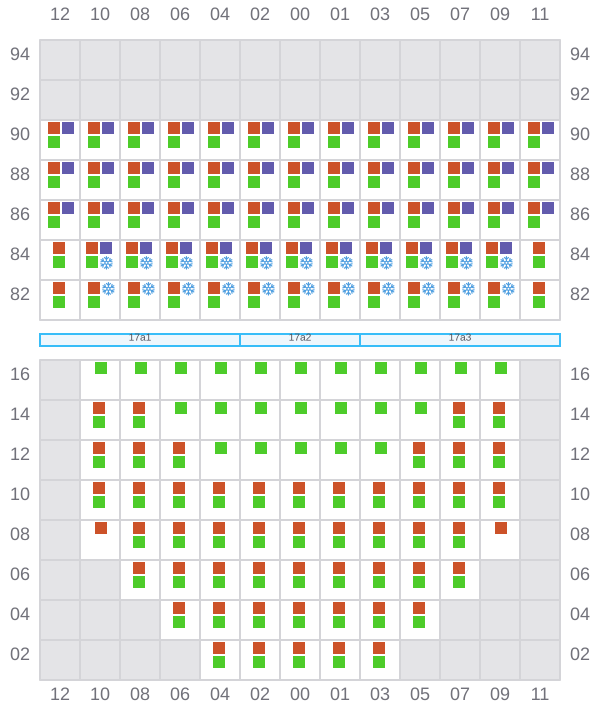

Bay 017 view and slots of ALTAMIRA EXPRESS

019 (018)

  • / ?
Bay 019 view and slots of ALTAMIRA EXPRESS

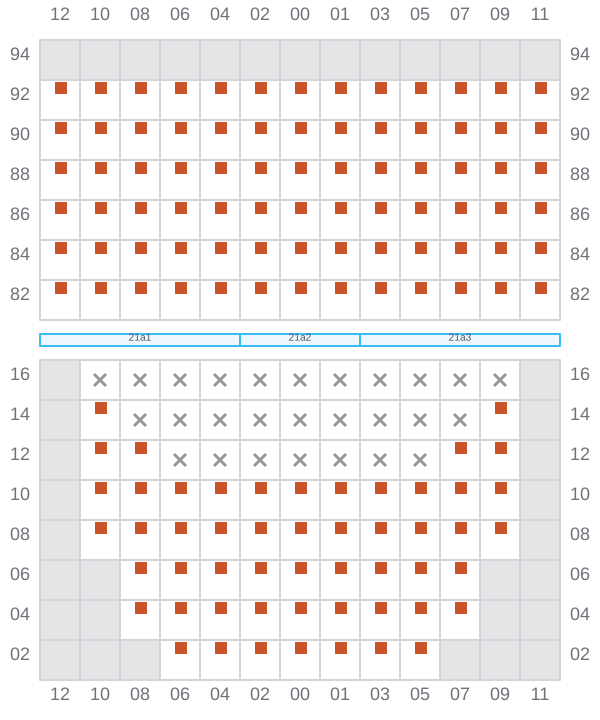

021

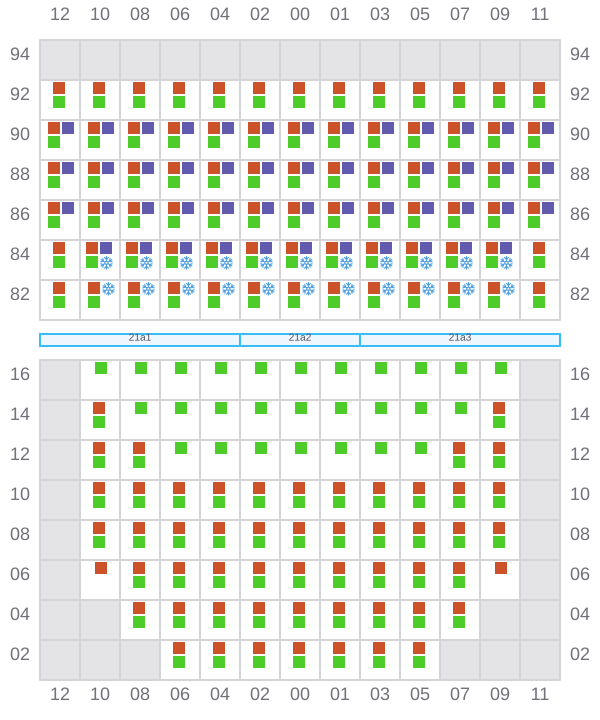

Bay 021 view and slots of ALTAMIRA EXPRESS

023 (022)

  • / ?
Bay 023 view and slots of ALTAMIRA EXPRESS

025

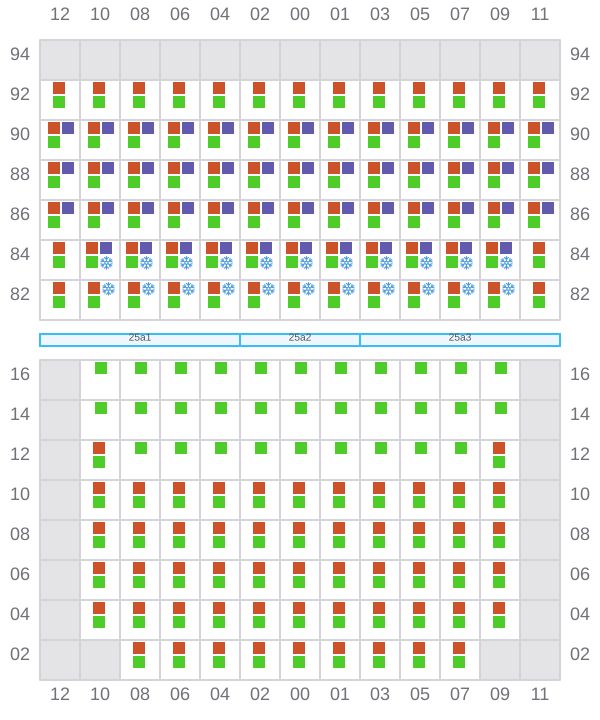

Bay 025 view and slots of ALTAMIRA EXPRESS

027 (026)

  • / ?
Bay 027 view and slots of ALTAMIRA EXPRESS

029

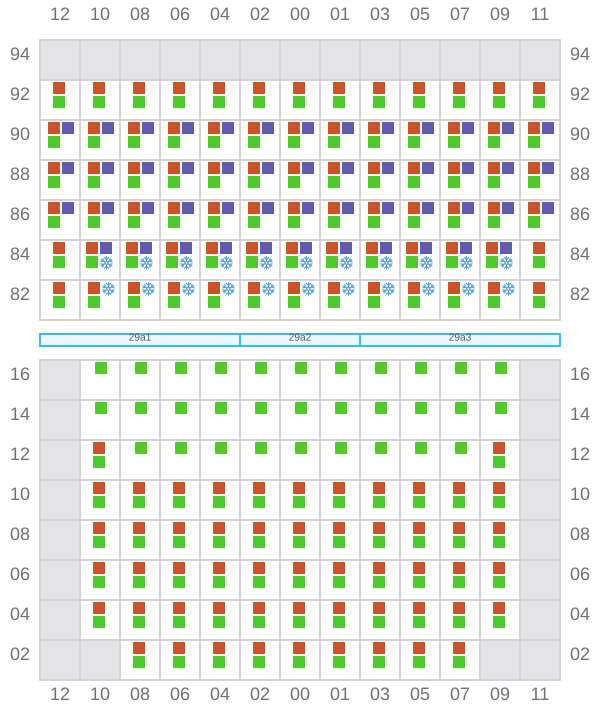

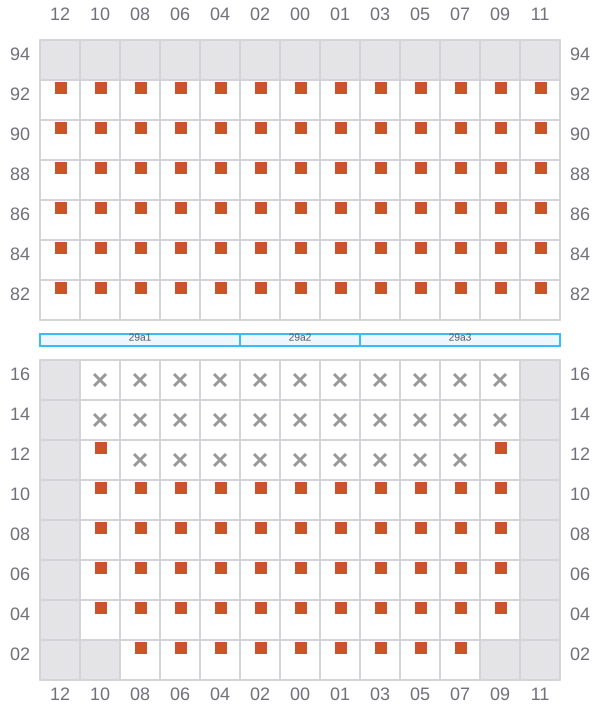

Bay 029 view and slots of ALTAMIRA EXPRESS

031 (030)

  • / ?
Bay 031 view and slots of ALTAMIRA EXPRESS

033

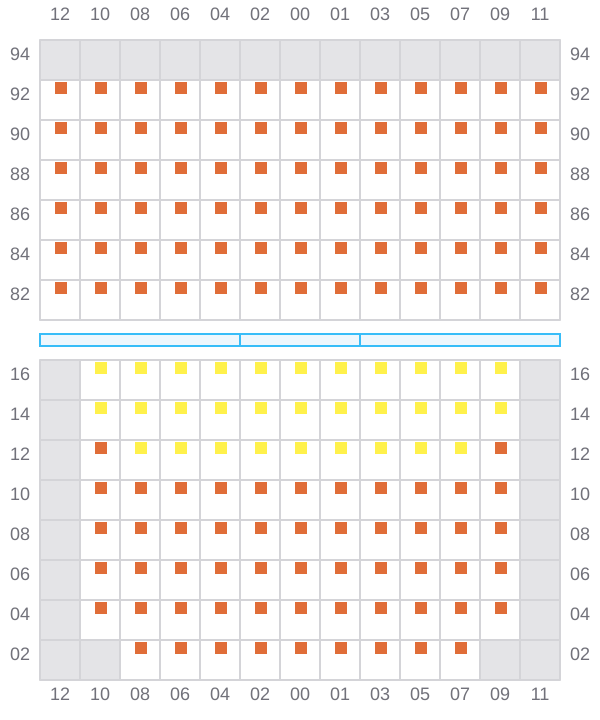

Bay 033 view and slots of ALTAMIRA EXPRESS

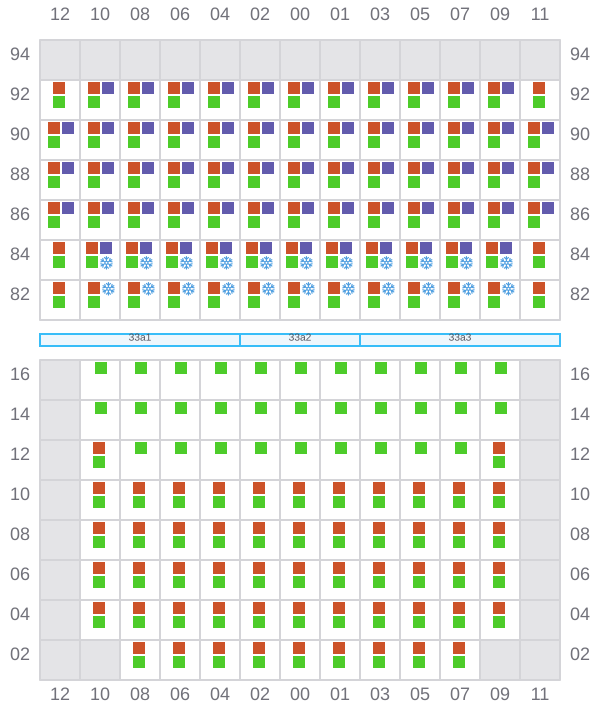

035 (034)

  • / ?
Bay 035 view and slots of ALTAMIRA EXPRESS

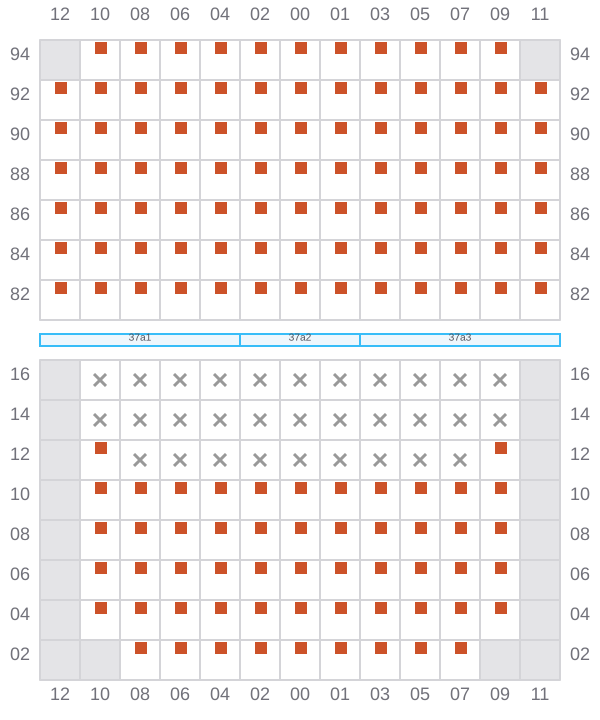

037

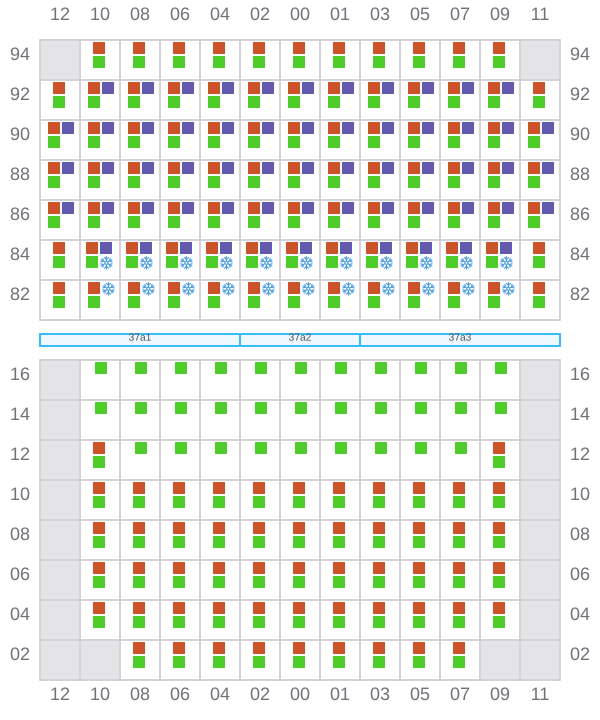

Bay 037 view and slots of ALTAMIRA EXPRESS

039 (038)

  • / ?
Bay 039 view and slots of ALTAMIRA EXPRESS

041

Bay 041 view and slots of ALTAMIRA EXPRESS

043 (042)

  • / ?
Bay 043 view and slots of ALTAMIRA EXPRESS

045

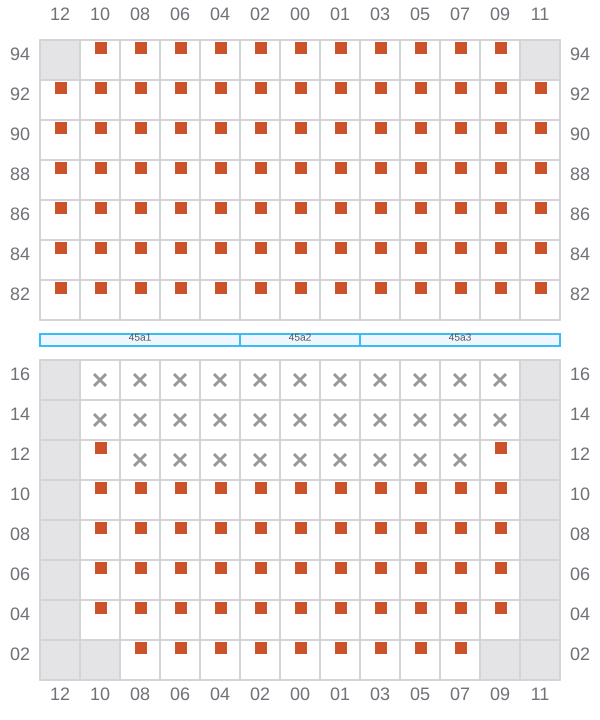

Bay 045 view and slots of ALTAMIRA EXPRESS

047 (046)

  • / ?

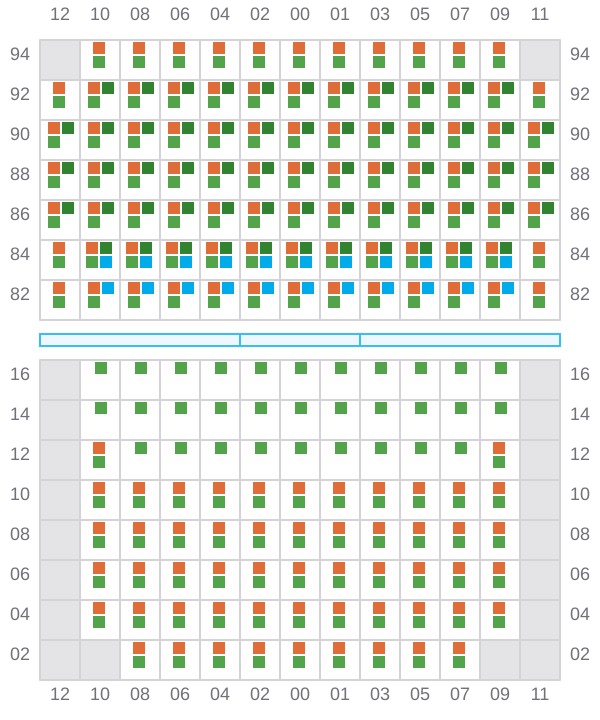

Bay 047 view and slots of ALTAMIRA EXPRESS

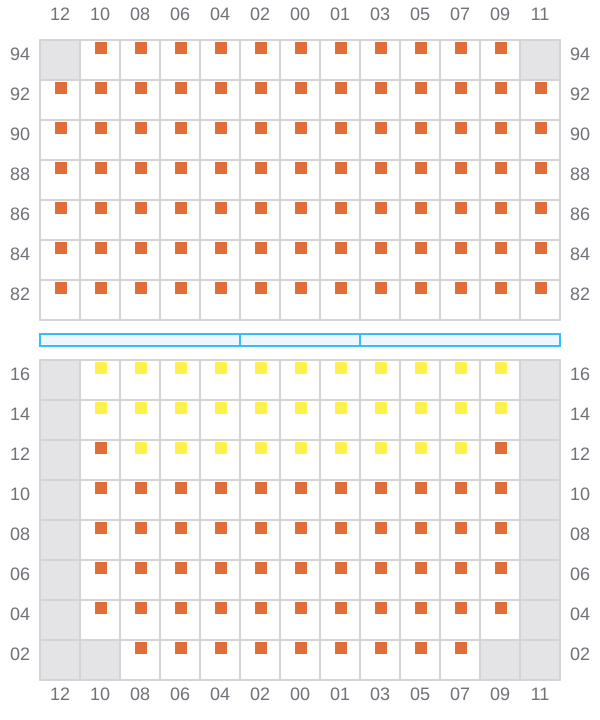

049

Bay 049 view and slots of ALTAMIRA EXPRESS

051 (050)

  • / ?
Bay 051 view and slots of ALTAMIRA EXPRESS

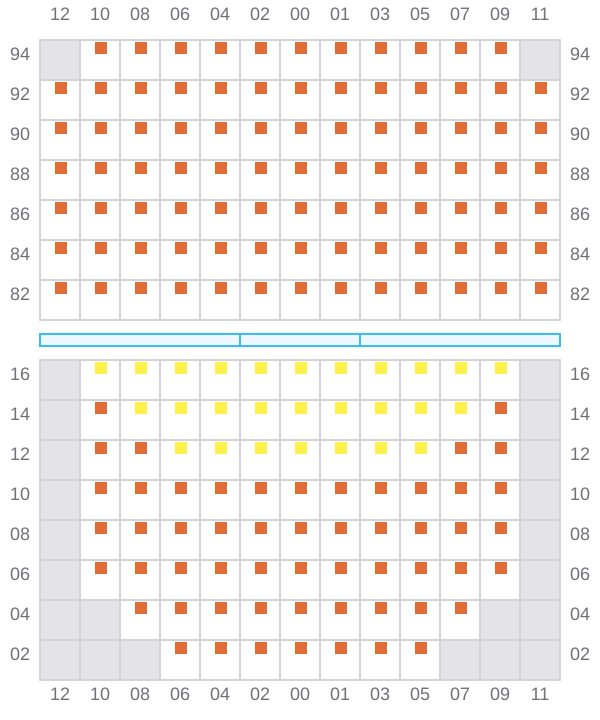

053

Bay 053 view and slots of ALTAMIRA EXPRESS

055 (054)

  • / ?

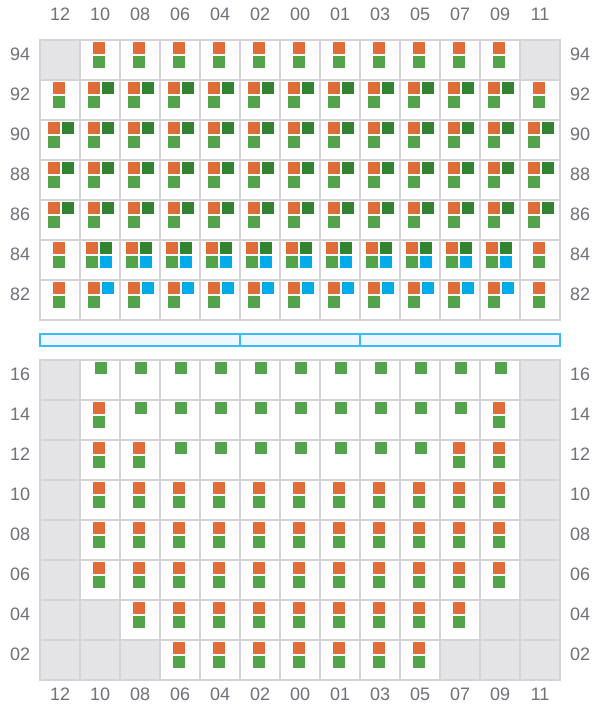

Bay 055 view and slots of ALTAMIRA EXPRESS

057

  • / ?

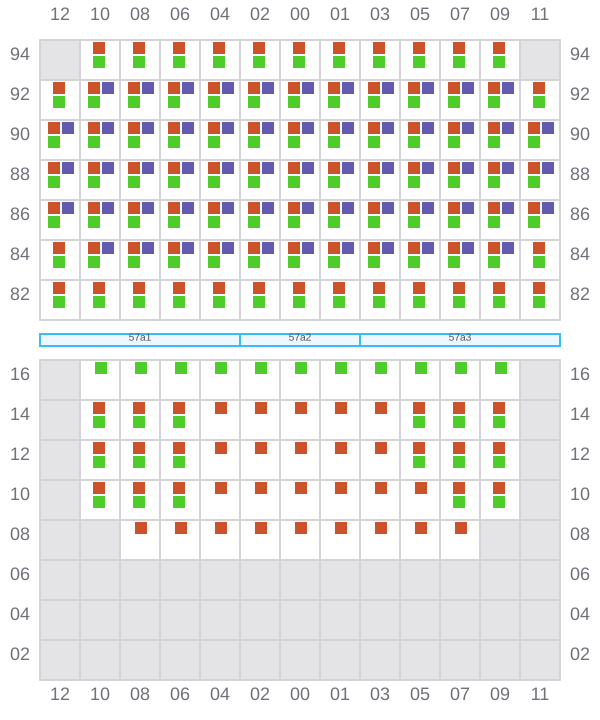

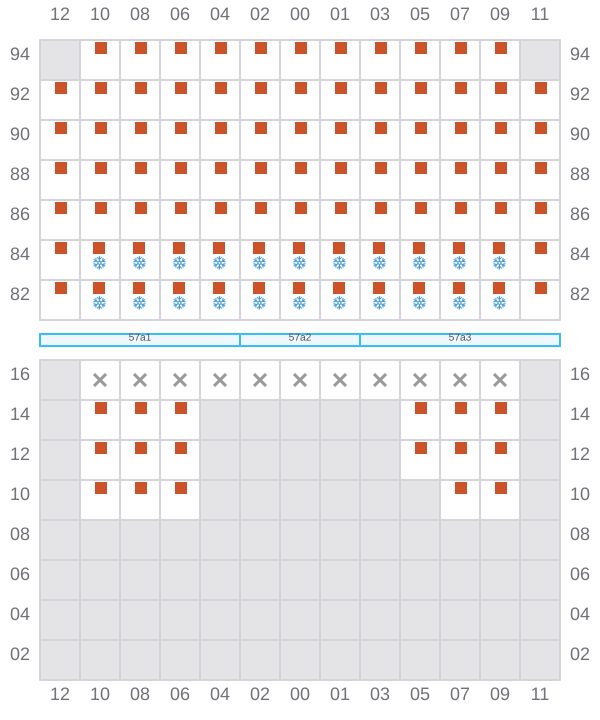

Bay 057 view and slots of ALTAMIRA EXPRESS

059 (058)

Bay 059 view and slots of ALTAMIRA EXPRESS

061

  • / ?

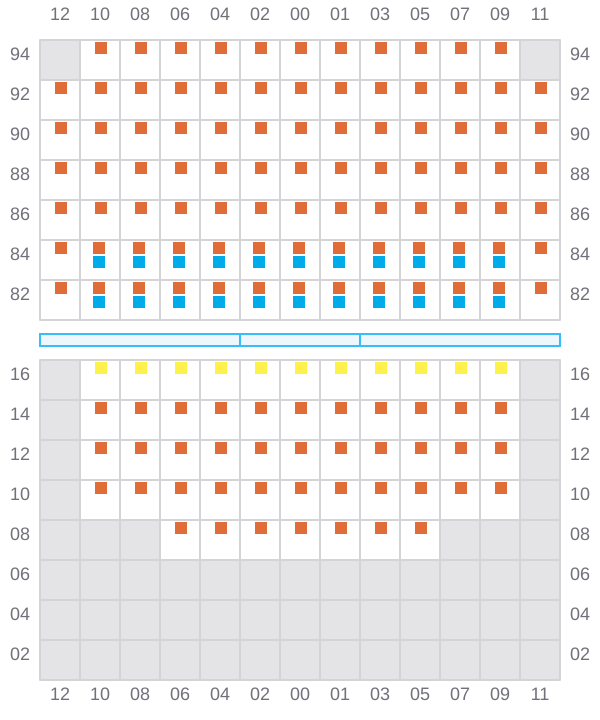

Bay 061 view and slots of ALTAMIRA EXPRESS

063 (062)

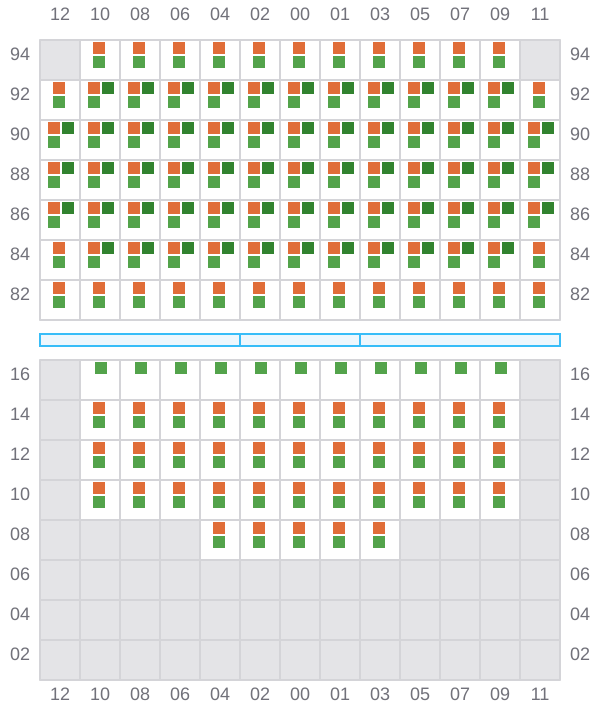

Bay 063 view and slots of ALTAMIRA EXPRESS

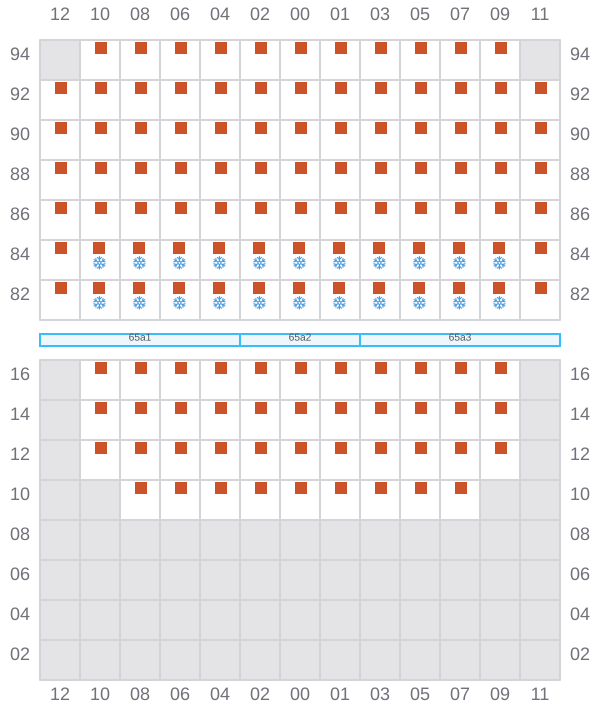

065

  • / ?
Bay 065 view and slots of ALTAMIRA EXPRESS

067 (066)

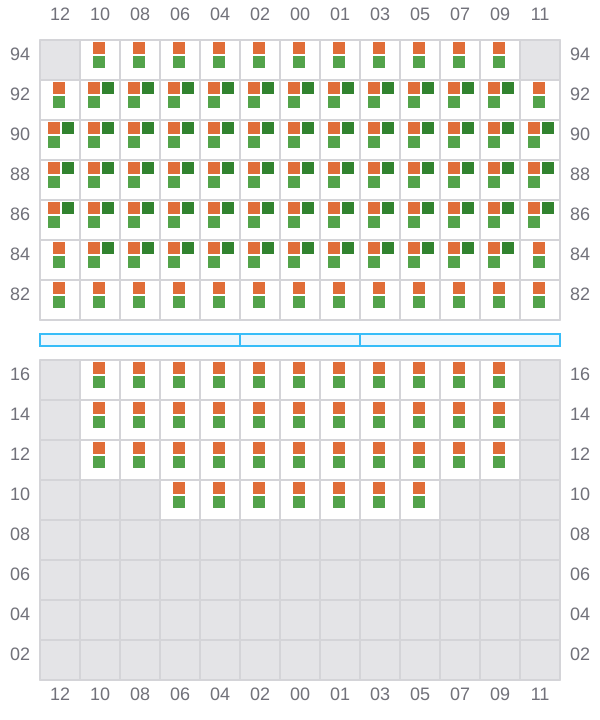

Bay 067 view and slots of ALTAMIRA EXPRESS

069 (070)

  • / ?

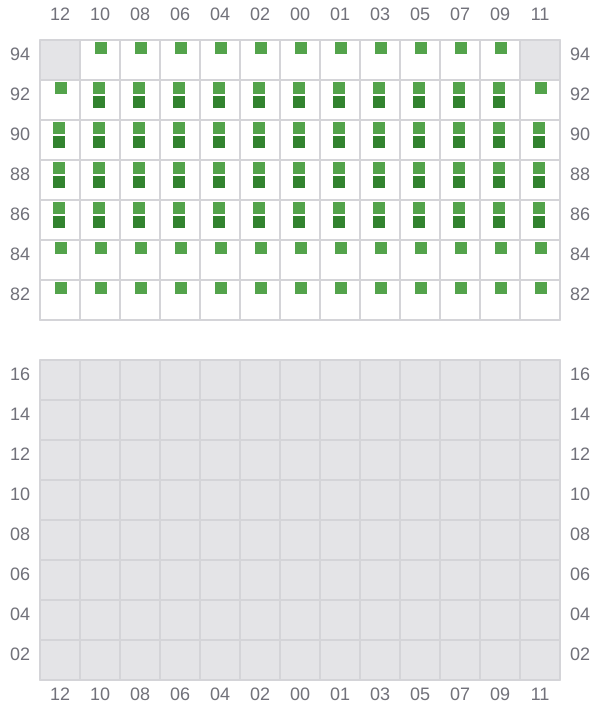

Bay 069 view and slots of ALTAMIRA EXPRESS
