AMALTHEA
9397913 | CQDE | HLC by *********************** Last update: Tue Jan 28 2025

General Info

Ship Name:AMALTHEA

IMO Code:9397913

Call Sign:CQDE

Line Operator:HLC

Class Name for Sister Ships:HMLT

Year Built:2009

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):0.00

LOA (Length Overall):0.00

Stern to AFT PP:-

Features Informed:Standard

Also Known As...:-

40' Bays Location:-

Size Summary

ISO Bays:059

Max ISO Row:12

Center Line Row:Yes

Max Above ISO Tier:94

Min Above ISO Tier:82

Max Below ISO Tier:14

Min Below ISO Tier:02

Total TEU:4,178

Centers of Gravity

LCG Values:Known

LCG Data:100%

VCG Values:Known

VCG Data:100%

TCG Values:Known

TCG Data:100%

Side View

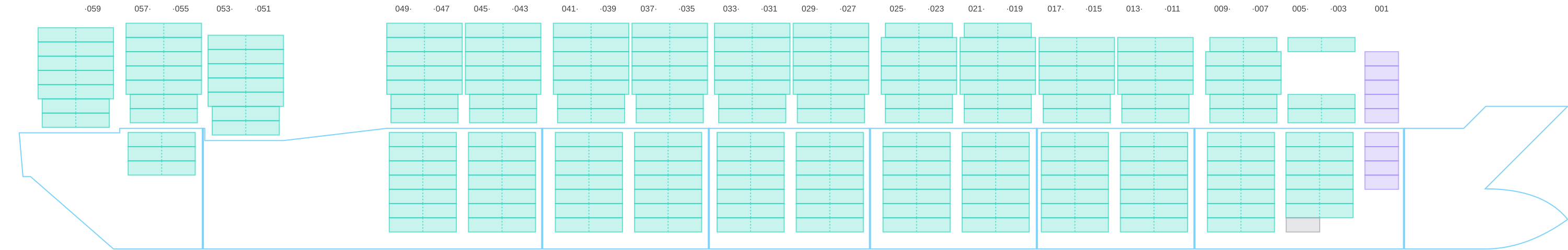

Side view of AMALTHEA

Hatch-Covers View

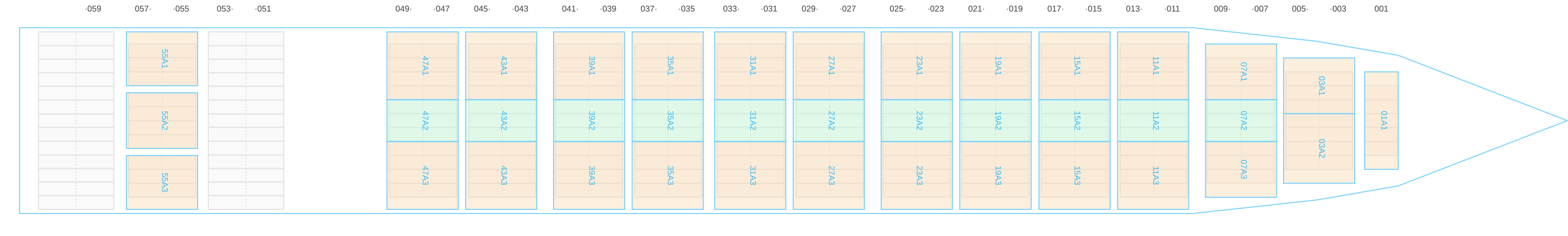

Deck view of AMALTHEA

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot ×

001

→

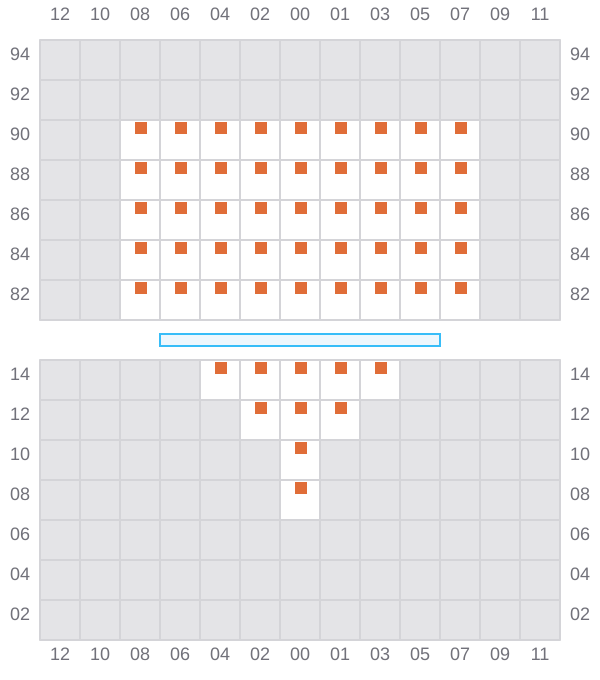

Bay 001 view and slots of AMALTHEA

003 (004)

→
→

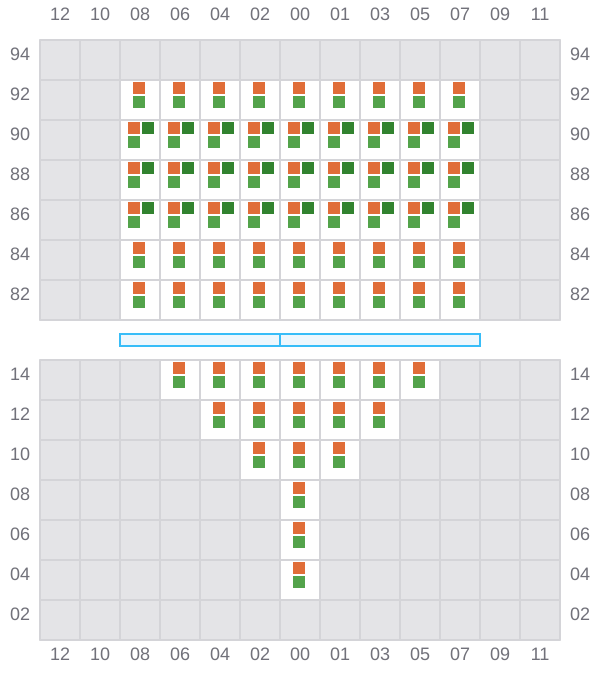

Bay 003 view and slots of AMALTHEA

005

←
^→ / _?
→

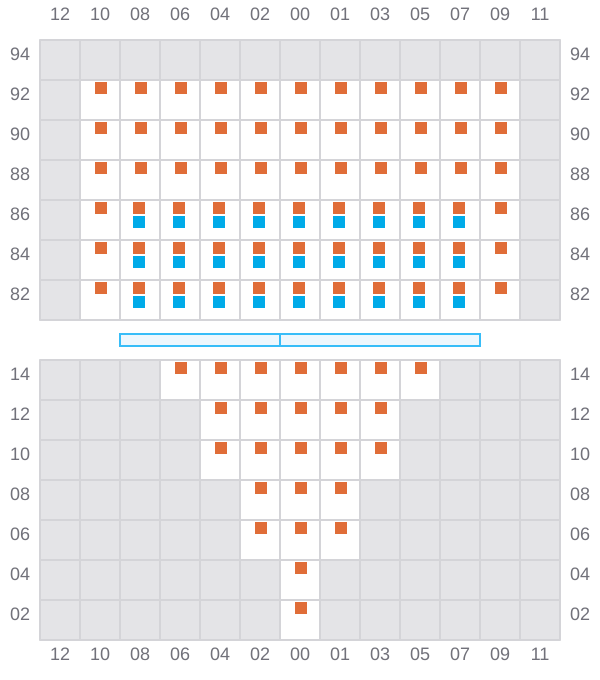

Bay 005 view and slots of AMALTHEA

007 (008)

→
→

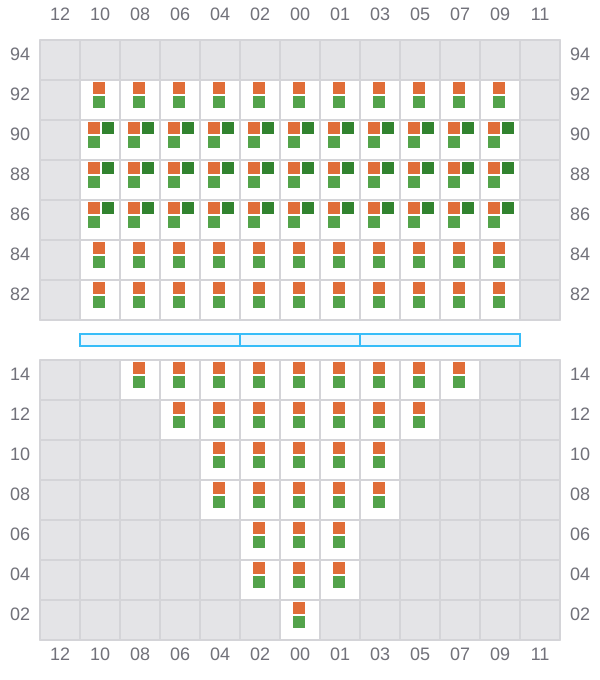

Bay 007 view and slots of AMALTHEA

009

←
^→ / _?
→

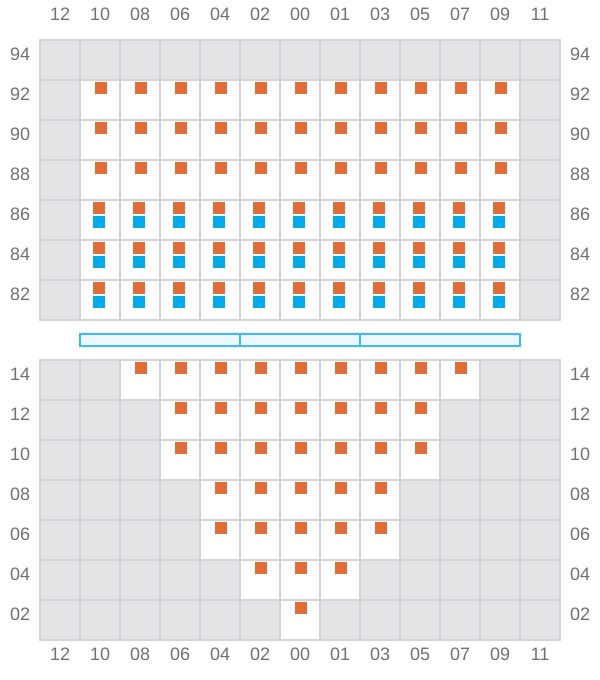

Bay 009 view and slots of AMALTHEA

011 (012)

→
→

Bay 011 view and slots of AMALTHEA

013

←
→
→

Bay 013 view and slots of AMALTHEA

015 (016)

→
→

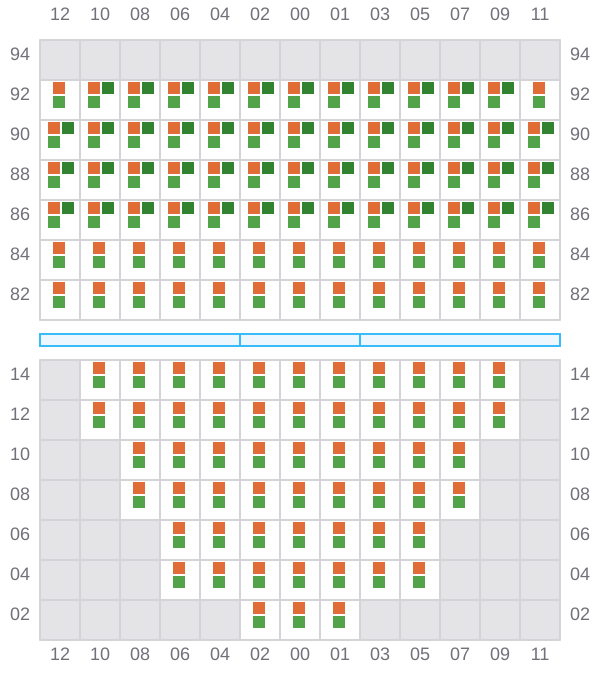

Bay 015 view and slots of AMALTHEA

017

←
→
→

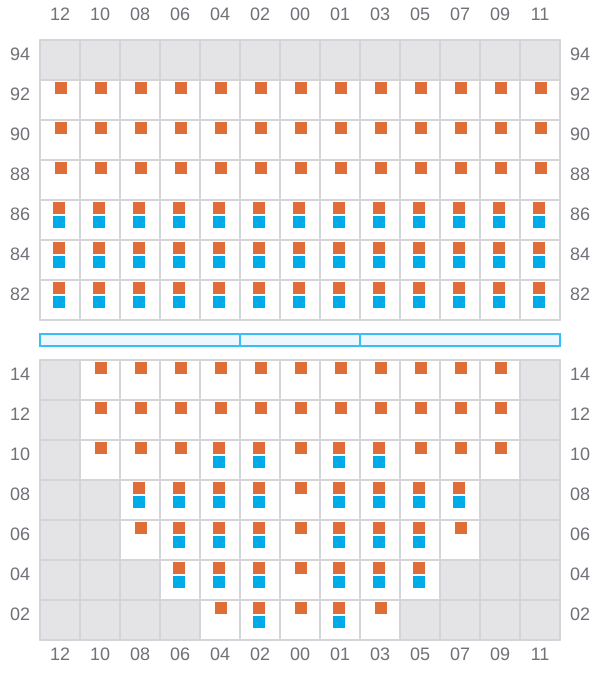

Bay 017 view and slots of AMALTHEA

019 (020)

→
→

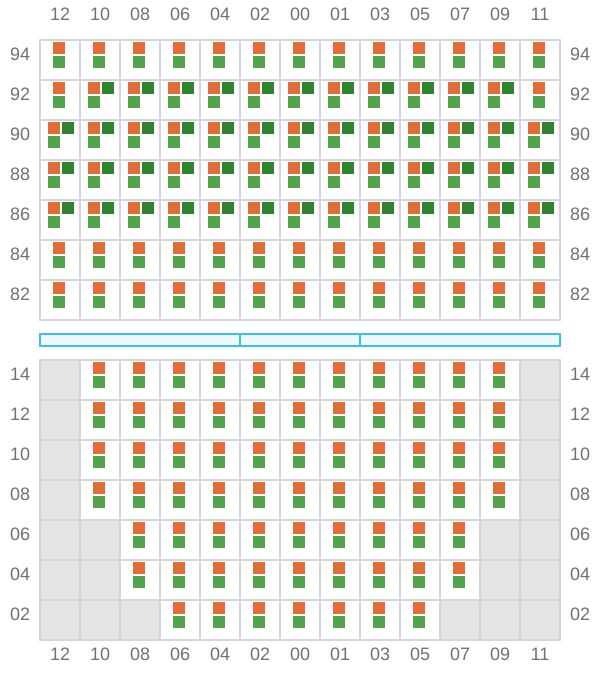

Bay 019 view and slots of AMALTHEA

021

←
→
→

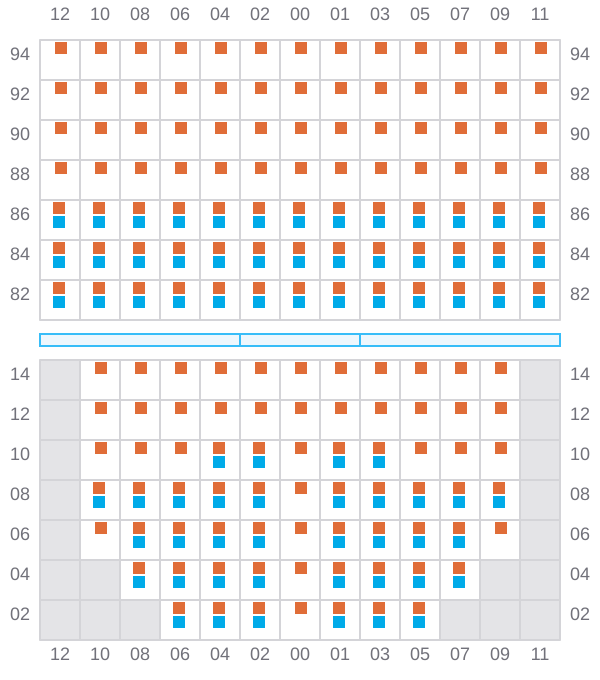

Bay 021 view and slots of AMALTHEA

023 (024)

→
→

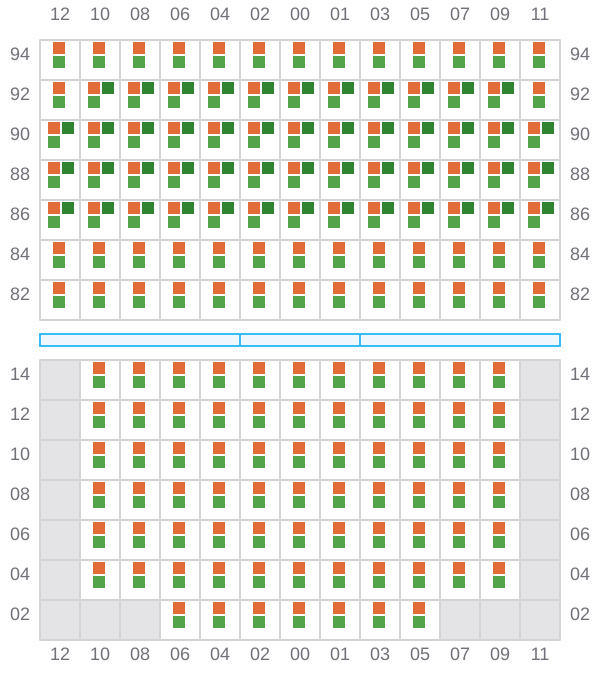

Bay 023 view and slots of AMALTHEA

025

←
→
→

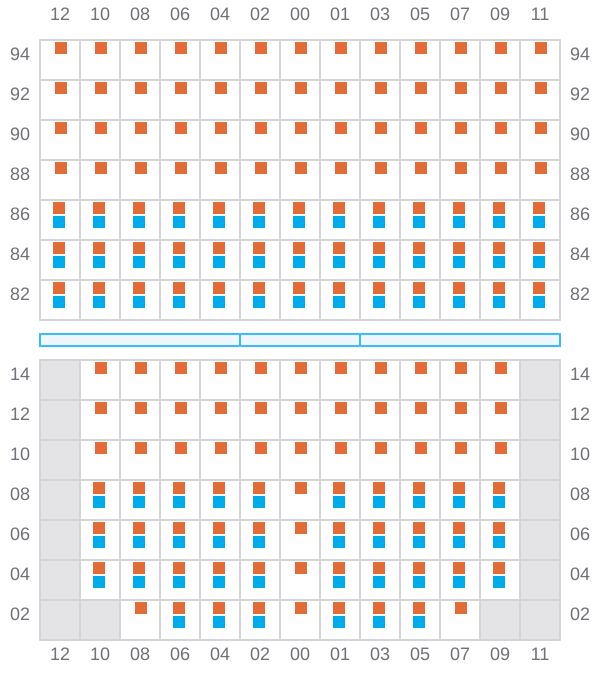

Bay 025 view and slots of AMALTHEA

027 (028)

→
→

Bay 027 view and slots of AMALTHEA

029

←
→
→

Bay 029 view and slots of AMALTHEA

031 (032)

→
→

Bay 031 view and slots of AMALTHEA

033

←
→
→

Bay 033 view and slots of AMALTHEA

035 (036)

→
→

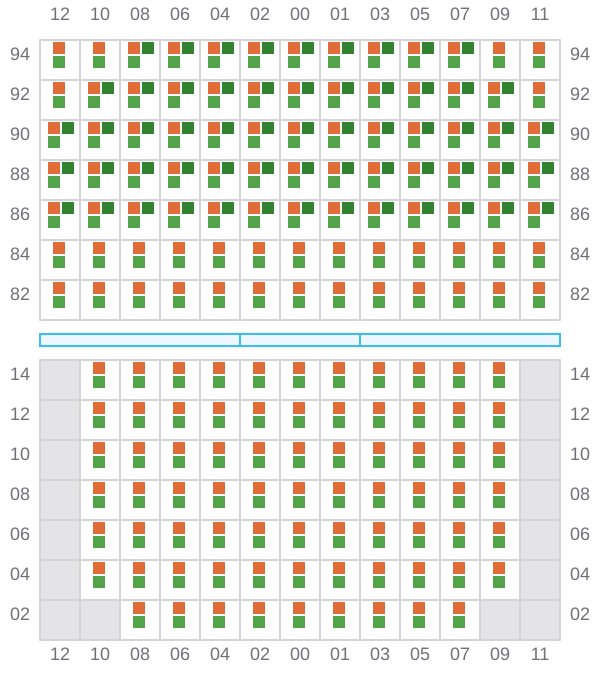

Bay 035 view and slots of AMALTHEA

037

←
→
→

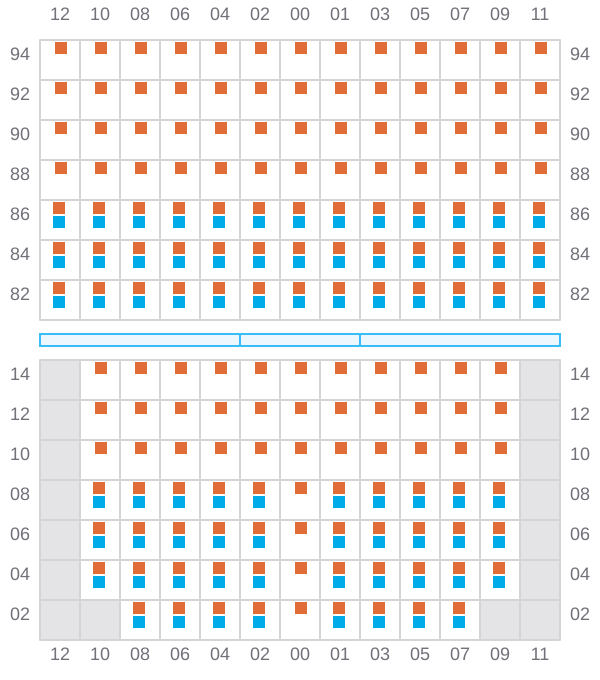

Bay 037 view and slots of AMALTHEA

039 (040)

→
→

Bay 039 view and slots of AMALTHEA

041

←
→
→

Bay 041 view and slots of AMALTHEA

043 (044)

→
→

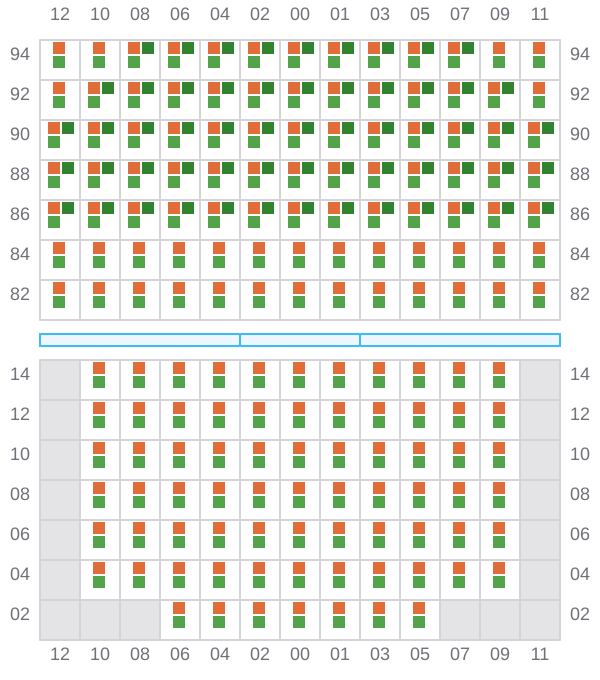

Bay 043 view and slots of AMALTHEA

045

←
→
→

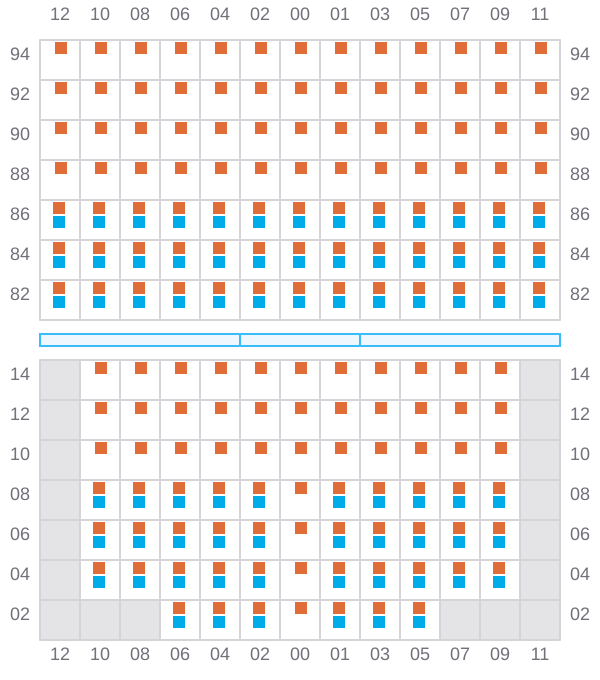

Bay 045 view and slots of AMALTHEA

047 (048)

→
→

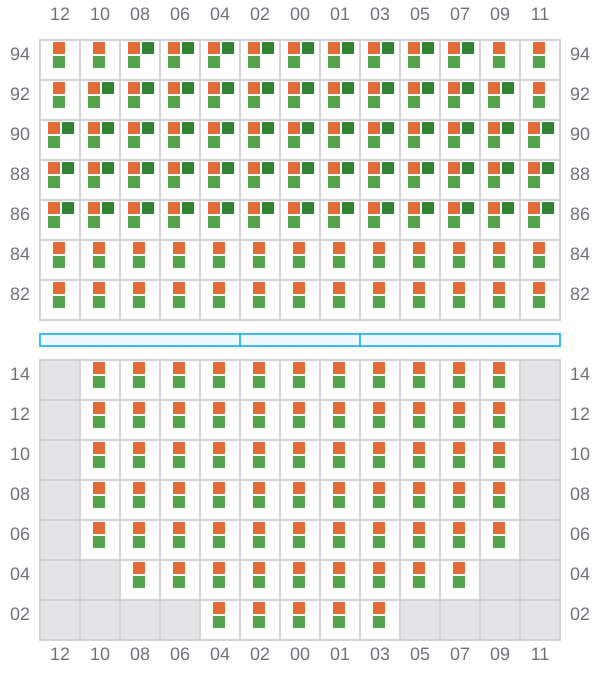

Bay 047 view and slots of AMALTHEA

049

←
→
→

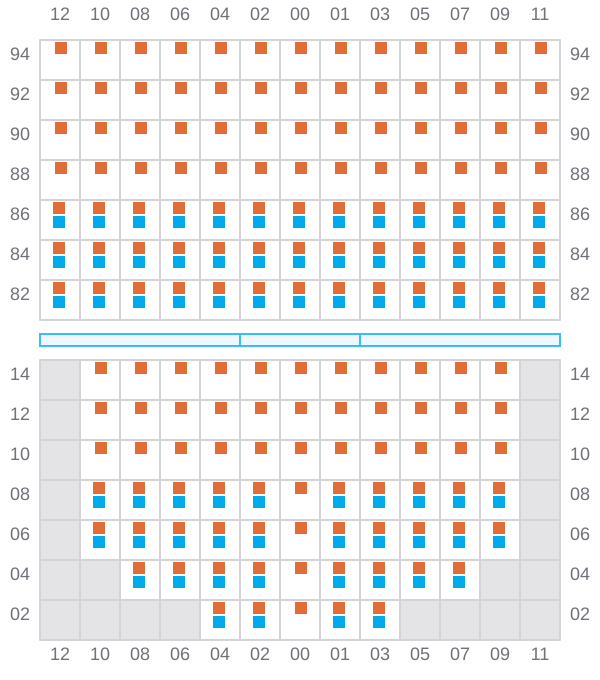

Bay 049 view and slots of AMALTHEA

051 (052)

^→ / _?
^→ / _?

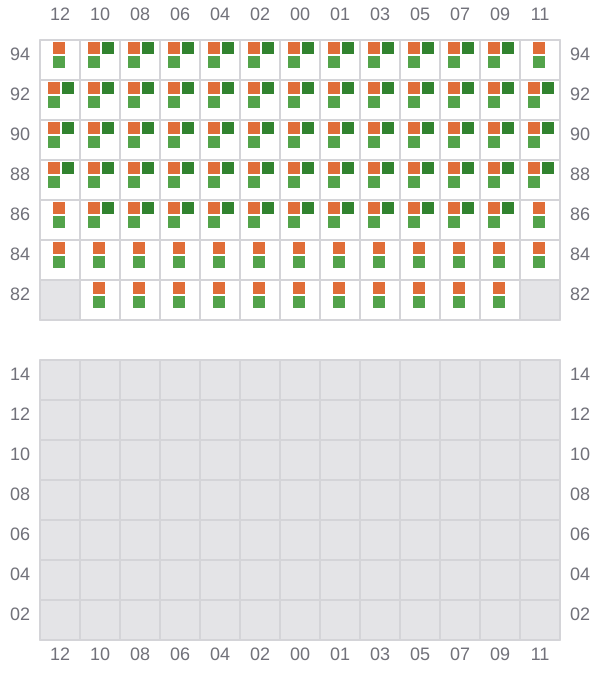

Bay 051 view and slots of AMALTHEA

053

^← / _?
^→ / _?
^→ / _?

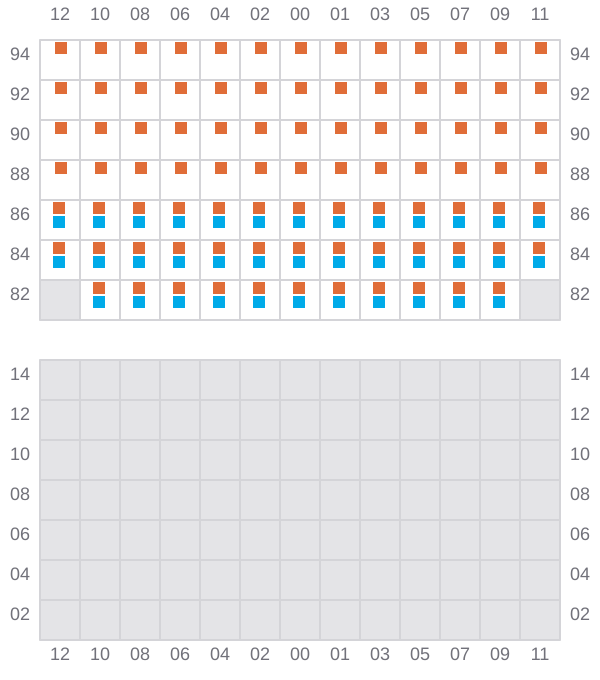

Bay 053 view and slots of AMALTHEA

055 (056)

→
→

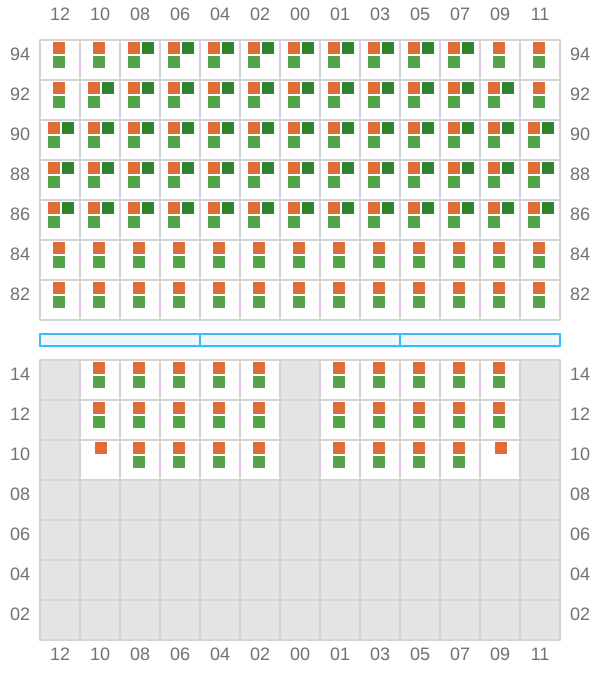

Bay 055 view and slots of AMALTHEA

057

←
^→ / _?
→

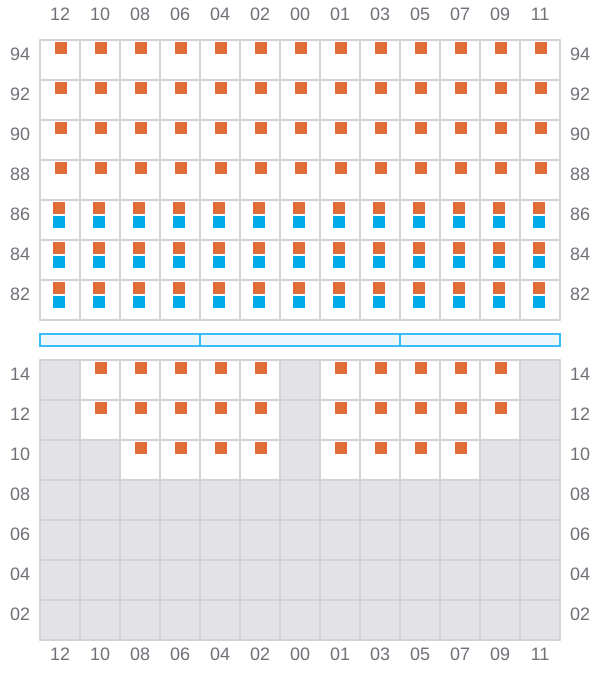

Bay 057 view and slots of AMALTHEA

059 (060)

^→ / _?
^→ / _?
^→ / _?

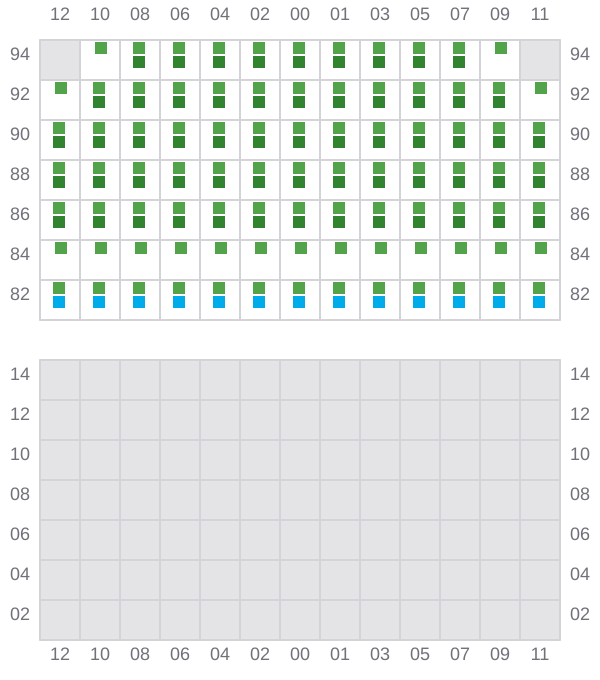

Bay 059 view and slots of AMALTHEA
