AMALTHEA
9397913 | CQDE | 9397913 by ********* Last update: Tue May 14 2024
General Info
Ship Name:AMALTHEA
IMO Code:9397913
Call Sign:CQDE
Line Operator:9397913
Class Name for Sister Ships:UASC SITRAH
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:059
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:4,178
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001

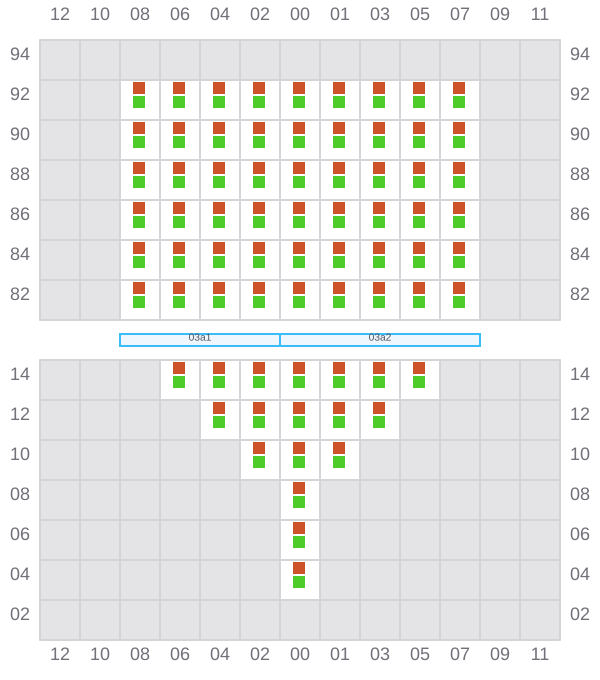

003 (004)
- →

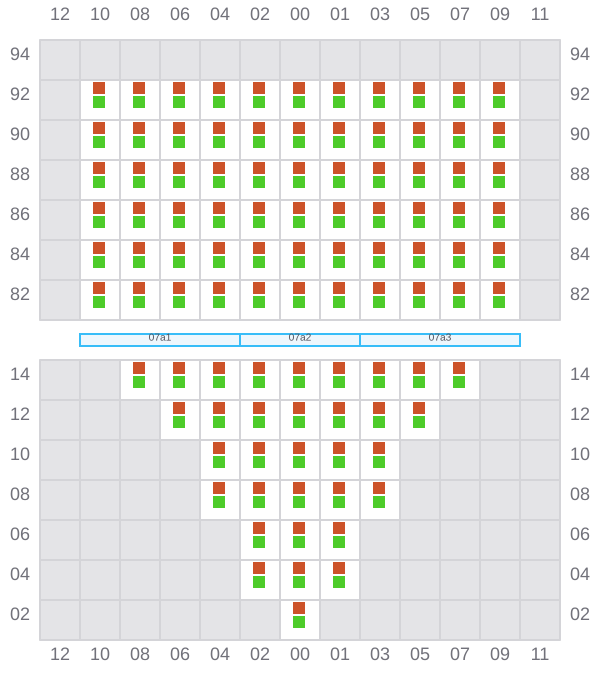

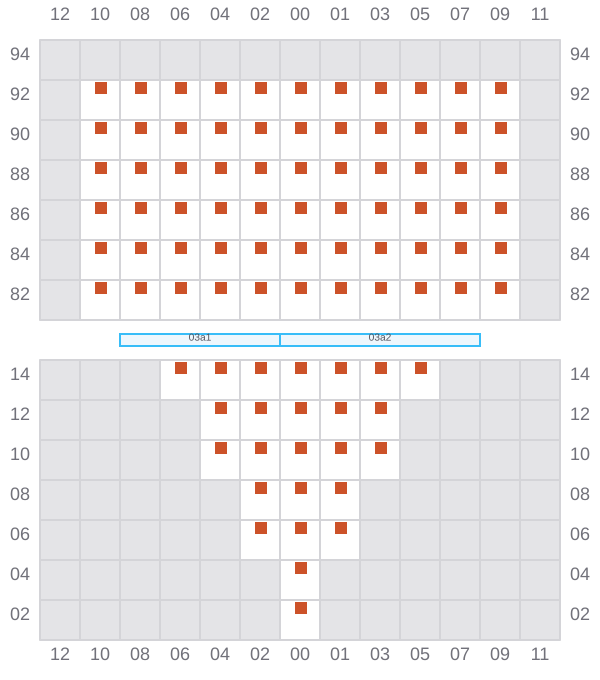

005
- ←
- → / ?
007 (008)
- →
009
- ←
- → / ?

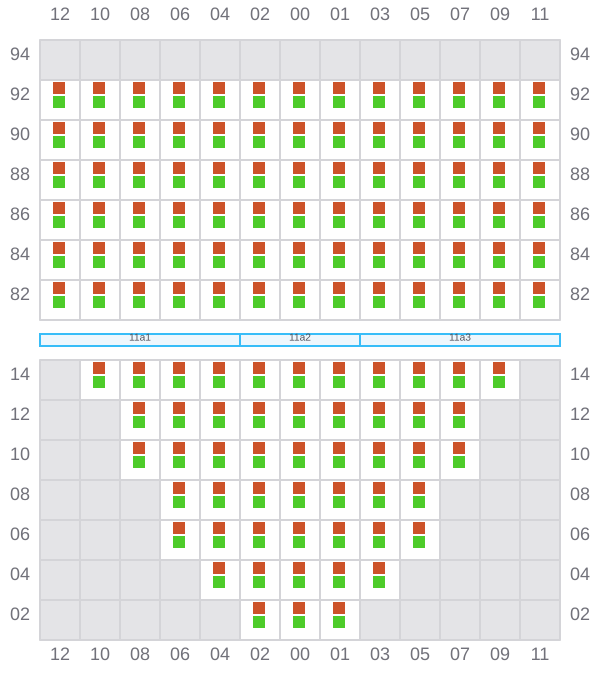

011 (012)
- →
013
- ←
- →

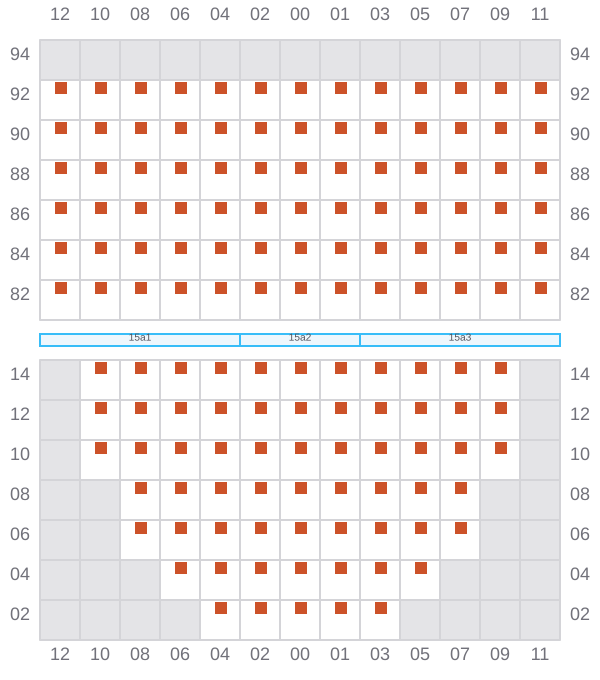

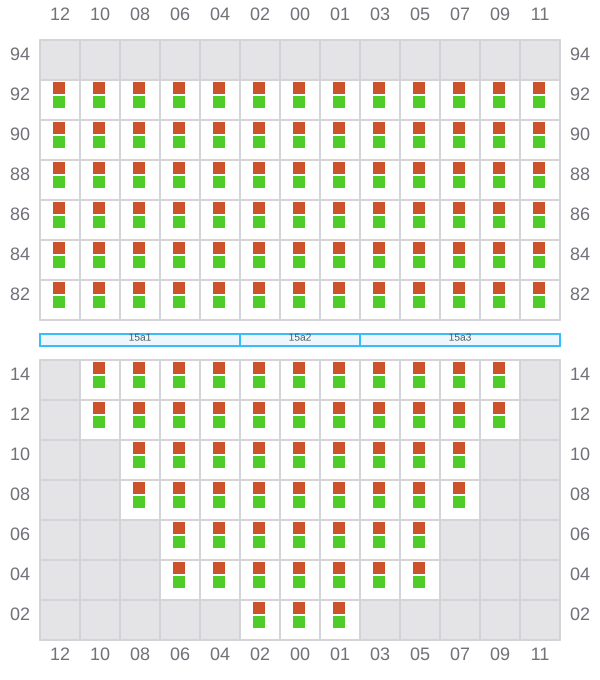

015 (016)
- →
017
- ←
- →

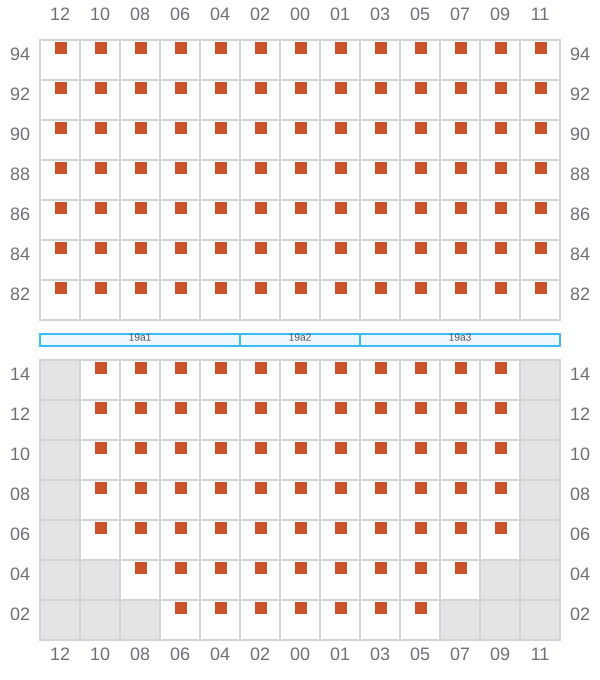

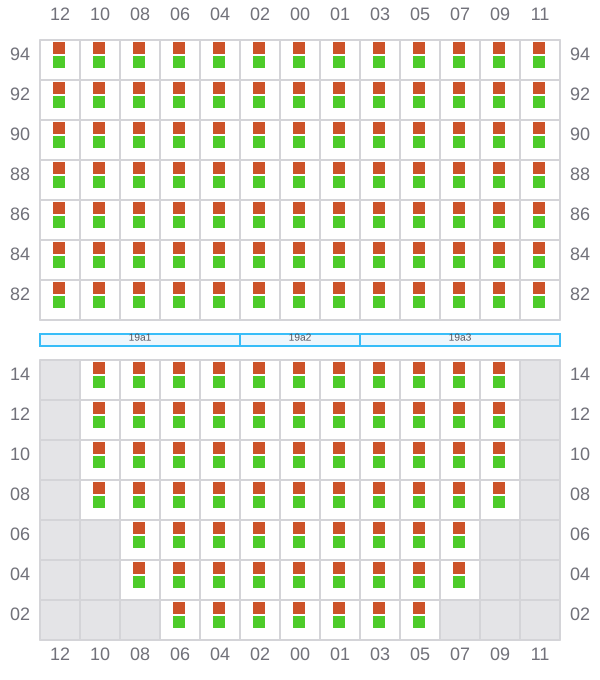

019 (020)
- →
021
- ←
- →

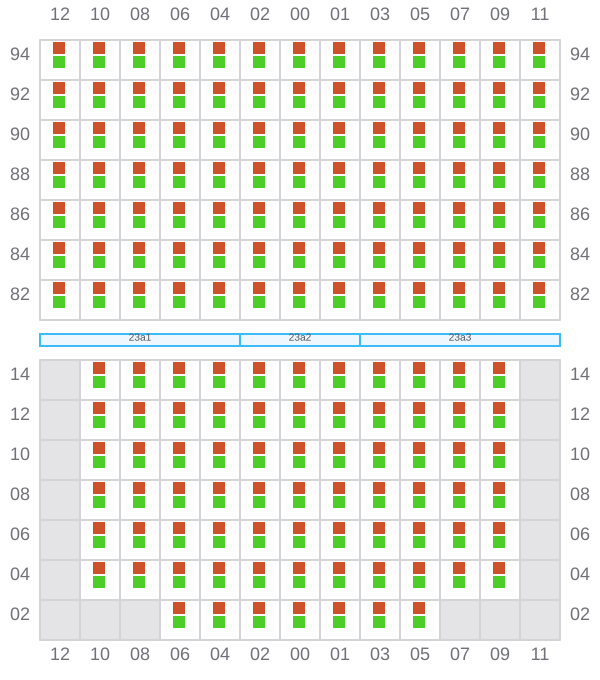

023 (024)
- →

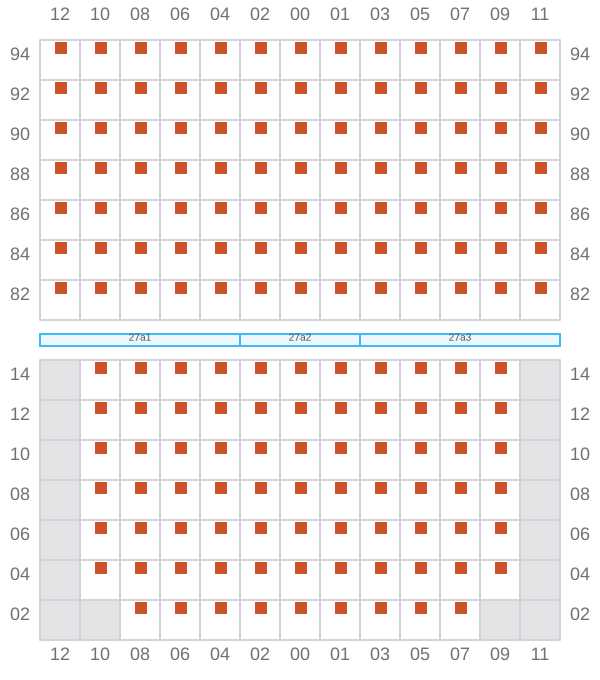

025
- ←
- →
027 (028)
- →
029
- ←
- →
031 (032)
- →
033
- ←
- →

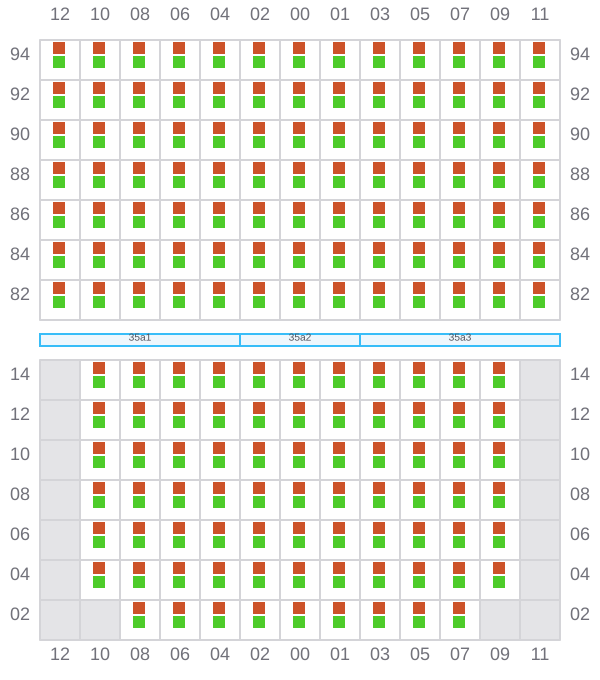

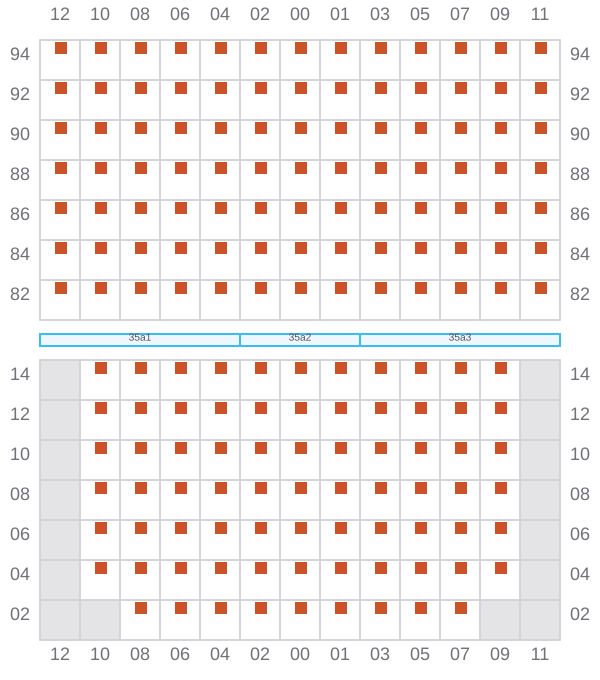

035 (036)
- →
037
- ←
- →
039 (040)
- →
041
- ←
- →

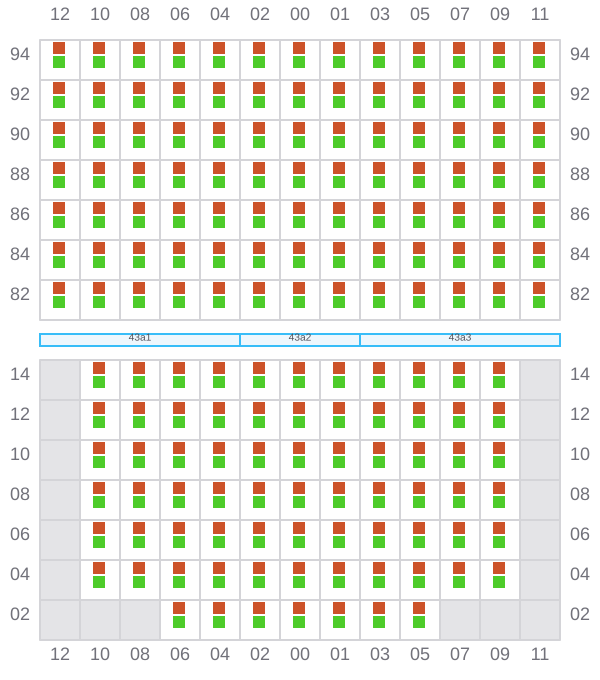

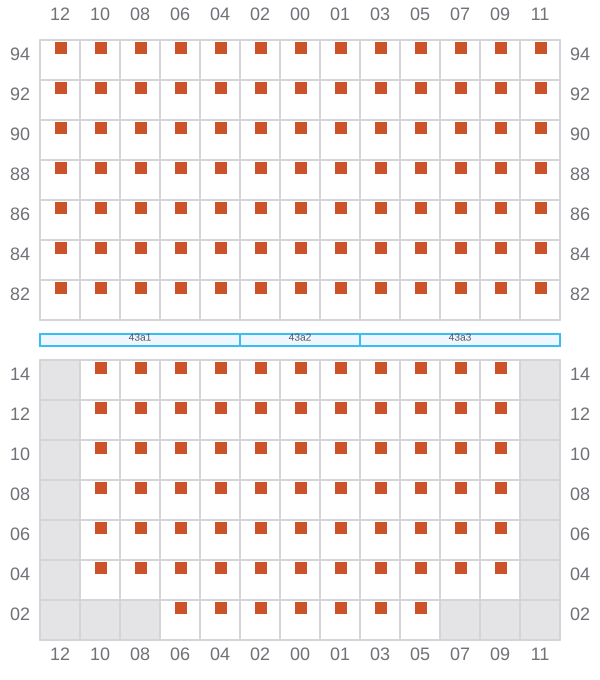

043 (044)
- →
045
- ←
- → / ?
047 (048)
- →

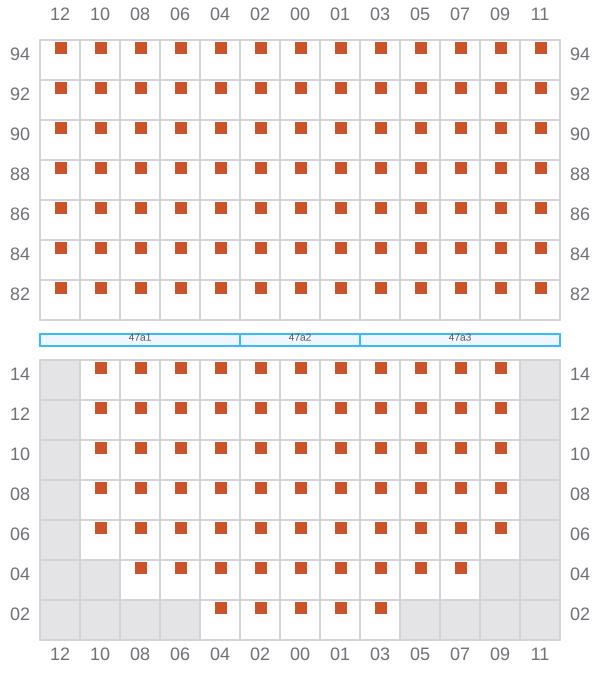

049
- ←
- → / ?

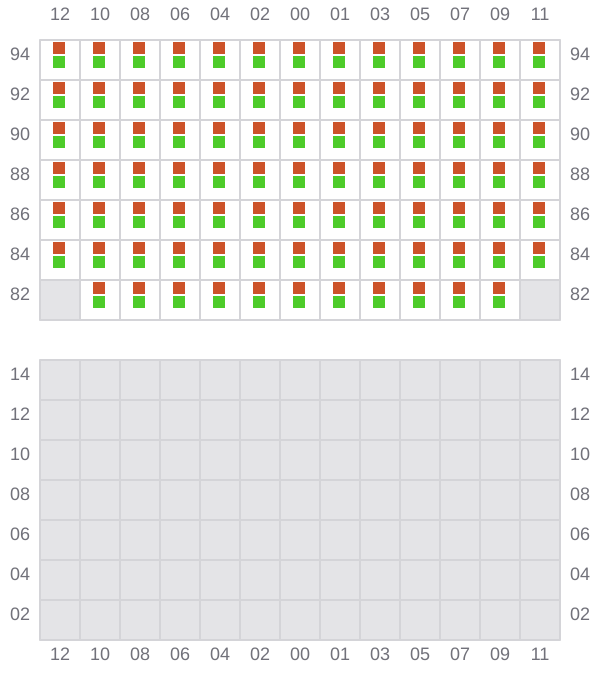

051 (052)
- → / ?
053
- ← / ?
- → / ?

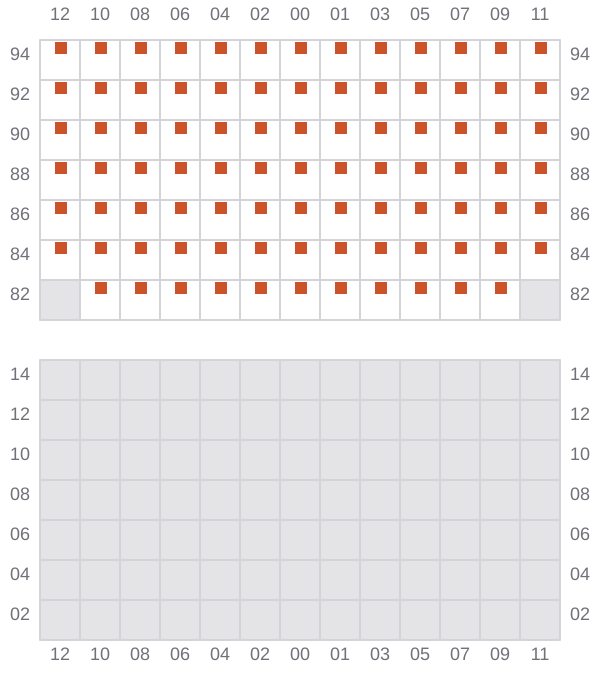

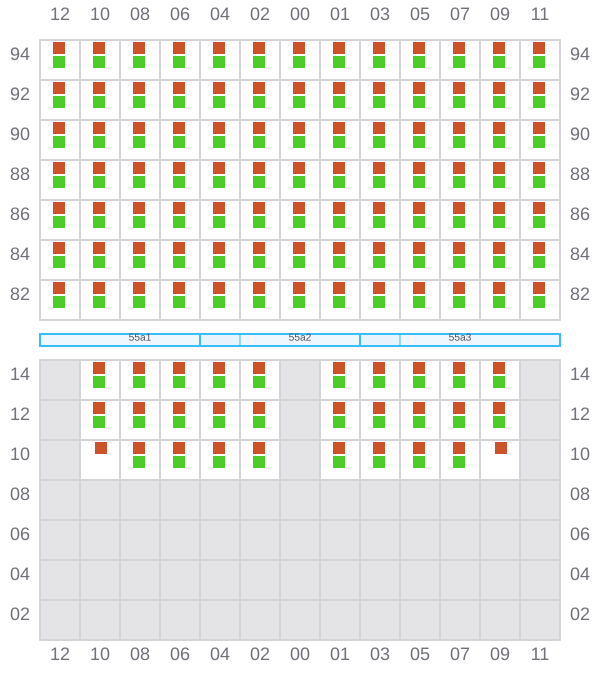

055 (056)
- →

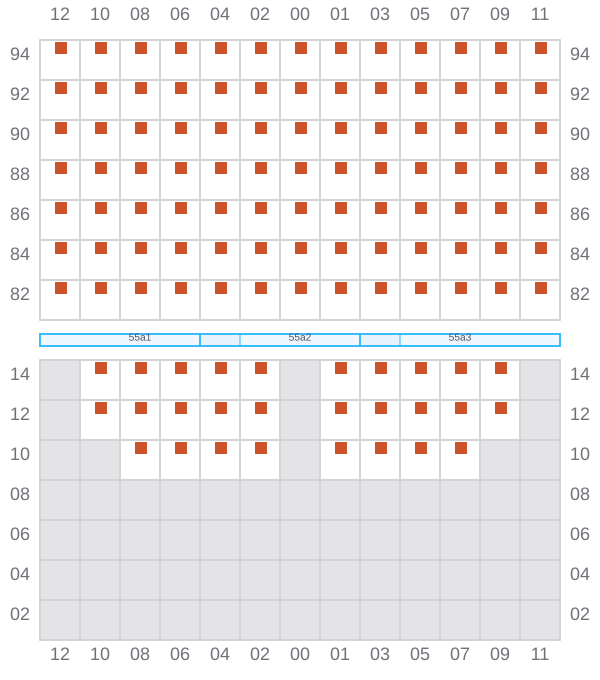

057
- ←
- → / ?

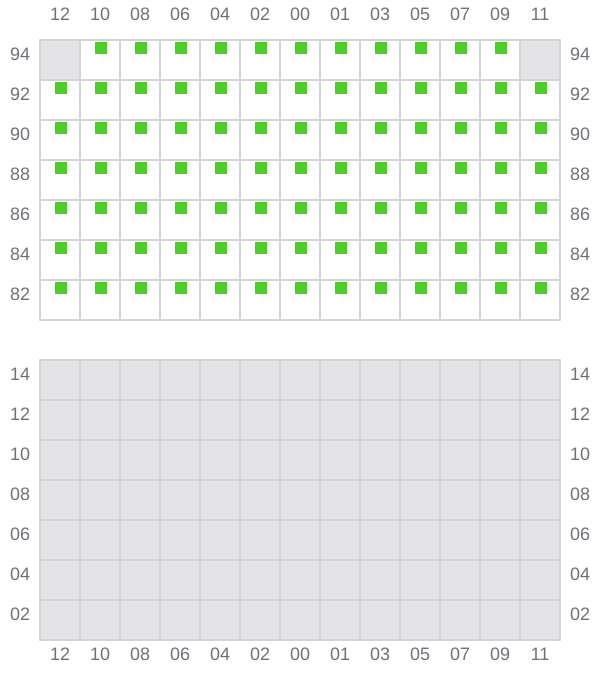

059 (060)
- → / ?
- ← / ?
