AMBITION
9475703 | D5BU6 | HMM by *********************** Last update: Mon Feb 03 2025

General Info

Ship Name:AMBITION
IMO Code:9475703
Call Sign:D5BU6
Line Operator:HMM
Class Name for Sister Ships:TOGETHER
Year Built:2012
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):350.00
LOA (Length Overall):366.53
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:085
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:82
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:13,082

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

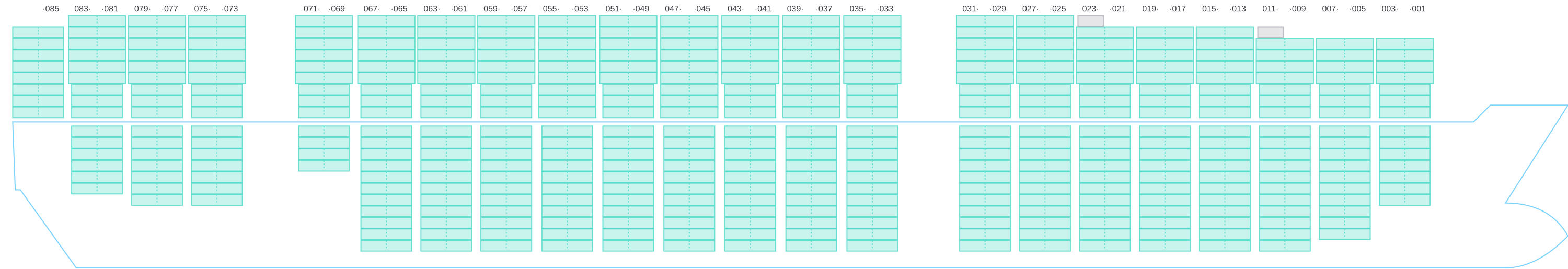

Side View

Side view of AMBITION

Hatch-Covers View

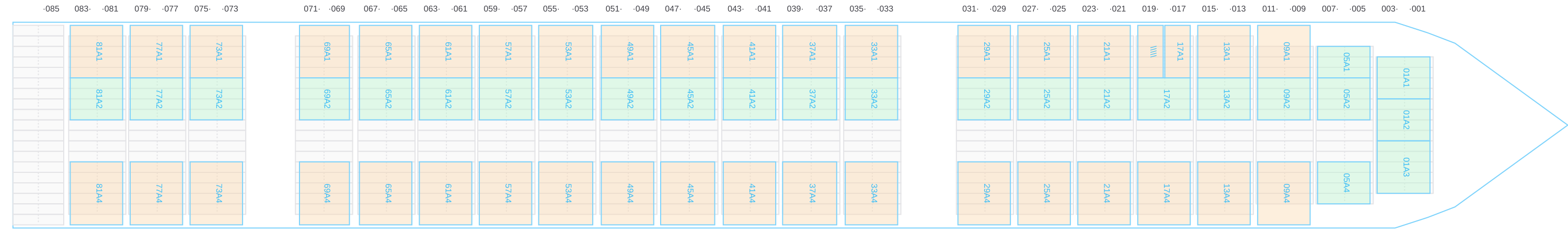

Deck view of AMBITION

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

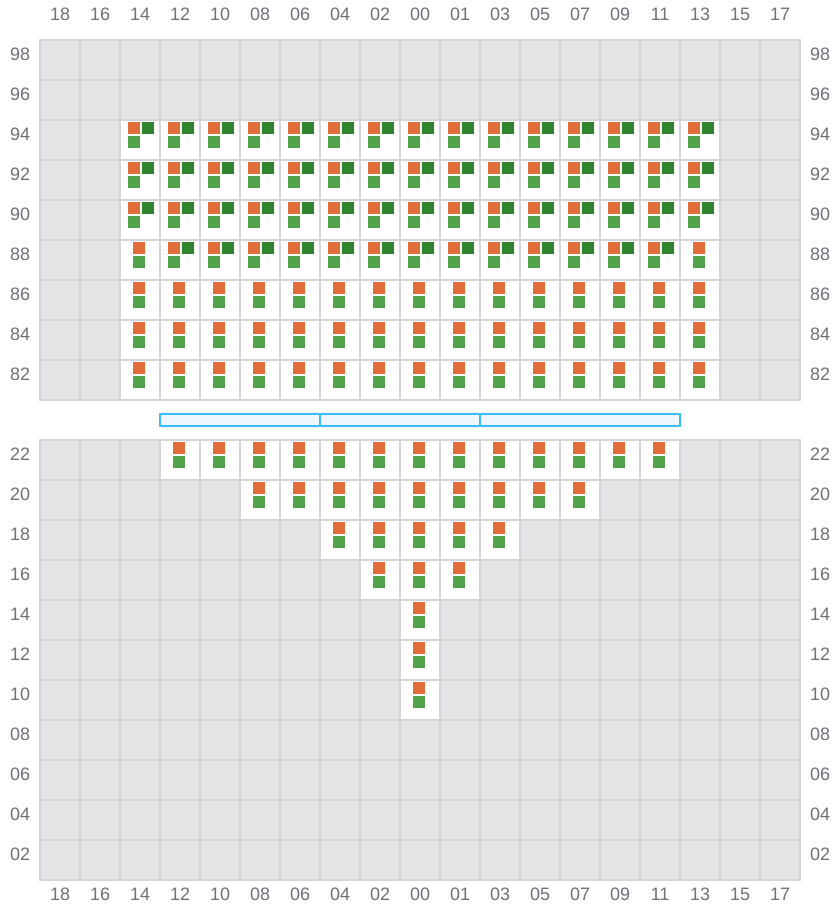

Bay 001 view and slots of AMBITION

003

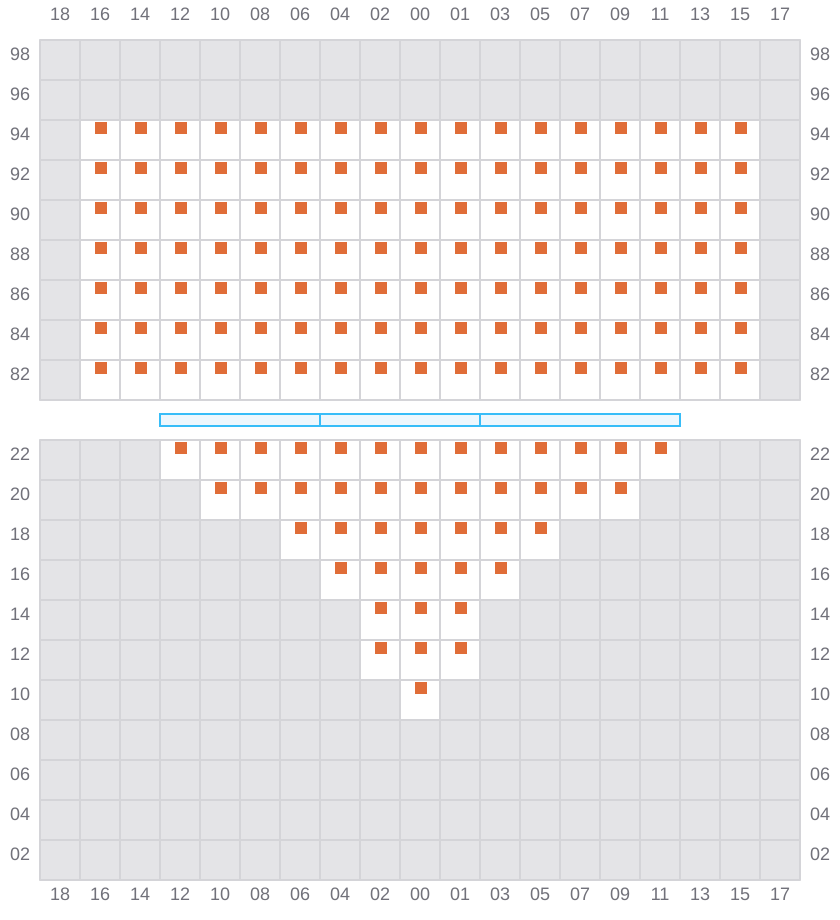

Bay 003 view and slots of AMBITION

005 (006)

  • / ?

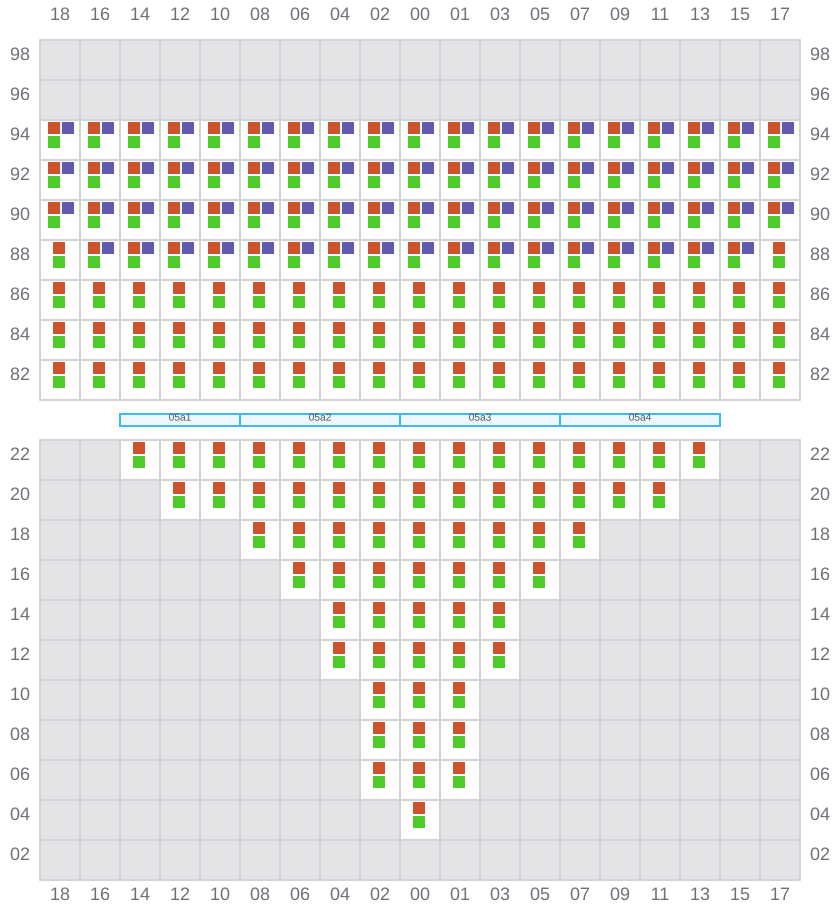

Bay 005 view and slots of AMBITION

007

  • / ?

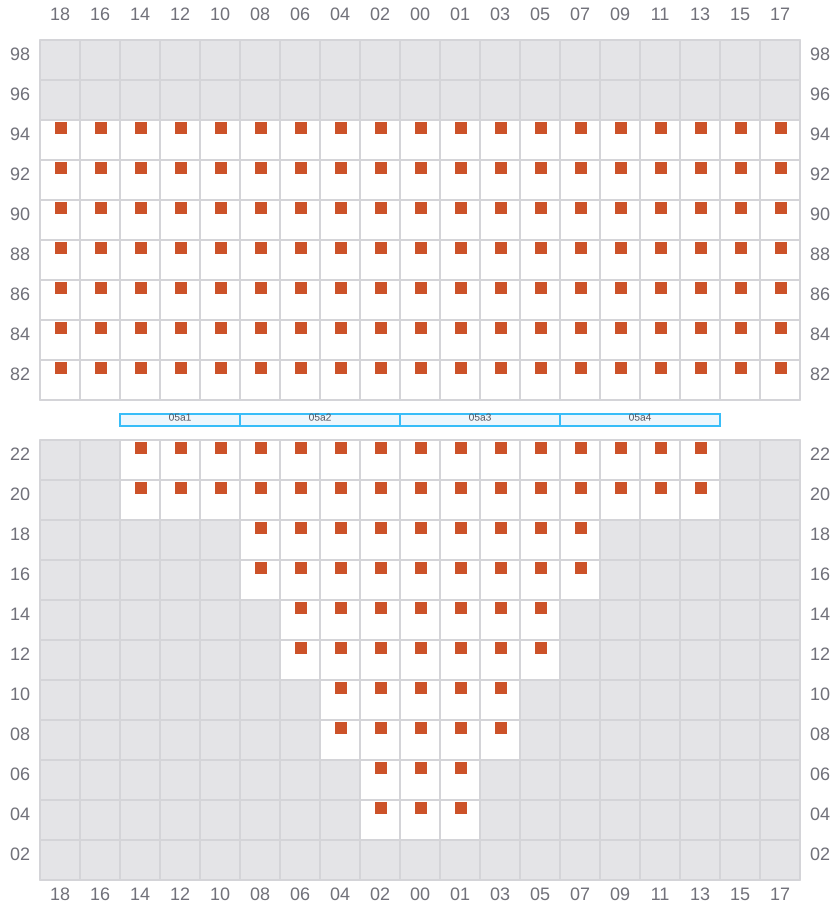

Bay 007 view and slots of AMBITION

009 (010)

  • / ?

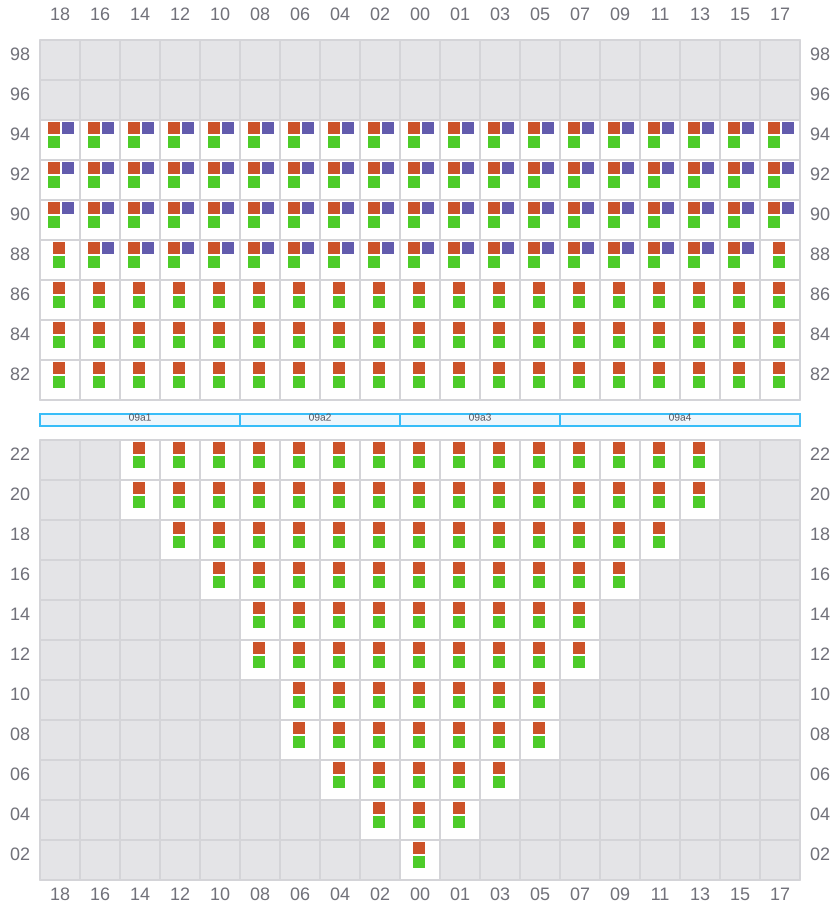

Bay 009 view and slots of AMBITION

011

  • / ?

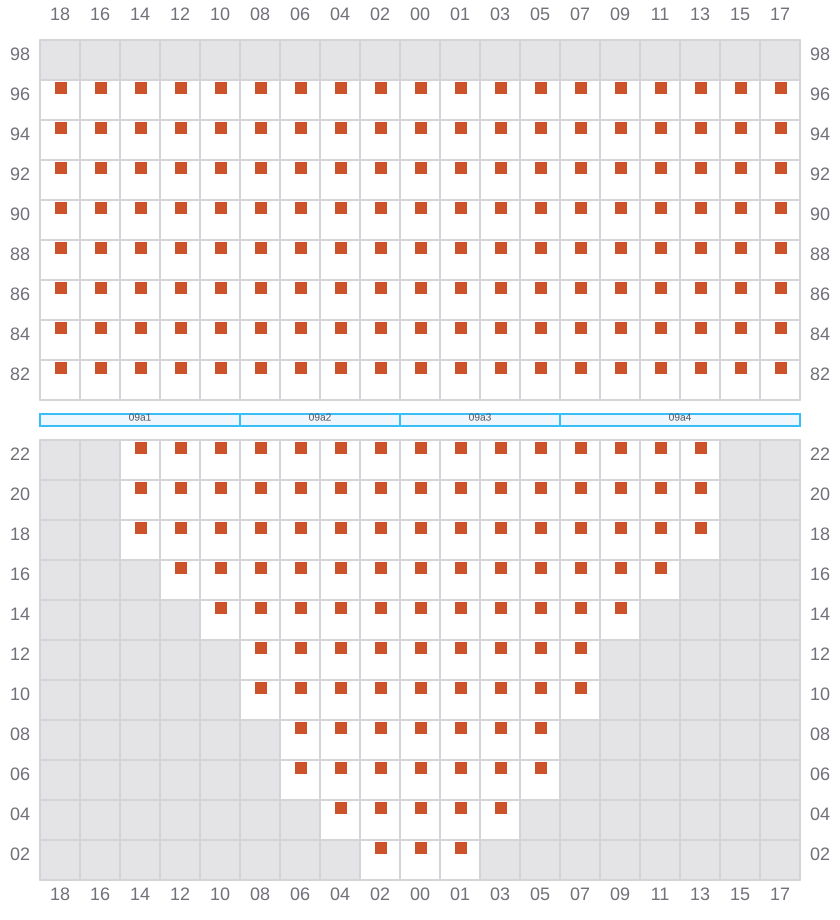

Bay 011 view and slots of AMBITION

013 (014)

  • / ?

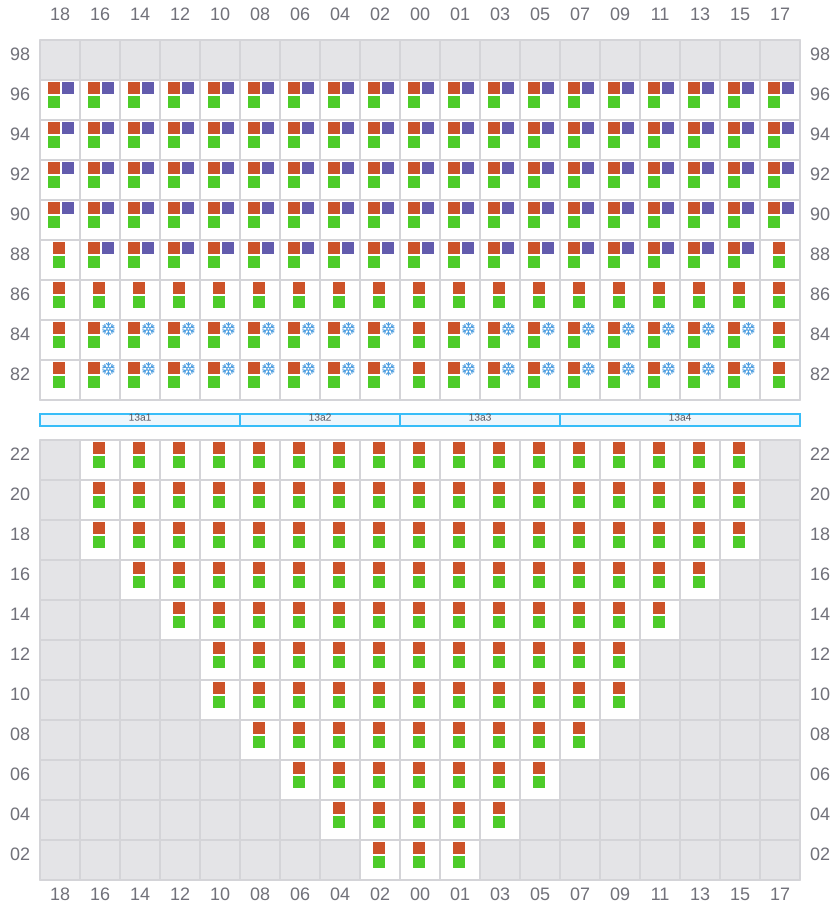

Bay 013 view and slots of AMBITION

015

  • / ?

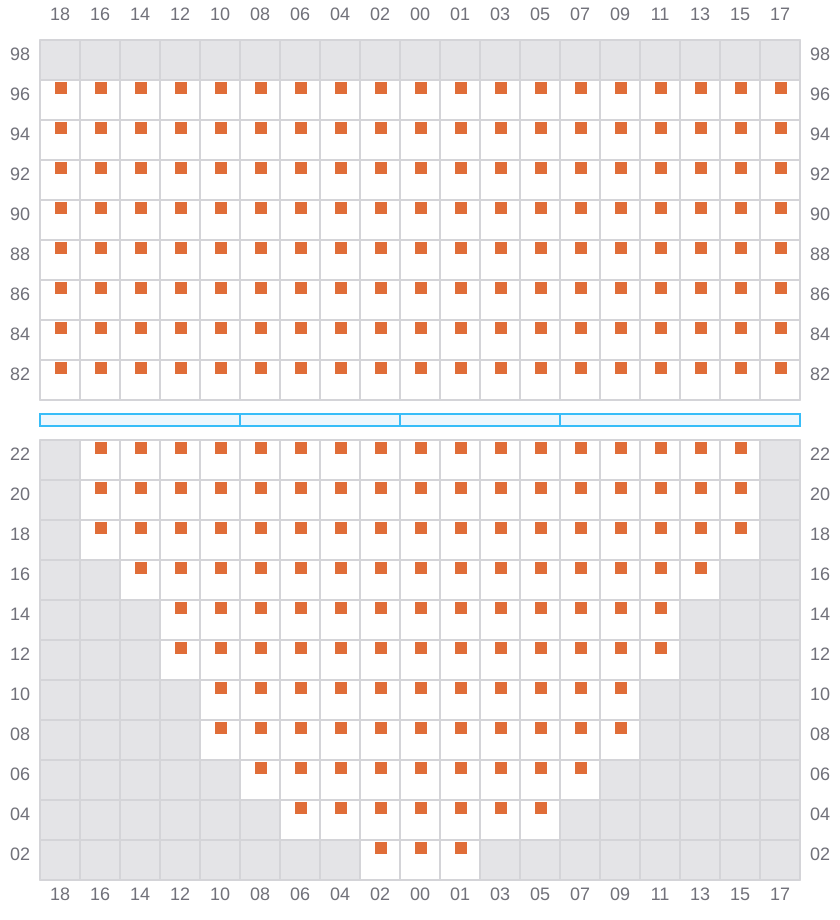

Bay 015 view and slots of AMBITION

017 (018)

  • / ?

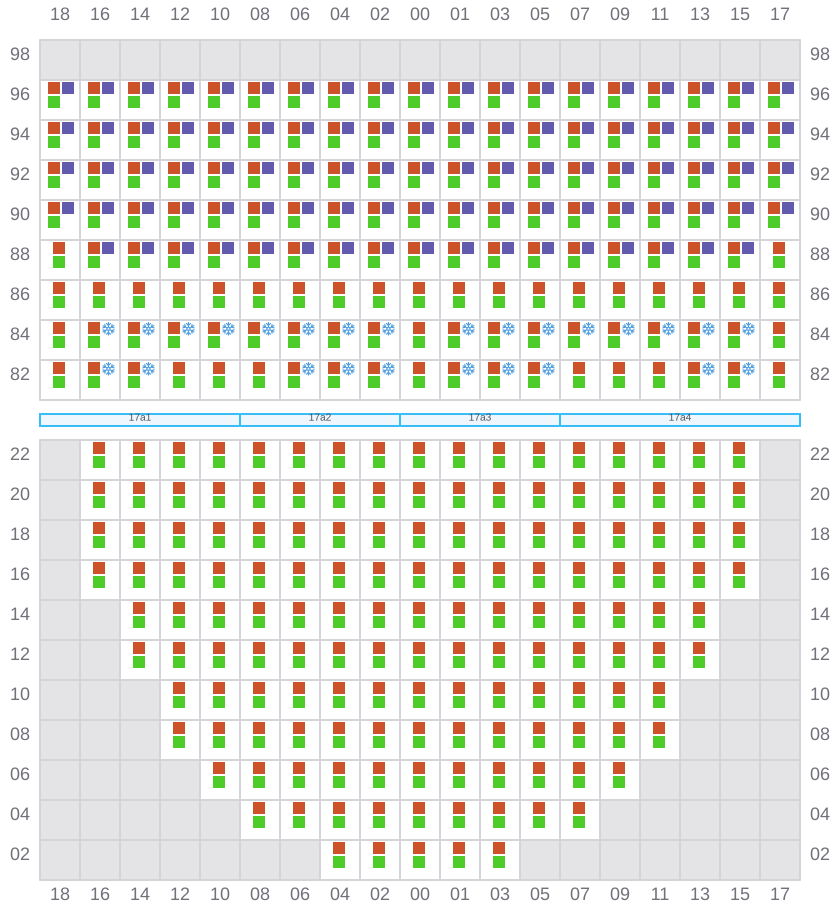

Bay 017 view and slots of AMBITION

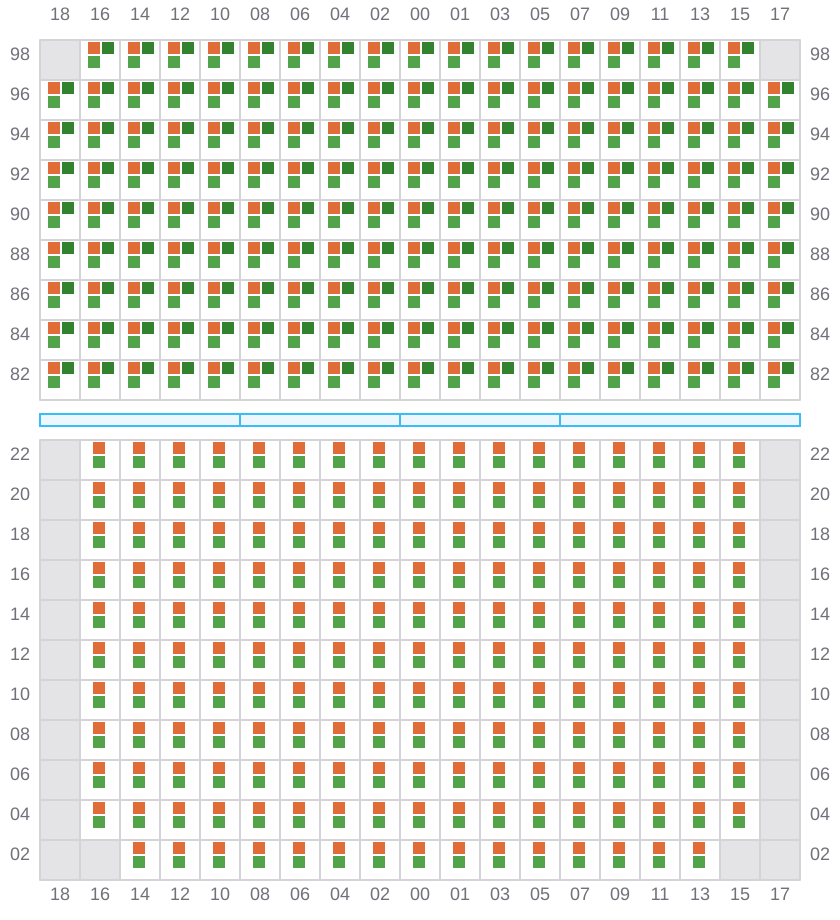

019

  • / ?

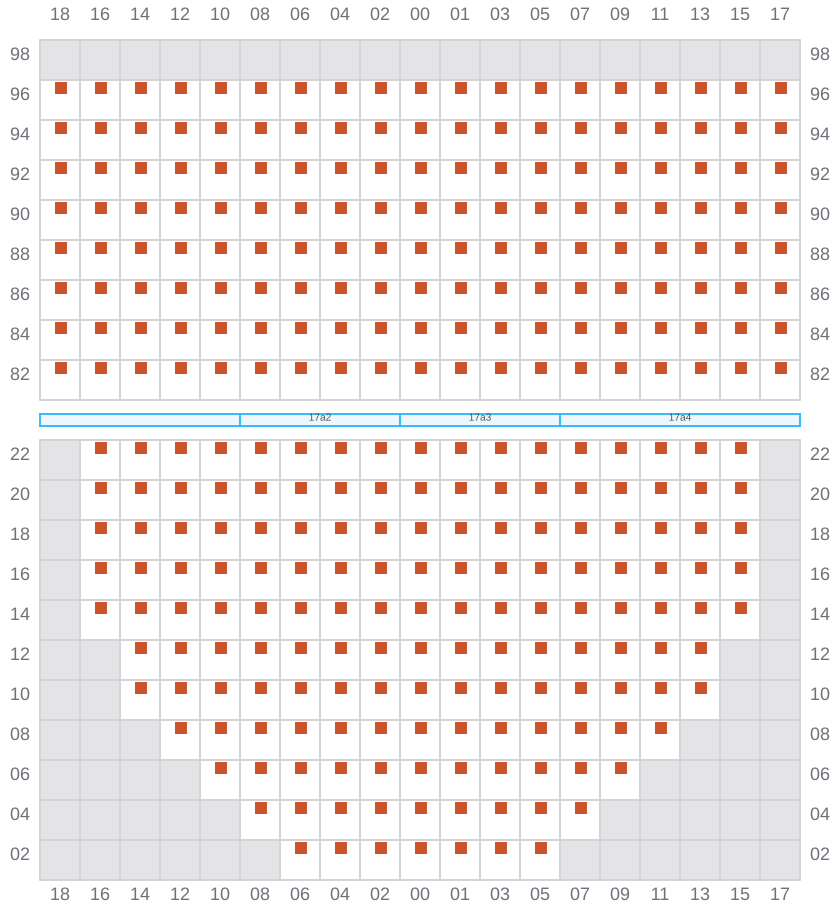

Bay 019 view and slots of AMBITION

021 (022)

  • / ?

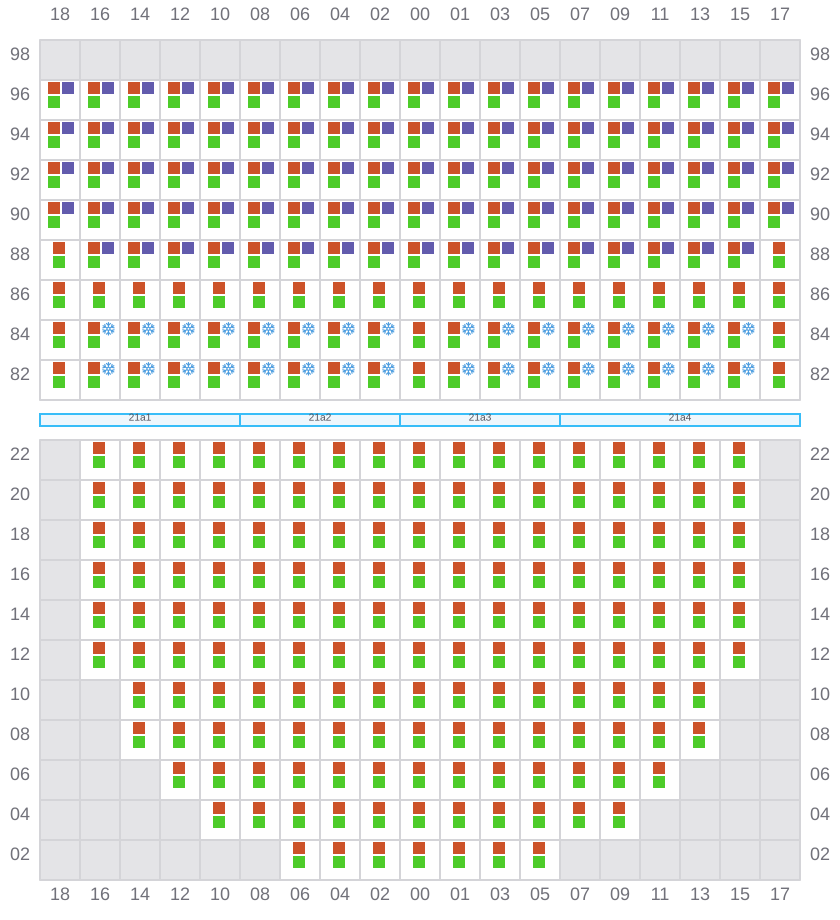

Bay 021 view and slots of AMBITION

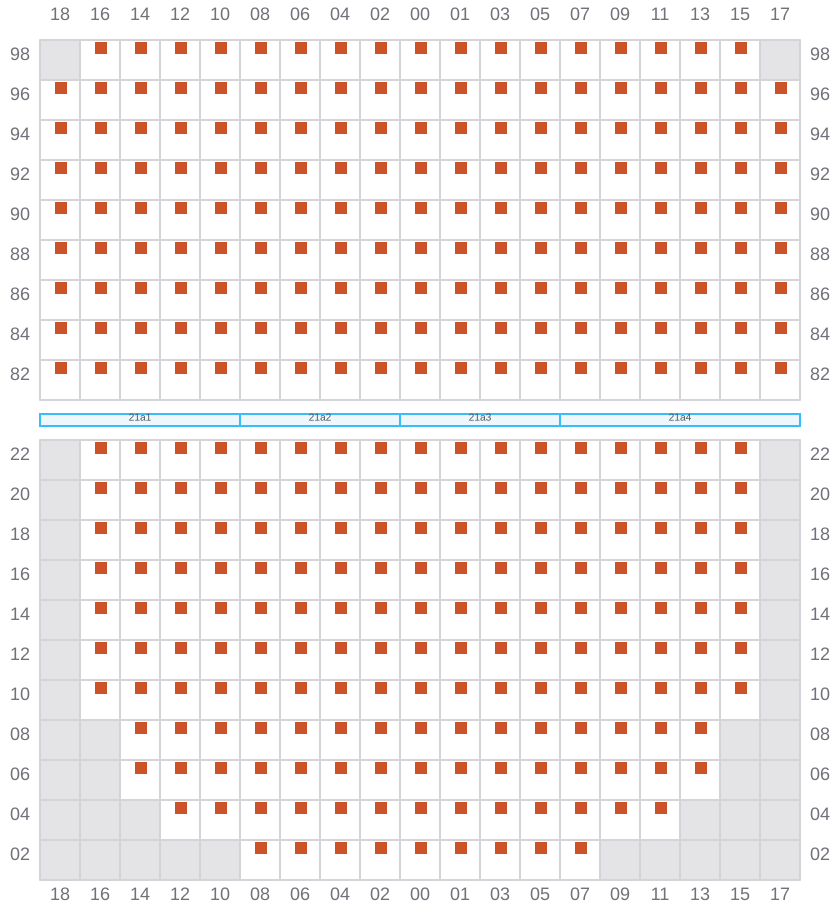

023

  • / ?
Bay 023 view and slots of AMBITION

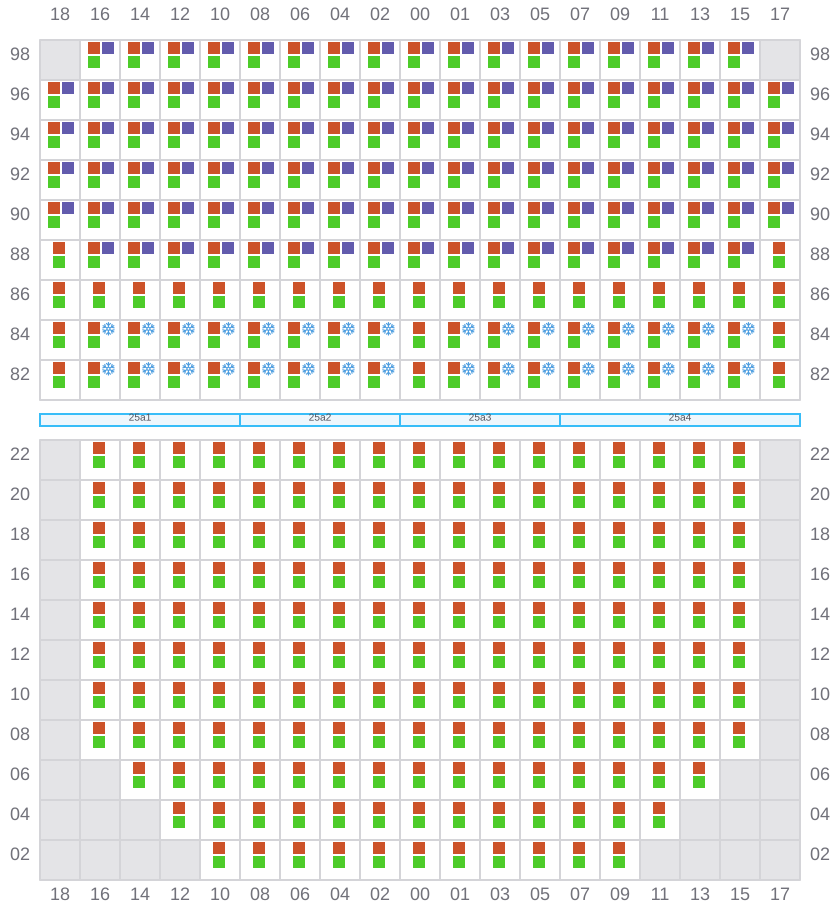

025 (026)

  • / ?
Bay 025 view and slots of AMBITION

027

  • / ?
Bay 027 view and slots of AMBITION

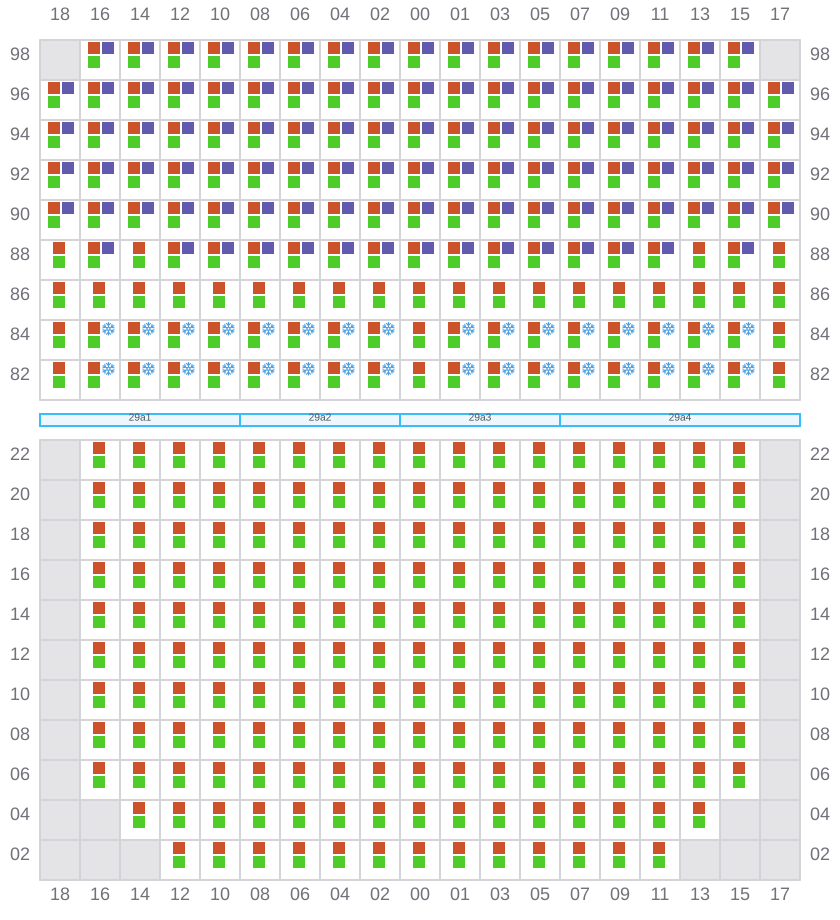

029 (030)

  • / ?
Bay 029 view and slots of AMBITION

031

  • / ?
Bay 031 view and slots of AMBITION

033 (034)

  • / ?
Bay 033 view and slots of AMBITION

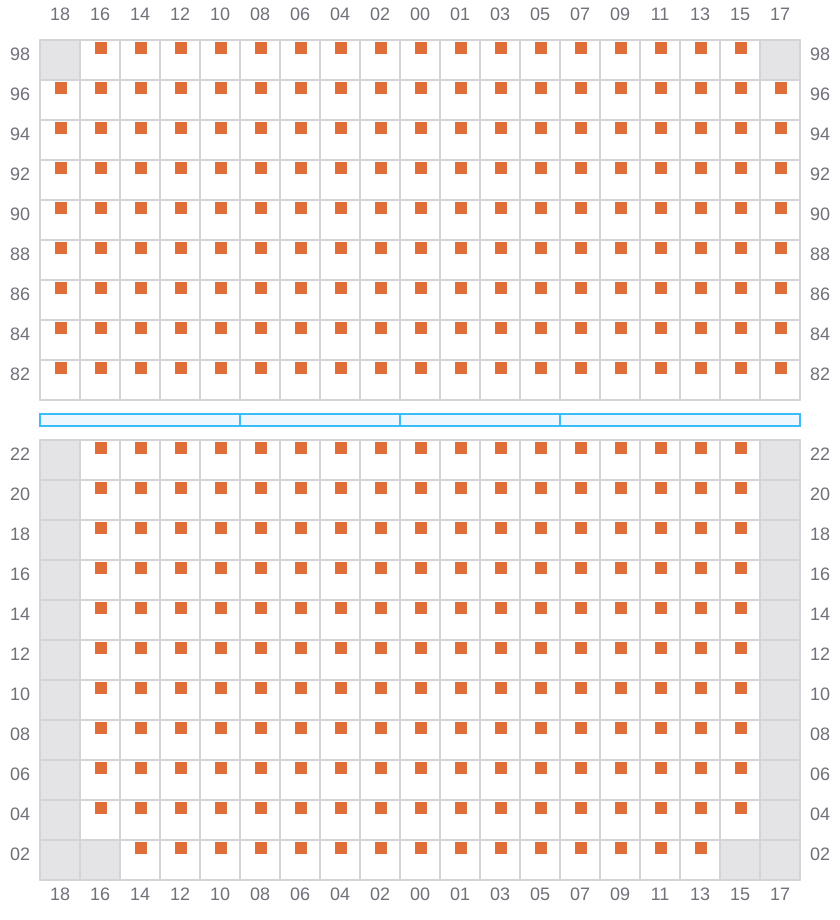

035

Bay 035 view and slots of AMBITION

037 (038)

  • / ?
Bay 037 view and slots of AMBITION

039

Bay 039 view and slots of AMBITION

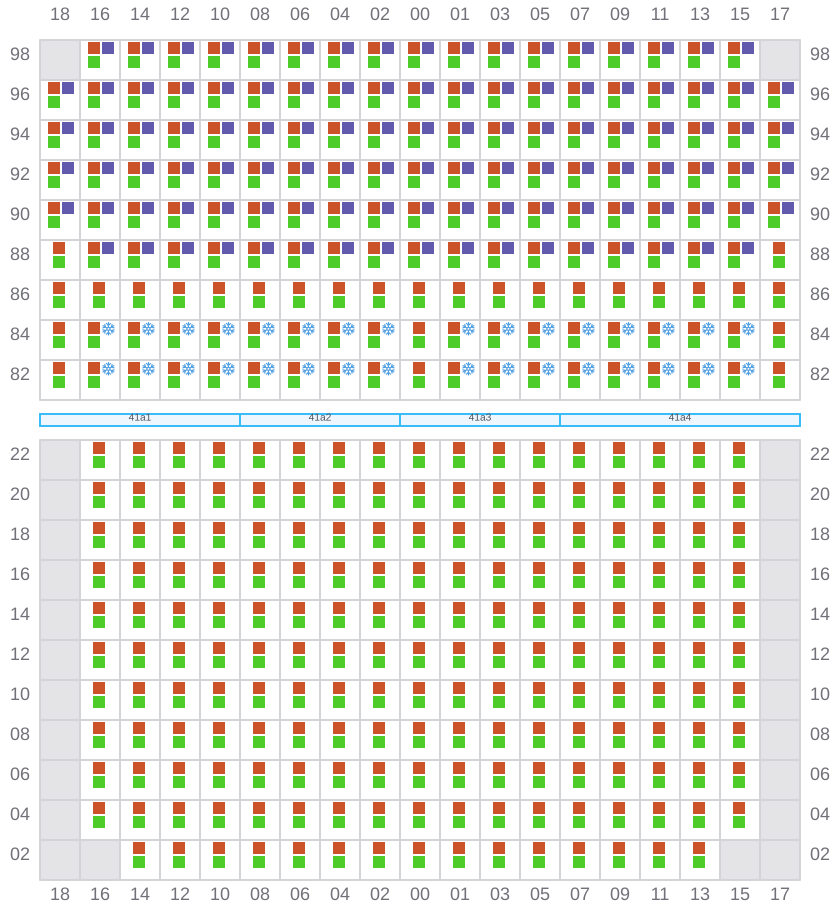

041 (042)

  • / ?
Bay 041 view and slots of AMBITION

043

Bay 043 view and slots of AMBITION

045 (046)

  • / ?
Bay 045 view and slots of AMBITION

047

Bay 047 view and slots of AMBITION

049 (050)

  • / ?

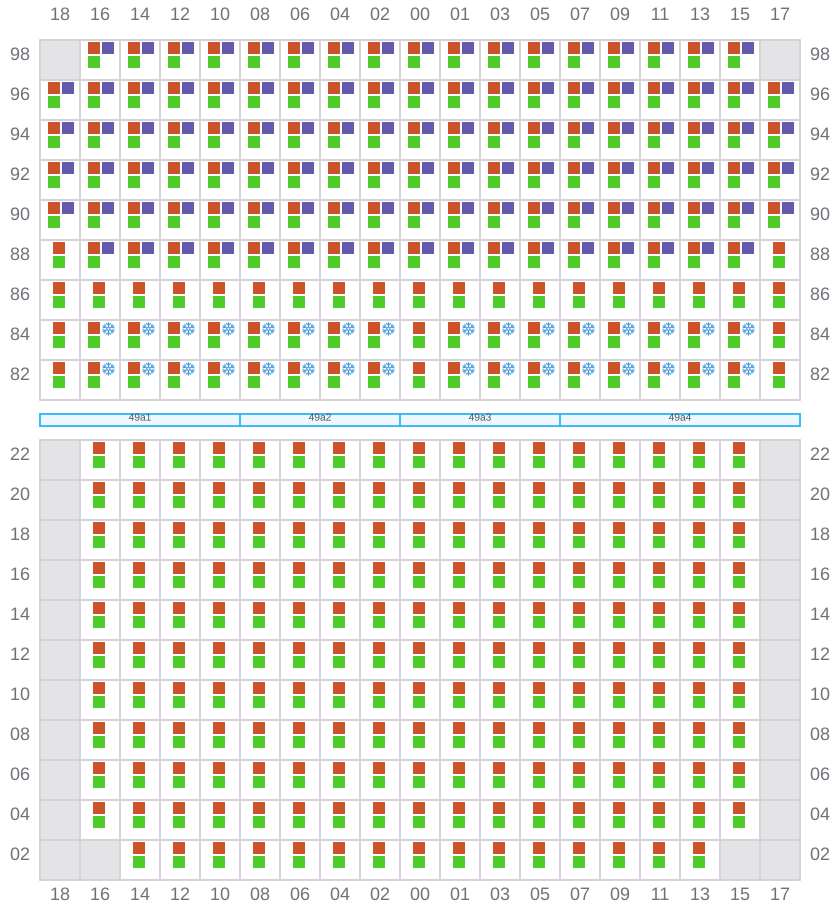

Bay 049 view and slots of AMBITION

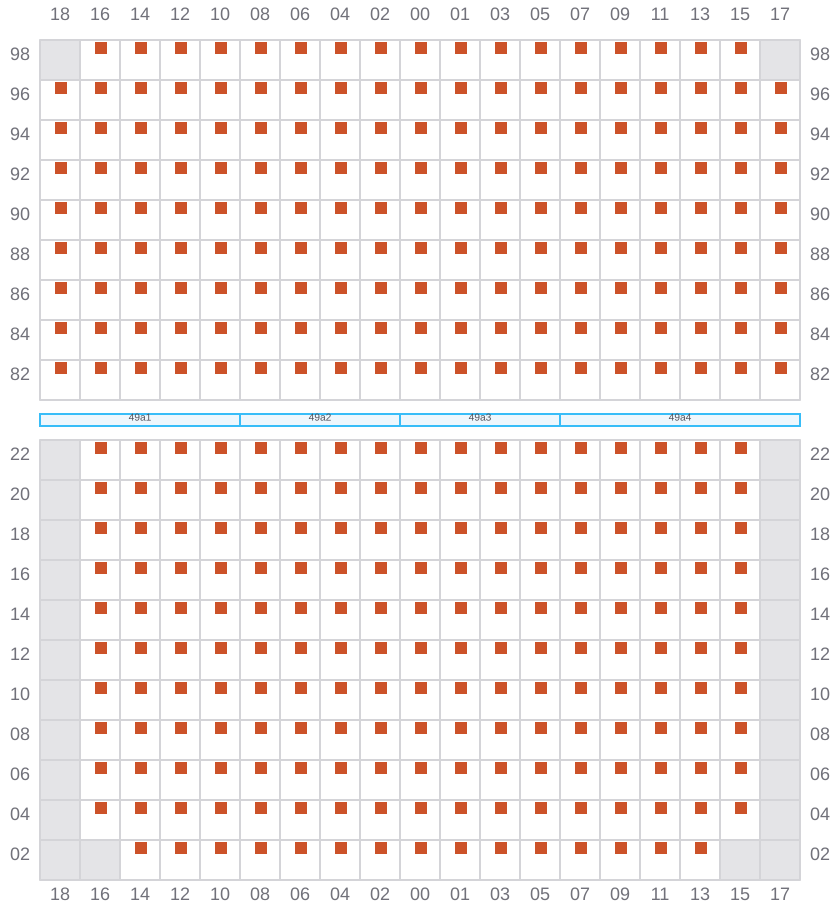

051

Bay 051 view and slots of AMBITION

053 (054)

  • / ?

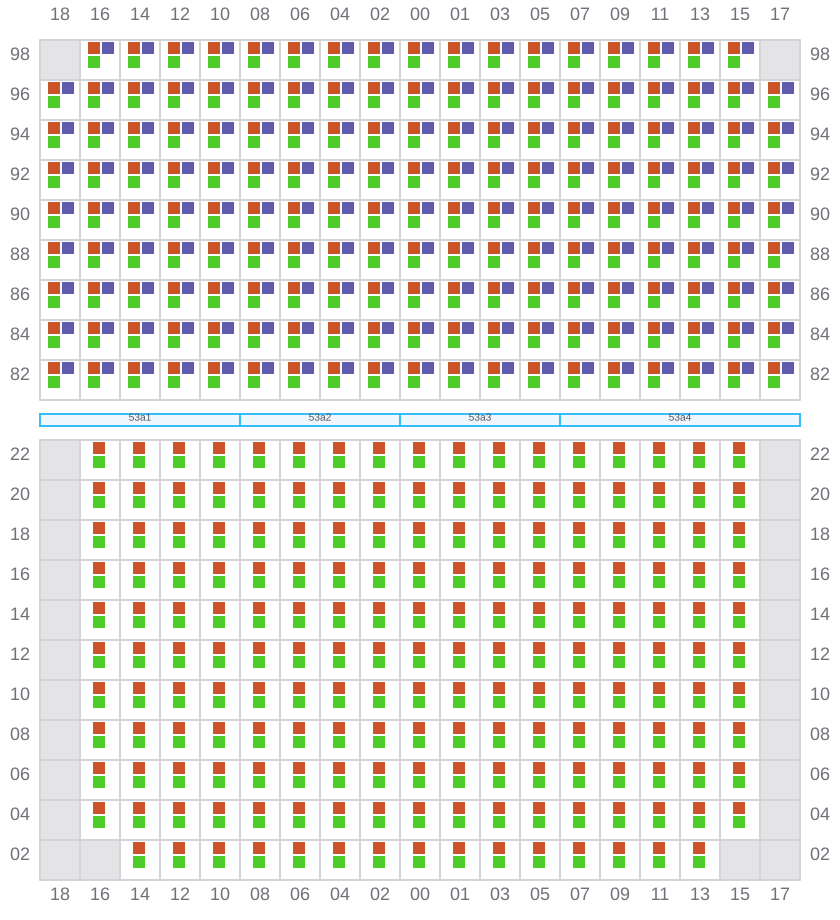

Bay 053 view and slots of AMBITION

055

Bay 055 view and slots of AMBITION

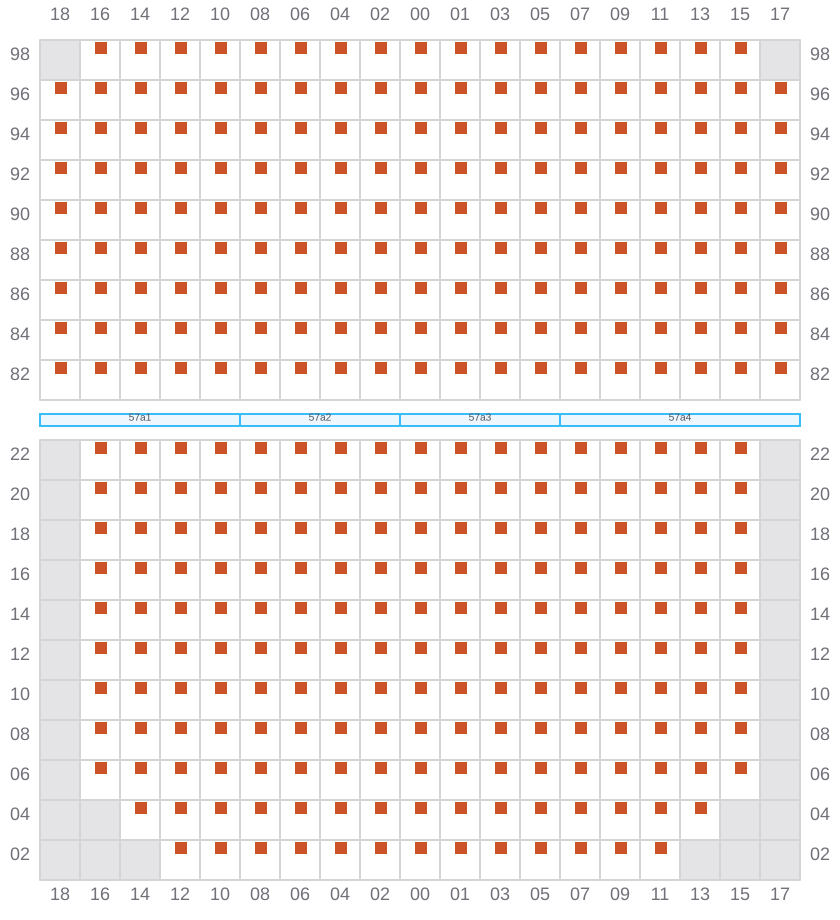

057 (058)

  • / ?

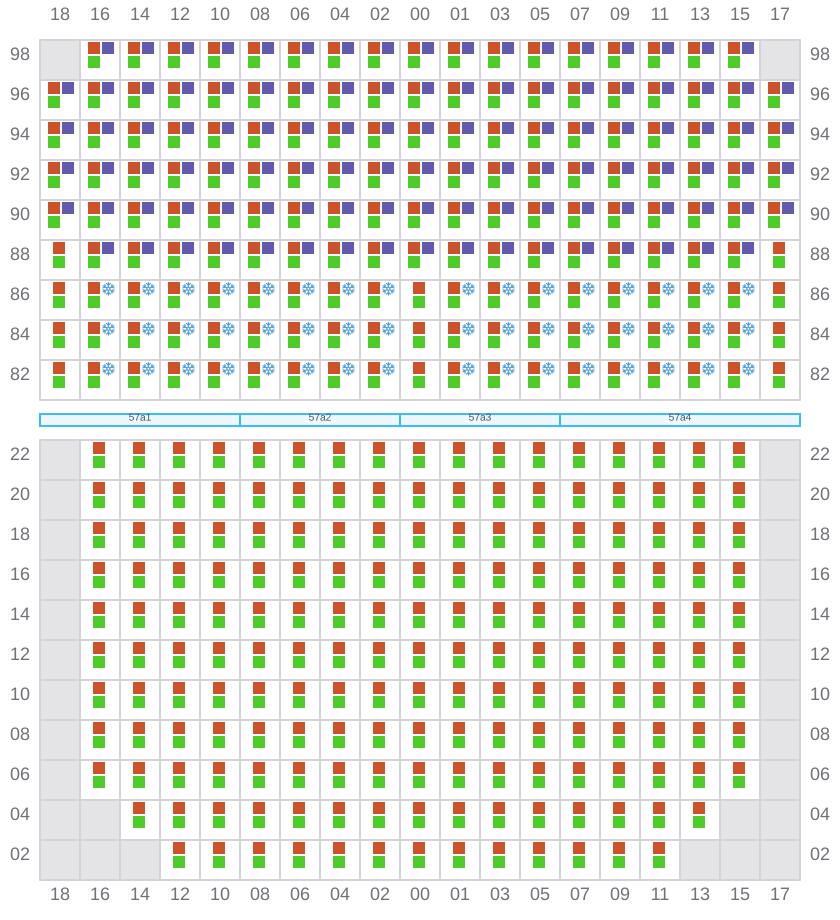

Bay 057 view and slots of AMBITION

059

Bay 059 view and slots of AMBITION

061 (062)

  • / ?

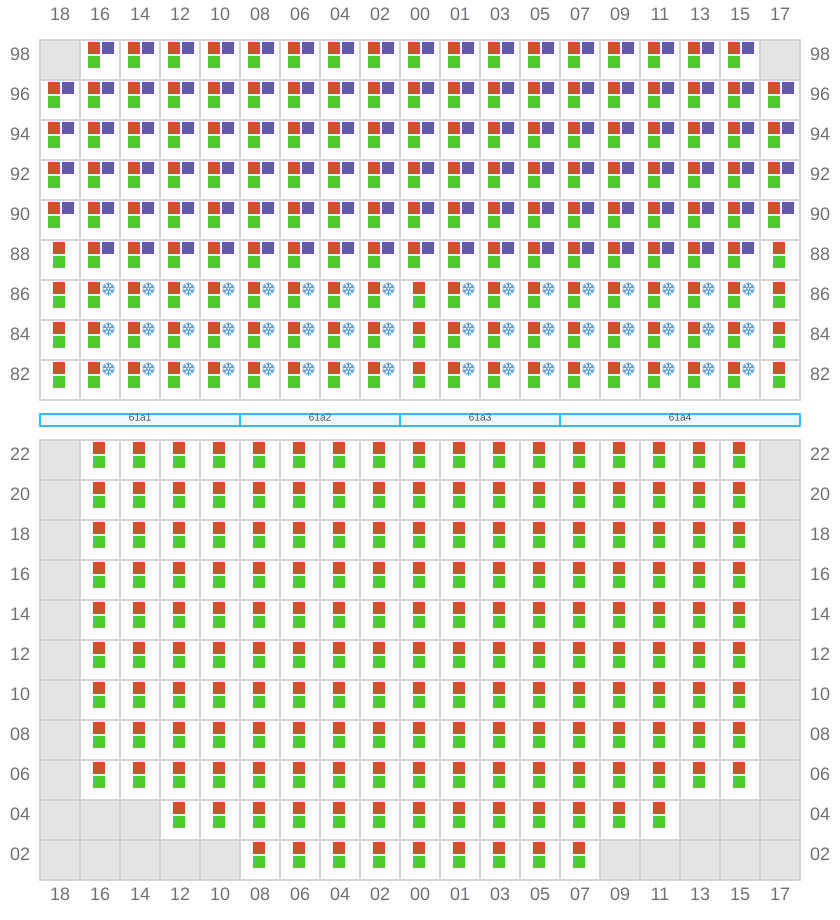

Bay 061 view and slots of AMBITION

063

Bay 063 view and slots of AMBITION

065 (066)

  • / ?
Bay 065 view and slots of AMBITION

067

Bay 067 view and slots of AMBITION

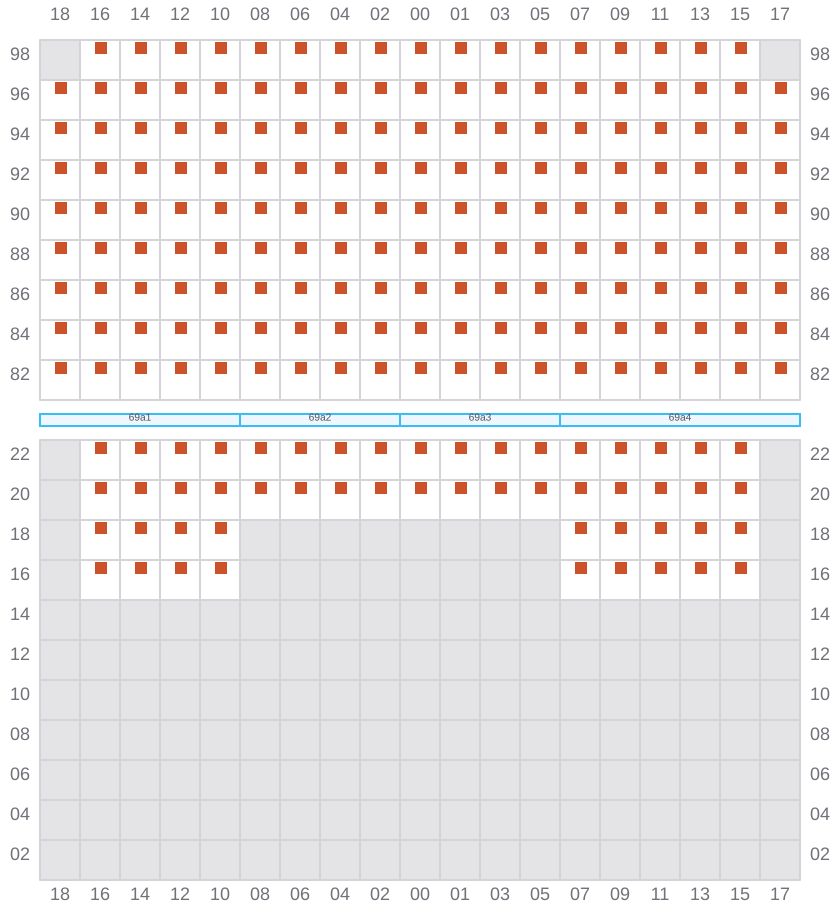

069 (070)

  • / ?

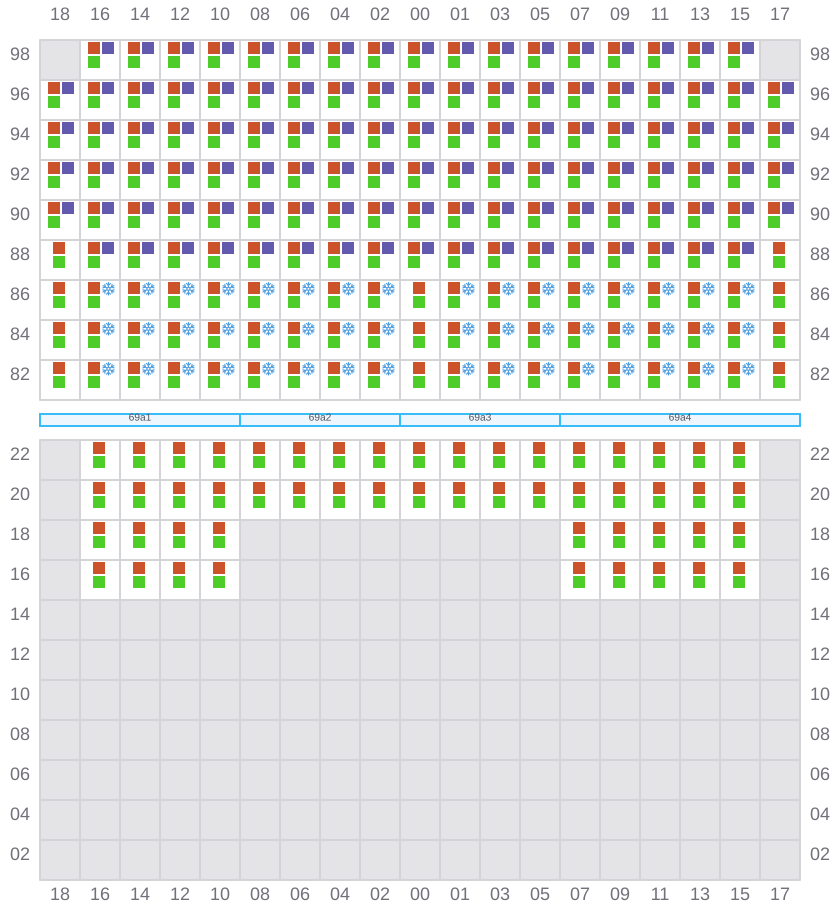

Bay 069 view and slots of AMBITION

071

Bay 071 view and slots of AMBITION

073 (074)

  • / ?

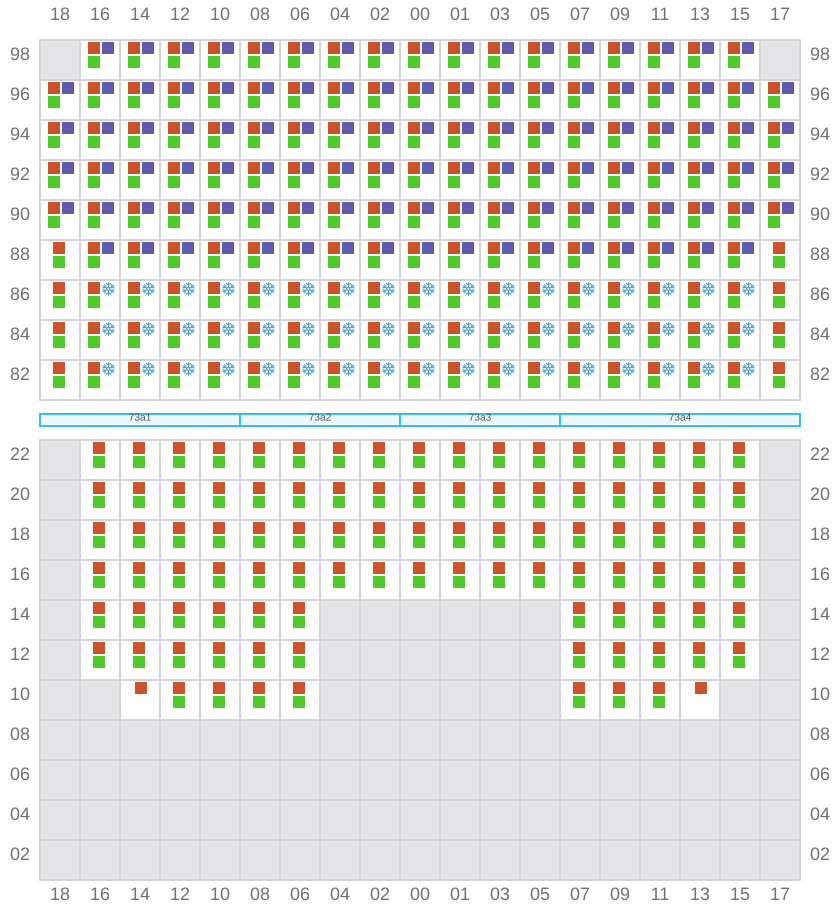

Bay 073 view and slots of AMBITION

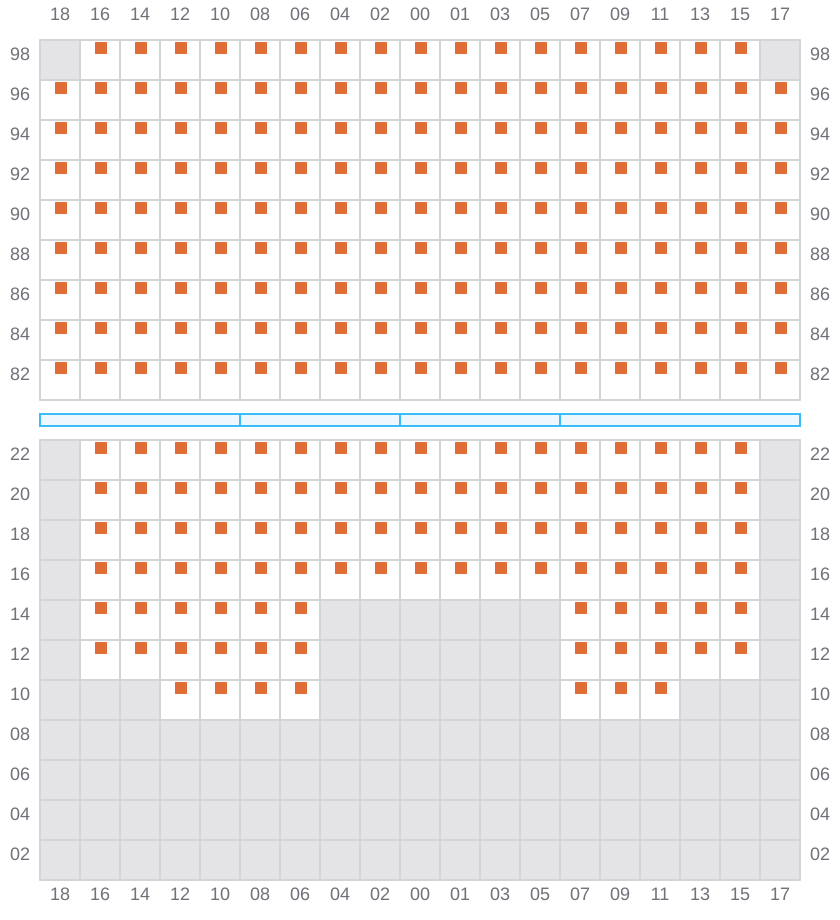

075

Bay 075 view and slots of AMBITION

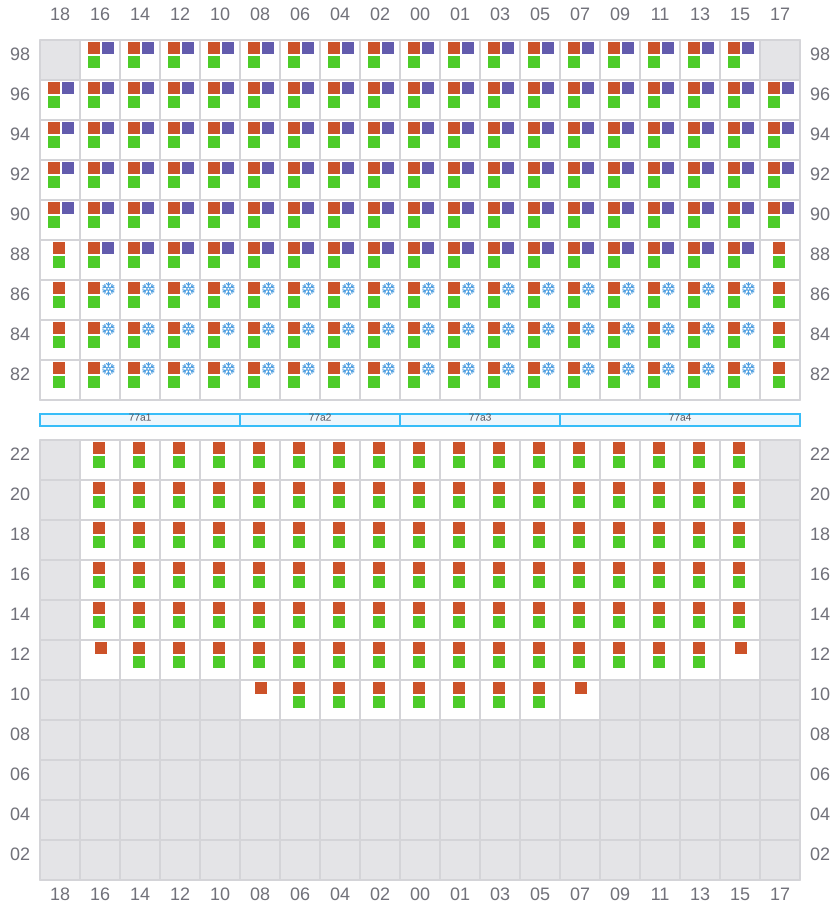

077 (078)

  • / ?
Bay 077 view and slots of AMBITION

079

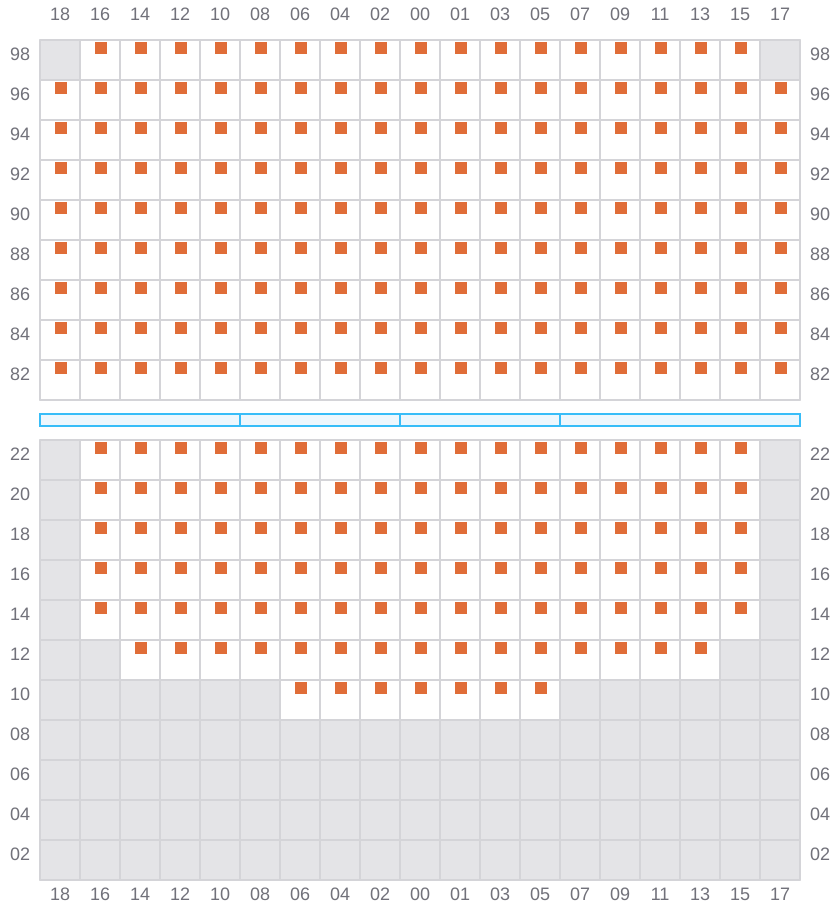

Bay 079 view and slots of AMBITION

081 (082)

  • / ?

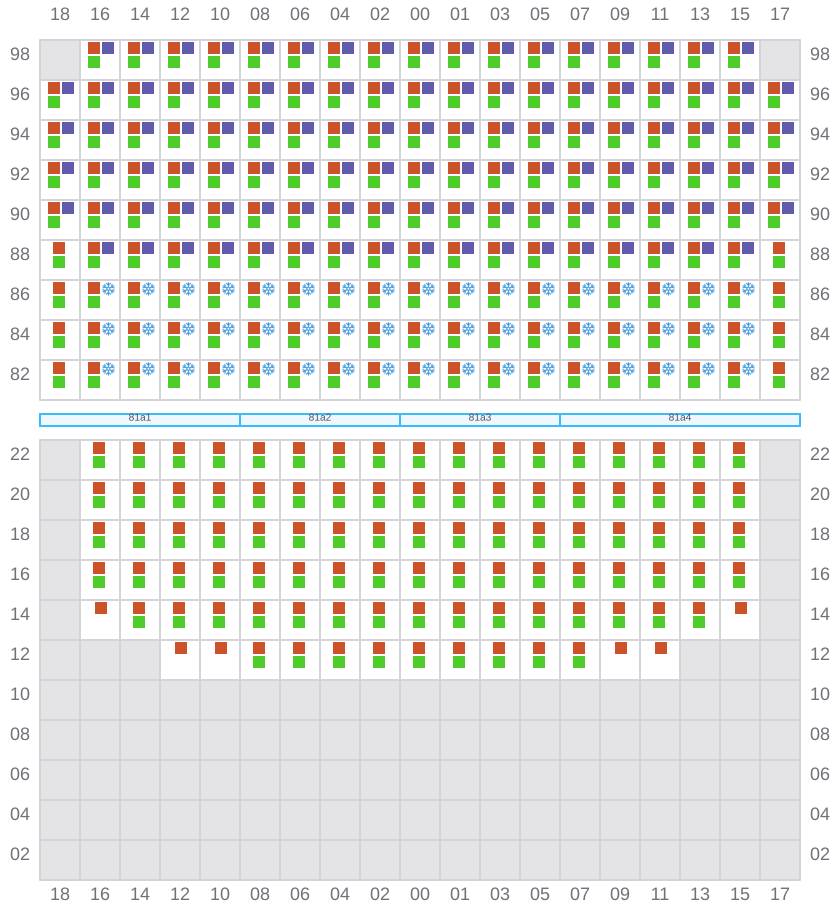

Bay 081 view and slots of AMBITION

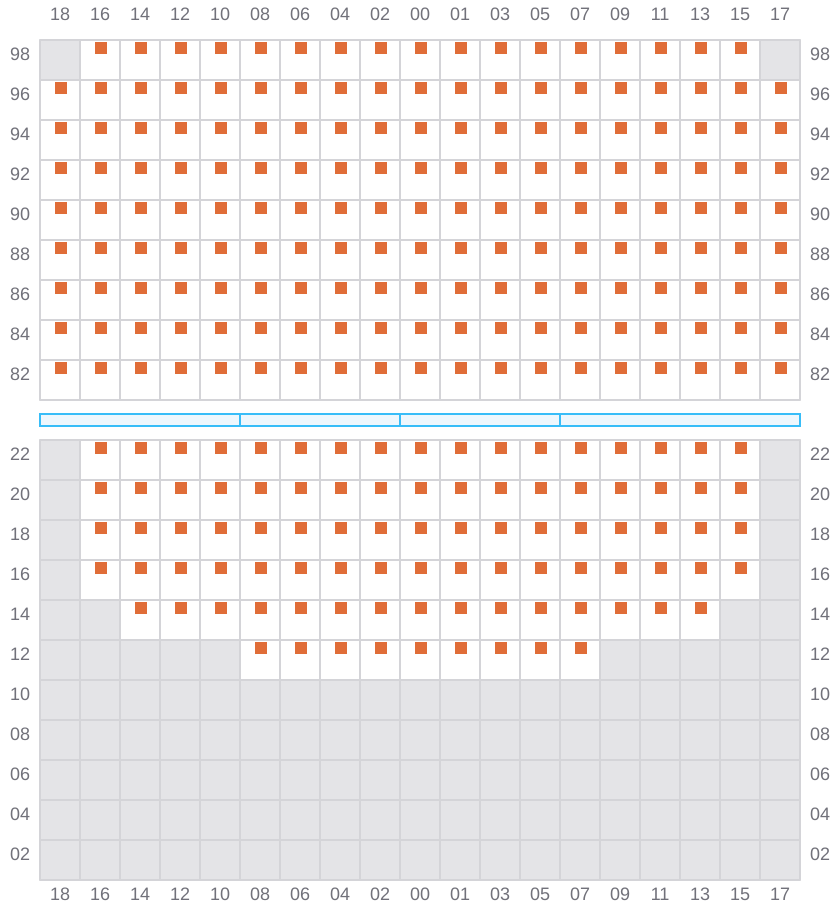

083

Bay 083 view and slots of AMBITION

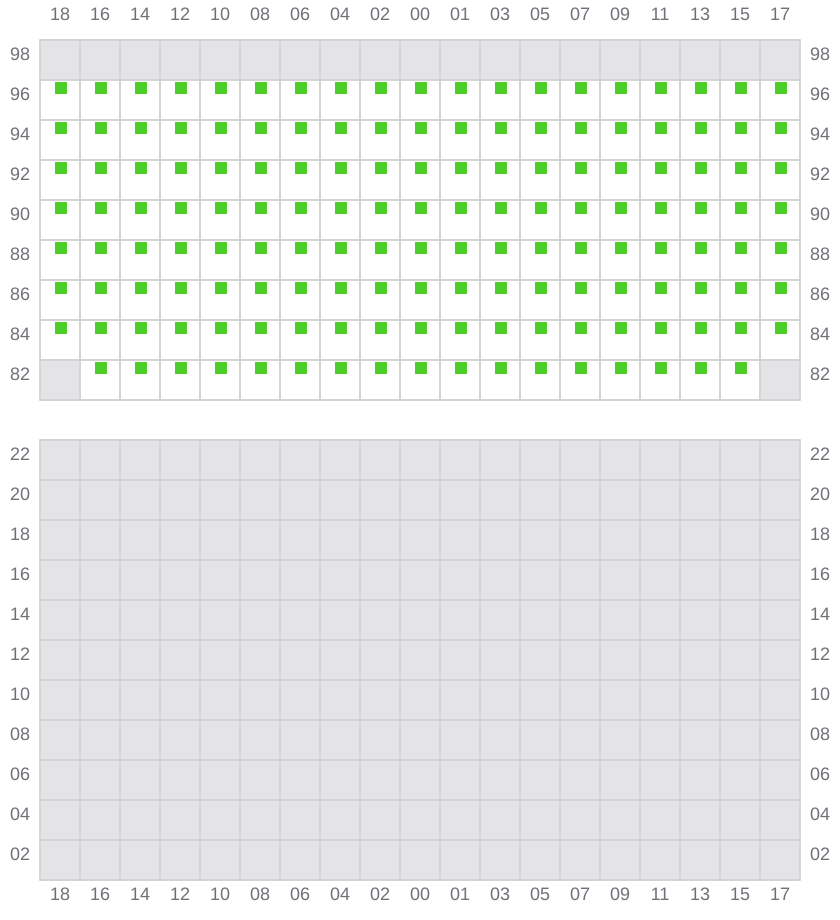

085 (086)

  • / ?
Bay 085 view and slots of AMBITION
