AMO 2
9130121 | HQZV7 | 9130121 by ********* Last update: Wed Mar 06 2024
General Info
Ship Name:AMO 2
IMO Code:9130121
Call Sign:HQZV7
Line Operator:9130121
Class Name for Sister Ships:32C
Year Built:1998
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):171.90
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:041
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:1,730
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
![Side view of AMO 2](/vessel-images/66e679dd-a2c7-4348-8414-fe9005880f9c-sideView.png?v=1709761098295)
Hatch-Covers View
![Deck view of AMO 2](/vessel-images/66e679dd-a2c7-4348-8414-fe9005880f9c-deckView.png?v=1709761098295)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

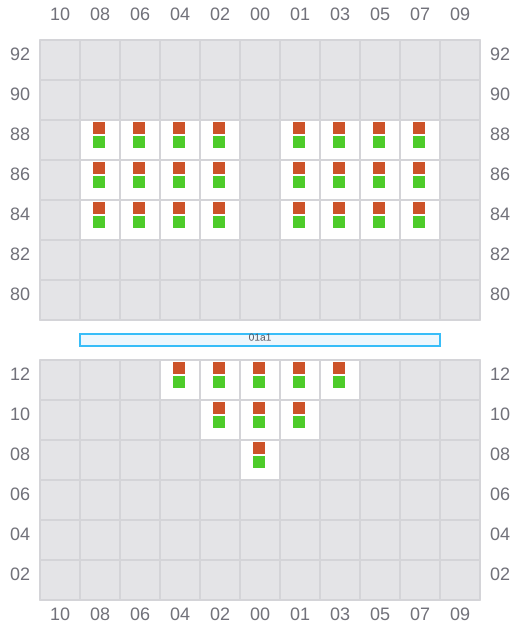

001 (002)
- →
![Bay 001 view and slots of AMO 2](/vessel-images/66e679dd-a2c7-4348-8414-fe9005880f9c-b001.png?v=1709761098295)
003
- ←
- → / ?
![Bay 003 view and slots of AMO 2](/vessel-images/66e679dd-a2c7-4348-8414-fe9005880f9c-b003.png?v=1709761098295)
005 (006)
- →
- ← / ?
![Bay 005 view and slots of AMO 2](/vessel-images/66e679dd-a2c7-4348-8414-fe9005880f9c-b005.png?v=1709761098295)
007
- ←
- → / ?
![Bay 007 view and slots of AMO 2](/vessel-images/66e679dd-a2c7-4348-8414-fe9005880f9c-b007.png?v=1709761098295)
009 (010)
- →
- ← / ?
![Bay 009 view and slots of AMO 2](/vessel-images/66e679dd-a2c7-4348-8414-fe9005880f9c-b009.png?v=1709761098295)

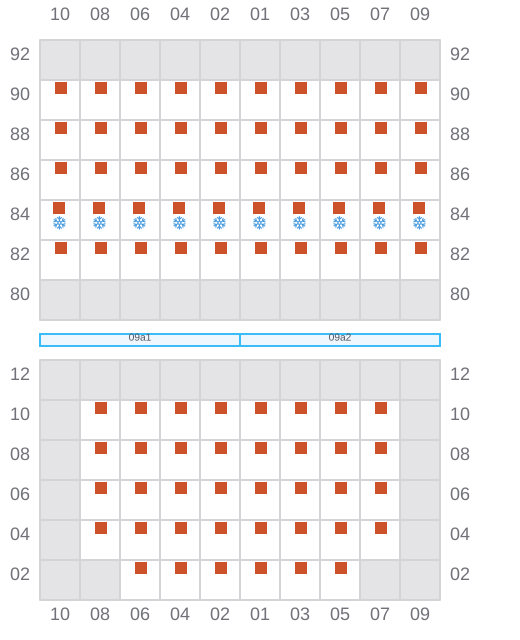

011
- ←
- → / ?
![Bay 011 view and slots of AMO 2](/vessel-images/66e679dd-a2c7-4348-8414-fe9005880f9c-b011.png?v=1709761098295)

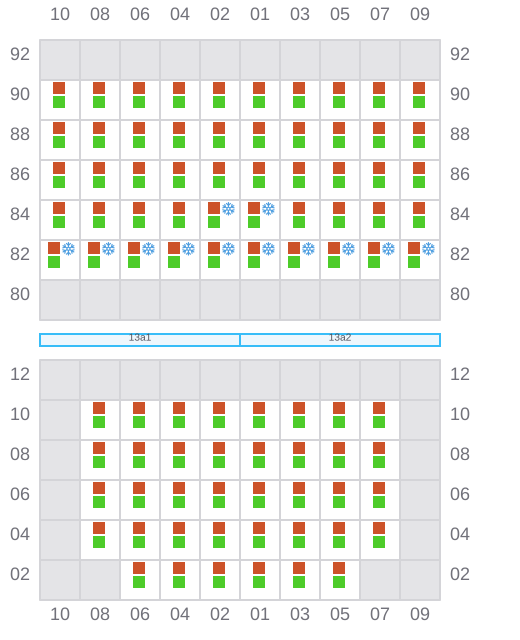

013 (014)
- →
- ← / ?
![Bay 013 view and slots of AMO 2](/vessel-images/66e679dd-a2c7-4348-8414-fe9005880f9c-b013.png?v=1709761098295)
015
- ←
- → / ?
![Bay 015 view and slots of AMO 2](/vessel-images/66e679dd-a2c7-4348-8414-fe9005880f9c-b015.png?v=1709761098295)
017 (018)
- →
- ← / ?
![Bay 017 view and slots of AMO 2](/vessel-images/66e679dd-a2c7-4348-8414-fe9005880f9c-b017.png?v=1709761098295)
019
- ←
- → / ?
![Bay 019 view and slots of AMO 2](/vessel-images/66e679dd-a2c7-4348-8414-fe9005880f9c-b019.png?v=1709761098295)

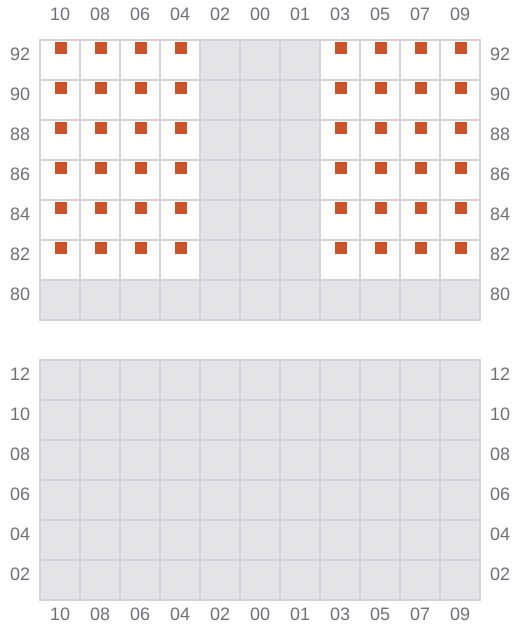

021
![Bay 021 view and slots of AMO 2](/vessel-images/66e679dd-a2c7-4348-8414-fe9005880f9c-b021.png?v=1709761098295)
023 (024)
- →
- ← / ?
![Bay 023 view and slots of AMO 2](/vessel-images/66e679dd-a2c7-4348-8414-fe9005880f9c-b023.png?v=1709761098295)
025
- ←
- → / ?
![Bay 025 view and slots of AMO 2](/vessel-images/66e679dd-a2c7-4348-8414-fe9005880f9c-b025.png?v=1709761098295)
027 (028)
- →
- ← / ?
![Bay 027 view and slots of AMO 2](/vessel-images/66e679dd-a2c7-4348-8414-fe9005880f9c-b027.png?v=1709761098295)
029
- ←
- → / ?
![Bay 029 view and slots of AMO 2](/vessel-images/66e679dd-a2c7-4348-8414-fe9005880f9c-b029.png?v=1709761098295)
031 (032)
- →
- ← / ?
![Bay 031 view and slots of AMO 2](/vessel-images/66e679dd-a2c7-4348-8414-fe9005880f9c-b031.png?v=1709761098295)
033
- ←
- → / ?
![Bay 033 view and slots of AMO 2](/vessel-images/66e679dd-a2c7-4348-8414-fe9005880f9c-b033.png?v=1709761098295)
035 (036)
- →
- ← / ?
![Bay 035 view and slots of AMO 2](/vessel-images/66e679dd-a2c7-4348-8414-fe9005880f9c-b035.png?v=1709761098295)
037
- ←
- → / ?
![Bay 037 view and slots of AMO 2](/vessel-images/66e679dd-a2c7-4348-8414-fe9005880f9c-b037.png?v=1709761098295)
039 (040)
- → / ?
- ← / ?
![Bay 039 view and slots of AMO 2](/vessel-images/66e679dd-a2c7-4348-8414-fe9005880f9c-b039.png?v=1709761098295)
041
- ← / ?
- → / ?
![Bay 041 view and slots of AMO 2](/vessel-images/66e679dd-a2c7-4348-8414-fe9005880f9c-b041.png?v=1709761098295)
