ANDERSON DRAGON
9470739 | 9V7047 | 9470739 by ********* Last update: Fri May 03 2024
General Info
Ship Name:ANDERSON DRAGON
IMO Code:9470739
Call Sign:9V7047
Line Operator:9470739
Class Name for Sister Ships:ANDERSON BRIDGE
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:039
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,620
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

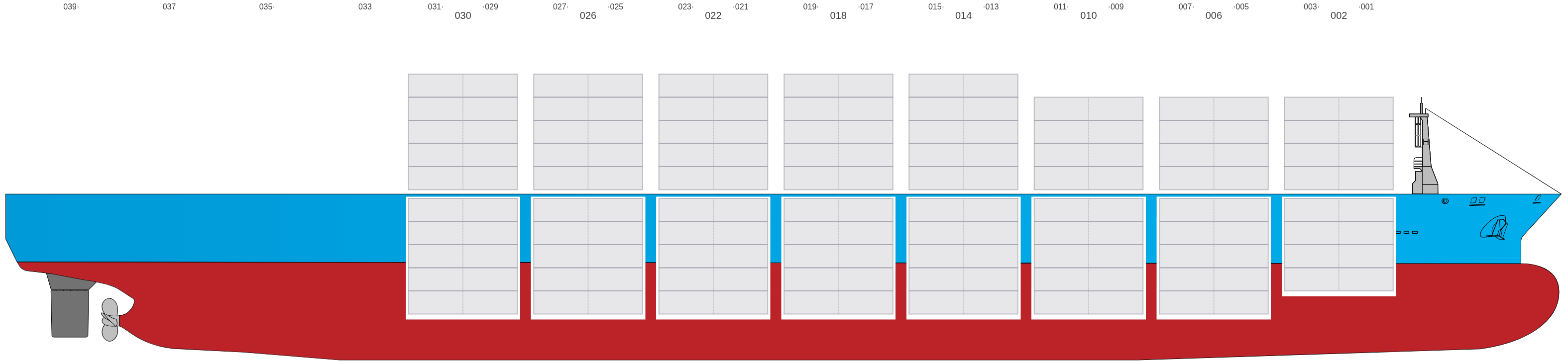

Side View
![Side view of ANDERSON DRAGON](/vessel-images/c2303f15-a796-4121-afba-adef7c36b88c-sideView.png?v=1714763281708)
Hatch-Covers View
![Deck view of ANDERSON DRAGON](/vessel-images/c2303f15-a796-4121-afba-adef7c36b88c-deckView.png?v=1714763281708)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

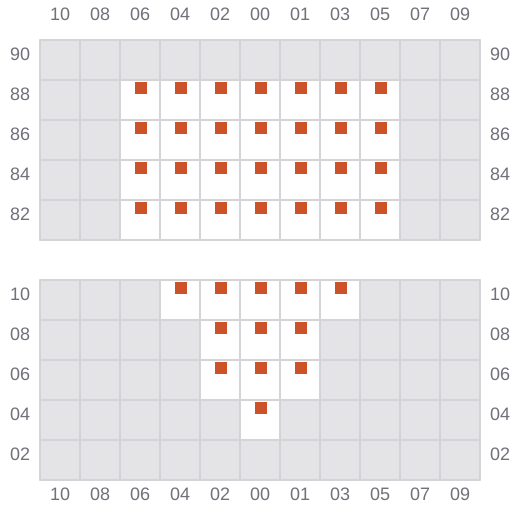

001
- →
![Bay 001 view and slots of ANDERSON DRAGON](/vessel-images/c2303f15-a796-4121-afba-adef7c36b88c-b001.png?v=1714763281708)

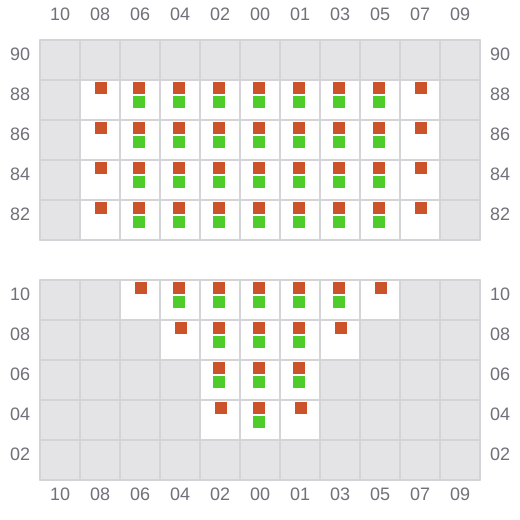

003 (002)
- ←
![Bay 003 view and slots of ANDERSON DRAGON](/vessel-images/c2303f15-a796-4121-afba-adef7c36b88c-b003.png?v=1714763281708)

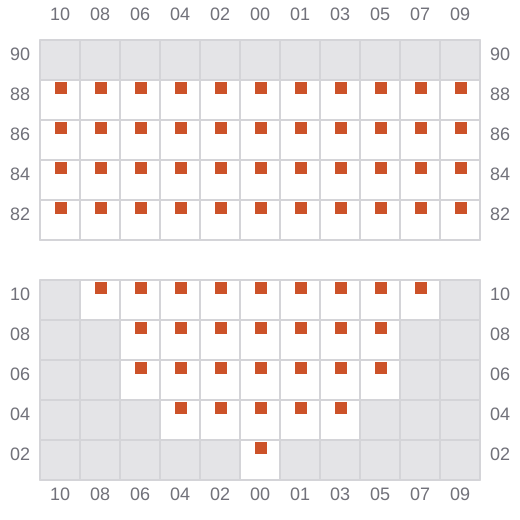

005
- →
![Bay 005 view and slots of ANDERSON DRAGON](/vessel-images/c2303f15-a796-4121-afba-adef7c36b88c-b005.png?v=1714763281708)

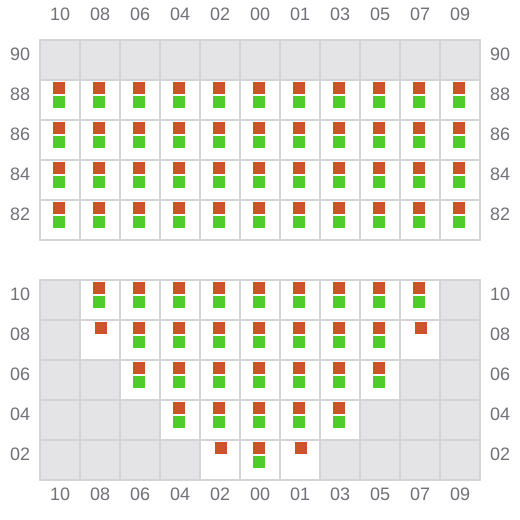

007 (006)
- ←
![Bay 007 view and slots of ANDERSON DRAGON](/vessel-images/c2303f15-a796-4121-afba-adef7c36b88c-b007.png?v=1714763281708)

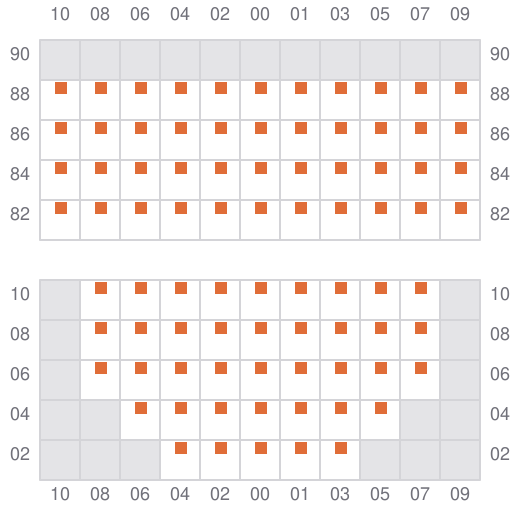

009
- →
![Bay 009 view and slots of ANDERSON DRAGON](/vessel-images/c2303f15-a796-4121-afba-adef7c36b88c-b009.png?v=1714763281708)

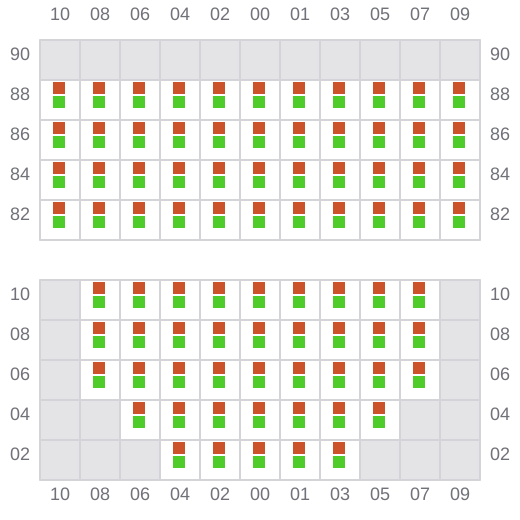

011 (010)
- ←
![Bay 011 view and slots of ANDERSON DRAGON](/vessel-images/c2303f15-a796-4121-afba-adef7c36b88c-b011.png?v=1714763281708)
013
- →
![Bay 013 view and slots of ANDERSON DRAGON](/vessel-images/c2303f15-a796-4121-afba-adef7c36b88c-b013.png?v=1714763281708)

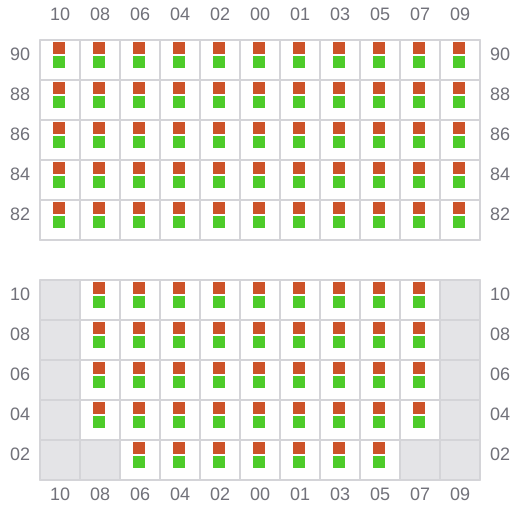

015 (014)
- ←
![Bay 015 view and slots of ANDERSON DRAGON](/vessel-images/c2303f15-a796-4121-afba-adef7c36b88c-b015.png?v=1714763281708)
017
- →
![Bay 017 view and slots of ANDERSON DRAGON](/vessel-images/c2303f15-a796-4121-afba-adef7c36b88c-b017.png?v=1714763281708)

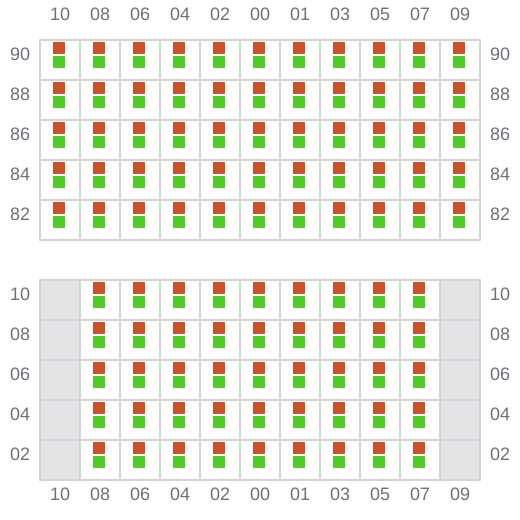

019 (018)
- ←
![Bay 019 view and slots of ANDERSON DRAGON](/vessel-images/c2303f15-a796-4121-afba-adef7c36b88c-b019.png?v=1714763281708)
021
- →
![Bay 021 view and slots of ANDERSON DRAGON](/vessel-images/c2303f15-a796-4121-afba-adef7c36b88c-b021.png?v=1714763281708)
023 (022)
- ←
![Bay 023 view and slots of ANDERSON DRAGON](/vessel-images/c2303f15-a796-4121-afba-adef7c36b88c-b023.png?v=1714763281708)

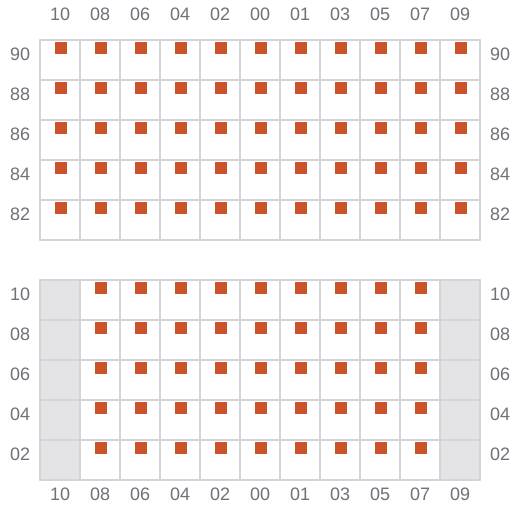

025
- →
![Bay 025 view and slots of ANDERSON DRAGON](/vessel-images/c2303f15-a796-4121-afba-adef7c36b88c-b025.png?v=1714763281708)
027 (026)
- ←
![Bay 027 view and slots of ANDERSON DRAGON](/vessel-images/c2303f15-a796-4121-afba-adef7c36b88c-b027.png?v=1714763281708)

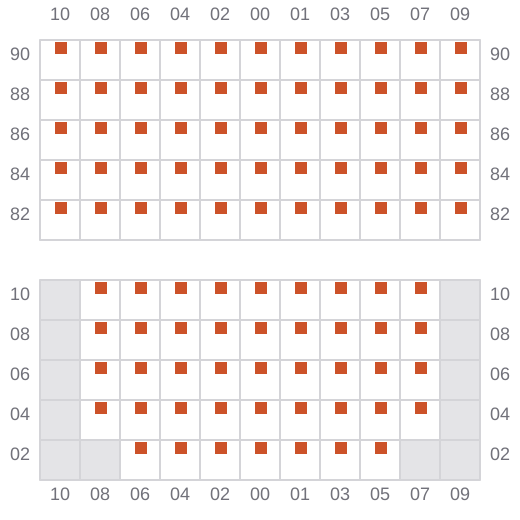

029
- →
![Bay 029 view and slots of ANDERSON DRAGON](/vessel-images/c2303f15-a796-4121-afba-adef7c36b88c-b029.png?v=1714763281708)

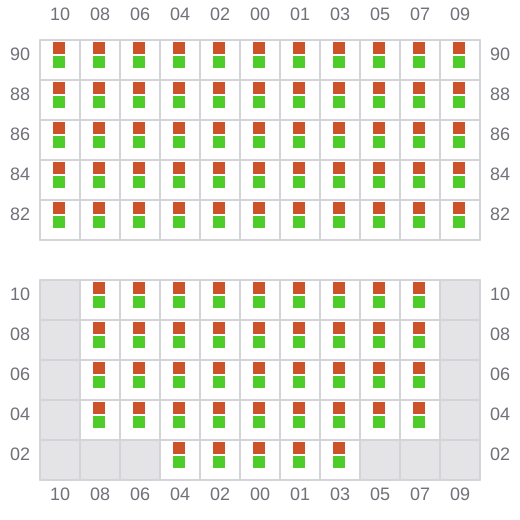

031 (030)
- ←
![Bay 031 view and slots of ANDERSON DRAGON](/vessel-images/c2303f15-a796-4121-afba-adef7c36b88c-b031.png?v=1714763281708)

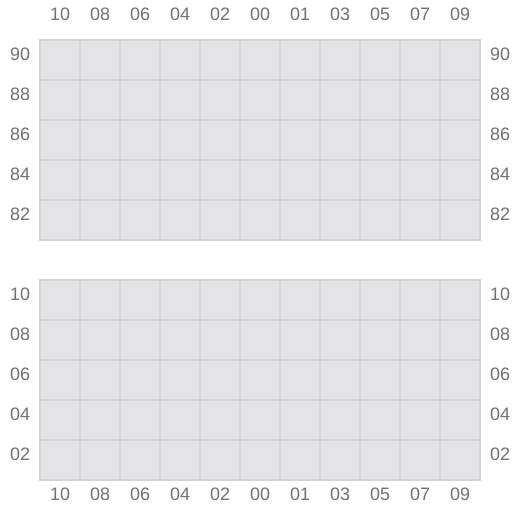

033
![Bay 033 view and slots of ANDERSON DRAGON](/vessel-images/c2303f15-a796-4121-afba-adef7c36b88c-b033.png?v=1714763281708)

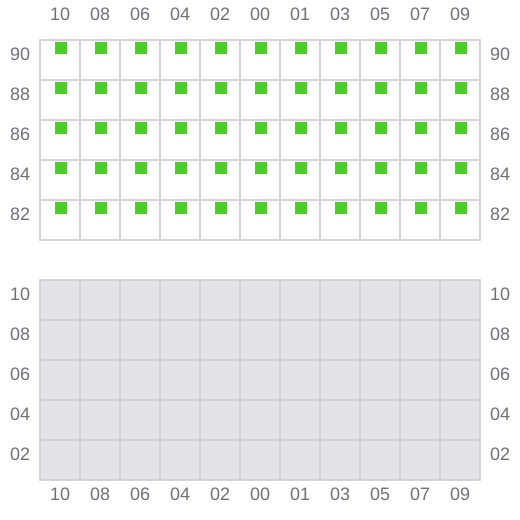

035 (034)
- ← / ?
![Bay 035 view and slots of ANDERSON DRAGON](/vessel-images/c2303f15-a796-4121-afba-adef7c36b88c-b035.png?v=1714763281708)
037
![Bay 037 view and slots of ANDERSON DRAGON](/vessel-images/c2303f15-a796-4121-afba-adef7c36b88c-b037.png?v=1714763281708)
039 (038)
- ← / ?
![Bay 039 view and slots of ANDERSON DRAGON](/vessel-images/c2303f15-a796-4121-afba-adef7c36b88c-b039.png?v=1714763281708)
