ANGEL
9256406 | T8A4295 | 9256406 by ********* Last update: Wed Apr 24 2024
General Info
Ship Name:ANGEL
IMO Code:9256406
Call Sign:T8A4295
Line Operator:9256406
Class Name for Sister Ships:MOLACCORD
Year Built:2002
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:035
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:1,581
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

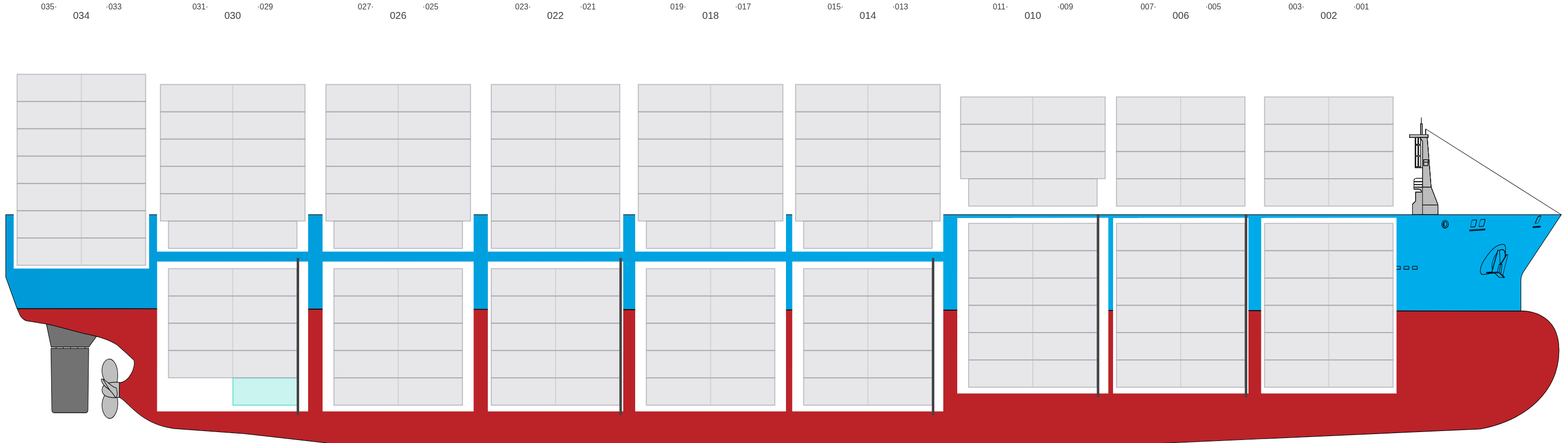

Side View
![Side view of ANGEL](/vessel-images/21f3a17e-e544-4c46-aadd-c5ceeadf73ce-sideView.png?v=1713977865642)

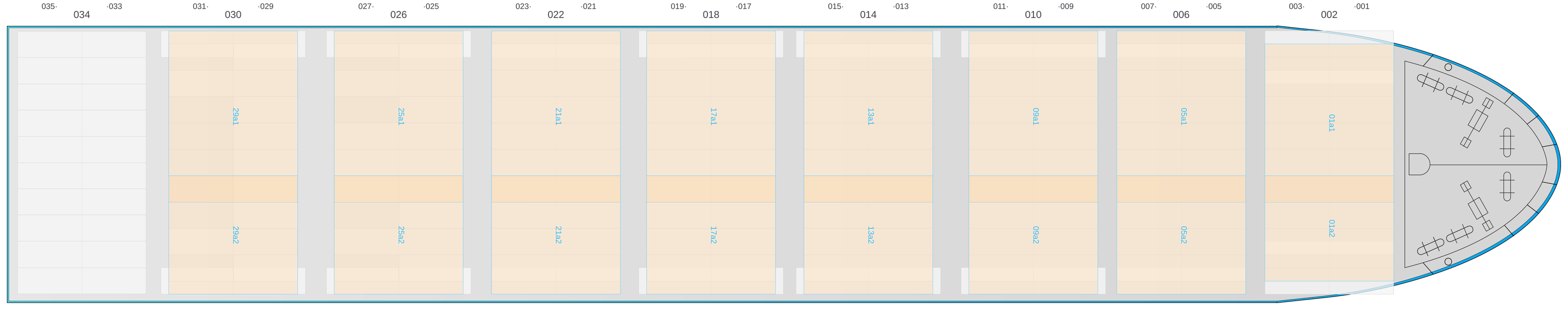

Hatch-Covers View
![Deck view of ANGEL](/vessel-images/21f3a17e-e544-4c46-aadd-c5ceeadf73ce-deckView.png?v=1713977865642)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

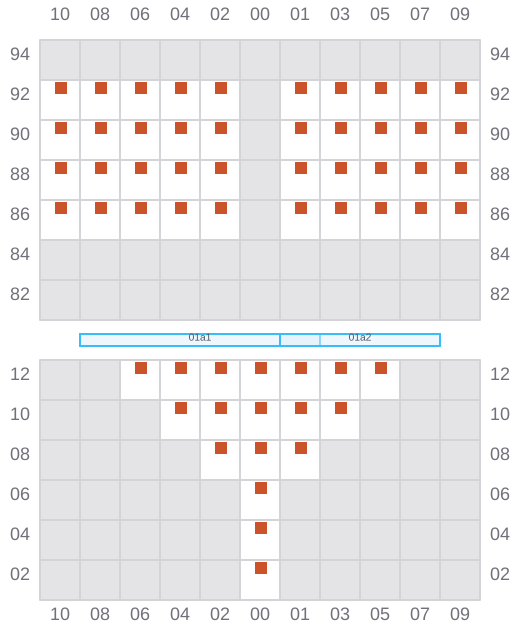

001
- →
- →
![Bay 001 view and slots of ANGEL](/vessel-images/21f3a17e-e544-4c46-aadd-c5ceeadf73ce-b001.png?v=1713977865642)

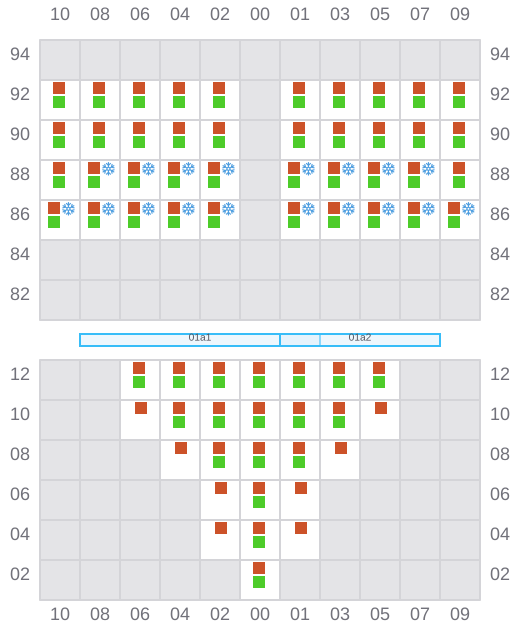

003 (002)
- ←
- → / ?
- →
![Bay 003 view and slots of ANGEL](/vessel-images/21f3a17e-e544-4c46-aadd-c5ceeadf73ce-b003.png?v=1713977865642)
005
- →
- →
![Bay 005 view and slots of ANGEL](/vessel-images/21f3a17e-e544-4c46-aadd-c5ceeadf73ce-b005.png?v=1713977865642)
007 (006)
- ←
- → / ?
- →
![Bay 007 view and slots of ANGEL](/vessel-images/21f3a17e-e544-4c46-aadd-c5ceeadf73ce-b007.png?v=1713977865642)
009
- →
- →
![Bay 009 view and slots of ANGEL](/vessel-images/21f3a17e-e544-4c46-aadd-c5ceeadf73ce-b009.png?v=1713977865642)
011 (010)
- ←
- → / ?
- →
![Bay 011 view and slots of ANGEL](/vessel-images/21f3a17e-e544-4c46-aadd-c5ceeadf73ce-b011.png?v=1713977865642)

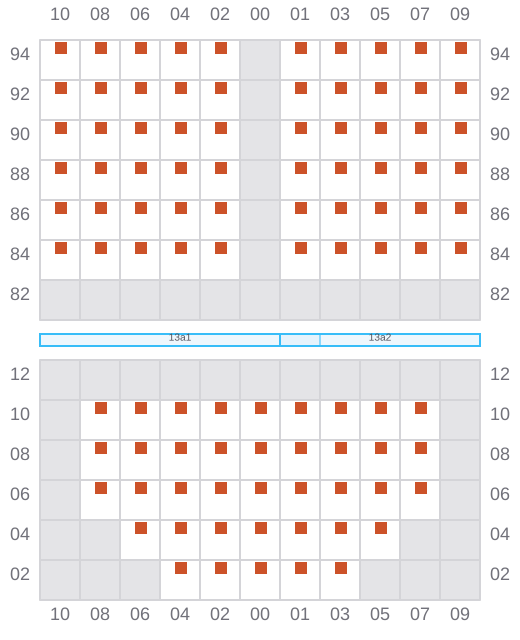

013
- →
- →
![Bay 013 view and slots of ANGEL](/vessel-images/21f3a17e-e544-4c46-aadd-c5ceeadf73ce-b013.png?v=1713977865642)
015 (014)
- ←
- →
- →
![Bay 015 view and slots of ANGEL](/vessel-images/21f3a17e-e544-4c46-aadd-c5ceeadf73ce-b015.png?v=1713977865642)
017
- →
- ? / ←
- →
![Bay 017 view and slots of ANGEL](/vessel-images/21f3a17e-e544-4c46-aadd-c5ceeadf73ce-b017.png?v=1713977865642)

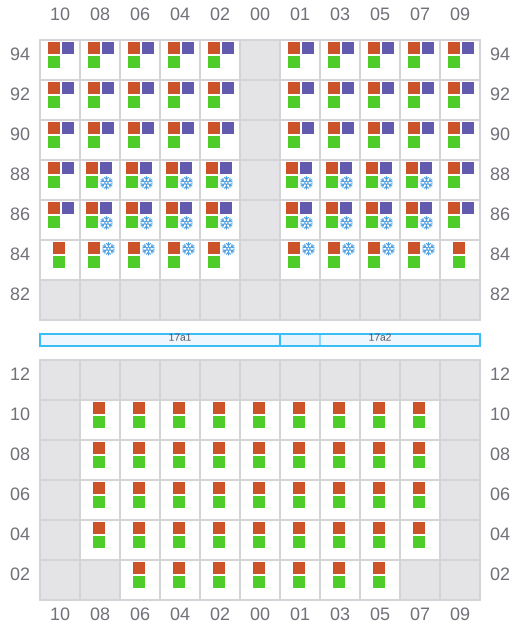

019 (018)
- ←
- → / ?
- →
![Bay 019 view and slots of ANGEL](/vessel-images/21f3a17e-e544-4c46-aadd-c5ceeadf73ce-b019.png?v=1713977865642)
021
- →
- →
![Bay 021 view and slots of ANGEL](/vessel-images/21f3a17e-e544-4c46-aadd-c5ceeadf73ce-b021.png?v=1713977865642)

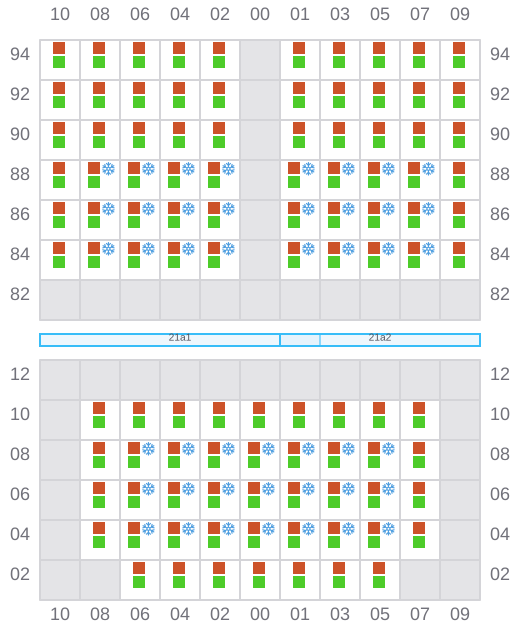

023 (022)
- ←
- →
- →
![Bay 023 view and slots of ANGEL](/vessel-images/21f3a17e-e544-4c46-aadd-c5ceeadf73ce-b023.png?v=1713977865642)
025
- →
- ? / ←
- →
![Bay 025 view and slots of ANGEL](/vessel-images/21f3a17e-e544-4c46-aadd-c5ceeadf73ce-b025.png?v=1713977865642)
027 (026)
- ←
- → / ?
- →
![Bay 027 view and slots of ANGEL](/vessel-images/21f3a17e-e544-4c46-aadd-c5ceeadf73ce-b027.png?v=1713977865642)
029
- →
- →
![Bay 029 view and slots of ANGEL](/vessel-images/21f3a17e-e544-4c46-aadd-c5ceeadf73ce-b029.png?v=1713977865642)

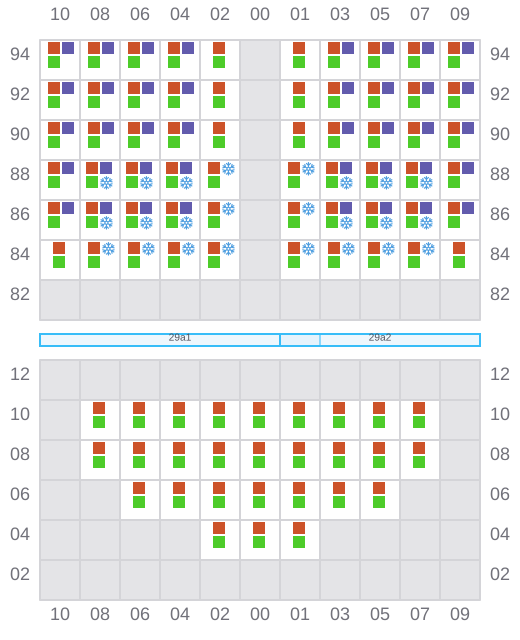

031 (030)
- ←
- → / ?
- →
![Bay 031 view and slots of ANGEL](/vessel-images/21f3a17e-e544-4c46-aadd-c5ceeadf73ce-b031.png?v=1713977865642)

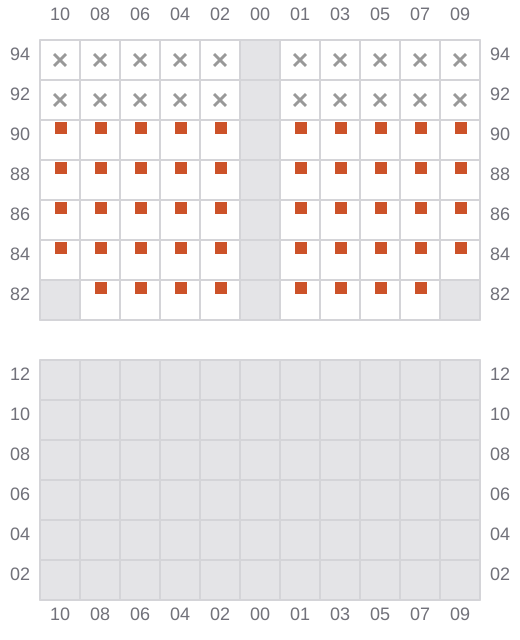

033
- → / ?
- → / ?
![Bay 033 view and slots of ANGEL](/vessel-images/21f3a17e-e544-4c46-aadd-c5ceeadf73ce-b033.png?v=1713977865642)

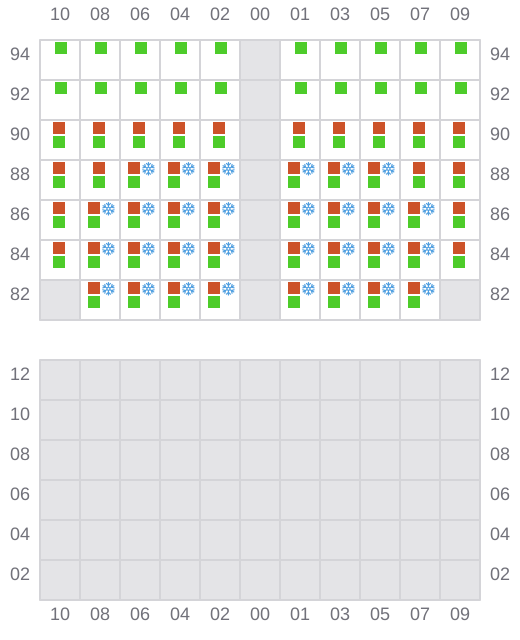

035 (034)
- ← / ?
- → / ?
- → / ?
![Bay 035 view and slots of ANGEL](/vessel-images/21f3a17e-e544-4c46-aadd-c5ceeadf73ce-b035.png?v=1713977865642)
