ANL KOKODA
9516765 | 9HA4797 | 9516765 by ********* Last update: Tue May 07 2024
General Info
Ship Name:ANL KOKODA
IMO Code:9516765
Call Sign:9HA4797
Line Operator:9516765
Class Name for Sister Ships:HANSA OFFENBURG
Year Built:2011
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:035
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:1,751
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

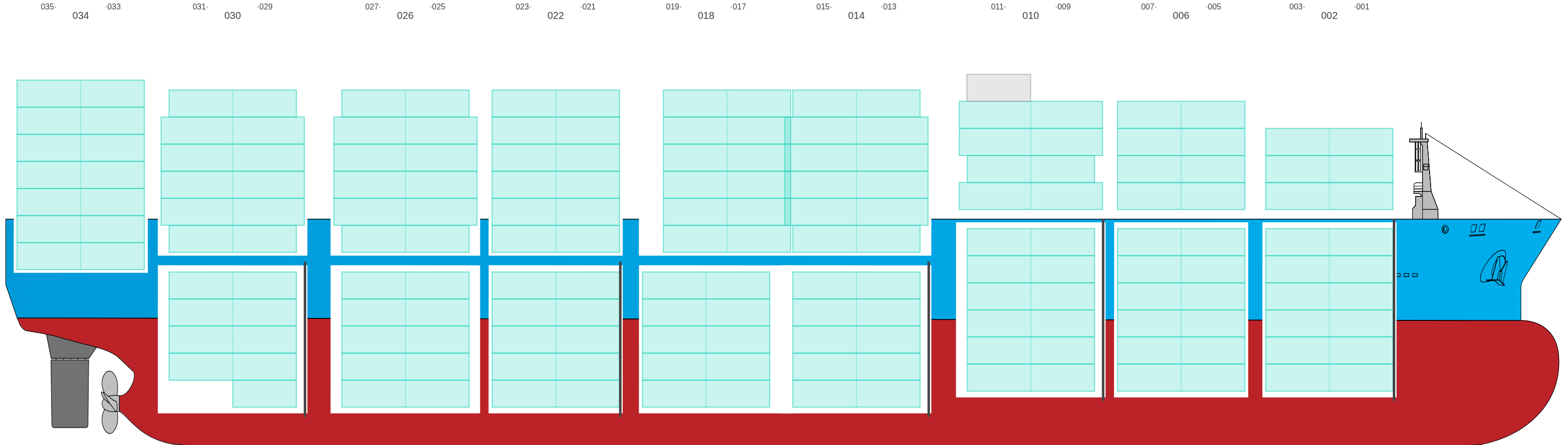

Side View
![Side view of ANL KOKODA](/vessel-images/157c10d4-82ce-4a60-8021-3b9f633bf8b9-sideView.png?v=1715109185956)
Hatch-Covers View
![Deck view of ANL KOKODA](/vessel-images/157c10d4-82ce-4a60-8021-3b9f633bf8b9-deckView.png?v=1715109185956)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

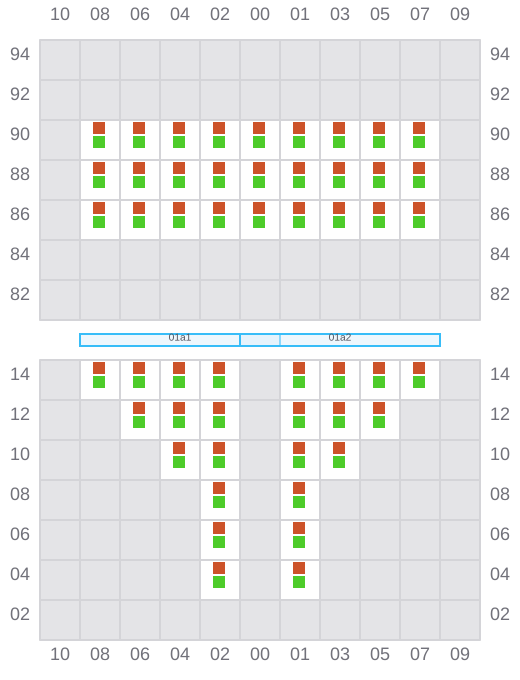

001 (002)
- →
![Bay 001 view and slots of ANL KOKODA](/vessel-images/157c10d4-82ce-4a60-8021-3b9f633bf8b9-b001.png?v=1715109185956)

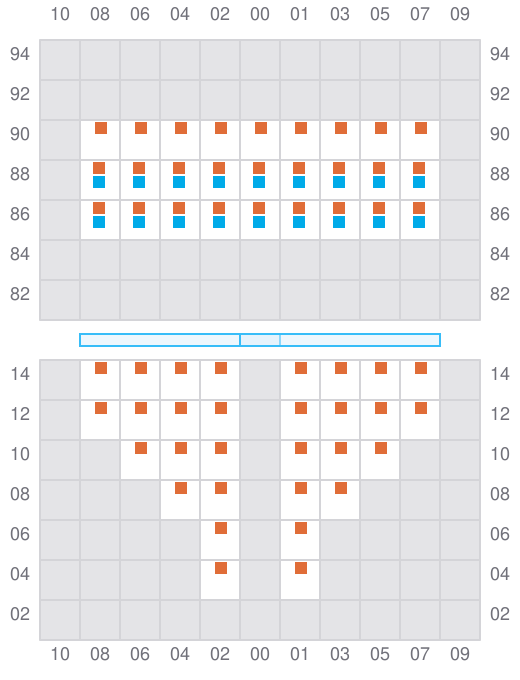

003
- ←
- → / ?
![Bay 003 view and slots of ANL KOKODA](/vessel-images/157c10d4-82ce-4a60-8021-3b9f633bf8b9-b003.png?v=1715109185956)
005 (006)
- →
![Bay 005 view and slots of ANL KOKODA](/vessel-images/157c10d4-82ce-4a60-8021-3b9f633bf8b9-b005.png?v=1715109185956)

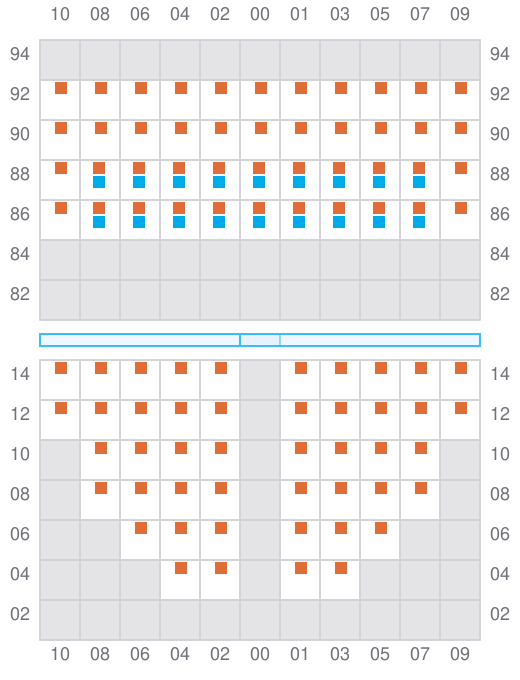

007
- ←
- → / ?
![Bay 007 view and slots of ANL KOKODA](/vessel-images/157c10d4-82ce-4a60-8021-3b9f633bf8b9-b007.png?v=1715109185956)

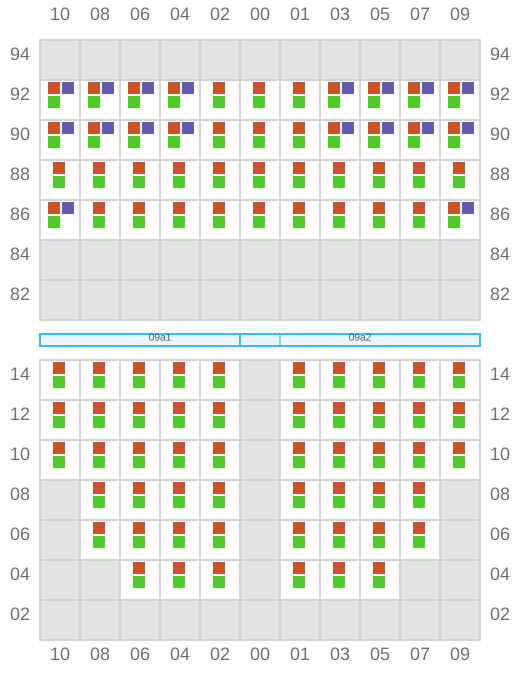

009 (010)
- →
![Bay 009 view and slots of ANL KOKODA](/vessel-images/157c10d4-82ce-4a60-8021-3b9f633bf8b9-b009.png?v=1715109185956)

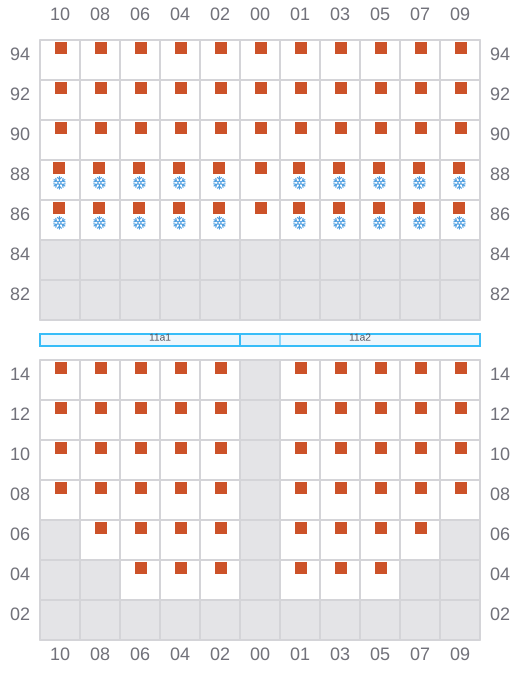

011
- ←
- → / ?
![Bay 011 view and slots of ANL KOKODA](/vessel-images/157c10d4-82ce-4a60-8021-3b9f633bf8b9-b011.png?v=1715109185956)

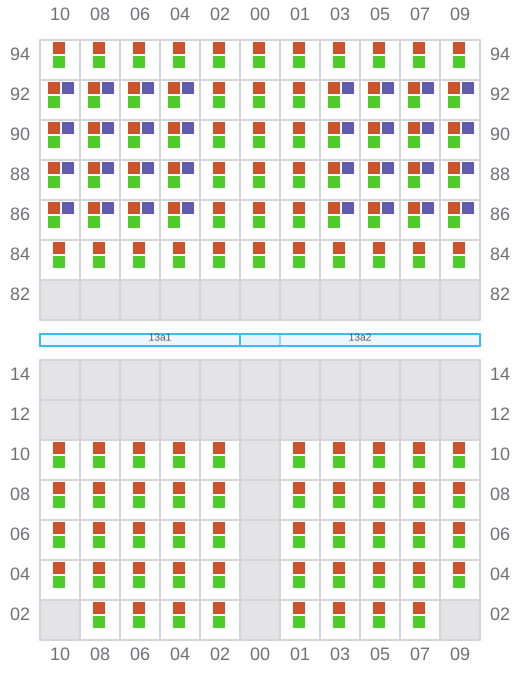

013 (014)
- →
![Bay 013 view and slots of ANL KOKODA](/vessel-images/157c10d4-82ce-4a60-8021-3b9f633bf8b9-b013.png?v=1715109185956)

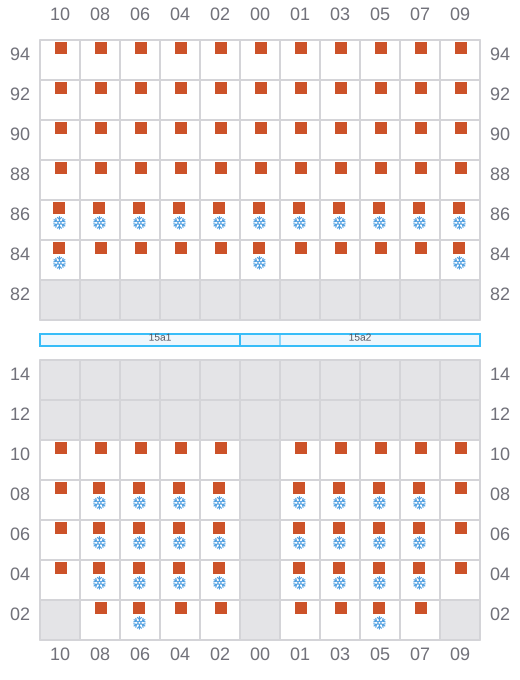

015
- ←
- →
![Bay 015 view and slots of ANL KOKODA](/vessel-images/157c10d4-82ce-4a60-8021-3b9f633bf8b9-b015.png?v=1715109185956)

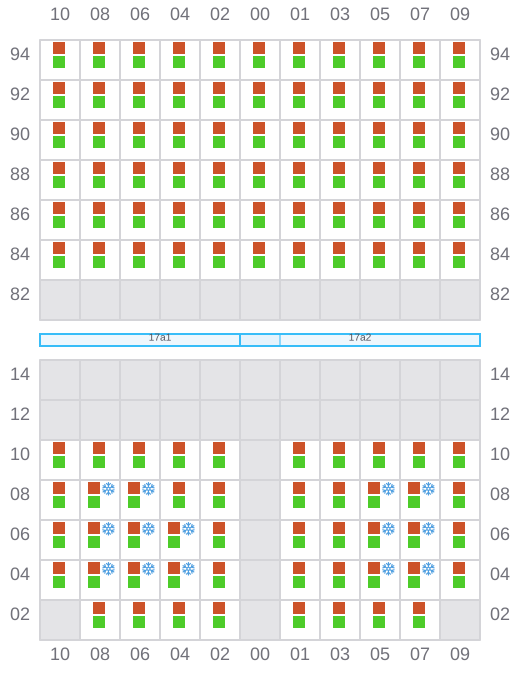

017 (018)
- →
- ? / ←
![Bay 017 view and slots of ANL KOKODA](/vessel-images/157c10d4-82ce-4a60-8021-3b9f633bf8b9-b017.png?v=1715109185956)

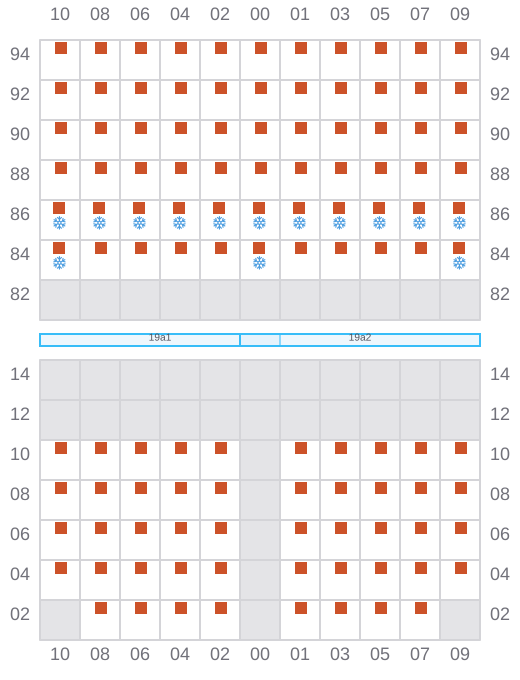

019
- ←
- → / ?
![Bay 019 view and slots of ANL KOKODA](/vessel-images/157c10d4-82ce-4a60-8021-3b9f633bf8b9-b019.png?v=1715109185956)

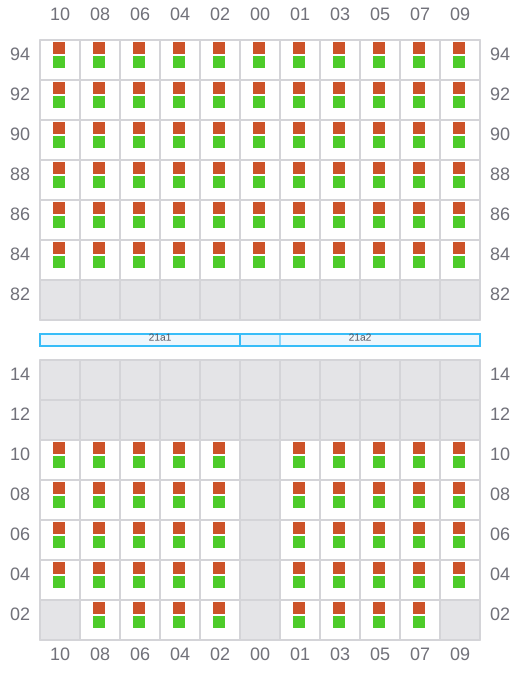

021 (022)
- →
![Bay 021 view and slots of ANL KOKODA](/vessel-images/157c10d4-82ce-4a60-8021-3b9f633bf8b9-b021.png?v=1715109185956)

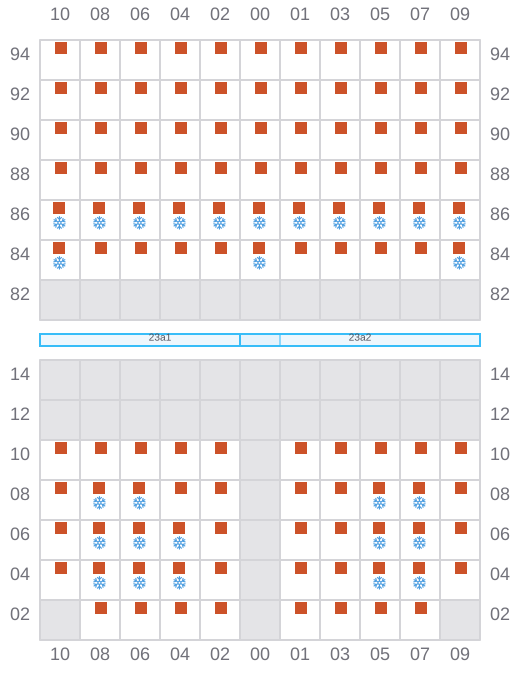

023
- ←
- →
![Bay 023 view and slots of ANL KOKODA](/vessel-images/157c10d4-82ce-4a60-8021-3b9f633bf8b9-b023.png?v=1715109185956)

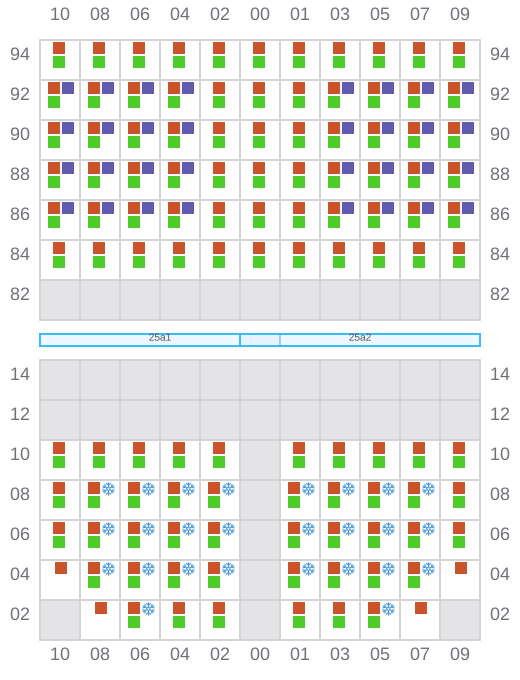

025 (026)
- →
- ? / ←
![Bay 025 view and slots of ANL KOKODA](/vessel-images/157c10d4-82ce-4a60-8021-3b9f633bf8b9-b025.png?v=1715109185956)

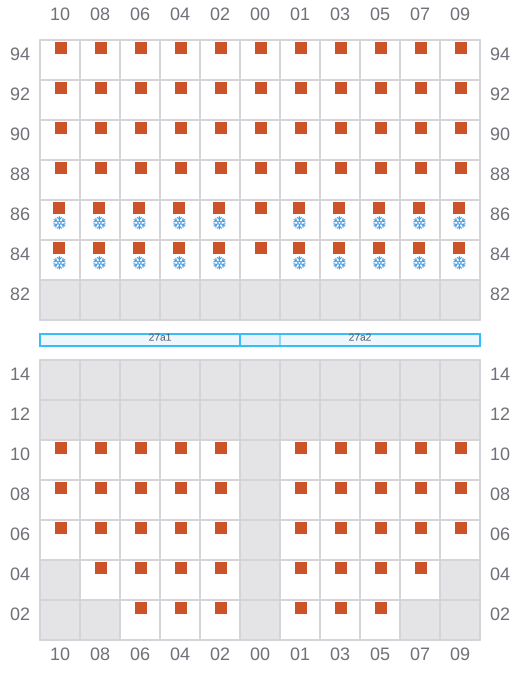

027
- ←
- → / ?
![Bay 027 view and slots of ANL KOKODA](/vessel-images/157c10d4-82ce-4a60-8021-3b9f633bf8b9-b027.png?v=1715109185956)

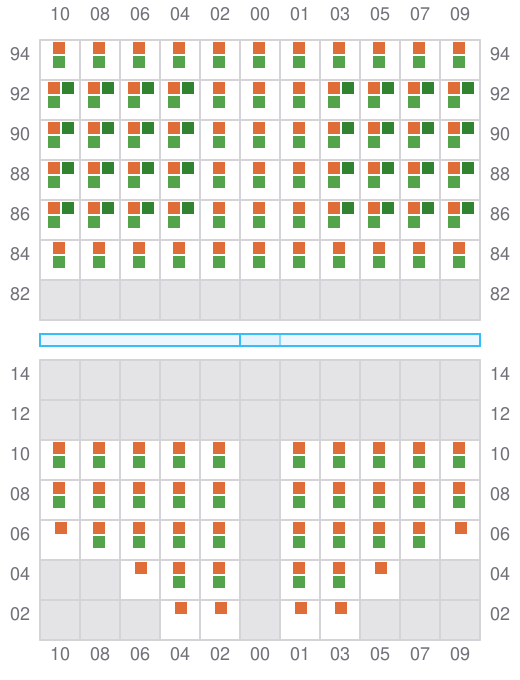

029 (030)
- →
![Bay 029 view and slots of ANL KOKODA](/vessel-images/157c10d4-82ce-4a60-8021-3b9f633bf8b9-b029.png?v=1715109185956)

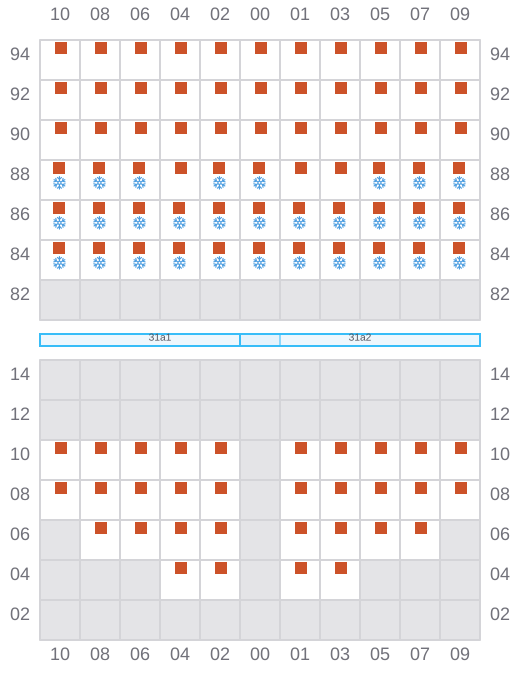

031
- ←
- → / ?
![Bay 031 view and slots of ANL KOKODA](/vessel-images/157c10d4-82ce-4a60-8021-3b9f633bf8b9-b031.png?v=1715109185956)

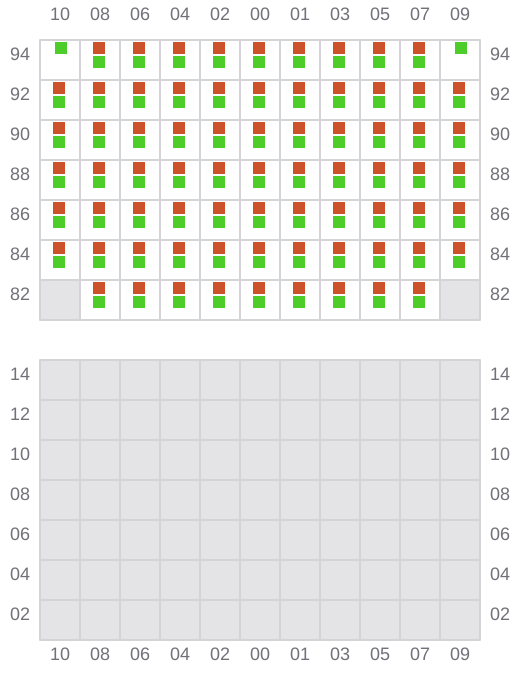

033 (034)
- → / ?
![Bay 033 view and slots of ANL KOKODA](/vessel-images/157c10d4-82ce-4a60-8021-3b9f633bf8b9-b033.png?v=1715109185956)
035
- ← / ?
- → / ?
![Bay 035 view and slots of ANL KOKODA](/vessel-images/157c10d4-82ce-4a60-8021-3b9f633bf8b9-b035.png?v=1715109185956)
