ANL WARRNAMBOOL
9440772 | 9HA5535 | 9440772 by ********* Last update: Tue May 07 2024
General Info
Ship Name:ANL WARRNAMBOOL
IMO Code:9440772
Call Sign:9HA5535
Line Operator:9440772
Class Name for Sister Ships:CAP HARALD
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:061
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:4,450
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
![Side view of ANL WARRNAMBOOL](/vessel-images/fbdd9cf3-e965-4dae-94b0-2bac6c7ac4bd-sideView.png?v=1715107310699)
Hatch-Covers View
![Deck view of ANL WARRNAMBOOL](/vessel-images/fbdd9cf3-e965-4dae-94b0-2bac6c7ac4bd-deckView.png?v=1715107310699)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
![Bay 001 view and slots of ANL WARRNAMBOOL](/vessel-images/fbdd9cf3-e965-4dae-94b0-2bac6c7ac4bd-b001.png?v=1715107310699)

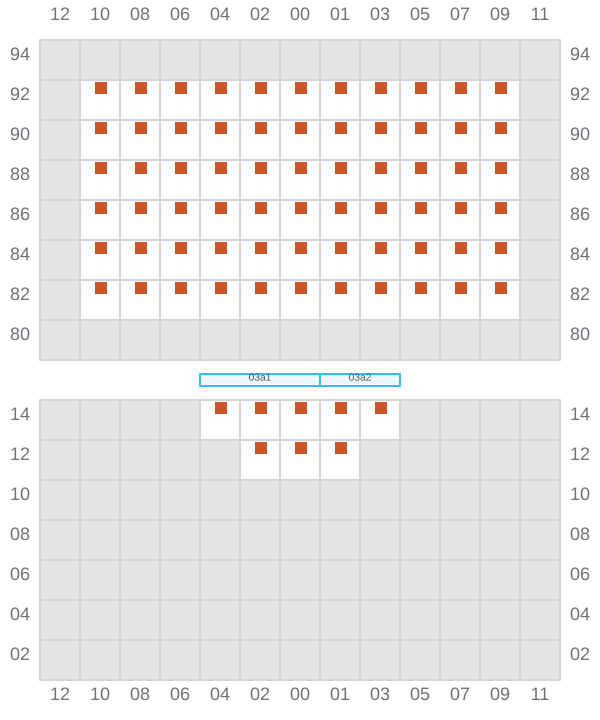

003
- ←
![Bay 003 view and slots of ANL WARRNAMBOOL](/vessel-images/fbdd9cf3-e965-4dae-94b0-2bac6c7ac4bd-b003.png?v=1715107310699)

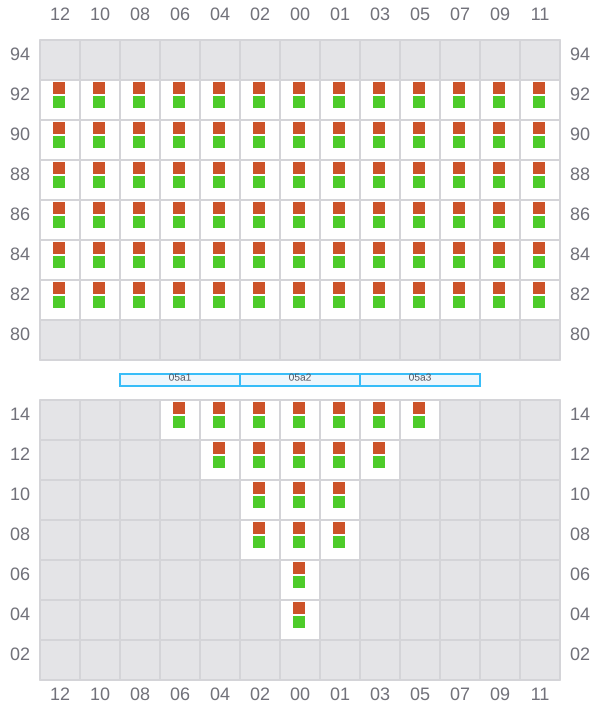

005 (006)
- →
![Bay 005 view and slots of ANL WARRNAMBOOL](/vessel-images/fbdd9cf3-e965-4dae-94b0-2bac6c7ac4bd-b005.png?v=1715107310699)

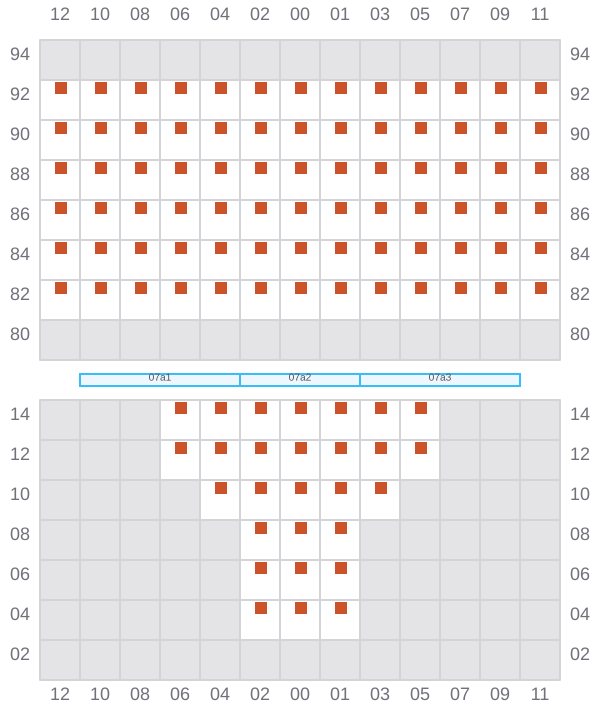

007
- ←
![Bay 007 view and slots of ANL WARRNAMBOOL](/vessel-images/fbdd9cf3-e965-4dae-94b0-2bac6c7ac4bd-b007.png?v=1715107310699)

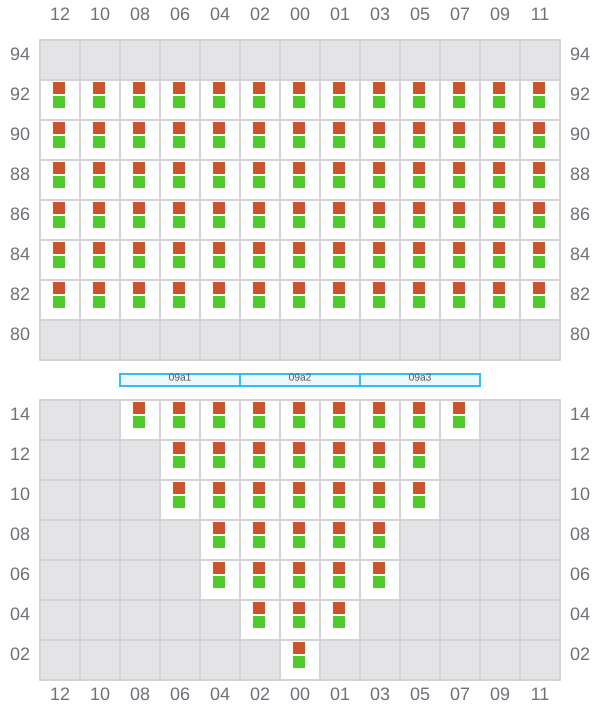

009 (010)
- →
![Bay 009 view and slots of ANL WARRNAMBOOL](/vessel-images/fbdd9cf3-e965-4dae-94b0-2bac6c7ac4bd-b009.png?v=1715107310699)
011
- ←
![Bay 011 view and slots of ANL WARRNAMBOOL](/vessel-images/fbdd9cf3-e965-4dae-94b0-2bac6c7ac4bd-b011.png?v=1715107310699)

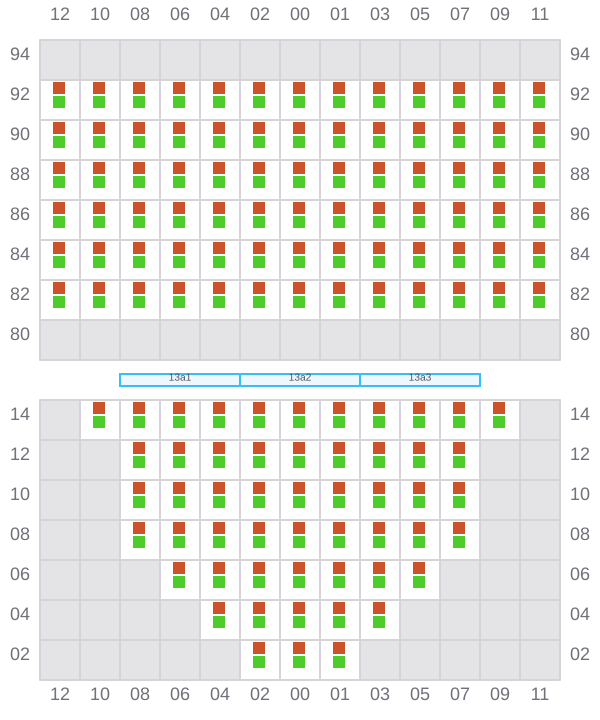

013 (014)
- →
![Bay 013 view and slots of ANL WARRNAMBOOL](/vessel-images/fbdd9cf3-e965-4dae-94b0-2bac6c7ac4bd-b013.png?v=1715107310699)

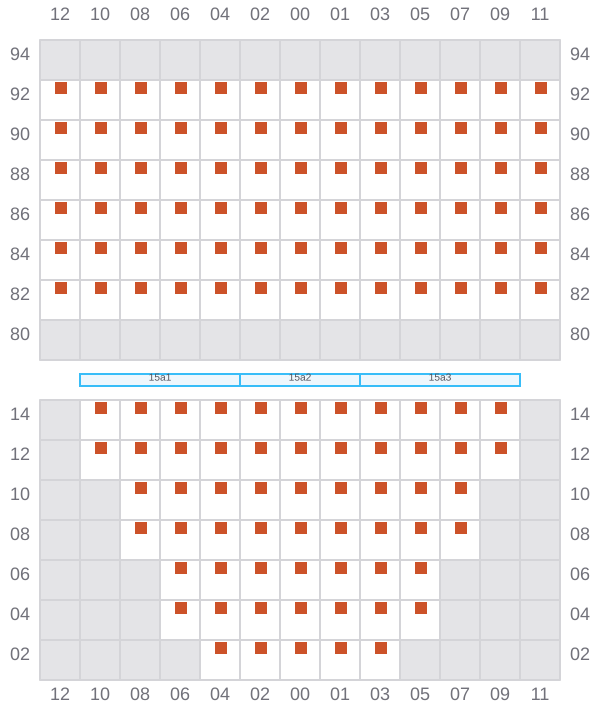

015
- ←
![Bay 015 view and slots of ANL WARRNAMBOOL](/vessel-images/fbdd9cf3-e965-4dae-94b0-2bac6c7ac4bd-b015.png?v=1715107310699)
017 (018)
- →
![Bay 017 view and slots of ANL WARRNAMBOOL](/vessel-images/fbdd9cf3-e965-4dae-94b0-2bac6c7ac4bd-b017.png?v=1715107310699)
019
- ←
![Bay 019 view and slots of ANL WARRNAMBOOL](/vessel-images/fbdd9cf3-e965-4dae-94b0-2bac6c7ac4bd-b019.png?v=1715107310699)
021 (022)
- →
![Bay 021 view and slots of ANL WARRNAMBOOL](/vessel-images/fbdd9cf3-e965-4dae-94b0-2bac6c7ac4bd-b021.png?v=1715107310699)

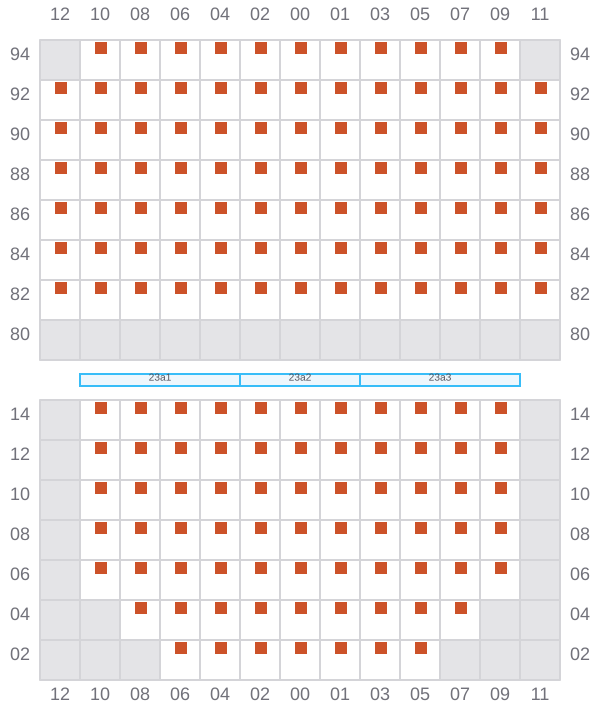

023
- ←
![Bay 023 view and slots of ANL WARRNAMBOOL](/vessel-images/fbdd9cf3-e965-4dae-94b0-2bac6c7ac4bd-b023.png?v=1715107310699)
025 (026)
- →
![Bay 025 view and slots of ANL WARRNAMBOOL](/vessel-images/fbdd9cf3-e965-4dae-94b0-2bac6c7ac4bd-b025.png?v=1715107310699)
027
- ←
![Bay 027 view and slots of ANL WARRNAMBOOL](/vessel-images/fbdd9cf3-e965-4dae-94b0-2bac6c7ac4bd-b027.png?v=1715107310699)
029 (030)
- →
![Bay 029 view and slots of ANL WARRNAMBOOL](/vessel-images/fbdd9cf3-e965-4dae-94b0-2bac6c7ac4bd-b029.png?v=1715107310699)
031
- ←
![Bay 031 view and slots of ANL WARRNAMBOOL](/vessel-images/fbdd9cf3-e965-4dae-94b0-2bac6c7ac4bd-b031.png?v=1715107310699)
033 (034)
- →
![Bay 033 view and slots of ANL WARRNAMBOOL](/vessel-images/fbdd9cf3-e965-4dae-94b0-2bac6c7ac4bd-b033.png?v=1715107310699)

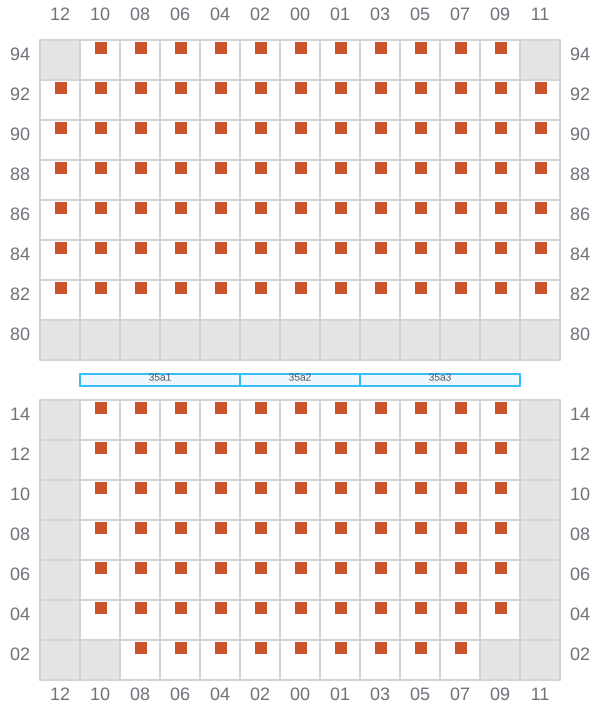

035
- ←
![Bay 035 view and slots of ANL WARRNAMBOOL](/vessel-images/fbdd9cf3-e965-4dae-94b0-2bac6c7ac4bd-b035.png?v=1715107310699)

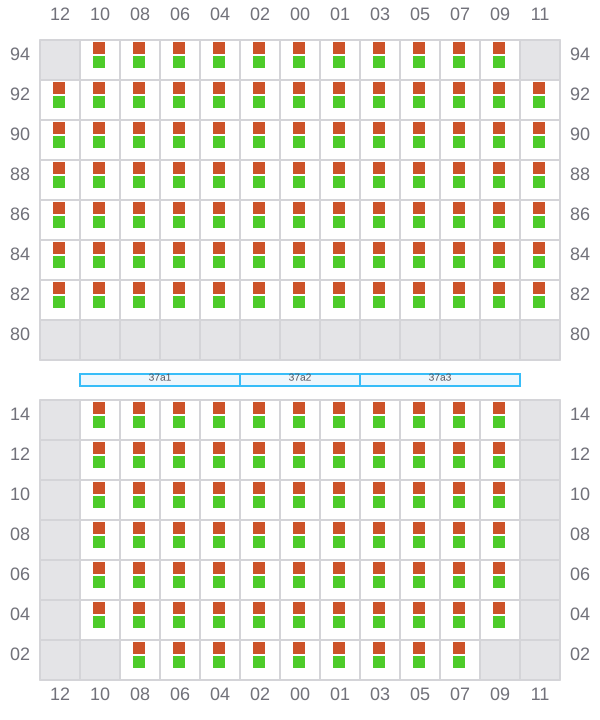

037 (038)
- →
![Bay 037 view and slots of ANL WARRNAMBOOL](/vessel-images/fbdd9cf3-e965-4dae-94b0-2bac6c7ac4bd-b037.png?v=1715107310699)
039
- ←
![Bay 039 view and slots of ANL WARRNAMBOOL](/vessel-images/fbdd9cf3-e965-4dae-94b0-2bac6c7ac4bd-b039.png?v=1715107310699)
041 (042)
- →
![Bay 041 view and slots of ANL WARRNAMBOOL](/vessel-images/fbdd9cf3-e965-4dae-94b0-2bac6c7ac4bd-b041.png?v=1715107310699)
043
- ←
![Bay 043 view and slots of ANL WARRNAMBOOL](/vessel-images/fbdd9cf3-e965-4dae-94b0-2bac6c7ac4bd-b043.png?v=1715107310699)

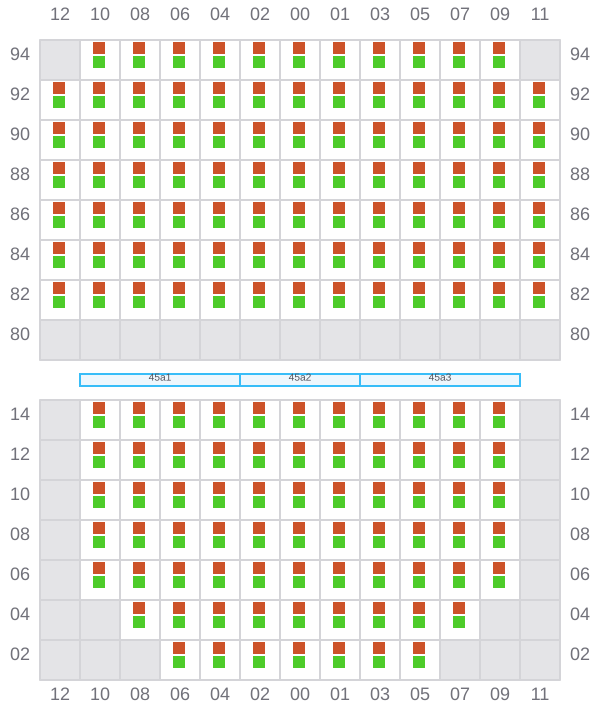

045 (046)
- →
![Bay 045 view and slots of ANL WARRNAMBOOL](/vessel-images/fbdd9cf3-e965-4dae-94b0-2bac6c7ac4bd-b045.png?v=1715107310699)
047
- ←
![Bay 047 view and slots of ANL WARRNAMBOOL](/vessel-images/fbdd9cf3-e965-4dae-94b0-2bac6c7ac4bd-b047.png?v=1715107310699)
049 (050)
- → / ?
![Bay 049 view and slots of ANL WARRNAMBOOL](/vessel-images/fbdd9cf3-e965-4dae-94b0-2bac6c7ac4bd-b049.png?v=1715107310699)

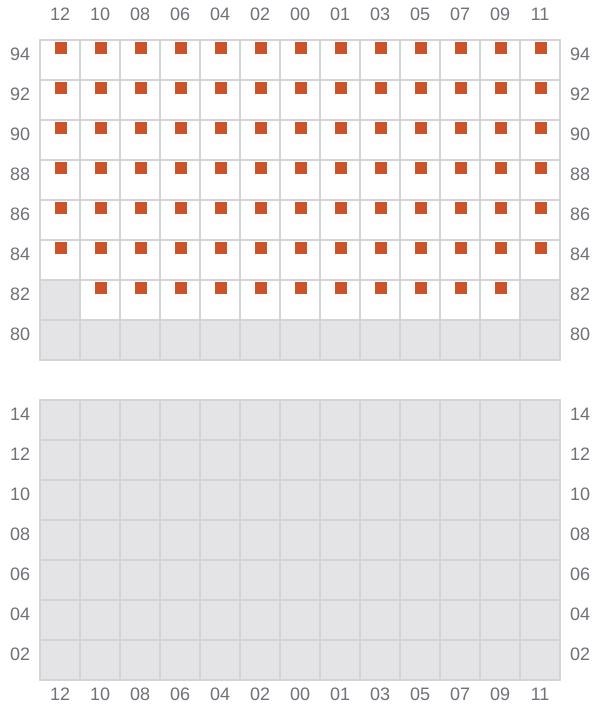

051
- ← / ?
![Bay 051 view and slots of ANL WARRNAMBOOL](/vessel-images/fbdd9cf3-e965-4dae-94b0-2bac6c7ac4bd-b051.png?v=1715107310699)
053 (054)
- →
![Bay 053 view and slots of ANL WARRNAMBOOL](/vessel-images/fbdd9cf3-e965-4dae-94b0-2bac6c7ac4bd-b053.png?v=1715107310699)
055
- → / ←
![Bay 055 view and slots of ANL WARRNAMBOOL](/vessel-images/fbdd9cf3-e965-4dae-94b0-2bac6c7ac4bd-b055.png?v=1715107310699)

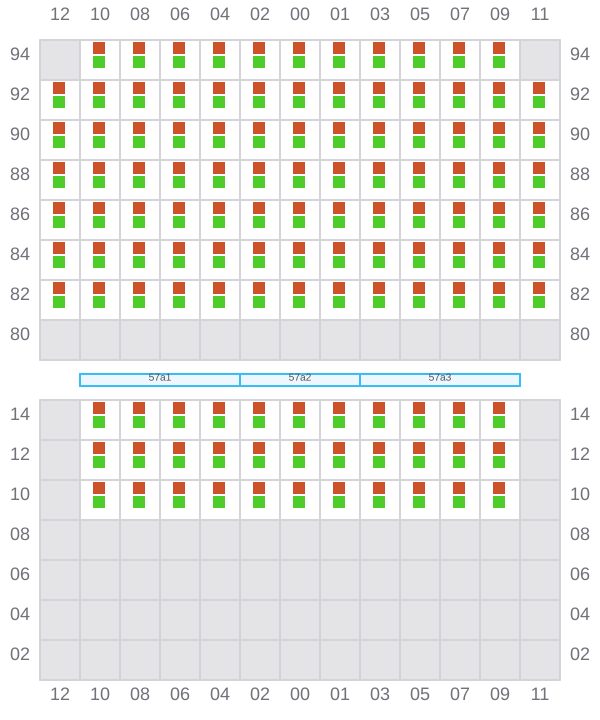

057 (058)
- →
![Bay 057 view and slots of ANL WARRNAMBOOL](/vessel-images/fbdd9cf3-e965-4dae-94b0-2bac6c7ac4bd-b057.png?v=1715107310699)

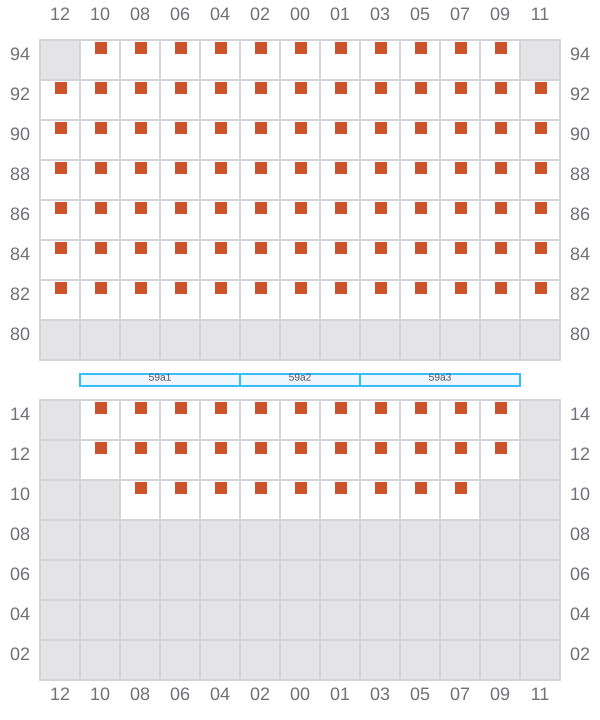

059
- → / ←
![Bay 059 view and slots of ANL WARRNAMBOOL](/vessel-images/fbdd9cf3-e965-4dae-94b0-2bac6c7ac4bd-b059.png?v=1715107310699)
061 (062)
- → / ?
![Bay 061 view and slots of ANL WARRNAMBOOL](/vessel-images/fbdd9cf3-e965-4dae-94b0-2bac6c7ac4bd-b061.png?v=1715107310699)
