ANNA MAERSK
9260421 | 5LLT4 | MSK by ************************** Last update: Fri Jun 23 2023
General Info
Ship Name:ANNA MAERSK
IMO Code:9260421
Call Sign:5LLT4
Line Operator:MSK
Class Name for Sister Ships:ANM
Year Built:2003
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:081
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:9,206
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

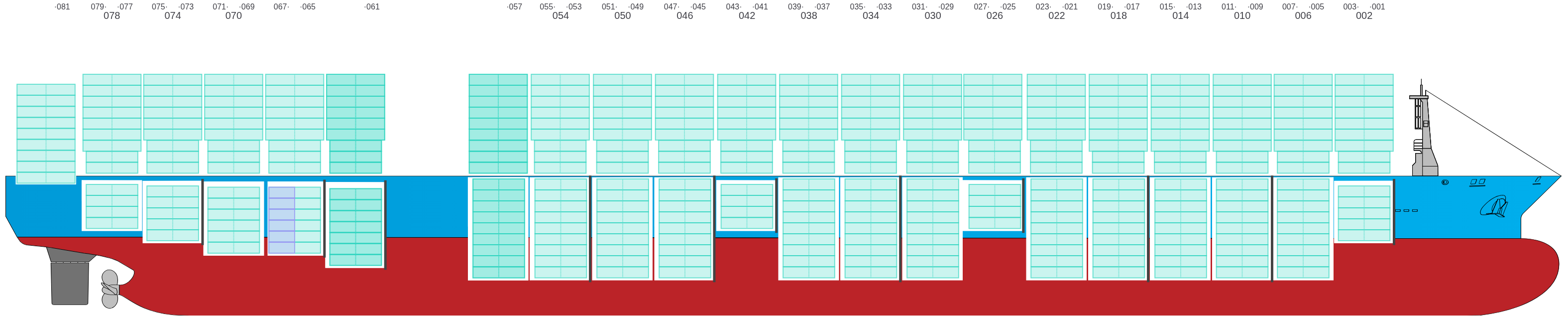

Side View

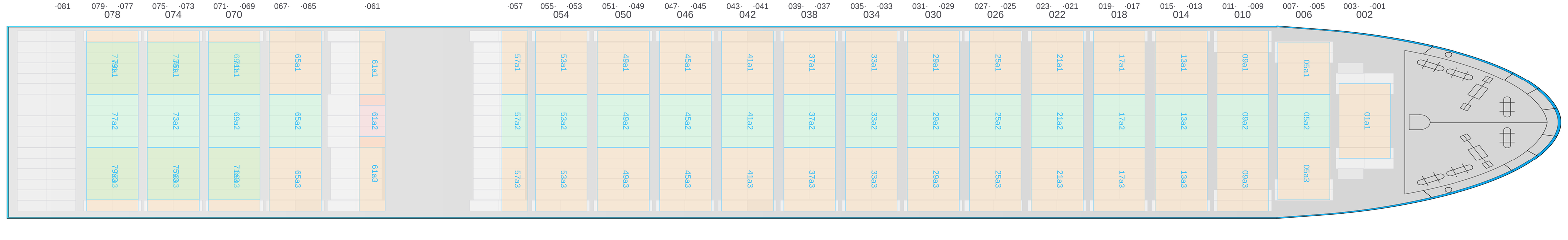

Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

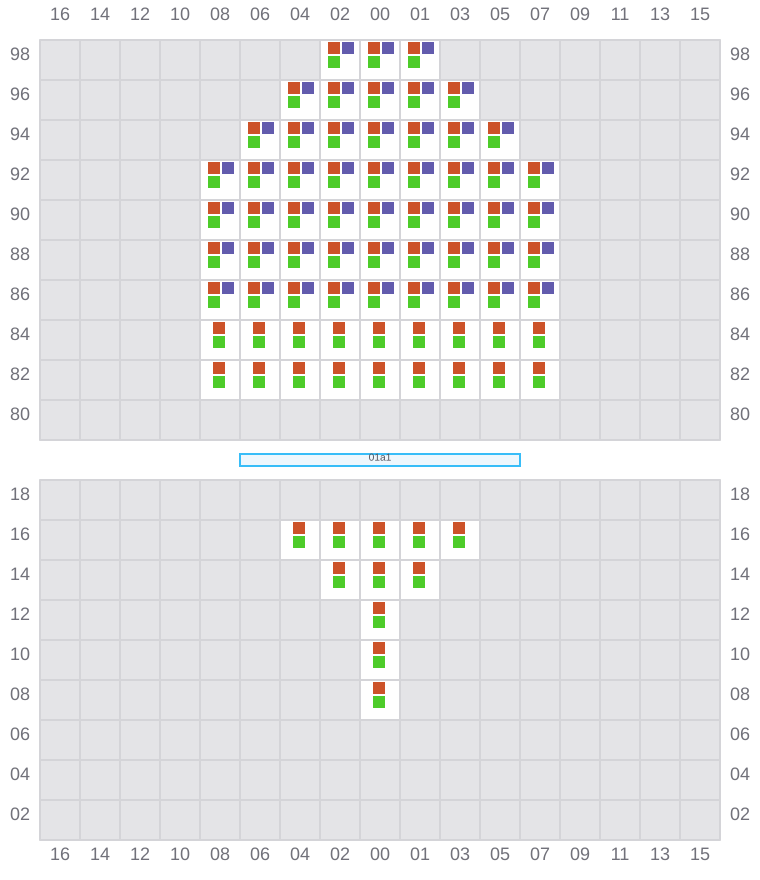

001 (002)
- →

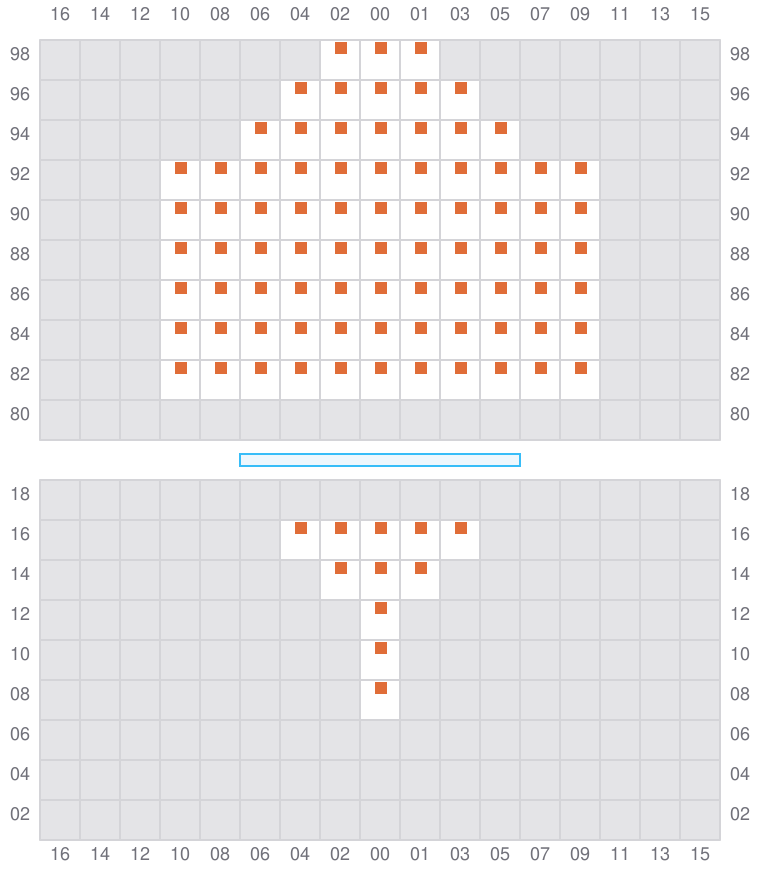

003
- ←

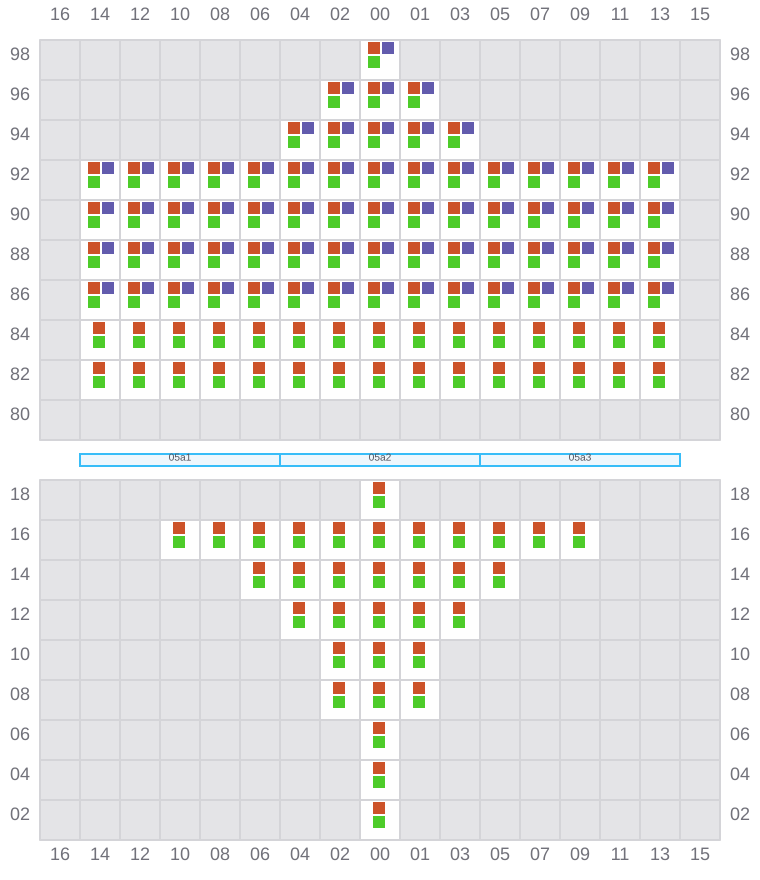

005 (006)
- →

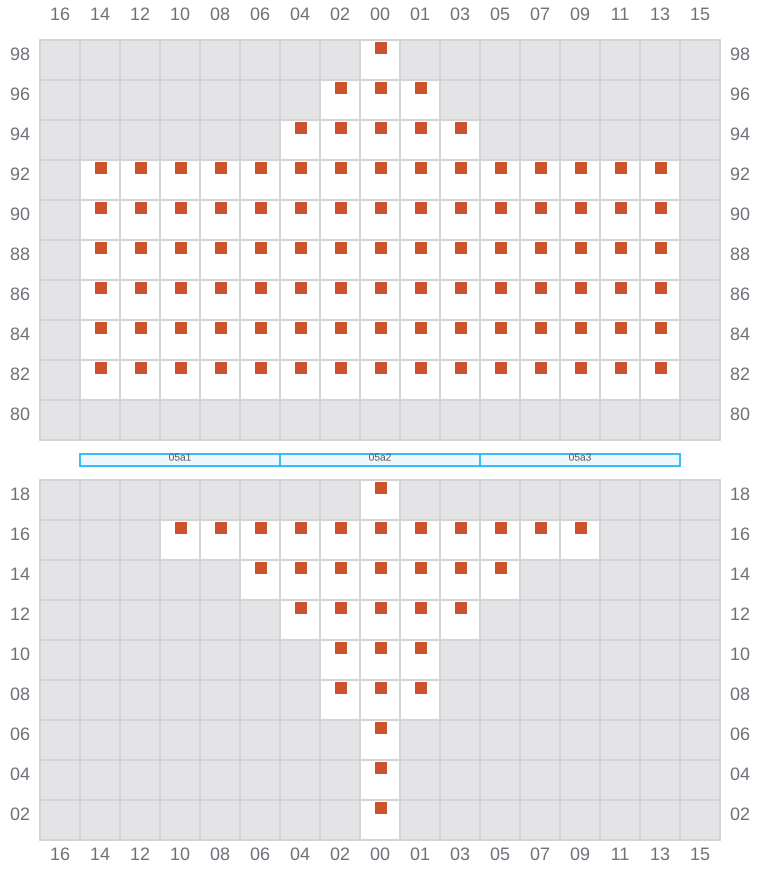

007
- ←

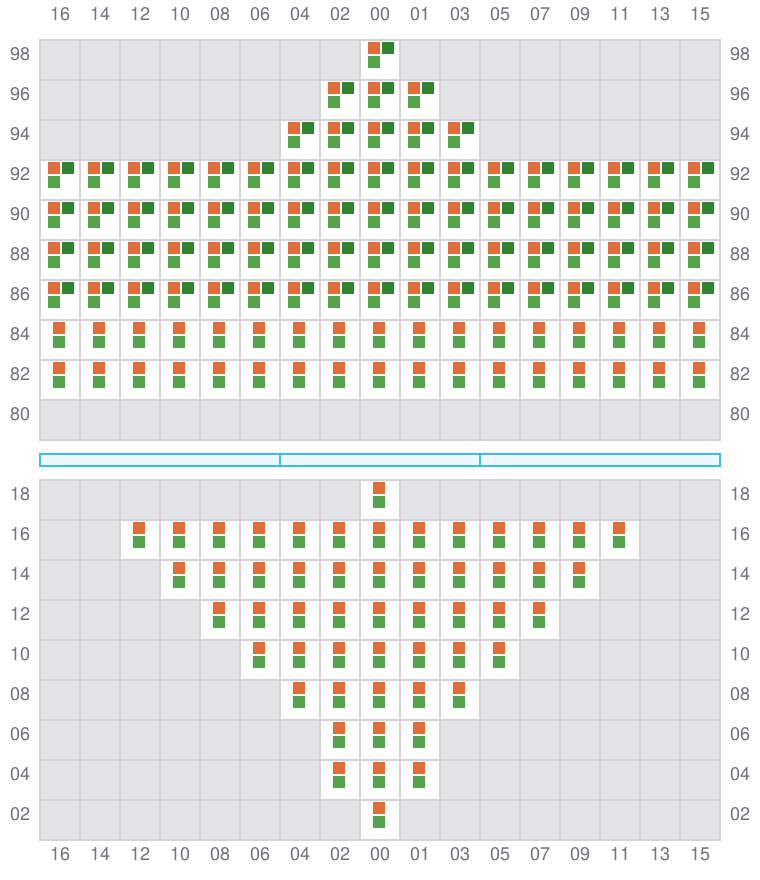

009 (010)
- →

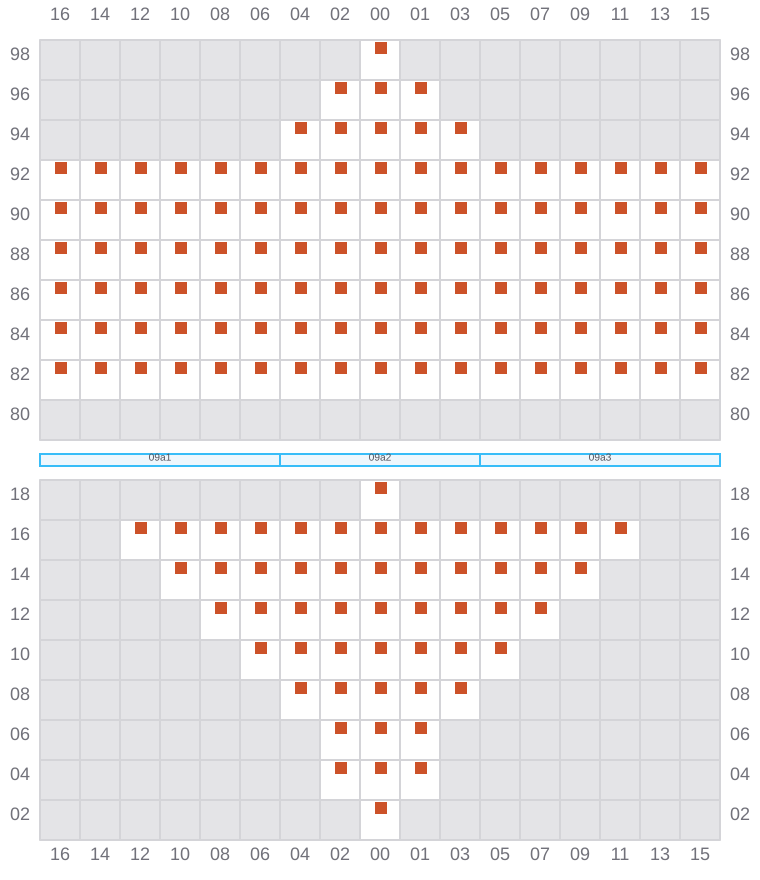

011
- ←

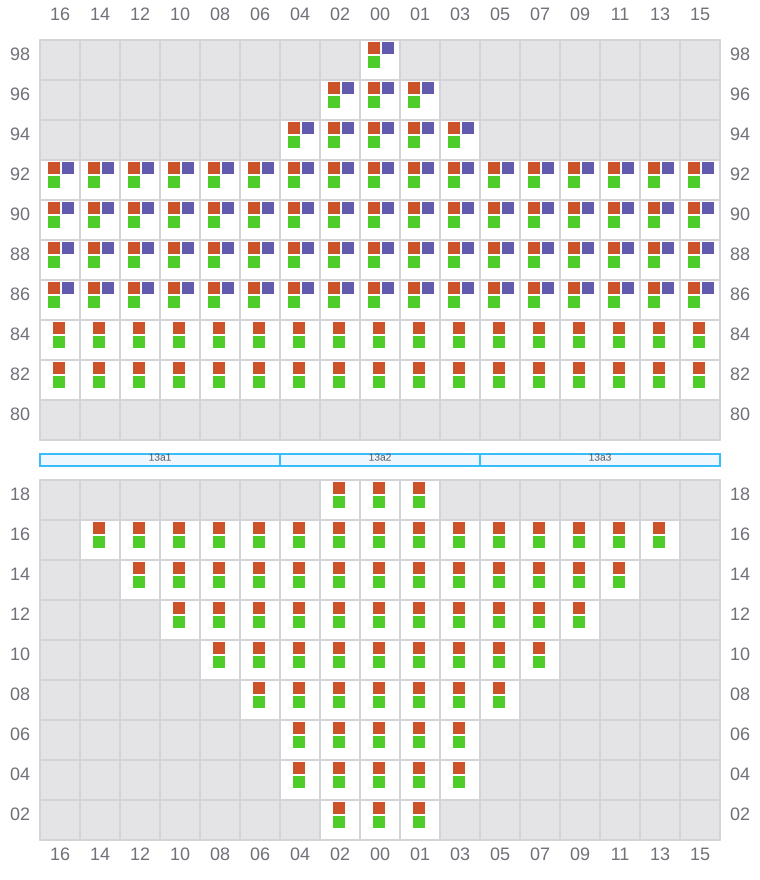

013 (014)
- →

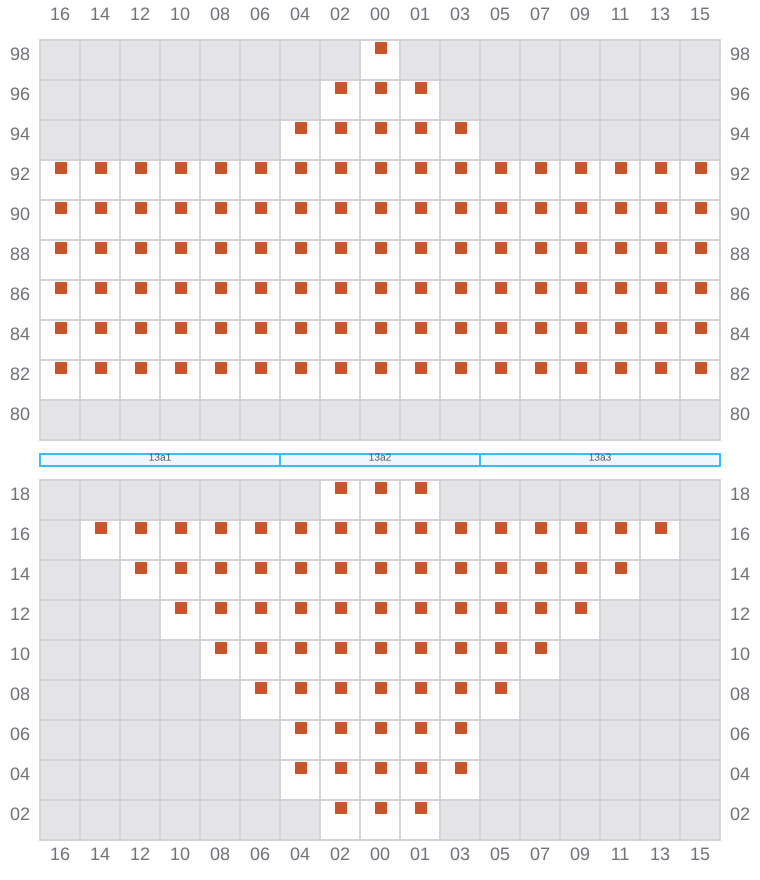

015
- ←

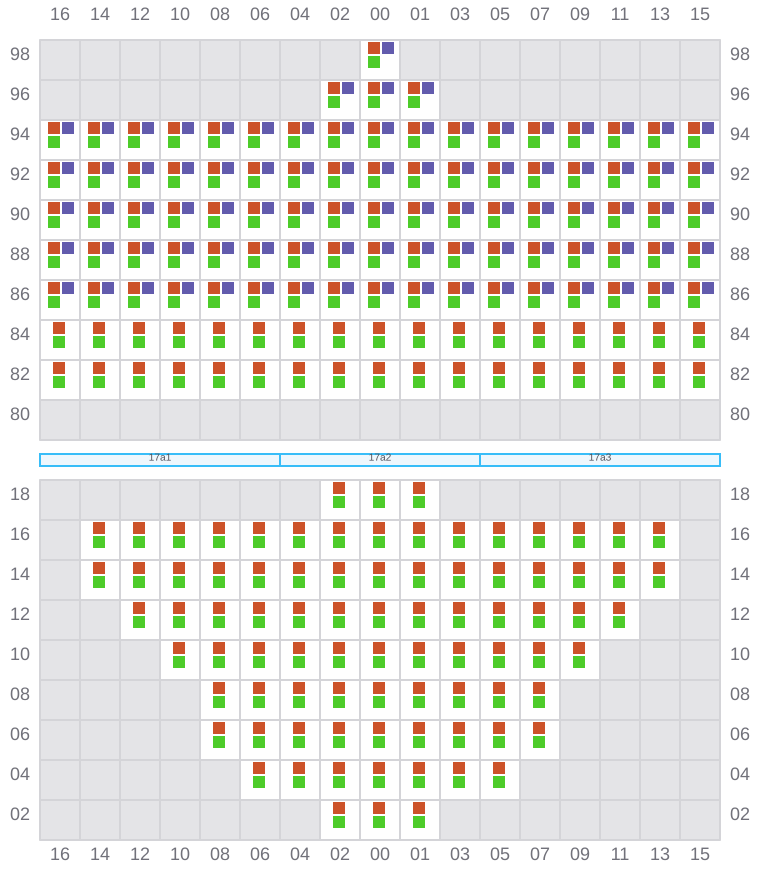

017 (018)
- →
- ? / →

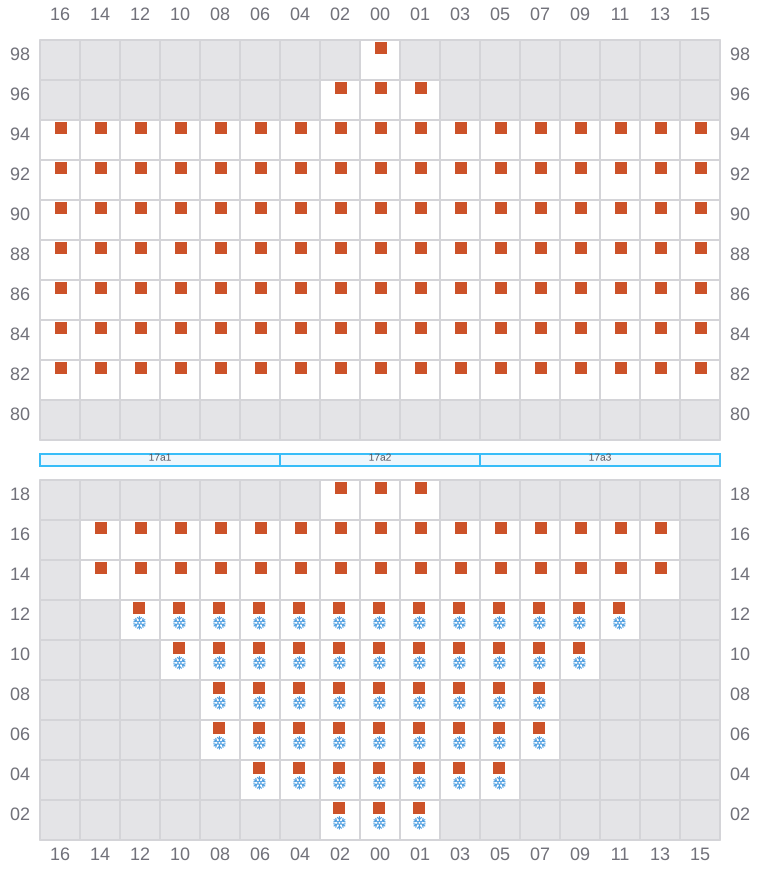

019
- ←
- ? / →
021 (022)
- →

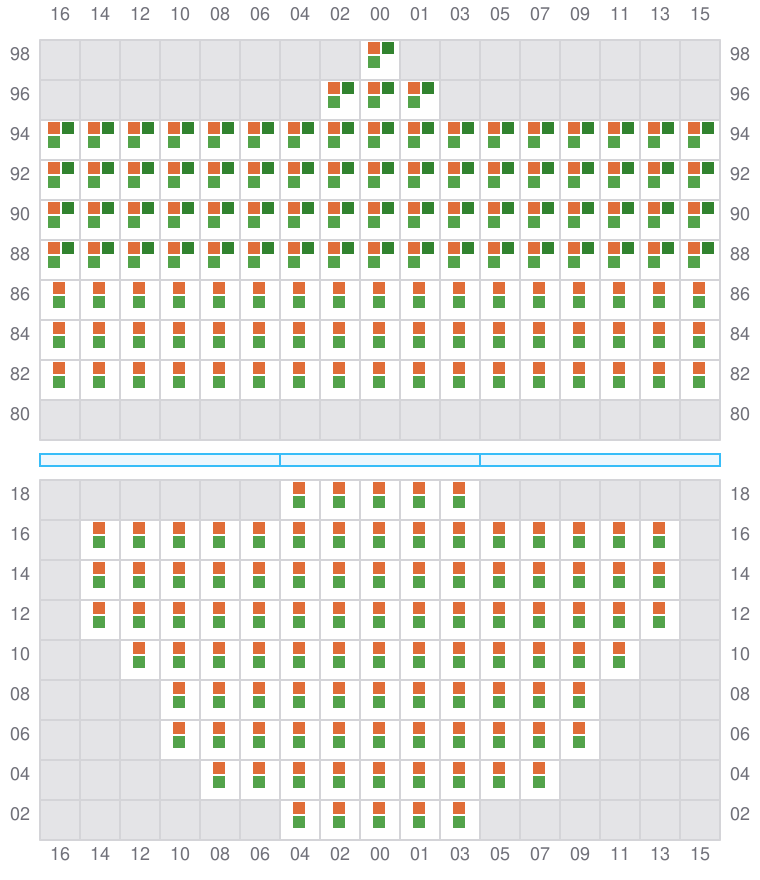

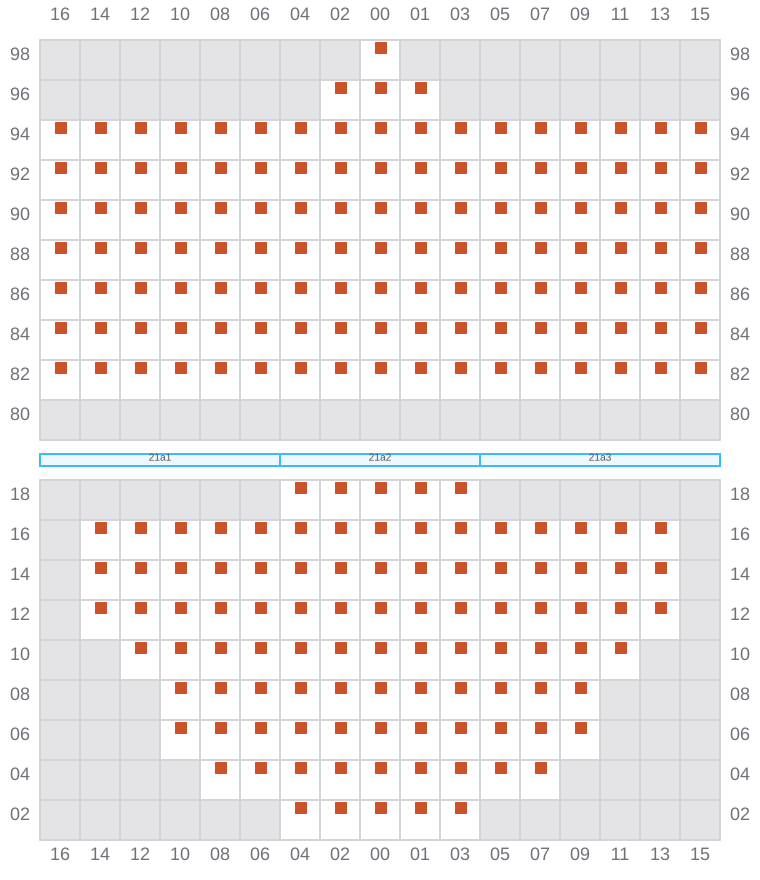

023
- ←

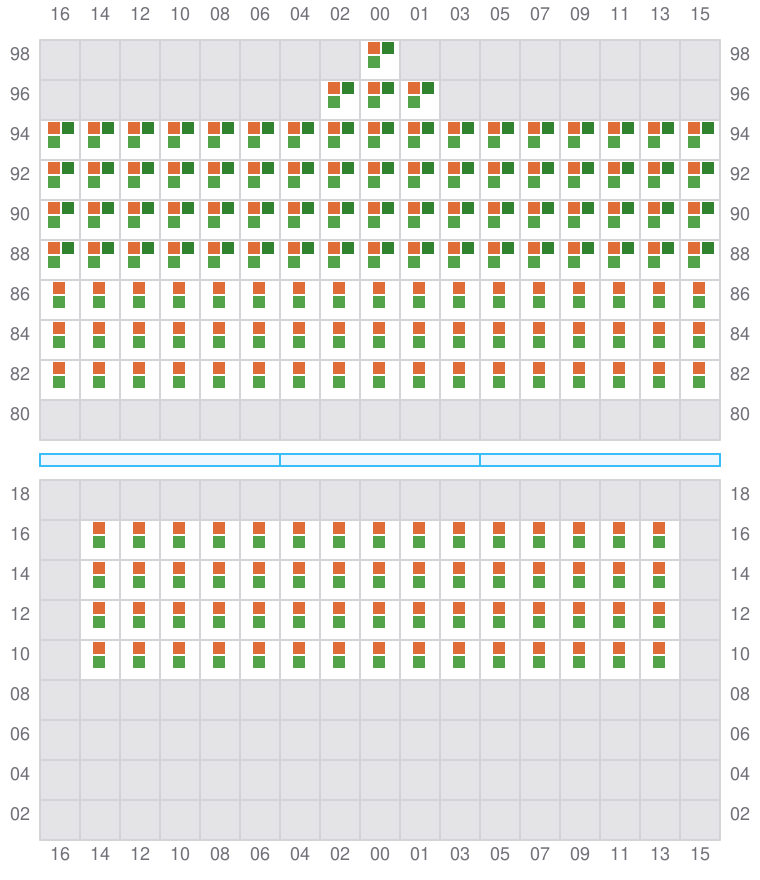

025 (026)
- →

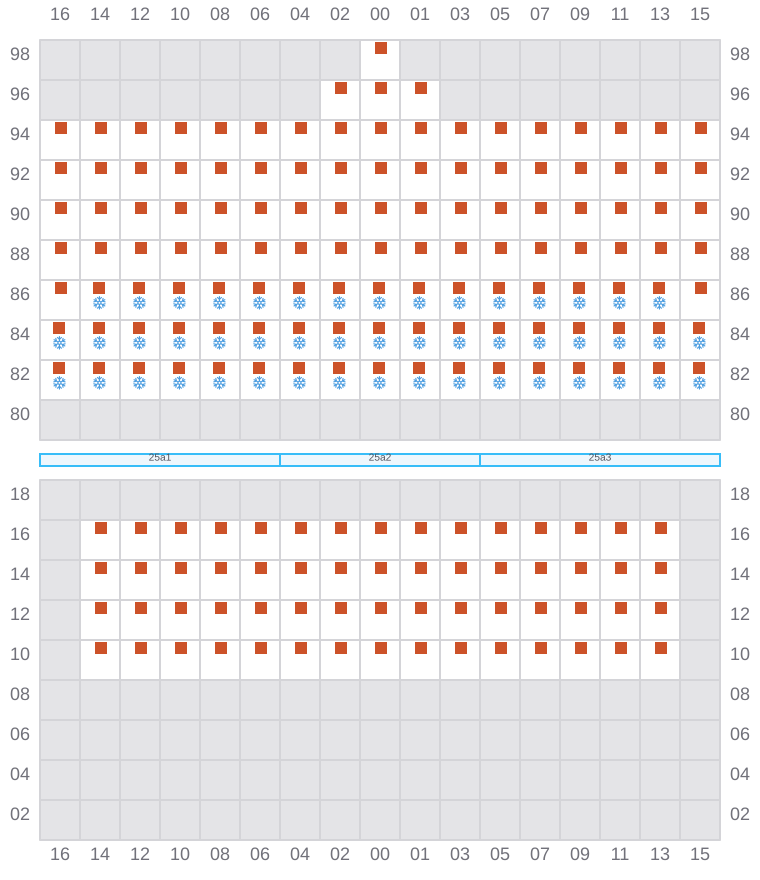

027
- ←
- → / ?

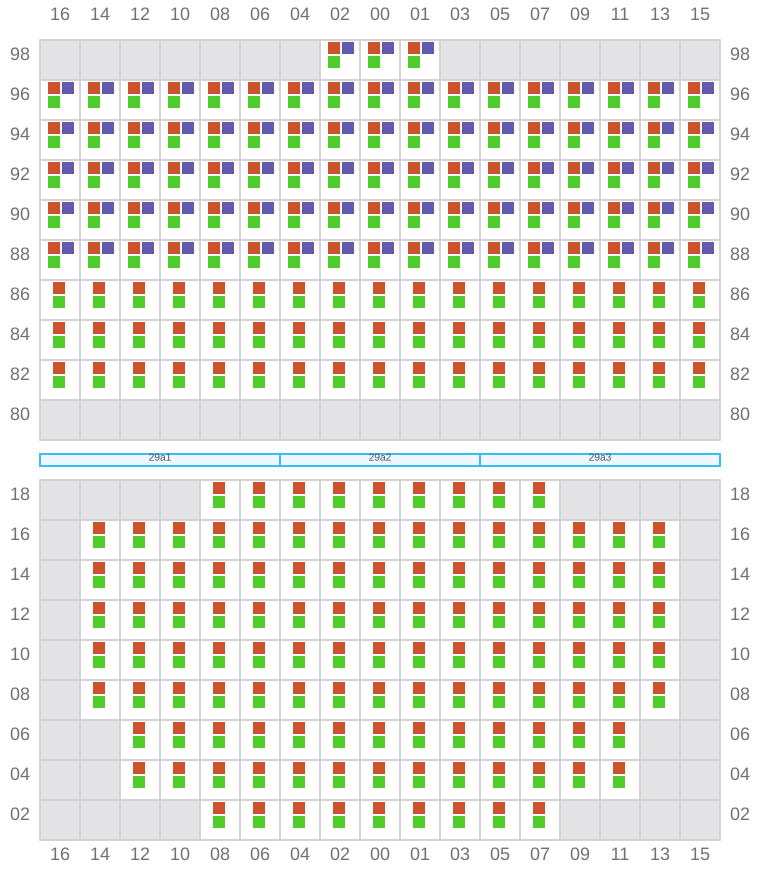

029 (030)
- →

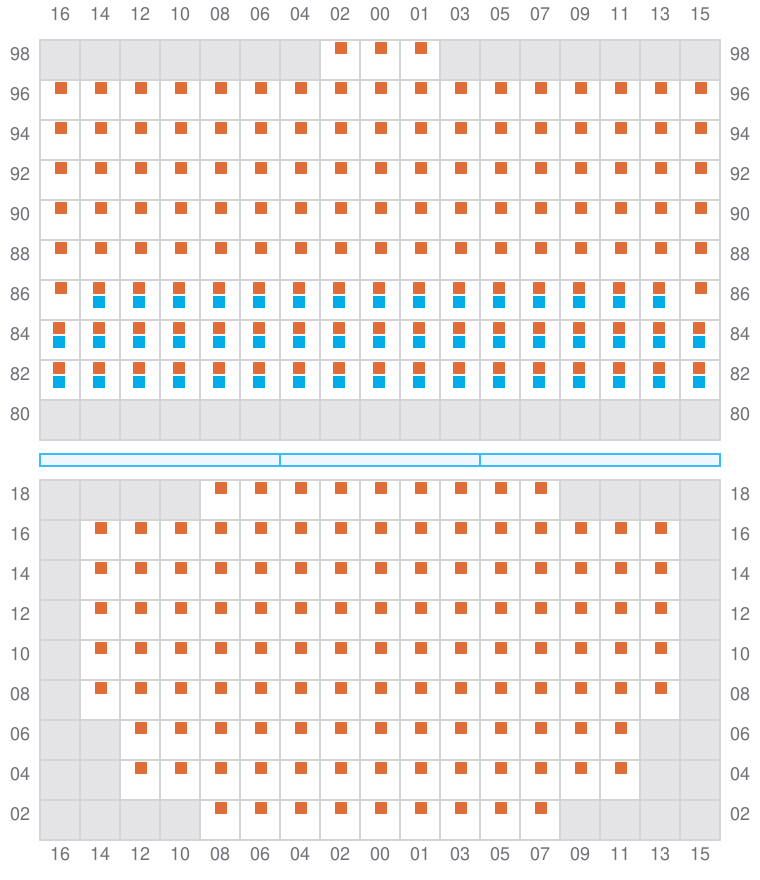

031
- ←
- → / ?

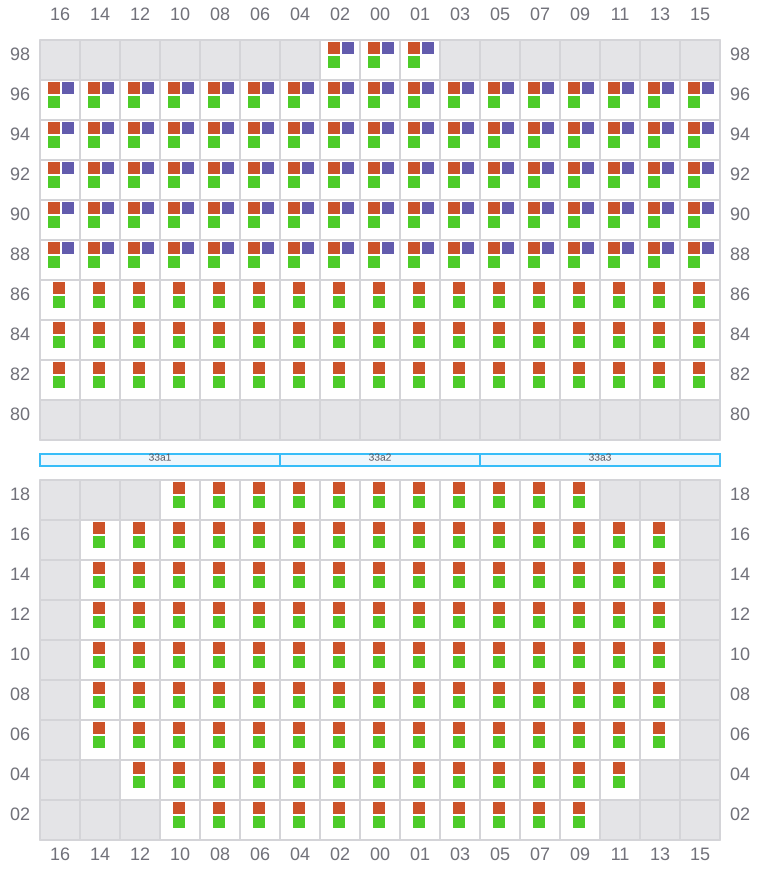

033 (034)
- →
- ? / →

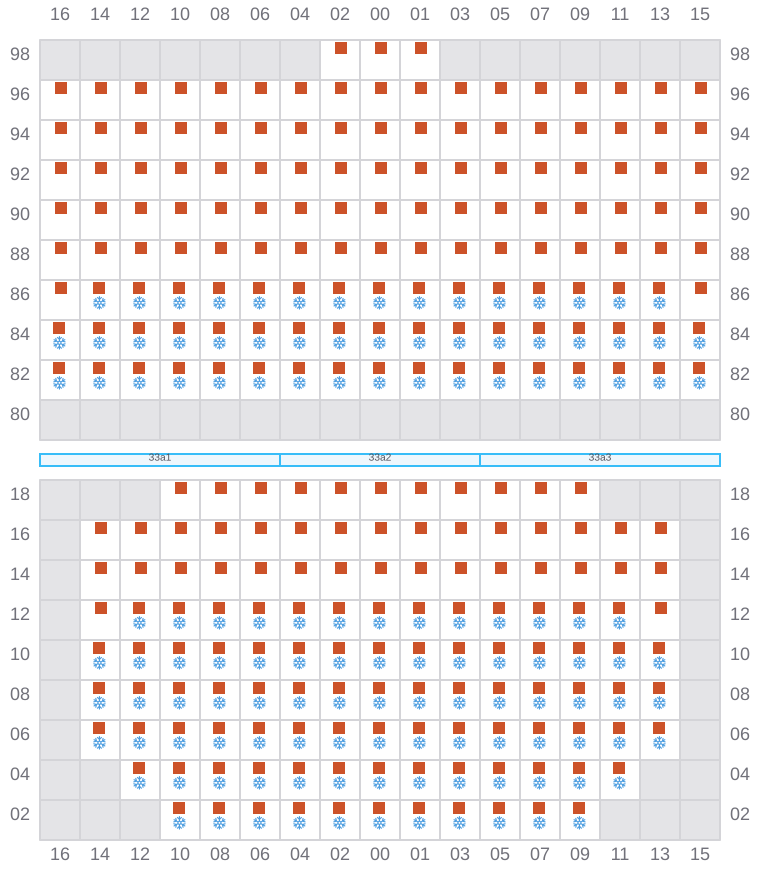

035
- ←
- →
037 (038)
- →

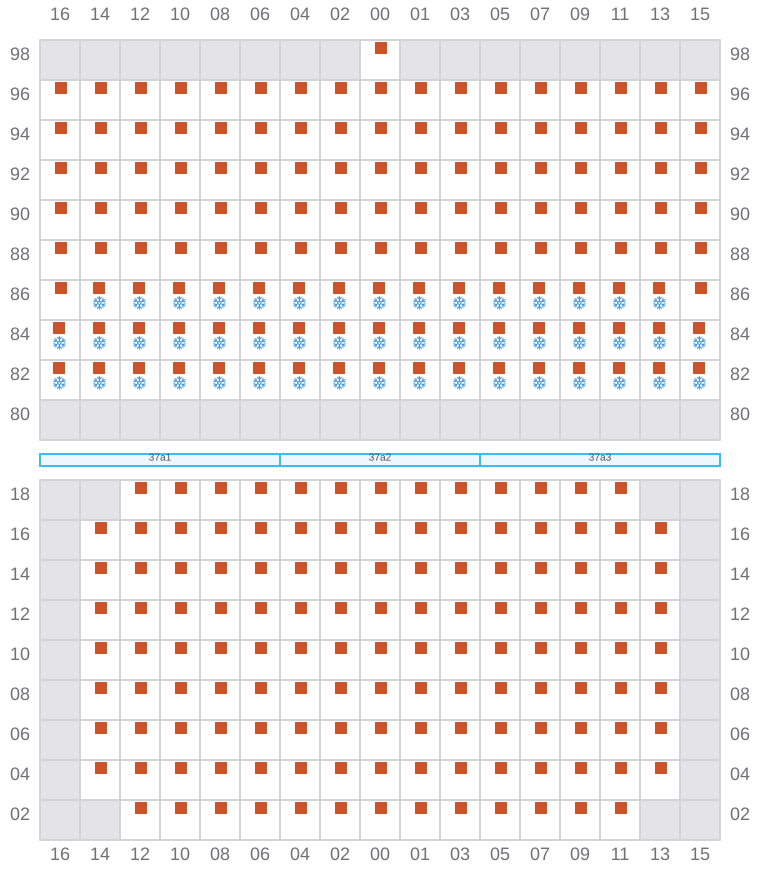

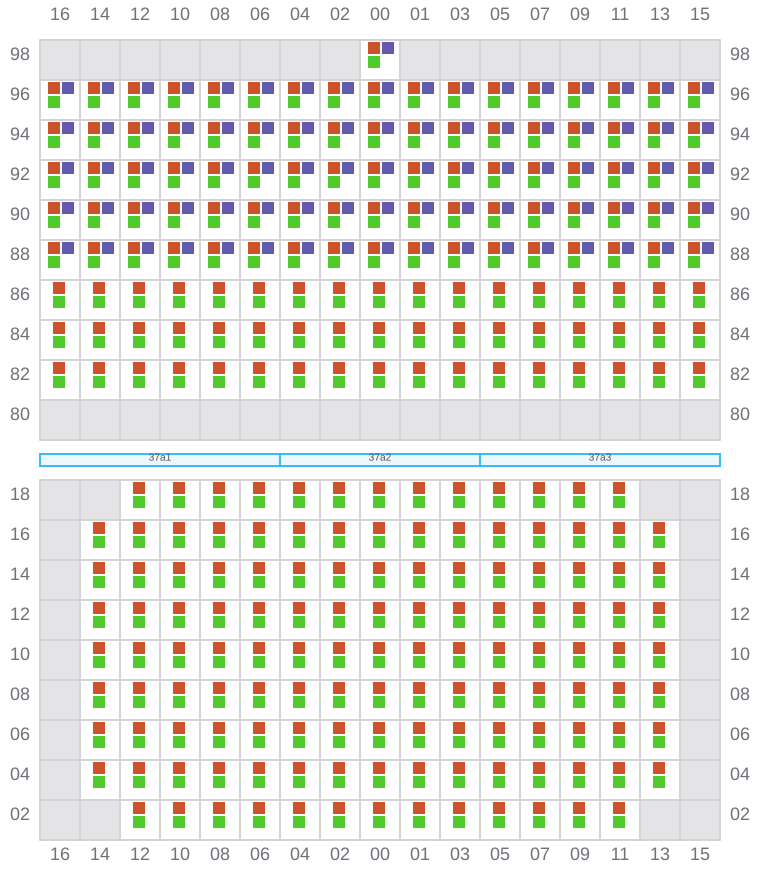

039
- ←
- → / ?

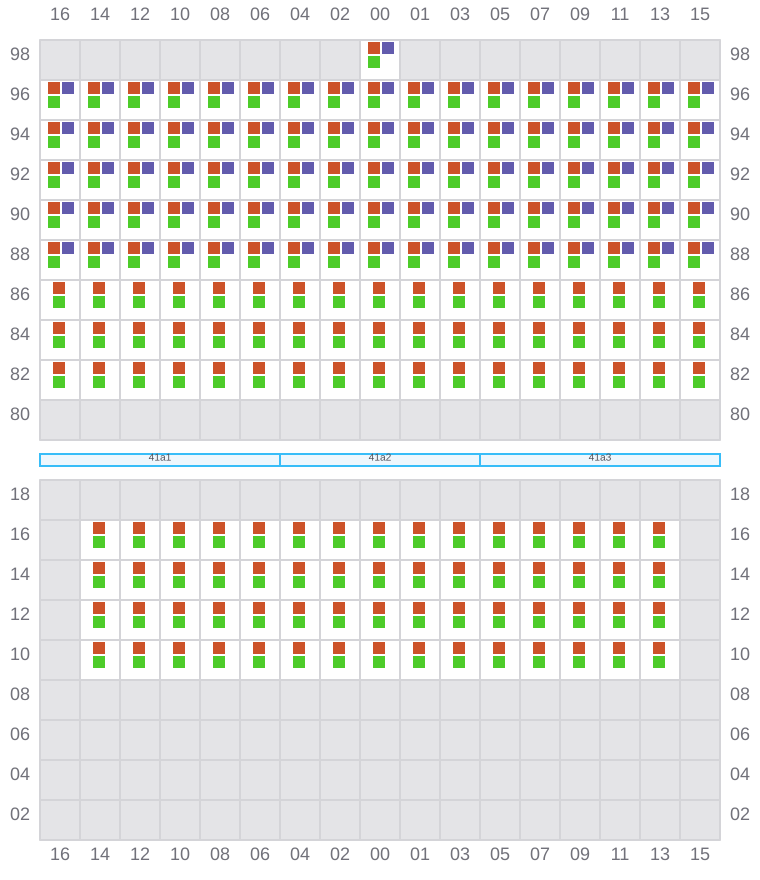

041 (042)
- →

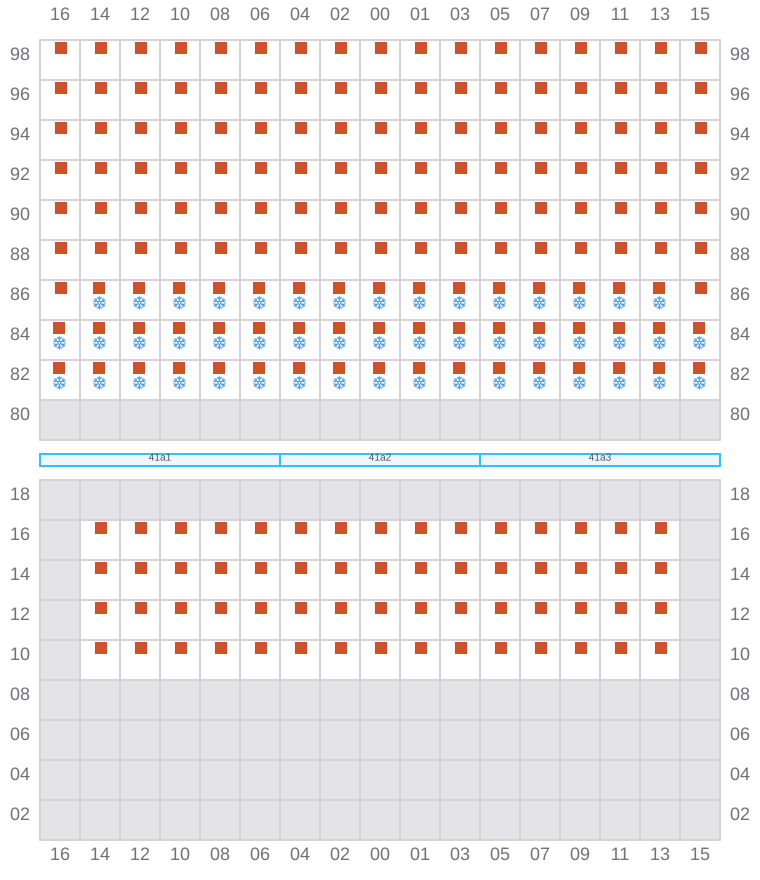

043
- ←
- → / ?

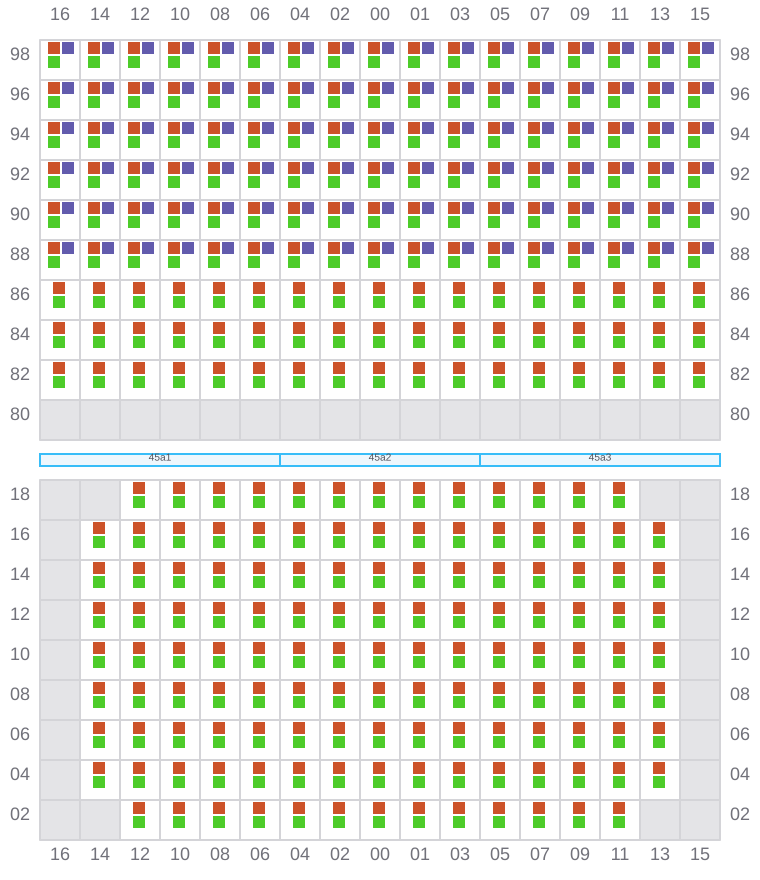

045 (046)
- →

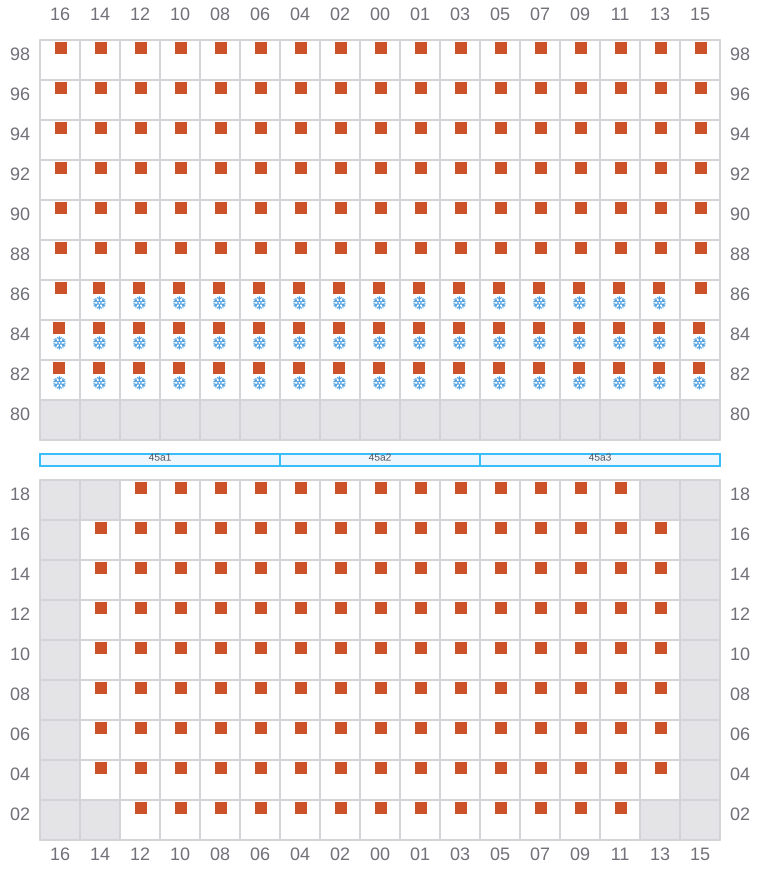

047
- ←
- → / ?

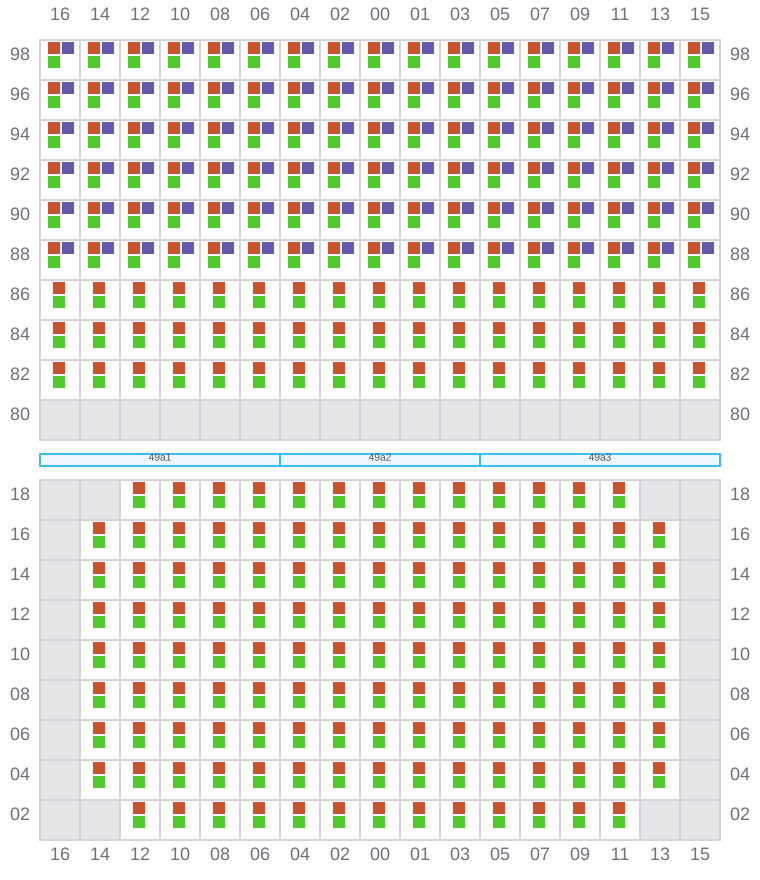

049 (050)
- →
- ? / →

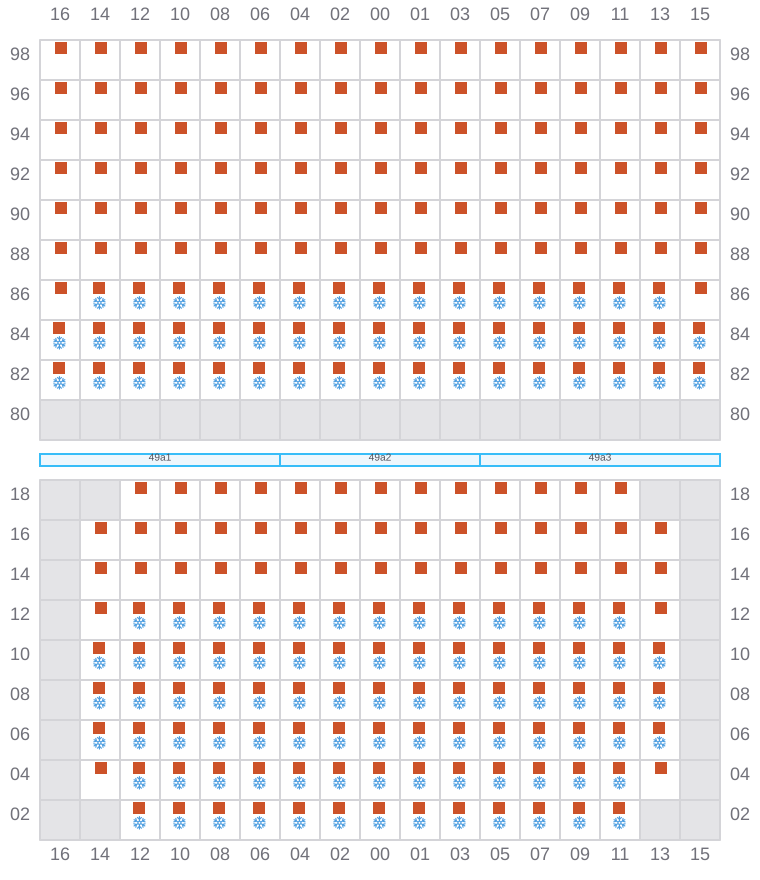

051
- ←
- →

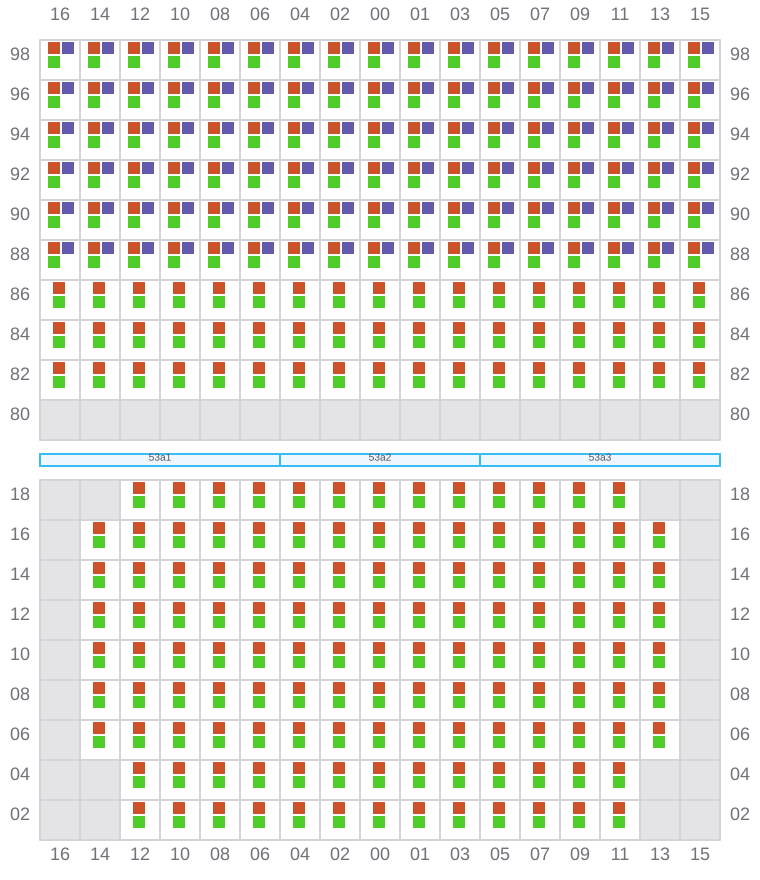

053 (054)
- →
- ? / →

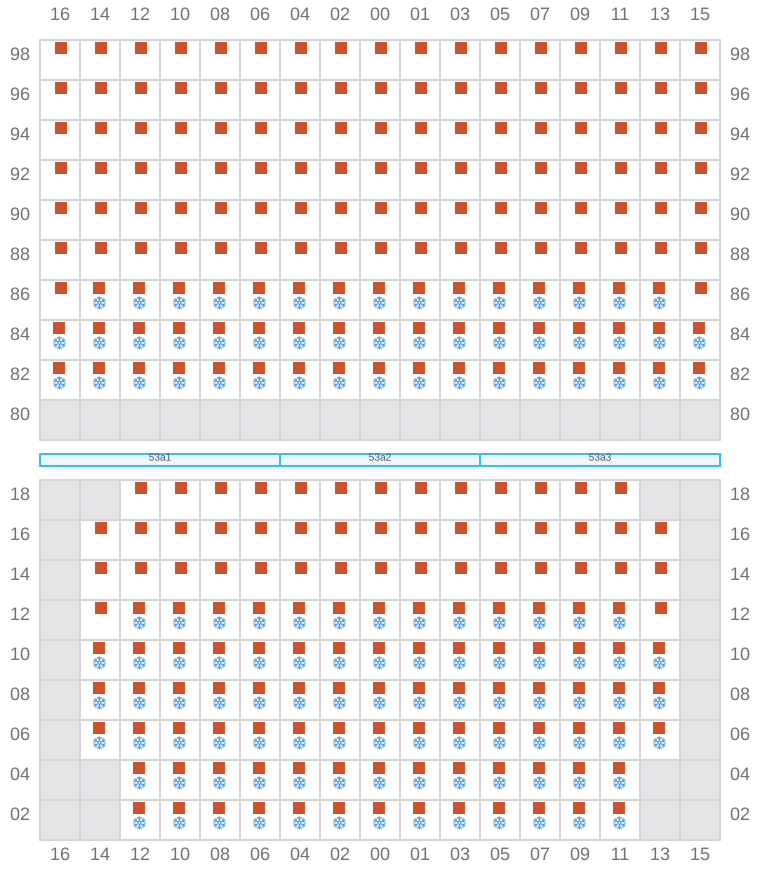

055
- ←
- →

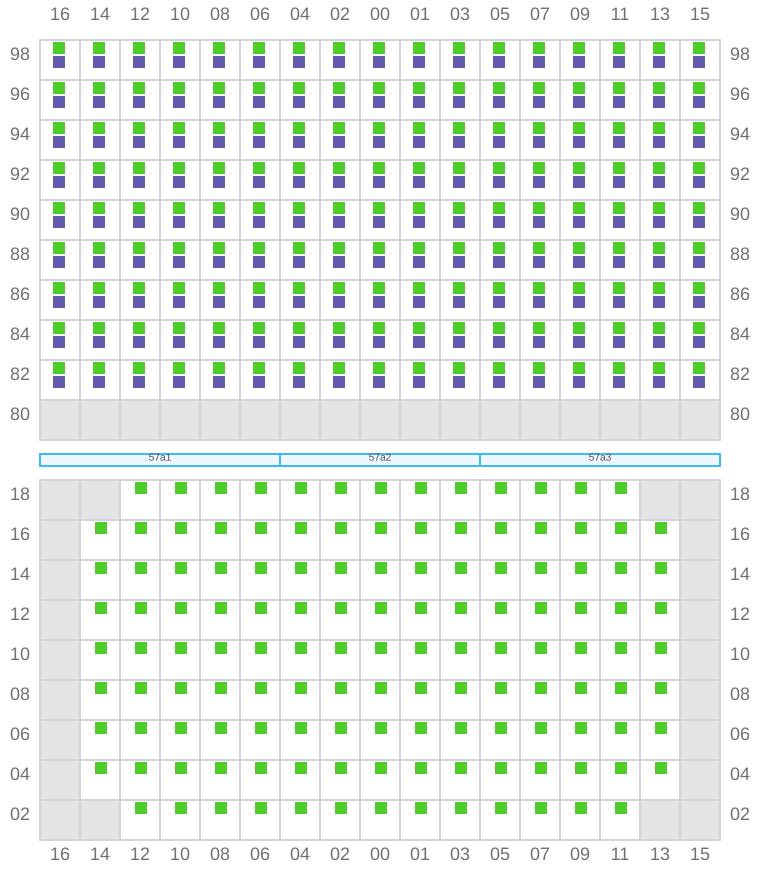

057 (058)
- →
059

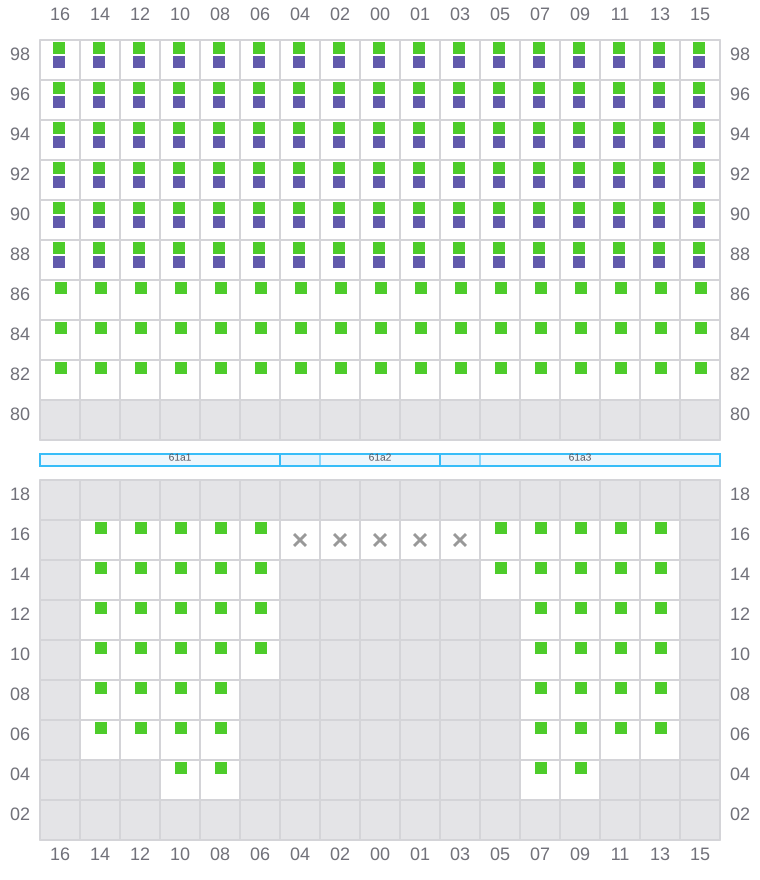

061 (062)
- →
063

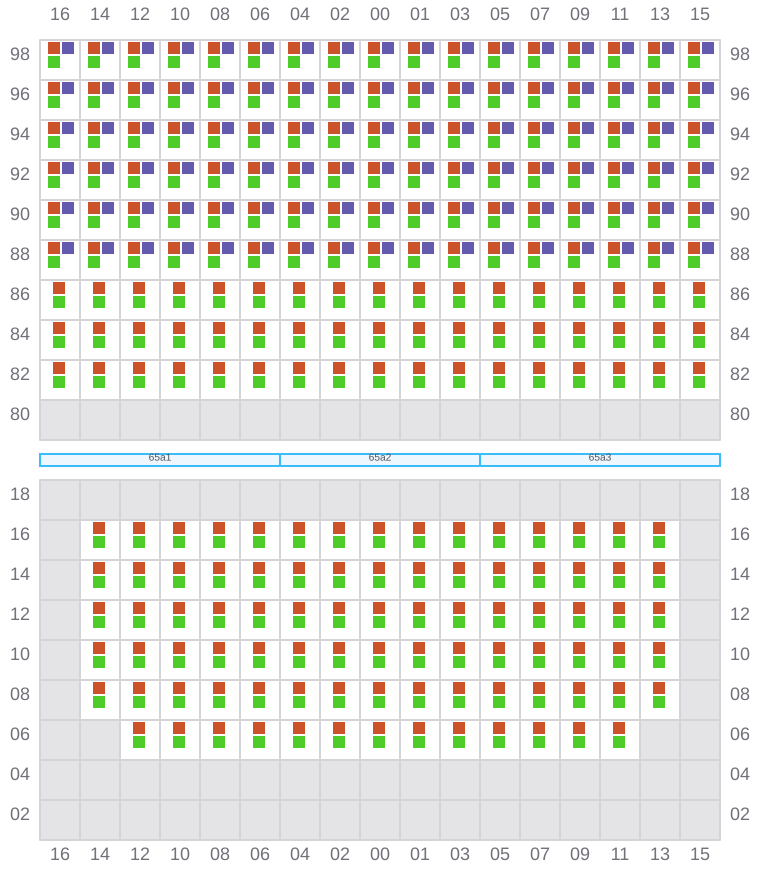

065 (066)
- →

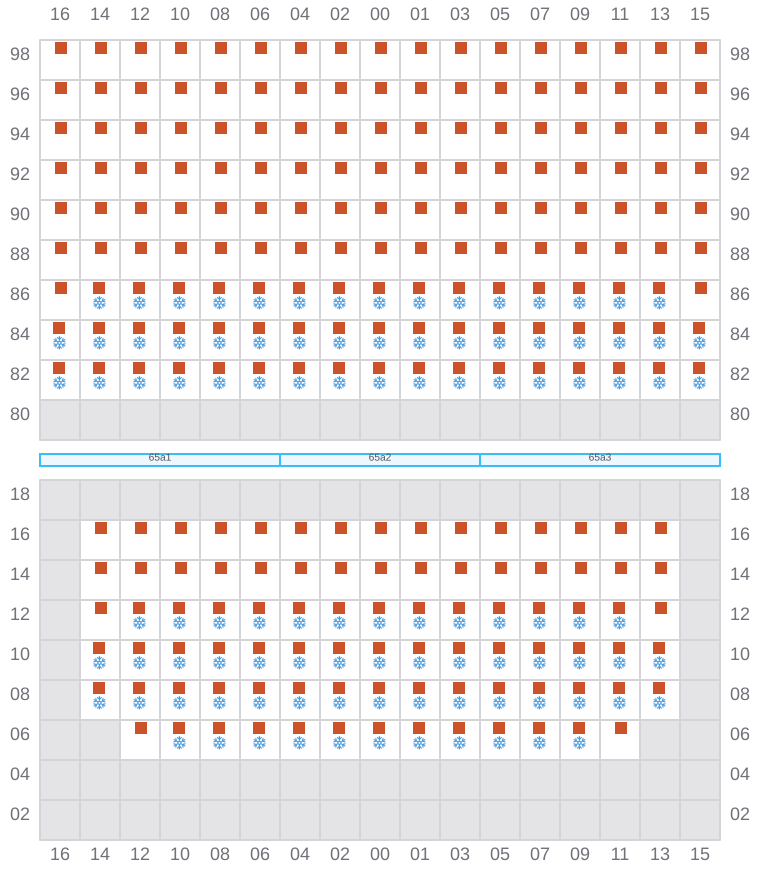

067
- ← / ?
- →

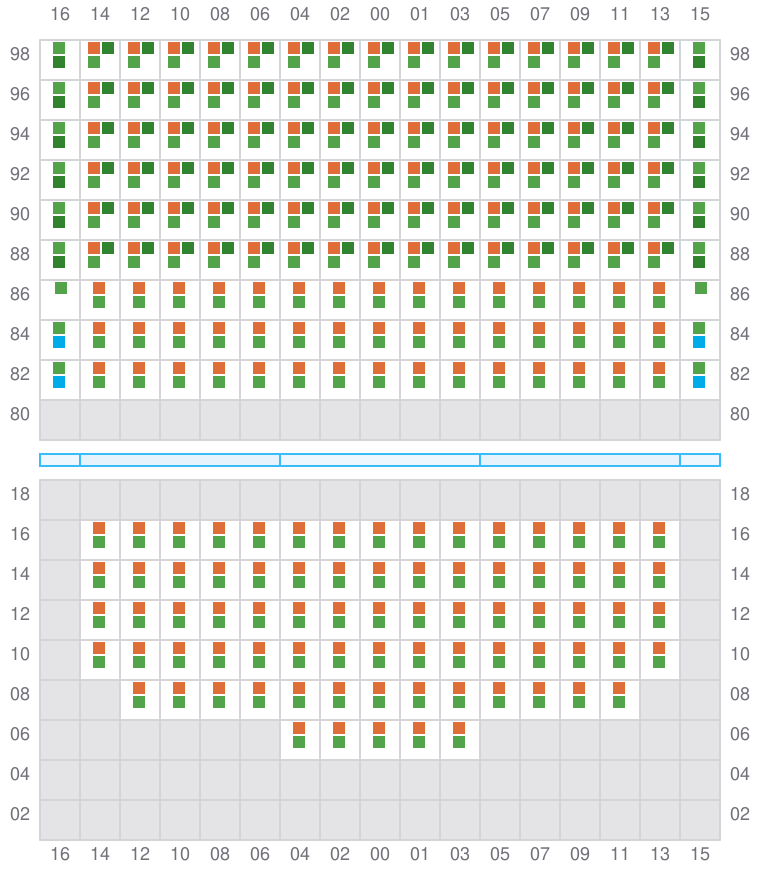

069 (070)
- →
- → / ?

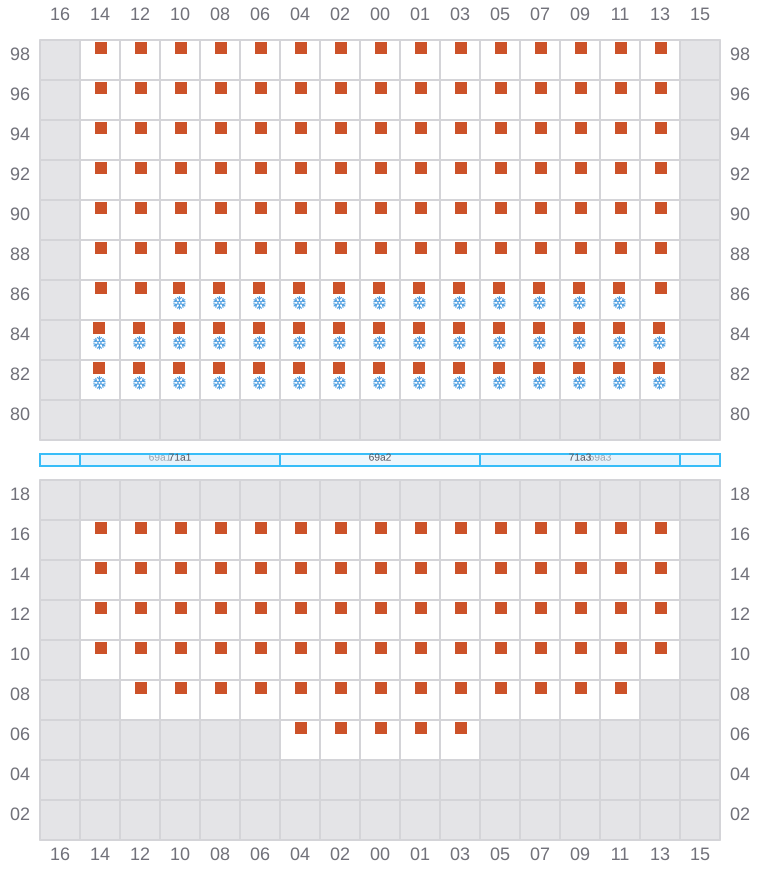

071
- ←
- → / ?

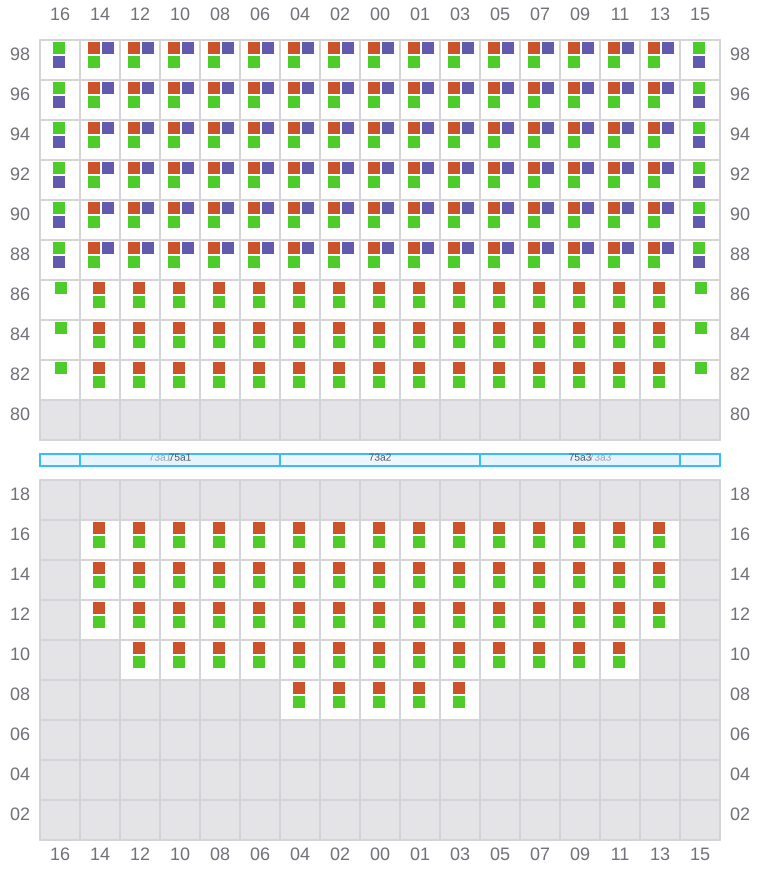

073 (074)
- →

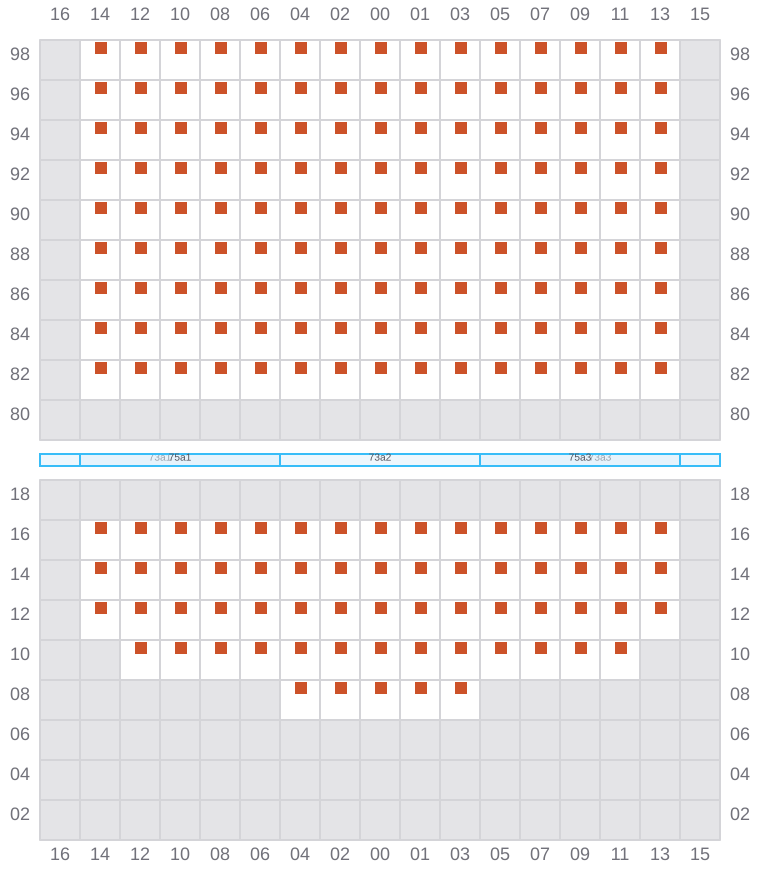

075
- ←
077 (078)
- →

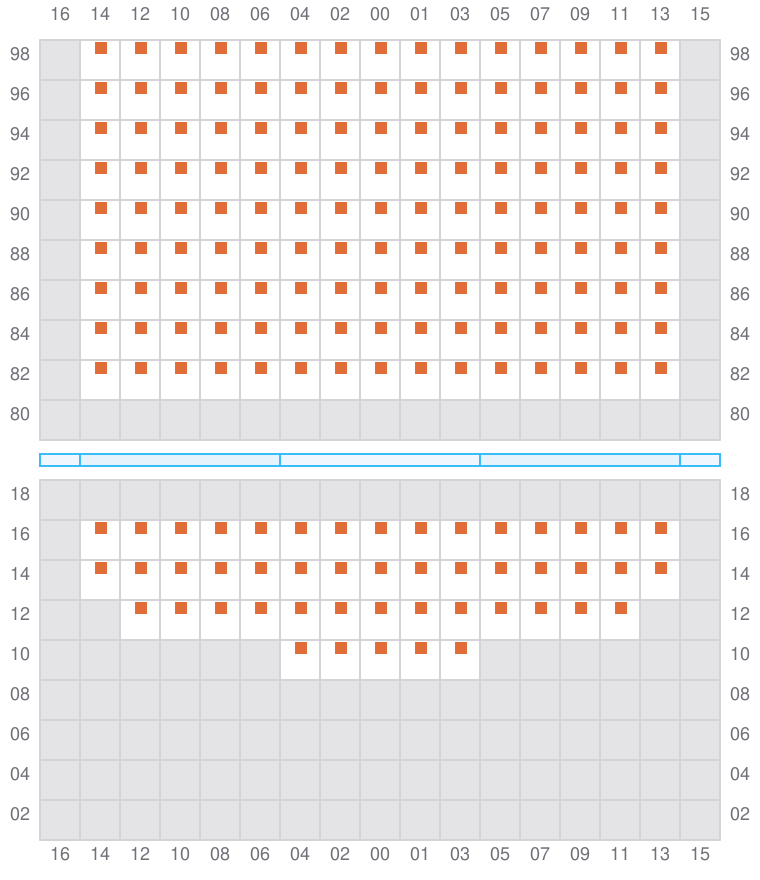

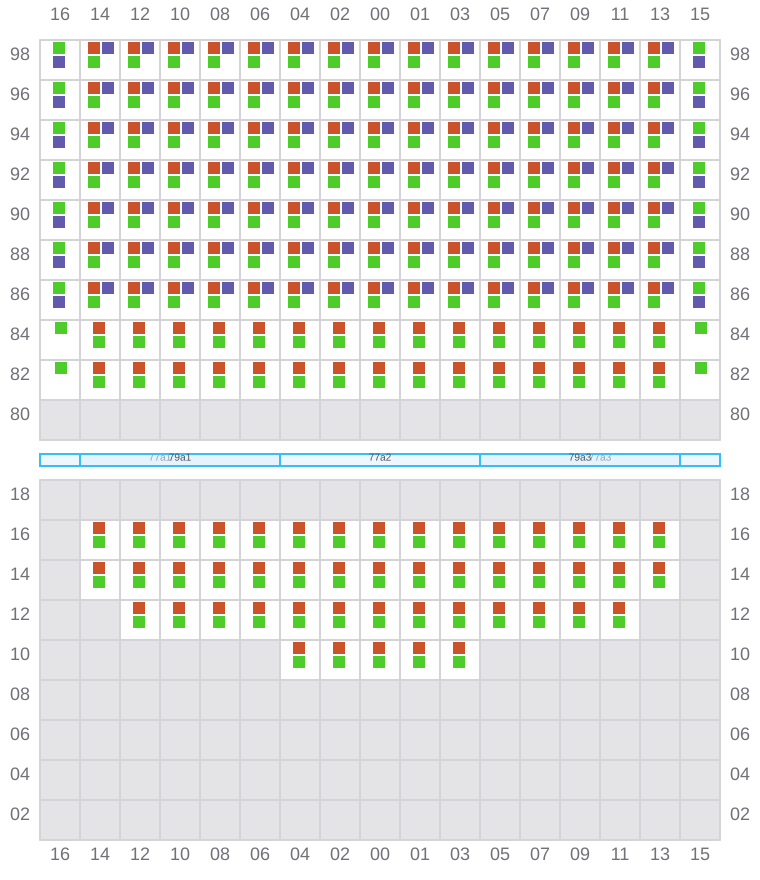

079
- ←

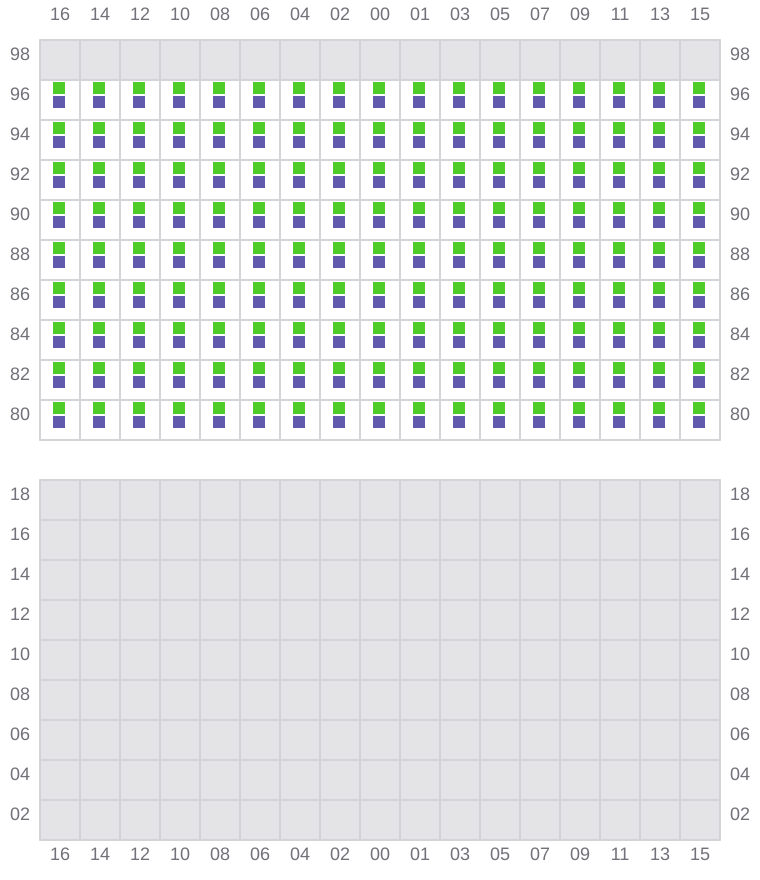

081 (082)
- → / ?
