ANNABELLA
8919788 | D6A2749 | 8919788 by *********** Last update: Sat Mar 02 2024
General Info
Ship Name:ANNABELLA
IMO Code:8919788
Call Sign:D6A2749
Line Operator:8919788
Class Name for Sister Ships:19K
Year Built:1991
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:025
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:80
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:651
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
![Side view of ANNABELLA](/vessel-images/ba81ef63-2701-45bd-bbcd-1d8f84b436c3-sideView.png?v=1709411656668)

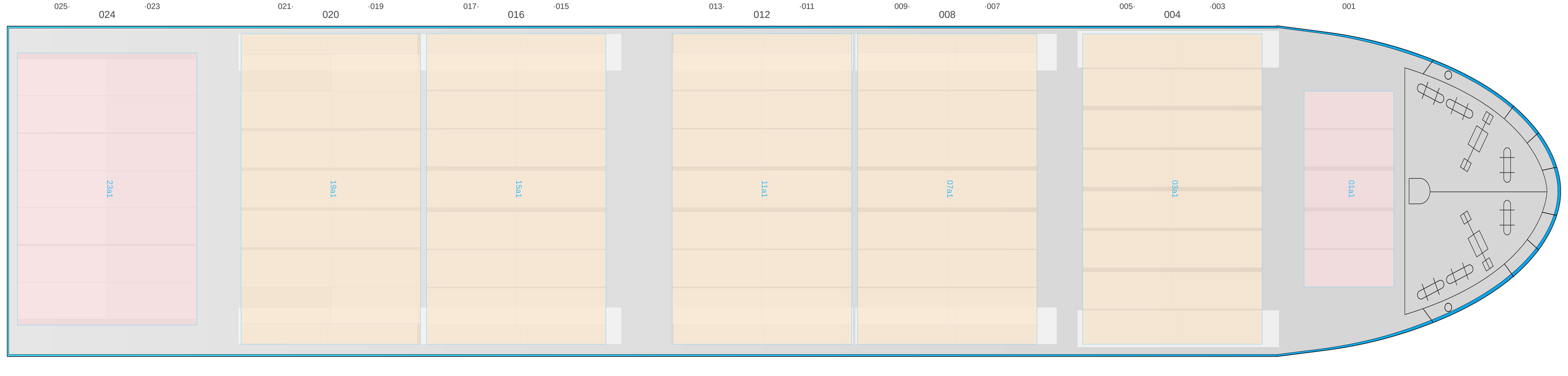

Hatch-Covers View
![Deck view of ANNABELLA](/vessel-images/ba81ef63-2701-45bd-bbcd-1d8f84b436c3-deckView.png?v=1709411656668)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

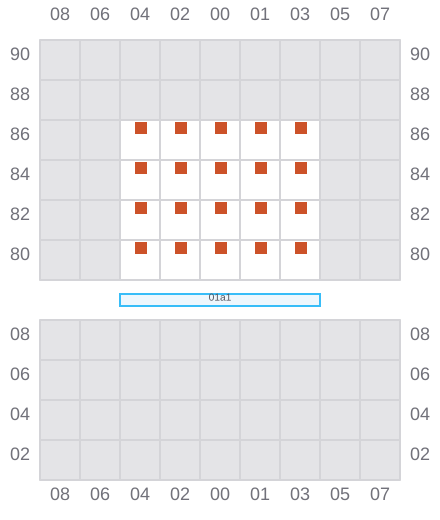

001
![Bay 001 view and slots of ANNABELLA](/vessel-images/ba81ef63-2701-45bd-bbcd-1d8f84b436c3-b001.png?v=1709411656668)

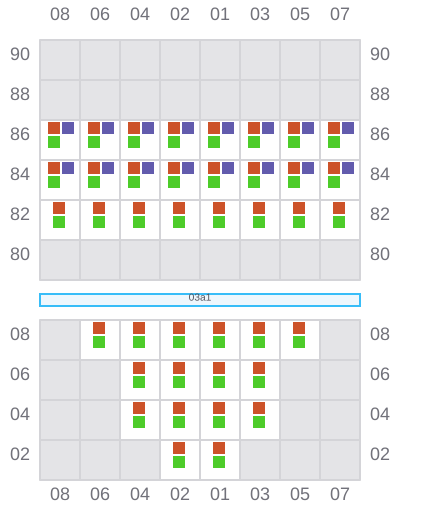

003 (004)
- →
![Bay 003 view and slots of ANNABELLA](/vessel-images/ba81ef63-2701-45bd-bbcd-1d8f84b436c3-b003.png?v=1709411656668)

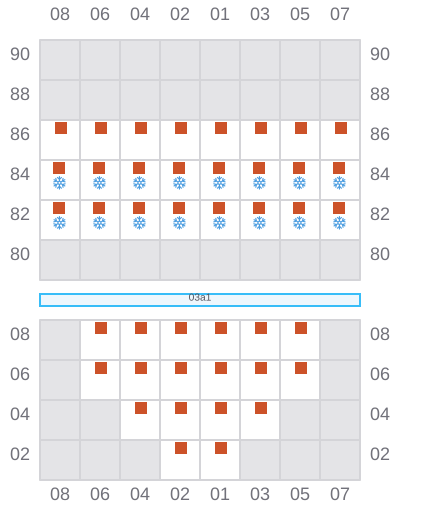

005
- ←
- → / ?
![Bay 005 view and slots of ANNABELLA](/vessel-images/ba81ef63-2701-45bd-bbcd-1d8f84b436c3-b005.png?v=1709411656668)

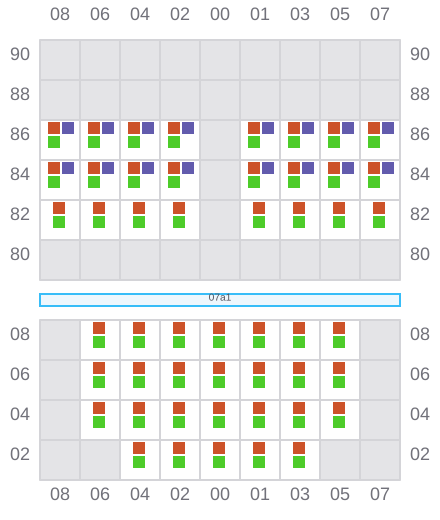

007 (008)
- →
![Bay 007 view and slots of ANNABELLA](/vessel-images/ba81ef63-2701-45bd-bbcd-1d8f84b436c3-b007.png?v=1709411656668)
009
- ←
![Bay 009 view and slots of ANNABELLA](/vessel-images/ba81ef63-2701-45bd-bbcd-1d8f84b436c3-b009.png?v=1709411656668)

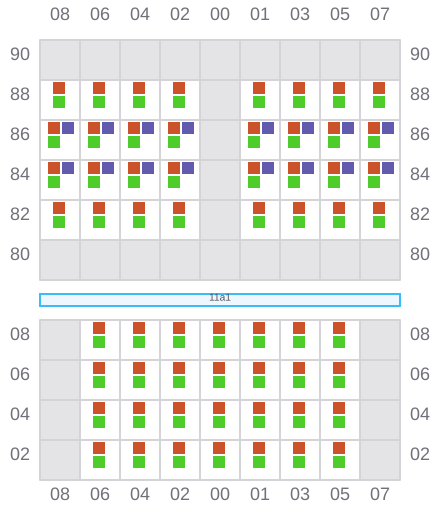

011 (012)
- →
![Bay 011 view and slots of ANNABELLA](/vessel-images/ba81ef63-2701-45bd-bbcd-1d8f84b436c3-b011.png?v=1709411656668)

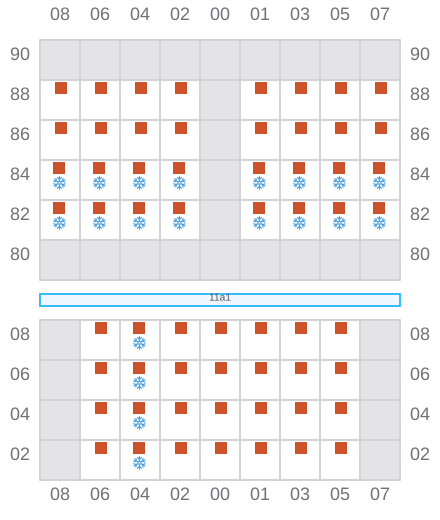

013
- ←
- →
![Bay 013 view and slots of ANNABELLA](/vessel-images/ba81ef63-2701-45bd-bbcd-1d8f84b436c3-b013.png?v=1709411656668)

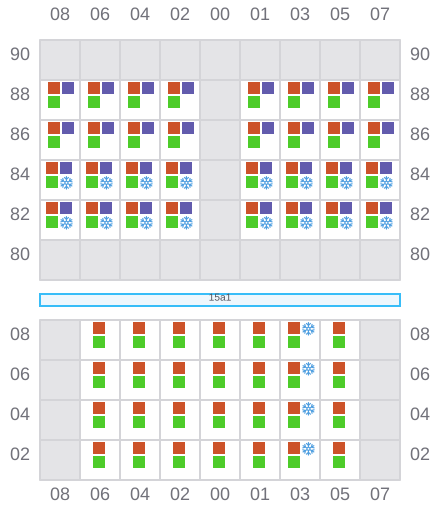

015 (016)
- →
- ←
![Bay 015 view and slots of ANNABELLA](/vessel-images/ba81ef63-2701-45bd-bbcd-1d8f84b436c3-b015.png?v=1709411656668)

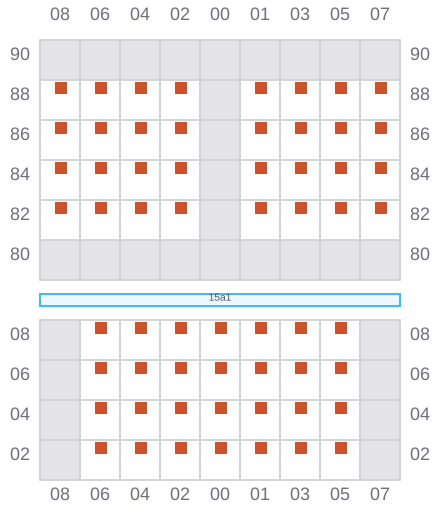

017
- ←
![Bay 017 view and slots of ANNABELLA](/vessel-images/ba81ef63-2701-45bd-bbcd-1d8f84b436c3-b017.png?v=1709411656668)

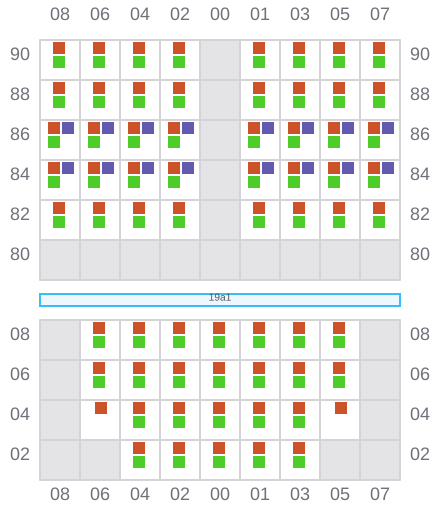

019 (020)
- →
![Bay 019 view and slots of ANNABELLA](/vessel-images/ba81ef63-2701-45bd-bbcd-1d8f84b436c3-b019.png?v=1709411656668)

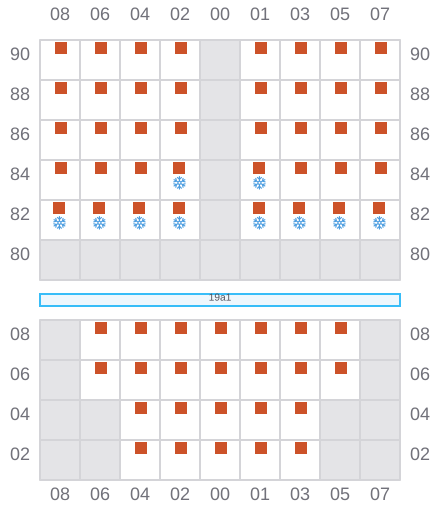

021
- ←
- → / ?
![Bay 021 view and slots of ANNABELLA](/vessel-images/ba81ef63-2701-45bd-bbcd-1d8f84b436c3-b021.png?v=1709411656668)

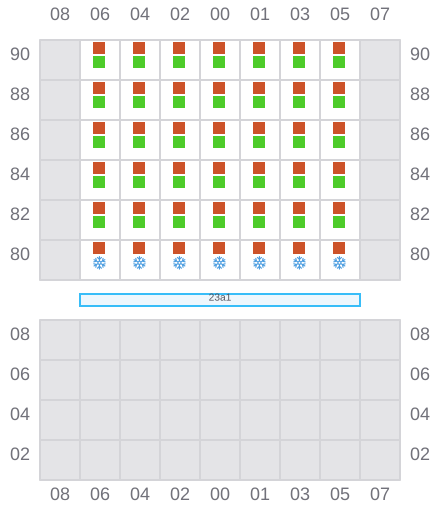

023 (024)
- → / ?
- → / ?
![Bay 023 view and slots of ANNABELLA](/vessel-images/ba81ef63-2701-45bd-bbcd-1d8f84b436c3-b023.png?v=1709411656668)

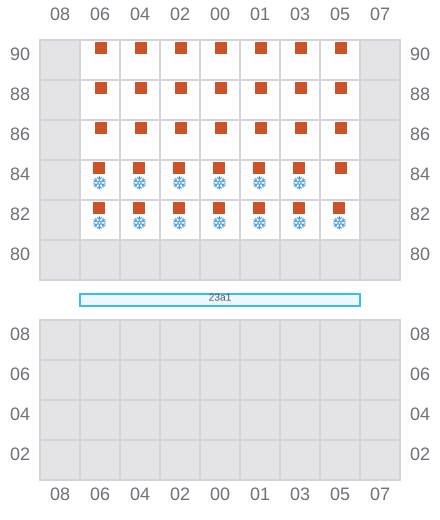

025
- ← / ?
- → / ?
![Bay 025 view and slots of ANNABELLA](/vessel-images/ba81ef63-2701-45bd-bbcd-1d8f84b436c3-b025.png?v=1709411656668)
