ANTWERP BRIDGE
9297527 | D9AW | 9297527 by ********* Last update: Fri Jun 28 2024

General Info

Ship Name:ANTWERP BRIDGE
IMO Code:9297527
Call Sign:D9AW
Line Operator:9297527
Class Name for Sister Ships:MSL
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):283.20
LOA (Length Overall):294.10
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:069
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:6,076

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of ANTWERP BRIDGE

Hatch-Covers View

Deck view of ANTWERP BRIDGE

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →
Bay 001 view and slots of ANTWERP BRIDGE

003

  • ← / ?
  • → / ?

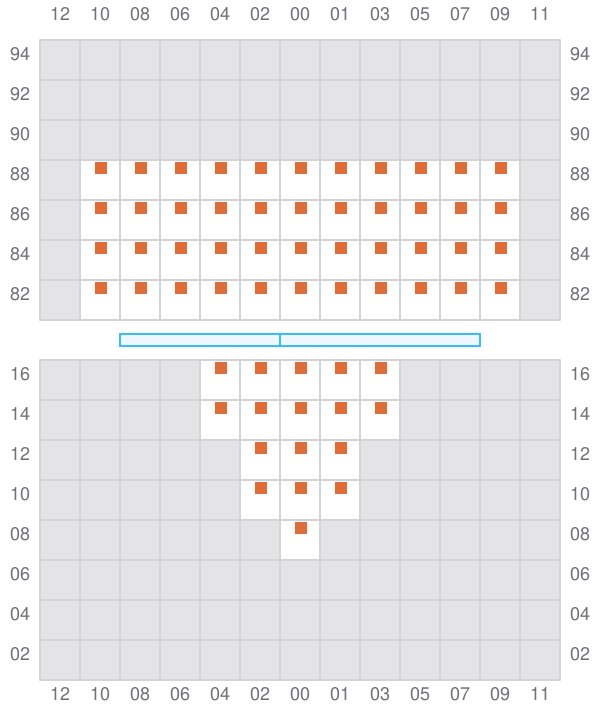

Bay 003 view and slots of ANTWERP BRIDGE

005 (006)

  • →

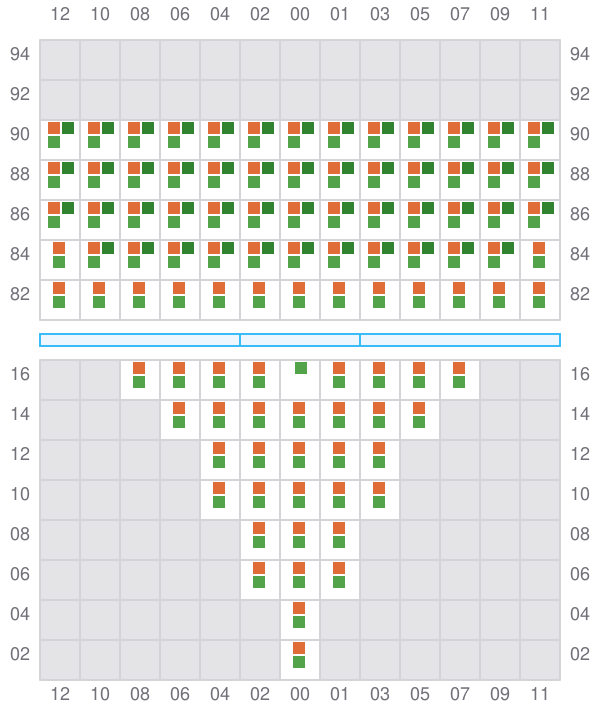

Bay 005 view and slots of ANTWERP BRIDGE

007

  • ← / ?
  • → / ?

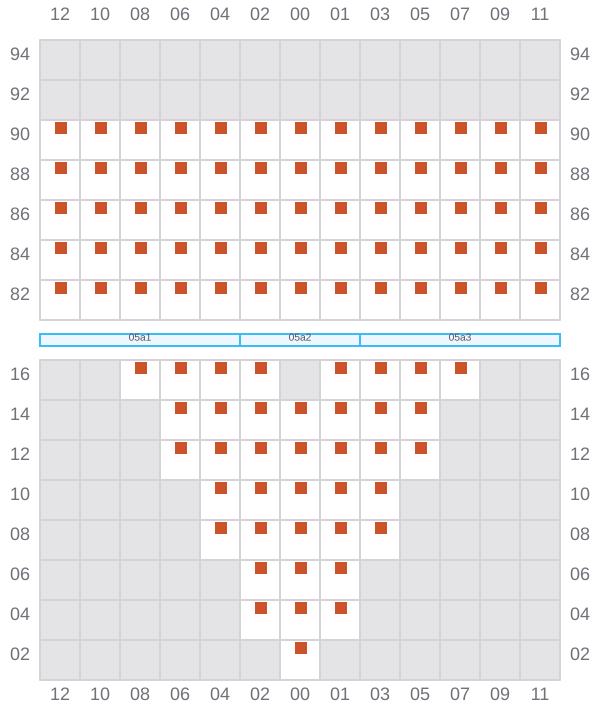

Bay 007 view and slots of ANTWERP BRIDGE

009 (010)

  • →

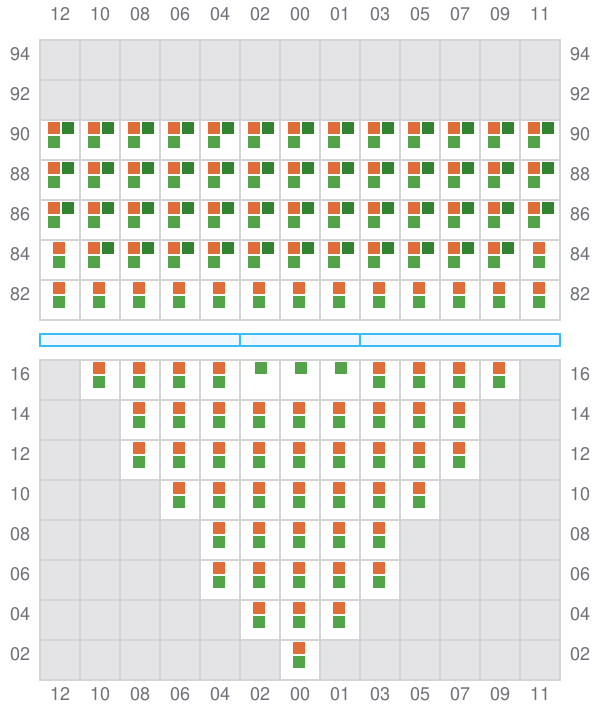

Bay 009 view and slots of ANTWERP BRIDGE

011

  • ← / ?
  • → / ?

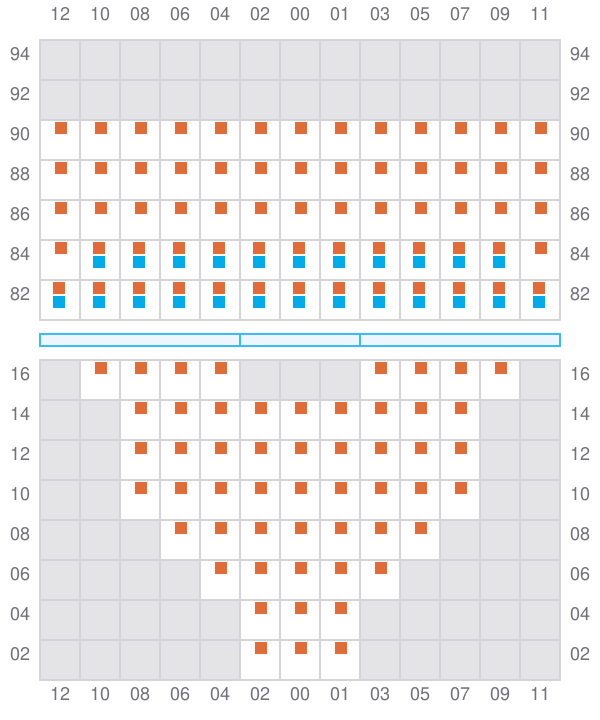

Bay 011 view and slots of ANTWERP BRIDGE

013 (014)

  • →
  • ← / ?
Bay 013 view and slots of ANTWERP BRIDGE

015

  • ← / ?
  • → / ?

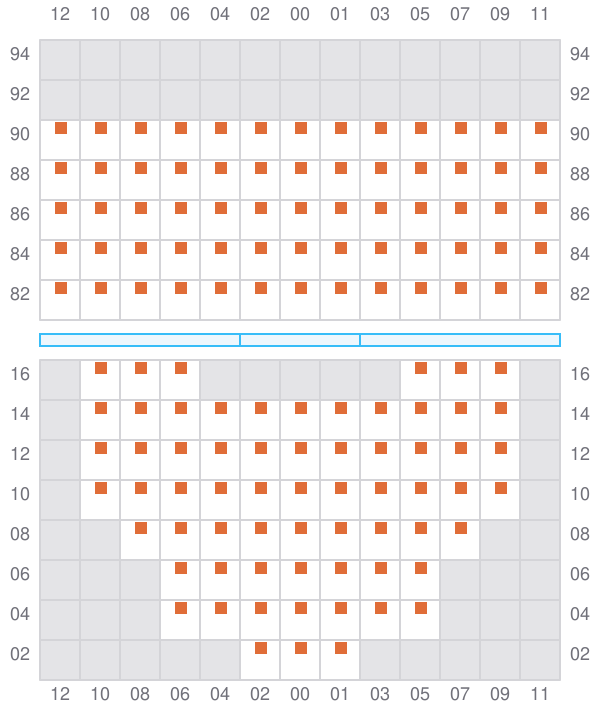

Bay 015 view and slots of ANTWERP BRIDGE

017 (018)

  • →

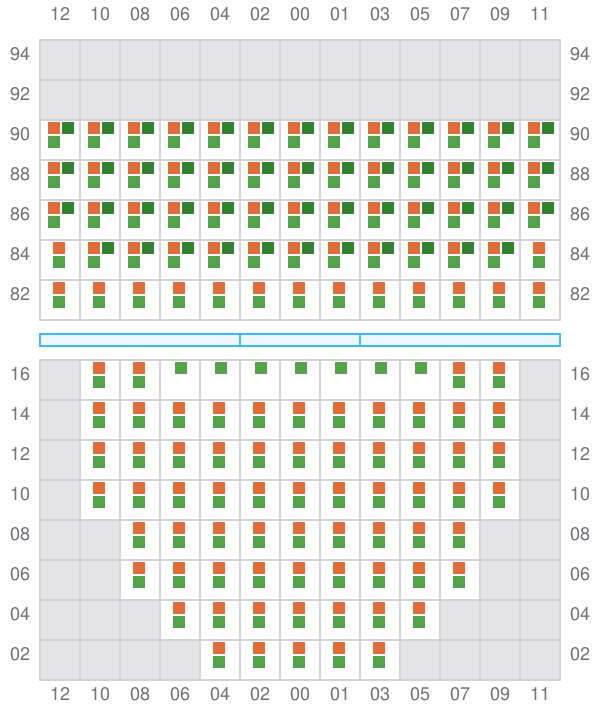

Bay 017 view and slots of ANTWERP BRIDGE

019

  • ← / ?
  • → / ?

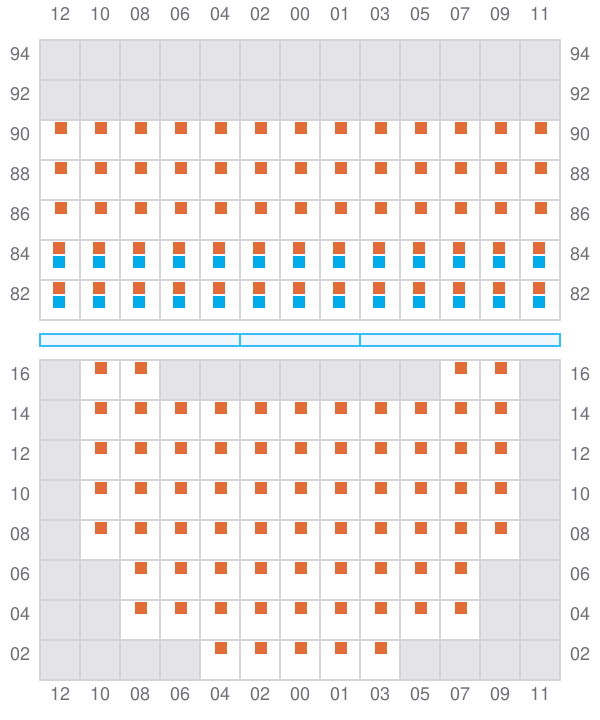

Bay 019 view and slots of ANTWERP BRIDGE

021 (022)

  • →

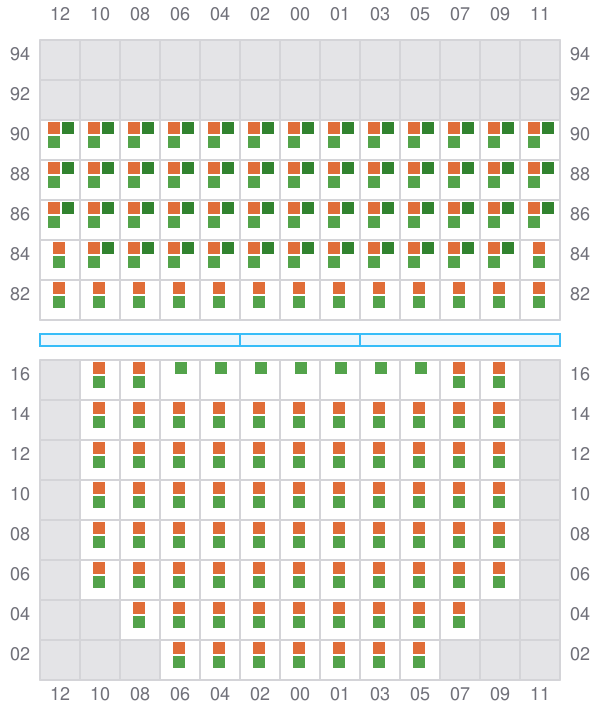

Bay 021 view and slots of ANTWERP BRIDGE

023

  • ← / ?
  • → / ?

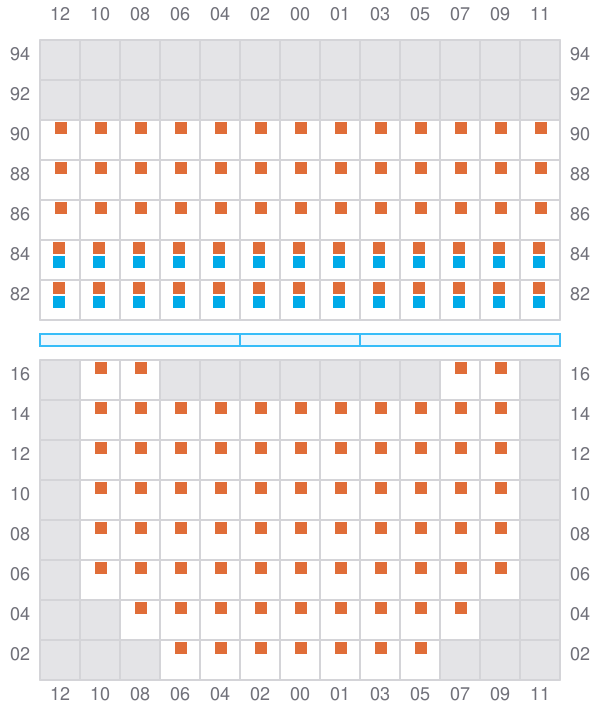

Bay 023 view and slots of ANTWERP BRIDGE

025 (026)

  • →
  • ← / ?

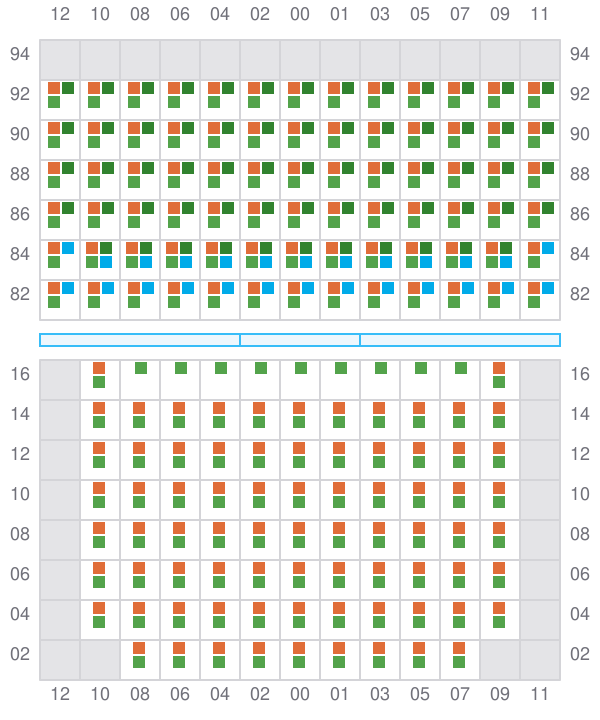

Bay 025 view and slots of ANTWERP BRIDGE

027

  • ← / ?
  • → / ?

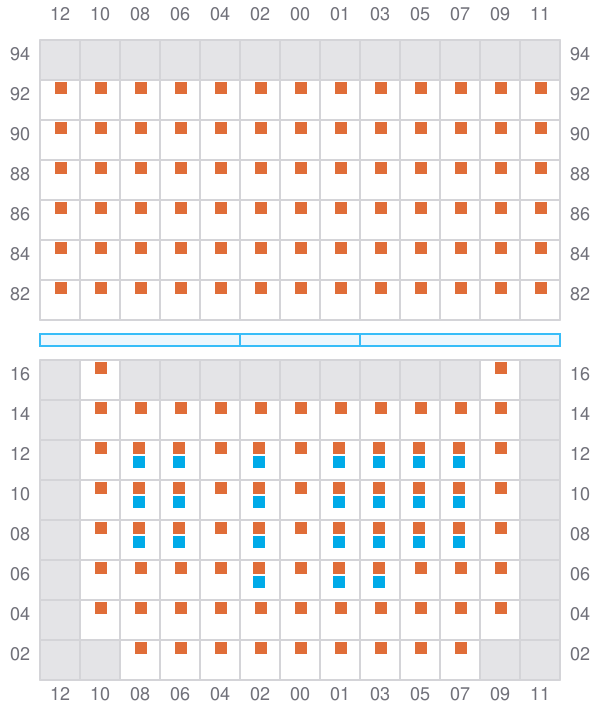

Bay 027 view and slots of ANTWERP BRIDGE

029 (030)

  • →
Bay 029 view and slots of ANTWERP BRIDGE

031

  • ← / ?
  • → / ?

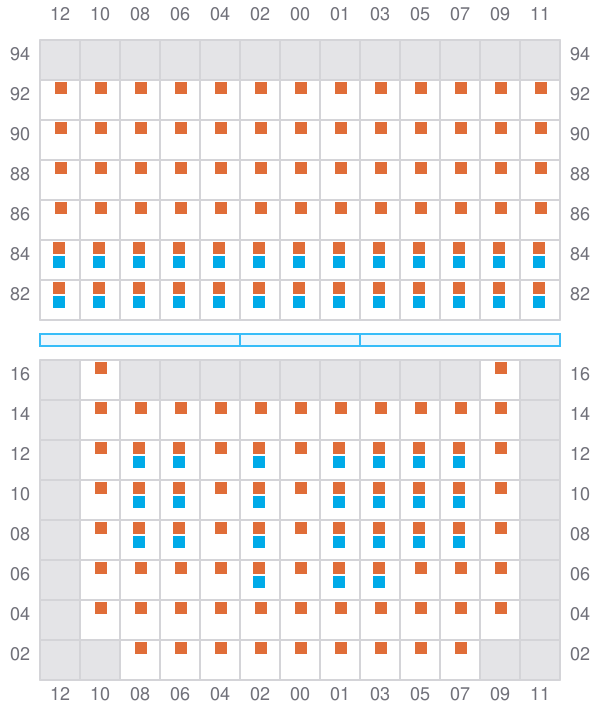

Bay 031 view and slots of ANTWERP BRIDGE

033 (034)

  • →

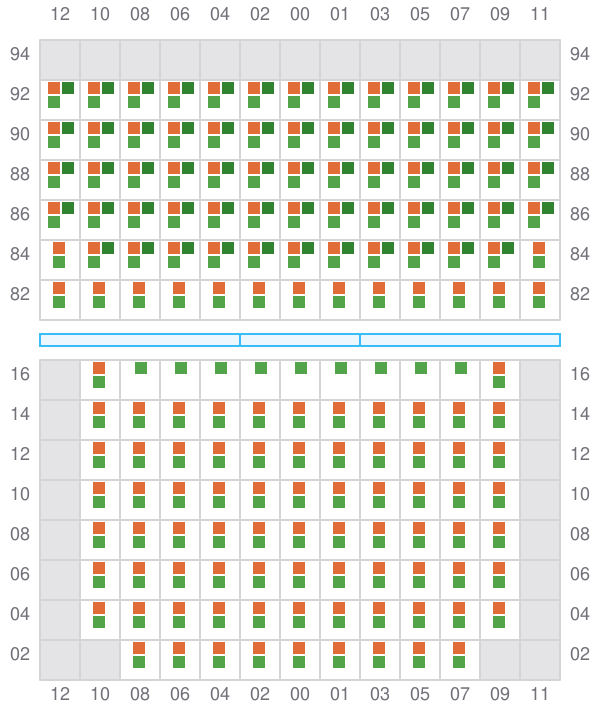

Bay 033 view and slots of ANTWERP BRIDGE

035

  • ← / ?
  • → / ?

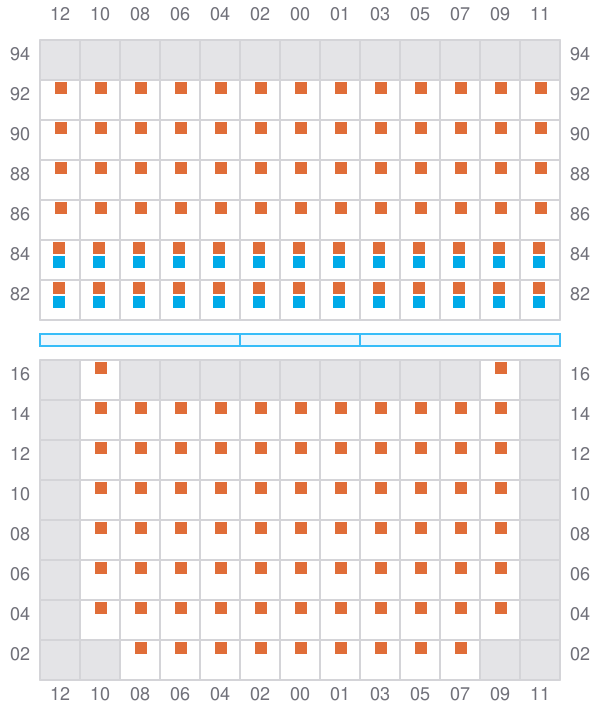

Bay 035 view and slots of ANTWERP BRIDGE

037 (038)

  • →
  • ← / ?
Bay 037 view and slots of ANTWERP BRIDGE

039

  • ← / ?
  • → / ?

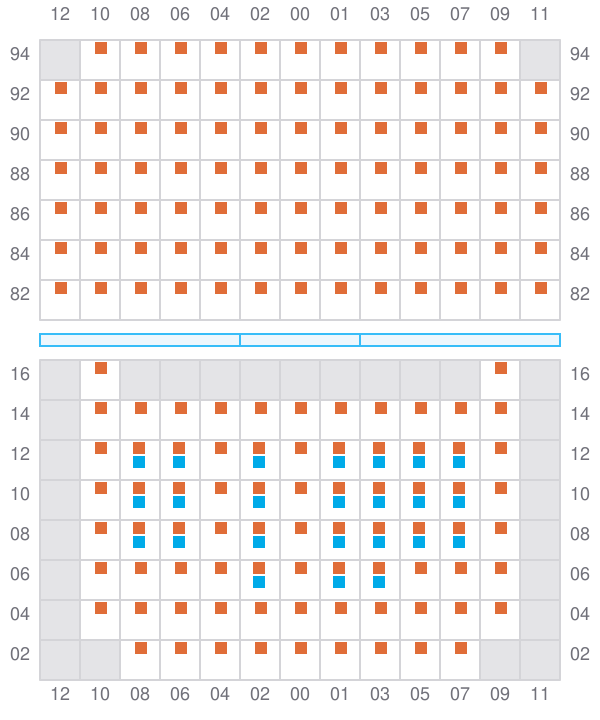

Bay 039 view and slots of ANTWERP BRIDGE

041 (042)

  • →
Bay 041 view and slots of ANTWERP BRIDGE

043

  • ← / ?
  • → / ?

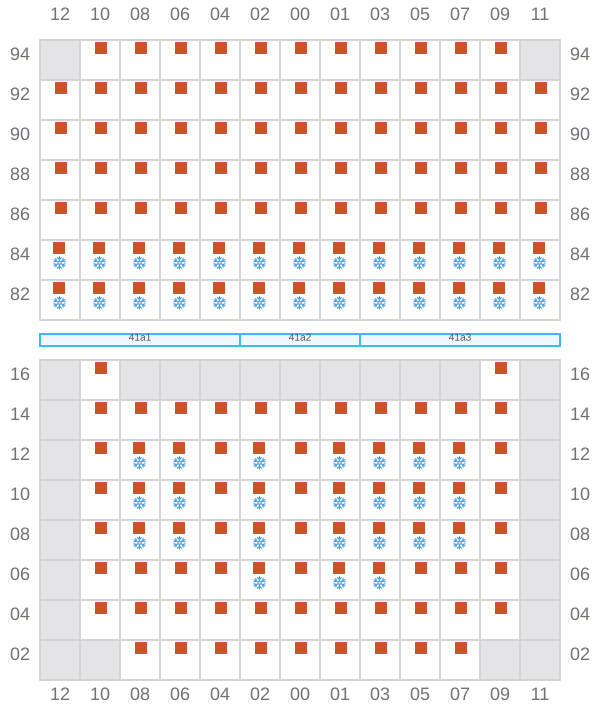

Bay 043 view and slots of ANTWERP BRIDGE

045 (046)

  • →

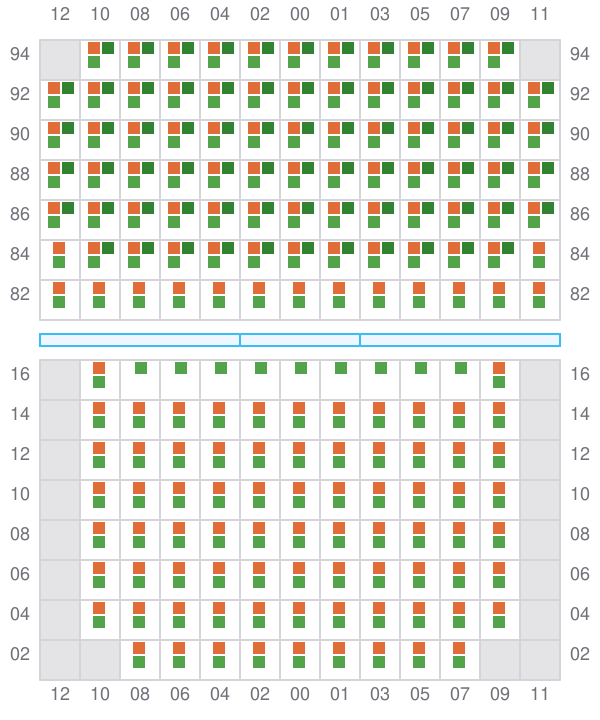

Bay 045 view and slots of ANTWERP BRIDGE

047

  • ← / ?
  • → / ?

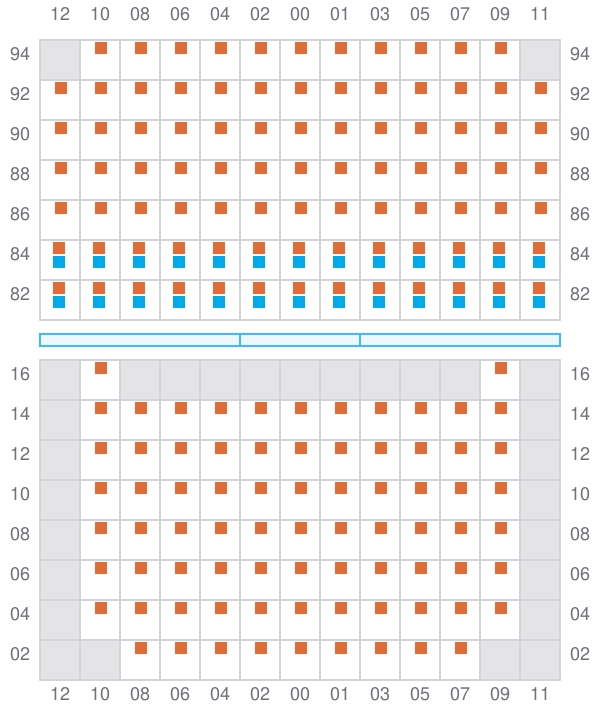

Bay 047 view and slots of ANTWERP BRIDGE

049 (050)

  • →
  • ← / ?

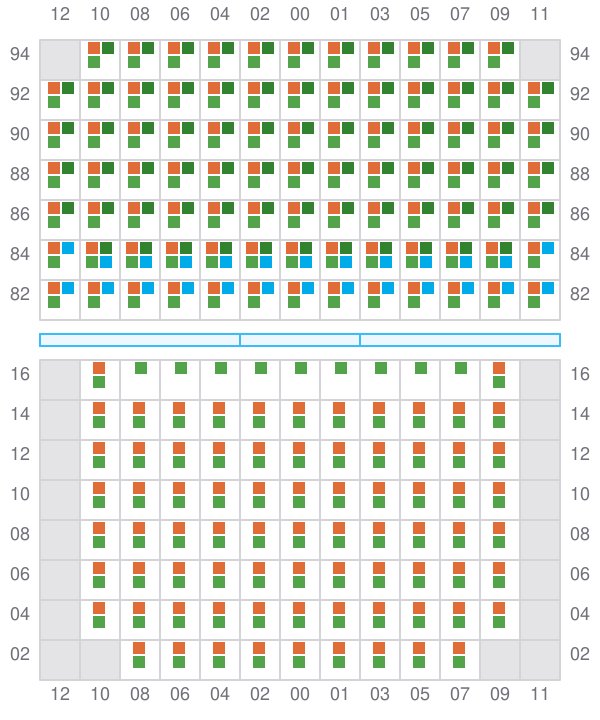

Bay 049 view and slots of ANTWERP BRIDGE

051

  • ← / ?
  • → / ?
Bay 051 view and slots of ANTWERP BRIDGE

053 (054)

  • →

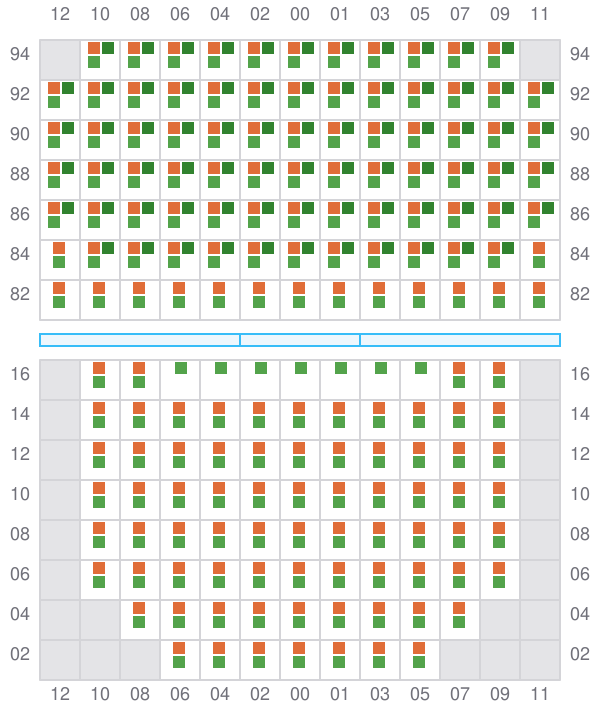

Bay 053 view and slots of ANTWERP BRIDGE

055

  • ← / ?
  • → / ?

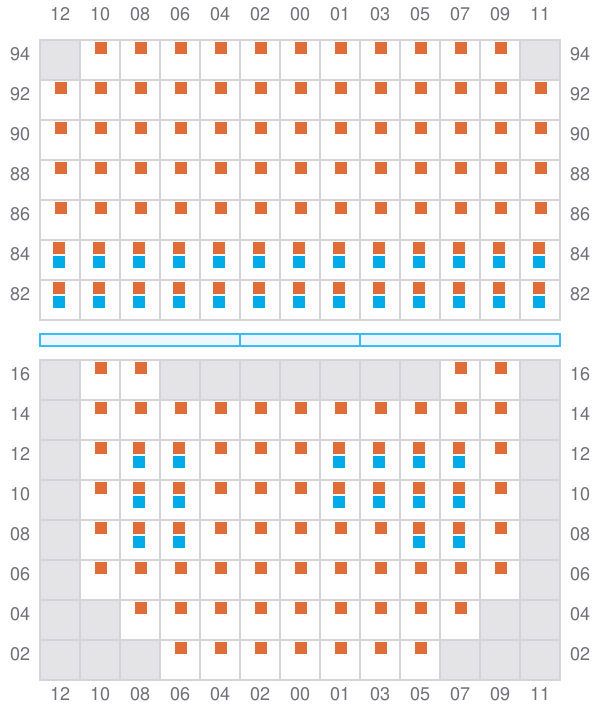

Bay 055 view and slots of ANTWERP BRIDGE

057 (058)

  • →
  • ← / ?

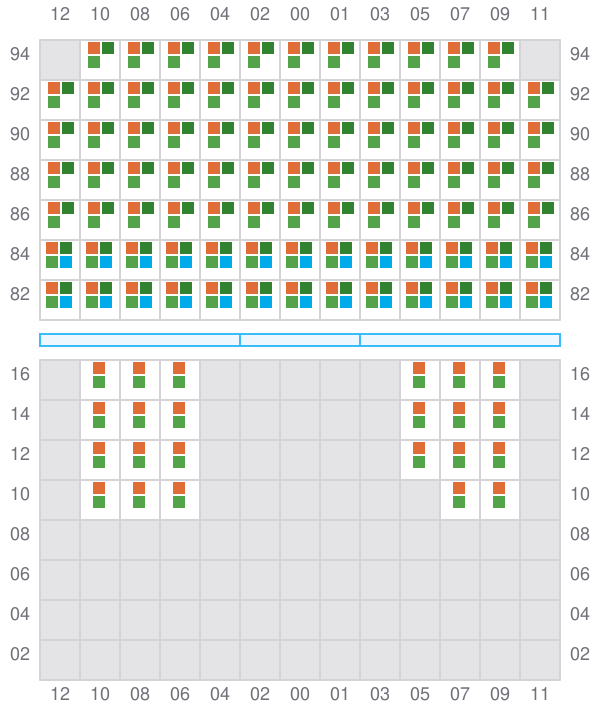

Bay 057 view and slots of ANTWERP BRIDGE

059

  • ← / ?
  • → / ?

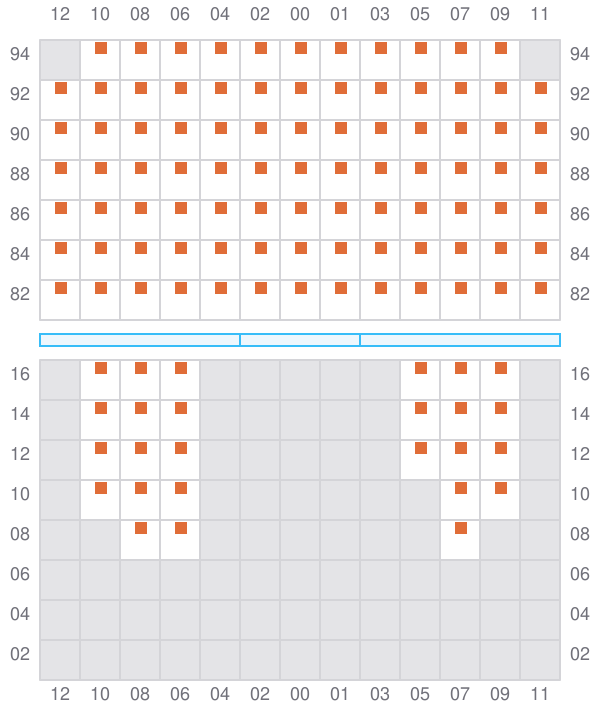

Bay 059 view and slots of ANTWERP BRIDGE

061 (062)

  • →
  • ← / ?

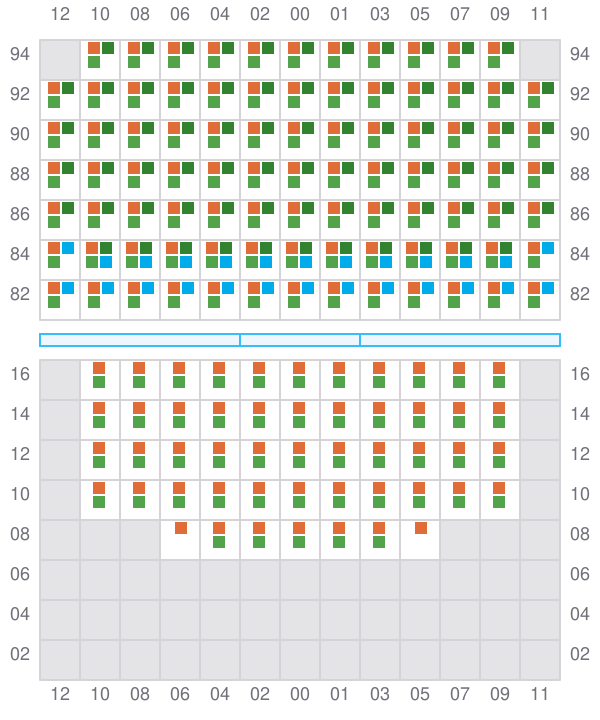

Bay 061 view and slots of ANTWERP BRIDGE

063

  • ← / ?
  • → / ?

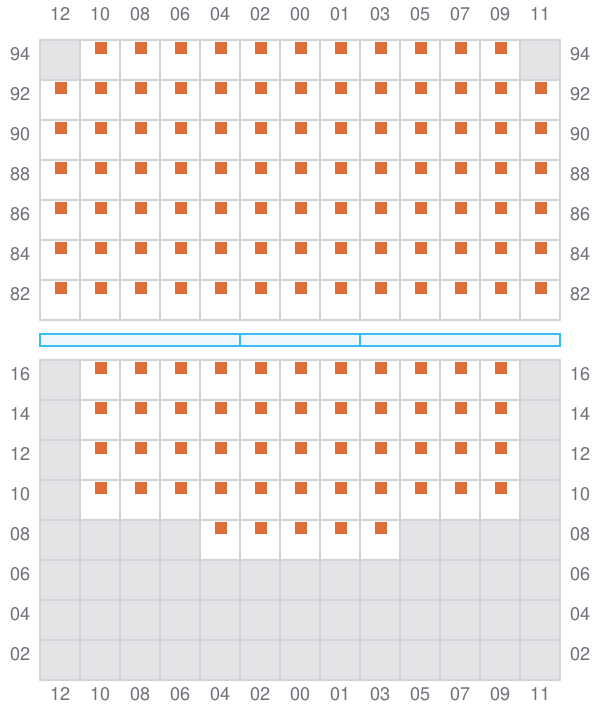

Bay 063 view and slots of ANTWERP BRIDGE

065 (066)

  • →
  • ← / ?

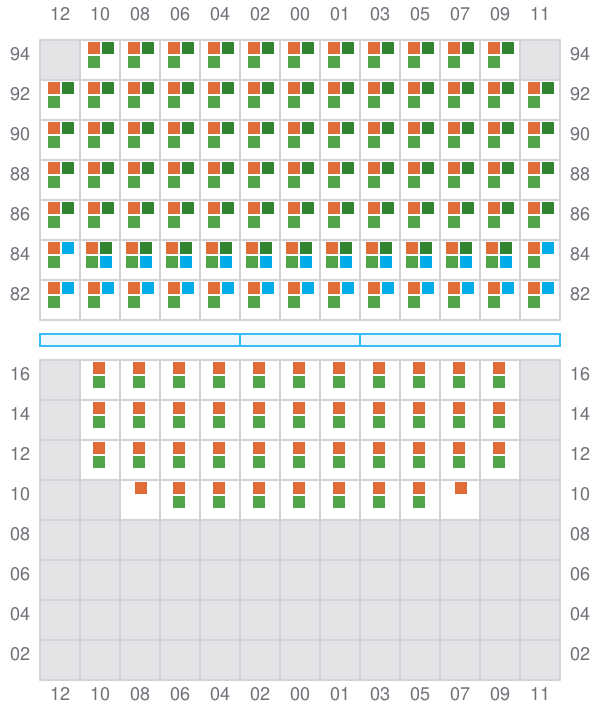

Bay 065 view and slots of ANTWERP BRIDGE

067

  • ← / ?
  • → / ?

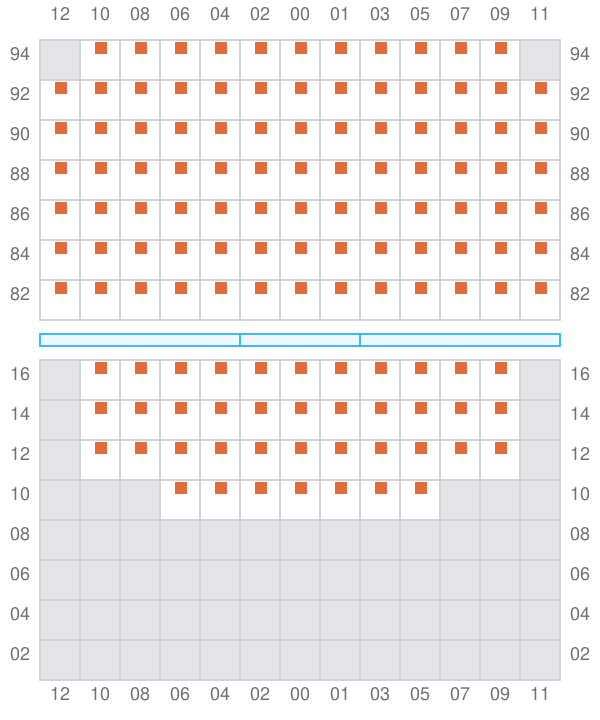

Bay 067 view and slots of ANTWERP BRIDGE

069 (070)

  • → / ?
  • → / ?

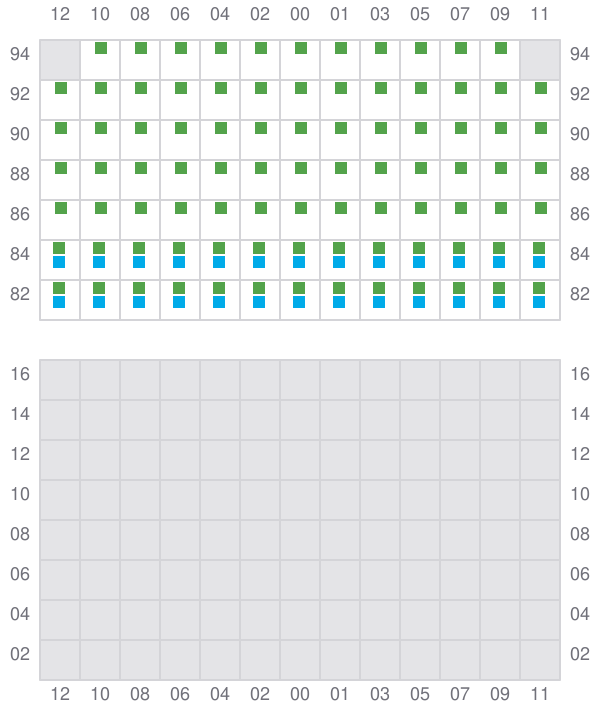

Bay 069 view and slots of ANTWERP BRIDGE
