API BHUM
9292149 | 9V8270 | MSC by ************************** Last update: Sun Jun 18 2023
General Info
Ship Name:API BHUM
IMO Code:9292149
Call Sign:9V8270
Line Operator:MSC
Class Name for Sister Ships:LIV
Year Built:2004
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:067
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,975
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

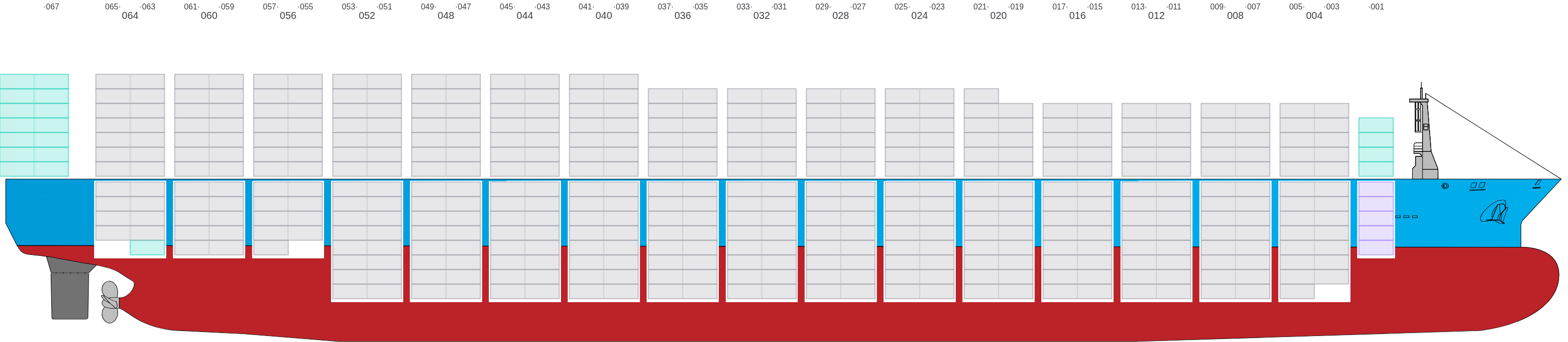

Side View
![Side view of API BHUM](/vessel-images/d36d2af3-3140-40ea-9ade-fa6e5f185428-sideView.png?v=1687109855722)

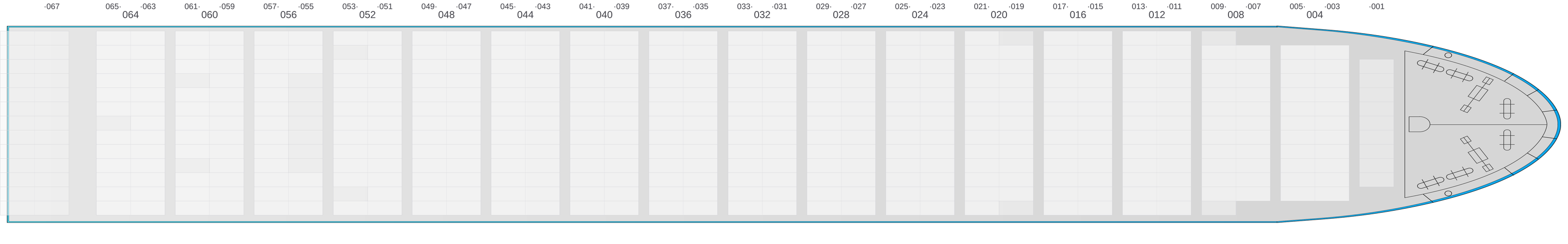

Hatch-Covers View
![Deck view of API BHUM](/vessel-images/d36d2af3-3140-40ea-9ade-fa6e5f185428-deckView.png?v=1687109855722)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

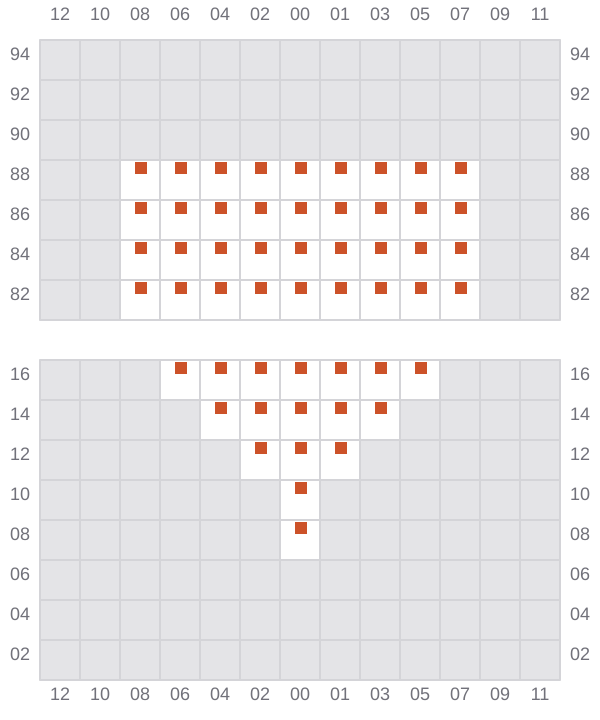

001
- → / ?
![Bay 001 view and slots of API BHUM](/vessel-images/d36d2af3-3140-40ea-9ade-fa6e5f185428-b001.png?v=1687109855722)

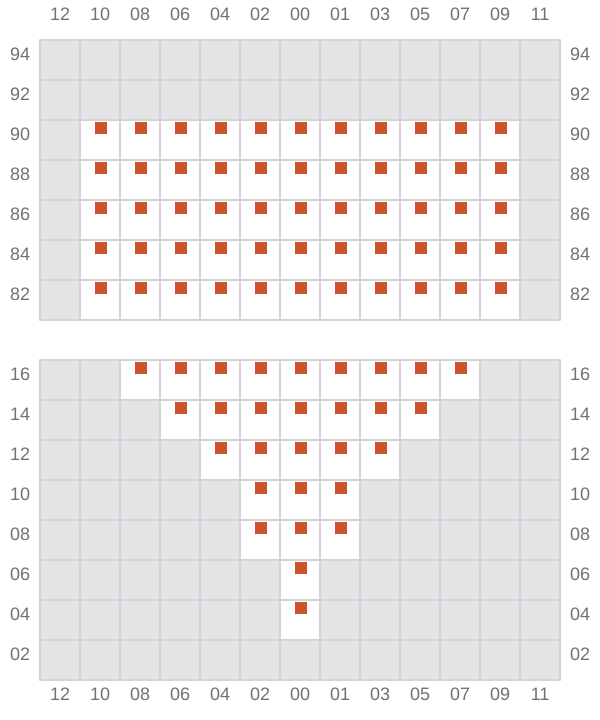

003
- →
![Bay 003 view and slots of API BHUM](/vessel-images/d36d2af3-3140-40ea-9ade-fa6e5f185428-b003.png?v=1687109855722)

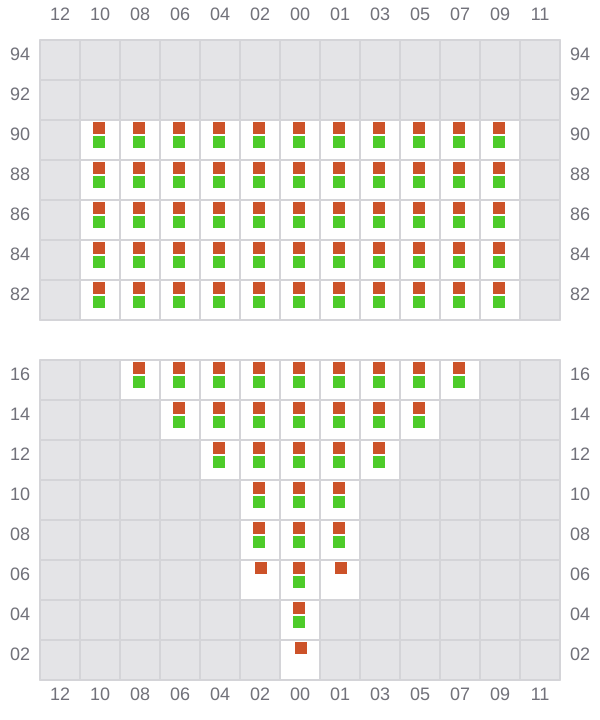

005 (004)
- ←
![Bay 005 view and slots of API BHUM](/vessel-images/d36d2af3-3140-40ea-9ade-fa6e5f185428-b005.png?v=1687109855722)

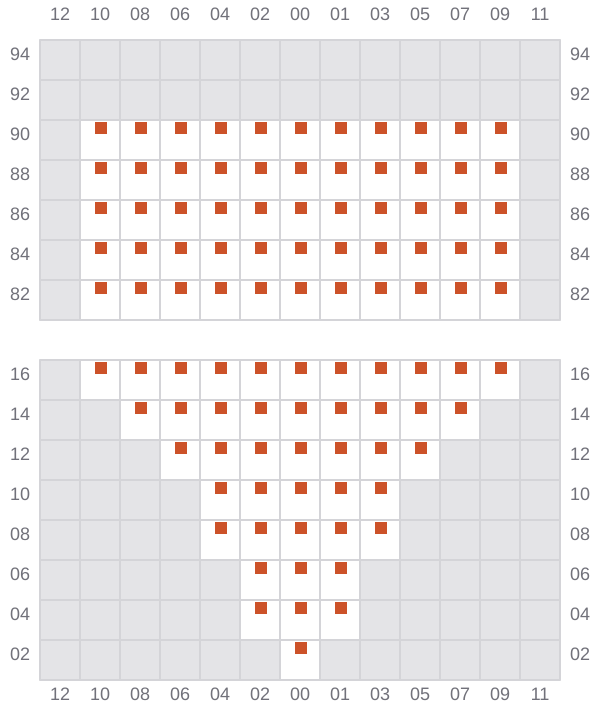

007
- →
![Bay 007 view and slots of API BHUM](/vessel-images/d36d2af3-3140-40ea-9ade-fa6e5f185428-b007.png?v=1687109855722)

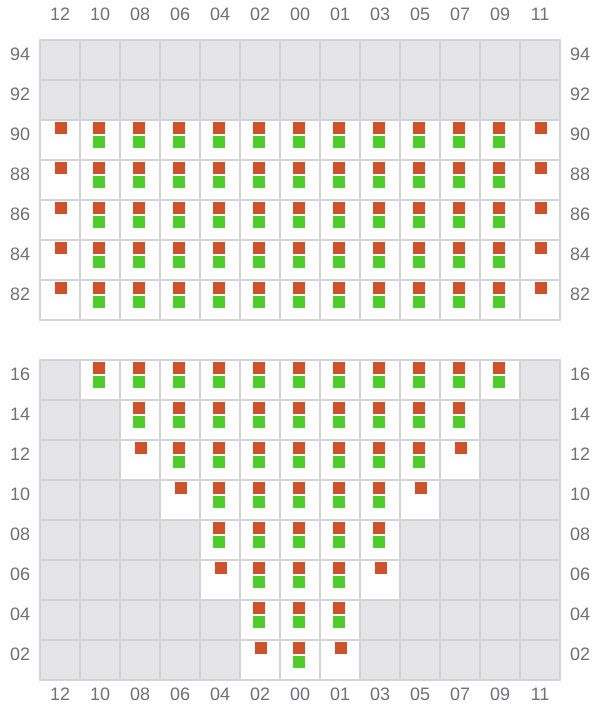

009 (008)
- ←
![Bay 009 view and slots of API BHUM](/vessel-images/d36d2af3-3140-40ea-9ade-fa6e5f185428-b009.png?v=1687109855722)

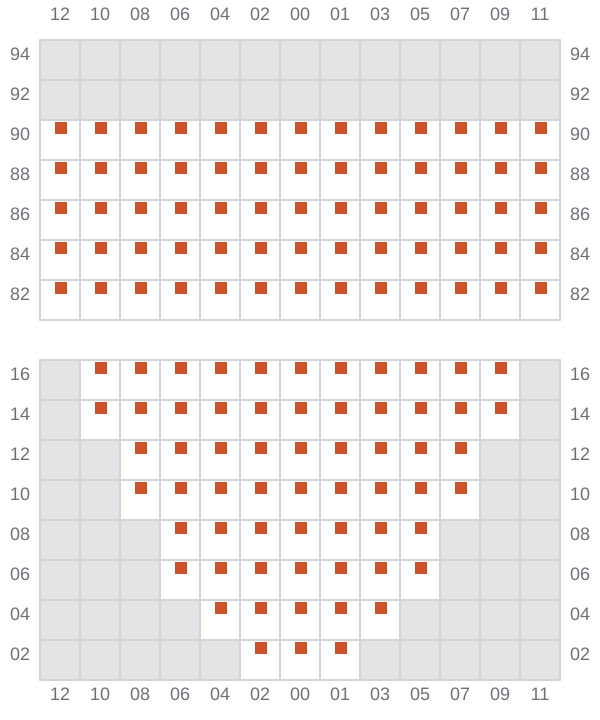

011
- →
![Bay 011 view and slots of API BHUM](/vessel-images/d36d2af3-3140-40ea-9ade-fa6e5f185428-b011.png?v=1687109855722)

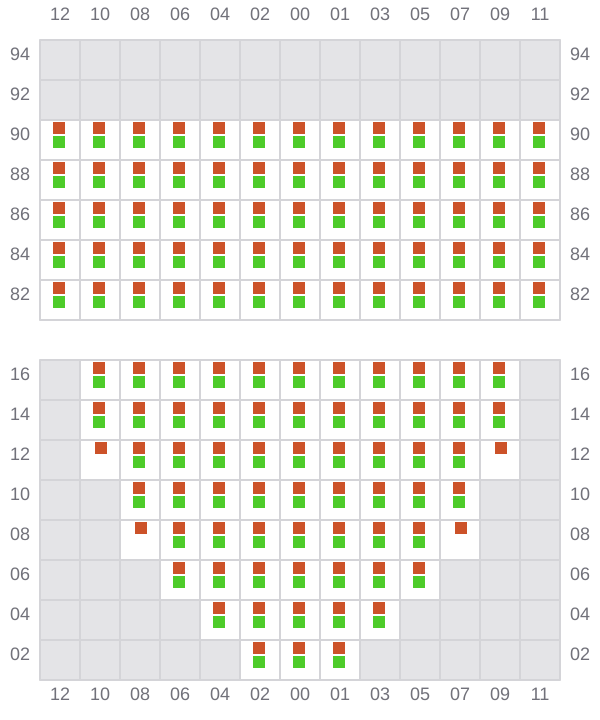

013 (012)
- ←
![Bay 013 view and slots of API BHUM](/vessel-images/d36d2af3-3140-40ea-9ade-fa6e5f185428-b013.png?v=1687109855722)

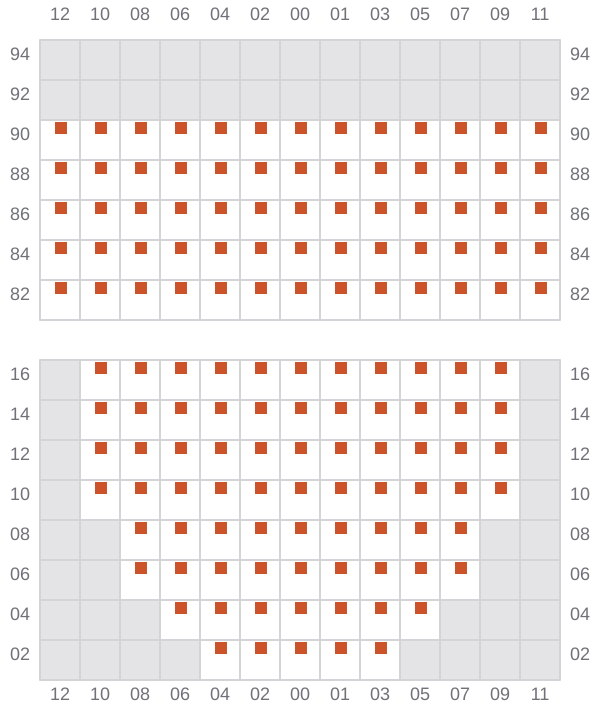

015
- →
![Bay 015 view and slots of API BHUM](/vessel-images/d36d2af3-3140-40ea-9ade-fa6e5f185428-b015.png?v=1687109855722)

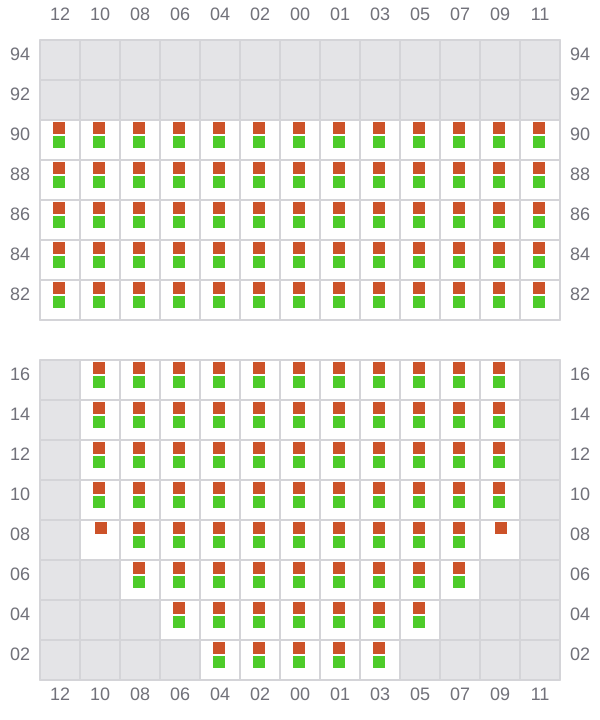

017 (016)
- ←
![Bay 017 view and slots of API BHUM](/vessel-images/d36d2af3-3140-40ea-9ade-fa6e5f185428-b017.png?v=1687109855722)

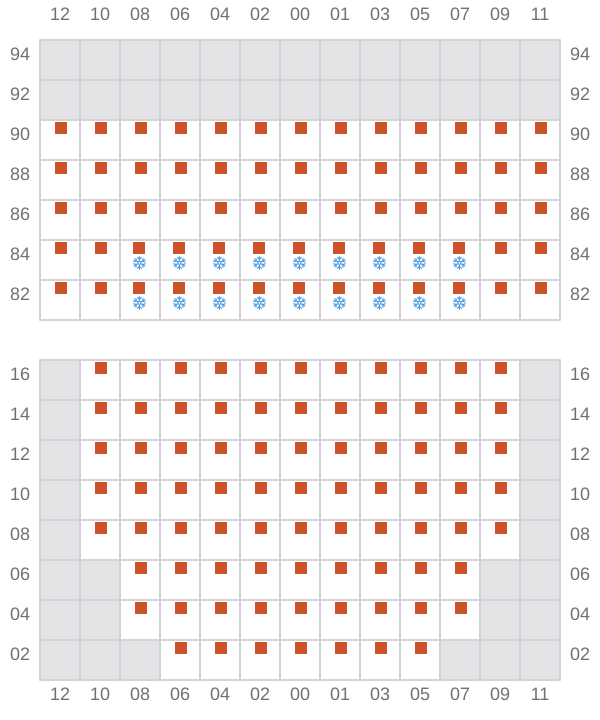

019
- →
![Bay 019 view and slots of API BHUM](/vessel-images/d36d2af3-3140-40ea-9ade-fa6e5f185428-b019.png?v=1687109855722)

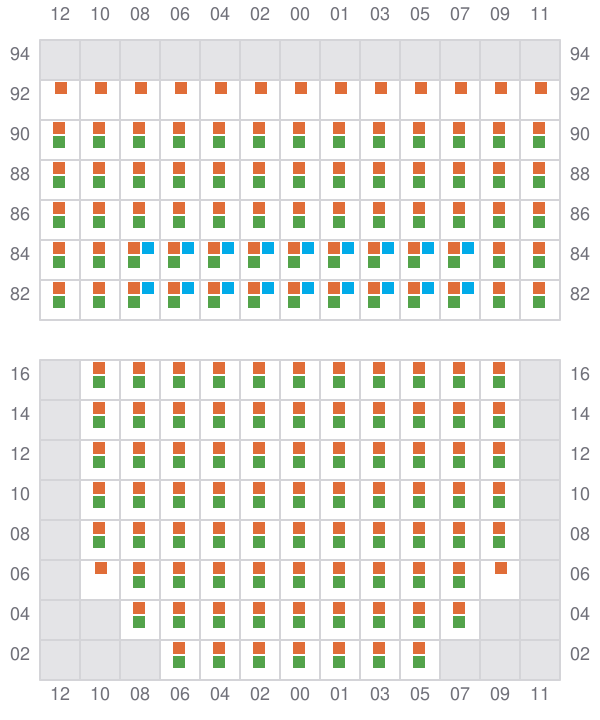

021 (020)
- ←
![Bay 021 view and slots of API BHUM](/vessel-images/d36d2af3-3140-40ea-9ade-fa6e5f185428-b021.png?v=1687109855722)
023
- →
![Bay 023 view and slots of API BHUM](/vessel-images/d36d2af3-3140-40ea-9ade-fa6e5f185428-b023.png?v=1687109855722)
025 (024)
- ←
![Bay 025 view and slots of API BHUM](/vessel-images/d36d2af3-3140-40ea-9ade-fa6e5f185428-b025.png?v=1687109855722)
027
- →
![Bay 027 view and slots of API BHUM](/vessel-images/d36d2af3-3140-40ea-9ade-fa6e5f185428-b027.png?v=1687109855722)

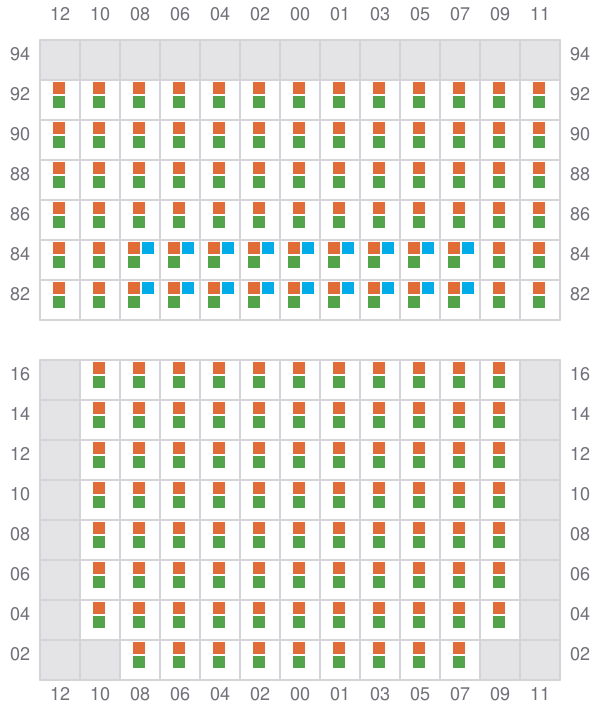

029 (028)
- ←
![Bay 029 view and slots of API BHUM](/vessel-images/d36d2af3-3140-40ea-9ade-fa6e5f185428-b029.png?v=1687109855722)
031
- →
![Bay 031 view and slots of API BHUM](/vessel-images/d36d2af3-3140-40ea-9ade-fa6e5f185428-b031.png?v=1687109855722)
033 (032)
- ←
![Bay 033 view and slots of API BHUM](/vessel-images/d36d2af3-3140-40ea-9ade-fa6e5f185428-b033.png?v=1687109855722)

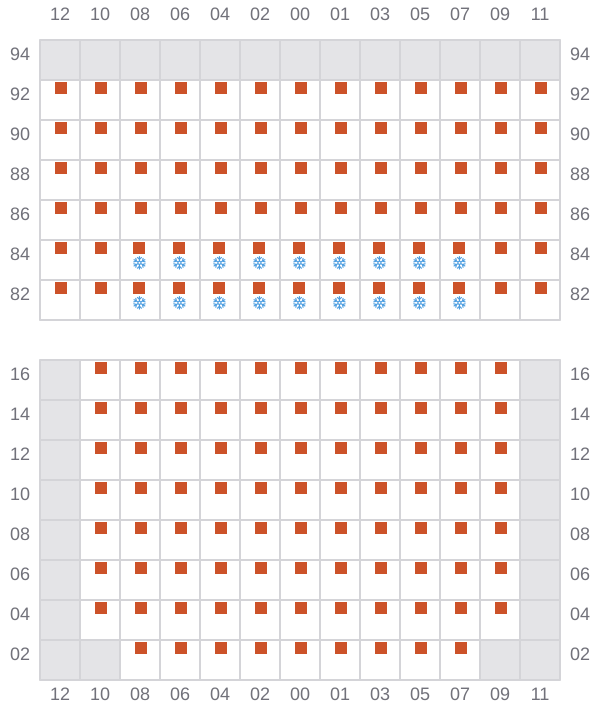

035
- →
![Bay 035 view and slots of API BHUM](/vessel-images/d36d2af3-3140-40ea-9ade-fa6e5f185428-b035.png?v=1687109855722)

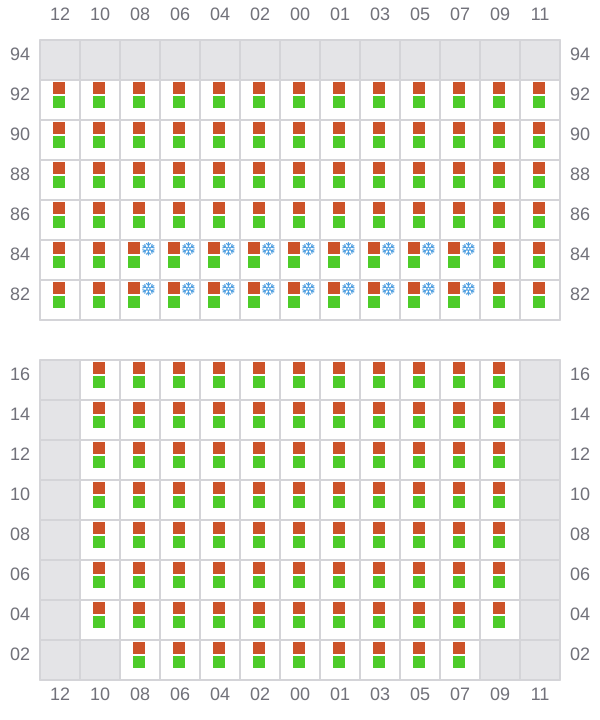

037 (036)
- ←
![Bay 037 view and slots of API BHUM](/vessel-images/d36d2af3-3140-40ea-9ade-fa6e5f185428-b037.png?v=1687109855722)

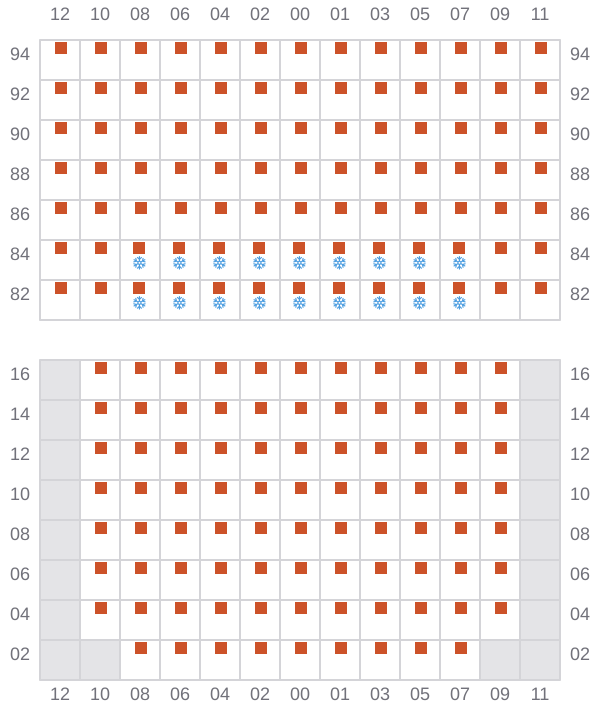

039
- →
![Bay 039 view and slots of API BHUM](/vessel-images/d36d2af3-3140-40ea-9ade-fa6e5f185428-b039.png?v=1687109855722)
041 (040)
- ←
![Bay 041 view and slots of API BHUM](/vessel-images/d36d2af3-3140-40ea-9ade-fa6e5f185428-b041.png?v=1687109855722)
043
- →
![Bay 043 view and slots of API BHUM](/vessel-images/d36d2af3-3140-40ea-9ade-fa6e5f185428-b043.png?v=1687109855722)

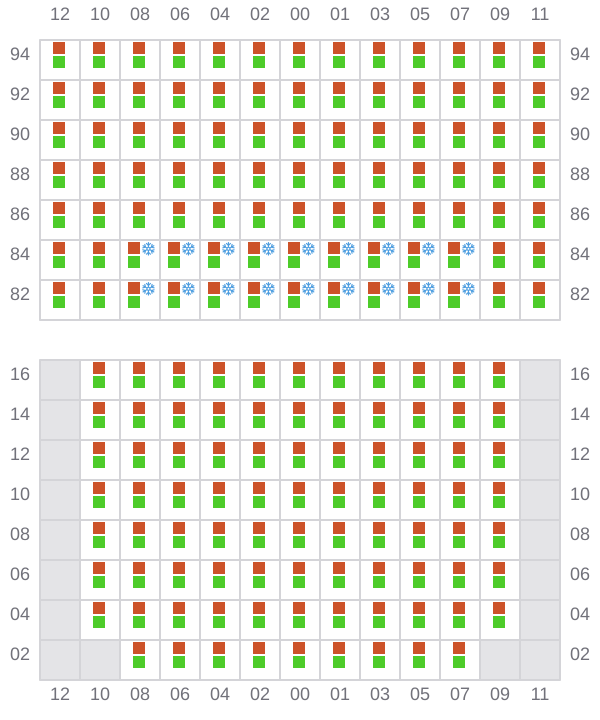

045 (044)
- ←
![Bay 045 view and slots of API BHUM](/vessel-images/d36d2af3-3140-40ea-9ade-fa6e5f185428-b045.png?v=1687109855722)

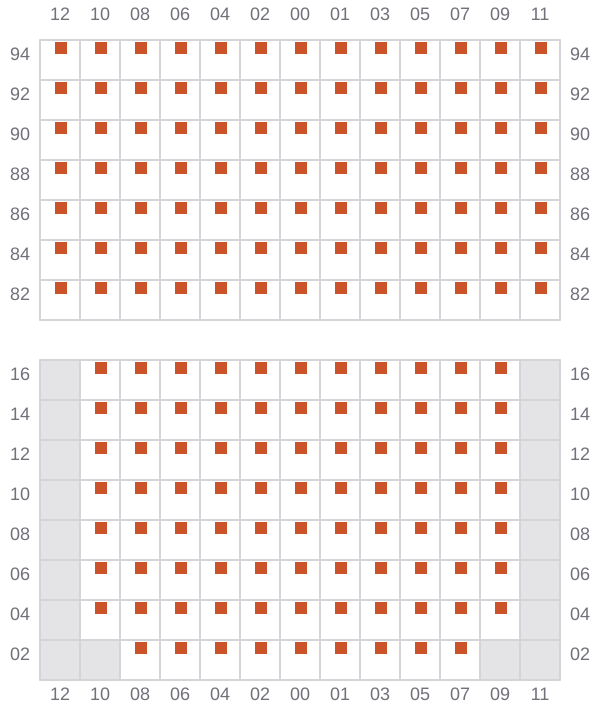

047
- →
![Bay 047 view and slots of API BHUM](/vessel-images/d36d2af3-3140-40ea-9ade-fa6e5f185428-b047.png?v=1687109855722)

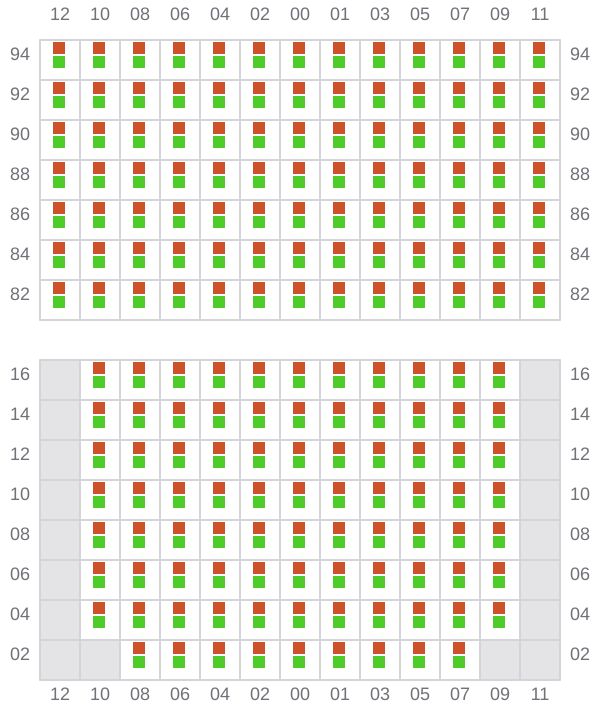

049 (048)
- ←
![Bay 049 view and slots of API BHUM](/vessel-images/d36d2af3-3140-40ea-9ade-fa6e5f185428-b049.png?v=1687109855722)

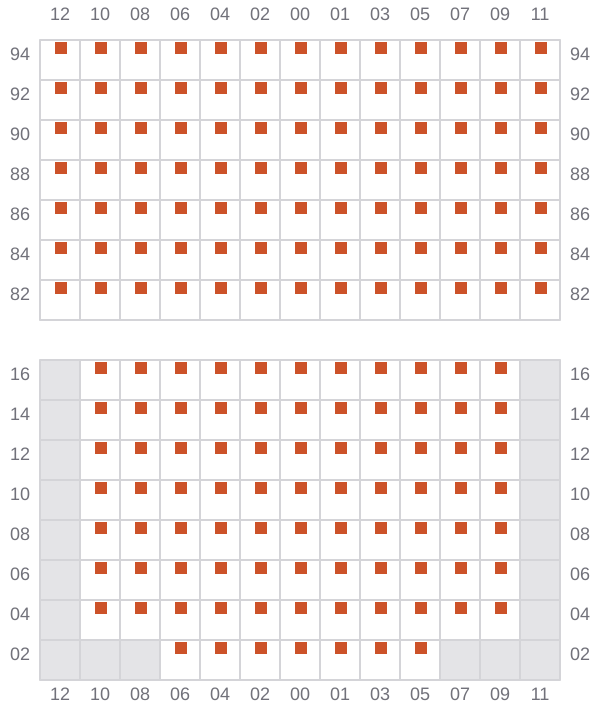

051
- →
![Bay 051 view and slots of API BHUM](/vessel-images/d36d2af3-3140-40ea-9ade-fa6e5f185428-b051.png?v=1687109855722)

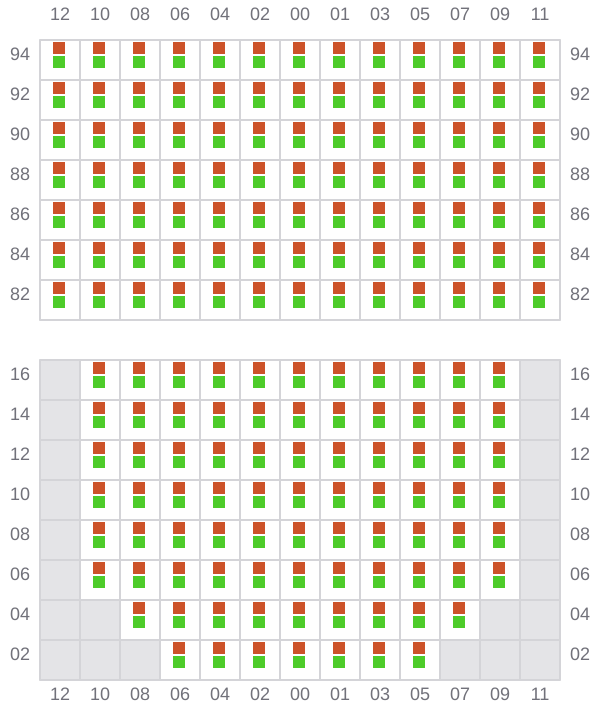

053 (052)
- ←
![Bay 053 view and slots of API BHUM](/vessel-images/d36d2af3-3140-40ea-9ade-fa6e5f185428-b053.png?v=1687109855722)

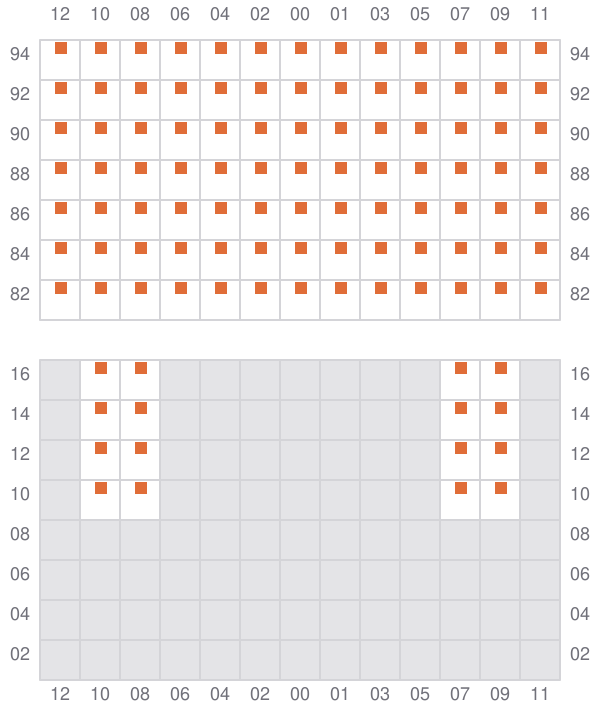

055
- →
![Bay 055 view and slots of API BHUM](/vessel-images/d36d2af3-3140-40ea-9ade-fa6e5f185428-b055.png?v=1687109855722)

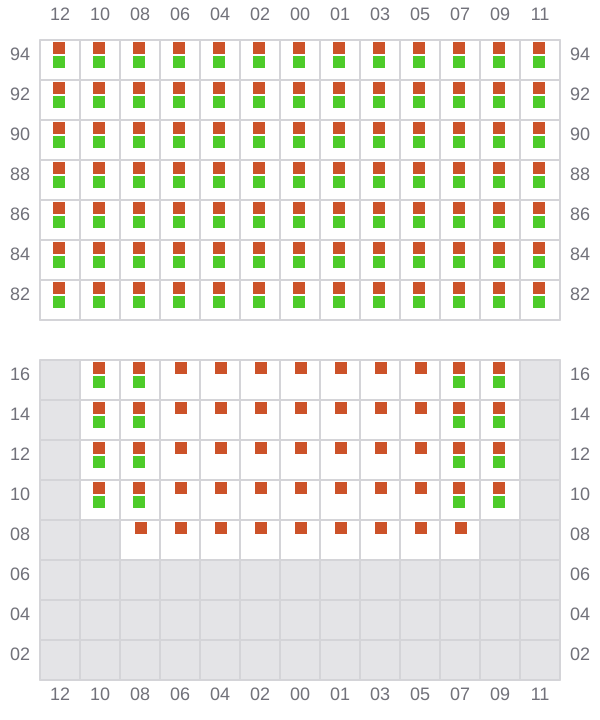

057 (056)
- ←
![Bay 057 view and slots of API BHUM](/vessel-images/d36d2af3-3140-40ea-9ade-fa6e5f185428-b057.png?v=1687109855722)

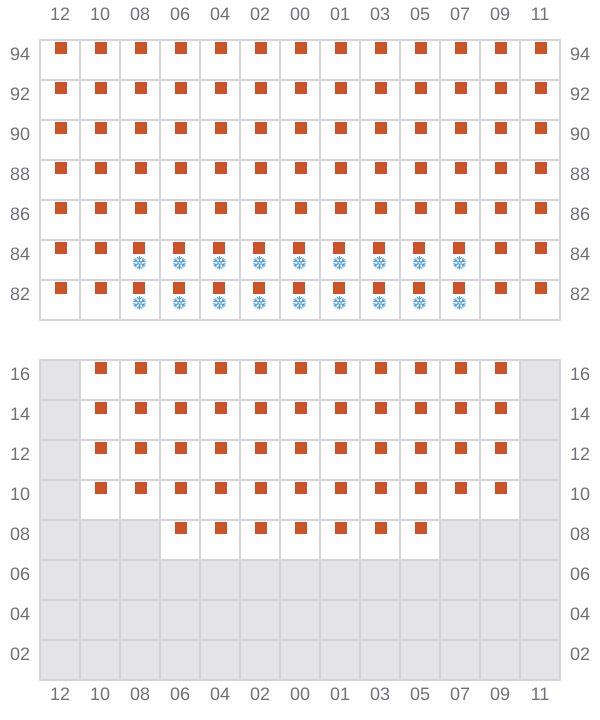

059
- →
![Bay 059 view and slots of API BHUM](/vessel-images/d36d2af3-3140-40ea-9ade-fa6e5f185428-b059.png?v=1687109855722)

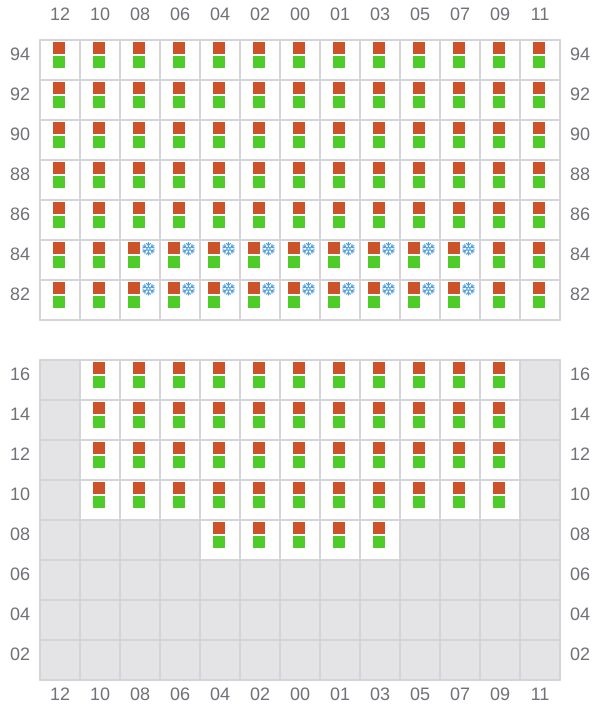

061 (060)
- ←
![Bay 061 view and slots of API BHUM](/vessel-images/d36d2af3-3140-40ea-9ade-fa6e5f185428-b061.png?v=1687109855722)

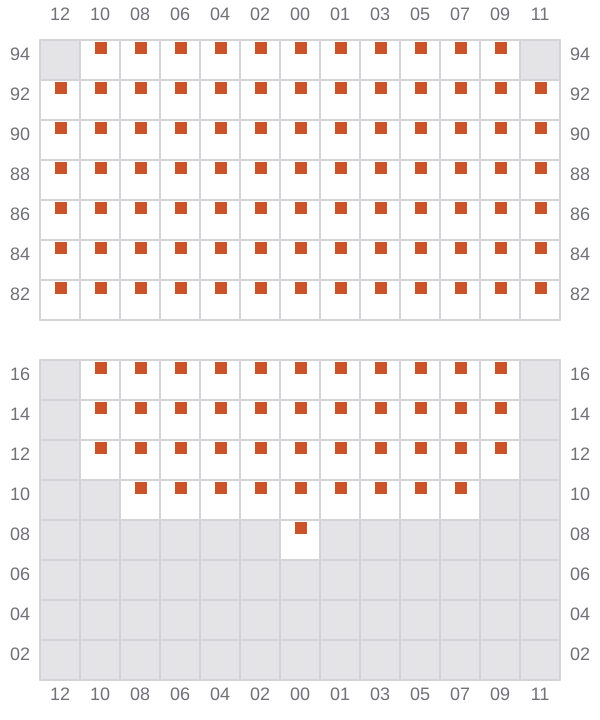

063
- →
![Bay 063 view and slots of API BHUM](/vessel-images/d36d2af3-3140-40ea-9ade-fa6e5f185428-b063.png?v=1687109855722)

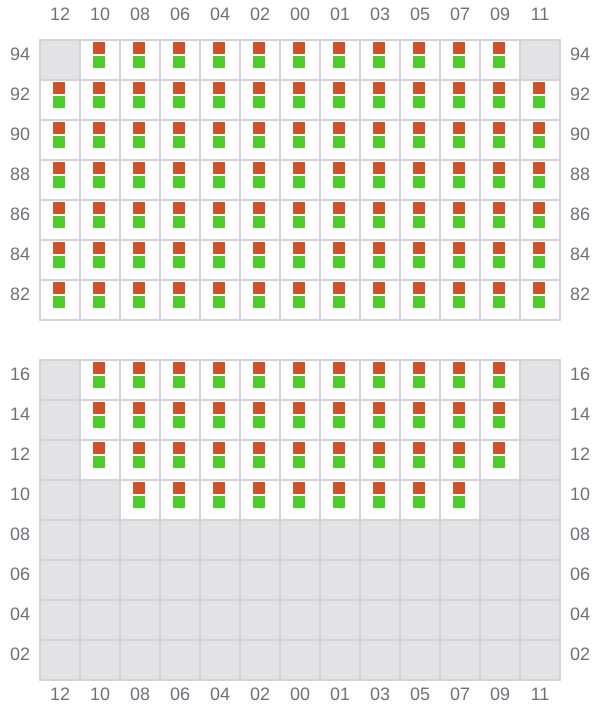

065 (064)
- ←
![Bay 065 view and slots of API BHUM](/vessel-images/d36d2af3-3140-40ea-9ade-fa6e5f185428-b065.png?v=1687109855722)

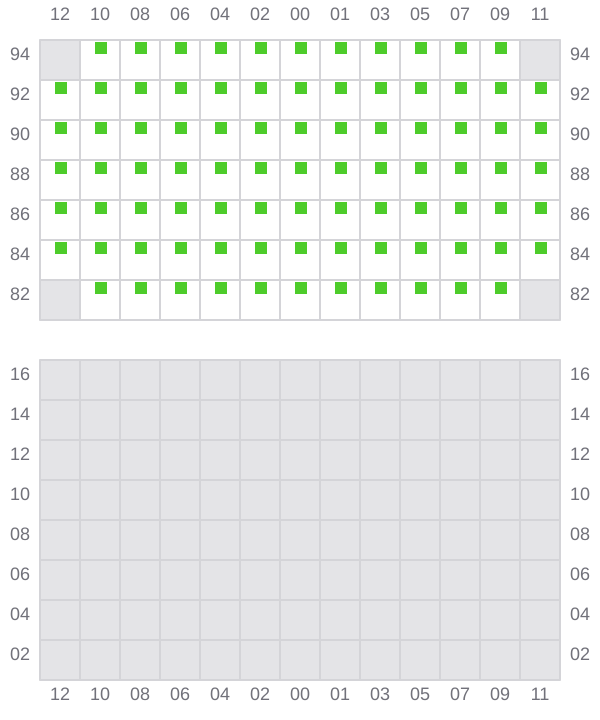

067 (068)
- → / ?
![Bay 067 view and slots of API BHUM](/vessel-images/d36d2af3-3140-40ea-9ade-fa6e5f185428-b067.png?v=1687109855722)
