API BHUM
9292149 | 9V8270 | 9292149 by ********* Last update: Sun Mar 17 2024

General Info

Ship Name:API BHUM

IMO Code:9292149

Call Sign:9V8270

Line Operator:9292149

Class Name for Sister Ships:98Z

Year Built:2004

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):283.75

LOA (Length Overall):294.05

Stern to AFT PP:-

Features Informed:Standard

Also Known As (old names):-

Size Summary

ISO Bays:067

Max ISO Row:12

Center Line Row:Yes

Max Above ISO Tier:96

Min Above ISO Tier:82

Max Below ISO Tier:16

Min Below ISO Tier:02

Total TEU:7,285

Centers of Gravity

LCG Values:Known

LCG Data:100%

VCG Values:Known

VCG Data:100%

TCG Values:Known

TCG Data:100%

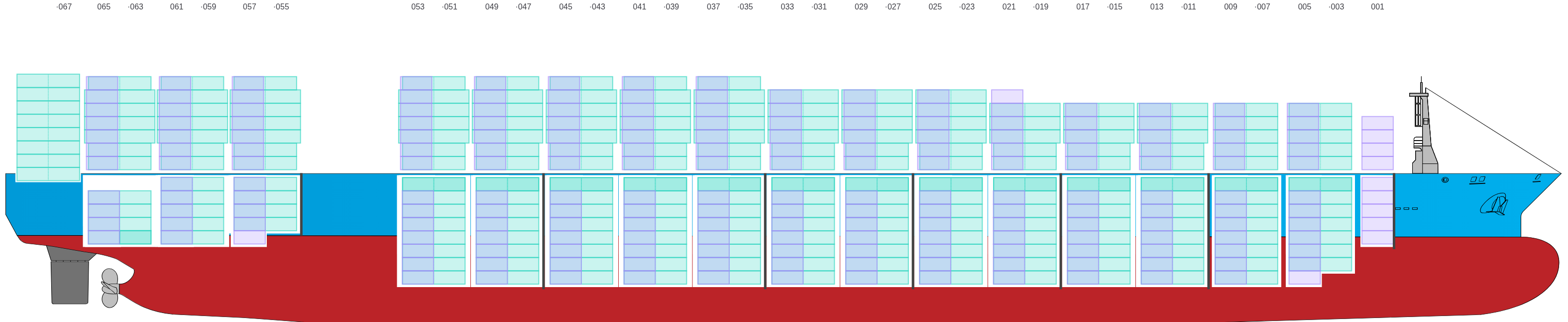

Side View

Side view of API BHUM

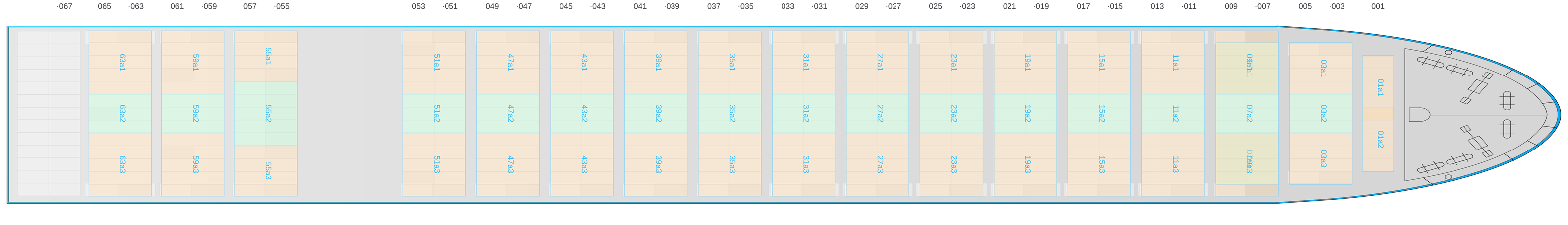

Hatch-Covers View

Deck view of API BHUM

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot

001

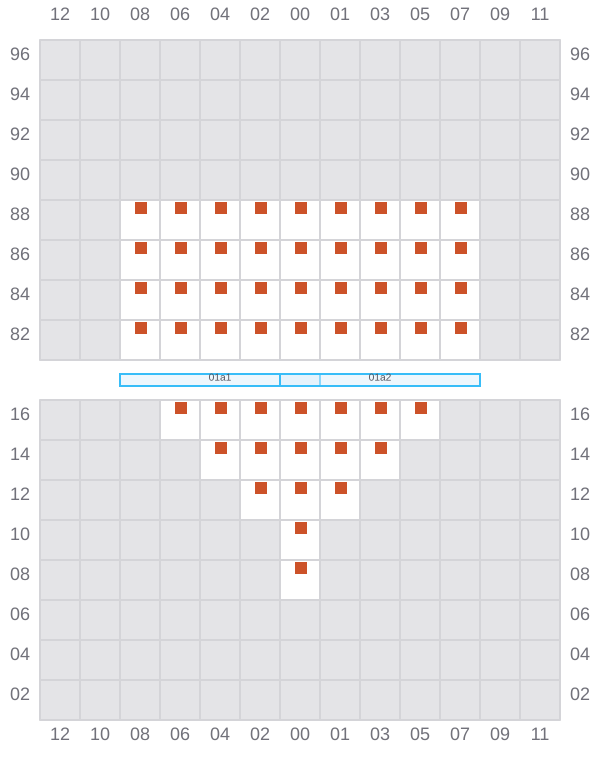

Bay 001 view and slots of API BHUM

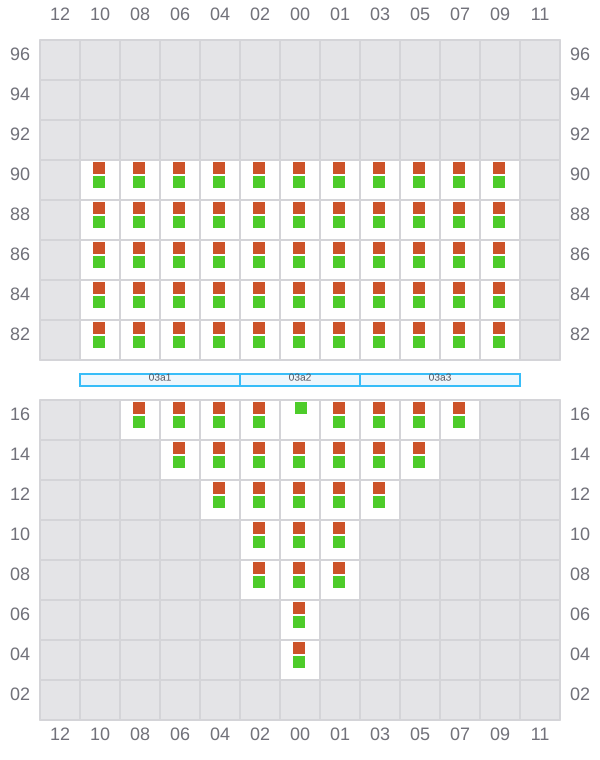

003 (004)

→

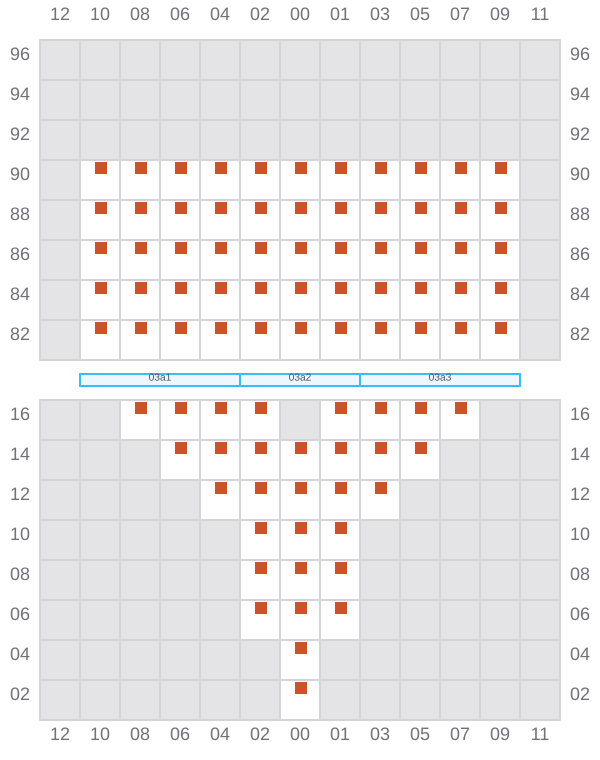

Bay 003 view and slots of API BHUM

005

Bay 005 view and slots of API BHUM

007 (008)

→

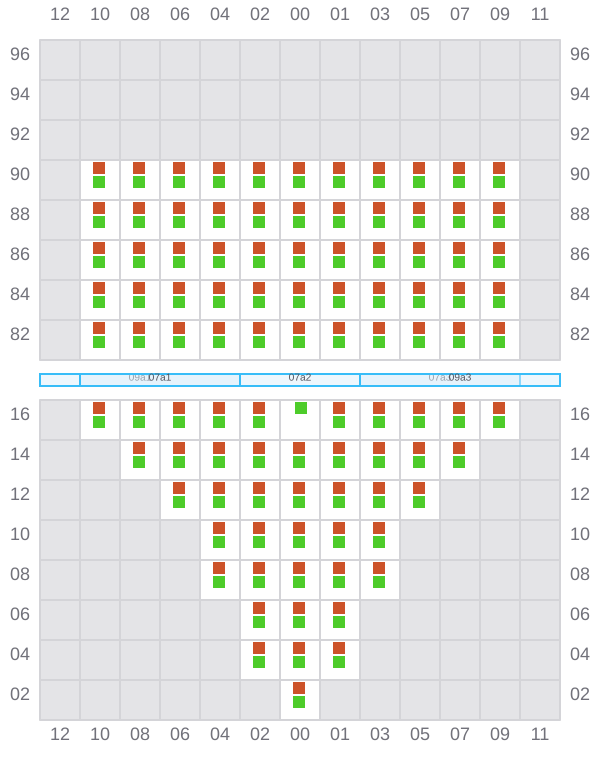

Bay 007 view and slots of API BHUM

009

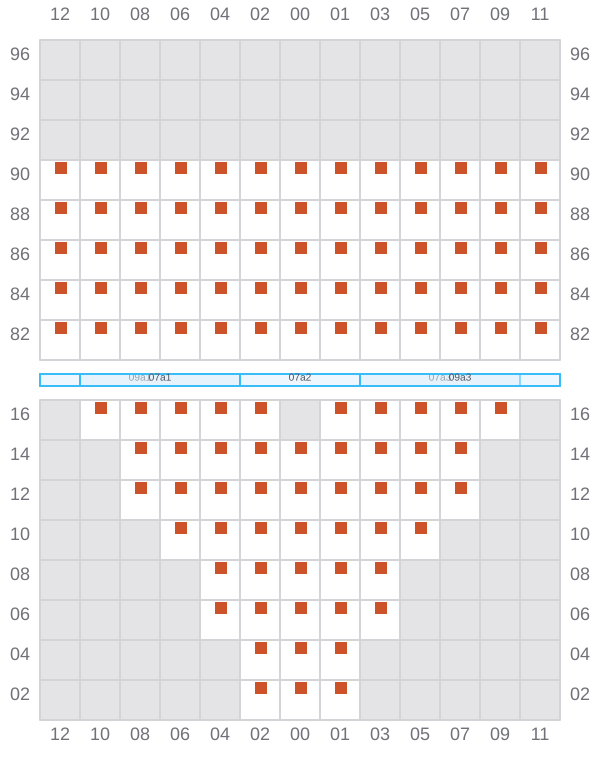

Bay 009 view and slots of API BHUM

011 (012)

→

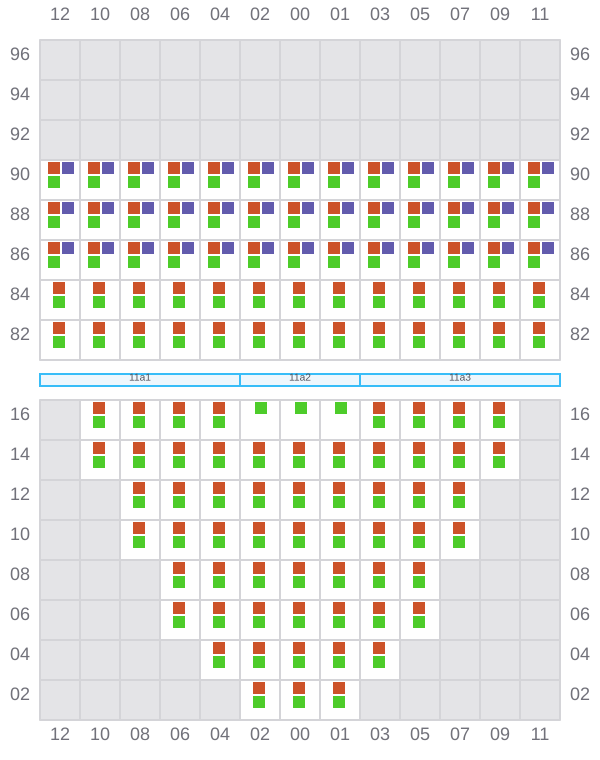

Bay 011 view and slots of API BHUM

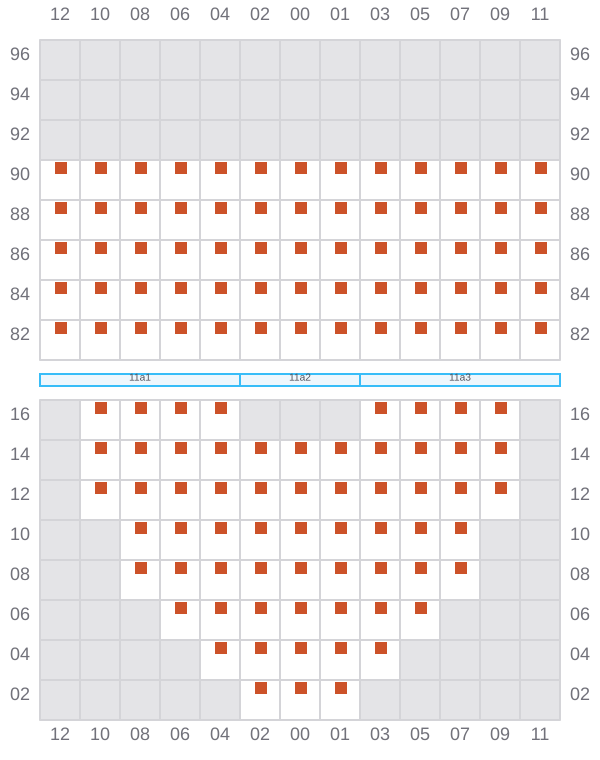

013

Bay 013 view and slots of API BHUM

015 (016)

→

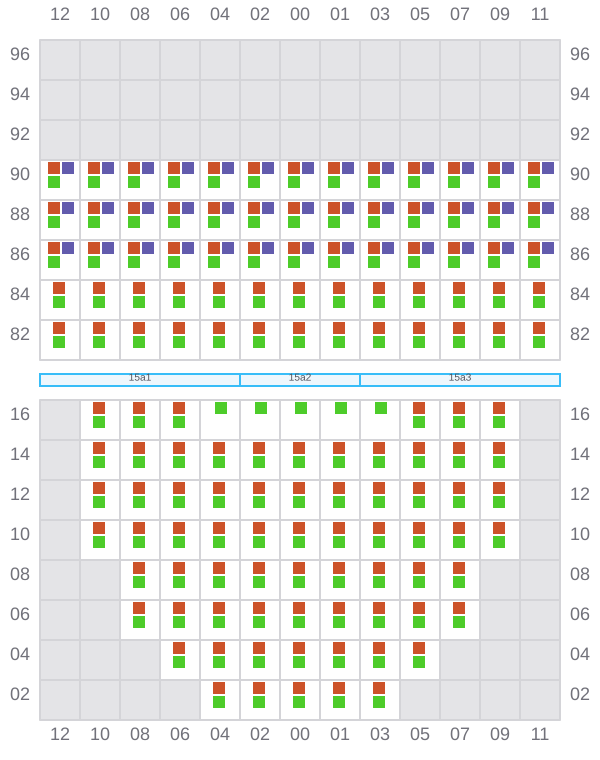

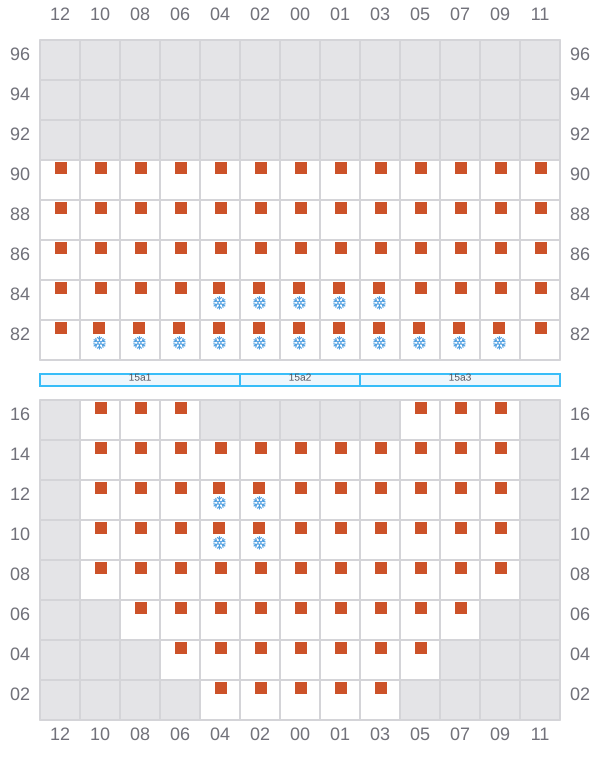

Bay 015 view and slots of API BHUM

017

→

Bay 017 view and slots of API BHUM

019 (020)

→

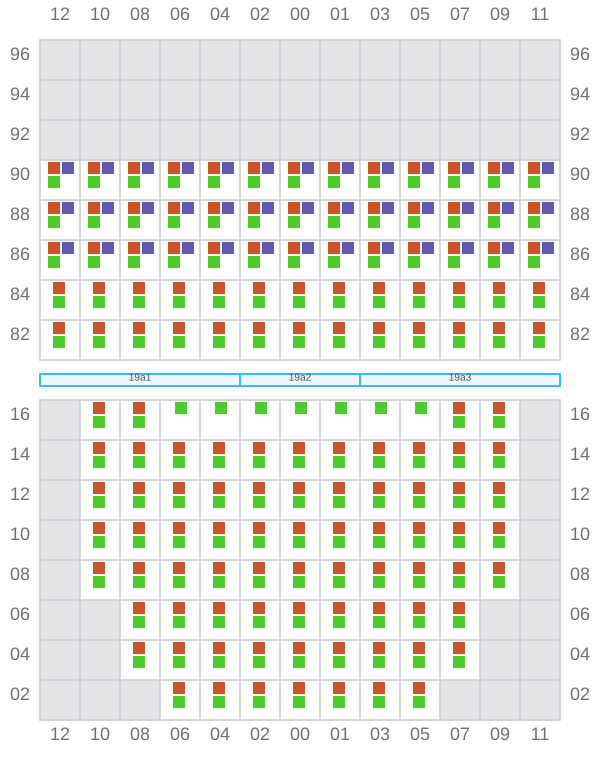

Bay 019 view and slots of API BHUM

021

^→ / _?

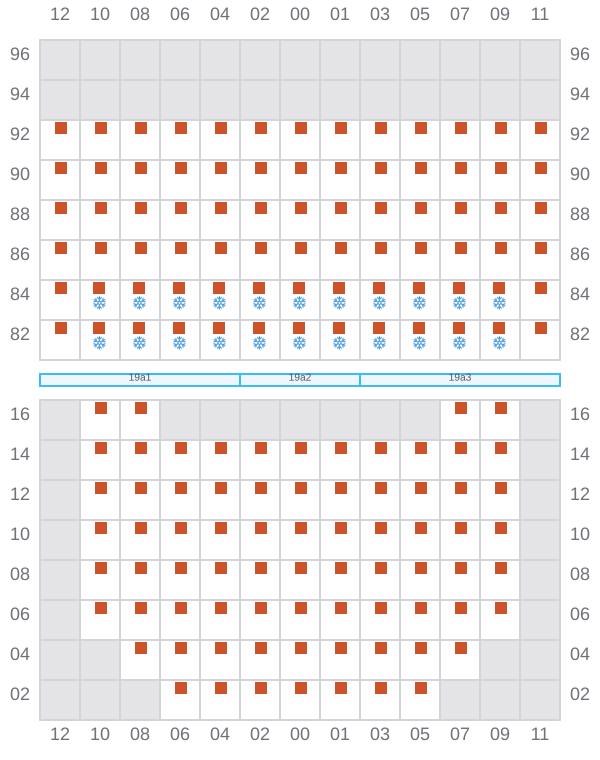

Bay 021 view and slots of API BHUM

023 (024)

→

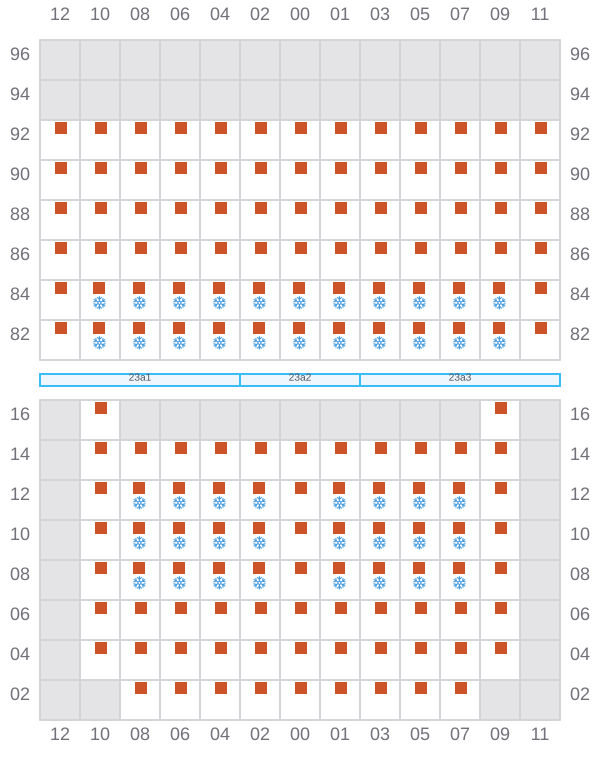

Bay 023 view and slots of API BHUM

025

→

Bay 025 view and slots of API BHUM

027 (028)

→

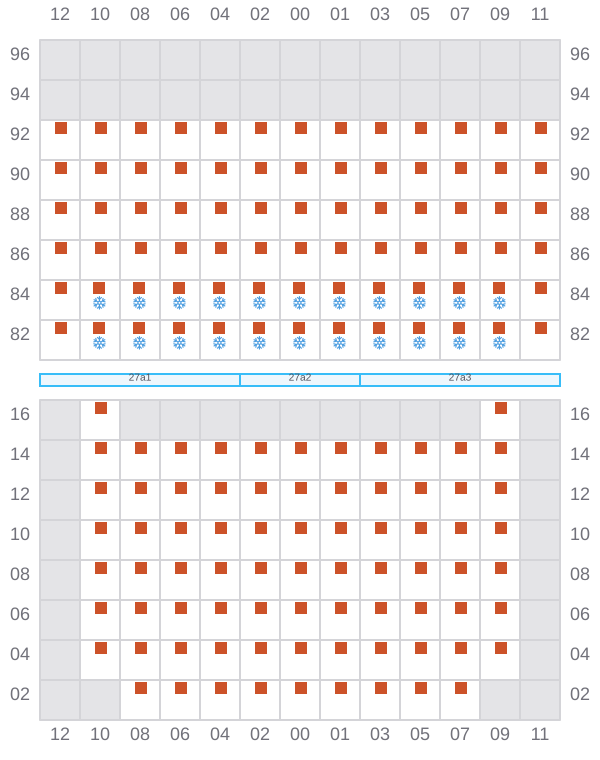

Bay 027 view and slots of API BHUM

029

^→ / _?

Bay 029 view and slots of API BHUM

031 (032)

→

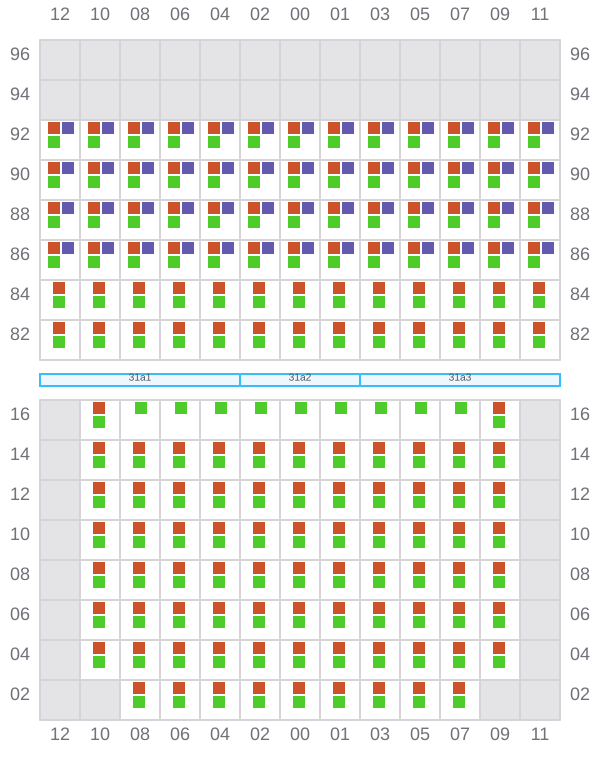

Bay 031 view and slots of API BHUM

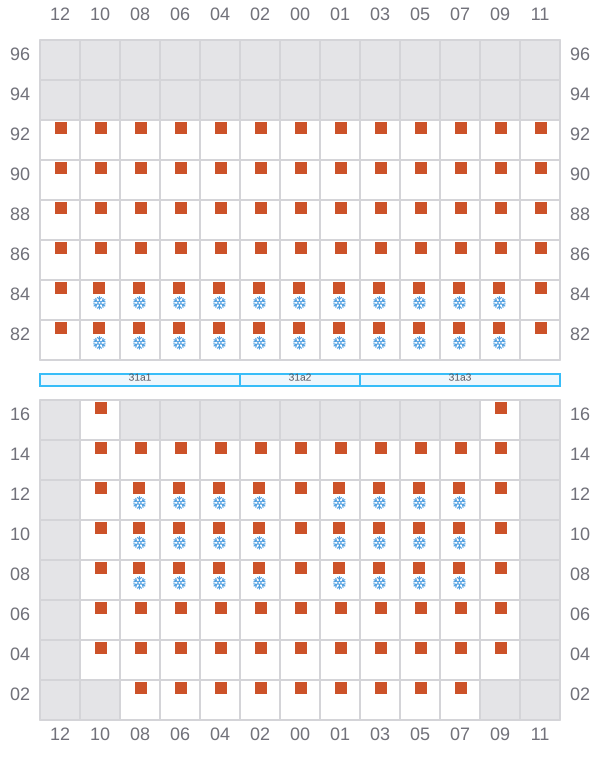

033

→

Bay 033 view and slots of API BHUM

035 (036)

→

Bay 035 view and slots of API BHUM

037

^→ / _?

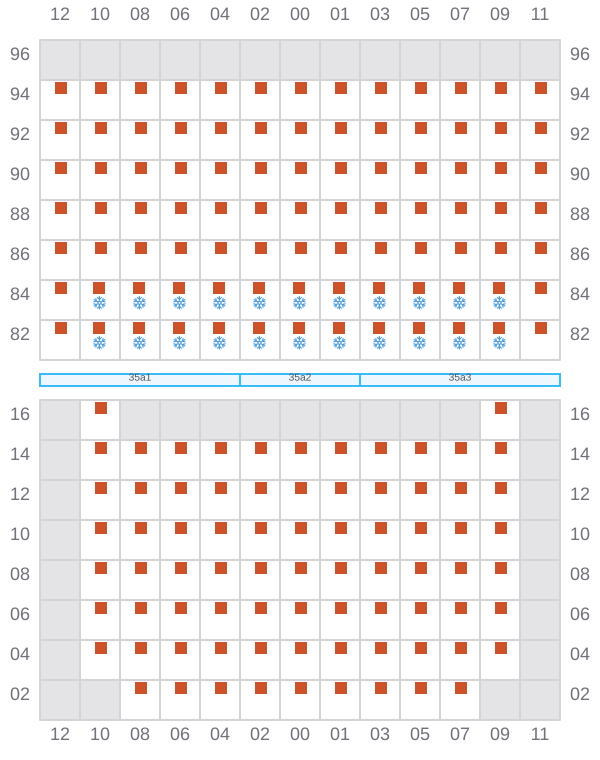

Bay 037 view and slots of API BHUM

039 (040)

→

Bay 039 view and slots of API BHUM

041

^→ / _?

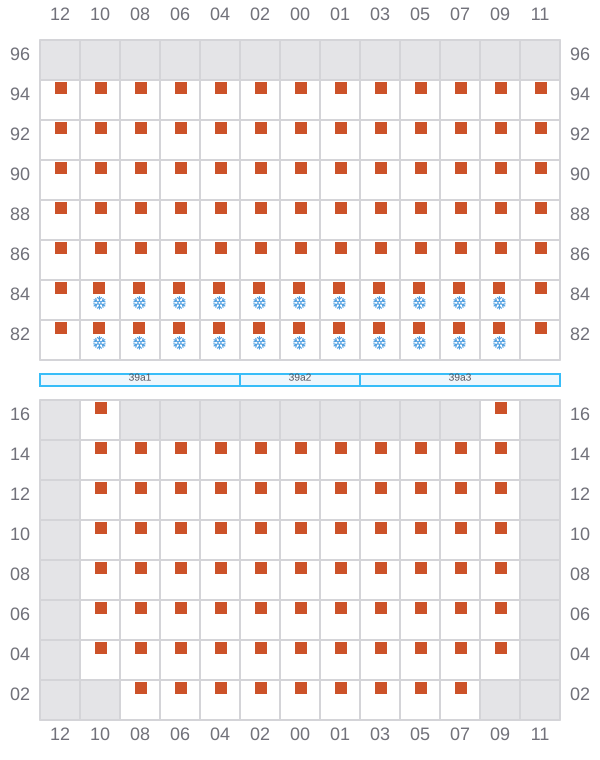

Bay 041 view and slots of API BHUM

043 (044)

→

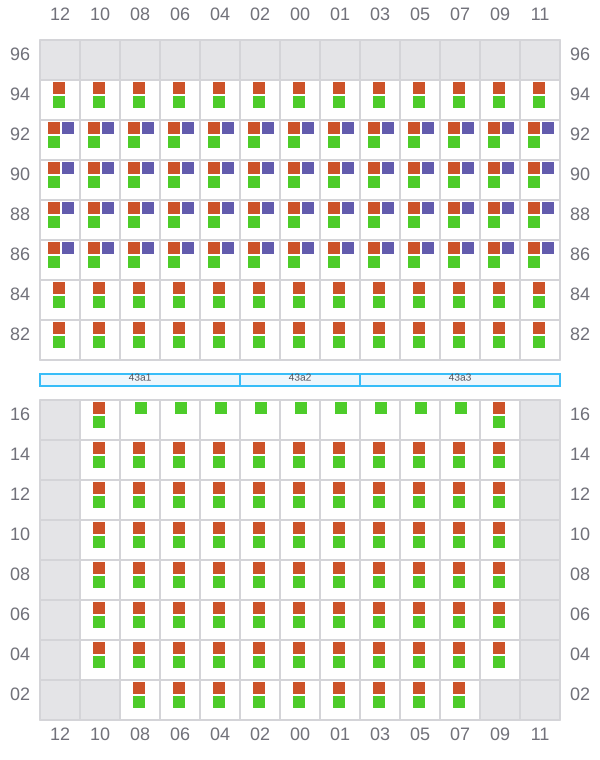

Bay 043 view and slots of API BHUM

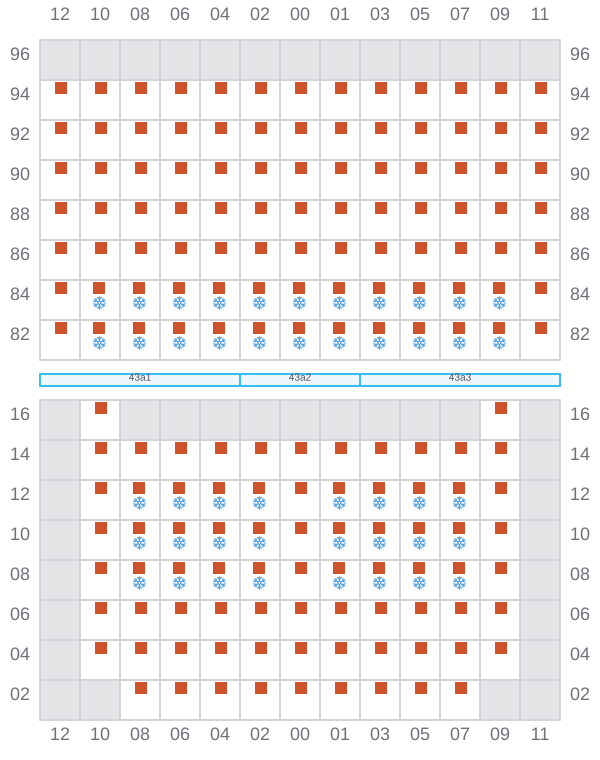

045

→

Bay 045 view and slots of API BHUM

047 (048)

→

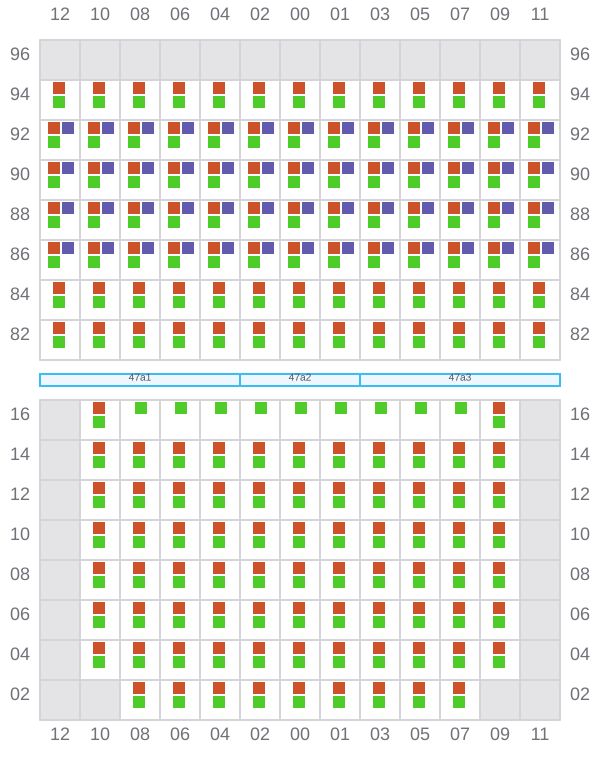

Bay 047 view and slots of API BHUM

049

^→ / _?

Bay 049 view and slots of API BHUM

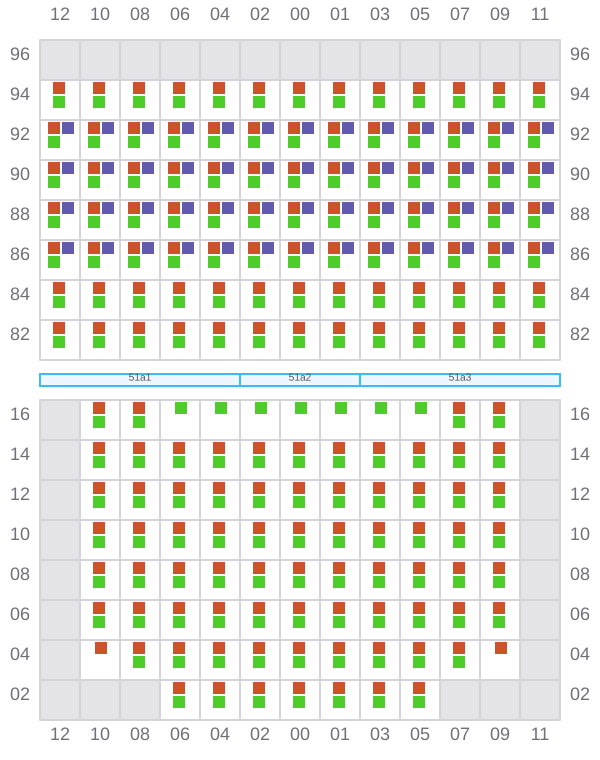

051 (052)

→

Bay 051 view and slots of API BHUM

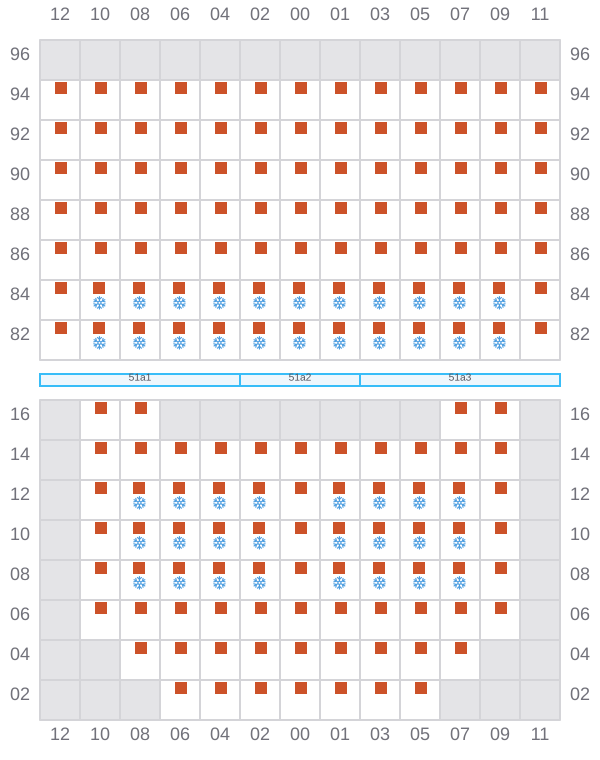

053

→

Bay 053 view and slots of API BHUM

055 (056)

→

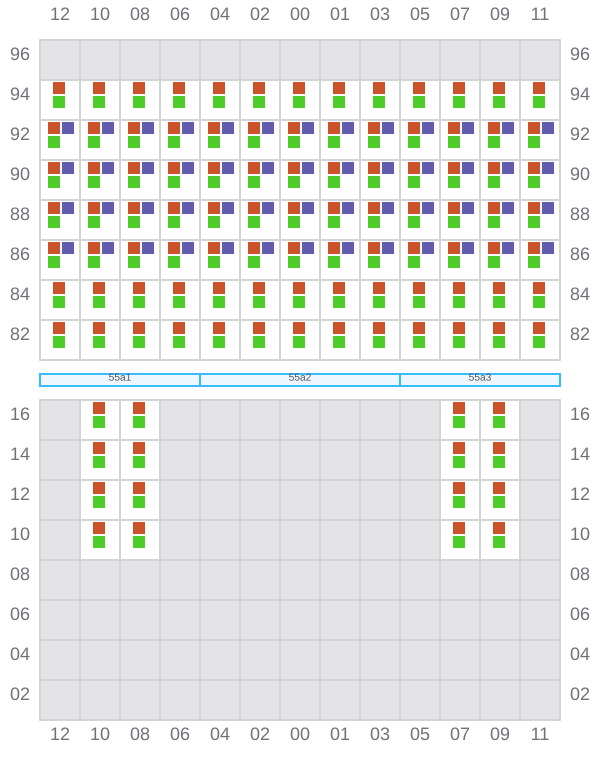

Bay 055 view and slots of API BHUM

057

^→ / _?

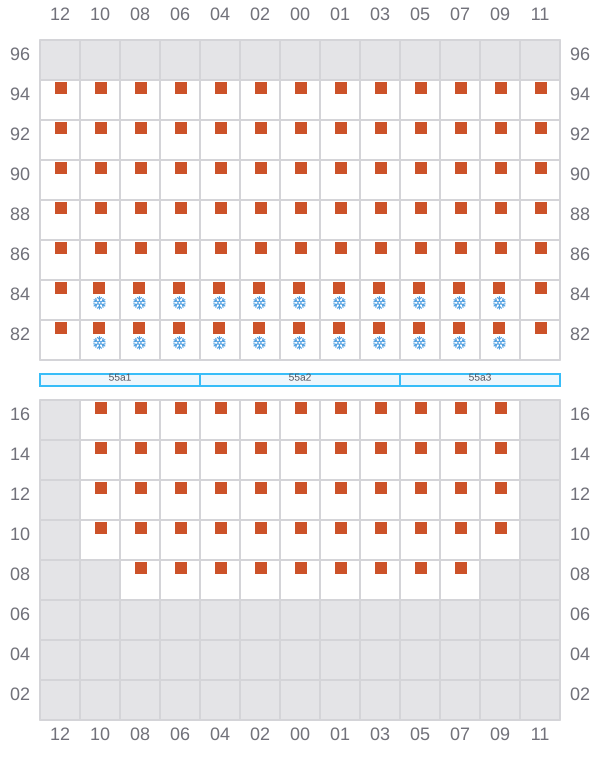

Bay 057 view and slots of API BHUM

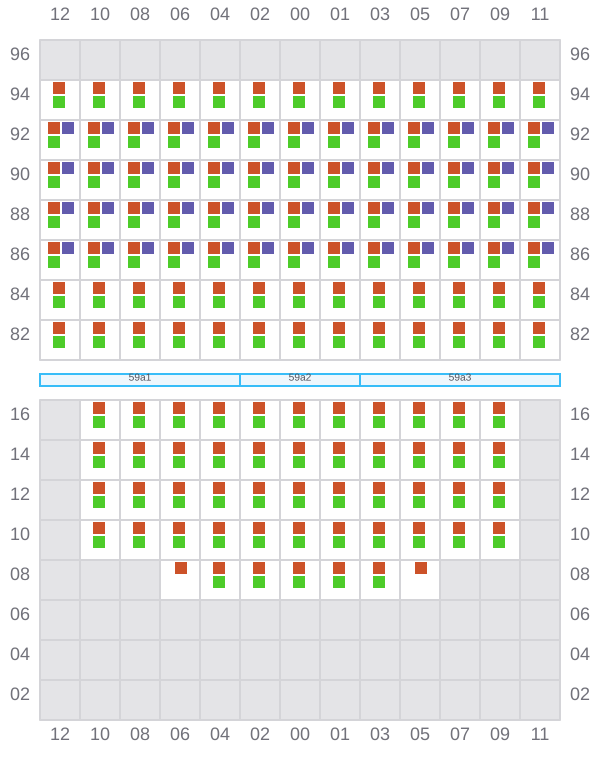

059 (060)

→

Bay 059 view and slots of API BHUM

061

^→ / _?

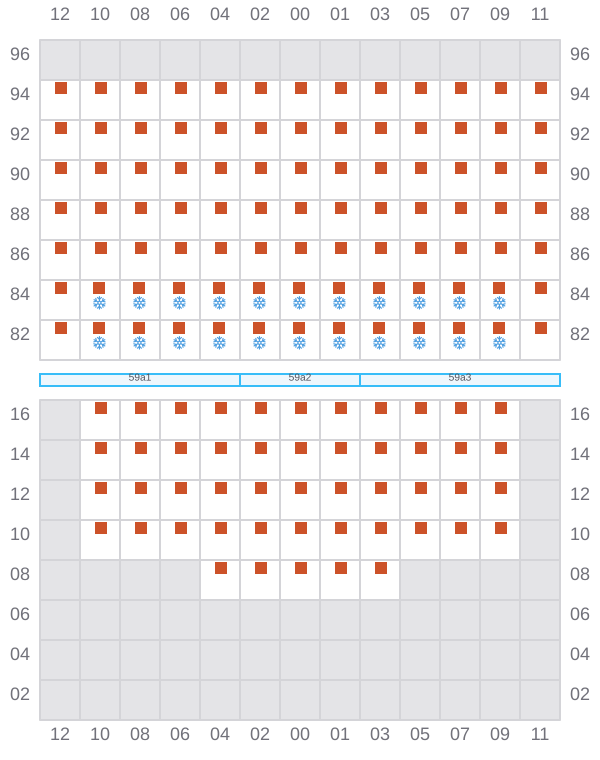

Bay 061 view and slots of API BHUM

063 (064)

→

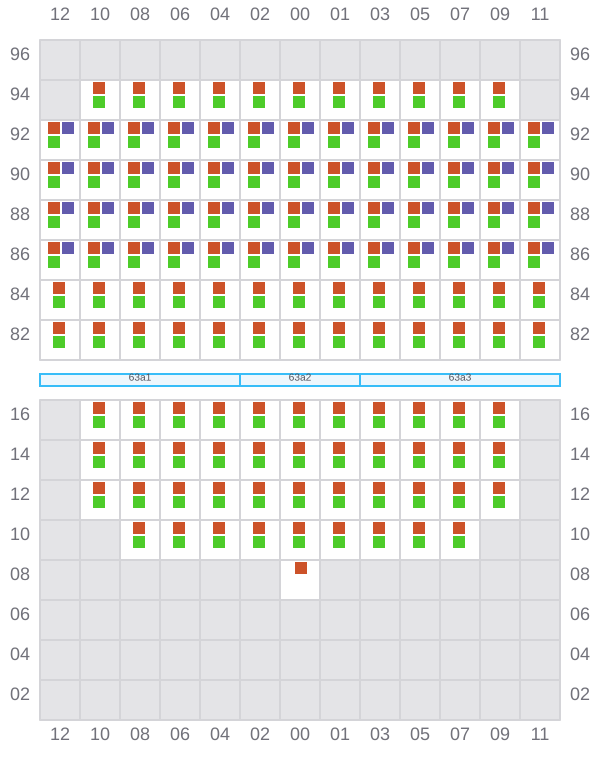

Bay 063 view and slots of API BHUM

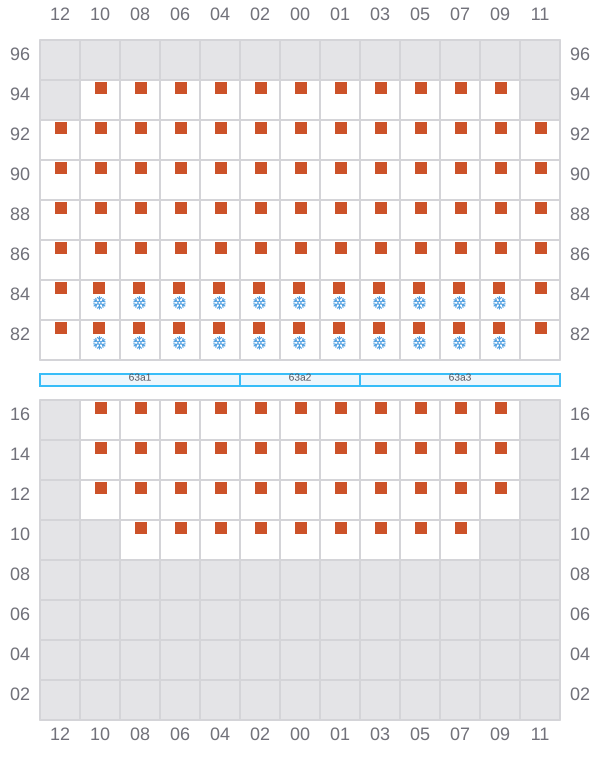

065

^→ / _?

Bay 065 view and slots of API BHUM

067 (068)

^→ / _?
^← / _?

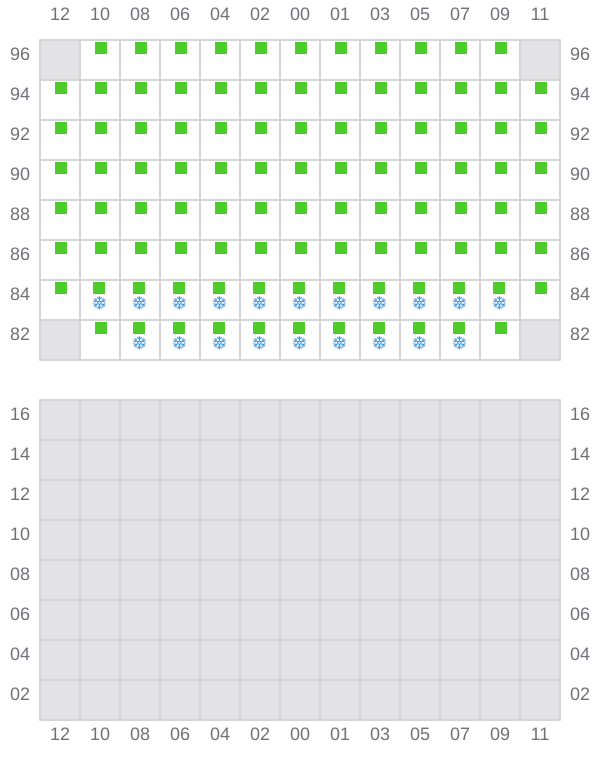

Bay 067 view and slots of API BHUM
