APL ANTWERP
9532795 | 9HA4736 | APL by ***************************** Last update: Tue May 30 2023
General Info
Ship Name:APL ANTWERP
IMO Code:9532795
Call Sign:9HA4736
Line Operator:APL
Class Name for Sister Ships:AANT
Year Built:2013
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):276.00
LOA (Length Overall):320.37
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:075
Max ISO Row:18
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,102
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
![Side view of APL ANTWERP](/vessel-images/150d65aa-2c4a-464f-ad92-bdcd4477f662-sideView.png?v=1685489252167)
Hatch-Covers View
![Deck view of APL ANTWERP](/vessel-images/150d65aa-2c4a-464f-ad92-bdcd4477f662-deckView.png?v=1685489252167)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

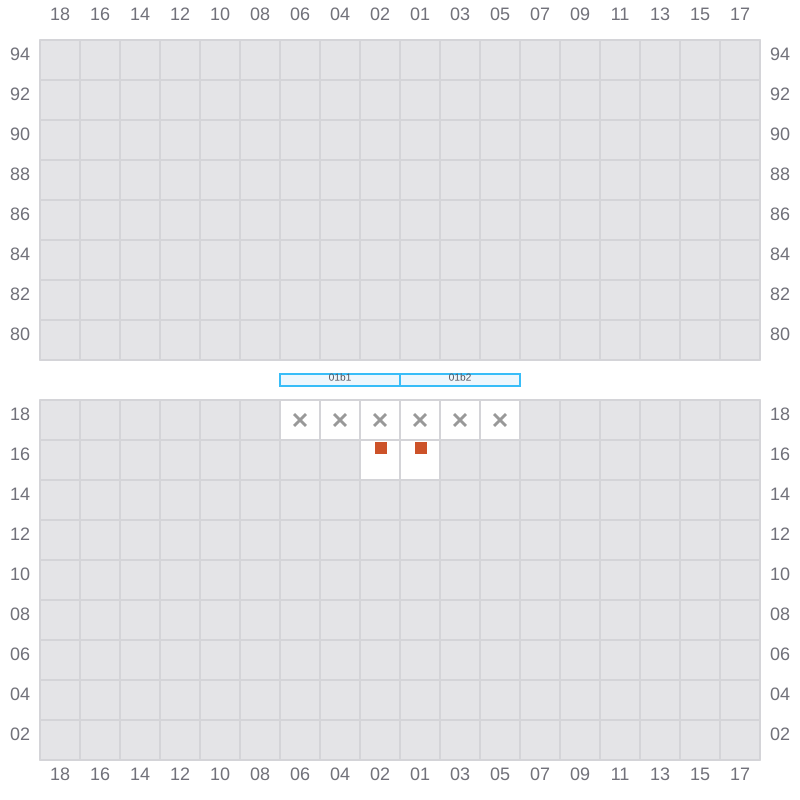

001
- ? / →
- ? / →
![Bay 001 view and slots of APL ANTWERP](/vessel-images/150d65aa-2c4a-464f-ad92-bdcd4477f662-b001.png?v=1685489252167)

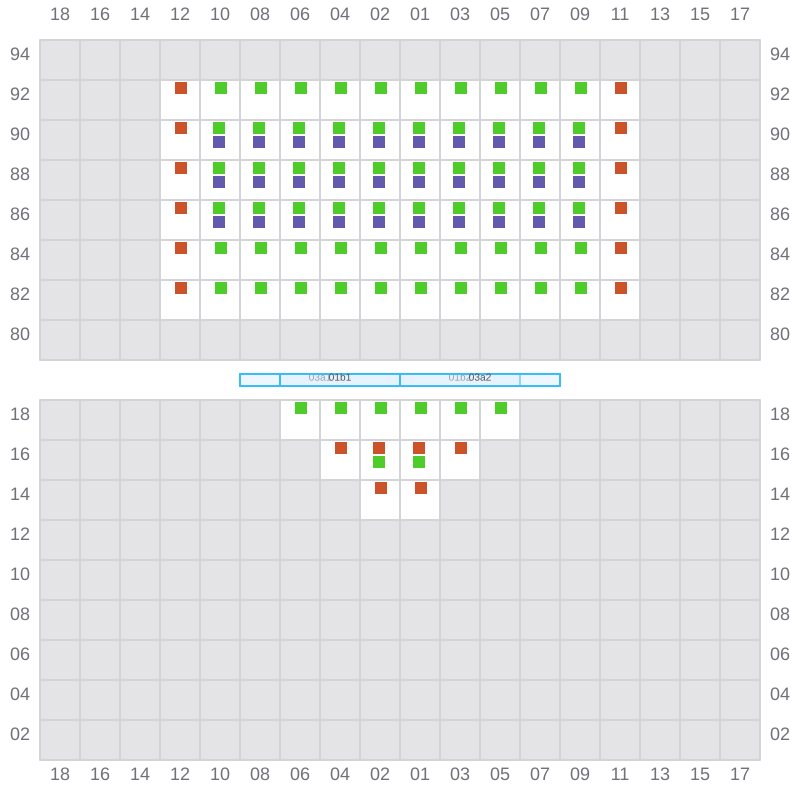

003 (002)
- ←
- →
![Bay 003 view and slots of APL ANTWERP](/vessel-images/150d65aa-2c4a-464f-ad92-bdcd4477f662-b003.png?v=1685489252167)

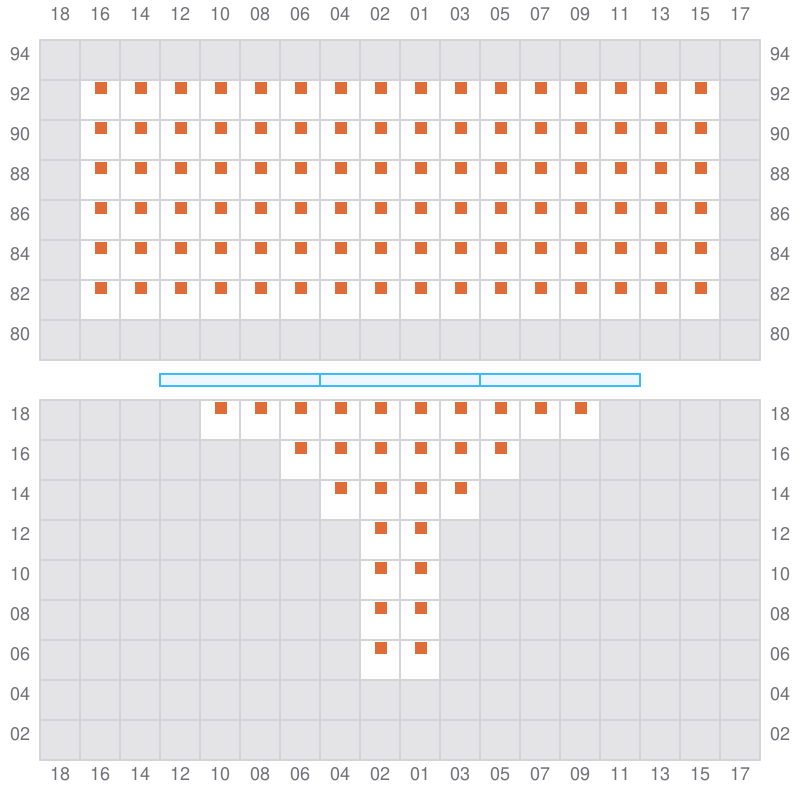

005
- → / ?
- →
![Bay 005 view and slots of APL ANTWERP](/vessel-images/150d65aa-2c4a-464f-ad92-bdcd4477f662-b005.png?v=1685489252167)

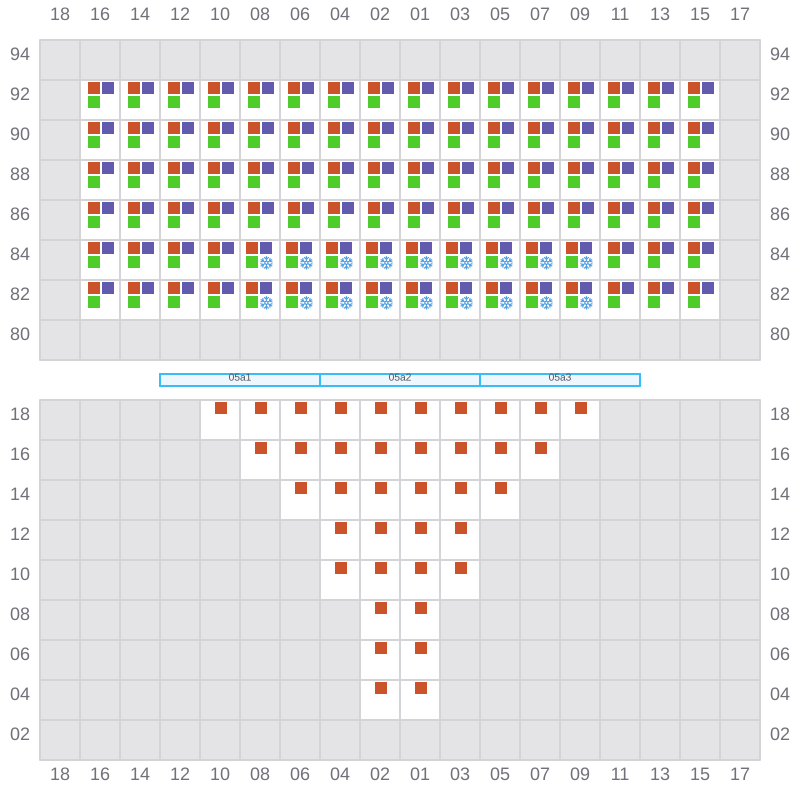

007 (006)
- ← / ?
- → / ?
- →
![Bay 007 view and slots of APL ANTWERP](/vessel-images/150d65aa-2c4a-464f-ad92-bdcd4477f662-b007.png?v=1685489252167)

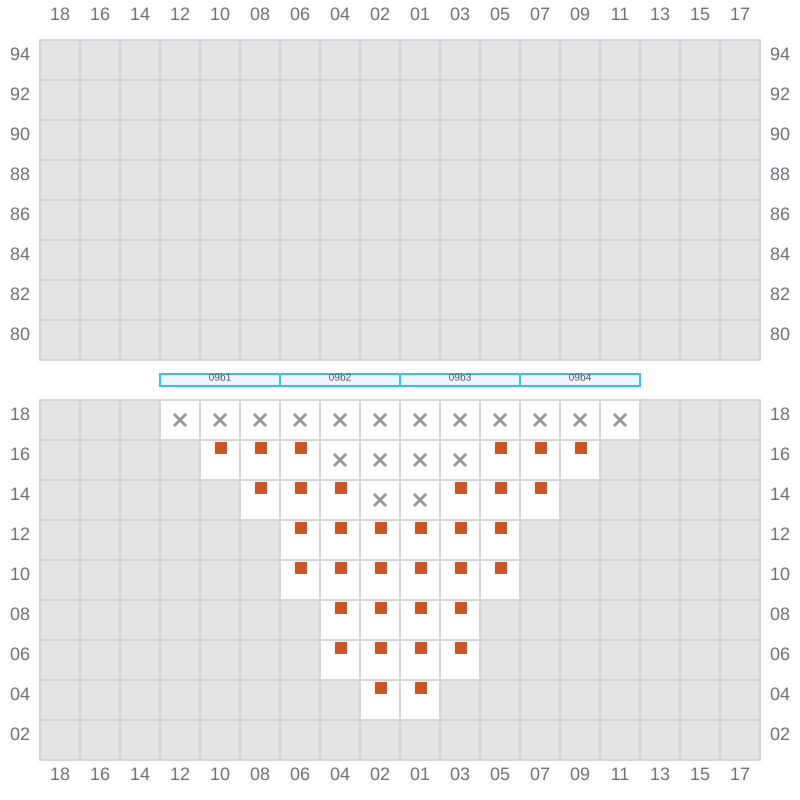

009
- ? / →
- ? / →
![Bay 009 view and slots of APL ANTWERP](/vessel-images/150d65aa-2c4a-464f-ad92-bdcd4477f662-b009.png?v=1685489252167)

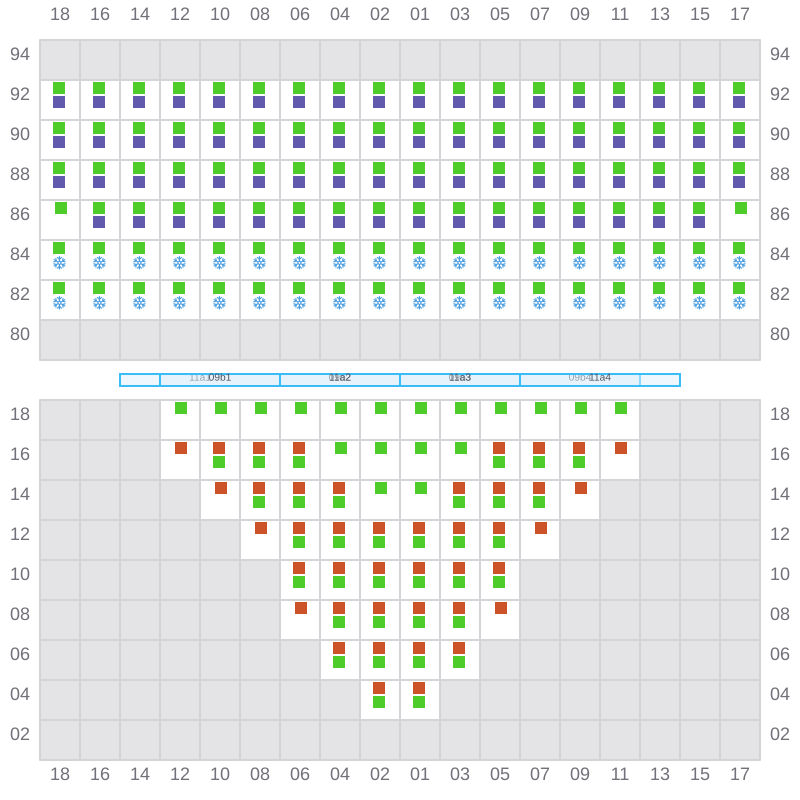

011 (010)
- ←
- → / ?
- →
![Bay 011 view and slots of APL ANTWERP](/vessel-images/150d65aa-2c4a-464f-ad92-bdcd4477f662-b011.png?v=1685489252167)
013
- → / ?
- →
![Bay 013 view and slots of APL ANTWERP](/vessel-images/150d65aa-2c4a-464f-ad92-bdcd4477f662-b013.png?v=1685489252167)

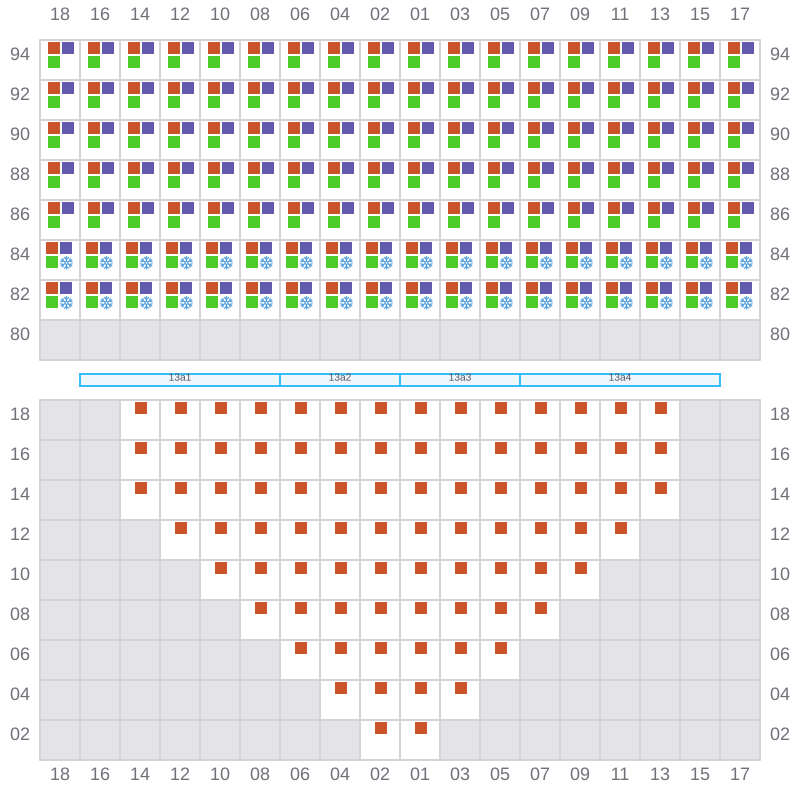

015 (014)
- ← / ?
- → / ?
- →
![Bay 015 view and slots of APL ANTWERP](/vessel-images/150d65aa-2c4a-464f-ad92-bdcd4477f662-b015.png?v=1685489252167)

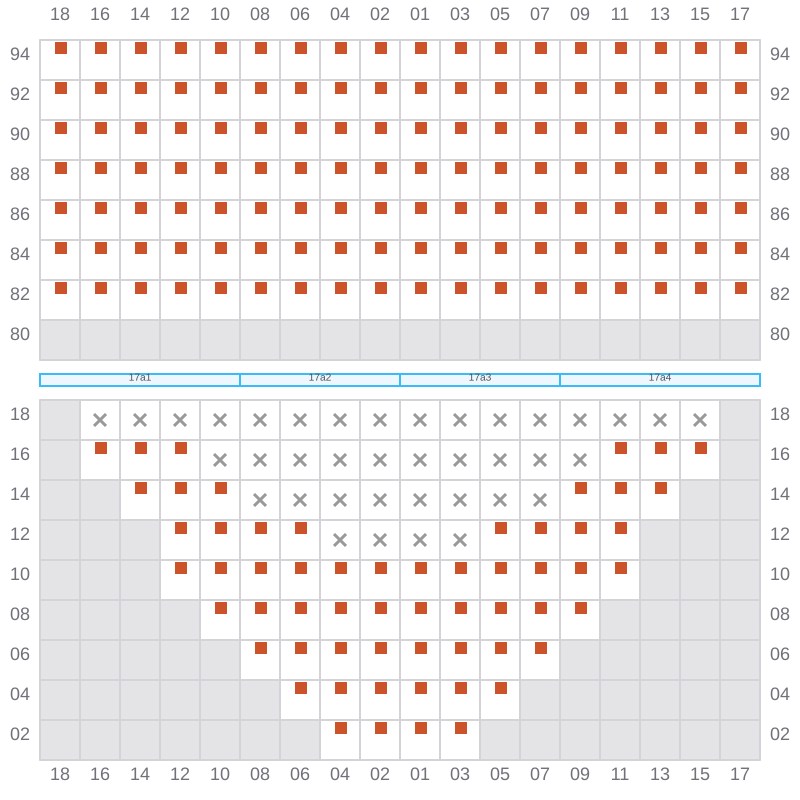

017
- →
- →
![Bay 017 view and slots of APL ANTWERP](/vessel-images/150d65aa-2c4a-464f-ad92-bdcd4477f662-b017.png?v=1685489252167)

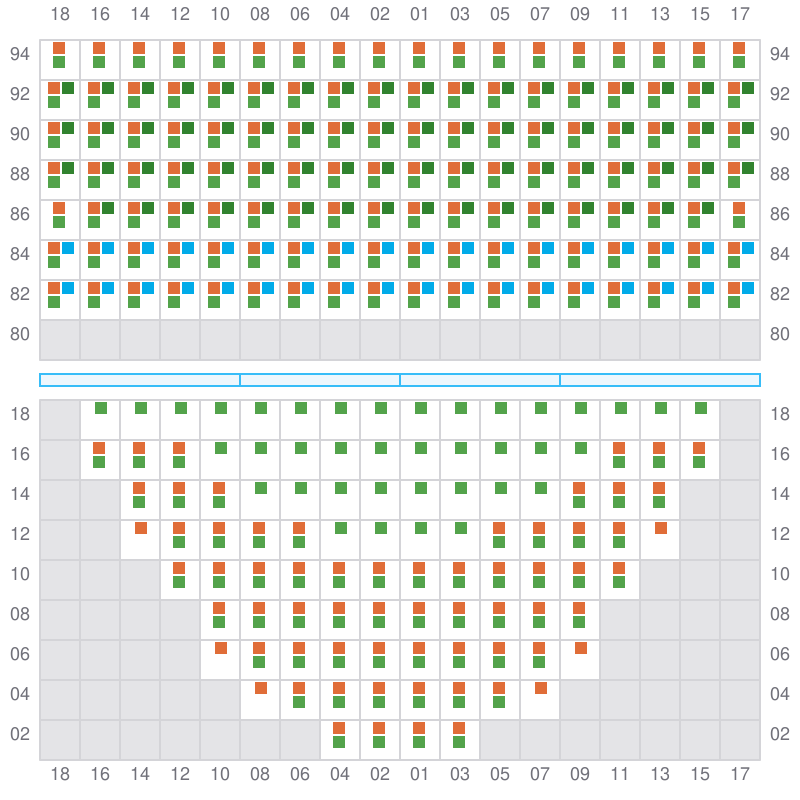

019 (018)
- ←
- → / ?
- →
![Bay 019 view and slots of APL ANTWERP](/vessel-images/150d65aa-2c4a-464f-ad92-bdcd4477f662-b019.png?v=1685489252167)

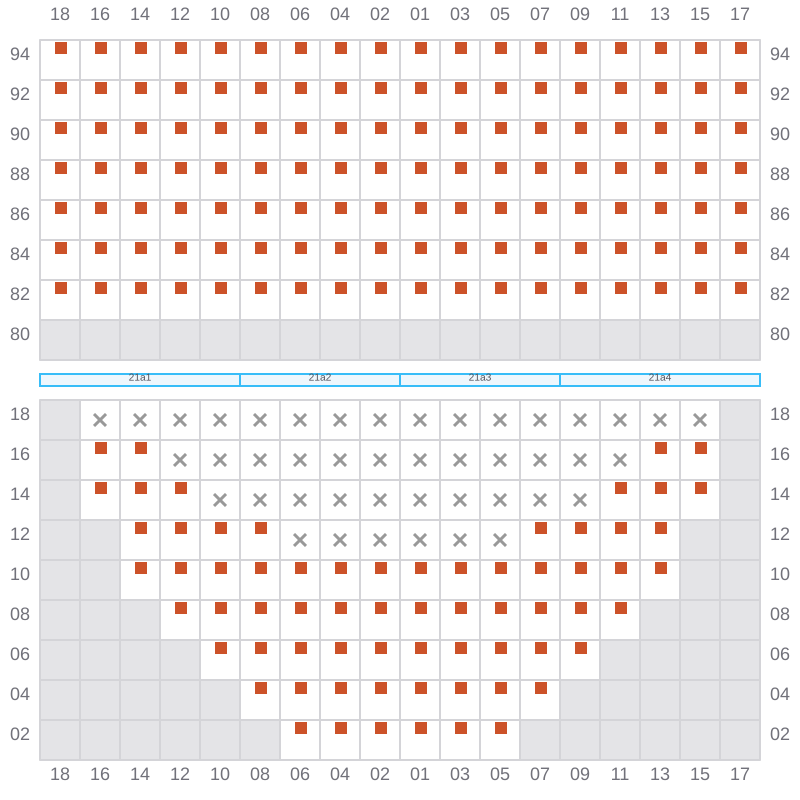

021
- →
- →
![Bay 021 view and slots of APL ANTWERP](/vessel-images/150d65aa-2c4a-464f-ad92-bdcd4477f662-b021.png?v=1685489252167)

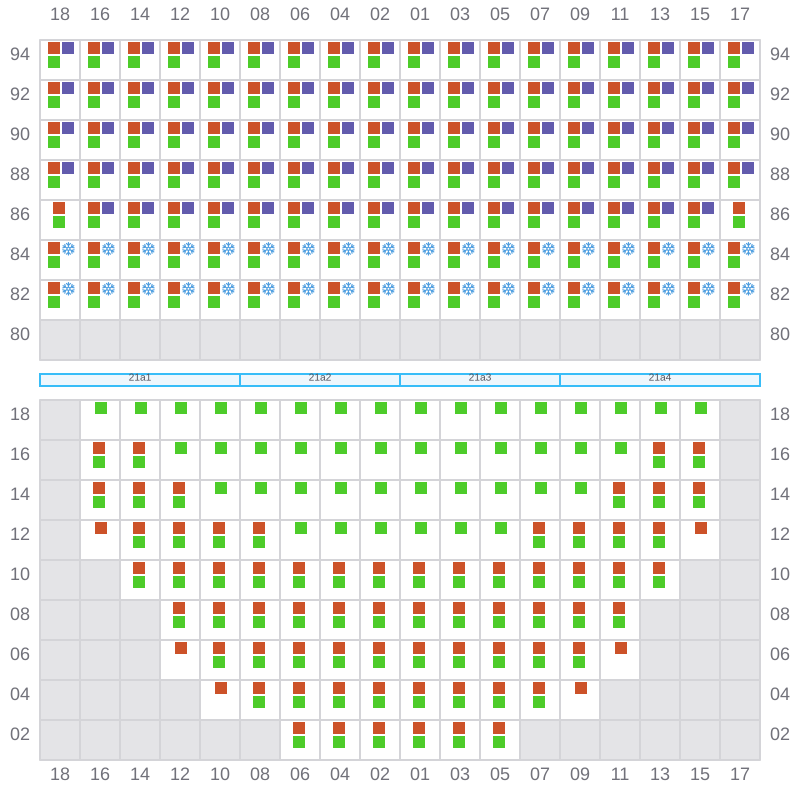

023 (022)
- ←
- → / ?
- →
![Bay 023 view and slots of APL ANTWERP](/vessel-images/150d65aa-2c4a-464f-ad92-bdcd4477f662-b023.png?v=1685489252167)

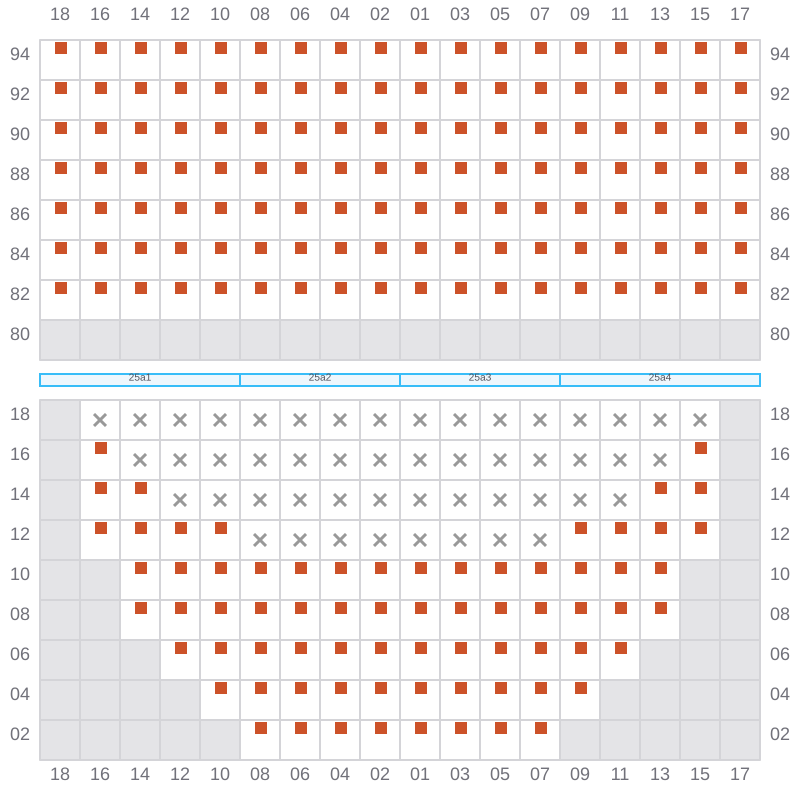

025
- →
- →
![Bay 025 view and slots of APL ANTWERP](/vessel-images/150d65aa-2c4a-464f-ad92-bdcd4477f662-b025.png?v=1685489252167)

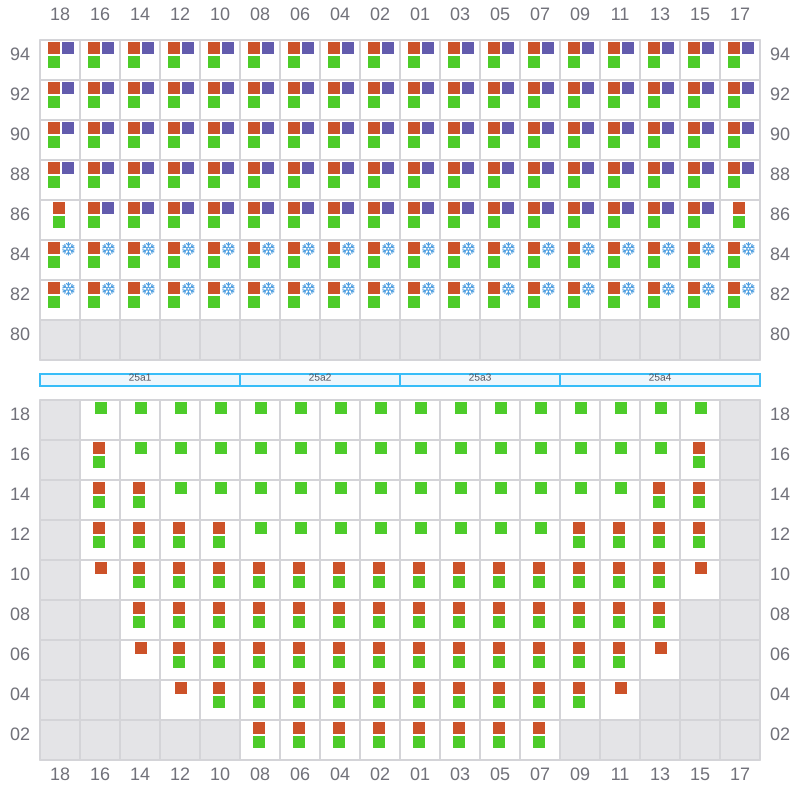

027 (026)
- ←
- → / ?
- →
![Bay 027 view and slots of APL ANTWERP](/vessel-images/150d65aa-2c4a-464f-ad92-bdcd4477f662-b027.png?v=1685489252167)

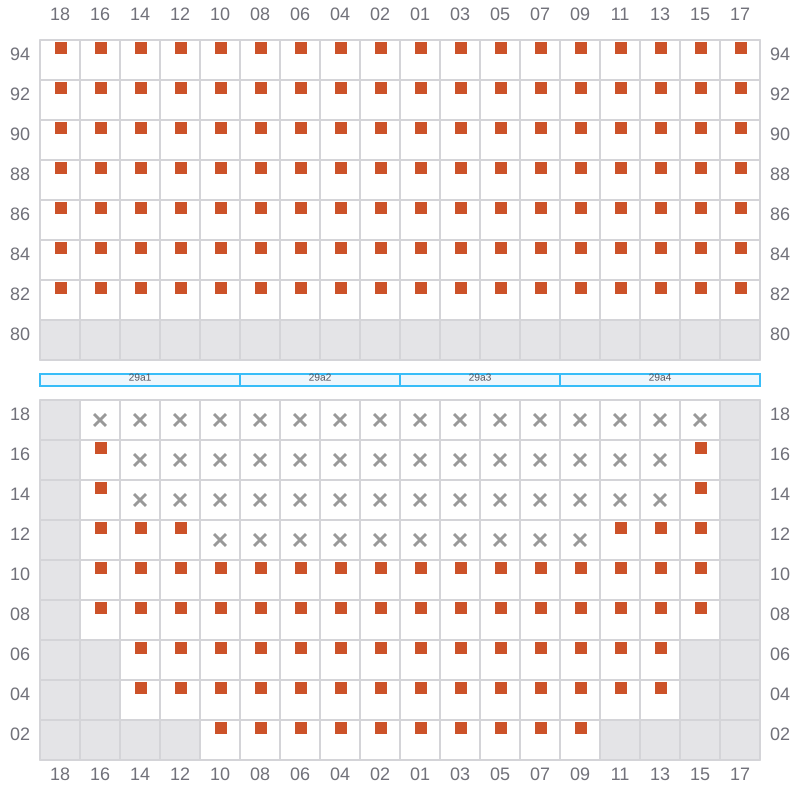

029
- →
- →
![Bay 029 view and slots of APL ANTWERP](/vessel-images/150d65aa-2c4a-464f-ad92-bdcd4477f662-b029.png?v=1685489252167)

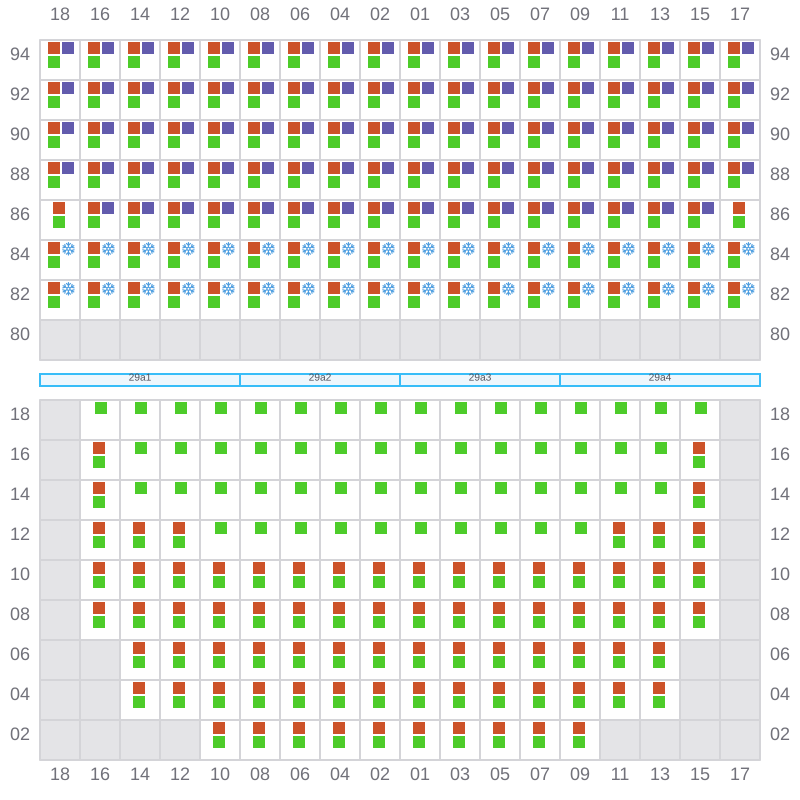

031 (030)
- ←
- → / ?
- →
![Bay 031 view and slots of APL ANTWERP](/vessel-images/150d65aa-2c4a-464f-ad92-bdcd4477f662-b031.png?v=1685489252167)

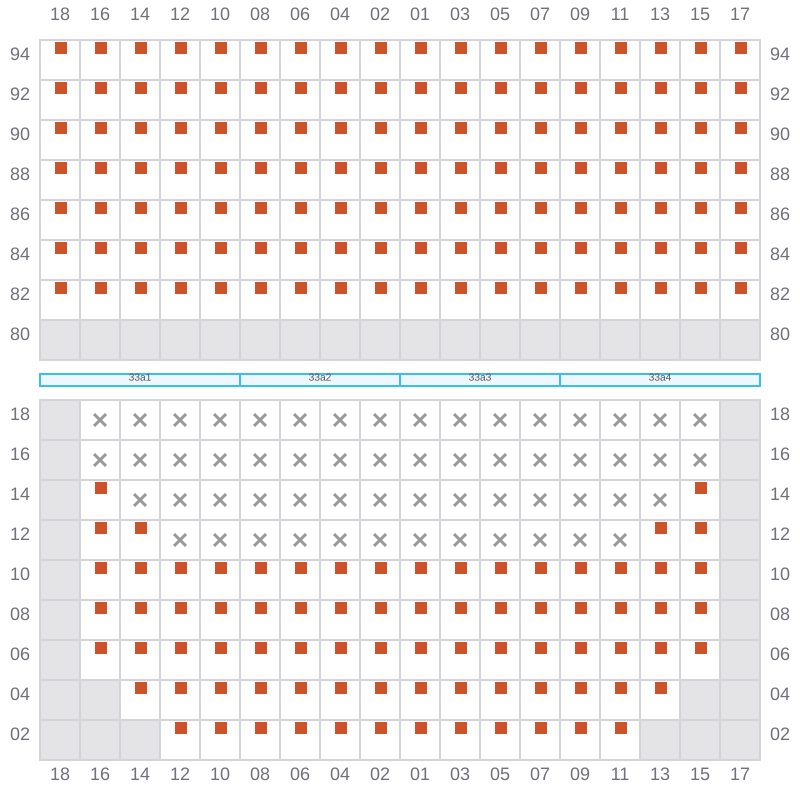

033
- →
- →
![Bay 033 view and slots of APL ANTWERP](/vessel-images/150d65aa-2c4a-464f-ad92-bdcd4477f662-b033.png?v=1685489252167)

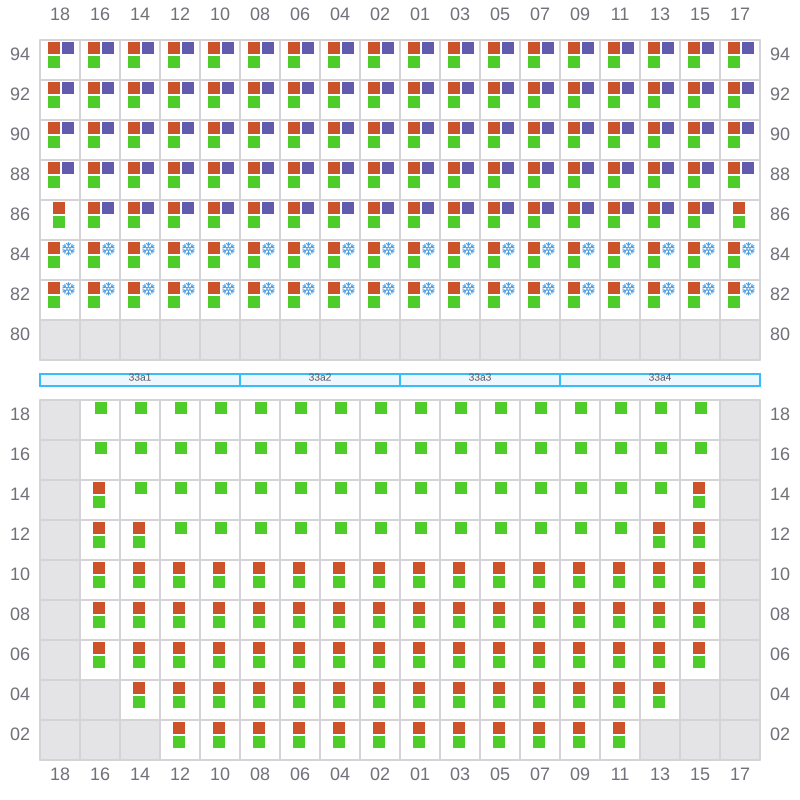

035 (034)
- ←
- → / ?
- →
![Bay 035 view and slots of APL ANTWERP](/vessel-images/150d65aa-2c4a-464f-ad92-bdcd4477f662-b035.png?v=1685489252167)

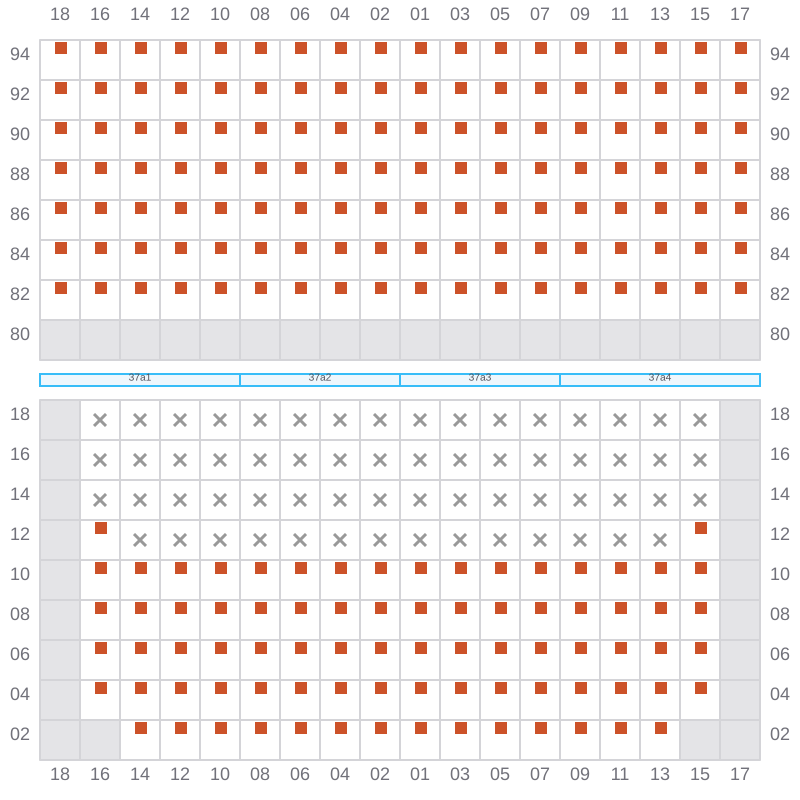

037
- →
- →
![Bay 037 view and slots of APL ANTWERP](/vessel-images/150d65aa-2c4a-464f-ad92-bdcd4477f662-b037.png?v=1685489252167)

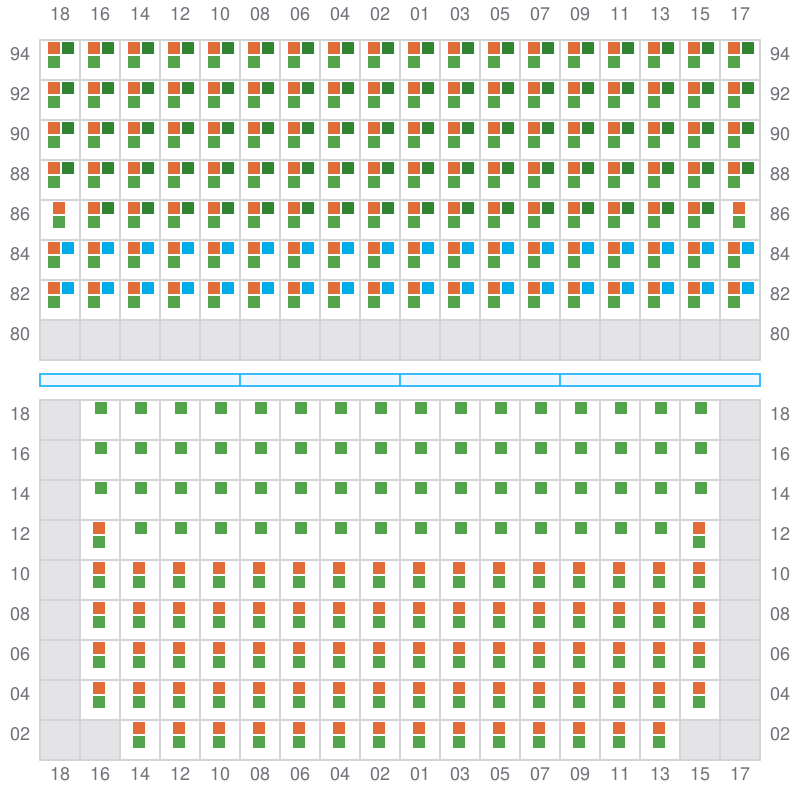

039 (038)
- ←
- → / ?
- →
![Bay 039 view and slots of APL ANTWERP](/vessel-images/150d65aa-2c4a-464f-ad92-bdcd4477f662-b039.png?v=1685489252167)
041
- →
- →
![Bay 041 view and slots of APL ANTWERP](/vessel-images/150d65aa-2c4a-464f-ad92-bdcd4477f662-b041.png?v=1685489252167)

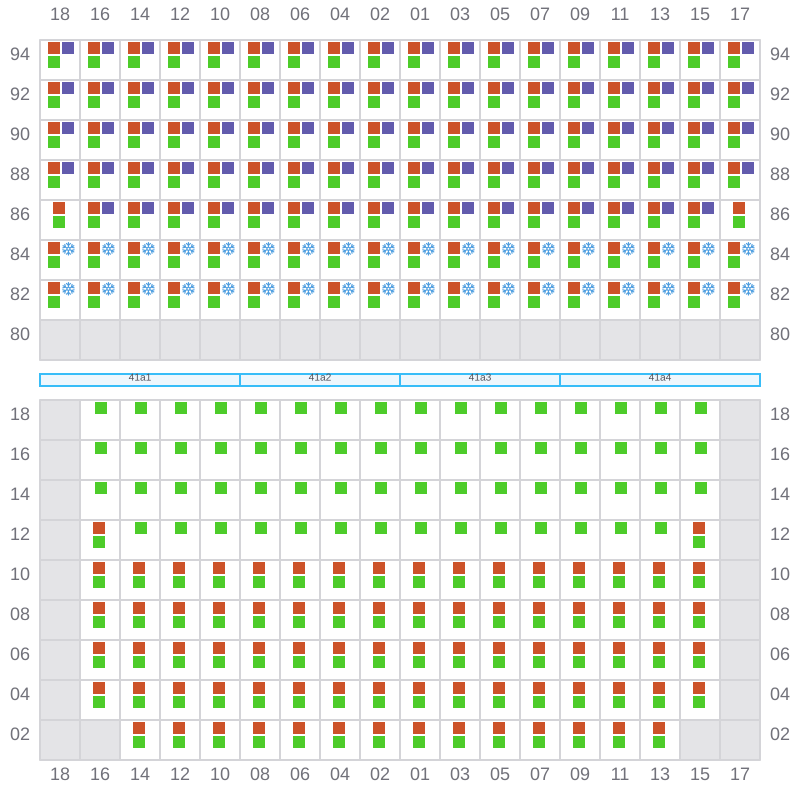

043 (042)
- ←
- → / ?
- →
![Bay 043 view and slots of APL ANTWERP](/vessel-images/150d65aa-2c4a-464f-ad92-bdcd4477f662-b043.png?v=1685489252167)

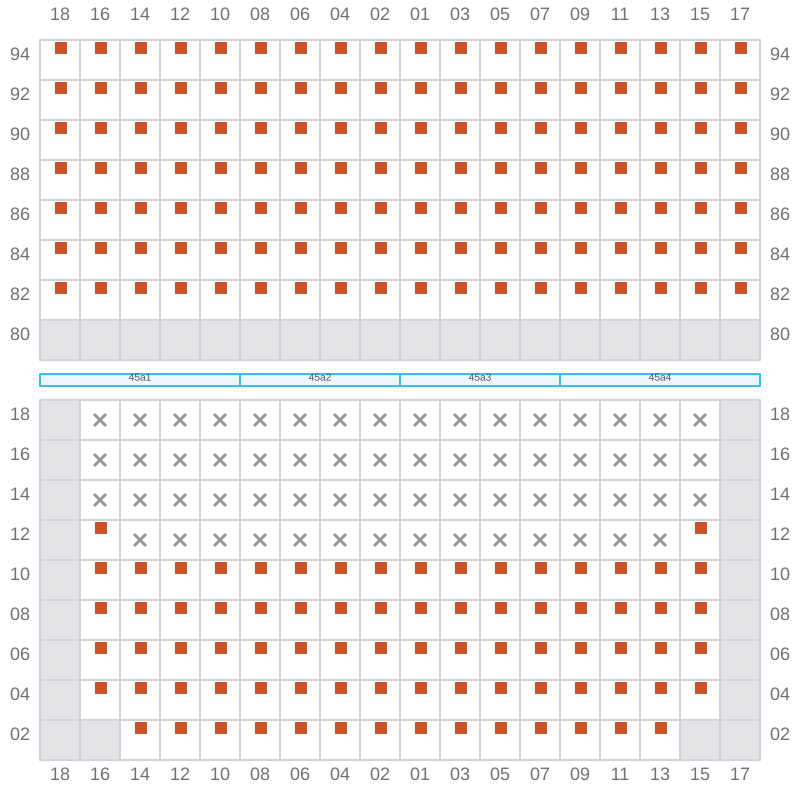

045
- →
- →
![Bay 045 view and slots of APL ANTWERP](/vessel-images/150d65aa-2c4a-464f-ad92-bdcd4477f662-b045.png?v=1685489252167)

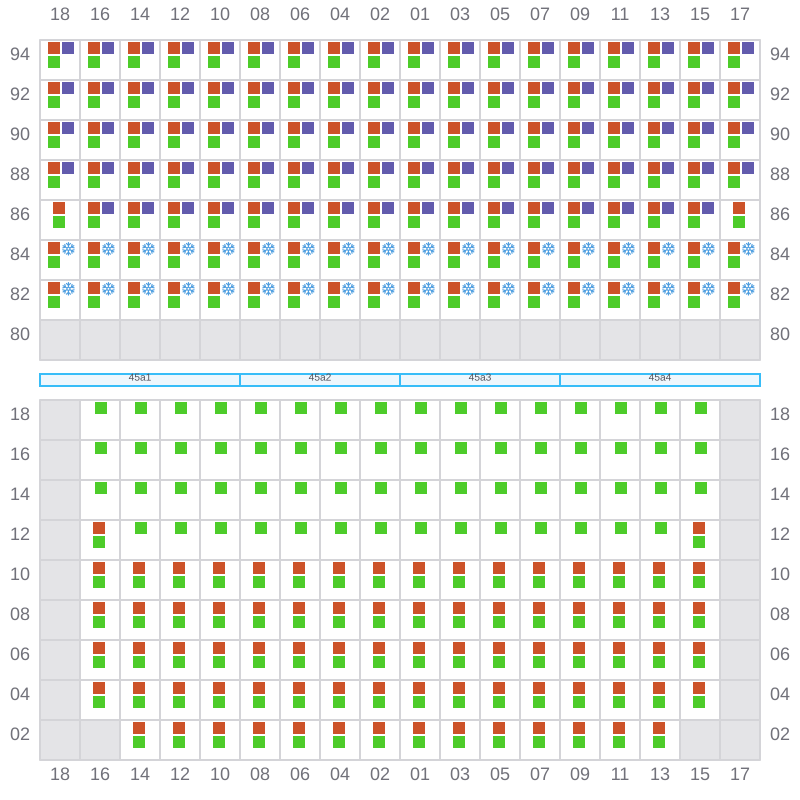

047 (046)
- ←
- → / ?
- →
![Bay 047 view and slots of APL ANTWERP](/vessel-images/150d65aa-2c4a-464f-ad92-bdcd4477f662-b047.png?v=1685489252167)

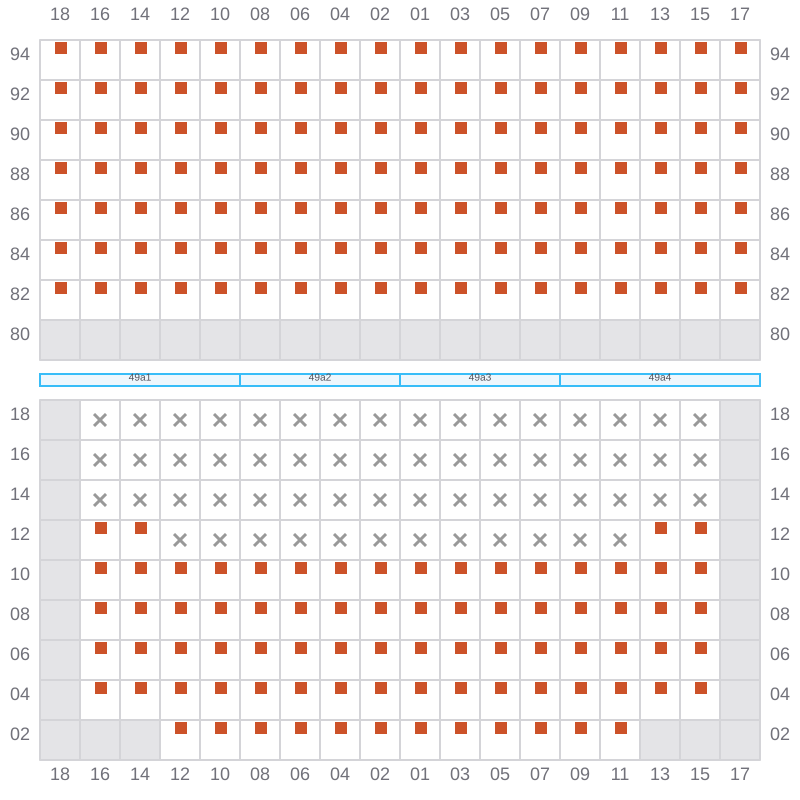

049
- →
- →
![Bay 049 view and slots of APL ANTWERP](/vessel-images/150d65aa-2c4a-464f-ad92-bdcd4477f662-b049.png?v=1685489252167)
051 (050)
- ←
- → / ?
- →
![Bay 051 view and slots of APL ANTWERP](/vessel-images/150d65aa-2c4a-464f-ad92-bdcd4477f662-b051.png?v=1685489252167)

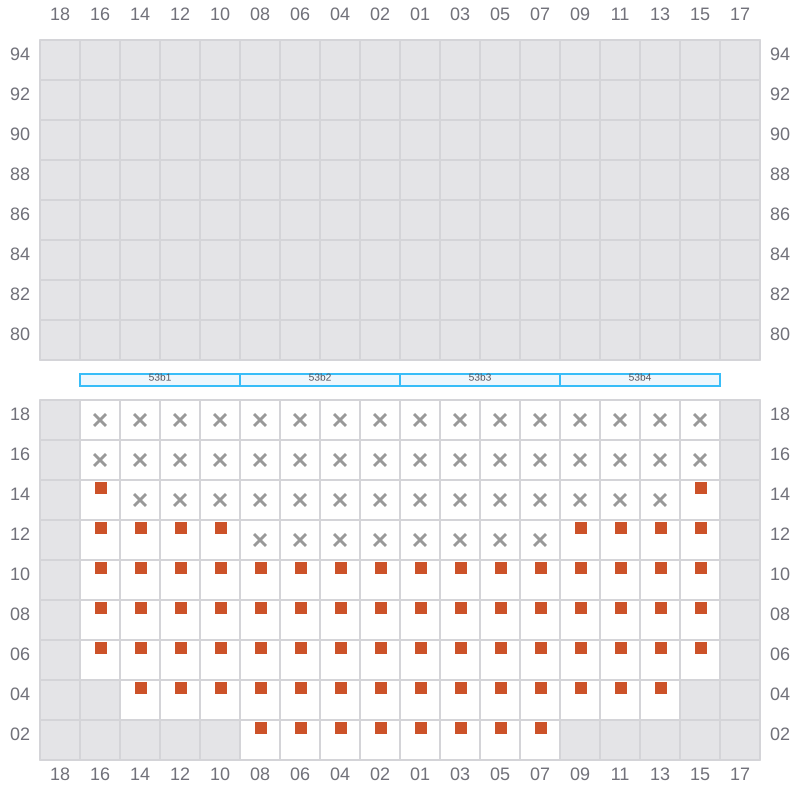

053
- ? / →
- ? / →
![Bay 053 view and slots of APL ANTWERP](/vessel-images/150d65aa-2c4a-464f-ad92-bdcd4477f662-b053.png?v=1685489252167)

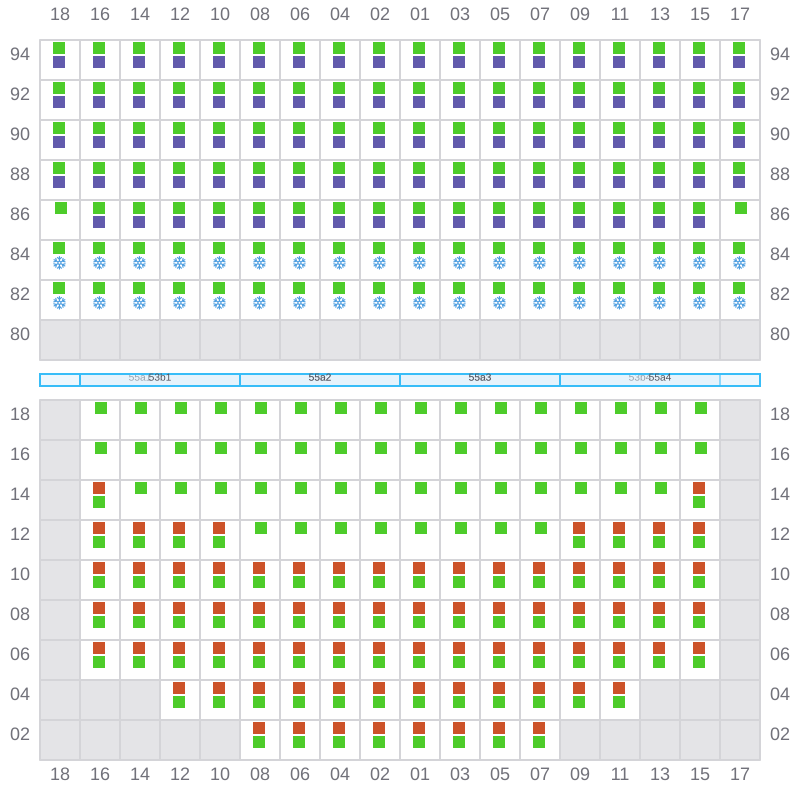

055 (054)
- ←
- → / ?
- →
![Bay 055 view and slots of APL ANTWERP](/vessel-images/150d65aa-2c4a-464f-ad92-bdcd4477f662-b055.png?v=1685489252167)

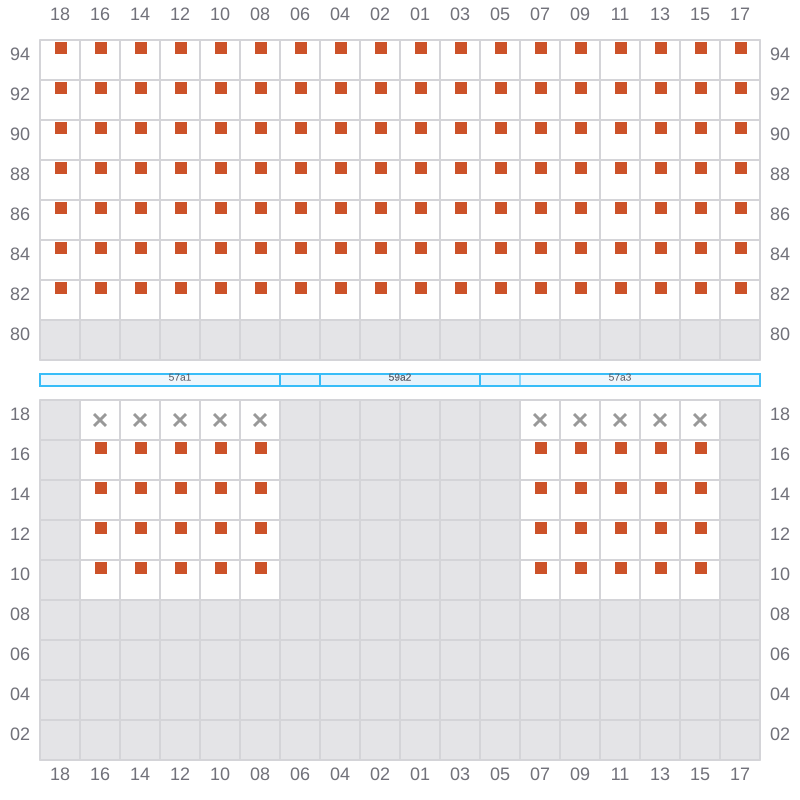

057
- →
- →
![Bay 057 view and slots of APL ANTWERP](/vessel-images/150d65aa-2c4a-464f-ad92-bdcd4477f662-b057.png?v=1685489252167)

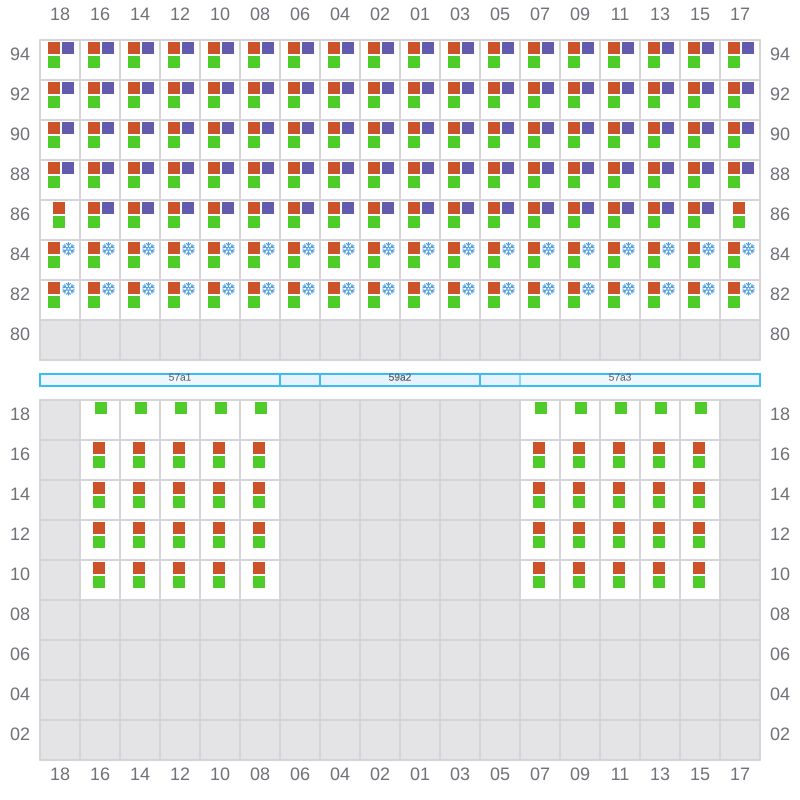

059 (058)
- ←
- → / ?
- →
![Bay 059 view and slots of APL ANTWERP](/vessel-images/150d65aa-2c4a-464f-ad92-bdcd4477f662-b059.png?v=1685489252167)

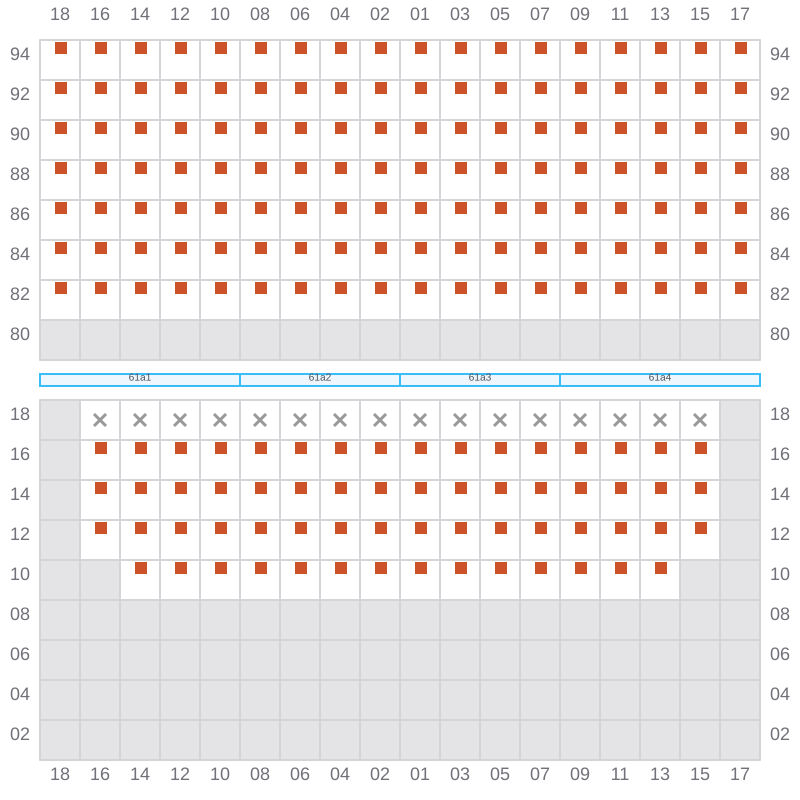

061
- →
- →
![Bay 061 view and slots of APL ANTWERP](/vessel-images/150d65aa-2c4a-464f-ad92-bdcd4477f662-b061.png?v=1685489252167)
063 (062)
- ←
- → / ?
- →
![Bay 063 view and slots of APL ANTWERP](/vessel-images/150d65aa-2c4a-464f-ad92-bdcd4477f662-b063.png?v=1685489252167)

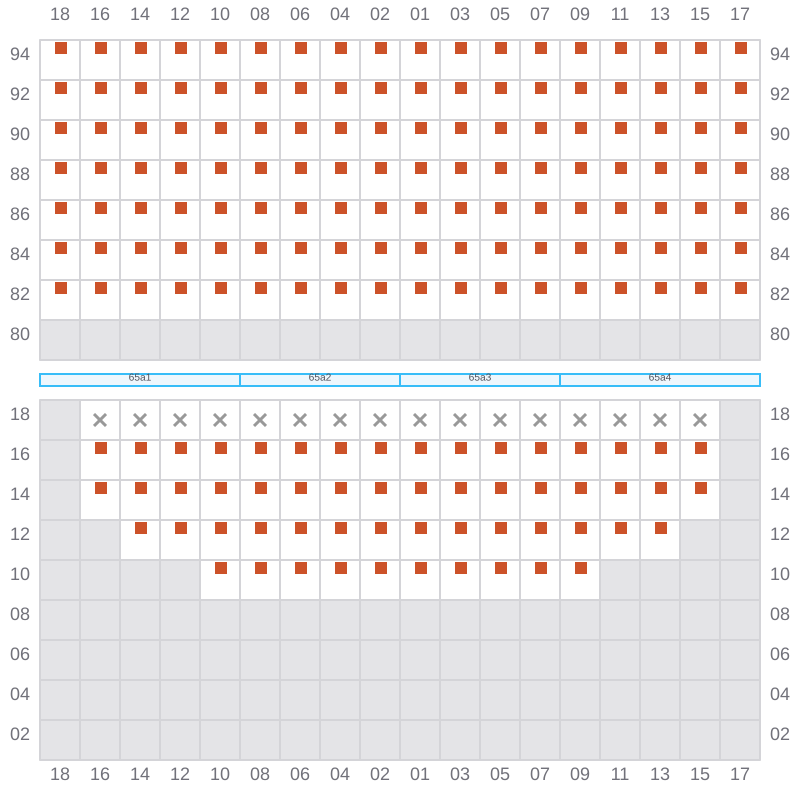

065
- →
- →
![Bay 065 view and slots of APL ANTWERP](/vessel-images/150d65aa-2c4a-464f-ad92-bdcd4477f662-b065.png?v=1685489252167)
067 (066)
- ←
- → / ?
- →
![Bay 067 view and slots of APL ANTWERP](/vessel-images/150d65aa-2c4a-464f-ad92-bdcd4477f662-b067.png?v=1685489252167)

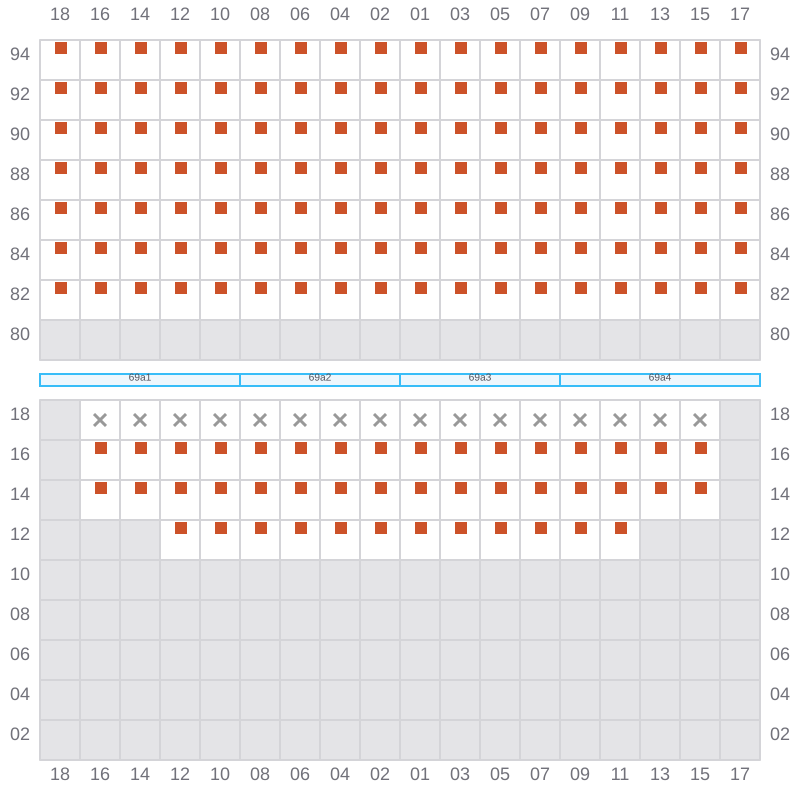

069
- →
- →
![Bay 069 view and slots of APL ANTWERP](/vessel-images/150d65aa-2c4a-464f-ad92-bdcd4477f662-b069.png?v=1685489252167)
071 (070)
- ←
- → / ?
- →
![Bay 071 view and slots of APL ANTWERP](/vessel-images/150d65aa-2c4a-464f-ad92-bdcd4477f662-b071.png?v=1685489252167)
073
![Bay 073 view and slots of APL ANTWERP](/vessel-images/150d65aa-2c4a-464f-ad92-bdcd4477f662-b073.png?v=1685489252167)

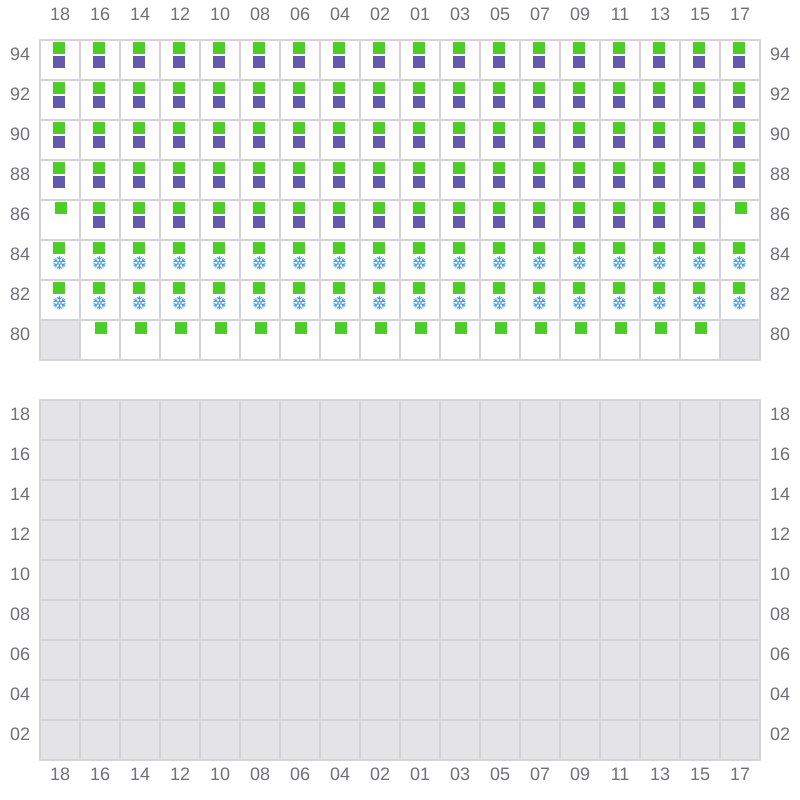

075 (074)
- ← / ?
- ← / ?
- → / ?
![Bay 075 view and slots of APL ANTWERP](/vessel-images/150d65aa-2c4a-464f-ad92-bdcd4477f662-b075.png?v=1685489252167)
