APL CALIFORNIA
9350044 | 9HA4773 | APL by ************************** Last update: Thu Jun 22 2023
General Info
Ship Name:APL CALIFORNIA
IMO Code:9350044
Call Sign:9HA4773
Line Operator:APL
Class Name for Sister Ships:CALI
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):276.00
LOA (Length Overall):-
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:069
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:6,568
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

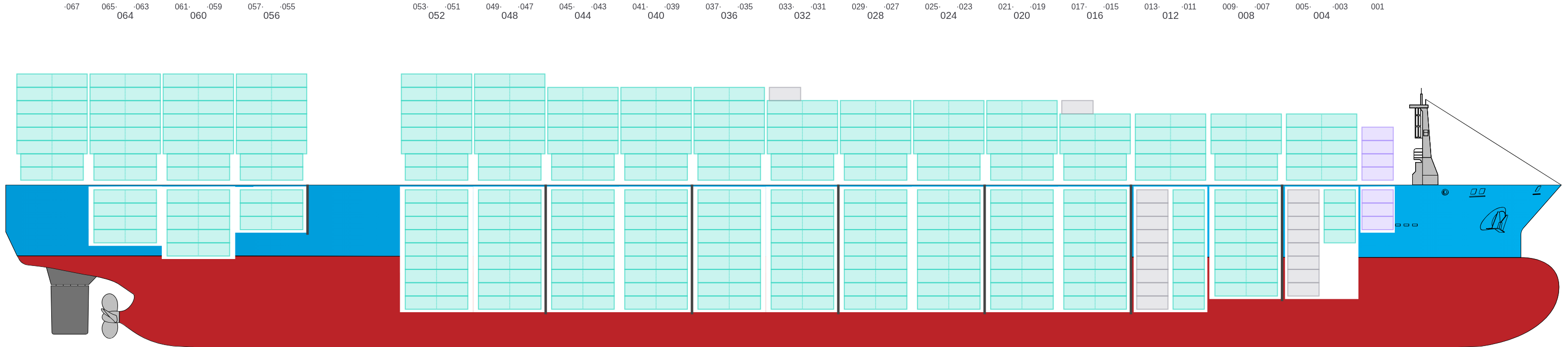

Side View
![Side view of APL CALIFORNIA](/vessel-images/5854b07a-93ef-47d3-a6f6-639126a7cd1a-sideView.png?v=1687457257440)
Hatch-Covers View
![Deck view of APL CALIFORNIA](/vessel-images/5854b07a-93ef-47d3-a6f6-639126a7cd1a-deckView.png?v=1687457257440)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001
![Bay 001 view and slots of APL CALIFORNIA](/vessel-images/5854b07a-93ef-47d3-a6f6-639126a7cd1a-b001.png?v=1687457257440)
003 (004)
- →
![Bay 003 view and slots of APL CALIFORNIA](/vessel-images/5854b07a-93ef-47d3-a6f6-639126a7cd1a-b003.png?v=1687457257440)

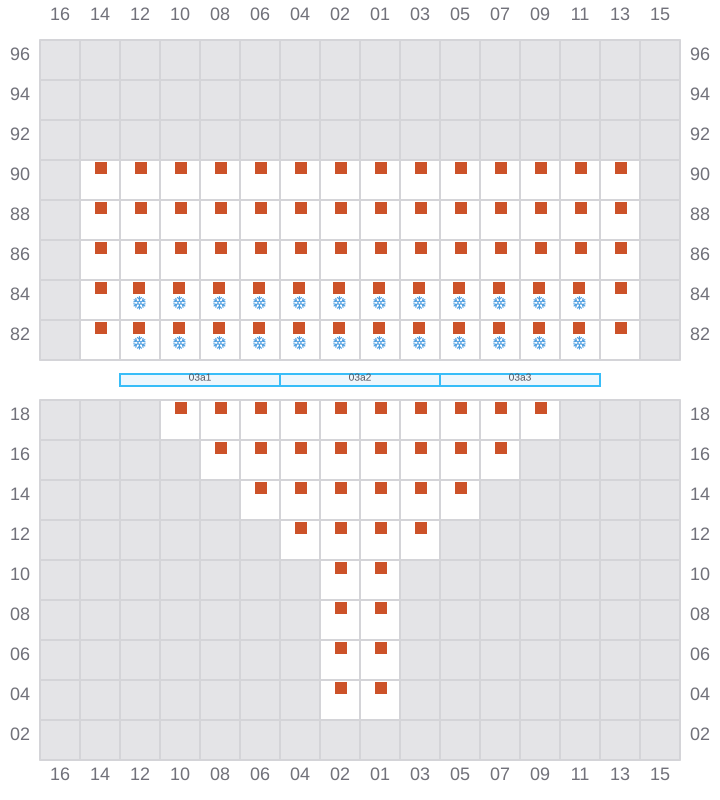

005
- ←
- → / ?
![Bay 005 view and slots of APL CALIFORNIA](/vessel-images/5854b07a-93ef-47d3-a6f6-639126a7cd1a-b005.png?v=1687457257440)

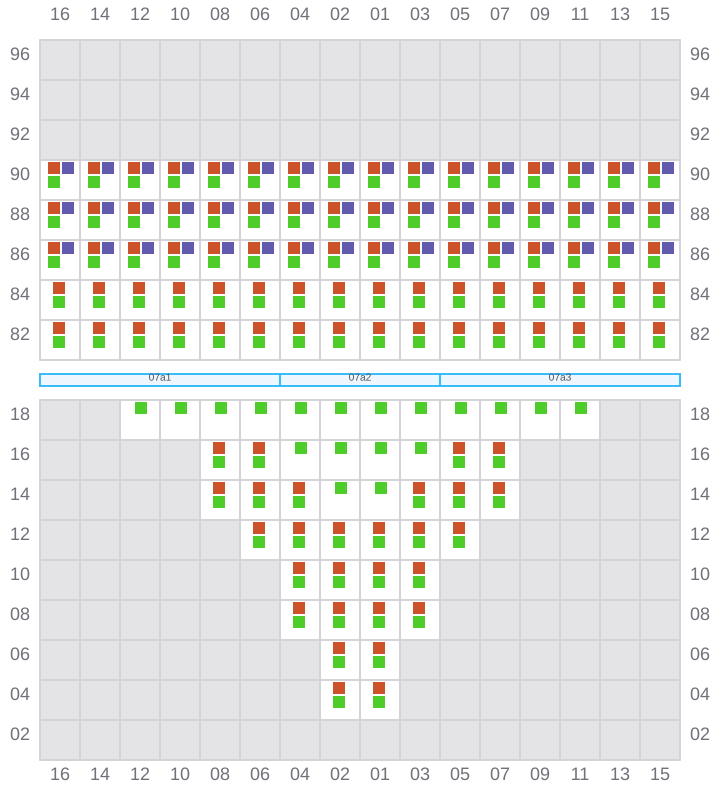

007 (008)
- →
![Bay 007 view and slots of APL CALIFORNIA](/vessel-images/5854b07a-93ef-47d3-a6f6-639126a7cd1a-b007.png?v=1687457257440)

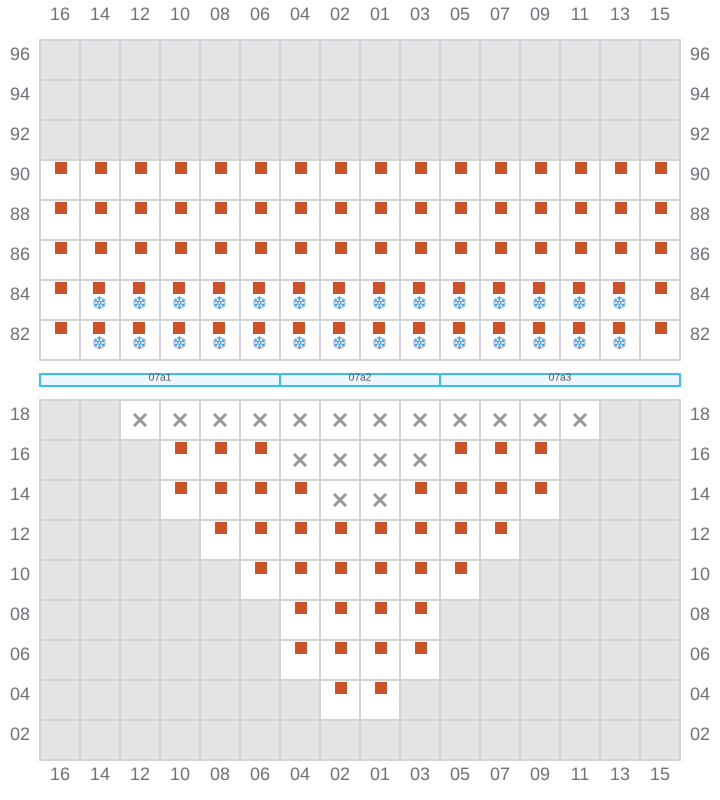

009
- ←
- → / ?
![Bay 009 view and slots of APL CALIFORNIA](/vessel-images/5854b07a-93ef-47d3-a6f6-639126a7cd1a-b009.png?v=1687457257440)

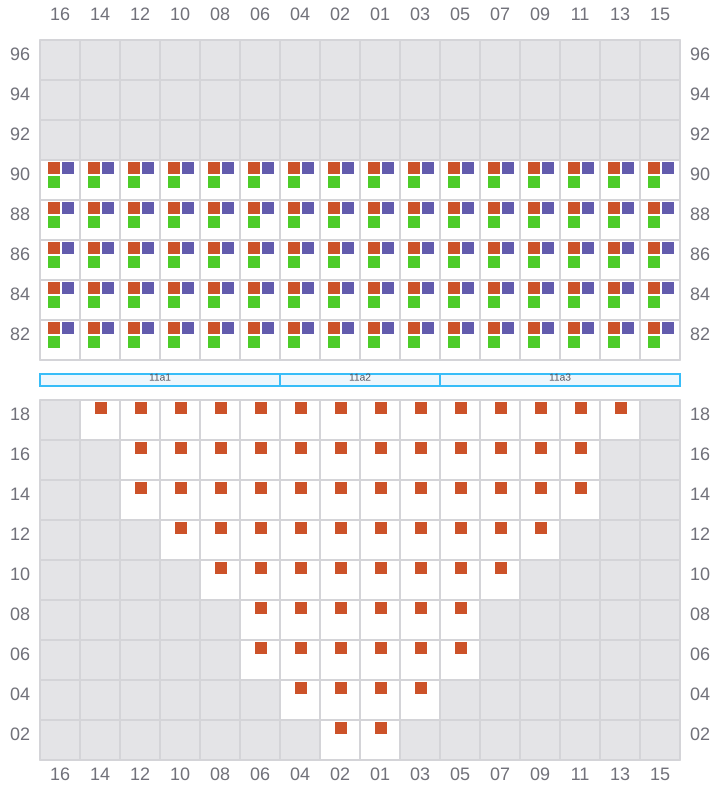

011 (012)
- →
![Bay 011 view and slots of APL CALIFORNIA](/vessel-images/5854b07a-93ef-47d3-a6f6-639126a7cd1a-b011.png?v=1687457257440)
013
- ←
- → / ?
![Bay 013 view and slots of APL CALIFORNIA](/vessel-images/5854b07a-93ef-47d3-a6f6-639126a7cd1a-b013.png?v=1687457257440)

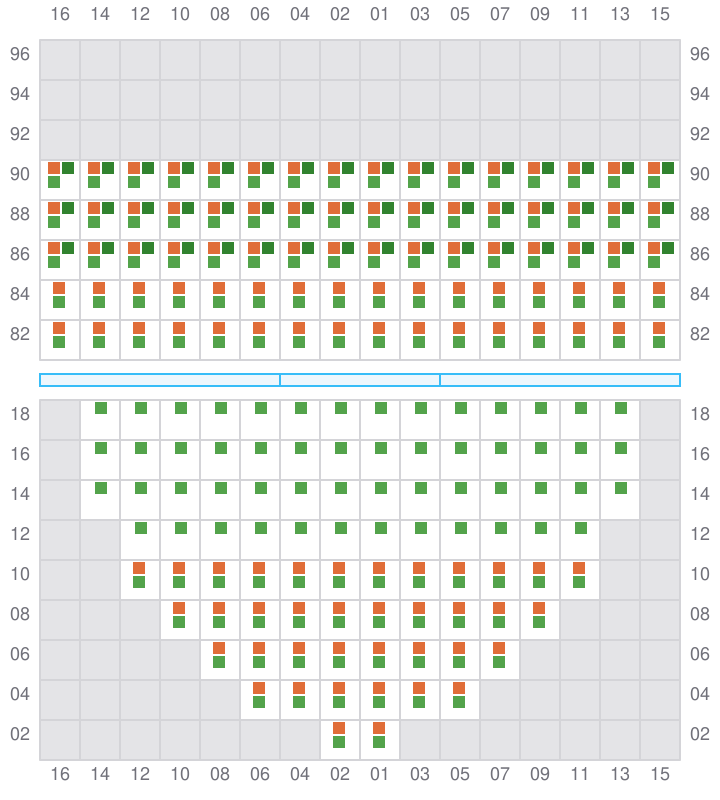

015 (016)
- →
![Bay 015 view and slots of APL CALIFORNIA](/vessel-images/5854b07a-93ef-47d3-a6f6-639126a7cd1a-b015.png?v=1687457257440)
017
- ←
- → / ?
![Bay 017 view and slots of APL CALIFORNIA](/vessel-images/5854b07a-93ef-47d3-a6f6-639126a7cd1a-b017.png?v=1687457257440)
019 (020)
- →
![Bay 019 view and slots of APL CALIFORNIA](/vessel-images/5854b07a-93ef-47d3-a6f6-639126a7cd1a-b019.png?v=1687457257440)
021
- ←
- → / ?
![Bay 021 view and slots of APL CALIFORNIA](/vessel-images/5854b07a-93ef-47d3-a6f6-639126a7cd1a-b021.png?v=1687457257440)
023 (024)
- →
![Bay 023 view and slots of APL CALIFORNIA](/vessel-images/5854b07a-93ef-47d3-a6f6-639126a7cd1a-b023.png?v=1687457257440)
025
- ←
- → / ?
![Bay 025 view and slots of APL CALIFORNIA](/vessel-images/5854b07a-93ef-47d3-a6f6-639126a7cd1a-b025.png?v=1687457257440)
027 (028)
- →
![Bay 027 view and slots of APL CALIFORNIA](/vessel-images/5854b07a-93ef-47d3-a6f6-639126a7cd1a-b027.png?v=1687457257440)
029
- ←
- → / ?
![Bay 029 view and slots of APL CALIFORNIA](/vessel-images/5854b07a-93ef-47d3-a6f6-639126a7cd1a-b029.png?v=1687457257440)
031 (032)
- →
![Bay 031 view and slots of APL CALIFORNIA](/vessel-images/5854b07a-93ef-47d3-a6f6-639126a7cd1a-b031.png?v=1687457257440)
033
- ←
- → / ?
![Bay 033 view and slots of APL CALIFORNIA](/vessel-images/5854b07a-93ef-47d3-a6f6-639126a7cd1a-b033.png?v=1687457257440)

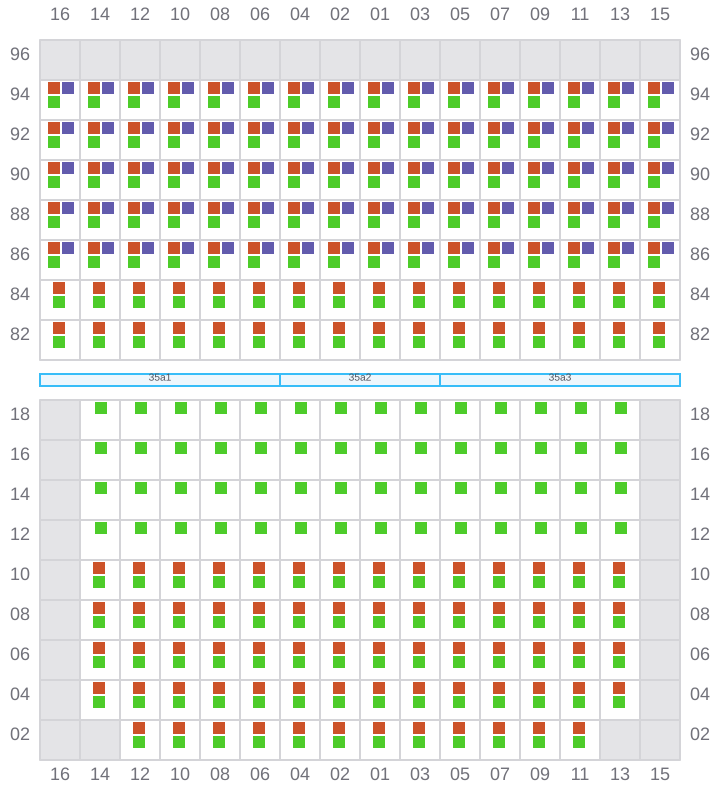

035 (036)
- →
![Bay 035 view and slots of APL CALIFORNIA](/vessel-images/5854b07a-93ef-47d3-a6f6-639126a7cd1a-b035.png?v=1687457257440)
037
- ←
- → / ?
![Bay 037 view and slots of APL CALIFORNIA](/vessel-images/5854b07a-93ef-47d3-a6f6-639126a7cd1a-b037.png?v=1687457257440)
039 (040)
- →
![Bay 039 view and slots of APL CALIFORNIA](/vessel-images/5854b07a-93ef-47d3-a6f6-639126a7cd1a-b039.png?v=1687457257440)
041
- ←
- → / ?
![Bay 041 view and slots of APL CALIFORNIA](/vessel-images/5854b07a-93ef-47d3-a6f6-639126a7cd1a-b041.png?v=1687457257440)
043 (044)
- →
![Bay 043 view and slots of APL CALIFORNIA](/vessel-images/5854b07a-93ef-47d3-a6f6-639126a7cd1a-b043.png?v=1687457257440)
045
- ←
- → / ?
![Bay 045 view and slots of APL CALIFORNIA](/vessel-images/5854b07a-93ef-47d3-a6f6-639126a7cd1a-b045.png?v=1687457257440)
047 (048)
- →
![Bay 047 view and slots of APL CALIFORNIA](/vessel-images/5854b07a-93ef-47d3-a6f6-639126a7cd1a-b047.png?v=1687457257440)
049
- ←
- → / ?
![Bay 049 view and slots of APL CALIFORNIA](/vessel-images/5854b07a-93ef-47d3-a6f6-639126a7cd1a-b049.png?v=1687457257440)

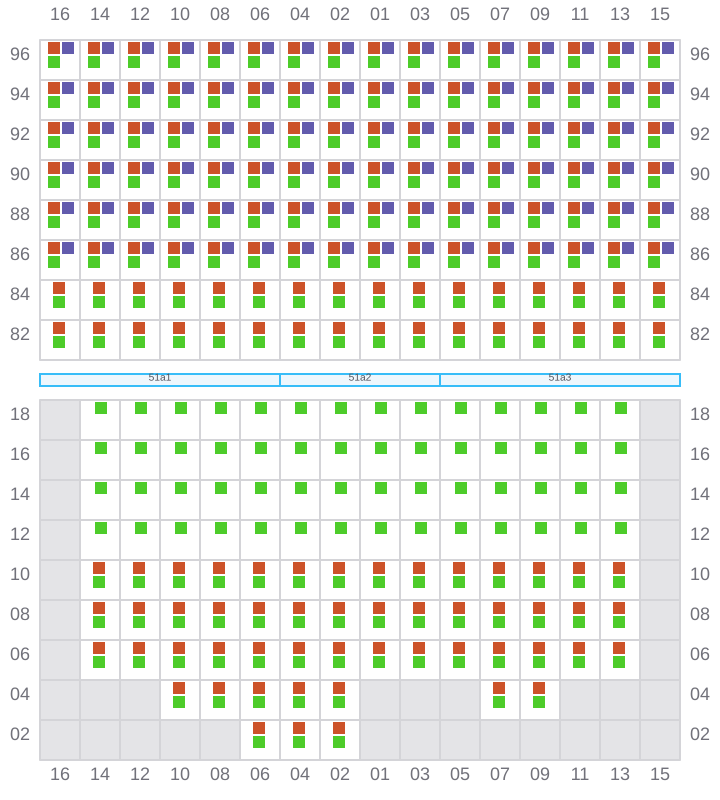

051 (052)
- →
![Bay 051 view and slots of APL CALIFORNIA](/vessel-images/5854b07a-93ef-47d3-a6f6-639126a7cd1a-b051.png?v=1687457257440)
053
- ←
- → / ?
![Bay 053 view and slots of APL CALIFORNIA](/vessel-images/5854b07a-93ef-47d3-a6f6-639126a7cd1a-b053.png?v=1687457257440)
055 (056)
- →
![Bay 055 view and slots of APL CALIFORNIA](/vessel-images/5854b07a-93ef-47d3-a6f6-639126a7cd1a-b055.png?v=1687457257440)
057
- ←
- → / ?
![Bay 057 view and slots of APL CALIFORNIA](/vessel-images/5854b07a-93ef-47d3-a6f6-639126a7cd1a-b057.png?v=1687457257440)

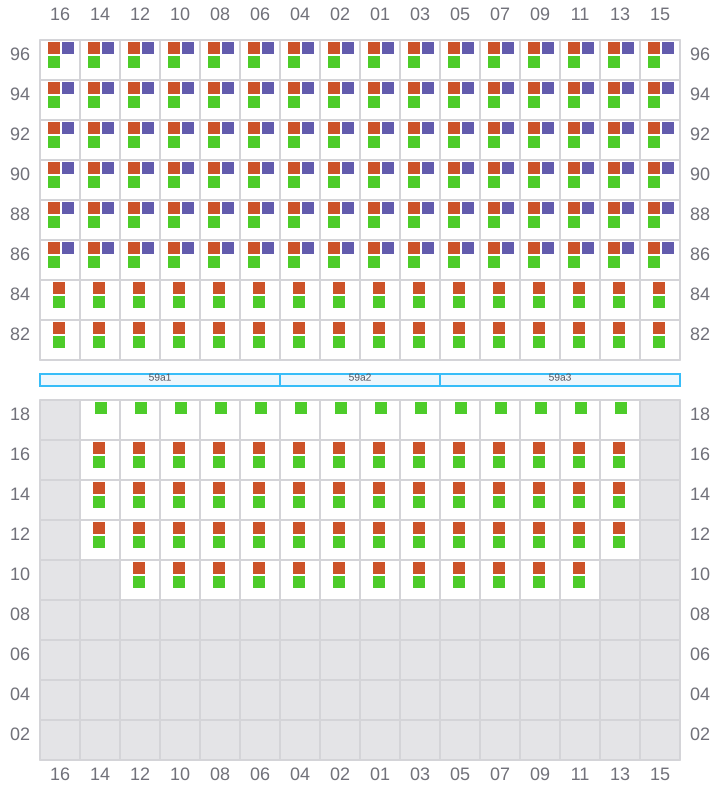

059 (060)
- →
- ← / ?
![Bay 059 view and slots of APL CALIFORNIA](/vessel-images/5854b07a-93ef-47d3-a6f6-639126a7cd1a-b059.png?v=1687457257440)
061
- ←
- → / ?
![Bay 061 view and slots of APL CALIFORNIA](/vessel-images/5854b07a-93ef-47d3-a6f6-639126a7cd1a-b061.png?v=1687457257440)
063 (064)
- →
- ← / ?
![Bay 063 view and slots of APL CALIFORNIA](/vessel-images/5854b07a-93ef-47d3-a6f6-639126a7cd1a-b063.png?v=1687457257440)
065
- ←
- → / ?
![Bay 065 view and slots of APL CALIFORNIA](/vessel-images/5854b07a-93ef-47d3-a6f6-639126a7cd1a-b065.png?v=1687457257440)

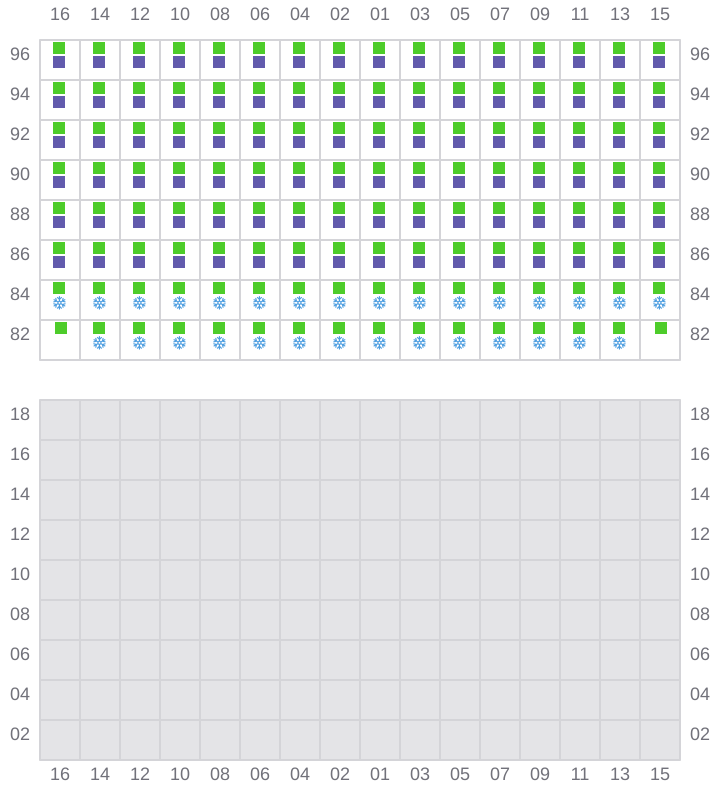

067 (068)
- →
- ← / ?
![Bay 067 view and slots of APL CALIFORNIA](/vessel-images/5854b07a-93ef-47d3-a6f6-639126a7cd1a-b067.png?v=1687457257440)
069
- ←
![Bay 069 view and slots of APL CALIFORNIA](/vessel-images/5854b07a-93ef-47d3-a6f6-639126a7cd1a-b069.png?v=1687457257440)
