APL CALIFORNIA
9350044 | 9HA4773 | 9350044 by ********* Last update: Fri Mar 22 2024

General Info

Ship Name:APL CALIFORNIA
IMO Code:9350044
Call Sign:9HA4773
Line Operator:9350044
Class Name for Sister Ships:APL_CALIFORNIA
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):276.00
LOA (Length Overall):293.18
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:067
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:6,350

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

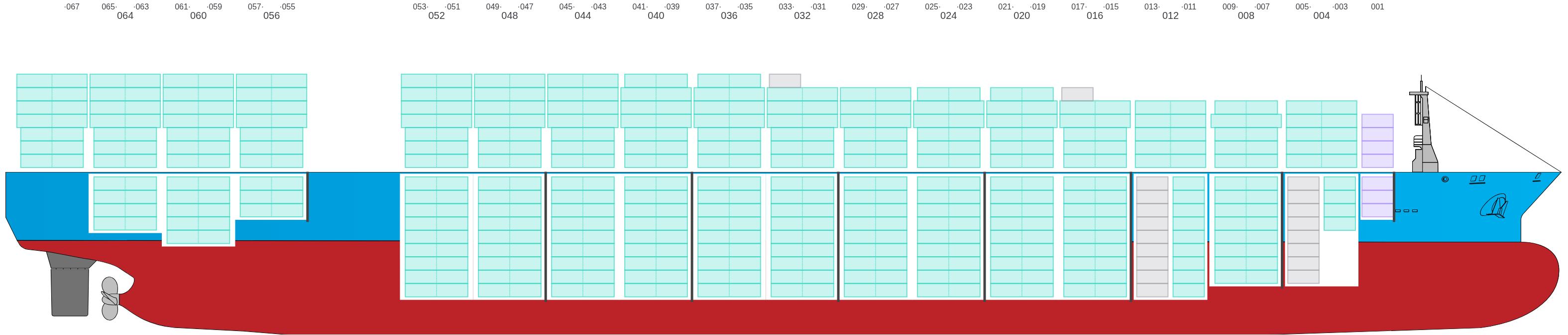

Side View

Side view of APL CALIFORNIA

Hatch-Covers View

Deck view of APL CALIFORNIA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

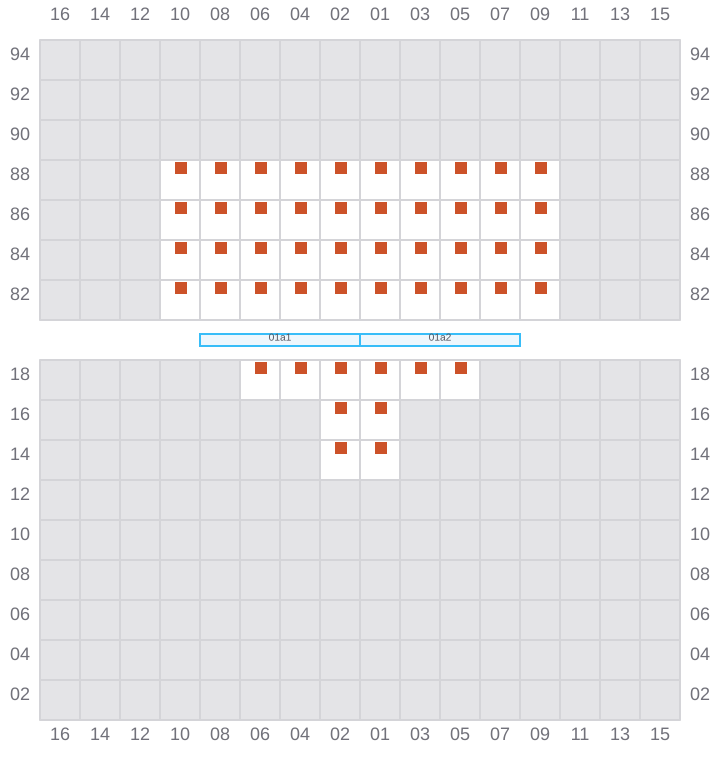

Bay 001 view and slots of APL CALIFORNIA

003 (004)

  • →

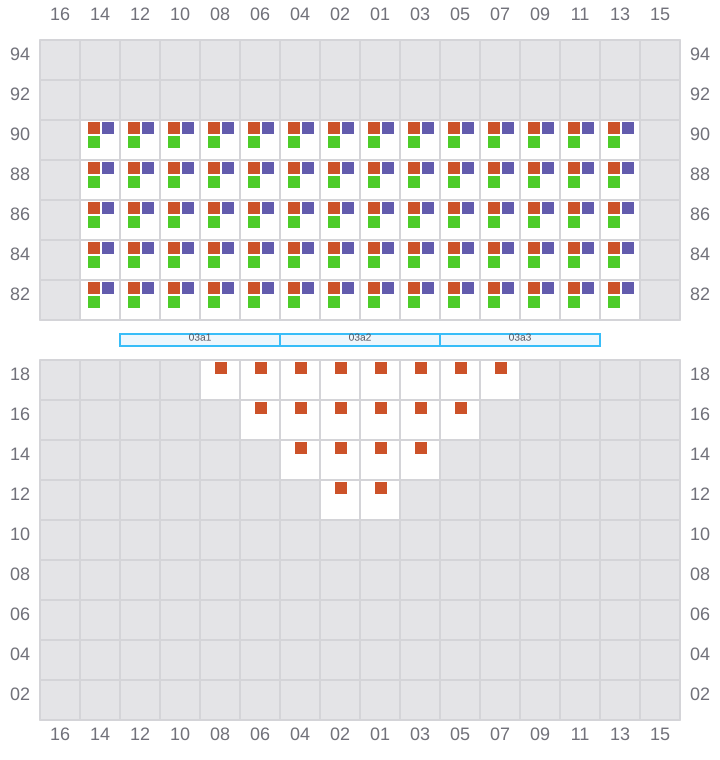

Bay 003 view and slots of APL CALIFORNIA

005

  • ←
  • → / ?

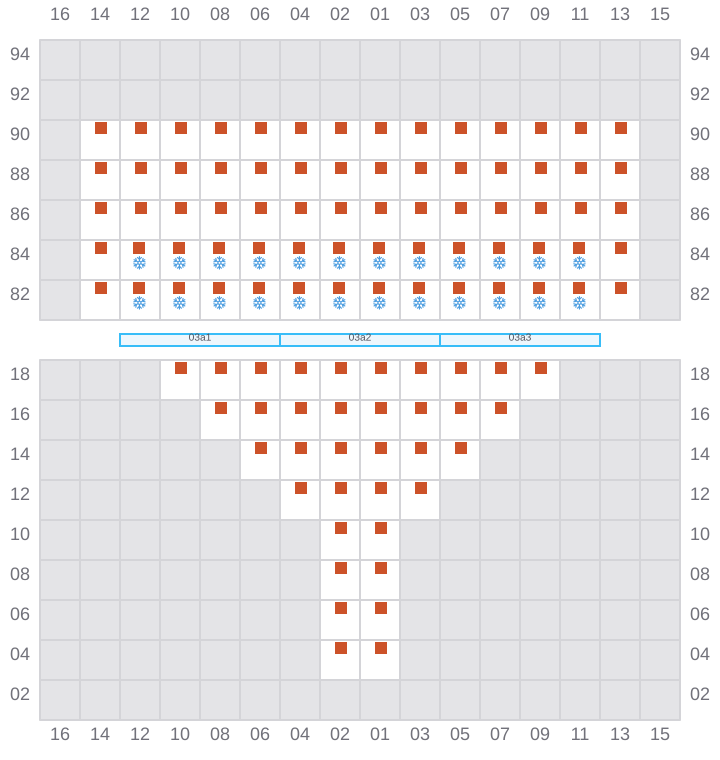

Bay 005 view and slots of APL CALIFORNIA

007 (008)

  • →

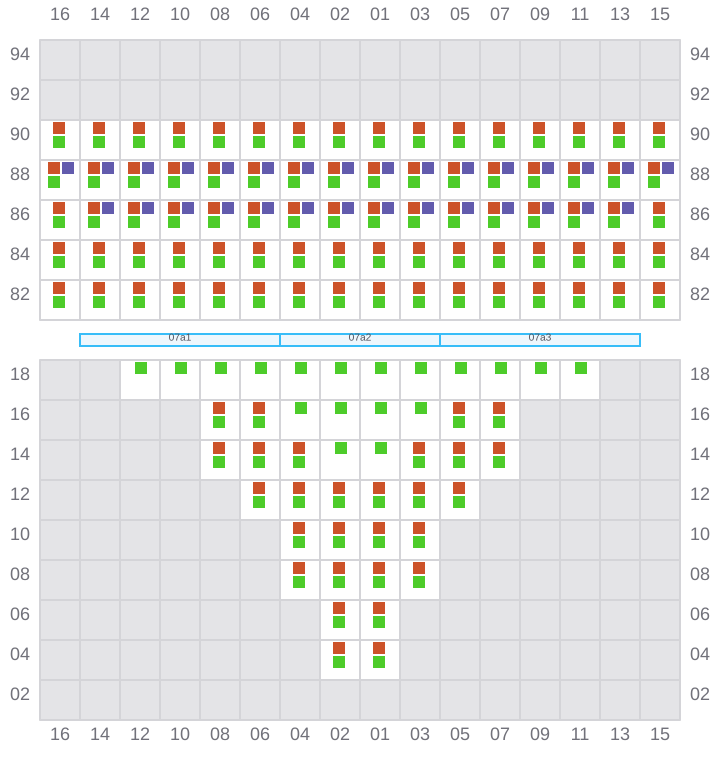

Bay 007 view and slots of APL CALIFORNIA

009

  • ←
  • → / ?

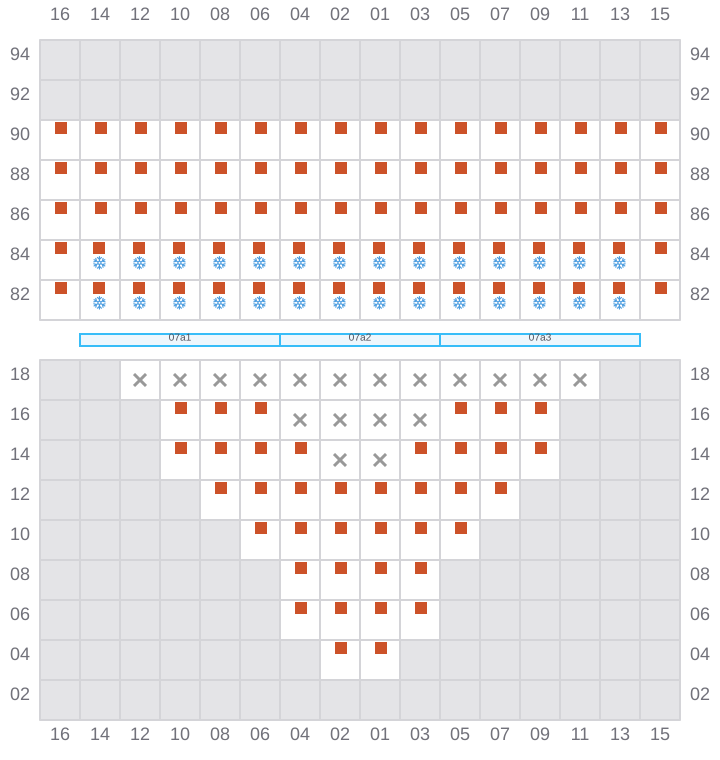

Bay 009 view and slots of APL CALIFORNIA

011 (012)

  • →

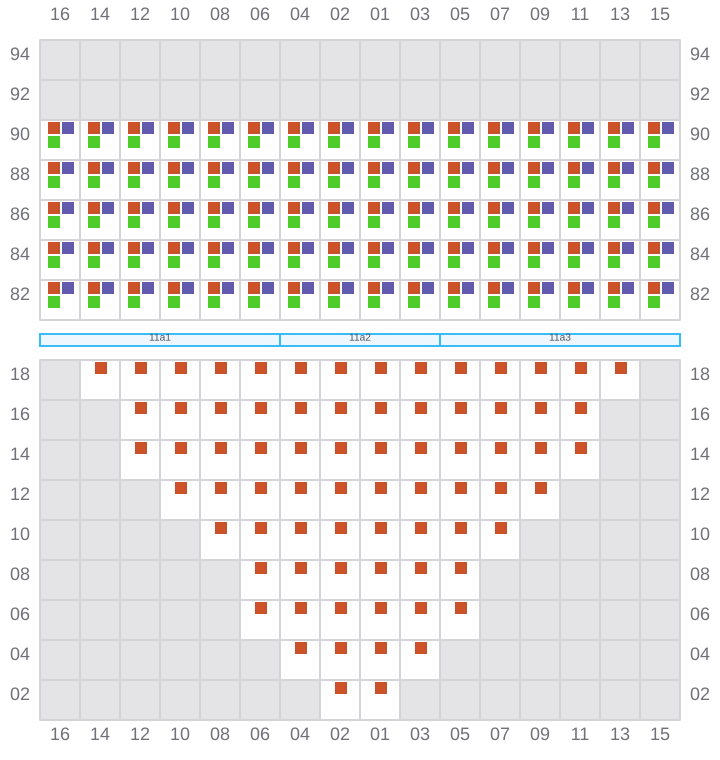

Bay 011 view and slots of APL CALIFORNIA

013

  • ←
  • → / ?

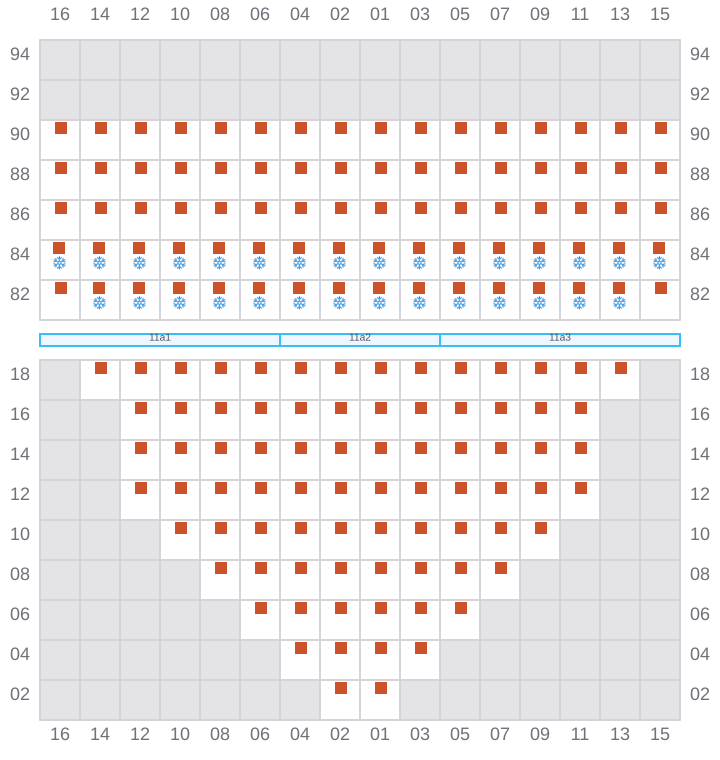

Bay 013 view and slots of APL CALIFORNIA

015 (016)

  • →

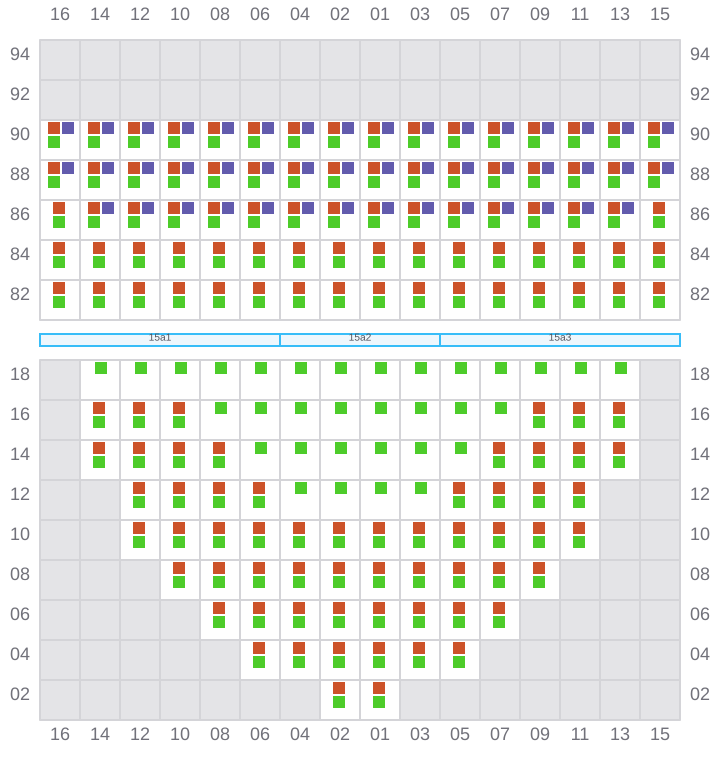

Bay 015 view and slots of APL CALIFORNIA

017

  • ←
  • → / ?

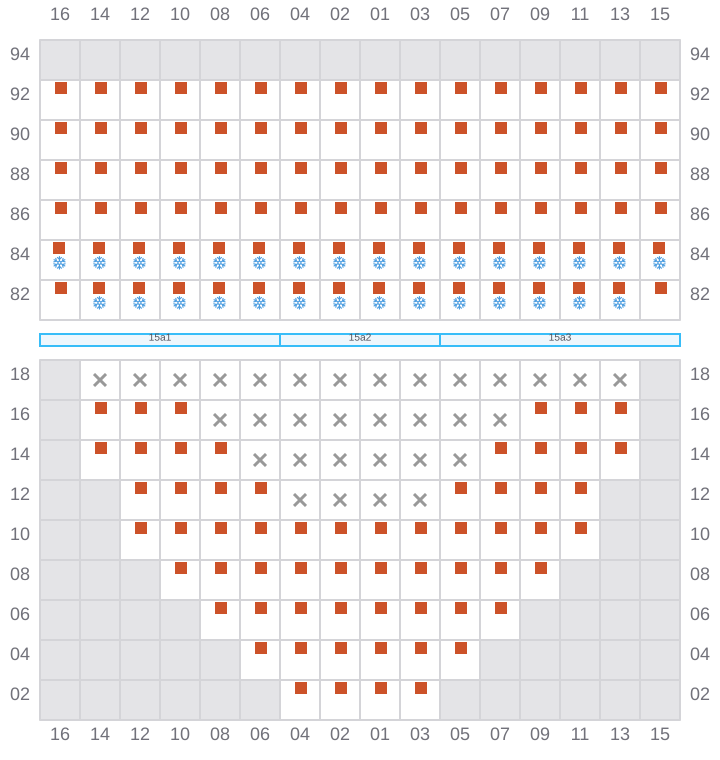

Bay 017 view and slots of APL CALIFORNIA

019 (020)

  • →

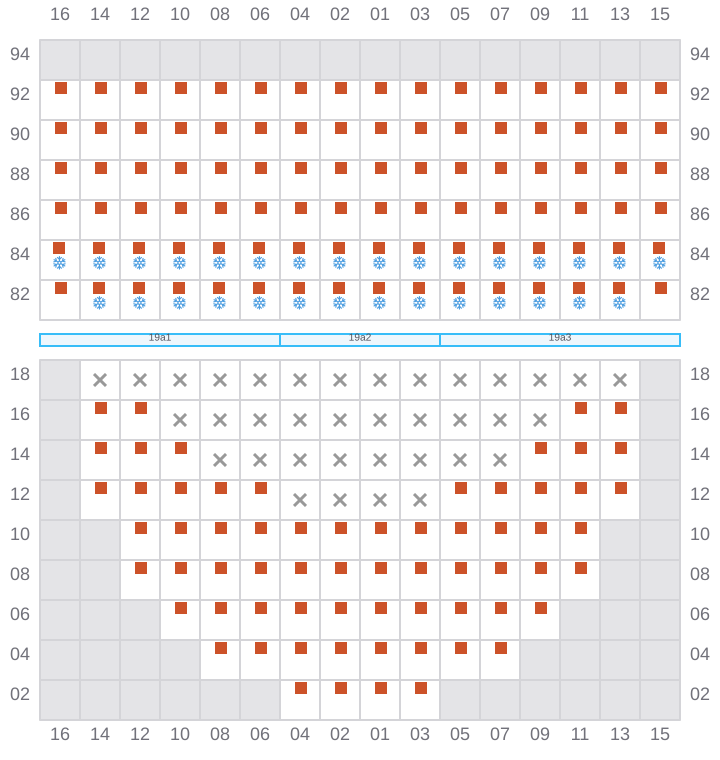

Bay 019 view and slots of APL CALIFORNIA

021

  • ←
  • → / ?
Bay 021 view and slots of APL CALIFORNIA

023 (024)

  • →

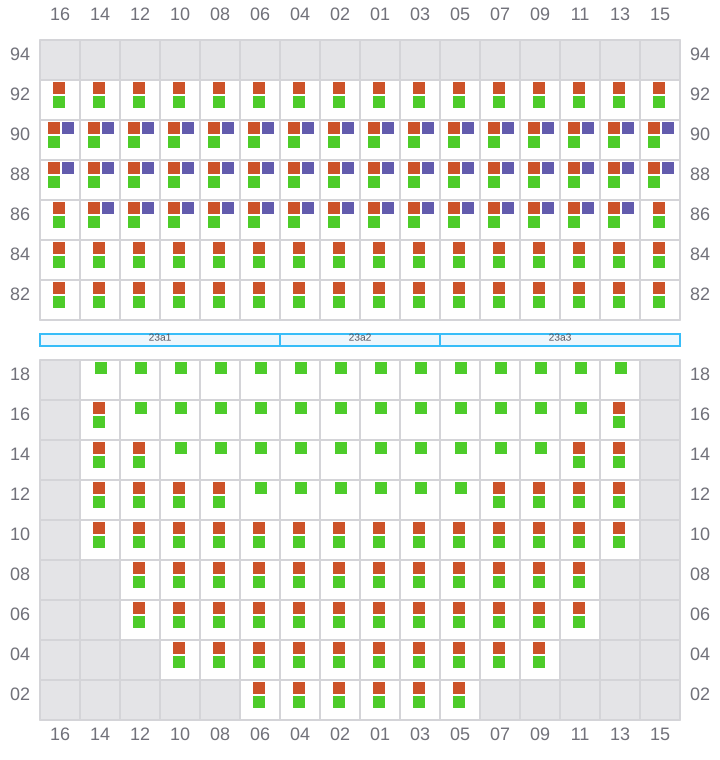

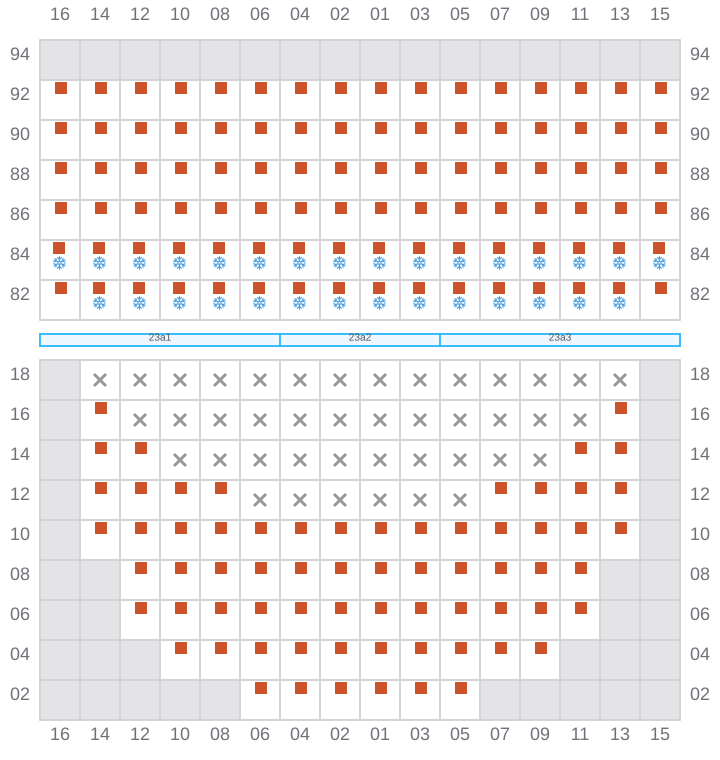

Bay 023 view and slots of APL CALIFORNIA

025

  • ←
  • → / ?
Bay 025 view and slots of APL CALIFORNIA

027 (028)

  • →

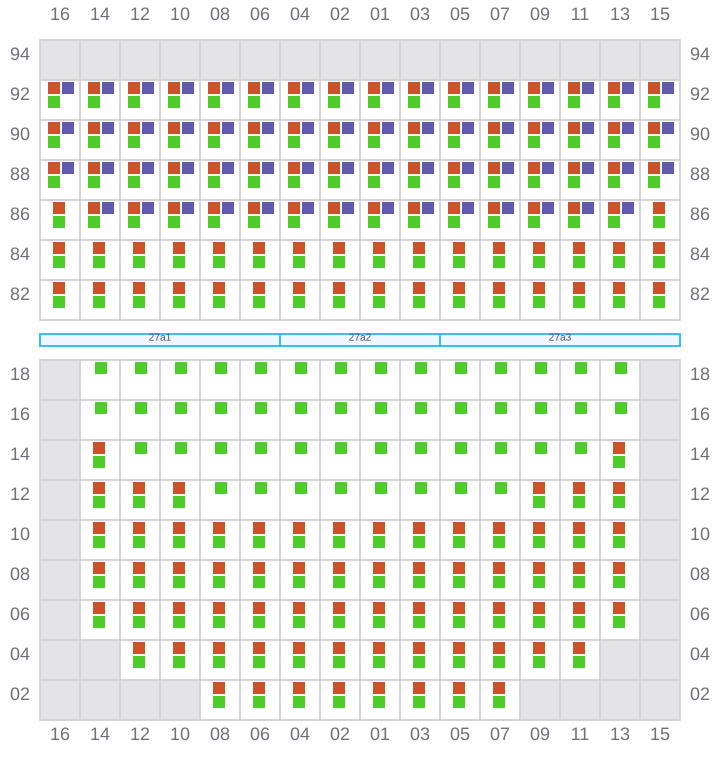

Bay 027 view and slots of APL CALIFORNIA

029

  • ←
  • → / ?

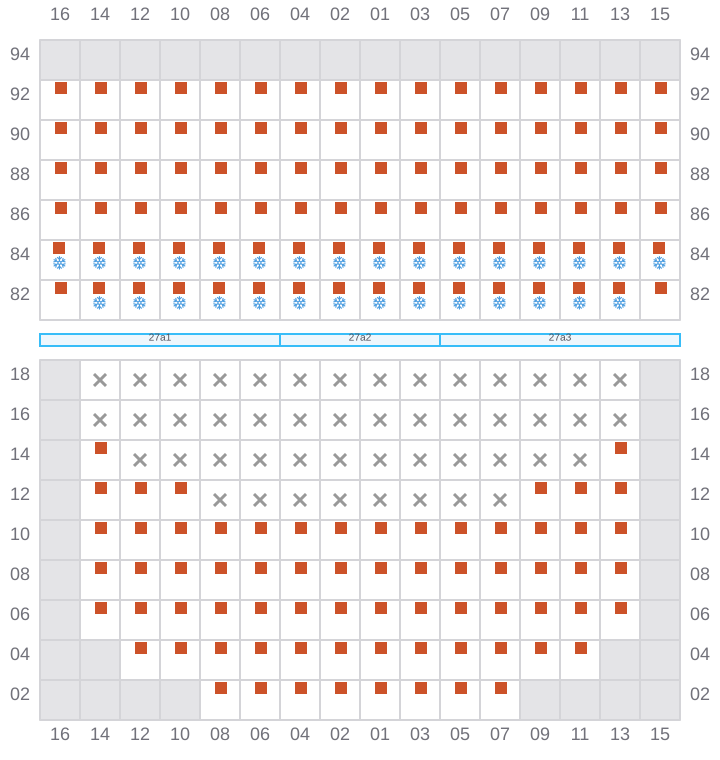

Bay 029 view and slots of APL CALIFORNIA

031 (032)

  • →

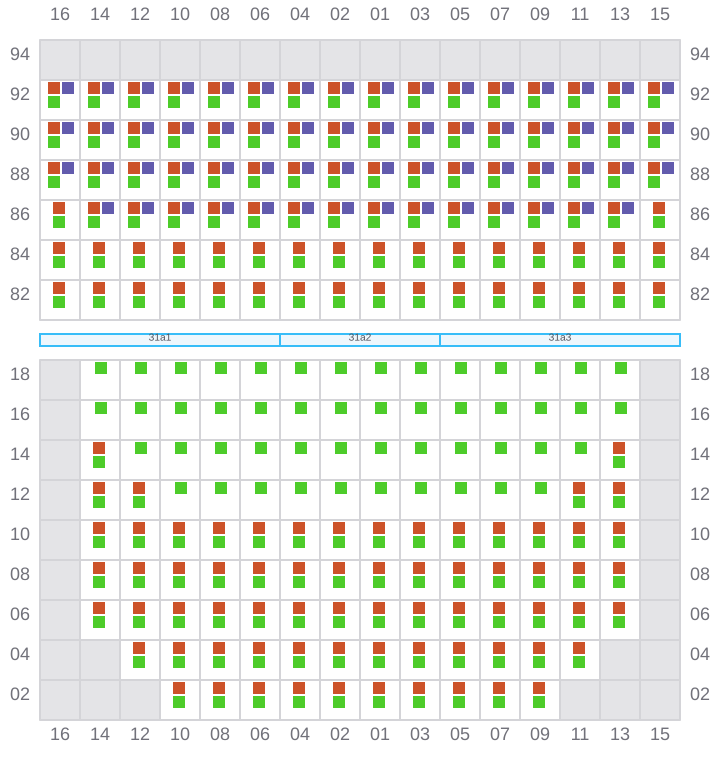

Bay 031 view and slots of APL CALIFORNIA

033

  • ←
  • → / ?
Bay 033 view and slots of APL CALIFORNIA

035 (036)

  • →

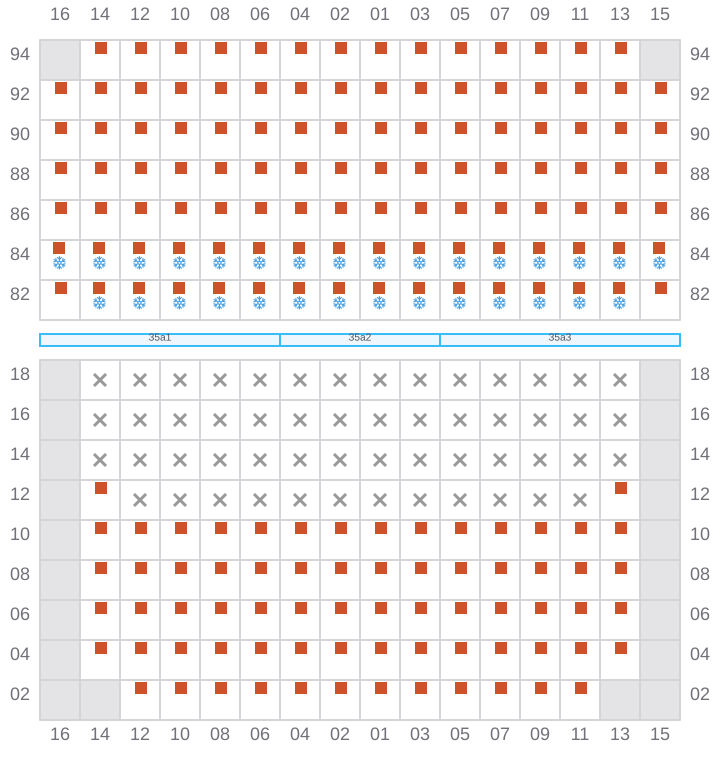

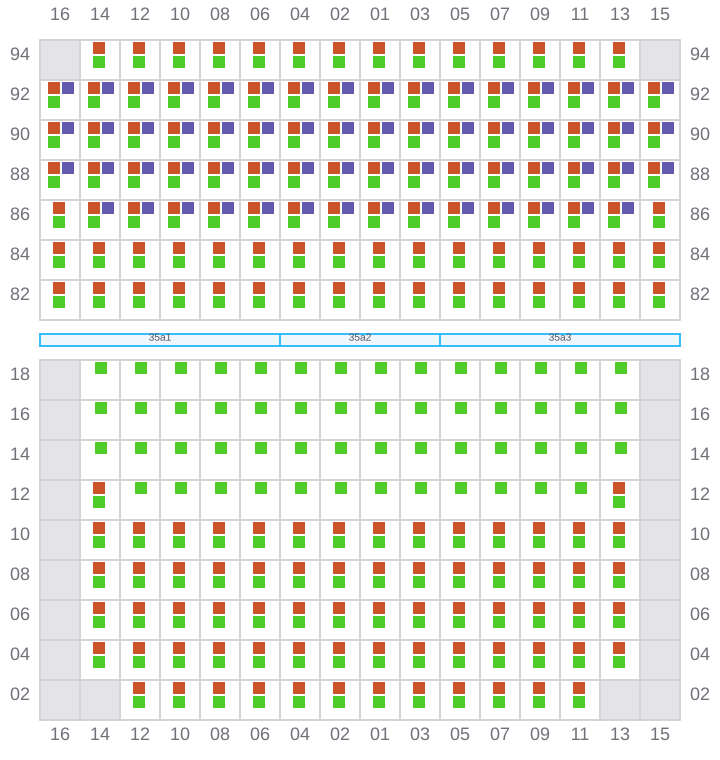

Bay 035 view and slots of APL CALIFORNIA

037

  • ←
  • → / ?
Bay 037 view and slots of APL CALIFORNIA

039 (040)

  • →
Bay 039 view and slots of APL CALIFORNIA

041

  • ←
  • → / ?
Bay 041 view and slots of APL CALIFORNIA

043 (044)

  • →

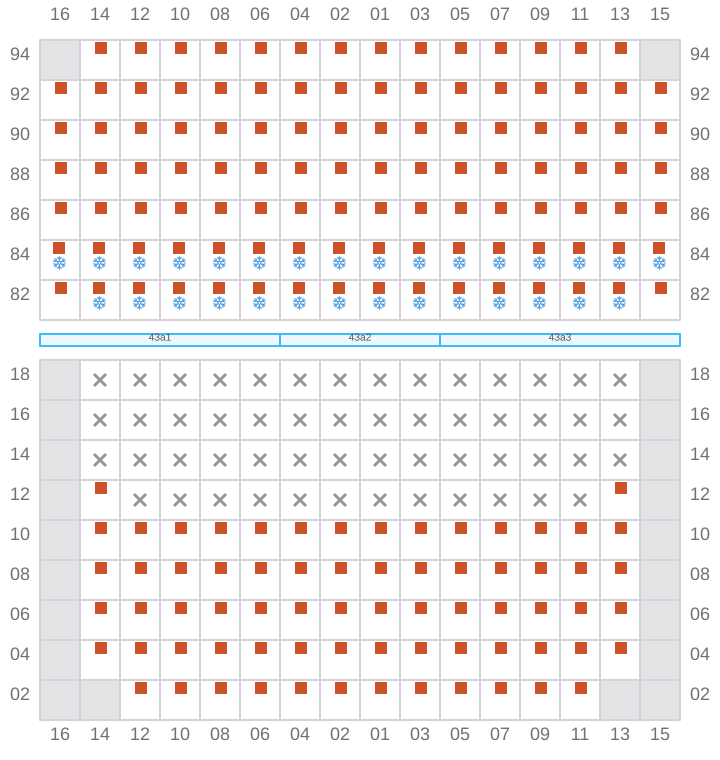

Bay 043 view and slots of APL CALIFORNIA

045

  • ←
  • → / ?
Bay 045 view and slots of APL CALIFORNIA

047 (048)

  • →

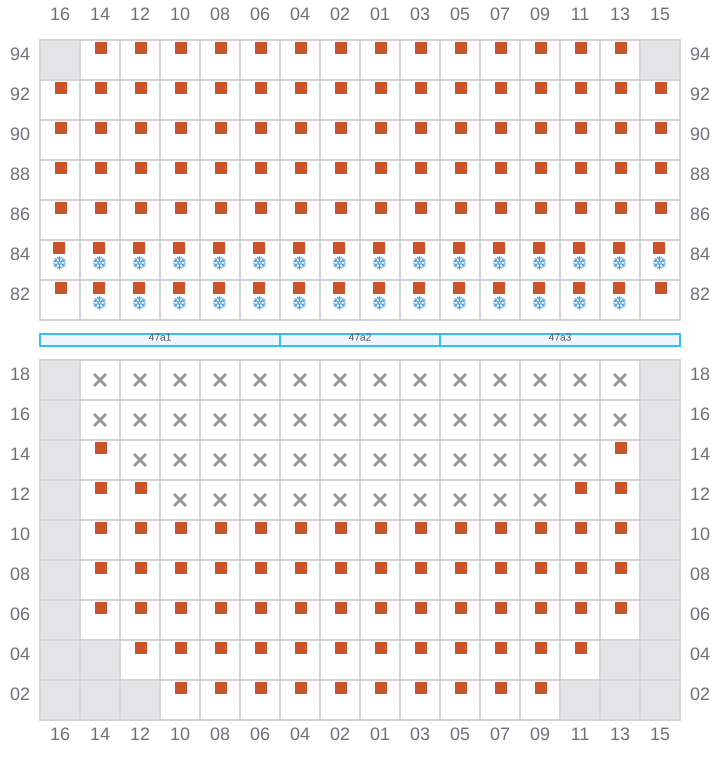

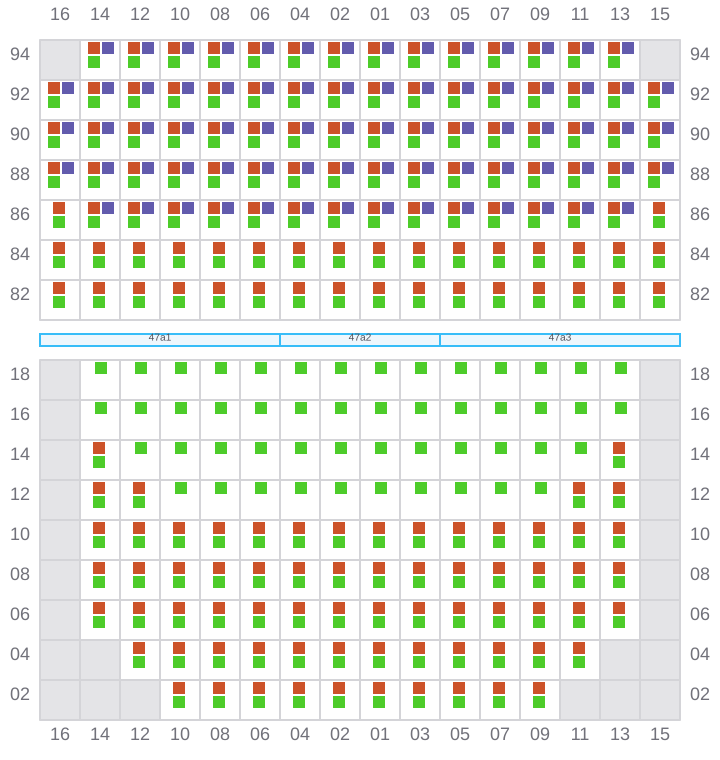

Bay 047 view and slots of APL CALIFORNIA

049

  • ←
  • → / ?
Bay 049 view and slots of APL CALIFORNIA

051 (052)

  • →

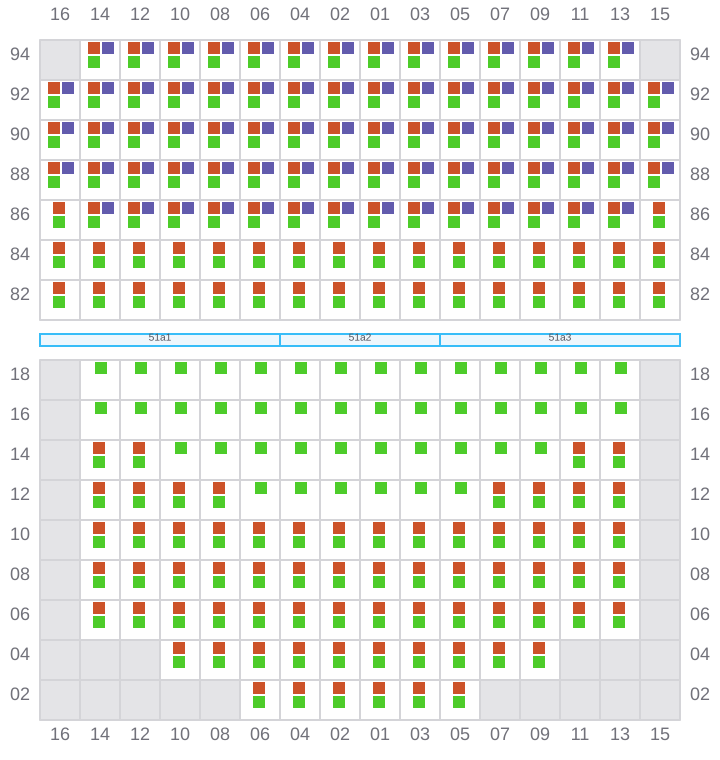

Bay 051 view and slots of APL CALIFORNIA

053

  • ←
  • → / ?
Bay 053 view and slots of APL CALIFORNIA

055 (056)

  • →

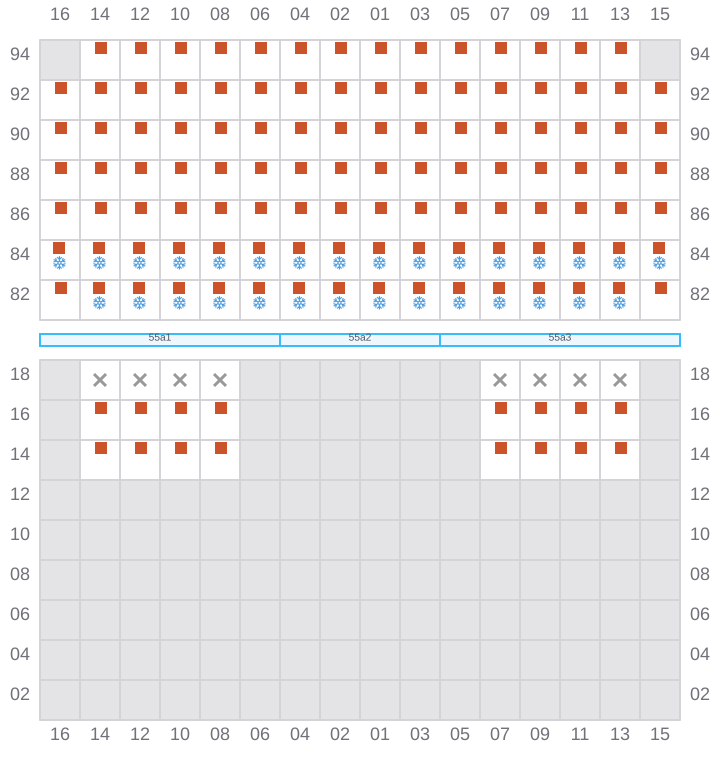

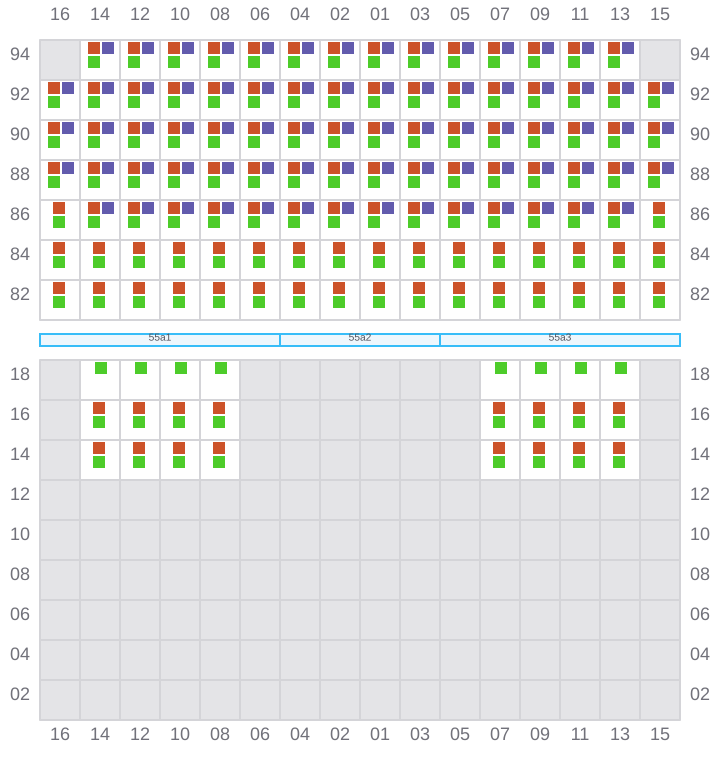

Bay 055 view and slots of APL CALIFORNIA

057

  • ←
  • → / ?

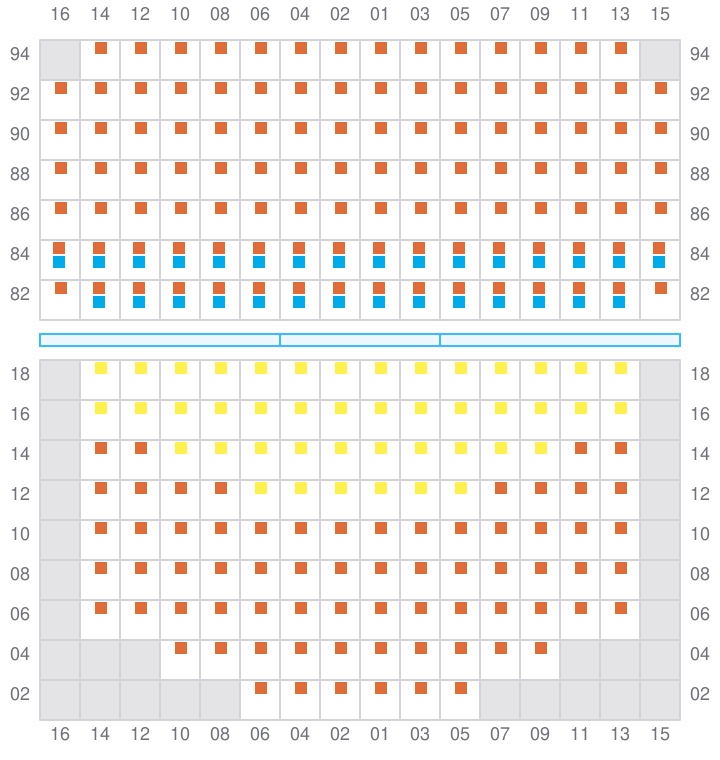

Bay 057 view and slots of APL CALIFORNIA

059 (060)

  • →

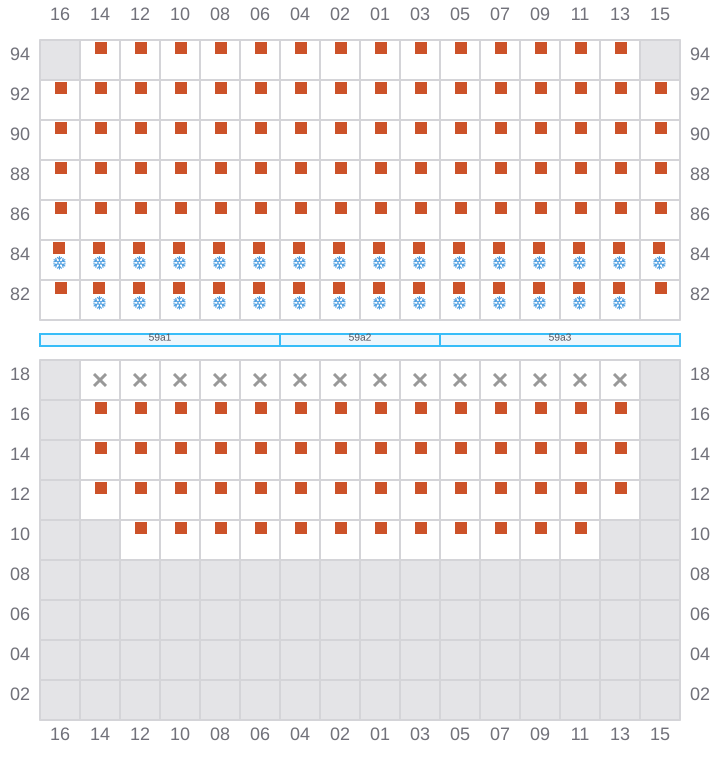

Bay 059 view and slots of APL CALIFORNIA

061

  • ←
  • → / ?
Bay 061 view and slots of APL CALIFORNIA

063 (064)

  • →

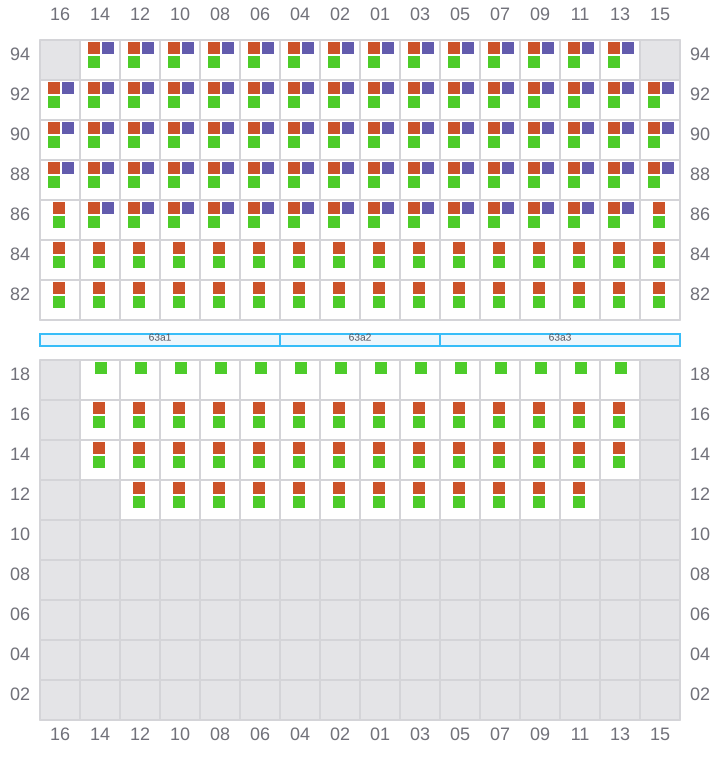

Bay 063 view and slots of APL CALIFORNIA

065

  • ←
  • → / ?

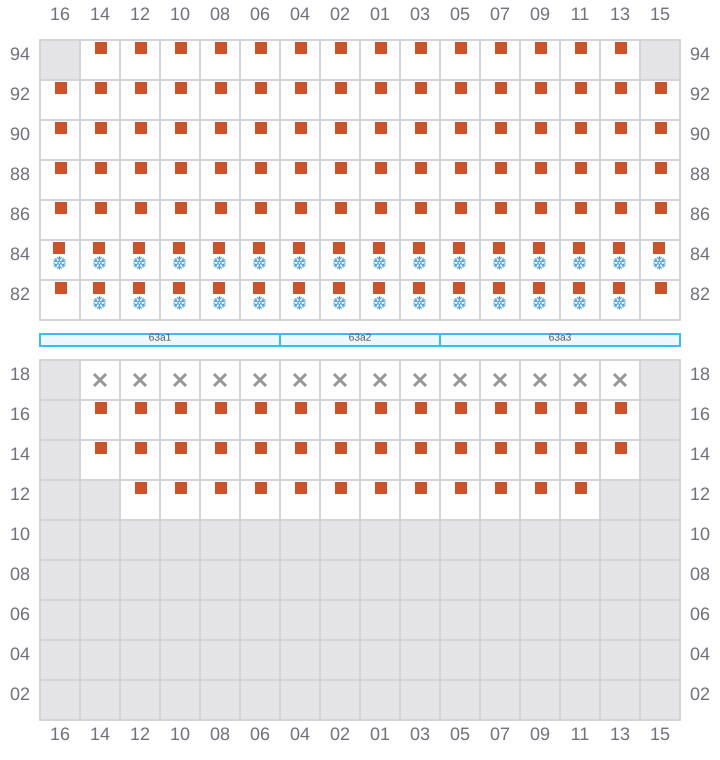

Bay 065 view and slots of APL CALIFORNIA

067 (068)

  • → / ?
  • ← / ?

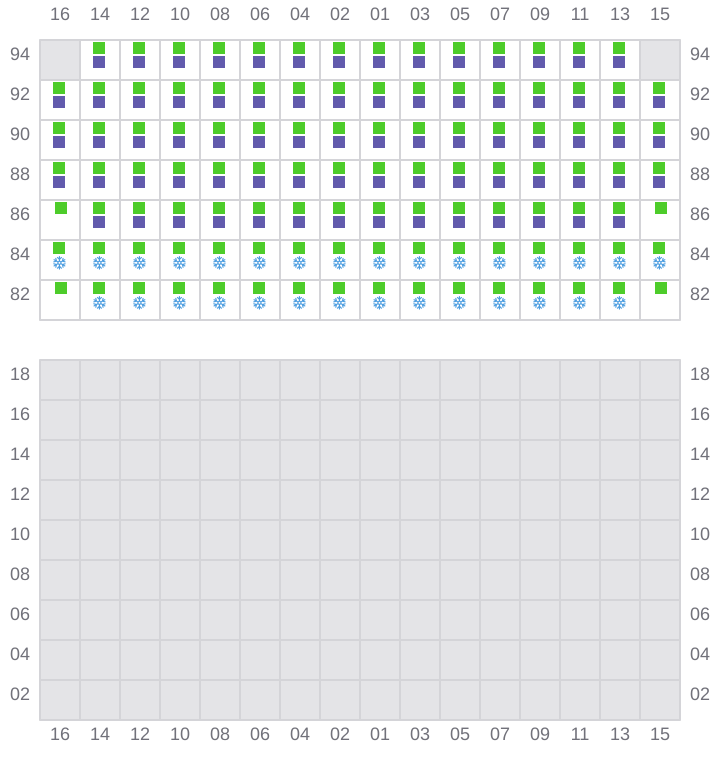

Bay 067 view and slots of APL CALIFORNIA
