APL CHARLESTON
9597551 | 9V9923 | APL by *********************** Last update: Tue Feb 04 2025

General Info

Ship Name:APL CHARLESTON
IMO Code:9597551
Call Sign:9V9923
Line Operator:APL
Class Name for Sister Ships:ACHS
Year Built:2013
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:073
Max ISO Row:18
Center Line Row:No
Max Above ISO Tier:98
Min Above ISO Tier:80
Max Below ISO Tier:20
Min Below ISO Tier:02
Total TEU:9,326

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

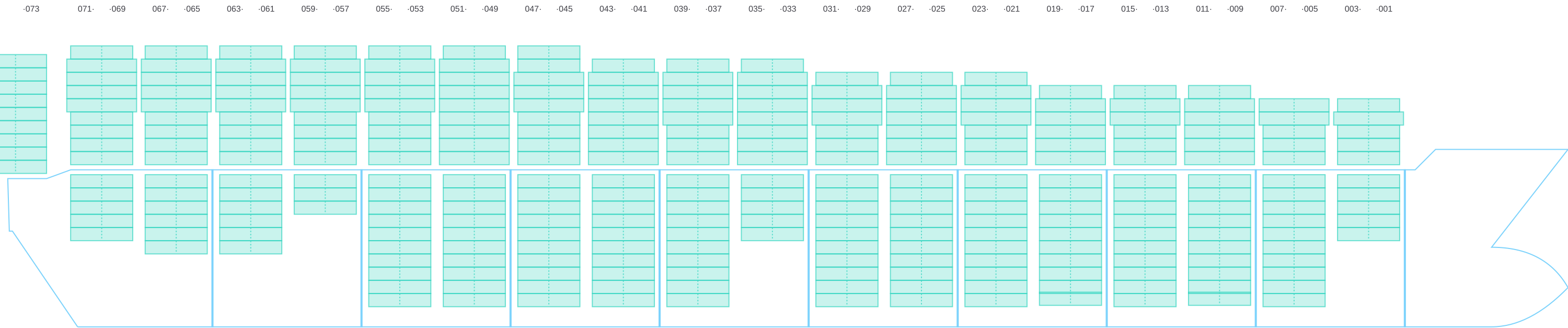

Side view of APL CHARLESTON

Hatch-Covers View

Deck view of APL CHARLESTON

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

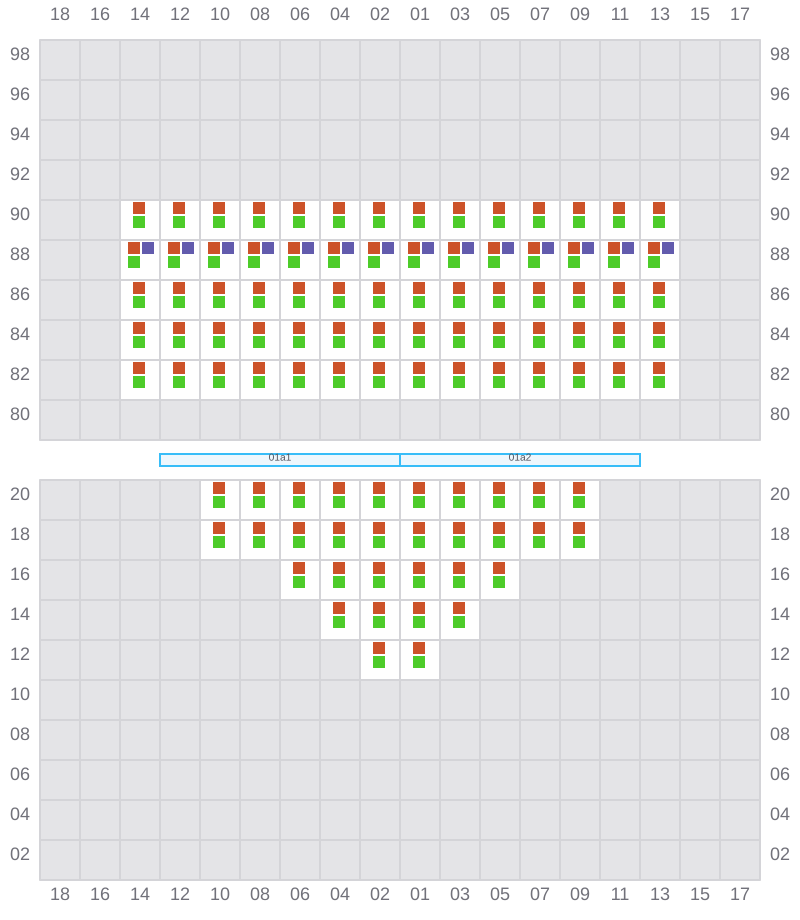

Bay 001 view and slots of APL CHARLESTON

003

  • / ?

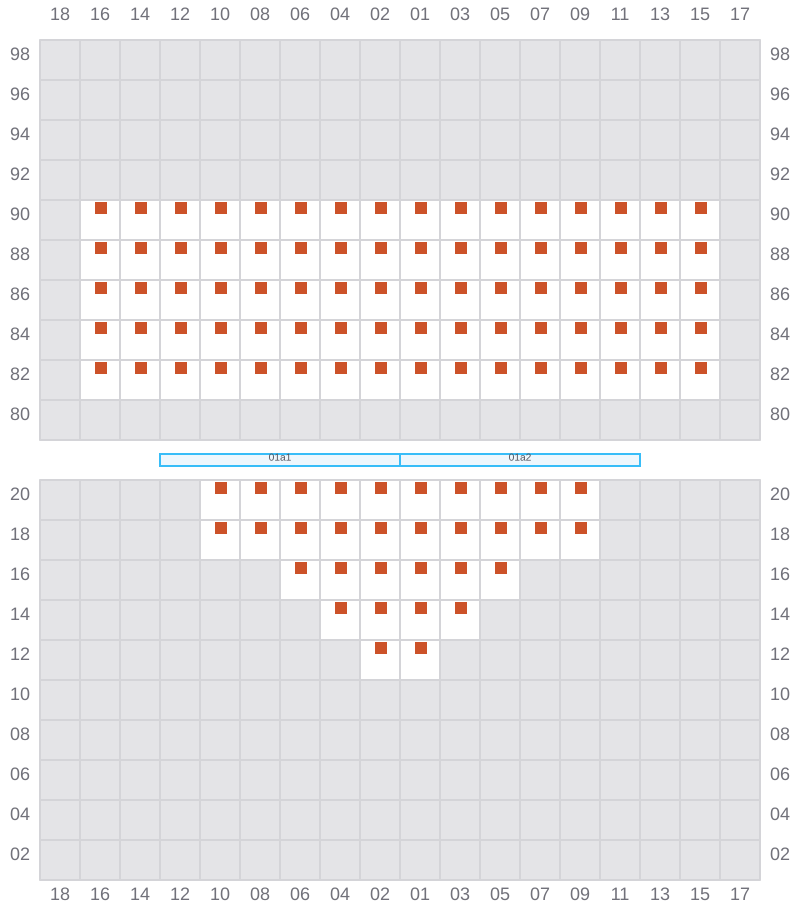

Bay 003 view and slots of APL CHARLESTON

005 (006)

  • / ?

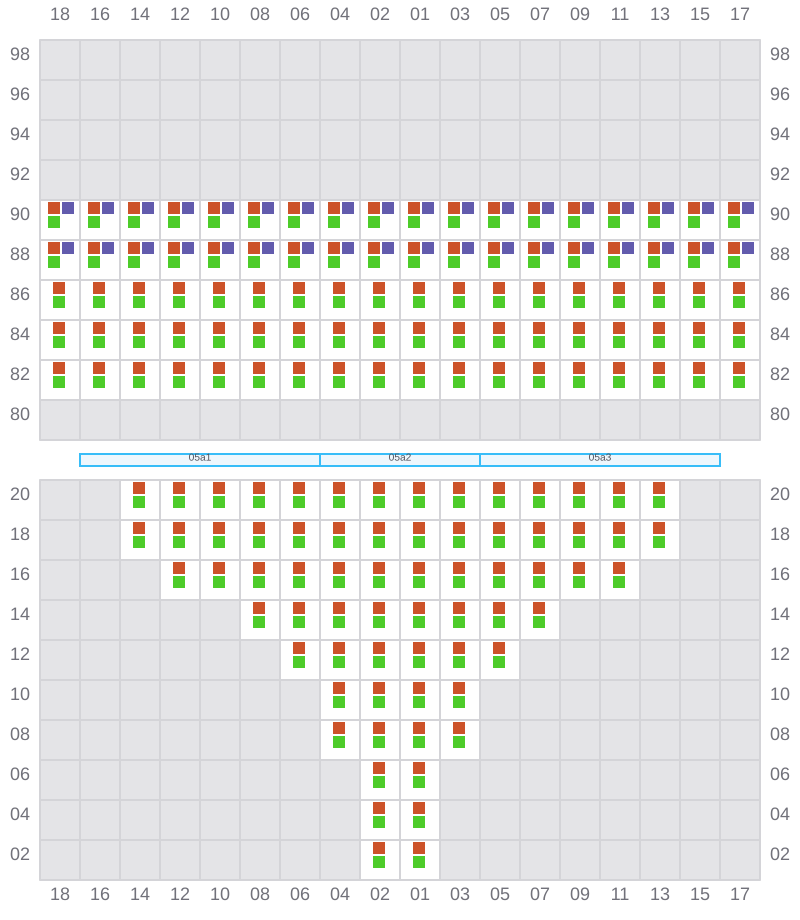

Bay 005 view and slots of APL CHARLESTON

007

  • / ?

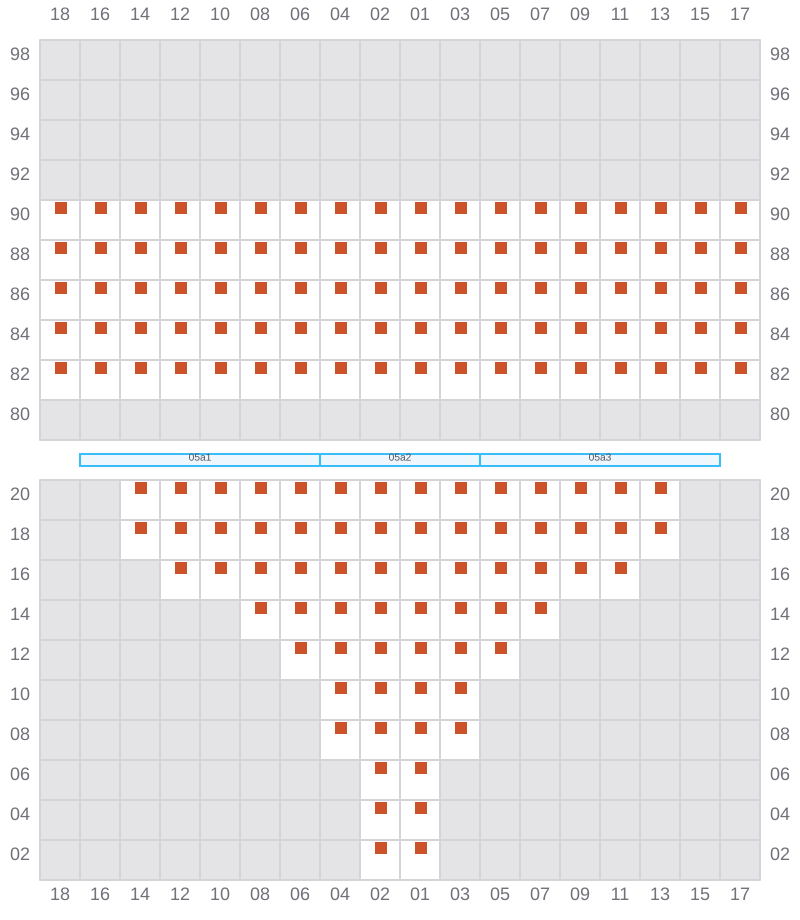

Bay 007 view and slots of APL CHARLESTON

009 (010)

  • / ?

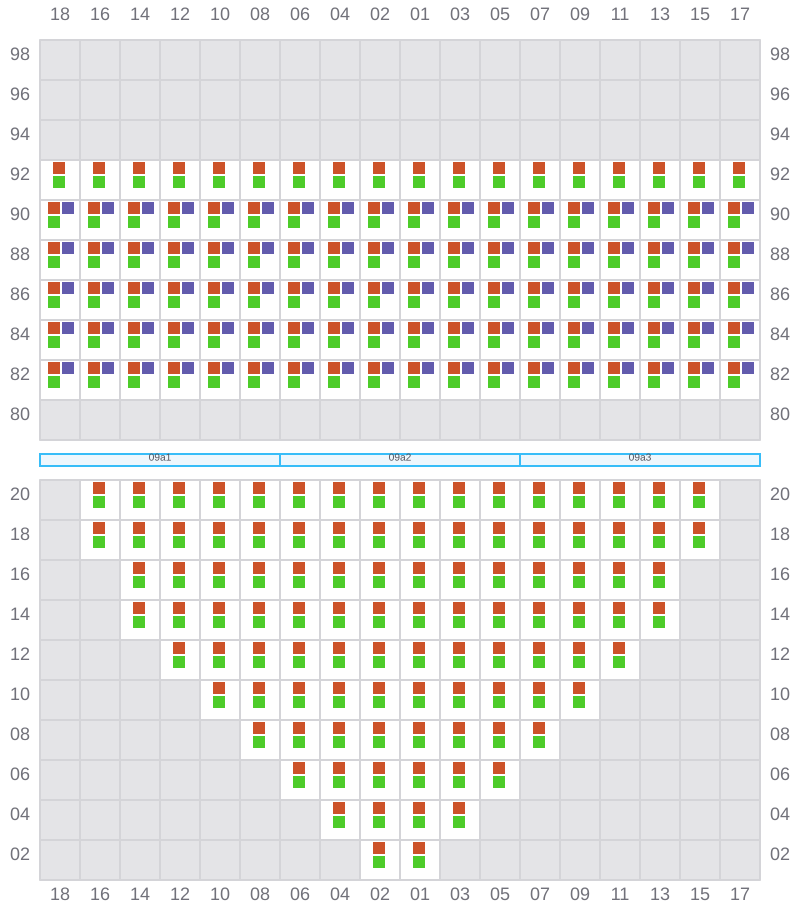

Bay 009 view and slots of APL CHARLESTON

011

  • / ?
Bay 011 view and slots of APL CHARLESTON

013 (014)

  • / ?
Bay 013 view and slots of APL CHARLESTON

015

  • / ?
Bay 015 view and slots of APL CHARLESTON

017 (018)

  • / ?

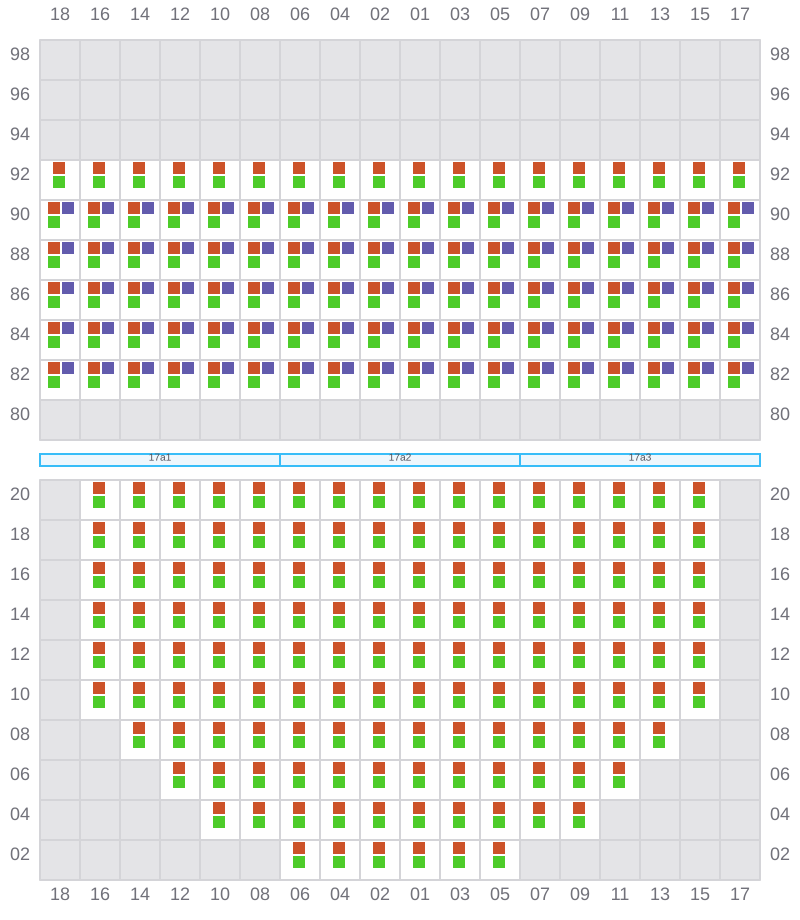

Bay 017 view and slots of APL CHARLESTON

019

  • / ?

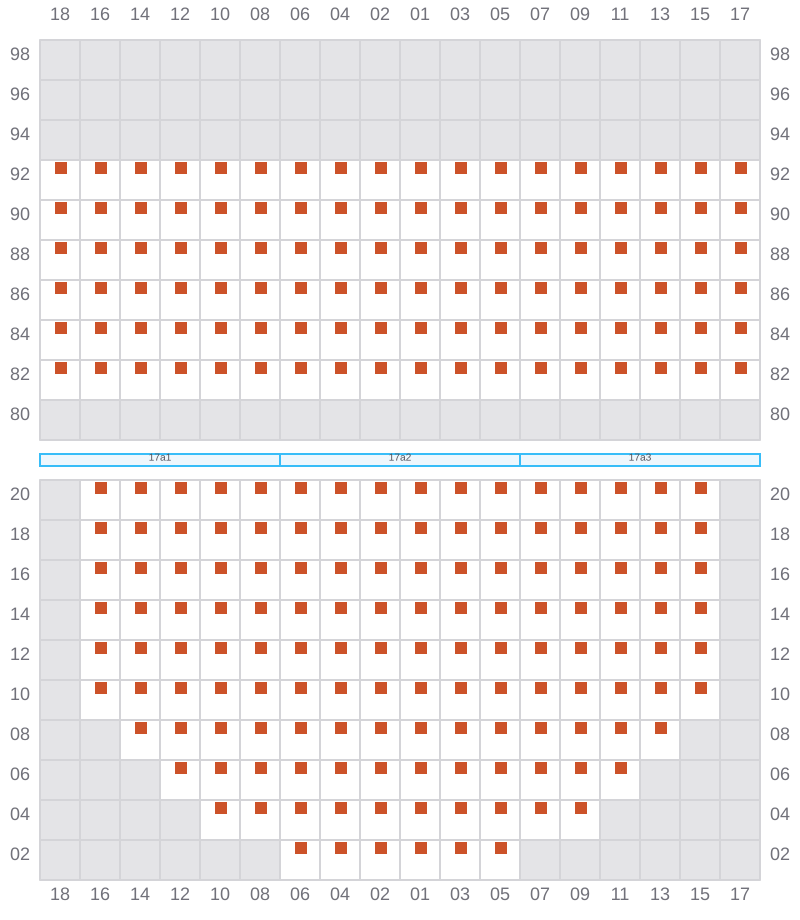

Bay 019 view and slots of APL CHARLESTON

021 (022)

  • / ?

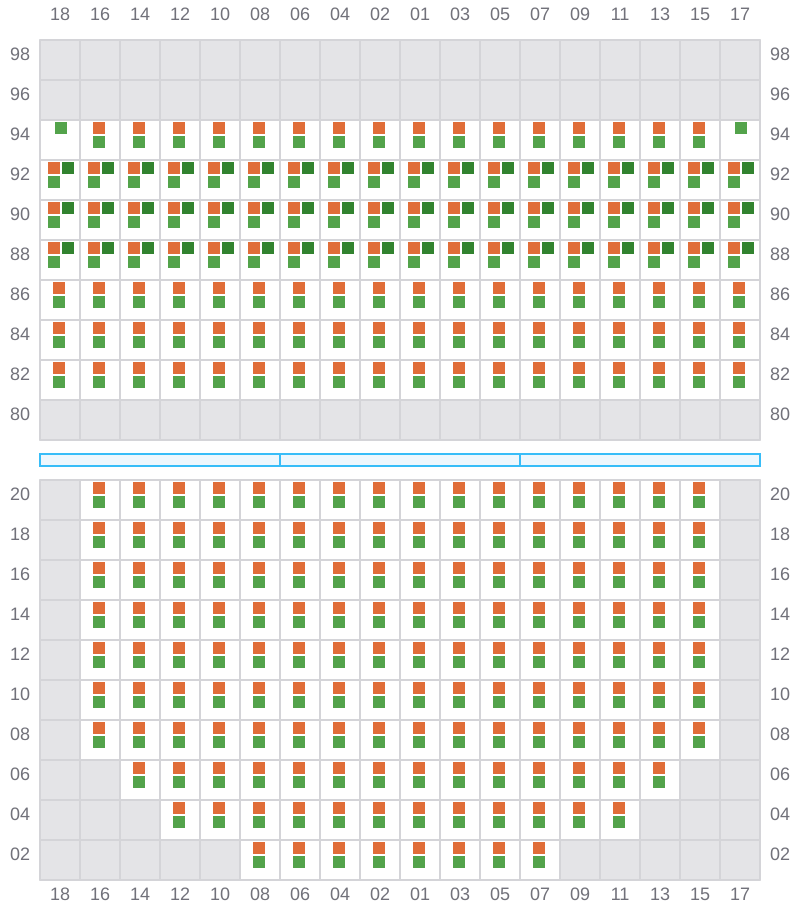

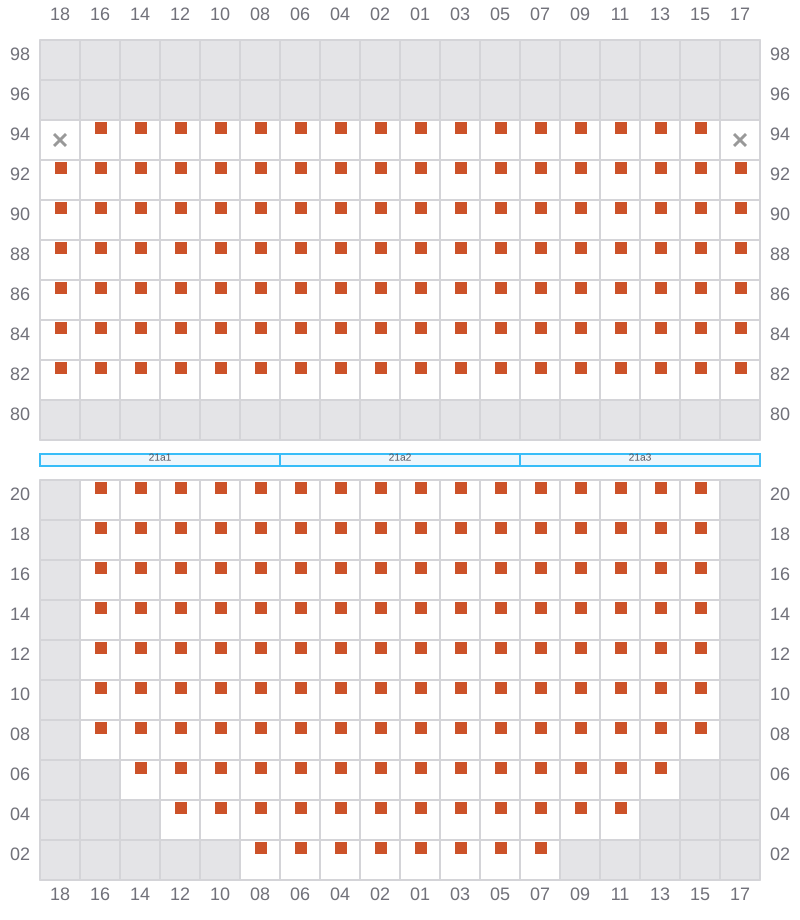

Bay 021 view and slots of APL CHARLESTON

023

  • / ?
Bay 023 view and slots of APL CHARLESTON

025 (026)

  • / ?

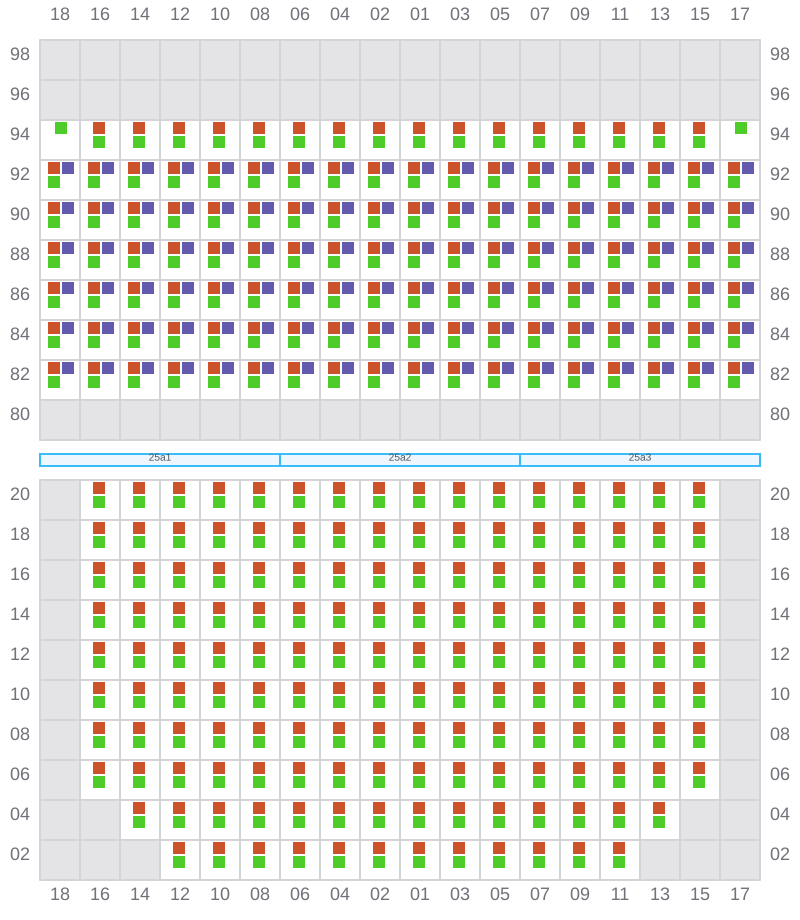

Bay 025 view and slots of APL CHARLESTON

027

  • / ?

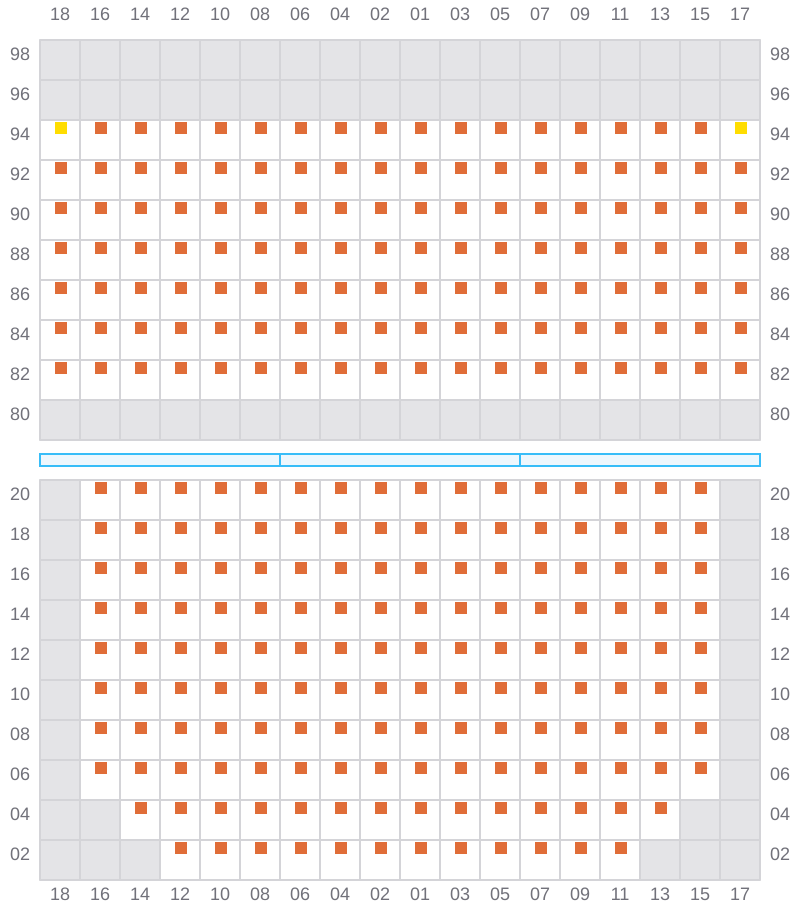

Bay 027 view and slots of APL CHARLESTON

029 (030)

  • / ?

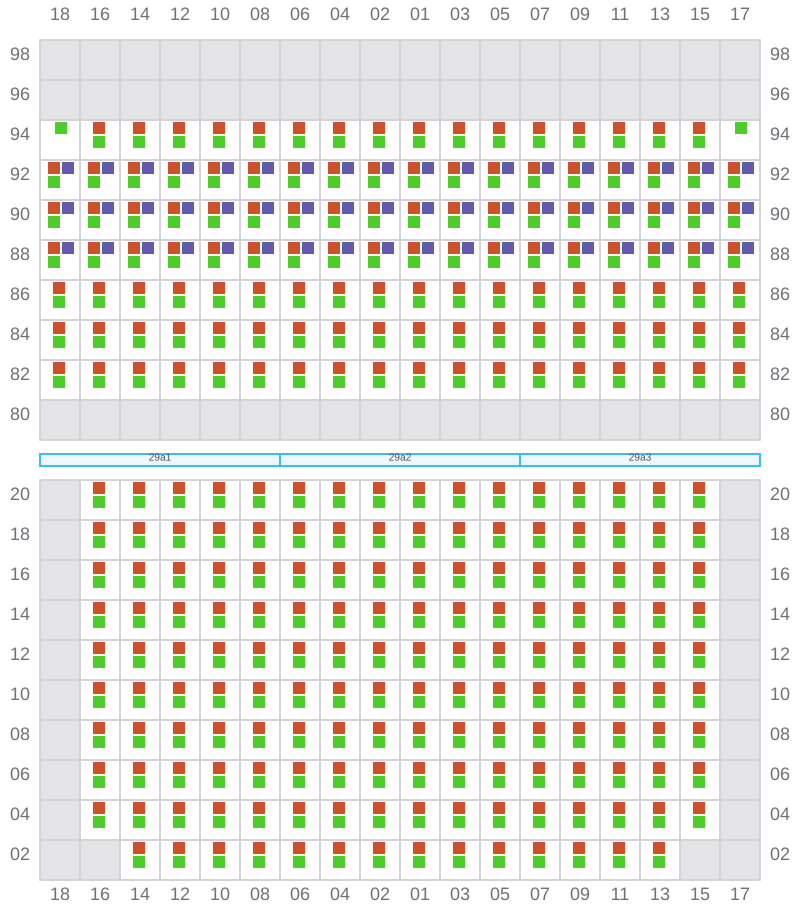

Bay 029 view and slots of APL CHARLESTON

031

  • / ?

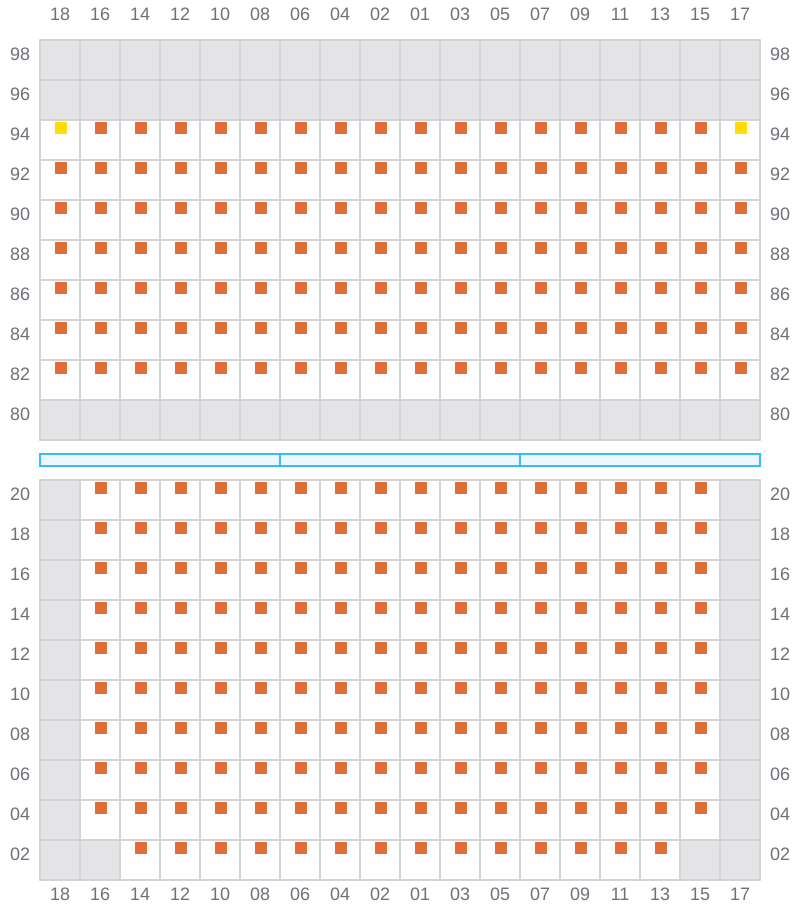

Bay 031 view and slots of APL CHARLESTON

033 (034)

  • / ?

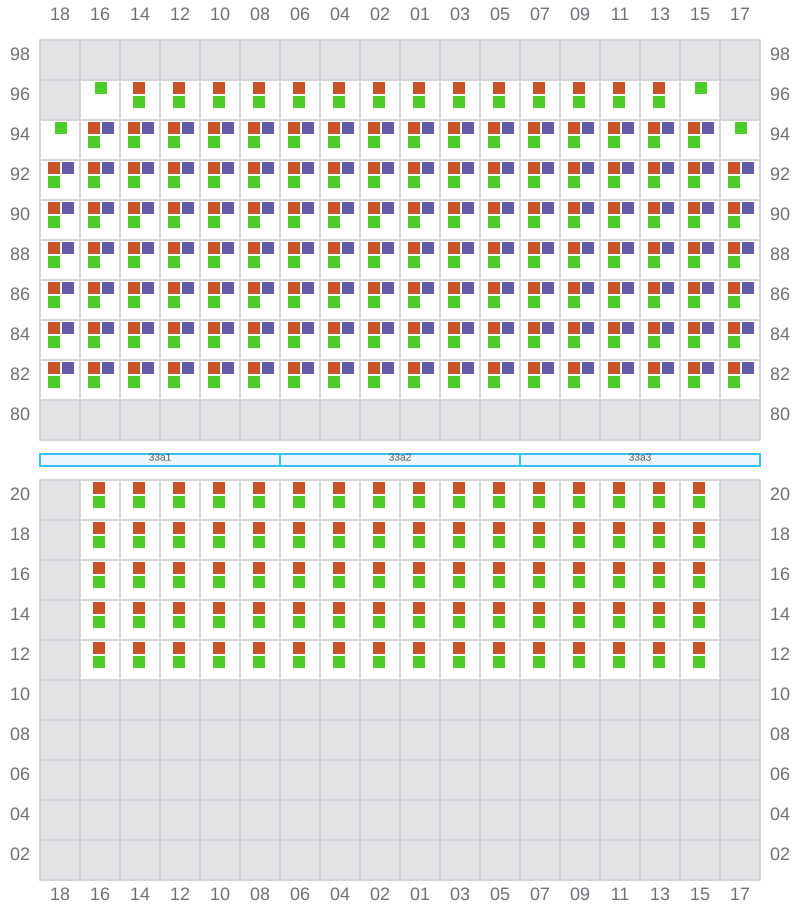

Bay 033 view and slots of APL CHARLESTON

035

  • / ?

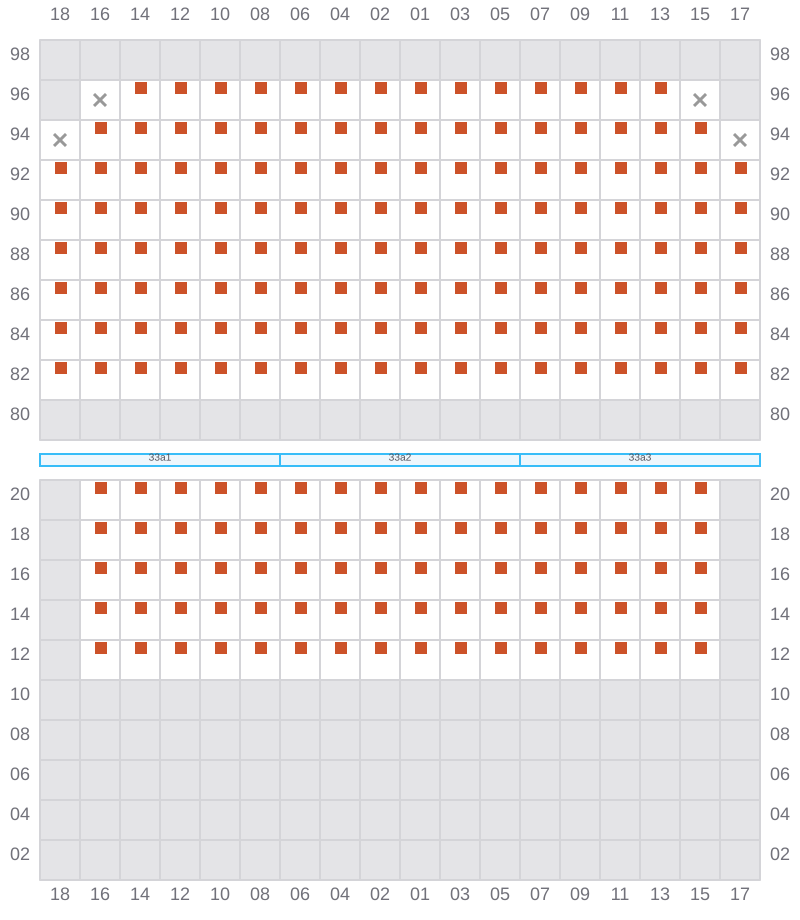

Bay 035 view and slots of APL CHARLESTON

037 (038)

  • / ?

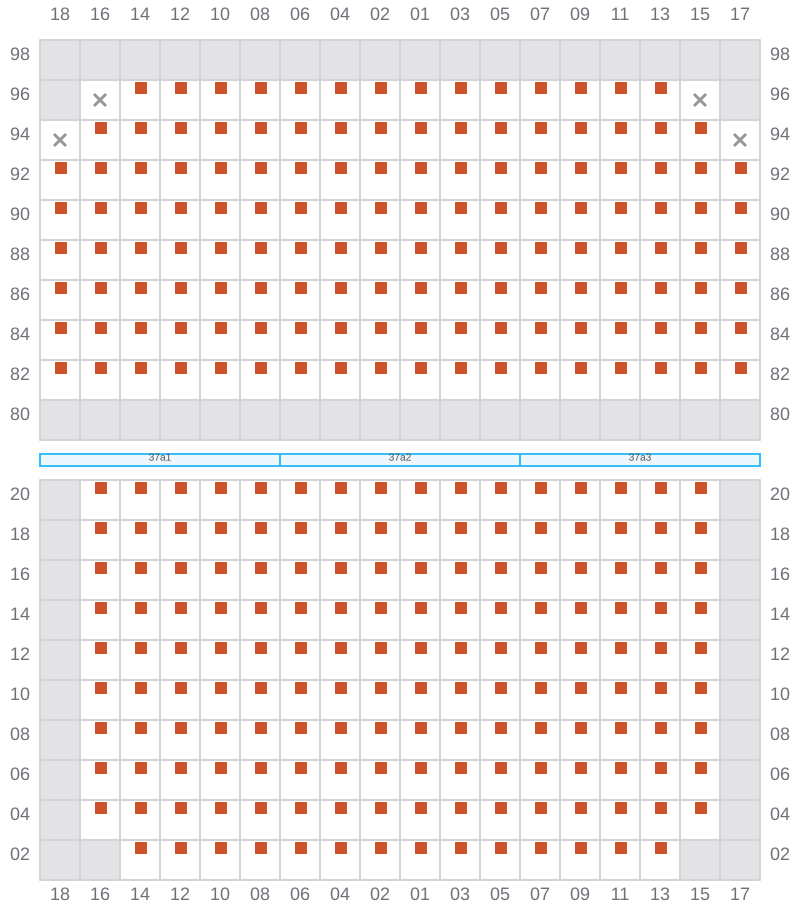

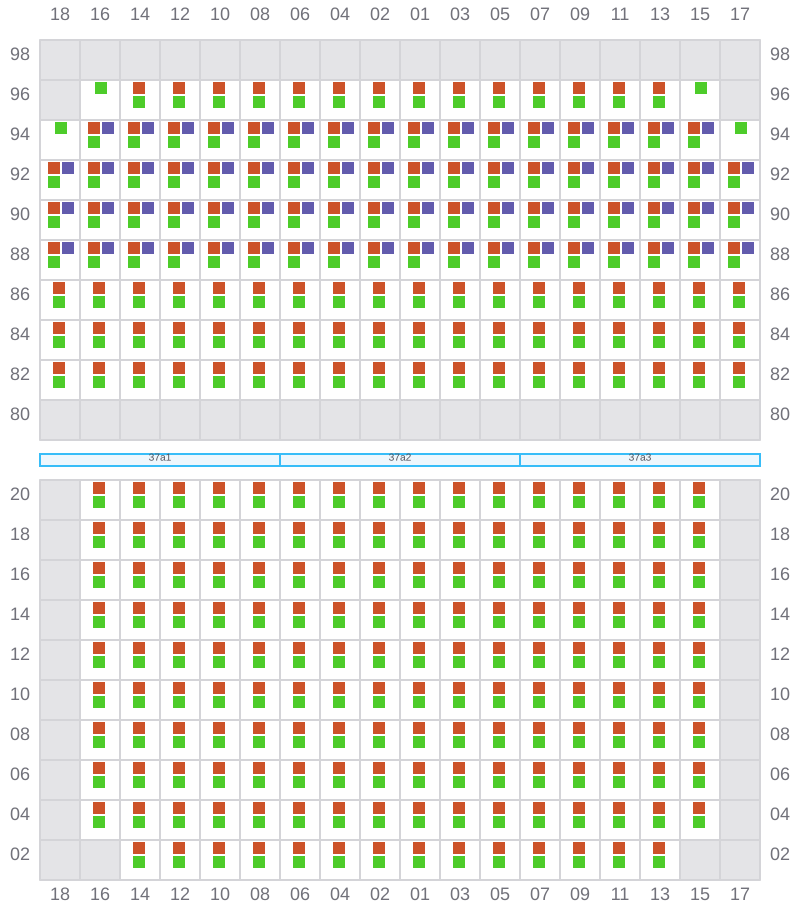

Bay 037 view and slots of APL CHARLESTON

039

  • / ?
Bay 039 view and slots of APL CHARLESTON

041 (042)

  • / ?

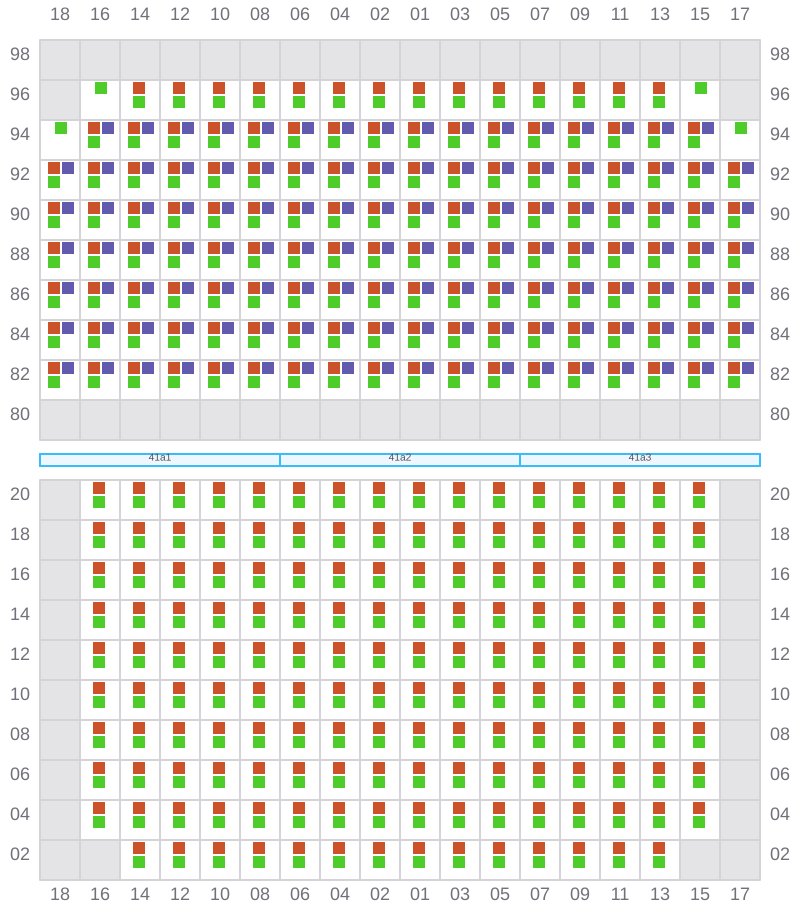

Bay 041 view and slots of APL CHARLESTON

043

  • / ?

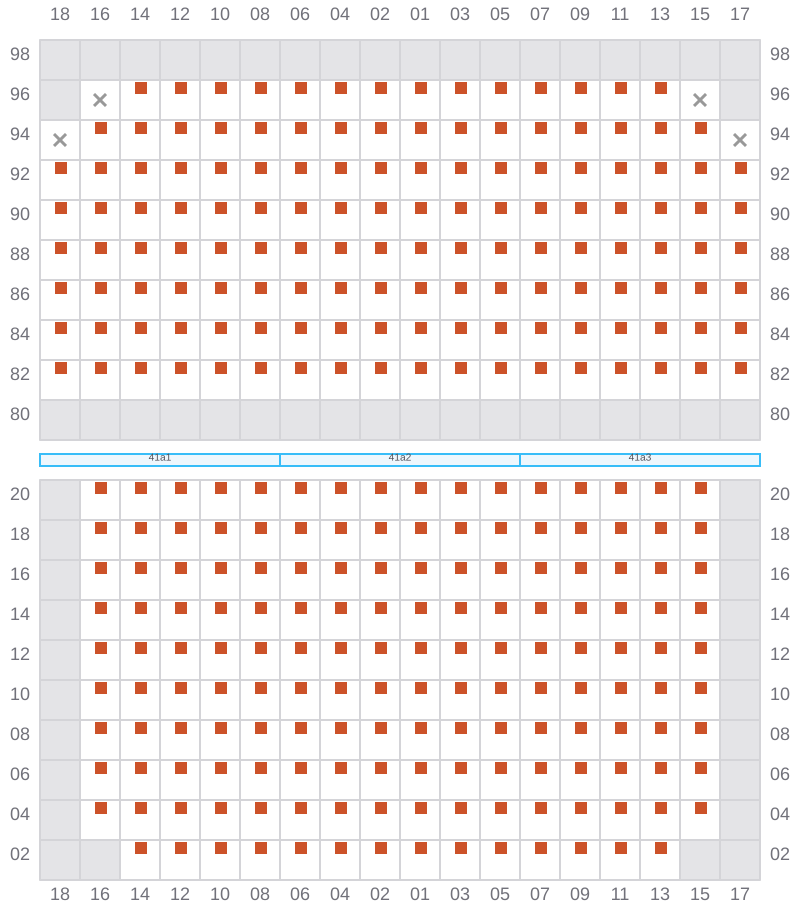

Bay 043 view and slots of APL CHARLESTON

045 (046)

  • / ?

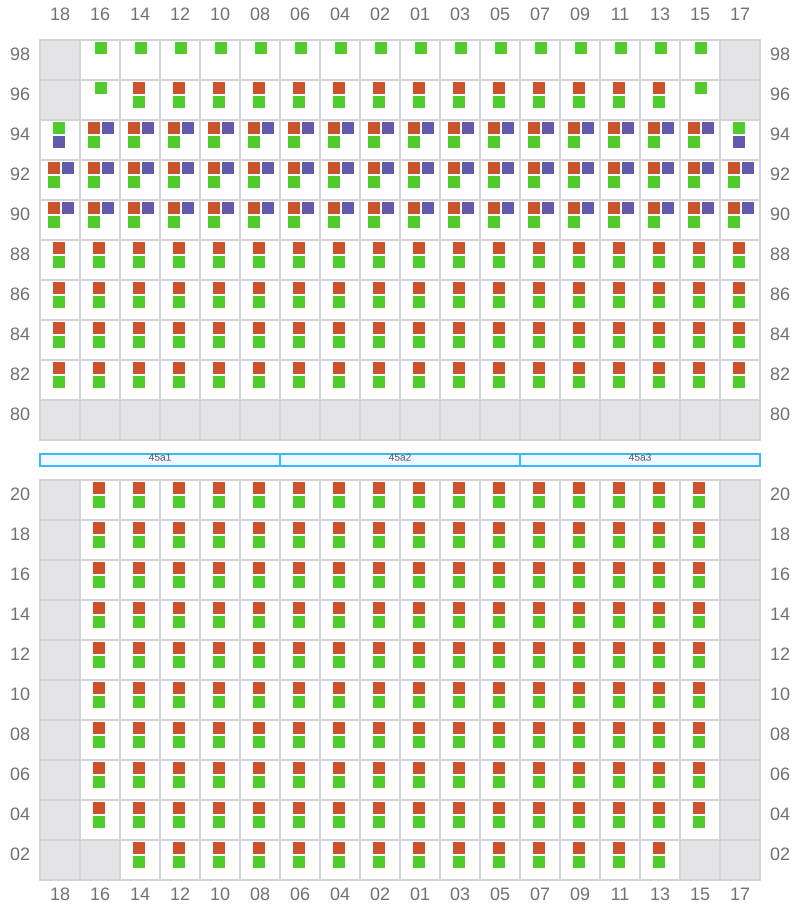

Bay 045 view and slots of APL CHARLESTON

047

  • / ?

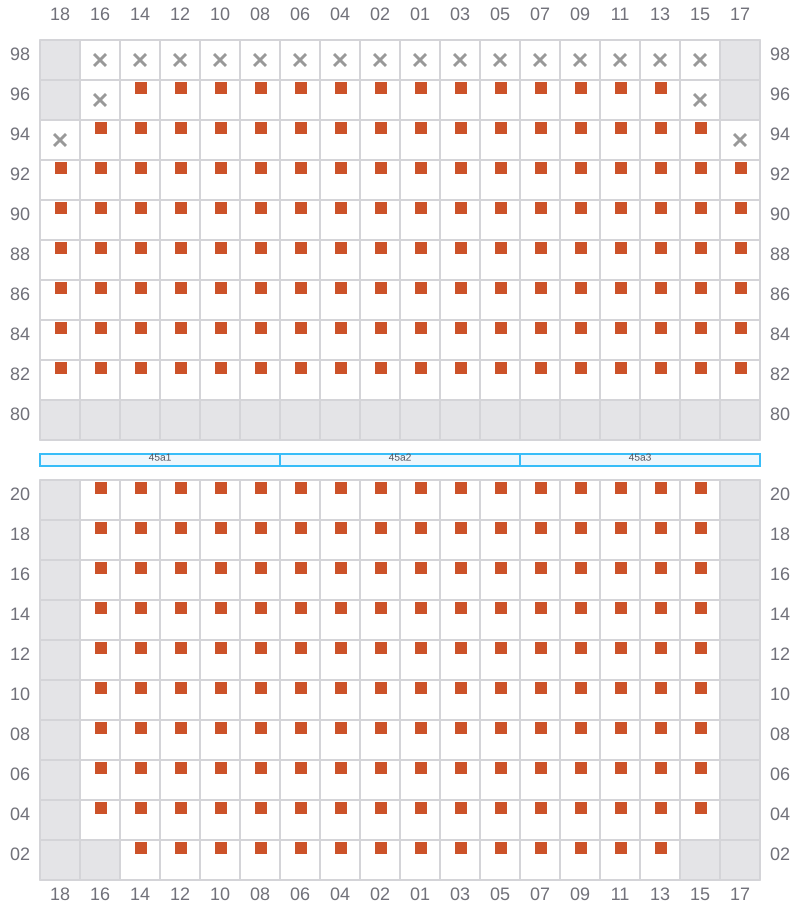

Bay 047 view and slots of APL CHARLESTON

049 (050)

  • / ?

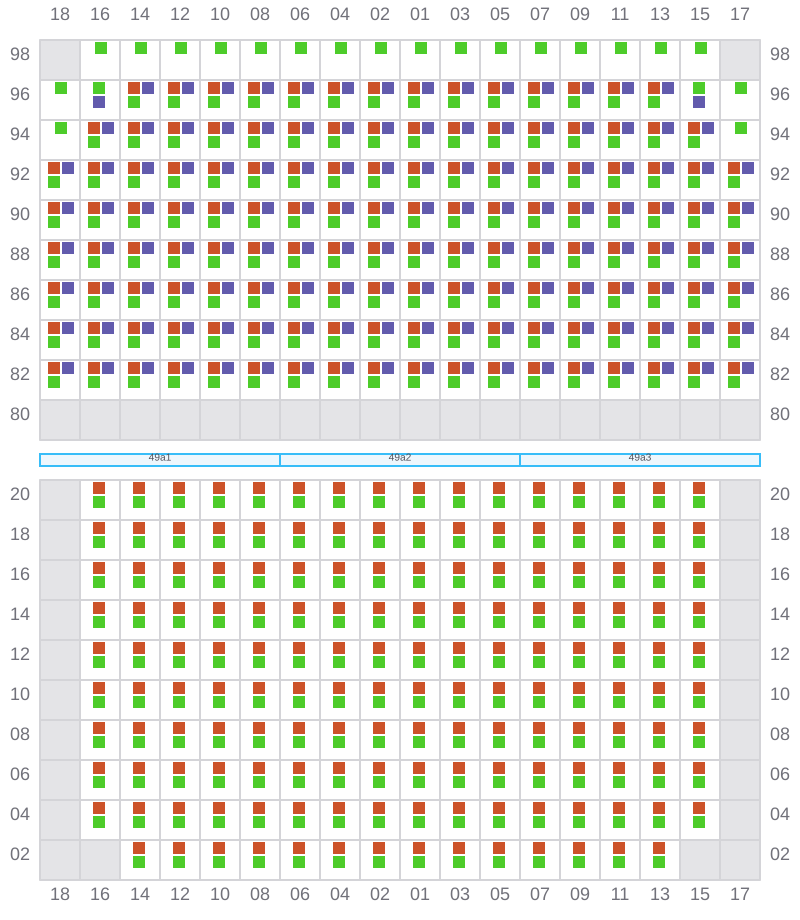

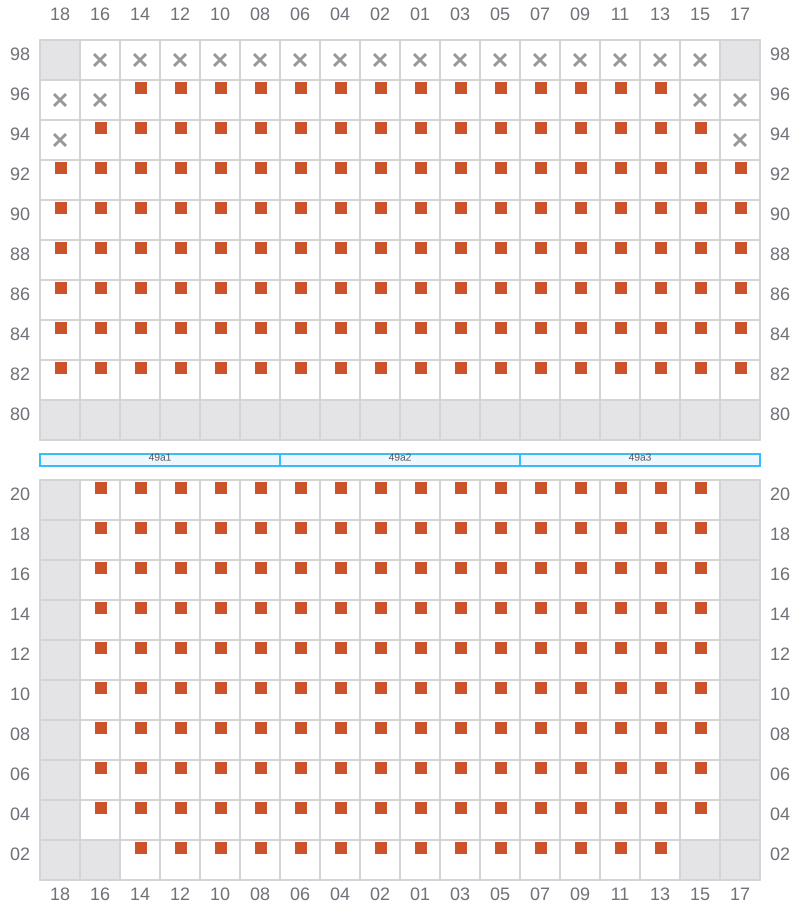

Bay 049 view and slots of APL CHARLESTON

051

  • / ?
Bay 051 view and slots of APL CHARLESTON

053 (054)

  • / ?
Bay 053 view and slots of APL CHARLESTON

055

  • / ?

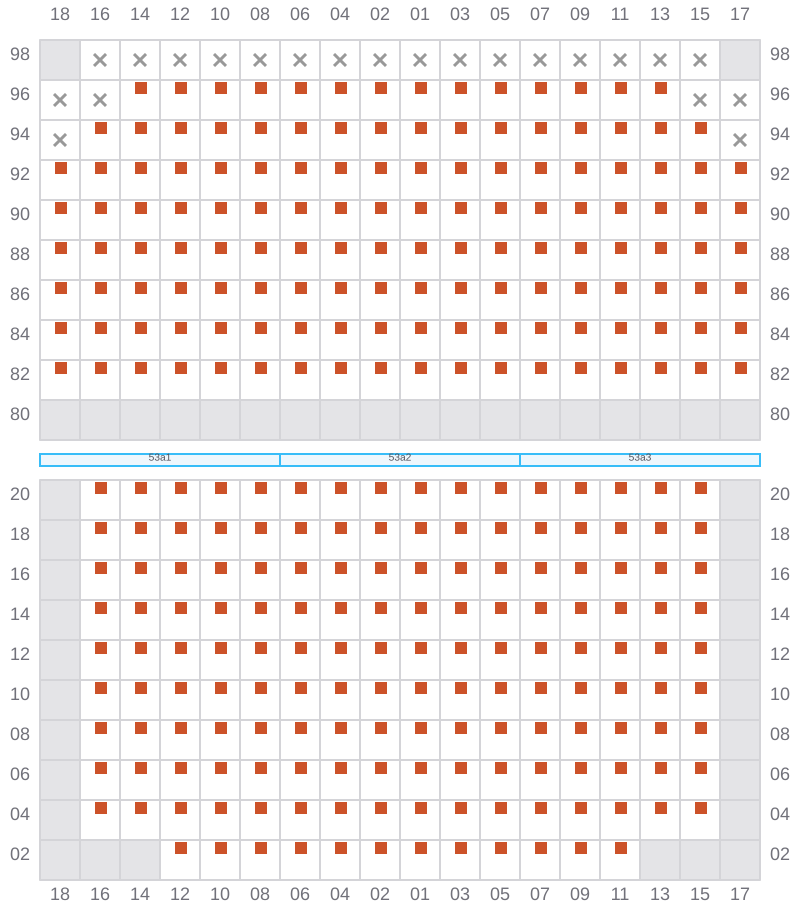

Bay 055 view and slots of APL CHARLESTON

057 (058)

  • / ?
Bay 057 view and slots of APL CHARLESTON

059

  • / ?

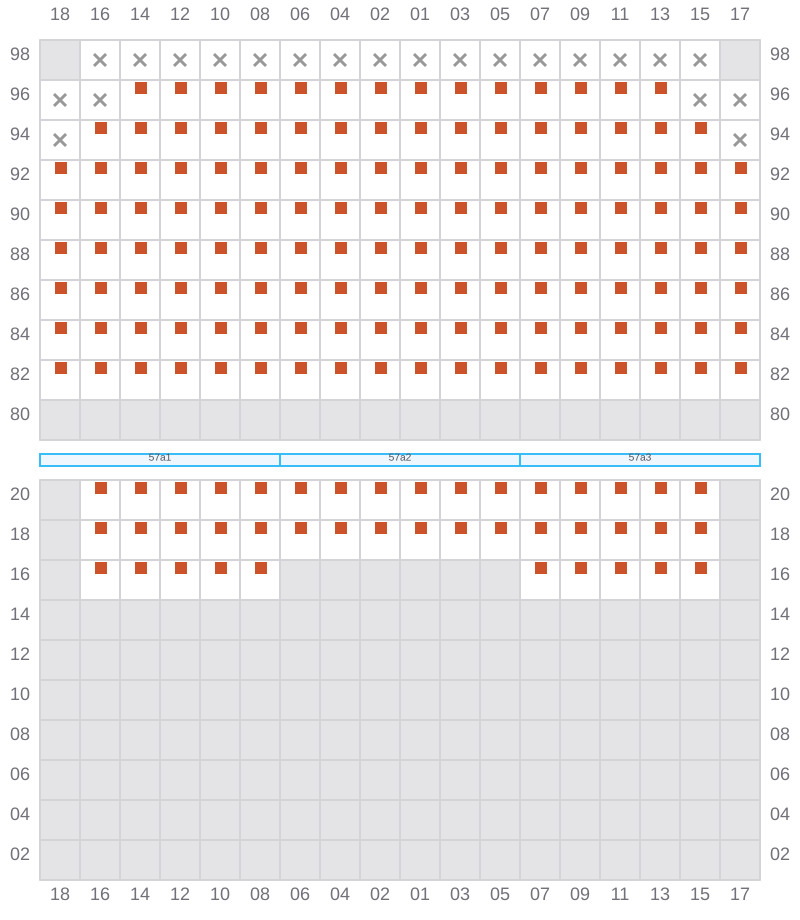

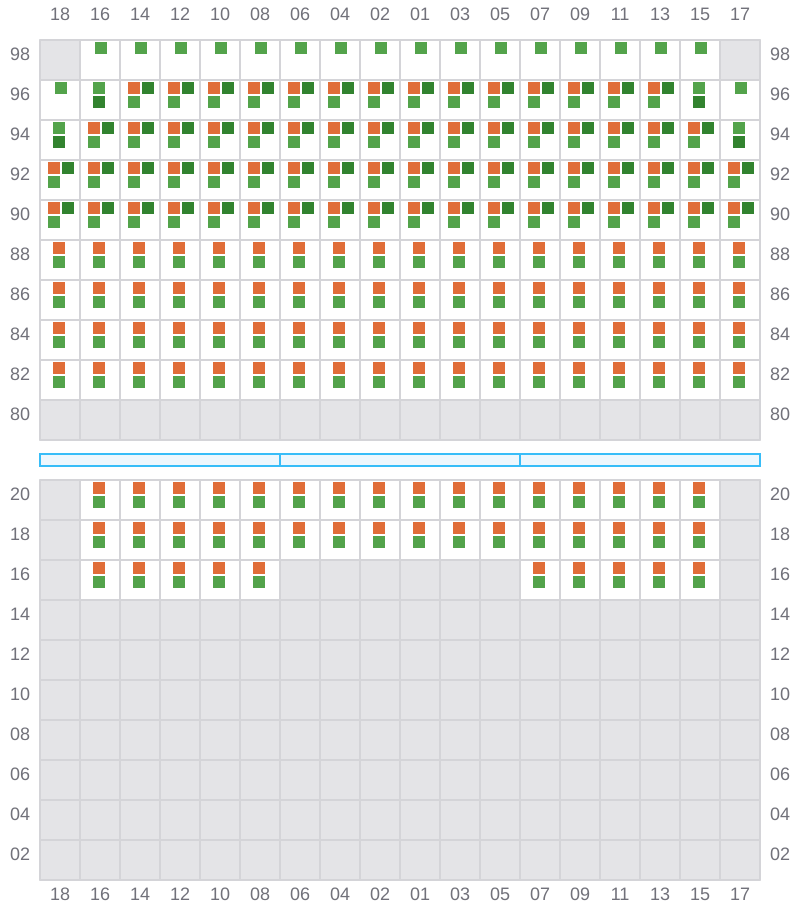

Bay 059 view and slots of APL CHARLESTON

061 (062)

  • / ?

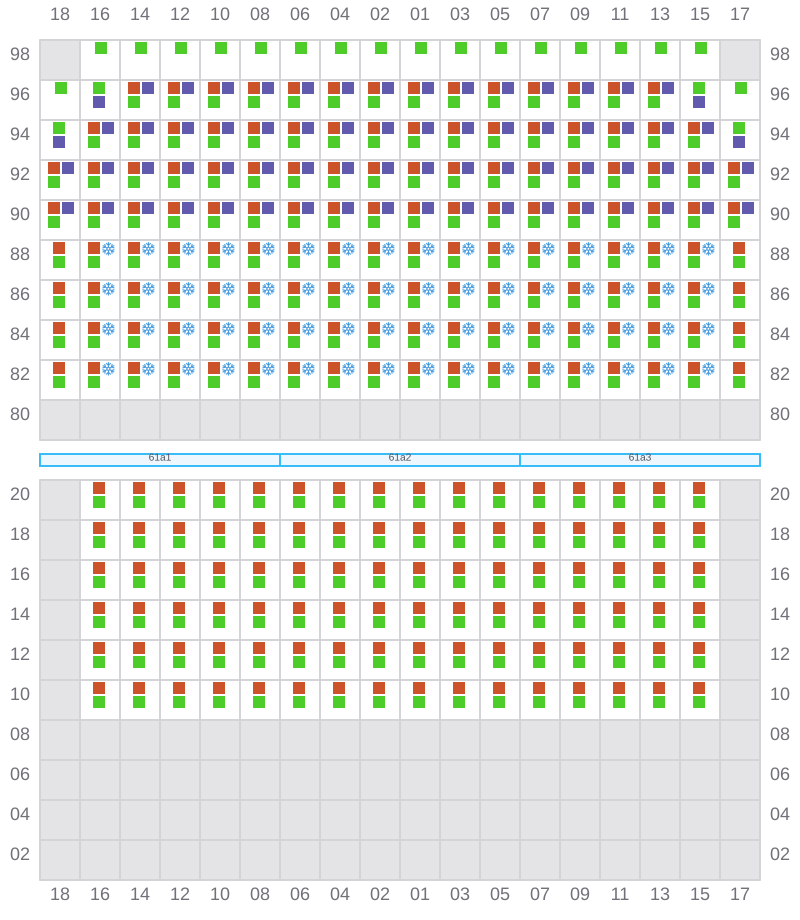

Bay 061 view and slots of APL CHARLESTON

063

Bay 063 view and slots of APL CHARLESTON

065 (066)

  • / ?

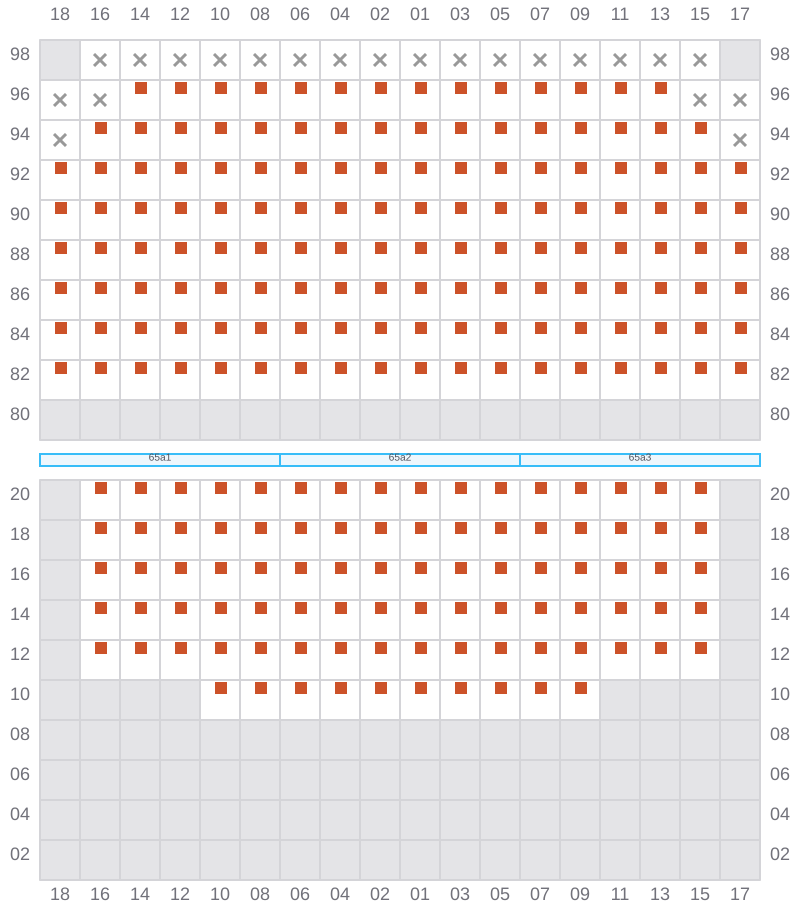

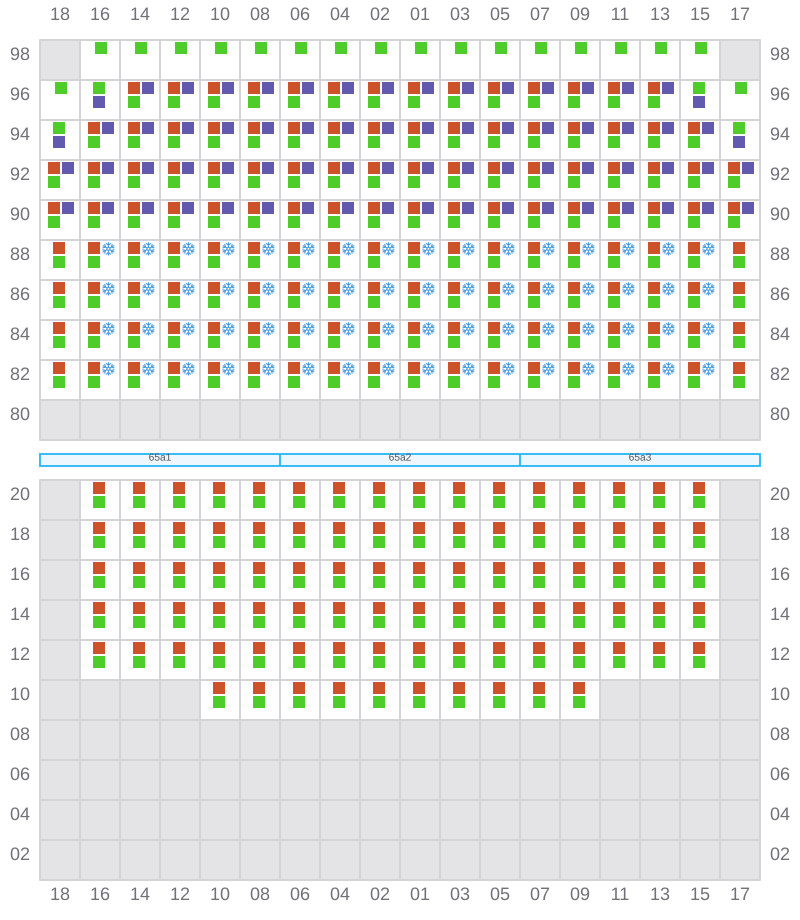

Bay 065 view and slots of APL CHARLESTON

067

Bay 067 view and slots of APL CHARLESTON

069 (070)

  • / ?
Bay 069 view and slots of APL CHARLESTON

071

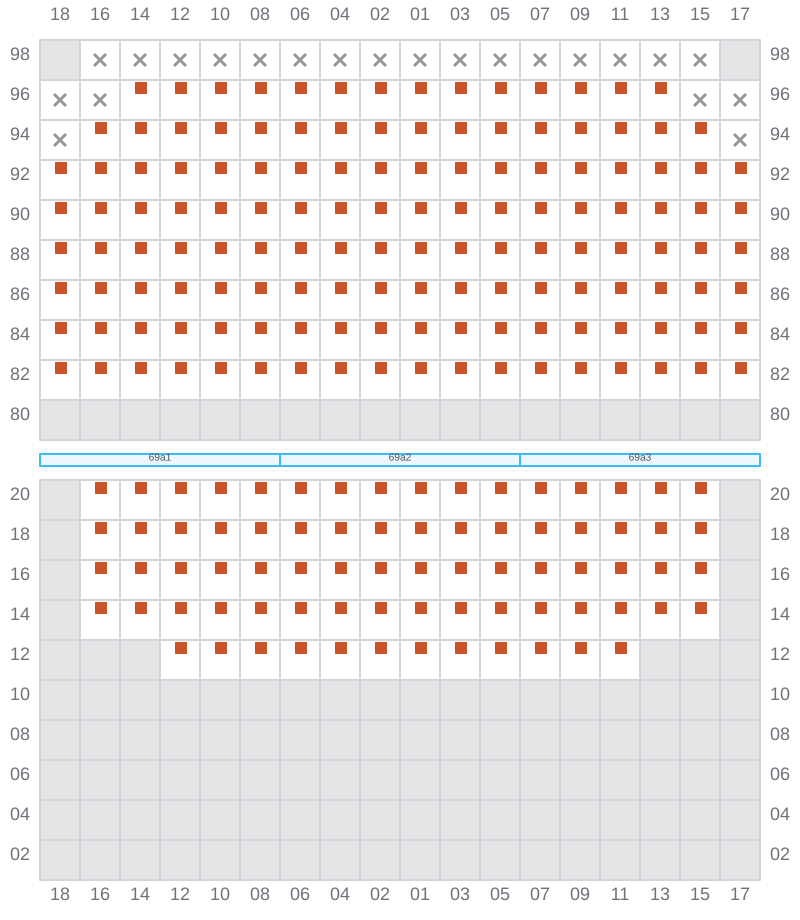

Bay 071 view and slots of APL CHARLESTON

073 (074)

  • / ?
  • / ?

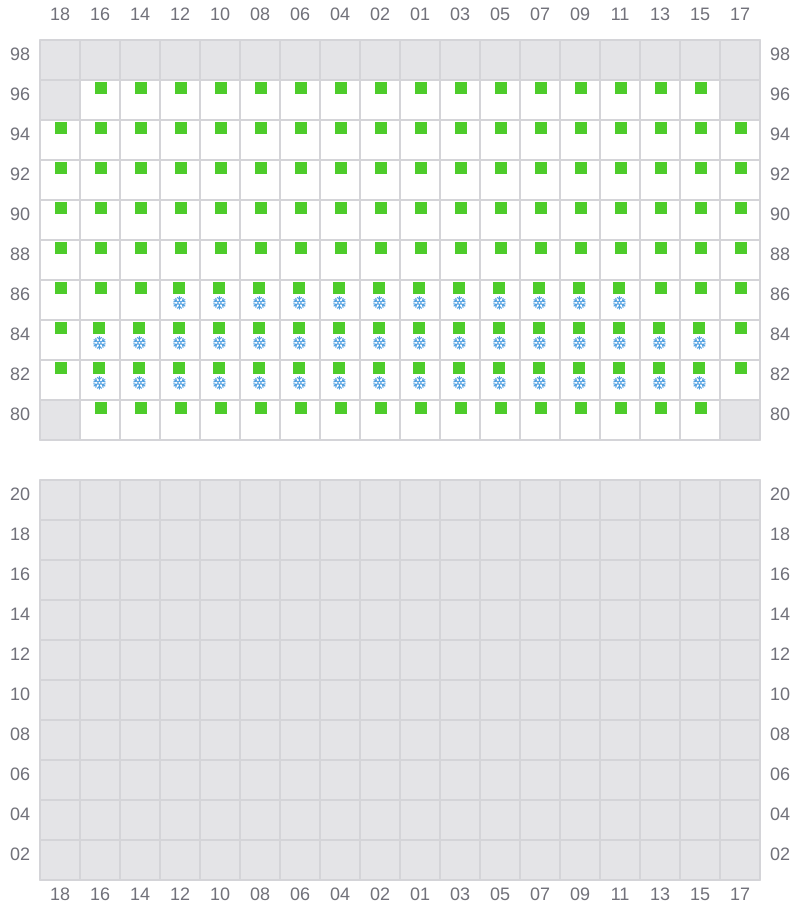

Bay 073 view and slots of APL CHARLESTON
