APL DANUBE
9674517 | 9HA3553 | 9674517 by ********* Last update: Fri Apr 12 2024
General Info
Ship Name:APL DANUBE
IMO Code:9674517
Call Sign:9HA3553
Line Operator:9674517
Class Name for Sister Ships:CMA CGM DANUBE
Year Built:2014
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:071
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:9,331
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

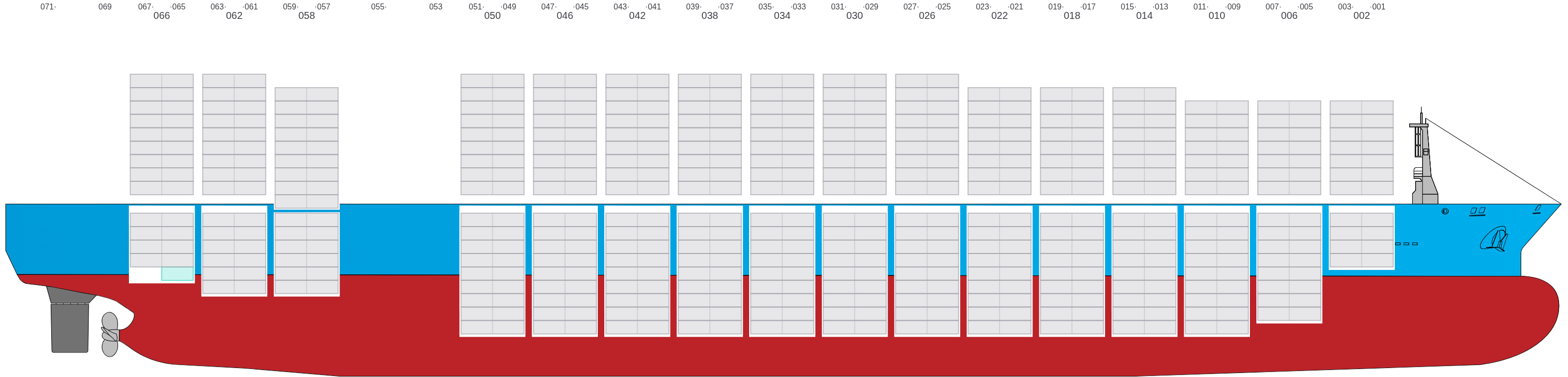

Side View
![Side view of APL DANUBE](/vessel-images/15332e36-c025-478d-af7b-9718f3f58d96-sideView.png?v=1712947245419)
Hatch-Covers View
![Deck view of APL DANUBE](/vessel-images/15332e36-c025-478d-af7b-9718f3f58d96-deckView.png?v=1712947245419)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

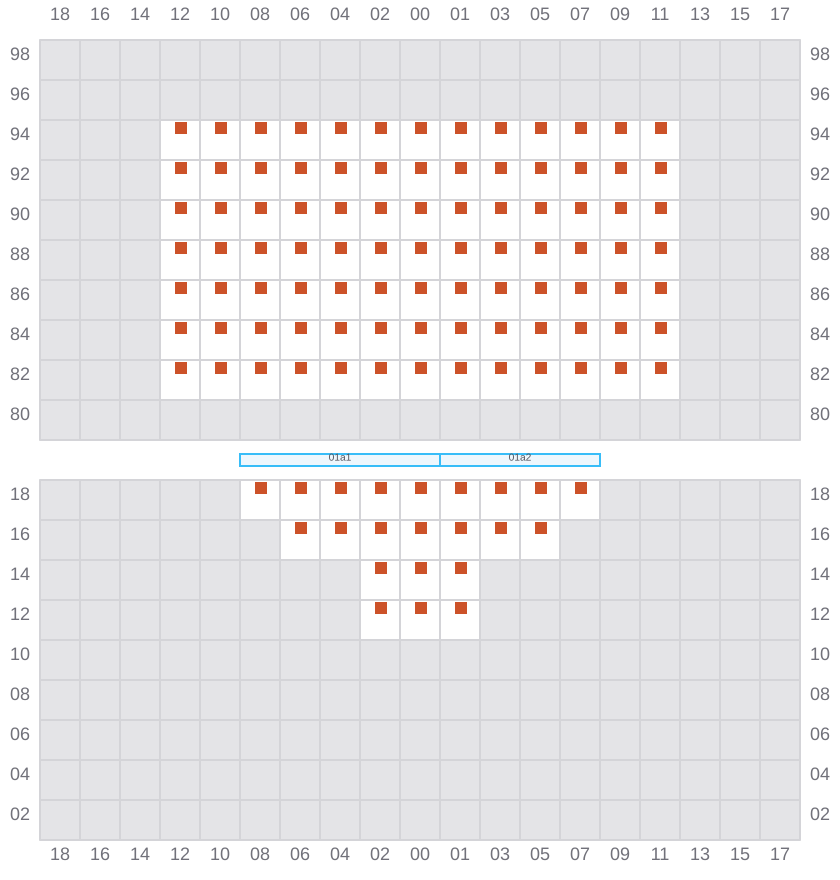

001
- →
![Bay 001 view and slots of APL DANUBE](/vessel-images/15332e36-c025-478d-af7b-9718f3f58d96-b001.png?v=1712947245419)

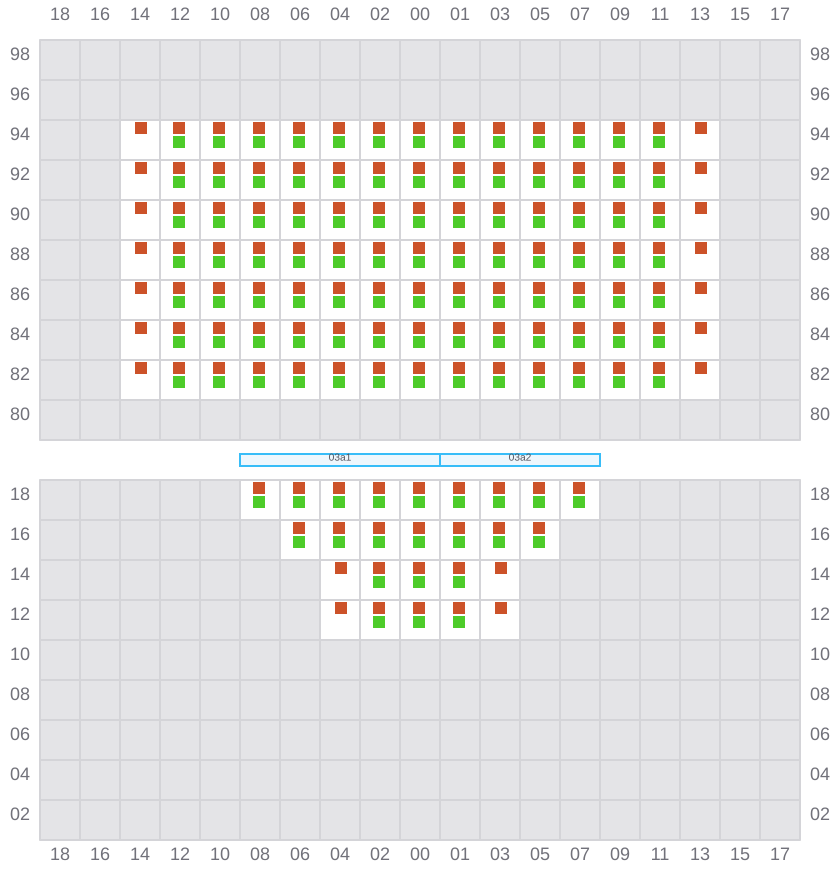

003 (002)
- ←
![Bay 003 view and slots of APL DANUBE](/vessel-images/15332e36-c025-478d-af7b-9718f3f58d96-b003.png?v=1712947245419)

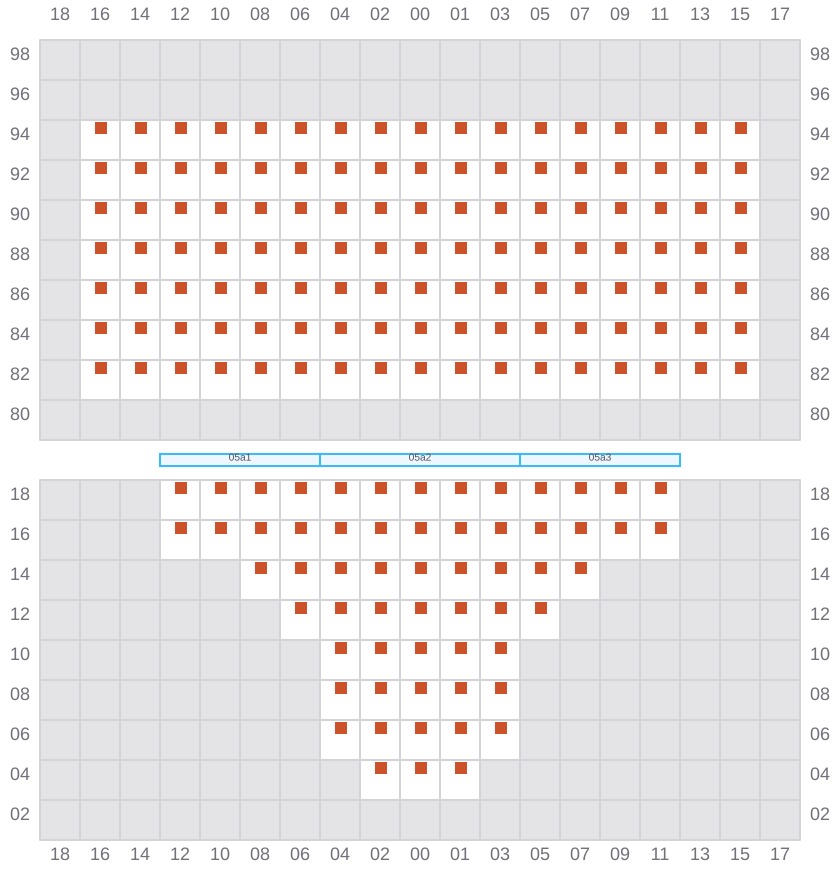

005
- →
![Bay 005 view and slots of APL DANUBE](/vessel-images/15332e36-c025-478d-af7b-9718f3f58d96-b005.png?v=1712947245419)

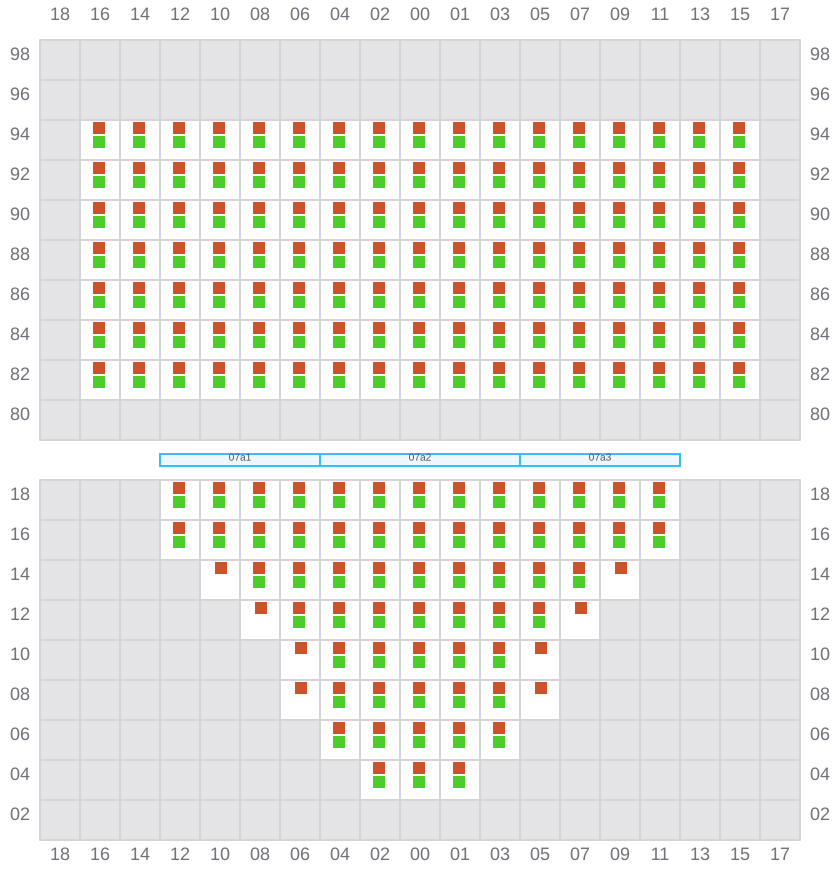

007 (006)
- ←
![Bay 007 view and slots of APL DANUBE](/vessel-images/15332e36-c025-478d-af7b-9718f3f58d96-b007.png?v=1712947245419)

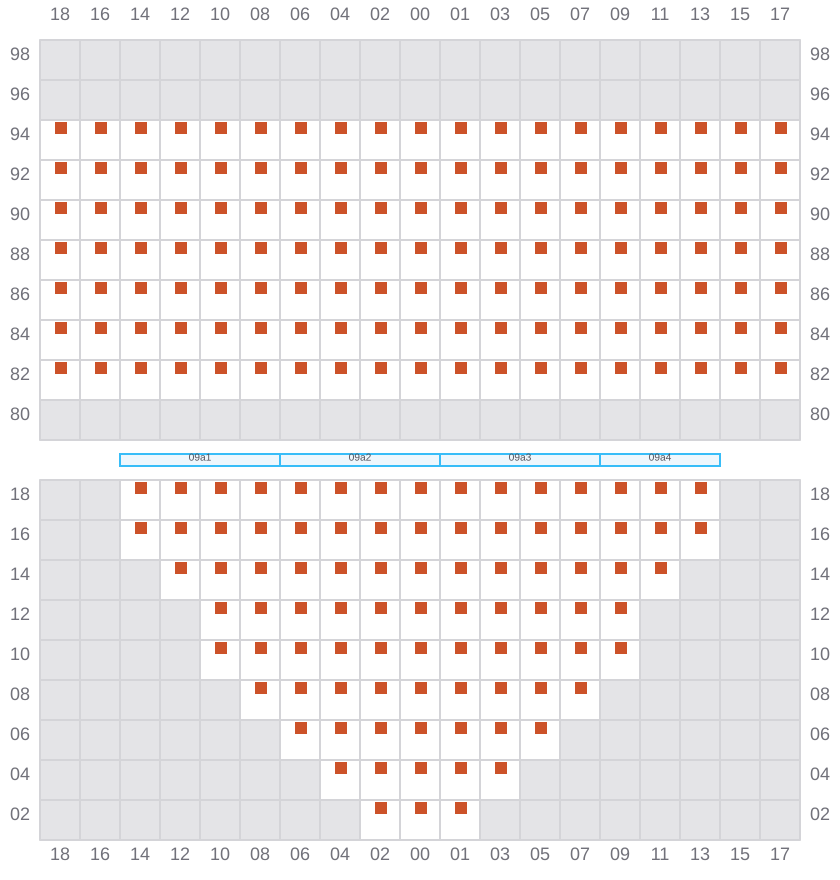

009
- →
![Bay 009 view and slots of APL DANUBE](/vessel-images/15332e36-c025-478d-af7b-9718f3f58d96-b009.png?v=1712947245419)

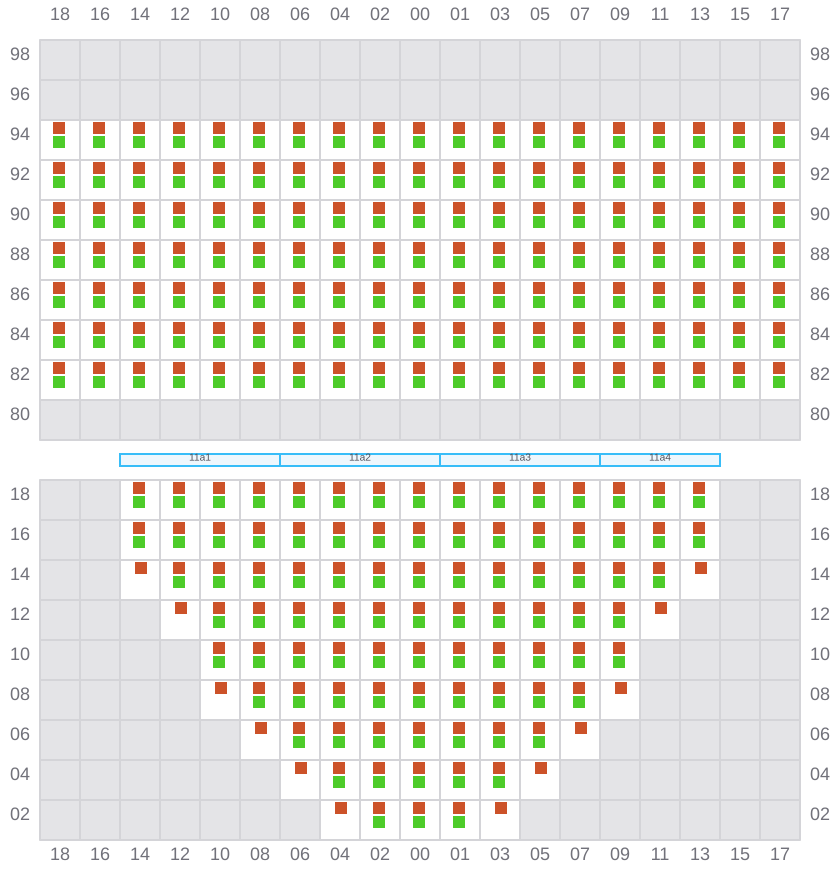

011 (010)
- ←
![Bay 011 view and slots of APL DANUBE](/vessel-images/15332e36-c025-478d-af7b-9718f3f58d96-b011.png?v=1712947245419)

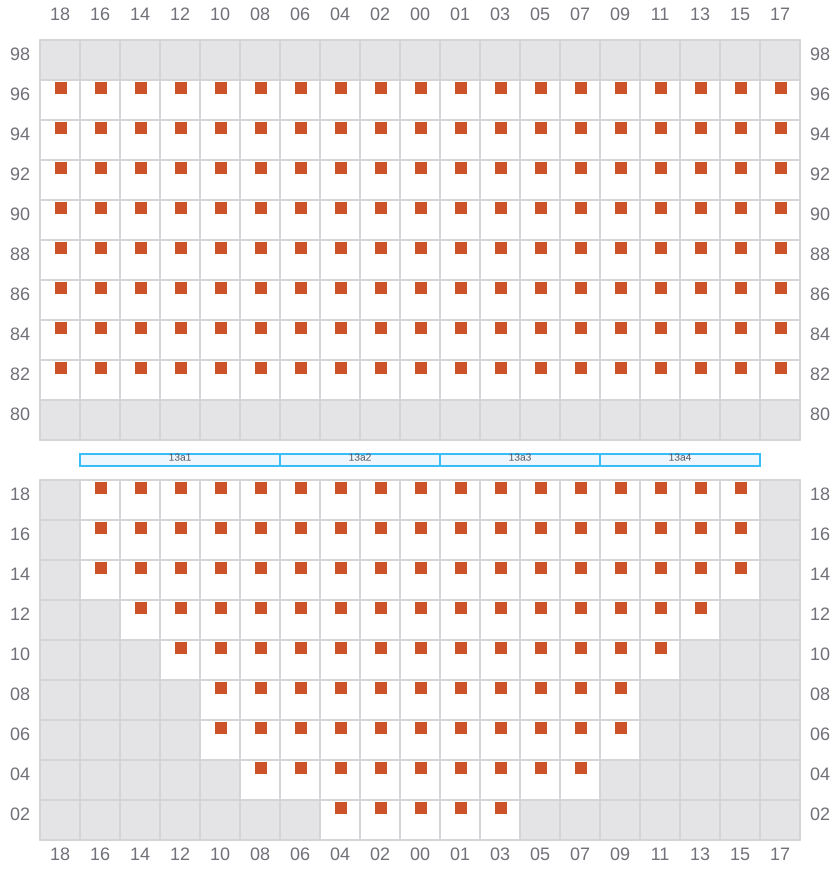

013
- →
![Bay 013 view and slots of APL DANUBE](/vessel-images/15332e36-c025-478d-af7b-9718f3f58d96-b013.png?v=1712947245419)

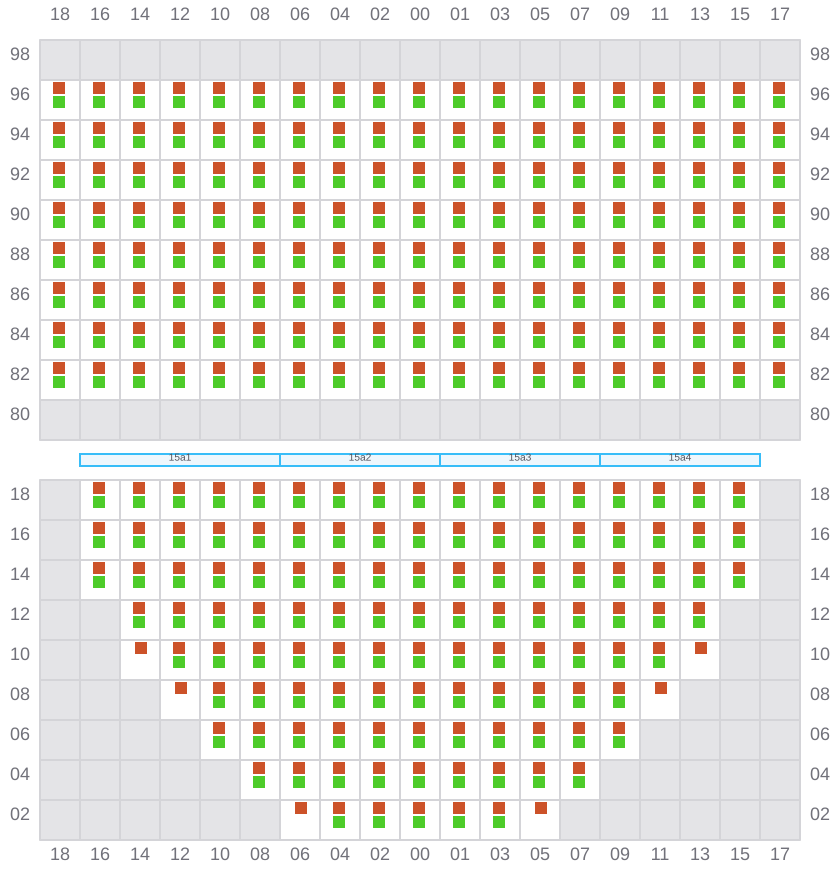

015 (014)
- ←
![Bay 015 view and slots of APL DANUBE](/vessel-images/15332e36-c025-478d-af7b-9718f3f58d96-b015.png?v=1712947245419)

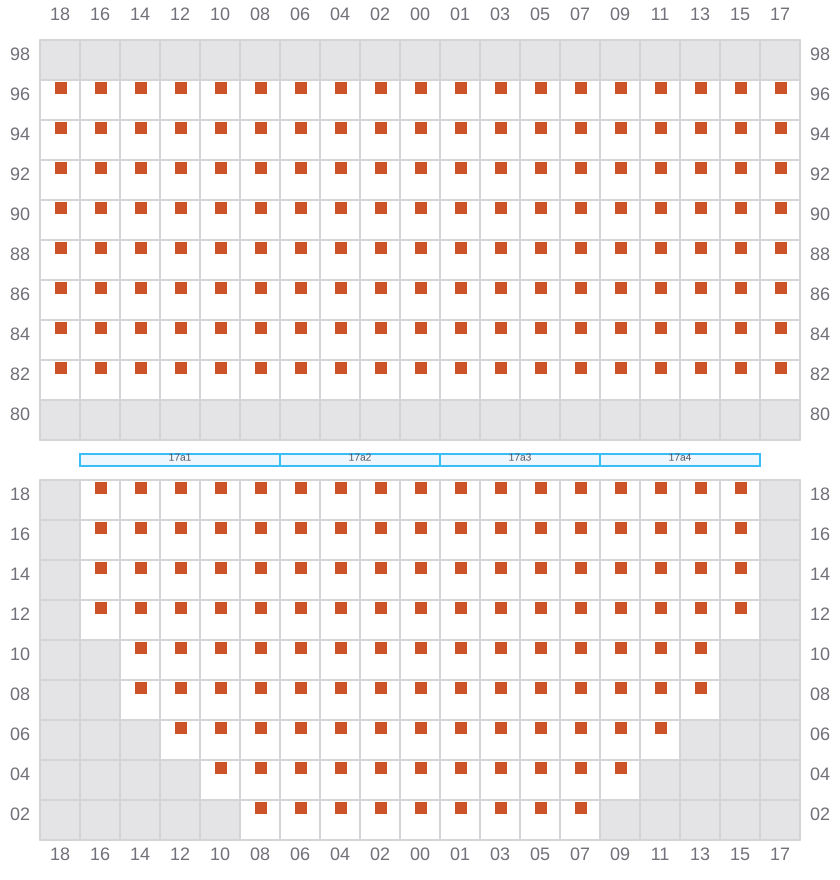

017
- →
![Bay 017 view and slots of APL DANUBE](/vessel-images/15332e36-c025-478d-af7b-9718f3f58d96-b017.png?v=1712947245419)

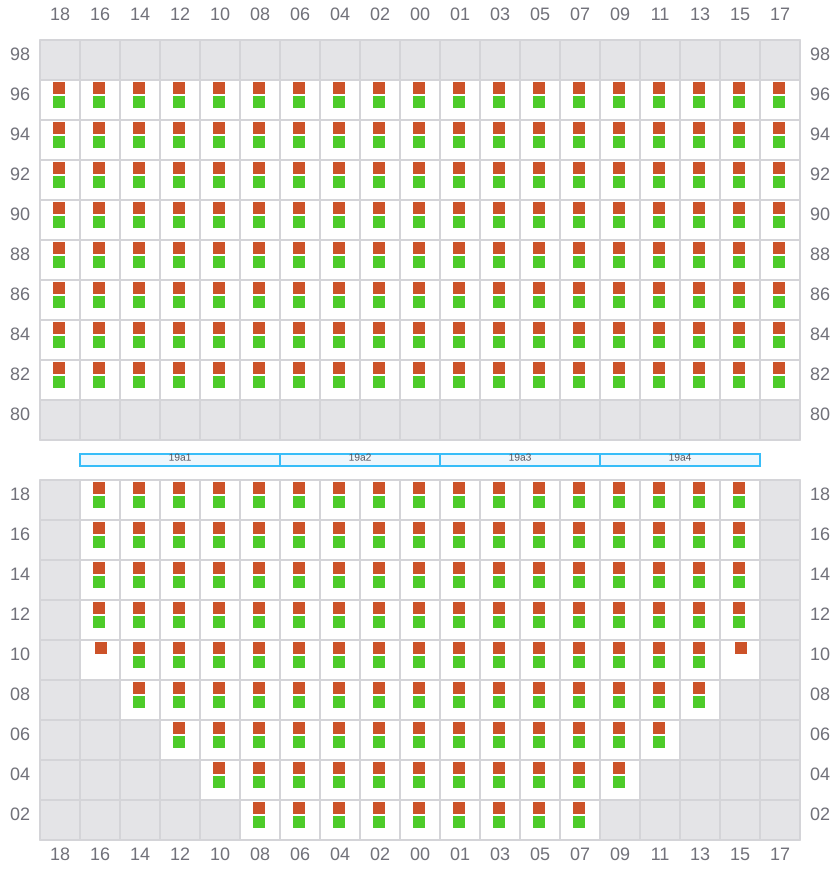

019 (018)
- ←
![Bay 019 view and slots of APL DANUBE](/vessel-images/15332e36-c025-478d-af7b-9718f3f58d96-b019.png?v=1712947245419)

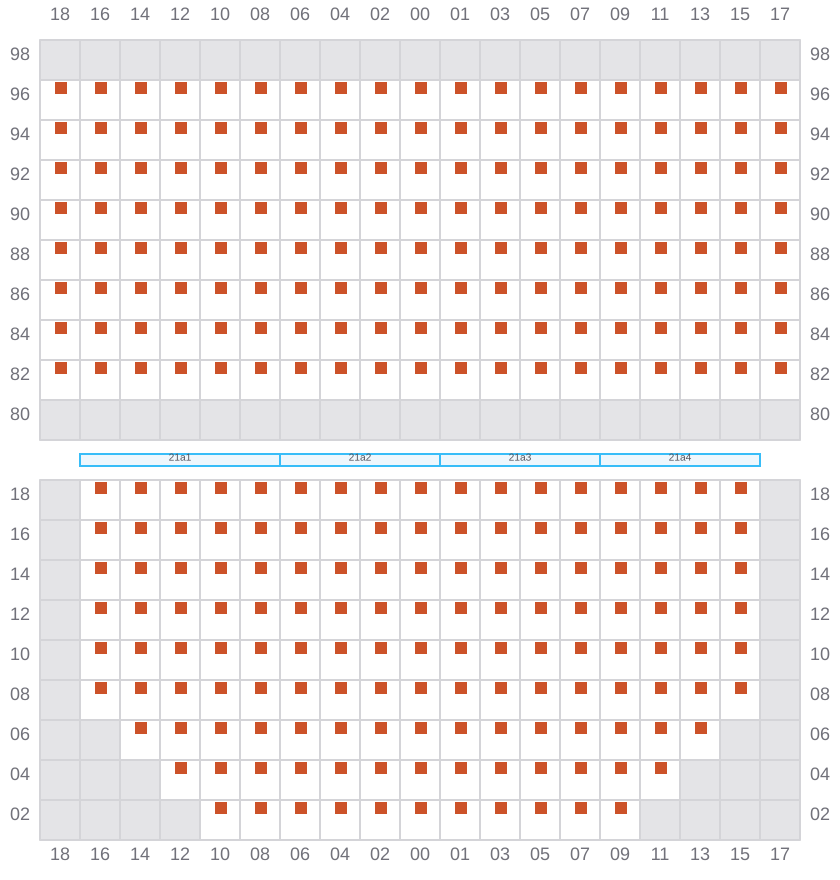

021
- →
![Bay 021 view and slots of APL DANUBE](/vessel-images/15332e36-c025-478d-af7b-9718f3f58d96-b021.png?v=1712947245419)

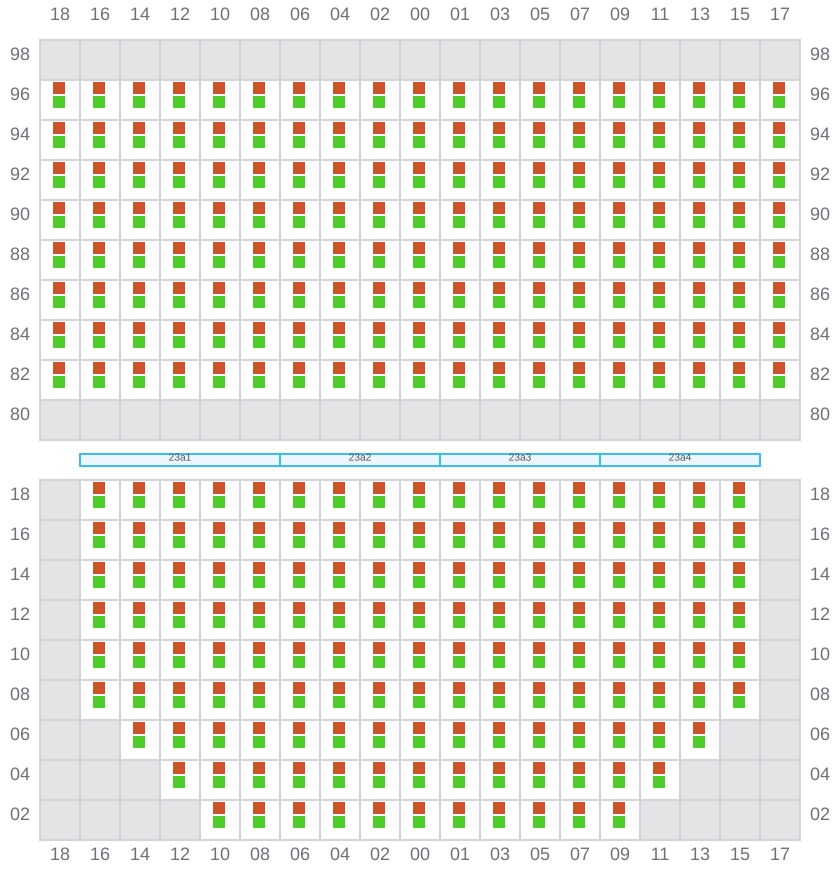

023 (022)
- ←
![Bay 023 view and slots of APL DANUBE](/vessel-images/15332e36-c025-478d-af7b-9718f3f58d96-b023.png?v=1712947245419)

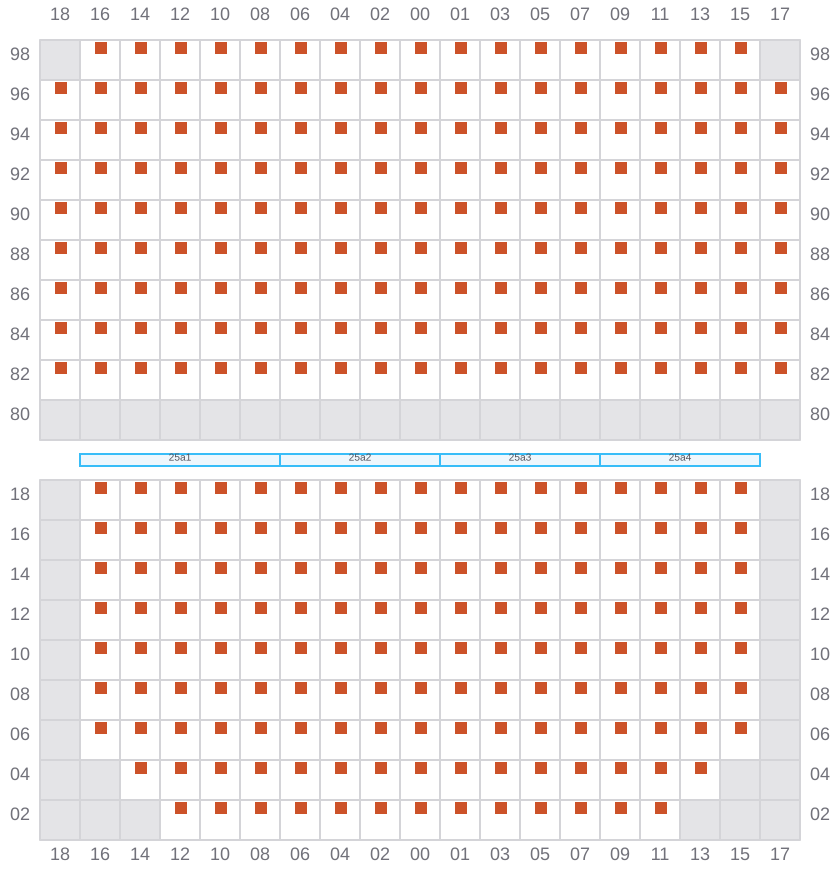

025
- →
![Bay 025 view and slots of APL DANUBE](/vessel-images/15332e36-c025-478d-af7b-9718f3f58d96-b025.png?v=1712947245419)

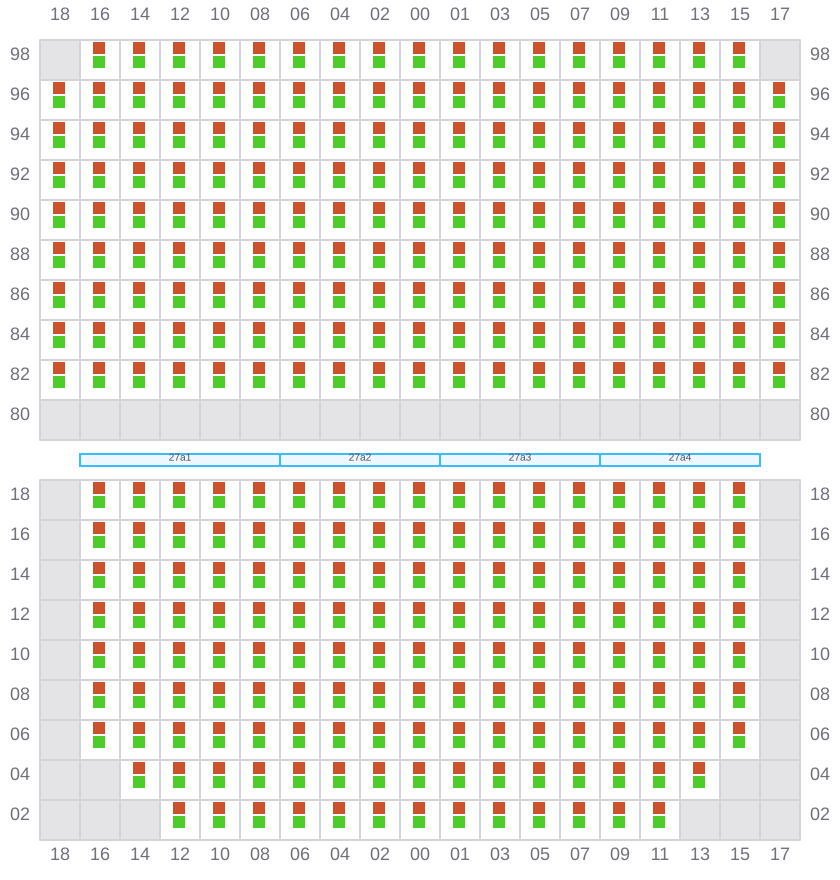

027 (026)
- ←
![Bay 027 view and slots of APL DANUBE](/vessel-images/15332e36-c025-478d-af7b-9718f3f58d96-b027.png?v=1712947245419)
029
- →
![Bay 029 view and slots of APL DANUBE](/vessel-images/15332e36-c025-478d-af7b-9718f3f58d96-b029.png?v=1712947245419)

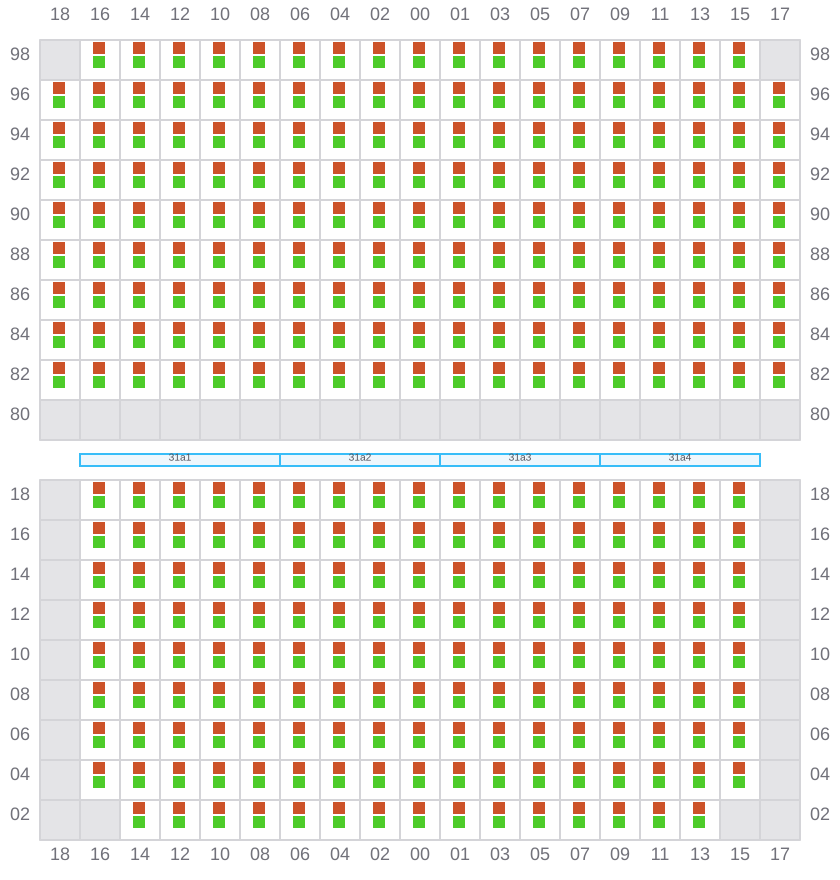

031 (030)
- ←
![Bay 031 view and slots of APL DANUBE](/vessel-images/15332e36-c025-478d-af7b-9718f3f58d96-b031.png?v=1712947245419)
033
- →
![Bay 033 view and slots of APL DANUBE](/vessel-images/15332e36-c025-478d-af7b-9718f3f58d96-b033.png?v=1712947245419)

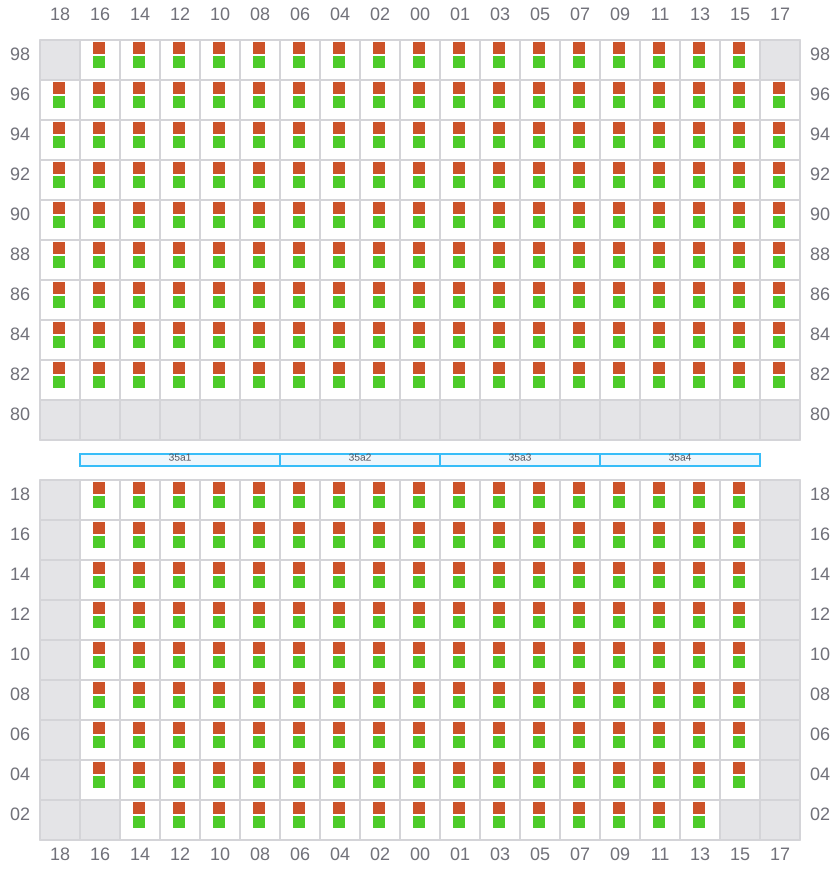

035 (034)
- ←
![Bay 035 view and slots of APL DANUBE](/vessel-images/15332e36-c025-478d-af7b-9718f3f58d96-b035.png?v=1712947245419)
037
- →
![Bay 037 view and slots of APL DANUBE](/vessel-images/15332e36-c025-478d-af7b-9718f3f58d96-b037.png?v=1712947245419)

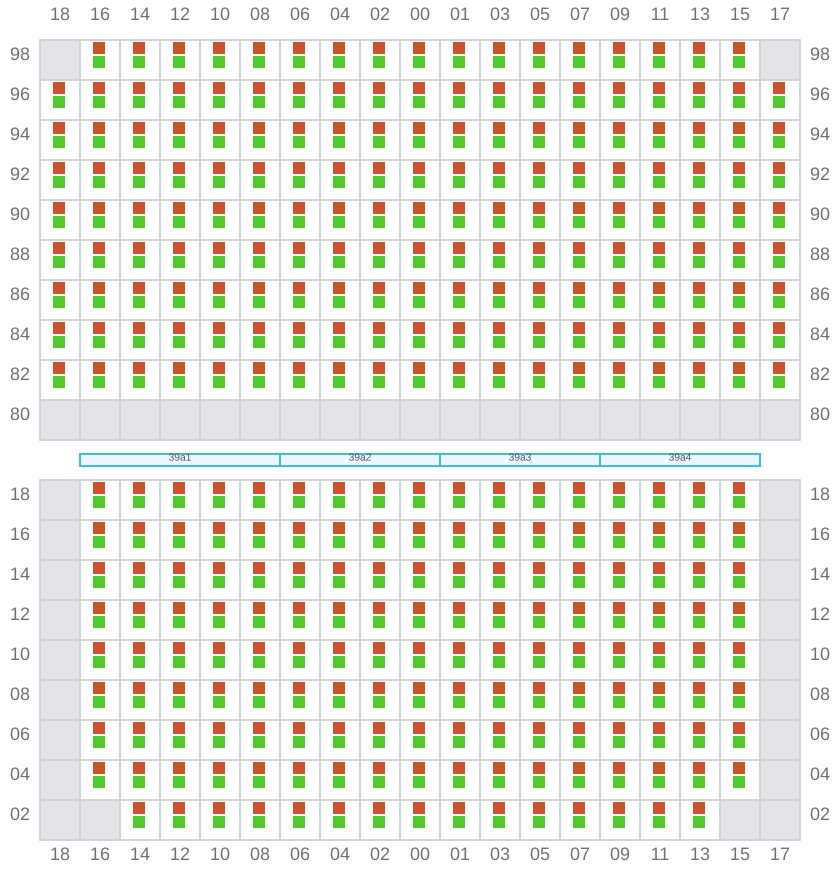

039 (038)
- ←
![Bay 039 view and slots of APL DANUBE](/vessel-images/15332e36-c025-478d-af7b-9718f3f58d96-b039.png?v=1712947245419)

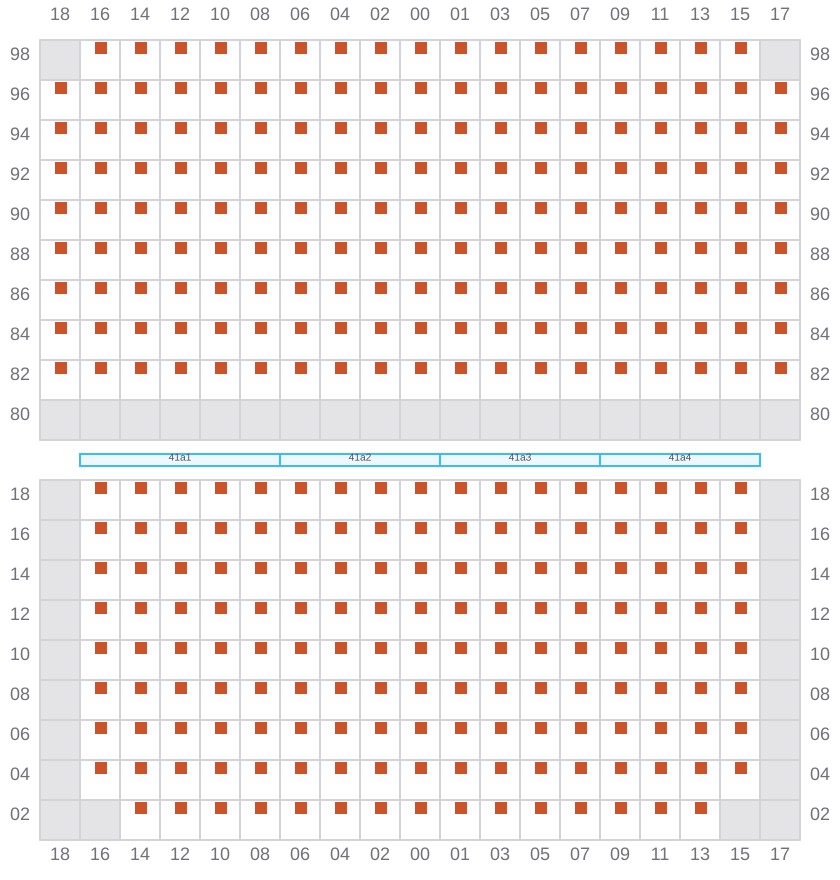

041
- →
![Bay 041 view and slots of APL DANUBE](/vessel-images/15332e36-c025-478d-af7b-9718f3f58d96-b041.png?v=1712947245419)

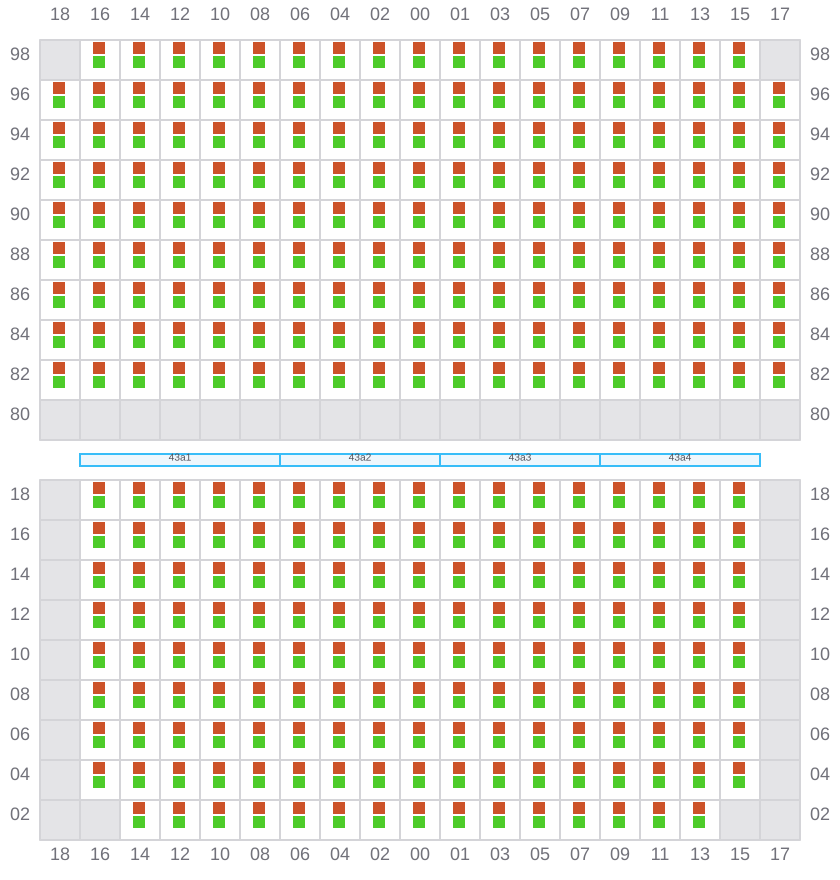

043 (042)
- ←
![Bay 043 view and slots of APL DANUBE](/vessel-images/15332e36-c025-478d-af7b-9718f3f58d96-b043.png?v=1712947245419)
045
- →
![Bay 045 view and slots of APL DANUBE](/vessel-images/15332e36-c025-478d-af7b-9718f3f58d96-b045.png?v=1712947245419)

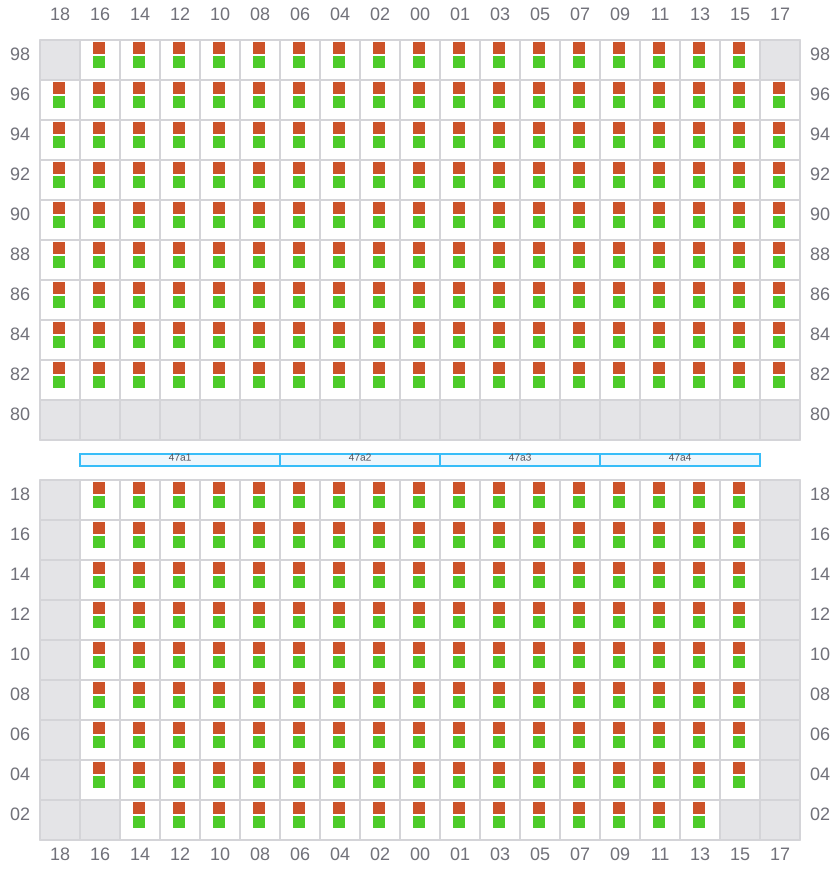

047 (046)
- ←
![Bay 047 view and slots of APL DANUBE](/vessel-images/15332e36-c025-478d-af7b-9718f3f58d96-b047.png?v=1712947245419)
049
- →
![Bay 049 view and slots of APL DANUBE](/vessel-images/15332e36-c025-478d-af7b-9718f3f58d96-b049.png?v=1712947245419)

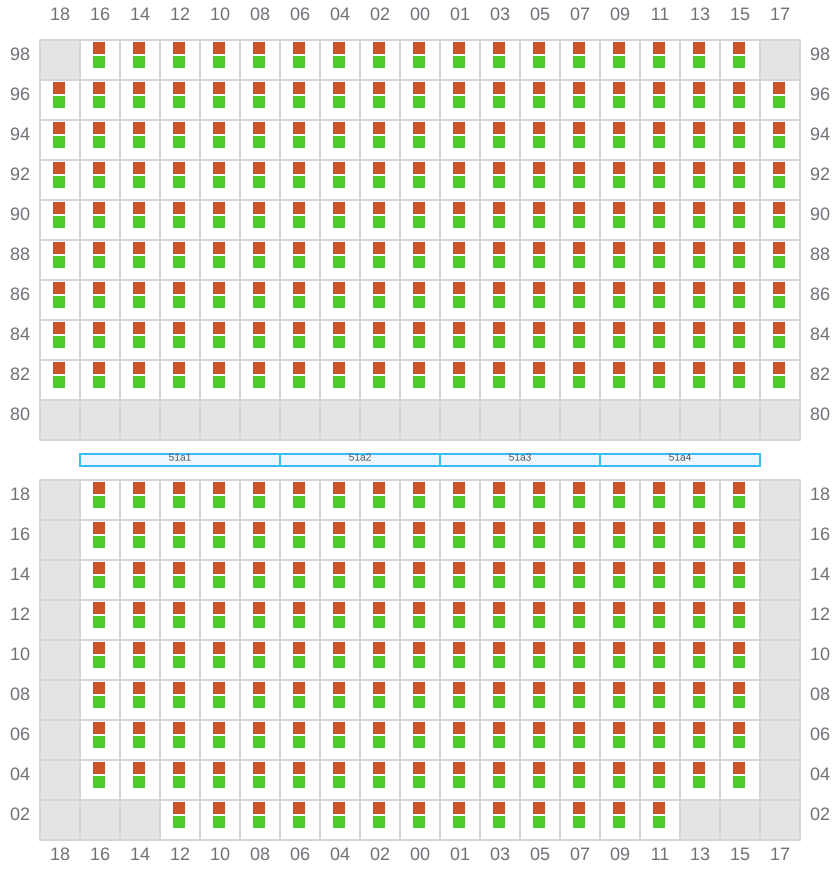

051 (050)
- ←
![Bay 051 view and slots of APL DANUBE](/vessel-images/15332e36-c025-478d-af7b-9718f3f58d96-b051.png?v=1712947245419)

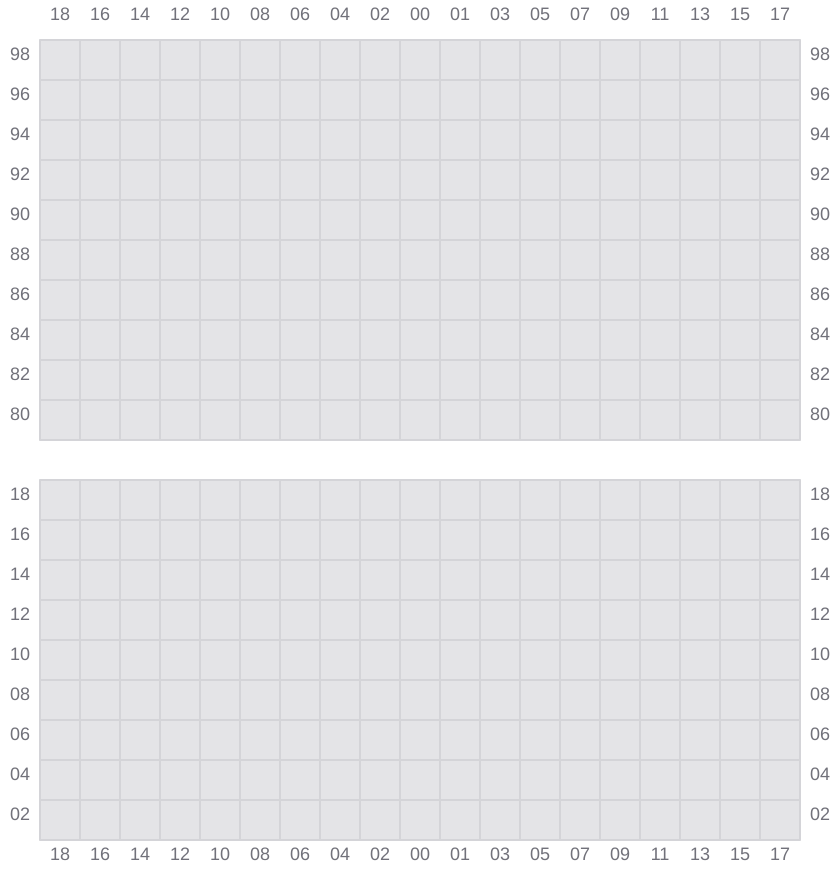

053
![Bay 053 view and slots of APL DANUBE](/vessel-images/15332e36-c025-478d-af7b-9718f3f58d96-b053.png?v=1712947245419)

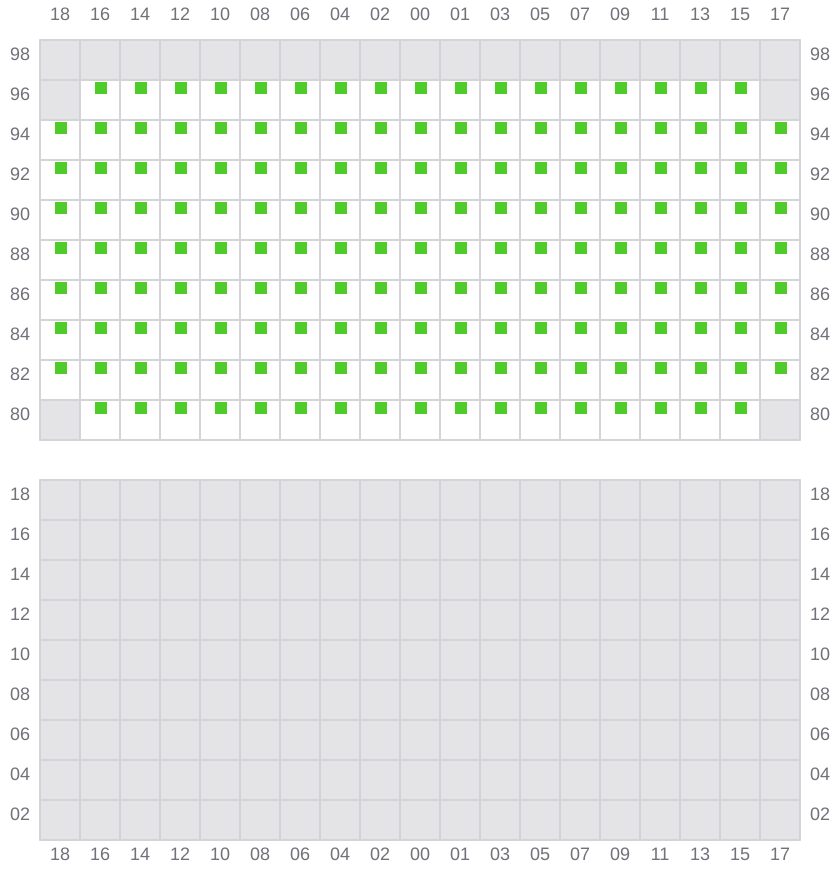

055 (054)
- ← / ?
![Bay 055 view and slots of APL DANUBE](/vessel-images/15332e36-c025-478d-af7b-9718f3f58d96-b055.png?v=1712947245419)

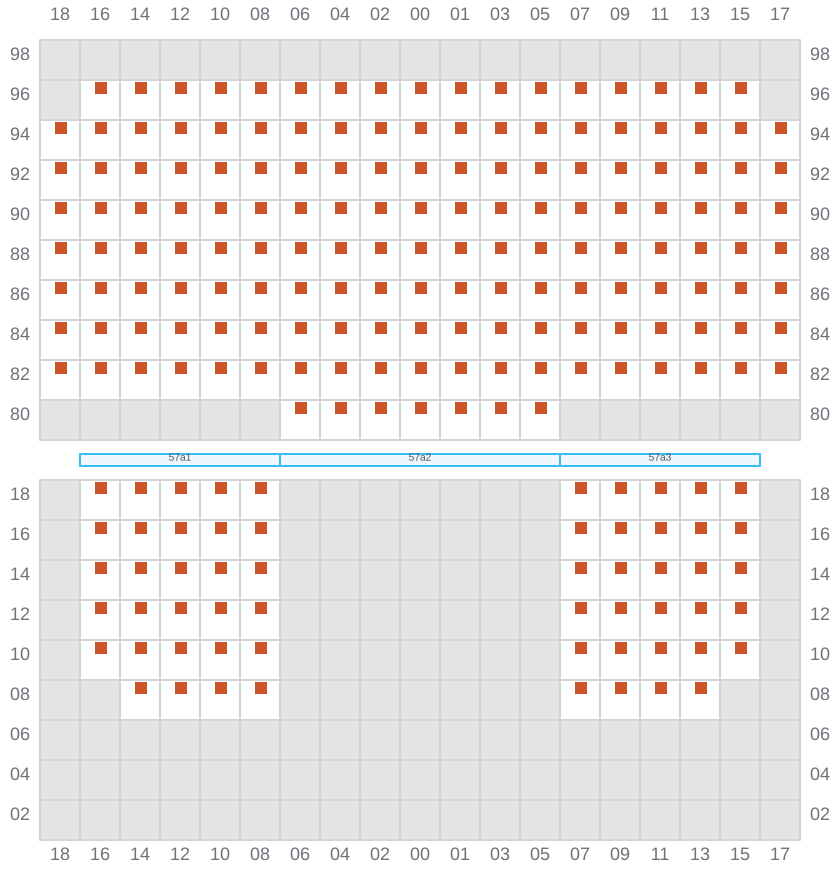

057
- →
![Bay 057 view and slots of APL DANUBE](/vessel-images/15332e36-c025-478d-af7b-9718f3f58d96-b057.png?v=1712947245419)

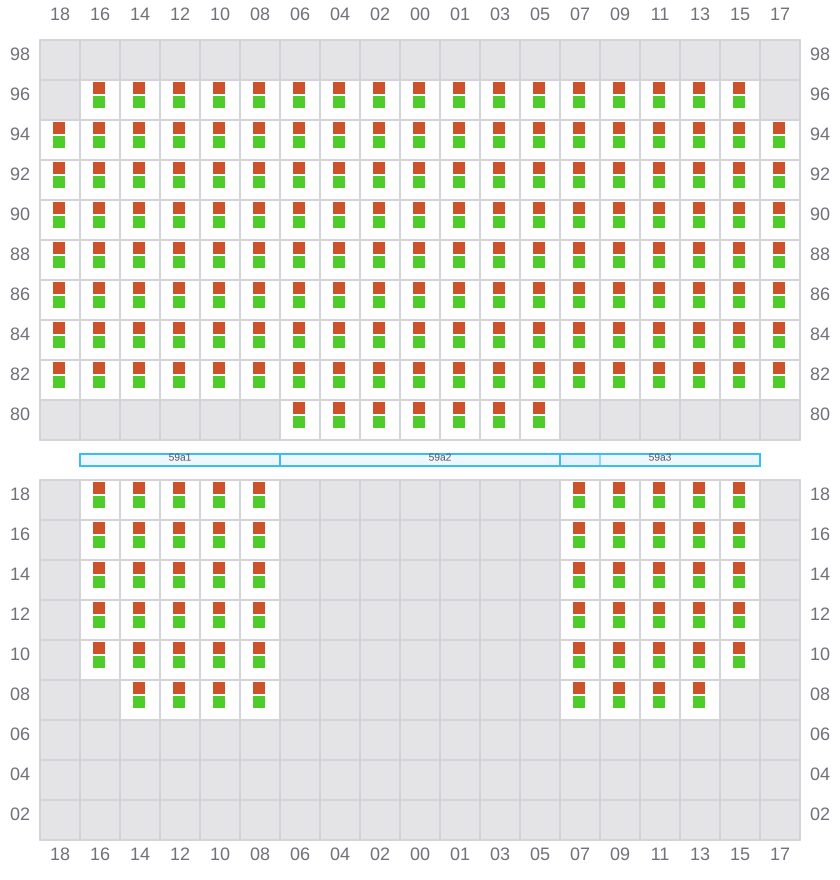

059 (058)
- ←
![Bay 059 view and slots of APL DANUBE](/vessel-images/15332e36-c025-478d-af7b-9718f3f58d96-b059.png?v=1712947245419)

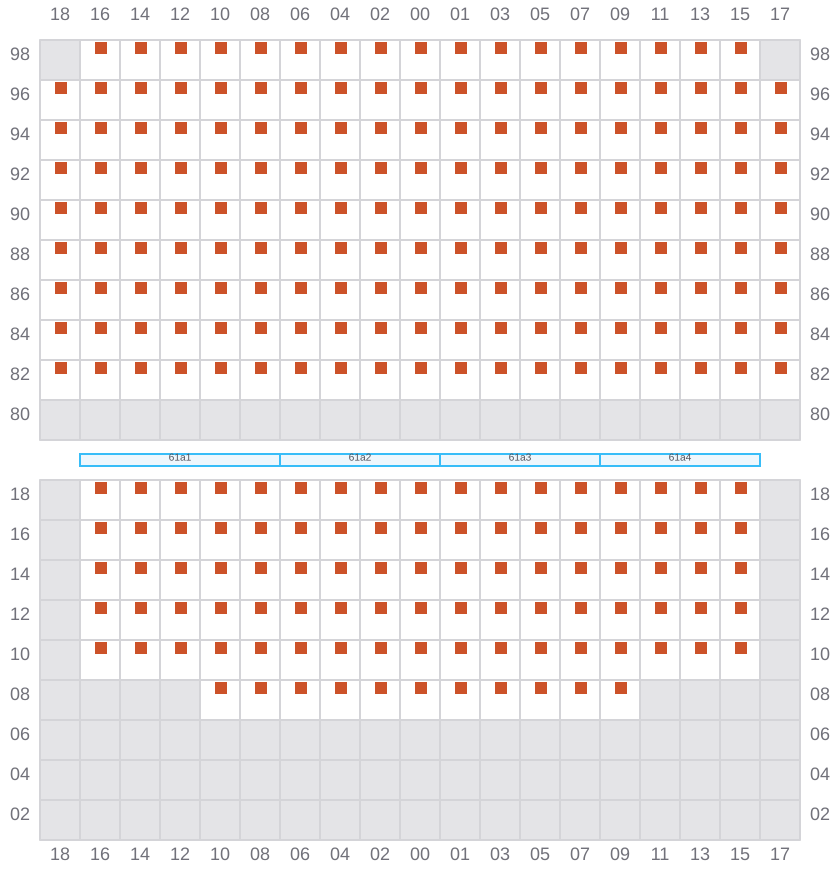

061
- →
![Bay 061 view and slots of APL DANUBE](/vessel-images/15332e36-c025-478d-af7b-9718f3f58d96-b061.png?v=1712947245419)

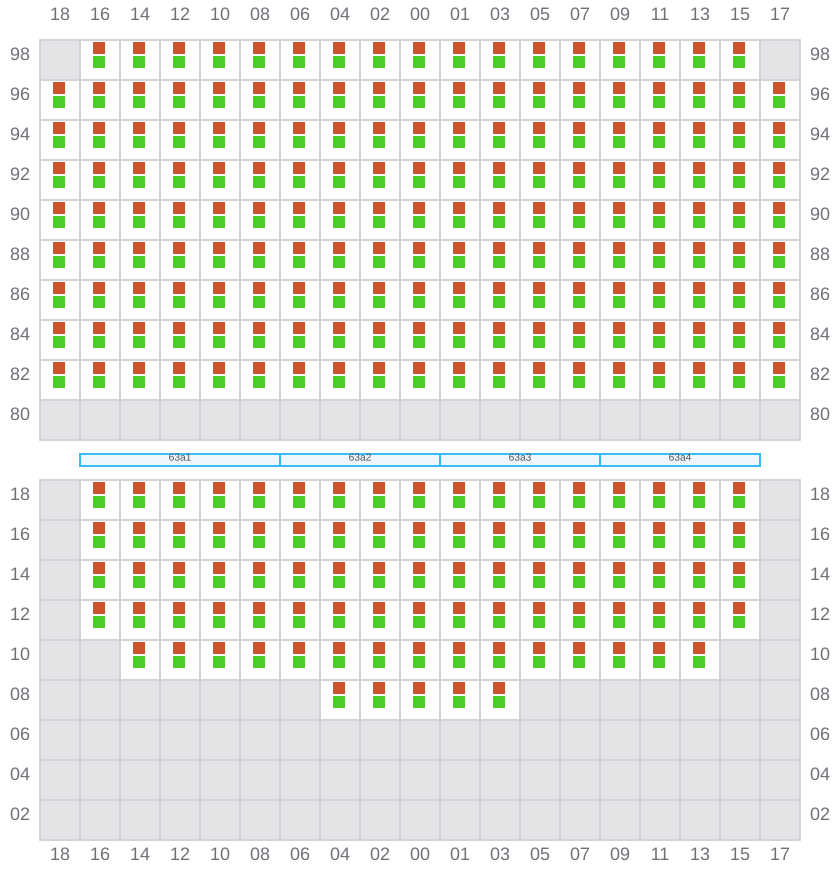

063 (062)
- ←
![Bay 063 view and slots of APL DANUBE](/vessel-images/15332e36-c025-478d-af7b-9718f3f58d96-b063.png?v=1712947245419)

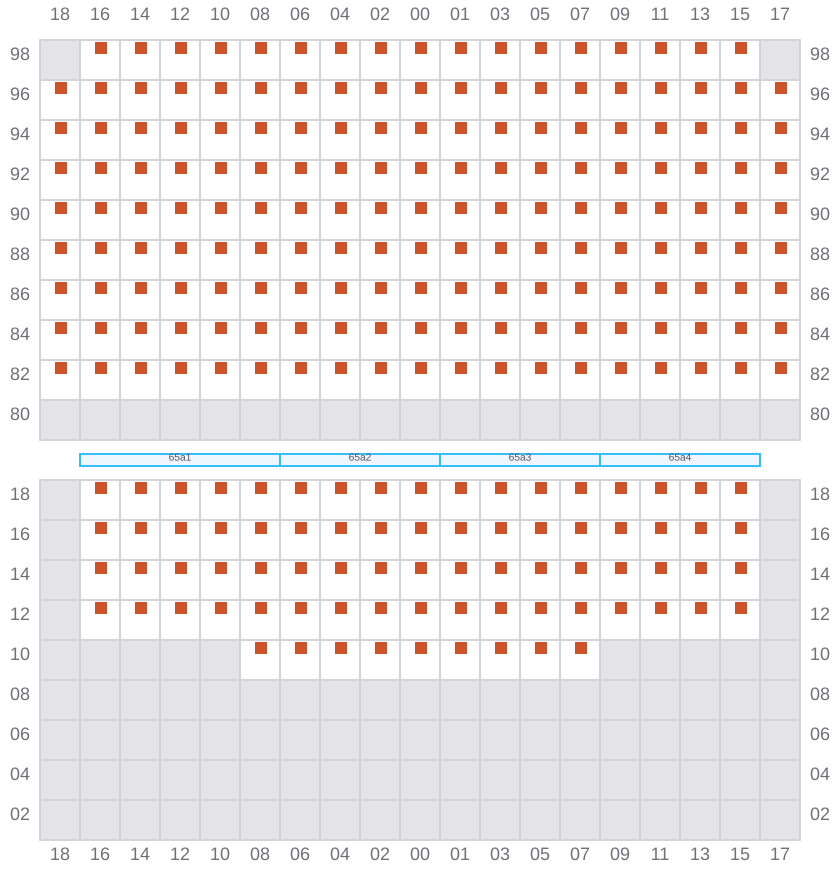

065
- →
![Bay 065 view and slots of APL DANUBE](/vessel-images/15332e36-c025-478d-af7b-9718f3f58d96-b065.png?v=1712947245419)

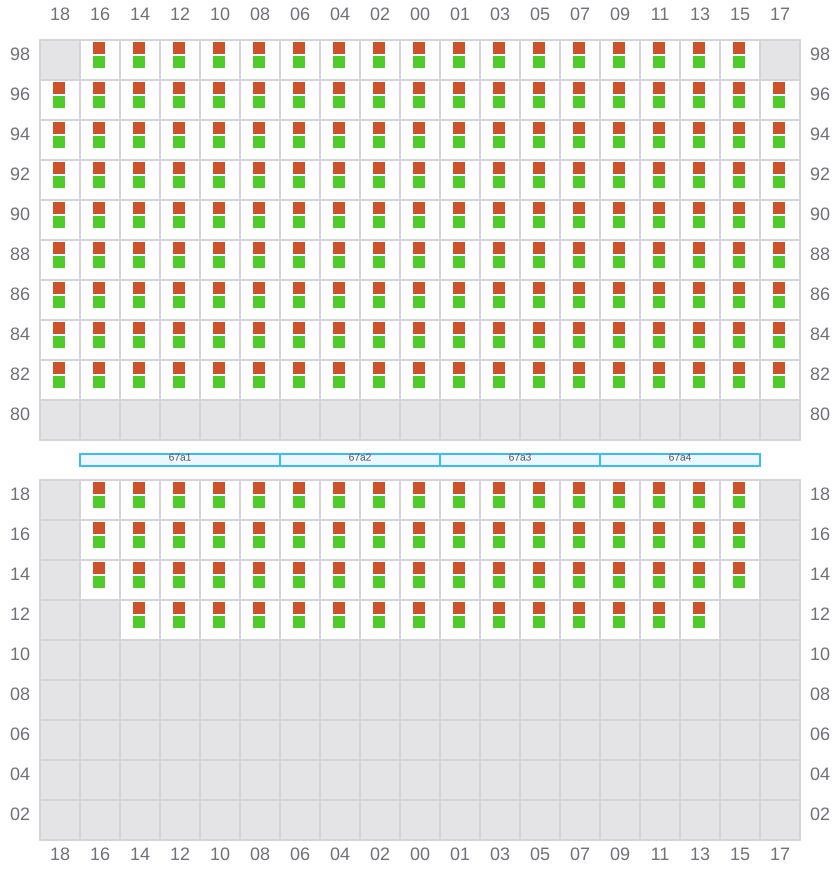

067 (066)
- ←
![Bay 067 view and slots of APL DANUBE](/vessel-images/15332e36-c025-478d-af7b-9718f3f58d96-b067.png?v=1712947245419)
069
![Bay 069 view and slots of APL DANUBE](/vessel-images/15332e36-c025-478d-af7b-9718f3f58d96-b069.png?v=1712947245419)
071 (070)
- ← / ?
![Bay 071 view and slots of APL DANUBE](/vessel-images/15332e36-c025-478d-af7b-9718f3f58d96-b071.png?v=1712947245419)
