APL DUBLIN
9601314 | 9V9404 | APL by ***************************** Last update: Mon May 29 2023
General Info
Ship Name:APL DUBLIN
IMO Code:9601314
Call Sign:9V9404
Line Operator:APL
Class Name for Sister Ships:ADUB
Year Built:2012
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):330.99
LOA (Length Overall):347.29
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:081
Max ISO Row:18
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:80
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:10,730
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
![Side view of APL DUBLIN](/vessel-images/87e10602-9ecf-4bde-80ea-e240561a6502-sideView.png?v=1685402806810)
Hatch-Covers View
![Deck view of APL DUBLIN](/vessel-images/87e10602-9ecf-4bde-80ea-e240561a6502-deckView.png?v=1685402806810)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
![Bay 001 view and slots of APL DUBLIN](/vessel-images/87e10602-9ecf-4bde-80ea-e240561a6502-b001.png?v=1685402806810)

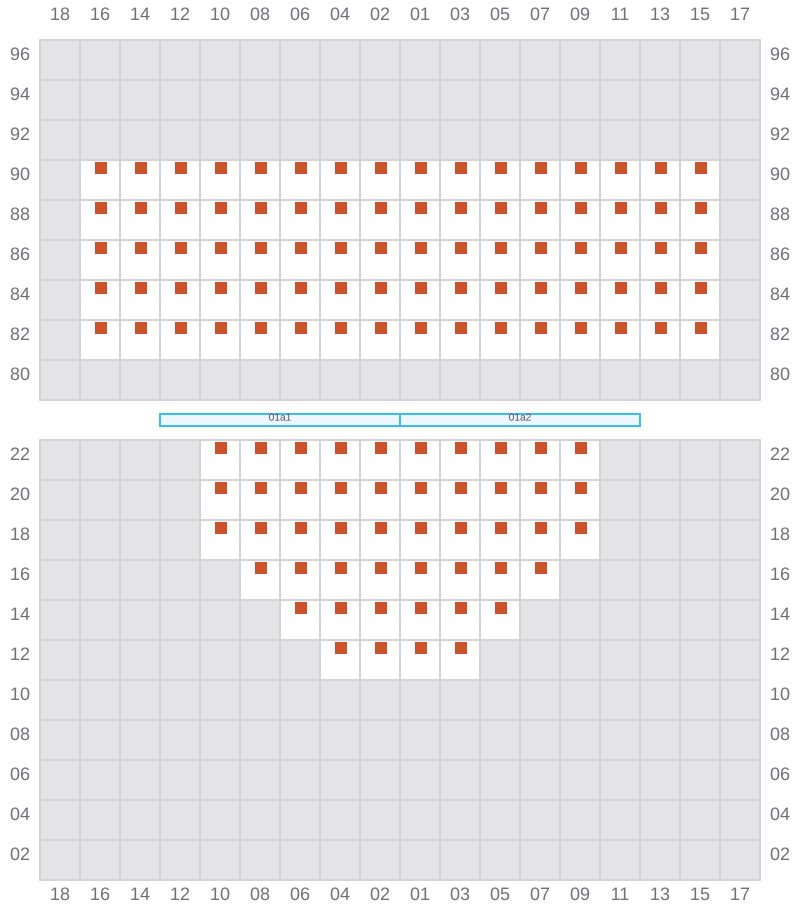

003
- ←
![Bay 003 view and slots of APL DUBLIN](/vessel-images/87e10602-9ecf-4bde-80ea-e240561a6502-b003.png?v=1685402806810)

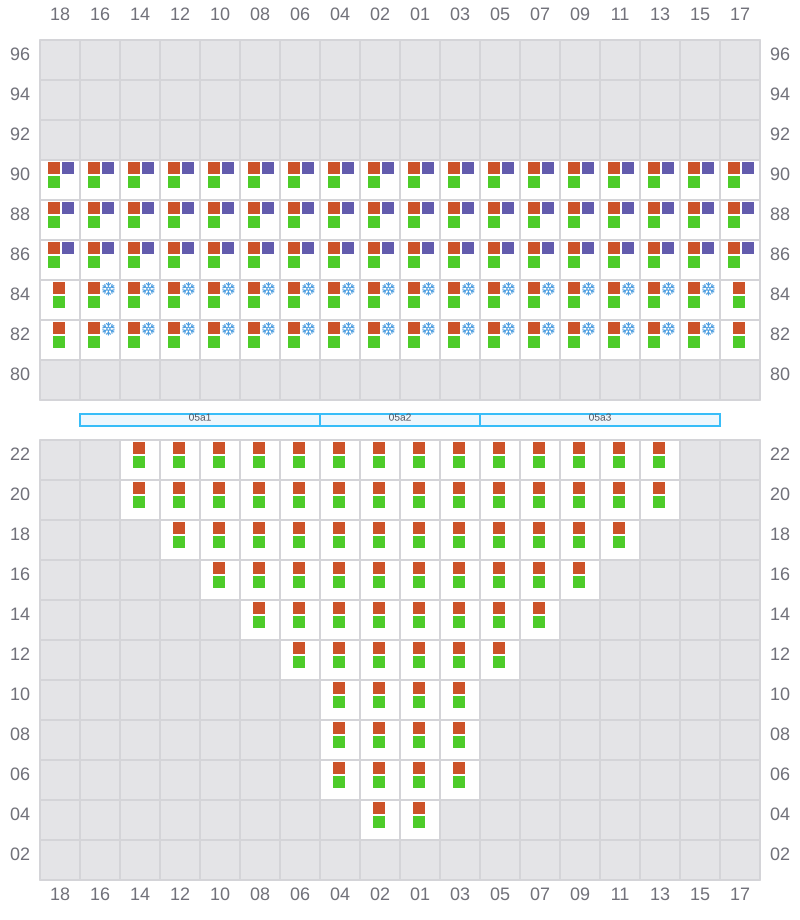

005 (006)
- →
- → / ?
![Bay 005 view and slots of APL DUBLIN](/vessel-images/87e10602-9ecf-4bde-80ea-e240561a6502-b005.png?v=1685402806810)
007
- ←
- → / ?
![Bay 007 view and slots of APL DUBLIN](/vessel-images/87e10602-9ecf-4bde-80ea-e240561a6502-b007.png?v=1685402806810)

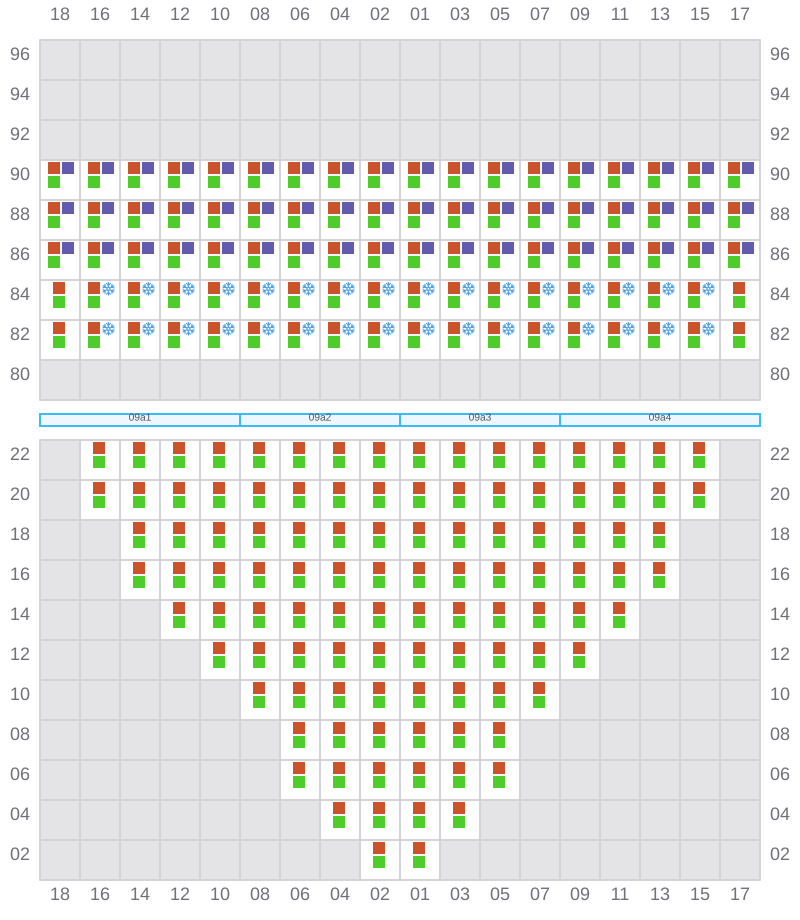

009 (010)
- →
- → / ?
![Bay 009 view and slots of APL DUBLIN](/vessel-images/87e10602-9ecf-4bde-80ea-e240561a6502-b009.png?v=1685402806810)

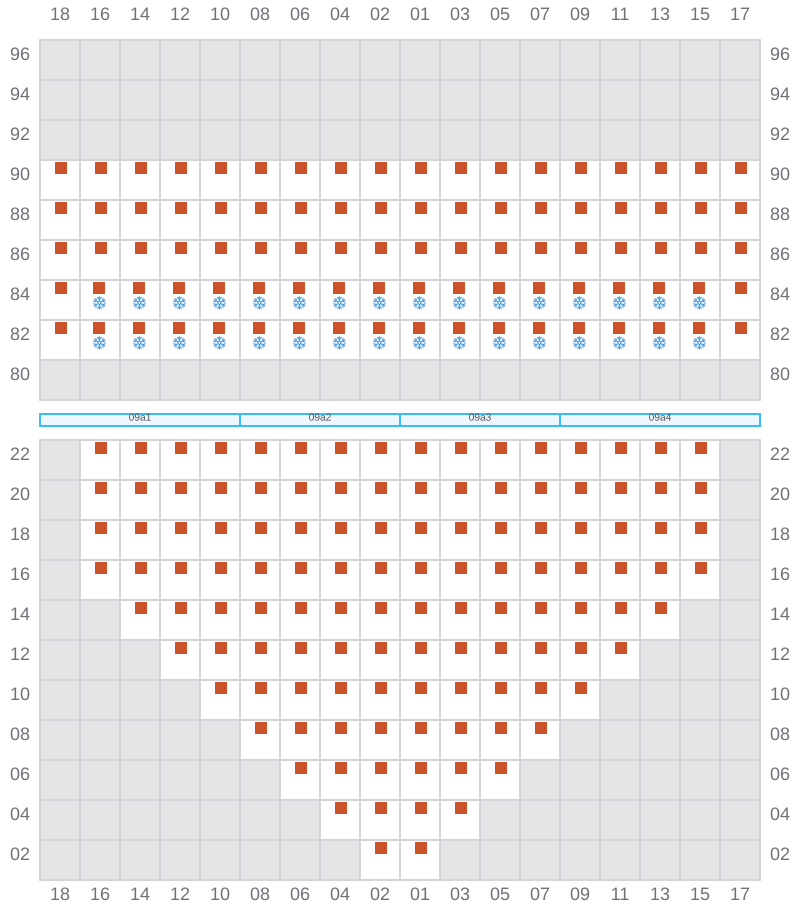

011
- ←
- → / ?
![Bay 011 view and slots of APL DUBLIN](/vessel-images/87e10602-9ecf-4bde-80ea-e240561a6502-b011.png?v=1685402806810)
013 (014)
- →
- → / ?
![Bay 013 view and slots of APL DUBLIN](/vessel-images/87e10602-9ecf-4bde-80ea-e240561a6502-b013.png?v=1685402806810)

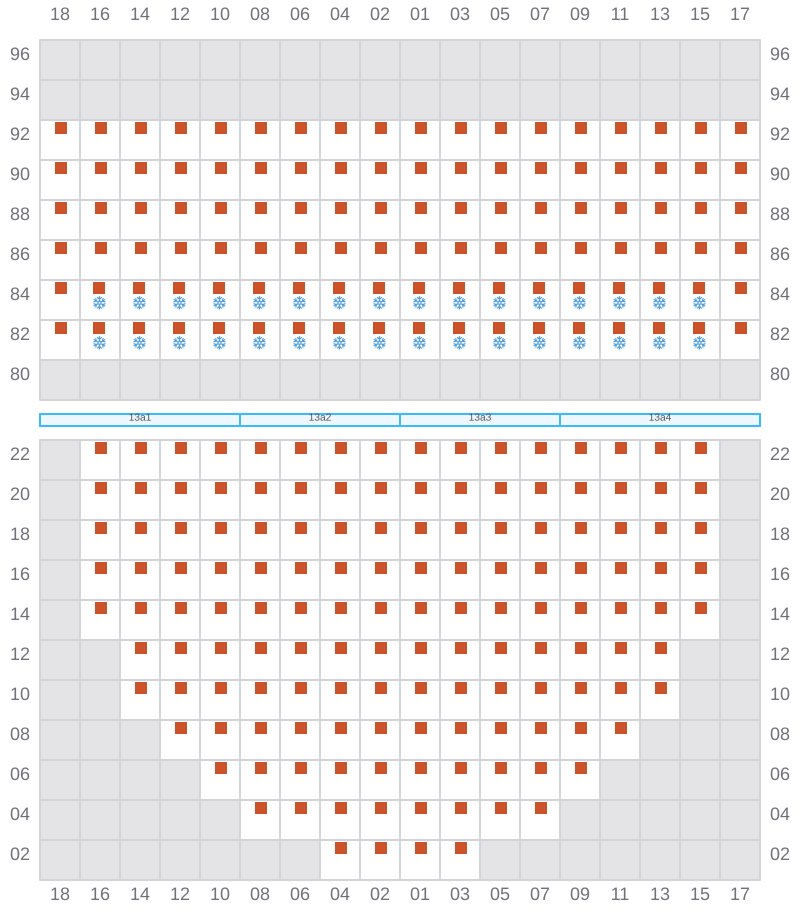

015
- ←
- → / ?
![Bay 015 view and slots of APL DUBLIN](/vessel-images/87e10602-9ecf-4bde-80ea-e240561a6502-b015.png?v=1685402806810)
017 (018)
- →
- → / ?
![Bay 017 view and slots of APL DUBLIN](/vessel-images/87e10602-9ecf-4bde-80ea-e240561a6502-b017.png?v=1685402806810)
019
- ←
- → / ?
![Bay 019 view and slots of APL DUBLIN](/vessel-images/87e10602-9ecf-4bde-80ea-e240561a6502-b019.png?v=1685402806810)
021 (022)
- →
- → / ?
![Bay 021 view and slots of APL DUBLIN](/vessel-images/87e10602-9ecf-4bde-80ea-e240561a6502-b021.png?v=1685402806810)

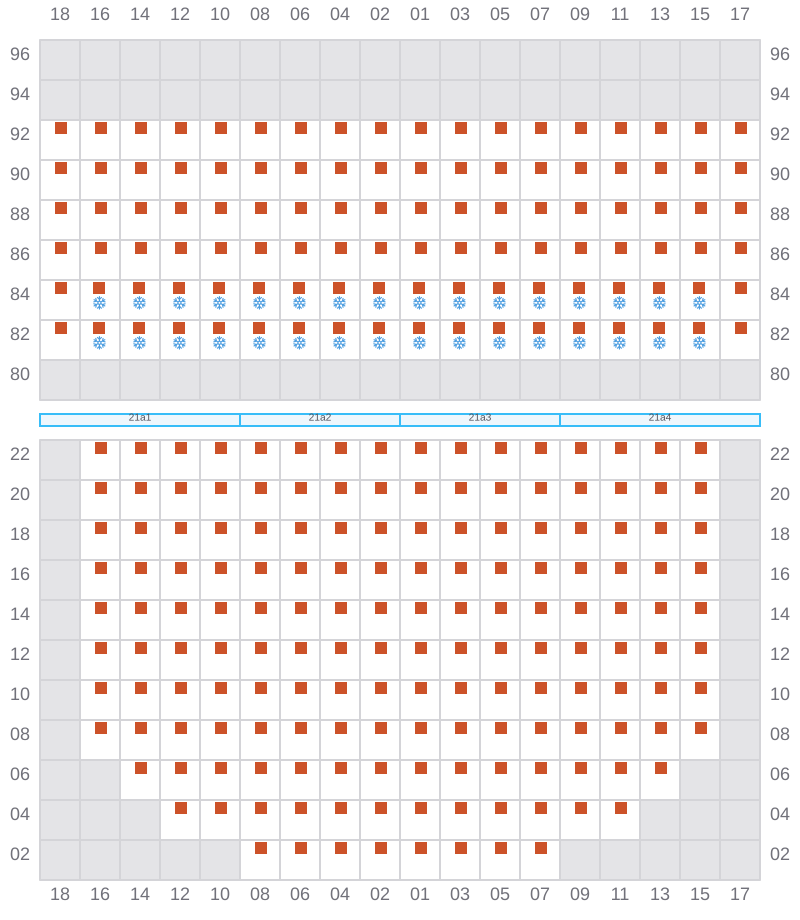

023
- ←
- → / ?
![Bay 023 view and slots of APL DUBLIN](/vessel-images/87e10602-9ecf-4bde-80ea-e240561a6502-b023.png?v=1685402806810)

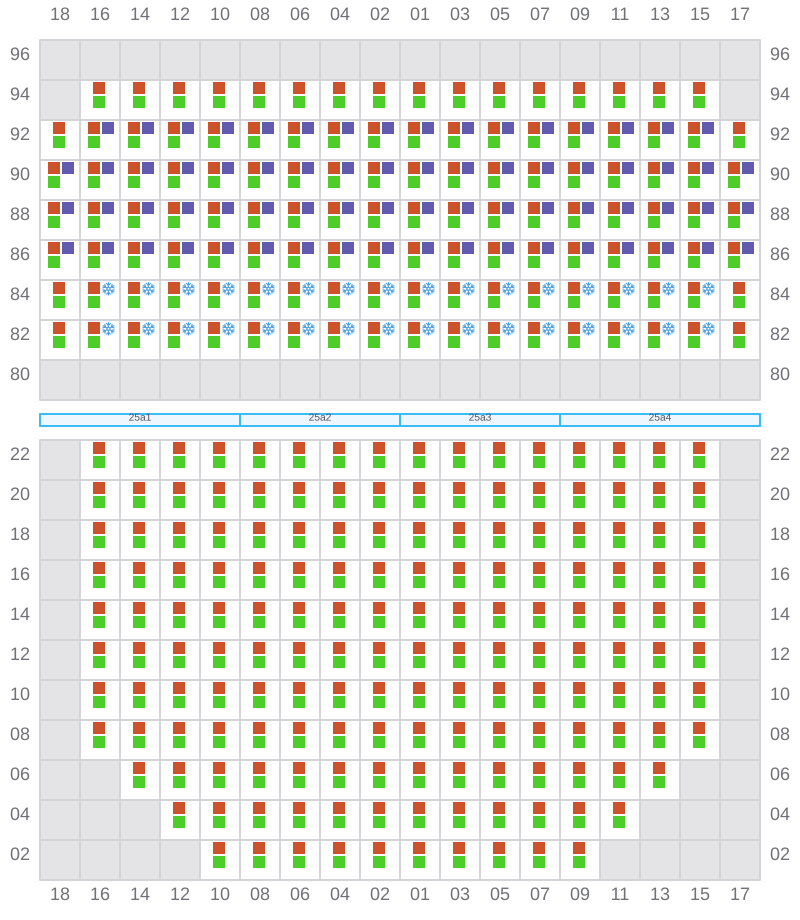

025 (026)
- →
- → / ?
![Bay 025 view and slots of APL DUBLIN](/vessel-images/87e10602-9ecf-4bde-80ea-e240561a6502-b025.png?v=1685402806810)

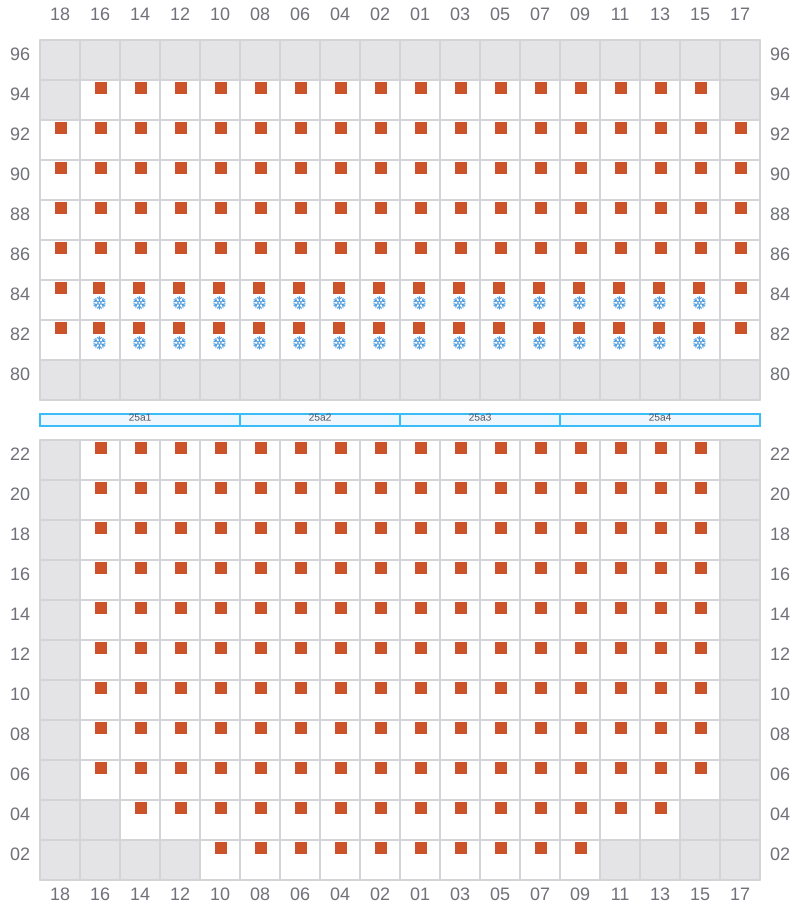

027
- ←
- → / ?
![Bay 027 view and slots of APL DUBLIN](/vessel-images/87e10602-9ecf-4bde-80ea-e240561a6502-b027.png?v=1685402806810)

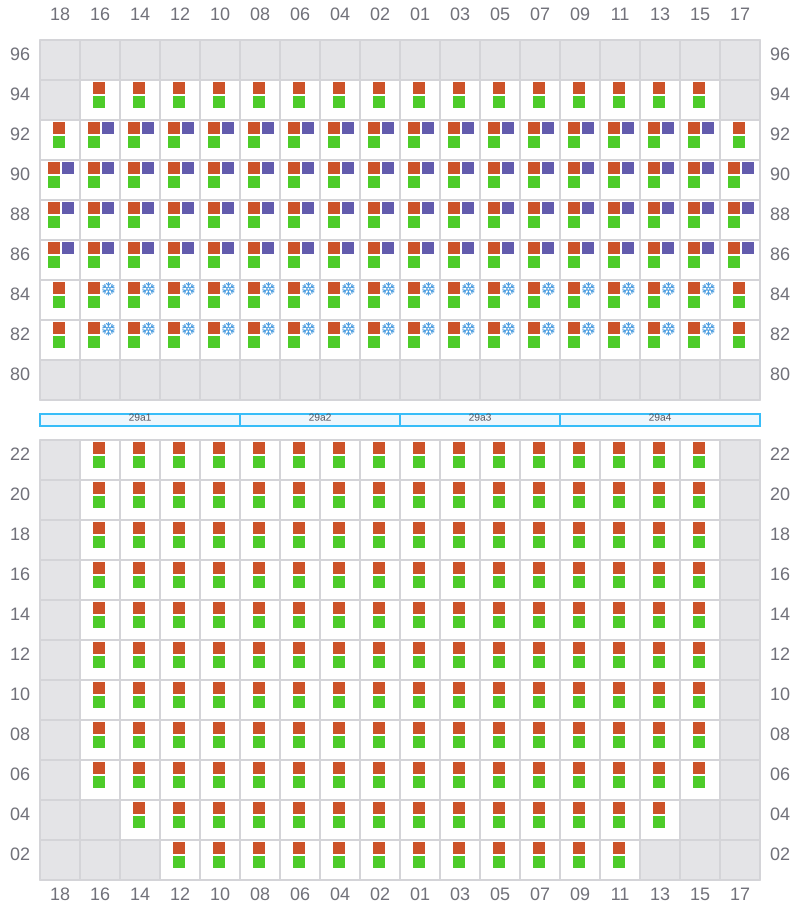

029 (030)
- →
- → / ?
![Bay 029 view and slots of APL DUBLIN](/vessel-images/87e10602-9ecf-4bde-80ea-e240561a6502-b029.png?v=1685402806810)

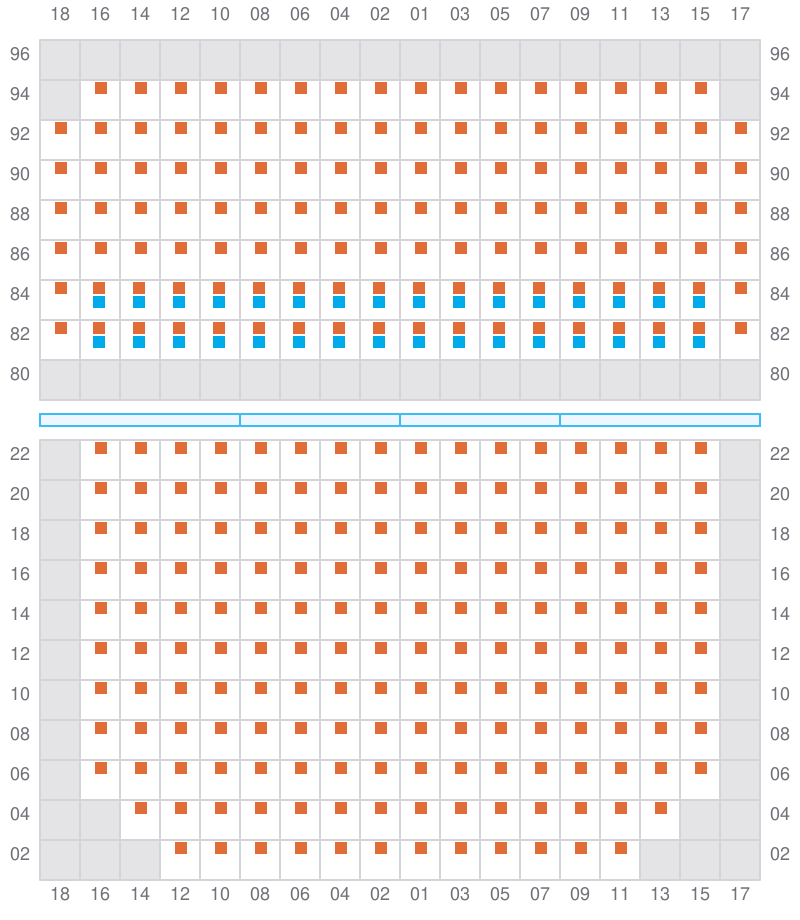

031
- ←
- → / ?
![Bay 031 view and slots of APL DUBLIN](/vessel-images/87e10602-9ecf-4bde-80ea-e240561a6502-b031.png?v=1685402806810)
033 (034)
- →
- → / ?
![Bay 033 view and slots of APL DUBLIN](/vessel-images/87e10602-9ecf-4bde-80ea-e240561a6502-b033.png?v=1685402806810)
035
- ←
- → / ?
![Bay 035 view and slots of APL DUBLIN](/vessel-images/87e10602-9ecf-4bde-80ea-e240561a6502-b035.png?v=1685402806810)
037 (038)
- →
- → / ?
![Bay 037 view and slots of APL DUBLIN](/vessel-images/87e10602-9ecf-4bde-80ea-e240561a6502-b037.png?v=1685402806810)

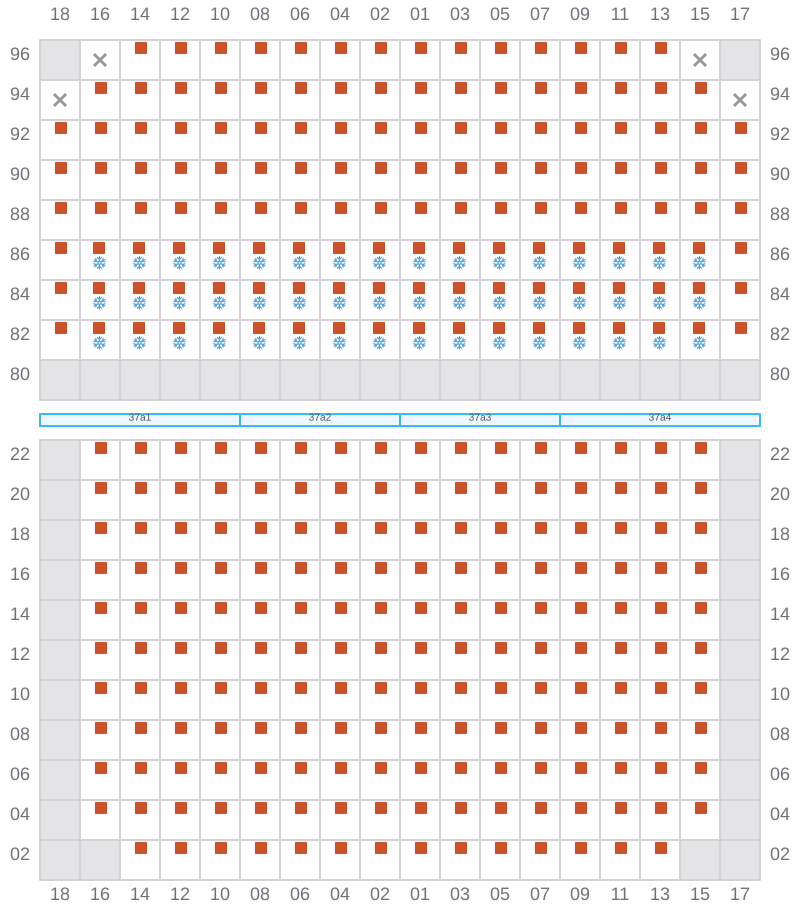

039
- ←
![Bay 039 view and slots of APL DUBLIN](/vessel-images/87e10602-9ecf-4bde-80ea-e240561a6502-b039.png?v=1685402806810)

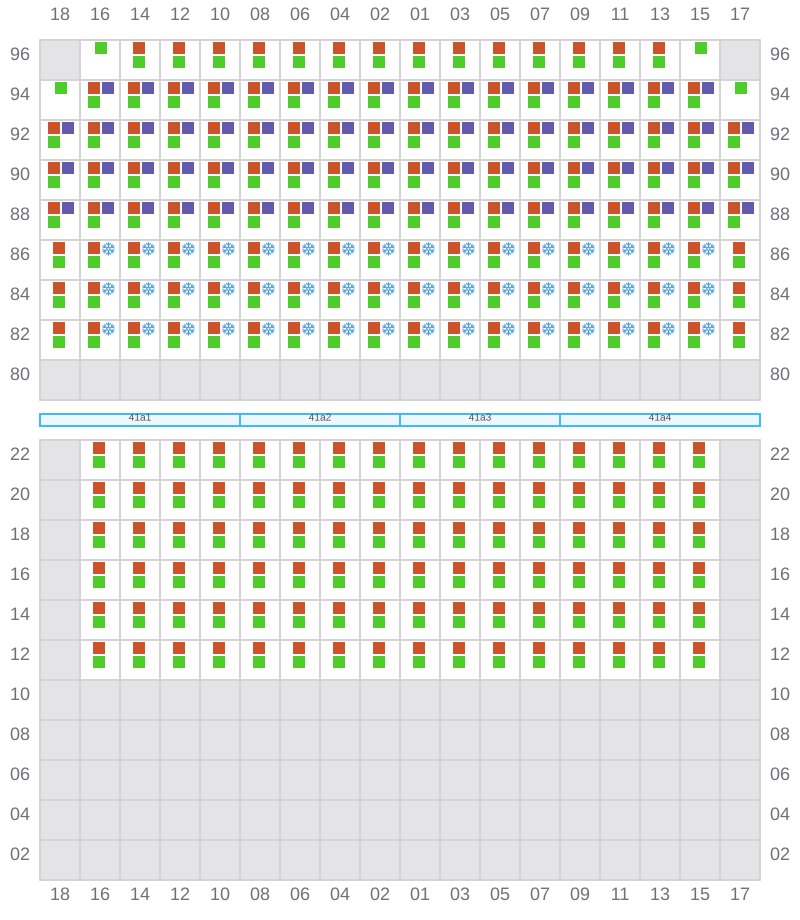

041 (042)
- →
- → / ?
![Bay 041 view and slots of APL DUBLIN](/vessel-images/87e10602-9ecf-4bde-80ea-e240561a6502-b041.png?v=1685402806810)
043
- ←
- → / ?
![Bay 043 view and slots of APL DUBLIN](/vessel-images/87e10602-9ecf-4bde-80ea-e240561a6502-b043.png?v=1685402806810)

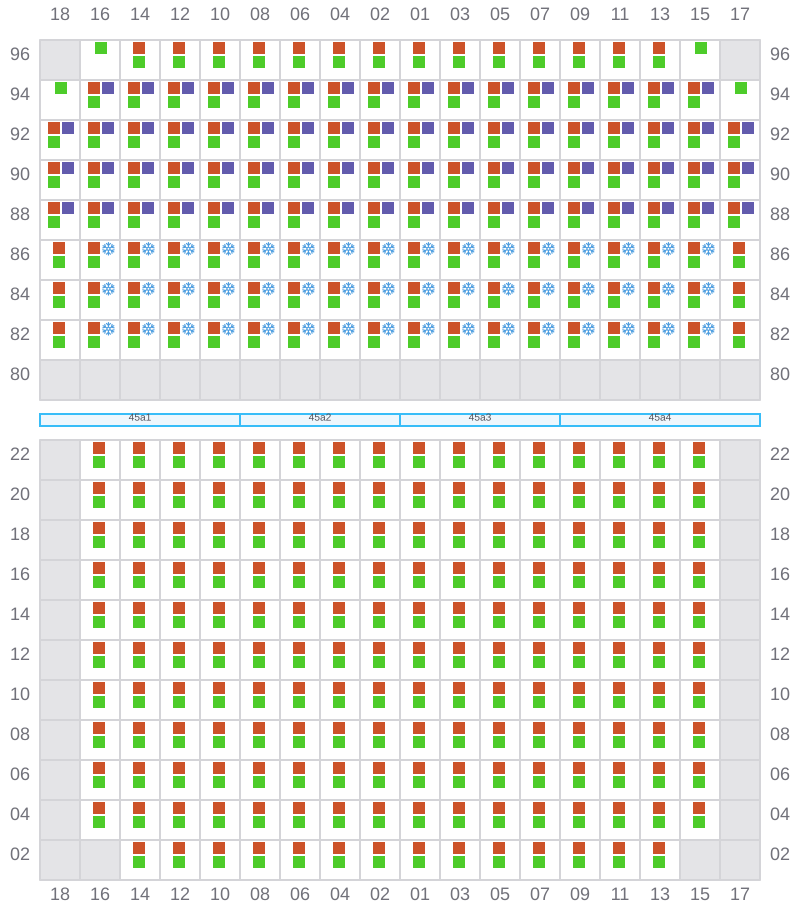

045 (046)
- →
- → / ?
![Bay 045 view and slots of APL DUBLIN](/vessel-images/87e10602-9ecf-4bde-80ea-e240561a6502-b045.png?v=1685402806810)
047
- ←
- → / ?
![Bay 047 view and slots of APL DUBLIN](/vessel-images/87e10602-9ecf-4bde-80ea-e240561a6502-b047.png?v=1685402806810)
049 (050)
- →
- → / ?
![Bay 049 view and slots of APL DUBLIN](/vessel-images/87e10602-9ecf-4bde-80ea-e240561a6502-b049.png?v=1685402806810)

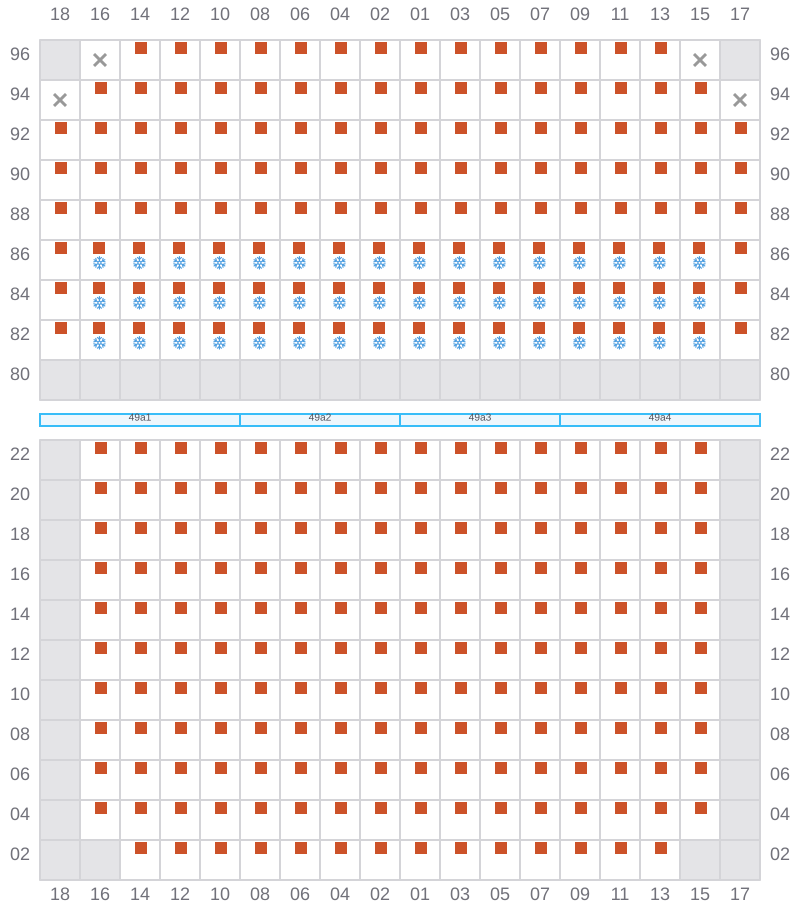

051
- ←
- → / ?
![Bay 051 view and slots of APL DUBLIN](/vessel-images/87e10602-9ecf-4bde-80ea-e240561a6502-b051.png?v=1685402806810)

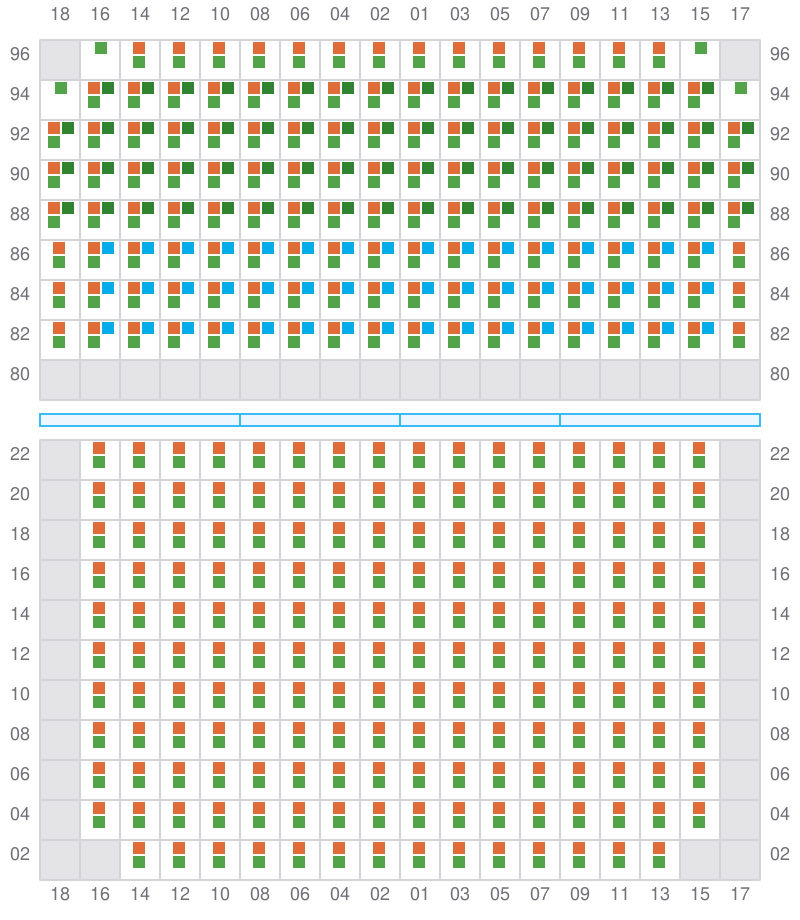

053 (054)
- →
- → / ?
![Bay 053 view and slots of APL DUBLIN](/vessel-images/87e10602-9ecf-4bde-80ea-e240561a6502-b053.png?v=1685402806810)

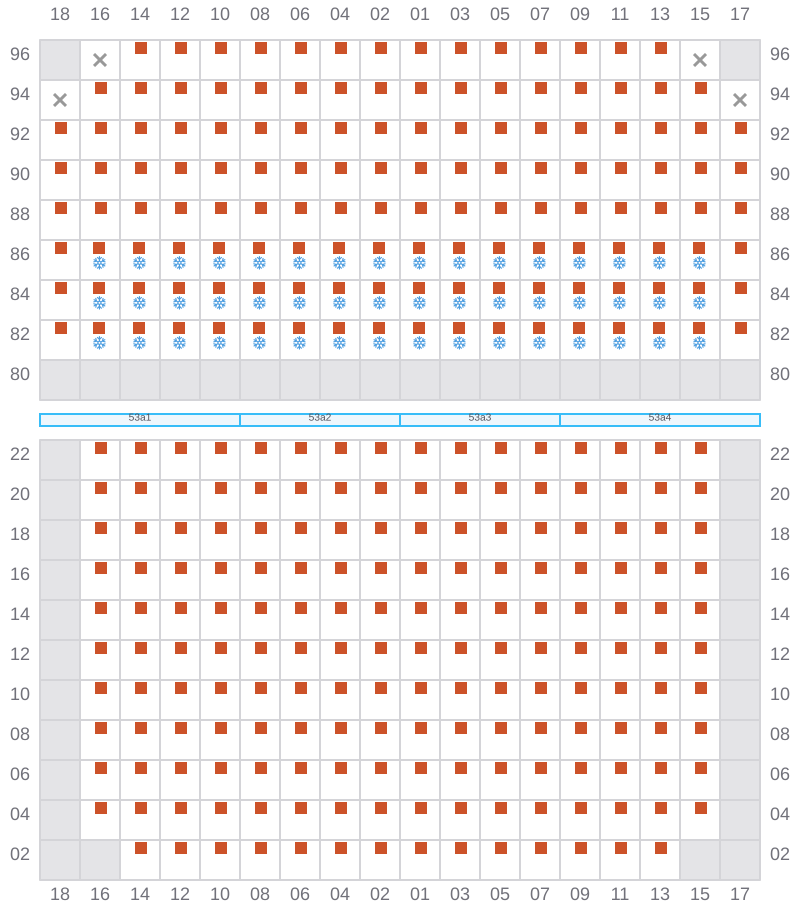

055
- ←
- → / ?
![Bay 055 view and slots of APL DUBLIN](/vessel-images/87e10602-9ecf-4bde-80ea-e240561a6502-b055.png?v=1685402806810)
057 (058)
- →
- → / ?
![Bay 057 view and slots of APL DUBLIN](/vessel-images/87e10602-9ecf-4bde-80ea-e240561a6502-b057.png?v=1685402806810)

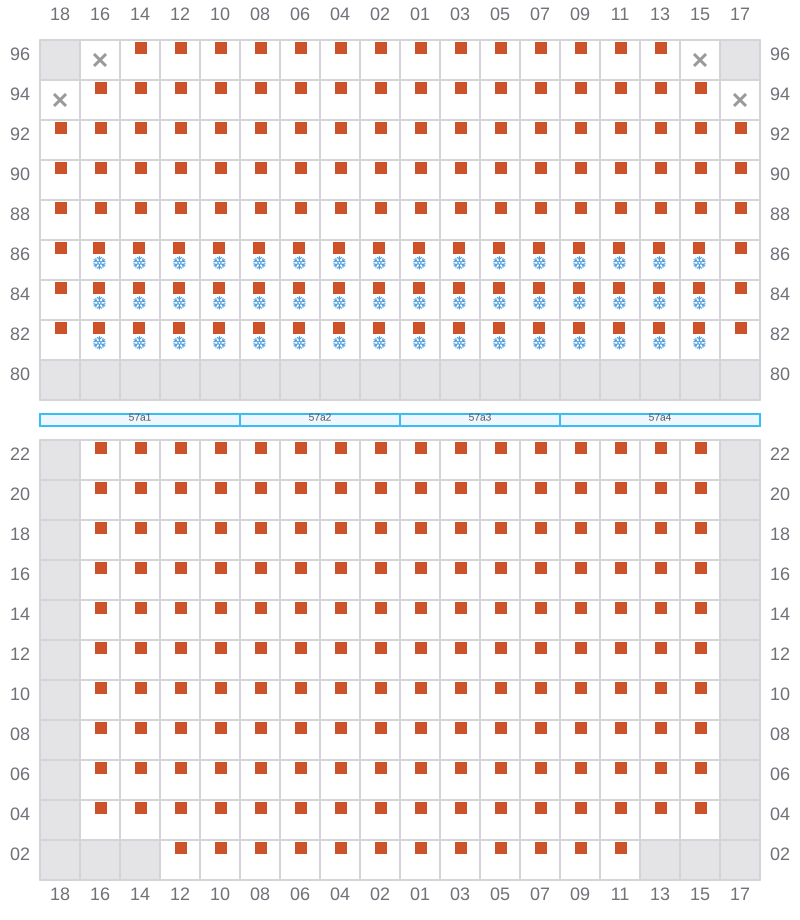

059
- ←
- → / ?
![Bay 059 view and slots of APL DUBLIN](/vessel-images/87e10602-9ecf-4bde-80ea-e240561a6502-b059.png?v=1685402806810)
061 (062)
- →
- → / ?
![Bay 061 view and slots of APL DUBLIN](/vessel-images/87e10602-9ecf-4bde-80ea-e240561a6502-b061.png?v=1685402806810)
063
- ←
- → / ?
![Bay 063 view and slots of APL DUBLIN](/vessel-images/87e10602-9ecf-4bde-80ea-e240561a6502-b063.png?v=1685402806810)

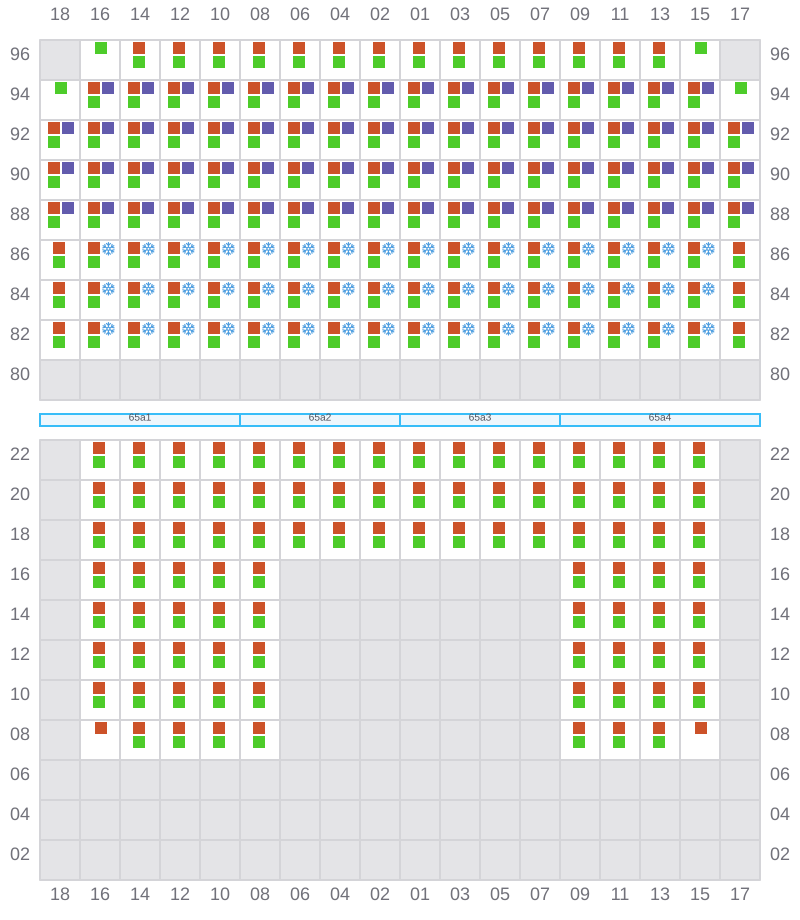

065 (066)
- →
- → / ?
![Bay 065 view and slots of APL DUBLIN](/vessel-images/87e10602-9ecf-4bde-80ea-e240561a6502-b065.png?v=1685402806810)
067
- ←
- → / ?
![Bay 067 view and slots of APL DUBLIN](/vessel-images/87e10602-9ecf-4bde-80ea-e240561a6502-b067.png?v=1685402806810)
069 (070)
- →
- → / ?
![Bay 069 view and slots of APL DUBLIN](/vessel-images/87e10602-9ecf-4bde-80ea-e240561a6502-b069.png?v=1685402806810)

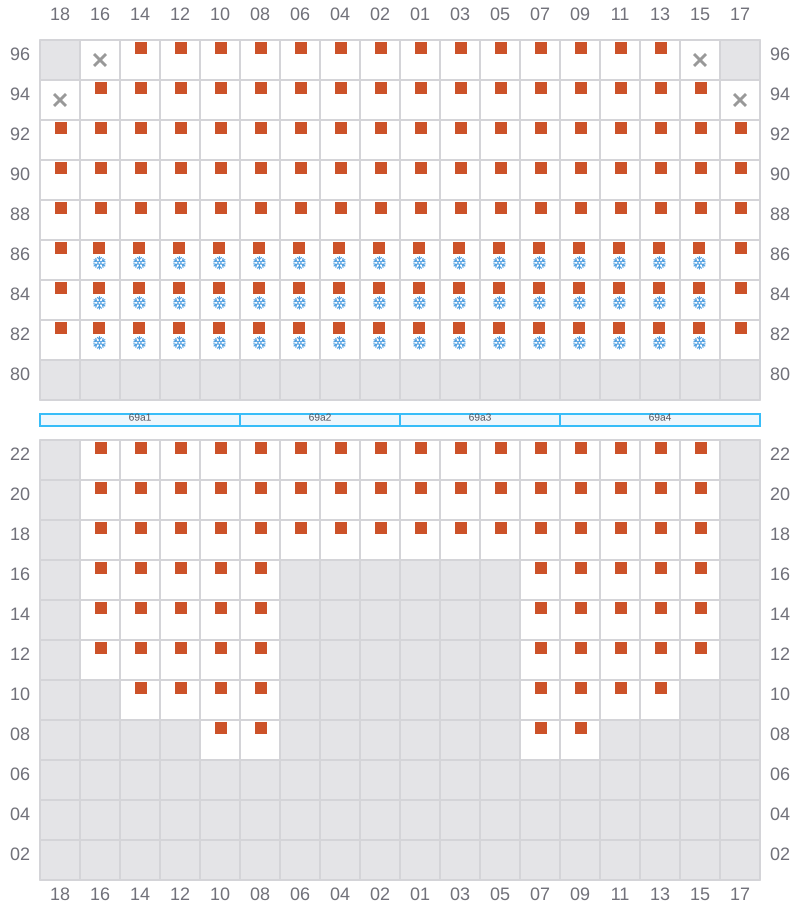

071
- ←
- → / ?
![Bay 071 view and slots of APL DUBLIN](/vessel-images/87e10602-9ecf-4bde-80ea-e240561a6502-b071.png?v=1685402806810)
073 (074)
- →
- → / ?
![Bay 073 view and slots of APL DUBLIN](/vessel-images/87e10602-9ecf-4bde-80ea-e240561a6502-b073.png?v=1685402806810)
075
- ←
- → / ?
![Bay 075 view and slots of APL DUBLIN](/vessel-images/87e10602-9ecf-4bde-80ea-e240561a6502-b075.png?v=1685402806810)

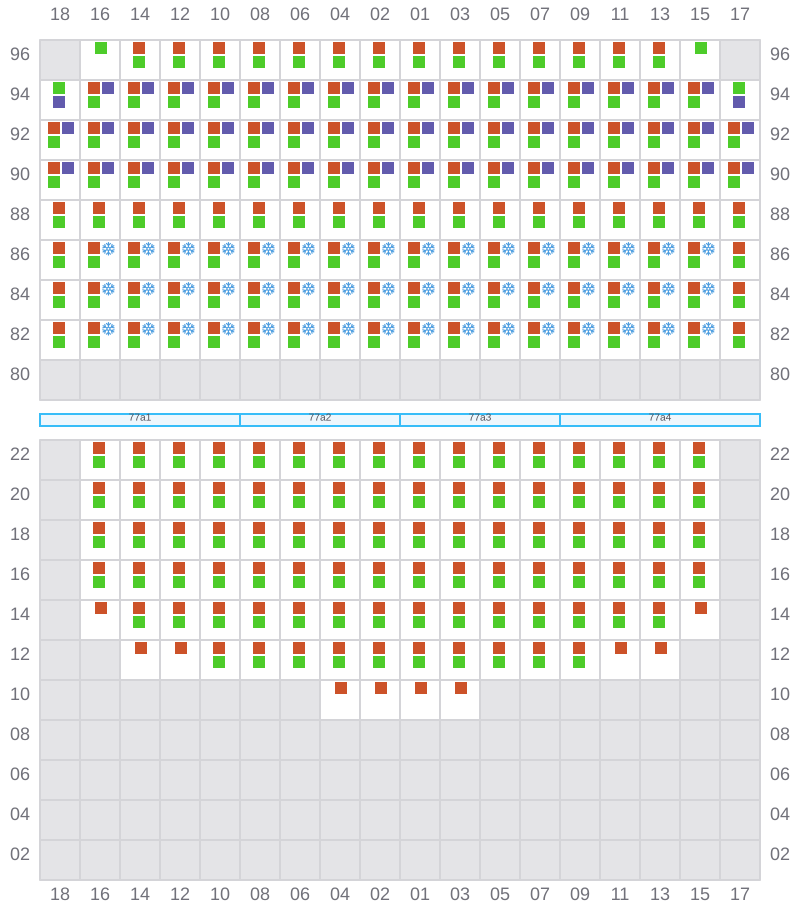

077 (078)
- →
- → / ?
![Bay 077 view and slots of APL DUBLIN](/vessel-images/87e10602-9ecf-4bde-80ea-e240561a6502-b077.png?v=1685402806810)

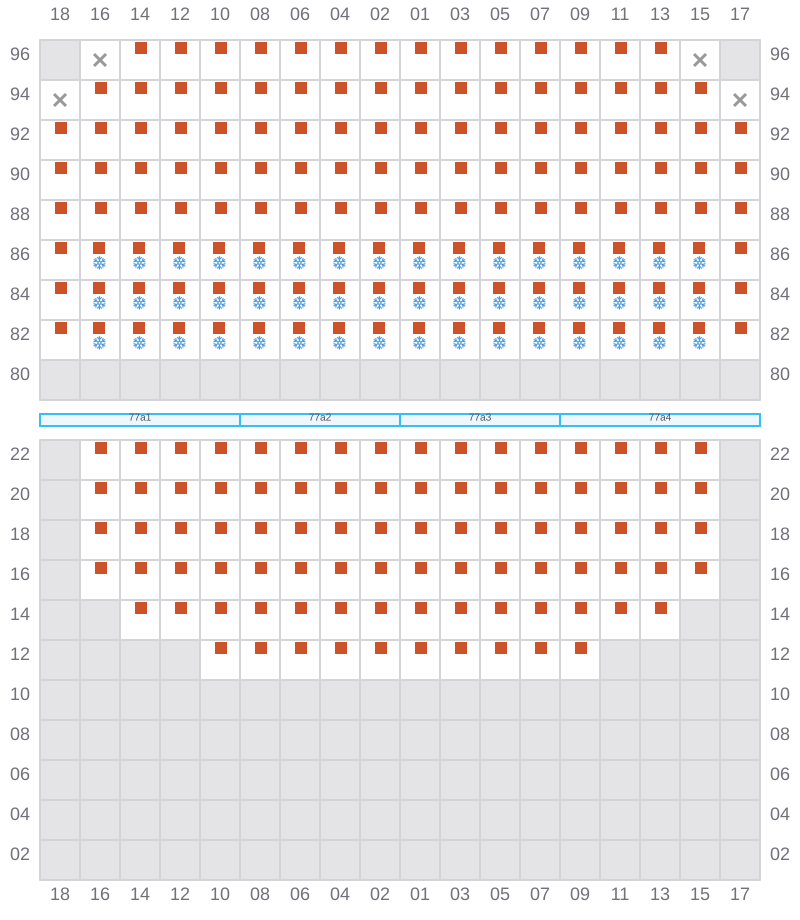

079
- ←
- → / ?
![Bay 079 view and slots of APL DUBLIN](/vessel-images/87e10602-9ecf-4bde-80ea-e240561a6502-b079.png?v=1685402806810)

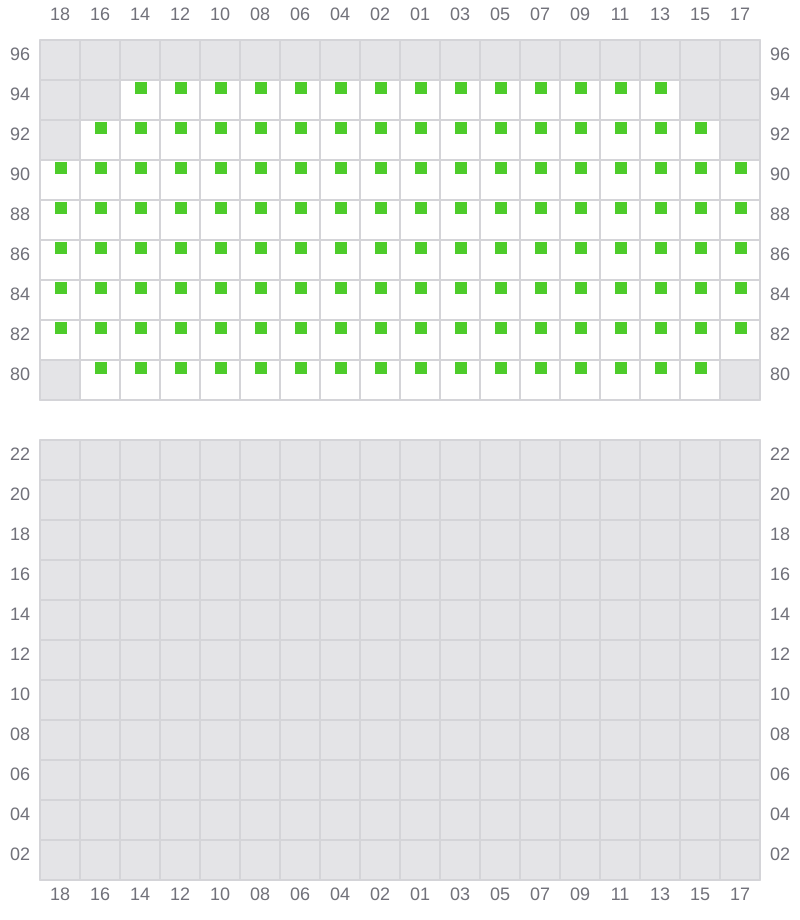

081 (082)
- → / ?
![Bay 081 view and slots of APL DUBLIN](/vessel-images/87e10602-9ecf-4bde-80ea-e240561a6502-b081.png?v=1685402806810)
