APL HOUSTON
9597537 | 9V9921 | APL by ***************************** Last update: Mon May 29 2023
General Info
Ship Name:APL HOUSTON
IMO Code:9597537
Call Sign:9V9921
Line Operator:APL
Class Name for Sister Ships:AHOU
Year Built:2014
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:073
Max ISO Row:18
Center Line Row:No
Max Above ISO Tier:98
Min Above ISO Tier:80
Max Below ISO Tier:20
Min Below ISO Tier:02
Total TEU:9,326
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

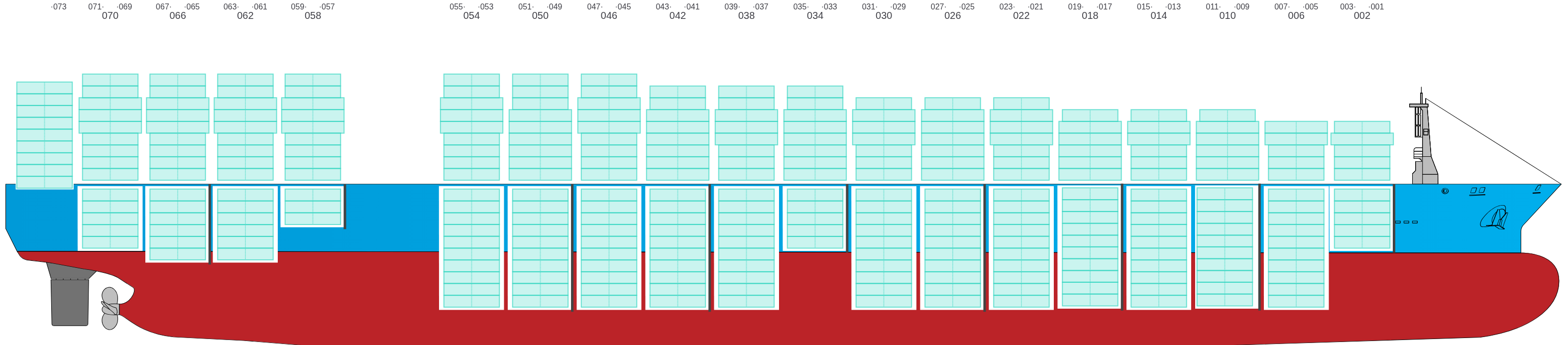

Side View
![Side view of APL HOUSTON](/vessel-images/5d97b821-86ec-4b76-8245-c0f2a427efaf-sideView.png?v=1685402758802)
Hatch-Covers View
![Deck view of APL HOUSTON](/vessel-images/5d97b821-86ec-4b76-8245-c0f2a427efaf-deckView.png?v=1685402758802)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

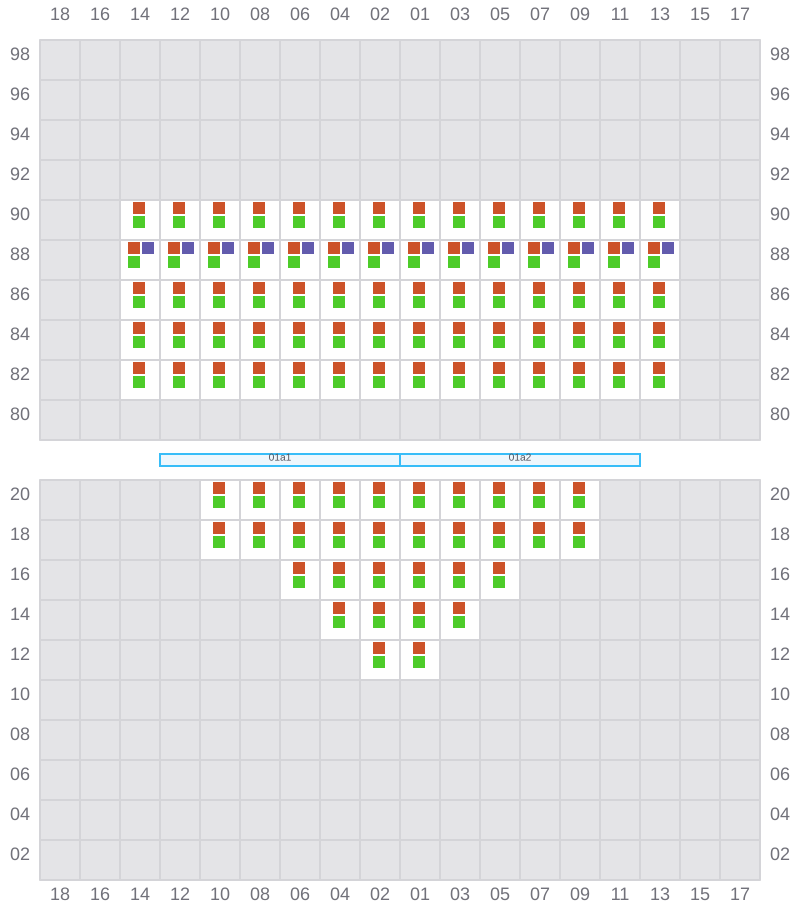

001 (002)
- →
- →
![Bay 001 view and slots of APL HOUSTON](/vessel-images/5d97b821-86ec-4b76-8245-c0f2a427efaf-b001.png?v=1685402758802)

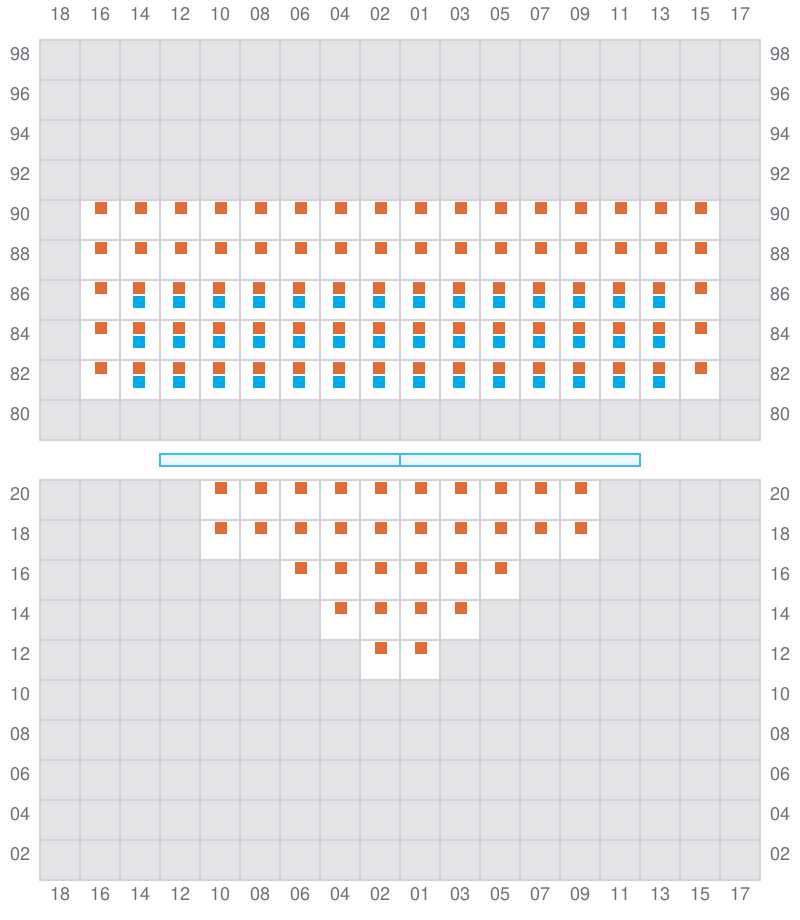

003
- ←
- → / ?
- →
![Bay 003 view and slots of APL HOUSTON](/vessel-images/5d97b821-86ec-4b76-8245-c0f2a427efaf-b003.png?v=1685402758802)

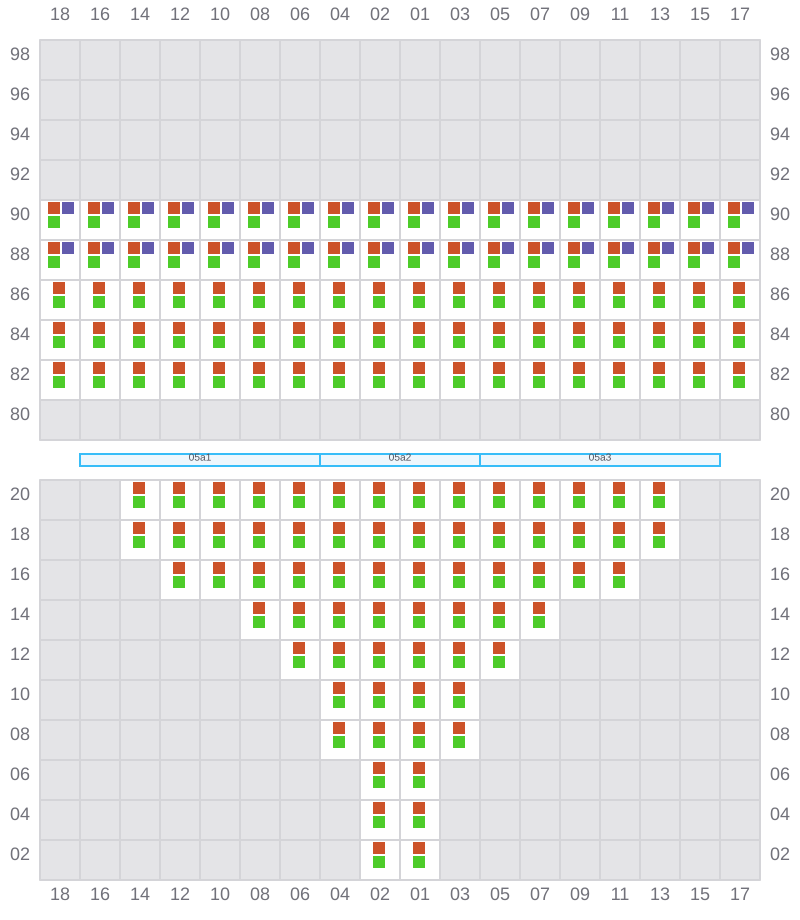

005 (006)
- →
- → / ?
- →
![Bay 005 view and slots of APL HOUSTON](/vessel-images/5d97b821-86ec-4b76-8245-c0f2a427efaf-b005.png?v=1685402758802)

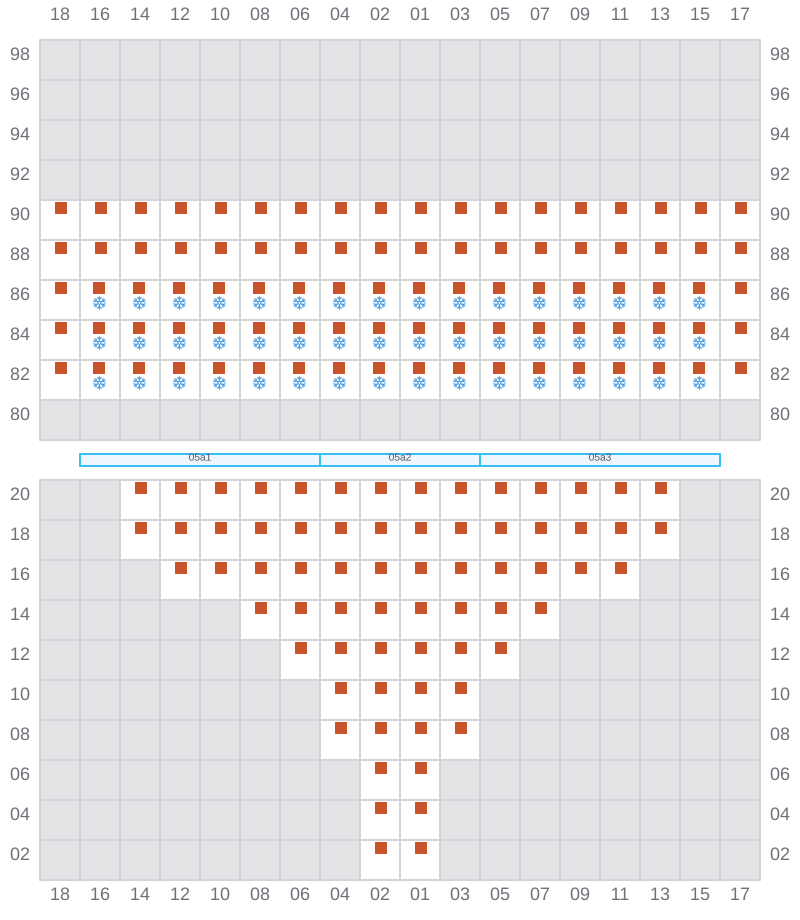

007
- ←
- → / ?
- →
![Bay 007 view and slots of APL HOUSTON](/vessel-images/5d97b821-86ec-4b76-8245-c0f2a427efaf-b007.png?v=1685402758802)

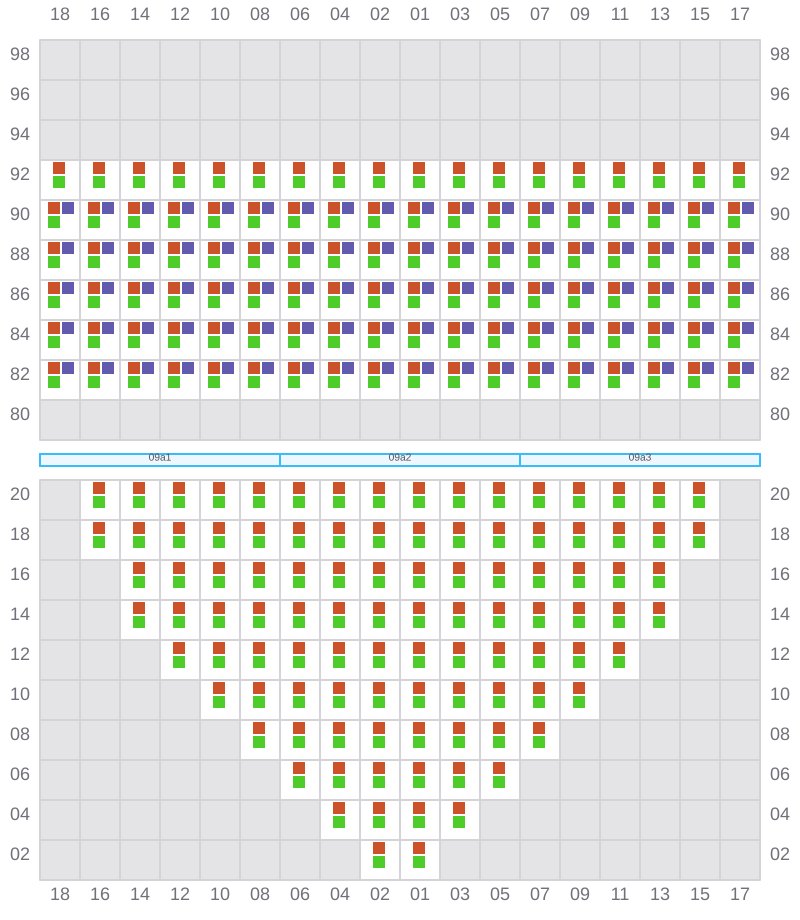

009 (010)
- →
- → / ?
- →
![Bay 009 view and slots of APL HOUSTON](/vessel-images/5d97b821-86ec-4b76-8245-c0f2a427efaf-b009.png?v=1685402758802)

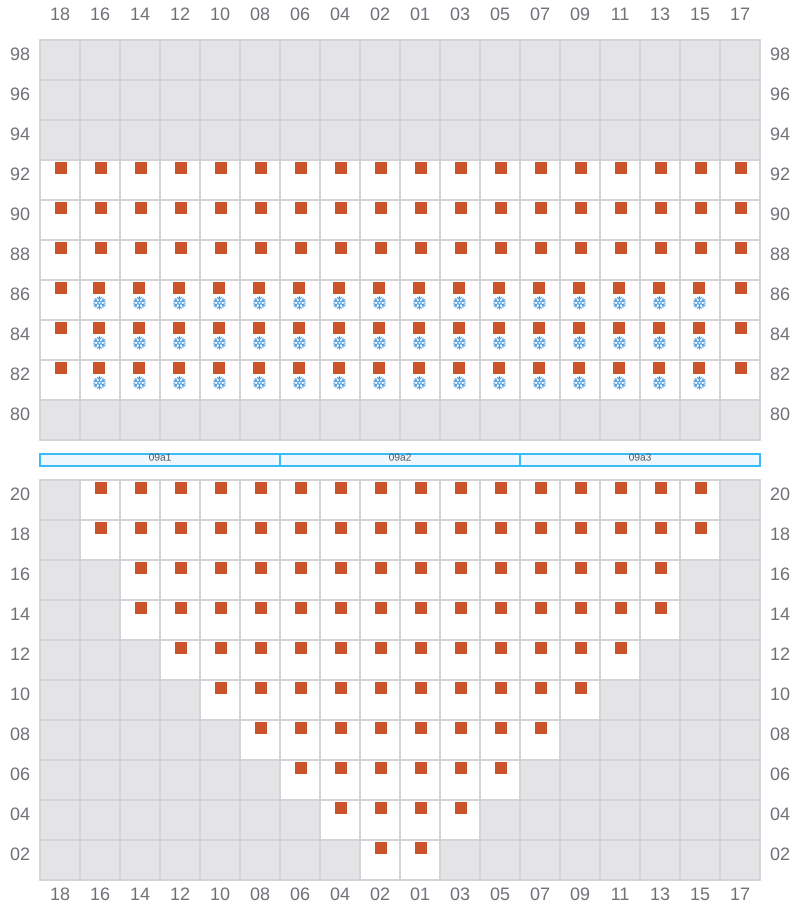

011
- ←
- → / ?
- →
![Bay 011 view and slots of APL HOUSTON](/vessel-images/5d97b821-86ec-4b76-8245-c0f2a427efaf-b011.png?v=1685402758802)

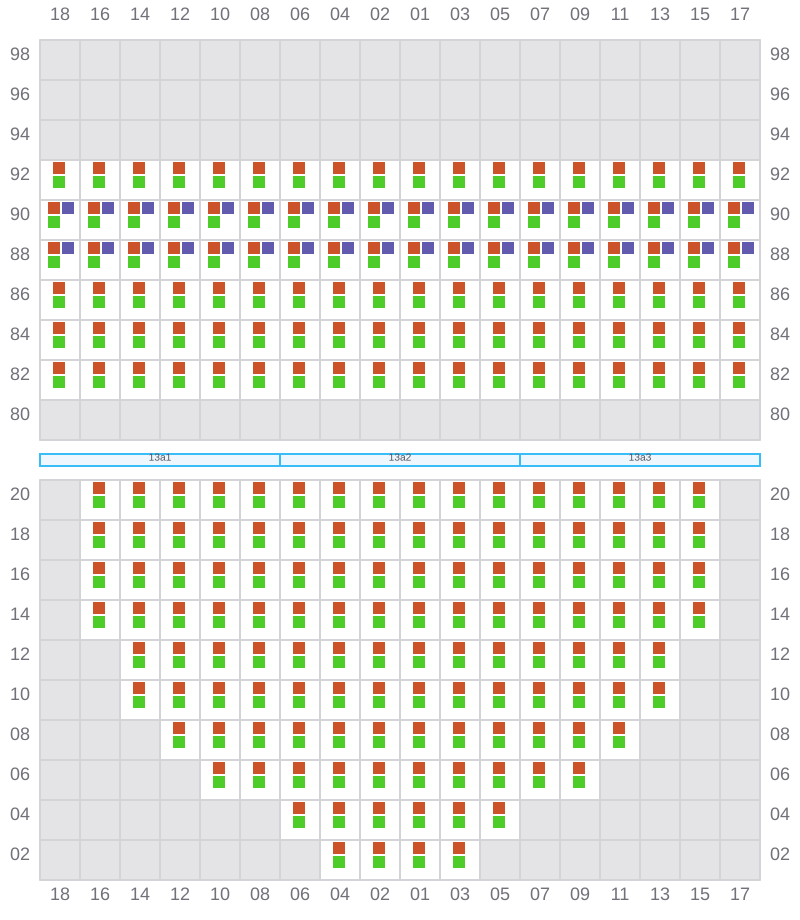

013 (014)
- →
- → / ?
- →
![Bay 013 view and slots of APL HOUSTON](/vessel-images/5d97b821-86ec-4b76-8245-c0f2a427efaf-b013.png?v=1685402758802)

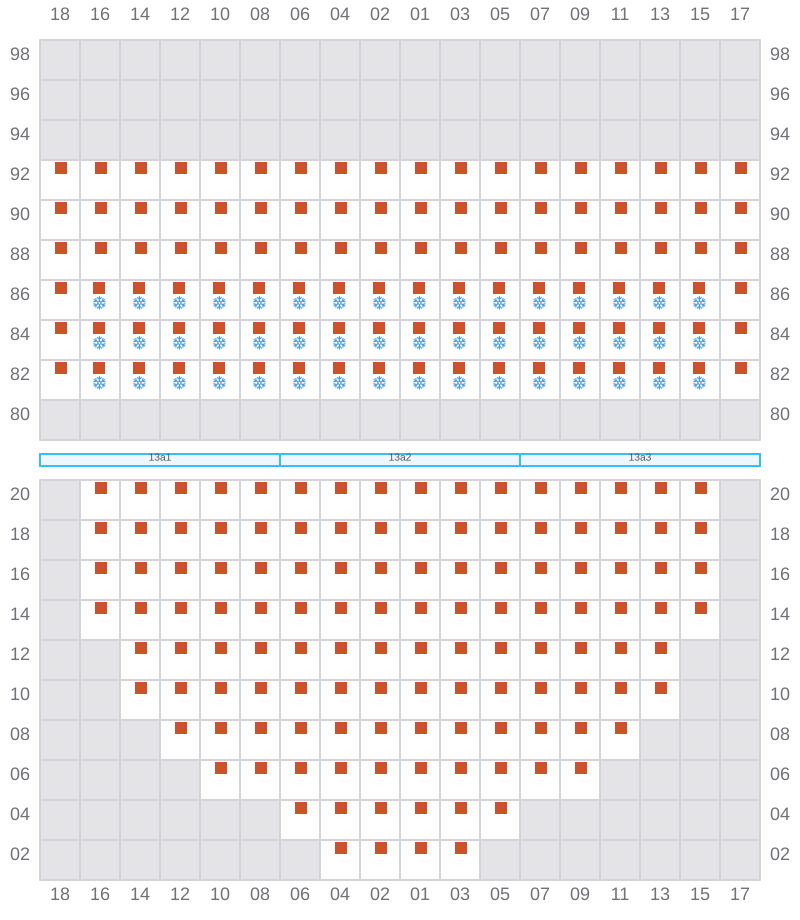

015
- ←
- → / ?
- →
![Bay 015 view and slots of APL HOUSTON](/vessel-images/5d97b821-86ec-4b76-8245-c0f2a427efaf-b015.png?v=1685402758802)

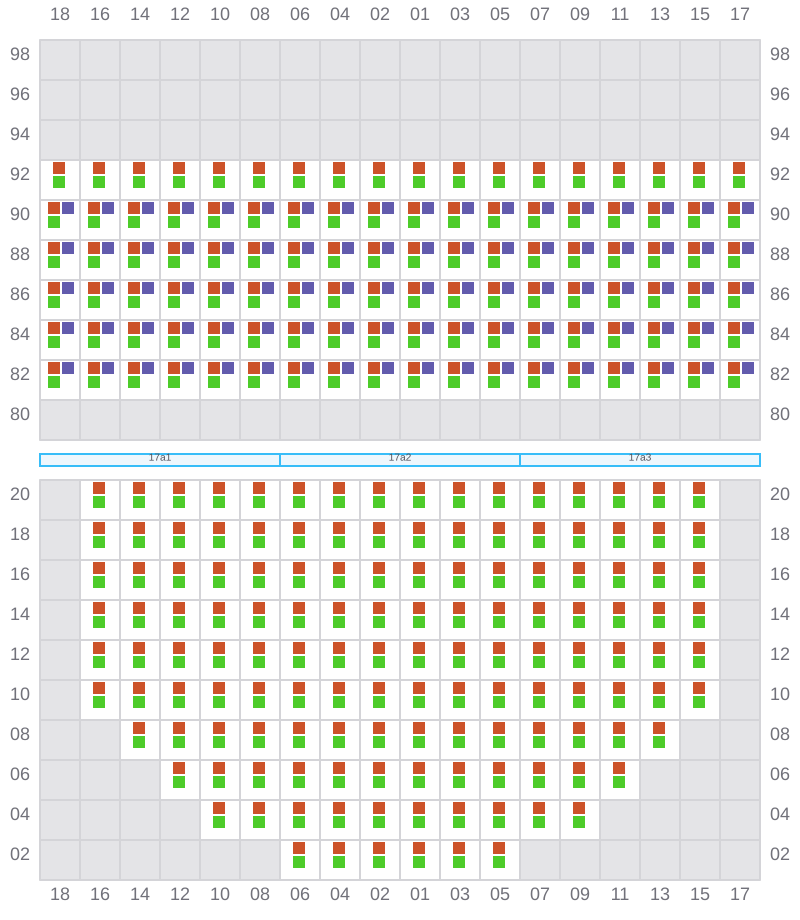

017 (018)
- →
- → / ?
- →
![Bay 017 view and slots of APL HOUSTON](/vessel-images/5d97b821-86ec-4b76-8245-c0f2a427efaf-b017.png?v=1685402758802)

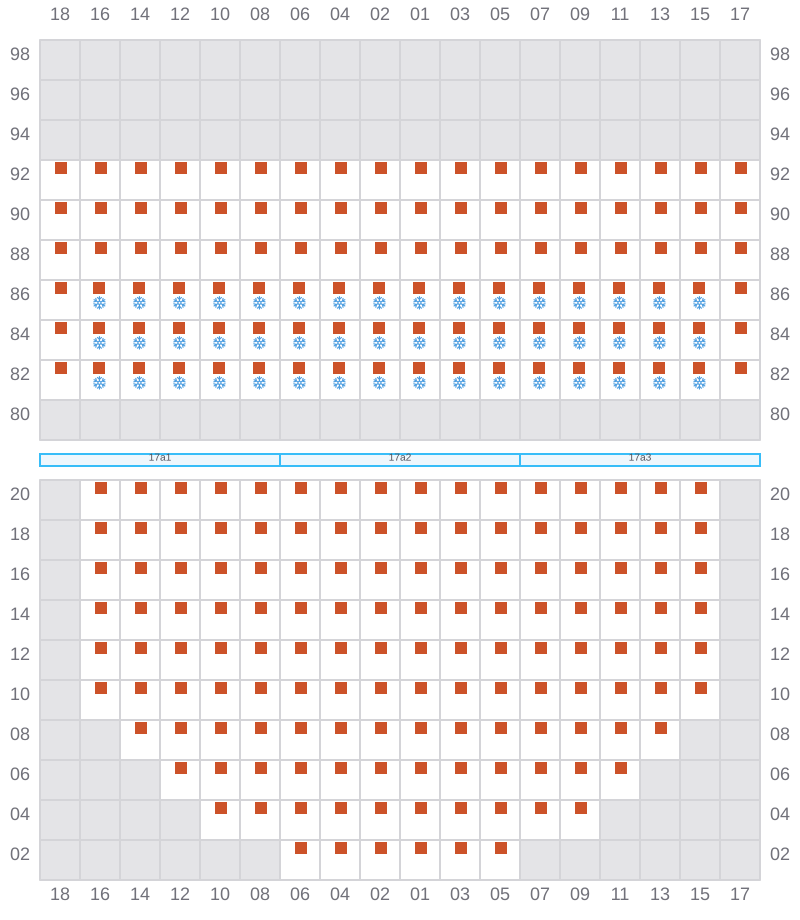

019
- ←
- → / ?
- →
![Bay 019 view and slots of APL HOUSTON](/vessel-images/5d97b821-86ec-4b76-8245-c0f2a427efaf-b019.png?v=1685402758802)

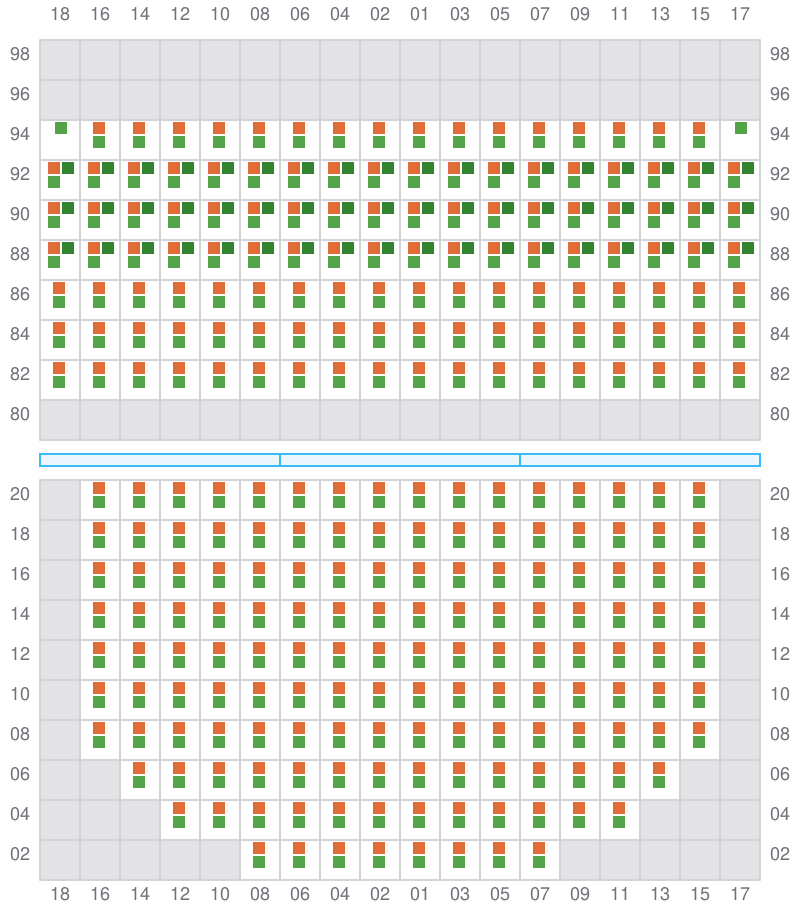

021 (022)
- →
- → / ?
- →
![Bay 021 view and slots of APL HOUSTON](/vessel-images/5d97b821-86ec-4b76-8245-c0f2a427efaf-b021.png?v=1685402758802)

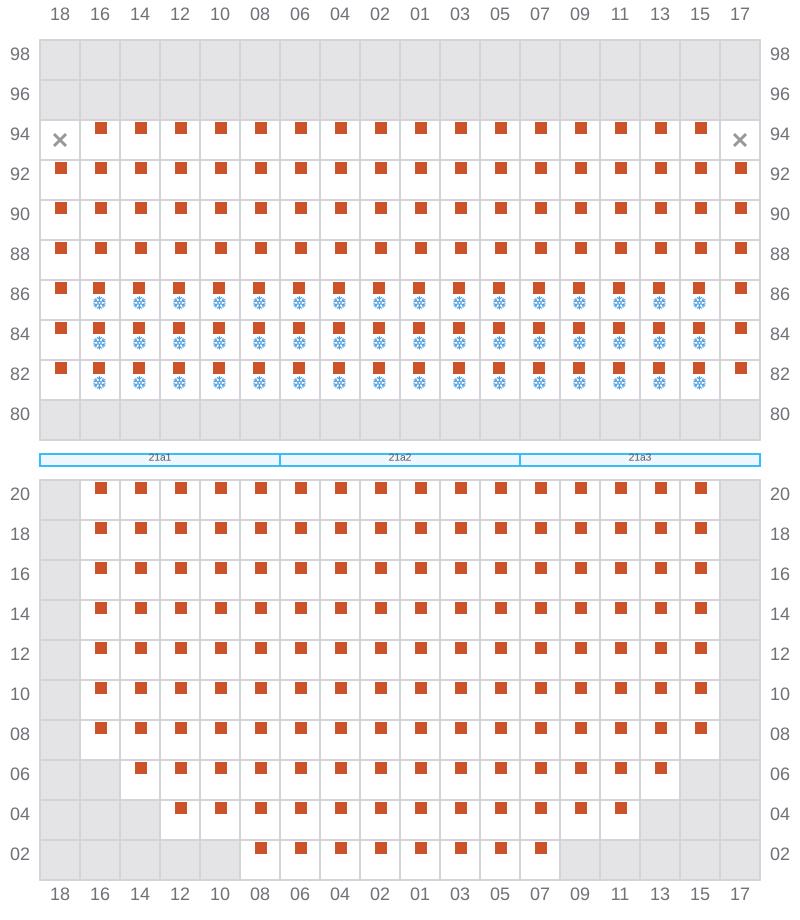

023
- ←
- → / ?
- →
![Bay 023 view and slots of APL HOUSTON](/vessel-images/5d97b821-86ec-4b76-8245-c0f2a427efaf-b023.png?v=1685402758802)

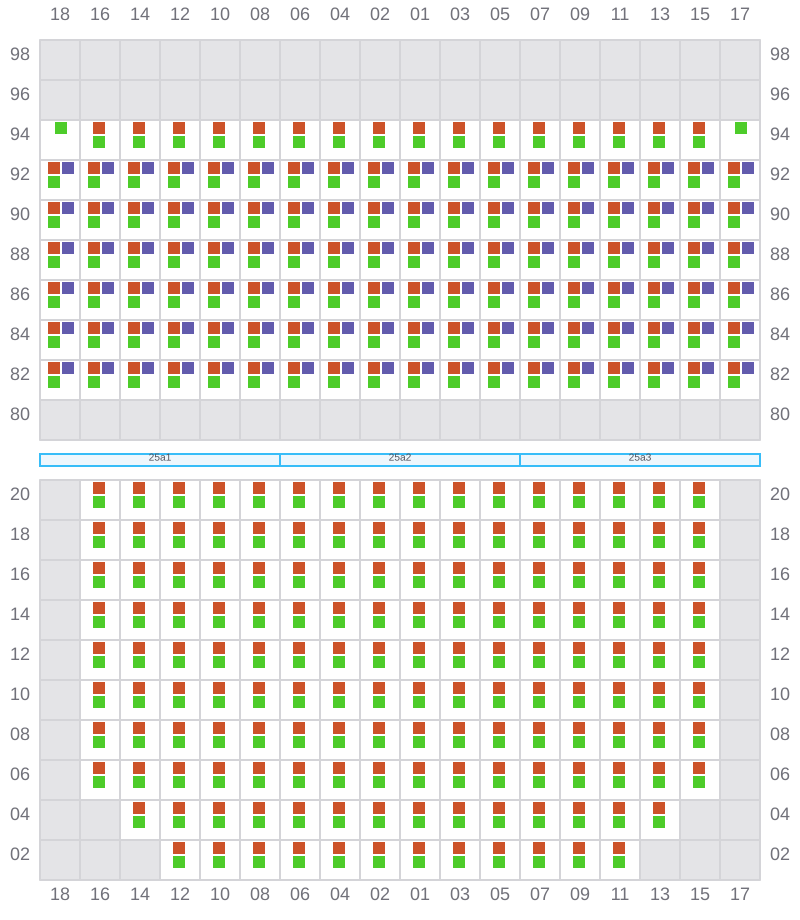

025 (026)
- →
- → / ?
- →
![Bay 025 view and slots of APL HOUSTON](/vessel-images/5d97b821-86ec-4b76-8245-c0f2a427efaf-b025.png?v=1685402758802)

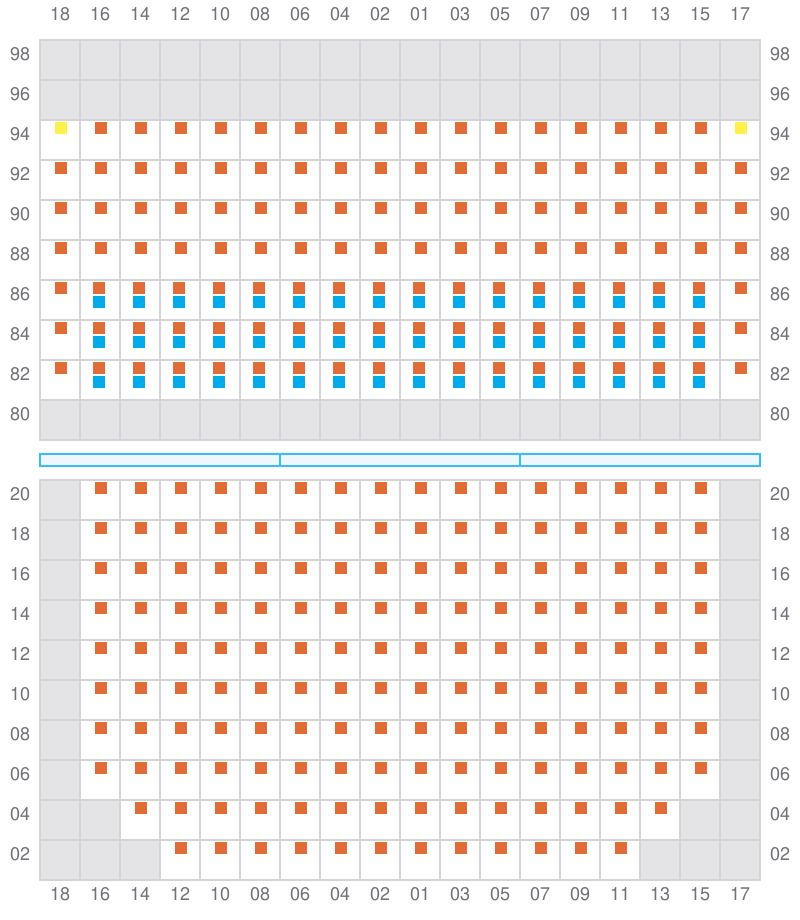

027
- ←
- → / ?
- →
![Bay 027 view and slots of APL HOUSTON](/vessel-images/5d97b821-86ec-4b76-8245-c0f2a427efaf-b027.png?v=1685402758802)

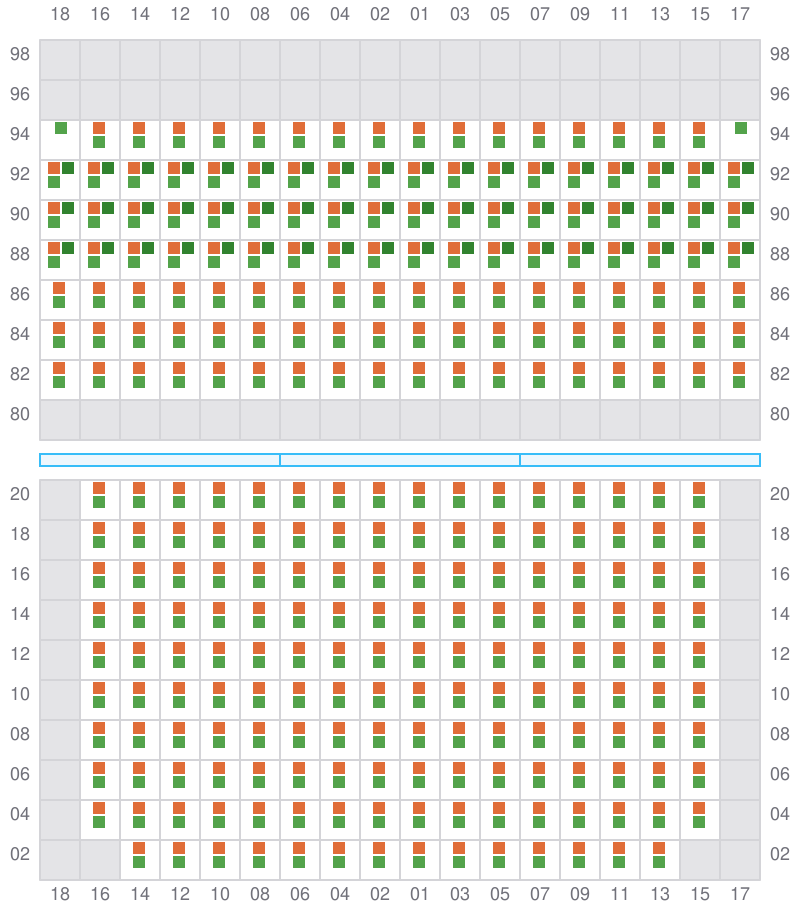

029 (030)
- →
- → / ?
- →
![Bay 029 view and slots of APL HOUSTON](/vessel-images/5d97b821-86ec-4b76-8245-c0f2a427efaf-b029.png?v=1685402758802)

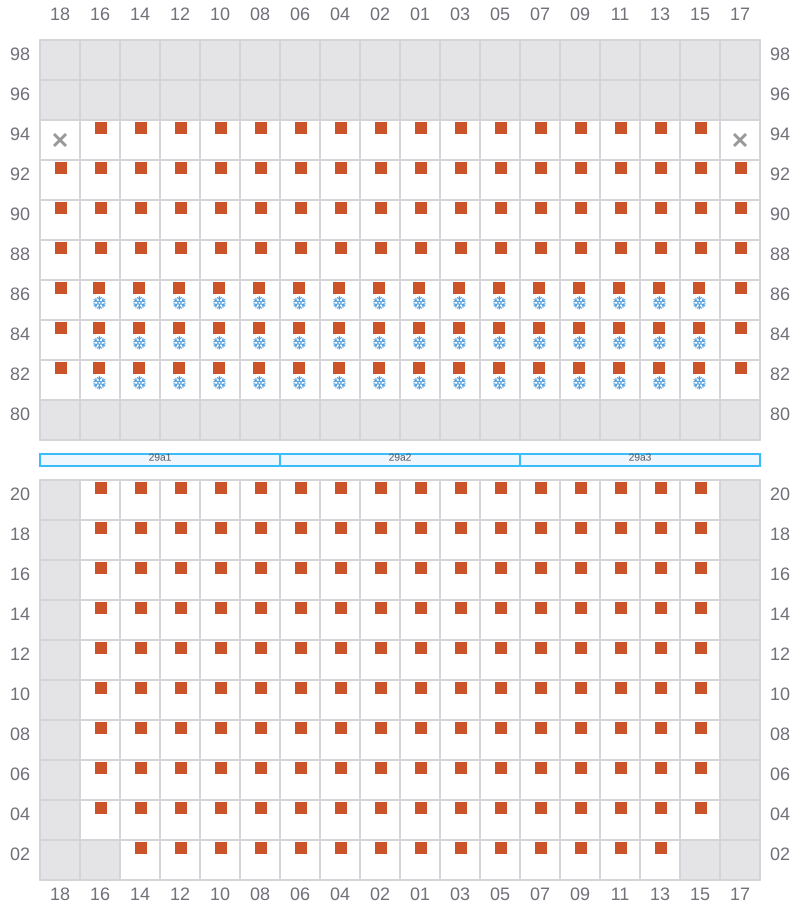

031
- ←
- → / ?
- →
![Bay 031 view and slots of APL HOUSTON](/vessel-images/5d97b821-86ec-4b76-8245-c0f2a427efaf-b031.png?v=1685402758802)

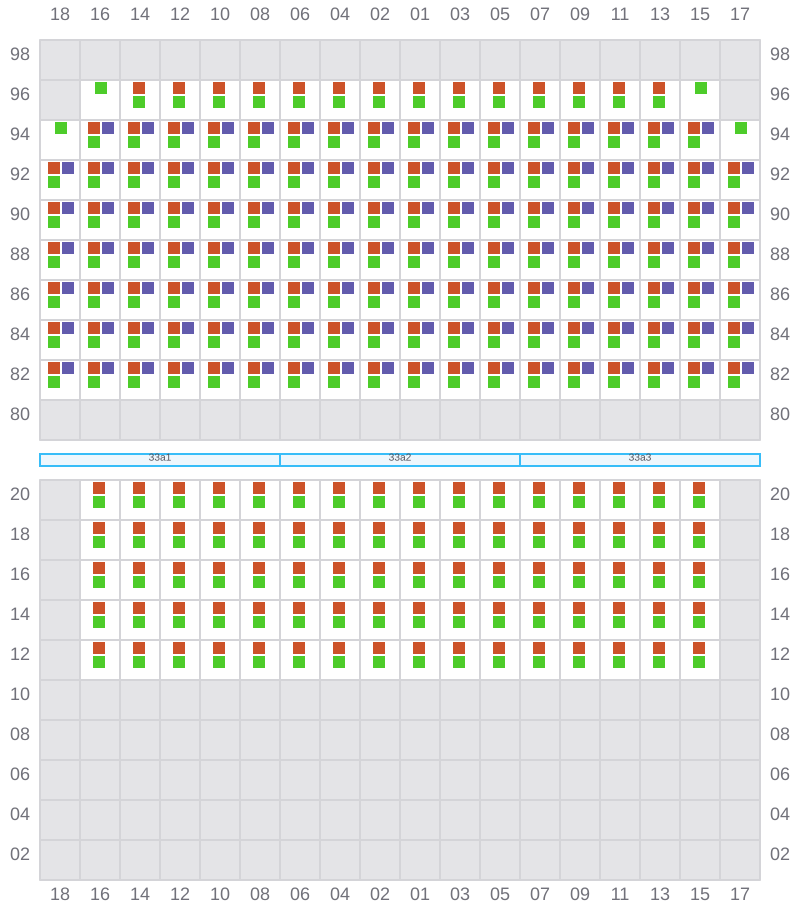

033 (034)
- →
- → / ?
- →
![Bay 033 view and slots of APL HOUSTON](/vessel-images/5d97b821-86ec-4b76-8245-c0f2a427efaf-b033.png?v=1685402758802)

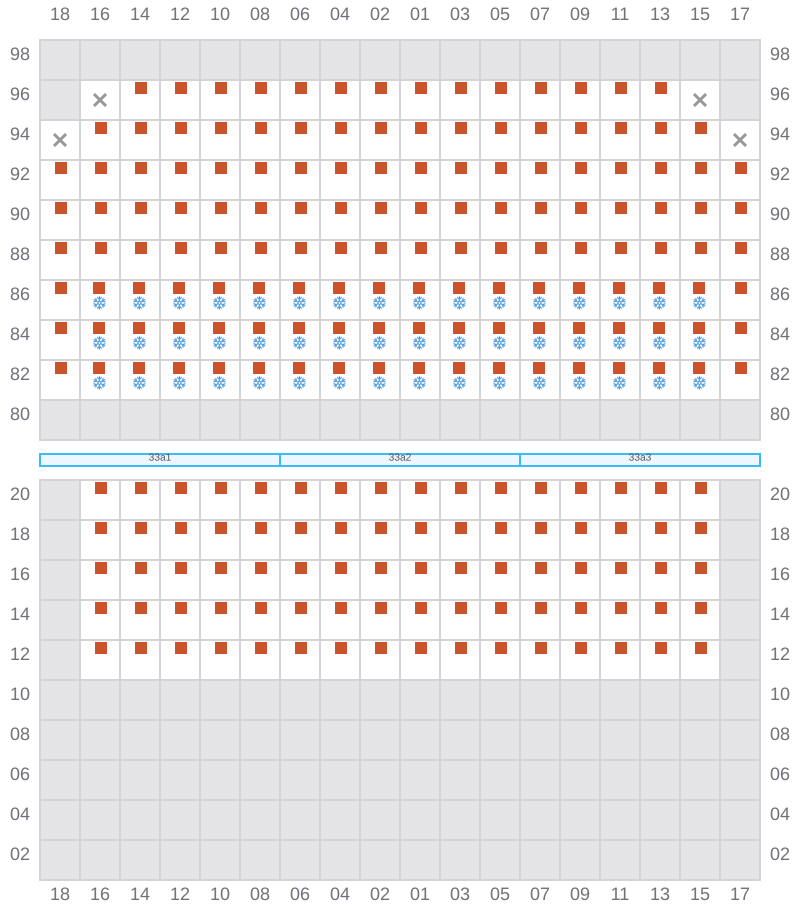

035
- ←
- → / ?
- →
![Bay 035 view and slots of APL HOUSTON](/vessel-images/5d97b821-86ec-4b76-8245-c0f2a427efaf-b035.png?v=1685402758802)

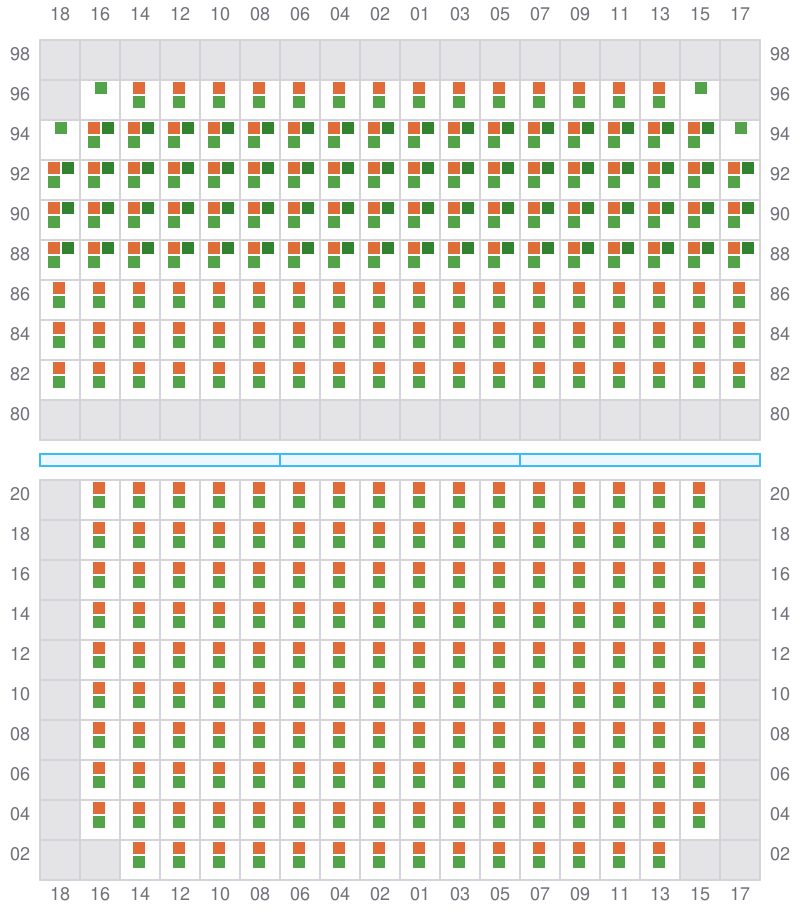

037 (038)
- →
- → / ?
- →
![Bay 037 view and slots of APL HOUSTON](/vessel-images/5d97b821-86ec-4b76-8245-c0f2a427efaf-b037.png?v=1685402758802)
039
- ←
- → / ?
- →
![Bay 039 view and slots of APL HOUSTON](/vessel-images/5d97b821-86ec-4b76-8245-c0f2a427efaf-b039.png?v=1685402758802)

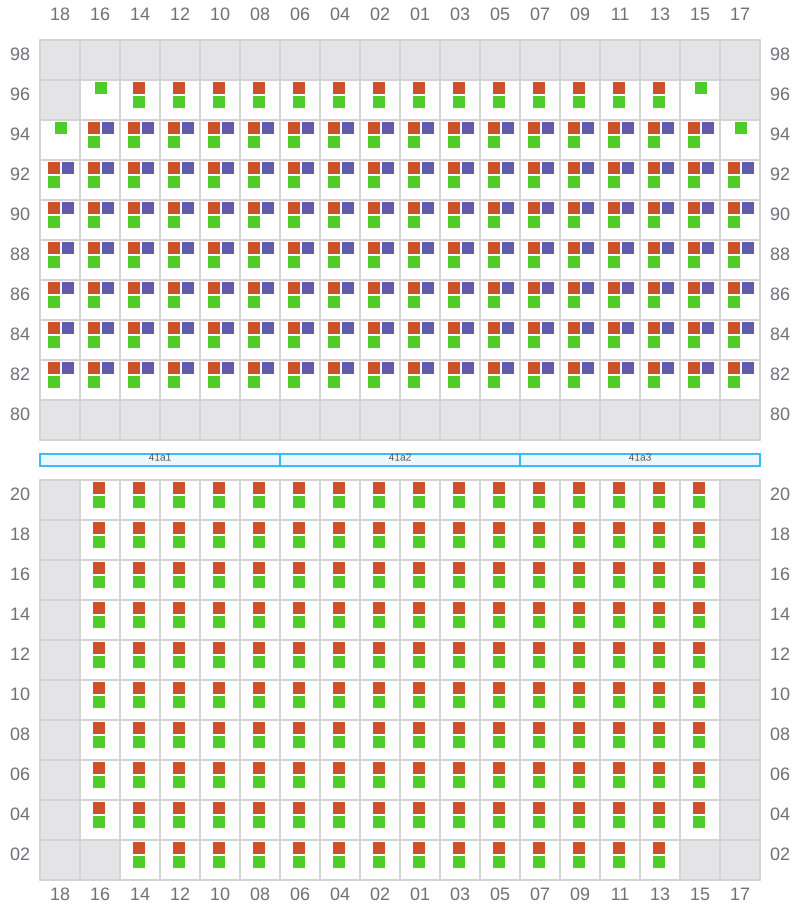

041 (042)
- →
- → / ?
- →
![Bay 041 view and slots of APL HOUSTON](/vessel-images/5d97b821-86ec-4b76-8245-c0f2a427efaf-b041.png?v=1685402758802)

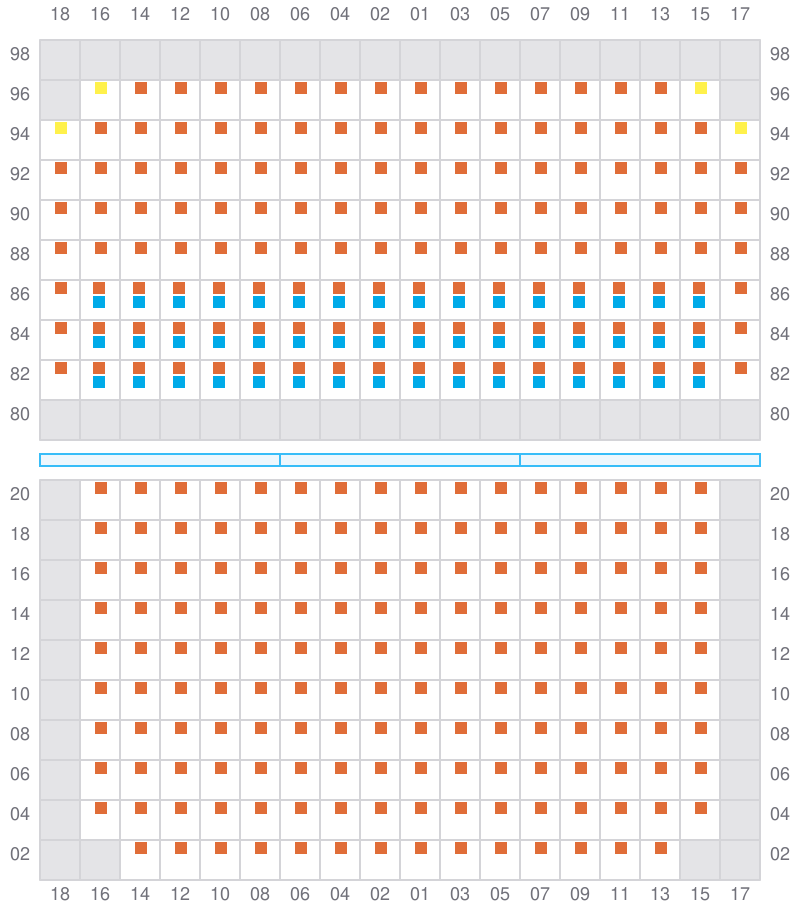

043
- ←
- → / ?
- →
![Bay 043 view and slots of APL HOUSTON](/vessel-images/5d97b821-86ec-4b76-8245-c0f2a427efaf-b043.png?v=1685402758802)

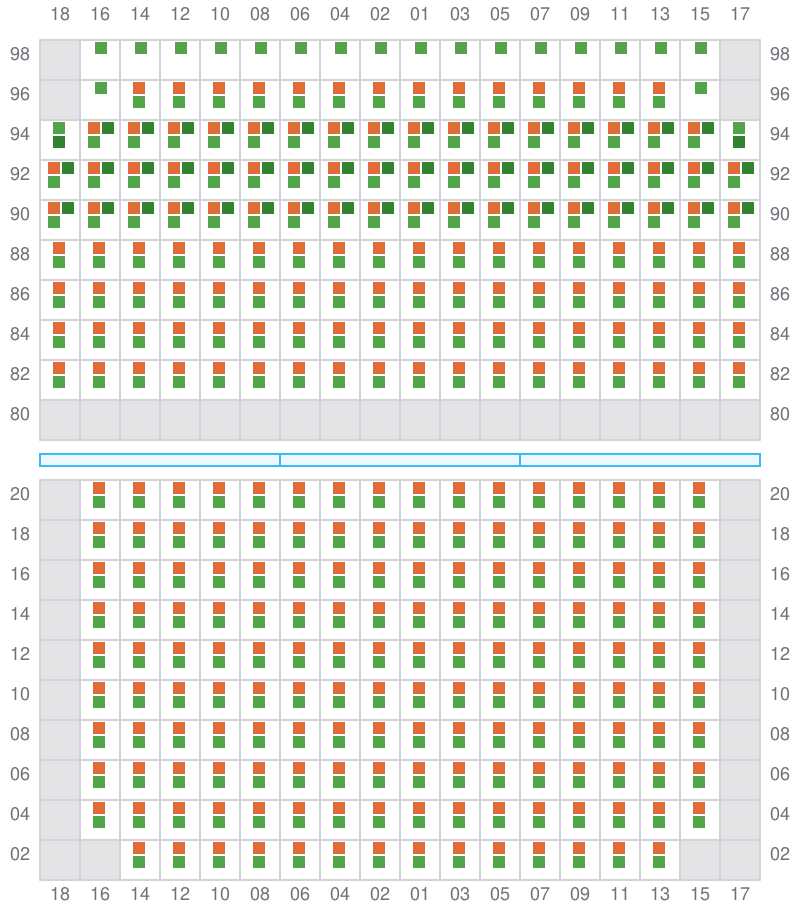

045 (046)
- →
- → / ?
- →
![Bay 045 view and slots of APL HOUSTON](/vessel-images/5d97b821-86ec-4b76-8245-c0f2a427efaf-b045.png?v=1685402758802)

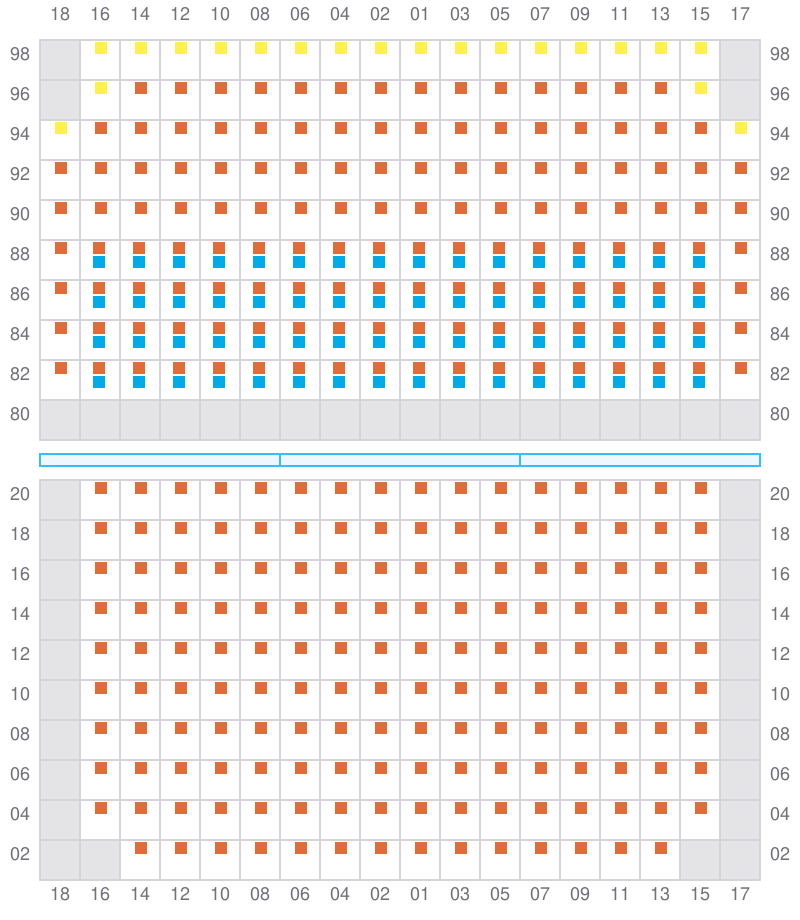

047
- ←
- → / ?
- →
![Bay 047 view and slots of APL HOUSTON](/vessel-images/5d97b821-86ec-4b76-8245-c0f2a427efaf-b047.png?v=1685402758802)

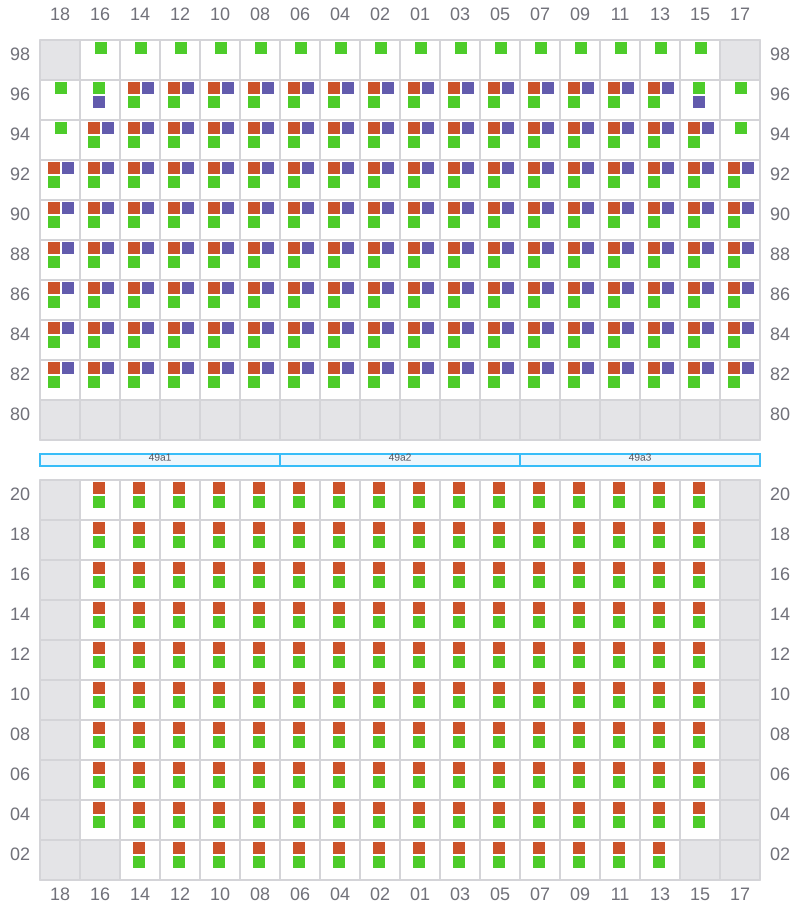

049 (050)
- →
- → / ?
- →
![Bay 049 view and slots of APL HOUSTON](/vessel-images/5d97b821-86ec-4b76-8245-c0f2a427efaf-b049.png?v=1685402758802)

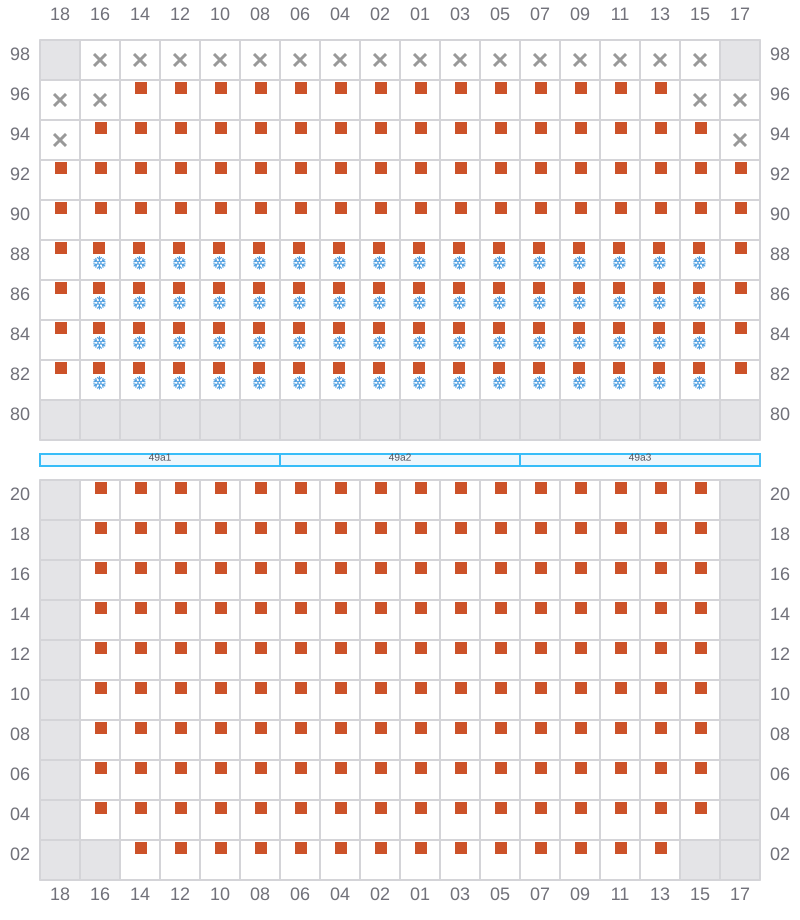

051
- ←
- → / ?
- →
![Bay 051 view and slots of APL HOUSTON](/vessel-images/5d97b821-86ec-4b76-8245-c0f2a427efaf-b051.png?v=1685402758802)

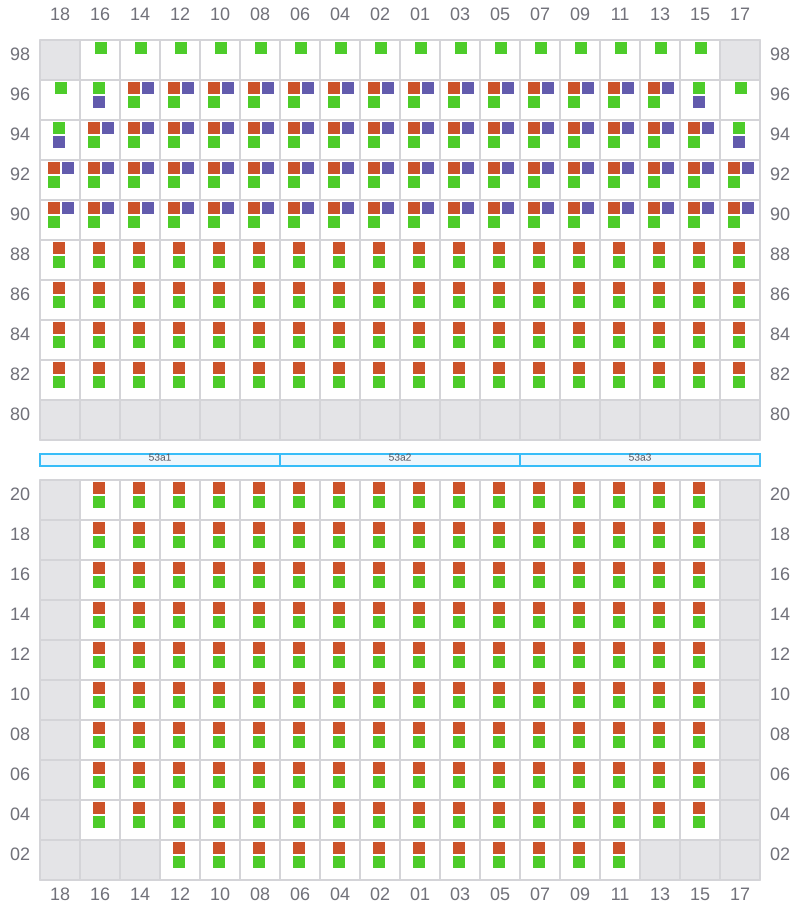

053 (054)
- →
- → / ?
- →
![Bay 053 view and slots of APL HOUSTON](/vessel-images/5d97b821-86ec-4b76-8245-c0f2a427efaf-b053.png?v=1685402758802)
055
- ←
- → / ?
- →
![Bay 055 view and slots of APL HOUSTON](/vessel-images/5d97b821-86ec-4b76-8245-c0f2a427efaf-b055.png?v=1685402758802)

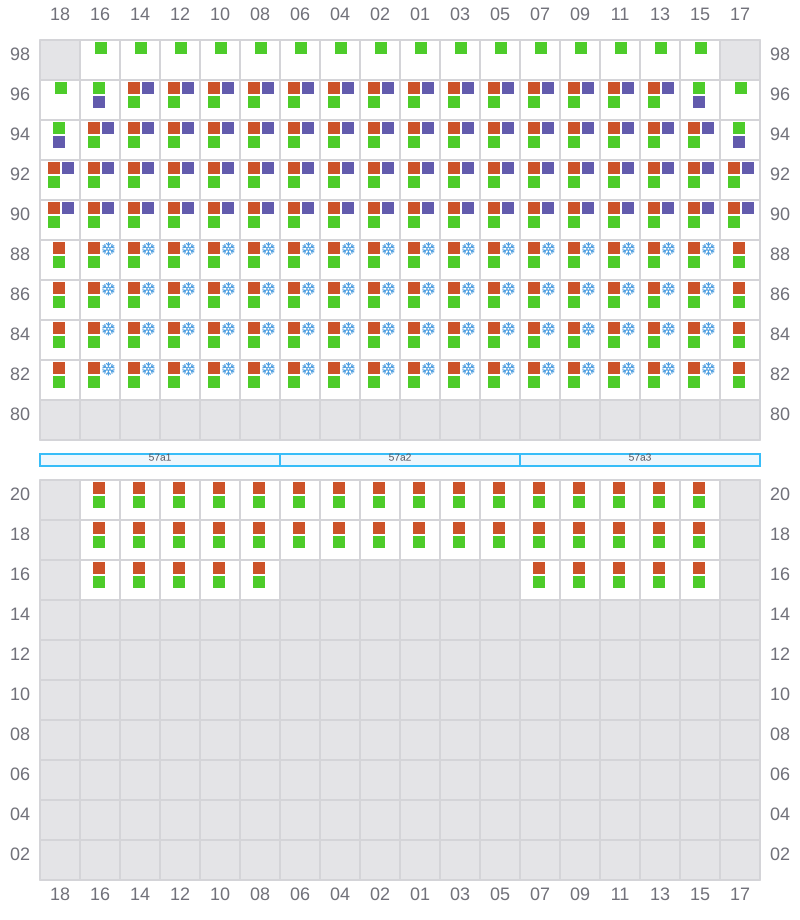

057 (058)
- →
- ← / ?
- →
![Bay 057 view and slots of APL HOUSTON](/vessel-images/5d97b821-86ec-4b76-8245-c0f2a427efaf-b057.png?v=1685402758802)

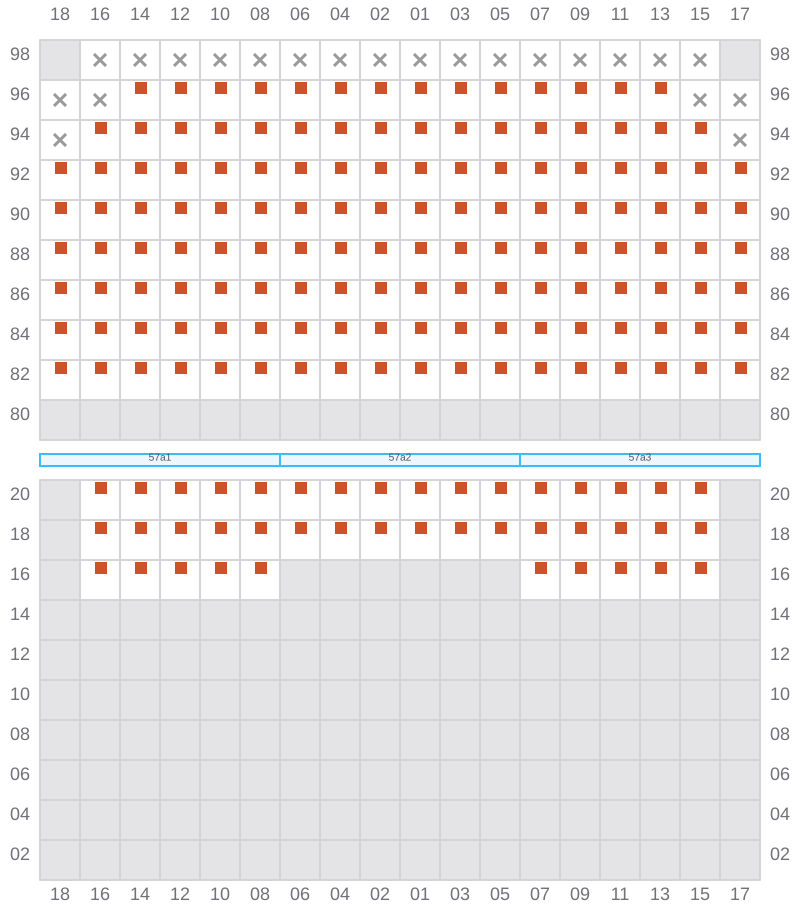

059
- ←
- → / ?
- →
![Bay 059 view and slots of APL HOUSTON](/vessel-images/5d97b821-86ec-4b76-8245-c0f2a427efaf-b059.png?v=1685402758802)

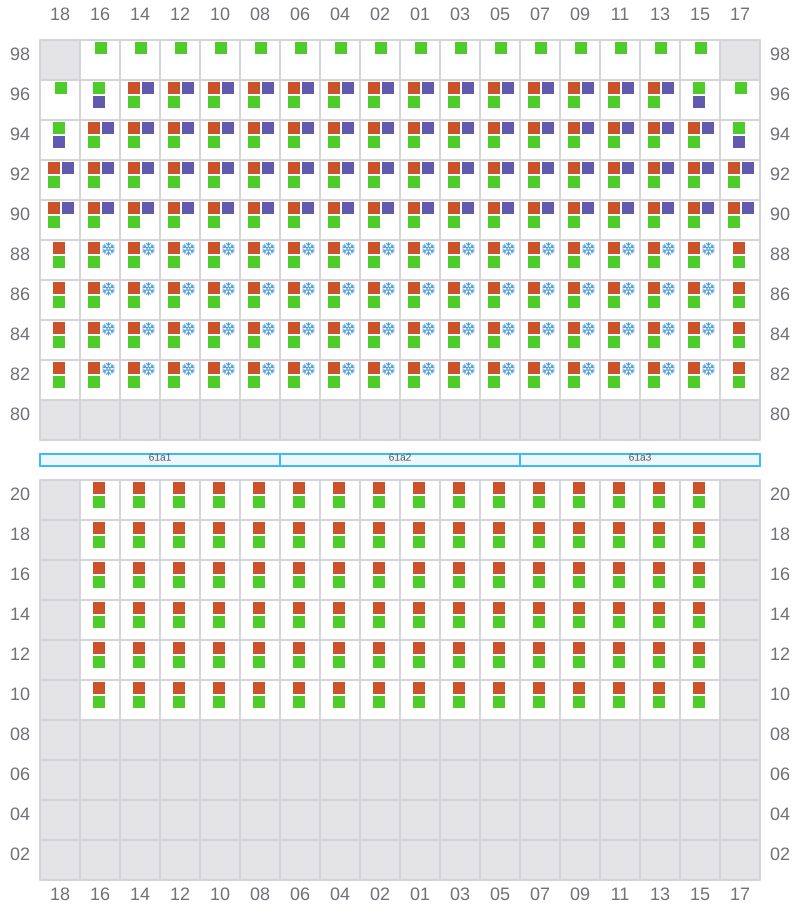

061 (062)
- →
- ← / ?
- →
![Bay 061 view and slots of APL HOUSTON](/vessel-images/5d97b821-86ec-4b76-8245-c0f2a427efaf-b061.png?v=1685402758802)

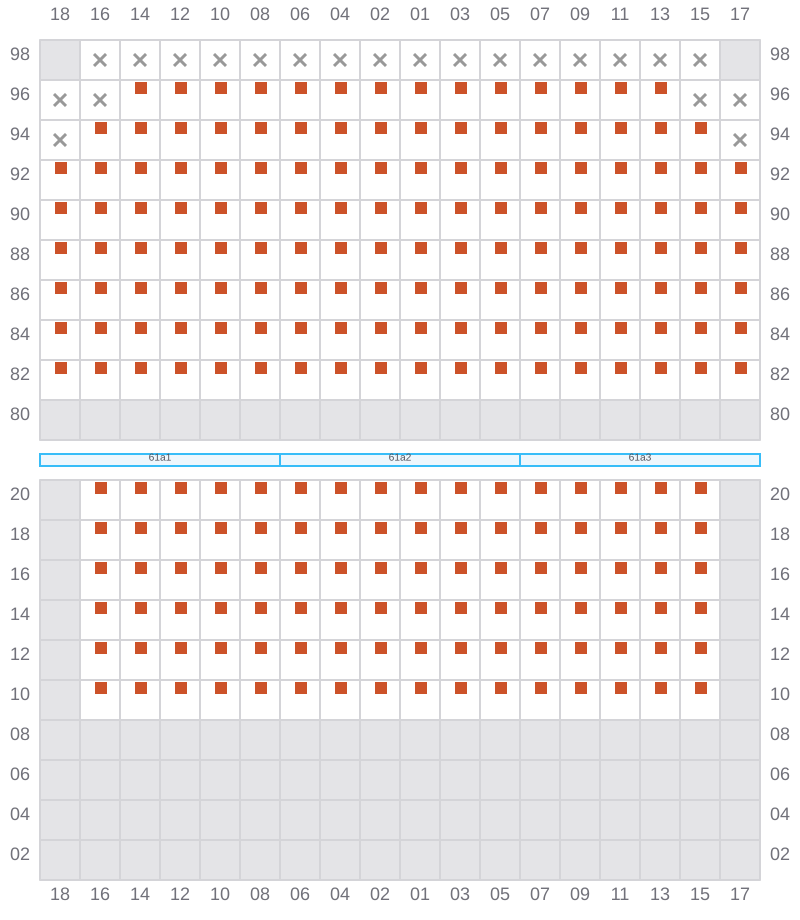

063
- ←
- →
![Bay 063 view and slots of APL HOUSTON](/vessel-images/5d97b821-86ec-4b76-8245-c0f2a427efaf-b063.png?v=1685402758802)

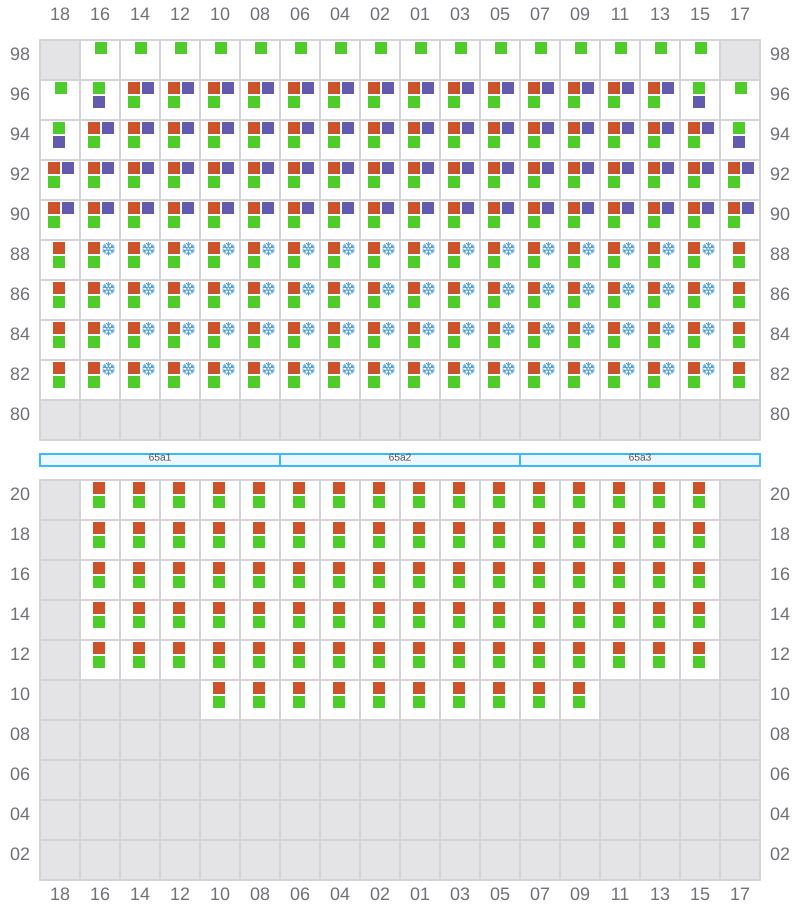

065 (066)
- →
- ← / ?
- →
![Bay 065 view and slots of APL HOUSTON](/vessel-images/5d97b821-86ec-4b76-8245-c0f2a427efaf-b065.png?v=1685402758802)
067
- ←
- →
![Bay 067 view and slots of APL HOUSTON](/vessel-images/5d97b821-86ec-4b76-8245-c0f2a427efaf-b067.png?v=1685402758802)

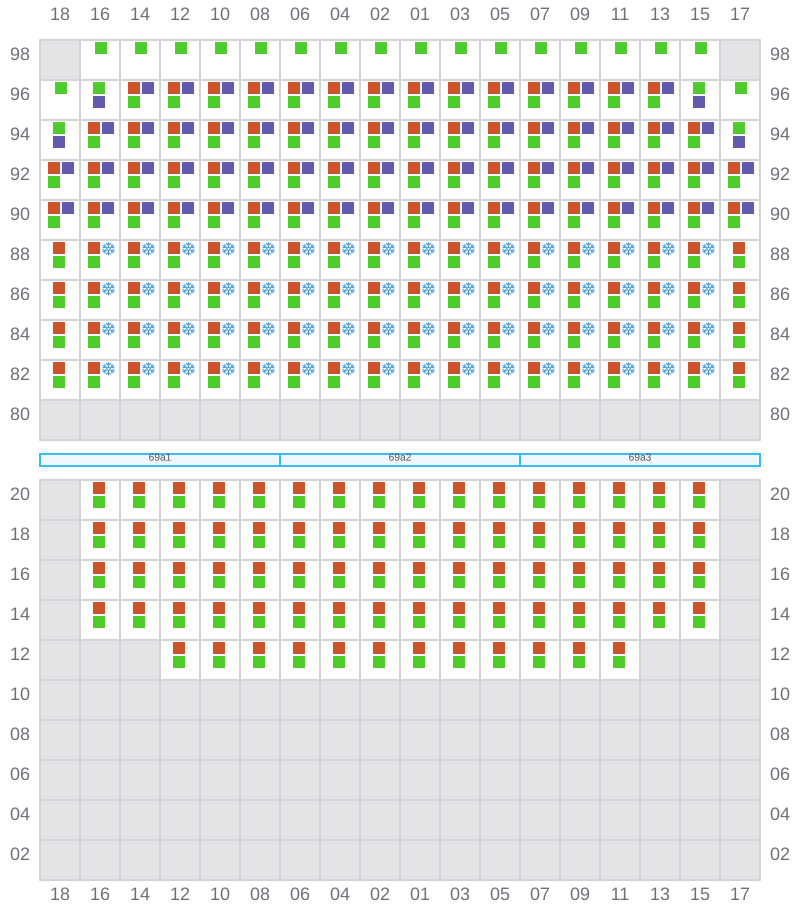

069 (070)
- →
- ← / ?
- →
![Bay 069 view and slots of APL HOUSTON](/vessel-images/5d97b821-86ec-4b76-8245-c0f2a427efaf-b069.png?v=1685402758802)

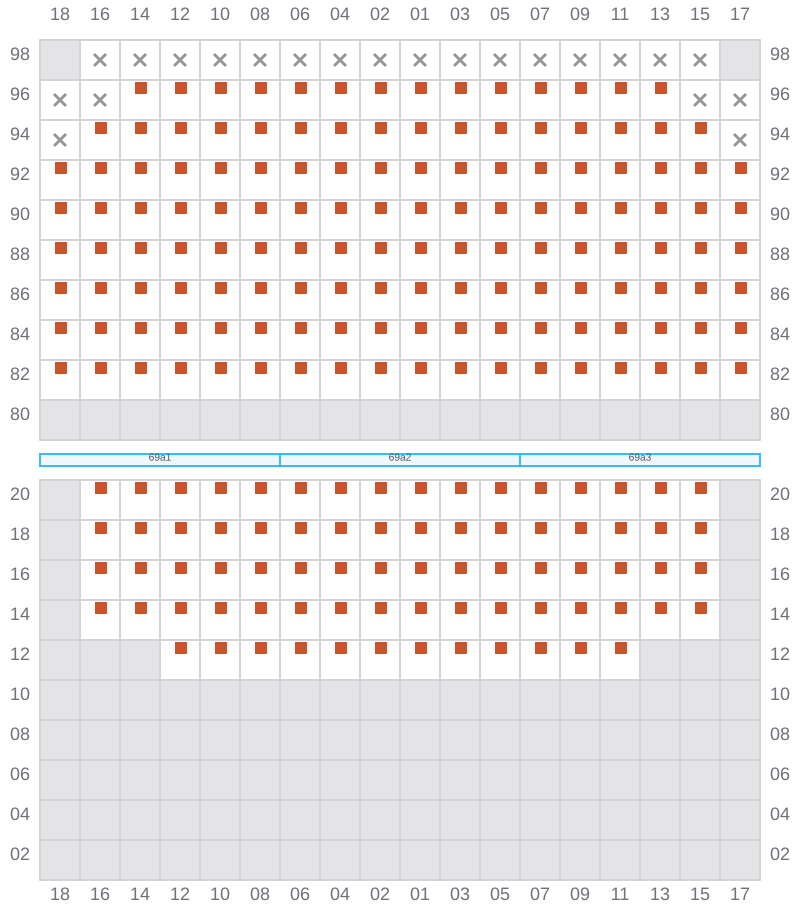

071
- ←
- →
![Bay 071 view and slots of APL HOUSTON](/vessel-images/5d97b821-86ec-4b76-8245-c0f2a427efaf-b071.png?v=1685402758802)

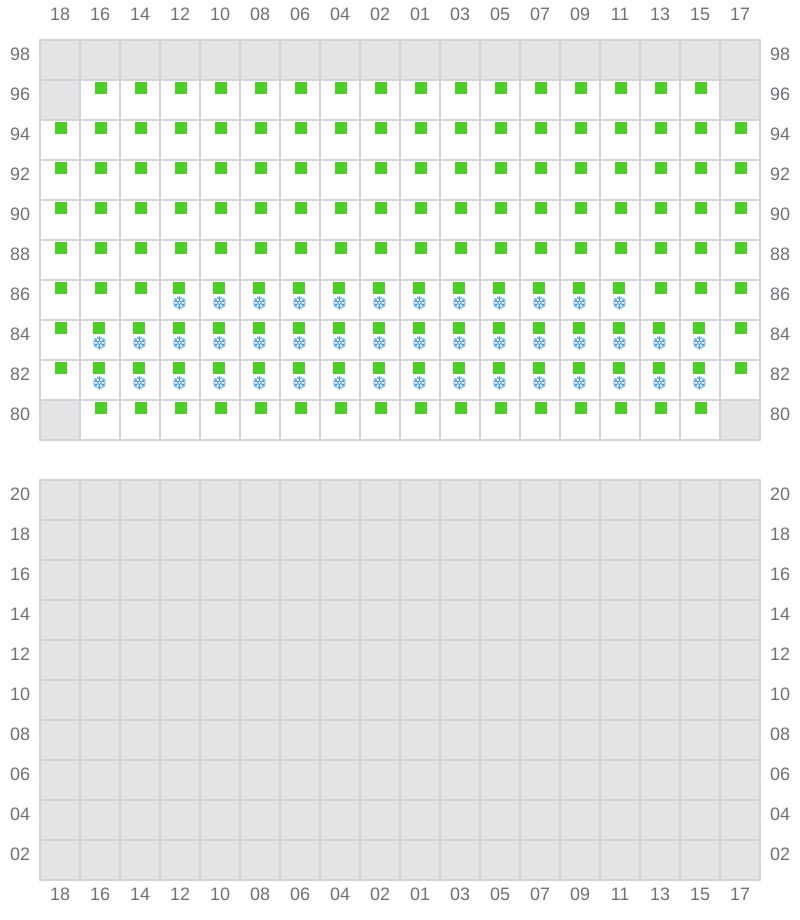

073 (074)
- → / ?
- ← / ?
- → / ?
![Bay 073 view and slots of APL HOUSTON](/vessel-images/5d97b821-86ec-4b76-8245-c0f2a427efaf-b073.png?v=1685402758802)
