APL LE HAVRE
9461881 | 9V9375 | APL by *********************** Last update: Fri Jan 31 2025

General Info

Ship Name:APL LE HAVRE
IMO Code:9461881
Call Sign:9V9375
Line Operator:APL
Class Name for Sister Ships:CHONGQING
Year Built:2012
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):334.00
LOA (Length Overall):349.27
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:081
Max ISO Row:18
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:20
Min Below ISO Tier:02
Total TEU:10,106

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of APL LE HAVRE

Hatch-Covers View

Deck view of APL LE HAVRE

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →
Bay 001 view and slots of APL LE HAVRE

003

  • ←

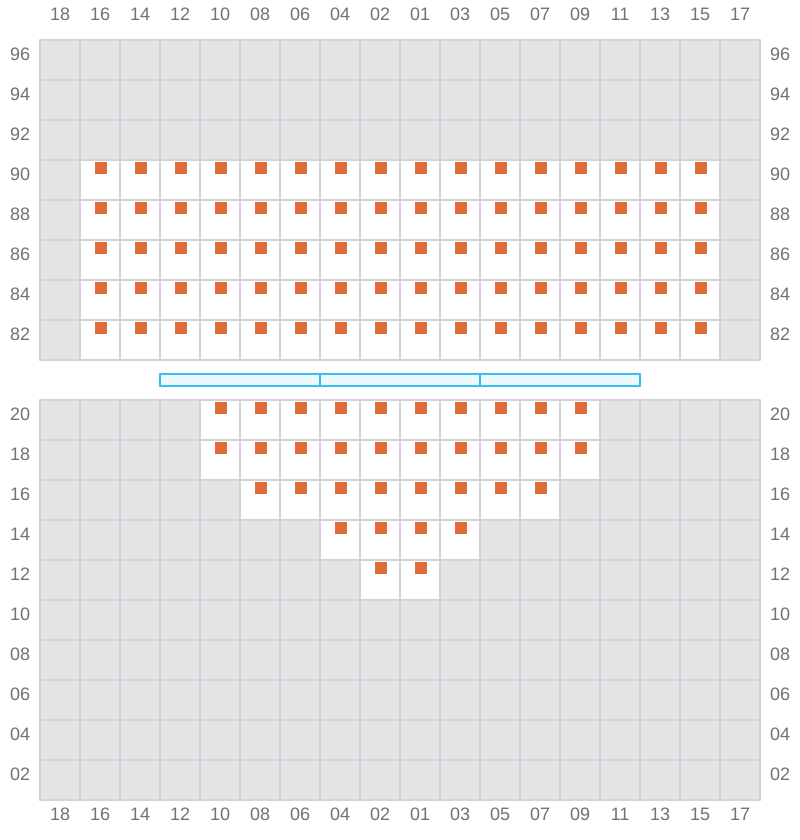

Bay 003 view and slots of APL LE HAVRE

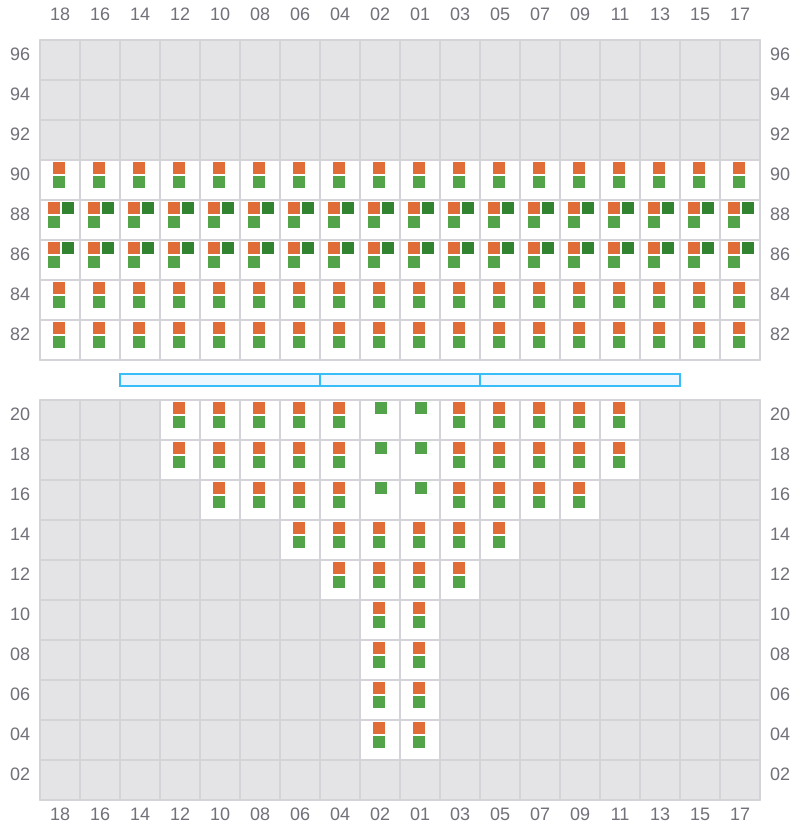

005 (006)

  • →
Bay 005 view and slots of APL LE HAVRE

007

  • ←

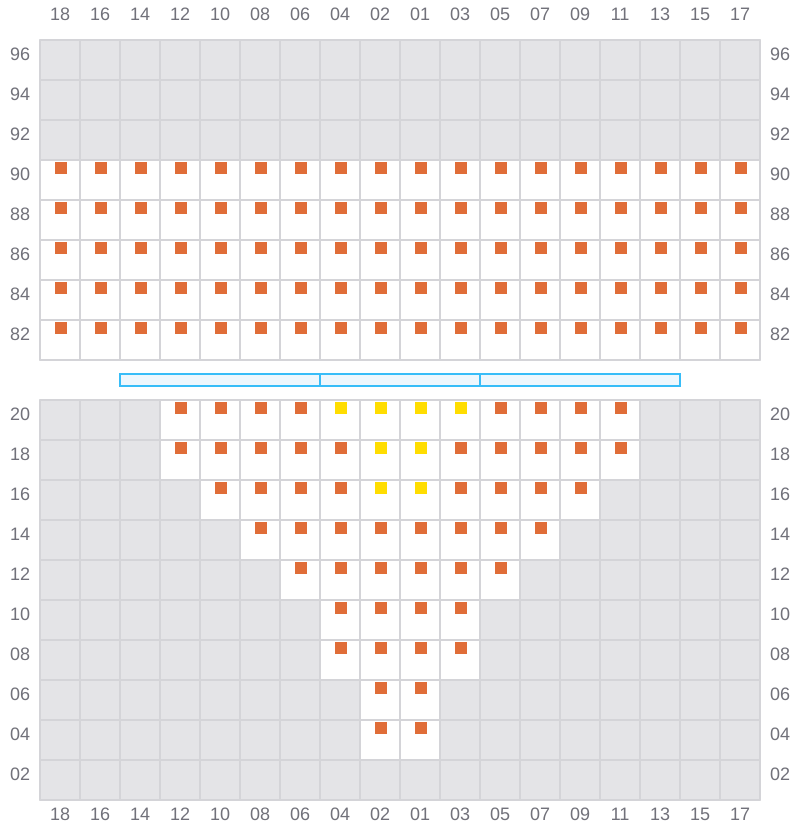

Bay 007 view and slots of APL LE HAVRE

009 (010)

  • →

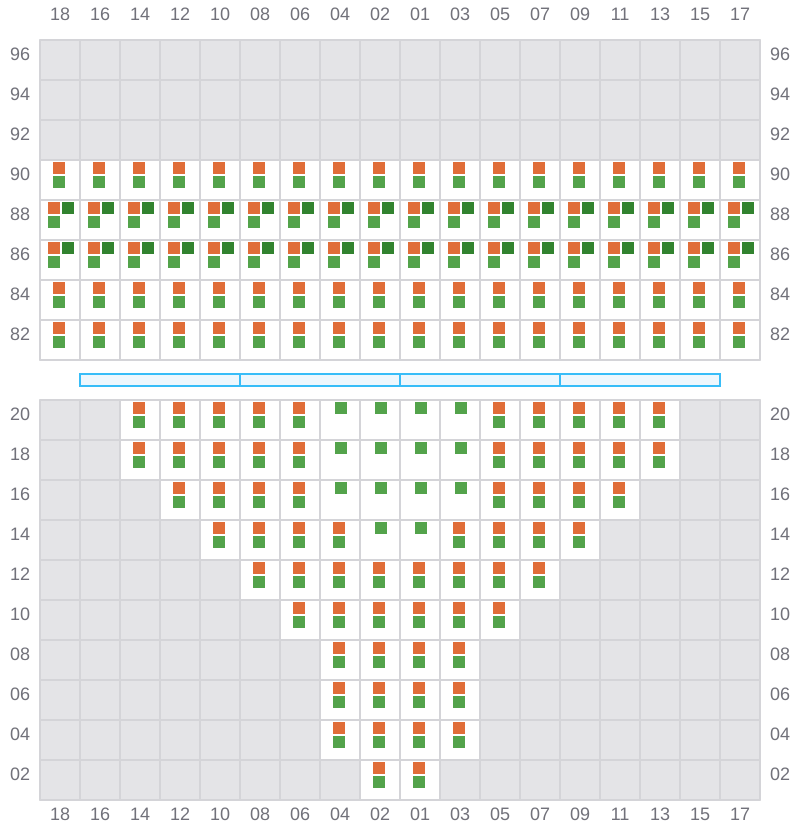

Bay 009 view and slots of APL LE HAVRE

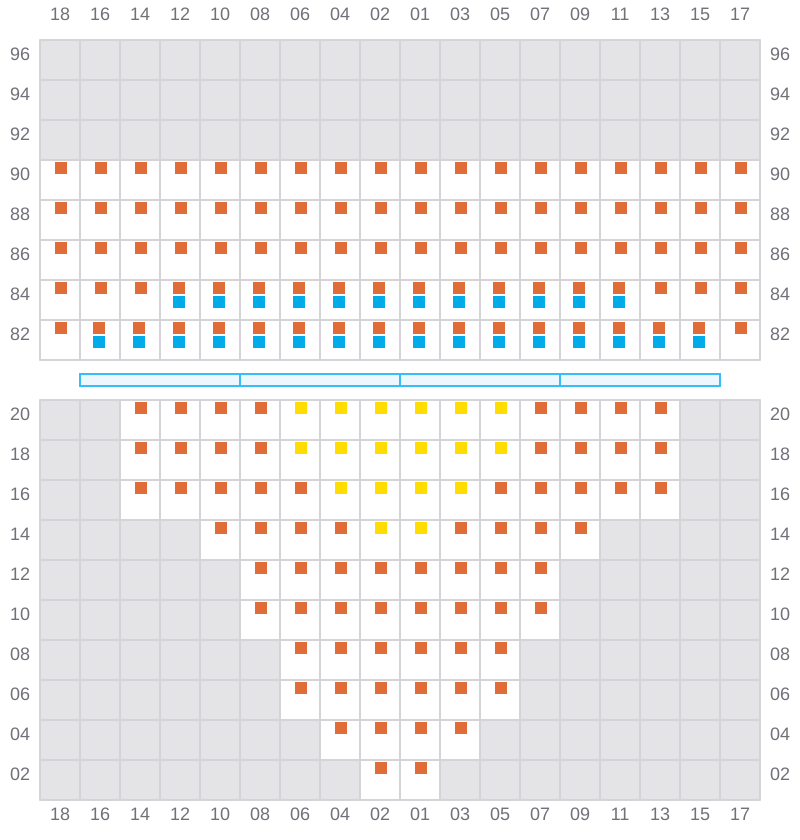

011

  • ←
  • → / ?
Bay 011 view and slots of APL LE HAVRE

013 (014)

  • →
Bay 013 view and slots of APL LE HAVRE

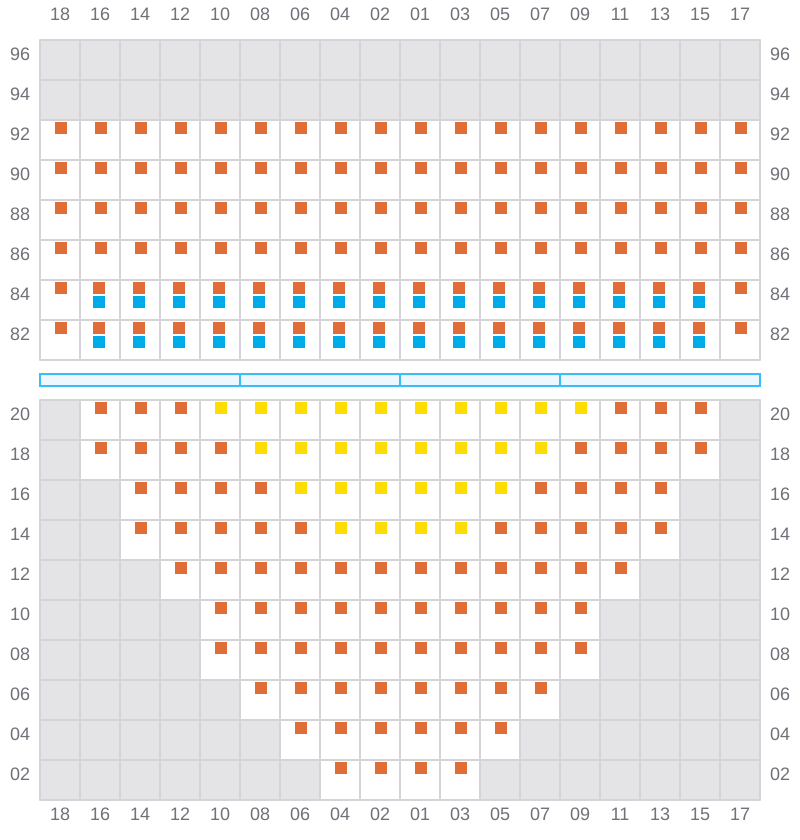

015

  • ←
  • → / ?
Bay 015 view and slots of APL LE HAVRE

017 (018)

  • →

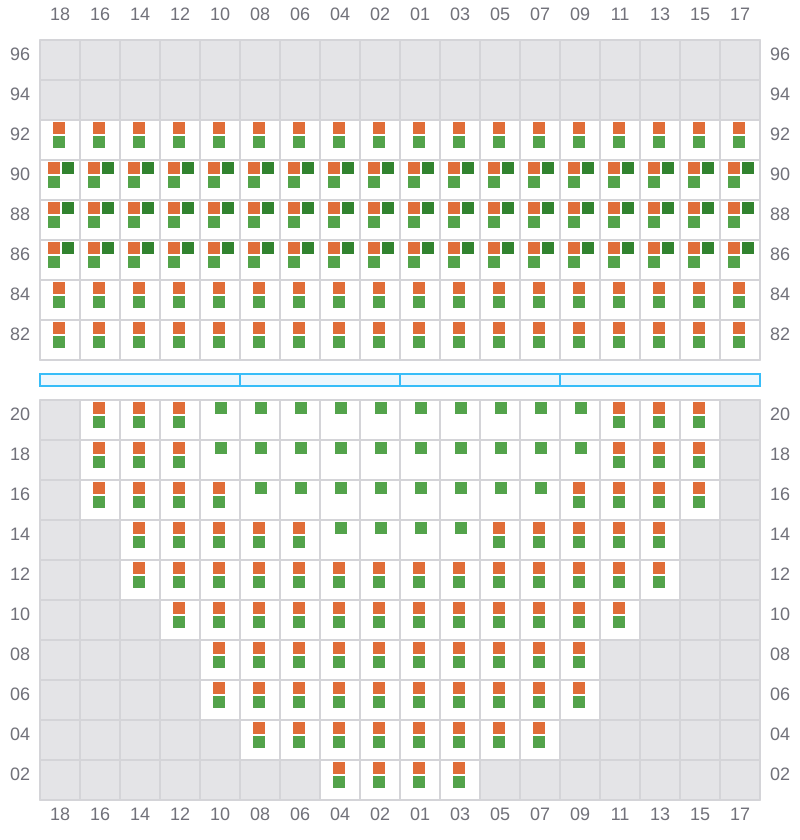

Bay 017 view and slots of APL LE HAVRE

019

  • ←
  • → / ?

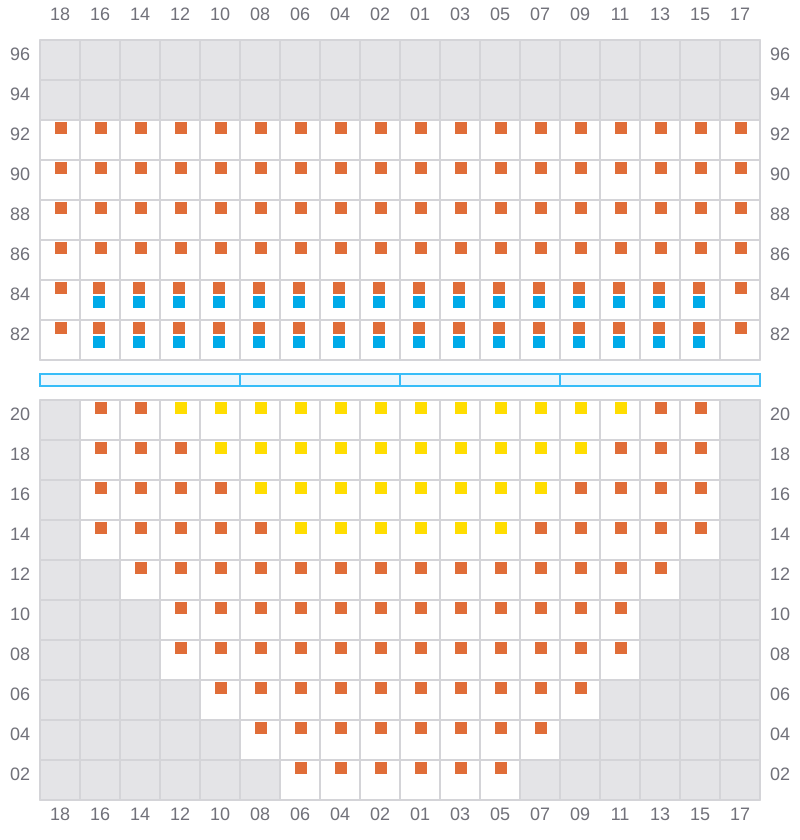

Bay 019 view and slots of APL LE HAVRE

021 (022)

  • →

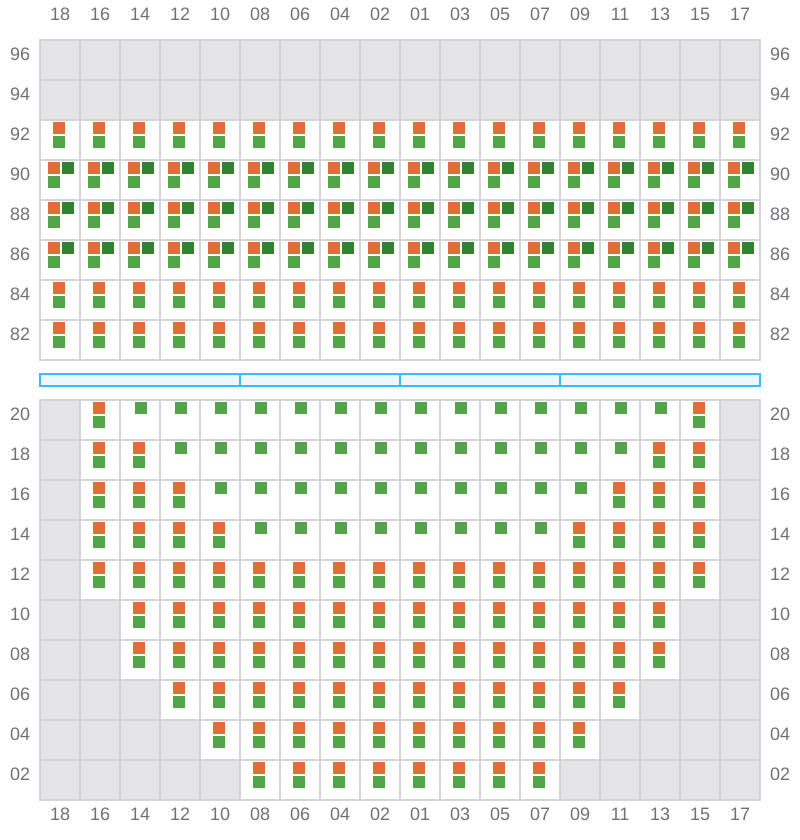

Bay 021 view and slots of APL LE HAVRE

023

  • ←
  • → / ?

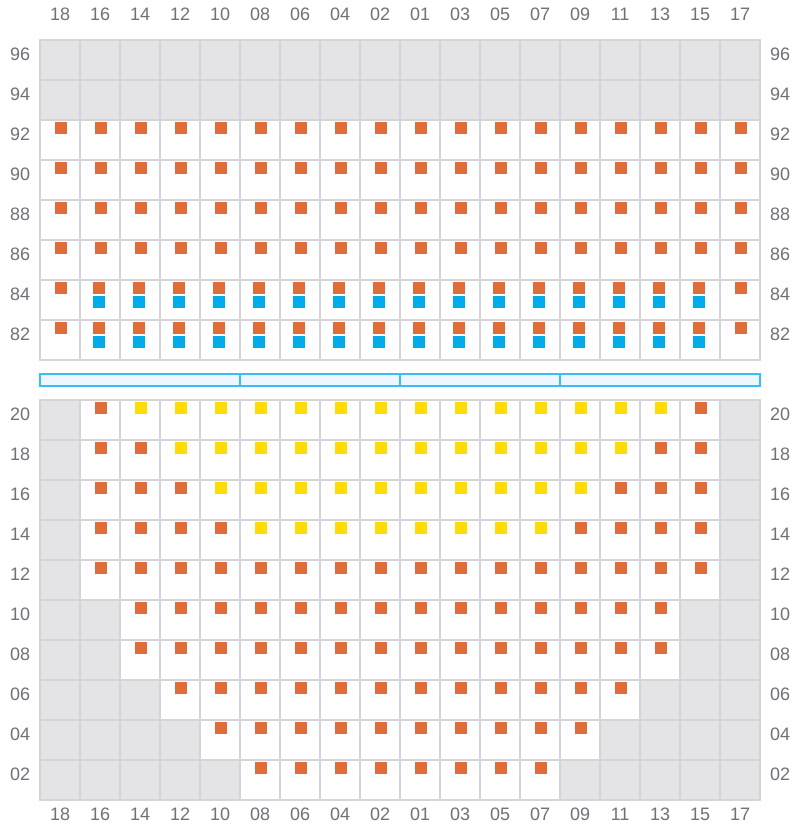

Bay 023 view and slots of APL LE HAVRE

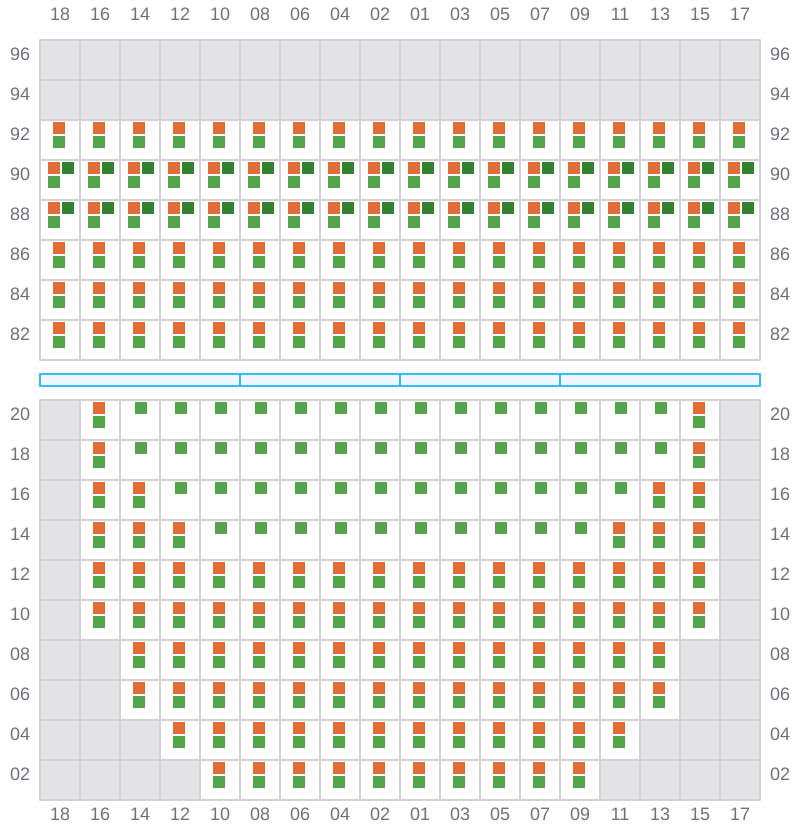

025 (026)

  • →
Bay 025 view and slots of APL LE HAVRE

027

  • ←
  • → / ?

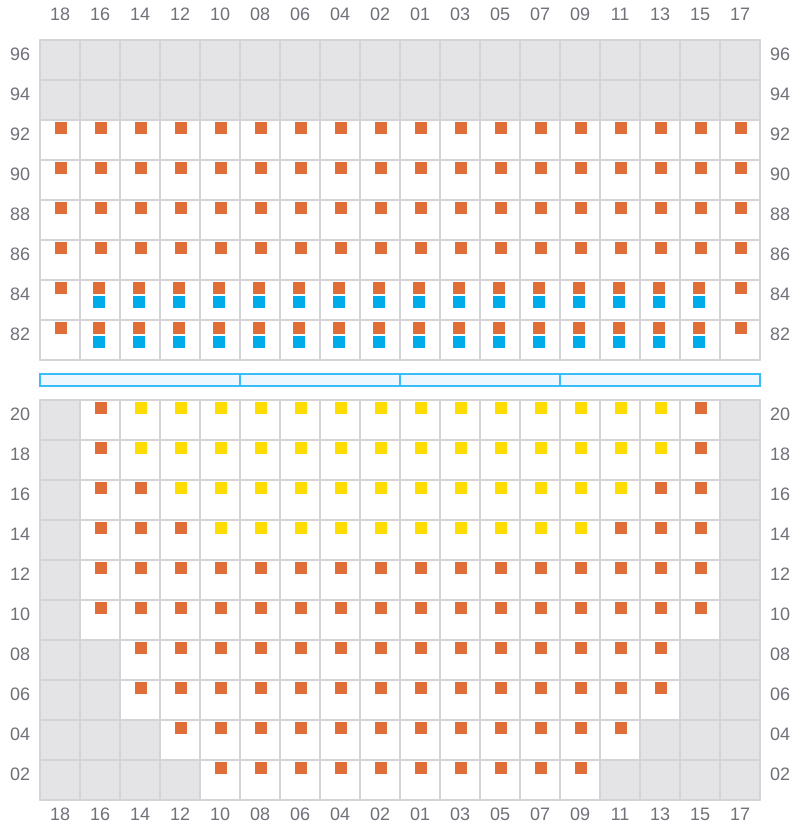

Bay 027 view and slots of APL LE HAVRE

029 (030)

  • →

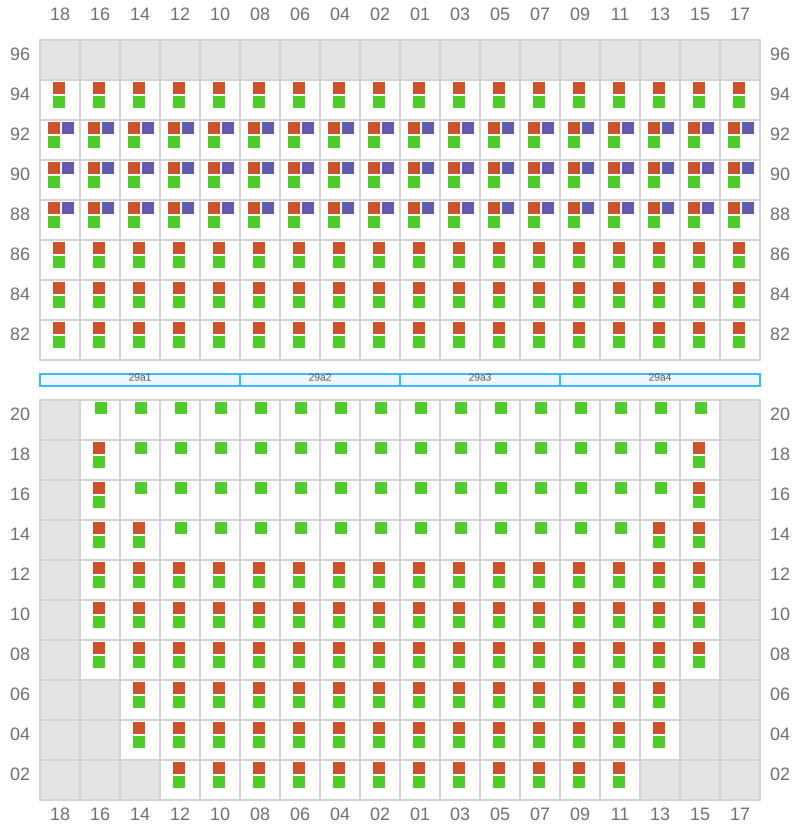

Bay 029 view and slots of APL LE HAVRE

031

  • ←
  • → / ?

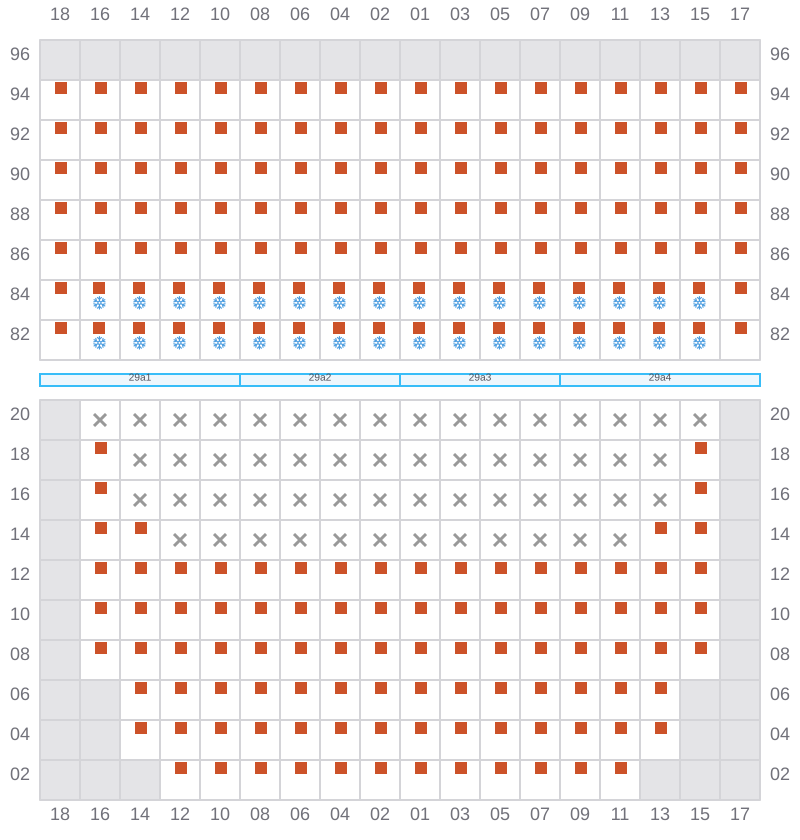

Bay 031 view and slots of APL LE HAVRE

033 (034)

  • →

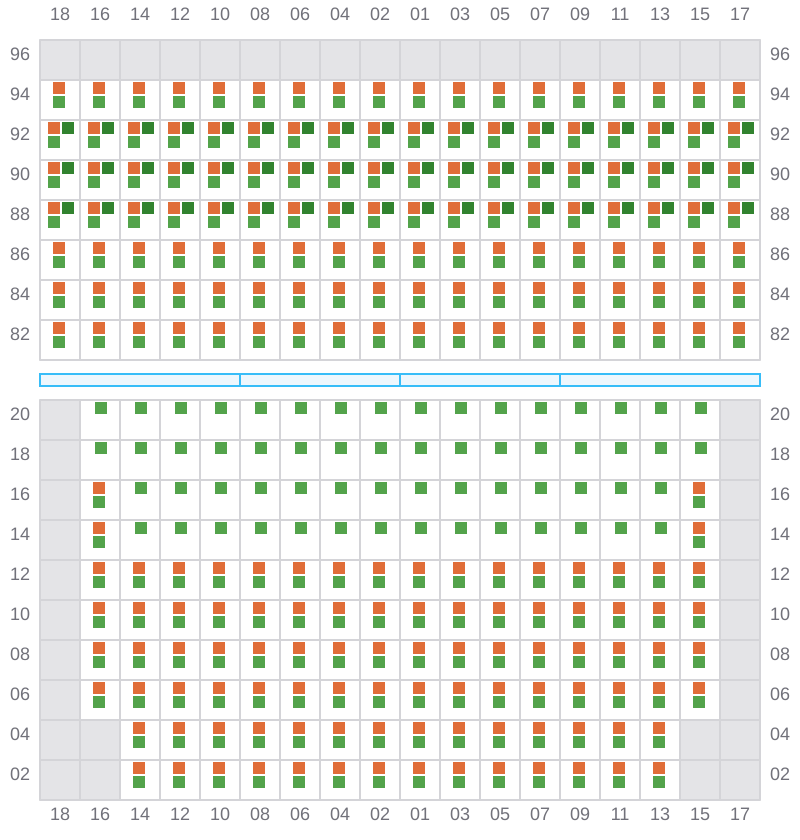

Bay 033 view and slots of APL LE HAVRE

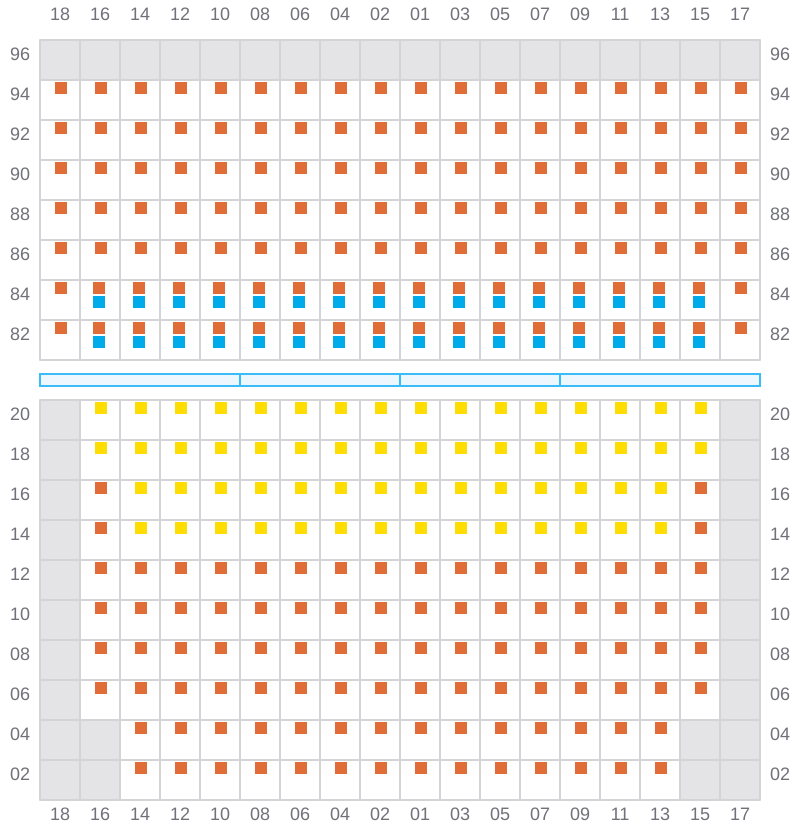

035

  • ←
  • → / ?
Bay 035 view and slots of APL LE HAVRE

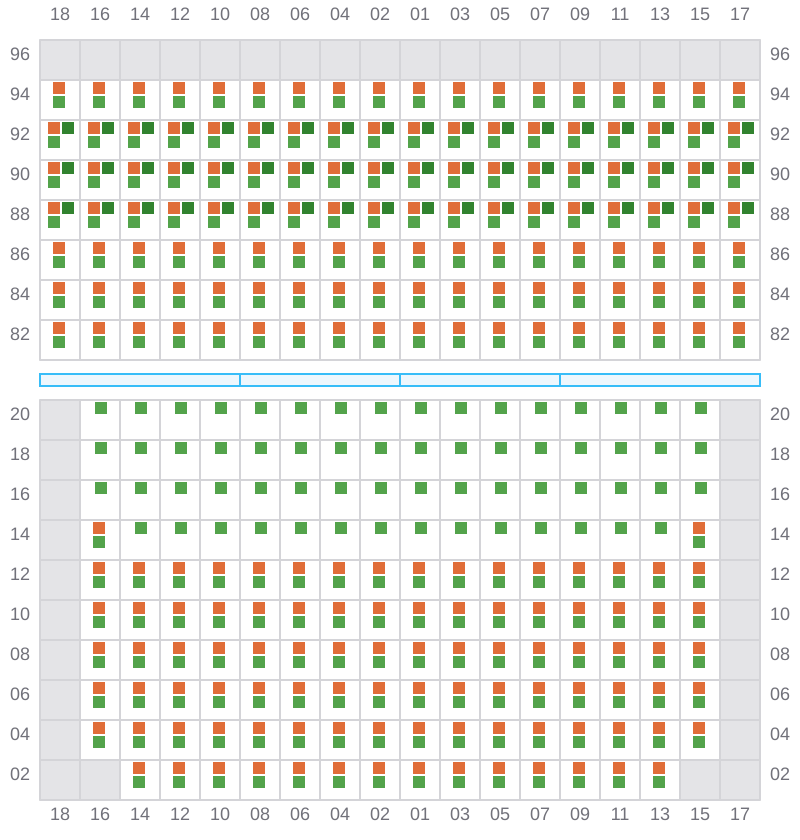

037 (038)

  • →
Bay 037 view and slots of APL LE HAVRE

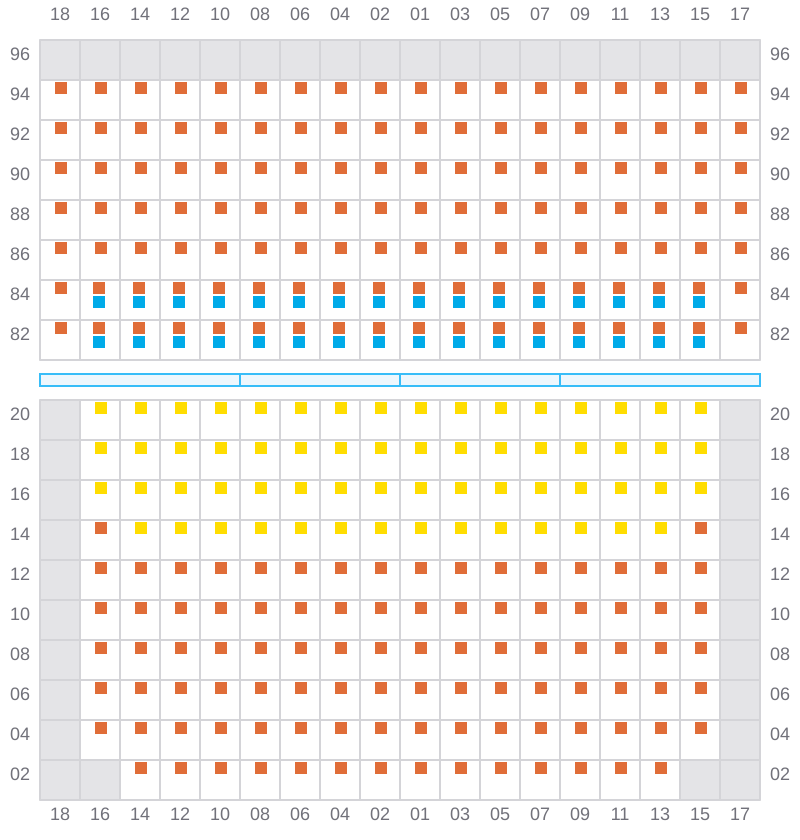

039

  • ←
  • → / ?
Bay 039 view and slots of APL LE HAVRE

041 (042)

  • →
Bay 041 view and slots of APL LE HAVRE

043

  • ←
  • →

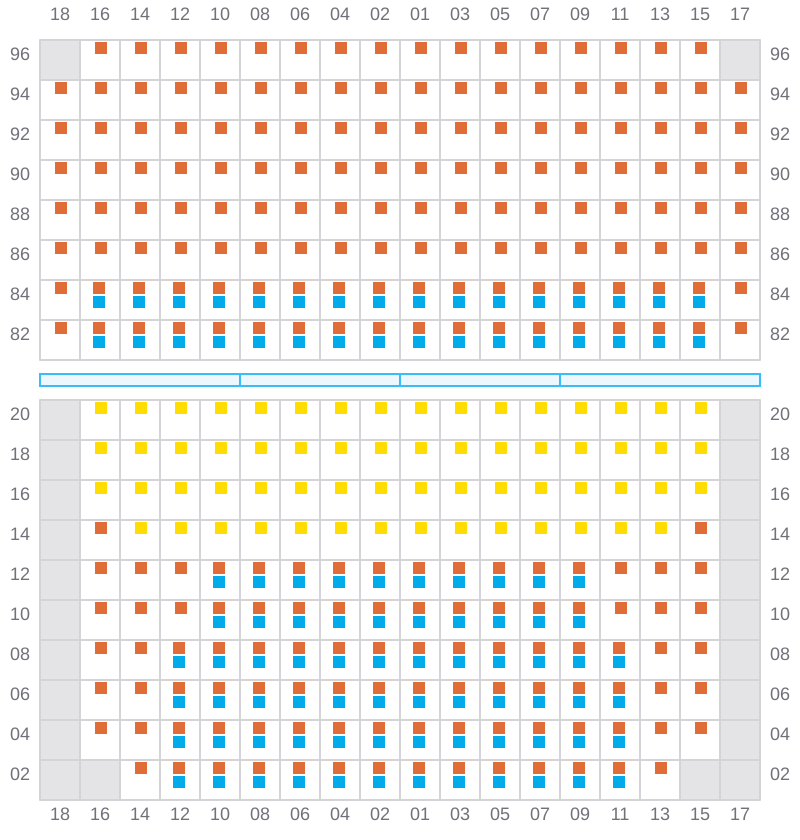

Bay 043 view and slots of APL LE HAVRE

045 (046)

  • →

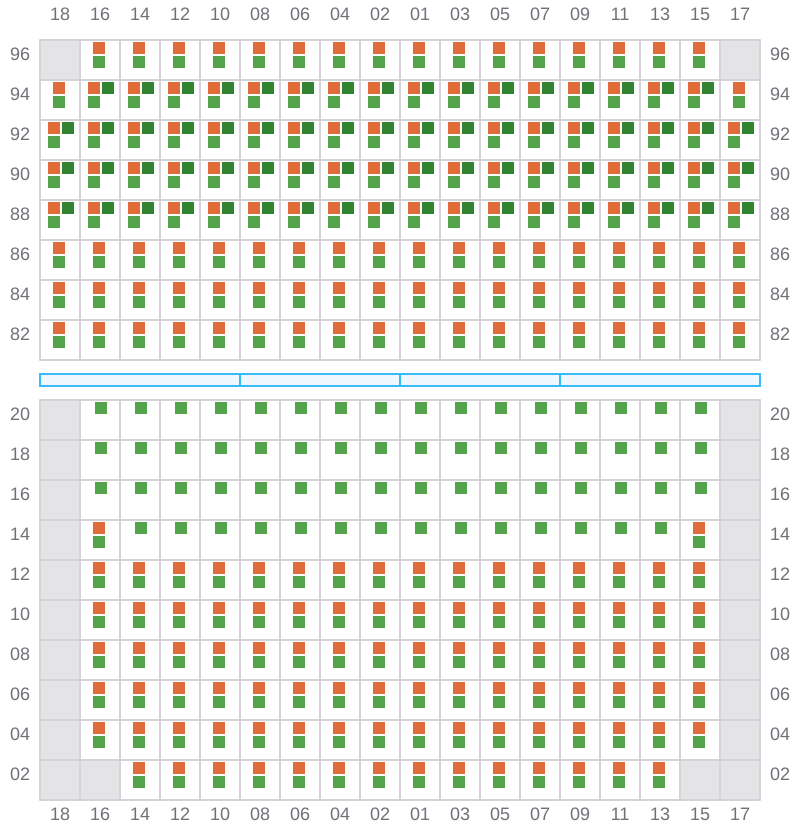

Bay 045 view and slots of APL LE HAVRE

047

  • ←
  • → / ?

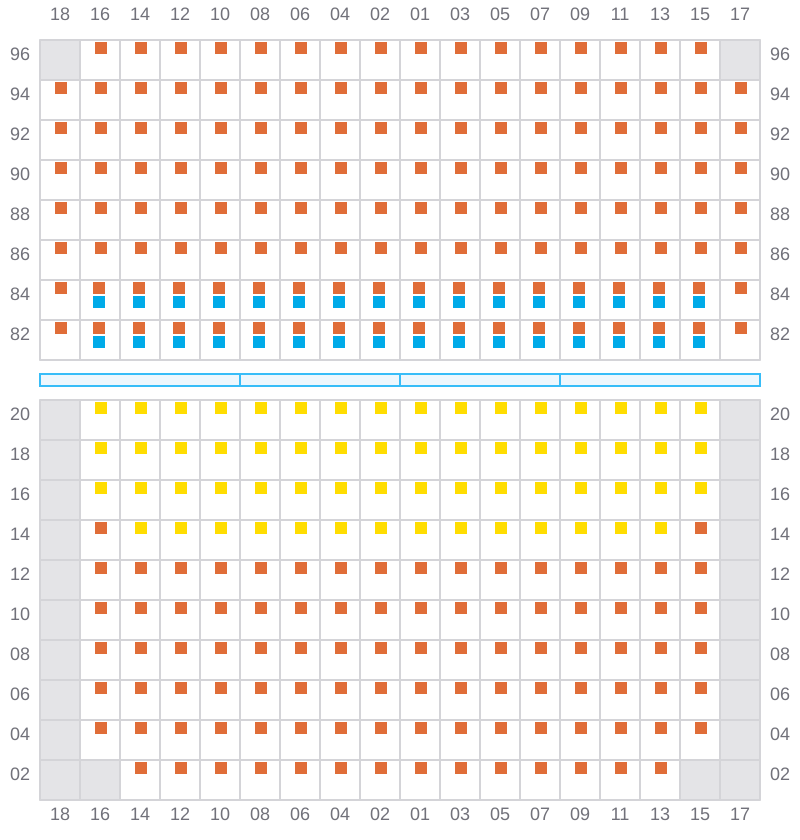

Bay 047 view and slots of APL LE HAVRE

049 (050)

  • →
Bay 049 view and slots of APL LE HAVRE

051

  • ←
  • →
Bay 051 view and slots of APL LE HAVRE

053 (054)

  • →
Bay 053 view and slots of APL LE HAVRE

055

  • ←
  • → / ?
Bay 055 view and slots of APL LE HAVRE

057 (058)

  • →

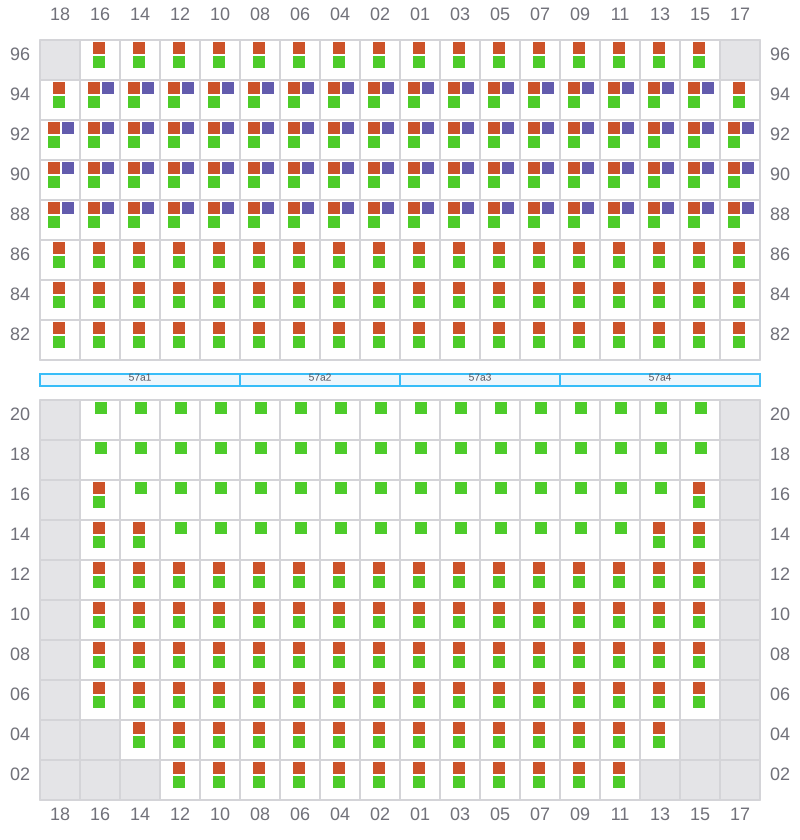

Bay 057 view and slots of APL LE HAVRE

059

  • ←
  • →
Bay 059 view and slots of APL LE HAVRE

061 (062)

  • →

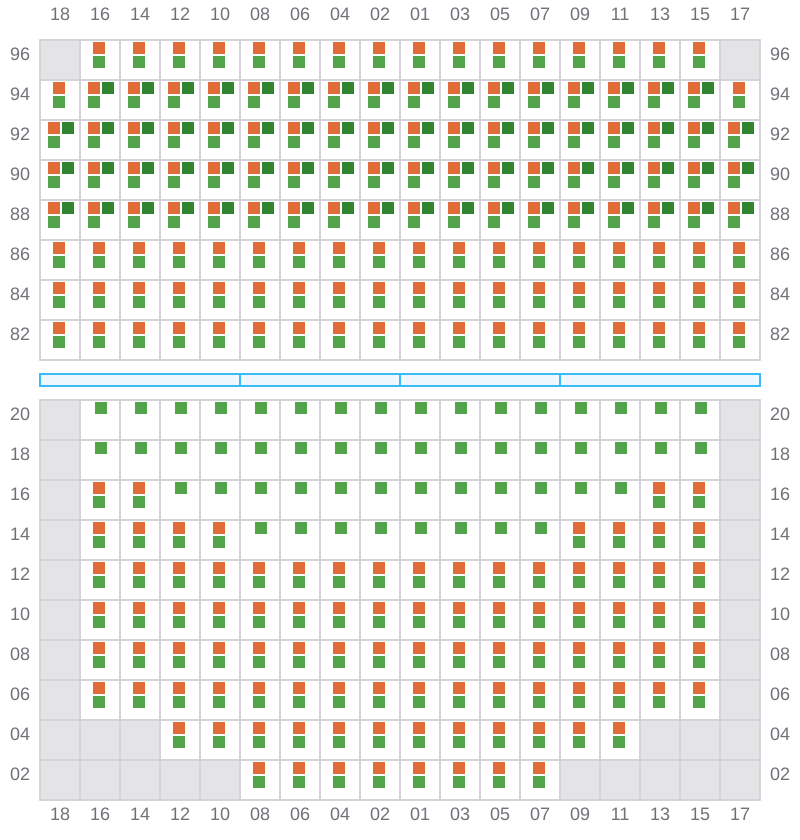

Bay 061 view and slots of APL LE HAVRE

063

  • ←
  • → / ?

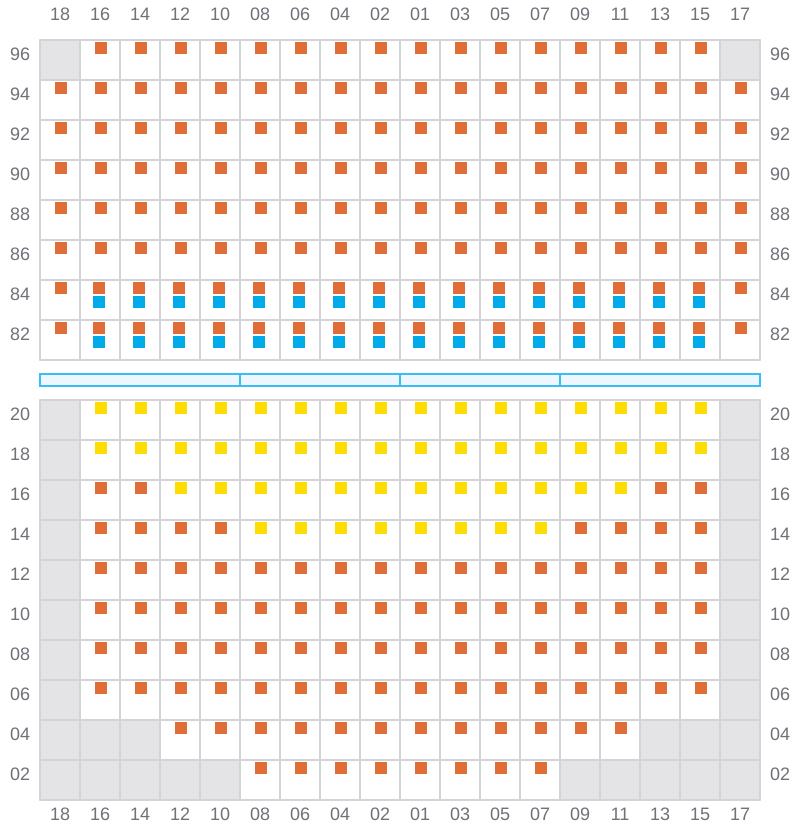

Bay 063 view and slots of APL LE HAVRE

065 (066)

  • →

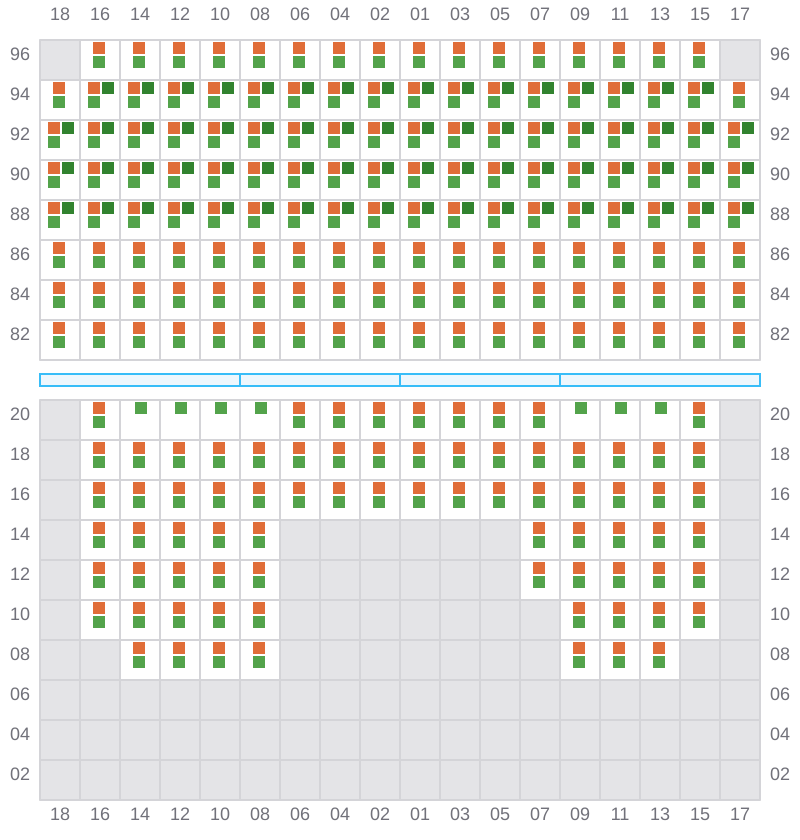

Bay 065 view and slots of APL LE HAVRE

067

  • ←
  • → / ?

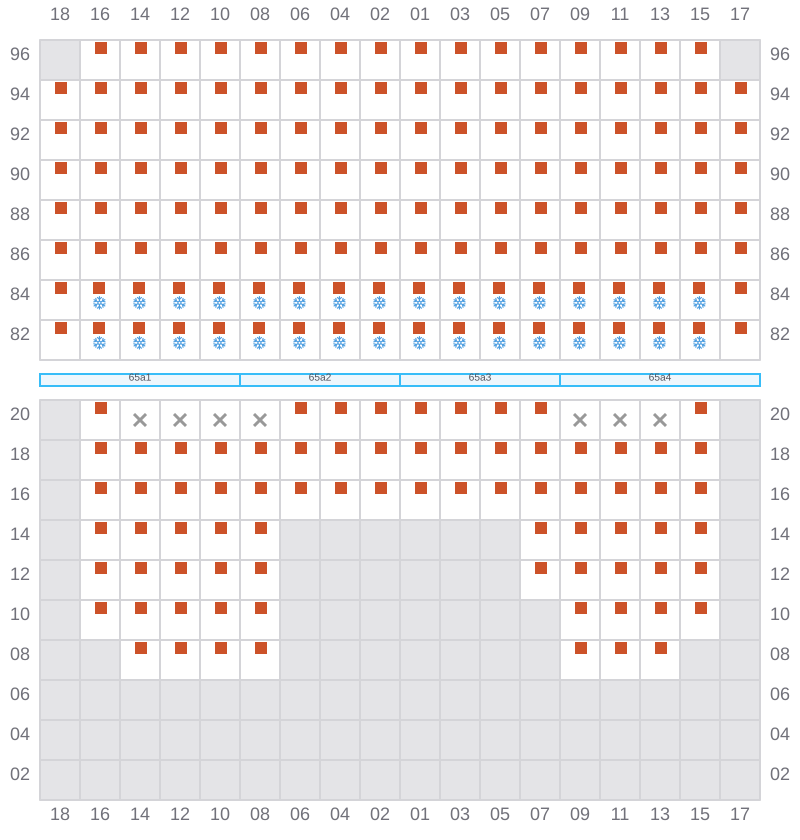

Bay 067 view and slots of APL LE HAVRE

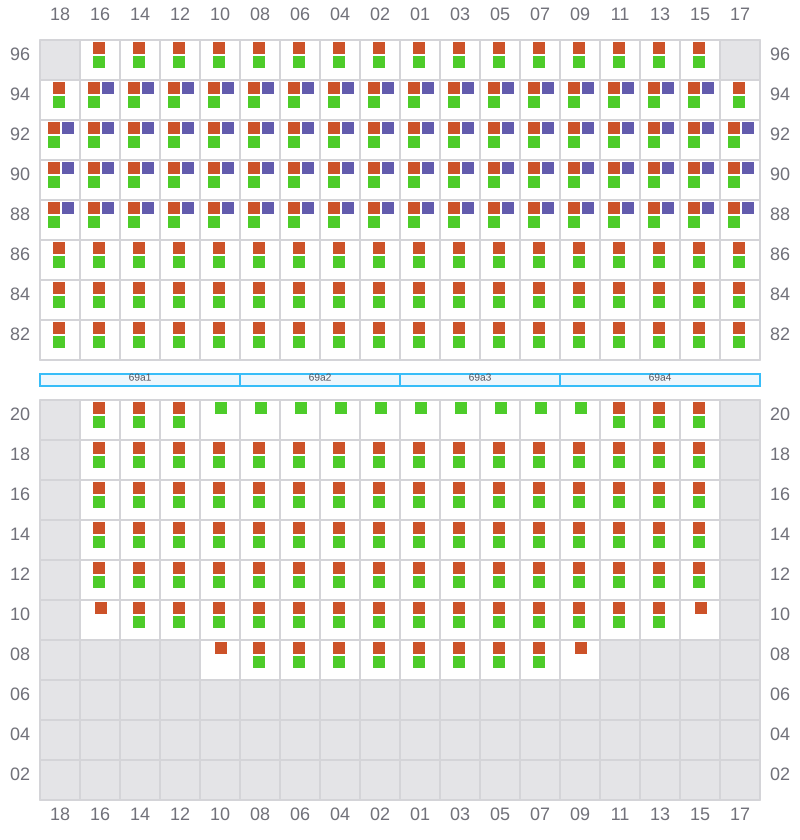

069 (070)

  • →
Bay 069 view and slots of APL LE HAVRE

071

  • ←
  • → / ?

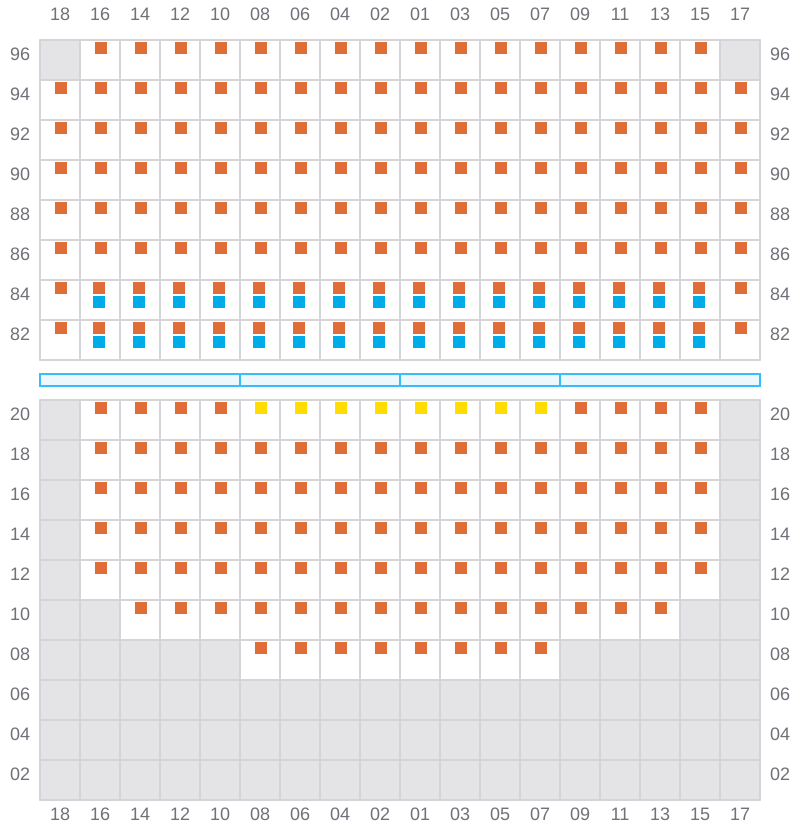

Bay 071 view and slots of APL LE HAVRE

073 (074)

  • →

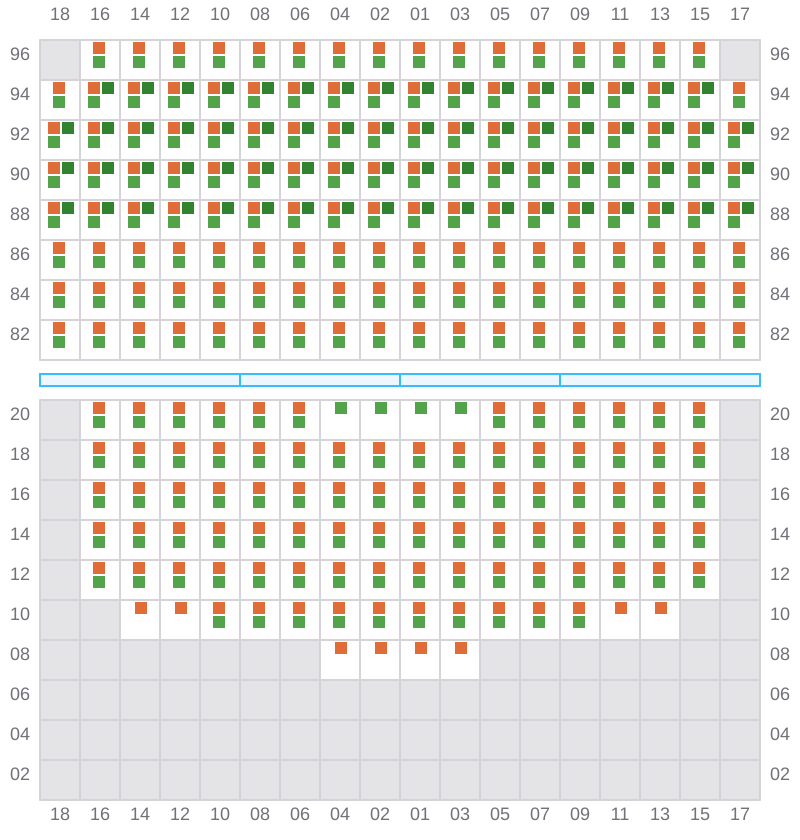

Bay 073 view and slots of APL LE HAVRE

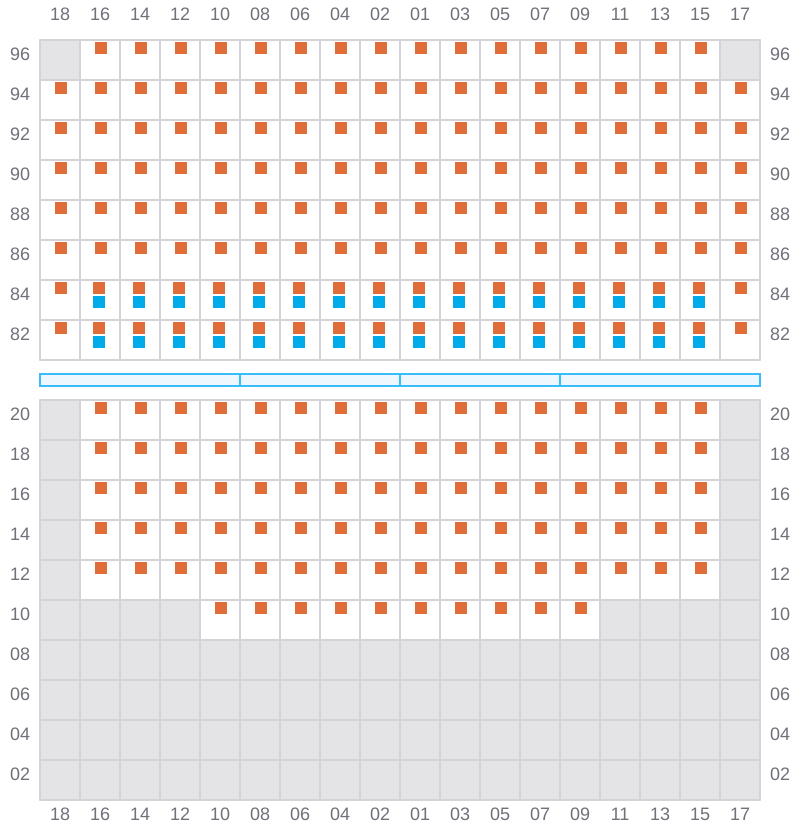

075

  • ←
  • → / ?
Bay 075 view and slots of APL LE HAVRE

077 (078)

  • →

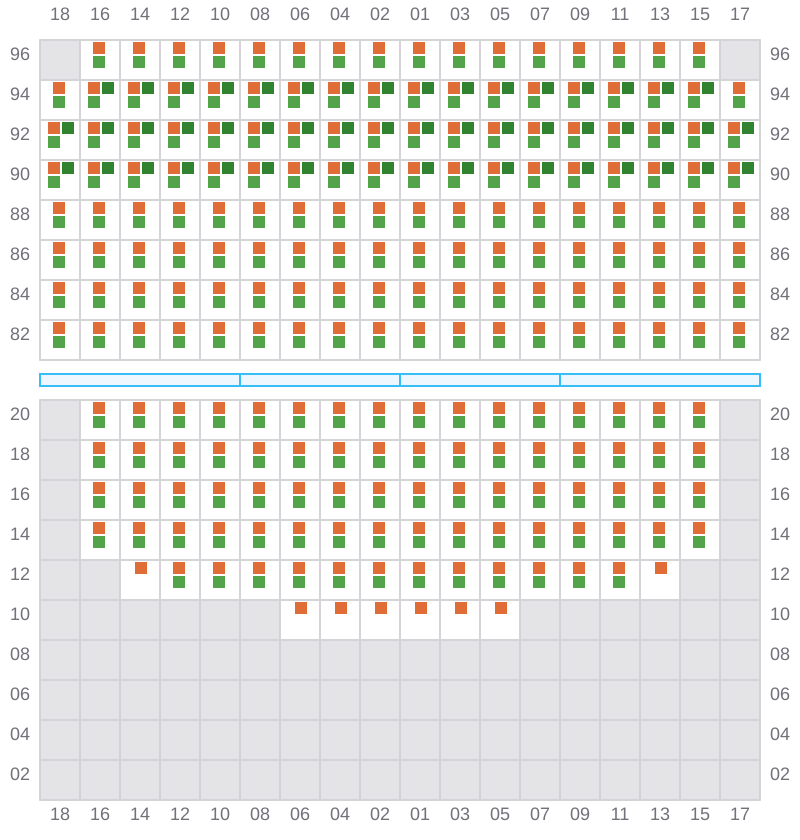

Bay 077 view and slots of APL LE HAVRE

079

  • ←
  • → / ?

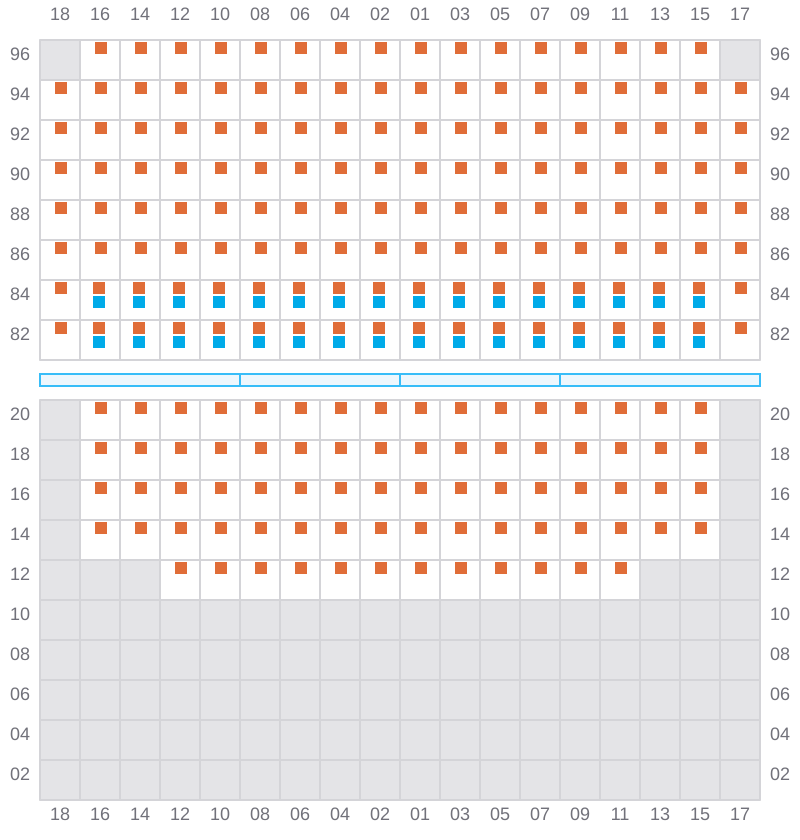

Bay 079 view and slots of APL LE HAVRE

081 (082)

  • → / ?
  • ← / ?

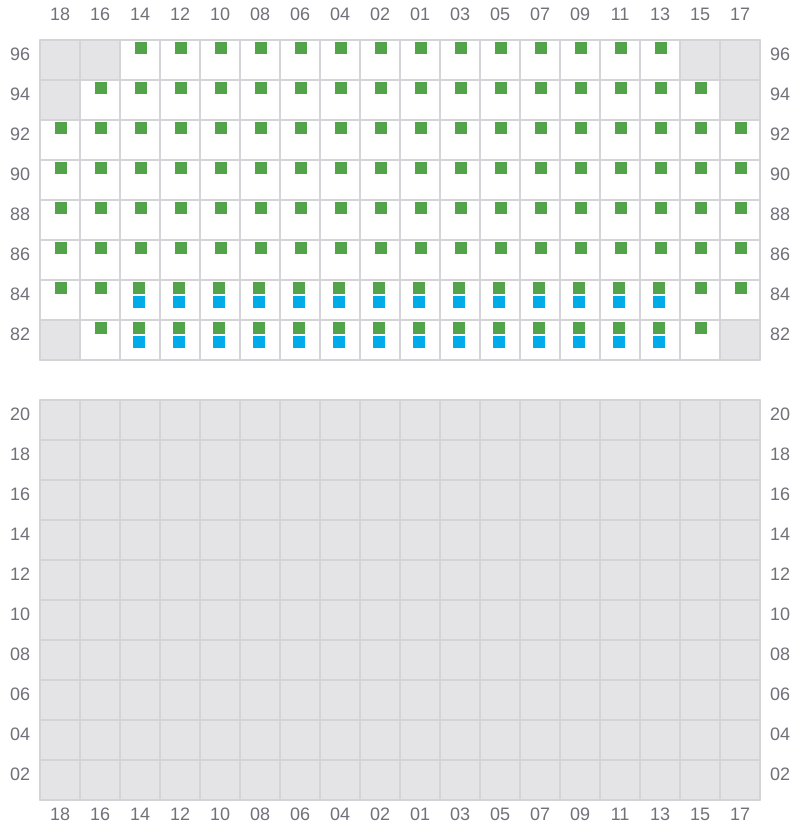

Bay 081 view and slots of APL LE HAVRE
