APL MEXICO CITY
9632210 | 9V9926 | 963 by ********* Last update: Thu Apr 04 2024
General Info
Ship Name:APL MEXICO CITY
IMO Code:9632210
Call Sign:9V9926
Line Operator:963
Class Name for Sister Ships:APL
Year Built:2014
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:073
Max ISO Row:18
Center Line Row:No
Max Above ISO Tier:98
Min Above ISO Tier:80
Max Below ISO Tier:20
Min Below ISO Tier:02
Total TEU:9,396
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

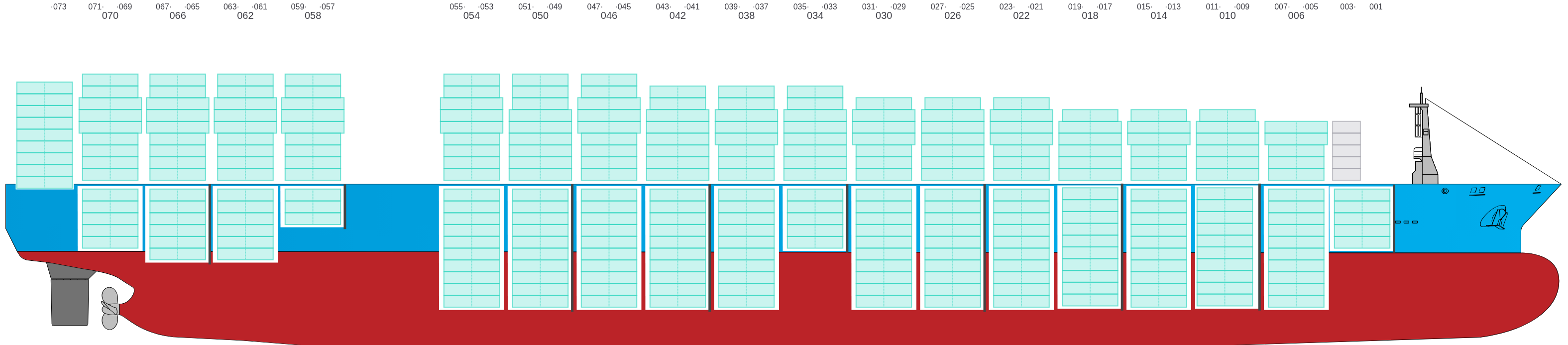

Side View
![Side view of APL MEXICO CITY](/vessel-images/24fb938a-a5a4-4482-8c8a-9b7810bd56b3-sideView.png?v=1712250901122)

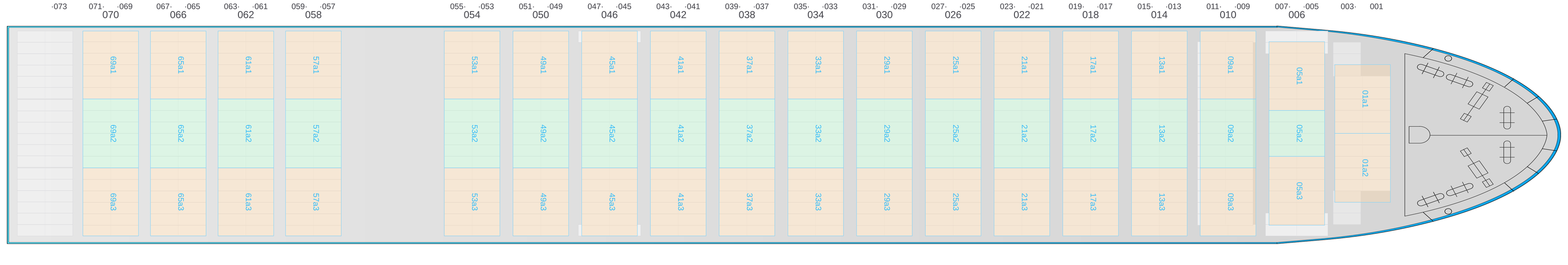

Hatch-Covers View
![Deck view of APL MEXICO CITY](/vessel-images/24fb938a-a5a4-4482-8c8a-9b7810bd56b3-deckView.png?v=1712250901122)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

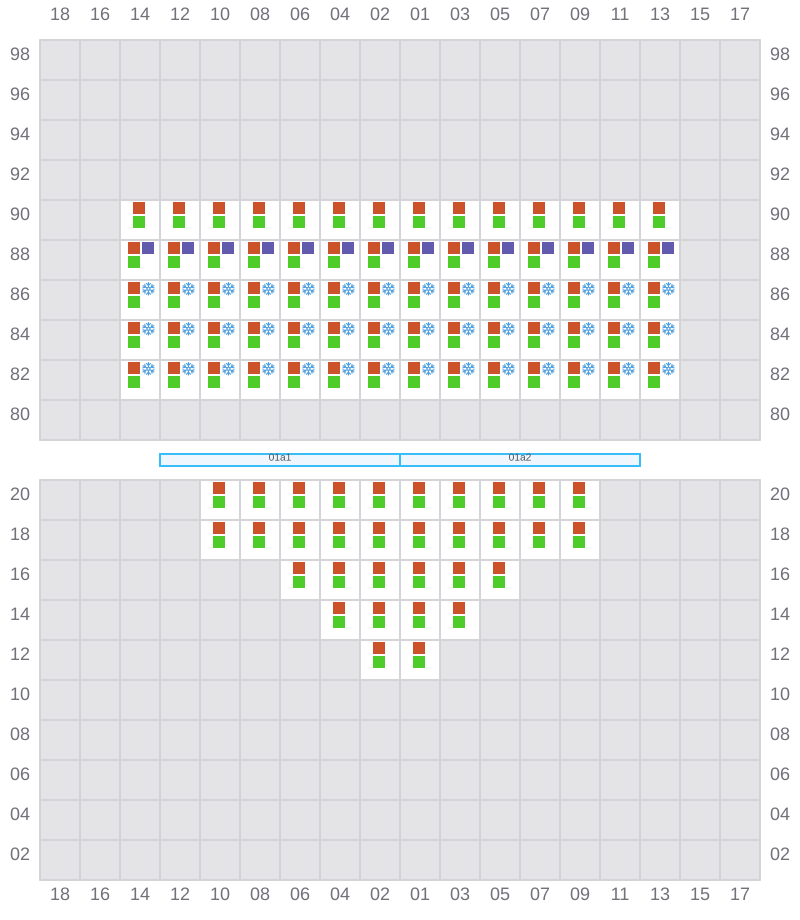

001 (002)
- ? / →
- → / ?
![Bay 001 view and slots of APL MEXICO CITY](/vessel-images/24fb938a-a5a4-4482-8c8a-9b7810bd56b3-b001.png?v=1712250901122)

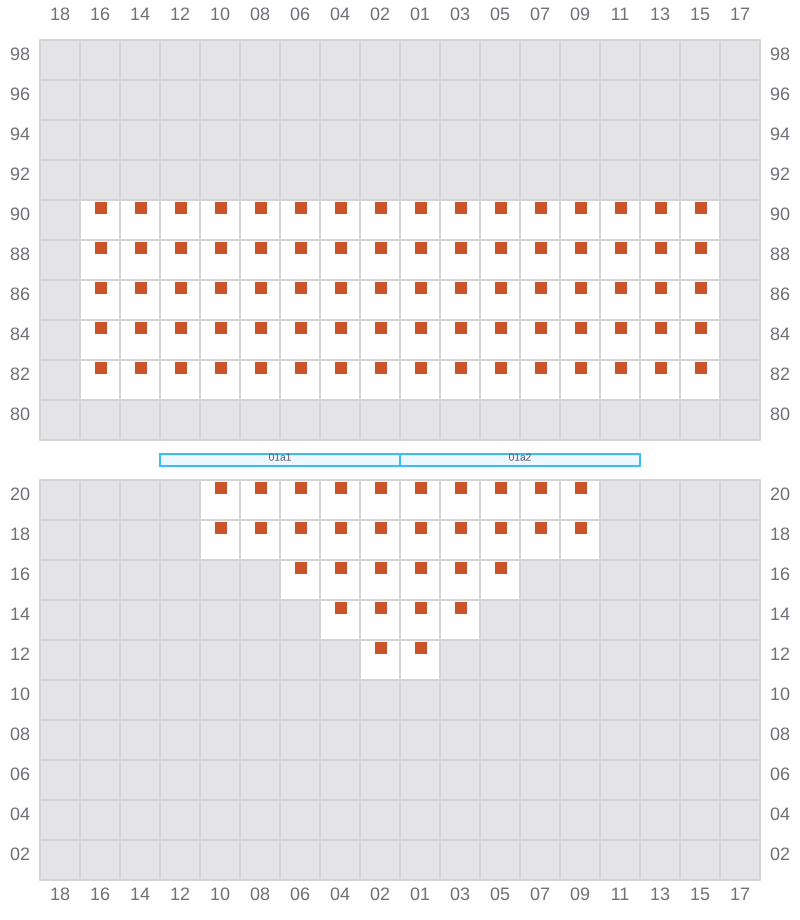

003
- ←
![Bay 003 view and slots of APL MEXICO CITY](/vessel-images/24fb938a-a5a4-4482-8c8a-9b7810bd56b3-b003.png?v=1712250901122)

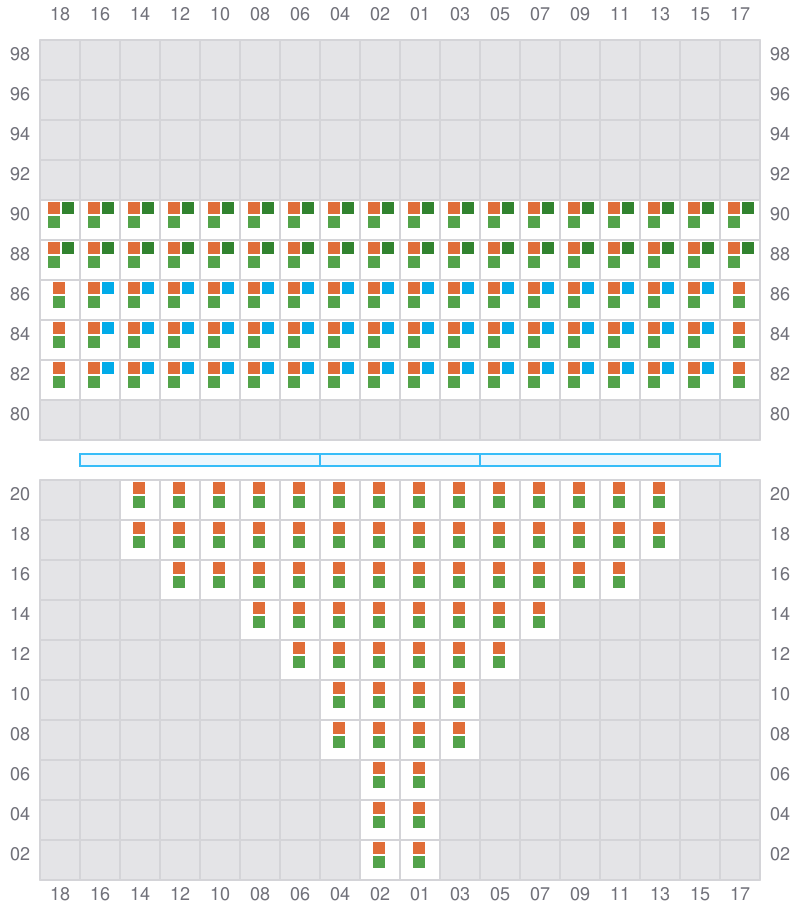

005 (006)
- →
- → / ?
![Bay 005 view and slots of APL MEXICO CITY](/vessel-images/24fb938a-a5a4-4482-8c8a-9b7810bd56b3-b005.png?v=1712250901122)

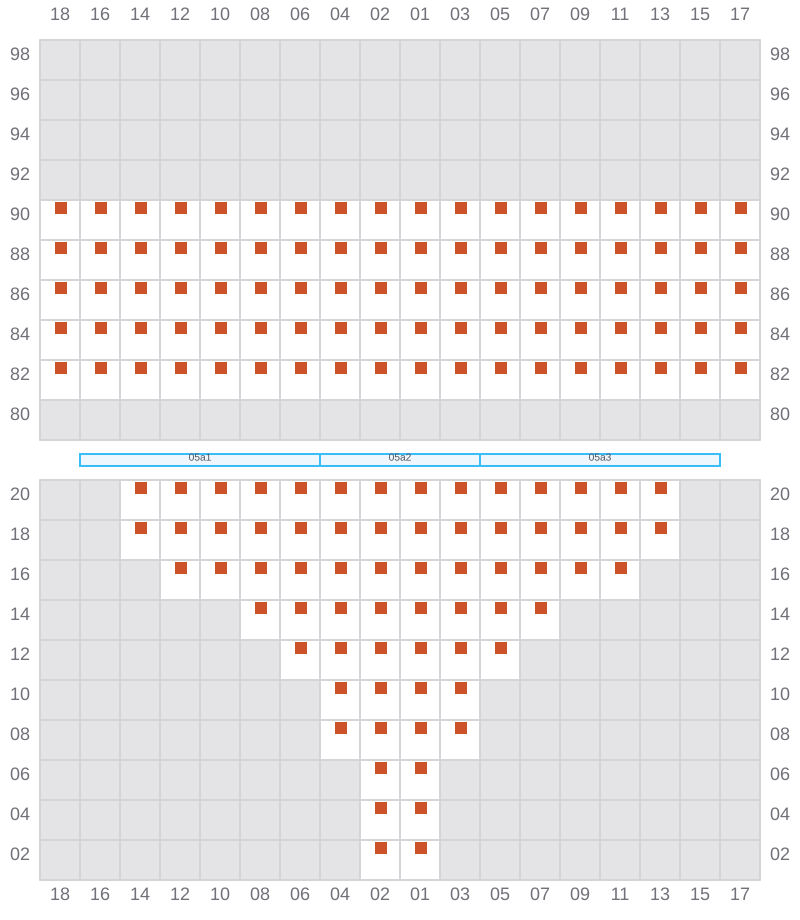

007
- ←
![Bay 007 view and slots of APL MEXICO CITY](/vessel-images/24fb938a-a5a4-4482-8c8a-9b7810bd56b3-b007.png?v=1712250901122)

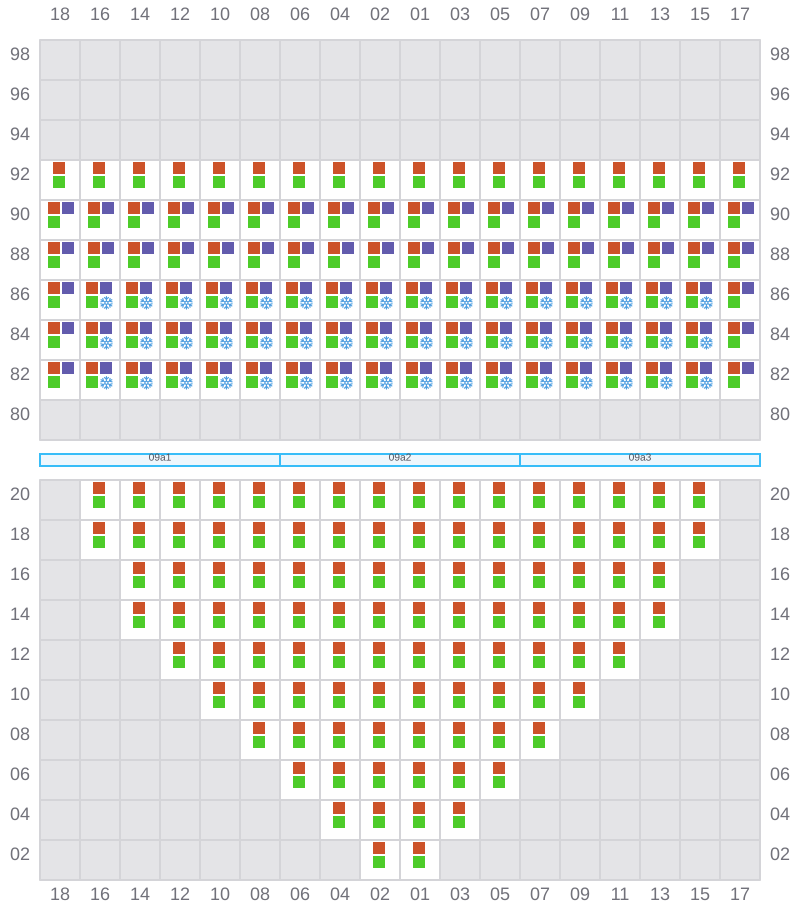

009 (010)
- →
- → / ?
![Bay 009 view and slots of APL MEXICO CITY](/vessel-images/24fb938a-a5a4-4482-8c8a-9b7810bd56b3-b009.png?v=1712250901122)

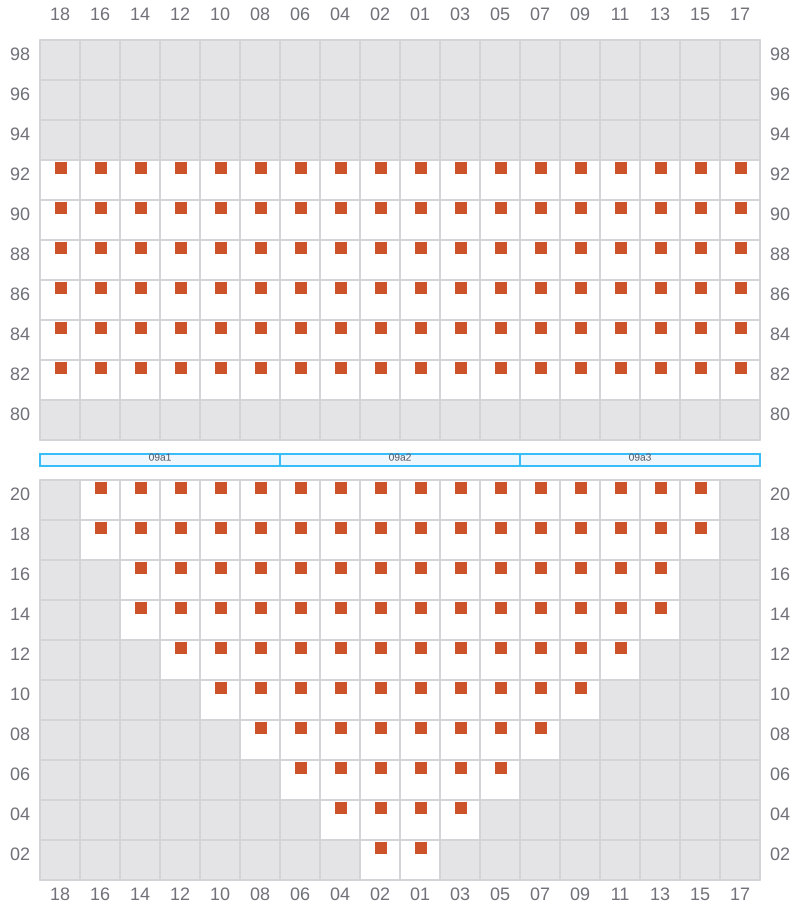

011
- ←
![Bay 011 view and slots of APL MEXICO CITY](/vessel-images/24fb938a-a5a4-4482-8c8a-9b7810bd56b3-b011.png?v=1712250901122)

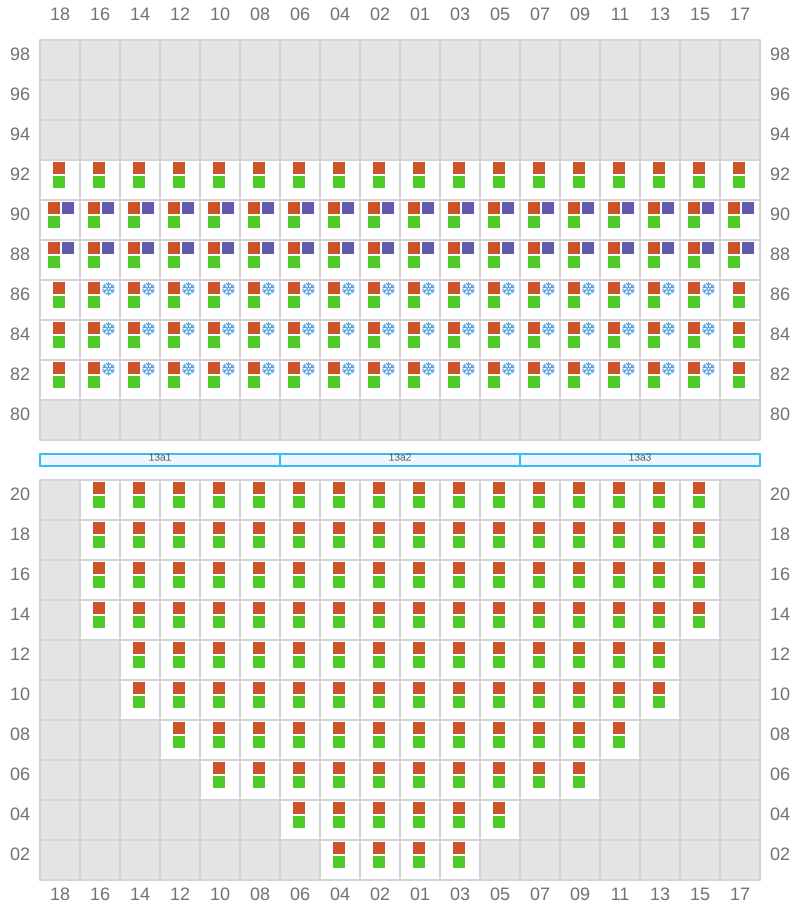

013 (014)
- →
- → / ?
![Bay 013 view and slots of APL MEXICO CITY](/vessel-images/24fb938a-a5a4-4482-8c8a-9b7810bd56b3-b013.png?v=1712250901122)

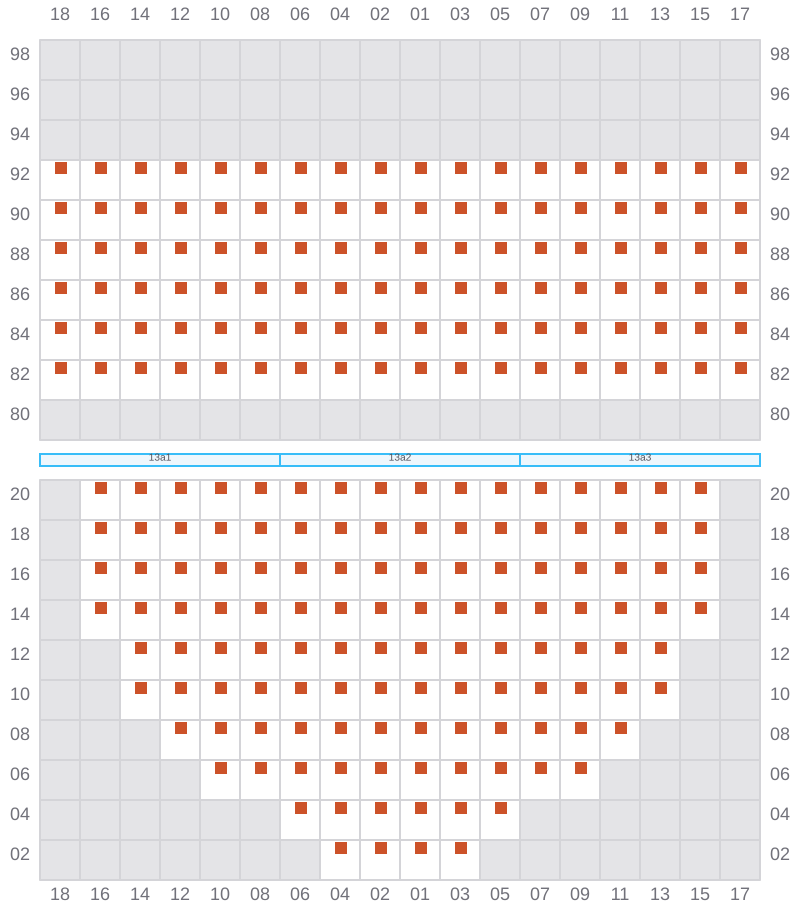

015
- ←
![Bay 015 view and slots of APL MEXICO CITY](/vessel-images/24fb938a-a5a4-4482-8c8a-9b7810bd56b3-b015.png?v=1712250901122)

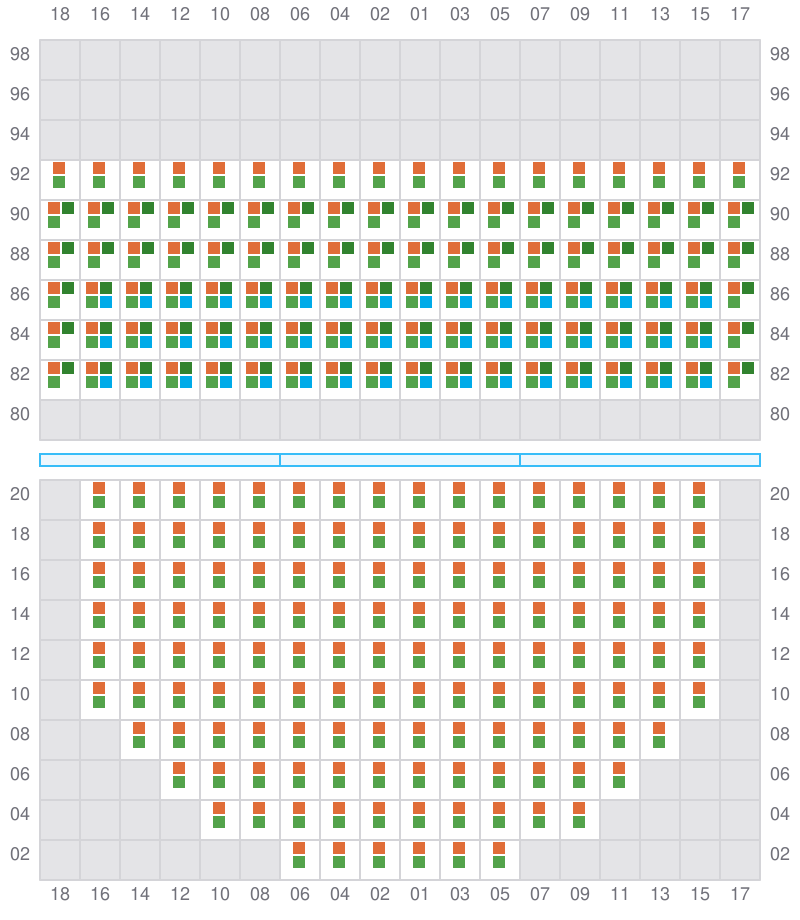

017 (018)
- →
- → / ?
![Bay 017 view and slots of APL MEXICO CITY](/vessel-images/24fb938a-a5a4-4482-8c8a-9b7810bd56b3-b017.png?v=1712250901122)

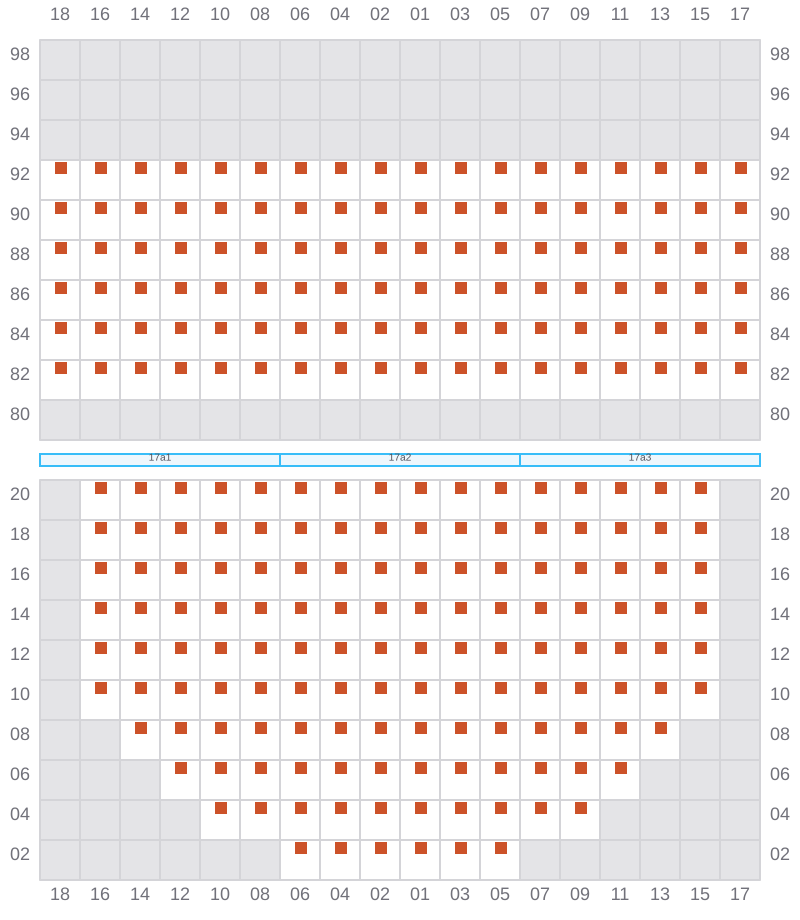

019
- ←
![Bay 019 view and slots of APL MEXICO CITY](/vessel-images/24fb938a-a5a4-4482-8c8a-9b7810bd56b3-b019.png?v=1712250901122)

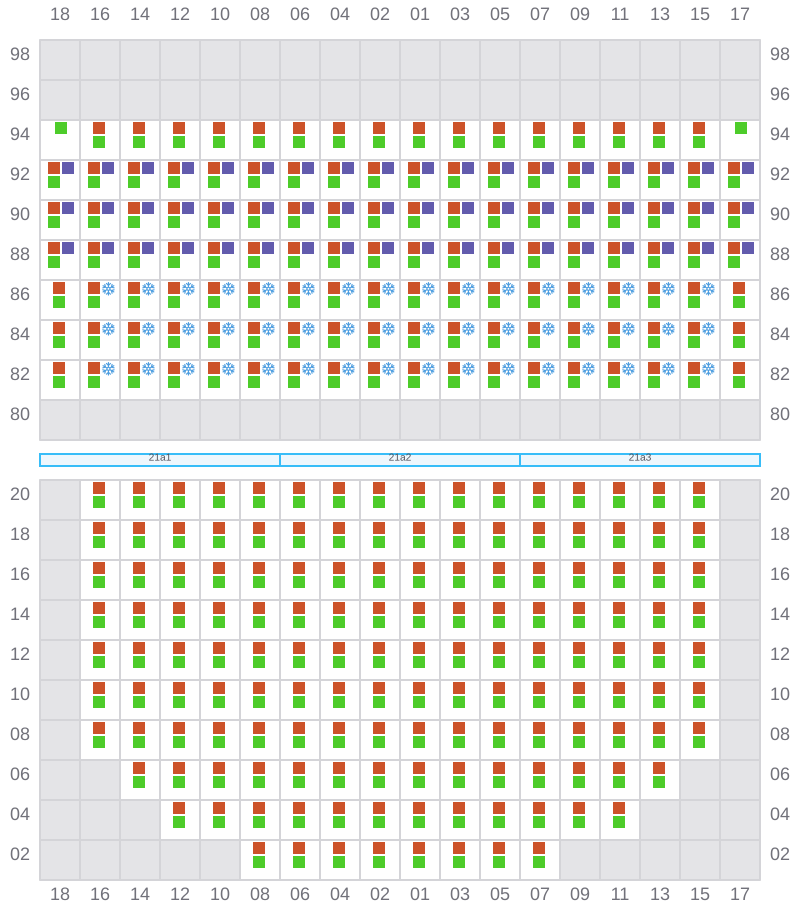

021 (022)
- →
- → / ?
![Bay 021 view and slots of APL MEXICO CITY](/vessel-images/24fb938a-a5a4-4482-8c8a-9b7810bd56b3-b021.png?v=1712250901122)

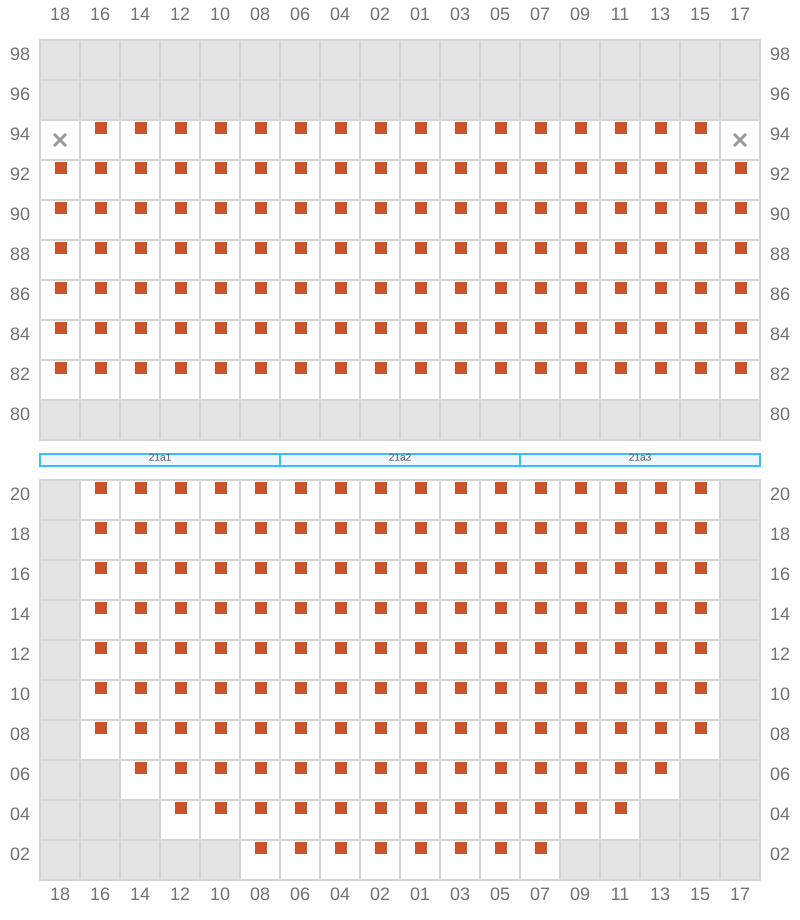

023
- ←
![Bay 023 view and slots of APL MEXICO CITY](/vessel-images/24fb938a-a5a4-4482-8c8a-9b7810bd56b3-b023.png?v=1712250901122)

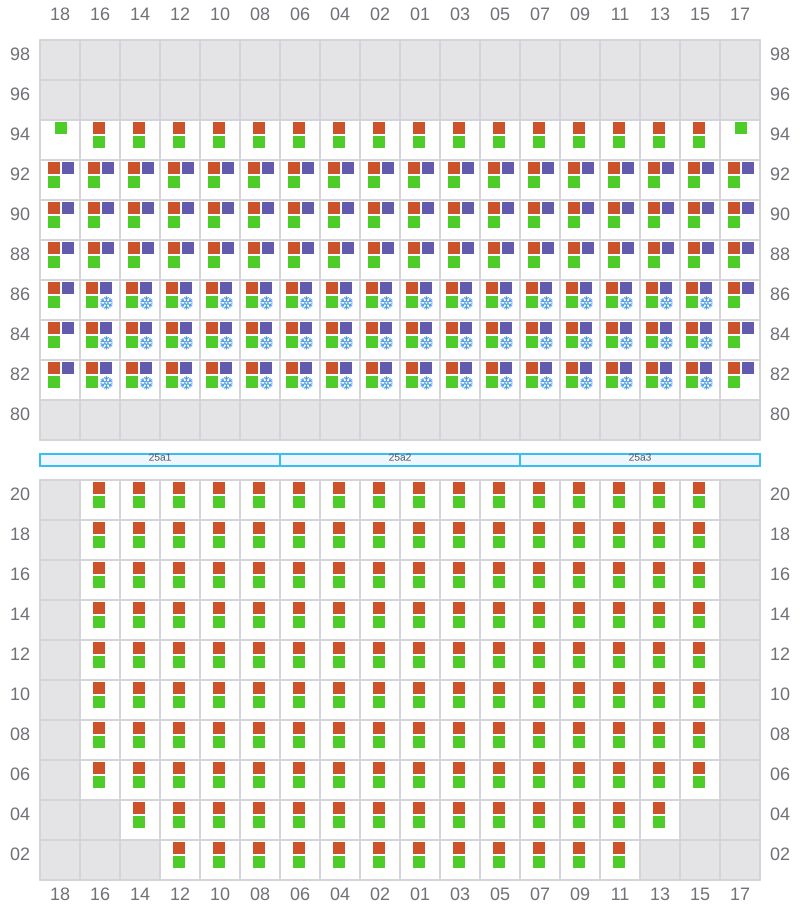

025 (026)
- →
- → / ?
![Bay 025 view and slots of APL MEXICO CITY](/vessel-images/24fb938a-a5a4-4482-8c8a-9b7810bd56b3-b025.png?v=1712250901122)

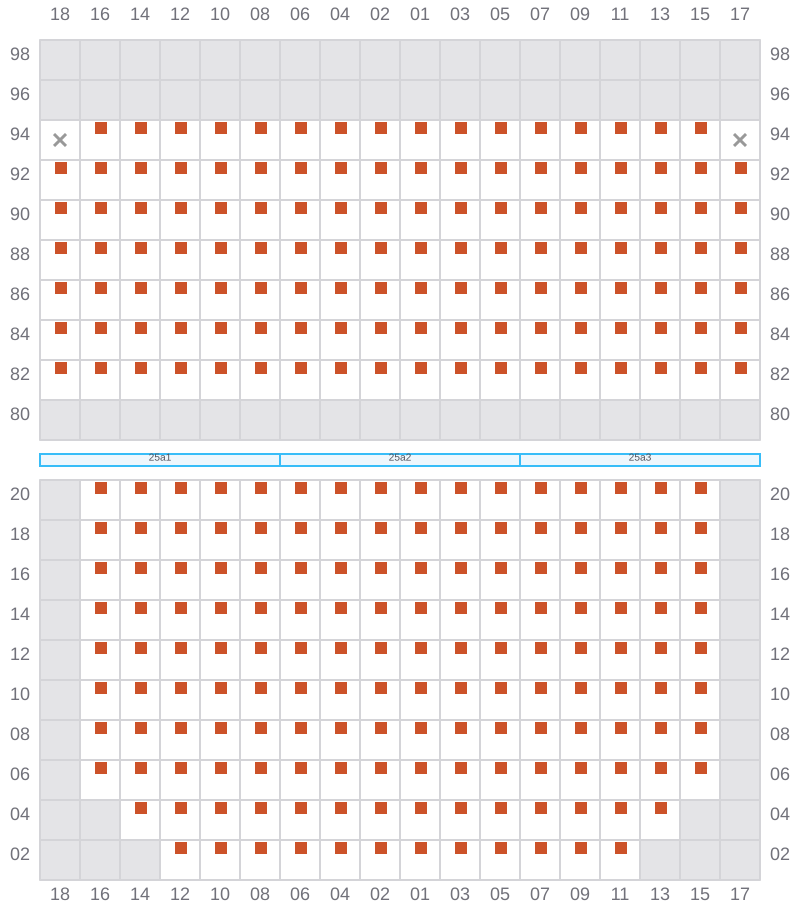

027
- ←
![Bay 027 view and slots of APL MEXICO CITY](/vessel-images/24fb938a-a5a4-4482-8c8a-9b7810bd56b3-b027.png?v=1712250901122)

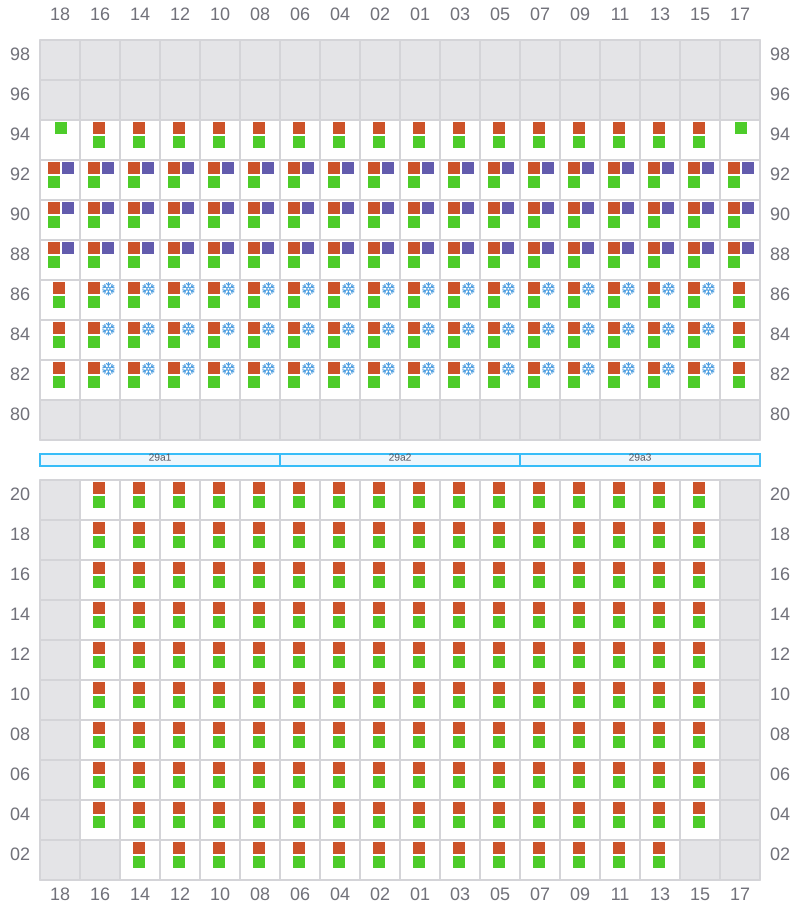

029 (030)
- →
- → / ?
![Bay 029 view and slots of APL MEXICO CITY](/vessel-images/24fb938a-a5a4-4482-8c8a-9b7810bd56b3-b029.png?v=1712250901122)

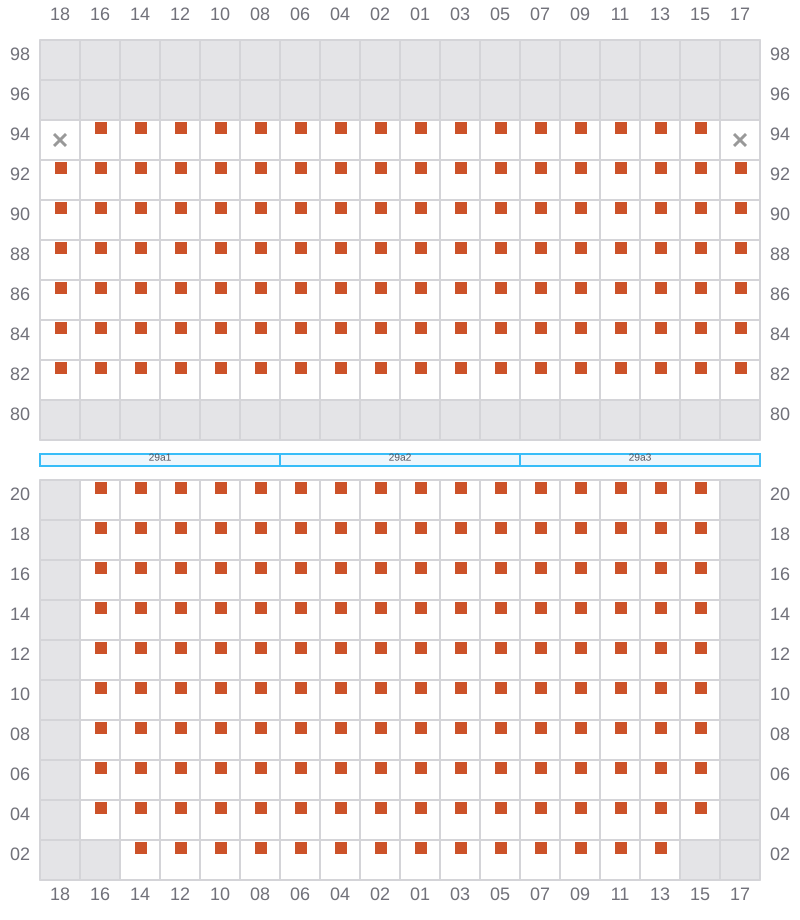

031
- ←
![Bay 031 view and slots of APL MEXICO CITY](/vessel-images/24fb938a-a5a4-4482-8c8a-9b7810bd56b3-b031.png?v=1712250901122)

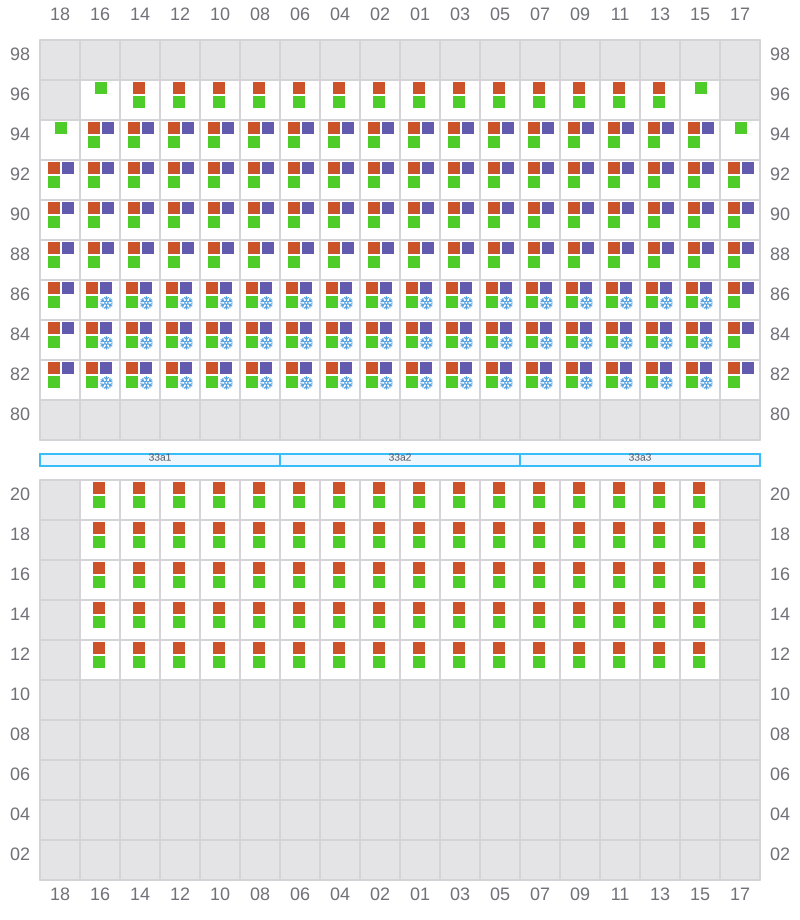

033 (034)
- →
- → / ?
![Bay 033 view and slots of APL MEXICO CITY](/vessel-images/24fb938a-a5a4-4482-8c8a-9b7810bd56b3-b033.png?v=1712250901122)

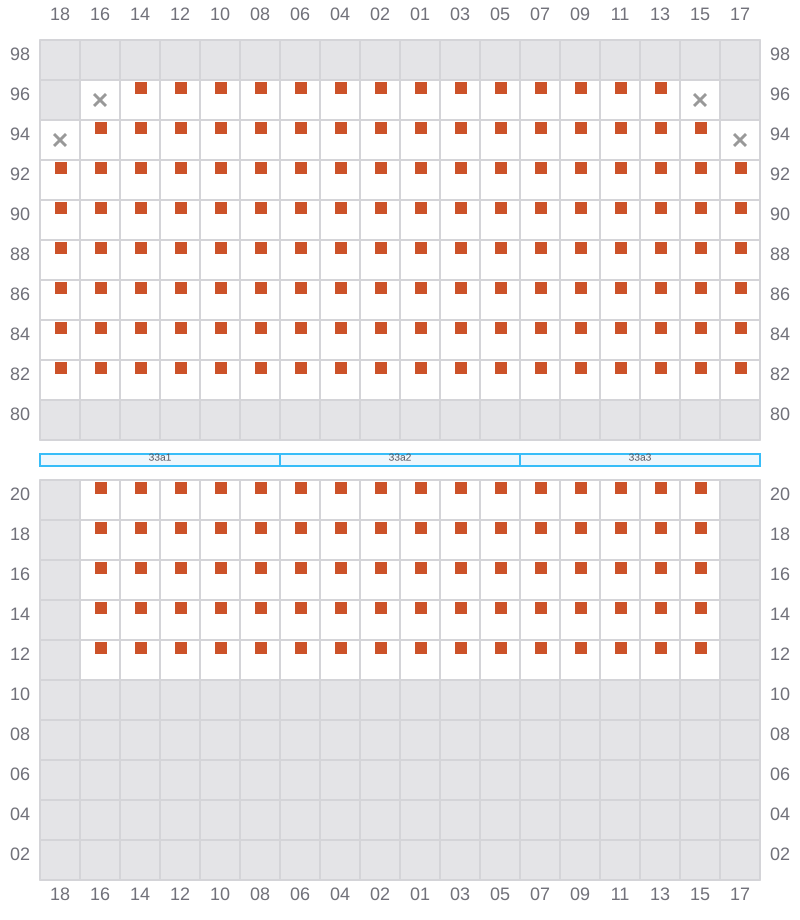

035
- ←
![Bay 035 view and slots of APL MEXICO CITY](/vessel-images/24fb938a-a5a4-4482-8c8a-9b7810bd56b3-b035.png?v=1712250901122)

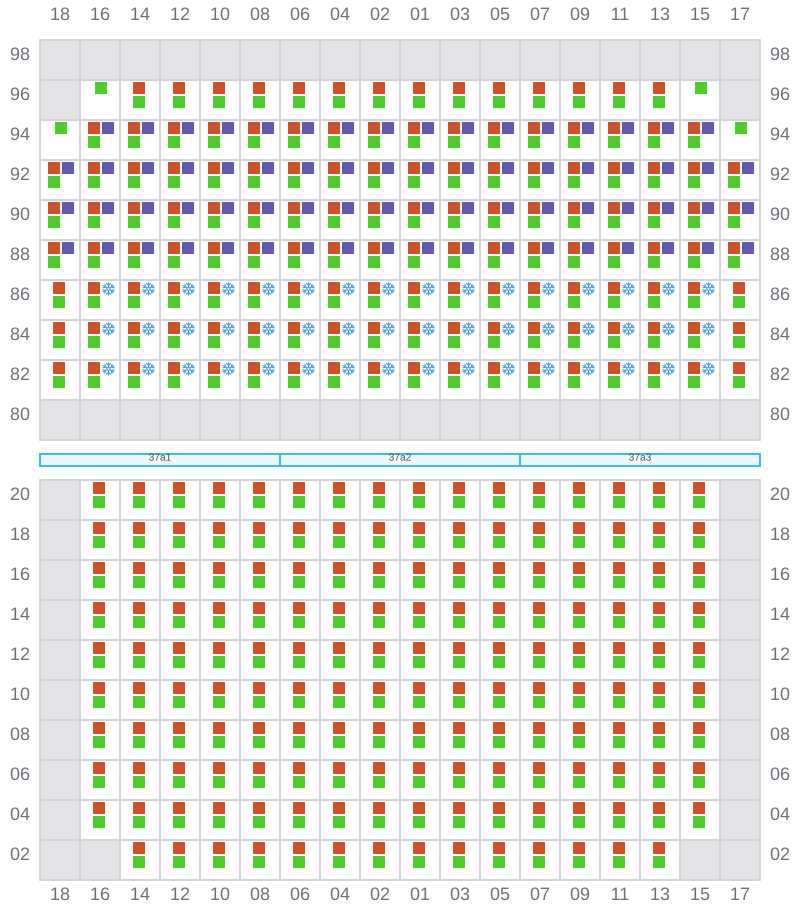

037 (038)
- →
- → / ?
![Bay 037 view and slots of APL MEXICO CITY](/vessel-images/24fb938a-a5a4-4482-8c8a-9b7810bd56b3-b037.png?v=1712250901122)
039
- ←
![Bay 039 view and slots of APL MEXICO CITY](/vessel-images/24fb938a-a5a4-4482-8c8a-9b7810bd56b3-b039.png?v=1712250901122)

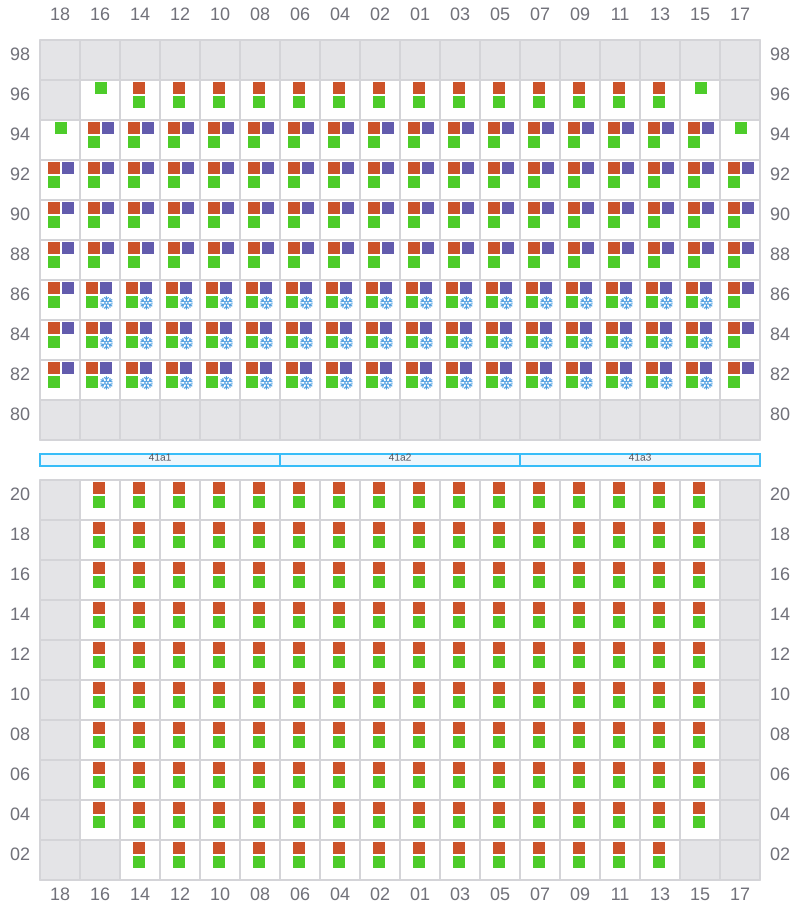

041 (042)
- →
- → / ?
![Bay 041 view and slots of APL MEXICO CITY](/vessel-images/24fb938a-a5a4-4482-8c8a-9b7810bd56b3-b041.png?v=1712250901122)

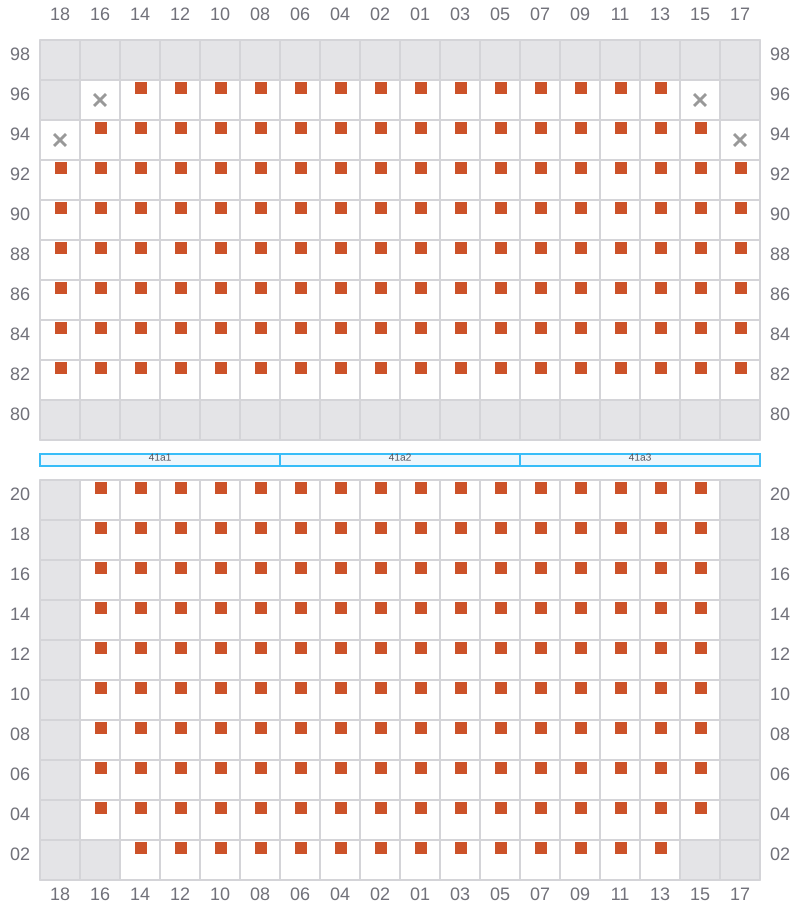

043
- ←
![Bay 043 view and slots of APL MEXICO CITY](/vessel-images/24fb938a-a5a4-4482-8c8a-9b7810bd56b3-b043.png?v=1712250901122)

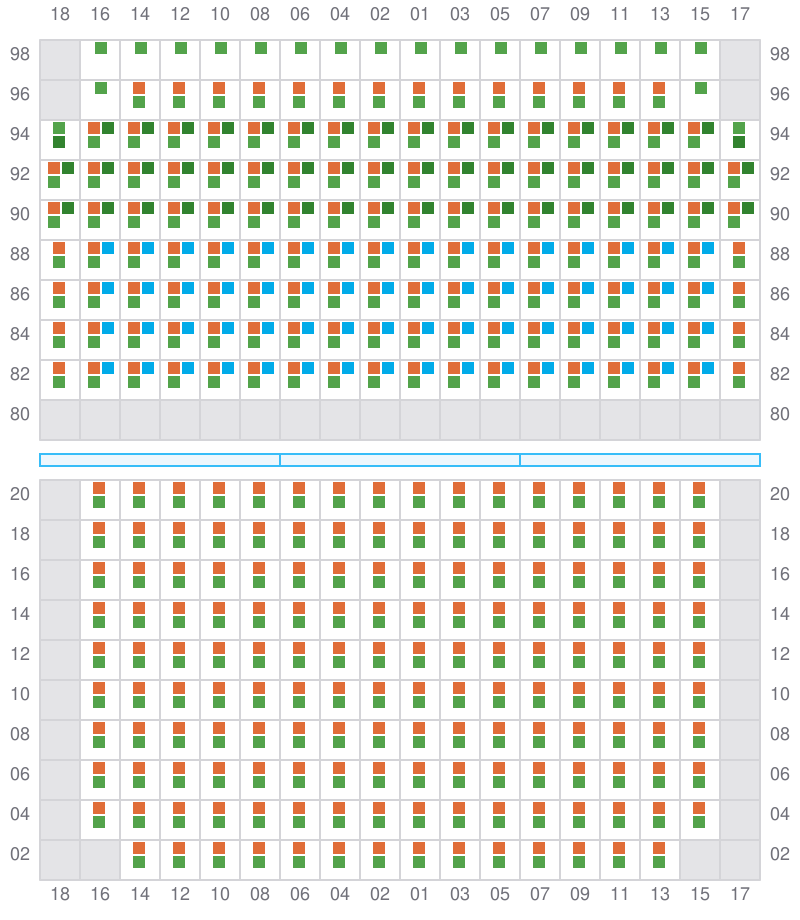

045 (046)
- →
- → / ?
![Bay 045 view and slots of APL MEXICO CITY](/vessel-images/24fb938a-a5a4-4482-8c8a-9b7810bd56b3-b045.png?v=1712250901122)

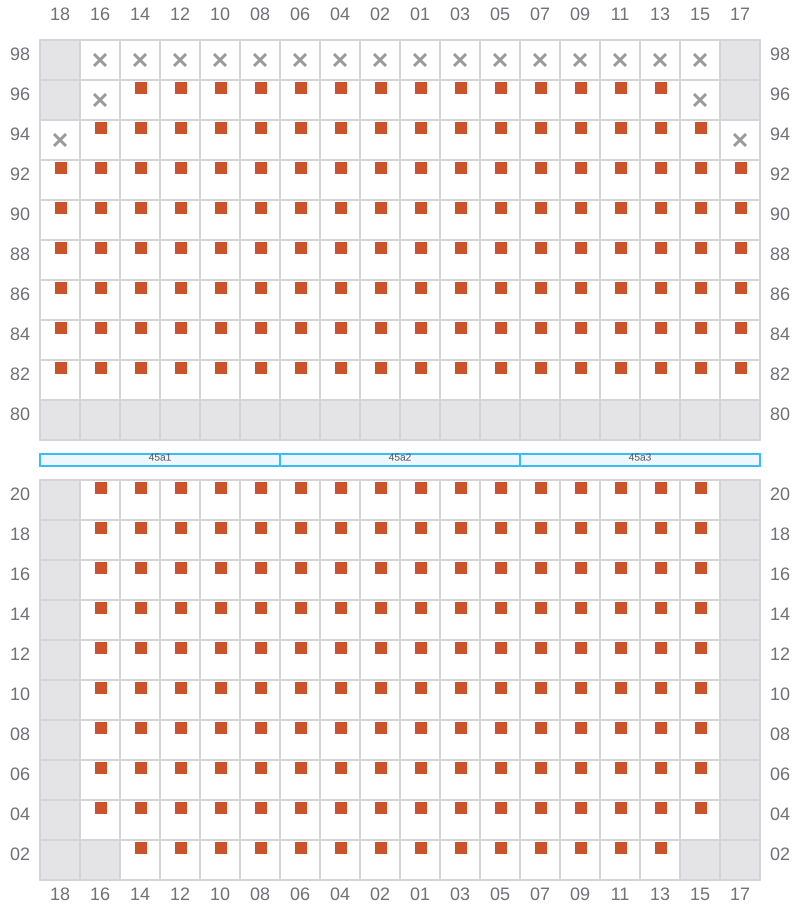

047
- ←
![Bay 047 view and slots of APL MEXICO CITY](/vessel-images/24fb938a-a5a4-4482-8c8a-9b7810bd56b3-b047.png?v=1712250901122)

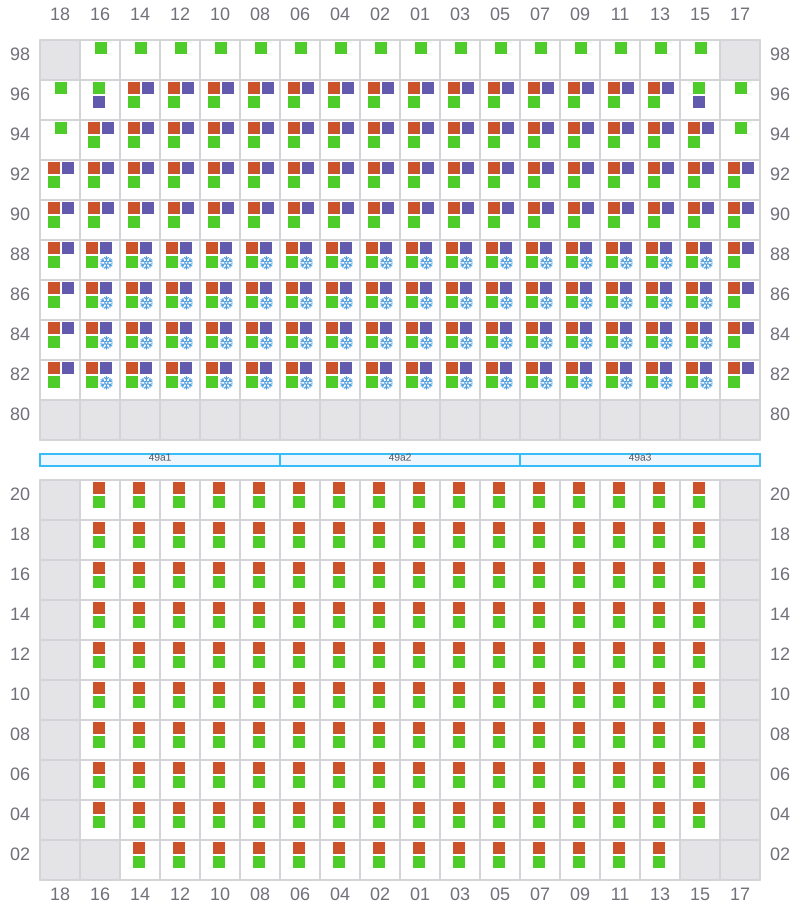

049 (050)
- →
- → / ?
![Bay 049 view and slots of APL MEXICO CITY](/vessel-images/24fb938a-a5a4-4482-8c8a-9b7810bd56b3-b049.png?v=1712250901122)

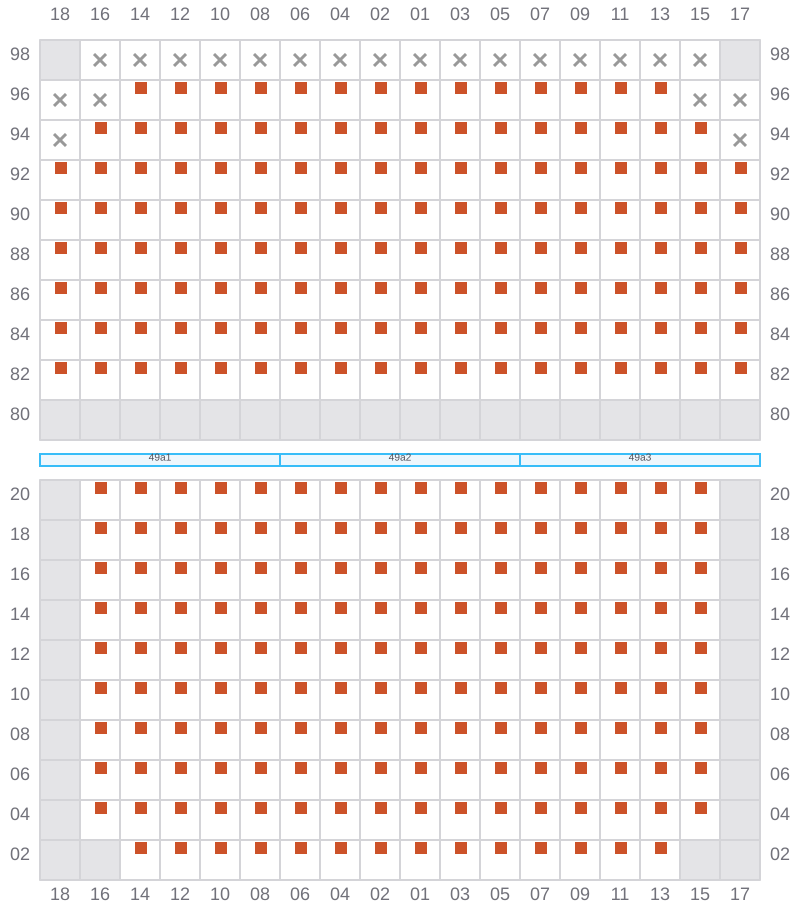

051
- ←
![Bay 051 view and slots of APL MEXICO CITY](/vessel-images/24fb938a-a5a4-4482-8c8a-9b7810bd56b3-b051.png?v=1712250901122)

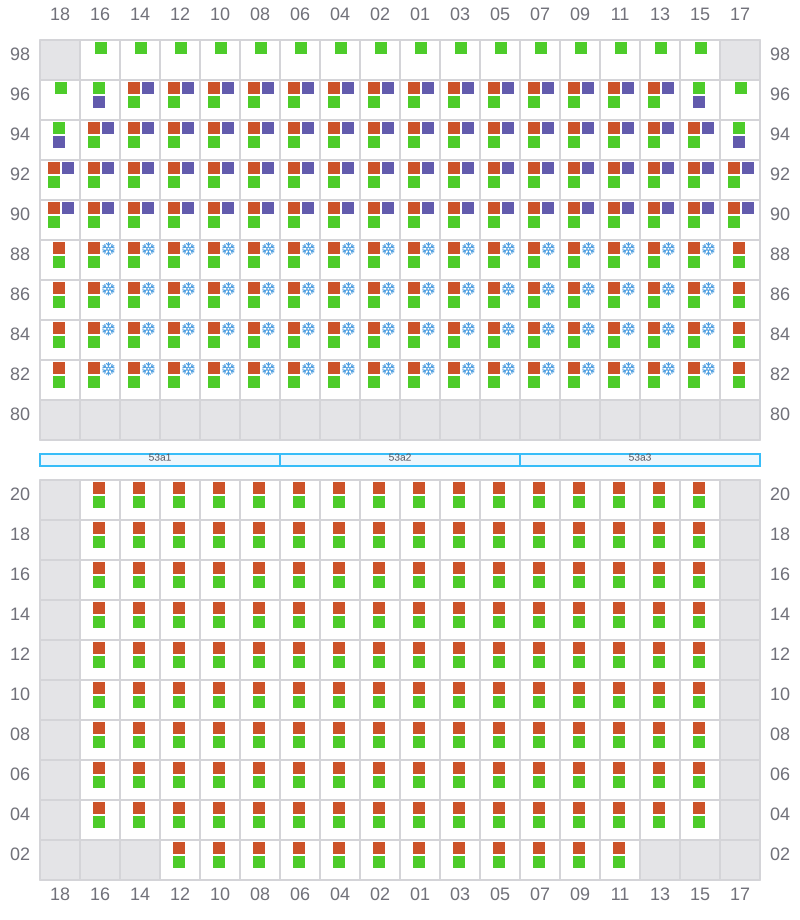

053 (054)
- →
- → / ?
![Bay 053 view and slots of APL MEXICO CITY](/vessel-images/24fb938a-a5a4-4482-8c8a-9b7810bd56b3-b053.png?v=1712250901122)

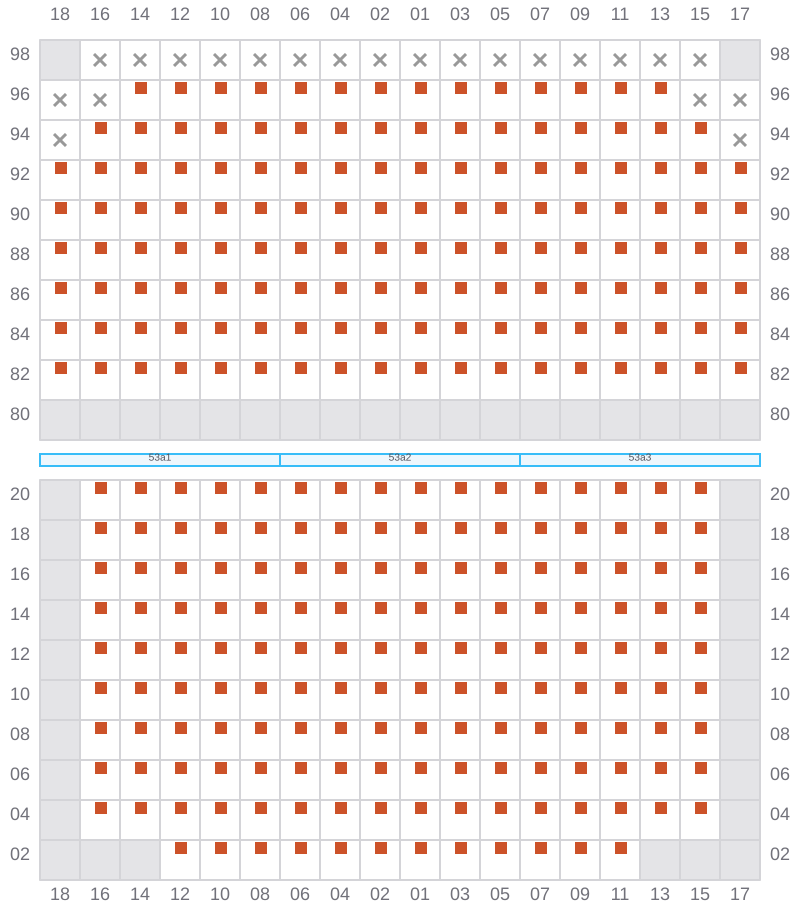

055
- ←
![Bay 055 view and slots of APL MEXICO CITY](/vessel-images/24fb938a-a5a4-4482-8c8a-9b7810bd56b3-b055.png?v=1712250901122)

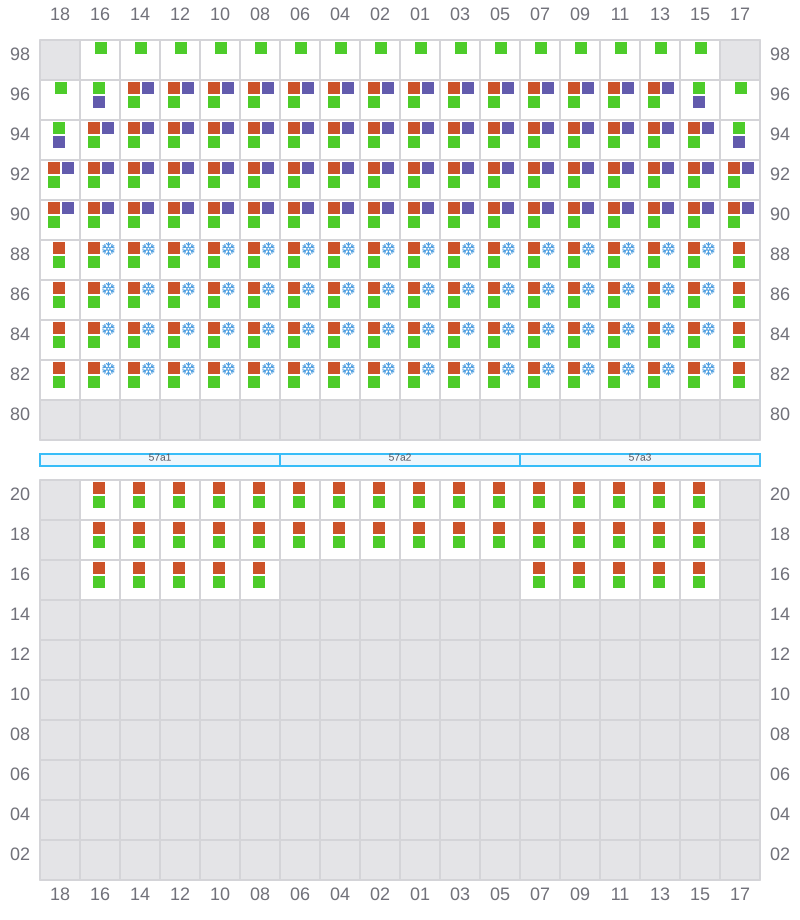

057 (058)
- →
- ← / ?
![Bay 057 view and slots of APL MEXICO CITY](/vessel-images/24fb938a-a5a4-4482-8c8a-9b7810bd56b3-b057.png?v=1712250901122)
059
- ←
![Bay 059 view and slots of APL MEXICO CITY](/vessel-images/24fb938a-a5a4-4482-8c8a-9b7810bd56b3-b059.png?v=1712250901122)

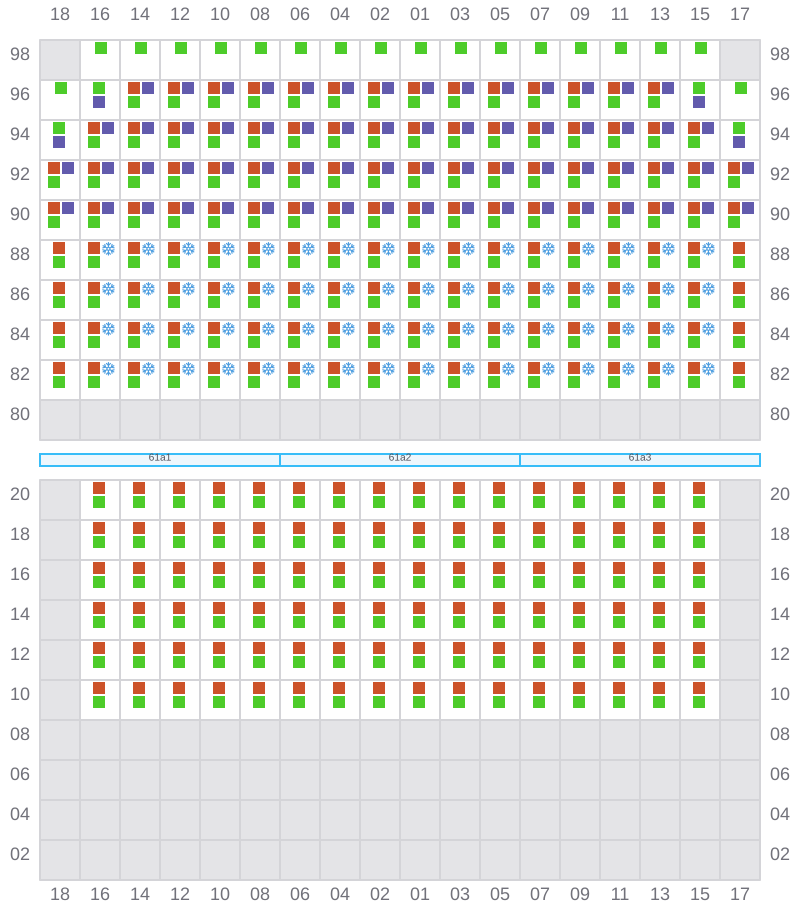

061 (062)
- →
- ← / ?
![Bay 061 view and slots of APL MEXICO CITY](/vessel-images/24fb938a-a5a4-4482-8c8a-9b7810bd56b3-b061.png?v=1712250901122)

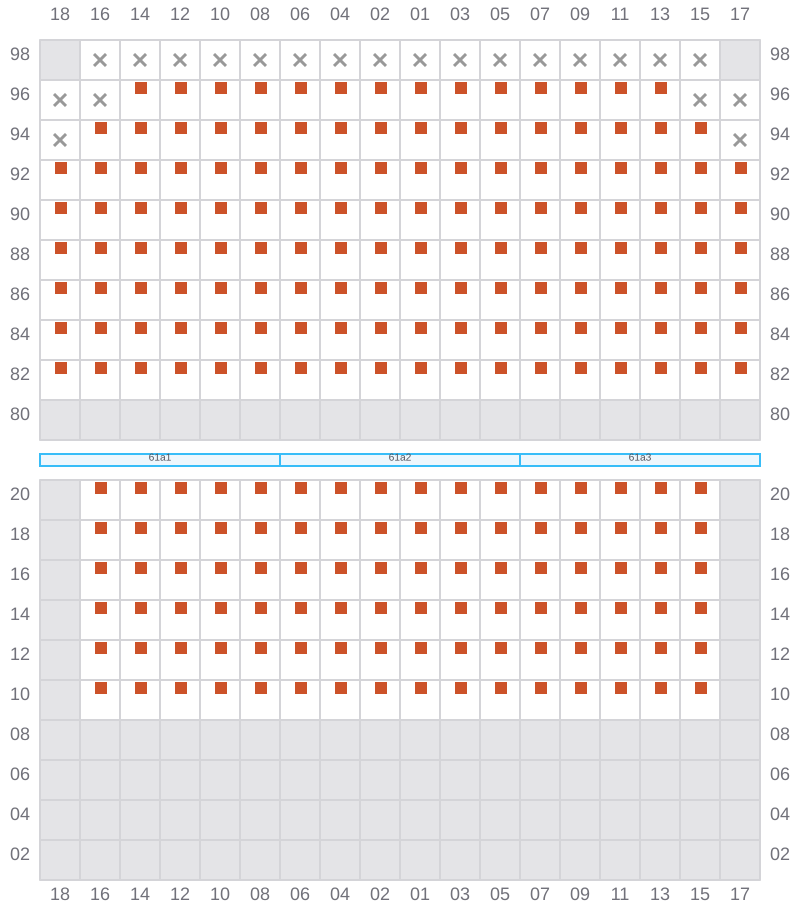

063
- ←
![Bay 063 view and slots of APL MEXICO CITY](/vessel-images/24fb938a-a5a4-4482-8c8a-9b7810bd56b3-b063.png?v=1712250901122)

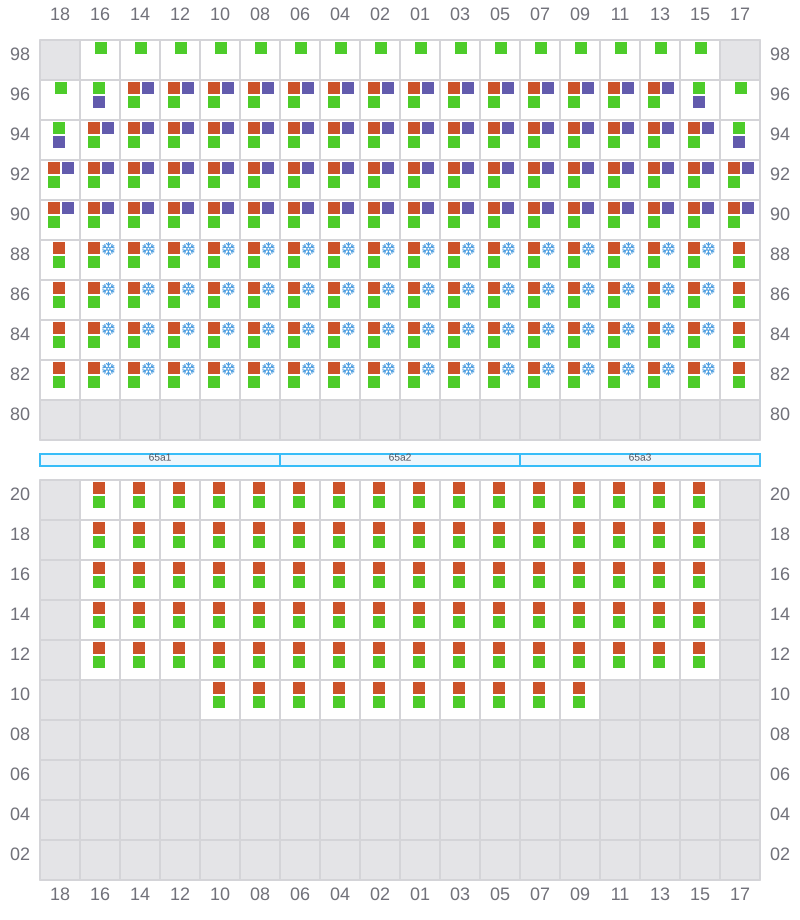

065 (066)
- →
- ← / ?
![Bay 065 view and slots of APL MEXICO CITY](/vessel-images/24fb938a-a5a4-4482-8c8a-9b7810bd56b3-b065.png?v=1712250901122)
067
- ←
![Bay 067 view and slots of APL MEXICO CITY](/vessel-images/24fb938a-a5a4-4482-8c8a-9b7810bd56b3-b067.png?v=1712250901122)

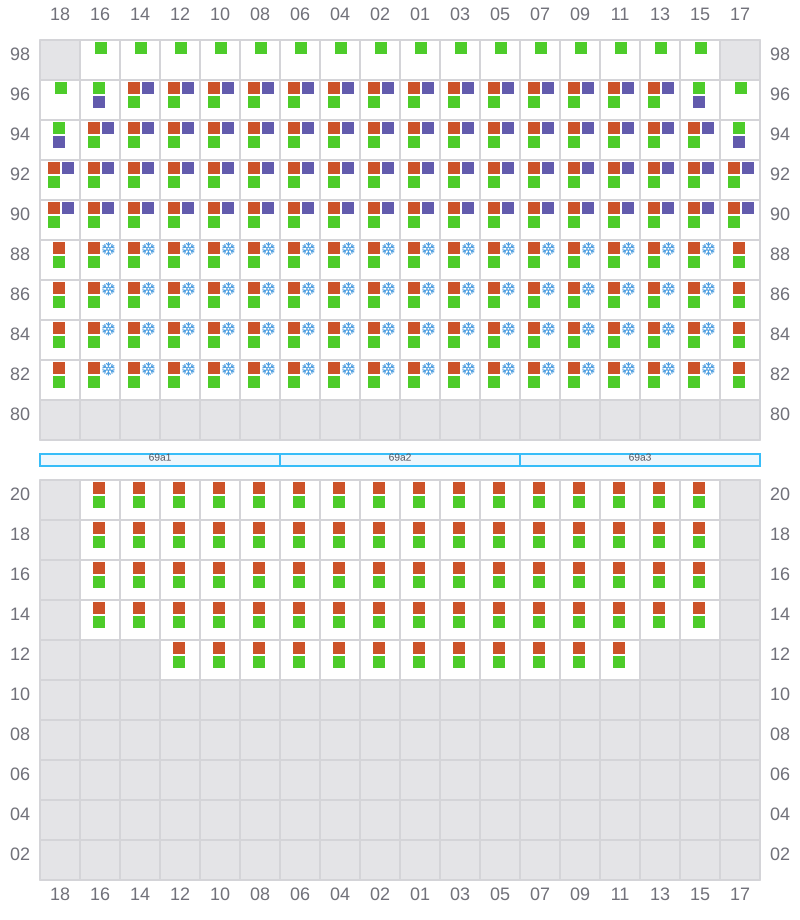

069 (070)
- →
- ← / ?
![Bay 069 view and slots of APL MEXICO CITY](/vessel-images/24fb938a-a5a4-4482-8c8a-9b7810bd56b3-b069.png?v=1712250901122)

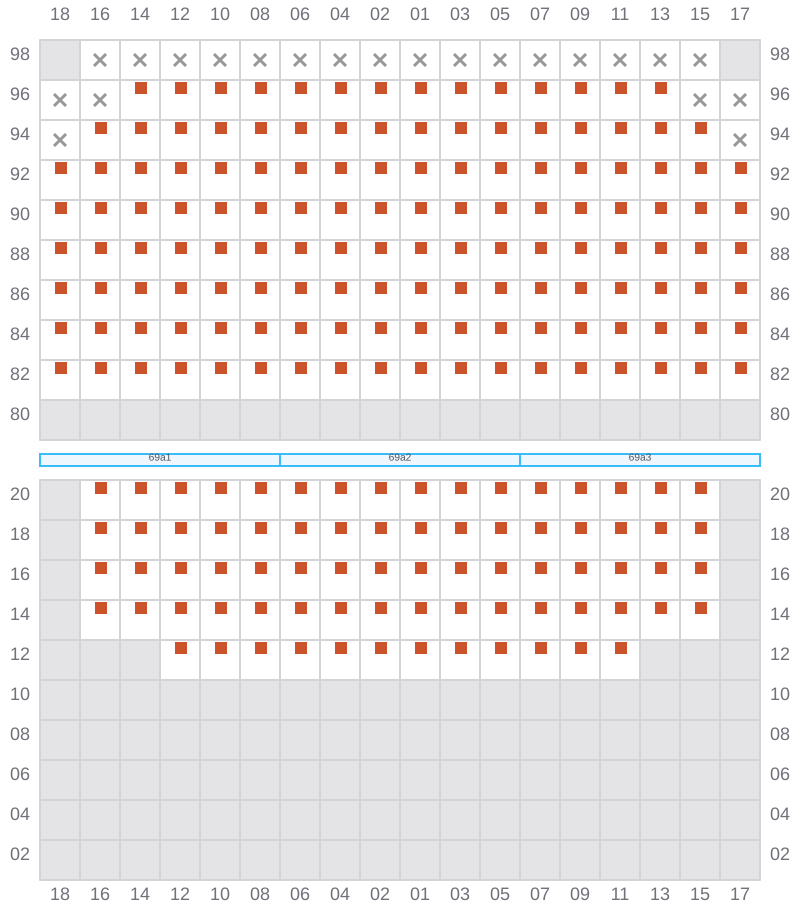

071
- ←
![Bay 071 view and slots of APL MEXICO CITY](/vessel-images/24fb938a-a5a4-4482-8c8a-9b7810bd56b3-b071.png?v=1712250901122)

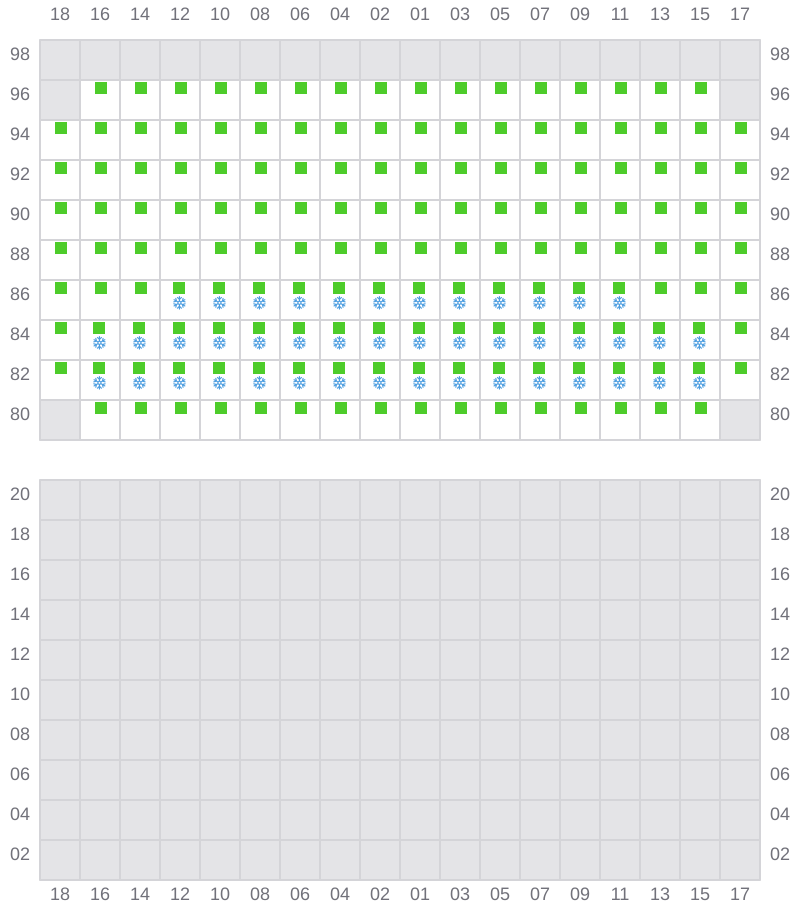

073 (074)
- → / ?
- ← / ?
![Bay 073 view and slots of APL MEXICO CITY](/vessel-images/24fb938a-a5a4-4482-8c8a-9b7810bd56b3-b073.png?v=1712250901122)
